Machine Learning-Based Prediction Models of Acute Respiratory Failure in Patients with Acute Pesticide Poisoning

Abstract

The prognosis of patients with acute pesticide poisoning depends on their acute respiratory condition. Here, we propose machine learning models to predict acute respiratory failure in patients with acute pesticide poisoning using a decision tree, logistic regression, and random forests, support vector machine, adaptive boosting, gradient boosting, multi-layer boosting, recurrent neural network, long short-term memory, and gated recurrent gate. We collected medical records of patients with acute pesticide poisoning at the Soonchunhyang University Cheonan Hospital from 1 January 2016 to 31 December 2020. We applied the k-Nearest Neighbor Imputer algorithm, MissForest Impuer and average imputation method to handle the problems of missing values and outliers in electronic medical records. In addition, we used the min–max scaling method for feature scaling. Using the most recent medical research, p-values, tree-based feature selection, and recursive feature reduction, we selected 17 out of 81 features. We applied a sliding window of 3 h to every patient’s medical record within 24 h. As the prevalence of acute respiratory failure in our dataset was 8%, we employed oversampling. We assessed the performance of our models in predicting acute respiratory failure. The proposed long short-term memory demonstrated a positive predictive value of 98.42%, a sensitivity of 97.91%, and an F1 score of 0.9816.

1. Introduction

Pesticide toxicosis is caused by the ingestion of or exposure to pesticides [1]. In the Republic of Korea, the death toll from toxicosis is 2702 people and 1675 of the 2702 people (61.99%) had toxicosis caused by the ingestion of pesticides [2]. In addition, 71% of patients with pesticide poisoning have been reported to die within 6–24 h [2]. The most common reason for the ingestion of pesticides is suicide [3]. Each year, 110,000 individuals die from pesticide poisoning [3], which accounts for 13.7% of all suicides [3]. In the Republic of Korea, some regions (Chungcheong-do, Gangwon-do, Jeolla-do) have a higher death rate from pesticide poisoning than that the capital area (Seoul, Incheon, and Gyeonggi-do) [2]. Pesticide toxicosis is easily accessible, especially in these regions [2]. Neurological, respiratory, and cardiovascular symptoms have been reported in cases of pesticide toxicosis [1]. The prognosis of pesticide toxicosis depends on the extent of respiratory failure [1]. Respiratory failure is associated with a high death rate in hospitals. Current respiratory failure treatment options can be ineffective [4]. Preventing the failure of multiple organs is crucial in reducing the rate of mortality from respiratory failure [5]. Therefore, the prediction of respiratory failure is important for patient prognosis.

Recent predictions of respiratory failure include predicting respiratory failure based on semi-supervised learning [4]; predicting respiratory failure with clinical data [5]; predicting respiratory failure in patients with coronavirus disease-2019 (COVID-19) [6]; predicting respiratory failure in the intensive care unit (ICU) [7,8]; predicting respiratory failure in pesticide intoxication [9]; and predicting respiratory failure with simple patient trajectories [10].

Machine learning algorithms such as semi-recurrent neural networks (RNNs), extreme gradient boosting, logistic regression (LR), random forest (RF), and long short-term memory (LSTM) have been used to predict respiratory failure in previous studies. In the case of respiratory failure prediction based on semi-RNNs, the positive predictive value (PPV) was 3.3% and the sensitivity was 78.0% [4]. In the case of respiratory failure prediction with clinical data, the sensitivity was 71% [5]. In the case of respiratory failure prediction in patients with COVID-19, the PPV was 74% and the sensitivity was 78% [6]. In the case of respiratory failure prediction in the ICU, the PPV was 42% and the sensitivity was 80% [7]. In the case of respiratory failure prediction in pesticide intoxication, the PPV was 83.3% and the sensitivity was 60.6% [9]. In the case of respiratory failure prediction with simple patient trajectories, the PPV was 22.6% and the sensitivity was 88.1% [10]. Therefore, the performance of algorithms for predicting acute respiratory failure is low.

Our goal is to predict the prognosis for patients with acute pesticide poisoning. However, it is difficult to predict the prognosis because of the various causes of acute pesticide poisoning. We predict acute respiratory failure, an important prognostic factor for patients with acute pesticide poisoning. We predict acute respiratory failure within 24 h using machine learning and three-hour electronic medical records (EMRs) for patients. We perform EMR preprocessing as follows: (1) solve human errors; (2) solve missing values; (3) sliding window; (4) feature selection; (5) data scaling; and (6) solve the imbalance. Data preprocessing is important to improve performance [11,12,13,14]. Using current patient data to fill in the gaps, we imputed missing values using the k-Nearest Neighbor (KNN) imputer algorithm from scikit-learn [15], the MissForest Imputer, or the data average imputation technique. We used a sliding window dataset based on 3 h data. We performed feature selection based on the current medical knowledge and p-values and oversampling. We performed data scaling using MinMaxScaler provided by scikit-learn [15]. For predicting acute respiratory failure in acute pesticide poisoning, we utilize shallow learning such as decision tree (DT), random forest (RF), logistic regression (LR), support vector machine (SVM), adaptive boosting (AB), gradient boosting (GB), and deep learning such as multi-layer perceptron (MLP), recurrent neural network (RNN), long short-term memory (LSTM), and gated recurrent unit (GRU).

2. Materials

2.1. Data

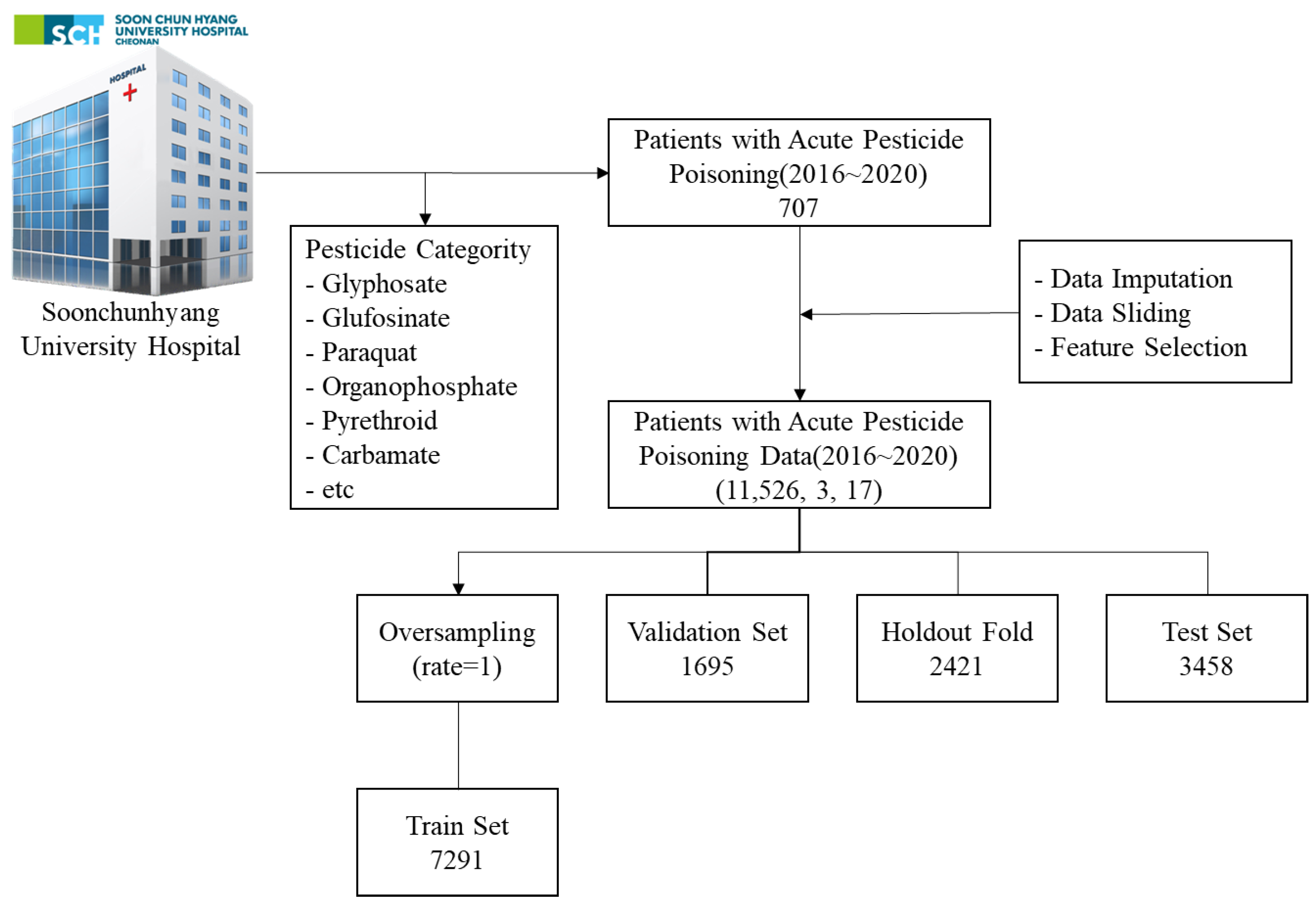

This retrospective cohort study consisted of patients admitted to Soonchunhyang University Cheonan Hospital in the Republic of Korea between January 2016 and December 2020. The patients were over 19 years of age. The patients with pesticide poisoning and respiratory failure within 1 h of admission were excluded. The number of patients was 707. The pesticide categories included glyphosate, glufosinate, paraquat, organophosphate, pyrethroid, and carbamate. After replacing missing data, we performed sliding window data preprocessing, feature selection, and oversampling on the medical records.

When the data preprocessing process was completed, the total data consisted of 11,526 data with 17 features for 3 h. We split the data into the training dataset and test dataset at a 7:3 ratio. The training dataset was then divided with a 7:3 ratio into a training dataset and a test dataset. The training dataset was then divided with a 7:3 ratio into a training dataset and a holdout fold. The training dataset was then divided with a 7:3 ratio into a training dataset and a validation dataset. Using the training dataset, machine learning methods were constructed and evaluated using the holdout fold. The number of respiratory failures was only 909. Oversampling or undersampling can be used to solve the imbalance in the datasets. We used oversampling algorithms such as the synthetic minority oversampling technique (SMOTE), borderline-SMOTE, and adaptive synthetic (ADASYN) given the limited cases of respiratory failure. Figure 1 shows the processing of patient selection. The number of training datasets was 7291, the number of validation set was 1695, and the number of holdout fold was 2421, and the number of test datasets was 3458.

2.2. Replacement Missing Value

Medical records are not free from missing values. The patient may be absent or there may be problems with noise or human errors. To improve machine learning algorithms, missing values need to be solved [11,12]. We solved missing values with the following three steps: (1) replace missing values with the recent data imputer (RDI); (2) apply the KNN imputation algorithm of scikit-learn with highly relevant features; and (3) replace other features through average imputation.

2.2.1. Recent Data Imputer

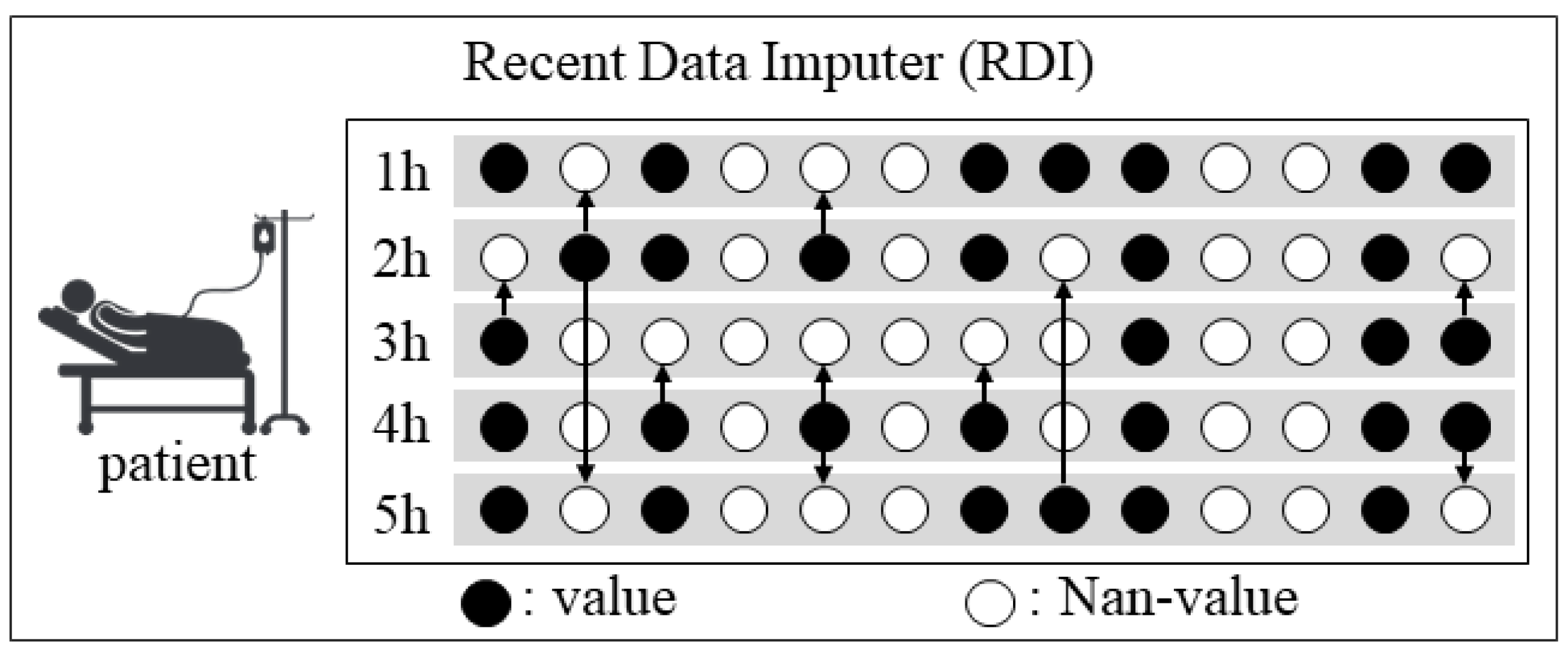

Time-series data have continuous values over time. The RDI can be used to replace the missing values of each patient with recent data. Figure 2 shows the RDI algorithm. The average imputer, the maximum imputer, and the minimum imputer are non-consistent time-series characteristics. The RDI has time-series characteristics.

2.2.2. k-Nearest Neighbor (KNN) Imputer

There may be missing values after using the RDI. The KNN imputer replaces missing values through distance functions for highly correlated features [13]. Improved performance may be achieved with the KNN compared with that of other imputers, such as the average imputer, maximum imputer, and minimum imputer [13]. We performed KNN imputation with highly relevant features twice as follows: (1) total CO₂, pH, HCO₃ standard, base excess, and lactate features; (2) pCO₂ and pO₂ features.

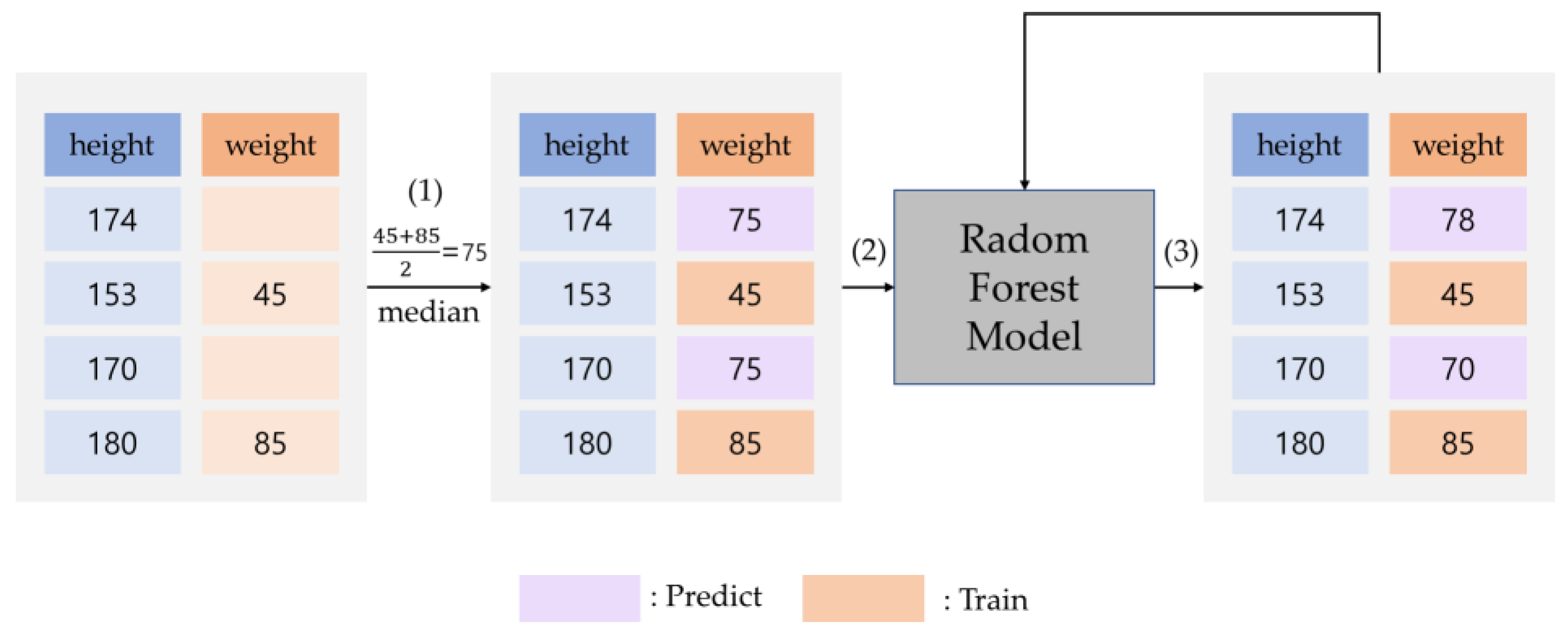

2.2.3. MissForest Imputer

The MissForest is an imputer based on RF [16]. Figure 3 shows the processing of MissForest. The MissForest replaces missing values to the median and trains on the dataset to interpolate missing values into prediction results.

We interpolate total CO₂, pH, HCO₃ standard, base excess lactate, pCO₂, and pO₂ after performing the RDI algorithm.

2.3. Feature Selection

Feature selection is important to improve the machine learning algorithm [14]. We perform according to a feature selection. (1) We calculate p-values to confirm unrelated features. (2) We determine features based on current medical knowledge. (3) We analyze the importance of features using RF and GB. (4) Using recursive feature elimination, we analyze both high- and low-ranking features. (5) In low-ranking features, we compare performance results exclusive to each feature.

First, we calculate the p-value for each feature and respiratory failure using ordinary least squares. To calculate the p-value, we utilize the OLS method provided by statsmodels [17]. We ignored features with p-value above 0.05 because they are uncorrelated factors.

Table 1. The respiratory failure was correlated to p-values of features.

Features	p-Value	Features	p-Value
Pesticide dose	0.000	WBC	0.000
Sex	0.000	PLT	0.000
Age	0.000	Albumin	0.000
BMI	0.023	Glucose	0.070
Smoking	0.326	BUN	0.622
Alcohol	0.313	Creatinine	0.100
Diabetes disease	0.000	Total CO2	0.000
Respiratory disease	0.000	C-reactive protein 1	0.000
Cardiovascular disease	0.995	pH	0.000
GCS	0.000	pCO2	0.199
SBP max	0.088	pO2	0.000
DBP max	0.897	O2 saturation	0.000
HR max	0.000	HCO3 standard	0.356
RR max	0.174	BE	0.120
BT max	0.000	Troponin	0.555
Hb	0.221	Lactate	0.000

BMI: body mass index; GCS: Glasgow Coma Scale; SBP: systolic blood pressure; DBP: diastolic blood pressure; HR: heart rate; RR: respiratory rate; BT: body temperature; max: maximum; Hb: hemoglobin; WBC: white blood cell; PLT: platelet; BUN: blood urea nitrogen; BE: base excess.

shows the p-values for each feature.

We confirm that the features of p-values above 0.05 are as follows: smoking; alcohol; cardiovascular disease; SBP max; DBP max; RR max; Hb; glucose; BUN; creatinine; pCO₂; HCO₃ standard; BE; and troponin.

Second, we perform feature selection based on current medical knowledge. The following features are determined based on current medical knowledge: pesticide category; pesticide dose; sex; age; GCS; SBP max; HR max; BT max; WBC; PLT; albumin; total CO₂; CRP1; pH; pO₂; O₂ saturation; and lactate.

Third, we analyze tree-based feature selection methods.

Table 2. Performance result of tree-based feature selection method.

Features	Tree-Based Feature Selection		Features	Tree-Based Feature Selection
	RF	GB		RF	GB
Pesticide category	0.056	0.073	PLT	0.032	0.013
Pesticide dose	0.032	0.017	Albumin	0.034	0.008
Sex	0.001	0.0003	total_CO2	0.072	0.025
Age	0.039	0.019	C-reactive_protein_1	0.053	0.057
GCS	0.053	0.068	pH	0.175	0.247
SBP_max	0.010	0.003	pO2	0.018	0.003
HR_max	0.087	0.097	O2_saturation	0.062	0.017
BT_max	0.033	0.029	Lactate	0.017	0.006
WBC	0.224	0.316

RF: Random Forest; GB: Gradient Boost; GCS: Glasgow Coma Scale; SBP: systolic blood pressure; max: maximum; HR: heart rate; BT: body temperature; WBC: white blood cell; PLT: platelet.

shows the performance results of RF and GB. We confirm that sex is an unimportant feature.

Fourth, using recursive feature elimination, we analyze high- and low-ranking features. We perform recursive feature elimination based on SVM with linear, LR, RF, DT, and GB. We perform recursive feature elimination provided by scikit-learn.

Table 3. Performance result of recursive feature elimination of each algorithm. Low-rank features are albumin, platelet, and sex. High-rank feature is pH.

Machine Learning Algorithm	Low-Rank Feature	High-Rank Feature
SVM with linear	Albumin	pH
LR	PLT	pH
RF	Sex	pH
DT	Albumin	pH
GB	Sex	pH

SVM: support vector machine; LR: logistic regression; RF: random forest; DT: decision tree; GB: gradient boost; PLT: platelet.

shows the performance results of recursive feature elimination based on SVM with linear, LR, DT, and GB. We confirm that sex, albumin, and PLT are unimportant factors.

Fifth, we compare the performance results of each feature based on Table 2 and Table 3.

Table 4. Performance result of feature selection based on RF, GB, and MLP.

Feature	Algorithm	PPV	Sensitivity	F1 Score	AUC
Reference	RF	98.92%	96.34%	0.9761	0.9812
	GB	96.81%	95.29%	0.9604	0.9751
	MLP	96.81%	95.29%	0.9604	0.9751
Reference exclude sex	RF	98.92%	95.81%	0.9734	0.9786
	GB	92.78%	94.24%	0.9351	0.9681
	MLP	92.78%	94.24%	0.9351	0.9681
Reference exclude PLT	RF	99.46%	95.81%	0.9760	0.9788
	GB	98.89%	93.19%	0.9596	0.9655
	MLP	92.78%	94.24%	0.9351	0.9681
Reference exclude albumin	RF	98.39%	95.81%	0.9708	0.9784
	GB	96.70%	92.15%	0.9437	0.9594
	MLP	96.70%	92.15%	0.9437	0.9594

PPV: positive predictive value; RF: random forest; GB: gradient boosting; MLP: multi-layer perceptron; PLT: platelet.

shows the performance results of each feature using RF, GB, and MLP. The feature of the second stage is the highest performance in Table 4. We separate our dataset into train and test datasets. In the case of RF and GB, we train algorithms using stratified k-folds by train folds after separating train datasets into train folds and holdout folds. We train MLP algorithms using train folds and early stop using validation folds after separating train datasets into the train, validation, and holdout folds. In addition, we compare the performance of each feature via each algorithm using holdout folds.

For the performance evaluation of each feature, we perform steps one through five. The first and second steps exhibit the highest performance when each feature’s performance is evaluated. Therefore, we used the following features: pesticide category; pesticide dose; sex; age; GCS; SBP max; HR max; BT max; WBC; PLT; albumin; total CO₂; CRP1; pH; pO₂; O₂ saturation; and lactate.

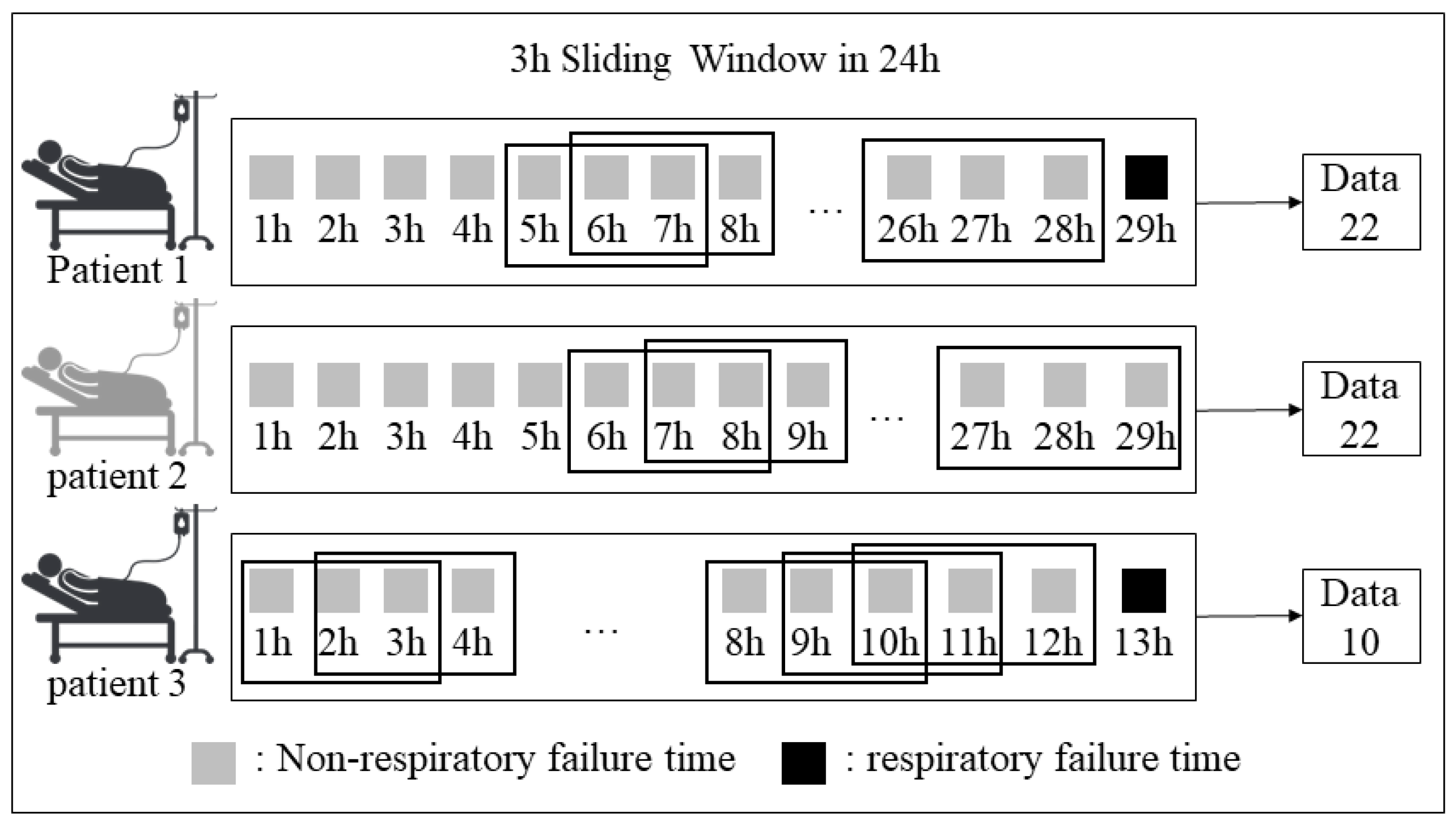

2.4. Hour Sliding Window in 24 H

In this study, our objective was to predict respiratory failure within 24 h using 3 h data. Figure 4 shows the sliding window to time-series data in 24 h based on 3 h data.

2.5. MinMaxScaler

In machine learning, each feature unit is different; thus, the results can be biased. To solve this, it is necessary to use the same data range. In this study, we used the MinMaxScaler provided by scikit-learn [15]. It expresses a value between 0 and 1 through Equation (1).

$$\mathrm{X}=\frac{\mathrm{X}-\min }{\max -\min }$$

(1)

The $\mathrm{X}$ variable represents a feature in the dataset. The $\min$ variable represents the minimum value of each feature. The $\max$ variable represents the maximum value of each feature.

2.6. Oversampling

In this study, the prevalence of respiratory failure was 8%, which suggests an imbalance. There are two methods of solving the imbalance: (1) oversampling and (2) undersampling. In this study, the number of cases of respiratory failure was limited and oversampling rather than undersampling tends to be better for improving performance [18]. Therefore, we performed oversampling. We applied SMOTE, borderline-SMOTE, and ADADYN to solve the data imbalance [19].

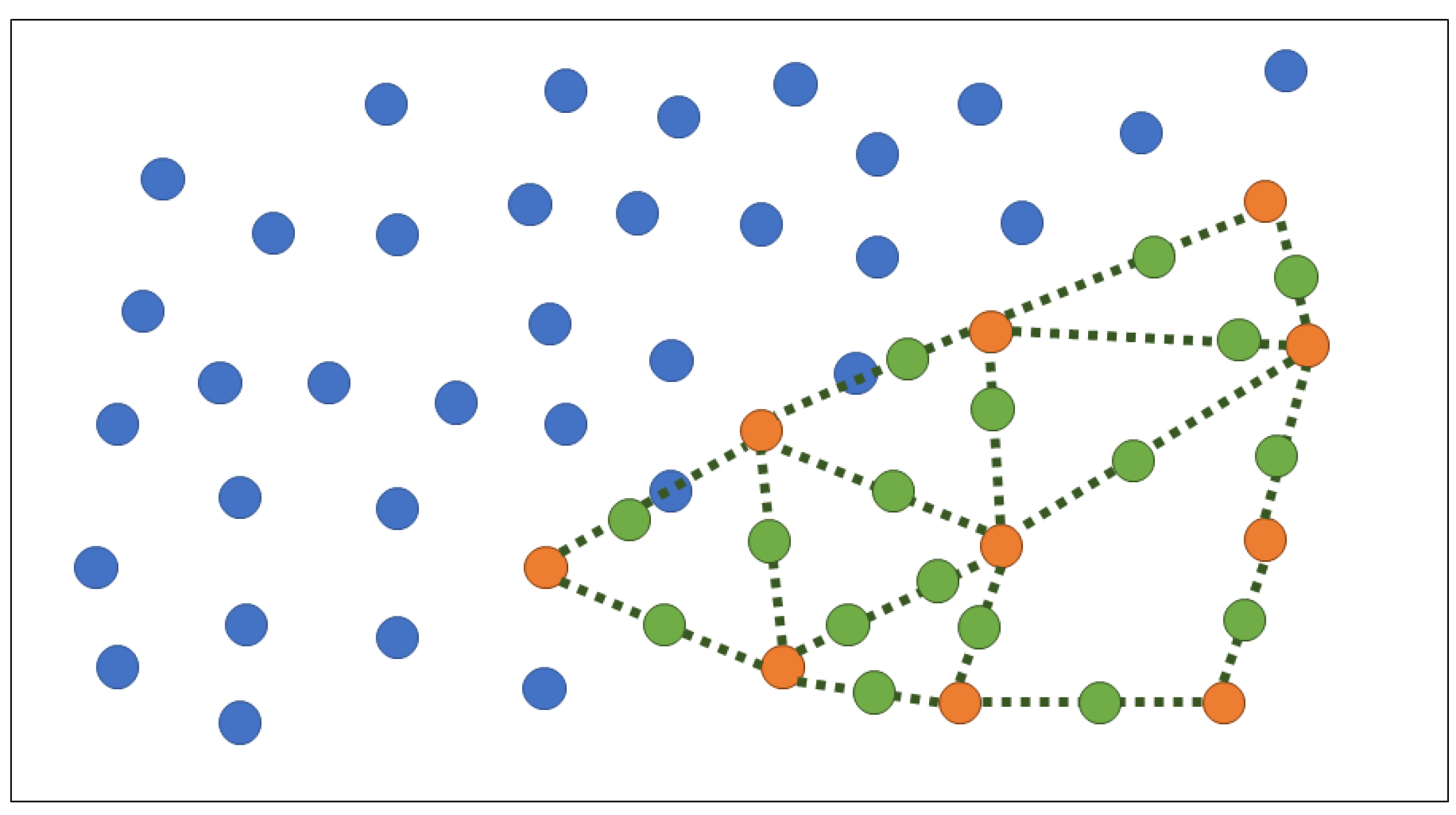

2.6.1. Synthetic Minority Oversampling Technique (SMOTE)

The SMOTE algorithm was proposed by Chawla et al. [20]. The SMOTE algorithm has three steps as follows: (1) apply the KNN algorithm in the minority class after randomized minority data selection [20]; (2) choose randomized minority data in the nearest data [20]; and (3) locate generated data between one-step and two-step data. Figure 5 shows the processing of the SMOTE algorithm.

2.6.2. Borderline-SMOTE

The borderline-SMOTE algorithm is based on the original SMOTE [21]. Notably, minority data may be far from the minority data-majority data boundary [21]. The borderline-SMOTE is applied at the boundary between minority data and majority data. After the KNN algorithm is applied to the minority data, the borderline-SMOTE algorithm considers data comprising more than half of the data to be borderline. The borderline-SMOTE applies the SMOTE algorithm to minority data at the borderline. Figure 6 shows data processing by the borderline-SMOTE, which generates minority data at the borderline and achieves classifier efficiency [19,21].

2.6.3. Adaptive Synthetic (ADASYN)

The ADASYN algorithm applies the KNN algorithm to minority data to generate minority data if there is a huge amount of majority data [19]. The ADASYN algorithm consists of four steps as follows [19]: (1) KNN algorithm calculates the ratio of minority data to majority data for each minority datum [19]; (2) the sum of the ratios of majority data is divided by each ratio of majority data [19]; (3) it is calculated to repeat through Equation (2) [19]; and (4) generate minority data as much as a repeat on each minority dataset [19]. Figure 7 shows data processing by the ADASYN algorithm.

$$\mathrm{repeat}=\mathrm{second} \mathrm{step} \mathrm{result}\times \left(\mathrm{number} \mathrm{of} \mathrm{majority}-\mathrm{number} \mathrm{of} \mathrm{minority}\right)$$

(2)

3. Methods

3.1. Shallow Learning

A time-series dataset has three dimensions: number of datasets, amount of time, and number of features, e.g., (11,148, 3, 17). However, the machine learning algorithms provided by scikit-learn [15] use only two dimensions. We used both time-series and non-time-series features. The time-series features were the maximum systolic blood pressure (SBP) in 1 h, maximum heart rate (HR) in 1 h, maximum body temperature (BT) in 1 h, white blood cell (WBC), platelet (PLT), albumin, total CO₂, cysteine-rich protein 1 (CRP1), pH, pO₂, O₂ saturation, and lactate. The non-time-series features were pesticide category, pesticide dose, sex, age, and Glasgow Coma Scale (GCS). We expressed the dataset structure as the number of datasets and number of features, e.g., (11,148, 41).

3.1.1. Logistic Regression (LR)

LR classification is based on the sigmoid function. LR calculates the weight and bias in the training dataset [22]. In this study, LR was used to calculate z with 41 features through Equation (3) [22].

$$\mathrm{Z}={{\displaystyle \sum }}_{\mathrm{i}=1}^{41}{\mathrm{w}}_{\mathrm{i}}{\mathrm{a}}_{\mathrm{i}}+\mathrm{b}$$

(3)

LR was used to calculate the sigmoid function with z through Equation (4) [22].

$$\mathrm{F}\left(\mathrm{z}\right)=\frac{1}{1+{\mathrm{e}}^{-\mathrm{z}}}$$

(4)

LR classification was performed by f(z) through Equation (5) [22]. If f(z) is greater than 0.5, it is classified as respiratory failure; otherwise, it indicates non-respiratory failure. We utilized the LR algorithm provided by scikit-learn [15].

$$\mathrm{predict}=\{\begin{array}{c}0 \mathrm{if} \mathrm{f}\left(\mathrm{z}\right)\le 0.5\\ 1 \mathrm{if} \mathrm{f}\left(\mathrm{z}\right)>0.5\end{array}$$

(5)

3.1.2. Decision Tree (DT)

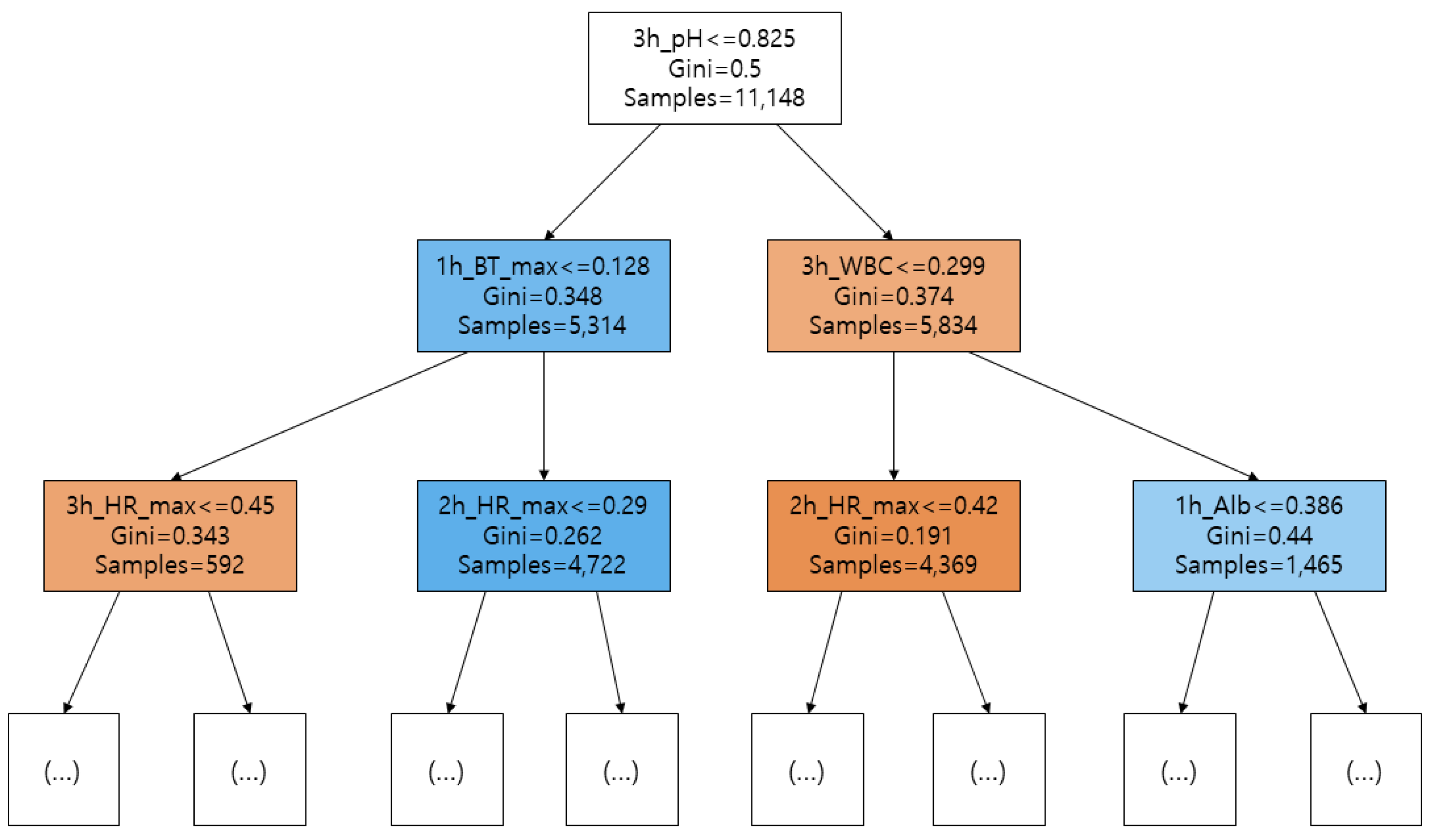

DT utilizes a binary tree structure, which can classify highly related features of respiratory failure [3]. DT calculates impurity and branches until the leaf node impurity is 0. There are two methods of calculating impurity: (1) the Gini coefficient and (2) the entropy coefficient. In this study, we calculated impurity using the Gini coefficient through Equation (6) [15].

$$\mathrm{Gini}={{\displaystyle \sum }}_{\mathrm{i}=1}^{\mathrm{n}}({\mathrm{R}}_{\mathrm{i}}(1-{{\displaystyle \sum }}_{\mathrm{k}=1}^{\mathrm{m}}{\mathrm{P}}_{\mathrm{k}}{}^2))$$

(6)

The n variable represents the number of nodes and the m variable represents the number of outcomes. In this study, m is 2. The R_i variable represents the sample ratio of each branch. The P_k variable represents the class ratio. DT utilizes pruning to solve overfit. Figure 8 shows the DT algorithms. The 1 h prefix indicates the medical record after 1 h of measurement. The 2 h prefix indicates the medical record after 2 h of measurement. The 3 h prefix indicates the medical record after 3 h of measurement. We used the DT model provided by scikit-learn [15].

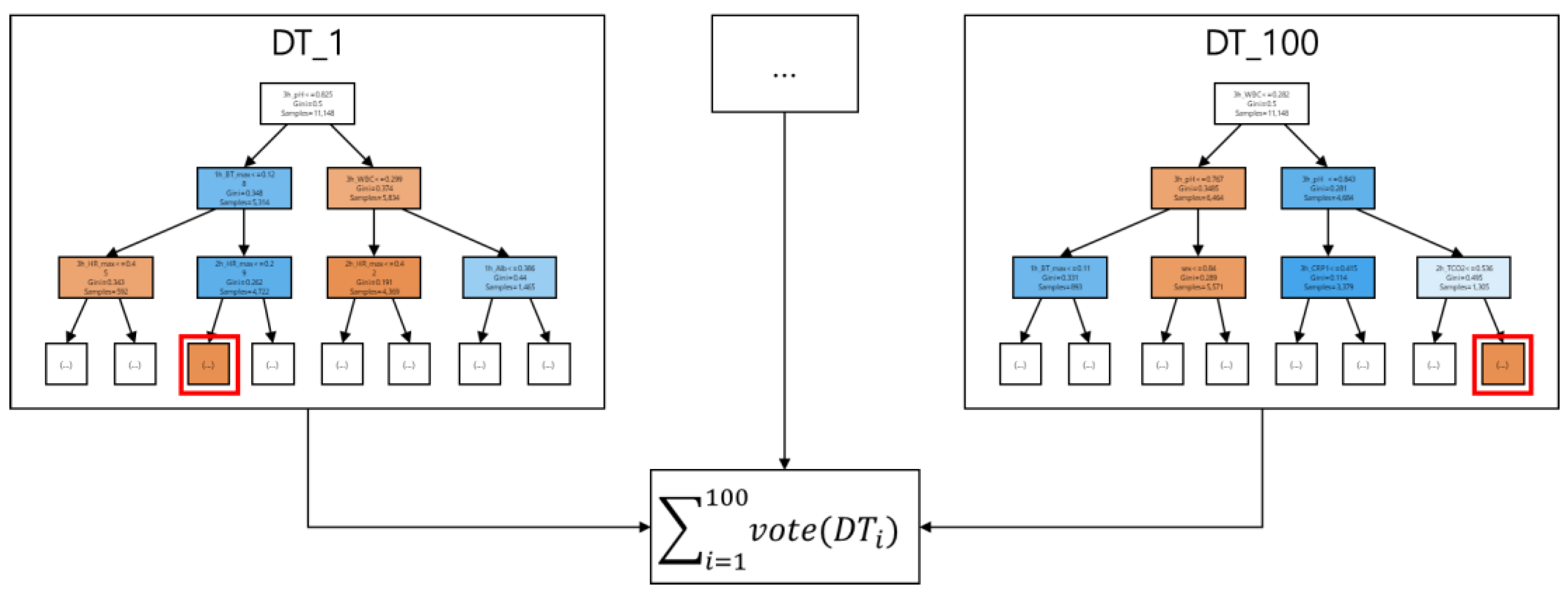

3.1.3. Random Forest (RF)

RF is an ensemble model that uses many DTs and bootstrap aggregation [23]. Figure 9 shows the processing of RF. After each DT in the RF predicts respiratory failure, the RF classifier votes on the prediction. In this study, we used a max depth hyperparameter of 6 and a n_estimators hyperparameter of 100 in the RandomForestClassifier provided by scikit-learn [15].

3.1.4. Support Vector Machine (SVM)

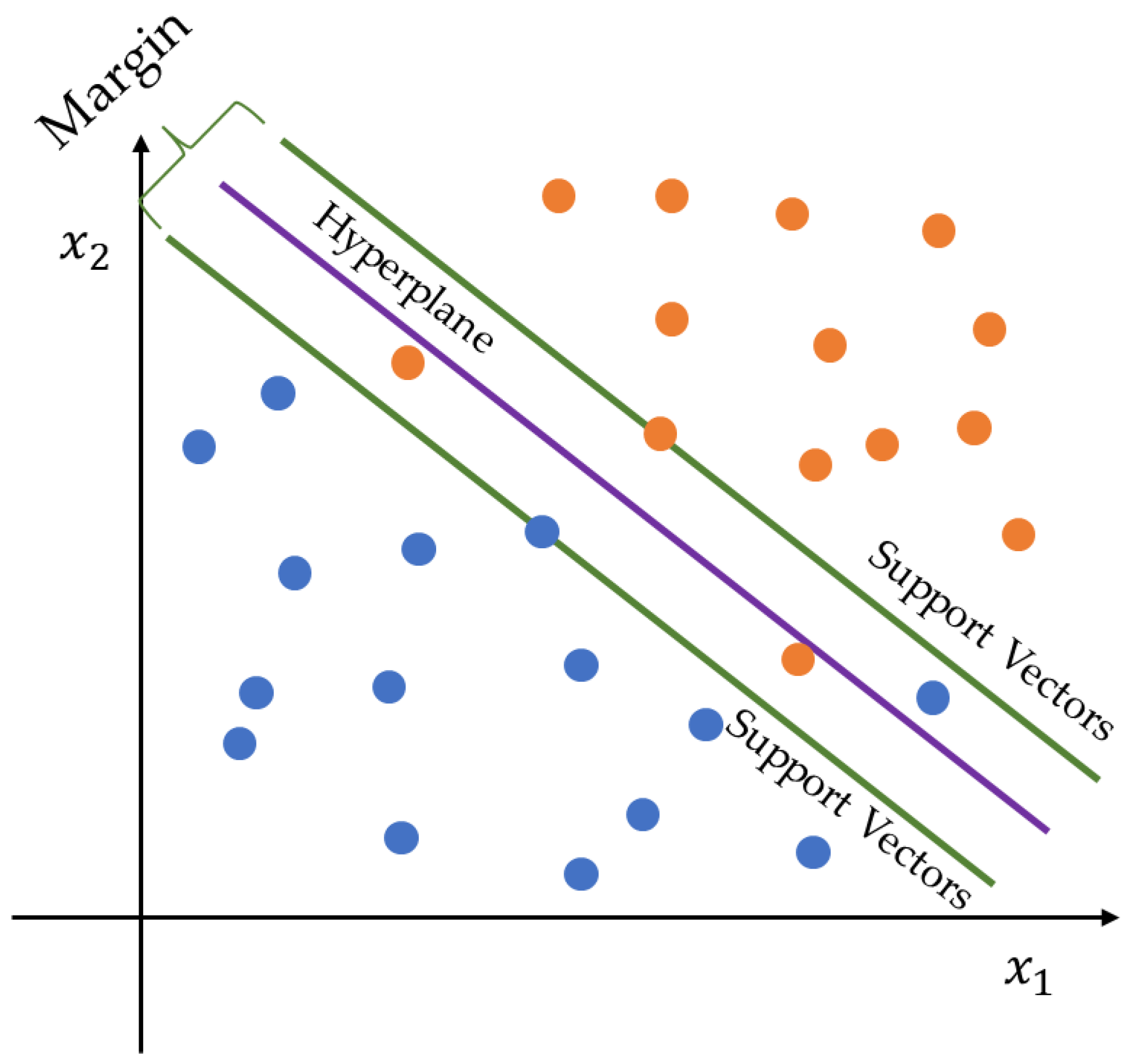

SVM is a support vector base classifier and not a decision boundary [24]. There is a problem with overfitting when other labels are near to the decision boundary. A support vector is a calculated boundary that minimizes classification error. Figure 10 shows classification based on the support vector of SVM.

3.1.5. Adaptive Boost (AB)

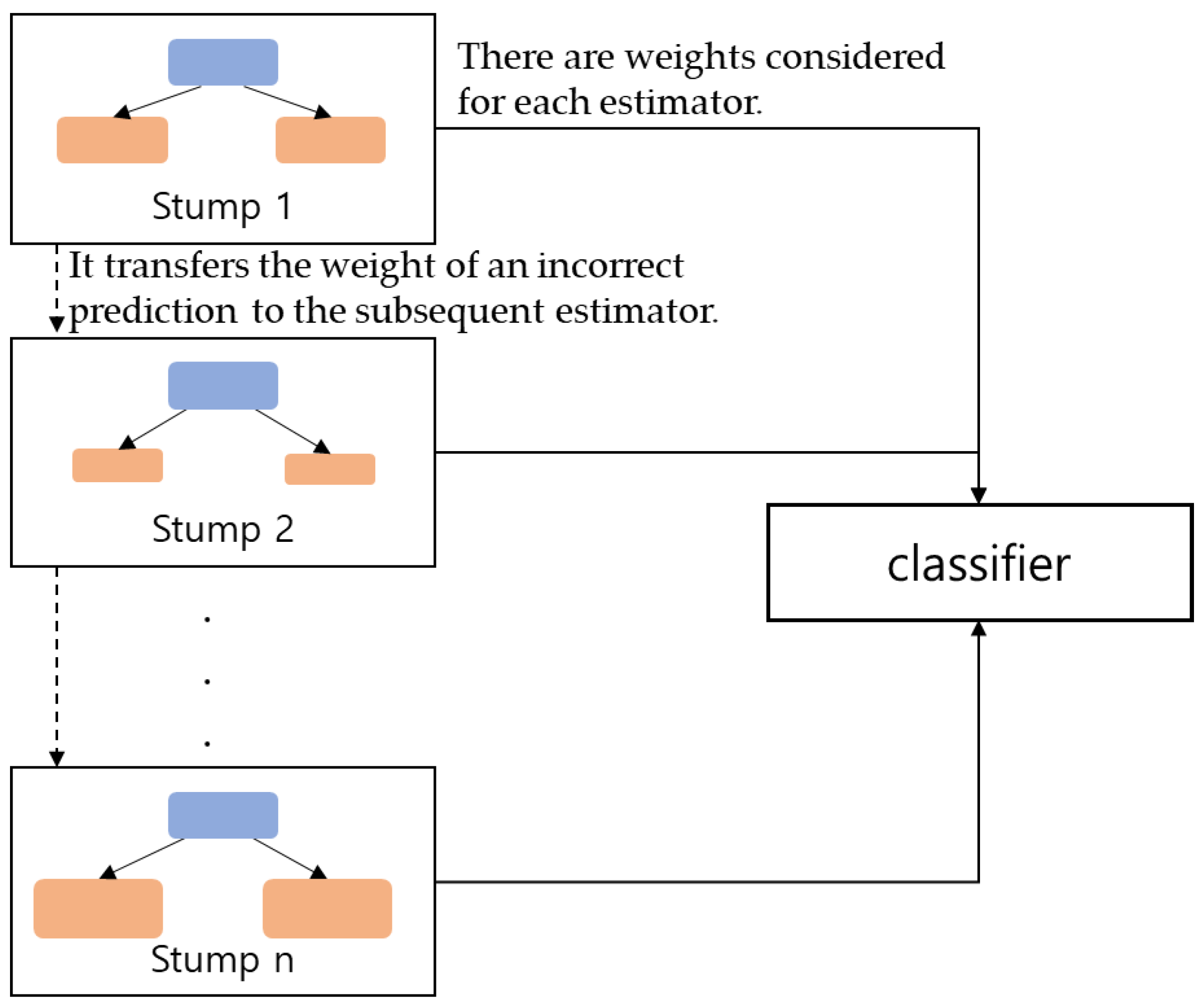

AB has two leaf nodes named as stump [25]. AB reduces the error by providing the next estimator with the weight of the incorrectly predicted respiratory dataset through the stump [25]. Figure 11 shows the AB weight calculation process.

3.1.6. Gradient Boost (GB)

The GB calculates the residual error for solving an incorrect prediction result by subtracting the measured value from the prediction value. GB calculates the residual error based on the tree using actual respiratory failure and prediction results.

3.2. Deep Learning Algorithms

We organize datasets in three dimensions because RNN-based models support time-series data. We utilize TensorFlow to perform deep learning [26].

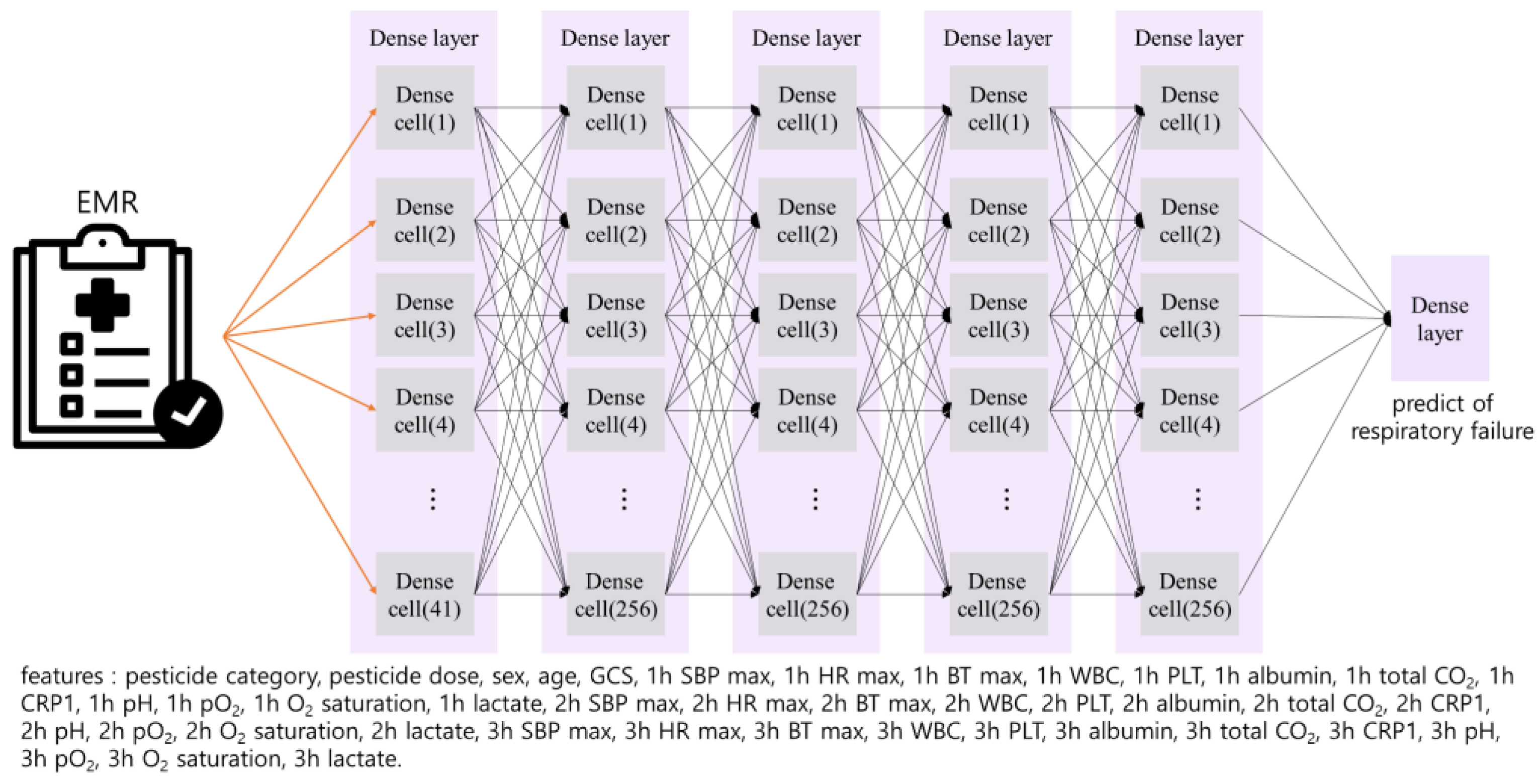

3.2.1. Multi-Layer Perceptron (MLP)

The perceptron calculates the weight of many features such as EMRs, for prediction. However, single perceptrons suffer with non-linear datasets. In order to solve the nonlinear problem, the perceptron organizes multiple layers, which is referred to as MLP. The MLP does not support three dimensions, so we organize datasets in two dimensions. We implement MLP utilizing dense layers provided by TensorFlow [26]. Figure 12 shows the structure of MLP.

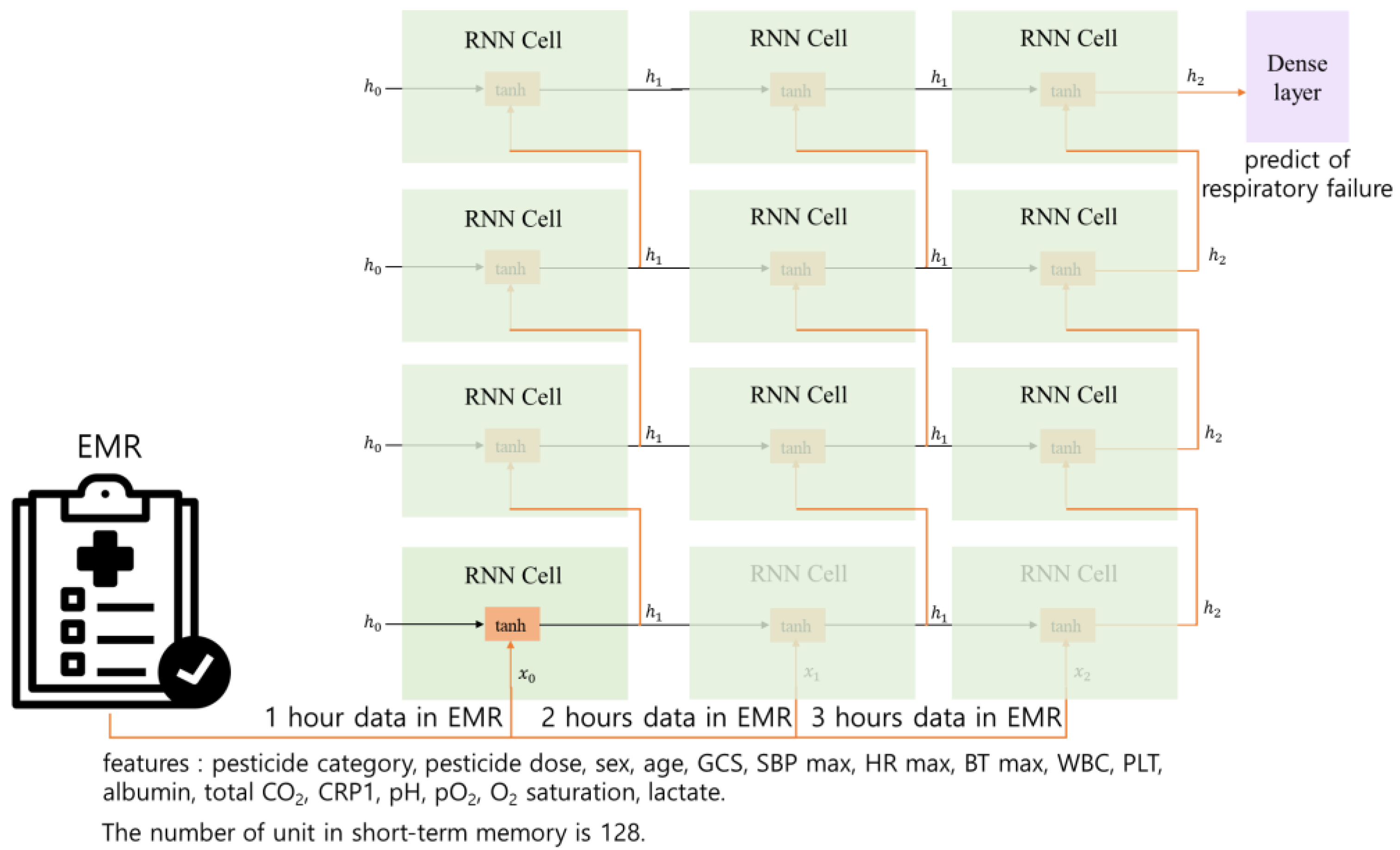

3.2.2. Recurrent Neural Network (RNN)

Without considering the order of the time series, machine learning recognizes the features of time-series as other features [27]. An RNN model has been proposed for considering the order of the time series. The vanilla RNN model calculates the current weights using the weights from the previous EMRs and the current EMRs. We implement RNN utilizing a simple RNN layer provided by TensorFlow. Figure 13 shows the structure of RNN.

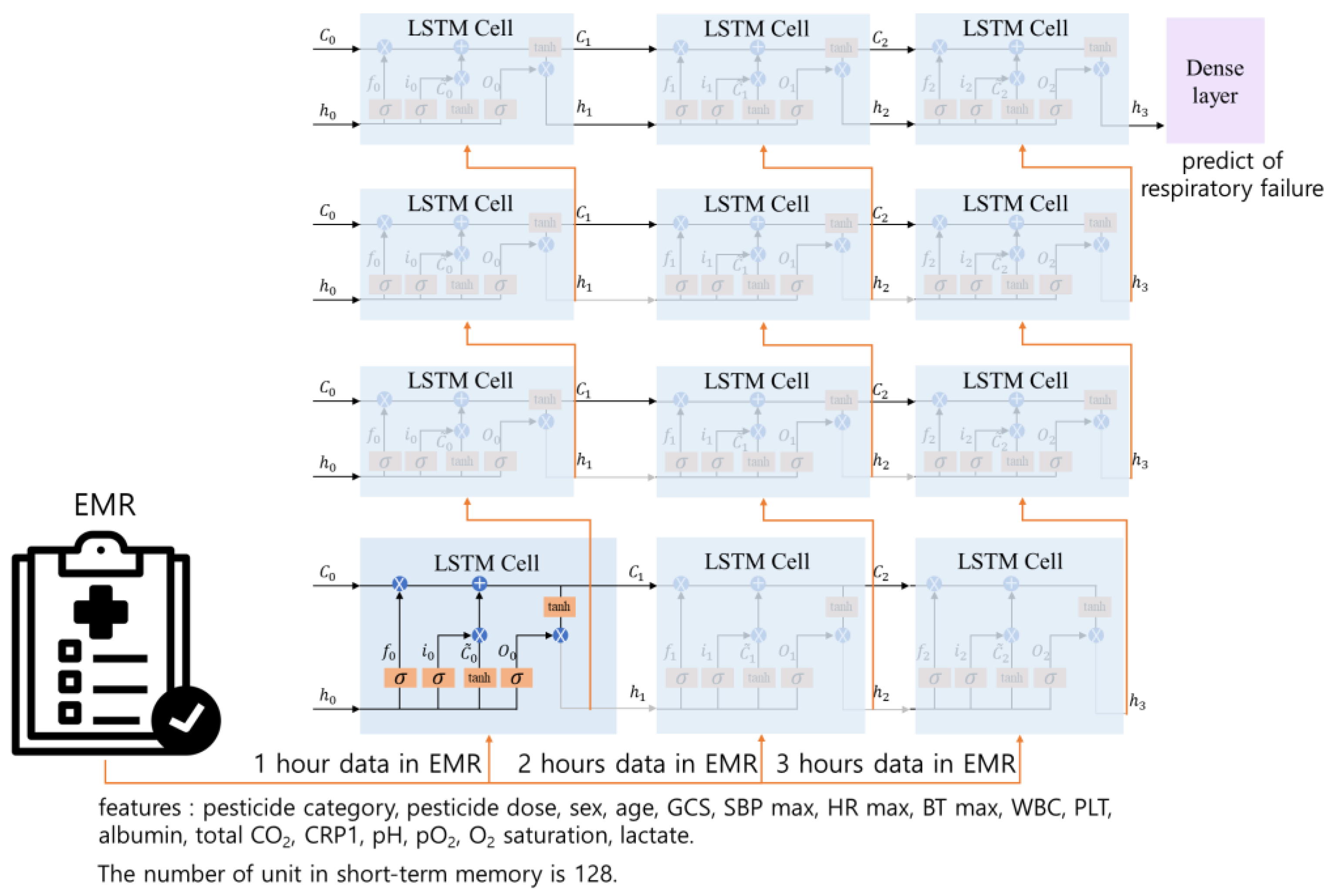

3.2.3. Long Short-Term Memory (LSTM)

The vanilla RNN has the problem of considering only previous and current EMRs [28]. LSTM organizes forget gate, input gate, and output gate to solve short-term dependent problems [28]. The input gate calculates reminder information for long-term memory using the weight of previous short-term memory and current EMRs. The forget gate calculates the removal information for long-term memory using the weight of previous short-term memory and current EMRs. The long-term memory updates using the results of the forget gate and input gate. The output gate calculates weight using previous short-term memory and current EMRs and current long-term memory. We utilize the LSTM layer provided by TensorFlow. Figure 14 shows the structure of LSTM.

3.2.4. Gated Recurrent Unit (GRU)

To solve long-term dependency in vanilla RNN, the GRU organizes update gates and reset gates [29]. The weight for the prediction of acute respiratory failure is calculated through previous memory and current EMRs. The update gates determine whether to use the previous memory or the current weight. The reset gates calculate the removal information for memory. We utilize the GRU layer provided by TensorFlow. Figure 15 shows the structure of GRU.

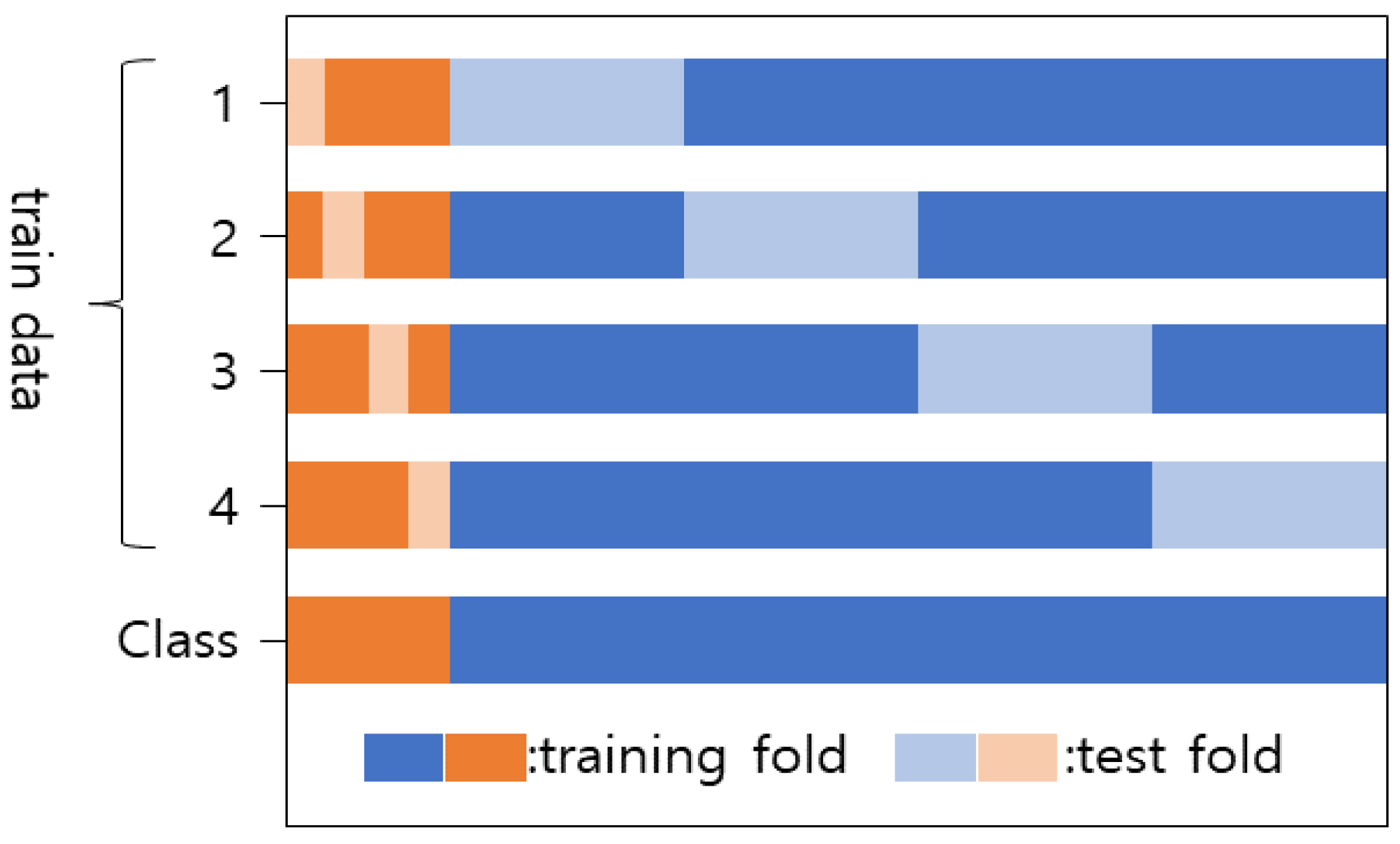

3.3. Stratified-k-Fold

Cross-validation involves the splitting of the training dataset into a training fold and a test fold [30]. The training fold is used for learning in the training step [30]. The test fold is used for validation after the machine learning training step [30]. This technique can be used to solve overfitting [31]. The stratified k-fold is a cross-validation method that separates the data into k-training folds and test folds based on the class ratio (Figure 16).

4. Results

4.1. Evaluation Methods

In machine learning, binary classification is mainly evaluated by a confusion matrix.

Table 5. Confusion matrix.

		Actual
		Respiratory failure	Non-respiratory failure
Precision	Respiratory failure	True positive (TP)	False positive (FP)
	Non-respiratory failure	False negative (FN)	True negative (TN)

shows the confusion matrix. In this study, the patient dataset was imbalanced. Therefore, the PPV and sensitivity are more important than accuracy. The PPV indicates the rate of actual respiratory failure patients among patients with predicted respiratory failure, which can be calculated through Equation (7).

$$\mathrm{PPV}=\frac{\mathrm{TP}}{\mathrm{TP}+\mathrm{FP}}$$

(7)

The sensitivity indicates the rate of patients with predicted respiratory failure among actual patients with respiratory failure, which can be calculated through Equation (8).

$$\mathrm{Sensitivity}=\frac{\mathrm{TP}}{\mathrm{TP}+\mathrm{FN}}$$

(8)

The F1 score considers both the PPV and sensitivity, which can be calculated through Equation (9).

$$\mathrm{F}1 \mathrm{score}=2\times \frac{\mathrm{PPV}\times \mathrm{Sensitivity}}{\mathrm{PPV}+\mathrm{Sensitivity}}$$

(9)

4.2. Characteristics of Study

We used 17 features to predict respiratory failure.

Table 6. The characteristics of our dataset.

	Training Data (n = 8068)	Test Data (n = 3458)
Pesticide dose	171.87 ± 138.07	177.18 ± 144.12
Sex, male	4994, 61.90%	2210, 63.91%
Age	61.07 ± 16.37	61.40 ± 16.48
GCS	13.90 ± 2.10	13.85 ± 2.19
1h_SBP_max	124.00 ± 18.03	123.89 ± 18.16
1h_HR_max	76.40 ± 14.37	76.30 ± 14.36
1h_BT_max	36.55 ± 0.36	36.55 ± 0.36
1h_WBC	7.53 ± 3.17	7.54 ± 3.15
1h_PLT	144.52 ± 64.19	142.90 ± 65.09
1h_albumin	3.59 ± 0.48	3.57 ± 0.49
1h_total_CO2	24.14 ± 3.15	24.23 ± 3.15
1h_C-reactive_protein_1	26.97 ± 50.49	28.73 ± 51.61
1h_pH	7.43 ± 0.06	7.43 ± 0.06
1h_pO2	93.29 ± 26.62	93.02 ± 24.74
1h_O2_saturation	96.02 ± 3.67	96.03 ± 3.62
1h_lactate	2.43 ± 2.02	2.48 ± 2.12
2h_SBP_max	123.92 ± 17.90	123.93 ± 18.32
2h_HR_max	76.40 ± 14.38	76.38 ± 14.43
2h_BT_max	36.55 ± 0.35	36.56 ± 0.37
2h_WBC	7.53 ± 3.17	7.54 ± 3.15
2h_PLT	144.12 ± 63.80	142.47 ± 64.86
2h_albumin	3.58 ± 0.48	3.57 ± 0.49
2h_total_CO2	24.14 ± 3.15	24.23 ± 3.15
2h_C-reactive_protein_1	26.98 ± 50.49	28.74 ±51.61
2h_pH	7.43 ± 0.06	7.43 ± 0.07
2h_pO2	93.41 ± 26.20	92.98 ± 24.72
2h_O2_saturation	95.99 ± 3.79	96.00 ± 3.72
2h_lactate	2.44 ± 2.03	2.48 ± 2.13
3h_SBP_max	123.84 ± 18.01	123.79 ± 17.99
3h_HR_max	76.48 ± 14.52	76.34 ± 14.36
3h_BT_max	36.56 ± 0.35	36.56 ± 0.36
3h_WBC	7.53 ± 3.17	7.53 ± 3.15
3h_PLT	143.94 ± 63.64	142.42 ± 64.84
3h_albumin	3.58 ± 0.48	3.57 ± 0.49
3h_total_CO2	24.14 ± 3.16	24.24 ± 3.15
3h_C-reactive_protein_1	26.99 ± 50.48	28.74 ± 51.61
3h_pH	7.43 ± 0.07	7.43 ± 0.07
3h_pO2	93.44 ± 25.88	92.98 ± 24.74
3h_O2_saturation	95.99 ± 3.81	95.97 ± 3.88
3h_lactate	2.44 ± 2.04	2.49 ± 2.15

GCS: Glasgow Coma Scale; SBP: systolic blood pressure; HR: heart rate; BT: body temperature; WBC: white blood cell; PLT: platelet.

shows the mean and standard deviation of each feature in this study. We excluded the “pesticide category” from the features because there were several pesticide categories. We construct time series characteristics comprising 3 h measurements. To avoid overfitting, we oversampled the training dataset.

4.3. Evaluation of Imputation

We compared the performances of KNN and missForest after interpolating with RDI. We separate our dataset into train and test datasets. In the case of RF and GB, we train algorithms using stratified k-folds by train folds after separating train datasets into train folds and holdout folds. We train MLP algorithms using train folds and early stop using validation folds after separating train datasets into train, validation, and holdout folds. In addition, we compare the performance of the imputer via each algorithm using holdout folds. The results of KNN and missForest imputation using validation datasets based on RF, GB, and MLP are shown in

Table 7. Performance comparison of KNN and missForest based on RF, GB, and MLP.

Imputation	Algorithm	PPV	Sensitivity	F1 Score	AUC
KNN imputer	RF	98.92%	96.34%	0.9761	0.9812
	GB	97.80%	93.19%	0.9544	0.9651
	MLP	96.81%	95.29%	0.9604	0.9751
MissForest imputer	RF	98.92%	96.34%	0.9761	0.9812
	GB	97.74%	90.58%	0.9402	0.9520
	MLP	96.17%	92.15%	0.9412	0.9592

PPV: positive predictive value; RF: random forest; GB: gradient boosting; MLP: multi-layer perceptron.

.

In this paper, we confirm KNN imputer outperforms the MissForest imputer. We perform the KNN imputer after interpolating through RDI.

4.4. Evaluation of Hyperparameter Tuning

To improve the performance of each algorithm, we perform hyperparameter turning. We separate our dataset into train and test datasets. In the case of RF and GB, we train algorithms using stratified k-folds by train folds after separating train datasets into train folds and holdout folds. We train MLP algorithms using train folds and early stop using validation folds after separating train datasets into train, validation, and holdout folds. In addition, we compare the performance of hyperparameter tuning via each algorithm using holdout folds. On DT and RF, we tune the hyperparameter for the information gain method and max depth. We use SVM to turn hyperparameters for the penalty of square l2 and kernels with radial basis functions (RBF), linear, and polynomial. On AB, we tune the hyperparameters for the number of estimators and learning rate. On GB, we tune hyperparameters for the number of estimators and max depth. On MLP, RNN, LSTM, and GRU, we tune hyperparameters for the unit size and dropout rate. The performance results of each algorithm according to their hyperparameters are shown in

Table 8. Performance comparison of hyperparameter turning.

Algorithm	Hyperparameter				PPV	Sensitivity	F1 Score	AUC
DT	Function of computational complexity	Gini	Max depth	8	95.76%	82.72%	0.8876	0.9120
				9	96.49%	86.39%	0.9116	0.9306
				10	98.17%	84.29%	0.9070	0.9208
		Entropy		8	97.27%	93.19%	0.9519	0.9648
				9	98.35%	93.72%	0.9598	0.9679
				10	98.31%	91.62%	0.9485	0.9574
RF	Function of computational complexity	Gini	Max depth	8	98.66%	76.96%	0.8647	0.8844
				9	98.76%	83.25%	0.9034	0.9158
				10	98.74%	82.20%	0.8971	0.9105
		Entropy		8	98.86%	91.10%	0.9482	0.9550
				9	98.92%	96.34%	0.9761	0.9812
				10	98.91%	95.29%	0.9707	0.9760
SVM	Regularization parameter	5.5	kernel	RBF	99.32%	76.96%	0.8673	0.8846
				Linear	77.36%	42.92%	0.5522	0.7093
				Poly	97.43%	79.58%	0.8761	0.8970
		6.0		RBF	99.33%	77.49%	0.8706	0.8872
				Linear	76.58%	44.50%	0.5629	0.7167
				Poly	96.84%	80.10%	0.8768	0.8994
		6.5		RBF	99.34%	79.06%	0.8805	0.8950
				Linear	75.68%	43.98%	0.5563	0.7138
				Poly	86.84%	80.10%	0.8768	0.8994
AB	Number of estimators	140	Learning rate	0.5	94.08%	74.87%	0.8338	0.8723
				1.0	95.43%	87.43%	0.9126	0.9354
				2.0	6.91%	84.82%	0.1277	0.4344
		150		0.5	94.34%	78.53%	0.8571	0.8907
				1.0	96.07%	89.53%	0.9268	0.9461
				2.0	6.91%	84.82%	0.1277	0.4344
		160		0.5	94.97%	79.06%	0.8629	0.8935
				1.0	94.97%	89.01%	0.9189	0.9430
				2.0	6.91%	84.82%	0.1277	0.4344
GB	Number of estimators	110	Max depth	3	95.73%	82.99%	0.8845	0.9094
				4	97.77%	91.62%	0.9459	0.9572
				5	97.80%	93.19%	0.9544	0.9651
		120		3	96.45%	85.34%	0.9056	0.9254
				4	97.80%	93.19%	0.9544	0.9651
				5	97.80%	93.19%	0.9544	0.9651
		130		3	96.45%	85.34%	0.9056	0.9254
				4	97.78%	92.15%	0.9488	0.9598
				5	96.55%	87.96%	0.9205	0.9384
MLP	Unit size	64	Dropout rate	20%	97.13%	88.48%	0.9260	0.9413
				30%	96.63%	90.05%	0.9322	0.9489
				40%	95.71%	81.68%	0.8814	0.9068
		128		20%	97.71%	89.53%	0.9344	0.9467
				30%	98.24%	87.43%	0.9252	0.9365
				40%	94.97%	79.06%	0.8629	0.8935
		256		20%	96.81%	95.29%	0.9604	0.9751
				30%	97.80%	93.19%	0.9544	0.9651
				40%	92.73%	80.10%	0.8596	0.8798
RNN	Unit size	64	Dropout rate	20%	76.28	62.30%	0.6859	0.8032
				30%	86.26%	82.20%	0.8418	0.9054
				40%	71.34%	66.49%	0.6883	0.8210
		128		20%	98.32%	92.15%	0.9514	0.9601
				30%	97.85%	95.29%	0.9655	0.9755
				40%	78.08%	59.69%	0.6766	0.7913
		256		20%	96.65%	90.58%	0.9351	0.9515
				30%	64.88%	69.63%	0.6717	0.8320
				40%	98.22%	86.91%	0.9222	0.9339
LSTM	Unit size	64	Dropout rate	20%	95.72%	93.72$	0.9471	0.9668
				30%	98.29%	90.05%	0.9399	0.9496
				40%	72.15%	59.69%	0.6533	0.7886
		128		20%	96.15%	91.62%	0.9383	0.9565
				30%	98.29%	90.05%	0.9399	0.9459
				40%	98.88%	92.67%	0.9568	0.9629
		256		20%	98.87%	91.62%	0.9511	0.9577
				30%	97.77%	91.62%	0.9459	0.9572
				40%	98.86%	91.10%	0.9482	0.9550
GRU	Unit size	64	Dropout rate	20%	97.75%	91.10%	0.9431	0.9546
				30%	98.82%	87.43%	0.9278	0.9367
				40%	98.32%	92.15%	0.9514	0.9601
		128		20%	98.88%	92.15%	0.9539	0.9603
				30%	97.16%	89.53%	0.9319	0.9465
				40%	97.30%	94.24%	0.9574	0.9701
		256		20%	97.78%	92.15%	0.9488	0.9598
				30%	98.31%	91.10%	0.9457	0.9548
				40%	98.34%	93.19%	0.9570	0.9653

PPV: positive predictive value; DT: decision tree; RF: random forest; SVM: support vector machine; RBF: radial basis function; poly: polynomial; AB: adaptive boost; GB: gradient boost; MLP: multi-layer perceptron; RNN: recurrent neural network; LSTM: long short-term memory; GRU: gated recurrent unit.

.

DT had the highest F1 score when the information gain method and max depth were set to entropy and 9, respectively. RF had the highest F1 score when the information gain method and max depth were set to entropy and 9, respectively. SVM had the highest F1 score when the penalty of square l2 and kernel was set to 6.5 and radial basis function, respectively. AB had the highest F1 score when the number of estimators and learning rate were set to 150 and 1.0, respectively. GB had the highest F1 score when the number of estimators and max depth was set to 120 and 4, respectively. MLP had the highest F1 score when the unit size and dropout rate were set to 256 and 20%, respectively. RNN had the highest F1 score when the unit size and dropout rate were set to 128 and 30%, respectively. LSTM had the highest F1 score when the unit size and dropout rate were set to 128 and 40%, respectively. GRU had the highest F1 score when the unit size and dropout rate were set to 128 and 40%, respectively.

4.5. Evaluation of Oversampling Algorithms

We separate our dataset into train and test datasets. In the case of shallow machine learning, we train algorithms using stratified k-folds by train folds after separating train datasets into train folds and holdout folds. We train deep learning using train folds and early stop using validation folds after separating train datasets into train, validation, and holdout folds. In addition, we compare the performance of each oversampling via each algorithm using holdout folds.

Table 9. Prediction performance. GRU with ADASYN demonstrated the highest performance.

Machine Learning Algorithm	Oversampling	PPV	Sensitivity	F1 Score	AUC
LR	SMOTE	42.42%	86.39%	0.5690	0.8817
	Borderline SMOTE	43.24%	85.34%	0.5739	0.8787
	ADASYN	44.24%	86.39%	0.5851	0.8853
DT	SMOTE	86.27%	92.15%	0.8911	0.9545
	Borderline SMOTE	92.22%	93.19%	0.9271	0.9626
	ADASYN	86.12%	94.24%	0.9000	0.9647
RF	SMOTE	96.43%	98.95%	0.9767	0.9932
	Borderline SMOTE	95.43%	98.43%	0.9691	0.9901
	ADASYN	96.43%	98.90%	0.9765	0.9929
SVM	SMOTE	91.09%	96.34%	0.9364	0.9776
	Borderline SMOTE	90.53%	90.05%	0.9029	0.9462
	ADASYN	90.40%	93.72%	0.9203	0.9643
AB	SMOTE	83.11%	95.29%	0.8878	0.9681
	Borderline SMOTE	85.57%	90.05%	0.8776	0.9438
	ADASYN	83.49%	92.67%	0.8784	0.9555
GB	SMOTE	95.96%	99.48%	0.9769	0.9956
	Borderline SMOTE	95.90%	97.91%	0.9689	0.9877
	ADASYN	98.45%	99.48%	0.9896	0.9967
MLP	SMOTE	98.94%	97.91%	0.9842	0.9891
	Borderline SMOTE	96.84%	96.34%	0.9659	0.9803
	ADASYN	98.38%	95.29%	0.9681	0.9758
RNN	SMOTE	97.33%	95.29%	0.9630	0.9753
	Borderline SMOTE	98.35%	93.72%	0.9598	0.9679
	ADASYN	96.35%	96.86%	0.9661	0.9827
LSTM	SMOTE	97.85%	95.29%	0.9655	0.9755
	Borderline SMOTE	98.38%	95.29%	0.9681	0.9758
	ADASYN	98.93%	96.86%	0.9788	0.9838
GRU	SMOTE	98.3–8%	95.29%	0.9681	0.9758
	Borderline SMOTE	98.38%	95.29%	0.9681	0.9758
	ADASYN	98.42%	97.91%	0.9816	0.9889

PPV: positive predictive value; LR: logistic regression; DT: decision tree; RF: random forest; SVM: support vector machine; AB: adaptive boost; GB: gradient boost; MLP: multi-layer perceptron; RNN: recurrent neural network; LSTM: long short-term memory; GRU: gated recurrent unit.

shows the performance of each machine learning algorithm and oversampling algorithm. Table 9 showed the best performance at GRU with ADASYN.

4.6. Evaluation of Machine Learning Algorithms

We separate our dataset into train and test datasets. In the case of shallow machine learning, we train algorithms using stratified k-folds by train folds. We train deep learning using train folds and early stop using validation folds after separating train datasets into train and validation folds. In addition, we compare the performance of each algorithm using test datasets.

Table 10. Highest prediction performance of each machine learning algorithm.

Machine Learning Algorithms	Oversampling	PPV	Sensitivity	F1 Score	AUC
LR	ADSYN	44.47%	83.88%	0.5812	0.8745
DT	Borderline SMOTE	92.11%	94.14%	0.9312	0.9672
RF	SMOTE	96.09%	98.90%	0.9747	0.9928
SVM	SMOTE	89.49%	96.70%	0.9296	0.9786
AB	SMOTE	86.33%	94.87%	0.9040	0.9679
GB	ADASYN	96.10%	99.27%	0.9766	0.9946
MLP	SMOTE	97.48%	99.27%	0.9837	0.9952
RNN	ADASYN	95.67%	97.07%	0.9636	0.9835
LSTM	ADASYN	98.18%	98.90%	0.9854	0.9937
GRU	ADASYN	98.53%	98.17%	0.9835	0.9902

PPV: positive predictive value; LR: logistic regression; DT: decision tree; RF: random forest; SVM: support vector machine; AB: adaptive boost; GB: gradient boost; MLP: multi-layer perceptron; RNN: recurrent neural network; LSTM: long short-term memory; GRU: gated recurrent unit.

shows the highest performance achieved for each machine learning algorithm. In the case of PPV, GRU shows the highest performance. In the case of sensitivity, GB shows the highest performance. In the case of the F1 score, LSTM shows the highest performance.

4.7. Comparison of the Importance of Disease Prediction

We guess that the most important techniques in a machine learning algorithm are imputation, oversampling, and feature selection, in that order. We evaluate the performance of an RDI-based imputer and a mean-based imputer. In the RDI-based imputer, the PPV and sensitivity improved by more than 20% and 10%, respectively. The datasets in the medical field are unbalanced. In the case of diseases such as respiratory failure, they are classified according to their occurrence. The overfitting problem of prediction occurs when machine learning comprised a majority of the data in datasets. Oversampling or undersampling must be performed to solve imbalanced datasets.

Table 11. Performance result of each scenario.

Scenario	Algorithm	PPV	Sensitivity	F1 Score	AUC
Reference	LR	44.47%	83.88%	0.5812	0.8745
	DT	92.11%	94.14%	0.9312	0.9672
	RF	96.09%	98.90%	0.9747	0.9928
	SVM	89.49%	96.70%	0.9296	0.9786
	AB	86.33%	94.87%	0.9040	0.9679
	GB	96.10%	99.27%	0.9766	0.9946
	MLP	97.48%	99.27%	0.9837	0.9952
	RNN	95.67%	97.07%	0.9636	0.9835
	LSTM	98.18%	98.90%	0.9854	0.9937
	GRU	98.53%	98.17%	0.9835	0.9902
Replace missing values via average	LR	22.26%	70.70%	0.3386	0.7477
	DT	63.06%	83.15%	0.7172	0.8949
	RF	53.24%	87.18%	0.6611	0.9031
	SVM	41.05%	83.15%	0.5496	0.8646
	AB	58.21%	73.99%	0.6516	0.8472
	GB	75.40%	86.45%	0.8055	0.9201
	MLP	65.49%	81.32%	0.7255	0.8882
	RNN	62.10%	78.02%	0.6916	0.8697
	LSTM	41.63%	80.22%	0.5482	0.8529
	GRU	65.73%	85.71%	0.7440	0.9094
Does not perform oversampling	LR	81.46%	45.05%	0.5802	0.7209
	DT	98.05%	92.31%	0.9509	0.9608
	RF	98.85%	94.14%	0.9644	0.9702
	SVM	99.06%	77.29%	0.8683	0.8861
	AB	94.80%	86.81%	0.9063	0.9320
	GB	98.38%	89.01%	0.9346	0.9444
	MLP	95.67%	80.95%	0.8770	0.9032
	RNN	90.87%	83.88%	0.8724	0.9158
	LSTM	77.73%	62.64%	0.6937	0.8055
	GRU	91.09%	86.08%	0.8851	0.9268

PPV: positive predictive value; LR: logistic regression; DT: decision tree; RF: random forest; SVM: support vector machine; AB: adaptive boost; GB: gradient boost; MLP: multi-layer perceptron; RNN: recurrent neural network; LSTM: long short-term memory; GRU: gated recurrent unit.

shows the performance results of replacing missing values with the mean or not performing oversampling. In the case of not performing oversampling, the sensitivity is lower than if oversampling had been performed.

Table 4 shows the variance in performance according to the features. We consider the features with the highest performance in Table 4. In the case of machine learning algorithms, the performance depends on the dataset. The sensitivity of machine learning algorithms in Table 10 is more than 80%. However, the PPV of logistic regression is less than 50%. The deep learning models such as RNN, LSTM, and GRU all performed at comparable levels.

5. Discussion

We proposed the prediction model for acute respiratory failure, an important prognostic factor in acute pesticide poisoning patients. The effects of respiratory failure include loss of consciousness, arrhythmias, and death.

Table 12. Comparison of the performance between the proposed algorithm and algorithms in other studies.

Algorithms		Features	Patient Data Range	Sensitivity	PPV	AUC
[4]	Semi-supervised learning	25	32 h	0.78	0.023	0.78
[5]	XGBoost	24	-	0.71	-	-
[6]	LR	26	-	0.72	0.74	0.89
[7]	LightGBM	25	-	0.80	-	0.746
[8]	GradientBoosting	106	6 h	0.534	0.643	0.769
[9]	LR	7	-	0.606	0.833	0.912
[10]	LSTM	8	2 h	0.881	0.226	0.886
Our algorithm	LSTM	17	3 h	0.9817	0.9890	0.9937

PPV: positive predictive value; LR: logistic regression; LSTM: long short-term memory; RF: random forest.

shows the performance of each algorithm for the prediction of respiratory failure. In recent years, respiratory failure prediction models have been developed to predict respiratory failure in COVID-19 patients based on deep learning with semi-supervised learning [4], respiratory failure based on XGBoost using clinical data [5], respiratory failure in COVID-19 patients based on LR [6], respiratory failure in ICU patients based on LightGBM [7], respiratory failure in patients with pesticide poisoning due to intentional pesticide ingestion based on LR [9], cardiac arrest and respiratory failure in ICU patients based on LSTM [10], and respiratory failure in ICU patients based on gradient boosting [8]. In the case of prediction based on semi-supervised learning [4], the PPV was 0.033 and the sensitivity was 0.78. In the case of prediction based on XGBoost using clinical data [5], the sensitivity was 0.71. In the case of prediction of respiratory failure with COVID-19 based on LR [6], the PPV was 0.74 and the sensitivity was 0.72. In the case of prediction based on LightGBM [7], the PPV was 0.42 and the sensitivity was 0.80. In the case of prediction of respiratory failure in patients with pesticide poisoning based on LR [9], the PPV was 0.833 and the sensitivity was 0.606. In the case of prediction based on LSTM [10], the PPV was 0.226 and the sensitivity was 0.881. However, these respiratory failure prediction algorithms are characterized by a large measurement interval, low performance, or large number of features [4,5,6,7,8,9,10]. Our proposed algorithm demonstrated improved respiratory failure prediction within 24 h with higher PPV and sensitivity compared with those of other models.

Our proposed algorithm demonstrated improved respiratory failure prediction within 24 h with higher PPV and sensitivity compared with those of other models. We guess that the pesticide category, white blood cell (WBC), pH, heart rate (HR), and C-reactive protein 1 are important predictors of respiratory failure in acute pesticide poisoning. The performance results of important features based on RF and GB confirmed that the highest-scoring features are the above features. These are the limitations of this paper: First, we conducted a single cohort at the Soonchunhyang University Cheonan Hospital. Second, we proceeded with retrospective research. We have not yet confirmed the validity from an external source. Third, our algorithm required three-hour EMRs. Our algorithm is not applicable to high-risk patients hospitalized for less than three hours. Fourth, our algorithm is difficult to use in hospitals. Our algorithm predicts whether respiratory failure has happened within 24 h. It does not estimate the time or risk score that a patient should experience respiratory failure. Follow-up research is required to decrease the prediction range for respiratory failure or score the patient’s risk or provide information such as the estimated time of respiratory failure.

6. Conclusions

We predicted respiratory failure in patients with pesticide poisoning at Soonchunhyang University Cheonan Hospital. We analyzed the 3 h medical records of individuals with pesticide poisoning to predict respiratory failure within 24 h. In consideration of time-series properties, sliding windows, feature selection, and oversampling were used to replace missing values. Enhanced performance was achieved with the use of LSTM. Moreover, our machine learning technique algorithm could improve the prognosis of patients with pesticide poisoning. In addition, we will enhance the algorithm for predicting respiratory failure within 24 h such that it can predict respiratory failure within 4 or 8 h. We plan to conduct studies to predict respiratory failure in patients admitted to the general ward and ICU.
