Prediction of Rockburst Propensity Based on Intuitionistic Fuzzy Set—Multisource Combined Weights—Improved Attribute Measurement Model

Abstract

A rockburst is a geological disaster that occurs in resource development or engineering construction. In order to reduce the harm caused by rockburst, this paper proposes a prediction study of rockburst propensity based on the intuitionistic fuzzy set-multisource combined weights-improved attribute measurement model. From the perspective of rock mechanics, the uniaxial compressive strength ${\sigma }_c$, tensile stress ${\sigma }_t$, shear stress ${\sigma }_{\theta }$, compression/tension ratio ${\sigma }_c/{\sigma }_t$, shear/compression ratio ${\sigma }_{\theta }/{\sigma }_c$, and elastic deformation coefficient $W_{et}$ were selected as the indicators for predicting the propensity of rockburst, and the corresponding attribute classification set was established. Constructing a model framework based on an intuitionistic fuzzy set–improved attribute measurement includes transforming the vagueness of rockburst indicators with an intuitionistic fuzzy set and controlling the uncertainty in the results of the attribute measurements, as well as improving the accuracy of the model using the Euclidean distance method to improve the attribute identification method. To further transform the vagueness of rockburst indicators, the multisource system for combined weights of rockburst propensity indicators was constructed using the minimum entropy combined weighting method, the game theory combined weighting method, and the multiplicative synthetic normalization combined weighting method integrated with intuitionistic fuzzy sets, and the single-valued data of the indicators were changed into intervalized data on the basis of subjective weights based on the analytic hierarchy process and objective weights, further based on the coefficient of variation method. Choosing 30 groups of typical rockburst cases, the indicator weights and propensity prediction results were calculated and analyzed through this paper’s model. Firstly, comparing the prediction results of this paper’s model with the results of the other three single-combination weighting models for attribute measurement, the accuracy of the prediction results of this paper’s model is 86.7%, which is higher than that of the other model results that were the least in addition to the number of uncertain cases, indicating that the uncertainty of attribute measurement has been effectively dealt with; secondly, the rationality of the multiple sources system for combined weights is verified, and the vagueness of the indicators is controlled.

1. Introduction

A rockburst is a geological hazard that occurs in resource development or engineering construction, manifesting itself as a sudden destabilization of the rock body and an explosive ejection of the rock mass [1,2,3]. With human activities continuing to move into the deep part of the earth, the high geostress, high osmotic pressure, and other factors caused by the high depth of burial will make rockburst accidents more frequent and more intense, which will further cause irreparable damage to personnel, equipment, etc. [4,5]. Many countries around the world have suffered from rockburst hazards during deep earth operations, such as China [6], Pakistan [7], Australia [8], Germany [9], South Africa [10], the United States [11], Canada [12], and so on. In fact, the places where rockbursts occur have not only been mining ore mines; civilian underground projects such as subways, tunnels, and water conservancy facilities are also deeply affected [13]. In general, rockburst has become a worldwide difficulty in rock science. If it is possible to more accurately predict the propensity of a rockburst occurring in the construction area, a greater degree of loss can be avoided, and for the construction method, explosive area exploration and protection work will also provide more effective theoretical support.

The mechanism of rockburst is still the focus of interest for experts and scholars in the field. With the passage of time, the study of the causation mechanism of rockbursts, the rules of development, the judgments, and the prediction model are also deepening, and more and more research results make the real situation of a rockburst more and more clear [14,15]. Generally speaking, the occurrence of rockbursts is mainly explained from an energy point of view, in which the energy accumulated in the rock loses its original homeostasis under the condition of external perturbation, causing destructive phenomena in the process of energy release [16]. The prediction of the rockburst propensity is essential to determine the degree to which the possibility of rockbursts occurs in that region. The research on rockburst prediction has gone through a single-factor stage, a multi-factor stage, and an artificial intelligence method stage in the development process, and the research methods used are becoming more and more comprehensive and scientific. A single-factor approach is used in the early stages of rockburst research. This stage is mainly through a relatively single indicator for rockburst criteria research, including the cookie criterion [17], Russenes criterion [18], Turchaninov criterion [19], Hoek criterion [20], Kidybinski criterion [21], etc. The focus of the consideration was only a single rock mechanics indicator (such as shear/compression ratio ${\sigma }_{\theta }/{\sigma }_c$) or elastic energy indicator (such as elastic deformation coefficient $W_{et}$). With the deepening of the study, it has been found that the occurrence of rockbursts is the result of the combined effect of many factors, and a single indicator criterion does not guarantee the accuracy of the prediction results. In this context, the multi-factor approach should replace the single-factor approach and become the mainstream of rockburst research [18,22,23]. Under the multi-factor approach, studies to predict rockburst propensity are mainly carried out using physical experimental methods or mathematical evaluation methods. In physical experimental studies, Lu et al. [24] used similar rock materials for physical experiments to simulate the transmission characteristics of stress waves in rock and the process of rockburst occurrence. Fakhimi et al. [25] simulated and studied the strain rupture of rock in the laboratory by designing a steel beam device connected to a compression loading machine. For the mathematical evaluation of rockbursts, Wang et al. [18] proposed a fuzzy mathematical comprehensive evaluation method to predict the rockburst with the shear/compression ratio ${\sigma }_{\theta }/{\sigma }_c$, compression/tension ratio ${\sigma }_c/{\sigma }_t$, and elastic deformation coefficient $W_{et}$ as the main controlling factors. Zhang et al. [26] selected some evaluation indicators based on the existing rockburst criterion, established a rockburst prediction model through rough set theory and extension theory, and then predicted and evaluated the rockburst in the case of the Jiangbian Power Station in Sichuan, China. Zhou et al. [27] investigated the destructiveness of a specific area before stress blasting, in which they evaluated it through a combination model based on the unconfirmed measures and entropy coefficients as well as eight selected indicators. Liu et al. [28] studied rockburst classification prediction through the method based on the cloud model and attribute weighting, and they verified the feasibility with the results from 164 sets of rockburst examples. Yin et al. [29] established a classification prediction model for rockburst based on the combined weighting and attribute interval identification, after which they verified the feasibility and applicability of the model through 12 sets of data calculations of rockburst cases and the optimization of average coefficients. Zhou et al. [30] analyzed the damage characteristics and key factors of rockburst in deep-buried tunnels under typical high geostress conditions and established a prediction model of rockburst in tunnels by combining the theory of unconfirmed measurements and the improved combined weighting method with the distance function, which verified its applicability through the engineering application of the model in tunnels. Hu et al. [31], aimed at improving the accuracy of rockburst prediction, optimized the theory of unconfirmed measurements using a normal cloud model, under which the accuracy of predicting rockburst was significantly higher than that of the traditional unconfirmed measurement model. Since computer technology has been widely used in the field of rock mechanics, intelligent algorithms and big data for predicting rockburst have become the future direction [32], and algorithms such as artificial neural networks and their derivatives [33,34,35], Bayesian networks [36,37], support vector machines [38,39], particle swarm optimization [38,40], and decision trees [41,42] have been introduced to improve the accuracy of the prediction results. In general, the current method of predicting rockburst propensity is usually based on the results of the integrated ranking of indicators, so the focus is on selecting the type of indicators, a reasonable weighting method, and modeling algorithms that fit the characteristics of rockburst data. The actual engineering situation in the field is often complex and variable, and the rockburst indicator data often have significant vagueness [4], so there are specific requirements for the predictive modeling algorithms used.

In order to adapt to the vagueness of the indicators for rockburst propensity and distinguish the attribute classification, this paper proposes a model based on intuitionistic fuzzy sets, multisource combined weights, and improved attribute measurements and studies the prediction of rockburst propensity. Building a model framework based on intuitionistic fuzzy set–attribute measure, the rockburst propensity indicator is transformed into an intervalized number field through the intuitionistic fuzzy set, and the indicator value is transformed to control the vagueness. Using the Euclidean distance method to improve the model recognition method of the attribute measure theory, which avoids artificial parameters affecting the accuracy of the prediction results. The mechanism of rockburst is analyzed and combined with actual case data, indicators of rockburst propensity are selected from the viewpoint of rock mechanics, and the relationship of the number field between the ranges of rock burst indicators are established, and the attribute classification is set. Based on the subjective weights obtained with the analytic hierarchy process and objective weights obtained with the coefficient of variation method, combined weights obtained with minimum entropy combined weighting, game theory combined weighting, and multiplicative synthesis normalization combined weighting are used to construct the multisource system for combined weights of rockburst propensity indicators, avoiding the weight bias, to the greatest extent, caused by different focuses of the weighting and converting single-valued indicators into intervalized values using intuitionistic fuzzy sets to expand the effective range of the indicators and further control the vagueness. Finally, the model prediction results for 30 sets of rockburst case data are calculated and compared with the prediction results of the other three attribute measurement models that use single combined weighting to verify the accuracy of the model proposed in this paper.

2. Theoretical Overview

2.1. Intuitionistic Fuzzy Set Theory

Intuitionistic fuzzy set theory was proposed by Atanassov in 1983 [43,44,45] by expanding the space of fuzzy sets to three dimensions through the three characteristic values of the degree of affiliation, non-affiliation, and hesitation to better control the vagueness of the problem to be solved [46,47,48].

Assuming that the set $A=\left\{x_i|i=1,\dots ,w\right\}$ is a defined domain and non-empty, then the intuitionistic fuzzy set $X$ of $A$ is defined as:

$$X=\left\{\left|x_i,e(x_i),f(x_i)\right|x_i\in A\right\}$$

(1)

where $e(x_i)$ and $f(x_i)$ are the degree of affiliation and non-affiliation of $x_i$ to the set $X$, respectively, and additionally, $g(x_i)$ is introduced to denote the degree of hesitation, which is satisfied as follows:

$$\{\begin{array}{l}0\le e(x_i)+f(x_i)\le 1\\ e(x_i)\in \left[0,1\right];f(x_i)\in \left[0,1\right]\\ g(x_i)=1-\left[e(x_i)+f(x_i)\right]\end{array}$$

(2)

If there are two intuitionistic fuzzy sets $X_1$ and $X_2$, when sum and product operations are required, the equation are as follows:

$$\{\begin{array}{l}{X}_1•X_2=\langle e_1(x_{1i})\times e_2(x_{2i}),f_1(x_{1i})+f_2(x_{2i})-f_1(x_{1i})\times f_2(x_{2i})\rangle \\ X_1+X_2=\langle e_1(x_{1i})+e_2(x_{2i})-e_1(x_{1i})\times e_2(x_{2i}),f_1(x_{1i})\times f_2(x_{2i})\rangle \end{array}$$

(3)

where $e_1$ denotes the degree of affiliation for $x_{1i}$ to $X_1$, $e_2$ denotes the degree of affiliation for $x_{2i}$ to $X_2$, $f_1$ denotes the degree of non-affiliation for $x_{1i}$ to $X_1$, and $f_2$ denotes the degree of non-affiliation for $x_{2i}$ to $X_2$.

2.2. Attribute Measurement Theory

Attribute measurement theory, also known as attribute identification, is used to describe the measurement relationship between qualitative problems and attribute classes, which consists of three main components: single-indicator attribute measurement, composite attribute measurement, and attribute identification [49,50,51].

Assuming that the object to be evaluated $A=\left\{x_i|i=1,2,\dots ,w\right\}$ has a set of attribute classes $C=\left\{C_k|k=1,2,\dots ,n\right\}$, $C_1,C_2,\dots C_n$ are different attribute intervals of the set $C$, and there are $m$ indicators $I=\left\{I_j|j=1,\dots ,m\right\}$ that characterize the attributes. When the indicator is $I_j\in C_k,1\le k\le n$, the probability of belonging to class $C_k$ is $u_{jk}$, the attribute classification of the indicator is shown as Equation (4), and $a_{jk}$ denotes the boundaries of the values of the class, which are usually $a_{j0}>a_{j1}>\dots >a_{jk}$ or $a_{j0}<a_{j1}<\dots <a_{jk}$.

$$\begin{array}{l}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}{C}_1\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}{C}_2\hspace{1em} \cdots \hspace{1em}\hspace{1em}{C}_n\\ \left(\begin{array}{ccccc}{I}_1& a_{10}\sim a_{11}& a_{11}\sim a_{12}& \cdots & a_{1(n-1)}\sim a_{1n}\\ I_2& a_{20}\sim a_{21}& a_{21}\sim a_{22}& \cdots & a_{2(n-1)}\sim a_{2n}\\ ⋮& ⋮& ⋮& ⋮& ⋮\\ I_m& a_{m0}\sim a_{m1}& a_{m1}\sim a_{m2}& \cdots & a_{m(n-1)}\sim a_{mn}\end{array}\right)\end{array}$$

(4)

Assuming a median value of $b_{jk}$ for attribute class $C_k$ and a median value of $d_{jk}$ for the measure, the equation is calculated as follows:

$$\{\begin{array}{l}{b}_{jk}=\frac{(a_{jk-1}+a_{jk})}{2}\\ d_{jk}=\min \left\{\left|\frac{a_{jk-1}-a_{jk}}{2}\right|,\left|\frac{a_{jk}-a_{jk+1}}{2}\right|\right\}\\ k=1,2,\dots ,n-1\end{array}$$

(5)

where $a_{jk-1}$ and $a_{jk}$ denote the boundary values of $C_k$.

When there is a scheme $x_i$ in set $A$ that has a value of $l_j$ for an indicator $I_j$ and $a_{j0}<a_{j1}<\dots <a_{jk}$, the single-indicator attribute measurement equation $u_{jk}(l_j)$ is expressed as follows:

$$u_{j1}(l_j)\{\begin{array}{ll}1& l_j<\left(a_{j1}-d_{j1}\right)\\ \frac{\left(a_{j1}+d_{j1}-l_j\right)}{2d_{j1}}& \left(a_{j1}-d_{j1}\right)\le l_j\le \left(a_{j1}+d_{j1}\right)\\ 0& l_j>\left(a_{j1}+d_{j1}\right)\end{array}$$

(6)

$$u_{jk}(l_j)\{\begin{array}{ll}0& l_j<\left(a_{j(k-1)}-d_{j(k-1)}\right)\\ \frac{\left(l_j-a_{j(k-1)}+d_{j(k-1)}\right)}{2d_{j(k-1)}}& \left(a_{j(k-1)}-d_{j(k-1)}\right)\le l_j\le \left(a_{j(k-1)}+d_{j(k-1)}\right)\\ 1& \left(a_{j(k-1)}+d_{j(k-1)}\right)<l_j<\left(a_{jk}-d_{jk}\right)\\ \frac{\left(a_{jk}+d_{jk}-l_j\right)}{2d_{jk}}& \left(a_{jk}-d_{jk}\right)\le l_j\le \left(a_{jk}+d_{jk}\right)\\ 0& l_j>\left(a_{jk}+d_{jk}\right)\end{array}$$

(7)

$$u_{jn}(l_j)\{\begin{array}{ll}0& l_j<\left(a_{j(n-1)}-d_{j(n-1)}\right)\\ \frac{\left(l_j-a_{j(n-1)}+d_{j(n-1)}\right)}{2d_{j(n-1)}}& \left(a_{j(n-1)}-d_{j(n-1)}\right)\le l_j\le \left(a_{j(n-1)}+d_{j(n-1)}\right)\\ 1& l_j>\left(a_{j(n-1)}+d_{j(n-1)}\right)\end{array}$$

(8)

where $d_{jk}$ denotes the median value of the measure for $C_k$, $a_{j(k-1)}$ denotes the value of the left boundary for indicator $I_j$ about $C_k$, and $a_{jk}$ denotes the value of the right boundary for indicator $I_j$ about $C_k$.

When $a_{j0}>a_{j1}>\dots >a_{jk}$, the equation for the single-indicator attribute measurement function $u_{jk}(l_j)$ is as follows:

$$u_{j1}(l_j)\{\begin{array}{ll}0& l_j<\left(a_{j1}-d_{j1}\right)\\ \frac{\left(l_j-a_{j1}+d_{j1}\right)}{2d_{j1}}& \left(a_{j1}-d_{j1}\right)\le l_j\le \left(a_{j1}+d_{j1}\right)\\ 1& l_j>\left(a_{j1}+d_{j1}\right)\end{array}$$

(9)

$$u_{jk}(l_j)\{\begin{array}{ll}0& l_j<\left(a_{jk}-d_{jk}\right)\\ \frac{\left(l_j-a_{jk}+d_{jk}\right)}{2d_{jk}}& \left(a_{jk}-d_{jk}\right)\le l_j\le \left(a_{jk}+d_{jk}\right)\\ 1& \left(a_{jk}+d_{jk}\right)<l_j<\left(a_{j(k-1)}-d_{j(k-1)}\right)\\ \frac{\left(a_{j(k-1)}+d_{j(k-1)}-l_j\right)}{2d_{j(k-1)}}& \left(a_{j(k-1)}-d_{j(k-1)}\right)\le l_j\le \left(a_{j(k-1)}+d_{j(k-1)}\right)\\ 0& l_j>\left(a_{j(k-1)}+d_{j(k-1)}\right)\end{array}$$

(10)

$$u_{jn}(l_j)\{\begin{array}{ll}1& l_j<\left(a_{j(n-1)}-d_{j(n-1)}\right)\\ \frac{\left(a_{j(n-1)}+d_{j(n-1)}-l_j\right)}{2d_{j(n-1)}}& \left(a_{j(n-1)}-d_{j(n-1)}\right)\le l_j\le \left(a_{j(n-1)}+d_{j(n-1)}\right)\\ 0& l_j>\left(a_{j(n-1)}+d_{j(n-1)}\right)\end{array}$$

(11)

After obtaining the attribute measure values from Equations (6)–(11) for indicator $I_j$ corresponding to classification interval $C_k$, they have been integrated into a matrix $U$ of single-indicator attribute measures as follows:

$$\begin{array}{l}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em} C_1\hspace{1em}{C}_2\hspace{1em}\cdots C_n\\ U=\left(\begin{array}{ccccc}{I}_1& u_{11}& u_{12}& \cdots & u_{1n}\\ I_2& u_{21}& u_{22}& \cdots & u_{2n}\\ ⋮& ⋮& ⋮& ⋮& ⋮\\ I_m& u_{m1}& u_{m2}& \cdots & u_{mn}\end{array}\right)\end{array}$$

(12)

3. Research Methodology

3.1. Model Framework Based on Intuitionistic Fuzzy Set–Improved Attribute Measures

3.1.1. Constructing a Matrix of Intuitionistic Fuzzy Sets for Attribute Measurement

1.

Matrix of Intuitionistic Fuzzy Sets for Single-Indicator Attribute Measurement

From the concept of attribute measurement, the essence of the attribute measurement function is to characterize the degree of affiliation in a certain classification interval, so $u_{jk}(l_j)$ is $e(x_i)$ in intuitionistic fuzzy set theory. In the concept of intuitionistic fuzzy set theory, the single-indicator attribute measurement value of the set $A=\left\{x_i|i=1,\dots ,w\right\}$ with respect to the attribute classification set $C=\left\{C_k|k=1,2,\dots ,n\right\}$ is denoted as an intuitionistic fuzzy set matrix of $B=\langle x_i,u_{ik},f_{ik}\rangle$. When the problem to be evaluated is quantitative, the degree of hesitation as $g_{ik}=0$ and then $f_{ik}=1-u_{ik}$ is considered, and the matrix $B$ is simplified to $B=\langle u_{ik},f_{ik}\rangle =\langle u_{ik},\left(1-u_{ik}\right)\rangle$, specifically as follows:

$$\begin{array}{l}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}{C}_1\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}{C}_2\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em} \cdots \hspace{1em}\hspace{1em}\hspace{1em} C_n\\ B=\left(\begin{array}{ccccc}{I}_1& \langle u_{11},\left(1-u_{11}\right)\rangle & \langle u_{12},\left(1-u_{12}\right)\rangle & \cdots & \langle u_{1n},\left(1-u_{1n}\right)\rangle \\ I_2& \langle u_{21},\left(1-u_{21}\right)\rangle & \langle u_{22},\left(1-u_{22}\right)\rangle & \cdots & \langle u_{2n},\left(1-u_{2n}\right)\rangle \\ ⋮& ⋮& ⋮& ⋮& ⋮\\ I_m& \langle u_{m1},\left(1-u_{m1}\right)\rangle & \langle u_{m2},\left(1-u_{m2}\right)\rangle & \cdots & \langle u_{mn},\left(1-u_{mn}\right)\rangle \end{array}\right)\end{array}$$

(13)

2.

Matrix of Intuitionistic Fuzzy Sets for Weighted Attribute Measurement

On the basis of the matrix of intuitionistic fuzzy sets for single-indicator attribute measures, the expression form of the intuitionistic fuzzy set matrix for weighted attribute measures is further studied. In the concept of attribute measurement theory, the value $h_k$ of the weighted attribute measure corresponding to each class is calculated using the sum of the product between the indicator weights $Q_j$ and the single-indicator attribute measure $u_{jk}$. The equation is as follows:

$$h_k=Q_j{u}_{jk}$$

(14)

where $Q_j$ denotes the weight value of indicator $I_j$, and $u_{jk}$ denotes the measurement value of indicator $I_j$ about $C_k$.

The matrix of intuitionistic fuzzy sets for weighted attribute measures is consistent with the computational mode of Equation (14), but the indicator weights should also be in the form of intuitionistic fuzzy sets, on the one hand, in order to fit the matrix calculation and, on the other hand, to also transform the vagueness of the indicator with intuitionistic fuzzy sets. The intuitionistic fuzzy set form of the indicator is denoted as $W_j=\langle q_{mj},{\tau }_{mj}\rangle$, where $q_{mj}$ and ${\tau }_{mj}$ denote the degree of affiliation and non-affiliation of the indicator, respectively, and the properties are consistent with Equation (2). According to the product calculation principle of Equation (3), the matrix $h_i$ of the intuitionistic fuzzy set of weighted attribute measures is calculated using Equation (13) and $W_j$, which leads to the equation of $h_{ik}$ as shown in Equation (15) and the form of matrix $h_i$ as shown in Equation (16):

$$h_{ik}=W_j•B=\langle \overline{u_{ik}},\overline{f_{ik}}\rangle =\langle u_{ik}{q}_{mj},\left(f_{ik}+{\tau }_{mj}-f_{ik}{\tau }_{mj}\right)\rangle$$

(15)

where $q_{mj}$ and ${\tau }_{mj}$ denote the degree of affiliation and non-affiliation for the indicator $I_j$, respectively; $u_{ik}$ and $f_{ik}$ denote the degree of affiliation and non-affiliation of the attribute measure for indicator $I_j$, respectively.

$$\begin{array}{l}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em} C_1\hspace{1em}{C}_2\hspace{1em}\cdots C_n\\ h_i=\left(\begin{array}{ccccc}{I}_1& h_{11}& h_{12}& \cdots & h_{1n}\\ I_2& h_{21}& h_{22}& \cdots & h_{2n}\\ ⋮& ⋮& ⋮& ⋮& ⋮\\ I_m& h_{m1}& h_{m2}& \cdots & h_{mn}\end{array}\right)\end{array}$$

(16)

3.1.2. Calculating the Value of the Composite Attribute Measure and Improving Attribute Identification

1.

Calculating the value of the composite attribute measure

According to Equation (15), it is known that the values of weighted attribute measures of any scheme $x_i$ in set $A=\left\{x_i|i=1,\dots ,w\right\}$ with respect to class $C_k$ are vectors of intuitionistic fuzzy sets [52], so the calculation of the composite attribute measures for this scheme follows the principle of sum calculation in Equation (3), and the vector equation $H_k$ and numerical calculation equation ${\delta }_k$ are as follows:

$$\{\begin{array}{l}{H}_k={\displaystyle \sum _{j=1}^m{h}_{jk}}\\ {\delta }_k=\overline{u_{ik}}-\overline{f_{ik}}\end{array}$$

(17)

where $j=1,2,\dots ,m$ and $i=1,2,\dots ,w$.

2.

Improving attribute recognition methods

For the identification of attribute measures, methods such as numerical comparisons or confidence criteria are usually used, and the identification accuracy is largely dependent on the data set via artificial means [22,29]. The Euclidean distance method is used in this paper for the identification of composite attribute measures, establishing the set of classes as the origin for distance measurement, and carrying out the independent identification of each class separately to improve accuracy. The identification equation based on the Euclidean distance method is as follows:

$$\{\begin{array}{l}{R}_{i1}=\sqrt{{\left({\delta }_{i1}-1\right)}^2+{\left({\delta }_{i2}-0\right)}^2+\cdots +{\left({\delta }_{in}-0\right)}^2}\\ R_{i2}=\sqrt{{\left({\delta }_{i1}-0\right)}^2+{\left({\delta }_{i2}-1\right)}^2+\cdots +{\left({\delta }_{in}-0\right)}^2}\\ ⋮\\ R_{in}=\sqrt{{\left({\delta }_{i1}-0\right)}^2+{\left({\delta }_{i2}-0\right)}^2+\cdots +{\left({\delta }_{in}-1\right)}^2}\end{array}$$

(18)

$R_{in}$ denotes the “distance” between the value of the composite measure for the case and the set of attribute classes, and the smaller the value is, the more it belongs to the class.

3.2. The Method of Indicator Weighting Based on Intuitionistic Fuzzy Set–Multisource Combined Weights

3.2.1. Single-Weighting Method

Subjective weighting method: the analytic hierarchy process (AHP). The analytic hierarchy process is a subjective weighting method proposed by Saaty that has been more widely used in the field of analyzing and evaluating indicator weights [53,54]. When there are no data on the objective factors and the importance of the indicators cannot be quantified, the indicator weights are obtained through empirical judgment by the decision maker. For the AHP method, selecting the appropriate scale is an important guarantee for the reasonableness of the judgment matrix, usually choosing a 1–9 scale, and the index $RI$ of the average random consistency test is also a necessary correction parameter. The contents of the AHP method are building a hierarchical model; constructing a judgment matrix; consistency testing of the judgment matrix and hierarchical single ranking; and hierarchical total ranking. The calculation formula for the consistency index $CI$ is as follows:

$$CI=\frac{{\lambda }_{\max }-n}{n-1}$$

(19)

where ${\lambda }_{\max }$ is the largest characteristic value of the judgment matrix, and $n$ is the order of the judgment matrix.

The calculation formula for the random consistency ratio $CR$ is as follows:

$$CR=\frac{CI}{RI}$$

(20)

where the value of $RI$ is determined on the 1–9 scale.

Objective weighting method: coefficient of variation method (CVM). The principle of the coefficient of variation method is to determine the value of weights according to the degree of variation for an indicator; if the degree of variation for an indicator is higher, it means that each object to be evaluated has a higher degree of differentiation in the field of that indicator and that the weight of that indicator should be higher, and vice versa, it is the same. This method is an objective weighting method, and important parameters include the variation coefficient, coefficient of standard deviation, etc. [55,56]. The specific steps of the calculation are as follows:

• Step 1: Calculating the average value $\overline{x_j}$ and standard deviation $S_j$ of the indicator

  $$\overline{x_j}=\frac{1}{n}{\displaystyle \sum _{i=1}^n{x}_{ij}}$$

  (21)

  $$S_j=\sqrt{\frac{1}{n}{\displaystyle \sum _{i=1}^n{(x_{ij}-\overline{x_j})}^2}}$$

  (22)

  where $i=1,2,\dots ,n$, $j=1,2,\dots ,m$.
• Step 2: Calculating the coefficient of variation $V_j$ for the indicator

  $$V_j=\frac{S_j}{\overline{x_j}}$$

  (23)

  where $j=1,2,\dots ,m$.
• Step 3: Normalizing the coefficient of variation and calculating indicator weights ${\omega }_j$

  $${\omega }_j=\frac{V_j}{{\displaystyle \sum _{j=1}^m{V}_j}}$$

  (24)

  where $j=1,2,\dots ,m$.

From that, the weight vector ${\omega }_j^T={\left[{\omega }_1,{\omega }_2,\dots ,{\omega }_m\right]}^T$ can be obtained.

3.2.2. Multisource System for Combined Weights

The combination of subjective and objective weights to replace the single weight can eliminate the one-sidedness and bias of the single-weight method to a certain extent. There are many methods and different principles of combined weighting, and different combined weighting methods have different focuses, so it is difficult to guarantee that one combined weighting method can guarantee the reasonableness of the weights. Therefore, three widely used combined weighting methods are selected in this paper to construct a multisource system for combined weights.

1.

Combined weighting method based on minimum entropy

Assuming that the weight of the AHP is ${\alpha }_j$ and the weight of the CVM is ${\beta }_j$, according to the principle of minimum entropy [57], the equation for the combined weight ${\omega }_{aj}$ is as follows:

$$\{\begin{array}{l}\min \hspace{0.17em}f={\displaystyle \sum _{j=1}^m{\omega }_{aj}(\ln {\omega }_{aj}-\ln {\alpha }_j)+{\displaystyle \sum _{j=1}^m{\omega }_{aj}(\ln {\omega }_{aj}-\ln {\beta }_j)\hspace{1em}j=1,2,\dots ,m}}\\ {\displaystyle \sum _{j=1}^m{\omega }_{aj}=1\hspace{1em}\hspace{1em}{\omega }_j>0}\end{array}$$

(25)

In order to obtain the distribution when the information entropy is extremely large, the Undetermined Lagrange Multipliers Algorithm [58] is used to solve Equation (25), which can be obtained as the following expression for ${\omega }_{aj}$:

$${\omega }_{aj}=\frac{\sqrt{{\alpha }_j{\beta }_j}}{{\displaystyle \sum _{j=1}^m\sqrt{{\alpha }_j{\beta }_j}}}$$

(26)

2.

Combined weighting method based on game theory

Using a combined weighting method based on game theory, it is possible to optimize a combination for multiple methods of determining weights [59,60].

• Step 1: Assuming that the weights of $m$ indicators are calculated using more than one method and that the weights can be formed into a set ${\omega }_j=\left\{{\omega }_{j1},{\omega }_{j2},\dots ,{\omega }_{jm}\right\}$, the linear combination of the weight vectors is as follows:

  $$\omega ={\displaystyle \sum _{j=1}^m{\pi }_j{\omega }_j^T}$$

  (27)

  where ${\omega }_j^T$ is the underlying weight vector, ${\pi }_j$ is a coefficient of a linear combination for different weighting methods, and ${\displaystyle \sum _{j=1}^m{\pi }_j}=1$.
• Step 2: The coefficient of the linear combination is optimized to achieve a minimal deviation between the possible weights and the basic weights of ${\omega }_j$. The equation is calculated as follows:

  $$min{\Vert {\displaystyle \sum _{j=1}^m{\pi }_j{\omega }_j^T-{\omega }_t^T}\Vert }_2$$

  (28)

  where $j=1,2,\dots ,m$, $t=1,2,\dots ,m$.

According to the properties of matrix differentials, the optimal first-order derivative of the above equation is:

$$\left[\begin{array}{ccc}{\omega }_1{\omega }_1^T& \cdots & {\omega }_1{\omega }_m^T\\ ⋮& \ddots & ⋮\\ {\omega }_m{\omega }_1^T& \cdots & {\omega }_m{\omega }_m^T\end{array}\right]\left[\begin{array}{c}{\pi }_1\\ ⋮\\ {\pi }_m\end{array}\right]=\left[\begin{array}{c}{\omega }_1{\omega }_1^T\\ ⋮\\ {\omega }_m{\omega }_m^T\end{array}\right]$$

(29)

${\pi }_j=\left\{{\pi }_1,{\pi }_2,\dots ,{\pi }_m\right\}$ is calculated from the above equation, and ${\pi }_j$ is normalized:

$${\pi }_j^{*}=\frac{{\pi }_j}{{\displaystyle \sum _{j=1}^m{\pi }_j}}$$

(30)

• Step 3: The combined weights are calculated using the following equation:

  $${\omega }_{bj}={\displaystyle \sum _{j=1}^m{\pi }_j^{*}{\omega }_j^T}$$

  (31)

3.

Combined weighting method based on multiplicative synthetic normalization

Multiplicative synthetic normalization is used to normalize the product of two weight multiplications [61] with the following equation:

$${\omega }_{cj}=\frac{{\alpha }_j{\beta }_j}{{\displaystyle \sum _{j=1}^m{\alpha }_j{\beta }_j}}$$

(32)

where ${\alpha }_j$ denotes the AHP weights, ${\beta }_j$ denotes the CVM weights, and $j=1,2,\dots ,m$.

By constructing a multisource system for combined weights, on the one hand, three combined weights are used to replace one single weight or one single combined weight, and on the other hand, the range of indicator weights is expanded, and the vagueness of the indicators is upgraded in dimensions, so that further processing can be carried out using the method of intuitionistic fuzzy sets.

3.2.3. Transformation of Multisource Combined Weights Based on Intuitionistic Fuzzy Sets

The multisource system for combined weights constructed in Section 3.2.2 shows that the weights of indicator $I_j$ are transformed into combined weights ${\omega }_{aj}$, ${\omega }_{bj}$, and ${\omega }_{cj}$. The weights of the indicators are fuzzified according to the intuitionistic fuzzy set to ${\omega }_j=\langle q_j,{\tau }_j\rangle$, where $q_j$ and ${\tau }_j$ characterize the degree of importance and the degree of unimportance, respectively, which satisfies $0\le q_j+{\tau }_j\le 1$ [47].

Assuming that there is a relationship, ${\omega }_{aj}<{\omega }_{bj}<{\omega }_{cj}$, between the three combined weights of indicator $I_j$, the importance of the weights is ranged as ${\omega }_{aj}\sim {\omega }_{cj}$, the unimportance as $(1-{\omega }_{cj})\sim (1-{\omega }_{aj})$, and the vector form of the intuitionistic fuzzy set for the weights is denoted as $\langle {\omega }_{aj},\left(1-{\omega }_{cj}\right)\rangle$. It can be noted that the numerical sum of the importance and unimportance of the weights does not necessarily have to be 1. This is because of the superimposed vagueness of the three data sources under the multisource system for combined weights, and the values of the indicators are intervalized into a range of number fields, which are no longer explicitly quantitative data, so that the degree of hesitation exists and is numerically equal to the length of the interval for taking values.

4. Prediction of Rockburst Propensity

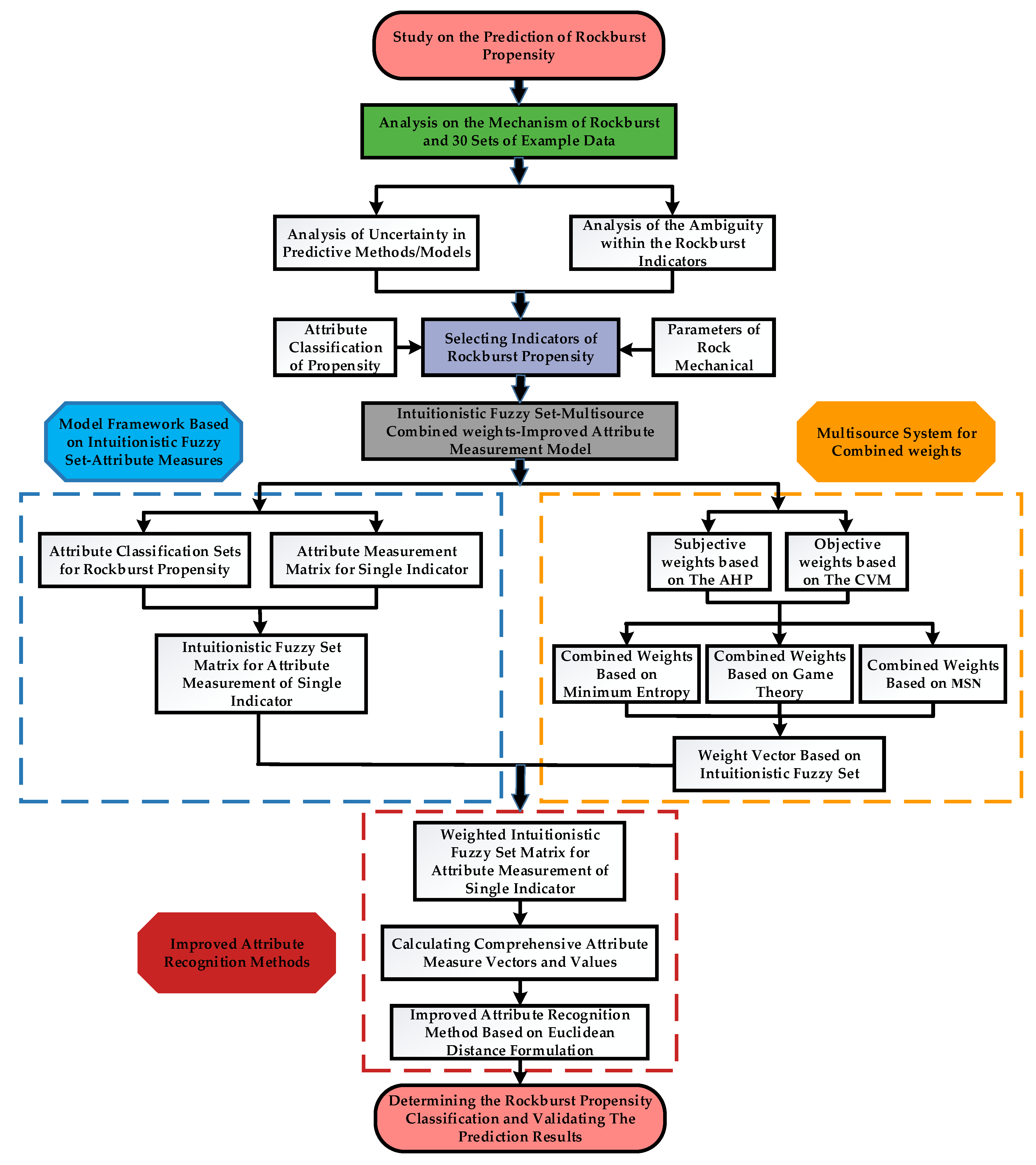

4.1. Workflows

The research content of this paper is to predict the degree of the propensity for rockburst occurrence through the composite model using intuitionistic fuzzy sets, multisource combined weights, and improved attribute measures. The research content of this paper is to predict the degree of the propensity for rockburst occurrence through the composite model using an intuitionistic fuzzy set–multisource combined assignment–improved attribute measure. By sorting out the modeling process in Section 2 and Section 3 and combining the characteristics of rockburst, a schematic diagram of work is listed as shown in Figure 1, and the overall process of the prediction work includes the following five parts:

(1) Studying the phenomenon and mechanism of the rock burst, reasonably selecting the indicators that characterize the rockburst propensity, and analyzing the measurement connection and correspondence of numerical domains between the rockburst indicators and the propensity classification from the viewpoint of the attribute classification set;

(2) Choosing a typical case of the rockburst as the data source of this paper, according to the relationship of the numerical domain between rockburst propensity and classification, calculating the value of the single-indicator attribute measure for rockburst propensity, and establishing the matrix of the intuitionistic fuzzy set for the single-indicator attribute measure based on the case data;

(3) According to the case data of rockbursts, the subjective weight of the hierarchical analysis method and the objective weight of the coefficient of variation method for indicators are calculated, based on which the multisource system for combined weights is constructed, and considering the deficiencies of the single weight method and one combined weight method, the combined weight based on the minimum entropy, game theory, and multiplication synthetic normalization, respectively, is used as the data source to range the indicator weights, and the analysis and transformation of the vagueness based on the intuitionistic fuzzy set are carried out;

(4) Combining the matrix of intuitionistic fuzzy sets for single-indicator attribute measures about rockburst propensity and the vector of intuitionistic fuzzy sets for multisource combined weights of rockburst indicators, the matrix of intuitionistic fuzzy sets for weighted attribute measures is calculated;

(5) Calculating the composite attribute measure of rockburst propensity, improving the attribute identification mode using the Euclidean distance method, and finally determining the propensity classification of rockburst cases.

4.2. Applied Research on the Model

4.2.1. Single-Weighting Method

1.

Selecting indicators of rockburst propensity

Generally speaking, the selection of rockburst indicators requires a comprehensive consideration of stress conditions and physical parameters of the rock [22,52]. In the process of in-depth study, it can be found that due to the differences in normative standards, testing methods, such as integrity coefficients $K_v$ and other rock physical property parameters may not be able to truly reflect the quality of the rock body to some extent, and many scholars who only use mechanical indicators have also obtained good prediction results [39,62]. Therefore, this paper focuses on the mechanical properties of the rock to study the prediction of rockburst propensity, selecting the uniaxial compressive strength ${\sigma }_c$, tensile stress ${\sigma }_t$, shear stress ${\sigma }_{\theta }$, rock compression tension ratio ${\sigma }_c/{\sigma }_t$, rock shear compression ratio ${\sigma }_{\theta }/{\sigma }_c$, and elastic deformation coefficient $W_{et}$ as the rockburst indicators based on the three-axis force situation.

2.

Determining classification of rockburst propensity

According to the selected indicators of rockburst propensity, in order to fit the calculation requirements of attribute measurement theory, through studying and sorting out the existing literature [51,52], the classes and corresponding numerical domains of the uniaxial compressive strength ${\sigma }_c$, compressive tensile ratio ${\sigma }_c/{\sigma }_t$, shear compression ratio ${\sigma }_{\theta }/{\sigma }_c$, and the elastic deformation coefficient $W_{et}$ can be obtained, and the attribute classification of tensile stress ${\sigma }_t$ and shear stress ${\sigma }_{\theta }$ can be deduced on the basis of the calculation, as shown in

Table 1. Classification of rockburst propensity and the corresponding numerical domains.

Classification	Propensity	${\mathit{\sigma }}_{\mathit{c}}$	${\mathit{\sigma }}_{\mathit{t}}$	${\mathit{\sigma }}_{\mathit{\theta }}$	${\mathit{\sigma }}_{\mathit{c}}/{\mathit{\sigma }}_{\mathit{t}}$	${\mathit{\sigma }}_{\mathit{\theta }}/{\mathit{\sigma }}_{\mathit{c}}$	${\mathit{W}}_{\mathit{e}\mathit{t}}$
I	None	<80	<2	<24	>40	<0.3	<2
II	Slight	80~120	2~4.5	24~60	26.7~40	0.3~0.5	2~3.5
III	Medium	120~180	4.5~12.4	60~126	14.5~26.7	0.5~0.7	3.5~5
IV	Strong	>180	>12.4	>126	<14.5	>0.7	>5

.

4.2.2. Calculating the Rockburst Cases

In order to verify the accuracy of predicting rockburst propensity with an intuitionistic fuzzy set–multisource combined weights–attribute measure model, 30 groups of classical rockburst cases worldwide were selected in this study [1,3,52], and the indicator data of each case is shown in detail in

Table 2. 30 sets of data for rockburst cases.

Sample		Actual Data for Rockburst Indicators
	${\mathit{\sigma }}_{\mathit{c}}$	${\mathit{\sigma }}_{\mathit{t}}$	${\mathit{\sigma }}_{\mathit{\theta }}$	${\mathit{\sigma }}_{\mathit{c}}/{\mathit{\sigma }}_{\mathit{t}}$	${\mathit{\sigma }}_{\mathit{\theta }}/{\mathit{\sigma }}_{\mathit{c}}$	${\mathit{W}}_{\mathit{e}\mathit{t}}$
1	148.400	8.480	66.780	17.500	0.450	5.100
2	132.100	6.321	51.519	20.900	0.390	4.600
3	107.500	2.622	21.500	41.000	0.200	1.700
4	106.320	2.919	23.390	36.420	0.220	1.750
5	165.000	9.429	62.700	17.500	0.380	4.500
6	116.780	3.928	43.209	29.730	0.370	3.520
7	170.000	11.333	90.100	15.000	0.530	6.500
8	181.000	8.341	76.020	21.700	0.420	4.500
9	180.000	8.295	70.200	21.700	0.390	5.000
10	140.000	5.204	61.600	26.900	0.440	5.500
11	120.000	6.486	97.200	18.500	0.810	3.800
12	220.100	7.486	90.241	29.400	0.410	7.300
13	148.520	6.660	98.023	22.300	0.660	3.230
14	178.000	5.705	19.580	31.200	0.110	3.700
15	109.330	3.336	45.919	32.770	0.420	2.970
16	156.730	7.786	76.798	20.130	0.490	3.820
17	100.320	3.487	38.122	28.770	0.380	3.020
18	142.200	5.167	102.384	27.520	0.720	4.300
19	97.600	6.297	40.992	15.500	0.420	3.200
20	100.200	3.327	58.116	30.120	0.580	4.500
21	167.200	12.667	110.352	13.200	0.660	6.800
22	146.750	7.584	90.985	19.350	0.620	4.500
23	107.750	3.454	61.418	31.200	0.570	3.150
24	146.720	7.825	86.565	18.750	0.590	4.200
25	162.700	5.478	118.771	29.700	0.730	3.820
26	105.700	2.830	39.109	37.350	0.370	3.080
27	215.000	8.958	64.500	24.000	0.300	6.600
28	185.000	7.676	68.450	24.100	0.370	5.000
29	153.000	6.923	58.140	22.100	0.380	5.100
30	173.000	7.972	72.660	21.700	0.420	5.200

, with the data of rockburst case 1 as an example for the model validation.

1.

Matrix of intuitionistic fuzzy sets for rockburst single-indicator

From Equation (4) and Table 1, the matrix of attribute classification for rockburst propensity indicators can be listed as follows:

$$\begin{array}{l}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}I\hspace{1em}\hspace{1em}\hspace{1em}II\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em} III\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}IV\\ C=\left(\begin{array}{ccccc}{\sigma }_c& <80& 80\sim 120& 120\sim 180& >180\\ {\sigma }_t& <2& 2\sim 4.5& 4.5\sim 12.4& >12.4\\ {\sigma }_{\theta }& <24& 24\sim 60& 60\sim 126& >126\\ \frac{{\sigma }_c}{{\sigma }_t}& >40& 40\sim 26.7& 26.7\sim 14.5& <14.5\\ \frac{{\sigma }_{\theta }}{{\sigma }_c}& <0.3& 0.3\sim 0.5& 0.5\sim 0.7& >0.7\\ W_{et}& <2& 2\sim 3.5& 3.5\sim 5& >5\end{array}\right)\end{array}$$

(33)

According to Equations (6)–(11) and (33), the matrix $U_1$ of single-indicator attribute measures for the sample are listed as follows:

$$\begin{array}{l}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em} I\hspace{1em}\hspace{1em}II\hspace{1em}\hspace{1em}III\hspace{1em}\hspace{1em} IV\\ U_1=\left[\begin{array}{ccccc}{\sigma }_c& 0& 0& 1& 0\\ {\sigma }_t& 0& 0& 1& 0\\ {\sigma }_{\theta }& 0& 0.2175& 0.7825& 0\\ \frac{{\sigma }_c}{{\sigma }_t}& 0& 0& 0.8& 0.2\\ \frac{{\sigma }_{\theta }}{{\sigma }_c}& 0& 0.75& 0.25& 0\\ W_{et}& 0& 0& 0.4333& 0.5667\end{array}\right]\end{array}$$

(34)

From Equation (3), (13), and (34), the matrix $B_1$ of intuitionistic fuzzy sets for single-indicator attribute measures can be obtained as follows:

$$\begin{array}{l}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}I\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}II\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em} \hspace{1em}\hspace{1em}III\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}IV\\ B_1=\left[\begin{array}{ccccc}{\sigma }_c& \langle 0,1\rangle & \langle 0,1\rangle & \langle 1,0\rangle & \langle 0,1\rangle \\ {\sigma }_t& \langle 0,1\rangle & \langle 0,1\rangle & \langle 1,0\rangle & \langle 0,1\rangle \\ {\sigma }_{\theta }& \langle 0,1\rangle & \langle 0.2175,0.7825\rangle & \langle 0.7825,0.2175\rangle & \langle 0,1\rangle \\ \frac{{\sigma }_c}{{\sigma }_t}& \langle 0,1\rangle & \langle 0,1\rangle & \langle 0.8,0.2\rangle & \langle 0.2,0.8\rangle \\ \frac{{\sigma }_{\theta }}{{\sigma }_c}& \langle 0,1\rangle & \langle 0.75,0.25\rangle & \langle 0.25,0.75\rangle & \langle 0,1\rangle \\ W_{et}& \langle 0,1\rangle & \langle 0,1\rangle & \langle 0.4333,0.5667\rangle & \langle 0.5667,0.4333\rangle \end{array}\right]\end{array}$$

(35)

2.

Calculating multisource combined weights of rockbursts

According to the description in Section 3.2.1, the subjective weights of the AHP method and the objective weights of the CVM for rockburst case 1 can be obtained as shown in

Table 3. Values of subjective and objective weights.

Indicators	AHP	CVM
${\sigma }_c$	0.121	0.159
${\sigma }_t$	0.127	0.142
${\sigma }_{\theta }$	0.139	0.174
${\sigma }_c/{\sigma }_t$	0.243	0.208
${\sigma }_{\theta }/{\sigma }_c$	0.221	0.159
$W_{et}$	0.148	0.158

.

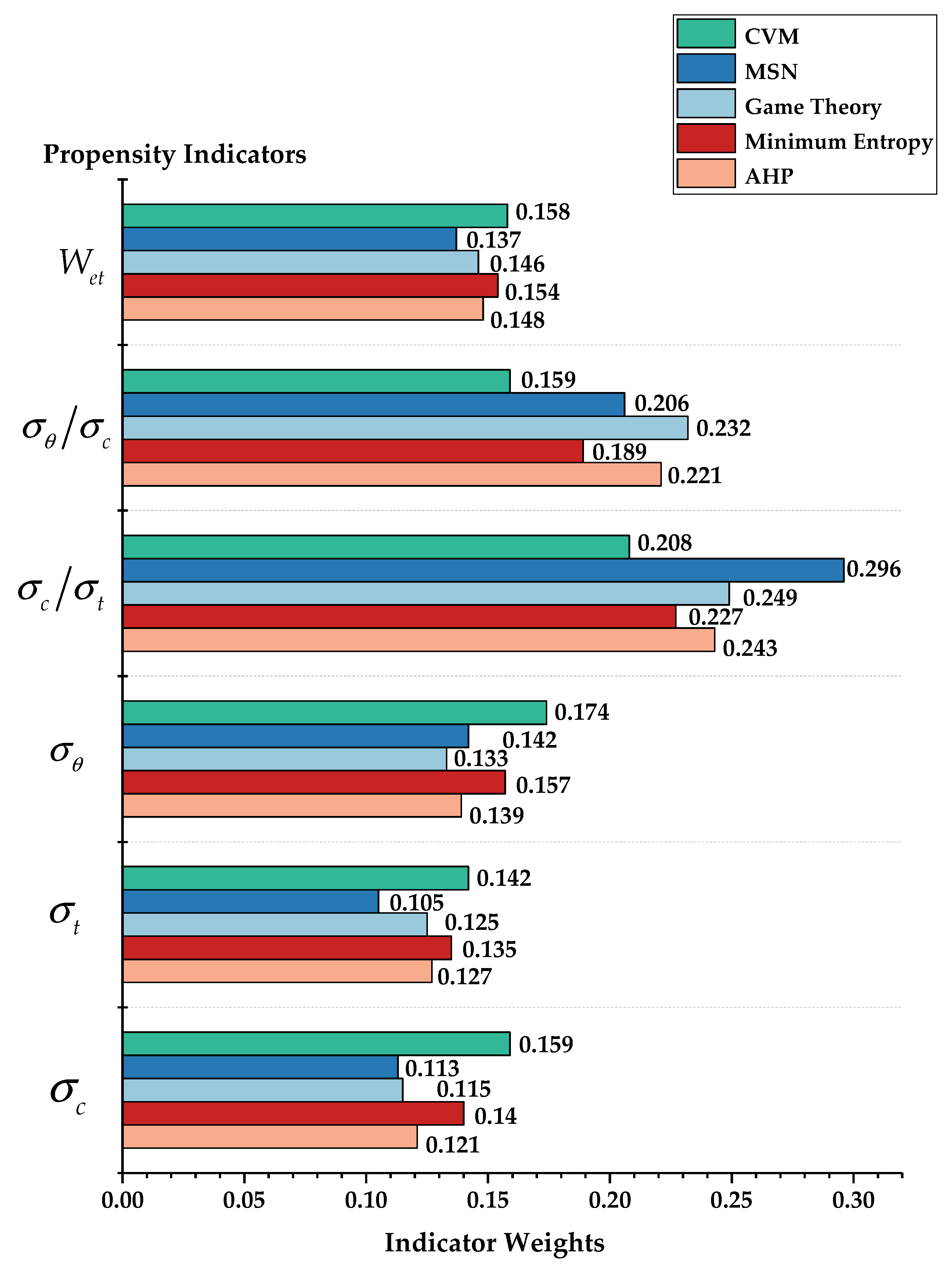

Based on the AHP weights and CVM weights, and according to the calculation method in Section 3.2.2, the minimum entropy combined weights, game theory combined weights, and multiplicative synthetic normalization weights of the indicators are obtained, as shown in

Table 4. Values of the three combined weights.

Indicators	Minimum Entropy	Game Theory	Multiplicative Synthetic Normalization
${\sigma }_c$	0.140	0.115	0.113
${\sigma }_t$	0.135	0.125	0.105
${\sigma }_{\theta }$	0.157	0.133	0.142
${\sigma }_c/{\sigma }_t$	0.227	0.249	0.296
${\sigma }_{\theta }/{\sigma }_c$	0.189	0.232	0.206
$W_{et}$	0.154	0.146	0.137

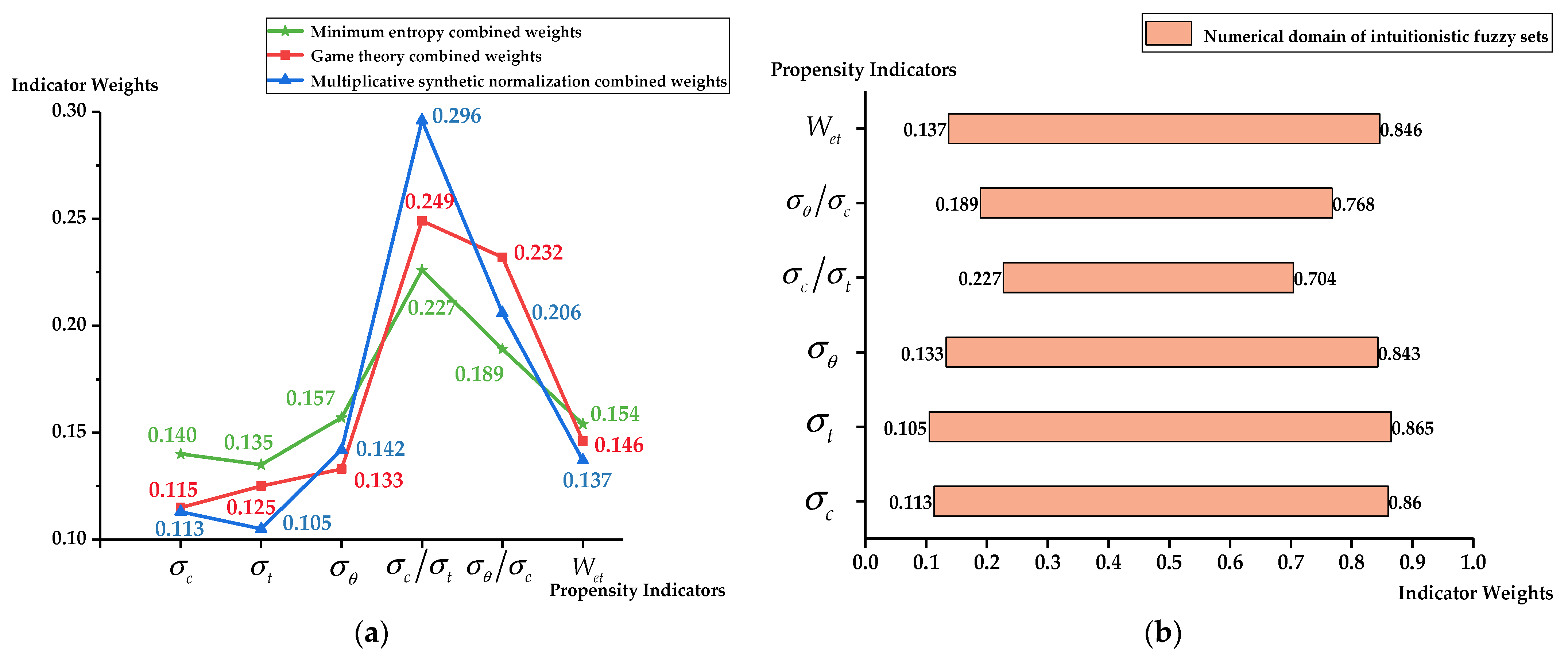

, so as to construct the multisource system combined weights of rockburst propensity.

According to the multisource combined weights of rockburst indicators, combined with the description in Section 3.2.3, the indicator system is converted into the form of intuitionistic fuzzy sets, as shown in

Table 5. The form of intuitionistic fuzzy sets for multisource combined weights.

Indicators	Degree of Importance	Degree of Unimportance	Vectors of Intuitive Fuzzy Sets
${\sigma }_c$	0.113~0.140	0.860~0.887	<0.113, 0.860>
${\sigma }_t$	0.105~0.135	0.865~0.895	<0.105, 0.865>
${\sigma }_{\theta }$	0.133~0.157	0.843~0.867	<0.133, 0.843>
${\sigma }_c/{\sigma }_t$	0.227~0.296	0.704~0.773	<0.227, 0.704>
${\sigma }_{\theta }/{\sigma }_c$	0.189~0.232	0.768~0.811	<0.189, 0.768>
$W_{et}$	0.137~0.154	0.846~0.863	<0.137, 0.846>

, and the vector ${\omega }_1$ is obtained, as shown in Figure 2.

3.

Intuitionistic fuzzy matrices and numerical computation of composite measures for rockbursts

According to the intuitionistic fuzzy vector ${\omega }_1$ of the rockburst indicators, Equations (15) and (35), it is possible to obtain the matrix $h_1$ of weighted intuitionistic fuzzy sets as follows:

$$\begin{array}{l}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}I\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}II\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em} \hspace{1em}\hspace{1em}III\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}IV\\ h_1=\left[\begin{array}{ccccc}{\sigma }_c& \langle 0,1\rangle & \langle 0,1\rangle & \langle 0.113,0.86\rangle & \langle 0,1\rangle \\ {\sigma }_t& \langle 0,1\rangle & \langle 0,1\rangle & \langle 0.105,0.865\rangle & \langle 0,1\rangle \\ {\sigma }_{\theta }& \langle 0,1\rangle & \langle 0.0289,0.9659\rangle & \langle 0.1041,0.8771\rangle & \langle 0,1\rangle \\ \frac{{\sigma }_c}{{\sigma }_t}& \langle 0,1\rangle & \langle 0,1\rangle & \langle 0.1816,0.7632\rangle & \langle 0.0454,0.9408\rangle \\ \frac{{\sigma }_{\theta }}{{\sigma }_c}& \langle 0,1\rangle & \langle 0.1418,0.826\rangle & \langle 0.0473,0.942\rangle & \langle 0,1\rangle \\ W_{et}& \langle 0,1\rangle & \langle 0,1\rangle & \langle 0.0594,0.9333\rangle & \langle 0.0776,0.9127\rangle \end{array}\right]\end{array}$$

(36)

From Equation (17), the intuitionistic fuzzy set vectors and values of the composite attribute measure for rock burst propensity are shown below:

$$\{\begin{array}{l}{H}_{11}=\langle 0,1\rangle \\ H_{12}=\langle 0.1666,0.7978\rangle \\ H_{13}=\langle 0.4783,0.4378\rangle \\ H_{14}=\langle 0.1195,0.8587\rangle \end{array}$$

(37)

$$\{\begin{array}{l}{\delta }_{11}=0-1=-1\\ {\delta }_{12}=0.1666-0.7978=-0.6312\\ {\delta }_{13}=0.4783-0.4378=0.0405\\ {\delta }_{14}=0.1195-0.8587=-0.7392\end{array}$$

(38)

4.

Determining the classification of rockbursts

According to Equation (4), Table 1, and Section 3.1.2, the set $C_1$ of attribute classification for rockburst propensity in case 1 is defined as follows:

$$C_1\{\begin{array}{l}{C}_{11}=\left[1,0,0,0\right]\\ C_{12}=\left[0,1,0,0\right]\\ C_{13}=\left[0,0,1,0\right]\\ C_{14}=\left[0,0,0,1\right]\end{array}$$

(39)

Then, the Euclidean distances of the composite attribute measures for each class of case 1 with respect to the corresponding classification are calculated as shown below:

$$\{\begin{array}{l}{R}_{11}=\sqrt{{(-1-1)}^2+{(-0.6312-0)}^2+{(0.0405-0)}^2+(-0.7392-{0)}^2}=2.2241\\ R_{12}=\sqrt{{(-1-0)}^2+{(-0.6312-1)}^2+{(0.0405-0)}^2+(-0.7392-{0)}^2}=2.0516\\ R_{13}=\sqrt{{(-1-0)}^2+{(-0.6312-0)}^2+{(0.0405-1)}^2+(-0.7392-{0)}^2}=1.6928\\ R_{14}=\sqrt{{(-1-0)}^2+{(-0.6312-0)}^2+{(0.0405-0)}^2+(-0.7392-1{)}^2}=2.1035\end{array}$$

(40)

Comparing the distances of case 1 to the subsets in the attribute class set, it can be concluded that $R_{13}<R_{12}<R_{14}<R_{11}$, and therefore the composite attribute measure, is closest to class $III$ and is able to predict the propensity to rockburst occurrence class of $III$ for case 1.

4.3. Analysis of The Results

4.3.1. Analysis of the Results Calculated using the Model

According to the calculation steps of case 1, the remaining 29 sets of rockburst case data are calculated based on the model in this paper. Summarizing the results of rockburst propensity with this paper’s model, they are compared with the results of the minimum entropy–attribute measure model, the game theory–attribute measure model, and the multiplicative synthetic normalization–attribute measure model, respectively, and at the same time, they are verified with the data of the actual rockburst propensity class. The comparisons are shown in

Table 6. Comparison of 30 sets of prediction results for rockburst propensity.

Sample	Actual Class	Predicted Result (Rockburst Susceptibility Classification)
		Intuitionistic Fuzzy Sets—Multisource Combined Weights—Attribute Measures (IMAM)	Minimum Entropy–Attribute Measures (MEAM)	Game Theory–Attribute Measures (GTAM)	Multiplicative Synthetic Normalization–Attribute Measures (MSNAM)
1	III	III	III	III	III
2	III	III	III	III	III
3	I	I	I	I	I
4	I	* II	* II	* II	* II
5	II	* III	* III	* III	* III
6	II	II	II	II	II
7	III	III	III	III	III
8	III	III	III	III	III
9	III	III	III	III	III
10	III	III	III	III	∆ II~III
11	III	III	III	III	III
12	II	II	∆ II~III	∆ II~III	∆ II~III
13	III	III	III	III	III
14	I	* II	* II~III	∆ I~II	* II
15	II	II	II	II	II
16	III	III	III	III	III
17	II	II	II	II	II
18	III	III	III	III	III
19	II	II	II	II	II
20	II	II	II	II	II
21	IV	∆ III~IV	∆ III~IV	∆ III~IV	∆ III~IV
22	III	III	III	III	III
23	II	II	II	II	II
24	III	III	III	III	III
25	III	III	III	III	III
26	II	II	II	II	II
27	III	III	∆ III~IV	III	III
28	III	III	III	III	III
29	III	III	III	III	III
30	III	III	III	III	III

In the table, * indicates a misjudgement, and ∆ indicates an uncertain judgement.

.

Comparisons of the actual propensity of the selected rockburst cases and summaries of the number of cases where the results for each model in the table are accurate, uncertain, or misjudged are shown in

Table 7. Summary and comparison of results.

Sample	Intuitionistic Fuzzy Set—Multisource Combined Weights—Attribute Measures	Minimum Entropy–Attribute Measures	Game Theory–Attribute Measures	Multiplicative Synthetic Normalization–Attribute Measures
Accurate	26	24	25	24
Uncertain	1	3	3	3
Misjudged	3	3	2	3
Accuracy	86.7%	80%	83.3%	80%

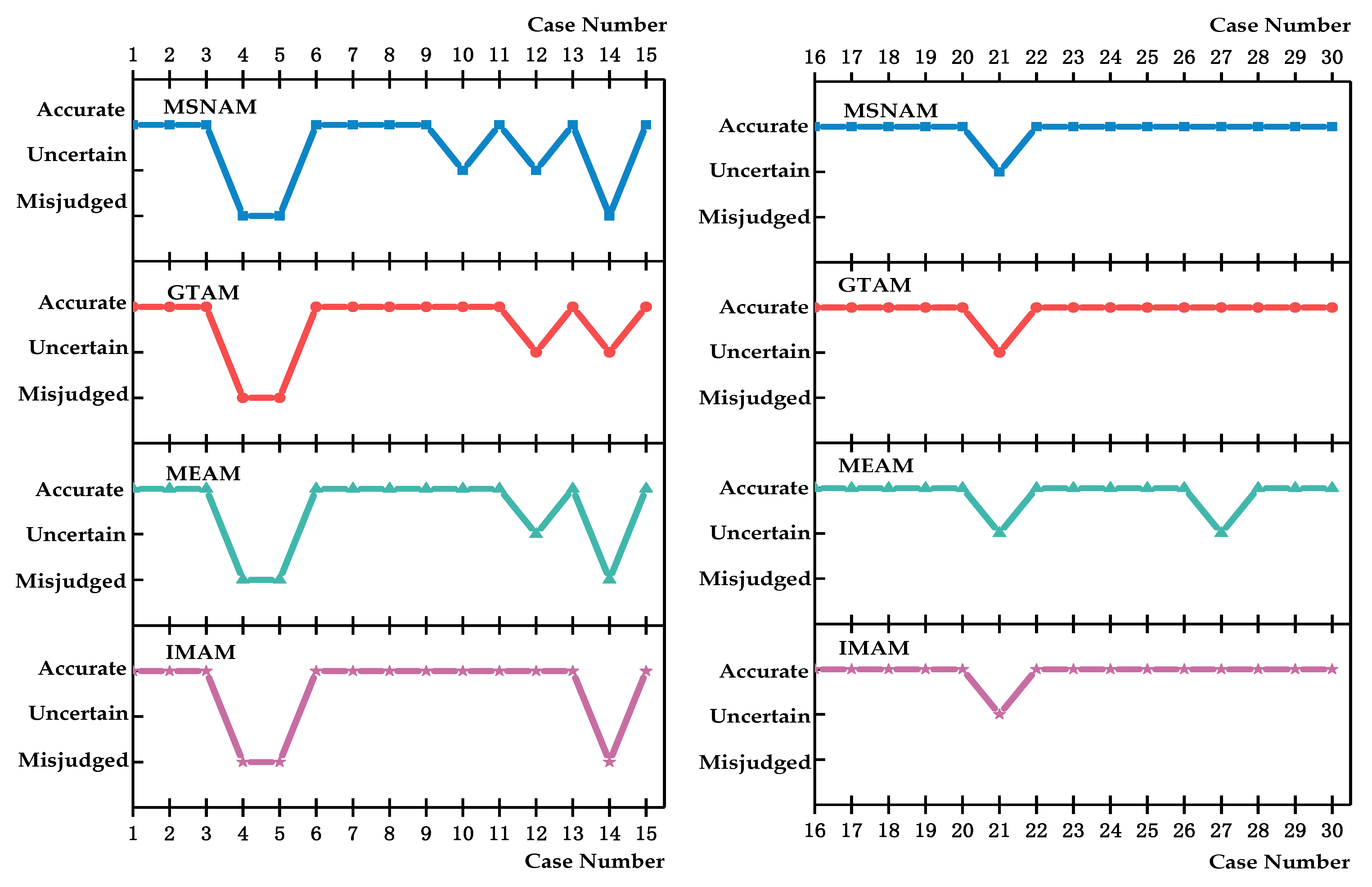

, and the drawing of the comparison is shown in Figure 3.

By analyzing the results, it can be found that:

(1) In terms of accuracy, the results of the intuitionistic fuzzy set–multisource combined weights–attribute measurement model proposed in this paper are better than the other three combined models, which makes this paper’s model more practical in practical applications;

(2) In the structure of models with single combined weighting, the model with the highest accuracy rate is the game theory–attribute measurement model. It can be further determined that among the three single combined weighting methods, the indicator weights of game theory are more reasonable;

(3) Comparing the results of the other three models, the number of uncertain cases in the results for the model proposed in this paper is the least, and the main reason is that the vagueness of the rockburst data is effectively controlled through the intuitionistic fuzzy set, which makes it tend to the corresponding attribute set to a certain degree.

4.3.2. Analysis of the Weights of Indicators

Analyzing Table 3, Table 4 and Table 5 and Figure 2, it can be found that the values of rockburst propensity indicators obtained through different weighting methods have large differences in the distribution, so it is necessary to further deepen the study of the rationality of the indicators by drawing the value distribution of multisource combined weights and the comparison chart as shown in Figure 4 and Figure 5:

(1) The principles of the subjective weighting method and the objective weighting method are not the same, which leads to a significant difference in the values of the indicators. In the model calculation, if a single weighting method is used, the prediction results will have a large bias. Compared with the single-weight method, the combined weighing method is more reasonable and can balance the subjective and objective weights, thus making the indicator weights numerically more average and reasonable;

(2) Due to the differences in the weighting mechanism and the adopted algorithm, different combined weighting methods will have different focuses. As can be seen from Figure 4 and Figure 5, under the conditions of the indicators in this paper, the game theory combined weights are numerically closer to the AHP method weights, while the minimum entropy combined weights are closer to the CVM weights, which can be deduced from the fact that even though it is the combined weighting method, only one method cannot comprehensively reflect the real situation of the indicators;

(3) Using the intuitionistic fuzzy set method to defuzzify the multisource combined weights, the indicator weights are generalized from specific numbers to a range of numerical intervals, which combines the advantages of the three combined weighting methods and expands the numerical domain of the model’s prediction results. From the results, the indicator vagueness is controlled to a certain extent, and the prediction results of the model in this paper are better than those of the other combined weights models listed.

5. Conclusions

The conclusions are as follows:

(1) Using the intuitionistic fuzzy set–attribute measure model for predicting the propensity of rockburst, the vagueness of the indicator data is transformed into the intervalisation of the numerical domain, which controls the uncertainty of the prediction results to a certain extent; through calculating the “degree of measurement” between the case data and attribute classification set, it makes the evaluation of the scheme and the classification evaluation become a unified whole. The Euclidean distance method is used to improve the attribute identification of the model, and it is based on the perspective of the “distance” between the values of composite attribute measure and the attribute classification set, which avoids the influence of the objectivity that is affected by the artificial parameter setting, and the accuracy of attribute identification in the model is improved;

(2) Through the study of rockburst cases and mechanisms, from the perspective of rock mechanics, six indicators were selected to characterize the propensity of rockbursts: the uniaxial compressive strength ${\sigma }_c$, tensile stress ${\sigma }_t$, shear stress ${\sigma }_{\theta }$, compression/tension ratio ${\sigma }_c/{\sigma }_t$, shear/compression ratio ${\sigma }_{\theta }/{\sigma }_c$, and elastic deformation coefficient $W_{et}$. Based on the selected indicators of the rock burst propensity, the attribute classification set and range of the numerical domains for the corresponding classification are determined so that the indicators are internalized as the basis of the model and the standard of the calculations;

(3) Based on the subjective weights of AHP and objective weights of CVM, the multisource system for combined weights for rockburst propensity indicators is constructed with minimum entropy combined weights, game theory combined weights, and multiplicative synthetic normalization combined weights, and with the help of intuitionistic fuzzy sets, the single-valued indicators are transformed into interval values, which further transforms the vagueness while expanding the range of reasonable numerical domains for the indicators, taking into account and balancing the experts’ experience and data information of the rock burst indicators;

(4) Selecting 30 sets of typical rockburst cases in the world, the prediction results for rockburst propensity of the intuitionistic fuzzy set–multisource combined weights-attribute measure model are compared with those of the other three single combined weighting methods with the attribute measure model, and it is verified that the model proposed in this paper is better than the other three models in improving the accuracy and controlling the vagueness of the indicators.
