1. Introduction
Optimization algorithms, as solutions designed to optimize complex real-world problems, have been a popular area of research for the past few decades [
1]. These algorithms can generally be divided into two categories: metaheuristic algorithms (MHAs) and heuristic algorithms [
2]. MHAs are often based on laws derived inductively from real-world phenomena, which are then transformed into algorithms. On the other hand, heuristic algorithms are traditional mathematical methods or improved versions of MHAs. Several early classical MHAs, including the genetic algorithm (GA), particle swarm optimization (PSO), the simulated annealing algorithm (SA) and differential evolution (DE), have significantly influenced the field of optimization due to their wide range of applications [
3,
4,
5,
6,
7]. These algorithms stand firmly on their own as highly effective solutions. Additionally, metaphorical MHAs such as the artificial bee colony algorithm (ABC), ant colony optimization (ACO), and the whale optimization algorithm (WOA) add to the diversity of approaches [
8,
9,
10]. Conversely, the sine cosine algorithm (SCA) and covariance matrix adaptation evolution strategy (CMA-ES) fall into the category of mathematically inspired MHAs, further broadening the spectrum of optimization techniques [
11,
12]. Despite their wide-ranging definitions and interpretations, most optimization algorithms are designed around two core components: the operators and strategies employed within the algorithms [
13].
The operator, which denotes the formula used to update individuals, constitutes one of the fundamental cores of the algorithm. Operators usually contain individuals, step sizes, and operations that combine them [
14,
15]. The algorithm encompasses the selection of the previous generation of individuals and the multiplicity of search steps. The selection of individuals significantly impacts the diversity of populations within the algorithm and the retention of historical information [
16]. Meanwhile, the search step size plays a crucial role in determining the convergence speed of the algorithm [
17]. The impact of strategies extends beyond the operator components, and it can be argued that the presence of strategies differentiates algorithms from purely mathematical methods [
18]. The design of strategies often serves a specific purpose; for instance, the strategy change of individual division of labor in the swarm intelligence algorithm aims to conduct further exploitation in the valuable regions discovered by the algorithm, ultimately leading to better solutions [
19]. Similarly, the mutation strategy in genetic algorithms broadens the search direction, preventing premature convergence to local optima [
20]. However, the use of strategies entails both favorable and unfavorable effects. For instance, the greedy selection strategy may improve an individual’s fitness, yet it also limits the algorithm’s ability to escape local optima [
21]. Irrespective of the operator design and strategy choice, the primary objective is to strike a delicate balance between exploitation and exploration during the search process [
22]. Exploitation and exploration, as a set of antonyms, represent distinct facets of an algorithm’s behavior, and the algorithm’s state may lean more towards one aspect at any given time [
23]. Exploitation emphasizes the local search ability and convergence speed of an algorithm, while exploration highlights its global search ability and capacity to jump out of local optima [
24]. Achieving a balance between these two aspects is the overarching aim. Ideally, an algorithm should converge rapidly and find the global optimal solution effectively. However, this ideal scenario encounters a practical limitation due to MHAs often having to contend with NP-hard problem [
25] that an algorithm cannot achieve both fast convergence and the best solution simultaneously. Nonetheless, through a thoughtful and rational design, it is possible to strike a compromise between the convergence speed and the quality of the solution. This embodies the essence of the balance between exploitation and exploration.
Algorithm improvements are often rooted in changes to operators or strategies or the fusion of two distinct algorithms [
26,
27,
28,
29]. Hybrid algorithms, which are designed to amalgamate algorithms with different tendencies, serve the purpose of striking a better balance between exploitation and exploration. These improvements typically have specific objectives, like enabling a more exploitation-oriented algorithm to break out of local optima or enhancing the local search capabilities of an exploration-oriented algorithm. Within the realm of numerous MHAs and their improved versions, the spherical evolution algorithm (SE) is popular due to its wide range of applications in engineering optimization, such as parameter estimation for photovoltaic models and optimization of wind farm layouts [
30,
31,
32,
33,
34]. However, compared to other algorithms, SE has seen relatively few improvements. This is primarily attributed to its unique search strategy, which relies entirely on a geometric space search, and the highly stochastic nature of its search pattern, which is achieved by utilizing an operator that updates individual step sizes using Euclidean distance. One notable successful improvement of SE is the linear population size reduction-based SE algorithm (LSE) [
35]. LSE effectively compensates for the higher randomness in SE, thereby bolstering its exploitation ability while maintaining exploration capabilities. By emulating the improvement strategy of LSHADE, the search pattern of LSE is somewhat altered, enabling a more focused exploitation during later iterations [
36]. Another attempt at improvement is the cooperative coevolution wingsuit flying search algorithm with SE (CCWFSSE) [
37]. However, it falls short of being deemed a successful hybrid algorithm due to its use of unreasonable population size settings in the experimental phase and the absence of a comparison with the original SE. A previous study introducing CSE employed a differential evolution approach using coefficients of chaotic mappings for elite individuals in SE iterations, which exhibited promising performance enhancements [
38]. The results obtained in previous studies support the assertion that improving SE is a challenging task.
Weighting methods commonly employed in evolutionary computation, such as the introduction of weight to each algorithm in a hybrid algorithm, are simple yet effective techniques [
39]. Some studies have explored the idea of assigning weights to individual dimensions of the algorithm, aiming to identify the dimensions requiring the most significant changes or those necessitating minimal adjustments [
40]. However, this approach presents challenges, since estimating the value of a dimension in a black-box optimization problem is inherently difficult. Prematurely fixing the value of a dimension can inadvertently lead the algorithm towards a local optimum. Therefore, weighting is often used for deterministic problems such as image classification rather than NP-hard problems. In fact, the dimension selection mechanism employed in SE is essentially a form of weight selection. SE defines the number of dimensions (
) updated by an individual as a random integer in the range of
, which, for a 30-dimensional problem, equates to assigning a weight ranging from 20% to 33.3% to each dimension of the individual. This stochastic weighting mechanism prevents the algorithm from prematurely converging to a local optimum, but it also compromises its exploitation capability. The primary focus of the improvement in this paper lies in modifying the original weight (

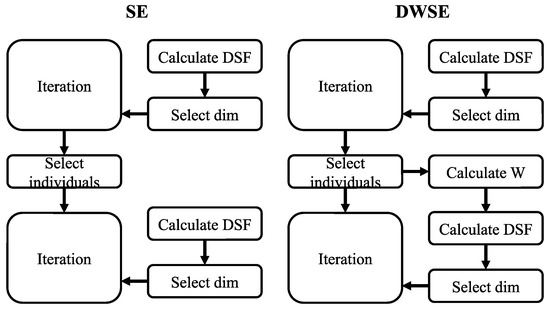

). Specifically, we introduce a modification by replacing the random selection approach with a more sophisticated weighted selection approach. The weight assigned to dimension selection is influenced by the quality of the solution, as well as historical information. This dimensionally weight-based improvement in SE is referred to as DWSE. To enhance the efficiency of DWSE, we incorporated a cooperative strategy by segmenting the population of SE into multiple subsets. Within each segment, individuals share the same set of weights, fostering a cooperative synergy that yields similar effects.
To evaluate the performance of DWSE, we conducted extensive evaluations utilizing three test sets sourced from the IEEE Congress on Evolutionary Computation (CEC). These sets encompass thirty single-objective continuous function optimization problems drawn from CEC2017, which encompass single-peak functions, simple multipeak functions, hybrid functions, and composite functions. Additionally, we included twenty-two real-world problems sourced from CEC2011, along with a comprehensive large-scale global optimization test set derived from CEC2013. The function expressions for these test sets are publicly accessible on the official IEEE CEC website. Furthermore, we are committed to providing the problem models, along with the corresponding open-source data. The outcomes of our experimentation unequivocally underscore the substantial enhancements achieved by DWSE, distinctly positioning it with advantages over other SE improvement algorithms.
This work aims to make the following contributions:
For the first time in SE, we apply a weighting method to dimension selection with adaptive capability;
DWSE has significant advantages over SE and other SE improvement algorithms for constrained single-objective optimization problems.
In
Section 2, we introduce the proposed DWSE. In
Section 3, experiments and analysis using DWSE based on standard test sets, real-world problems, and large-scale optimization problems are presented to validate the improvements. Finally, in
Section 4, we provide a comprehensive summary of the conclusions drawn from this research paper.
3. Experimental Results and Discussion
For the experimental part, the number of evaluations was set to 10,000 × for the CEC2011 and CEC2017 problems and for the CEC2013 LSGO problems. The population size of all SE improvement algorithms including DWSE was set to 100. In the tables, mean and std represent the average value and standard deviation, respectively, and data marked in bold represent the best mean. is the result of the comparison of under the Wilcoxon rank-sum test at (In general, the threshold for determining significant differences is 5%). After std, represents the relationship under that problem. denotes results based on Friedman mean rankings, and bolded font denotes the best mean under the problem. All results are based on repeated runs in MATLAB (51 times for CEC2017 and CEC2011; 30 for at CEC2013 LSGO) on a device with an i7-9700 CPU and 36GB RAM.
3.1. Experimental Results and Analysis in CEC2017
Table 1 and
Table 2 present the experimental results of SEs in CEC2017, encompassing results under four problem dimensions: 10, 30, 50, and 100. The results reveal that DWSE holds a significant advantage over all other SE improvement algorithms; this advantage is particularly pronounced when dealing with smaller problem dimensions. The dimension weighting mechanism of DWSE allows for a much more effective exploitation, surpassing other SE algorithms in terms of local search capabilities. Even in higher dimensions, DWSE maintains a competitive edge, despite a slight decline in performance. This is attributed to the impact of dimensional weights under grouping, which accentuates the disparity in operator weights among different groups, preserving sufficient randomness.

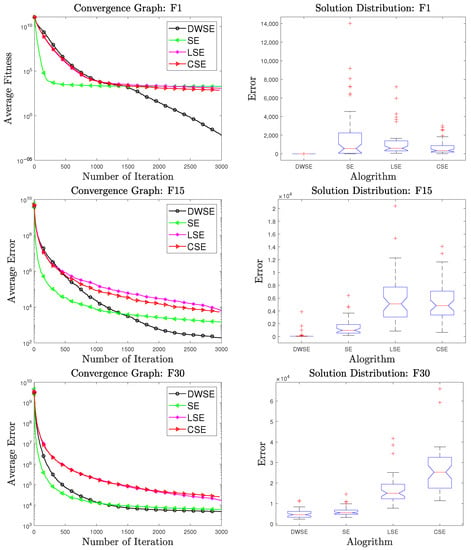

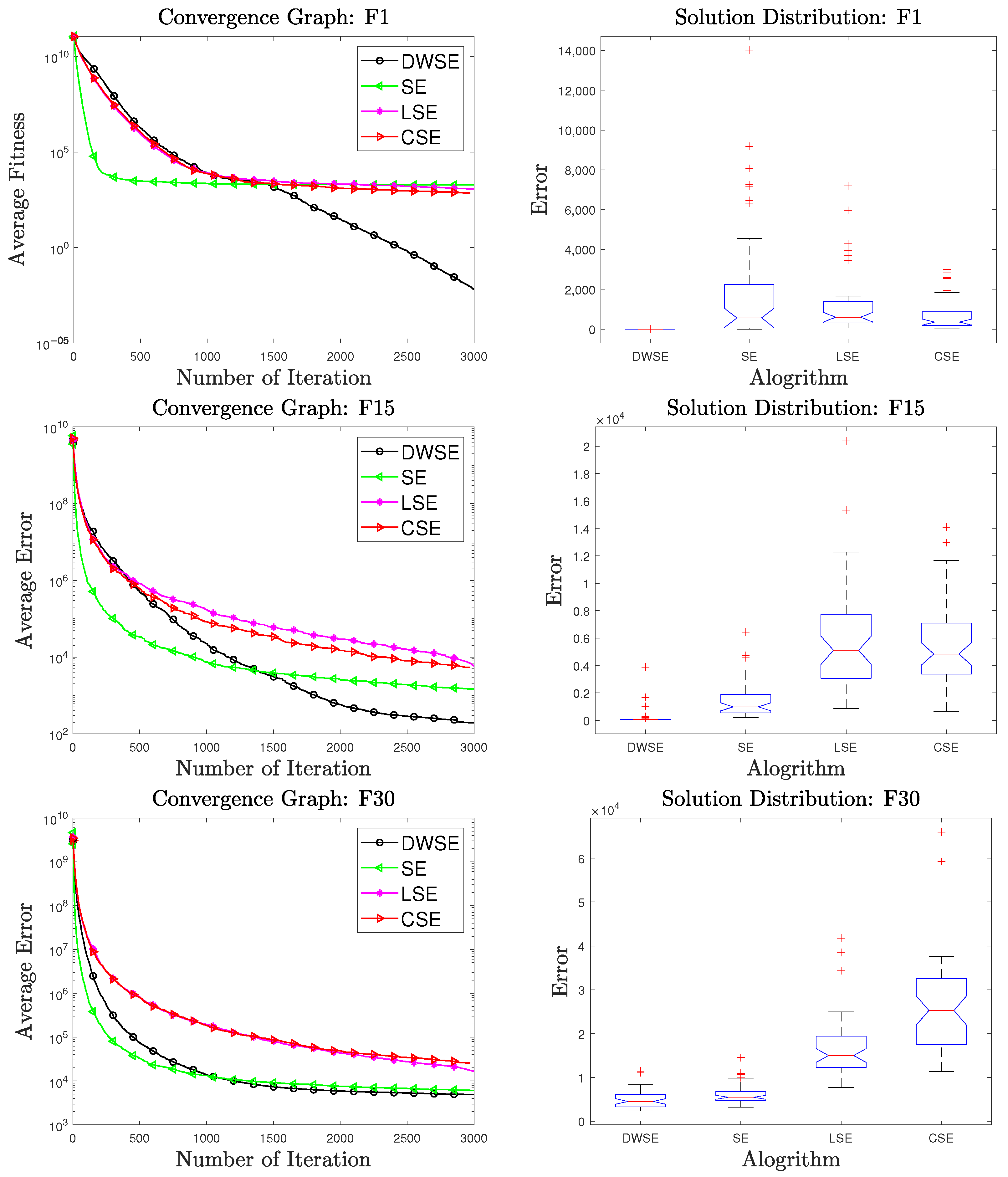

Figure 3 displays a box and convergence graph of four SEs on problem 1, problem 15, and problem 30 in CEC2017, where
. Problem 1 represents a single-peak unimodal function, wherein the local optimum coincides with the global optimum, demanding a greater focus on algorithmic exploitation rather than exploration. The figure clearly illustrates that DWSE not only exhibits superior local search capabilities but also demonstrates notably better stability when dealing with the single-peak problem, outperforming the other three algorithms.
Problem 15 represents a hybrid function optimization problem with multiple peaks, indicating inherent unrelatedness among its dimensions. In the convergence graph, DWSE exhibits robust convergence, with a slight slowdown observed in the later stages when focusing on local search, while the other SEs show significantly slower convergence. As evidenced by the box plots, DWSE maintains similar stability performance as in problem 1 and significantly outperforms the other algorithms. The red + represent the location of the extremes in the repeat run. The presence of individual extreme values indicates a tendency to converge to a local optimum, suggesting that DWSE may have the capability to find a globally optimal solution for this problem when extreme values are not involved.
In contrast, problem 30 is a multipeak composition function problem, requiring a higher level of exploratory capability than problem 1. Even in this scenario, DWSE emerges as the top performer, as evidenced by the convergence chart. Notably, CSE, which employs chaotic differential operators, fares the worst on this problem, while LSE exhibits weaker exploration capabilities compared to SE, mainly due to its emphasis on strengthening exploitation without an increase in the initial population size ( in L-SHADE).
Considering the combined analysis of both problems, it is evident that DWSE not only enhances the local search ability of SE but also improves its capacity to explore global optima. Furthermore, the convergence process of DWSE is smooth and stable, contributing to its impressive performance.
3.2. Experimental Results and Analysis in CEC2011
Table 3 shows the experimental results in CEC2011, a test set commonly used to test the ability of algorithms to solve real-world problems. Since the global optimal solution of a real-world problem may not be a knowable value, we use the mean of the final fitness for statistics on that problem. Among these 22 real-world problems for solving the minimum, DWSE is still substantially ahead of the other algorithms.

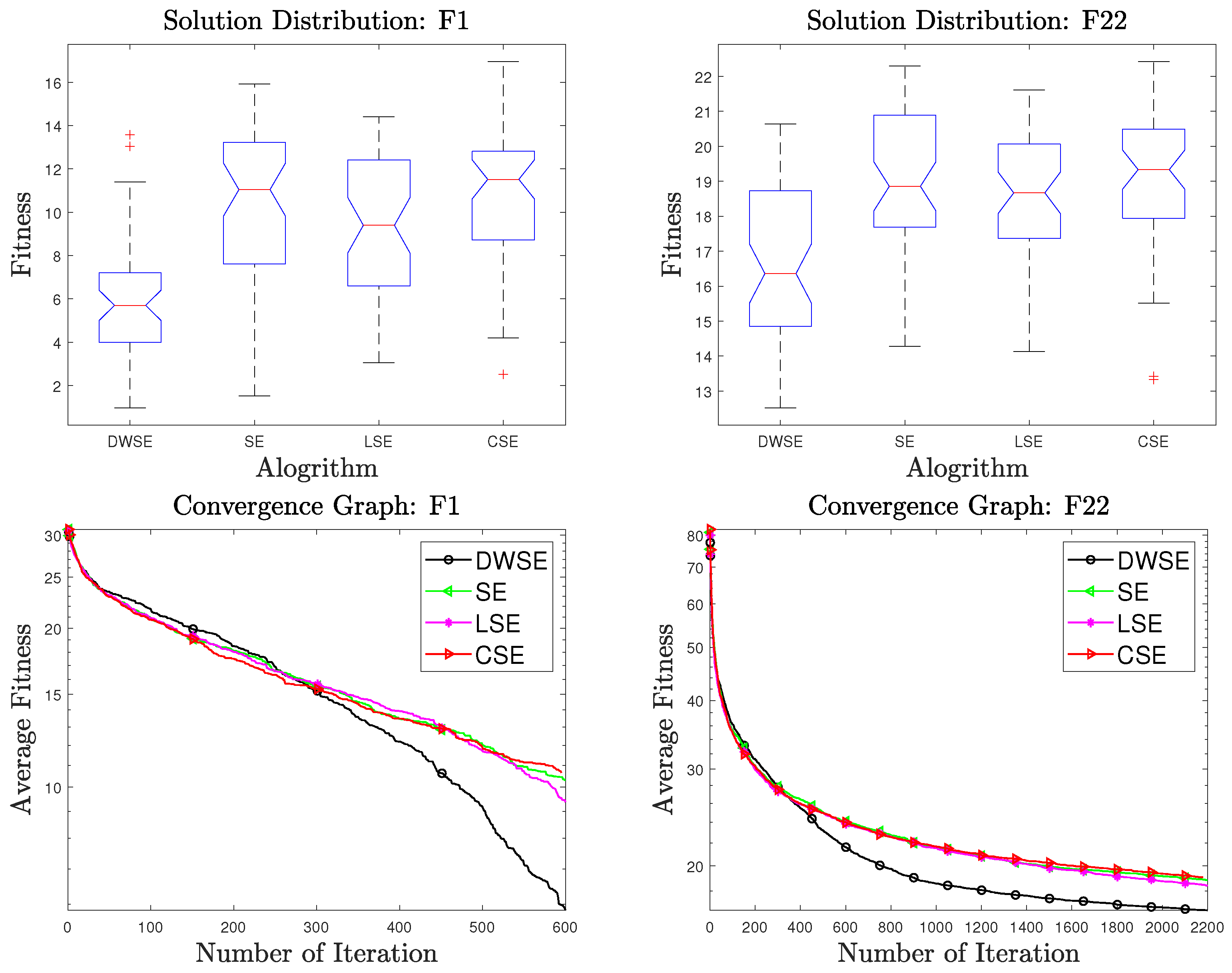

Figure 4 shows the box and convergence graph of SEs in CEC2011. The red + represent the location of the extremes in the repeat run. Problem 1 is a parameter estimation for a frequency-modulated sound wave problem; DWSE shows strong convergence in this problem. The algorithm converges progressively faster on simple single-peak-type problems due to the adaptive weights, gaining an advantage over other algorithms. The DWSE continues to be the most consistent in the box plot, with two extremes, but the values in its middle segment are much closer together. Problem 2 is a spacecraft trajectory optimization problem; DWSE continues to outperform other algorithms on this problem. However, the stability of DWSE decreases slightly for relatively complex problems, so repeated optimizations may become increasingly necessary. The advantages of DWSE in terms of the speed of convergence of this problem is still evident.
3.3. Experimental Results and Analysis in CEC2013 LSGO
Previous experimental results and analyses show that DWSE is much stronger than other SEs on low-dimensional problems, but its performance decreases as the problem dimensions increase. Therefore, in this paper, we adopted the large-scale global optimization problem set of CEC2013 as a test of the performance of DWSE under ultra-high dimensional problems.
Table 4 shows the experimental results of large-scale global optimization in CEC2013. However, in terms of results, DWSE is only better than SE and equal to LSE and CSE in terms of wins and losses. However, considering the performance decay of DWSE with increased dimensions, while it can still achieve a performance not weaker than that of other SEs on problems with dimensions of 1000 or less, the improvement of DWSE can be considered a success. Large-scale global optimization problems have consistently posed significant challenges for evolutionary algorithms, and often, only algorithms designed for large-scale problems can effectively optimize such cases. We utilized these problems to test whether DWSE would be less effective than other SEs when confronted with performance decay arising from increased problem dimensionality. However, the experimental results were satisfactory, demonstrating DWSE’s capability to adeptly handle such scenarios.

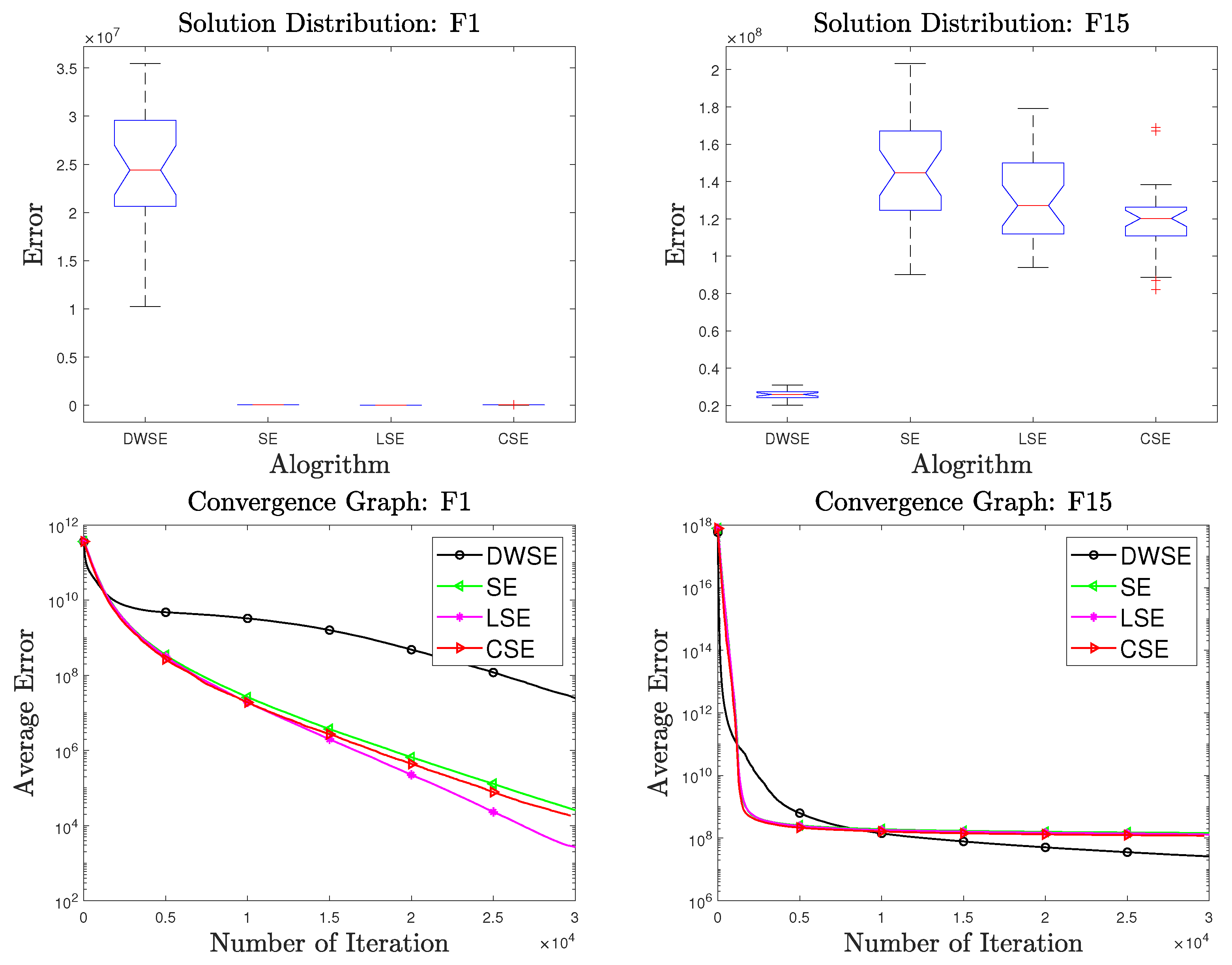

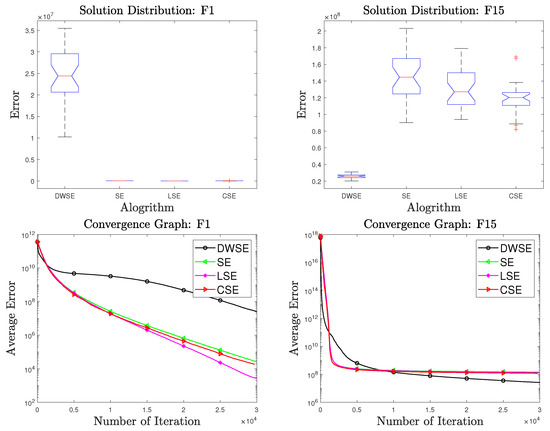

Figure 5 shows the box and convergence graph of SEs in CEC2013 LSGO. The red + represent the location of the extremes in the repeat run. The search efficiency of DWSE on problem 1 is much lower than that of other SEs, which may be due to the fact that the adaptive range of the weights is so small in the ultra-high dimensionality problem that the number of dimensions being changed each time is too large. Changing too many dimensions on that problem may lead to slower convergence and therefore insufficient
values, eventually leading to insufficient change of weights comprising a vicious circle. On problem 15, at the beginning of convergence, DWSE is still inferior to the other algorithms, again due to the weighting calculation. However, since all algorithms fall into a close local optimum on this problem, while the other SEs lack local search capability and stagnate altogether, DWSE’s excellent local search capability allows it to obtain the most accurate set of solutions on the local optimum, defeating the other SEs.
3.4. Comparison with Other MHAs in CEC2017 and CEC2011
In order to further demonstrate the improvement in the performance of DWSE, it was compared with a selection of classic, strong, and recent algorithms on a low to medium dimensional test set [
41,
42,
43,
44,
45,
46].
Table 5 shows the comparison results of DWSE with other MHAs in CEC2017 and CEC2011. DWSE took the lead in the overall comparison results and gained the lead in every set of problems, except for CEC2017, where it was slightly behind DE under the 30-dimension problem. We believe this is a testament to DWSE’s strength in performance. It should be noted that IPA, due to its design mechanism, cannot be run on problems with a low dimension count; therefore its data are not available for CEC2011.
3.5. Discussion
In the time complexity analysis, the initialization complexity of DWSE is . The upper bound of the operation is dependent on the problem dimension, resulting in a time complexity of for the computation of and W. The operator utilized in DWSE consumes a time complexity of . Additionally, the time complexity associated with the dimension selection process is . In summary, the overall time complexity of DWSE can be expressed as . In comparison to SE, the complexity of DWSE is higher. This higher complexity is attributed to DWSE’s requirement of dimension weighting, which increases its complexity by a factor of due to the additional operations conducted in the loop involving computations. However, considering the performance enhancement achieved by DWSE, the slight increase in computation time is deemed acceptable.
Table 6 shows the experimental results of all SE operators in dimension 30 in CEC2017. Among these, DWSE utilizes SE/rand/1 and SE/rand/2, which exhibit nearly identical performance, displaying negligible distinctions, with notable proximity to SE/current/1 and SE/current/2. Given that SE/rand/1 is the recommended operator within the SE framework and is widely employed for real-world problem optimization, we concur with its selection.
4. Conclusions
The development of optimization algorithms has a long and rich history, which has given rise to a series of intriguing and diverse algorithms in its early stages. As problems and algorithms have progressed, driven by the pursuit of better performance, algorithmic improvements have gradually converged, resulting in a phenomenon of becoming trapped in local optima. Although the developers of SE were the first to observe and propose this unique algorithm, it has also presented challenges in implementing many successful improvement experiences in this context.
The improvement method proposed in this paper involves a specialized operation based on the dimension selection of SE. Despite its non-complex nature, the effectiveness of this improvement is evident. The substantial enhancements in low- and medium-dimensional problems, coupled with the sustained performance in ultra-high-dimensional problems, bring SEs closer to approximating the global optimum. As one of the few SE improvement algorithms, we also hope that DWSE can contribute to the diversification of algorithms.
SE is an algorithm commonly employed to optimize parameter estimation problems for photovoltaic models and has proven its effectiveness in solving such problems. Our next step involves selecting this problem and utilizing the current best-performing SE, i.e., DWSE, as the foundation for further enhancements, aiming to attain even better results for real-world applications.
