EDRNet: Edge-Enhanced Dynamic Routing Adaptive for Depth Completion

Abstract

Depth completion is a technique to densify the sparse depth maps acquired by depth sensors (e.g., RGB-D cameras, LiDAR) to generate complete and accurate depth maps. This technique has important application value in autonomous driving, robot navigation, and virtual reality. Currently, deep learning has become a mainstream method for depth completion. Therefore, we propose an edge-enhanced dynamically routed adaptive depth completion network, EDRNet, to achieve efficient and accurate depth completion through lightweight design and boundary optimisation. Firstly, we introduce the Canny operator (a classical image processing technique) to explicitly extract and fuse the object contour information and fuse the acquired edge maps with RGB images and sparse depth map inputs to provide the network with clear edge-structure information. Secondly, we design a Sparse Adaptive Dynamic Routing Transformer block called SADRT, which can effectively combine the global modelling capability of the Transformer and the local feature extraction capability of CNN. The dynamic routing mechanism introduced in this block can dynamically select key regions for efficient feature extraction, and the amount of redundant computation is significantly reduced compared with the traditional Transformer. In addition, we design a loss function with additional penalties for the depth error of the object edges, which further enhances the constraints on the edges. The experimental results demonstrate that the method presented in this paper achieves significant performance improvements on the public datasets KITTI DC and NYU Depth v2, especially in the edge region’s depth prediction accuracy and computational efficiency.

1. Introduction

Currently, depth maps have an extensive range of applications in areas such as unmanned driving, virtual reality, and robot navigation. Although depth information can be obtained from LiDAR and commodity-grade RGB-D cameras, these depth sensors have obvious limitations in practical applications. Although LiDAR can provide highly accurate depth measurement information, its output depth map is very sparse (e.g., the projected depth map of Velodyne HDL-64e has only about 5.6% of effective pixels), and the equipment cost is high. In contrast, commercial-grade RGB-D cameras (e.g., Kinect) are capable of generating relatively dense depth maps, but during use, due to lighting variations in the captured scene, object occlusion, etc., the obtained depth maps usually have many nulls and inaccurate measurements, making it difficult to be used for high-precision tasks. In addition, although the monocular depth estimation task can generate a complete depth map, it is an unsuitable problem. Therefore, achieving high-quality depth completion has become an essential topic of common concern in academia and industry.

Earlier depth completion was usually achieved using traditional methods such as image filters [1,2,3]. However, the depth maps generated by these methods often have limited accuracy due to noise, occlusion, and other factors. In recent years, the advancement of deep learning techniques has garnered increasing scholars’ focus on convolutional neural networks (CNNs). For example, Uhrig et al. [4] designed a sparsity-invariant network layer to adapt to sparse deep data input; Huang et al. [5] proposed a sparsity-invariant multiscale coding and decoding network (HMS-Net) and a sparse feature mapping on this basis; and Chodosh et al. [6] trained a recurrent self-encoder and proposed an end-to-end multilayer dictionary learning algorithm. However, traditional convolutional neural networks (CNNs) can usually only capture local information due to the use of a fixed convolutional kernel for feature extraction. To enhance the performance of depth completion, researchers have started to explore the use of RGB images for assisted completion [7,8,9]. For example, Ma et al. [7] proposed a feature fusion of RGB images and corresponding sparse depth maps to complete depth completion. However, RGB images sometimes cannot accurately provide geometric information about objects due to object shadows and light reflections, etc., and the complemented depth maps often suffer from blurred edges. Therefore, some researchers have explored the use of the Transformer [10,11,12] to complete the depth completion task. The Transformer demonstrates significant potential in the depth completion challenge because of its robust global modelling capability. Kyeongha et al. [10] proposed a two-branch network that is completely based on the Transformer. Nevertheless, the Transformer excessively prioritises global information while neglecting the local details of the image. Based on this, Zhang et al. [11] proposed to combine CNN and the Transformer to solve the problem of generating unsuitable depth maps in depth completion, which achieved exciting results, but it requires substantial computational resources and poses challenges in fulfilling real-time demands.

Therefore, the current depth completion techniques reliant on deep learning still face several challenges: (1) The models usually deal with the features of the whole image, and in the boundary region, the network struggles to accurately capture boundary information due to large changes in the object’s appearance. (2) The models have high computational complexity, large parameter counts, and require a long training time, which is highly demanding on the computational power. (3) In some textures, there are sparse or poor lighting conditions in the regions, and due to the lack of sufficient visual cues, the depth completion model struggles to extract sufficient feature information and accurately predict the depth.

To address the above problems, this paper proposes a Sparse Adaptive Dynamic Routing Transformer module (SADRT), which consists of CNN and the Transformer in parallel. Among them, the task of the Transformer part is to process image global information, but it inevitably brings a large amount of computation. So, this paper designed a dynamic routing mechanism so that the network adaptively selects the feature propagation path, effectively captures multi-level features, and reduces the computational overhead. The CNN part of the spatial channel attention mechanism (CBAM) and the design of adaptive sparse activation (ASA) algorithms mean that the network is more flexible to handle the depth information of different scenes and objects. In addition, considering the limited object boundary and structure information brought by RGB images, this paper designs a matching loss function for the depth error of object edges and introduces the edge information map extracted by Canny operator in the coding layer, and then fuses the edge information with the RGB image and the sparse depth map to achieve a more precise depth map.

In summary, our main contributions are as follows:

• We propose a Sparse Adaptive Dynamic Routing Transformer block (SADRT) based on CNN and the Transformer as part of the basic unit of the encoder in EDRNet. By combining dynamic routing and sparse adaptive activation mechanism, the method in this paper improves the computational efficiency of the model while maintaining high accuracy, providing a feasible solution for real-time applications.
• We design a multi-lead structure perception network framework. In layer 4 of the encoder, we introduce the edge information map extracted by Canny operator and feature fusion with the RGB image and sparse depth map. The method effectively combines the structural information of the RGB image and edge image, further improving the accuracy and quality of the depth map.
• We design a matching loss function for object edge depth error. This loss function comprises two components: edge strength loss and edge position matching loss. Experiments on two publicly accessible datasets demonstrate that this loss function enhances the edge quality of the depth map by explicitly modelling the depth error in the edge region.

2. Materials and Methods

2.1. Network Architecture

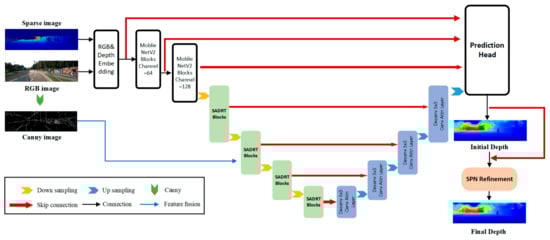

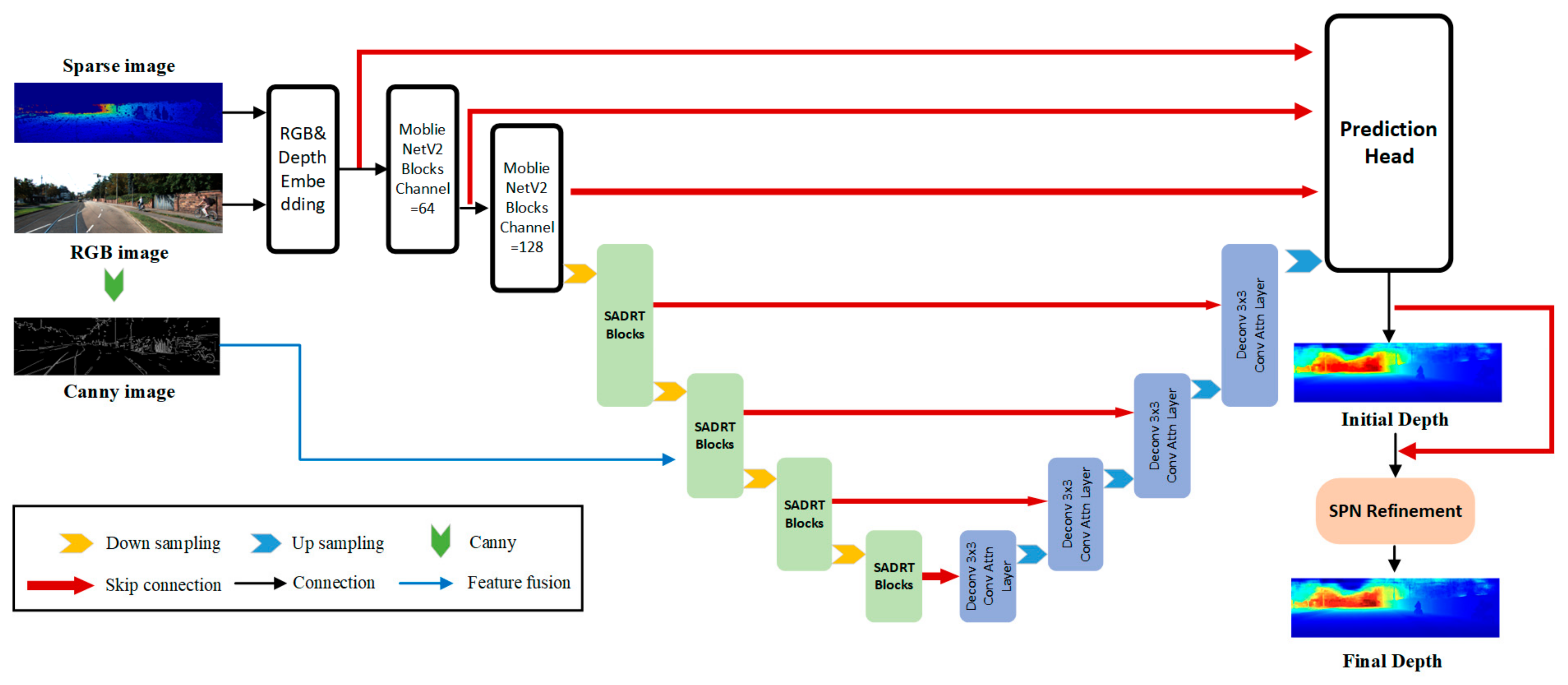

The network model we designed is based on the U-Net [13] architecture and consists of two parts: encoder and decoder. The model adopts an end-to-end approach and is capable of learning features directly from the input images and generating high-quality depth maps. To reduce the computational burden of the network, a lightweight network MobileNet V2 [14] is used in the first two layers of the encoder, and a Sparse Adaptive Dynamic Routing Transformer (SADRT) block is designed for multi-scale feature extraction. To enhance the edge details, we extracted the edge information corresponding to the RGB image using the Canny operator, which was experimentally determined to be input to the fourth layer of the encoder. In the decoder block, we combined the convolutional layer with the attention mechanism to enhance the information interaction on spatial and channel dimensions to assist our network in focusing on more important information during the decoding process. To ensure that the rich feature information extracted in the encoding stage can be efficiently transferred to the decoding stage, we designed a layer-hopping connection between encoding and decoding to facilitate the transfer of feature information derived from each encoding layer to the corresponding section of the decoding layer, which can better recover the image details and improve the model performance. Finally, we adopt the Spatial Propagation Network (SPN) [15] to enhance the depth map. The overall network architecture we proposed is shown in Figure 1.

2.2. SADRT Block

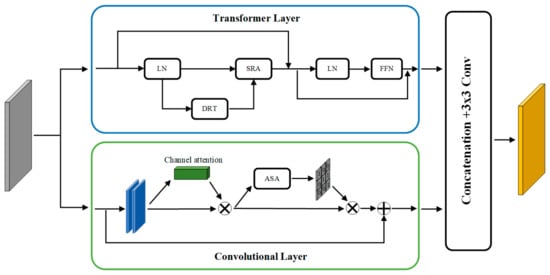

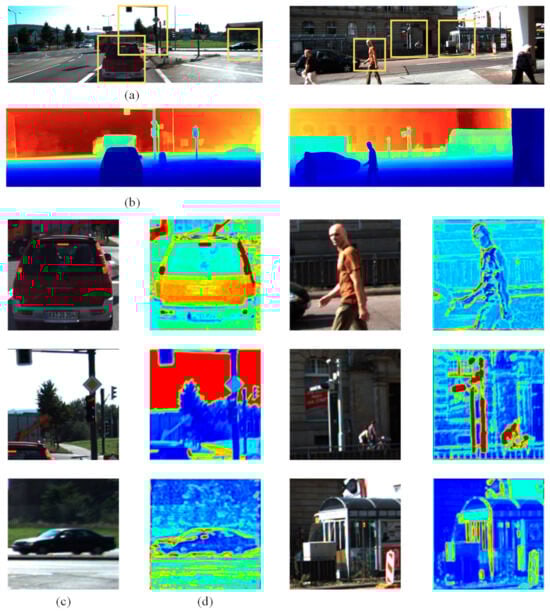

During depth completion, the traditional CNN focuses on information extraction from local regions through convolutional operations. However, limited by the size of the fixed convolutional kernel and the local receptive field, CNN has limitations in capturing global features. On the other hand, the Transformer can capture global information while processing data through the self-attention mechanism, but its computational complexity is high. To combine the advantages of the two and make up for their respective shortcomings, this paper is inspired by the JCAT block proposed by Zhang et al. [11] and designs the Sparse Adaptive Dynamic Routing Transformer block (SADRT) as part of the basic unit of the encoder in the depth completion model. In the Transformer part, a dynamic routing algorithm is proposed to reduce the computational effort generated by the self-attentive mechanism in the Transformer when processing global information. In the Convolution section, Adaptive Sparse Activation (ASA) is combined with Channel Spatial Attention (CBAM). Subsequently, the outputs of the Transformer layer and the convolutional adaptive attention layer are concatenated, and the output feature maps are generated by further convolutional operations. Our proposed SADRT block is shown in Figure 2. Details of the parameters for each layer of the network architecture is detailed in Appendix A.6.

2.2.1. Dynamic Routing Transformer

Dynamic Routing (DR), originally proposed by Capsule Networks [16], is a mechanism that can dynamically select tokens to participate in attention computation based on the importance of input features. In this paper, we combine the Self-Attention Layer (SRA), Layer Normalisation (LN), and Feed-Forward Network (FFN) to construct the Dynamic Routing Transformer (DRT) architecture. By introducing the dynamic routing algorithm, the architecture is able to adaptively select the most relevant feature paths during the training process so that the network focuses on the most important features for the depth completion task, and minimises redundant computations generated by the self-attention mechanism in the Transformer when processing global information, thus, improving the efficiency of training and inference.

The dynamic routing computation process in DRT:

Assuming that the size of the input feature graph $F$ is $H\times W\times C$ and the size of the segmented patch is $P\times P$, then

① Feature embedding: Split the input feature graph into multiple patches and embed them into tokens. The formula is shown in (1):

$$X=Embed(F)$$

(1)

where N denotes the number of tokens, C denotes the number of channels, $X\in {ℝ}^{N\times C}$.

② Attention calculation: Calculate the attention of each token to obtain the corresponding attention weight. The formula is shown in (2)–(4):

$$Q,K,V=Linear\mathrm{Pr}oj(X)$$

(2)

where $Q,K,V\in {ℝ}^{N\times C}$ denotes the query, key, and value matrices, respectively.

$$A=Soft\max ({\displaystyle \frac{Q{K}^T}{\sqrt{C}}})V$$

(3)

where $A\in {ℝ}^{N\times C}$ denotes the attention weight matrix.

$$X^{\prime }=AX{V}^T$$

(4)

where $X^{\prime }\in {ℝ}^{N\times C}$ denotes the updated token.

③ Importance scoring: Employ the softmax function to convert the attention weights to a probability distribution and use the entropy of the probability distribution as the importance score for each token. The formula is shown in (5) and (6):

$$P=Soft\max (A)$$

(5)

where $P\in {ℝ}^{N\times C}$ denotes the probability distribution of the token.

$$H(P)=-{\displaystyle {\sum }_{i=1}^N{\displaystyle {\sum }_{j=1}^N{P}_{ij}\log P_{ij}}}$$

(6)

where H(P) denotes the entropy of the probability distribution.

④ Dynamic selection: Select top-$K$ tokens based on importance scores.

⑤ Attention update: Attention is computed using the selected token and the representation of each token is updated. The formula is shown in (7):

$$X^{\prime }=Attention(X^{\prime }[K])$$

(7)

where X′[K] denotes the selected token.

2.2.2. Adaptive Sparse Activation

In depth completion tasks, convolutional neural networks (CNNs) extract features through intensive convolutional operations, resulting in large computational and parametric quantities. The traditional sparse activation method selects some features for activation using a predefined sparse strategy, diminishing the computing burden yet failing to fully leverage the dynamic information of the input features. So, we propose an Adaptive Sparse Activation (ASA) method, which dynamically adjusts the position and proportion of sparse activation according to the statistical information of input features so that important features can be effectively selected for activation in different input situations.

• Convolutional Operation

The convolution operation is used to extract local features by sliding a convolution kernel over the feature map. The standard operation is as follows:

$$Y=\sigma (W\ast X+b)$$

(8)

where W is the convolution kernel, X denotes the input feature map, b denotes the bias, σ denotes the activation function, and ∗ denotes the convolution operation.

• Sparse Activation

The sparse activation method reduces the computation by selecting some features for activation. Suppose the input feature map is $X\in {ℝ}^{C\times H\times W}$, the expression for the sparse activation is

$$X_{sparse}=X•M$$

(9)

where M denotes a sparse mask matrix with only some positions 1 and other positions 0.

• Adaptive Sparse Activation

The adaptive sparse activation method dynamically generates a sparse mask matrix M informed by the statistical information of the input features. The steps are as follows:

① Feature statistics: Calculate the statistics of the input feature map. The formula is shown in (10):

$$\mu ={\displaystyle \frac{1}{H\times W}}{\displaystyle \sum _{i=1}^H{\displaystyle \sum _{j=1}^H{X}_{ij},}}\sigma =\sqrt{{\displaystyle \frac{1}{H\times W}}{\displaystyle \sum _{i=1}^H{\displaystyle \sum _{j=1}^H{(X_{ij}-\mu )}^2}}}$$

(10)

where µ denotes the mean, σ denotes the standard deviation.

② Sparse threshold: Calculate the adaptive sparse threshold τ based on the statistical information. The formula is shown in (11):

$$\tau =\alpha •\sigma +\beta •\mu$$

(11)

where α and β are adjustable parameters.

③ Sparse mask: Generate the sparse mask matrix $M$. The formula is shown in (12):

$$M_{ij}=\left\{\begin{array}{c}1\\ 0\end{array}\begin{array}{c}\\ \end{array}\begin{array}{c}if\\ \end{array}\begin{array}{c}{X}_{ij}\ge \tau \\ otherwise\end{array}\right\}$$

(12)

④ Sparse activation: Apply the sparse mask to the input feature map. The formula is shown in (13):

$$X_{sparse}=X•M$$

(13)

where M denotes the dynamically generated sparse mask matrix.

2.3. Introducing Edge Image References

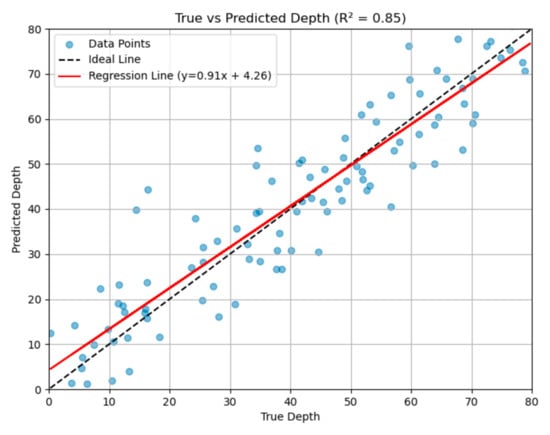

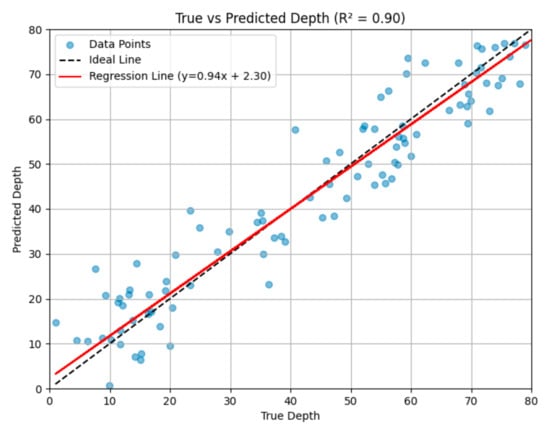

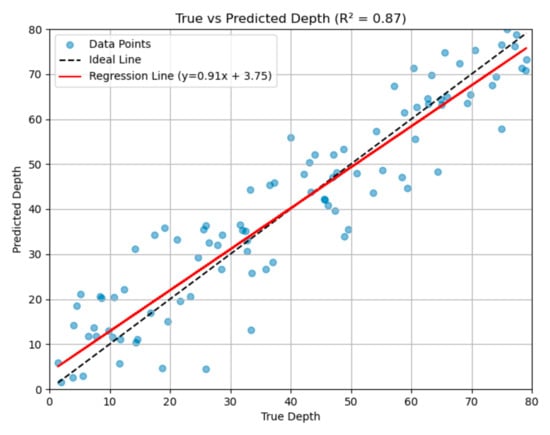

The depth completion task usually relies on RGB images for guidance, but the generated depth maps are often blurred in the edge and detail regions due to insufficient feature information. This paper offers a multi-modal feature fusion strategy that combines RGB images with edge images to solve the problem. Extracting edge images from the input RGB images using the Canny algorithm, a classical image processing technique, helps the model to accurately capture the boundaries and key geometric features of the object, thus, providing supplementary guidance for the missing parts of the sparse depth map. See Appendix A.2 for details of the experiments on the selection of edge operators. In the model of this paper, we fuse the edge image with the high-level features of the RGB image after feeding it into layer 4 of the encoder. This multi-modal feature fusion approach enhances the structural information of the image and significantly improves the edge detail of objects in the depth map. To enhance the fused features, we use many convolutional layers following feature splicing to ensure a close integration of the RGB image’s colour information with the edge image’s structural information. The experimental results demonstrate that the approach enhances edge clarity and detail recovery in the depth map, significantly increasing the accuracy of the depth completion job. The visualisation results of the edge information are shown in Figure 3.

2.4. Composite Depth Completion Loss Function

Considering the influence of object edges on the quality of generated depth maps, this paper introduces a new loss function component based on the loss function proposed by Liu [17] et al. The loss function we designed is named Composite Depth Completion Loss. The formula is as follows:

$$L_{CDC}(P,G)=\alpha L_{EM\_L\mathrm{oss}}(P,G)+\beta L_{L1}(P,G)+\gamma L_{TV}(P)+\delta L_{D\mathrm{ice}}(P,G)$$

(14)

where P denotes the prediction image, G denotes the real image, α, β, γ, and δ are the weight parameters, and the four weight parameters are set to 0.3, 0.2, 0.2, and 0.3, respectively, through experiments. See Appendix A.3 for details of the experiments.

2.4.1. Edge-Matching Loss Function

During the training of the model, the traditional loss function mainly focuses on the mean situation of all pixels in the image and fails to fully consider the impact of some significant features in the image (e.g., edges) on the model training results. To ensure that the predicted image matches the real image in terms of edge location and shape, this paper proposes an edge-matching loss function, which can fully consider the edge texture information and improve the precision of the model. Through the edge detection algorithm (Sobel operator), a specialised loss is calculated for the edge regions of the predicted depth map. The loss consists of two parts: edge strength loss and edge position-matching loss.

• Edge strength loss

It is used to calculate the difference between the edge strength of the predicted and real images. The horizontal and vertical gradients of the predicted image $P$ and the real image $G$ are computed using the Sobel operator. The formula is as follows:

$$P_x=P\ast G_x$$

(15)

$$P_y=P\ast G_y$$

(16)

$$G_x=G\ast G_x$$

(17)

$$G_y=G\ast G_y$$

(18)

where ∗ denotes the convolution operation, G_x and G_y are Sobel kernels.

Then, the edge strength is calculated:

$$P_{edge}=\sqrt{P_x^2+P_y^2}$$

(19)

$$G_{edge}=\sqrt{G_x^2+G_y^2}$$

(20)

The edge strength loss is defined as

$$L_{edge\_strength}(P,G)={\displaystyle {\sum }_{i,j}}|P_{edg{e}_{i,j}}-G_{edg{e}_{i,j}}|$$

(21)

• Edge position-matching loss

It is used to calculate how well the predicted image and the real image match in the edge position to ensure the similarity of the edge profile. The edge position-matching loss is defined as:

$$\begin{array}{l}{L}_{edge\_position}(P,G)=\\ {\displaystyle {\sum }_{i,j}}\left(\P (P_{edg{e}_{i,j}}>\epsilon )\P (G_{edg{e}_{i,j}}\le \epsilon )+\P (P_{edg{e}_{i,j}}\le \epsilon )\P (G_{edg{e}_{i,j}}>\epsilon )\right)\end{array}$$

(22)

where ¶ is an indicator function that takes 1 when the condition is satisfied and 0 otherwise, ε is a small threshold for judging the edges.

The edge-matching loss function is defined as

$$L_{EM\_L\mathrm{oss}}(P,G)=L_{edge\_strength}(P,G)+L_{edge\_\mathrm{position}}(P,G)$$

(23)

2.4.2. L1 Loss Function

It is a loss function commonly used in depth completion tasks to measure the overall difference between the predicted and true values to ensure the accuracy of the overall depth prediction. The formula is as follows:

$$L_{L1}(P,G)={\displaystyle {\sum }_{i,j}}|P_{i,j}-G_{i,j}|$$

(24)

2.4.3. Total Variation Loss Function

This loss function was proposed by Liu et al. [17]. It is used to promote pixel-level connection regularisation and reduce the noise in the predicted depth map. The formula is as follows:

$$L_{TV}(P)={\displaystyle {\sum }_{i,j}}(|P_{i+1,j}-P_{i,j}|+|P_{i,j+1}-P_{i,j}|)$$

(25)

2.4.4. Dice Loss Function

This loss function was proposed by Liu et al. [17]. It is used to measure the degree of overlap between the predicted and real images, and it can focus on the loss of the foreground region and avoid the interference of background pixels. The formula is as follows:

$$L_{Dice}(P,G)=1-{\displaystyle \frac{2{\displaystyle {\sum }_{i,j}{P}_{i,j}{G}_{i,j}+\epsilon }}{{\displaystyle {\sum }_{i,j}{P}_{i,j}^2+{\displaystyle {\sum }_{i,j}{G}_{i,j}^2+\epsilon }}}}$$

(26)

where ε is a small threshold, set artificially.

3. Results and Discussion

3.1. Datasets

Our experiments are based on two public datasets, KITTI DC and NYU Depth V2, which cover outdoor and indoor scenes, respectively, and are the official datasets for depth completion.

The KITTI Depth Completion Dataset [18] consists of outdoor scenes captured by multiple sensors, covering trees, roads, pedestrians, and vehicles. The resolution of the RGB images and depth maps is 352 × 1216, and since the sky part contains very little depth information, the resolution is cropped to 240 × 1216 in the experiments to facilitate better training of the model. The dataset contains more than 93,000 sets of RGB images and original sparse depth maps. We divide it into three parts: training set, validation set, and test set, where 86,000 datasets are used for training, 7000 sets for validation, and 1000 sets for testing.

NYU Depth V2 Dataset [19] is an indoor scene depth benchmark dataset released by New York University. The dataset uses Microsoft Kinect’s RGB-D camera to acquire monocular RGB images of indoor scenes and the corresponding true depth information. It contains 464 indoor scene photo sets and is a commonly used dataset for depth completion tasks. The images have a native resolution of 640 × 480 and a depth range of 0.5–10 m. In this paper, we use this dataset to evaluate the depth completion capability of EDRNet in indoor scenes. In the experiments, following the segmentation approach of previous work [20,21], we use 120,000 images of 249 scenes uniformly sampled from the training set for training and 654 images of 215 scenes for validation and testing.

3.2. Evaluation Metrics

The performance of depth completion is evaluated mainly by comparing the error and accuracy between the predicted depth P and the true depth G. We use the following common evaluation metrics to assess the performance of our method: (1) root mean square error (RMSE); (2) mean absolute error (MAE); (3) inverse root mean square error (iRMSE); (4) inverse mean absolute error (iMAE); (5) structural similarity index measure (SSIM); (6) learned perceptual image patch similarity (LPIPS); and (7) mean relative error (REL).

3.3. Implementation Details

We implement our model in PyTorch 2.1.0, the GPUs are two NVIDIA GeForce RTX 4090 with 24 G memory, and the operating system is Ubuntu 20.04. By comparing the optimisation effects of Adam and AdamW [22], this paper finally chooses to use the AdamW [22] optimiser for optimisation. The initial learning rate is 0.001, β1 = 0.9, β2 = 0.999, and weight decay is 0.01. The number of iterations is 100, and the batch size is 32. In order to learn efficiently, we perform data preprocessing on the dataset, including flipping and colour dithering. On the KITTI DC and NYUv2 datasets, the batch size of each GPU was set to 6 and 12, respectively. On the NYUv2 dataset, we trained the model for 100 epochs and attenuated the learning rate by 0.5 times at epochs 40, 60, and 80. For the KITTI DC dataset, the model is trained using 100 epochs and we decay the learning rate by 0.5 times at epoch 50, 60, 70, 80, 90. To validate the performance of the proposed network, we performed qualitative analysis, quantitative analysis, and ablation studies, respectively.

3.4. Discussion

3.4.1. Quantitative Analysis

We compare the experimental results of EDRNet with some of the relevant results in the published paper, the results of which are shown in

Table 1. Quantitative evaluation on KITTI DC and NYUv2.

Method	KITTI DC						NYUv2
	RMSE↓ mm	MAE↓ mm	iRMSE↓ 1/km	iMAE↓ 1/km	SSIM↑	LPIPS↓	RMSE↓ (m)	REL↓
CSPN [23]	1019.64	279.46	2.93	1.15	0.794	0.162	0.117	0.016
CSPN++ [24]	743.69	209.28	2.07	0.90	0.896	0.132	-	-
Sparse-to-dense [7]	814.73	249.95	2.80	1.21	0.864	0.101	0.230	0.044
FCFR [25]	735.81	217.15	2.20	0.98	0.913	0.090	0.106	0.015
GuideNet [26]	736.24	218.83	2.25	0.99	0.911	0.089	0.101	0.015
ACMNet [27]	744.91	206.09	2.08	0.90	0.895	0.098	0.105	0.015
DeepLiDAR [28]	758.38	226.50	2.56	1.15	0.875	0.115	0.115	0.022
RigNet [29]	713.44	204.55	2.16	0.92	0.922	0.078	0.090	0.013
SDformer [12]	809.78	222.32	2.32	0.93	0.905	0.095	-	-
GuideFormer [10]	721.48	207.76	2.14	0.97	0.917	0.086	-	-
CompletionFormer [11]	708.87	203.45	2.01	0.88	0.925	0.073	0.090	0.012
Ours	708.56	202.56	2.04	0.88	0.931	0.075	0.092	0.012

Note: Optimal results for each indicator are in bold. ↑ indicates that a larger value is better and ↓ indicates that a smaller value is better.

.

This section systematically evaluates the performance of EDRNet. Based on the KITTI DC dataset, six evaluation metrics, namely, MAE, iMAE, RMSE, iRMSE, SSIM, and LPIPS, are used for benchmarking. The experimental results show that, except for the iRMSE metric and the LPIPS metric, which are slightly lower than CompletionFormer, EDRNet exhibits significant advantages in the other four metrics. Benchmarking using RMSE and REL is based on the NYU V2 dataset. The results show that although the RMSE metrics are slightly lower than CompletionFormer, the REL metrics are significantly better than other network models proposed in the literature. In summary, EDRNet performs well in all metrics in both indoor and outdoor environments, our edge fusion strategy and dynamic routing mechanism can effectively preserve edge structure and details, and the model is highly competitive in depth completion. See Appendix A.4 for details of the overfitting correlation analysis.

3.4.2. Qualitative Analysis

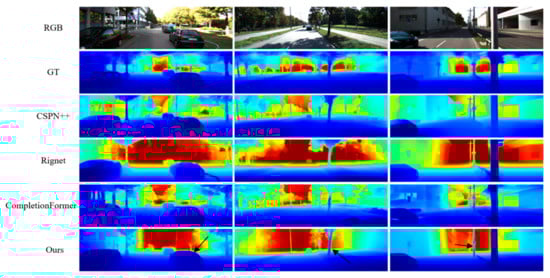

The qualitative results on the KITTI DC dataset are shown in Figure 4.

Figure 4 demonstrates the visualisation results of the proposed method in comparison with other methods. Where each row is (a) colour image, (b) ground truth depth map, (c) prediction result of CSPN++ [24], (d) prediction result of Rignet [29], (e) prediction result of CompletionFormer [11], and (f) prediction result of EDRNet proposed in this paper. Compared with other methods, EDRNet has clearer boundaries of objects in the graph due to the introduction of edge images, which greatly avoids confusion of depth relationships between foreground and background objects due to smooth transition of depth values. We use arrows to indicate key locations. For example, compared to other methods, in the left set of result maps, where the arrow points to the upper part of the car and the background trees, EDRNet is more distinguishable on the edges of these two objects. The contours of the corresponding objects in the EDRNet complemented result maps can also be clearly seen at the tree trunks and backgrounds indicated by the arrows in the middle and right sets of result maps, and the shapes of the edge parts are highly consistent with those in the colour images.

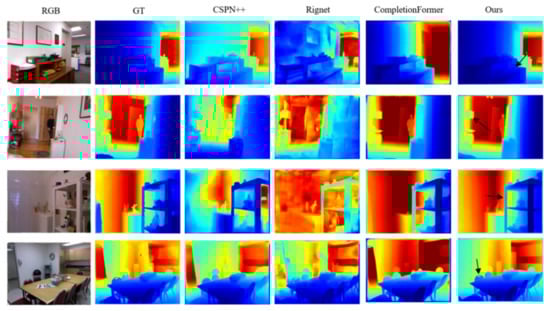

The qualitative results of the NYU DepthV2 dataset are shown in Figure 5.

Figure 5 shows the visualisation results of the proposed method compared with other methods, where each column is (a) colour image, (b) ground truth depth map, (c) prediction results of CSPN++ [24], (d) prediction results of Rignet [29], (e) prediction results of CompletionFormer [11], and (f) prediction results of EDRNet, the model proposed in this paper. We use arrows to indicate key locations. Again, as indicated by the regions marked by arrows in the four sets of comparison plots, EDRNet exhibits higher clarity in the boundary processing of foreground and background objects.

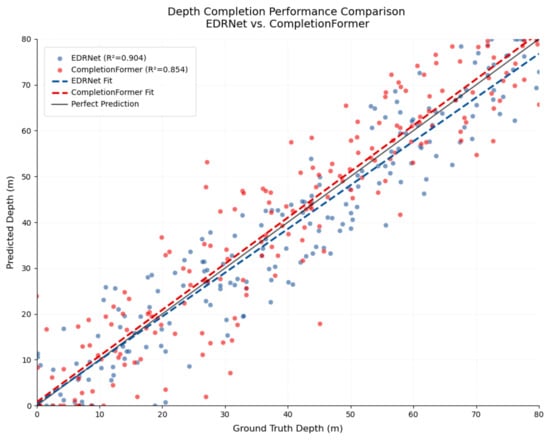

The experimental results show that the depth maps generated by EDRNet exhibit finer detail reproduction capabilities in both indoor and outdoor scenes, especially outperforming other comparative methods in the processing of object edges and complex structures.

3.4.3. Visualisation and Analysis

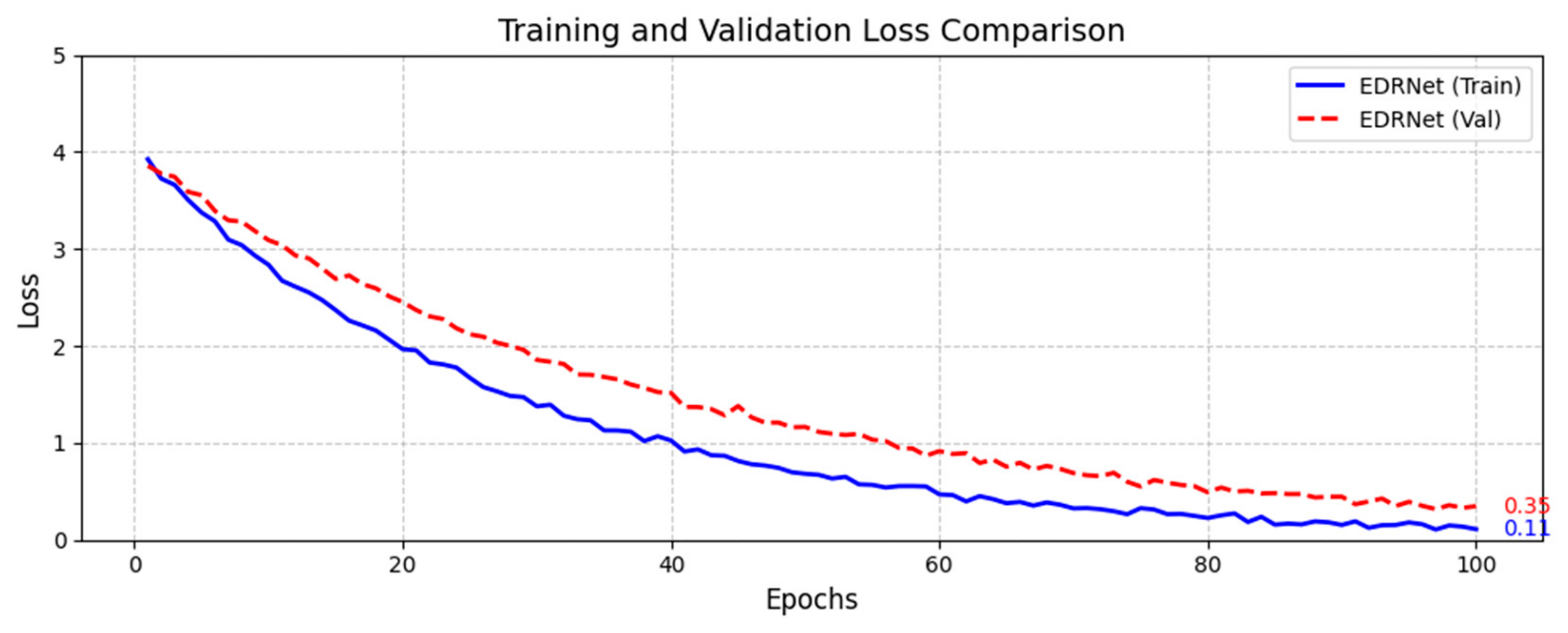

We have conducted a visual analysis to visualise the convergence of the loss function of this paper’s network architecture during the training and validation process.

From the experimental results in Section 3.4.1 and Section 3.4.2, it is known that CompletionFormer has the best performance among the other network architectures compared with EDRNet in this paper. Therefore, we plot the training and validation loss function curves for the network architecture of EDRNet versus CompletionFormer (Figure 6 and Figure 7). These two plots visualise the convergence properties of the model on the KITTI and NYUv2 datasets.

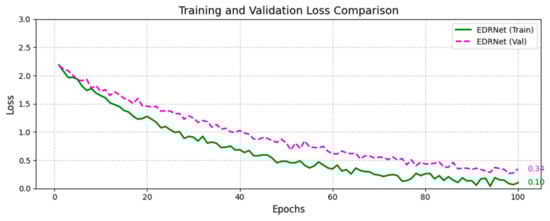

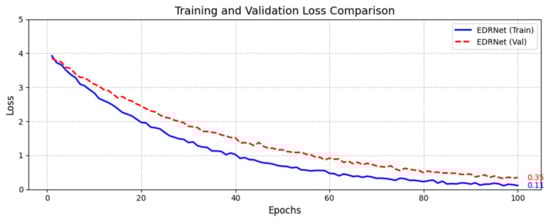

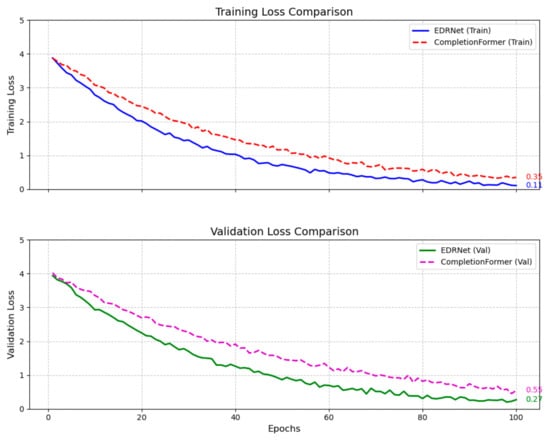

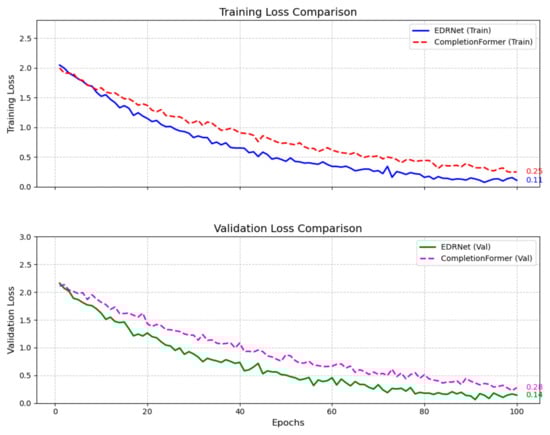

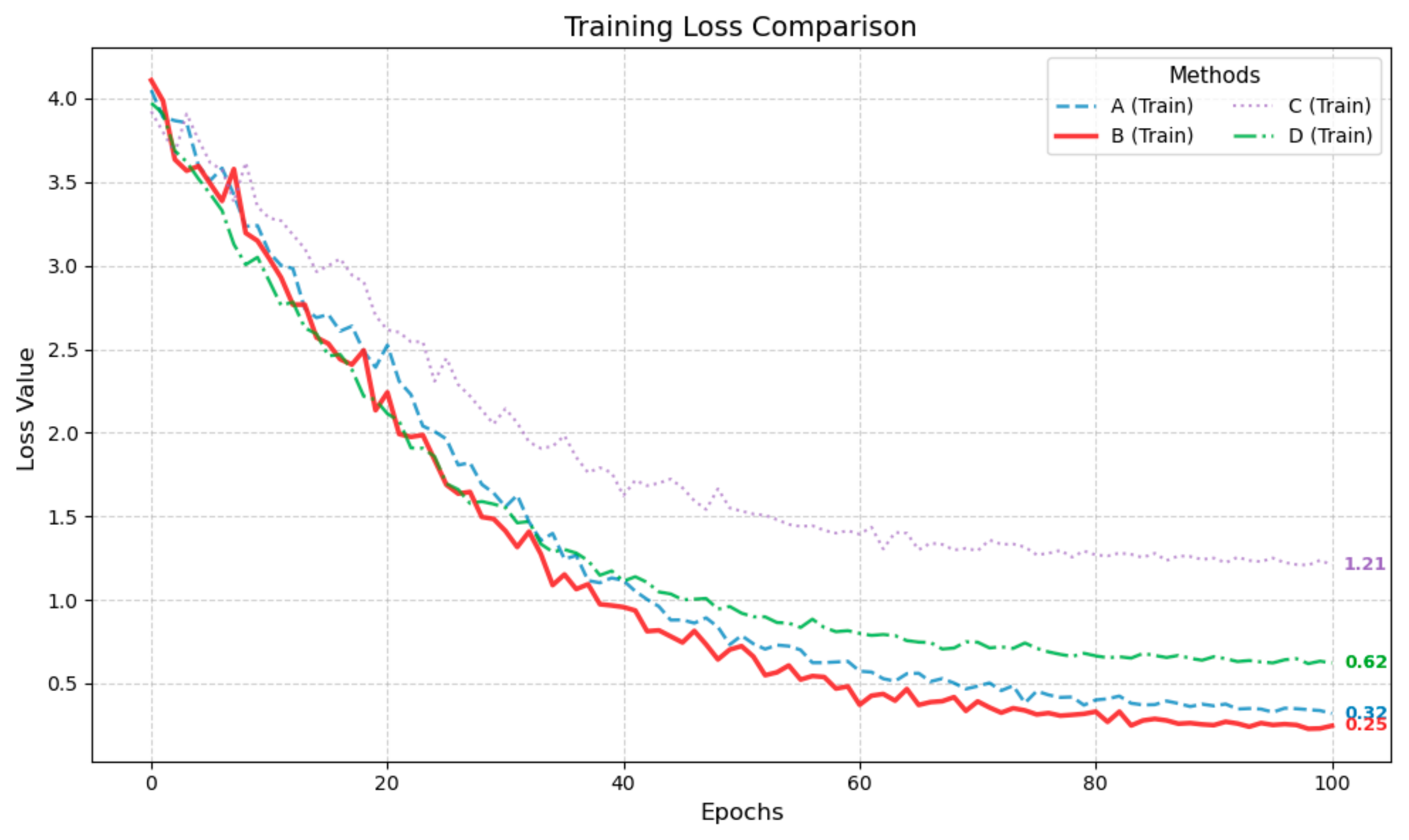

As shown in Figure 6 and Figure 7, the training loss of this paper’s method quickly converges to a stable value within 100 epochs, and the validation loss is consistently lower than that of the comparison methods, indicating that it possesses higher learning efficiency and generalisation ability. This is consistent with the improvement of the final metrics in Table 1. Compared to the CompletionFormer architecture, the model in this paper converges faster and is more stable.

3.4.4. Performance Comparison of Hybrid CNN–Transformer Block

To verify the effectiveness of the SADRT block proposed in this paper, we compare its performance with other hybrid CNN–Transformer modules proposed in the published literature, and the experimental results are shown in

Table 2. Performance comparison of different hybrid CNN–Transformer blocks.

Block	RMSE↓ mm	MAE↓ mm	FLOPs↓ G	FPS↑
BoTNet [30]	88.5	34.9	368.2	11
Conformer [31]	88.2	35.1	366.3	13
Squeezeformer [32]	87.9	34.8	365.7	12
HybridFormer [33]	87.4	34.1	366.2	13
SADRT (Ours)	86.3	34.1	364.5	15

Note: Optimal results for each indicator are in bold. ↑ indicates that a larger value is better and ↓ indicates that a smaller value is better.

.

The results show that the SADRT block significantly outperforms other hybrid CNN–Transformer blocks in all evaluation metrics on the KITTI DC dataset. The sparse dynamic routing mechanism is designed so that the SADRT block can adaptively process different region features, reducing the amount of redundant computation while improving the accuracy of the depth map. In addition, the inference speed of the SADRT block reaches 15 FPS with 364.5G FLOPs, which is significantly better than other hybrid models.

3.5. Ablation Results

3.5.1. Ablation Experiments for Each Block

This section conducts ablation experiments to validate the effectiveness of our proposed blocks in enhancing model performance. The results are shown in

Table 3. Quantitative results on KITTI DC for ablation study.

Method	Edge Image	EM Loss	SADRT Block	RMSE↓ mm	MAE↓ mm	Params↓ M	FLOPs↓ G
Backbone Only				90.3	35.1	67.8	374.7
A	√			90.1	35.0	68.9	383.6
B		√		90.0	35.0	69.1	394.5
C			√	90.1	34.9	55.4	359.9
D	√	√		89.7	34.9	69.5	389.6
E	√		√	88.5	34.6	62.1	362.7
F		√	√	87.9	34.5	66.3	361.9
G	√	√	√	86.3	34.1	67.5	364.5

Note: Optimal results for each indicator are in bold. ↓ indicates that a smaller value is better.

.

Table 3 illustrates that both the RMSE and MAE metrics of the model decrease from the original ones, whether or not the edge image is introduced alone or in combination with the edge loss function, indicating that the introduction of both the edge information and the EM loss function can effectively enhance the precision of the depth map. Furthermore, the SADRT block reduces the number of parameters and floating points of the model from 67.8 M and 374.7 G to 55.4 M and 359.9 G, respectively, while extracting multilevel features. When all the blocks work together, the RMSE and MAE are reduced to 86.3 mm and 34.1 mm, respectively, while maintaining a reasonable computational cost. The experimental results show that the individual modules proposed in this paper not only improve the depth map accuracy but also effectively reduce the computational overhead brought by the Transformer, among which the SADRT module is pivotal in reducing the computational complexity. Details of the intuitive curve fitting and significance analysis are given in Appendix A.1.

3.5.2. The Edge Image Introduces Positional Experiments

In order to analyse the impact of the introduction location of the edge image on the model performance, we conduct ablation experiments based on the basis of the original model architecture and compare the model’s performance when the edge image is introduced at different locations of the encoder and decoder. The results are shown in

Table 4. Results of ablation experiments introducing edge image positions.

Method	Location of Edge Image	RMSE↓ mm	MAE↓ mm
A	Encoder Layer 1	722.41	204.28
B	Encoder Layer 4	708.56	202.56
C	Decoder Layer 1	715.23	201.87
D	Decoder Layer 4	725.32	203.16

Note: Optimal results for each indicator are in bold. ↓ indicates that a smaller value is better.

.

The experimental results show that the results of the two evaluation metrics are closer when the edge image is introduced at layer 4 of the encoder and layer 1 of the decoder. However, in comparison, the evaluation metrics of the former model decreased more. Based on this, this paper finally chooses to introduce the edge image at encoder layer 4 to improve the network architecture’s overall performance.

3.5.3. Comparisons with General Feature Backbones

To verify that the backbone designed in this paper has a performance advantage over other backbones, we have performed the following comparative implementations. The results are shown in

Table 5. Comparison of common backbone results.

Backbone	RMSE↓ mm	MAE↓ mm	FLOPs↓ G	FPS↑
Swin-Tiny [34]	92.6	36.4	634.8	7
ResNet34 [35]	91.4	35.5	582.1	7
PVT-Large [36]	91.4	35.6	419.8	9
MPViT-Base [37]	91.0	35.5	1259.3	3
CompletionFormer Tiny [11]	90.9	35.3	389.4	9
Ours	90.3	35.1	374.7	15

Note: Optimal results for each indicator are in bold. ↑ indicates that a larger value is better and ↓ indicates that a smaller value is better.

.

The experimental results show that the backbone of this paper performs superior performance in terms of RMSE, MAE, FLOPs, and frames per second (FPS).

3.5.4. Comparison and Ablation Study of Loss Function

To verify the effectiveness of the proposed loss function, this study constructs a control experimental group based on the EDRNet architecture. It replaces the loss function with L1 Loss, Smooth L1 Loss, and Hybrid Loss sequentially for comparison and analysis while keeping the network structure and training strategy consistent. The experimental results are shown in

Table 6. Quantitative evaluation on KITTI DC.

Method	KITTI DC
	RMSE↓ mm	MAE↓ mm	iRMSE↓ 1/km	iMAE↓ 1/km
L1 Loss [38]	712.35	204.87	2.11	1.02
Smooth L1 Loss [39]	710.23	204.34	2.06	0.93
Hybrid Loss [40]	709.13	203.78	2.02	0.88
Ours	708.56	202.56	2.04	0.88

Note: Optimal results for each indicator are in bold. ↓ indicates that a smaller value is better.

.

This experiment quantitatively evaluates four loss functions on the KITTI dataset. The results show that the loss functions proposed in this paper exhibit optimal performance in the core metrics. Among them, the Root Mean Square Error (RMSE) is 708.56 mm, which is 0.53% lower than the traditional L1 Loss (712.35 mm) and 0.08% lower than the Hybrid Loss, and the MAE is 202.56 mm, which is 0.6% higher than the sub-optimal Hybrid Loss (203.78 mm). Although the iRMSE after training with our proposed loss function is slightly higher than Hybrid Loss, all other metrics outperform it. It is worth noting that Smooth L1 Loss outperforms L1 Loss in both iRMSE and iMAE among all compared methods, and our loss function achieves significant improvements in each metric through multi-objective optimisation.

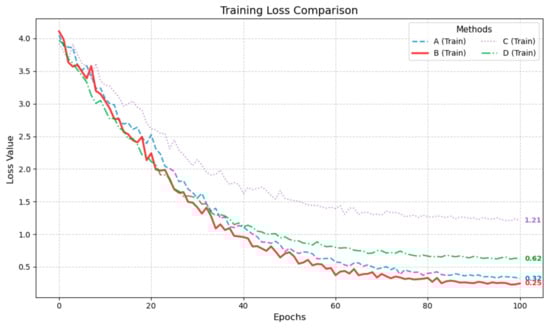

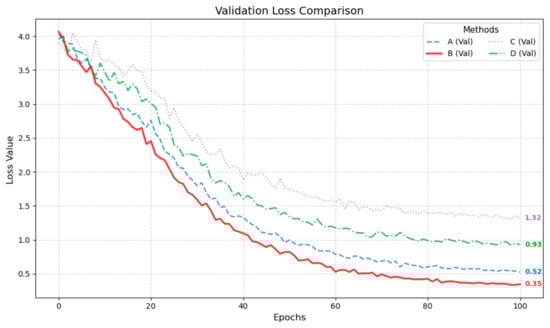

To prove the effectiveness of the components in the loss function proposed in this paper, we set the coefficients to 0, respectively, and the experimental results are shown in

Table 7. Comparison of evaluation metrics with different parameter configurations.

Method	α	β	γ	δ	KITTI DC
					RMSE↓ mm	MAE↓ mm	iRMSE↓ 1/km	iMAE↓ 1/km
A	0	0.2	0.2	0.3	713.23	205.79	2.23	0.95
B	0.3	0	0.2	0.3	709.44	203.44	2.09	0.91
C	0.3	0.2	0	0.3	708.85	202.93	2.03	0.89
D	0.3	0.2	0.2	0	710.87	204.01	2.11	0.98
Ours	0.3	0.2	0.2	0.3	708.56	202.56	2.04	0.88

Note: Optimal results for each indicator are in bold. ↓ indicates that a smaller value is better.

.

The experimental results show a significant decrease in depth accuracy (RMSE = 713.23 mm, MAE = 205.79 mm) when α (Method A) is removed, illustrating the importance of α for direct depth prediction. When γ (Method C) was removed, iRMSE performed optimally, but the overall depth accuracy was still slightly inferior to the entire model. Removing δ (Method D) then leads to significantly worse iMAE values, indicating that the Dice loss function has a key role in geometric consistency. Ultimately, the whole model (α = 0.3, β = 0.2, γ = 0.2, δ = 0.3) is optimal in most metrics by synergistically optimising all the loss terms, and is only slightly higher in iRMSE than method C. This result confirms the complementary nature of the loss functions and that a combined balancing of the weights achieves the optimal global performance.

4. Conclusions

In this paper, we propose an edge-enhanced dynamical routed adaptive depth completion network (EDRNet). RGB images and sparse depth maps are used as inputs by the network and extract the edge maps by the Canny algorithm, a traditional image processing technique, introducing them into the fourth layer of the encoder to provide finer edge information for the architecture. Meanwhile, we design the Sparse Adaptive Dynamic Routing Transformer block (SADRT), which consists of the Convolutional Adaptive Attention Mechanism and Dynamic Routing Transformer integrated in parallel as a partial encoder layer. The design reduces the number of high references associated with the traditional Transformer while efficiently capturing global and local features. In addition, we propose an edge-matching loss function to further optimise the edge quality and global accuracy of the depth map. After sufficient experiments, it is shown that EDRNet exhibits excellent performance and computational efficiency in the depth completion task. Combined with previous research, our work pays great attention to the acquisition and optimisation of edge information and provides new ideas for research in the field of depth completion. Although our method performs well in most scenarios, the precision of the depth map in the transparent object region is currently low due to light reflection and other reasons. In the future, we will work on solving the problems in this area.
