Nickel Manganite-Sodium Alginate Nano-Biocomposite for Temperature Sensing
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Preparation and Characterization of Nickel Manganite Powder

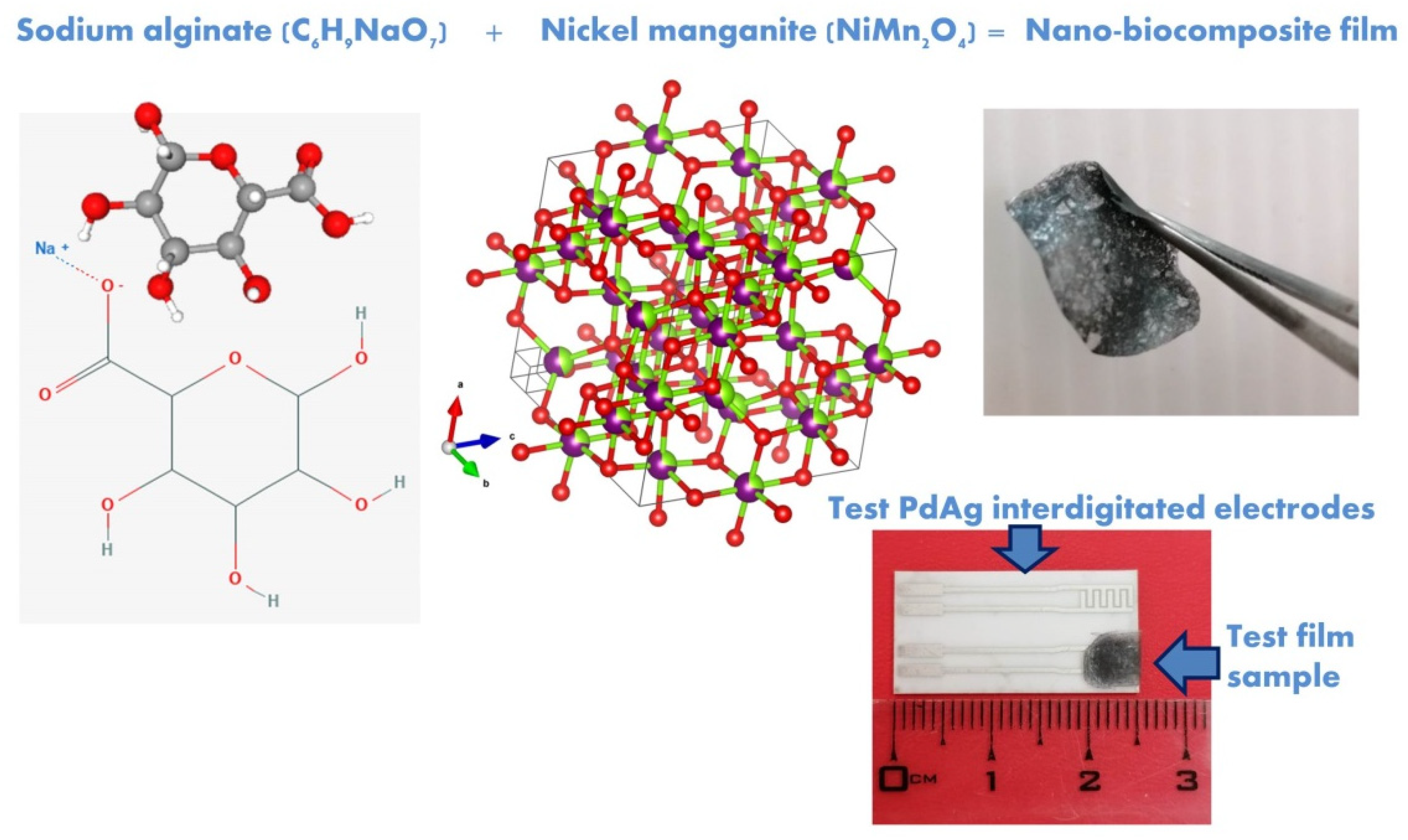

2.3. Preparation and Characterization of Nickel Manganite-Alginate Nano-Biocomposite Films
2.4. Temperature Sensing Experiment
3. Results and Discussion

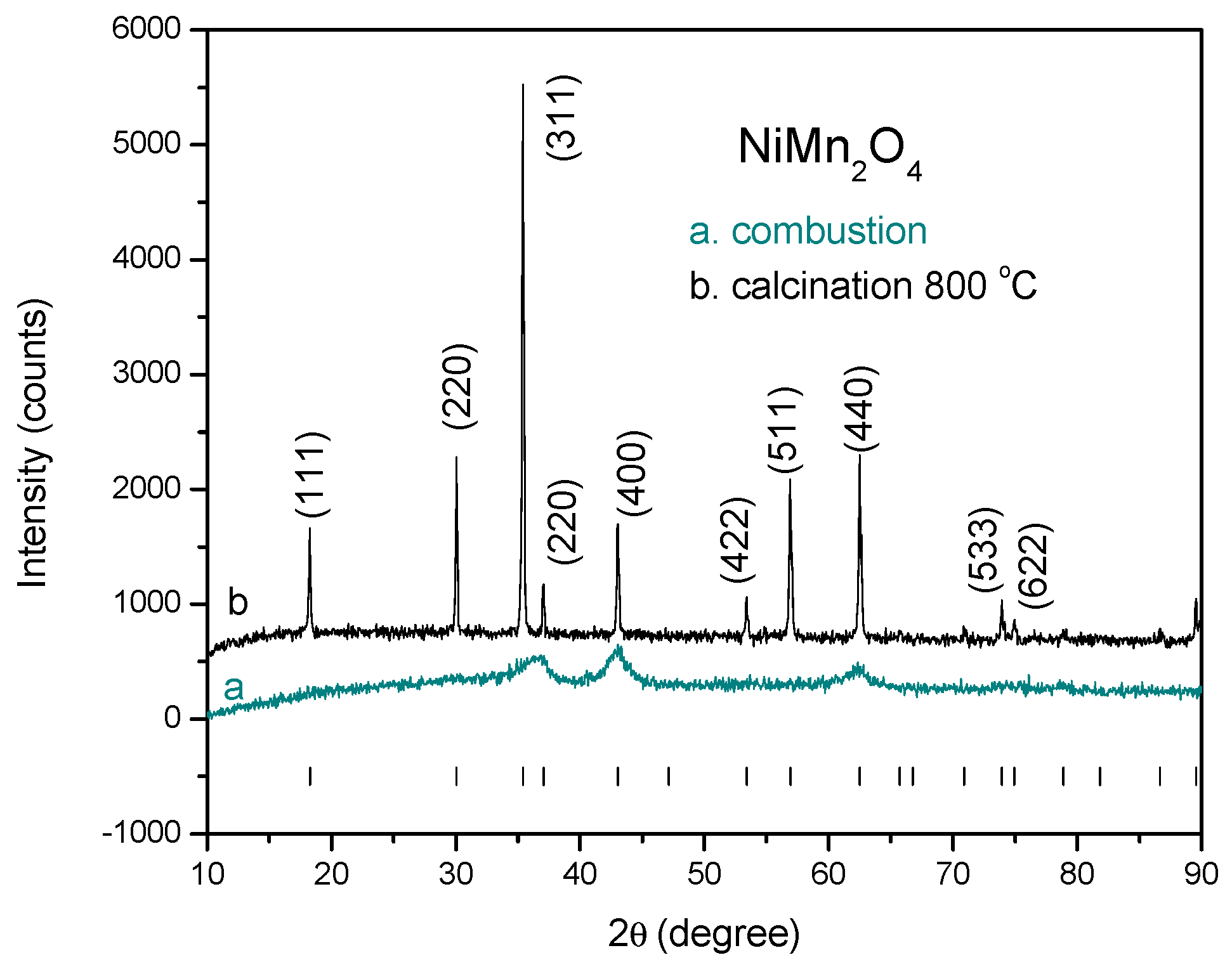

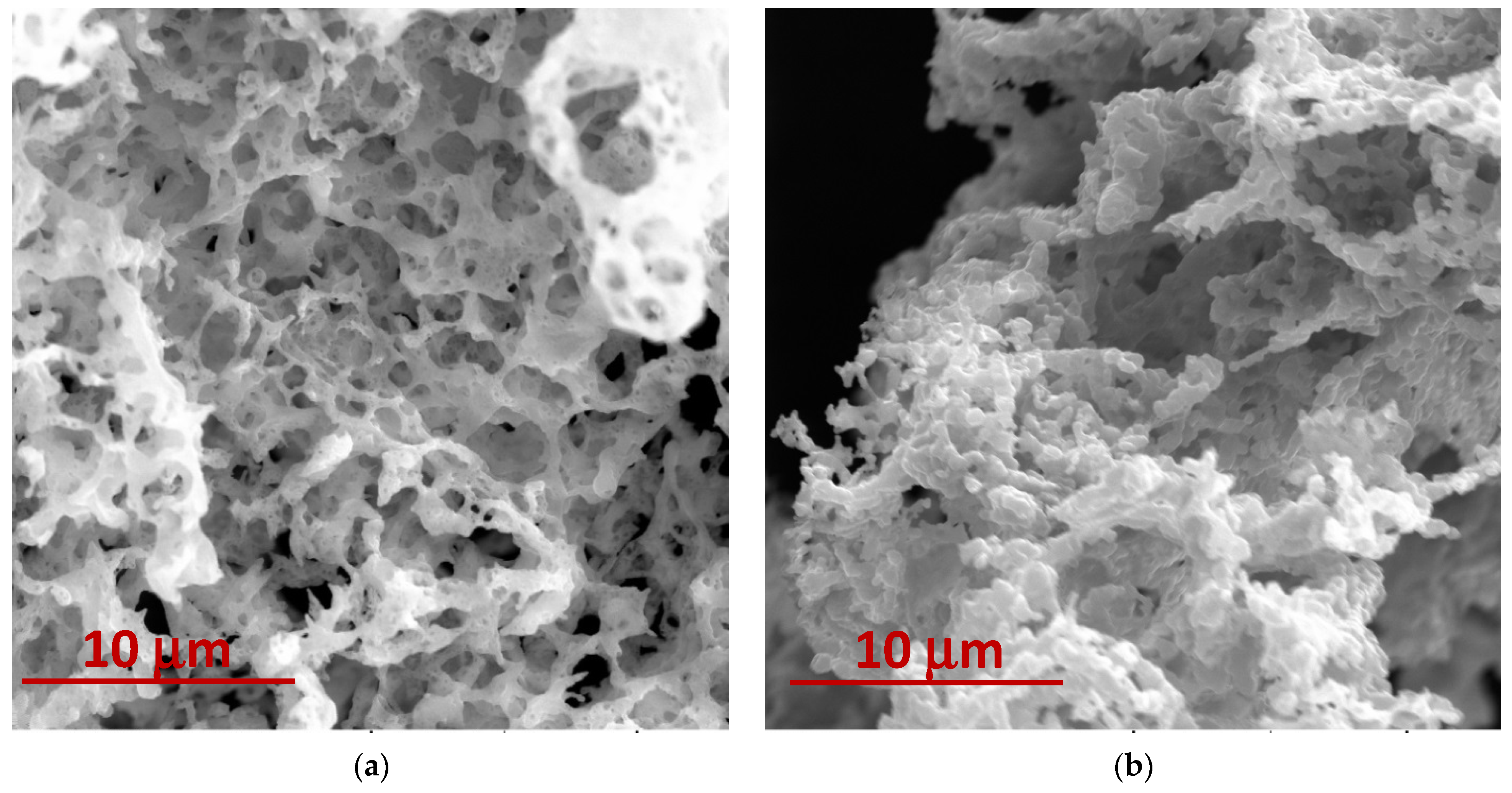

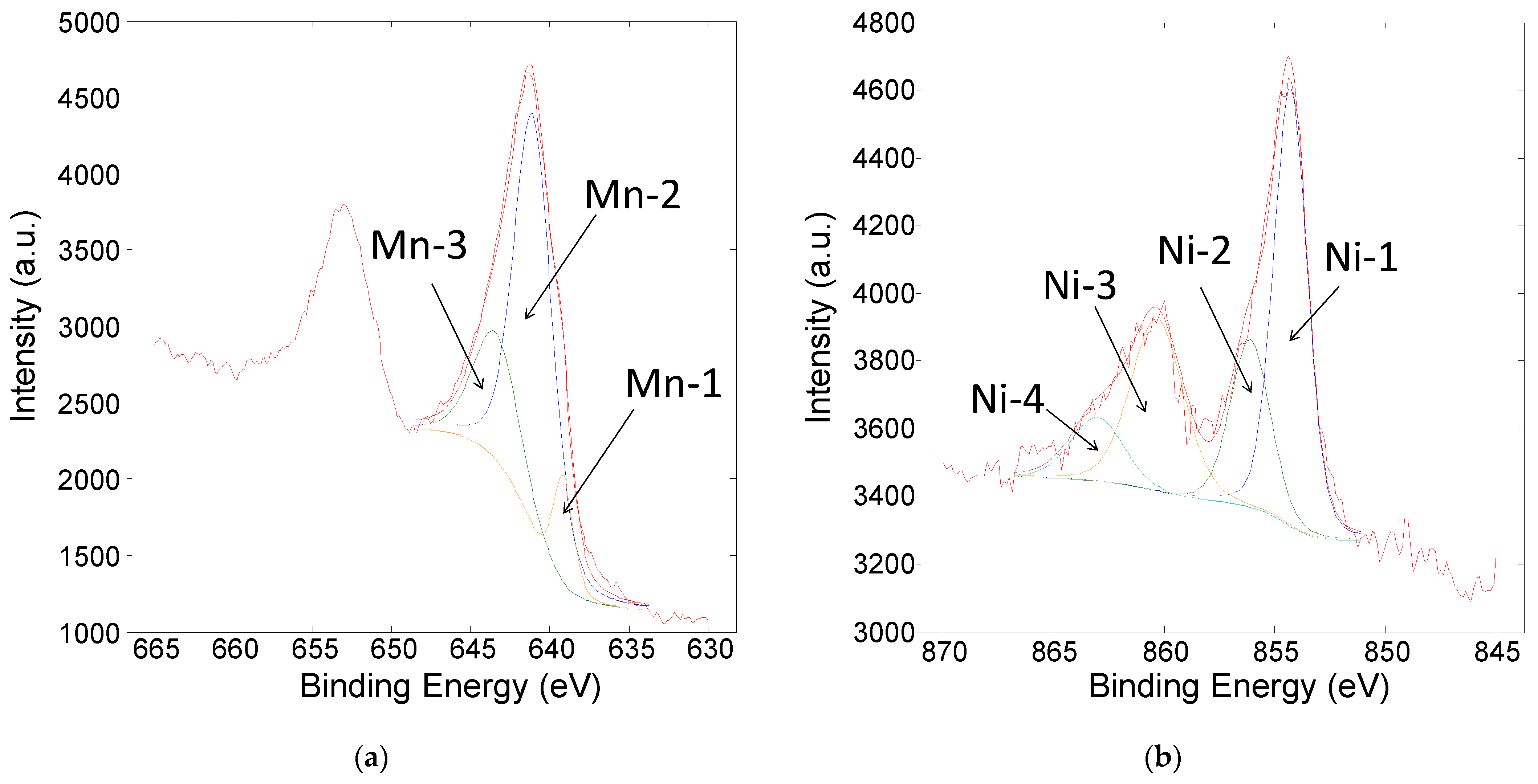

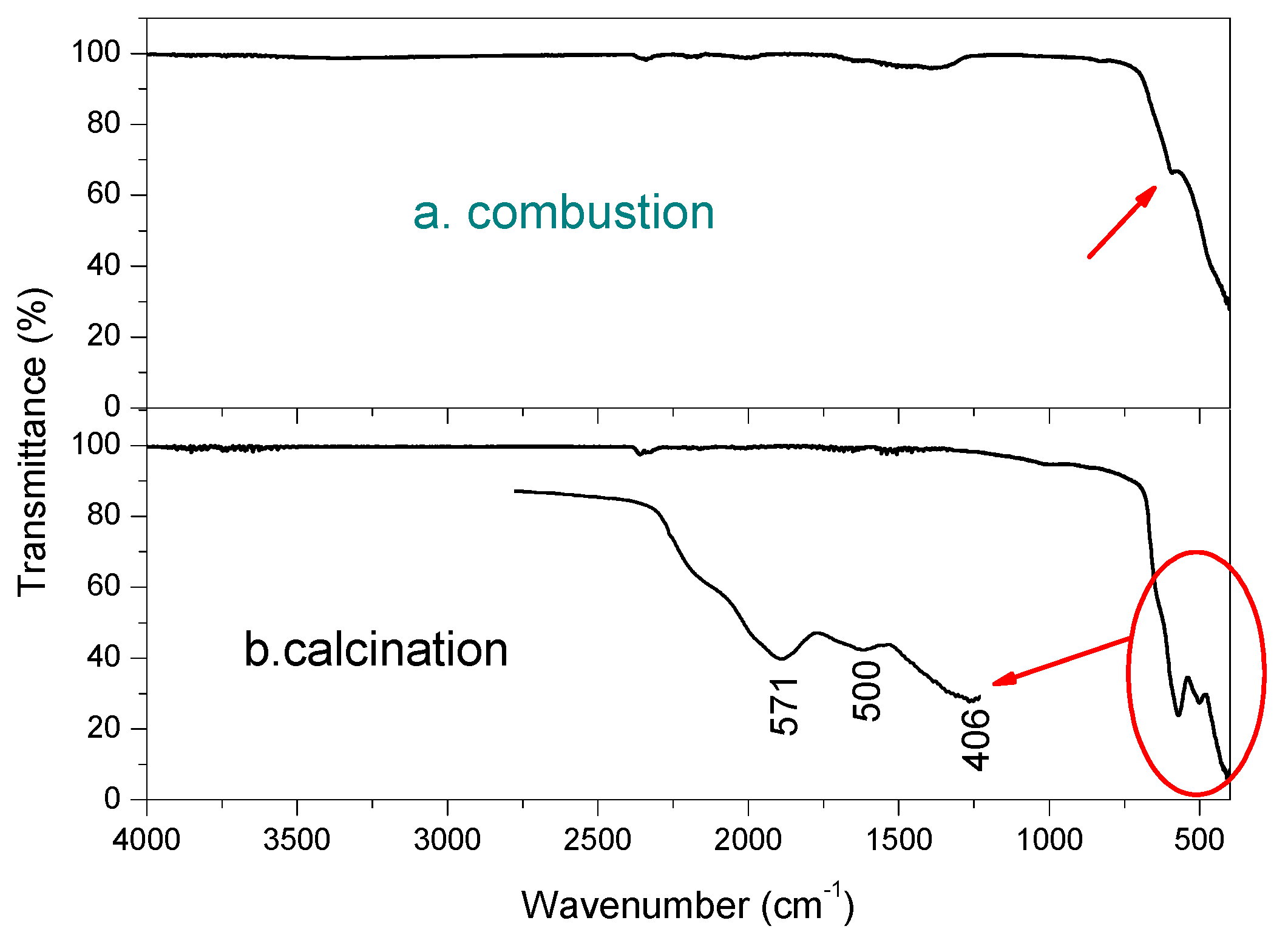

3.1. Structure and Morphology of NiMn2O4 Powder

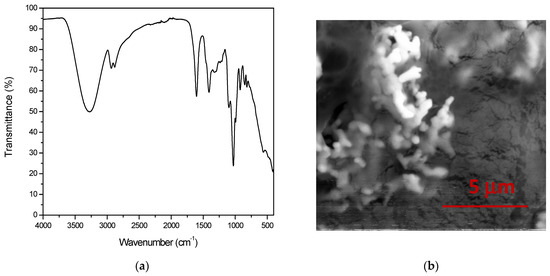

3.2. Structure and Morphology of NiMn2O4-Alginate Nano-Biocomposite

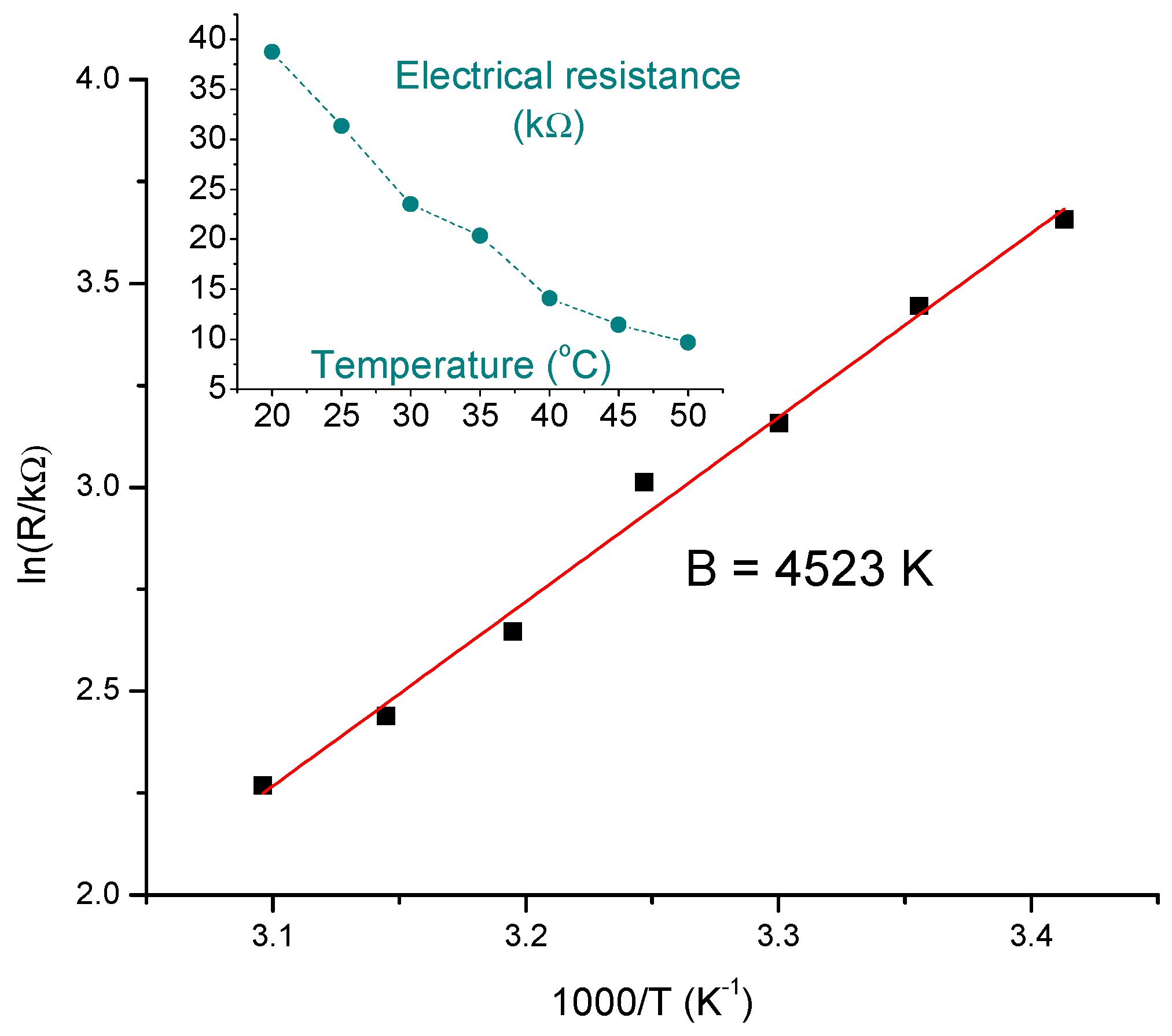

3.3. NTC Thermistor Properties

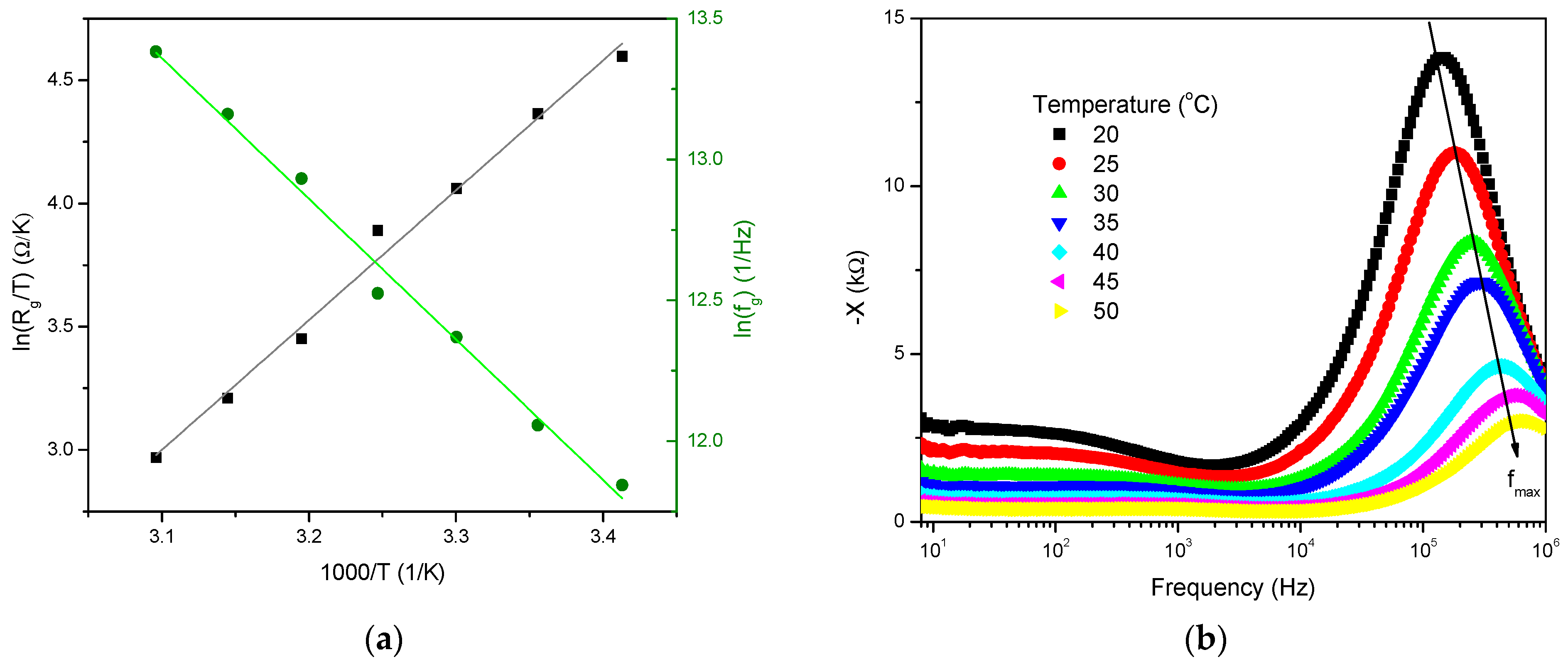

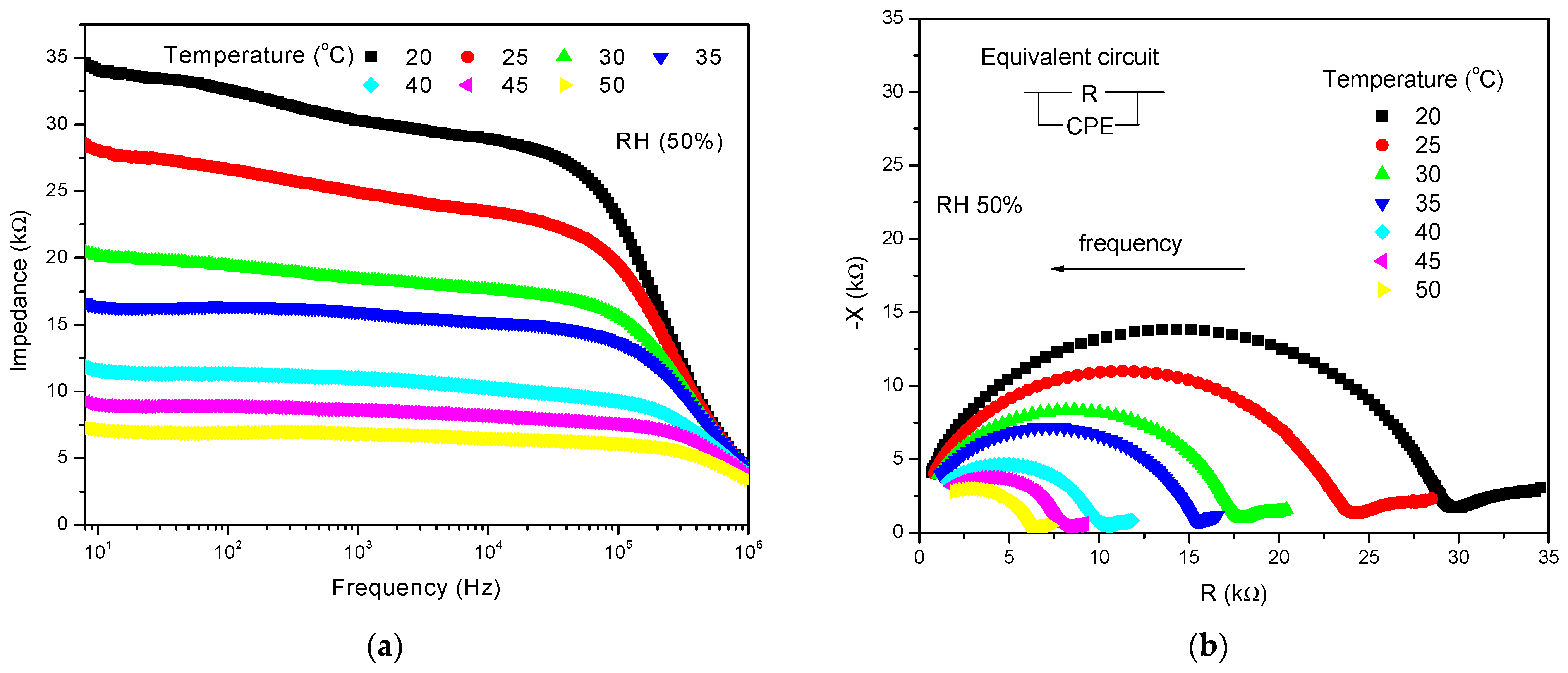

3.4. Impedance Dependence on Frequency and Temperature at a Constant RH of 50%

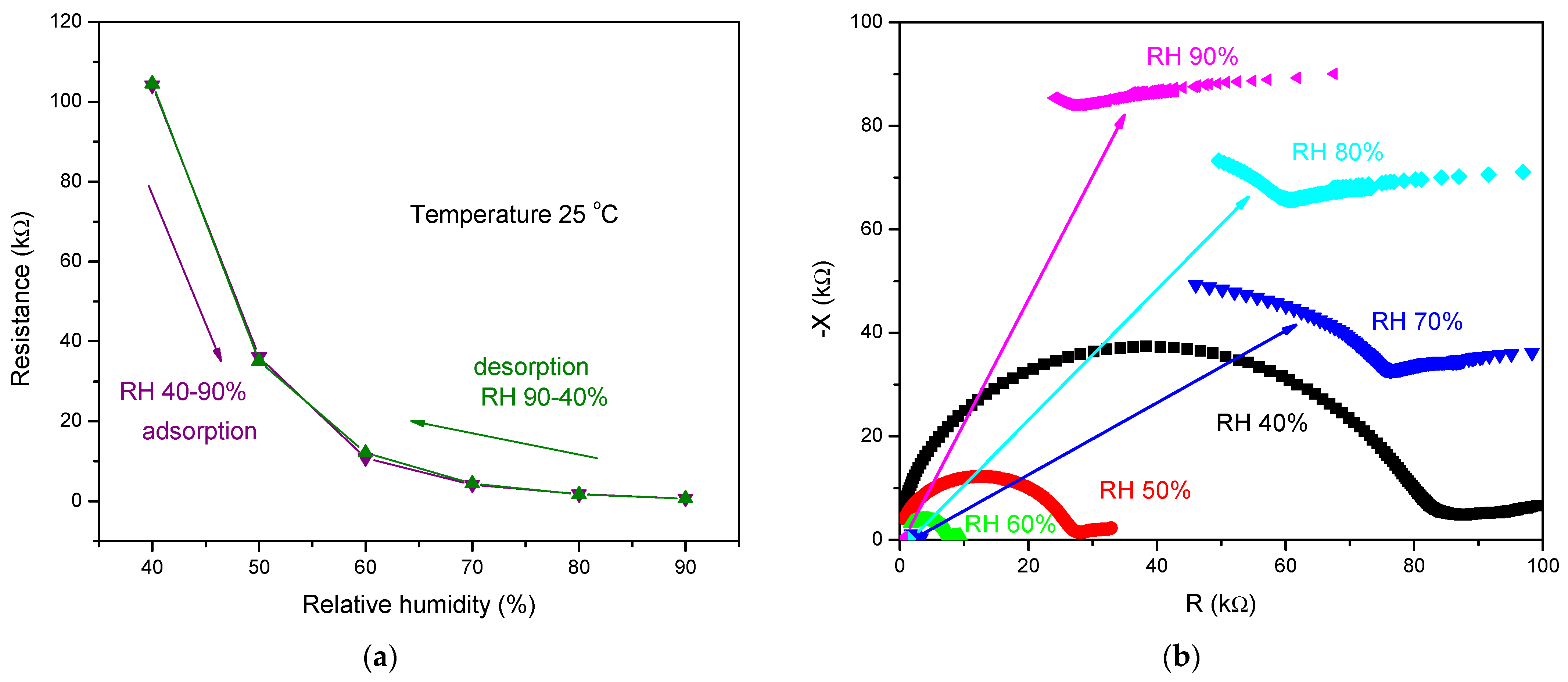

3.5. Influence of Change in RH 40–90% on Impedance at a Constant Temperature of 25 °C
4. Conclusions
