Systematic Review

Effect of Dietary Supplements Which Upregulate Nitric Oxide on Walking and Quality of Life in Patients with Peripheral Artery Disease: A Meta-Analysis

by
Shannon A. Wong
1,
Aaron Drovandi
1,
Rhondda Jones
1 and
Jonathan Golledge
1,2,*
1
Queensland Research Centre for Peripheral Vascular Disease, College of Medicine and Dentistry, James Cook University, Townsville, QLD 4811, Australia
2
The Department of Vascular and Endovascular Surgery, Townsville University Hospital, Townsville, QLD 4814, Australia
*
Author to whom correspondence should be addressed.
Biomedicines 2023, 11(7), 1859; https://doi.org/10.3390/biomedicines11071859
Submission received: 31 May 2023 / Revised: 21 June 2023 / Accepted: 26 June 2023 / Published: 29 June 2023
(This article belongs to the Special Issue Peripheral Artery Disease and Diabetic Foot Ulcer: From Bench to Clinic)
Browse Figures
Review Reports Versions Notes

Abstract

:
This systematic review pooled evidence from randomised controlled trials (RCTs) on the effectiveness of dietary upregulators of nitric oxide (NO) in improving the walking and quality of life of patients with peripheral artery disease (PAD). RCTs examining the effect of dietary upregulators of NO in patients with PAD were included. The primary outcome was the maximum walking distance. Secondary outcomes were the initial claudication distance, the six-minute walking distance, quality of life, the ankle-brachial pressure index (ABI), adverse events and risk of mortality, revascularisation or amputation. Meta-analyses were performed using random effects models. The risk of bias was assessed using Cochrane’s ROB-2 tool. Leave-one-out and subgroup analyses were conducted to assess the effect of individual studies, the risk of bias and intervention type on pooled estimates. Thirty-four RCTs involving 3472 participants were included. Seven trials tested NO donors, nineteen tested antioxidants, three tested NO synthase inducers and five tested enhancers of NO availability. Overall, the dietary supplements significantly improved the initial claudication (SMD 0.34; 95%CI 0.04, 0.64; p = 0.03) but not maximum walking (SMD 0.13; 95%CI −0.17, 0.43; p = 0.39) distances. Antioxidant supplements significantly increased both the maximum walking (SMD 0.36; 95%CI 0.14, 0.59; p = 0.001) and initial claudication (SMD 0.58; 95%CI 0.26, 0.90; p < 0.001) distances. The dietary interventions did not improve the physical function domain of the Short Form-36 (SMD −0.16; 95%CI −0.32, 0.00; p = 0.38), ABI or risk of adverse events, mortality, revascularisation or amputation. Dietary NO upregulators, especially antioxidants, appear to improve the initial claudication distance in patients with PAD. Larger high-quality RCTs are needed to fully examine the benefits and risks of these treatments. PROSPERO Registration: CRD42022256653.

1. Introduction

The most well-recognised symptom of peripheral artery disease (PAD) is intermittent claudication, which leads to a reduced walking ability, an impaired health-related quality of life and reduced physical activity, contributing to functional decline and an increased risk of major adverse cardiovascular events [1,2]. While the 2019 European Society of Vascular Medicine guidelines recommend considering cilostazol and naftidrofuryl in patients with intermittent claudication with substantially limited quality of life and inability to participate in walking training (Class IB recommendation), these agents have limited efficacy and frequent side effects and are not available in many countries [3,4]. Novel treatments are thus needed.
PAD is associated with microvascular dysfunction resulting from impaired production and bioavailability of nitric oxide (NO) [5]. NO regulates the vascular smooth muscle function and blood vessel tone and has been proposed to promote revascularisation of ischaemic limbs through stimulating both arteriogenesis and angiogenesis [2]. In healthy people, NO is produced endogenously by endothelial nitric oxide synthase (NOS) in response to elevated shear stress [6]. Patients with PAD lack the ability to endogenously increase vascular NO production due to endothelial dysfunction and oxidative stress [6]. Thus, treatments which exogenously upregulate the production of NO may be an effective means to promote revascularisation in patients with PAD, thereby reducing exertional pain and improving walking.
There are four main methods by which a dietary intervention might upregulate NO (Figure 1). During ischemia, nitrate and nitrite can act as a reservoir of NO as they can be rapidly reduced to NO via the nitrate–nitrite–NO pathway (Figure 1) [7,8]. Increases in plasma nitrite can be achieved by dietary supplementation of inorganic nitrates which are reduced to nitrites by gut bacteria and converted to NO in the acidic environment of the small intestine [2]. Multiple studies have reported that nitrate supplementation decreases the oxygen cost of exercise [9,10] and improves physical function [9,10,11,12], with the greatest effects in populations with low aerobic capacity [13,14,15,16,17], including patients with PAD. NO production can also be increased via the citrulline–arginine–NO pathway (Figure 1). Supplementing L-arginine increases the substrates for endothelial NO synthase (NOS) [18]. Creatinine supplementation also increases NO availability along this pathway, as it reduces the activity of L-arginine:glycine amidinotransferase, thereby increasing the availability of L-arginine for NO synthesis [18]. NO production can also be increased by inducing the activity of endothelial NOS (Figure 1). Natural flavonol- and polyphenol-rich foods such as cocoa beans activate endothelial NOS and improve vascular function in patients with cardiovascular disease [19,20]. Finally, antioxidants can decrease the amount of superoxide present in vascular smooth muscles so that endogenous production of NO is enhanced (Figure 1) [21]. Common antioxidant supplements include flaxseed, garlic, Gingko biloba, polyunsaturated fatty acids, L-carnitine, N-acetylcysteine and vitamin E. Since individuals with PAD tend to have antioxidant deficiencies, it is plausible that antioxidant supplementation may improve NO production and PAD-related outcomes [22].
It is currently unclear whether dietary supplements aimed to upregulate NO are effective for treating PAD, with no consensus in practice guidelines [23,24,25]. The most recent American Heart Association PAD guidelines highlighted the need for studies to investigate the role of dietary interventions [25]. The objective of this systematic review and meta-analysis was to pool evidence from randomised controlled trials (RCTs) testing the efficacy of dietary supplementation aimed to upregulate NO in improving the walking distance and quality of life in patients with PAD.

2. Methods

2.1. Search Strategy and Eligibility Criteria

This systematic review was performed according to the Preferred Reporting Items for Systematic reviews and Meta-analyses (PRISMA) statement [26] and registered with PROSPERO (CRD42022256653). The completed PRISMA checklist can be found in Section S1. Scopus (from 1966), MEDLINE (via OvidSP; from 1966) and CINAHL (from 1937) were searched from inception to 25 June 2022 to identify RCTs examining the effect of dietary upregulation of the NO pathway on walking distance and quality of life in patients with PAD. The search strategy included the key concepts of PAD, limb ischemia, intermittent claudication, nitrates, NO, antioxidants, dietary supplements and RCTs. The full search string is shown in Section S1. No restrictions on language were applied. The reference lists of identified articles and reviews were also searched. Titles, abstracts and full texts were screened by two authors (S.A.W. and A.D.) to identify eligible studies, with disagreements resolved by consensus. For inclusion, studies needed to (a) be RCTs including participants with PAD diagnosed using recognised diagnostic criteria such as the ankle-brachial pressure index (ABI), (b) include an intervention group receiving dietary sources of NO upregulation, (c) include a control group not receiving dietary sources of NO pathway upregulation but otherwise receiving similar care and (d) assess at least one of the following outcomes: maximum walking distance, 6 min walk distance, intermittent claudication distance or quality of life measured by a validated questionnaire. Eligible dietary sources of NO pathway upregulation included four different categories: (a) NO donors, (b) enhancers of NO availability via the citrulline–arginine–NO pathway, (c) NOS inducers or (d) antioxidants (Figure 1). A dietary supplement was defined as an orally ingested product that contains a vitamin, mineral, herb, amino acid and/or other substances intended to supplement the diet. Studies were excluded if they tested a compound that was not administered orally, required a prescription to be accessed or required government approval to be made or sold.

2.2. Data Extraction

The primary outcome was maximum walking distance in a treadmill test. Secondary outcomes included initial claudication distance in either a treadmill test or corridor walking test, six-minute walking distance, quality of life assessed by validated tools including the Short Form (SF)-36 and Walking Impairment Questionnaire (WIQ), ABI and safety outcomes, including total adverse events, total serious adverse events, mortality and requirement for surgical or endovascular revascularisation or amputation. Adverse events were defined as any unintended and unfavourable sign or symptom temporally associated with the use of the intervention. Adverse events were considered serious if they resulted in mortality, threat to life, inpatient hospitalisation or prolongation of hospital stay or disruption of the ability to conduct normal activities of daily living. Other data extracted included age, sex, smoking, diabetes, inclusion and exclusion criteria, descriptions of intervention and control, assessments of adherence, follow-up duration and loss to follow-up. Loss to follow-up was defined as study participants for whom primary outcome data were not reported. Intention-to-treat results were used for the meta-analyses, where available. Missing data were to be resolved first by contacting the primary study investigators for unreported data, and then if unsuccessful, by imputation (Section S1). Data were extracted by two independent reviewers, with disagreements resolved through discussion.

2.3. Quality Assessment

Risk of bias was assessed independently by two reviewers (S.A.W. and A.D.) using version 2 of the Cochrane risk of bias tool (ROB-2) [27]. Any disagreements were resolved by discussion until consensus was reached. Five domains were assessed to determine an overall risk of bias including randomisation process, deviation from intended interventions, missing outcome data, measurement of outcome and selection of reported results [27]. Risk of bias tables and plots [28] were created to summarise the risk of bias for the five individual domains and reported as “low risk”, “some risk” or “high risk” of bias. The assessment of these domains was used to judge the overall risk of bias for each included study. An RCT was deemed as “low risk” of bias if all five domains were judged to be at low risk, at “some risk” of bias if any of the domains were judged to be at some risk but none were judged to be at high risk and “high risk” of bias if any of the domains were judged to be at high risk [27].

2.4. Data Analysis

Data for all primary and secondary outcomes were synthesised in meta-analyses if data were reported for at least three trials. Meta-analyses were performed using the inverse variance method for continuous outcomes and Mantel–Haenszel’s statistical method for dichotomous outcomes with random effect models anticipating substantial heterogeneity. The results were reported as standardised mean differences (SMD) or odds ratios (OR) and 95% confidence intervals (CI). SMDs were interpreted as Cohen’s d values, with d = 0.2 regarded as a “small” effect size, d = 0.5 as a “medium” effect size and d = 0.8 as a “large” effect size. All statistical tests were two-sided and p-values < 0.05 were considered significant. Statistical heterogeneity was assessed using the I2 statistic and interpreted as low (0 to 49%), moderate (50 to 74%) or high (75 to 100%). Subgroup meta-analyses were conducted to assess the impact of risk of bias, specific types of dietary interventions and testing the primary outcome using fixed effects rather than a random effects model if there were at least two studies for any outcome measure. Leave-one-out (LOO) sensitivity analyses were performed to assess the contribution of each study to the effect estimates by excluding individual studies and recalculating the pooled estimates. Funnel plots comparing the summary estimate of each study and its precision (1/standard error) were used to assess publication bias [29]. All analyses were conducted using Review Manager 5 (RevMan 5) version 5.4 [30].

3. Results

3.1. Selection and Description of Included Studies

From 1611 unique records identified from the search strategy, 37 publications that reported on 35 trials were eligible for inclusion (Figure 2 and Table S1) [31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66]. Of these, 28 trials were parallel and 7 were crossover trials. The outcomes of a trial assessing the efficacy of propionyl-L-carnitine were reported in two publications, including a report on the effect on walking distance [34] and another on quality of life [35]. The 35 eligible trials [31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65] included a total of 3538 randomised participants from eight countries across Europe, Asia, North America and South America, allocated to either dietary interventions (n = 1619) or control groups (n = 1853) (Table 1). Sample sizes ranged from 8 to 501 participants and follow-up durations ranged from one day to 24 months. All eligible trials recruited adult participants with documented PAD, and 28 trials required participants to also have intermittent claudication. The exclusion criteria varied for the different trials (Table S2).

3.2. Description of Interventions

The dietary interventions tested were diverse and spanned the four different categories as described in Figure 1—NO donors in seven trials [31,45,47,55,58,62,65], antioxidants in nineteen trials [32,33,34,36,37,38,39,40,42,43,44,46,48,49,51,57,59,60,63], NOS inducers in four trials [50,53,61,66] and enhancers of NO availability in five trials (Table S1) [41,52,54,56,64]. Twenty-six RCTs had control groups that received a matched placebo that was identical in all aspects and nine used a non-identical placebo but otherwise similar management to the intervention group. A walking assessment consisting of treadmill and/or corridor walking tests was the primary outcome for most trials and was assessed as a secondary outcome in three trials [49,55,59]. Quality of life was assessed as a primary outcome in two trials and as a secondary outcome in nine other trials, with most studies using the SF-36 assessment. Other outcomes included in the trials are outlined in Table S1.

3.3. Risk of Bias

Overall, 10 trials were deemed as low risk of bias, 20 as some risk of bias and 5 as high risk of bias (Figure 3 and Table S3). The domains in which the RCTs were most commonly judged to have a high risk of bias were deviations from intended interventions, the randomisation process and missing outcome data (Figure S1).

3.4. Effectiveness of Dietary Interventions

Each trial reported on a varying number of outcomes (Table S1).

3.4.1. Walking Distance

Maximum Walking Distance

A meta-analysis of 18 trials (intervention n = 1057; control n = 1020) found that the dietary interventions had a small positive effect on maximum walking distance, but CIs crossed 0 (SMD 0.13; 95% CI −0.17, 0.43; p = 0.39, Figure 4) with a high degree of heterogeneity (I2 = 88%). There was a statistically significant improvement in the maximum walking distance in the intervention group compared to control when using fixed effect (SMD 0.18; 95% CI 0.10, 0.27; p < 0.0001) instead of random effect models (Figure S2). The funnel plot was asymmetrical (Figure S3). LOO sensitivity analyses suggested that removal of the Wilson 2007 study [64] reduced the heterogeneity and increased the effect size substantially (Table S5). Subgroup analyses showed that studies with “some” risk of bias demonstrated the greatest effect of the intervention (Figure 4). In addition, only antioxidant interventions significantly improved the maximum walking distance compared to control, but all the antioxidant studies were deemed to have either some or high risk of bias (Figure S4). Six [33,34,37,39,43,51] of the eight trials that tested antioxidant interventions and reported the maximum walking distance used either propionyl-L-carnitine or L-carnitine, with the other two testing vitamin E [36] and a mitochondrial antioxidant called Mito-Q [57]. The only antioxidant studies that reported statistically significant improvements in the maximum walking distance tested L-carnitine and its derivatives [33,34,37,43,51].

Initial Claudication Distance

A meta-analysis of 23 trials (intervention n = 1143; control n = 1108) found that the initial claudication distance was significantly improved by dietary interventions (SMD 0.34; 95% CI 0.04, 0.64; p = 0.03, Figure 5) with a high degree of heterogeneity (I2 = 90%). The funnel plot was asymmetrical (Figure S5). LOO sensitivity analyses suggested that removal of the Santo 2006 trial [60] reduced the effect size substantially, while removal of the Wilson 2007 trial [64] increased the effect size substantially (Table S6). Subgroup analyses showed that studies with “some” risk of bias demonstrated the greatest effect of the intervention (Figure 5). Only antioxidant interventions significantly improved initial claudication distance compared to control, but 12 out of the 13 antioxidant studies that reported initial claudication distance were deemed to have either some or high risk of bias (Figure S6). Eight [32,33,34,37,39,46,51,60] of the thirteen antioxidant RCTs that reported the initial claudication distance tested either propionyl-L-carnitine or L-carnitine, with the other five using Gingko biloba [42], garlic powder [48], Mito-Q [57], polyunsaturated fatty acids [59] and alpha-lipoic acid [63]. The only antioxidant studies that reported statistically significant improvements in the initial claudication distance tested L-carnitine and its derivatives [32,37,39,46,60].

Six-Minute Walking Distance

A meta-analysis of six trials (intervention n = 108; control n = 77) showed that dietary interventions did not have any effect on the 6-min walking distance (SMD 0.03; 95% CI −0.26, 0.33; p = 0.98, Figure S7), with a low degree of heterogeneity (I2 = 0%). The funnel plot was symmetrical (Figure S8). LOO sensitivity analyses suggested that removal of any individual trial did not affect the significance of this finding (Table S7). Subgroup analyses did not show any difference in effect size between studies deemed as low risk of bias and those with some risk (Figure S9).

3.4.2. Quality of Life

SF-36: Physical Function Domain

A meta-analysis of six trials (intervention n = 391; control n = 369) found that the physical function domain in the SF-36 was slightly decreased in the dietary intervention group (SMD −0.16; 95% CI −0.32, 0.00; p = 0.05, Figure 6) with a low degree of heterogeneity (I2 = 6%), but this finding did not reach statistical significance. LOO sensitivity analyses suggested that removal of the Goldenberg 2012 trial [43] made the finding statistically significant (Table S8). The funnel plot was asymmetrical (Figure S10). There were insufficient studies to undertake a subgroup analysis for risk of bias or specific types of interventions.

WIQ: Walking Distance and Walking Speed Domains

A meta-analysis of six trials using the WIQ walking distance domain (intervention n = 194; control n = 187) demonstrated no significant effect of the dietary interventions on the perceived walking distance (SMD 0.04; 95% CI −0.16, 0.24; p = 0.71, Figure S11) with low heterogeneity (I2 = 0%). The funnel plot was symmetrical (Figure S12). The six trials that reported the WIQ walking speed domain (intervention n = 180; control n = 137) demonstrated no significant impact of the dietary interventions on the perceived walking speed (SMD 0.00; 95% CI −0.24, 0.23; p = 1.00, Figure S13) with low heterogeneity (I2 = 4%). The funnel plot was asymmetrical (Figure S14). In both walking distance and walking speed domains, LOO sensitivity analyses suggested that the removal of any individual trial did not affect the significance of the findings (Tables S9 and S10). In addition, subgroup analyses focused on the risk of bias did not change the significance of the outcome (Figures S15 and S16), and there were insufficient studies to undertake a subgroup analysis for intervention type.

3.4.3. ABI

A meta-analysis of 11 trials (intervention n = 537; control n = 537) found that dietary interventions moderately improved the participants’ ABI when compared to control, though this increase was not statistically significant (SMD 0.31; 95% CI −0.19, 0.81; p = 0.23; I2 = 92%, Figure S17). The funnel plot was asymmetrical (Figure S18). LOO sensitivity analyses suggested that removal of any individual RCT did not affect the significance of the findings (Table S11). Subgroup analyses demonstrated that the risk of bias and intervention type did not substantially affect the findings (Figures S19 and S20).

3.4.4. Safety Outcomes

Adverse Events

A meta-analysis of 15 trials (intervention n = 1148; control n = 1127) found that dietary interventions increased the participants’ risk of adverse events, though this increase was not statistically significant (OR 1.32; 95% 0.76, 2.28; p = 0.33, Figure S21) with high heterogeneity (I2 = 78%). The funnel plot was asymmetrical (Figure S22). LOO sensitivity analyses suggested that removal of the Brevetti 1999 trial [33] made the finding statistically significant (Table S12). The risk of adverse events was not influenced by the risk of bias or classification of intervention (Figures S23 and S24).

Serious Adverse Events

A meta-analysis of 16 trials (intervention n = 1126; control n = 1100) demonstrated that dietary interventions slightly decreased the participants’ risk of serious adverse events (OR 0.83; 95% CI 0.60, 1.16; p = 0.27, Figure S25) with low heterogeneity (I2 = 0%), but this finding was not statistically significant. The funnel plot was asymmetrical (Figure S26). LOO sensitivity analyses suggested that removal of any individual RCT had no effect on the significance of the findings (Table S13). Subgroup analyses showed that studies with “some” risk of bias demonstrated the greatest effect of the intervention (Figure S27), but the intervention type had no effect on the risk of serious adverse events (Figure S28).

Mortality

A meta-analysis of 13 trials (intervention n = 874; control n = 882) found that dietary interventions had little effect on mortality (OR 1.14; 95% CI 0.49, 2.64; p = 0.76, Figure S29) with low heterogeneity (I2 = 0). The funnel plot was symmetrical (Figure S30). LOO sensitivity analyses suggested that removal of any individual trial did not affect the significance of the findings (Table S14). There was an insufficient number of studies to conduct subgroup analyses to assess the impact of risk of bias or type of intervention on this outcome.

Requirement for Lower Extremity Revascularisation or Amputation

A meta-analysis of six trials (intervention n = 340; control n = 349) showed that dietary interventions had no significant effect on requirement of lower extremity revascularisation or amputation (OR 1.70; 95% CI 0.42–6.87; Z = 0.74, p = 0.46, Figure S31) with low heterogeneity (I2 = 0%). The funnel plot was asymmetrical (Figure S32). LOO sensitivity analyses found that removal of any individual trial did not affect the significance of the findings (Table S15). There were insufficient studies to conduct subgroup analyses to assess the impact of risk of bias or type of intervention.

4. Discussion

This meta-analysis demonstrated that dietary interventions that upregulate the NO pathway moderately improved the initial claudication distance in patients with PAD, but the improvements in the maximum walking distance did not achieve statistical significance. The interventions classified as antioxidants had the greatest effect on walking distance. Quality of life, ABI and safety outcomes did not differ significantly between intervention and control groups.
Both the initial claudication and maximum walking distance on treadmill testing have been proposed as accurate measures of walking impairment in patients with PAD, although this remains controversial [67,68]. Few patients will actually walk until they reach their maximum pain threshold while performing normal daily activities [67]. The potential of dietary supplements to increase the initial claudication distance identified in this meta-analysis is encouraging for patients with intermittent claudication who have limited pharmacological options to improve their walking performance. The confidence in the benefit of dietary interventions is limited due to the marked statistical heterogeneity between studies, the lack of concordance in findings for the different walking distance outcomes, the lack of consistency in the findings of sensitivity and sub-group analyses and the frequent concerns of risk of bias identified within the included trials.
Antioxidants are known to protect against oxygen-free radicals and other toxic metabolites produced in ischemia and tissue damage [39] to enhance the production of endogenous NO. The effects of antioxidants on NO upregulation pathways in the endothelium and vascular smooth muscles may not be the only explanation for their superiority over other dietary interventions in improving walking performance. The only antioxidant trials in this meta-analysis that reported statistically significant improvements in walking distances studied L-carnitine and its derivatives [32,33,34,37,39,43,46,51,60]. L-carnitine and its derivatives have an important role in lipid metabolism, including the transport of long-chain fatty acids across the mitochondrial membrane to enable oxidation of fatty acids and conserve the coenzyme A pool to improve tissue energy metabolism [39]. Two studies assessed surrogate measures of carnitine, such as a muscle carnitine assay [32] and plasma carnitine concentrations [46], both of which demonstrated a significant increase in carnitine levels in the intervention group compared to the control. Further studies of L-carnitine and its derivatives are warranted, especially since the question remains if these compounds have a beneficial effect on walking distance through their effect on the NO pathway, given that the other dietary supplements that target the NO pathway are not as effective. None of the antioxidant studies measured NO levels. Further trials may consider assessing nitrate levels to determine the effect that antioxidants have on the NO pathway.
Interestingly, the studies with “some risk” of bias demonstrated greater effect estimates than those deemed “low risk” or “high risk”. Out of these studies, the ones that reported a significant effect of the intervention on maximum walking distance or initial claudication distance were mostly judged to have “some risk” of bias due to potential bias in the randomisation process or selection of reported results. These judgments were only due to a lack of information reported about the randomisation process or a pre-specified analysis plan, and not due to baseline differences between groups or issues with blinding or allocation concealment. Thus, the results of these studies demonstrating a positive effect of dietary nitrate interventions on the walking performance should not be dismissed. In addition, random-effects modelling reduces the effect of study size on the weightings of each study. A sub-analysis found that the primary outcome of maximum walking distance was significantly improved when using a fixed effect model, highlighting the need for larger high-quality trials.
The strengths of this systematic review include a pre-specified analysis plan, an extensive risk of bias assessment and reporting of sensitivity and subgroup analyses to evaluate the effects of individual studies, intervention types and risk of bias on pooled outcomes. There were several limitations to this meta-analysis. Firstly, there was significant heterogeneity amongst the included studies in terms of the interventions used and the study designs, populations and outcome assessments, which was reflected in the marked statistical heterogeneity for most outcomes. Although subgroup analyses were used to elucidate the most effective intervention types, these also had marked statistical heterogeneity. Most funnel plots suggested a risk of publication bias, and thus possible over-estimation of the interventions’ effects on the reported outcomes. Some of the LOO sensitivity analyses demonstrated the presence of outliers that could have skewed the results. Finally, meta-analyses of quality of life, ABI and safety outcomes were limited due to under-reporting.

5. Conclusions

This meta-analysis suggests that dietary interventions that upregulate NO may improve the initial claudication distance in patients with PAD. Antioxidant supplements, specifically L-carnitine and its derivatives, appeared to be the most effective interventions, and thus warrant further investigation. It remains unclear whether dietary supplements to upregulate NO influence patients’ quality of life, ABI or safety outcomes. Due to heterogeneity, risk of bias and inconsistent findings, further large and methodologically rigorous RCTs are needed to resolve the benefit of dietary NO upregulation and particularly antioxidants.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/biomedicines11071859/s1, Section S1: Supplemental Methods; Section S2: Table S1: Description of study interventions and outcomes. Table S2. Descriptions of the inclusion and exclusion criteria for the included studies. Table S3. Risk of Bias-2 (ROB-2) quality assessment outcomes. Table S4. Comparison of primary and secondary outcome data between the intervention and control groups for each study. Table S5. Impact of dietary sources of NO upregulation on maximum walking distance—leave-one-out (LOO) sensitivity analyses. Table S6. Impact of dietary sources of NO upregulation on initial claudication distance—leave-one-out (LOO) sensitivity analyses. Table S7. Impact of dietary sources of NO upregulation on 6-min walking distance—leave-one-out (LOO) sensitivity analyses. Table S8. Impact of dietary sources of NO upregulation on quality of life (SF-36 Physical Function)—leave-one-out (LOO) sensitivity analyses. Table S9. Impact of dietary sources of NO upregulation on quality of life (WIQ Walking Distance)—leave-one-out (LOO) sensitivity analyses. Table S10. Impact of dietary sources of NO upregulation on quality of life (WIQ Walking Speed)—leave-one-out (LOO) sensitivity analyses. Table S11. Impact of dietary sources of NO upregulation on ABI—leave-one-out (LOO) sensitivity analyses. Table S12. Impact of dietary sources of NO upregulation on adverse events—leave-one-out (LOO) sensitivity analyses. Table S13. Impact of dietary sources of NO upregulation on serious adverse events—leave-one-out (LOO) sensitivity analyses. Table S14. Impact of dietary sources of NO upregulation on mortality—leave-one-out (LOO) sensitivity analyses. Table S15. Impact of dietary sources of NO upregulation on requirement of lower extremity revascularisation or amputation—leave-one-out (LOO) sensitivity analyses.; Section S3: Figure S1. Risk of bias summary plot indicating the number of studies with low, some, and high risk of bias across the five domains. Figure S2. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on maximum walking distance; meta-analysis using fixed effect model. Figure S3. Funnel plot showing the impact of dietary supplements upregulating the NO pathway on maximum walking distance. Figure S4. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on maximum walking distance; studies stratified by intervention type. Figure S5. Funnel plot showing the impact of dietary supplements upregulating the NO pathway on initial claudication distance. Figure S6. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on initial claudication distance; studies stratified by intervention type. Figure S7. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on 6-min walking distance. Figure S8. Funnel plot showing the impact of dietary supplements upregulating the NO pathway on 6-min walking distance. Figure S9. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on 6-min walking distance; studies stratified by risk of bias. Figure S10. Funnel plot showing the impact of dietary supplements upregulating the NO pathway on quality of life (as measured by the SF-36 physical function domain). Figure S11. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on quality of life (as measured by the WIQ walking distance domain). Figure S12. Funnel plot showing the impact of dietary supplements upregulating the NO pathway on quality of life (as measured by the WIQ walking distance domain). Figure S13. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on quality of life (as measured by the WIQ walking speed domain). Figure S14. Funnel plot showing the impact of dietary supplements upregulating the NO pathway on quality of life (as measured by the WIQ walking speed domain). Figure S15. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on quality of life (as measured by the WIQ walking distance domain); studies stratified by risk of bias. Figure S16. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on quality of life (as measured by the WIQ walking speed domain); studies stratified by risk of bias. Figure S17. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on ABI. Figure S18. Funnel plot showing the impact of dietary supplements upregulating the NO pathway on ABI. Figure S19. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on ABI; studies stratified by risk of bias. Figure S20. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on ABI; studies stratified by intervention type. Figure S21. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on risk of adverse events. Figure S22. Funnel plot showing the impact of dietary supplements upregulating the NO pathway on risk of adverse events. Figure S23. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on risk of adverse events; studies stratified by risk of bias. Figure S24. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on risk of adverse events; studies stratified by type of intervention. Figure S25. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on risk of serious adverse events. Figure S26. Funnel plot showing the impact of dietary supplements upregulating the NO pathway on risk of serious adverse events. Figure S27. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on risk of serious adverse events; studies stratified by risk of bias. Figure S28. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on risk of serious adverse events; studies stratified by type of intervention. Figure S29. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on risk of mortality. Figure S30. Funnel plot showing the impact of dietary supplements upregulating the NO pathway on risk of mortality. Figure S31. Forest plot showing effect of dietary supplements upregulating the NO pathway versus control on risk of lower extremity revascularisation or amputation. Figure S32. Funnel plot showing the impact of dietary supplements upregulating the NO pathway on risk of lower extremity revascularisation or amputation.

Author Contributions

Conceptualisation, S.A.W., A.D. and J.G.; methodology, S.A.W., A.D. and J.G.; data collection, S.A.W. and A.D.; data analysis, S.A.W. and R.J.; writing—original draft preparation, S.A.W.; writing—review and editing, S.A.W., A.D., R.J. and J.G.; supervision, A.D. and J.G.; funding acquisition, J.G. All authors have read and agreed to the published version of the manuscript.

Funding

J.G. is supported by grants from the Australian National Health and Medical Research Council (1180736), Heart Foundation, Queensland Government, Medical Research Futures Fund (2022807 and 2015999) and Townsville Hospital and Health Services.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All the data presented are contained within the article or supplementary material.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Kullo, I.J.; Rooke, T.W. Peripheral Artery Disease. N. Engl. J. Med. 2016, 374, 861–871. [Google Scholar] [CrossRef] [Green Version]
  2. Allen, J.D.; Giordano, T.; Kevil, C.G. Nitrite and nitric oxide metabolism in peripheral artery disease. Nitric Oxide 2012, 26, 217–222. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Bedenis, R.; Stewart, M.; Cleanthis, M.; Robless, P.; Mikhailidis, D.P.; Stansby, G. Cilostazol for intermittent claudication. Cochrane Database Syst. Rev. 2014, 10, CD003748. [Google Scholar] [CrossRef] [PubMed]
  4. Frank, U.; Nikol, S.; Belch, J.; Boc, V.; Brodmann, M.; Carpentier, P.H.; Chraim, A.; Canning, C.; Dimakakos, E.; Gottsäter, A.; et al. ESVM Guideline on peripheral arterial disease. Vasa 2019, 48 (Suppl. S102), 1–79. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Ismaeel, A.; Papoutsi, E.; Miserlis, D.; Lavado, R.; Haynatzki, G.; Casale, G.P.; Bohannon, W.T.; Smith, R.S.; Eidson, J.L.; Brumberg, R.; et al. The Nitric Oxide System in Peripheral Artery Disease: Connection with Oxidative Stress and Biopterins. Antioxidants 2020, 9, 590. [Google Scholar] [CrossRef] [PubMed]
  6. Woessner, M.N.; VanBruggen, M.D.; Pieper, C.F.; O’Reilly, E.K.; Kraus, W.E.; Allen, J.D. Combined Dietary Nitrate and Exercise Intervention in Peripheral Artery Disease: Protocol Rationale and Design. JMIR Res. Protoc. 2017, 6, e139. [Google Scholar] [CrossRef] [Green Version]
  7. Lundberg, J.O.; Carlström, M.; Larsen, F.J.; Weitzberg, E. Roles of dietary inorganic nitrate in cardiovascular health and disease. Cardiovasc. Res. 2011, 89, 525–532. [Google Scholar] [CrossRef]
  8. Omar, S.A.; Webb, A.J.; Lundberg, J.O.; Weitzberg, E. Therapeutic effects of inorganic nitrate and nitrite in cardiovascular and metabolic diseases. J. Intern. Med. 2016, 279, 315–336. [Google Scholar] [CrossRef] [Green Version]
  9. Bailey, S.J.; Winyard, P.; Vanhatalo, A.; Blackwell, J.R.; Dimenna, F.J.; Wilkerson, D.P.; Tarr, J.; Benjamin, N.; Jones, A.M. Dietary nitrate supplementation reduces the O2 cost of low-intensity exercise and enhances tolerance to high-intensity exercise in humans. J. Appl. Physiol. 2009, 107, 1144–1155. [Google Scholar] [CrossRef] [Green Version]
  10. Lansley, K.E.; Winyard, P.G.; Fulford, J.; Vanhatalo, A.; Bailey, S.J.; Blackwell, J.R.; DiMenna, F.J.; Gilchrist, M.; Benjamin, N.; Jones, A.M. Dietary nitrate supplementation reduces the O2 cost of walking and running: A placebo-controlled study. J. Appl. Physiol. 2011, 110, 591–600. [Google Scholar] [CrossRef] [Green Version]
  11. Bailey, S.J.; Fulford, J.; Vanhatalo, A.; Winyard, P.G.; Blackwell, J.R.; DiMenna, F.J.; Wilkerson, D.P.; Benjamin, N.; Jones, A.M. Dietary nitrate supplementation enhances muscle contractile efficiency during knee-extensor exercise in humans. J. Appl. Physiol. 2010, 109, 135–148. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Vanhatalo, A.; Bailey, S.J.; Blackwell, J.R.; DiMenna, F.J.; Pavey, T.G.; Wilkerson, D.P.; Benjamin, N.; Winyard, P.G.; Jones, A.M. Acute and chronic effects of dietary nitrate supplementation on blood pressure and the physiological responses to moderate-intensity and incremental exercise. Am. J. Physiol. Regul. Integr. Comp. Physiol. 2010, 299, R1121–R1131. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Berry, M.J.; Justus, N.W.; Hauser, J.I.; Case, A.H.; Helms, C.C.; Basu, S.; Rogers, Z.; Lewis, M.T.; Miller, G.D. Dietary nitrate supplementation improves exercise performance and decreases blood pressure in COPD patients. Nitric Oxide 2015, 48, 22–30. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Coggan, A.R.; Leibowitz, J.L.; Spearie, C.A.; Kadkhodayan, A.; Thomas, D.P.; Ramamurthy, S.; Mahmood, K.; Park, S.; Waller, S.; Farmer, M.; et al. Acute Dietary Nitrate Intake Improves Muscle Contractile Function in Patients with Heart Failure: A Double-Blind, Placebo-Controlled, Randomized Trial. Circ. Heart Fail. 2015, 8, 914–920. [Google Scholar] [CrossRef] [Green Version]
  15. Eggebeen, J.; Kim-Shapiro, D.B.; Haykowsky, M.; Morgan, T.M.; Basu, S.; Brubaker, P.; Rejeski, J.; Kitzman, D.W. One Week of Daily Dosing with Beetroot Juice Improves Submaximal Endurance and Blood Pressure in Older Patients with Heart Failure and Preserved Ejection Fraction. JACC Heart Fail. 2016, 4, 428–437. [Google Scholar] [CrossRef] [PubMed]
  16. Porcelli, S.; Ramaglia, M.; Bellistri, G.; Pavei, G.; Pugliese, L.; Montorsi, M.; Rasica, L.; Marzorati, M. Aerobic Fitness Affects the Exercise Performance Responses to Nitrate Supplementation. Med. Sci. Sports Exerc. 2015, 47, 1643–1651. [Google Scholar] [CrossRef] [Green Version]
  17. Zamani, P.; Rawat, D.; Shiva-Kumar, P.; Geraci, S.; Bhuva, R.; Konda, P.; Doulias, P.T.; Ischiropoulos, H.; Townsend, R.R.; Margulies, K.B.; et al. Effect of inorganic nitrate on exercise capacity in heart failure with preserved ejection fraction. Circulation 2015, 131, 371–380. [Google Scholar] [CrossRef]
  18. Jahangir, E.; Vita, J.A.; Handy, D.; Holbrook, M.; Palmisano, J.; Beal, R.; Loscalzo, J.; Eberhardt, R.T. The effect of L-arginine and creatine on vascular function and homocysteine metabolism. Vasc. Med. 2009, 14, 239–248. [Google Scholar] [CrossRef] [Green Version]
  19. Hooper, L.; Kroon, P.A.; Rimm, E.B.; Cohn, J.S.; Harvey, I.; Le Cornu, K.A.; Ryder, J.J.; Hall, W.L.; Cassidy, A. Flavonoids, flavonoid-rich foods, and cardiovascular risk: A meta-analysis of randomized controlled trials. Am. J. Clin. Nutr. 2008, 88, 38–50. [Google Scholar] [CrossRef] [Green Version]
  20. Nosova, E.V.; Conte, M.S.; Grenon, S.M. Advancing beyond the “heart-healthy diet” for peripheral arterial disease. J. Vasc. Surg. 2015, 61, 265–274. [Google Scholar] [CrossRef] [Green Version]
  21. Gao, L.; Mao, Q.; Cao, J.; Wang, Y.; Zhou, X.; Fan, L. Effects of coenzyme Q10 on vascular endothelial function in humans: A meta-analysis of randomized controlled trials. Atherosclerosis 2012, 221, 311–316. [Google Scholar] [CrossRef]
  22. Brostow, D.P.; Hirsch, A.T.; Collins, T.C.; Kurzer, M.S. The role of nutrition and body composition in peripheral arterial disease. Nat. Rev. Cardiol. 2012, 9, 634–643. [Google Scholar] [CrossRef]
  23. Aboyans, V.; Ricco, J.-B.; Bartelink, M.-L.E.L.; Björck, M.; Brodmann, M.; Cohnert, T.; Collet, J.-P.; Czerny, M.; De Carlo, M.; Debus, S.; et al. 2017 ESC Guidelines on the Diagnosis and Treatment of Peripheral Arterial Diseases, in collaboration with the European Society for Vascular Surgery (ESVS): Document covering atherosclerotic disease of extracranial carotid and vertebral, mesenteric, renal, upper and lower extremity arteriesEndorsed by: The European Stroke Organization (ESO)The Task Force for the Diagnosis and Treatment of Peripheral Arterial Diseases of the European Society of Cardiology (ESC) and of the European Society for Vascular Surgery (ESVS). Eur. Heart J. 2018, 39, 763–816. [Google Scholar] [CrossRef] [Green Version]
  24. Abramson, B.L.; Al-Omran, M.; Anand, S.S.; Albalawi, Z.; Coutinho, T.; de Mestral, C.; Dubois, L.; Gill, H.L.; Greco, E.; Guzman, R.; et al. Canadian Cardiovascular Society 2022 Guidelines for Peripheral Arterial Disease. Can. J. Cardiol. 2022, 38, 560–587. [Google Scholar] [CrossRef] [PubMed]
  25. Gerhard-Herman, M.D.; Gornik, H.L.; Barrett, C.; Barshes, N.R.; Corriere, M.A.; Drachman, D.E.; Fleisher, L.A.; Fowkes, F.G.R.; Hamburg, N.M.; Kinlay, S.; et al. 2016 AHA/ACC Guideline on the Management of Patients With Lower Extremity Peripheral Artery Disease: Executive Summary: A Report of the American College of Cardiology/American Heart Association Task Force on Clinical Practice Guidelines. Circulation 2017, 135, e686–e725. [Google Scholar] [CrossRef] [PubMed]
  26. Moher, D.; Liberati, A.; Tetzlaff, J.; Altman, D.G.; The, P.G. Preferred Reporting Items for Systematic Reviews and Meta-Analyses: The PRISMA Statement. PLoS Med. 2009, 6, e1000097. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Sterne, J.A.C.; Savović, J.; Page, M.J.; Elbers, R.G.; Blencowe, N.S.; Boutron, I.; Cates, C.J.; Cheng, H.-Y.; Corbett, M.S.; Eldridge, S.M.; et al. RoB 2: A revised tool for assessing risk of bias in randomised trials. BMJ 2019, 366, l4898. [Google Scholar] [CrossRef] [Green Version]
  28. McGuinness, L.A.; Higgins, J.P.T. Risk-of-bias VISualization (robvis): An R package and Shiny web app for visualizing risk-of-bias assessments. Res. Synth. Methods 2020, 12, 55–61. [Google Scholar] [CrossRef]
  29. Sterne, J.A.; Gavaghan, D.; Egger, M. Publication and related bias in meta-analysis: Power of statistical tests and prevalence in the literature. J. Clin. Epidemiol. 2000, 53, 1119–1129. [Google Scholar] [CrossRef]
  30. Review Manager (RevMan), Version 5.4; The Cochrane Collaboration: London, UK, 2020.
  31. Bock, J.M.; Treichler, D.P.; Norton, S.L.; Ueda, K.; Hughes, W.E.; Casey, D.P. Inorganic nitrate supplementation enhances functional capacity and lower-limb microvascular reactivity in patients with peripheral artery disease. Nitric Oxide Biol. Chem. 2018, 80, 45–51. [Google Scholar] [CrossRef]
  32. Brevetti, G.; Chiariello, M.; Ferulano, G.; Policicchio, A.; Nevola, E.; Rossini, A.; Attisano, T.; Ambrosio, G.; Siliprandi, N.; Angelini, C. Increases in walking distance in patients with peripheral vascular disease treated with L-carnitine: A double-blind, cross-over study. Circulation 1988, 77, 767–773. [Google Scholar] [CrossRef] [Green Version]
  33. Brevetti, G.; Diehm, C.; Lambert, D. European multicenter study on propionyl-L-carnitine in intermittent claudication. J. Am. Coll. Cardiol. 1999, 34, 1618–1624. [Google Scholar] [CrossRef] [Green Version]
  34. Brevetti, G.; Perna, S.; Sabba, C.; Martone, V.D.; Condorelli, M. Propionyl-L-carnitine in intermittent claudication: Double-blind, placebo-controlled, dose titration, multicenter study. J. Am. Coll. Cardiol. 1995, 26, 1411–1416. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Brevetti, G.; Perna, S.; Sabba, C.; Martone, V.D.; Di Iorio, A.; Barletta, G. Effect of propionyl-L-carnitine on quality of life in intermittent claudication. Am. J. Cardiol. 1997, 79, 777–780. [Google Scholar] [CrossRef] [PubMed]
  36. Collins, E.G.; Edwin Langbein, W.; Orebaugh, C.; Bammert, C.; Hanson, K.; Reda, D.; Edwards, L.C.; Littooy, F.N. PoleStriding exercise and vitamin E for management of peripheral vascular disease. Med. Sci. Sports Exerc. 2003, 35, 384–393. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Coto, V.; D’Alessandro, L.; Grattarola, G.; Imparato, L.; Lingetti, M.; Mancini, M.; Nolfe, G.; Rengo, F. Evaluation of the therapeutic efficacy and tolerability of levocarnitine propionyl in the treatment of chronic obstructive arteriopathies of the lower extremities: A multicentre controlled study vs. placebo. Drugs Exp. Clin. Res. 1992, 18, 29–36. Available online: http://ovidsp.ovid.com/ovidweb.cgi?T=JS&PAGE=reference&D=med3&NEWS=N&AN=1600865 (accessed on 16 November 2021).
  38. da Silva, N.D., Jr.; Roseguini, B.T.; Chehuen, M.; Fernandes, T.; Mota, G.F.; Martin, P.K.M.; Han, S.W.; Forjaz, C.L.M.; Wolosker, N.; de Oliveira, E.M. Effects of oral N-acetylcysteine on walking capacity, leg reactive hyperemia, and inflammatory and angiogenic mediators in patients with intermittent claudication. Am. J. Physiol. Heart Circ. Physiol. 2015, 309, H897–H905. [Google Scholar] [CrossRef] [Green Version]
  39. Dal Lago, A.; De Martini, D.; Flore, R.; Gaetani, E.; Gasbarrini, A.; Gerardino, L.; Pola, R.; Santoliquido, A.; Serricchio, M.; Tondi, P.; et al. Effects of propionyl-L-carnitine on peripheral arterial obliterative disease of the lower limbs: A double-blind clinical trial. Drugs Exp. Clin. Res. 1999, 25, 29–36. Available online: http://ovidsp.ovid.com/ovidweb.cgi?T=JS&PAGE=reference&D=med4&NEWS=N&AN=10337502 (accessed on 16 November 2021).
  40. Deckert, J. Propionyl-L-carnitine for intermittent claudication. J. Fam. Pract. 1997, 44, 533–534. Available online: http://ovidsp.ovid.com/ovidweb.cgi?T=JS&PAGE=reference&D=med4&NEWS=N&AN=9191622 (accessed on 16 November 2021).
  41. Domingues, W.J.R.; Ritti-Dias, R.M.; Cucato, G.G.; Wolosker, N.; Zerati, A.E.; Puech-Leão, P.; Coelho, D.B.; Nunhes, P.M.; Moliterno, A.A.; Avelar, A. Effect of creatine supplementation on functional capacity and muscle oxygen saturation in patients with symptomatic peripheral arterial disease: A pilot study of a randomized, double-blind placebo-controlled clinical trial. Nutrients 2021, 13, 149. [Google Scholar] [CrossRef]
  42. Gardner, C.D.; Taylor-Piliae, R.E.; Kiazand, A.; Nicholus, J.; Rigby, A.J.; Farquhar, J.W. Effect of Ginkgo biloba (Egb 761) on treadmill walking time among adults with peripheral artery disease: A randomized clinical trial. J. Cardiopulm. Rehabil. Prev. 2008, 28, 258–265. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Goldenberg, N.A.; Krantz, M.J.; Hiatt, W.R. L-Carnitine plus cilostazol versus cilostazol alone for the treatment of claudication in patients with peripheral artery disease: A multicenter, randomized, double-blind, placebo-controlled trial. Vasc. Med. 2012, 17, 145–154. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Grenon, S.M.; Owens, C.D.; Nosova, E.V.; Hughes-Fulford, M.; Alley, H.F.; Chong, K.; Perez, S.; Yen, P.K.; Boscardin, J.; Hellmann, J.; et al. Short-Term, High-Dose Fish Oil Supplementation Increases the Production of Omega-3 Fatty Acid-Derived Mediators in Patients with Peripheral Artery Disease (the OMEGA-PAD I Trial). J. Am. Heart Assoc. 2015, 4, e002034. [Google Scholar] [CrossRef] [Green Version]
  45. Gresele, P.; Migliacci, R.; Arosio, E.; Bonizzoni, E.; Minuz, P.; Violi, F. Effect on walking distance and atherosclerosis progression of a nitric oxide-donating agent in intermittent claudication. J. Vasc. Surg. 2012, 56, 1622–1628.e1625. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Hiatt, W.R.; Creager, M.A.; Amato, A.; Brass, E.P. Effect of Propionyl-L-carnitine on a Background of Monitored Exercise in Patients with Claudication Secondary to Peripheral Artery Disease. J. Cardiopulm. Rehabil. Prev. 2011, 31, 125–132. [Google Scholar] [CrossRef]
  47. Kenjale, A.A.; Ham, K.L.; Stabler, T.; Robbins, J.L.; Johnson, J.L.; Vanbruggen, M.; Privette, G.; Yim, E.; Kraus, W.E.; Allen, J.D. Dietary nitrate supplementation enhances exercise performance in peripheral arterial disease. J. Appl. Physiol. 2011, 110, 1582–1591. [Google Scholar] [CrossRef]
  48. Kiesewetter, H.; Jung, F.; Jung, E.M.; Blume, J.; Mrowietz, C.; Birk, A.; Koscielny, J.; Wenzel, E. Effects of garlic coated tablets in peripheral arterial occlusive disease. Clin. Investig. 1993, 71, 383–386. [Google Scholar] [CrossRef]
  49. Leng, G.C.; Lee, A.J.; Fowkes, F.G.; Horrobin, D.; Jepson, R.G.; Lowe, G.D.; Rumley, A.; Skinner, E.R.; Mowat, B.F. Randomized controlled trial of antioxidants in intermittent claudication. Vasc. Med. 1997, 2, 279–285. [Google Scholar] [CrossRef]
  50. Loffredo, L.; Perri, L.; Catasca, E.; Pignatelli, P.; Brancorsini, M.; Nocella, C.; De Falco, E.; Bartimoccia, S.; Frati, G.; Carnevale, R.; et al. Dark chocolate acutely improves walking autonomy in patients with peripheral artery disease. J. Am. Heart Assoc. 2014, 3, e001072. [Google Scholar] [CrossRef] [Green Version]
  51. Luo, T.; Li, J.; Li, L.; Yang, B.; Liu, C.; Zheng, Q.; Jin, B.; Chen, Z.; Li, K.; Zhang, X.; et al. A study on the efficacy and safety assessment of propionyl-L-carnitine tablets in treatment of intermittent claudication. Thromb. Res. 2013, 132, 427–432. [Google Scholar] [CrossRef]
  52. Maxwell, A.J.; Anderson, B.E.; Cooke, J.P. Nutritional therapy for peripheral arterial disease: A double-blind, placebo-controlled, randomized trial of HeartBar®. Vasc. Med. 2000, 5, 11–19. [Google Scholar] [CrossRef] [PubMed]
  53. McDermott, M.M.; Criqui, M.H.; Domanchuk, K.; Ferrucci, L.; Guralnik, J.M.; Kibbe, M.R.; Kosmac, K.; Kramer, C.M.; Leeuwenburgh, C.; Li, L.; et al. Cocoa to Improve Walking Performance in Older People With Peripheral Artery Disease: The COCOA-PAD Pilot Randomized Clinical Trial. Circ. Res. 2020, 126, 589–599. [Google Scholar] [CrossRef] [PubMed]
  54. Micker, M.; Krauss, H.; Ast, J.; Chȩciński, P.; Jabłecka, A. The influence of oral supplementation of L-arginine on intermittent claudication in patients with peripheral arterial disease of the lower extremities. Acta Angiol. 2007, 13, 1–14. Available online: https://www.scopus.com/inward/record.uri?eid=2-s2.0-34447509863&partnerID=40&md5=31e46ceb43f9ad59f1024d2bbcd5349a (accessed on 16 November 2021).
  55. Mohler, E.R., 3rd; Hiatt, W.R.; Gornik, H.L.; Kevil, C.G.; Quyyumi, A.; Haynes, W.G.; Annex, B.H. Sodium nitrite in patients with peripheral artery disease and diabetes mellitus: Safety, walking distance and endothelial function. Vasc. Med. 2014, 19, 9–17. [Google Scholar] [CrossRef] [Green Version]
  56. Oka, R.K.; Szuba, A.; Giacomini, J.C.; Cooke, J.P. A pilot study of L-arginine supplementation on functional capacity in peripheral arterial disease. Vasc. Med. 2005, 10, 265–274. [Google Scholar] [CrossRef] [Green Version]
  57. Park, S.Y.; Pekas, E.J.; Headid, R.J., III; Son, W.M.; Wooden, T.K.; Song, J.; Layec, G.; Yadav, S.K.; Mishra, P.K.; Pipinos, I.I. Acute mitochondrial antioxidant intake improves endothelial function, antioxidant enzyme activity, and exercise tolerance in patients with peripheral artery disease. Am. J. Physiol.-Heart Circ. Physiol. 2020, 319, H456–H467. [Google Scholar] [CrossRef]
  58. Pekas, E.J.; Wooden, T.K.; Yadav, S.K.; Park, S.Y. Body mass-normalized moderate dose of dietary nitrate intake improves endothelial function and walking capacity in patients with peripheral artery disease. Am. J. Physiol. Regul. Integr. Comp. Physiol. 2021, 321, R162–R173. [Google Scholar] [CrossRef]
  59. Ramirez, J.L.; Gasper, W.J.; Khetani, S.A.; Zahner, G.J.; Hills, N.K.; Mitchell, P.T.; Sansbury, B.E.; Conte, M.S.; Spite, M.; Grenon, S.M. Fish Oil Increases Specialized Pro-resolving Lipid Mediators in PAD (The OMEGA-PAD II Trial). J. Surg. Res. 2019, 238, 164–174. [Google Scholar] [CrossRef]
  60. Santo, S.S.; Sergio, N.; Luigi, D.P.; Giuseppe, M.; Margherita, F.; Gea, O.C.; Roberto, F.; Gabriella, C.; Giuseppe, P.; Massimiliano, A. Effect of PLC on functional parameters and oxidative profile in type 2 diabetes-associated PAD. Diabetes Res. Clin. Pract. 2006, 72, 231–237. [Google Scholar] [CrossRef]
  61. Tenore, G.C.; D’Avino, M.; Caruso, D.; Buonomo, G.; Acampora, C.; Caruso, G.; Simone, C.; Ciampaglia, R.; Novellino, E. Effect of Annurca Apple Polyphenols on Intermittent Claudication in Patients with Peripheral Artery Disease. Am. J. Cardiol. 2019, 123, 847–853. [Google Scholar] [CrossRef]
  62. Van Der Avoort, C.M.T.; Van Loon, L.J.C.; Verdijk, L.B.; Poyck, P.P.C.; Thijssen, D.T.J.; Hopman, M.T.E. Acute effects of dietary nitrate on exercise tolerance, muscle oxygenation, and cardiovascular function in patients with peripheral arterial disease. Int. J. Sport Nutr. Exer. Metabol. 2021, 31, 385–396. [Google Scholar] [CrossRef] [PubMed]
  63. Vincent, H.K.; Bourguignon, C.M.; Vincent, K.R.; Taylor, A.G. Effects of alpha-lipoic acid supplementation in peripheral arterial disease: A pilot study. J. Altern. Complement. Med. 2007, 13, 577–584. [Google Scholar] [CrossRef] [PubMed]
  64. Wilson, A.M.; Harada, R.; Nair, N.; Balasubramanian, N.; Cooke, J.P. L-arginine supplementation in peripheral arterial disease: No benefit and possible harm. Circulation 2007, 116, 188–195. [Google Scholar] [CrossRef] [Green Version]
  65. Woessner, M.; VanBruggen, M.D.; Pieper, C.F.; Sloane, R.; Kraus, W.E.; Gow, A.J.; Allen, J.D. Beet the Best? Dietary inorganic nitrate to augment exercise training in lower extremity peripheral artery disease with intermittent claudication. Circ. Res. 2018, 123, 654–659. [Google Scholar] [CrossRef]
  66. McDermott, M.M.; Leeuwenburgh, C.; Guralnik, J.M.; Tian, L.; Sufit, R.; Zhao, L.; Criqui, M.H.; Kibbe, M.R.; Stein, J.H.; Lloyd-Jones, D.; et al. Effect of Resveratrol on Walking Performance in Older People with Peripheral Artery Disease: The RESTORE Randomized Clinical Trial. JAMA Cardiol. 2017, 2, 902–907. [Google Scholar] [CrossRef] [Green Version]
  67. Kruidenier, L.M.; Nicolaï, S.P.A.; Willigendael, E.M.; de Bie, R.A.; Prins, M.H.; Teijink, J.A.W. Functional claudication distance: A reliable and valid measurement to assess functional limitation in patients with intermittent claudication. BMC Cardiovasc. Disord. 2009, 9, 9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. McDermott, M.M.; Guralnik, J.M.; Criqui, M.H.; Liu, K.; Kibbe, M.R.; Ferrucci, L. Six-minute walk is a better outcome measure than treadmill walking tests in therapeutic trials of patients with peripheral artery disease. Circulation 2014, 130, 61–68. [Google Scholar] [CrossRef] [Green Version]
Biomedicines 11 01859 g001 550

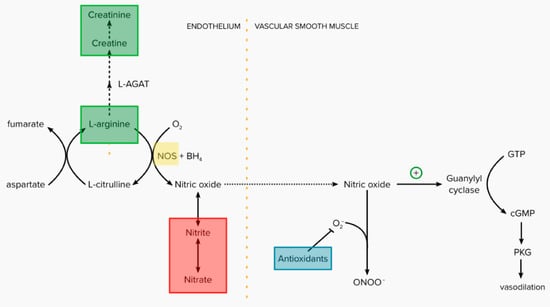

Figure 1. Potential targets for dietary supplements to increase nitric oxide production in patients with PAD. Targets include NO donors that increase substrates in the nitrate–nitrite–NO pathway (red), enhancers of NO availability which act on the citrulline–arginine–NO pathway (green), endothelial NOS inducers (yellow) and antioxidants (blue).
Figure 1. Potential targets for dietary supplements to increase nitric oxide production in patients with PAD. Targets include NO donors that increase substrates in the nitrate–nitrite–NO pathway (red), enhancers of NO availability which act on the citrulline–arginine–NO pathway (green), endothelial NOS inducers (yellow) and antioxidants (blue).
Biomedicines 11 01859 g001
Biomedicines 11 01859 g002 550

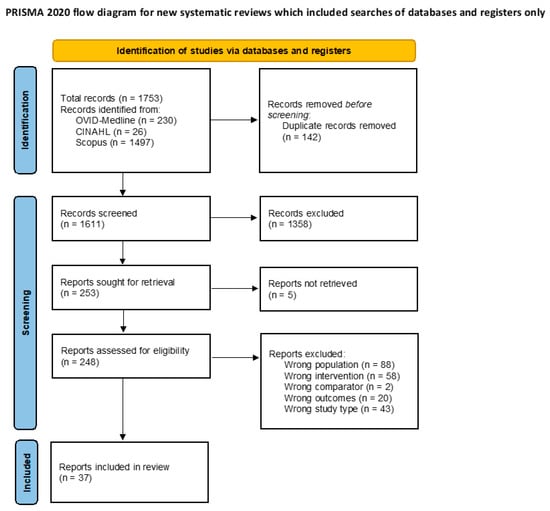

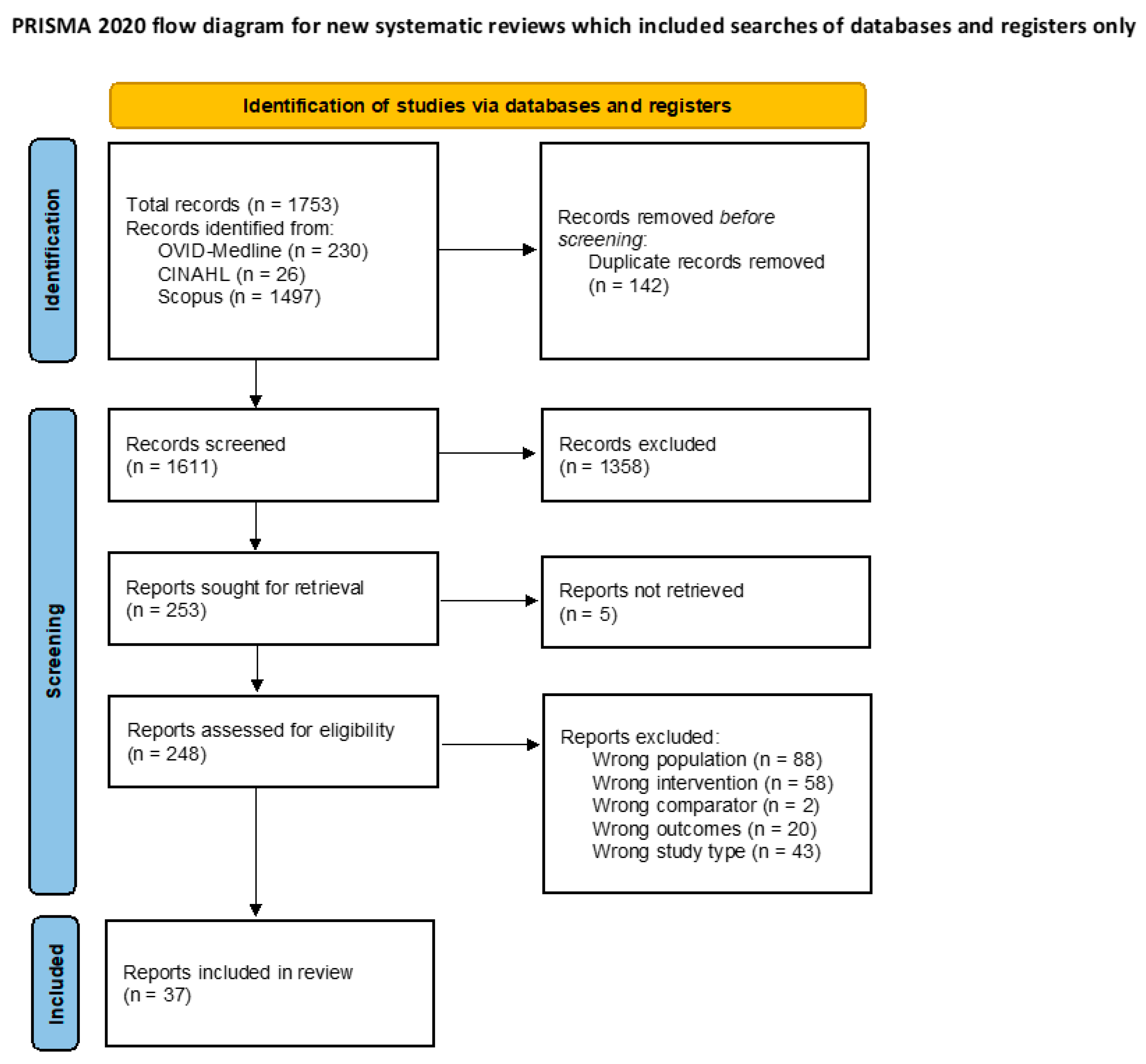

Figure 2. PRISMA flow diagram summarising the selection of eligible articles [26]. There were five full-text articles that were unable to be retrieved.
Figure 2. PRISMA flow diagram summarising the selection of eligible articles [26]. There were five full-text articles that were unable to be retrieved.
Biomedicines 11 01859 g002
Biomedicines 11 01859 g003 550

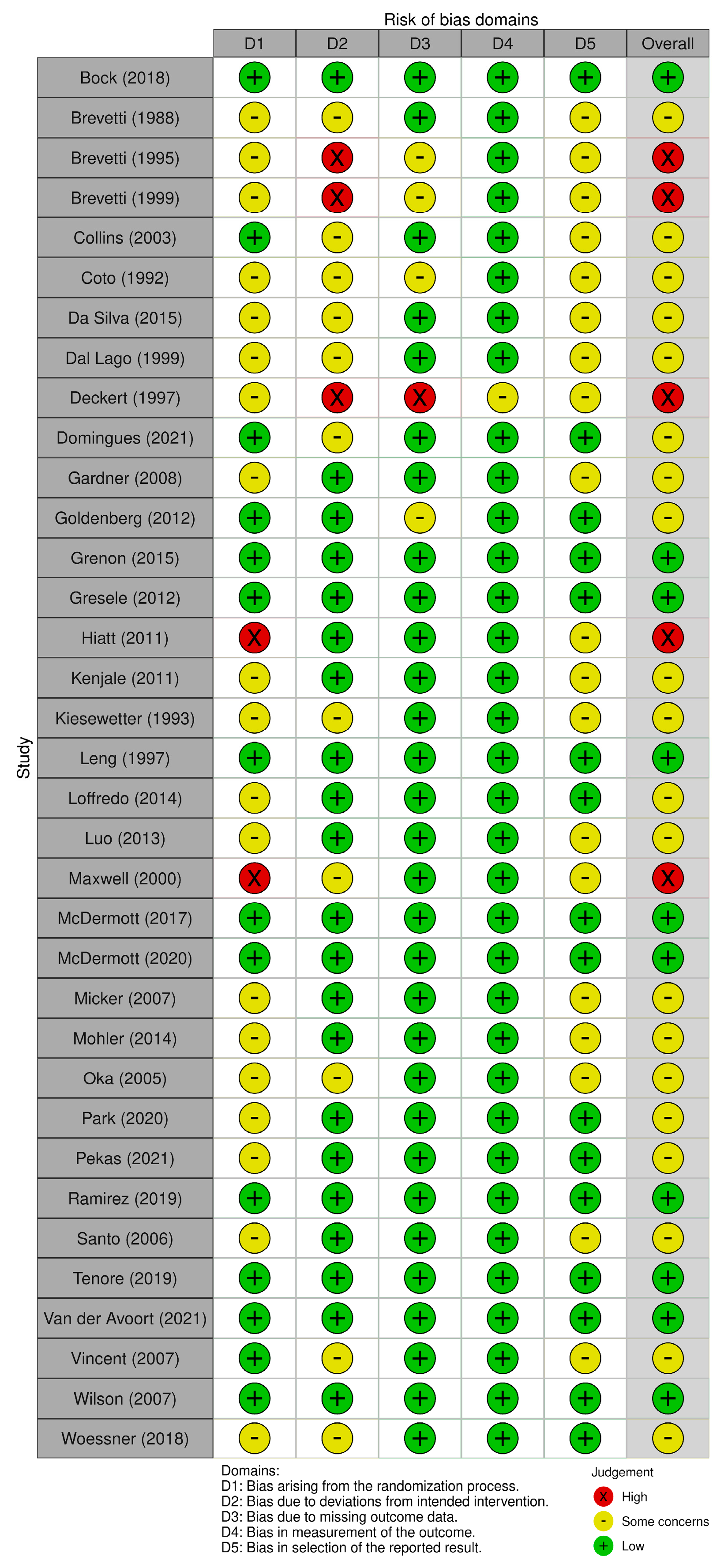

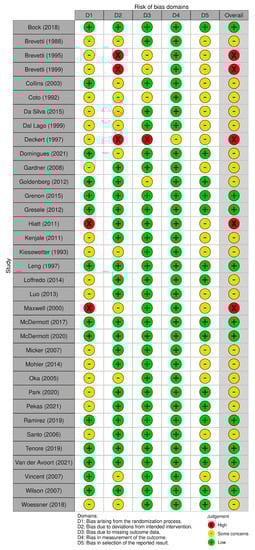

Figure 3. Risk of bias assessment of included trials [31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66] based on ROB2 tool [27].
Figure 3. Risk of bias assessment of included trials [31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66] based on ROB2 tool [27].
Biomedicines 11 01859 g003
Biomedicines 11 01859 g004 550
Figure 4. Forest plot showing the effect of dietary supplements upregulating the NO pathway versus control on the maximum walking distance; studies stratified by risk of bias [33,34,36,37,39,43,45,47,50,51,52,53,54,56,57,58,62,64].
Figure 4. Forest plot showing the effect of dietary supplements upregulating the NO pathway versus control on the maximum walking distance; studies stratified by risk of bias [33,34,36,37,39,43,45,47,50,51,52,53,54,56,57,58,62,64].
Biomedicines 11 01859 g004
Biomedicines 11 01859 g005 550

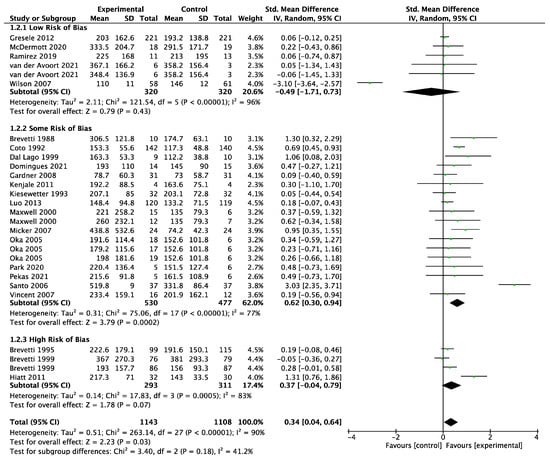

Figure 5. Forest plot showing the effect of dietary supplements upregulating the NO pathway versus control on the initial claudication distance; studies stratified by risk of bias [32,33,34,37,39,41,42,45,46,47,48,50,51,51,52,52,53,53,54,54,55,56,62,63,64].
Figure 5. Forest plot showing the effect of dietary supplements upregulating the NO pathway versus control on the initial claudication distance; studies stratified by risk of bias [32,33,34,37,39,41,42,45,46,47,48,50,51,51,52,52,53,53,54,54,55,56,62,63,64].
Biomedicines 11 01859 g005
Biomedicines 11 01859 g006 550

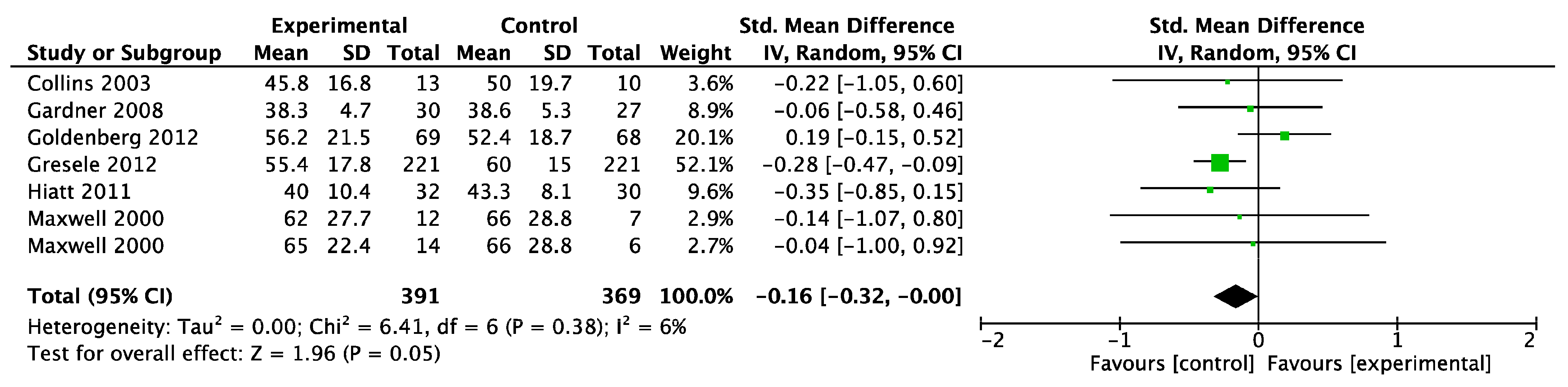

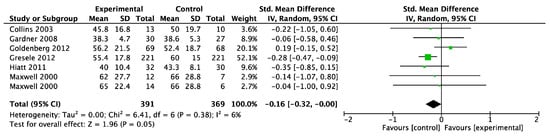

Figure 6. Forest plot showing the effect of dietary supplements upregulating the NO pathway versus control on quality of life measured by the physical function domain of the SF-36 assessment [36,42,43,45,46,52].
Figure 6. Forest plot showing the effect of dietary supplements upregulating the NO pathway versus control on quality of life measured by the physical function domain of the SF-36 assessment [36,42,43,45,46,52].
Biomedicines 11 01859 g006
Table
Table 1. Characteristics of included studies and participants at baseline.
Table 1. Characteristics of included studies and participants at baseline.
Intervention GroupControl Group
StudyCountryDesignTotal ParticipantsAttritionFollow-Up DurationType of InterventionBrief Population DescriptionNAgeFemaleSmokingDiabetesNAgeFemaleSmokingDiabetes
Nitric Oxide Donors
Bock
(2018) [31]		USADB RCT2102 months1 g daily of sodium nitrate tabletsAdults with PAD aged 50–85 years with IC1373
(9)		7
(53.8%)		0
(0.0%)		4
(30.8%)		869
(10)		2
(25.0%)		0
(0.0%)		2
(25.0%)
Gresele
(2012) [45]		Multiple EuropeanDB RCT44270
(15.8%)		6 months1.6 g daily of NCX 4016Adults aged 40–80 years with PAD and IC 22166.7
(8.2)		44
(19.9%)		91
(41.2%)		77
(34.8%)		22166.4
(9.1)		48
(21.7%)		91
(41.2%)		67
(30.3%)
Kenjale
(2011) [47]		USACO RCT801 day500 mL of nitrate rich beetroot juiceAdults with PAD and IC867
(13)		4
(50.0%)		NRNRNANANANANA
Mohler
(2014) [55]		USADB RCT366
(16.7%)		3 months80 mg or 160 mg daily of sodium nitrite tabletsAdults aged 35–85 years with PAD1965.3 (8.9)4 (21.1%)7 (36.8%)12 (63.2%)1864.9
(9.0)		5
(27.8%)		7
(38.9%)		10
(55.6%)
1867.9 (10.0)5 (27.8%)2 (11.1%)12 (66.7%)
Pekas
(2021) [58]		USACO DB RCT1101 daySingle dose of body-mass normalized beetroot juiceAdults with PAD and IC1170.0
(7.0)		6
(54.5%)		1
(9.1%)		3
(27.3%)		NANANANANA
Van der Avoort (2021) [62]NetherlandsCO RCT1801 month150 g nitrate rich vegetables, 70 mL nitrate-rich beetroot juiceAdults with PAD and stable IC for >3 months1873 (8)7 (38.9%)5 (27.8%)4 (22.2%)NANANANANA
Woessner (2018) [65]USADB RCT3511
(31.4%)		3 monthsBeetroot juice and a 36-session exercise programAdults with PAD aged 40–80 years and stable IC pain1167.5
(8.6)		2
(18.2%)		4
(36.4%)		6
(54.5%)		1371.5
(7.3)		7
(53.8%)		5
(38.5%)		2
(15.4%)
Enhancers of NO Availability
Domingues
(2021) [41]		BrazilDB RCT323
(9.4%)		2 months5 g daily creatinine monohydrate (after 20 g/day for 7 days)Adults with PAD and IC1464
(10)		6
(42.9%)		11
(78.6%)		7
(50.0%)		1564
(8)		8
(53.3%)		12
(78.6%)		9
(60.0%)
Maxwell
(2000) [52]		USADB RCT411
(2.4%)		2 weeksOne or two 50 g L-arginine-enriched nutrient bars dailyAdults with PAD and stable IC1568.2 (7.7)1 (6.7%)2 (13.3%)2 (13.3%)1470.6
(7.5)		5
(35.7%)		4
(28.6%)		4
(28.6%)
1266.3 (10.4)4 (25.0%)02 (16.7%)
Micker
(2007) [54]		PolandDB RCT4801 month12 g daily L-arginine tabletsAdults with PAD2459.1
(8.8)		12
(50.0%)		11
(45.8%)		02466.0
(7.6)		11
(45.8%)		13
(54.2%)		0
Oka
(2005) [56]		USADB RCT808
(10.0%)		3 months3 g, 6 g, or 9 g daily of L-arginine tabletsAdults aged at least 40 years with PAD and IC1875 (9)6 (33.0%)2 (11.1%)11 (61.1%)1872
(9)		3
(16.7%)		2
(11.1%)		1
(5.6%)
1776 (6) 6 (35.3%)2 (11.8%)6 (35.3%)
1973 (6)7 (36.8%)1 (5.3%)7 (36.8%)
Wilson
(2007) [64]		USADB RCT13314
(10.5%)		6 months1 g three times daily of L-arginine tabletsAdults with PAD aged at least 45 years with stable IC pain6673
(9)		14
(21.2%)		8
(12.1%)		20
(30.3%)		6772
(7)		18
(26.9%)		12
(17.9%)		20
(29.9%)
Nitric Oxide Synthase Inducers
Loffredo
(2014) [50]		USACO SB RCT2001 daySingle dose of 40 g of dark chocolateAdults with PAD and IC2069
(9)		6
(30.0%)		06
(30%)		NANANANANA
McDermott (2017) [66]USADB RCT662 (3.0%)6 months125 mg or 500 mg of resveratrol dailyAdults aged at least 65 years with PAD4474.6 (7.0)14 (31.8%)9 (20.5%)12 (27.3%)2274.1 (6.1)7 (31.8%)5 (22.7%)14 (63.6%)
McDermott
(2020) [53]		USADB RCT444
(9.1%)		6 monthsThree flavanol-rich packets mixed with water dailyAdults aged at least 60 years with PAD2371
(7)		8
(34.8%)		11
(47.8%)		13
(56.5%)		2173
(7)		7
(33.3%)		3
(14.3%)		11
(52.4%)
Tenore
(2019) [61]		ItalyDB RCT18006 months1 g twice daily of Annurca apple polyphenolic extractAdults with PAD aged 35 to 75 years with IC pain9071.5
(9.4)		28
(31.1%)		020
(22.2%)		9070.5
(10.2)		22
(24.4%)		024
(26.7%)
Antioxidants
Brevetti
(1988) [32]		ItalyCO DB RCT2003 weeks4 g daily of L-carnitineAdults with PAD and IC2059.8
(7.0)		0NRNRNANANANANA
Brevetti
(1995) [34]		ItalyDB RCT24531
(12.7%)		6 months3 g daily (via up-titration) of propionyl-L-carnitineAdults with PAD aged at least 40 years11861.8
(7.6)		8
(6.8%)		114
(96.6%)		17
(14.4%)		12758.9
(7.9)		13
(10.2%)		120
(94.5%)		26
(20.5%)
Brevetti
(1999) [33]		Multiple EuropeanDB RCT501173
(34.5%)		12 months2 g daily of propionyl-L-carnitineAdults with PAD23961.9
(8.8)		38
(15.9%)		208
(87.0%)		12
(5.0%)		24662.7
(8.9)		51
(20.7%)		209
(85.0%)		12
(4.9%)
Collins
(2003) [36]		USADB RCT252
(8.0%)		6 months400IU daily of Vitamin EAdults with PAD and IC1367.2
(9.4)		06
(46.2%)		NR1270.2
(8.3)		03
(25.0%)		NR
Coto
(1992) [37]		ItalyDB RCT30018
(6.0%)		6 months2 g daily of propionyl-L-carnitine capsules Adults with PAD and IC limiting walking ability15060.6
(6.9)		62
(41.3%)		NR41
(27.3%)		15060.3
(6.5)		55
(36.7%)		34
(22.7%)		NR
Da Silva
(2015) [38]		BrazilCO DB RCT111
(9.1%)		4 days1.8 g daily of N-acetylcysteine effervescent tabletsAdults with PAD and IC1062
(6.3)		06
(60.0%)		4
(40.0%)		NANANANANA
Dal Lago
(1999) [39]		ItalyDB RCT222
(9.1%)		3 months3 g daily of propionyl-L-carnitineAdults with PAD aged 40–75 years with IC11NRNRNR011NRNRNR0
Deckert
(1997) [40]		ItalyDB RCT24558
(23.7%)		6 months1 g to 3 g daily or propionyl-L-carnitineAdults aged at least 40 years with PAD and ICNRNRNRNRNRNRNRNRNRNR
Gardner
(2008) [42]		USADB RCT626
(9.7%)		4 months300 mg daily of EGb 761 (Ginkgo Biloba)Adults with PAD and IC3170
(8)		7
(22.6%)		6
(19.4%)		13
(41.9%)		3169
(8)		18
(58.1%)		4
(12.9%)		18
(58.1%)
Goldenberg
(2012) [43]		USADB RCT16334
(20.9%)		6 months2 g daily L-carnitine plus 200 mg daily cilostazolAdults aged at least 40 years with PAD and IC7465.8
(9.4)		12
(16.2%)		32
(43.2%)		NR7167.3
(8.0)		15
(21.1%)		23
(32.4%)		NR
Grenon
(2015) [44]		USADB RCT808
(10.0%)		1 month4.4 g daily of n3-PUFA (fish oil)Adults aged at least 50 years with PAD and IC4068
(7)		1
(2.5%)		38
(95.0%)		11
(27.5%)		4069
(9)		1
(2.5%)		36
(90.0%)		14
(35.0%)
Hiatt
(2011) [46]		USADB RCT6910
(14.5%)		6 months2 g daily of propionyl-L-carnitine and exercise therapyAdults aged 40–80 years with PAD and IC3267.4
(8.7)		12
(37.5%)		12
(37.5%)		3
(9.4%)		3066.6
(8.8)		5
(16.7%)		5
(16.7%)		10
(33.3%)
Kiesewetter
(1993) [48]		GermanyDB RCT8016
(20.0%)		3 months800 mg daily of garlic powderAdults aged 40–75 years with PAD and stable IC3259.9
(10.6)		9
(28.1%)		24
(75%)		5
(15.6%)		3260.1
(7.7)		12
(37.5%)		24
(75%)		8
(25%)
Leng
(1997) [49]		UKDB RCT12045
(37.5%)		24 monthsMulti-ingredient antioxidant capsulesAdults with PAD and stable IC5566.2
(7.0)		19
(34.5%)		21
(38.2%)		5
(9.1%)		6565.3
(7.3)		19
(29.2%)		26
(40.0%)		6
(9.2%)
Luo
(2013) [51]		ChinaDB RCT23923
(9.6%)		4 months2 g daily of propionyl-L-carnitine Adults aged 40–75 years with PAD and stable IC120NRNRNRNR119NRNRNRNR
Park
(2020) [57]		USACO RCT1101 daySingle dose of 80 mg MitoQAdults with PAD and IC1166.1
(10.6)		6
(54.5%)		NR2
(18.9%)		NANANANANA
Ramirez
(2019) [59]		USADB RCT244
(16.7%)		3 months2.2 g twice daily of n-3 polyunsaturated fatty acidAdults with PAD aged at least 50 years with IC pain1169
(8)		010
(90.9%)		3
(27.3%)		1373
(7)		013
(100%)		4
(30.8%)
Santo
(2006) [60]		ItalyDB RCT74012 months2 g daily of propionyl L-carnitineAdults with PAD and type 2 diabetes3761.8
(3.0)		NR037
(100%)		3761.3
(1.6)		NR037
(100%)
Vincent
(2007) [63]		USADB RCT324
(12.5%)		3 months300 mg twice daily of alpha-lipoic acid capsulesAdults with PAD aged at least 50 years with IC pain1675.1
(8.2)		7
(43.8%)		04
(25.0%)		1270.7
(18.9)		6
(50.0%)		03
(25.0%)
Data are presented as n (%), mean (standard deviation), or median [range or IQR]. DB = double-blind; CO = cross-over; IC = intermittent claudication; NA = not applicable (cross-over trial); NR = not reported; PAD = peripheral artery disease; RCT = randomized controlled trial; SB = single blind.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wong, S.A.; Drovandi, A.; Jones, R.; Golledge, J. Effect of Dietary Supplements Which Upregulate Nitric Oxide on Walking and Quality of Life in Patients with Peripheral Artery Disease: A Meta-Analysis. Biomedicines 2023, 11, 1859. https://doi.org/10.3390/biomedicines11071859

AMA Style

Wong SA, Drovandi A, Jones R, Golledge J. Effect of Dietary Supplements Which Upregulate Nitric Oxide on Walking and Quality of Life in Patients with Peripheral Artery Disease: A Meta-Analysis. Biomedicines. 2023; 11(7):1859. https://doi.org/10.3390/biomedicines11071859

Chicago/Turabian Style

Wong, Shannon A., Aaron Drovandi, Rhondda Jones, and Jonathan Golledge. 2023. "Effect of Dietary Supplements Which Upregulate Nitric Oxide on Walking and Quality of Life in Patients with Peripheral Artery Disease: A Meta-Analysis" Biomedicines 11, no. 7: 1859. https://doi.org/10.3390/biomedicines11071859

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
