Papain Enzyme Assisted Extraction of Virgin Coconut Oil as Candidate In-House Reference Material

Abstract

This study concerns papain enzyme assisted synthesis of virgin coconut oil (VCO) as a candidate in-house reference material. The study was conducted to obtain optimization of the VCO preparation with green processes as the standardized product which high stability and homogeneity. The method is expected to produce the candidate of in-house reference material to ensure the standards and quality of the VCO product. Based on the results of this study, the preparation of VCO was carried out using the papain. An optimum yield of 24.30%. was achieved under the following conditions: enzyme to coconut milk with a mass ratio of 0.6 g/L, under 500 mL water/g of coconut powder, at the temperature of 70 °C by five stages of extraction. The physicochemical properties as well as organoleptic feature of VCO which consist water content, peroxide number, free fatty acids, and iodine numbers are fit with the standard. The parameters exhibited the homogeneity and stability which be able recommended as candidate in-house reference material and have potentially as antibacterial agent. Antibacterial activity test showed that VCO has potential against Escherichia coli, Staphylococcus aureus, Propionibacterium acnes and Pseudomonas aeruginosa as shown by the inhibition zone in the testing.

1. Introduction

Referring to the huge potencies of coconut trees in southeast Asian countries, coconut and its products are the most important commodities for many industrial sectors. As it consists of about 11.95 million hectares producing 57,510 million coconuts annually in the world [1], coconut products have excellent prospects to be developed. One of these prospects is virgin coconut oil (VCO), which has potential for many foods and health industries. VCO has also proven to have biological activities for medical purposes such as antibacterial, antifungal, antioxidant, hepatoprotective, and antiviral activities, and could enhance the immune system. Moreover, these features have been adopted for many health care, cosmetics product, and functional food applications [1,2,3].

The extraction becomes an essential step for VCO industrialization, which is mainly classified into the traditional boiling method, fermentation, the enzymatic, wet, and dry methods [4]. Such methods in the wet classification are enzymatic-assisted extraction, salted method, fermentation, chilling, freezing, and thawing method [5]. In a more sophisticated technique, supercritical fluid extraction could also be conducted. In different schemes, the dry method utilized could control heating to remove the moister. The combination of both wet and dry methods can also be conducted [6].

The extraction utilizing enzyme was notified as an efficient and green process as the usage of chemicals and energy can be minimized [7,8]. As coconut milk consists of complex carbohydrate molecules and protein, the enzyme separates the VCO by binding with oil and amino acid. The functional group of–SH release proteins through the hydrolysis reaction of peptide bonds. Among some enzymes capable of VCO extraction, the papain enzyme has considerable potency since it can be produced via many sources such as papaya leaf and fruit [9], and the use of papain enzyme will be an alternative green process for the preparation of VCO. The characteristics of VCO as high extraction yield, less water content, low in free fatty acid, and acceptable flavor via the organoleptic test for color and flavor are essential for further application and development on an industrial scale. Based on these backgrounds, this study examined the optimization for VCO extraction by using the papain enzyme. A study on the effect of enzyme ratio, the temperature of coconut milk extraction, and the extraction stage was essential to be designed. In addition, the characteristics of antibacterial activity and homogeneity of the product were the concerns for the applicability as in-house reference material.

2. Materials and Methods

2.1. Materials

Coconuts were obtained from a cultivation area in Bantul District, Yogyakarta Province, Indonesia. The average weight of the coconuts ranged from 300 to 500 g each. Some chemicals such as ethanol, phenolphthalein, sodium hydroxide, chloroform, acetic acid, hydrochloride acid, potassium iodide, sodium thiosulfate, starch, cyclohexane, iodine, calcium hypochlorite, peptone, sodium chloride, dipotassium hydrogen phosphate, potassium dihydrogen phosphate, casein, glucose, and filter paper were purchased from Merck-Millipore (Darmstadt, Germany). Papain enzyme was collected from Chem Mix Pratama industry (Indonesia) with the activity of 100,000 u/g.

2.2. Extraction of VCO

The papain enzyme was varied at the weight of 0.2; 0.4; 0.6; 0.8; and 1.0 g diluted into 10 mL of phosphate buffer (pH 7) followed by homogenization for 1 h at 4 °C. The mixture was then centrifuged at 1500 rpm for 20 min. The clear supernatant was utilized as VCO extraction. The varied papain concentration was referred to in the literature [10,11,12].

The VCO extraction was conducted by adding of papain enzyme with varied concentrations with respect to the volume of the coconut milk. The coconut milk was prepared by extracting 1000 g coconut with 500 mL of water at the temperature of 50 °C for 1 h. Figure 1 represents the schematic procedure for VCO extraction.

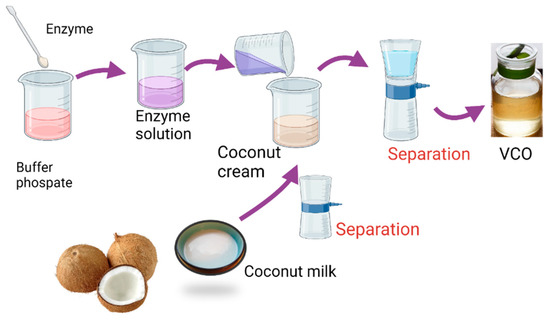

Figure 1. Preparation procedure of virgin coconut oil using papain.

The yield (%) of VCO extraction was calculated based on gravimetric analysis referred to the following equation:

$$Yield (\%)=\frac{m_{VCO}}{m_C}\times 100\%$$

(1)

with m_VCO is the mass of VCO (g), and m_C is the mass of coconut milk (g).

To optimize the yield, the effect of such extraction variables of the volume of water for a gram of coconut milk extraction (mL/g), papain concentration of 0.3 g/500 mL was utilized for the first extraction stage.

2.3. Physicochemical Analyses of VCO

Determination of physicochemical properties of VCO consists of the analyses of water content, free fatty acid, iodine number, peroxide number, and microbial contamination refer to the standard method of SNI 7381:2008. The determination of water content was measured by gravimetric analysis based on the ashing method. Meanwhile the free fatty acid determination was conducted by alkalimetric on KOH as the standard solution. The peroxide value was examined by the iodometric titration method using sodium thiosulfate solution as a standard.

2.4. Antibacterial Activity of VCO

Antibacterial activity of produced VCO was performed against Escherichia coli, Staphylococcus aureus, Propionibacterium acnes, and Pseudomonas aeruginosa. The antibacterial activity testing refers to previous references [2]. For bacterial growth, a nutrient medium was used. The media was prepared by suspending nutrient agar in distilled water and autoclaved before use. Bacterial culture was evenly spread throughout the Petri plate and a 6 mm sterile filter disc loaded with 5 μL of the VCO from twice dilution factor from the stock solution. As a positive control, ampicillin was used. Meanwhile, dimethyl sulphoxide was utilized as the negative control.

2.5. Homogeneity Test

The VCO homogeneity was tested by evaluating the free fatty acid, peroxide, and iodine numbers parameters of kept samples for one to six months. The VCO homogeneity testing refers to previous references [3].

3. Results and Discussion

3.1. VCO Extraction

The effect of enzyme concentration on the effectiveness of extraction was studied at different ratios of 0.2; 0.4; 0.6; 0.8; and 1.0 g/L. As can be seen from the plot in Figure 2, it is seen that the optimum ratio was 0.6 g/L which expressed a yield of 20%. Even though enzyme function is as a catalyst for separating oil from water emulsion, the capability of the enzyme to bind with protein reaches an optimum condition that is influenced by many factors. One of these is the ratio or concentration of the enzyme in the extraction system. A similar pattern was also reported by the enzyme-assisted extraction of apricot oil by Pectazyme and Mashzyme enzyme [13]. In addition, the yield results from this work are higher compared to the extraction yields reported before by using seed of papaya [14], papaya latex [11], bromelain [15], and Saccharomyces cerevisiae [16]. With a similar extractant concentration, the yield produced using bromelain was about 12.1%, papaya latex gave about 15%, and about 12.4% by Saccharomyces cerevisiae.

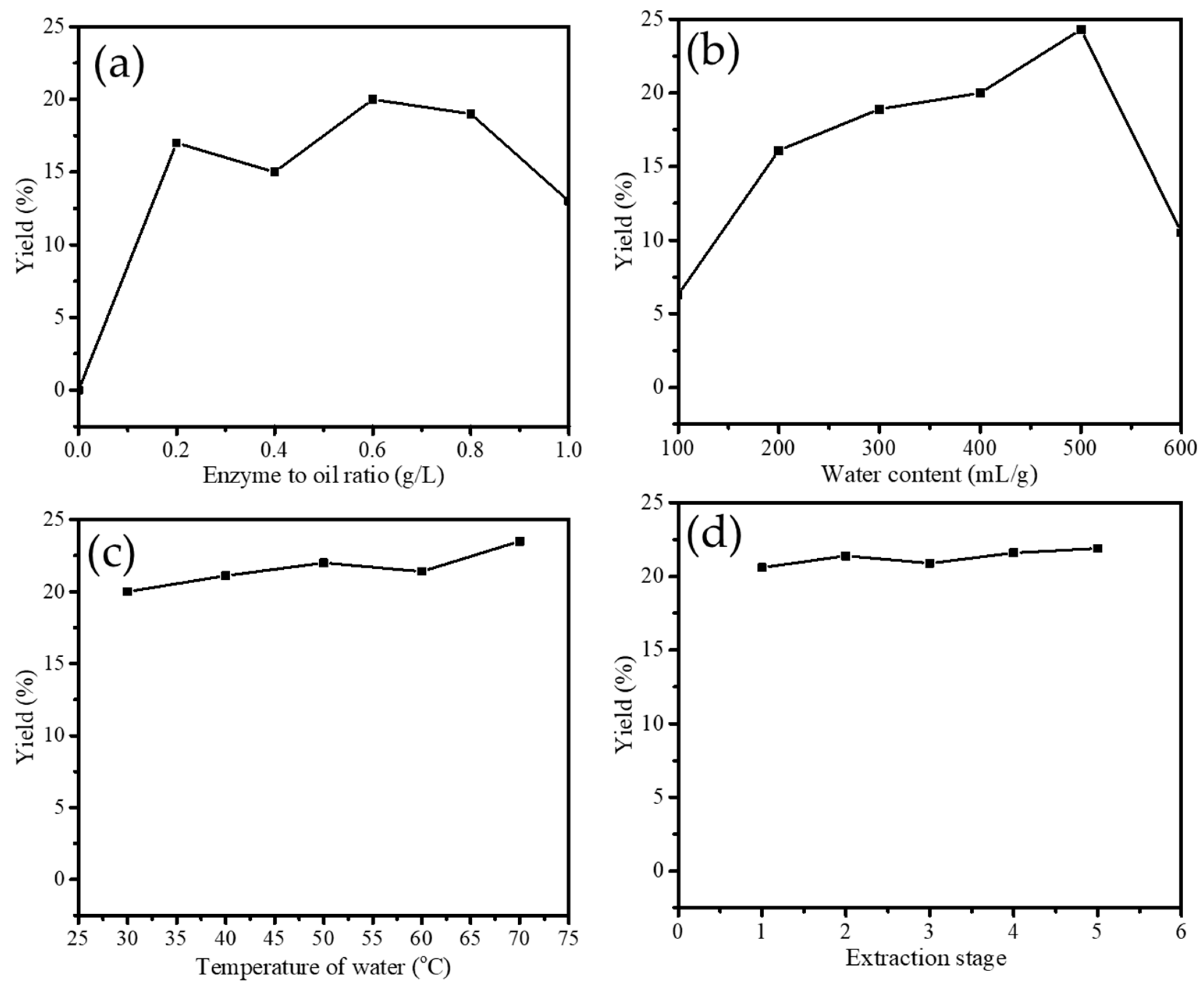

Figure 2. (a). Effect of enzyme on yield of VCO extraction (b). Effect of water content on yield of VCO extraction (c). Effect of temperature of water on yield of VCO extraction (d). Effect of extraction stage on yield of VCO extraction.

Mainly, from the varied papain concentration, it is conclusively determined that the concentration of 0.6 g/L was the optimum concentration. The greater enzyme concentration than the optimum point tends to convert protein into amino acids producing dark color from the sugar reduction in coconut milk. Besides this, other parameters such as aroma and appearance will be influenced by the protein denaturation in the extraction system [13].

The water volume effect on yield can be seen from the plot in Figure 2b. It is seen that 500 mL/g of water was the optimum point to give a maximum yield of about 25%. The yield increases until the volume of 500 mL/g, but then at the additional amount of water, the yield decreases. These data suggest that water participates in giving dilution factor to the enzyme supernatant in the extraction system. Still, in contrast, more water will reduce enzyme productivity as less interaction between protein-papain will occur [17]. Similar to the effect of water volume, the temperature of the extraction and extraction stage for producing coconut milk are the influencing factors [18]. The plots in Figure 2b,c represent the increasing yield at the increasing temperature within the range of room temperature-50 °C, so the extraction stage is affected until the 5th stage. Even though from the experiment the trend of yield was increasing along with the elevated temperature, theoretically, temperature affected the colloid stability of coconut milk. Such fast protein denaturation will affect the enzyme-coconut milk interaction [17]. The previous investigation determined that protein in coconut milk could be denatured and coagulated at the temperature of 80 °C and higher. Meanwhile it plays an essential role in the stability of the emulsion [19]. Notably, the extraction stage does not influence the yield representing a stable extraction capability of the enzyme at the varied condition of coconut cream to be treated.

The effect of those factors on the VCO quality was studied by water content, FFA content, peroxide value, and iodine numbers examination of the products, as presented in Table 1.

Table 1. Physicochemical properties of virgin coconut oil on variation mass of papain.

Factor	Value	Water Content (%)	Free Fatty Acid (%)	Peroxide Number (meq/kg)	Iodine Number (g iodine/100 g)
Enzyme to Oil ratio (g/L)	0	0.99 ± 0.12	0.24 ± 0.01	0.20 ± 0.01	7.36 ± 0.04
	0.2	1.01 ± 0.12	0.26 ± 0.03	0.20 ± 0.01	8.13 ± 0.04
	0.4	1.01 ± 0.12	0.30 ± 0.03	0.20 ± 0.01	8.36 ± 0.06
	0.6	1.01 ± 0.12	0.30 ± 0.04	0.20 ± 0.01	8.17 ± 0.01
	0.8	1.01 ± 0.12	0.24 ± 0.01	0.20 ± 0.01	8.45 ± 0.02
	1.0	1.02 ± 0.12	0.28 ± 0.01	0.20 ± 0.01	8.22 ± 0.09
Volume of water (L/g)	100	1.01 ± 0.22	0.23 ± 0.01	0.36 ± 0.16	7.55 ± 0.01
	200	1.01 ± 0.24	0.31 ± 0.09	0.18 ± 0.01	7.73 ± 0.01
	300	1.01 ± 0.21	0.31 ± 0.18	0.18 ± 0.01	7.91 ± 0.05
	400	1.01 ± 0.23	0.35 ± 0.06	0.18 ± 0.01	7.72 ± 0.03
	500	1.01 ± 0.18	0.38 ± 0.12	0.18 ± 0.01	7.49 ± 0.02
	600	1.01 ± 0.20	0.42 ± 0.08	0.18 ± 0.01	7.51 ± 0.01
Tempeature of water (°C)	30	1.00 ± 0.12	0.31 ± 0.02	0.18 ± 0.01	8.26 ± 1.02
	40	1.00 ± 0.13	0.27 ± 0.05	0.18 ± 0.01	8.21 ± 1.66
	50	1.00 ± 0.12	0.35 ± 0.06	0.18 ± 0.01	8.07 ± 1.78
	60	1.00 ± 0.12	0.27 ± 0.05	0.18 ± 0.01	8.33 ± 0.30
	70	0.99 ± 0.13	0.19 ± 0.04	0.18 ± 0.01	8.23 ± 0.97
Extraction stage	1	0.99 ± 0.13	0.35 ± 0.06	0.18 ± 0.01	8.23 ± 0.01
	2	1.00 ± 0.12	0.38 ± 0.12	0.18 ± 0.01	7.65 ± 0.04
	3	0.96 ± 0.14	0.27 ± 0.05	0.18 ± 0.01	7.76 ± 0.03
	4	0.99 ± 0.13	0.27 ± 0.0.5	0.18 ± 0.01	7.81 ± 0.01
	5	0.98 ± 0.12	0.35 ± 0.06	0.18 ± 0.01	8.15 ± 0.05

Water content and free fatty acid represent the quality of oil and are related to its stability during preservation, in that a higher water content and FFA value cause the instability of oil. Excess water in the oil accelerates hydrolysis reactions that contributes to the formation of free fatty acids and, moreover, the oxidized free fatty acids will cause rancidity in VCO [20,21]. In addition, high-level water content contributes to the bacterial contamination that can hydrolyze oil. From the values in Table 1, it is concluded that all parameters met with the Indonesian standard of VCO refer to SNI 01-3555-1998. Referred to the SNI standard, the maximum values of water content, peroxide, and iodine numbers are <0.2%, <0.2 meq/kg, and 4.10–11.00 g iod/kg, respectively. This research’s yield data is higher than obtained from other similar works, with comparable parameters values as tabulated in Table 2.

Table 2. Comparison of physicochemical properties of virgin coconut oil.

Methods	Yield (%)	Water Content (%)	Free Fatty Acid (%)	Peroxide Number (meq/kg)	Iodine Number (g iodine/100 g)	Reference
Papain
Papain at optimum conditions	24.3	0.98	0.35	0.18	8.15	[11]
Papain with freezing and thawing	23	0.014	0.30	0.69		[12]
Papain		0.11 ± 0.01	0.35 ± 0.01		4.26 ± 0.05	[16]
	29.8	0.18	0.22			[11]
Peel of papaya	12.7 ± 1.1	0.14 ± 0.00	0.17 ± 0.00	0.57 ± 0.01	8.72 ± 0.12	[10]
Seed of papaya	12.5 ± 0.5	0.14 ± 0.01	0.15 ± 0.01	0.60 ± 0.00	8.23 ± 0.04
Enzyme
Protease			0.12 ± 0.01	0.53 ± 0.14	7.62 ± 0.14	[22]
Bromelain	24.26 ± 0.06	0.34 ± 0.01	0.29 ± 0.03
Fermentation
Natural fermentation		0.13 ± 0.06	0.53 ± 0.15	2.8 ± 0.03	0.91 ± 0.03	[4]
Saccharomyces cerevisiae	12.40	0.04 ± 0.01	0.31 ± 0.11	0.01 ± 0.00	2.44 ± 0.20	[16]
		0.06 ± 0.00	0.29 ± 0.02		4.30 ± 0.07	[23]
Bacillus licheniformis			0.15 ± 0.01	0.78 ± 0.08	7.26 ± 0.13	[22]

3.2. Determination of Microbial Contamination

To make sure that the produced VCO is free from microbial contamination. Table 3 shows the determination results of the total plate count in virgin coconut oil. The virgin coconut oil made enzymatic process with papain at optimum condition using the ratio of papain, volume, and temperature of the water, and the extraction stage free from microbial contaminant. Contamination can occur from raw materials for water and coconut, enzymes, processes, and containers. Based on the total plate count test, during the cream extraction process, separation of the virgin coconut oil by papain and the separation of virgin coconut oil did not occur with bacterial contamination.

Table 3. Determination of total plate count.

Sample	Dilution	Medium	Incubation		Observation
			Temperature (°C)	Time (Hours)	I	II	Total
VCO	10−1	Plate count agar	35–37	24–48	0	0	0
VCO	10−2	Plate count agar	35–38	24–49	0	0	0
Control	10−1	Plate count agar	35–39	24–50	0	0	0
Control	10−2	Plate count agar	35–40	24–51	0	0	0
Blank			35–41	24–52	0	0	0
Medium		Plate count agar	35–42	24–53	0	0	0
Medium + Diluent solution		Plate count agar-peptone dilution fluid	35–43	24–54	0	0	0
Total plate count		Plate count agar-lactose broth	35–44	24–55	0	0	0

3.3. Homogeneity and Stability Tests

Homogeneity and stability performances are essential properties for VCO to be marketed for different products or uses. The homogeneity test was performed by examining the VCO quality parameters consisting of peroxide value and iodine for the 10 selected samples by random sampling. Table 4 shows the first criteria and the second criteria for determining mean square between (MSB) and the mean square within (MSW). A homogeneity test with a confidence interval of 95% for peroxide number and iodine number have F_test of 7.8614 and 8.0126 > F_table = 3.1789. The virgin coconut oil produced from the enzymatic processes with papain have a homogeneity which follows the criteria of candidate in-house reference material.

Table 4. Homogeneity test of VCO.

Parameter	Mean Square between (MSB)	Mean Square within (MSW)	Ftest
Free fatty acid (%)	0.0004	0.0001	3.0146
Peroxide number (meq/kg)	0.4824	0.0614	7.8614
Iodine number (mg iodine/100 g)	0.4417	0.0551	8.0126

For the stability test, those parameters were evaluated after six months of keeping. Usually, the higher FFA and peroxide value leads to oil instability and produce the rancidity of the product. As shown from Table 5, both samples show similar values for free fatty acid and peroxide number, suggesting the stability requirement from National Accreditation Committee with a value of $\left|{\overline{\mathrm{x}}}_{\mathrm{i}}-{\overline{\mathrm{x}}}_{\mathrm{HM}} \right|<0.3 \mathrm{nIQR}$. Meanwhile, the stability test for iodine shows $\left|{\overline{\mathrm{x}}}_{\mathrm{i}}-{\overline{\mathrm{x}}}_{\mathrm{HM}} \right|>0.3 \mathrm{nIQR}$. It is conclusively stated that during six months of storage, some reactions occurred to the fatty acid structure produced some fatty acid denaturation comprised for reducing stability. However, the virgin coconut oil is recommended as a candidate in-house reference material as the values fit with SNI standard and the predicted value is still in the match.

Table 5. The data for stability test of free fatty acid.

Parameter	Sample 1	Sample 2	$\overline{\mathbf{x}}$
Free fatty acid (%)
Q1	0.1532	0.1533	0.1533
Q3	0.2013	0.1917	0.2003
IQR	0.0482	0.0383	0.0470
nIQR (0.7413 × IQR)	0.0357	0.0284	0.0349
0.3 × nIQR	0.1071	0.0852	0.1046
$\left|{\overline{\mathrm{x}}}_{\mathrm{i}}-{\overline{\mathrm{x}}}_{\mathrm{HM}} \right|$	0.0544	0.0504	0.0509
$\left|{\overline{\mathrm{x}}}_{\mathrm{i}}-{\overline{\mathrm{x}}}_{\mathrm{HM}} \right|<0.3 \mathrm{nIQR}$	0.0544 < 0.1071	0.0504 < 0.0852	0.0509 < 0.1046
Peroxide number (meq/kg)
Q1	1.9956	2.7906	2.5447
Q3	2.7972	3.5888	2.7958
IQR	0.8016	0.7982	0.2511
nIQR (0.7413 × IQR)	0.5942	0.5917	0.1862
0.3 × nIQR	1.7827	1.7750	0.5585
$\left|{\overline{\mathrm{x}}}_{\mathrm{i}}-{\overline{\mathrm{x}}}_{\mathrm{HM}} \right|$	−0.0392	0.9574	0.4591
$\left|{\overline{\mathrm{x}}}_{\mathrm{i}}-{\overline{\mathrm{x}}}_{\mathrm{HM}} \right|<0.3 \mathrm{nIQR}$	0.0392 < 1.7827	0.9574 < 1.7750	0.4591 < 0.5585
Iodine number (mg iodine/100g)
Q1	7.8283	7.9354	7.9173
Q3	8.0926	8.0612	8.0822
IQR	0.2643	0.1258	0.1649
nIQR (0.7413 × IQR)	0.1959	0.0932	0.1222
0.3 × nIQR	0.5878	0.2797	0.3667
$\left|{\overline{\mathrm{x}}}_{\mathrm{i}}-{\overline{\mathrm{x}}}_{\mathrm{HM}} \right|$	1.9507	2.0053	1.9780
$\left|{\overline{\mathrm{x}}}_{\mathrm{i}}-{\overline{\mathrm{x}}}_{\mathrm{HM}} \right|<0.3 \mathrm{nIQR}$	1.9507 > 0.5878	2.0053 > 0.2797	1.9780 > 0.3667

3.4. Antibacterial Activity Test

The antibacterial effects of VCO were evaluated against Gram-positive bacteria consisting of S. aureus and P. acne, and Gram-negative bacteria of E.coli and P. aeruginosa. Some images from the tests are presented in Figure 3, and the inhibition zones (in mm) are listed in Table 6. From the various concentrations of tested VCO samples. The VCO was diluted in dimethyl sulphoxide as the negative control in the dilution factors of 2X, 4X, and 8X, so the samples are denoted VCO-2X, VCO-4X, and VCO-8X, respectively, whereas VCO sample is the pure sample.

Figure 3. Some images from antibacterial activity test of VCO against (a) E. coli, (b) S. aureus, (c) P. acne, (d) P. aeruginosa.

Table 6. Inhibition zone of antibacterial tests.

Tested Bacteria	Inhibition Zone for Sample (mm)
	VCO	VCO-2X	VCO-4X	VCO-8X
E. coli	18.5	17	11	10.5
S. aureus	10	12.5	10	9
P. acne	12	10.5	9	9
P. aeruginosa	10	10	10	10

Referring to the inhibition zones in S. aureus, P. acne, and P. aeruginosa bacteria test, the antibacterial activity of VCO suggests a higher activity compared to hydrolyzed VCO [24]. The inhibition zones are higher, even though the dilution factors are also higher in this research. Compared to other VCO, the activities are also higher than those reported for S. aureus and E. coli [14].

4. Conclusions

Extraction of VCO by using papain enzyme has been successfully conducted. The crucial factors in the extraction studied were the effect of enzymes content, water content, temperature, and extraction stage, which gave an optimum condition of 0.6 g/L enzyme to oil ratio, the water content of 500 mL/g, and temperature 70 °C. The extraction stage within the range of the 1–5th cycles does not have a significantly influence on extraction yield. The physicochemical character of produced VCO suggests its usability as in-house reference material as the homogeneity and stability of VCO fit with the national VCO standard. Furthermore, the VCO exhibits antibacterial activity against E. coli, S. aureus, P. acnes, and P. aeruginosa.
