Estimation of ¹³⁷Cs Distribution and Recovery Using Various Types of Sorbents in the Black Sea Surface Layer

Abstract

Monitoring ¹³⁷Cs in seawater is necessary for the timely detection of radioactive contamination. The possibility of sorption and the sorption efficiency of ¹³⁷Cs from seawater were studied for the first time during several cruises of the R/V (research vessel) Professor Vodyanitsky using various types of sorbents based on transition metal ferrocyanides (Anfezh, Niket, Uniket, FSS, FD-M, FIC, Termoxid 35, NKF-C) and zirconium phosphate (Termoxid 3A). The influence of the seawater flow rate and volume of the sorbent used for the recovery of ¹³⁷Cs was estimated. The ferrocyanide sorbents Niket, Uniket, Termoxid 35, and FIC showed the best sorption efficiency (60–100%) at a seawater flow rate of 2–4 column volumes per minute. The data obtained during three cruises on the R/V Professor Vodyanitsky were analyzed. A detailed (28 sampling points) spatial distribution of ¹³⁷Cs in the Black Sea along the southern coast of Crimea was studied using the sorbents that showed the best characteristics. An increase in ¹³⁷Cs activity in the study area was not found, and the average activity was 9.01 ± 0.87 Bq/m³.

1. Introduction

The problem of marine ecosystem pollution is given considerable attention all over the world [1].

The constant monitoring of marine areas for technogenic radionuclides and other pollutants is necessary to identify the sources of pollutants in time to prevent negative impacts on living organisms.

One of the consequences of the accident at the Chornobyl nuclear power plant (26 April 1986) is the contamination of the Black Sea with technogenic radionuclides, the main of which is ¹³⁷Cs, with a half-life of approximately 30 years.

Information about ¹³⁷Cs content in seawater is needed to determine its accumulation coefficients in hydrobionts. ¹³⁷Cs, having similar properties to potassium, accumulates in muscle tissue.

The distribution of ¹³⁷Cs after the Chornobyl disaster was studied in many expeditions. The main works discussing the results of expeditionary studies include the research conducted by K.O. Buesseler et al. [2] and V.N. Egorov et al. [3]. Staneva et al. [4] performed a mathematical modeling of ¹³⁷Cs distribution, and the current state of the issue was described in several articles by S. Gulin et al. [5,6] and R. Delfanti et al. [7]. Many methods for the radioanalytical determination of ¹³⁷Cs have been developed [8]. Currently, improved sorption materials are being developed worldwide. For cesium recovery, many sorbents based on potassium [9,10] and calcium [11] aluminosilicates, as well as ferrocyanides with various supporting materials (polyacrylonitrile fiber [12], zeolite [13,14], silica gel [15], etc.), have been synthesized.

While copper hexacyanoferrate was used in some of the first studies on the recovery of ¹³⁷Cs from seawater [16], at present, mixed nickel–potassium hexacyanoferrate on an acrylate support KFeNiCN-PAN [17] is more widely used. The fiber impregnated with hexacyanoferrate has a developed specific surface, which increases the speed and efficiency of the extraction of radionuclides from seawater; therefore, this type of material can be considered the most promising. At the same time, the high sorption efficiency of ¹³⁷Cs from seawater is shown by sorbents based on cellulose support and silica gel, for example, a Russian-made sorbent of the FSS [18].

Sorption materials intended for the recovery, concentration, and isolation of ¹³⁷Cs from radioactively contaminated seawater are of considerable interest [19], for example, resorcinol–formaldehyde resin [20]. Its advantage is the possibility of repeated use after elution and regeneration. Another option is chitosan–ferrocyanide sorbents [21]. They were successfully tested under expeditionary conditions during radioecological monitoring of the Barents and Kara Seas. These sorbents also show a high sorption efficiency for ¹³⁷Cs [22].

This paper continues the work performed in a series of articles [18,22,23,24] devoted to the recovery of cesium, including ¹³⁷Cs, from seawater by various types of sorbents based on transition metal ferrocyanides (Anfezh, Niket, Uniket, FSS, FD-M, Termoxid 35, NKF-C, FIC), resorcinol–formaldehyde polymer (Axionit RCs), and zirconium phosphate (Termoxid 3A).

In previous articles, we determined the distribution coefficients for cesium and plotted output sorption curves for different seawater flow rates. The dynamic exchange capacity (DEC) and total dynamic exchange capacity (TDEC) of sorbents were determined [22,23]. A study was performed on the physicochemical regularities (isotherm and kinetics) of cesium sorption from seawater. The obtained dependences of the sorption parameters on time were described using the models of intraparticle diffusion; the pseudo-first and pseudo-second orders, the Elovich model, the dependence of sorption parameters on the equilibrium concentration of the metal in the solution; and the Langmuir, Freundlich, and Dubinin–Raduskevich sorption isotherms [24].

The purpose of this study was to evaluate the sorption efficiency of ¹³⁷Cs by various types of sorbents to select the most effective sorbents and develop a technique for ¹³⁷Cs recovery from seawater, allowing us to analyze the current radioecological state of the Black Sea, namely its ¹³⁷Cs contamination after the Chornobyl disaster.

A systematic assessment of the distribution of ¹³⁷Cs is necessary to identify fresh sources of this radionuclide. In the absence of a fresh source, the distribution of ¹³⁷Cs in the surface layer is homogeneous [18] because this radionuclide is practically not adsorbed onto suspended matter. Therefore, when assessing the distribution of ¹³⁷Cs, it is necessary to indicate the time parameters and number of research cruises. This will make it possible to compare the results of ¹³⁷Cs distribution obtained in different time intervals and identify possible changes.

This paper presents the results of three expedition studies: the 113 (4–29 June 2020), 116 (22 April–17 May 2021), and 121 (19 April–14 May 2022) cruises of the R/V Professor Vodyanitsky. Sorbents that showed the best characteristics for cesium recovery, including ¹³⁷Cs, from seawater under laboratory conditions were selected for expeditionary studies [18,22,23,24].

2. Materials and Methods

2.1. Sorbents

Commercially available sorbents based on transition metal ferrocyanides (Anfezh, Niket, Uniket, FSS, FD-M, FIC, Termoxid 35, NKF-C), and zirconium phosphate (Termoxid 3A) were used to recover ¹³⁷Cs from seawater.

Table 1. Characteristics of sorbents used to recover ¹³⁷Cs from seawater.

Sorbent; Technical Conditions (TC) 1	Manufacturer	View	Granulation, mm	Bulk Density, g/mL	Sorbent Composition		Reference
					Support	Sorption-Active Phase: Content, Mass %
Anfezh; TC 2165-003-26301393-99	SPE Eksorb Ltd. (Yekaterinburg, Russia)	blue irregular granules	0.1–1.0	0.25–0.4	cellulose	ferric potassium ferrocyanide; not less than 10	[25,26,27]
Niket; TC 2165-008-26301393-2005		green irregular granules	0.1–2.5	0.5–0.7	cellulose	nickel potassium ferrocyanide; not less than 10	[23,28]
Uniket; TC 2165-012-26301393-2010		dark-blue irregular granules	0.1–2.5	0.8–1.2	cellulose	ferric potassium ferrocyanide; not less than 10	[23,29]
FSS; TC 2641-012-57989206-2012	Frumkin IPCE RAS (Moscow, Russia)	green irregular granules	0.2–3.0	0.5–0.6	silica gel	nickel potassium ferrocyanide; 8–10	[18]
FD-M; TC 2641-019-57983206-2012		brown irregular granules	0.5–1.0	0.1–0.2	phosphorylated wood	copper potassium ferrocyanide; 5.0–5.5	[23,30]
FIC; laboratory sample		blue irregular granules	0.1–1.0	0.25–0.4	activated carbon	iron ferrocyanide; not less than 10	–
Termoxid 35; TC 2641-006-12342266-2004	JSC “Inorganic Sorbents” (Zarechny, Sverdlovsk region, Russia)	dark-green spherical granules	0.4–1.5	1.1–1.2	zirconium hydroxide	nickel potassium ferrocyanide; 30–35	[31,32,33]
Termoxid 3A; TC 2641-004-12342266-2004		white spherical granules	0.4–1.0	1.05–1.10	–	zirconium phosphate	[33]
NKF-C	UrFU (Yekaterinburg, Russia)	light-brown irregular granules	0.2–0.6	0.25–0.4	cellulose	nickel potassium ferrocyanide; not less than 10	[6]

¹ Technical conditions (TC) are issued as a document establishing technical requirements that a specific product, material, substance, or group must conform with. They also specify the procedures to determine whether those requirements have been met.

provides their characteristics.

2.2. Seawater Sampling

Water samples from the sea surface layer (up to 3 m) were taken at various stations during cruises 113 (4–29 June 2020), 116 (22 April–17 May 2021), and 121 (19 April–14 May 2022) of the R/V Professor Vodyanitsky along the southern coast of Crimea in the Black and Azov Seas.

Samples were taken using a Unipump Bavlenets BV 0.12-40-U5 submersible vibration pump (Subline Service LLC, Moscow, Russia), pumped through a polypropylene filter with a pore size of 1 μm FCPS1M series (Aquafilter Europe Ltd., Lodz, Poland), which served to remove suspended particles from the water, after which the samples filled plastic containers with a volume of 250 L located on board the vessel.

2.3. Sorption of ¹³⁷Cs

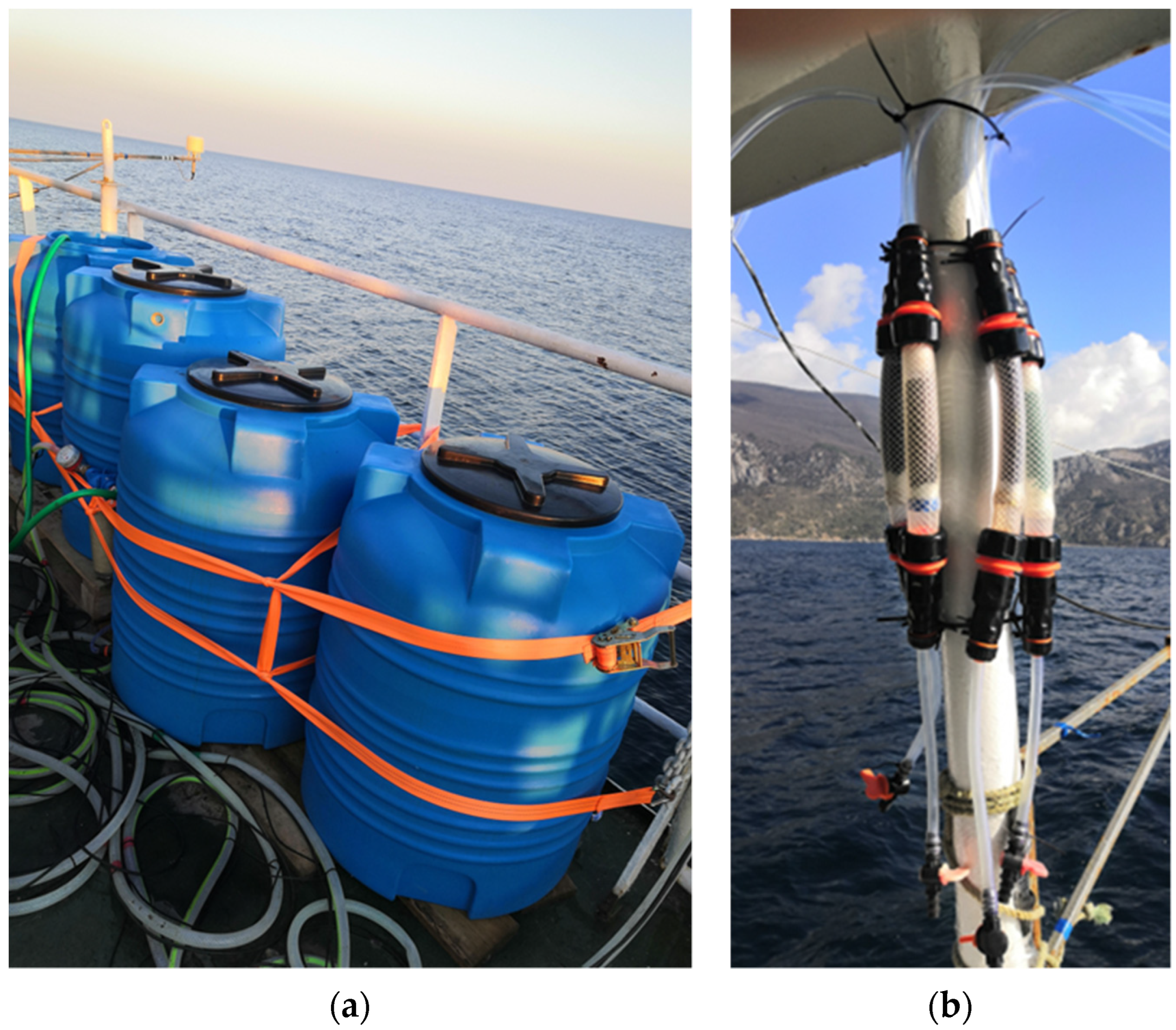

Sorption of ¹³⁷Cs was carried out by a single-column method by passing 250 L of seawater from a tank using a LongerPump WT600-2J peristaltic pump (Longer Precision Pump Co., Baoding, China) through a column filled with 50 or 100 mL of the sorbent (Figure 1).

To evaluate the yield in the seawater sample, stable cesium was added as a tracer at a concentration of 2.5 mg/L. In the process of sorption, every 10–20 L, samples of the passed seawater were taken into plastic test tubes for further evaluation of the yield.

After elution, the sorbent was squeezed out to remove excess seawater and dried in a SNOL-3.5.5.3.5/3.5-I2 oven (LLC “NPF TermIKS”, Moscow, Russia) at a temperature of 70–80 °C.

2.4. Determination of ¹³⁷Cs Activity in Sorbent Samples

Measurement of the specific activity of ¹³⁷Cs in sorbent samples was carried out in Petri dishes on a low-background spectrometric setup MKS-01A “MULTIRAD” (LLC “NTC Amplitude”, Zelenograd, Russia) with a gamma spectrometric tract “MULTIRAD-gamma” with a NaI(Tl) scintillation detector (diameter 63 mm, height 63 mm, resolution 7% for ¹³⁷Cs peak, MDA (Minimum Detectable Activity) was 0.47 Bq/m³). Spectrometric data were registered and processed using the Progress software on the operational system Windows 10. The time for recording the activity of a single sample averaged 24 h. The efficiency of recording ¹³⁷Cs activity in the samples was calibrated using a certified source with a known specific activity. The error in measuring the activity of each sample (σ) usually did not exceed 10%. The spectra of sorbents after cesium recovery are shown in Figure S1 in the supplementary materials.

2.5. Determination of Cesium Concentration

The concentration of stable cesium to evaluate output was determined on a KVANT-2 atomic absorption spectrophotometer (LLC “Kortek”, Moscow, Russia) in an air–acetylene flame in the emission mode at a wavelength of 852.1 nm. The sorption efficiency (E, %) of ¹³⁷Cs from seawater was calculated from stable cesium using the formula [34,35]:

$$E=\frac{V\cdot C_0-{\displaystyle \sum V_p\cdot C_p}}{V\cdot C_0}\cdot 100\%,$$

(1)

where C₀ is the initial cesium concentration, mg/L; V is the total volume of seawater passed through the sorbent, L; C_p is the cesium concentration in a portion of seawater passed through the sorbent, mg/L; and V_p is the volume of a portion of seawater passed through the sorbent, L.

3. Results and Discussion

3.1. Evaluation of the Sorption Efficiency of ¹³⁷Cs by Various Sorbents

The possibility and efficiency of ¹³⁷Cs sorption from seawater by various types of sorbents were studied during cruises 113 (4–29 June 2020) and 116 (22 April–17 May 2021) of the R/V Professor Vodyanitsky.

Table 2. Dependence of sorption efficiency (E, %) of ¹³⁷Cs on volume (mass) of sorbent (seawater flow rate 4 CV/min (column volumes per minute)).

Sorbent	Niket	Uniket	Termoxid 35	FIC	FSS	Anfezh	NKF-C	FD-M	Termoxid 3A
Sorbent volume V, mL	50	50	50	50	50	50	50	50	50
Mass of sorbent m, g	46.5	34.5	60.0	17.5	28.6	15.0	13.0	13.0	56.5
Sorption efficiency E, %	93.0	78.9	67.4	60.0	27.3	26.0	16.3	16.1	5.44
Sorbent volume V, mL	100	100	100	100	100	100	100	100	100
Mass of sorbent m, g	93.0	69.0	120	35.0	57.2	30.0	26.0	26.0	113
Sorption efficiency E, %	99.3	94.8	96.5	91.6	42.1	41.7	23.2	22.5	8.07

shows the results of our study on the influence of the sorbent volume on the sorption efficiency of ¹³⁷Cs. We found that the sorption efficiency of ¹³⁷Cs increased with an increase in the volume of the sorbent, which is associated with an increase in the contact area of the phases. So, for example, when using 50 mL of the FIC sorbent, the sorption efficiency is 60%, and when using 100 mL, it is 91.6%.

The same volumes of sorbents were compared; however, the studied sorbents have different bulk densities and, accordingly, different masses. Table 1 and Table 2 show that sorbents with a lower bulk density (Anfezh, FD-M, FSS, NKF-C) have a lower cesium sorption efficiency due to their lower mass and, accordingly, a smaller phase contact area.

The exceptions are the Termoxid 3A sorbent, which, despite its high bulk density, shows a low cesium sorption efficiency, and the FIC sorbent, which, despite its low bulk density, shows a high cesium sorption efficiency. This can be explained by the high availability of sorption centers due to the developed porous structure of activated carbon, which supports the FIC sorbent.

Cesium sorption mechanisms are as follows:

• Sorbents based on transition metal ferrocyanides (Anfezh, Niket, Uniket, FSS, FD-M, FIC, Termoxid 35, NKF-C) [22,36]:

  nCs⁺ + K_1.33Me^II_1.33[Fe(CN)₆] = nK⁺ + K_1.33−nCs_nMe^II_1.33[Fe(CN)₆],
• Sorbents based on zirconium phosphate (Termoxid 3A) [22,37]:

  2nCs⁺ + Zr(HPO₄)₂ mH₂O = 2nH⁺ + Zr(Cs_nH_1−nPO₄)₂ mH₂O.

There is no direct relationship between the mechanisms and sorption efficiency. The sorption efficiency is determined by the sorbents’ capacities up to breakthrough and saturation, which depend on the sorption kinetics. The parameters for the studied sorbents were determined in our previous articles [23,24].

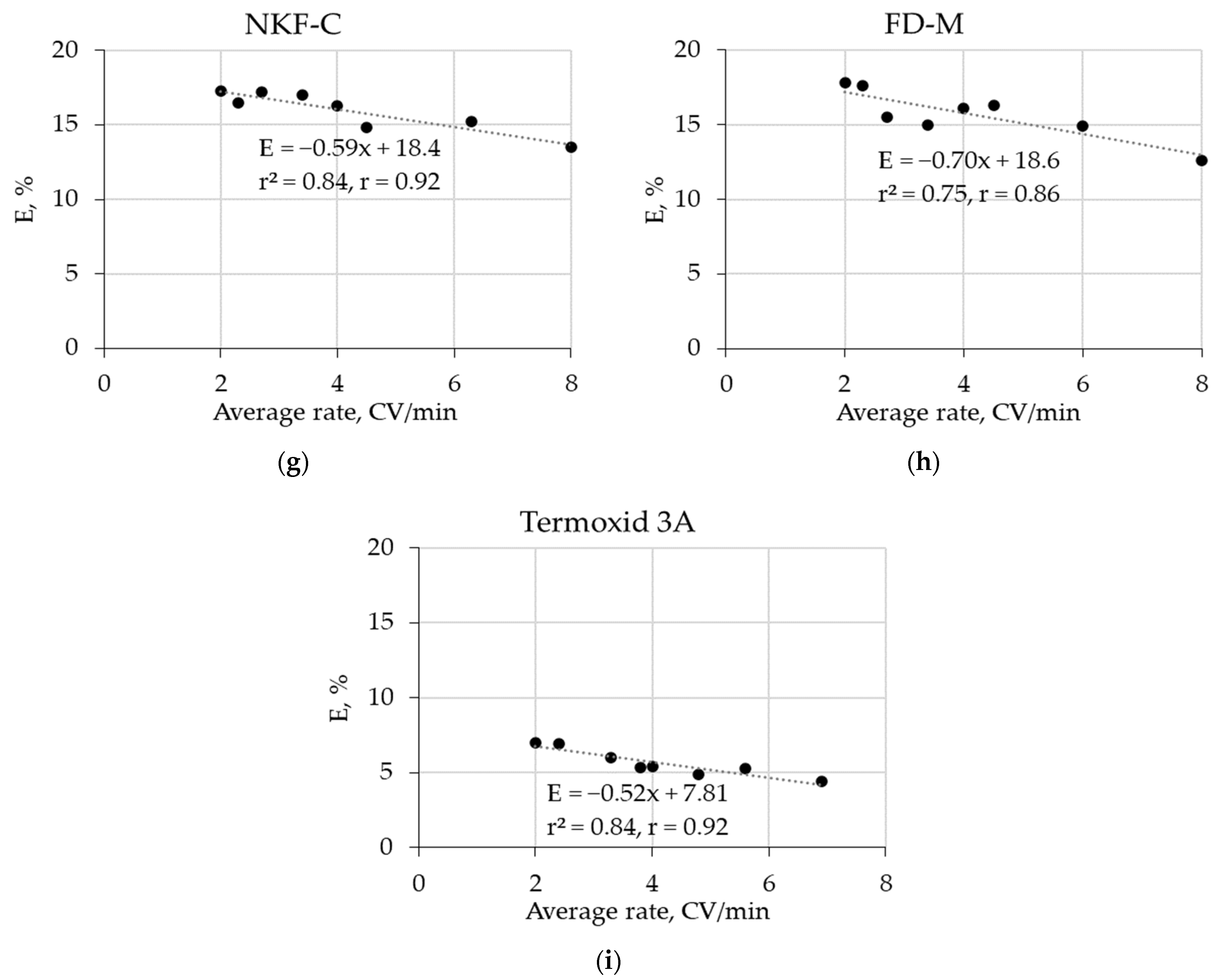

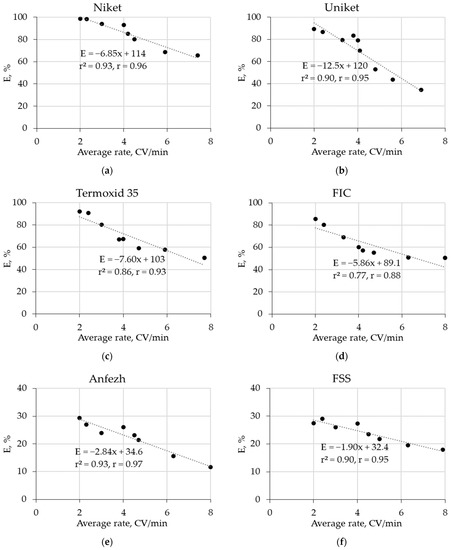

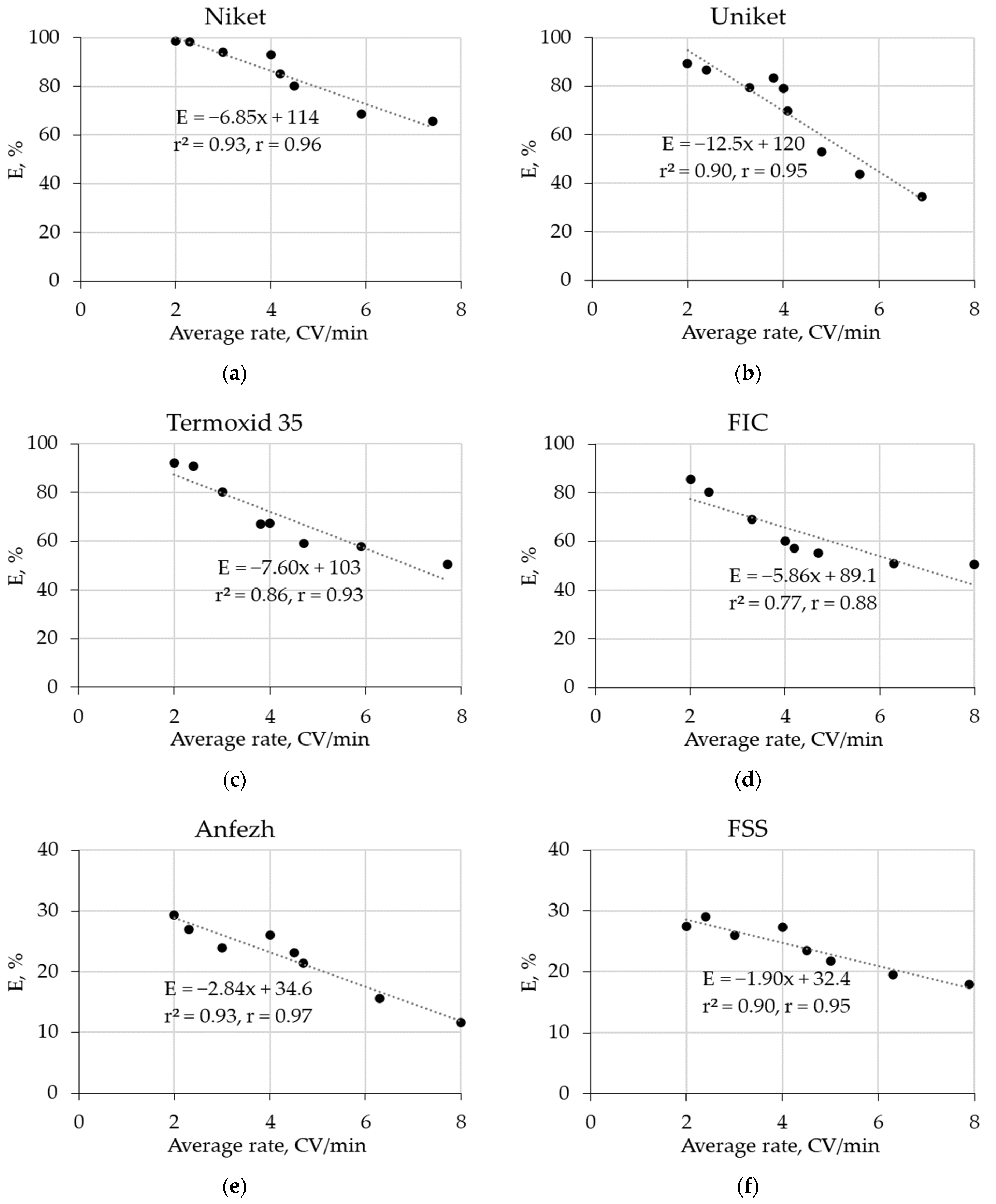

Figure 2 shows the effect of the seawater flow rate on the sorption efficiency of ¹³⁷Cs with 50 mL of sorbents.

The sorption efficiency of ¹³⁷Cs decreases with an increase in the flow rate due to a decrease in the contact time between seawater and the sorbent. Therefore, at a speed of 2 CV/min, 100 mL of seawater is passed through 50 mL of sorbent in 1 min, and at a speed of 8 CV/min, 400 mL of seawater is passed; therefore, the sorption efficiency decreases.

The optimum flow rate of seawater for the studied sorbents is 2–4 CV/min. For this range of rates, the ferrocyanide sorbents Niket, Uniket, Termoxid 35, and FIC have the best sorption efficiency (60–100%), while the sorption efficiency of ¹³⁷Cs by other sorbents is less than 30%.

A considerable technical task under expeditionary conditions is to achieve high-speed seawater percolation through a fixed sorbent bed to reduce the analysis time. This requirement is best met by the Uniket, FSS, and FIC sorbents with coarse grains. The use of highly dispersed sorbents, such as Anfezh, becomes difficult with an increase in the percolation speed [23,24].

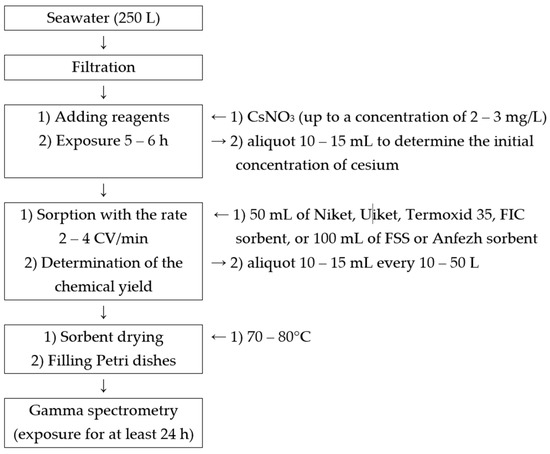

Based on the results obtained, we developed a procedure for recovering ¹³⁷Cs from seawater using commercially available ferrocyanide sorbents (Figure 3):

• Pump 250 L of seawater into a container on board the vessel while simultaneously filtering seawater through a polypropylene filter with a pore diameter of 1 µm;
• Add a sample of cesium nitrate to the seawater in the container to a concentration of 2–3 mg/L of cesium to assess the sorption efficiency, then leave for 5–6 h to equalize the concentration of cesium in the entire volume of the container;
• Load 50 mL of Niket, Uniket, Termoxid 35, FIC sorbent, or 100 mL of FSS or Anfezh sorbent into the column;
• Pass 250 L of prepared seawater through the column with the sorbent at a speed of 2–4 CV/min;
• Periodically (every 10–20 L), take a sample of seawater passed through the sorbent to assess the sorption efficiency of stable cesium;
• After sorption, dry the sorbent in an oven at a temperature of 70–80 °C and place it in a Petri dish;
• Determine the activity of ¹³⁷Cs in the sorbent on a scintillation gamma spectrometer with an exposure of at least 24 h to achieve a measurement error of no more than 10%.

This technique is applied in further studies on the concentration of ¹³⁷Cs from seawater.

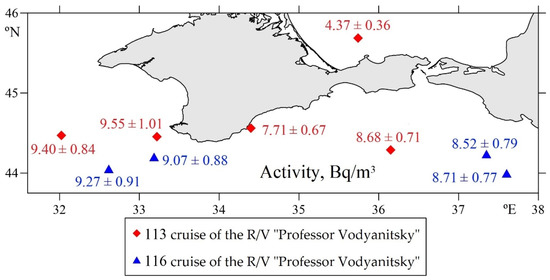

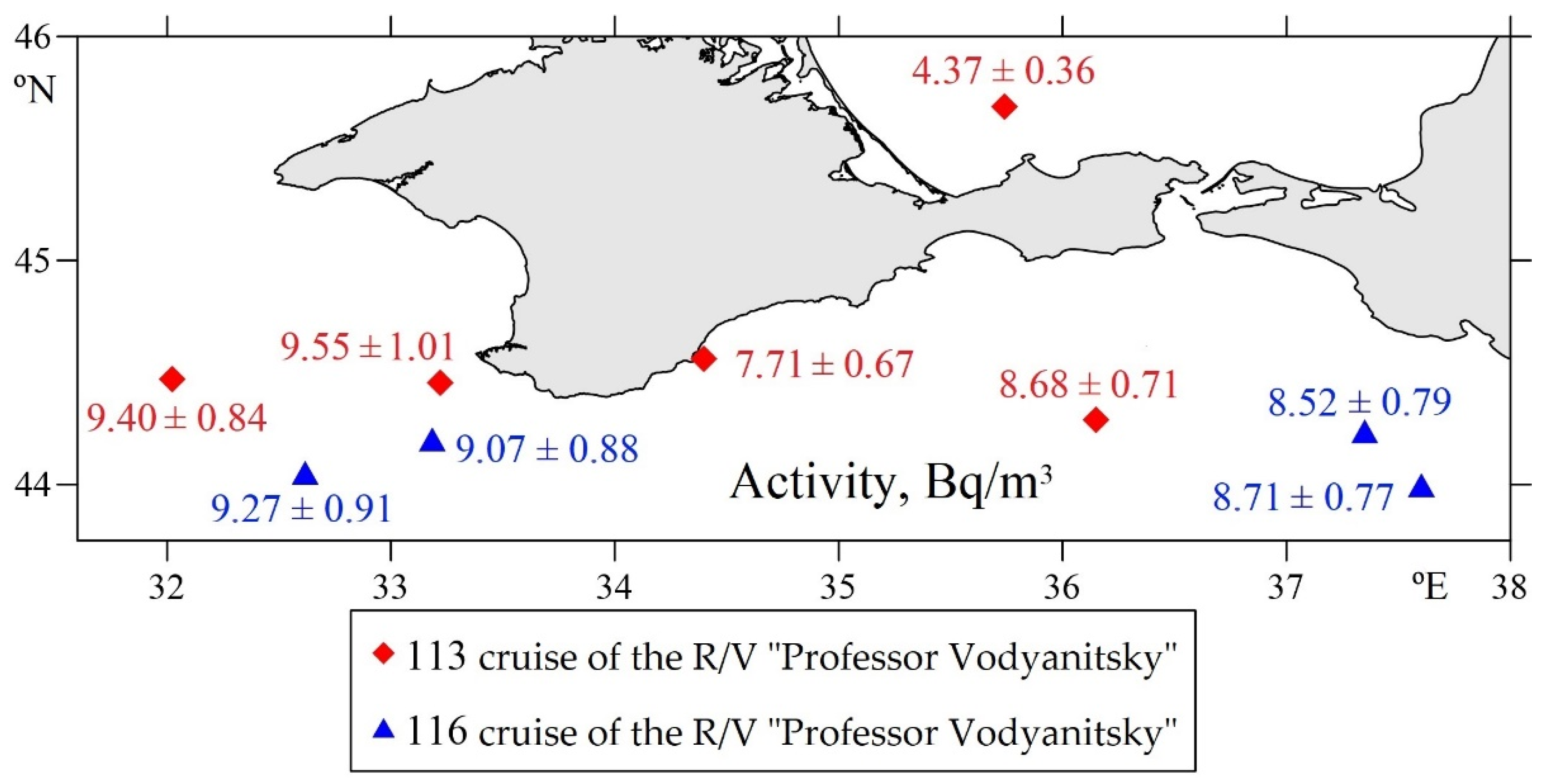

Figure 4 shows the values of the specific activity of ¹³⁷Cs in the surface layer of the Black and Azov Seas, which were obtained by studying the sorption efficiency during cruises 113 and 116 of the R/V Professor Vodyanitsky. Increased values of ¹³⁷Cs activity are observed in the western part of the study area due to the proximity of the source of entry—the Dnieper River (Ukraine) [38].

3.2. Surface Distribution of ¹³⁷Cs in the Black Sea in Spring 2022

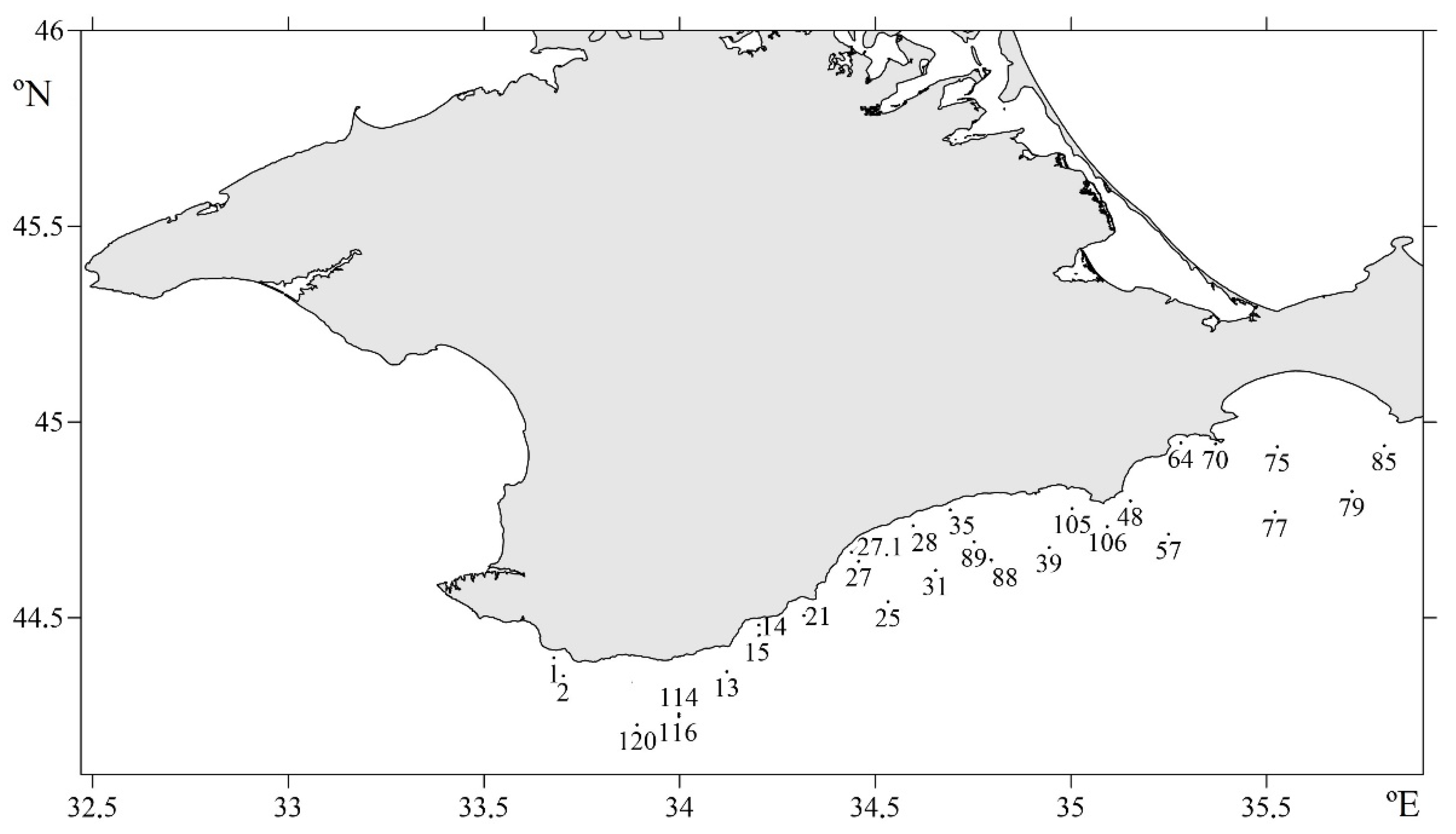

To analyze the current radioecological state of the Black Sea, including its contamination with ¹³⁷Cs after the Chornobyl accident, an analysis of ¹³⁷Cs concentration was carried out by the developed method presented above. The sorbents that showed the best parameters of sorption efficiency of ¹³⁷Cs during cruises 113 and 116 of the R/V Professor Vodyanitsky were used. During cruise 121 of the R/V Professor Vodyanitsky (19 April–14 May 2022), 28 seawater samples were taken and processed at 28 stations. The layout of the stations is shown in Figure 5.

Table 3. Parameters of samples and stations during study of the distribution of ¹³⁷Cs in cruise 121 (19 April–14 May 2022) of R/V Professor Vodyanitsky.

Station Number	Coordinates of Sampling Points		Sorbent	E, %	Asp 137Cs, Bq/m3
	Northern Latitude	Eastern Longitude
1	44.39808	33.67864	Termoxid 35	67.3	8.73 ± 0.89
2	44.35120	33.70265	Uniket	69.8	8.73 ± 0.88
13	44.36246	34.12065	Termoxid 35	82.1	9.75 ± 0.79
14	44.48178	34.20170	Uniket	78.7	10.0 ± 0.98
15	44.45617	34.20333	FIC	64.4	9.50 ± 0.95
21	44.50590	34.31795	FIC	69.2	9.62 ± 1.27
25	44.54041	34.53309	Termoxid 35	79.9	9.04 ± 1.07
27	44.64467	34.45784	FIC	64.0	9.06 ± 0.94
27.1	44.66783	34.43950	Niket	95.0	8.41 ± 0.79
28	44.73593	34.59710	FIC	56.5	8.57 ± 0.83
31	44.62115	34.65419	Termoxid 35	79.8	9.13 ± 0.75
35	44.77496	34.69233	FIC	63.5	7.60 ± 0.86
39	44.67979	34.94443	Niket	93.8	9.12 ± 0.96
48	44.79867	35.15200	Termoxid 35	80.1	8.85 ± 0.75
57	44.71315	35.24935	FIC	66.5	7.33 ± 0.68
64	44.94662	35.28064	Uniket	75.0	8.62 ± 0.81
70	44.94445	35.36925	FIC	66.9	9.21 ± 1.01
75	44.93706	35.52754	Termoxid 35	78.1	9.03 ± 0.75
77	44.77019	35.52102	FIC	64.8	9.03 ± 0.92
79	44.82319	35.71791	Niket	92.7	8.62 ± 0.83
85	44.93957	35.80088	FIC	59.3	9.66 ± 0.90
88	44.64783	34.79639	Termoxid 35	80.3	9.09 ± 0.80
89	44.69392	34.75217	FIC	64.3	10.4 ± 0.91
105	44.77917	35.00317	Termoxid 35	76.2	9.69 ± 0.84
106	44.73351	35.09265	Termoxid 35	73.5	9.09 ± 0.85
114	44.25389	33.99746	FIC	55.7	9.07 ± 0.76
116	44.24846	33.99762	Termoxid 35	78.4	9.07 ± 0.82
120	44.22626	33.89136	FIC	59.5	8.28 ± 0.78

shows the results obtained.

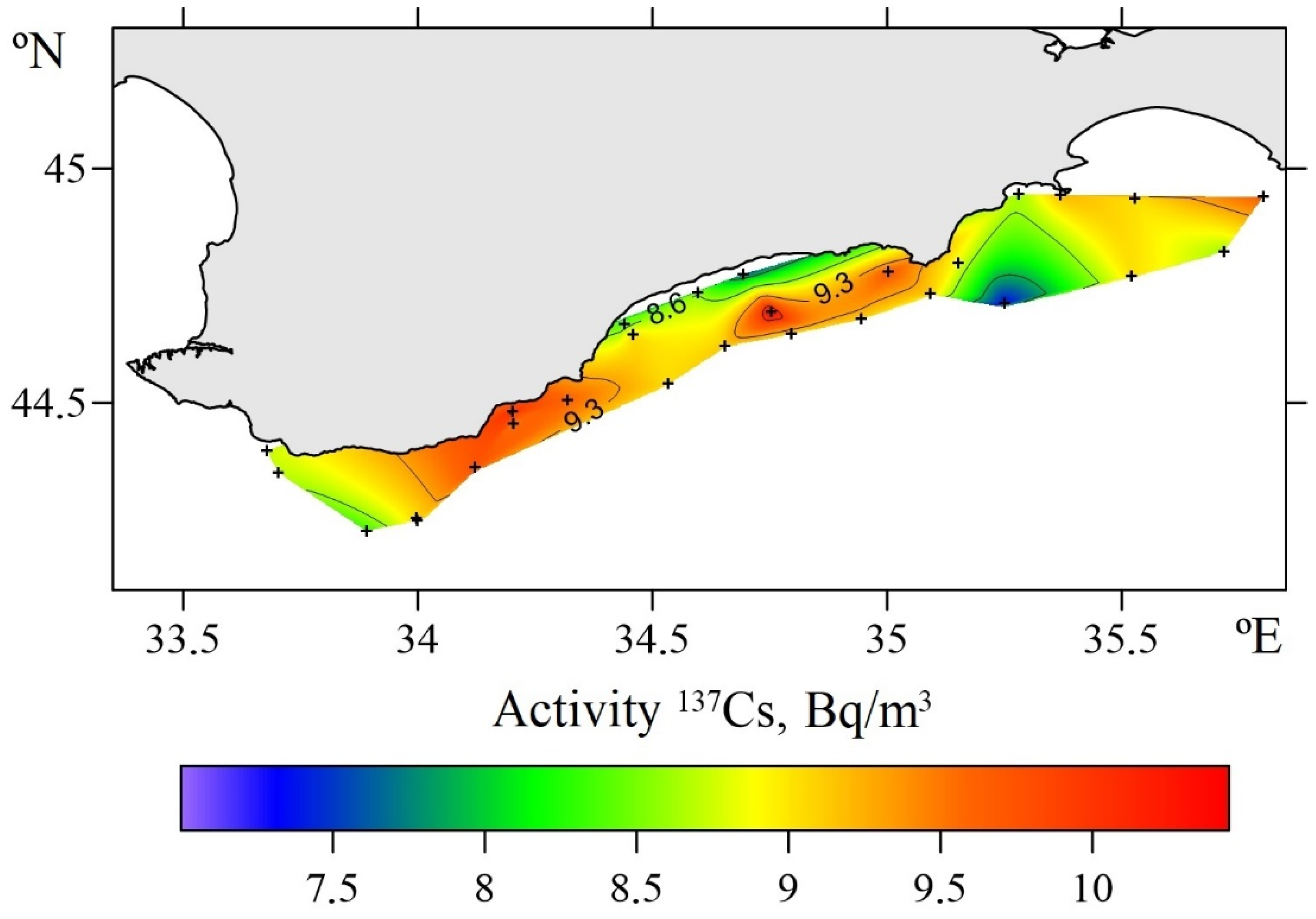

Figure 6 shows the distribution of ¹³⁷Cs in the surface layer of the Black Sea along the southern coast of Crimea. The value of ¹³⁷Cs activity varied over space in the range of 7.33–10.4 Bq/m³ and averaged 9.01 ± 0.87 Bq/m³. Thus, the spatial variability of the cesium concentration field in the study area was within the error range of the method for determining this parameter.

According to the literature data, ¹³⁷Cs activity in the Black Sea was 20.0 ± 1.1 Bq/m³ in 2007 [7], 17.1 ± 0.9 Bq/m³ in 2013 [6], and 14.4 ± 1.3 Bq/m³ in 2015 [39]. The data obtained are consistent with the published data [6,7,39], taking into account the half-life for the decrease in ¹³⁷Cs inventory, which, according to [38], is 8.6 years for the period 1987–2011. The decrease in ¹³⁷Cs activity in the surface layer of the Black Sea is associated with its radioactive decay and penetration into the underlying layers [38]. Thus, an increase in ¹³⁷Cs activity in the study area was not determined.

During cruise 121, a limited area of the Black Sea along the southern coast of Crimea was available for study; the sampling and measurement of samples were not carried out at the western part of the Black Sea, where elevated values of ¹³⁷Cs activity are usually observed due to the proximity of the source of cesium, the Dnieper River (Ukraine) [38].

According to the Radiation Safety Norms–99/2009 [40] of Russia, the allowable concentrations (intervention levels) of ¹³⁷Cs in seawater are 11 Bq/L; therefore, the current levels of ¹³⁷Cs in the surface water of the Black Sea are below the maximum allowable.

4. Conclusions

Systematic monitoring of ¹³⁷Cs content in seawater is necessary for the timely detection of sources of radioactive contamination entering the environment, allowing for decision makers to take measures to prevent negative impacts on living organisms.

The possibility of ¹³⁷Cs recovery from seawater and its sorption efficiency were studied using various types of sorbents based on transition metal ferrocyanides (Anfezh, Niket, Uniket, FSS, FD-M, Termoxid 35, NKF-C, FIC) and zirconium phosphate (Termoxid 3A). We found that the sorption efficiency of ¹³⁷Cs decreased with an increase in the flow rate due to a decrease in the contact time of seawater with the sorbent. The optimum flow rate of seawater for the studied sorbents is 2–4 CV/min. The ferrocyanide sorbents Niket, Uniket, Termoxid 35, and FIC showed the best sorption efficiency (60–100%). Based on the results obtained, a procedure was developed for recovering ¹³⁷Cs from seawater.

To analyze the current radioecological state of the Black Sea, namely its contamination with ¹³⁷Cs after the Chornobyl accident, in the spring of 2022, the spatial distribution of ¹³⁷Cs in the Black Sea along the southern coast of Crimea was studied using the developed methodology and sorbents that showed the best characteristics. The value of ¹³⁷Cs activity varied over space in the range of 7.33–10.4 Bq/m³ and averaged 9.01 ± 0.87 Bq/m³. The data obtained are consistent with the literature data, taking into account the half-life for the decrease in ¹³⁷Cs inventory; an increase in ¹³⁷Cs activity in the study area was not found. The current levels of ¹³⁷Cs in the surface water of the Black Sea are below the maximum allowable level.

Further research is needed in the coastal ecosystems of the Black Sea, which are accumulators of anthropogenic radionuclides.
