Development of a CaCO₃ Precipitation Method Using a Peptide and Microwaves Generated by a Magnetron

Abstract

Microwave applications, such as microwave ovens and mobile phones, are ubiquitous and indispensable in modern society. As the utilization of microwave technology is becoming more widespread, the effects of microwaves on living organisms and physiological processes have received increased attention. This study aimed to investigate the effects of microwaves on calcium carbonate biomineralization as a model biochemical process. A magnetron oscillator was used to generate 2450 MHz microwaves because magnetrons are relatively inexpensive and widespread. We conducted transmission electron microscopy (TEM), atomic force microscopy (AFM), TEM-electron energy-loss spectroscopy (EELS), dynamic light scattering (DLS), and high-performance liquid chromatography (HPLC) measurements to analyze the calcium carbonate precipitates. Our findings showed the formation of string-like precipitates of calcium carbonate upon microwave irradiation from one direction, similar to those obtained using a semiconductor oscillator, as reported previously. This implied that the distribution of the frequency had little effect on the morphology. Furthermore, spherical precipitates were obtained upon microwave irradiation from two directions, indicating that the morphology could be controlled by varying the direction of microwave irradiation. Magnetrons are versatile and also used in large-scale production; thus, this method has potential in medical and industrial applications.

1. Introduction

Microwave (MW) applications such as MW ovens and mobile phones are ubiquitous and indispensable in modern society. In the field of chemistry, MWs are used to synthesize inorganic compounds [1,2,3,4] as well as organic compounds [5,6,7,8,9,10,11] including peptides [12,13]. With the increasingly widespread utilization of the MW technology, the effects of MWs on living organisms and physiological processes are receiving increasing attention. Although the effects of MWs on physiological functions have been studied in the field of life science, the elucidation of the detailed mechanism of the MW effects is only at a nascent stage. For example, the effects of MWs on biomineralization were investigated for hydroxyapatite mineralization on the surface of polydopamine nanospheres without biomolecules, and it was reported that the formation of the precipitates was promoted by MWs [14]. Physiological functions are generally regulated through complex interactions between biomolecules such as peptides and proteins. Thus, detailed analyses of the behavior of these biomolecules under MW irradiation are needed. This study aimed to investigate calcium carbonate (CaCO₃) biomineralization—a process by which crustacean exoskeletons are formed—as a model biochemical process [15,16,17,18,19,20,21,22,23,24,25]. We recently reported the effect of MWs generated by a semiconductor oscillator that outputted a narrow frequency band of 2450 ± 3 MHz on CaCO₃ mineralization using peptides with different net charges. Our results showed that the nanomorphology of the CaCO₃ precipitates was dependent on the MW output (10–60 W) and the ability of the peptide to induce CaCO₃ precipitation [26]. Investigating the effects of MWs on the CaCO₃ mineralization with peptides enabled the elucidation of the molecular behavior of organic and inorganic compounds. In this study, we used a magnetron oscillator with a wider frequency band of 2450 ± 50 MHz, which is often used in daily life, and determined whether a similar morphological change occurred. Additionally, we analyzed the correlation between the irradiation conditions, such as the irradiation direction of the MWs (10–200 W) and electric field (E-field) strength, and the morphology, particle size, and peptide consumption rate upon mineralization. Our results revealed that the morphology could be controlled by varying the direction of MW irradiation. Although the frequency and output of the MWs generated by a magnetron are not as stable as those generated by a semiconductor oscillator, magnetrons are relatively inexpensive and are used in large-scale production. Thus, this method holds potential for medical and industrial applications.

2. Materials and Methods

2.1. Materials

All chemicals and solvents were of a reagent or HPLC grade and used without further purification. Amino acid monomers N-α-Fmoc-L-aspartic acid β-t-butyl ester (Fmoc-Asp(OtBu)-OH), N-α-Fmoc-L-glutamic acid γ-t-butyl ester (Fmoc-Glu(OtBu)-OH), and N-α-Fmoc-O-t-butyl-L-serine (Fmoc-Ser(tBu)-OH) were used. The amino acids, Wang resin, N,N′-diisopropylcarbodiimide (DIPCI), 2-(1H-benzotriazole-1-yl)-1,1,3,3-tetramethyluronium hexafluorophosphate (HBTU), 1-hydroxy benzotriazole monohydrate (HOBt), N,N-diisopropylethylamine (DIEA), trifluoroacetic acid (TFA), and piperidine were purchased from Watanabe Chemical Industries, Ltd. (Watanabe, Hiroshima, Japan). N,N-Dimethyl-4-aminopyridine (DMAP) was purchased from Tokyo Chemical Industry Co., Ltd. (TCI, Tokyo, Japan). N-Methylpyrrolidone (NMP), triisopropylsilane, thioanisole, and diethyl ether were purchased from FUJIFILM Wako Pure Chemical Corporation (Wako, Osaka, Japan).

2.2. Peptide Synthesis

The peptide was manually synthesized. In order to obtain the peptide with a C-terminal carboxy group, Wang resin was used as a solid support, and coupling of the amino acid (10 eq.) was performed using DIPCI (5 eq.) and DMAP (0.1 eq.) for the first residue. For the subsequent residues, coupling of the amino acid (4 eq.) was performed using HBTU (4 eq.) and HOBt (4 eq.) in the presence of DIEA (8 eq.) by the Fmoc solid-phase synthesis method [27]. The deprotection of the Fmoc group was performed with 25% piperidine and 1% HOBt in NMP to prevent the formation of aspartimide. The obtained peptidyl resins were washed five times with chloroform and dried in vacuo. Cleavage of the synthesized peptide from the resin and removal of the protecting groups in the side chain were conducted by treatment with TFA/H₂O/triisopropylsilane/thioanisole (50/1/1/1, v/v) for 1 h. The peptide was precipitated by adding cold diethyl ether, collected by centrifugation, and dried in vacuo. Crude peptides were purified by reversed-phase high-performance liquid chromatography (RP-HPLC). RP-HPLC was conducted on a GL7410 HPLC system (GL Sciences Inc., Tokyo, Japan) with an Inertsil ODS-3 column (10 × 250 mm; GL Sciences) for preparative purification using a 0.1% TFA/Milli-Q water solution (A solution) and 0.08% TFA/acetonitrile solution (B solution). The elution was conducted using a linear gradient from 0% to 30% of the B solution over 30 min at a flow rate of 3.0 mL/min. The purified peptide was characterized by matrix-assisted laser desorption/ionization time-of-flight mass spectrometry (MALDI-TOF MS) using an Autoflex III (Bruker Daltonics Inc., Billerrica, MA, USA) mass spectrometer: m/z 1012.8 ([M+H]⁺ calcd. 1012.8). The peptide was dissolved in Milli-Q water at a concentration of ~1 mM, and peptide concentration was determined by an amino acid analysis. The amino acid analysis was performed with an Inertsil ODS-2 column (4.6 × 200 mm; GL Sciences) after hydrolyzing the peptide in 6 M HCl at 110 °C for 24 h, followed by labeling with phenylisothiocyanate.

2.3. MW Irradiation Equipment

The MW irradiation equipment using a magnetron oscillator was manufactured as a medical apparatus by Minato Medical Science Co., Ltd., Osaka, Japan. The MW output was 10–200 W (10 W steps), and the frequency was 2450 ± 50 MHz. The power was output to an AC transformer-type system, and a patch antenna (linearly polarized wave) with a voltage standing-wave ratio (VSWR) of < 1.4 was used. The MW generator was connected with a coaxial waveguide converter, and the MW power loss was corrected in advance. MW irradiation was performed as follows: (1) the MW irradiation for 80 min, (2) termination of MW irradiation and subsequent incubation for 20 min at room temperature, and (3) MW irradiation for 80 min. MW irradiation from two directions was performed alternately using two patch antennas at intervals of 8 ms with a phase difference of 180°.

2.4. Measurements of E-Fields’ Strength

The E-fields generated by MW irradiating equipment were monitored with a controller (C3-1055, Seikoh Giken Co., Ltd., Matsudo, Japan) and a sensor head (6 × 6 × 23 mm, CS-1403, Seikoh Giken Co., Ltd., Matsudo, Japan). The E-field strength [dBμV/m] was calculated using the following formula:

E [dBμV/m] = P [dBm] + AF [dB/m] + 107

Here, P is the controller output [dBm], and AF is the antenna factor [dB/m].

2.5. Measurements of Sample Temperature

A thermocouple thermometer (Card Logger MR5300, MR9302, CHINO Corp., Tokyo, Japan) was used to measure the temperature changes in Milli-Q water (1 mL) in a microtube upon MW irradiation from one direction at 10, 30, and 200 W or from two directions at 10 and 200 W. In the previous study, we already confirmed that the effect of MWs on the thermometer was negligible [26].

2.6. CaCO₃ Mineralization in the Presence and Absence of MW Irradiation

Prior to CaCO₃ mineralization, 0.5 mmol of CaCO₃ was suspended in 30 mL of Milli-Q water. CO₂ was bubbled into the suspension for 1 h and then the residual solid CaCO₃ was filtered off. The Ca²⁺ concentration in the Ca(HCO₃)₂ solution was determined by titration using ethylenediaminetetraacetate. The concentration of Ca(HCO₃)₂ and the peptide was adjusted to 150 and 100 µM with Milli-Q water, respectively, in a microtube, and afterwards CaCO₃ mineralization was performed for 180 min. MW irradiation was conducted as follows: (1) the MW irradiation for 80 min, (2) termination of MW irradiation and subsequent incubation for 20 min at room temperature, and (3) MW irradiation for 80 min. To realize MW irradiation from two directions, MWs were irradiated alternately using two patch antennas at intervals of 8 ms with a phase difference of 180°. In the absence of MW irradiation, incubation was performed at 30, 50, 60, and 90 °C using a temperature control device (GeneAtlas 485, ASTEC Co., Ltd., Fukuoka, Japan).

2.7. TEM and TEM-EELS Measurements

A 20 µL solution of the CaCO₃ precipitates was placed on a transmission electron microscopy (TEM) grid for 5 min, and the excess solvent was absorbed with filter paper; this process was repeated. Milli-Q water (20 µL) was placed on the grid and immediately absorbed with a filter paper. All samples were dried in vacuo prior to the TEM measurements, which were conducted at an accelerating voltage of 200 kV (JEM-2100, JEOL Ltd., Tokyo, Japan).

2.8. AFM Measurements

A 20 µL solution of the CaCO₃ precipitates was placed on freshly cleaved mica (1 × 1 cm) for 5 min and the excess solvent was absorbed with filter paper. This process was repeated, and afterwards 20 µL of Milli-Q water was placed on the mica surface and immediately absorbed with a filter paper. All samples were dried in vacuo. Tapping-mode images were obtained on a multimode scanning probe microscope using a Nanoscope IIIa controller (Veeco Instruments Inc., Woodbury, NY, USA).

2.9. DLS Measurements

An 80 µL solution of the CaCO₃ precipitates was transferred into a cuvette (ZEN0040, Malvern Panalytical Ltd., Malvern, UK) for the dynamic light scattering (DLS) measurements. DLS data were obtained on a Zetasizer ZEN3600 instrument (Sysmex Corp., Kobe, Japan).

2.10. HPLC Analysis for Peptide Consumption Rates

Following the CaCO₃ mineralization, 100 µM peptide, 150 µM Ca(HCO₃)₂, and 0.1% TFA/Milli-Q water (40 µL) were added to 160 µL of the sample solution. Then, 200 µL of the solution was filtered using a centrifugal filter (Durapore^®-PVDF 0.45 µm Ultrafree^®-MC-HV, Merck KGaA, Tokyo, Japan). The sample (150 µL) was analyzed using an Inertsil ODS-3 column (4.6 × 150 mm; GL Science). The sample was eluted with A and B solutions using a linear gradient from 0% to 30% of the B solution over 30 min at a flow rate of 1.0 mL/min. HPLC analyses were performed on the sample after CaCO₃ mineralization using 100 µM peptide. The peptide consumption rates (ratio of the peptide content trapped in or bound to the CaCO₃ precipitates to the initial peptide content) were estimated from the HPLC peak area of the unreacted peptide (i.e., the remaining peptide) (Figure S1).

3. Results and Discussion

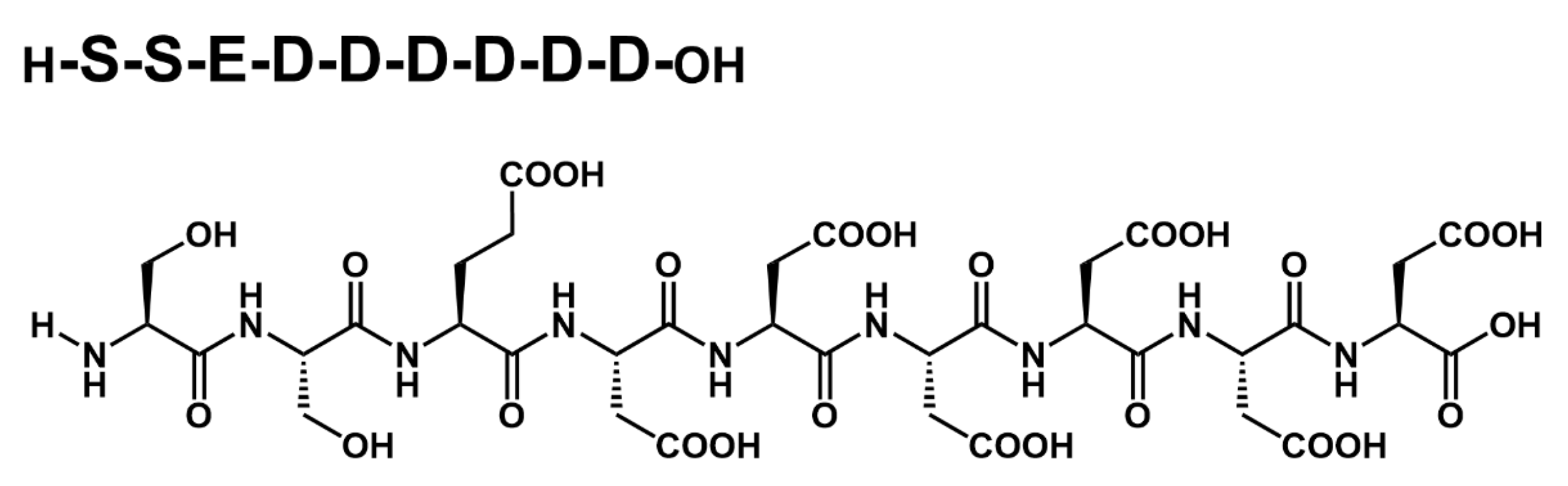

3.1. Design of the CaCO₃-Precipitating Peptide

The effects of MWs on CaCO₃ mineralization were previously investigated using four peptides that had different net charges owing to structural modification at the C-terminal core sequence of the calcification-associated peptide (CAP-1) [15]. We showed that MWs generated from a semiconductor oscillator altered the nanomorphology of the CaCO₃ precipitates [26]. MWs barely affected the morphology of the CaCO₃ precipitates when using the peptide with high mineralization ability, whereas they significantly affected the precipitate morphology when using the peptide with low mineralization ability. In this study, among the four peptides, we selected the peptide that exhibited the lowest precipitating ability and large MW effect (Figure 1). When the selected CaCO₃-precipitating peptide was used at a concentration of 100 µM, the CaCO₃ precipitates showed string-like morphology upon irradiation with 60 W of MWs generated by the semiconductor oscillator [26].

3.2. Development of the MW Irradiating Equipment

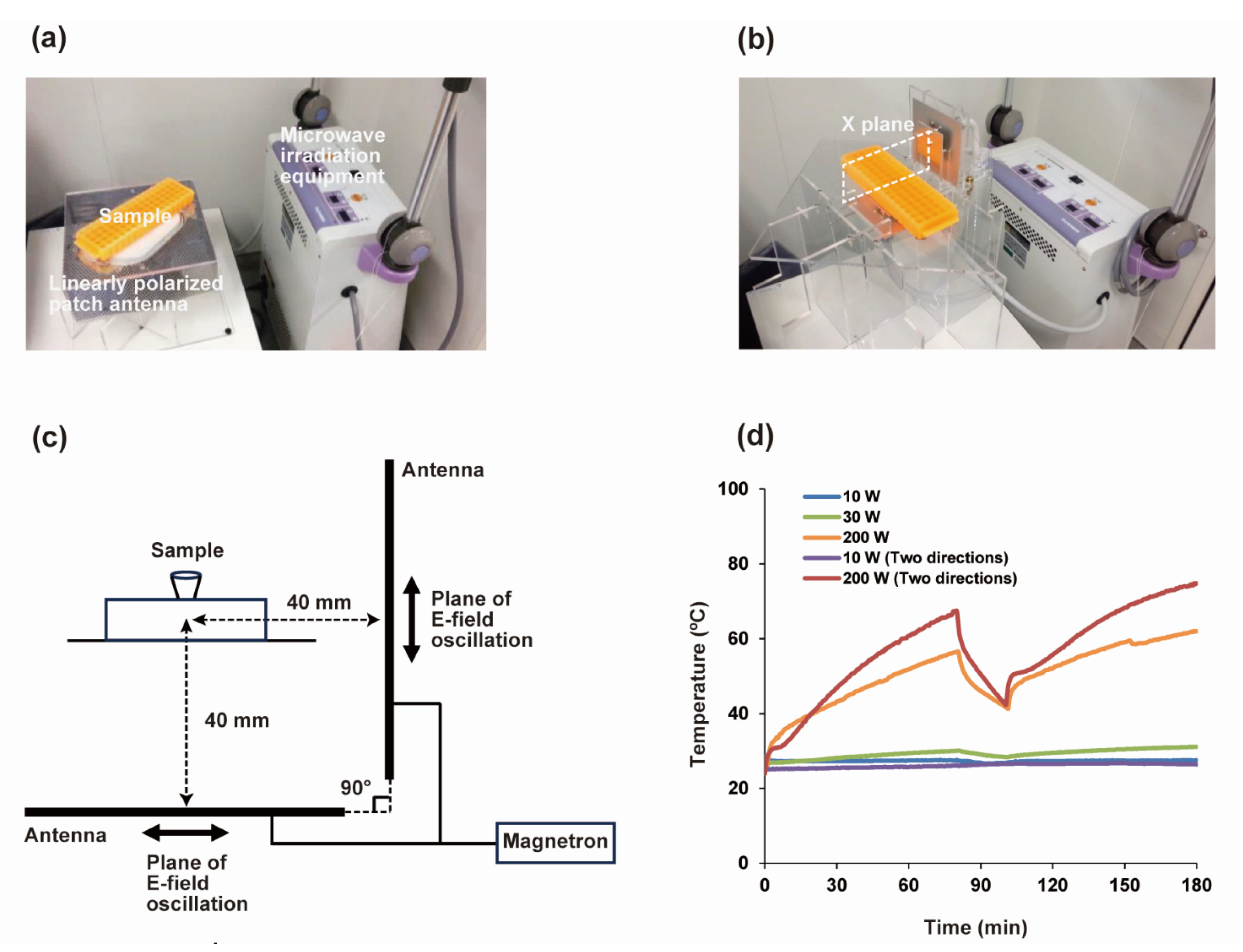

We used a magnetron as an MW oscillator and placed an antenna below the sample in a microtube (Figure 2a). We analyzed the strength of the E-field generated by the MW irradiating equipment and monitored the polarizing direction. The distribution of the E-field strength was non-uniform, thus necessitating that the device measuring the E-field strength had a spatial resolution equal to or less than the microtube size. We used an optical E-field sensor that was composed of an optical waveguide and a dipole antenna, similar to that used in the previous study [26]. The E-field strength increased with the MW output (Figure S2), and the polarizing direction was vertical to the antenna major axis. This indicated that the equipment could generate an E-field with linear polarization, enabling us to analyze the behavior of the biomolecules upon MW irradiation in detail.

We next developed the MW irradiation equipment so as to realize irradiation from two directions (Figure 2b). First, we divided the MWs generated by the magnetron into two parts and attempted to irradiate the MWs from the two antennas simultaneously. However, the magnetron was saturated by the MWs, which leaked from the sides of the antenna, failing to generate MWs at the expected output. Therefore, the MWs were irradiated alternately from two patch antennas to suppress the saturation of the magnetron. Two patch antennas were installed at an angle of 90° such that the planes of the polarization of the linearly polarized waves intersected at right angles (Figure 2c) and the MW irradiation could be performed alternately at intervals of 8 ms with a phase difference of 180° to prevent interference.

Next, the sample solution temperature was measured using a thermocouple thermometer under MW irradiation. The maximum and average temperature gradually increased with the MW output. For MW irradiation from one direction at 200 W, the maximum and average temperatures of the sample solution were 62.3 and 50.5 °C, respectively. For MW irradiation from two directions at 200 W, the maximum and average temperatures were 74.8 and 56.2 °C, respectively (Figure 2d).

3.3. Morphology of the CaCO₃ Precipitates Formed by MW Irradiation from One Direction

We observed the CaCO₃ precipitates obtained using 100 µM peptide in the presence and absence of MW irradiation. TEM images showed sphere-like precipitates of CaCO₃ in the absence of MW irradiation at room temperature, 30, 50, 60, and 90 °C (Figure 3a and Figure S3a–d). Considering the local heating by MWs, we performed the CaCO₃ mineralization at 90 °C in the absence of MW irradiation. Under MW irradiation, string-like precipitates were formed (Figure 3b and Figure S3e,f). On the other hand, in the absence of the peptide, the string-like precipitates were barely formed even under MW irradiation at 200 W (Figure S3h). In the atomic force microscopy (AFM) images, spherical CaCO₃ precipitates were observed in the absence of MW irradiation at room temperature, 50, and 60 °C (Figure S4a–c), and string-like precipitates were observed upon MW irradiation (Figure S4d,e). This was consistent with the TEM analysis. These results showed that the string-like precipitates of CaCO₃ were formed upon MW irradiation from the one direction, similar to that observed using the semiconductor oscillator described previously. The magnetron oscillator outputted a wide frequency band of 2450 ± 50 MHz, whereas the semiconductor oscillator outputted a narrower frequency band of 2450 ± 3 MHz. These observations suggest that the distribution of the MW frequency has a negligible effect on the morphology.

Next, we conducted the elemental analysis of the CaCO₃ precipitates obtained using the peptide in the presence and absence of MW irradiation by TEM-electron energy-loss spectroscopy (TEM-EELS). Calcium from CaCO₃, nitrogen from the peptide, and oxygen from CaCO₃ and/or the peptide were slightly detected (Figure S5), indicating that the precipitates observed in the TEM images were those of CaCO₃ and peptides.

We then determined the size distribution profile of the CaCO₃ precipitates obtained using 100 µM peptide in the presence and absence of MW irradiation by DLS measurements. A single peak (corresponding to 1 mm particle size) was observed in the absence of MW irradiation at 50 and 60 °C, while two peaks (corresponding to particle sizes of 200 nm and 1 mm) were observed under MW irradiation at 200 W; these two peaks were correlated to the morphology observed in the TEM images. These results indicated that different precipitates of CaCO₃ were formed with or without MW irradiation.

Finally, the peptide consumption rates (ratio of the peptide content trapped in or bound to CaCO₃ precipitates to the initial peptide content) were estimated with HPLC (Figure 3c). The peptide consumption rates increased with temperature in the absence of MW irradiation, whereas they remained almost unchanged regardless of the MW output under MW irradiation. Therefore, MWs have lesser effect on the peptide.

MWs can generate local hot spots at the contact points of particles [29]. Thus, we assume that once a peptide precipitates the CaCO₃ nanoparticles, linearly polarized MWs can create an anisotropic E-field and induce thermal distribution in the nanoparticles. Considering this, we speculated that in the presence of peptides, the hotspots generated between the particles accelerated the CaCO₃ precipitation to form string-like CaCO₃ precipitates under MW irradiation from one direction.

3.4. Morphology of CaCO₃ Precipitates Formed under MW Irradiation from Two Directions

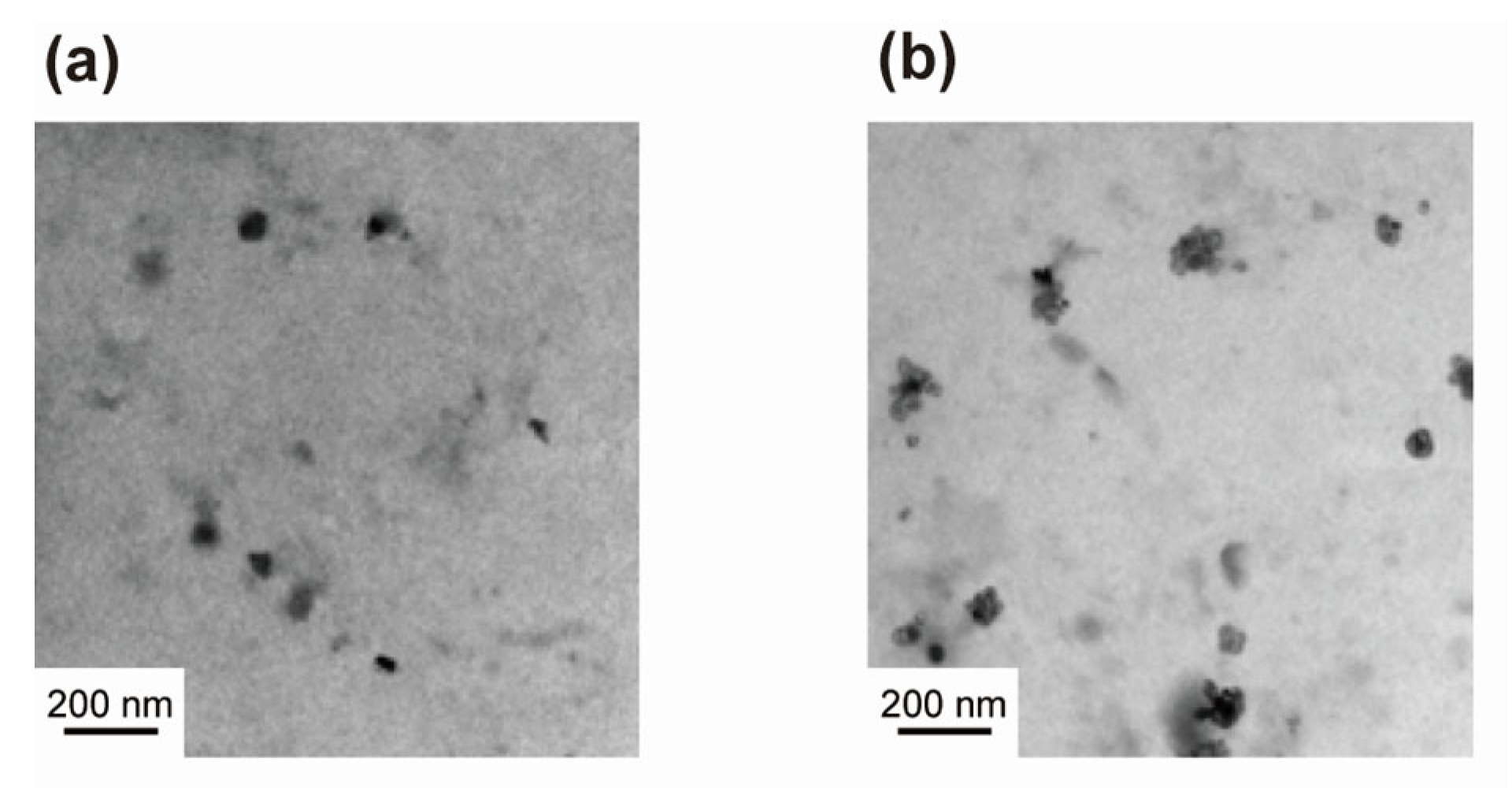

We investigated the effect of the irradiation direction of the MWs on the CaCO₃ mineralization using the peptide. The TEM images showed the formation of CaCO₃ precipitates with sphere-like shapes under MW irradiation from two directions at 10 and 200 W (Figure 4a,b and Figure S6). This was similar to that observed at 60 °C in the absence of MW irradiation (Figure 3a), but different from the string-like CaCO₃ precipitates formed under MW irradiation from one direction. These results indicated that the direction of MW irradiation strongly affected the CaCO₃ morphology.

Considering this, we speculated that the E-field and thermal distribution were not anisotropic under MW irradiation from two directions, and thus sphere-like CaCO₃ precipitates were formed.

4. Conclusions

In conclusion, the irradiation direction of the MWs generated by the magnetron affected the morphology of the CaCO₃ precipitates. String-like CaCO₃ precipitates were formed under MW irradiation from one direction, similar to those obtained using a semiconductor oscillator described previously. This implied that the distribution of the frequency had a negligible effect on the morphology. In contrast, spherical precipitates were obtained under MW irradiation from two directions. Thus, we developed a method to control the morphology of the CaCO₃ precipitates by varying the direction of MW irradiation. In the future, we plan to analyze the polymorphism of the CaCO₃ precipitates obtained under MW irradiation. Mineralization through MW irradiation is not limited to the production of CaCO₃ precipitates. By substituting the CaCO₃-precipitating sequences with other inorganic compound-precipitating sequences, this system can be used to obtain various inorganic compound precipitates with controlled shapes. Mineralization through MW irradiation can be applied not only to the industrial production of inorganic materials but also for the treatment of teeth and bones. Magnetrons are relatively inexpensive and versatile, and thus mineralization using the MWs generated by magnetrons has potential for widespread application. We shall investigate the effects of MWs with stronger E-field strength on the CaCO₃ mineralization for industrial and medical applications.
