Analysis of the Influence of Alternating Stress in the Multi-Cycle Injection Production Process

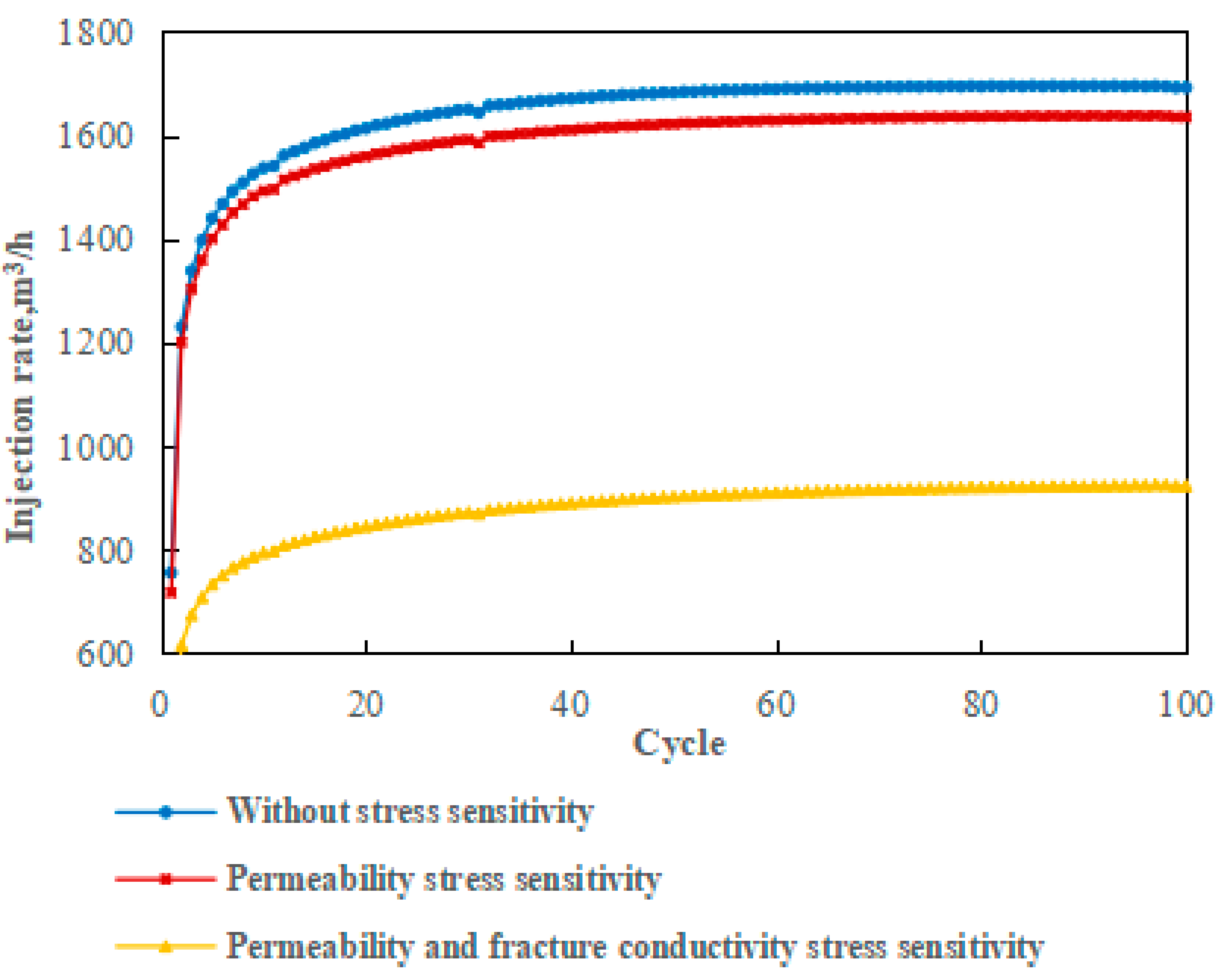

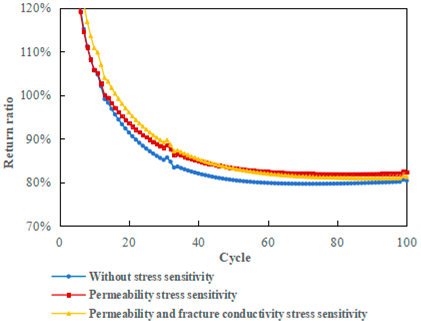

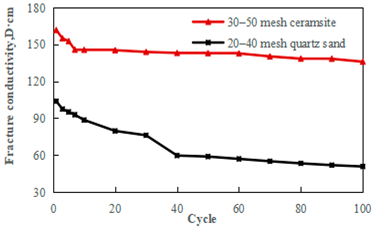

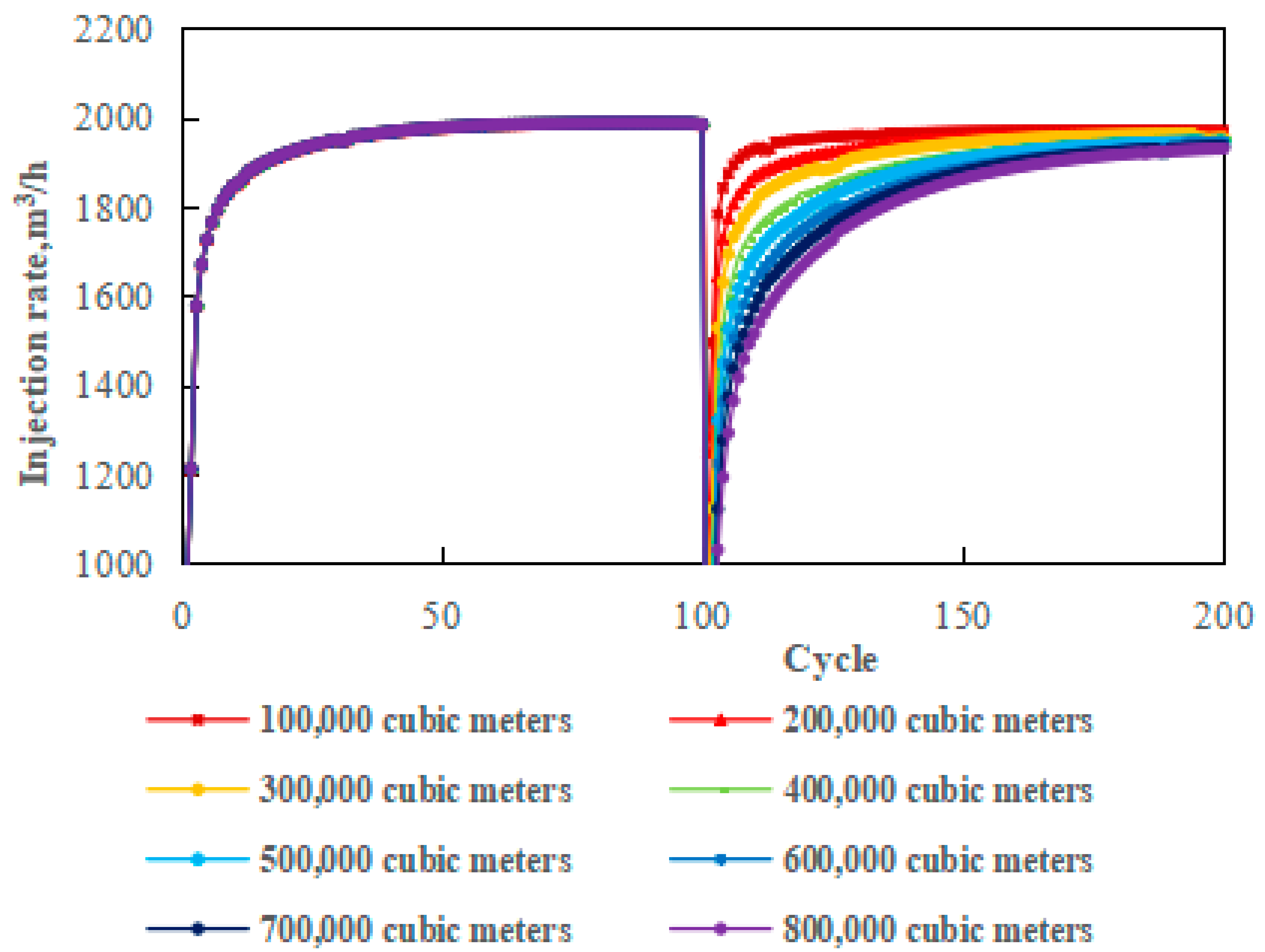

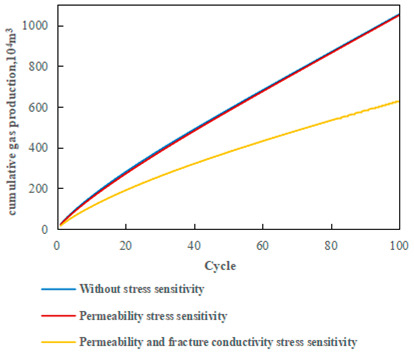

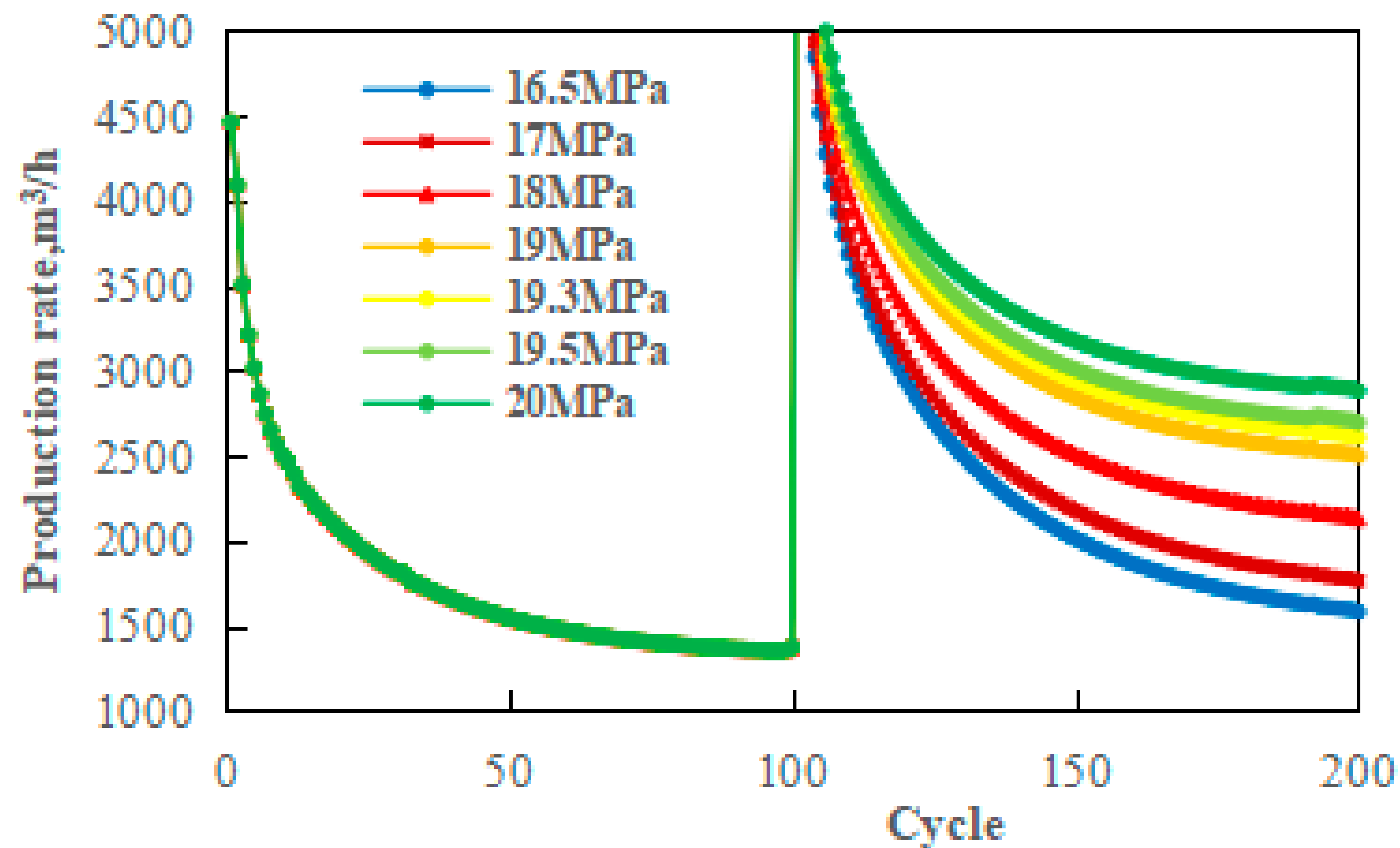

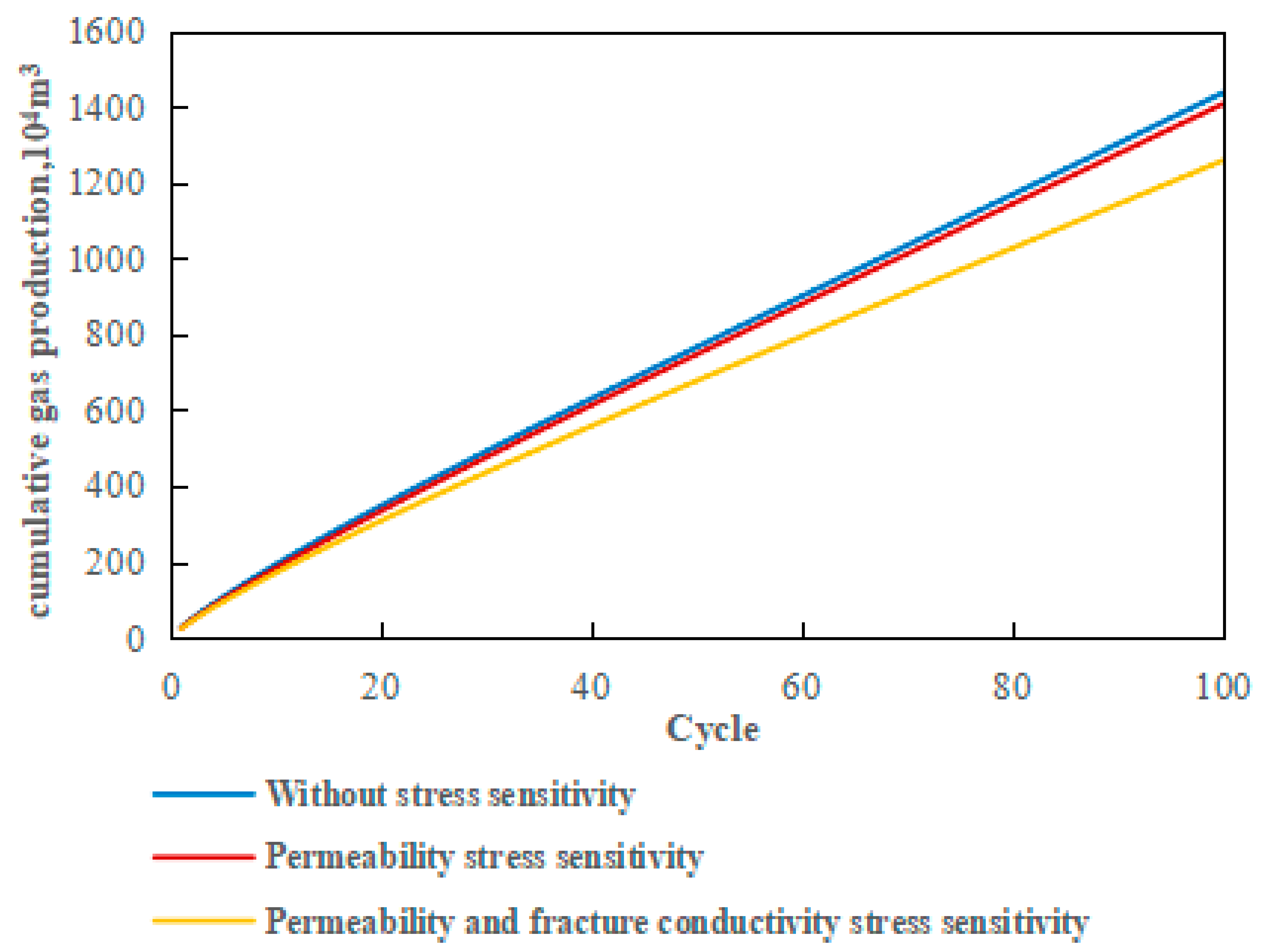

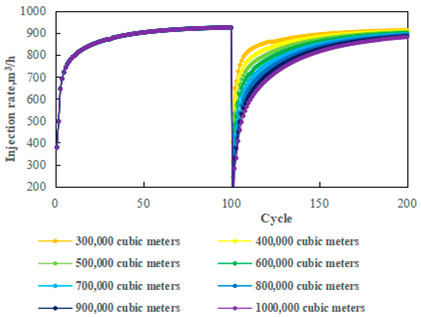

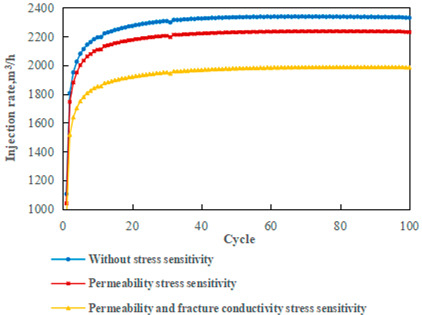

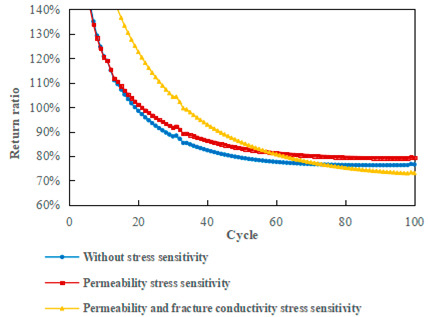

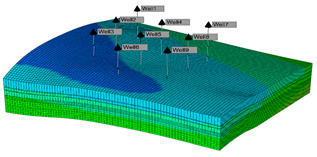

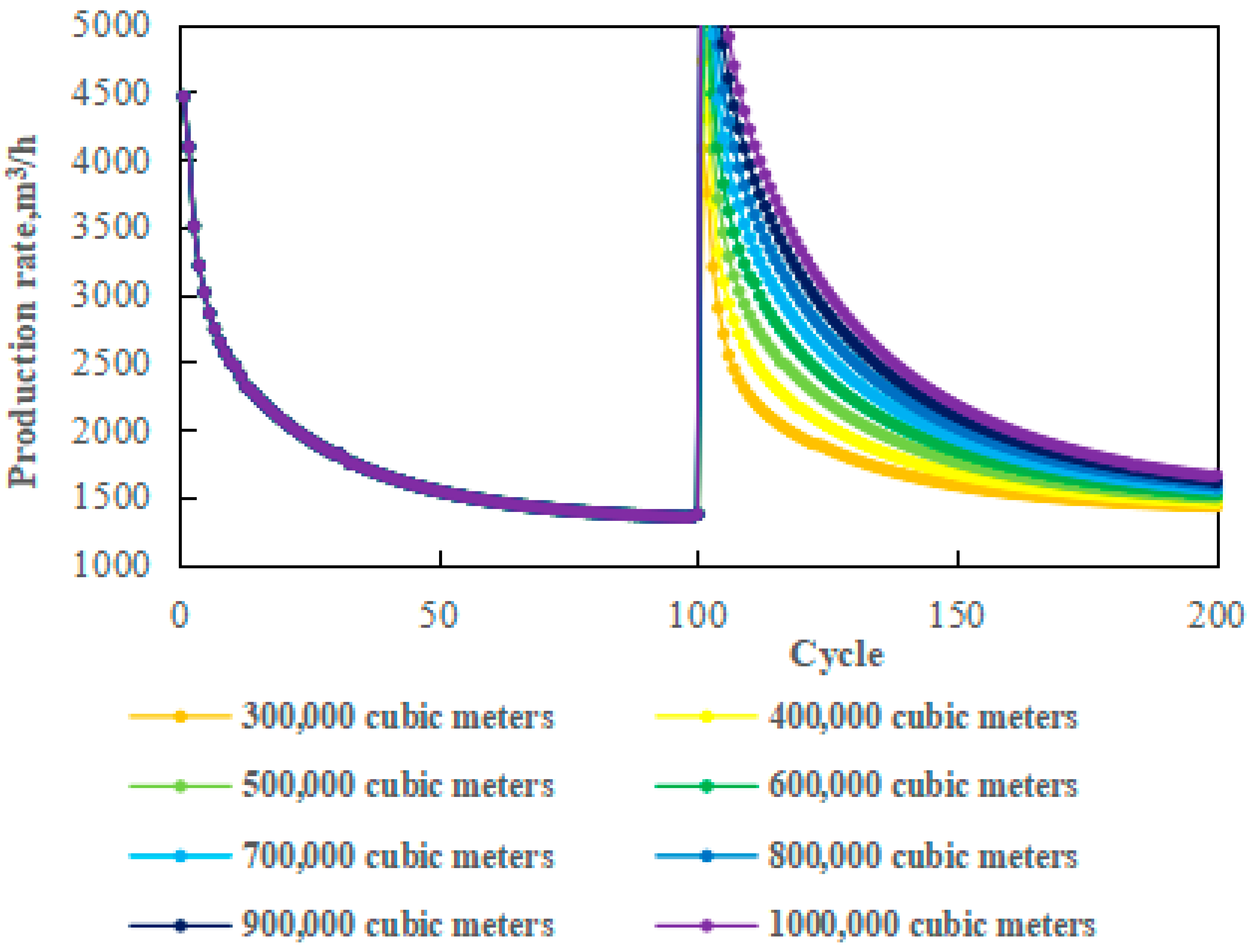

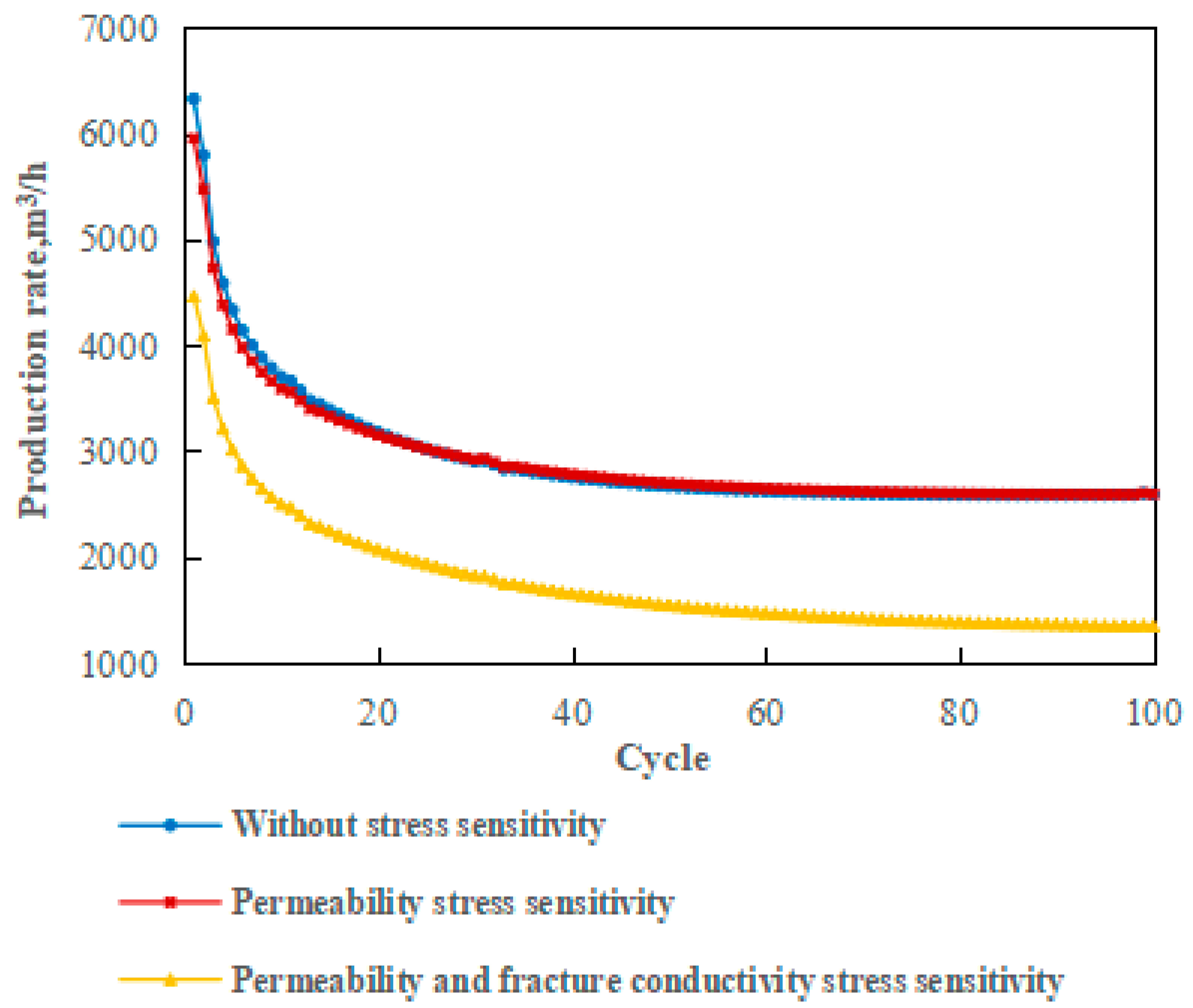

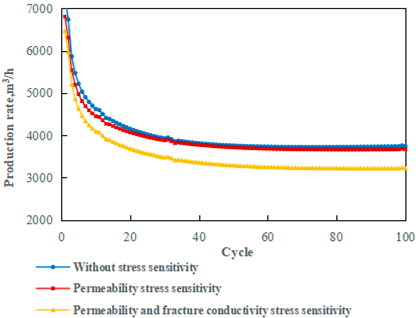

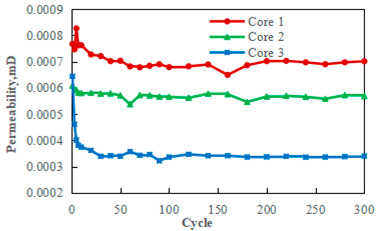

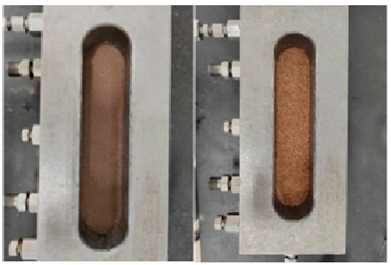

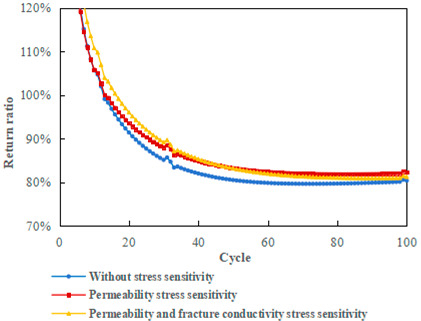

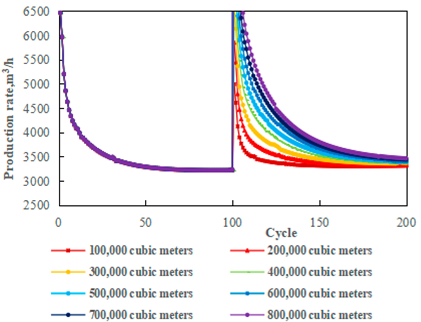

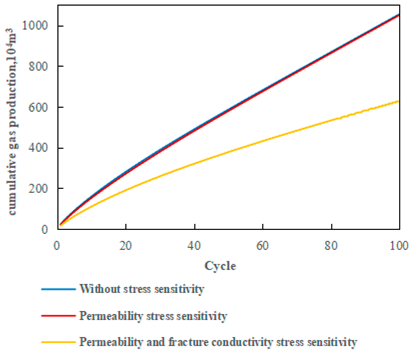

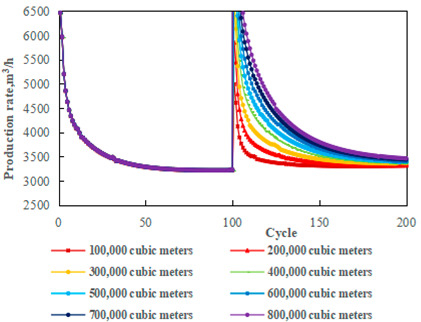

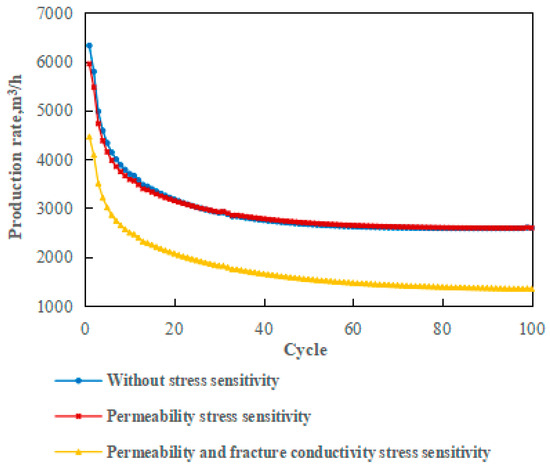

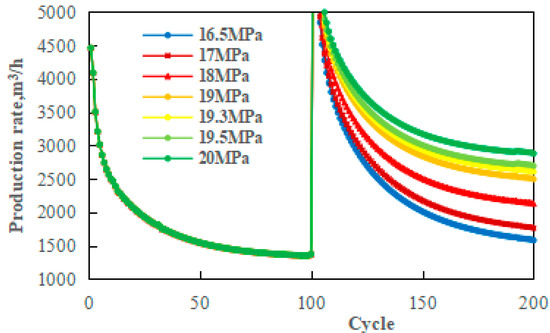

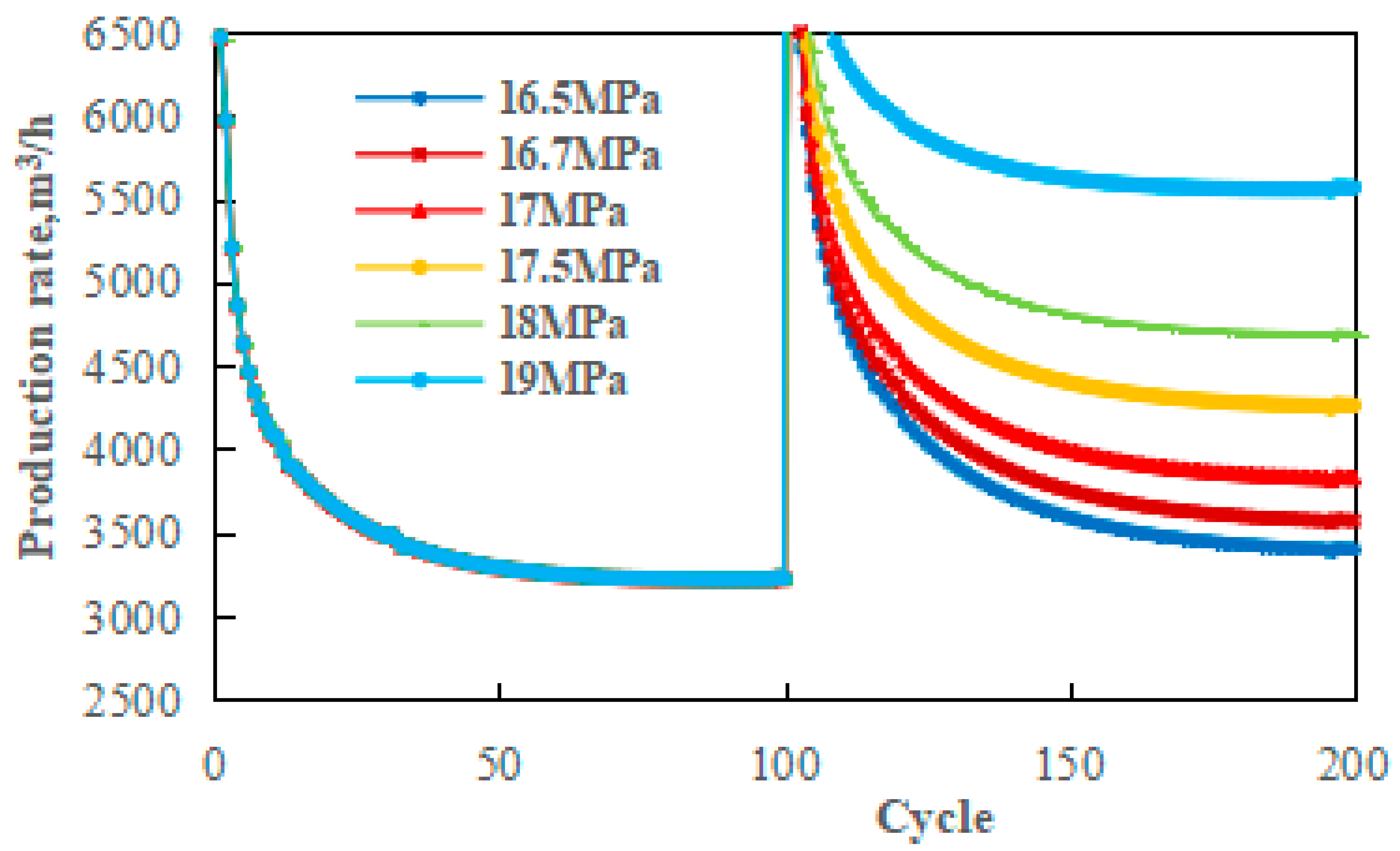

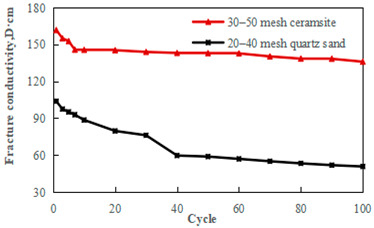

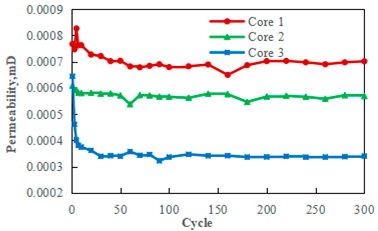

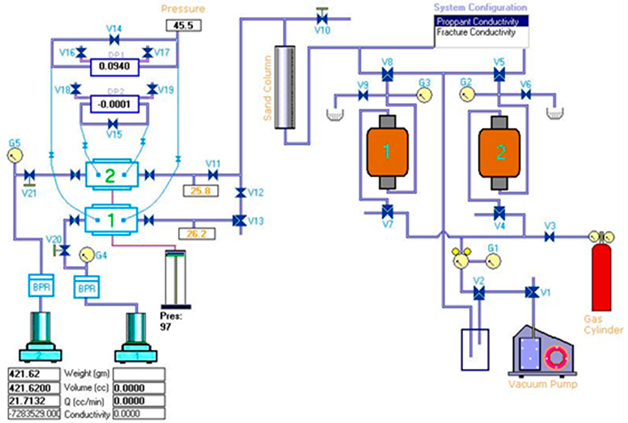

In order to study the influence of multi-cycle stress sensitivity on the injection–production effect, it is necessary to conduct multi-cycle stress sensitivity experiments on reservoir permeability and fracture conductivity first and then calculate the impact on the injection–production effect after the occurrence of the stress sensitivity effect by using the CMG software. After stress sensitivity occurs and the production rate decreases, the constraints of the well should be adjusted. The results showed that the conductivity of the 30–50 mesh ceramsite decreased by 15.94% after 100 cycles, while the conductivity of the 20–40 mesh quartz sand decreased by 51.17%. Under alternating stress, the reservoir permeability decreased significantly during the first 50 cycles, with an average decrease of 20.8%, but remained relatively stable in the later stages. When stress sensitivity was disregarded, the gas production rate of the ceramic and quartz sand stabilized at approximately 3700 m³/h and 2600 m³/h, respectively. When stress sensitivity was considered, the secondary gas cushion for ceramsite had to reach at least 500,000 m³ to maintain a gas production rate of over 3700 m³/h within 40 cycles after the gas cushion. When stress sensitivity was considered, the secondary gas cushion for quartz sand had to exceed 800,000 cubic meters to maintain the gas production rate of over 2600 m³/h within the first 30 cycles after the gas cushion. To sustain the gas production rate over the long term, it was necessary to increase the injection pressure per cycle. The gas injection pressure for ceramsite should be adjusted to more than 17 MPa, and the gas injection pressure for quartz sand should be adjusted to more than 19.3 MPa.
