Relative Effect of Additional Solid Media on Bubble Hydrodynamics in Bubble Column and Airlift Reactors towards Mass Transfer Enhancement

Abstract

Many researchers have focused on multi-phase reactor development for improving mass transfer performance. However, solid particle addition in gas–liquid contactor for better oxygen mass transfer performance is still limited. Hence, this study aims to analyze the relative effect of different types of local solid media on the bubble hydrodynamic characteristics towards mass transfer enhancement in bubble columns (BCR) and airlift reactors (ALR). This was investigated by varying solid media types (ring, sphere, cylinder, and square), solid loadings (0%–15%), and superficial gas velocities (Vg) (2.6–15.3 × 10⁻³ m/s) in terms of the bubble hydrodynamic and oxygen mass transfer parameters. The result showed that bubble size distribution in BCR and ALR with additional plastic media was smaller than that without media addition, approximately 22%–27% and 5%–29%, respectively, due to the increase of the bubble breaking rate and the decrease of the bubble rising velocity (U_B). Further, adding media in both reactors significantly decreased the U_B value. Since media increased flow resistance, resulting in decreased liquid velocity, it can also be the moving bed to capture or block the bubbles from free rising. Therefore, oxygen mass transfer performance was investigated. The oxygen transfer coefficient (K_La) in BCR with solid media addition was enhanced up to 31%–56% compared to a non-addition case, while this enhancement was greater at higher solid loading due to its higher effective surface, resulting in a higher bubble break-up rate compared to the lower loading. In ALR, up to 38.5% enhanced K_La coefficient was archived after adding plastic media over the non-addition case. In conclusion, ring and cylinder media were found to be the most significant for improving K_La value in BCR and ALR, respectively, without extra energy.

1. Introduction

A bubble column reactor (BCR) is a multi-phase contactor device for transferring the gas in bubble form to contact with liquid. An airlift reactor (ALR), a type of BCR, is widely used in chemical and biochemical process industries. It is commonly designed as an internal-loop ALR (ILALR) and an external-loop ALR (ELALR). An ILALR generally presents as concentric tubes or split vessels which consist of riser and downcomer compartments. ILALR’s advantages include simple operation, fewer maintenance requirements, simple construction, the absence of moving parts, and a high mass transfer rate [1]. In ILALR without a gas–liquid separator, different bubble hydrodynamic regimes can be observed through the bubble circulation between the riser and downcomer. Based on the study of We et al. [2], the flow regime is mainly based on the liquid velocity in the downcomer, which is divided into three classes. At low superficial gas velocity, the flow is in a bubble-free regime, which occurs when no bubble exists in the downcomer zone. By increasing the higher superficial gas velocity, the gas flow enters the transition regime, which bubbles partially and entrains into the downcomer zone. With continuous increasing superficial gas velocity, the flow enters the complete bubble circulation regime, in which the liquid circulation velocity becomes higher than the gas bubbles velocity in the downcomer. For the last case, the bubble was recirculated from downcomer to riser through the space below the split vessels.

BCR and ALR are multi-phase absorption reactors in which a gas phase is dispersed in the form of small bubbles into a liquid phase. These gas–liquid reactors have been extensively used in emission control process due to their simple construction, ease of operation, flexibility, and relatively high mass transfer efficiency. BCR and ALR performance is mainly affected by both gas and liquid dynamics, e.g., superficial gas velocity, operating pressure, air sparger design, gas hold-up, bubble diameter, liquid circulation, mixing level, adding suspended-solid phase, etc. Many researchers have investigated the extension of the bubble retention time for mass transfer period in the system with the modification of internals or additional structures. Bun et al. [3,4,5] enhanced the oxygen mass transfer coefficient (K_La) up to 97% compared to the regular reactor by adding slanted baffles in the riser compartment to increase the bubble retention time. Luo et al. [6] improved gas holdup and K_La coefficient by providing sieve plates in the riser compartment. Nikakhtari and Hill [7] developed ALR by inserting nylon mesh packing in the riser, which resulted in a better K_La coefficient compared to an unpacked one. Lukić et al. [8,9] also worked on ALR development by installing a self-agitated impeller in the riser to improve its performance.

Beside ALR development for improving gas–liquid hydrodynamic characteristics and oxygen mass transfer performance through designing the efficient structures or internal configuration, the addition of a solid phase in gas–liquid reactors has also attracted much attention due to their numerous advantages over conventional reactors, including the excellent contact among the gas–liquid–solid phases which improve mass transfer rates. Recently, different studies have been applied to packed beds and moving solids in their gas–liquid reactor [10,11,12]. However, in-depth investigation of the relationship between particle characteristics and gas–liquid hydrodynamics or/and oxygen mass transfer performance is still required in order to understand the internal mechanism in the reactors as well as to extend the potential application of gas–liquid–solid contactors.

Hence, the objective of this study is to analyze the bubble hydrodynamic characteristics and mass transfer parameters after adding different physical properties of solid media in regular BCR and ALR. Four different polypropylene particles of solid media including ring, sphere, cylinder, and square were selected for investigating their relative effect on bubble hydrodynamics and oxygen transfer performance. These two main aspects include the parameters: bubble diameter (D_B), bubble rising velocity (U_B), bubble interfacial area (a), overall volumetric mass transfer coefficient (K_La), liquid-side mass transfer coefficient (K_L), and power consumption.

2. Materials and Methods

2.1. Experimental Set-Up

Two types of reactor, including regular BCR and ALR, which were constructed by clear acrylic as a cylindrical column, were used in this study. The bubble and airlift reactor are the same columns, with a 0.15 m inner diameter and a 1 m height, as shown in Figure 1, with a porous gas sparger at the column bottom for introducing air bubbles. The air was compressed by the air pump (Atman HP-12000) and controlled by an air valve and rotameter (DWYER^®). A pressure gauge was also connected to determine the power consumption of the air pump. There was a free riser zone for the bubble column experimental test, while the additional acrylic plate was installed at a 3.18 downcomer-to-riser ratio (A_d/A_r) to make the riser and downcomer compartments as a function of ALR. Additionally, a dissolved oxygen (DO) meter model HORIBA OM-51 was placed inside the column at the middle height for measuring the concentration of oxygen. A Basler high-speed camera was also set up around the middle height of the column to capture the bubble size distribution and rising velocity in both riser and downcomer compartments.

2.2. Solid Particle Media

Various types of solid particles were added into the column test to investigate their relative effects on bubble hydrodynamic characteristics and mass transfer performance. Polypropylene media was selected for this experimental work due to their slightly lower density than water, approximately 946 kg/m³, and uniform size, which may influence bubble distribution performance, floating and no accumulation in the bottle [13]. Four different polypropylene particles, i.e., ring, sphere, cylinder, and square sharps, were used for a comparative analysis in this study, as shown in

Table 1. Physical properties and characteristics of solid media used in this study.

Parameters	Ring	Sphere	Cylinder	Square
Diameter (mm)	5.00	4.50	3.50	2.50
Surface area (mm2)	156.69	43.05	40.07	38.43
Volume (mm3)	49.48	26.56	29.35	17.69
Density (g/mm3)	9.50 × 10−4	9.41 × 10−4	10.22 × 10−4	9.61 × 10−4
Illustrated shape

. The solid loading concentration was ranged between 0% and 15% (v/v). Their physical properties are detailed in Table 1, including equivalent diameter, surface area, volume, and porosity.

2.3. Bubble Hydrodynamics Analysis

2.3.1. Bubble Diameter (d_B) and Rising Velocity (U_B)

The bubble hydrodynamics were measured in both the BCR and ALR in terms of bubble diameter and rising velocity, using a photographic technique. The bubbles were originally captured by a high-speed Basler AG camera, model acA2000-340 km, with frame rate of 100 fps and 2 MP resolution. The observed bubbles had mainly ellipsoidal shapes characterized by the major axis, E, which represents the largest distance between two points on a bubble, and the minor axis, e, which represents the smallest length of the bubble [4]. Both axes were measured by ImageJ^® software and the bubble diameter as the ellipsoid was calculated as following:

$${\mathrm{d}}_{\mathrm{i}}=\sqrt[3]{E^{2}e},$$

(1)

The bubble hydrodynamic parameters of each experiment were randomly measured from 100–150 bubble samples. The bubble diameter (d_B) was determined as the mean value:

$${\mathrm{d}}_{\mathrm{B}}{=\mathrm{d}}_{\mathrm{Mean}}=\frac{{{\displaystyle \sum }}_{\mathrm{i}=1}^{\mathrm{n}}{\mathrm{d}}_{\mathrm{i}}}{\mathrm{n}},$$

(2)

where d is the diameter of each bubble and n is the amount of bubble samples selected for analysis. The bubble image processing used in this study is similar to the high-speed photography description of Xue et al. (2011) [14].

The bubble rising velocity (U_B) was estimated by the rising motion distance of the bubble and its specific motion duration [4,15]. The placement time can be estimated from different captured frames and its frame rate set, while its distance can be observed with the reference meter, expressed as:

$${\mathrm{U}}_{\mathrm{B}}=\frac{\mathrm{D}}{{\mathrm{t}}_{\mathrm{frame}}},$$

(3)

where D is the bubble spatial displacement between two frames and t_frame is the time between frames. The frame rate of 100 fps was set in this photographic technique.

2.3.2. Interfacial Area (a)

The interfacial area is the ratio between total air bubble surface and total volume including gas and solid phases. By assuming an air bubble presenting in a spherical shape, the interfacial area can be estimated by gas holdup, solid holdup, and bubble diameter [13], as expressed:

$$\mathrm{a}=\frac{6}{{\mathrm{d}}_{\mathrm{B}}}·\frac{{\mathsf{\epsilon }}_{\mathrm{g}}}{{1 - \mathsf{\epsilon }}_{\mathrm{g}}{ - \mathsf{\epsilon }}_{\mathrm{s}}},$$

(4)

where solid holdup (ε_s) can be determined using Equation (5):

$${\mathsf{\epsilon }}_{\mathrm{s} }=\frac{{\mathrm{V}}_{\mathrm{s}}}{{\mathrm{V}}_{\mathrm{g}}{ + \mathrm{V}}_{\mathrm{l}}{ + \mathrm{V}}_{\mathrm{s}}}$$

(5)

2.4. Mass Transfer and Power Consumption Estimation

2.4.1. Overall Volumetric Mass Transfer Coefficient (K_La)

The K_La coefficient is a principal parameter for evaluating the multi-phase reactor performance. The dynamic method was used in this study for defining the K_La value [3,12]. The experiments were conducted with deoxygenation tap water. Sodium sulfite (Na₂SO₃) was initially dissolved in order to remove dissolved oxygen (DO) in water through a chemical reaction. After the air was supplied, the DO level in the system was measured along time in both compartments using DO meters. The increasing DO profile in the function of time was therefore used for calculating K_La coefficient, expressed as:

$$\frac{\mathrm{dC}}{\mathrm{dt}}{=\mathrm{K}}_{\mathrm{L}}\mathrm{a}{.(\mathrm{C}}^{\ast }{ - \mathrm{C}}_{\mathrm{t}}),$$

(6)

where C^* and C_t are saturated DO concentration and DO concentration at time t, respectively. Assuming liquid ideal-mixing, K_La values can be determined from the slopes of ln (C^* − C_t) as a function of time. Noted that the value of C* can be estimated according to experimental temperature and pressure [16].

2.4.2. Liquid-side Mass Transfer Coefficient (K_L)

Theoretically, the volumetric mass transfer coefficient (K_La) is combined between the liquid side mass transfer coefficient (K_L) and the bubble interfacial area (a). Therefore, the K_L coefficient can be simply calculated by Equation (7):

$${\mathrm{K}}_{\mathrm{L}}=\frac{{\mathrm{K}}_{\mathrm{L}}\mathrm{a}}{\mathrm{a}}$$

(7)

2.4.3. Volumetric Power Consumption

The power consumption was determined in terms of the volumetric power consumption (P/V). It can be estimated in terms of volumetric gas flow rate (Qg) and total gas pressure drop (ΔP), as shown in Equation (8) [17]:

$${\mathrm{P}/\mathrm{V}=\mathrm{Q}}_{\mathrm{g}} · \Delta \mathrm{P}/\mathrm{V}$$

(8)

3. Results and Discussion

The results of this assessment study were mainly divided into two parts, i.e., the effect of additional solid media on bubble hydrodynamic characteristics and mass transfer performance. The investigated bubble hydrodynamic parameters include bubble diameter, bubble rising velocity, gas circulation rate, and bubble interbacterial area, while the K_La coefficient, K_L coefficient, and power consumption were estimated as mass transfer parameters. It can be noted that this study investigated both regular BCR and ALR for comparative analysis.

3.1. Bubble Size (d_B)

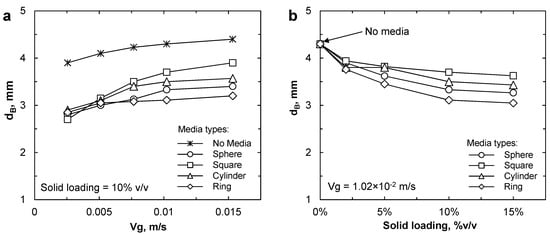

Figure 2 presents the mean bubble diameter of all investigated solid media with the variation of superficial gas velocity (Vg) and solid loading in BCR. Larger bubbles can be observed at higher Vg, regardless of additional media types (see Figure 2a). This is due to the bubble coalesce promotion at higher air-flow. The bubble distribution in the reactor with media was smaller than that without media, approximately 22%–27% on average. Wongwailikhit et al. (2018) [13] highlighted the three major influences of solid media addition on bubble hydrodynamics, i.e., increased bubbles breaking, increased bubbles coalescence, and decreased rising velocity. For this case, additional media was more likely enhancing the breaking rate than coalescence rate, which resulted in smaller bubbles with media. However, different relative effects were observed for various media types due to their effective properties. At lower gas flow (≤5.1 × 10⁻³ m/s), no significant effect of the different additional media types on the bubble size was observed. The bubble diameter increased from 2.81 mm ± 0.11 mm to 3.08 mm ± 0.08 mm at Vg from 2.6 × 10⁻³ to 5.1 × 10⁻³ m/s, respectively. However, different effective performances were remarkable at higher gas flow (>5.1 × 10⁻³ m/s). Ring solid media resulted in the smallest bubbles, followed in order by sphere, cylinder, and square media, regardless of superficial gas velocity (Vg > 5.1 × 10⁻³ m/s). These differences were possibly due to the different bubble break-up rates [13] and abilities for maintaining bubble size at higher gas flow [4] for each media. For instance, ring shape solid has both a higher bubble break-up rate due to its stronger force at the edges compared to edgeless solids and its ability to capture the bubbles inside avoiding bubble coalesce at higher gas flow [18]. However, this explanation cannot govern all solid cases studied since the sphere solid resulted smaller d_B compared to cylinder media. It is possibly due to the effect of particle size and effective surface (see Table 1). Hence, in this BCR, the particle size and surface effect may be stronger than the solid shape (edges) effect. Larger and higher surface solids could provide the better decouple performance compared to the smaller ones and result in minimizing the bubble coalescence in the reactor. As shown in the finding of Sarhan et al. (2018) [19], the slight decrease in coalescence efficiency with increasing particles size led to a decrease in bubble size.

Different solid loadings were also investigated in terms of bubble diameter (d_B) for each solid media in Figure 2b. A similar value of bubble diameter, 3.85 mm ± 0.09 mm, was initially observed at 2% solid loading for every solid media class. However, different trends were observed at higher solid loading (≥5% v/v). Smaller bubbles can be obtained after increasing the solid loading percentage due to the enlargement of the bubble breaking rate through the higher amount of solid media in the gas–liquid–solid contactor. The ring solid still resulted in the smallest bubble diameter among the investigated media, followed in order by sphere, cylinder, and square solid media. For comparison, the bubble size with ring solid addition was smaller than that with sphere, cylinder, and square solids by about 6%, 12%, and 16% on average, respectively. Moreover, increasing 5% to ≥5% solid loading could decrease approximately 10% d_B for ring, sphere, and cylinder solid media, while decrease only 4% d_B for square solid media. In summary, smaller bubbles can be obtained with additional solid media compared to non-addition, and bubble diameter decreased with the increase of solid loading for all investigated solid media. In terms of solid media comparison, the ring provided a higher bubble breaking rate among all employed solids, followed on order by sphere, cylinder, and square solids.

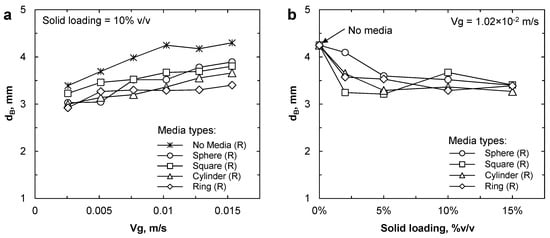

Figure 3 presents the mean bubble diameter of all investigated solid media with the variation of superficial gas velocity (Vg) and solid loading in riser compartment of the ALR. A larger bubble size was obtained at a higher Vg; in particular, no media was added due to the introduction of bubble coalesce at higher flow (see Figure 3a). The bubble in the ALR with media addition was smaller than that without media addition by around 5%–29% on average, possibly due to the increase of bubbles breaking and the decrease of bubble terminal rising velocity, as mentioned by Wongwailikhit et al. (2018) [13]. However, the tendency of bubble size change was different due to each solid media property. At lower flow (<10.2 × 10⁻³ m/s), the cylinder media seems to be able to maintain a smaller air bubble, followed by the ring shape one. However, the ring media took this role at a higher flow. These differences can be explained through the different bubble break-up rates, e.g., ring and cylinder may have higher ability to capture the bubble and higher bubble break-up rate of the stronger edge force, respectively [4,13,18]. Additionally, different solid loadings of each solid media were also employed, as illustrated in Figure 3b. After adding solid media less than 5%, the square solid media provided the smallest bubble, followed by the ring and cylinder solid media. However, the ring and cylinder ones could maintain smaller air bubbles after increasing solid loading.

The different bubble sizes in the BCR of each solid media addition can be observed, while the trend in ALR showed a similar d_B value. Therefore, other important parameters of bubble hydrodynamic characteristics should be examined. In the following sections, bubble rising velocity and interfacial area parameters were estimated for both reactors after adding each solid media.

3.2. Bubble Rising Velocity (U_B)

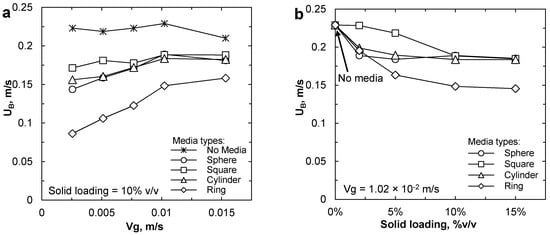

Beside bubble diameter, bubble rising velocity (U_B) is another important parameter for the bubble hydrodynamic characteristics analysis of gas–liquid–solid reactors. Figure 3 showed the changes of U_B in the BCR for different solid media types by varying Vg and solid loading. The U_B increased with increasing Vg, but their increase tendency became weaker at higher Vg [20]. A lower U_B with different portions was noted from solid media addition compared to non-addition (see Figure 4a). However, gas velocity almost has no influence on U_B when Vg exceeded 1.02 × 10⁻² m/s, showing that the bubble rising velocity will be constant after increase until certain Vg. This result confirmed with finding of Zhang et al. (2005) [21], which reported that the solid particles increased the flow resistance of the system and resulted in a decrease in the liquid velocity. Further, the presence at a high concentration of solid media involves the moving bed capture or obstructs and blocks the bubbles from free rising. This effect especially relates with the ring particles, which had the highest surface area, leading to the highest drag force [10]. Additionally, the low U_B directly related to the small bubble. The ring solid showed the lowest velocity, 8.64–15.82 cm/s, compared to the other three solid media types and the non-addition case for Vg between 2.6 × 10⁻³ and 15.3 × 10⁻³ m/s. However, the U_B of sphere, cylinder, and square solids presented similar values between 14.37 and 18.84 cm/s.

U_B was also employed in terms of solid loading in Figure 4b at 0.51 × 10⁻³ and 1.53 × 10⁻³ m/s gas velocity. The U_B decreased with increasing solid loading with different tendencies based on each solid media property. The ring solid resulted in the lowest rising velocity, followed by cylinder and sphere solids, while the square one caused the highest velocity. The square solid presented in three patterns at ≤2%, 2%–10%, and ≥10% solid loadings. It seems that adding too little (≤2%) and too much (≥10%) square solid loading did not influence U_B, but by changing solid loading from 2% to 10%, the U_B decreased from 22.84 cm/s to 18.84 cm/s, respectively. A similar trend in U_B can be observed from adding cylinder and sphere solids. By increasing from 0% to 2% the cylinder and sphere solid loading, the U_B quickly decreased from 22.9 cm/s to 19.88 cm/s (cylinder solid) and to 18.9 cm/s (sphere solid). However, a slight decrease of U_B can be observed at higher loading (>2%). For the ring solid media, the U_B decreased with increasing solid loading, but its decrease tendency became weaker at higher solid loading, i.e., its decrease followed the second-order equation, U_B ≈ 6.28x² + 1.46x + 0.23, where x is solid loading (%v/v) and U_B presents in m/s.

Figure 5 presents U_B in the riser compartment of ALR for different types of solid media added with the variation of Vg and solid loading. The pattern of U_B value increased between 7.19 and 18.42 cm/s with the increase of Vg, regardless of solid media types. The change of U_B value can be overall observed as two patterns between 1.02 × 10⁻² m/s gas velocity. At Vg < 1.02 × 10⁻² m/s, adding ring and cylinder solids could slower the bubble rising velocity while adding square and sphere solids resulted in faster-rising velocity compare to the non-addition one (see Figure 5a). At higher gas flow (>1.02 × 10⁻² m/s), the pattern of square and no media addition were comparable, which are higher than the ring, cylinder, and sphere solid additions. From these results, it can be seen that between the BCR and the ALR, the U_B values in the ALR are significantly lower than that in the BCR. This might be due to the effect of the liquid recirculation flow pattern in the ALR resulting in bubble break-up mechanism, as can be seen in the d_B value in the BCR and the ALR. Smaller bubbles tended to have lower rising velocity [22]. Moreover, every solid media added resulted in a positive performance in BCR through decreasing bubble rising velocity, mean increasing bubble retention time in a liquid system, especially the ring solid media due to its capability to capture the gas bubble inside. However, only ring and cylinder media could provide a lower bubble rising velocity in ALR compared to non-addition case.

For the analysis of the solid loading effect on U_B in ALR, it can be considered that the gas velocity at 1.02 × 10⁻² m/s might be more complicated and unbeneficial to the analysis as it is the point of result pattern change. Therefore, the influence of solid loading in ALR was analyzed at 0.5 × 10⁻² and 1.5 × 10⁻² m/s superficial gas velocity, as illustrated in Figure 5b. For both Vg conditions, U_B was firstly increased after adding 2% solid loading before dropping back at higher solid loading (>2%). For low Vg (0.5 × 10⁻² m/s), only cylinder and ring solid media at 10%–15% could significantly decrease U_B compared to non-addition case. For higher Vg (1.5 × 10⁻² m/s), adding 5% cylinder media or more could provide a lower U_B value, while ring and sphere media were at 10% or more compared to the non-addition one. However, adding square media until reaching 15% was required to achieve its advantage on U_B.

In summary, adding solid media significantly decreased the bubble rising velocity in both reactors, and the slowest one can be obtained with the ring and cylinder types. In BCR, increasing solid loading could decrease rising velocity; however, its tendency turned to be weaker at higher solid loading, depending on the type of solid media, e.g., the observable point of significant decrease of square solid is between 2% and 10% while cylinder and sphere solids are at 2%, and the ring solid is less than 10%. In ALR, only ring and cylinder media with 10%–20% solid loading are able to decrease the bubble rising velocity, while another media, sphere type, can also be at higher Vg (>1.02 × 10⁻³ m/s) and higher solid loading (15%). These findings can be used as the design criteria for the efficient gas–liquid–solid system with optimum bubble ring velocity as well as mass transfer performance.

3.3. Bubble Interfacial Area (a)

The low terminal rising velocity with solid media addition was directly associated with the smaller air bubble caused by the bubble break-up mechanism and the bubble captured with additional media. The condition with solid media possibly increased the bubble interfacial area (a) [23]. Therefore, this part aimed to determine bubble interfacial area in both reactors for selected solid media. Based on the results from previous parts, three solid media, i.e., ring, cylinder, and sphere types, at 5%–15% were selected for this analysis as these conditions tended to have a potentially positive effect on bubble hydrodynamics and possible on mass transfer performance as well.

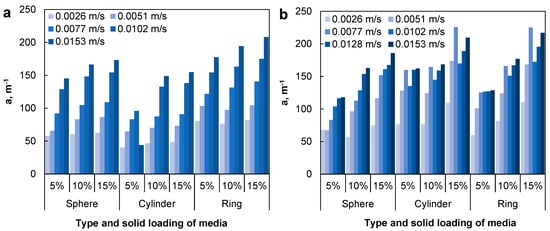

Figure 6 showed the result of the bubble interfacial area (a) in both reactors for different operation conditions. It can be seen that the ring solid media added into the BCR resulted in highest interfacial area, regardless of superficial gas velocity, type of solid media, and percentage of solid loading. The highest performance of ring solid media can be explained due to its highest projected surface area resulted in highest drag force [13]. Besides the ring shape, the sphere solid media is another type that provided a high interfacial area, followed by the cylinder (Figure 6a). For the ALR, the cylinder media exhibited the highest value at 5% loading, followed by ring and sphere types. However, the cylinder and ring solid media presented similar value at higher solid loading, 10%–15%. It also can be noted that at the highest solid loading (15%) of the cylinder and ring media, the value of interfacial area reached the maximum at 0.77 × 10⁻² m/s gas velocity (see Figure 6b). At high solids loading, higher gas flow (>0.77 × 10⁻² m/s) produced coarser bubbles and caused the bubble hydrodynamic characteristics to decay. This reverse effect was also found by Wongwailikhit et al. [13], adding too much solid loading resulted in the reverse effect for various types of solid media. Therefore, Vg ≈ 0.77 × 10⁻² m/s can be suggested as the optimum condition if 15% of cylinder or ring media were used.

3.4. Overall Mass Transfer Coefficient (K_La)

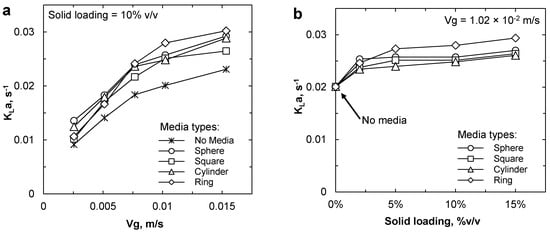

Adding solid media into gas–liquid contactors resulted in the improvement of bubble hydrodynamics and possibly enhancing the oxygen transfer performance as well. Hence, the analysis of oxygen transfer parameters is necessary for projecting reactor performance as well as confirming the relationship between bubble hydrodynamics and mass transfer performance [24]. The K_La coefficient in BCR is shown in Figure 7. The K_La value increased speedily, corresponding to Vg, regardless of solid media types addition (see Figure 7a). Superficial gas velocity is the most significant parameter and a better K_La coefficient can be acquired after increasing Vg, as previously found [25,26]. Adding solid media enhanced the K_La coefficient up to 31%–56% compared to non-addition cases. This improvement is greater at higher solid loading, especially the ring shape media. It can be seen in Figure 7b that the possible effect of increasing solid loading on the K_La value was observed as increasing solid loading, which caused higher effective surface and may also increase the bubble break-up rate compared to the lower loading. At 15% solid loading, ring media could rise in K_La value from 0.0201 s⁻¹ of the non-addition condition to 0.0294 s⁻¹, followed in order by the sphere (0.0270 s⁻¹), square (0.0264 s⁻¹) and cylinder (~0.0261 s⁻¹). In brief, adding ring solid media significantly enhanced the K_La value in BCR.

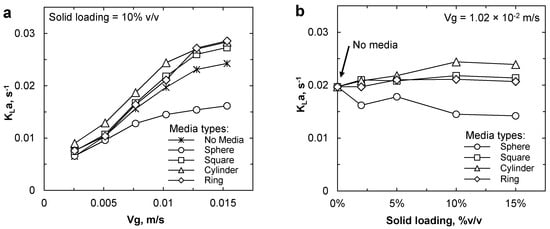

For ALR, the result of the K_La coefficient from the riser compartment is illustrated in Figure 8. The performance of solid media presented in ALR can be classified into three patterns compared to the non-addition condition, i.e., cylinder, ring and square, and sphere types. Cylinder media showed the maximum value (0.009–0.0284 s⁻¹) among the investigated media for the studied gas flow, and followed the power-trendline equation, K_La_(cylinder) ≈ 0.525 × Vg^0.686 (R² ≈ 0.98). Secondly, ring and square solid media showed in similar trend with Vg, ranging between 0.0075 and 0.0286 s⁻¹, and followed the power-trendline equation, K_La_{(ring/square)} ≈ 0.763 × Vg^0.785 (R² ≈ 0.98). The last patterns and only the solid media provided a negative effect to lower the K_La value compared to the non-addition case, and the sphere media showed a slight increase from 0.0066 to 0.0162 s⁻¹, which is about 20% on average less than without the media added. Hence, sphere solid media was not suggested to apply in ALR toward mass transfer enhancement, only the cylinder, ring, and square are possible. This poor performance of the sphere particle is possibly due to the its low density and high affinity to interface of the bubble among the investigated solid particles. Lower density has a higher terminal velocity [13] and results in higher U_B value (see Figure 5); consequently, lower K_La value will be obtained. This similar finding was also described by Ferreira et al. (2010) [27]: a significant decrease in mass transfer can be observed from the use of solid particles with low density and high affinity to the bubble interface. However, this mechanism may not significantly be observed in BCR. It might be related to the liquid velocity after maintaining a constant Vg and cross-sectional area of ALR divided into two compartments. Higher liquid velocity in the ALR will significantly lead to faster terminal velocity of the sphere solid as well as U_B, compared to the one in the BCR.

Moreover, their effect on K_La coefficient was also specified at different solid loadings for every solid media. Three trends of the result were also remarkable. Firstly, the K_La value increased with the higher amount of cylinder solid media. However, its tendency became constant at higher solid loading (>10%). Secondly, increasing solid loading only did not significant effect the K_La values of the ring and square media addition, approximately 0.0209 ± 0.0012 s⁻¹. Lastly, the sphere media decreased after increasing the amount of solid loading. Based on these results, it can be summarized that cylinder, ring, and square media can be selected for improving oxygen mass transfer in ALR with the gas flow around 1.28 × 10⁻² m/s. However, the optimum solid loading for cylinder and ring/square are 10% and 5%, respectively.

In conclusion, adding solid media in a multi-phase reactor enhanced the oxygen mass transfer coefficient (K_La) performance compared to the non-addition case with different tendencies, based on the characteristics of each type. Ring solid media were defined as the most significant media for improving the K_La value in BCR among the four examined types, while the other three presented a similar trend. Moreover, higher solid loading resulted in better oxygen transfer behaviors. Additionally, the cylinder solid media was found as the most effective media for enhancing the K_La coefficient in ALR, while the ring and square media presented a similar performance. A 10% cylinder and 5% ring or square should be applied for optimizing the system operation. These defined conditions are the design criteria for applying these solid media in BCR and ALR to obtain better oxygen transfer performance without extra energy.

3.5. Liquid-Side Mass Transfer Coefficient (K_L)

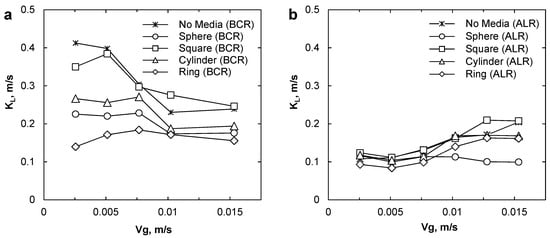

The liquid-side mass transfer coefficient (K_L) was also estimated in this study for additive information. It was calculated using Equation (7), which was mainly based on the result of mass transfer, K_La coefficient, and bubble hydrodynamics, specific interfacial area. Figure 9 showed the values of the estimated K_L coefficient for different types of solid media in both reactors. Based on Figure 9a of BCR, the K_L value decreased with the increase of Vg, except for ring solid media. As mentioned, it was calculated from the experimental result that the lowest K_L of the ring media is caused by its highest value in the interfacial area parameter among other media classes (see Figure 6a). The tendency of other media types, e.g., sphere and cylinder media, was also significantly related to their bubble interfacial area values. The value of K_L in ALR is much lower than that of BCR due to the significant difference in bubble hydrodynamic parameter, mainly presented by interfacial area value (see Figure 6b). At lower gas flow (≤0.77 × 10⁻² m/s), ring media showed the lowest K_L value, while sphere media was at higher flow due to the tendencies of K_La and interfacial area values.

3.6. Power Consumption

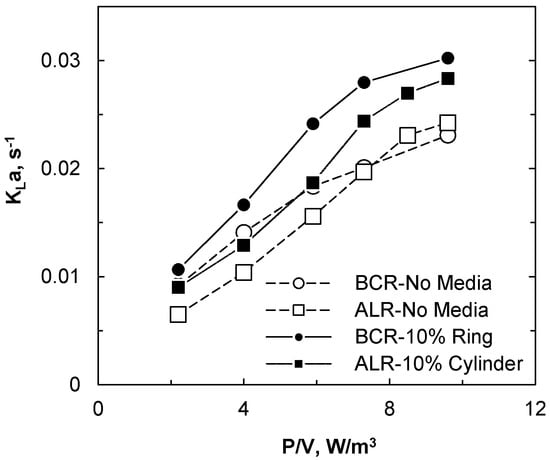

Variations of specific power consumption with 10% solid particle concentration at 1.02 × 10⁻² m/s gas flow are shown in Figure 10. A higher P/V value resulted in better K_La coefficient performance, as expected. The K_La value ranged between 0.0065 and 0.0302 s⁻¹ and was achieved by providing P/V from 2.2 to 9.6 W/m³. At the same power input, adding 10% ring media class into BCR enhanced the K_La coefficient performance about 16.4%–39.2% compared to the no media addition condition, while 16.9%–38.5% was improved by adding 10% cylinder media into ALR.

This K_La value improvement is comparable with various existing research, including the study of Bun et al. [3] which enhanced the K_La value in ALR from 6 to 28% by inserting slanted baffle in riser compartment. Tsuyoshi Imai and Hua Zhu [28] were also able to enhance the K_La coefficient by about 6%–14% by providing the liquid-film-forming apparatus (LFFA). Plus, Zhiyong Zheng et al. [25] improved K_La value by installing helical sieve plate, while Nataša Lj. Lukić [9] added self-agitated impellers for better K_La performance.

4. Conclusions

This study aimed to investigate the relative effect of various types of plastic solid media on the bubble hydrodynamic characteristics for improving oxygen mass transfer performance in both BCR and ALR. Four different types of solid polypropylene particle media, i.e., ring, sphere, cylinder, and square, were selected for this assessment. Bubble size (D_B), bubble rising (U_B), and specific interfacial area (a) were analyzed in different superficial gas velocities to understand the internal mechanism of bubble hydrodynamics after adding solid media before estimating the oxygen mass transfer performance. The experimental result can be summarized as the following:

▪

A larger D_B was observed at higher Vg, regardless of additional media types, due to the promotion of bubble coalesce at higher airflow. Smaller bubbles, about 22%–27% and 5%–29% on average, were obtained after adding solid media in BCR and ALR, respectively, compared to the case without media addition due to the higher breaking rate over coalescence rate. Ring and cylinder media have a significant effect, resulting in smaller air bubbles, among the four media types investigated.

▪

Providing plastic media resulted in a slower bubble rising velocity in both reactors due to the decrease of liquid velocity caused by the increase of flow resistance and the ability of bubble capturing from free rising after adding solid media. The slowest bubble rising velocity was also observed from ring and cylinder additions. Consequently, the ring media added into BCR provided the highest bubble interfacial area, regardless of Vg, media types, and solid loading percentage. In ALR, cylinder media showed the maximum interfacial area at 5% loading, while cylinder and ring media became the most significant ones at 10%–15% solid loading.

▪

Up to 56% and 39% K_La coefficient improvements were achieved after supplying solid media into BCR and ALR, respectively, compared to the non-addition case. The ring and cylinder solid media were defined as the most significant media for improving K_La value in BCR and ALR, respectively, among the media examined without extra energy. At certain power input, adding 10% ring media in BCR, improved K_La value up to 39% compared to no media addition, while up to 39% was improved after adding 10% cylinder media in ALR.

In conclusion, adding solid media into multi-phase reactors can improve the bubble hydrodynamic characteristics compared to the free media reactors through the capacity to reduce and/or maintain the bubble size distribution in the system as well as increase the bubble retention time in the reactors by decreasing bubble rising velocity. Smaller bubbles and a higher bubble retention time after adding solid media enlarged the specific bubble interfacial area, especially for the ring and cylinder media classes. This bubble hydrodynamic improvement resulted in the enhancement of the oxygen mass transfer coefficient (K_La) in both BCR and ALR without any additional power input. This finding is necessary for the systems requiring high oxygen transfer performance in chemical or biological processes.
