Thermal Efficiency, Heat Transfer, and Friction Factor Analyses of MWCNT + Fe₃O₄/Water Hybrid Nanofluids in a Solar Flat Plate Collector under Thermosyphon Condition

Abstract

The heat transfer, friction factor, and collector efficiency are estimated experimentally for multi-walled carbon nanotubes+Fe₃O₄ hybrid nanofluid flows in a solar flat plate collector under thermosyphon circulation. The combined technique of in-situ growth and chemical coprecipitation was utilized to synthesize the multi-walled carbon nanotubes+Fe₃O₄ hybrid nanoparticles. The experiments were carried out at volume flow rates from 0.1 to 0.75 L/min and various concentrations from 0.05% to 0.3%. The viscosity and thermal conductivity of the hybrid nanofluids were experimentally measured at different temperatures and concentrations. Due to the improved thermophysical properties of the hybrid nanofluids, the collector achieved better thermal efficiency. Results show that the maximum thermal conductivity and viscosity enhancements are 28.46% and 50.4% at 0.3% volume concentration and 60 °C compared to water data. The Nusselt number, heat transfer coefficient, and friction factor are augmented by 18.68%, 39.22%, and 18.91% at 0.3% volume concentration and 60 °C over water data at the maximum solar radiation. The collector thermal efficiency improved by 28.09% at 0.3 vol. % at 13:00 h daytime and a Reynolds number of 1413 over water data. Empirical correlations were developed for friction factor and Nusselt number.

1. Introduction

Energy demand is high all over the world and fossil fuel scarcity is one of the major problems. To meet the energy demand and replacement for fossil fuels, the best source of energy is alternative energy. Sun energy is the best renewable energy, which is available all the days in the year and it is obtainable plenty on the surface of the earth. The best example of solar thermal energy conversion technology is the solar flat plate collector (FPC) which is used for bathing purposes and used in various industrial processes. The convectional fluids are the working fluids in flat plate collectors, because of that, its efficiency is low. To improve the thermal efficiency of the collector, the convectional fluids are replaced with better thermal conductivity nanofluids [1,2].

Some of the literature related to the use of nanofluids in FPCs are mentioned below. Modi et al. [3] enhanced the performance of solar still by 19.40%, 28.53%, and 26.59% utilizing Al₂O₃ nanoparticles at water depths of 30, 20, and 10 mm. Moreover, the performance improved by 58.25% and 56.31% utilizing CuO nanoparticles at 20 and 10 mm water depth. Hawwash et al. [4] observed enhancement in the collector thermal efficiency by 16.67% utilizing Al₂O₃/water nanofluids flow in a FPC. Kiliç et al. [5] have noticed 48.67% enhancement of collector efficiency with 2 wt. % of TiO₂/water nanofluid. Sundar et al. [6] obtained collector thermal efficiency of 76% with 0.3 vol. % of Al₂O₃/water nanofluid at a mass flow rate of 0.083 kg/s.

Sharafeldin and Gróf [7] have observed collector efficiency of 10.74% at [(T_i–T_a)/G_T] value reached to zero at 0.066 vol. % of CeO₂/water in the collector at 0.019 kg s⁻¹ m⁻² mass flux rate. Jouybari et al. [8] obtained a collector efficiency of 73% utilizing 0.6 vol. % of SiO₂/water nanofluid in a FPC at 1.5 L min⁻¹ volume flow rate. Ziyadanogullari et al. [9] conducted thermal efficiency experiments for TiO₂/water, CuO/water, and Al₂O₃/water nanofluids flow in a FPC at 0.2%, 0.4%, and 0.8% particle concentrations. They obtained improvement in the collector efficiency compared to the base fluid. Rajput et al. [10] have found efficiency of 21.32% at 0.3 vol. % of Al₂O₃/water flows in a FPC at 1.3 L min⁻¹ volume flow rate.

Stalin et al. [11] attained thermal efficiency and exergy efficiency augmentation of 28.07% and 5.8% using 0.05% concentration of CeO₂/water nanofluid flows in a FPC at 3 L min⁻¹ volume flow rate over water data. Choudhary et al. [12] obtained 69.24% collector efficiency utilizing 50:50% water mixture based ZnO nanofluid and ethylene glycol flow in a FPC at 1% concentration and 60 L h⁻¹ volume flow rate.

Tong et al. [13] obtained exergy efficiency improvement of 49.6% and 56.9% using 0.5% concentration of CuO nanofluids and 1.0% of Al₂O₃ nanofluid in a FPC. Choudhary et al. [14] obtained 69.1% collector efficiency using 50:50% water and ethylene glycol mixture based MgO nanofluid in a FPC at 1% concentration. Anin Vincely and Natarajan [15] conducted an experimental investigation with water based graphene oxide nanofluids in a FPC and attained augmented collector efficiency. Ajiwiguna et al. [16] obtained collector thermal efficiency of 54.6% using TiO₂/water nanofluids flow in a FPC. Verma et al. [17] conducted exergy, energy efficiency, and entropy generation experiments utilizing many nanofluids flow in a FPC. The results showed energy efficiency enhancement of 4.1%, 5.1%, 8.3%, 12.6%, 16.9%, and 23.5%, using SiO₂/water, TiO₂/water Al₂O₃/water CuO/water, graphene/water, and multi-walled carbon nanotubes (MWCNTs)/water nanofluids at 0.75% particle loading.

The use of hybrid nanofluids in various thermal energy systems is a recently advanced topic and growing area. The hybrid nanofluids are prepared with hybrid nanoparticles dispersed in conventional fluids. Osho et al. [18] prepared Al₂O₃-ZnO/water hybrid nanofluid and investigated specific heat and viscosity experimentally. The results showed a specific heat decline of 30.1% and viscosity augmentation of 96.4% over the base fluid data. Sundar et al. [19] investigated heat transfer and friction factor for MWCNT-Fe₃O₄/water hybrid nanofluid circulates in a tube. Giwa et al. [20] experimentally studied heat transfer using 60:40 weight percentages of Al₂O₃:MWCNT/water hybrid nanofluid circulate in a square cavity. The results showed Nusselt number improvement of 16.2%, over the base fluid.

The use of hybrid nanofluids in solar flat plate collectors and direct absorption collectors are given below. Li et al. [21] examined the optical, stability, and thermal performance of SiC-MWCNT/ethylene glycol nanofluid circulate in a solar collector. The maximum thermal efficiency was 97.3% using 1 wt% SiC-MWCNT nanofluid. It was 48.6% greater than that of pure ethylene glycol data. Farajzadeh et al. [22] studied experimentally the efficiency of a FPC using Al₂O₃-TiO₂, TiO₂, and Al₂O₃ nanofluids. They obtained collector efficiency improvements of 26%, 21%, and 19% nanofluids at 0.1% weight percentage. Verma et al. [23] examined the performance of a FPC using MgO-MWCNT/water and CuO-MWCNT/water hybrid nanofluids. The results showed 71.54% exergetic efficiency and 70.55% energetic efficiency using MgO-MWCNT/water nanofluid. Okonkwo et al. [24] have noticed collector thermal efficiency improvement of 2.16% at 0.1 vol. % of alumina-water while and it is 1.79% at 0.1 vol. % of alumina-iron/water hybrid nanofluids over water data.

Very few research works are available dealing with the FPC thermal efficiency working with hybrid nanofluids. The studied hybrid nanofluids were alumina-iron, MgO-MWCNT/water, Al₂O₃-TiO₂, and CuO-MWCNT/water nanofluids. The experiments were carried out under forced flow conditions in the FPC.

As far as we know, the hybrid nanofluids flow in the solar FPC under natural circulation (thermosyphon phenomenon) and its performance investigation did not present in the literature. Particularly the MWCNT + Fe₃O₄/water hybrid nanofluids flow in a FPC and their performance is not presented. The hybrid nanoparticles are considered because of their high magnetic property (Fe₃O₄) and thermal conductivity (MWCNT) and the final MWCNT + Fe₃O₄ hybrid nanoparticles have magnetic properties.

Accordingly, this study emphases on the experimental estimation of friction factor, heat transfer, and thermal efficiency of MWCNT + Fe₃O₄ hybrid nanofluids flow in a solar FPC at thermosyphon circulation of nanofluid. The MWCNT + Fe₃O₄ hybrid nanoparticles were synthesized utilizing the in-situ/chemical co-precipitation method. The hybrid nanofluids water-based with 0.05%, 0.1%, 0.2%, and 0.3% volume concentrations were prepared and utilized in the experiments. The experiments were performed during the daytime, from 09:00 a.m. to 4:00 p.m. The friction factor and Nusselt number correlations were suggested based on the experimental results.

2. Experimental Study

2.1. Materials

The multi-walled carbon nanotubes (MWCNTs) were procured from Nanocyl, Belgium, with a purity of ~95%, a length of 0.5–500 μm, and an outer diameter of 10–30 nm. The chemicals, such as ferric chloride (FeCl₃6H₂O), nitric acid (HNO₃), hydrochloric acid (HCL), ferrous chloride (FeCl₂4H₂O), and sodium hydroxide (NaOH) were purchased and without purification from Sigma-Aldrich Chemicals, Burlington, USA.

2.2. Acid Treatment on MWCNT

The proposed procedure by Sundar et al. [19] is followed to synthesize the bulk quantity of MWCNT + Fe₃O₄ nanoparticles. Preparing hybrid nanoparticles with as purchased MWCNT is a little bit difficult because the attachment covenant bond or carboxyl (–COOH) bond is required. The purchased MWCNT does not contain –COOH bonding on the surface. In order to obtain the –COOH bonding, a strong acid treatment technique is used. The MWCNT was dispersed in strong chemicals of 1:3 M of hydrochloric acid and nitric acid up to 3 days under very speed with a magnetic stirrer at 60 °C. After that, the acid-treated, MWCNT was washed with a distilled water several times then dried at 80 °C for 24 h. This method provides the formation of –COOH bond on the surface of MWCNT, through the –COOH layer, the Fe₃O₄ nanoparticles attached to MWCNT.

2.3. Synthesis of MWCNT + Fe₃O₄ Hybrid Nanoparticles

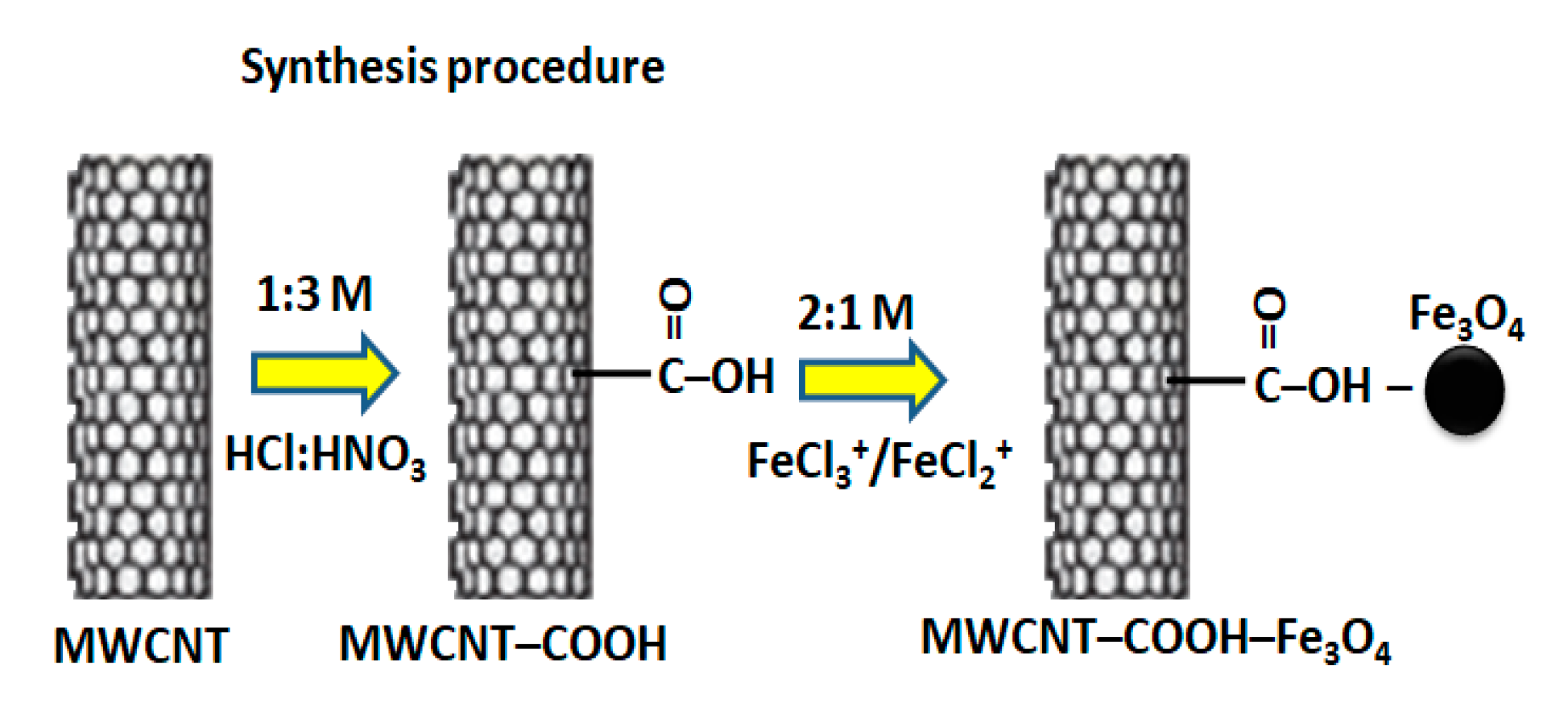

The method of in-situ growth and chemical coprecipitation was adopted for MWCNT + Fe₃O₄ hybrid nanoparticles. The synthesis procedure is indicated in Figure 1. The MWCNT-–COOH of 0.35 g was diluted in 100 mL of water and then stirred for 1 h, later added 2:1 M ratio of FeCl₃+/FeCl₂+ iron salts and stirs continuously. Once the iron salts are fully diluted in MWCNT solution, the solution becomes a light orange color, then add water-diluted NaOH slowly and maintain the solution pH to 12. After 10 min, observe the formation of black colored precipitation, which indicates the reaction is completed. During the chemical reaction for the conversion of iron salts to magnetite (Fe₃O₄), the Fe₃O₄ nanoparticles are attached to the MWCNT through the –COOH layer. This –COOH is very thin and it will no effect the properties and heat transfer characteristics of the fluid, while they dispersed in water. The chloride, sodium, and hydrogen impurities are removed by washing precipitate several times with water. The washed precipitate was dried at 80 °C for 24 h. The pure Fe₃O₄ nanoparticles were also prepared for comparison purpose based on the same procedure, but without adding the MWCNT to the distilled water.

2.4. Characterization of MWCNT + Fe₃O₄ Hybrid Nanoparticles

The prepared MWCNT + Fe₃O₄ hybrid nanoparticles were characterized with x-ray diffractometer, XRD, (Siemens D-500, 40 mA, 45 kV), and scanning electron microscopy, SEM, (Hitachi; SU-70). The magnetic property of MWCNT + Fe₃O₄ hybrid nanoparticles was measured with a vibrating sample magnetometer (VSM, Cryogenic, UK).

The MWCNT + Fe₃O₄ nanocomposite XRD patterns is presented in Figure 2 Sundar et al. [19]. The diffraction peak, 2θ = 34.5° that could be (3 1 1) reflected to magnetite (Fe₃O₄) nanoparticles. Likewise the diffraction peak, 2θ = 26° that could be (0 0 2) reflected to MWCNT. The analysis indicates that the samples contains two phases of MWCNT and cubic Fe₃O₄. The other peaks with comparatively high peak intensity can be classified as face-centered cubic Fe₃O₄. There is no noticeable peaks from other phases. The core peaks of Fe₃O₄ in the XRD pattern are widened, demonstrating that the crystalline sizes of Fe₃O₄ nanoparticles are too small.

The SEM results for synthesized MWCNT + Fe₃O₄ nanocomposite are displayed in Figure 3 Sundar et al. [19]. It can be concluded from the figure that the particles are in cubic shape and the Fe₃O₄ nanoparticles are attached to the MWCNT surface.

The pure Fe₃O₄ and MWCNT + Fe₃O₄ nanocomposite magnetic properties were examined by measuring their magnetization–magnetic field (M–H) hysteresis loops with a VSM. The ferromagnetic behavior of the MWCNT–Fe₃O₄ sample as well as Fe₃O₄ are shown in Figure 4. The saturation magnetization for Fe₃O₄ nanoparticles and MWCNT + Fe₃O₄ nanocomposite is 47, and 34.5 emu/g, respectively. The decrease in the nanocomposite magnetization because of the huge non-magnetic MWCNT in the matrix of MWCNT + Fe₃O₄. In the existence of the magnetic field, the nonmagnetic particle act as a void, which break the magnetic circuit. This leads to the decrease of magnetization with the growth of void concentration.

2.5. Physical Properties of MWCNT + Fe₃O₄ Nanoparticles

According to the total sum rule of composites, the individual weights of MWCNT, Fe₃O₄ are estimated. The below equations are used for the weight percentage calculations.

$$\begin{array}{ll}\mathrm{MWCNT} (\mathrm{wt}. \%) \hfill & = \frac{saturaton magnetization of MWCNT}{saturation magnetization of F{e}_3{O}_4}\times 100\hfill \\ \hfill & =\frac{12.5 \mathrm{emu}/\mathrm{g}}{47 \mathrm{emu}/\mathrm{g}}\times 100=26\%\hfill \end{array}$$

(1)

$$\begin{array}{ll}\mathrm{F}{\mathrm{e}}_3{\mathrm{O}}_4 (\mathrm{wt}. \%) \hfill & = \frac{saturaton magnetization of MWCNT+F{e}_3{O}_4}{saturation magnetization of F{e}_3{O}_4}\times 100\hfill \\ \hfill & =\frac{34.5 \mathrm{emu}/\mathrm{g}}{47 \mathrm{emu}/\mathrm{g}}\times 100=74\%\hfill \end{array}$$

(2)

From the calculations, it is noticed that the MWCNT + Fe₃O₄ sample contains 26% MWCNT and 74% Fe₃O₄. It means that each 1 g sample of MWCNT–Fe₃O₄ contains 0.74 g Fe₃O₄ and 0.26 g MWCNT, These weight percentages are used for further calculations.

The physical properties such as specific heat, thermal conductivity, and density of MWCNT–Fe₃O₄ were calculated based on the law of mixtures as follows:

$$k_{{\left(MWCNT + F{e}_3{O}_4\right)}_p}=\frac{k_{MWCNT}\times W_{MWCNT}+k_{F{e}_3{O}_4}\times W_{F{e}_3{O}_4}}{W_{MWCNT}+W_{C{o}_3{O}_4}}$$

(3)

$${\rho }_{{\left(MWCNT + F{e}_3{O}_4\right)}_p}=\frac{{\rho }_{MWCNT}\times W_{MWCNT}+{\rho }_{F{e}_3{O}_4}\times W_{F{e}_3{O}_4}}{W_{MWCNT}+W_{F{e}_3{O}_4}}$$

(4)

$$C_p{}_{{\left(MWCNT + F{e}_3{O}_4\right)}_p}=\frac{C_p{}_{MWCNT}\times W_{MWCNT}+C_p{}_{F{e}_3{O}_4}\times W_{F{e}_3{O}_4}}{W_{MWCNT}+W_{F{e}_3{O}_4}}$$

(5)

where, $k_{MWCNT}, {\rho }_{MWCNT}, C_p{}_{MWCNT}$ and $k_{W_{F{e}_3{O}_4}}, {\rho }_{W_{F{e}_3{O}_4}},$ $C_p{}_{W_{F{e}_3{O}_4}}$ are the thermal conductivity, density, and specific heat of MWNCT and Fe₃O₄, respectively. $W_{MWCNT}$ and $W_{F{e}_3{O}_4}$ are the weights of MWCNT and Fe₃O₄, respectively.

The calculated thermal conductivity, density, and specific heat of MWCNT–Fe₃O₄ nanomaterial are shown in

Table 1. Physical property of water, MWCNT, Fe₃O₄, and MWCNT + Fe₃O₄ at 20 °C.

Substance	$\mathsf{\rho }$, (kg/m3)	k, (W/m K)	${\mathbf{C}}_{\mathbf{p}}, (\mathbf{J}/\mathbf{kg} \mathbf{K})$	$\mathsf{\mu }$, (mPa.s)
Water	998.5	0.602	4178	0.89
MWCNT	2100	2800	710	----
Fe3O4	5810	80.1	670	----
MWCNT + Fe3O4	4845.4	787.27	680.66	----

.

2.6. Preparation of MWCNT + Fe₃O₄ Hybrid Nanofluids

A quantity of 10 l hybrid nanofluids prepared in volume concentrations of 0.05%, 0.1%, 0.2, and 0.15%. The required hybrid nanoparticles are calculated by Equation (6).

$$\varphi \times 100=\frac{\left[\frac{W_{MWCNT+F{e}_3{O}_4}}{{\rho }_{MWCNT+F{e}_3{O}_4}}\right]}{\left[\frac{W_{MWCNT+F{e}_3{O}_4}}{{\rho }_{MWCNT+F{e}_3{O}_4}}\right]+\left[\frac{W_{bf}}{{\rho }_{bf}}\right]}$$

(6)

Here, ϕ is % of volume concentration, ${\rho }_{MWCNT+F{e}_3{O}_4}$ = 4845.4 kg/m³, W_bf = 10,000 g, $W_{MWCNT + F{e}_3{O}_4}$ is the weight of hybrid nanoparticles and ${\rho }_{bf}$ = 998.5 kg/m³.

The quantities of 24.2 g, 48.5 g, 97.2 g, and 146 g of hybrid nanoparticles were dispersed in 10 kg of distilled water to prepare 0.05%, 0.1%, 0.2%, and 0.3% volume concentrations. For, ϕ = 0.05%, 24.2 g of synthesized MWCNT + Fe₃O₄ is directly dispersed in 10 l of distilled water and then stirred with a mechanical stirrer at low speed for 2 h. The same technique was used for the other nanofluid concentrations.

2.7. Properties of MWCNT + Fe₃O₄ Hybrid Nanofluids

To estimate the hybrid nanofluids heat transfer coefficient, the properties such as specific heat, viscosity, thermal conductivity, and density are significant. The hybrid nanofluids viscosity and thermal conductivity are experimentally assessed, while the hybrid nanofluids density and specific are assessed based on the mixtures law.

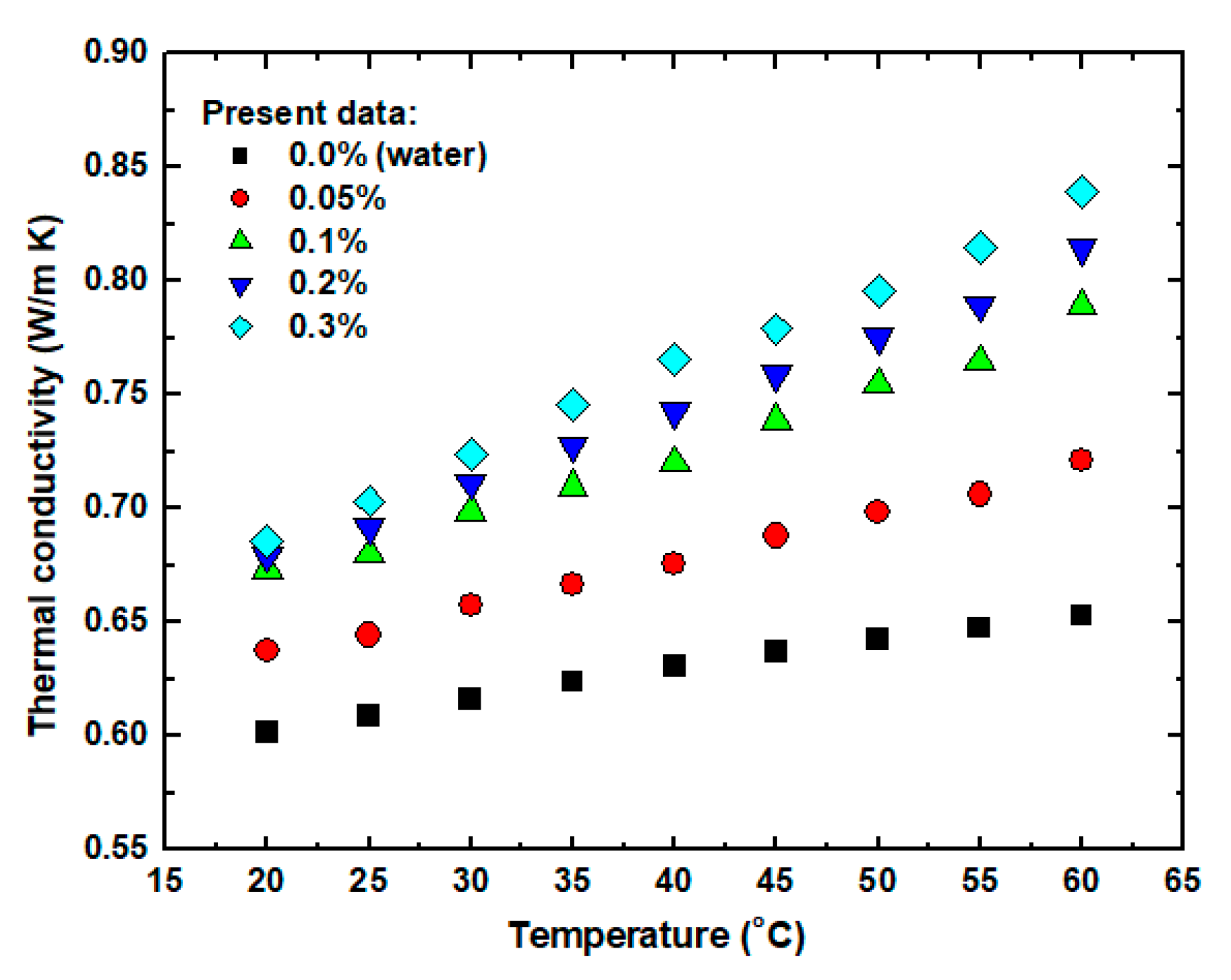

The KD-2 pro thermal properties analyzer (Decagon Devices Inc., Pullman, WA, USA) used to measure the thermal conductivity. The Vibro Viscometer (A&D Vibro Viscometer, SV-10, Tokyo, Japan) used to measure the viscosity. The measured thermal conductivity is presented in Figure 5, along with the base fluid data. Thermal conductivity of hybrid nanofluid increased with the increase of particle volume concentrations and temperatures. With the particle volume loadings of 0.05%, 0.1%, 0.2%, and 0.3% the thermal conductivity enhancement is 5.93%, 11.86%, 12.87%, and 13.88% at 20 °C, however it further enhanced by 10.42%, 20.84%, 24.65%, and 28.46% at 60 °C, respectively, over the base fluid.

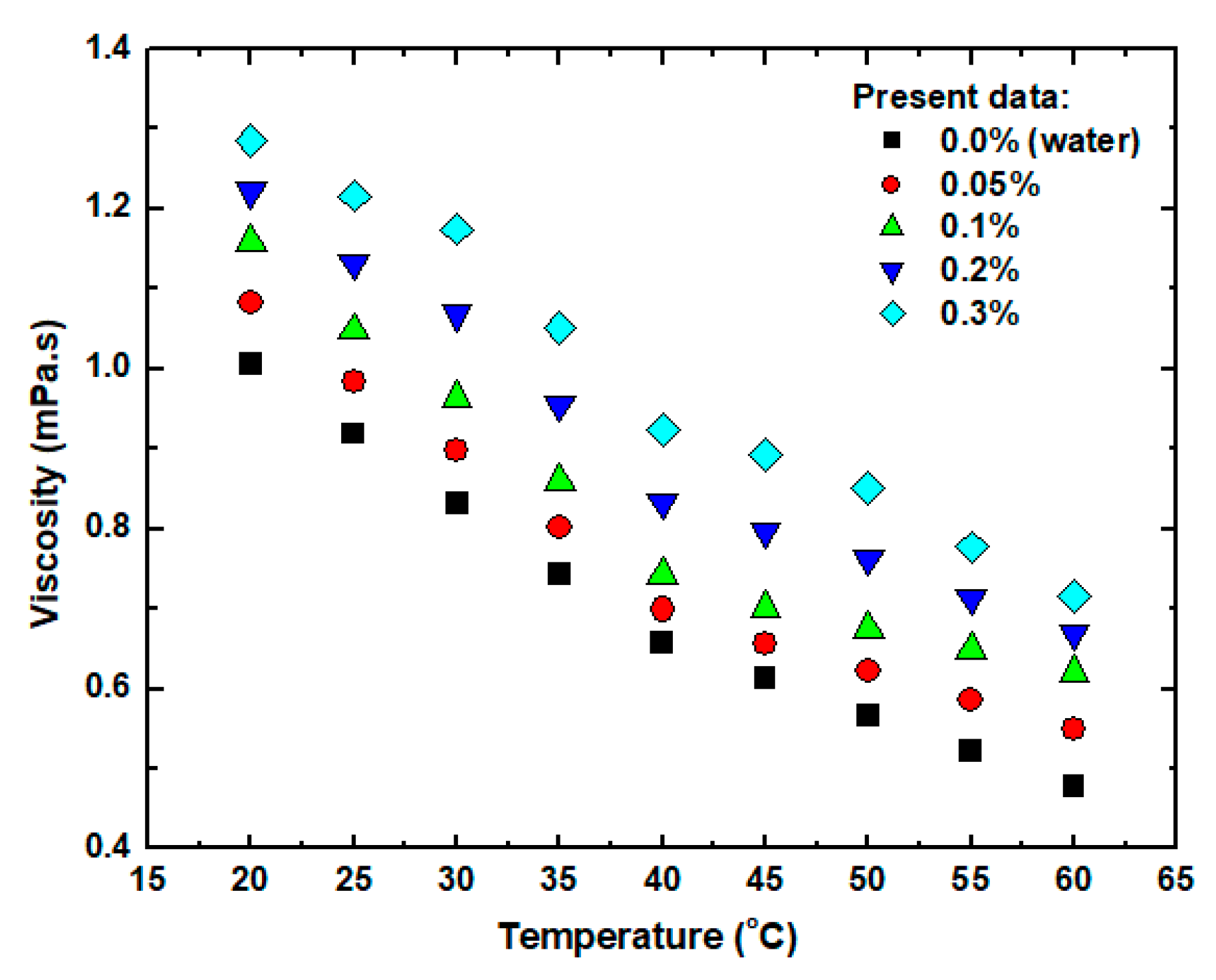

The measured viscosity is presented in Figure 6 along with the base fluid data. Hybrid nanofluid viscosity increased with the increase of particle volume concentrations and temperatures. With the particle volume loadings of 0.05%, 0.1%, 0.2%, and 0.3%, the viscosity enhancement is 7.59%, 15.18%, 21.51%, and 27.84% at 20 °C, however it is further enhanced to 15.1%, 29.8%, 40.3%, and 50.4% at 60 °C, respectively, over the base fluid data.

The hybrid nanoparticles specific heat and density were calculated by Equations (4) and (5) and substituted in Equations (7) and (8) to get the hybrid nanofluids specific heat and density.

$$C_{p,hnf}=\left(1-\varphi \right)C_{p,water}+ \varphi C_{p,MWCNT + F{e}_3{O}_4}$$

(7)

where, $C_{p,hnf}$ is the hybrid nanofluids specific heat (J kg⁻¹ K⁻¹), $C_{p,water}$ is water specific heat (4178 J kg⁻¹ K⁻¹), and $C_{p,MWCNT + F{e}_3{O}_4}$ is the MWCNT + Fe₃O₄ nanoparticles specific heat (680.66 J kg⁻¹ K⁻¹).

The MWCNT + Fe₃O₄ hybrid nanofluids density is calculated by Equation (8).

$${\rho }_{p,nf}=\left(1-\varphi \right){\rho }_{p,water}+ \varphi {\rho }_{p,MWCNT+F{e}_3{O}_4}$$

(8)

where, ${\rho }_{p,hnf}$ is the density of hybrid nanofluid (kg m⁻³), ${\rho }_{p,water}$ is the density of water (997.5 kg m⁻³), and ${\rho }_{p, MWCNT+F{e}_3{O}_4}$ is the density of the MWCNT + Fe₃O₄ nanoparticles (4845.4 kg m⁻³).

The measured and calculated thermophysical properties of hybrid nanofluids are provided in

Table 2. Thermal conductivity of hybrid nanofluids.

T, (°C)	$\mathit{\varphi }$ = 0.0%	$\mathit{\varphi }$ = 0.05%	$\mathit{\varphi }$ = 0.1%	$\mathit{\varphi }$ = 0.2%	$\mathit{\varphi }$ = 0.3%
20	0.602	0.637	0.673	0.679	0.6856
25	0.609	0.644	0.680	0.691	0.7034
30	0.616	0.657	0.698	0.711	0.7236
35	0.624	0.666	0.709	0.727	0.7456
40	0.631	0.675	0.720	0.742	0.7656
45	0.637	0.687	0.738	0.758	0.7789
50	0.642	0.698	0.754	0.775	0.7956
55	0.647	0.706	0.764	0.789	0.8145
60	0.653	0.721	0.789	0.814	0.8389

,

Table 3. Viscosity of hybrid nanofluids.

T, (°C)	$\mathit{\varphi }$ = 0.0%	$\mathit{\varphi }$ = 0.05%	$\mathit{\varphi }$ = 0.1%	$\mathit{\varphi }$ = 0.2%	$\mathit{\varphi }$ = 0.3%
20	1.006	1.082	1.158	1.222	1.286
25	0.918	0.983	1.048	1.132	1.216
30	0.831	0.897	0.963	1.069	1.174
35	0.744	0.801	0.859	0.955	1.052
40	0.657	0.699	0.742	0.833	0.924
45	0.612	0.656	0.701	0.797	0.892
50	0.567	0.621	0.675	0.763	0.851
55	0.522	0.586	0.649	0.713	0.777
60	0.478	0.549	0.621	0.669	0.717

,

Table 4. Density of hybrid nanofluids.

T, (°C)	$\mathit{\varphi }$ = 0.0%	$\mathit{\varphi }$ = 0.05%	$\mathit{\varphi }$ = 0.1%	$\mathit{\varphi }$ = 0.2%	$\mathit{\varphi }$ = 0.3%
20	1000	1001.92	1003.84	1007.69	1011.5
25	998	1000.62	1002.54	1006.39	1010.2
30	997	999.42	1001.34	1005.19	1009.0
35	996	998.17	1000.0	1003.94	1007.7
40	995	996.92	998.85	1002.7	1006.5
45	992	994.42	996.35	1000.2	1004.0
50	990	991.92	993.85	997.71	1001.5
55	987	989.42	991.35	995.21	999.07
60	985	986.93	988.86	992.72	996.58

and

Table 5. Specific heat of hybrid nanofluids.

T, (°C)	$\mathit{\varphi }$ = 0.0%	$\mathit{\varphi }$ = 0.05%	$\mathit{\varphi }$ = 0.1%	$\mathit{\varphi }$ = 0.2%	$\mathit{\varphi }$ = 0.3%
20	4178	4176.24	4174.48	4170.97	4167.45
25	4178	4176.24	4174.48	4170.97	4167.45
30	4178	4176.24	4174.48	4170.97	4167.45
35	4178	4176.24	4174.48	4170.97	4167.45
40	4179	4177.24	4175.48	4171.96	4168.44
45	4180	4178.24	4176.48	4172.96	4169.44
50	4181	4179.24	4177.48	4173.96	4170.44
55	4182	4180.24	4178.48	4174.96	4171.44
60	4183	4181.24	4179.48	4175.96	4172.43

. The hybrid nanofluids thermophysical properties are utilized to calculate the efficiency, friction factor, and heat transfer.

2.8. Flat Plate Collector

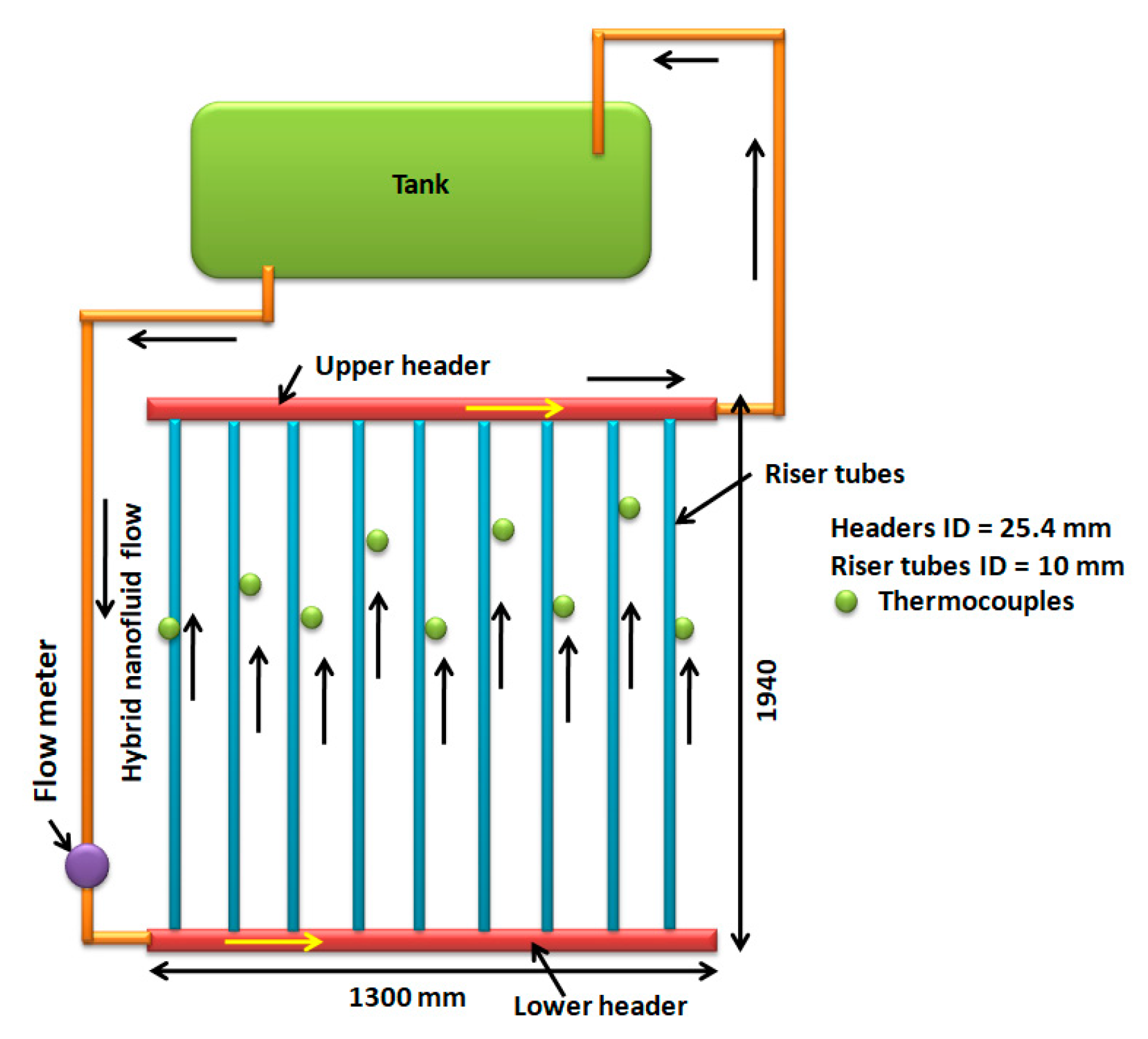

A schematic diagram of the solar FPC is illustrated in Figure 7 and a photo is displayed in Figure 8. The FPC characterizations are presented in

Table 6. Specifications of the solar flat plate collector (FPC).

Parameter	Values or Characterization
Area of the collector (m2)	3.0
Thickness of the absorber plate (mm)	0.6
Absorber tubes outer and inner diameter (mm)	11 and 10
Tube spacing (mm)	0.15
Outlet temperature (°C)	60
Riser, header, and absorber fin materials	Copper
Box dimensions (mm)	2300 × 1300 × 100
Risers number	9.0
Header inner diameter (mm)	25.4
Protrusion inside the header (mm)	2.0
hot water storage tank capacity (liters)	100
Thickness of the frame	1.2
Density of the tank insulation material (kg/m3)	48.0
Thickness of the insulation (mm)	100

. The core parts are the inlet and outlet headers, insulated tank, and flow meter. Twenty-kilogram hybrid nanofluids or water circulates in the FPC and the collector placed at a tilt of 20°. The hybrid nanofluids or water flow rate is measured by a flow meter. The absorber fluid first enters the inlet header of 25.4 mm diameter, and then flows into the riser tubes with 10 mm inner diameter and 12 mm outer diameter. After that enters the insulated tank across 25.4 mm outlet header diameter. The headers and riser tubes are made of copper material. Twelve J-type thermocouples were used to measure the temperatures. Nine thermocouples were utilized for surface temperature measurements $\left({\mathrm{T}}_1-{\mathrm{T}}_9\right)$, one thermocouple $\left({\mathrm{T}}_{10}\right)$ was utilized for the ambient temperature measurement, and two thermocouples were utilized for the inlet and outlet temperatures measurement. The thermocouples needles are connected to a computer across a data logger. An aluminum sheet black-coated was utilized to cover the tubes of the riser and over it a cover glass is used. The fluid flows in the tubes under the buoyancy force. To decrease heat loss, the right, left sides, and the bottom of the collector is insulated with glass wool. Solar radiation was measured by a pyranometer. Yokogawa differential pressure transducer was utilized to measure the pressure drop. The experiments carried out from 09:00 a.m. to 4:00 p.m. in May 2019.

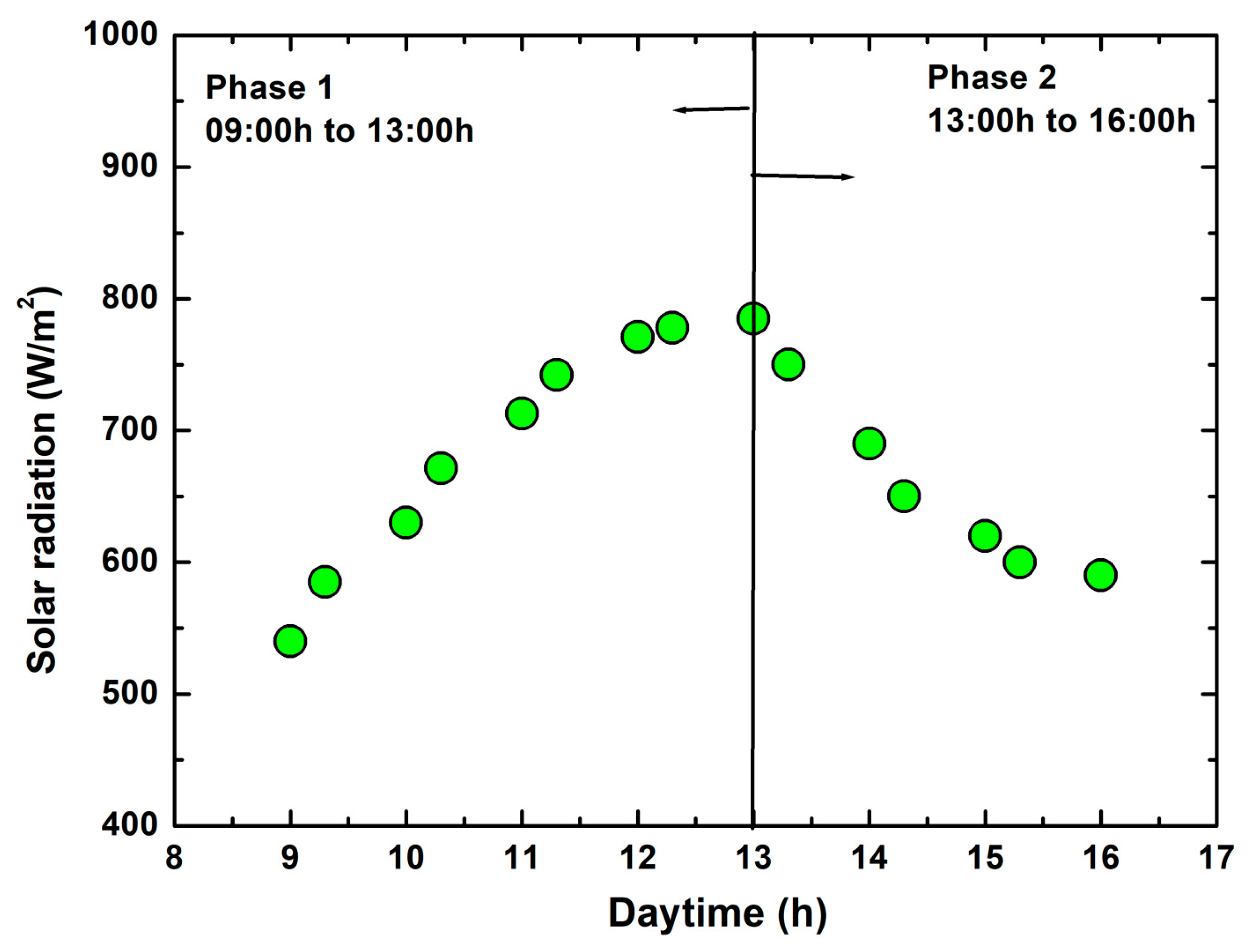

Solar radiation at different intervals of time from 09:00 a.m. to 4:00 p.m. is illustrated in Figure 9. It is observed that the solar radiation increased first from 09:00 a.m. to 13:00 p.m. and then decreased from 1:00 a.m. to 4:00 p.m., this tendency is divided into two phases. Phase-1 is from 09:00 a.m. to 1:00 p.m. and Phase-2 is from 1:00 p.m. to 4:00 p.m. The heat transfer, friction factor, and efficiency are calculated in the two phases.

3. Data Analysis

3.1. Nusselt Number

The absorbed heat rate by water or hybrid nanofluids is calculated by Equation (9).

$$\dot{Q}=\dot{m}{C}_p \left(T_{out}- T_{in}\right)= U_o A_o\left(T_s- T_m\right)$$

(9)

$$\frac{1}{U_o A_o}= \frac{1}{h_i A_i}+ \frac{\ln \left(\frac{D_o}{D_i}\right)}{2\pi kL}$$

(10)

where, $\dot{Q}$ is the absorbed heat rate (W), $C_p$ is the specific heat (J kg⁻¹ K⁻¹), $\dot{m}$ is the mass flow rate, $U_o$ is the outside overall heat transfer coefficient (W m⁻² K⁻¹), $h_i$ is tube-side convective heat transfer coefficient (W m⁻² K⁻¹), $k$ is the thermal conductivity (W m⁻¹ K⁻¹), $D_o$ and $D_i$ are the tube outside and inside diameters (m), respectively, $A_i$ and $A_o$ are the tubes inside and outside areas (m²), respectively, $L$ is the tube length (m); $T_s$ and $T_m$ are surface and mean fluid temperatures (K), respectively.

Equations (9) and (10) are used to estimate the heat transfer coefficient ($h_i)$. While Equations (11) and (12) are utilized to evaluate the Nusselt number and Prandtl number of water and hybrid nanofluids.

$$Nu=\frac{h_i{D}_i}{k}$$

(11)

$$Pr=\frac{\mu C_p}{k}$$

(12)

where, $\mu$ is the fluid viscosity (mPa.s).

3.2. Friction Factor

The friction factor ($\mathrm{f}$) is calculated by Equation (13).

$$\mathrm{f}=\frac{\left(∆\mathrm{P}\right)}{\left(\frac{\mathrm{L}}{{\mathrm{D}}_{\mathrm{i}}}\right)\left(\frac{{\mathsf{\rho }\mathrm{v}}^2}{2}\right)}$$

(13)

where, $∆\mathrm{P}$ is the pressure drop, $\mathrm{v}$ is the fluid velocity in the riser tube, and ${\mathrm{D}}_{\mathrm{i}}$ is the riser tube inner diameter.

3.3. Collector Thermal Efficiency

The Hottel–Whillier–Bliss [25,26,27] equation is given below.

$$\dot{\mathrm{Q}}={\mathrm{A}}_{\mathrm{c}}{\mathrm{F}}_{\mathrm{R}}\left[{\mathrm{G}}_{\mathrm{T}}\mathsf{\tau }\mathsf{\alpha }-{\mathrm{U}}_{\mathrm{L}}\left({\mathrm{T}}_{\mathrm{i}}-{\mathrm{T}}_{\mathrm{a}}\right)\right]$$

(14)

where $\dot{\mathrm{Q}}$ is the heat gain (W), ${\mathrm{A}}_{\mathrm{c}}$ is the solar collector surface area (${\mathrm{m}}^2)$, ${\mathrm{F}}_{\mathrm{R}}$ is the heat removal factor, $\mathsf{\tau }\mathsf{\alpha }$ is the absorptance–transmittance product, ${\mathrm{G}}_{\mathrm{T}}$ is the global solar radiation (W m⁻²), ${\mathrm{U}}_{\mathrm{L}}$ is the solar collector overall loss coefficient, ${\mathrm{T}}_{\mathrm{i}}$ is the inlet temperature (K), and ${\mathrm{T}}_{\mathrm{a}}$ is the ambient temperature (K).

Equation (15) is used to estimate the collector thermal efficiency $({\mathsf{\eta }}_{\mathrm{i}})$.

$${\mathsf{\eta }}_{\mathrm{i}}=\frac{\dot{\mathrm{Q}}}{{\mathrm{A}}_{\mathrm{c}}{\mathrm{G}}_{\mathrm{T}}}=\frac{\dot{\mathrm{m}}{\mathrm{C}}_{\mathrm{p}}\left({\mathrm{T}}_{\mathrm{o}}-{\mathrm{T}}_{\mathrm{i}}\right)}{{\mathrm{G}}_{\mathrm{T}}}$$

(15)

By substituting the values from Equation (15) into Equation (16), the ${\mathrm{F}}_{\mathrm{R}}\mathsf{\tau }\mathsf{\alpha }$ (heat removal factor and absorptance–transmittance) and ${\mathrm{F}}_{\mathrm{R}}{\mathrm{U}}_{\mathrm{L}}$ (heat removal factor and overall loss coefficient) values are evaluated. A graph is drawn between instantaneous efficiency $\left({\mathsf{\eta }}_{\mathrm{i}}\right)$ verses ${\mathrm{T}}_{\mathrm{i}}-{\mathrm{T}}_{\mathrm{a}}/{\mathrm{G}}_{\mathrm{T}}$, the ${\mathrm{F}}_{\mathrm{R}}{\mathrm{U}}_{\mathrm{L}}$ term is the curve slope and ${\mathrm{F}}_{\mathrm{R}}\mathsf{\tau }\mathsf{\alpha }$ term is constant.

$${\mathsf{\eta }}_{\mathrm{i}}={\mathrm{F}}_{\mathrm{R}}\mathsf{\tau }\mathsf{\alpha }-{\mathrm{F}}_{\mathrm{R}}{\mathrm{U}}_{\mathrm{L}}\left(\frac{{\mathrm{T}}_{\mathrm{i}}-{\mathrm{T}}_{\mathrm{a}}}{{\mathrm{G}}_{\mathrm{T}}}\right)$$

(16)

4. Results and Discussion

4.1. Nusselt Number of Hybrid Nanofluids

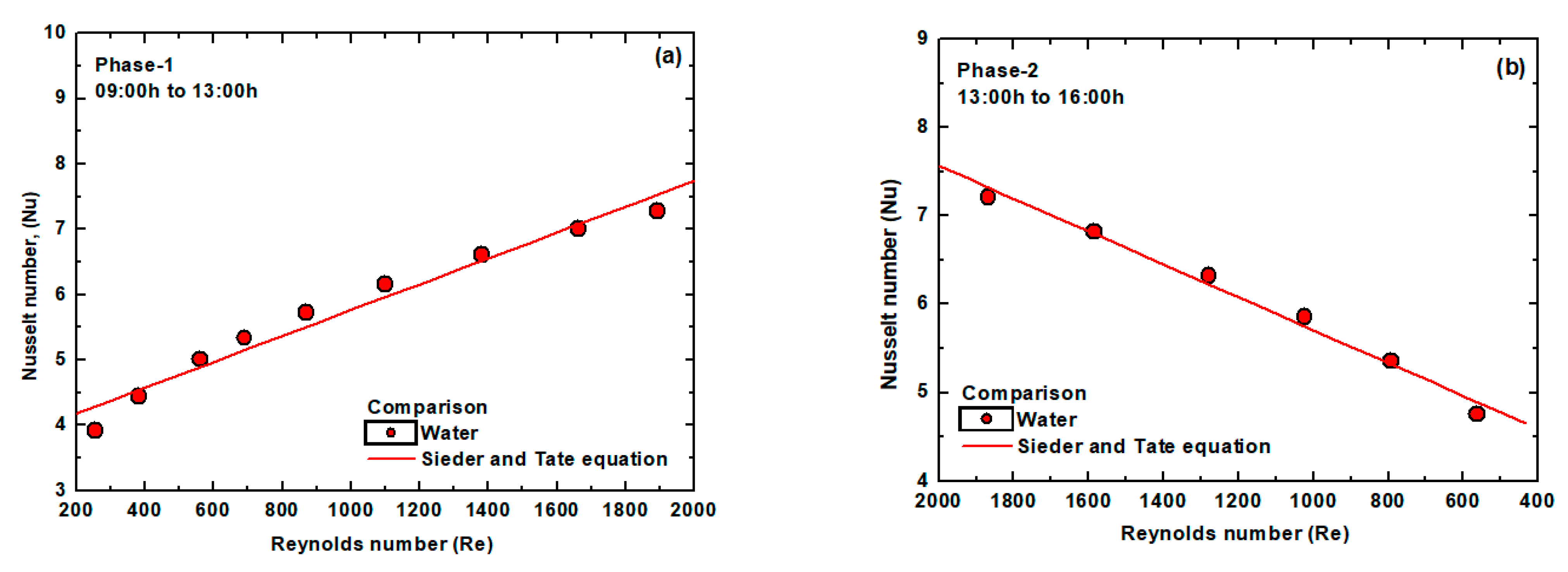

Equation (11) is utilized to estimate the Nusselt number. The data for both Phase-1 and Phase-2 are shown in Figure 10a,b along with the data from Sieder and Tate equation [28] calculated by Equation (17). It is observed from the figure that the deviation between the present results and literature data is within ±2.5%.

$$\mathrm{Nu}=1.86{\left({\mathrm{RePrD}}_{\mathrm{i}}/\mathrm{L}\right)}^{1/3}{\left(\frac{{\mathsf{\mu }}_{\mathrm{w}}}{{\mathsf{\mu }}_{\mathrm{b}}}\right)}^{0.14}{ \mathrm{for} \mathrm{RePrD}}_{\mathrm{i}}/\mathrm{L}>10$$

(17)

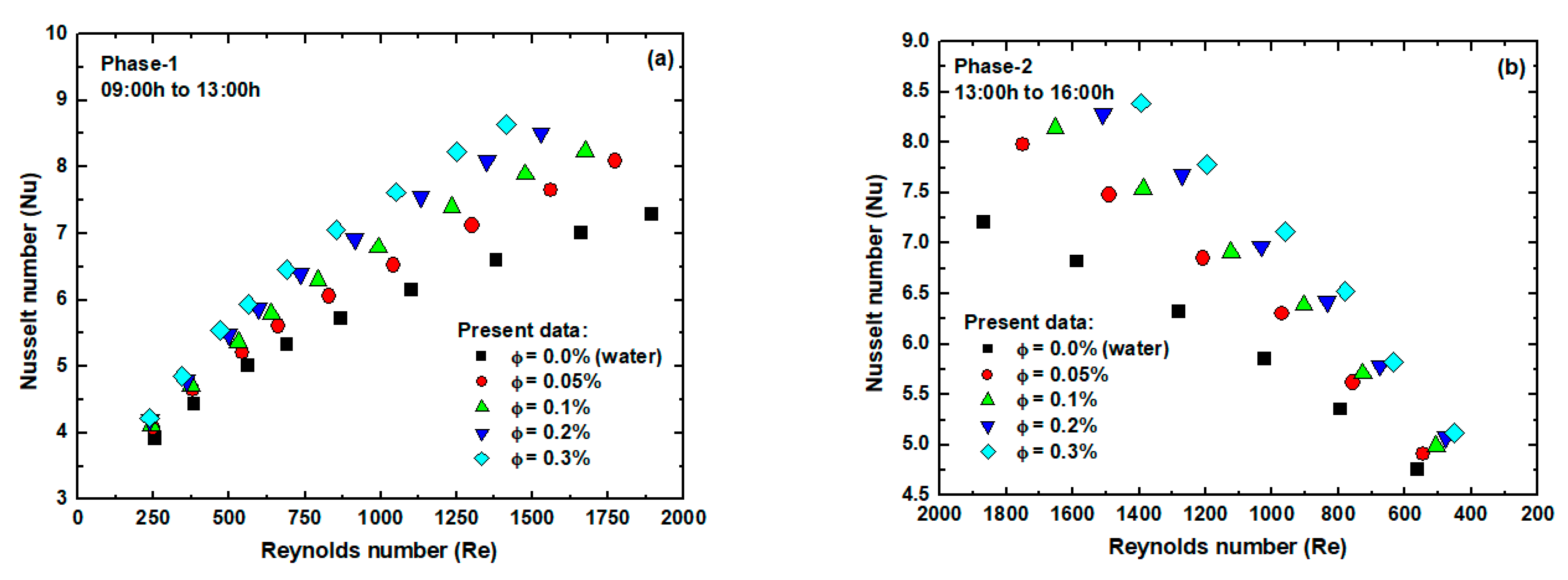

Figure 11a represents the Nusselt number of hybrid nanofluids at different Reynolds number $\left(4\dot{\mathrm{m}}/{\mathsf{\pi }\mathrm{D}}_{\mathrm{i}}\mathsf{\mu }\right)$ in Phase-1. It is detected that Nusselt number is increased with the increase of volume concentration and Re. The Nusselt number is enhanced by 4.38%, 5.4%, 7.45%, and 8.22% at $\varphi$ equal to 0.05%, 0.1%, 0.2%, and 0.3%, and Re of 248, 242, 238, and 235, respectively compared to water data. The Nusselt number is further enhanced by 11.13%, 13%, 16.9% and 18.68% at $\varphi$ = 0.05%, 0.1%, 0.2%, and 0.3%, and Re of 1774, 1674, 1528, and 1413, respectively, over water data. Figure 11b shows the Nusselt number of hybrid nanofluids at different Reynolds number (Re) in Phase-2. It is noticed from the figure that Nusselt number enhances with the decrease of Re and the increase of particle concentration. The Nusselt number augmented by 10.6%, 12.8%, 14.8%, and 16.35% at $\varphi$ of 0.05%, 0.1%, 0.2%, and 0.3%, and Re of 1867, 1750, 1652, and 1395, respectively, compared to water data. The Nusselt number further increases by 3.28%, 4.96%, 6.85%, and 7.69% at $\varphi$ = 0.05%, 0.1%, 0.2%, and 0.3%, and Re of 562, 544, 506, 476, and 435, respectively, over water data.

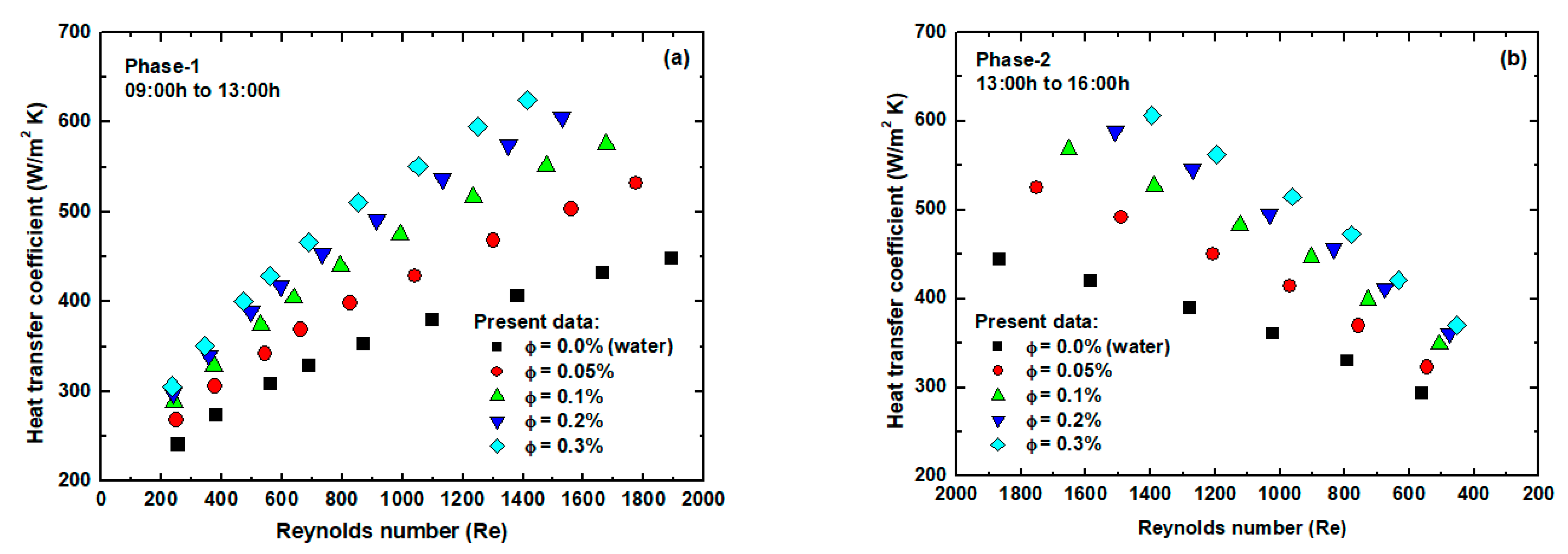

Figure 12a displays the heat transfer coefficient of hybrid nanofluids at different Reynolds number in Phase-1. It is noticed that the heat transfer coefficient boosts with the increase of Reynolds number and volume concentration. The heat transfer coefficient enhances by 11.34%, 19.42%, 23.92%, and 26.95% at 0.05%, 0.1%, 0.2%, and 0.3% volume concentrations and Re of 248, 242, 238, and 235, respectively, compared to water data. The heat transfer coefficient is further enhanced by 18.54%, 28.09%, 34.82%, and 39.22% at 0.05%, 0.1%, 0.2%, and 0.3% volume concentrations and Re of 1774, 1674, 1528, and 1413, respectively with respect to water data. Figure 12b displays the heat transfer coefficient of hybrid nanofluids at different Reynolds number in Phase-2. The heat transfer coefficient augmented with the decrease of Re and the increase of particle concentration. The heat transfer coefficient improves by 18.04%, 27.9%, 32.42%, and 36.49% at 0.05%, 0.1%, 0.2%, and 0.3% volume concentrations and Re of 1867, 1750, 1652, and 1395, respectively, over water data.

The heat transfer coefficient is further improved by 10.16%, 18.92%, 23.23%, and 26.33% at 0.05%, 0.1%, 0.2%, and 0.3% volume concentrations and Re of 562, 544, 506, 476, and 435, respectively over water data.

The next correlations were developed for Nusselt number.

$$\text{Phase-1}: \mathrm{Nu}=0.1015{\mathrm{Re}}^{0.5}{\mathrm{Pr}}^{0.4}{\left(1+\varphi \right)}^{0.761}$$

(18)

$$200<\mathrm{Re}<2000; 0<\varphi <0.3\%; 5<\mathrm{Pr}<6.5$$

$$\text{Phase-2}: \mathrm{Nu}=0.09769{\mathrm{Re}}^{0.5}{\mathrm{Pr}}^{0.4}{\left(1+\varphi \right)}^{0.7883}$$

(19)

$$2000<\mathrm{Re}<200; 0<\varphi <0.3\%; 5<\mathrm{Pr}<6.5$$

The Nusselt number calculated by the proposed equations for hybrid nanofluids and water for the two phases is shown in Figure 13a,b against experimental data. The deviations between the experimental and calculated Nusselt number values are within ±7.71% and ±5.18% for Phase-1 and Phase-2, respectively.

4.2. Friction Factor of Hybrid Nanofluids

The friction factor of each riser tube over the length was estimated depending on the pressure difference between the differential pressure transducer. The friction factor in the case of water is calculated with Equation (20) Hagen–Poiseuille law [29] for the two phases.

$$\mathrm{Hagen}–\mathrm{Poiseuille} \mathrm{law}, \mathrm{f}=\frac{64}{\mathrm{Re}}$$

(20)

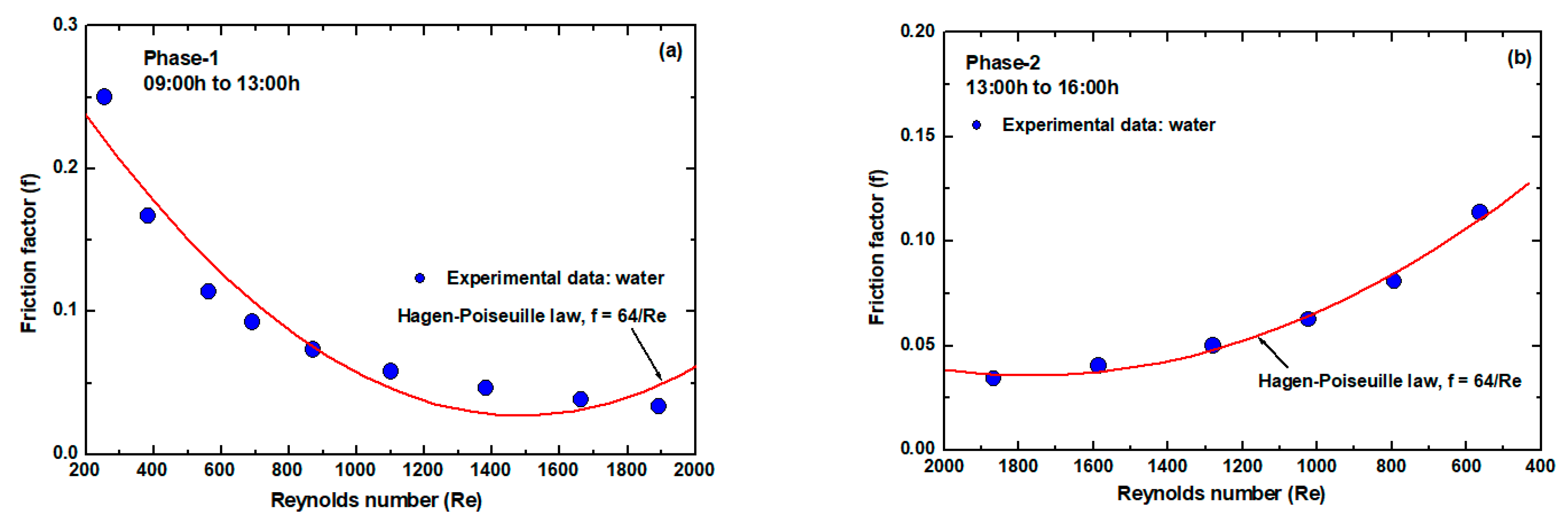

The experimental friction factor in the case of water versus the calculated values by Equation (20) for Phase-1 and Phase-2 is displayed in Figure 14a,b. The deviations between the experimental and calculated values are within ±2.5%.

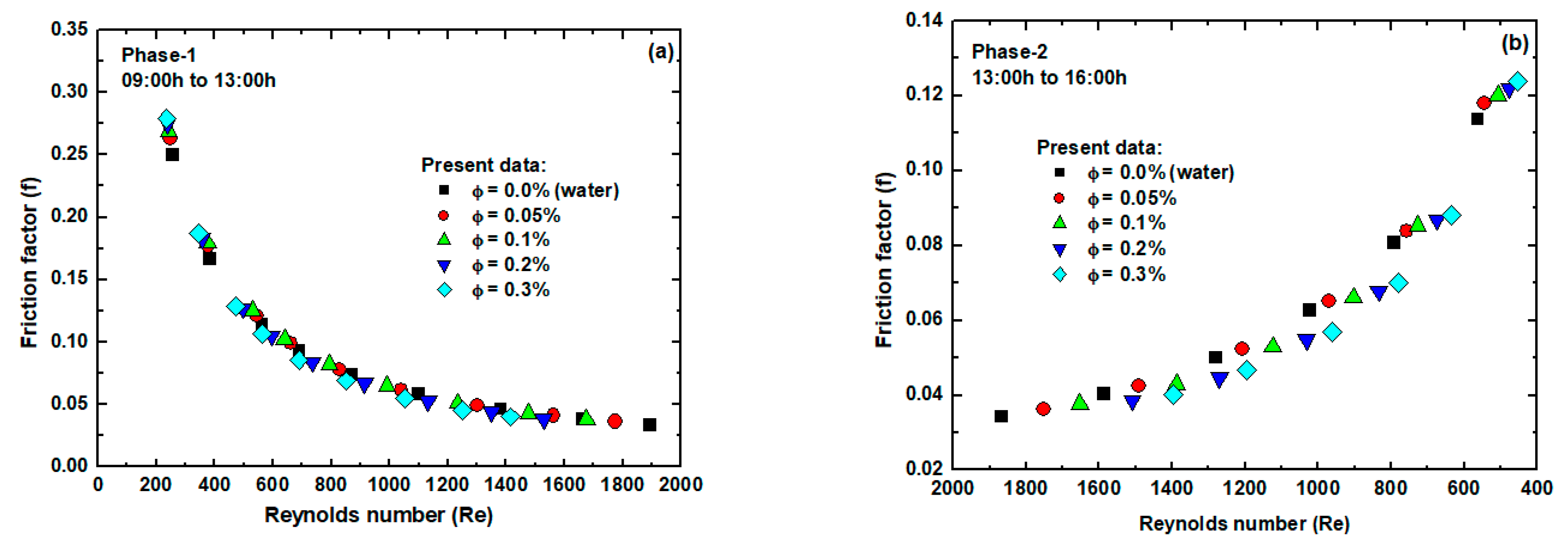

The friction factor of hybrid nanofluids at different Reynolds number in Phase-1 is illustrated in Figure 15a. The friction factor is increased with the increase of Re and volume concentration. The friction factor increases by 5.11%, 7.51%, 9.91%, and 11.51% at 0.05%, 0.1%, 0.2%, and 0.3% volume concentrations and Re of 248, 242, 238, and 235, respectively compared to water data. The friction factor is further increases by 7.65%, 11.8%, 14.46%, and 18.91% at 0.05%, 0.1%, 0.2%, and 0.3% volume concentrations and Re of 1774, 1674, 1528, and 1413, respectively, over water data.

Figure 15b represents the friction factor of hybrid nanofluids at different Re in Phase-2. The friction factor is increased with the decrease of Re and the increase of volume concentration. The friction factor is increased by 5.91%, 9.99%, 12.62%, and 17% at 0.05%, 0.1%, 0.2%, and 0.3% volume concentrations and Re of 1867, 1750, 1652, and 1395, respectively compared to water data. The friction factor is further increased by 3.75%, 5.51%, 7.27%, and 9.03% at 0.05%, 0.1%, 0.2%, and 0.3% volume concentrations and Re of 562, 544, 506, 476, and 435, respectively over water data.

The next correlations were established for the friction factor.

$$\text{Phase-1}: \mathrm{f}= 82.55{ \mathrm{Re}}^{-1.035}{\left(1+\varphi \right)}^{-0.322}$$

(21)

$$200<\mathrm{Re}<2000;0<\varphi <0.3\%$$

$$\text{Phase-2}: \mathrm{f}= 50.74{ \mathrm{Re}}^{-0.957}{\left(1+\varphi \right)}^{-0.961}$$

(22)

$$384<\mathrm{Re}<206;0<\varphi <0.3\%$$

(23)

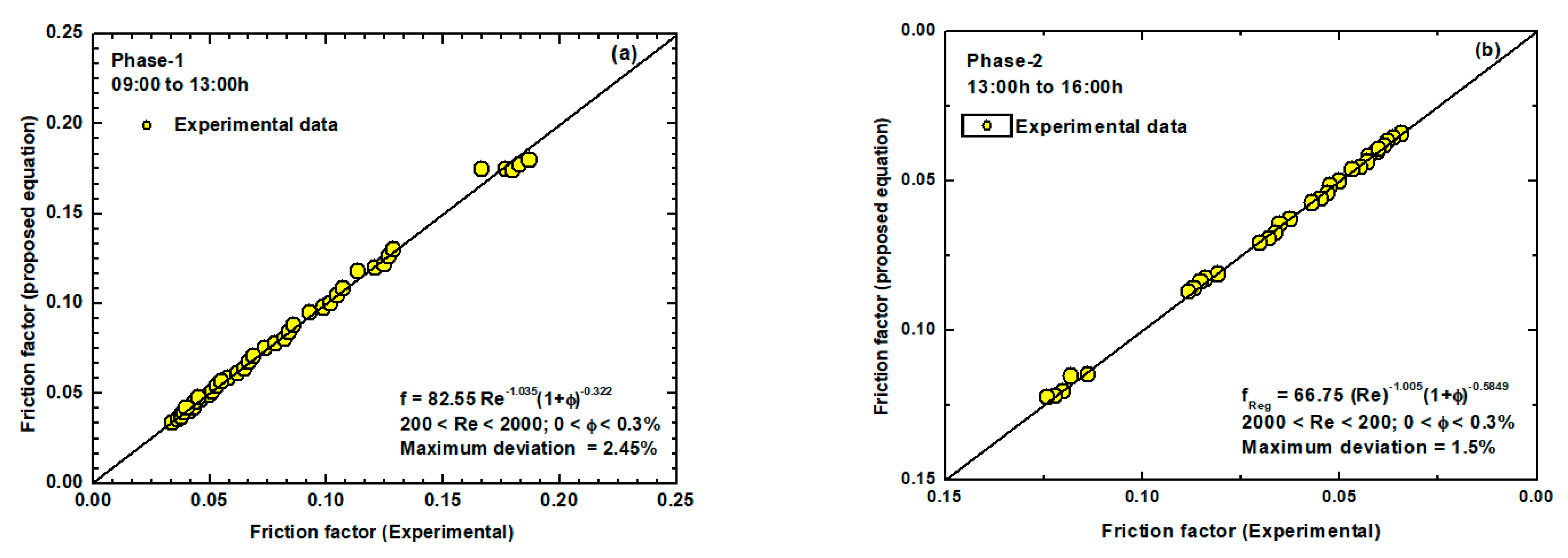

The experimental friction factor in the case of hybrid nanofluids along with water data in comparison with the calculated values by Equations (21) and (22) for Phase-1 and Phase-2 are exhibited in Figure 16a,b. The deviations between the experimental and calculated values are within ±1.5%.

4.3. Collector Efficiency

The instantaneous collector efficiency using water and MWCNT + Fe₃O₄ hybrid nanofluids is shown in Figure 17 at various daytime hours. Because of the increase in solar radiation and the temperature of the collector surface, the collector efficiency improves from 09:00 a.m. to 1:00 p.m. Then, due to the decline in solar radiation and the temperature of the collector surface; the collector efficiency declines from 1:00 p.m. to 4:00 p.m. At 09:00 a.m. daytime, the collector efficiency using water, 0.05%, 0.1%, 0.2%, and 0.3 vol. % of nanofluids is 16.44%, 18.4%, 19.87%, 22.85%, and 23.47%, respectively. While at the midday (1:00 p.m.), the collector efficiency is 49.81%, 52.17%, 54.84%, 60.24%, and 63.85% for water, 0.05%, 0.1%, 0.2%, and 0.3 vol. % of nanofluid, respectively. Moreover when the daytime approaches to 16:00 h, the collector efficiency reaches to 19.87%, 21.56%, 23.12%, 25.74%, and 28.75% for water, 0.05%, 0.1%, 0.2%, and 0.3 vol. % of nanofluid. The maximum enhancement in the collector efficiency was 28.19% at midday using 0.3 vol. % volume concentration.

The collector thermal efficiency versus $\left({\mathrm{T}}_{\mathrm{i}}-{\mathrm{T}}_{\mathrm{a}}/{\mathrm{G}}_{\mathrm{T}}\right)$ parameter at different hybrid nanofluids concentrations is displayed in Figure 18. At midday (13:00 h), the collector efficiency is high for all working fluids compared to those at 09:00 a.m. and 4:00 p.m., hence the graph is drawn by considering the data from 09:00 a.m. to 1:00 p.m. The collector thermal efficiency is 49.81%, 52.17%, 54.84%, 60.24%, and 63.85% for water, 0.05%, 0.1%, 0.2%, and 0.3 vol. % of nanofluids and Re values of 1892, 1774, 1674, 1528, 1413, respectively. At the fixed solar radiation and collector area, the heat gain by MWCNT + Fe₃O₄ hybrid nanofluids in the riser tubes is higher than those absorbed by water, resulting in elevated collector efficiencies.

The data in Figure 18 are fitted linearly to obtain the slope $({\mathrm{F}}_{\mathrm{R}}{\mathrm{U}}_{\mathrm{L}})$ and the intersection point $\left({\mathrm{F}}_{\mathrm{R}}\mathsf{\tau }\mathsf{\alpha }\right)$. These two parameters have a significant effect on the collector efficiency. The fitted data of ${\mathrm{F}}_{\mathrm{R}}\mathsf{\tau }\mathsf{\alpha }$, ${\mathrm{F}}_{\mathrm{R}}{\mathrm{U}}_{\mathrm{L}}$, and their coefficients of determination (R²) at each measurement condition of water and hybrid nanofluids MWCNT + Fe₃O₄ are presented in

Table 7. The ${\mathrm{F}}_{\mathrm{R}}\mathsf{\tau }\mathsf{\alpha }$, ${\mathrm{F}}_{\mathrm{R}}{\mathrm{U}}_{\mathrm{L}}$ parameters and their coefficients of determination (R²).

Fluid	${\mathbf{F}}_{\mathbf{R}}\mathsf{\tau }\mathsf{\alpha }$	${\mathbf{F}}_{\mathbf{R}}{\mathbf{U}}_{\mathbf{L}}$	R2
$\varphi$ = 0.0%	−50.93	2.26	0.993
$\varphi$ = 0.05%	−51.77	2.72	0991
$\varphi$ = 0.1%	−53.17	3.42	0.985
$\varphi$ = 0.2%	−52.90	3.30	0.986
$\varphi$ = 0.3%	−55.43	3.71	0.984

. The efficiency enhancement for 0.05%, 0.1%, 0.2%, and 0.3 vol. % of nanofluid, when the reduced temperature $\left({\mathrm{T}}_{\mathrm{i}}-{\mathrm{T}}_{\mathrm{a}}/{\mathrm{G}}_{\mathrm{T}}\right)$ reached 0.0029, is about 4.61%, 9.96%, 20.79%, and 28.09% at Re of 1774, 1674, 1528, 1413, respectively over water data. The slope $({\mathrm{F}}_{\mathrm{R}}{\mathrm{U}}_{\mathrm{L}})$ is found to be 2.26, 2.72, 3.42, 3.30, and 3.71 for water, 0.05%, 0.1%, 0.2%, and 0.3 vol. % of nanofluid.

4.4. Thermoeconomic Analysis

The thermoeconomic analysis is conducted based on the procedure given by Lucia and Grisolia [30] and Grisolia et al. [31]. From the experimental results, it is noticed that the thermal efficiency of the collector is maximum when the daytime reached 13:00 h compared to the daytime at 09:00 a.m. and 4:00 p.m., respectively. Hence, the thermoeconomic analysis was performed at the mid-daytime of 1:00 p.m., because of the maximum collector efficiency. Hence, the increased thermal efficiency is converted into useful cost and area saving of the collector. The collector thermal efficiency is 49.81%, 52.17%, 54.84%, 60.24%, and 63.85% for water, 0.05%, 0.1%, 0.2%, and 0.3 vol. % of nanofluid, respectively at the midday of 13:00 h. The purchased FPC area is 3 m² and its cost is $223.88. For water and water-based hybrid nanofluids, the same FPC is used. The collector area is decreased to 2.86, 2.72, 2.48, 2.34 m² for 0.05%, 0.1%, 0.2%, and 0.3 vol. % of nanofluid, respectively. With the use of hybrid nanofluids in the collector, the collector cost is decreased to 213.75, 203.35, 185.12, and 174.65$ for 0.05%, 0.1%, 0.2%, and 0.3 vol. % of nanofluid, respectively, whereas it is $223.88 using water in the collector.

The uncertainties of various instruments used in the present study are calculated from the procedure of Coleman and Steel [32].

Table 8. The measured parameters, their maximum values, and their uncertainties.

S. No.	Parameter	Maximum Values	Uncertainty, $\left[\mathrm{∆}\mathrm{X}\right]$
1	${\mathrm{D}}_{\mathrm{i}}$	0.01 m	0.00007 m
2	${\mathrm{D}}_{\mathrm{o}}$	0.012 m	0.00007 m
3	$\mathrm{L}$	2.3 m	0.001 m
4	$\dot{\mathrm{m}}$	0.0225 kg/s	0.000740 kg/s
5	${\mathrm{T}}_{\mathrm{s}}$	88.5 °C	0.1 °C
6	${\mathrm{T}}_{\mathrm{i}}$	47.5 °C	0.1 °C
7	${\mathrm{T}}_{\mathrm{o}}$	61.81 °C	0.1 °C
8	${\mathrm{T}}_{\mathrm{a}}$	41.9 °C	0.1 °C
9	${\mathrm{T}}_{\mathrm{m}}$	54.65 °C	0.1 °C
10	${\mathrm{G}}_{\mathrm{T}}$	785 W/m2	0.03 W/m2
11	∆P	1441.7 Pa	1 Pa

indicates the measured parameters, their maximum values, and the uncertainty of the measurements. The calculated uncertainty values are presented in

Table 9. Different parameters uncertainties.

S. No.	Parameter	Uncertainty
1	Reynolds number	3.36%
2	Pressure drop	$6.94\times {10}^{-4}$%
3	Friction factor	$7.40\%$
4	Heat flow rate	$3.29\%$
5	Nusselt number	3.36%
6	Thermal efficiency	3.36%

.

5. Conclusions

Water and water based MWCNT + Fe₃O₄ hybrid nanofluids are used as working fluids in a flat plate solar collector, and the thermal efficiency, heat transfer, and friction factor characteristics are experimentally investigated. The fluids circulate naturally (thermosyphon) in the collector. The viscosity and thermal conductivity of hybrid nanofluids MWCNT + Fe₃O₄ are augmented as the particle concentrations and temperatures increase.

The maximum obtained viscosity and thermal conductivity improvements are 50.4% and 28.46%, respectively at 0.3 vol. % of nanofluid and at a temperature of 60 °C. The Nusselt number was enhanced with the increase of particle volume concentrations. At daytime 13:00 h, the Nusselt number and friction factor are increased by 18.68% and 18.91% at 0.3 vol. % and Reynolds number of 1413 over water data. The collector thermal efficiency is boosted by 28.09% with the utilization of 0.3% volume concentration of MWCNT + Fe₃O₄ hybrid nanofluids and Reynolds number of 1413 over water data.

Finally, it was confirmed that the utilization of MWCNT + Fe₃O₄ hybrid nanofluids in the solar flat plate collector leads to improve collector heat transfer and thermal efficiency compared to water data. Due to the enhanced hybrid nanofluids thermal conductivity, its heat-absorbing capacity is higher than that of water. Consequently, the hybrid nanofluids are advantageous in the solar flat plate collector under thermosyphon conditions.
