Simultaneously Tuning Charge Separation and Surface Reaction Kinetics on ZnIn₂S₄ Photoanode by P-Doping for Highly Efficient Photoelectrochemical Water Splitting and Urea Oxidation

Abstract

ZnIn₂S₄ nanosheets are a promising photoanode for driving photoelectrochemical (PEC) hydrogen fuel production; nevertheless, poor charge separation and sluggish surface reaction kinetics hinder its PEC performance to an extreme degree. Herein, a facile element doping strategy (i.e., P element) was developed to obtain the desired photoanode. As a result, the ZnIn₂S₄-P (ZIS-P₅) photoanode exhibits a remarkable photocurrent density of 1.66 mA cm⁻² at 1.23 V versus a reversible hydrogen electrode (V_RHE) and a much lower onset potential of 0.12 V vs. RHE for water oxidation. Careful electrochemical analysis confirms that the P doping and sulfur vacancies (Sv) not only facilitate the hole transfer, but also boost surface reaction kinetics. Finally, the “killing two birds with one stone” goal can be achieved. Moreover, the optimized photoanode also presents high PEC performance for urea oxidation, obtaining a photocurrent density of 4.13 mA cm⁻² at 1.23 V vs. RHE. This work provides an eco-friendly, simple and effective method to realize highly efficient solar-to-hydrogen conversion.

1. Introduction

In 1972, Fujishima and Honda [1] reported that TiO₂ photoelectrodes could produce hydrogen through water splitting under ultraviolet light. Since then, PEC water splitting has been considered a promising strategy for converting solar energy into hydrogen energy [2,3,4,5,6], which can effectively solve the problems of environmental pollution and the energy crisis. In general, the PEC process is made up of three parts: (1) light harvesting; (2) charge separation; and (3) surface reaction [7,8]. PEC water splitting consists of two processes, i.e., a hydrogen evolution reaction (HER) at the photocathode and an oxygen evolution reaction (OER) at the photoanode. Compared with the two-electron transfer HER, the four-electron transfer OER is the key factor affecting the hydrogen production rate of PEC water splitting [9,10,11,12]. Accordingly, the exploration of photoanode with high conversion efficiency is imperative for the practical applications.

Recently, through the unremitting efforts of researchers, some promising semiconductor candidates, including WO₃ [13,14], Fe₂O₃ [15,16], Ta₃N₅ [17,18], BiVO₄ [19,20,21,22,23], and ZnIn₂S₄, have emerged as photoanodes. Among various candidates, as a typical ternary metal sulfide, ZnIn₂S₄ has been regarded as a promising photoelectrode for PEC water splitting owing to its narrow band gap (ca. 2.44 eV) [24], suitable conduction band potential (−0.43 eV versus a normal hydrogen electrode, which holds a strong reduction capacity for H₂ evolution) [24], the S-Zn-S-In-S-In-S type lamellar stack structure [25], and environmental friendly properties [26,27,28,29,30]. Nevertheless, due to the serious photogenerated electron-hole recombination and slow OER kinetics of ZnIn₂S₄, the water splitting efficiency of PEC is greatly limited for a single-phased ZnIn₂S₄ photoanode. To date, some strategies to improve the performance of the ZnIn₂S₄ photoelectrode have been proposed, such as cocatalyst loading [31,32], elemental doping [33,34], the construction of heterojunctions [35,36], creating defect structures [37], and morphology modulation [38]. According to the literature, both element doping and constructing sulfur vacancies (S_v) are regarded as effective methods to rationally adjust the electronic structure of ZnIn₂S₄, aiming to simultaneously accelerate the photogenerated charge transfer and promoting surface reaction kinetics. Specifically, Li and coworkers [39] confirmed that magnesium (Mg) can be adopted to dope a ZnIn₂S₄ nanosheet (denoted as ZIS), and the formed ZIS:MA array photoanodes can not only boost bulk charge separation but also accelerate surface catalytic reaction kinetics through the presence of Mg-O bonds in a low-temperature water bath. Li et al. [40] constructed ultrathin Ni-doped ZIS nanosheets with Sv via a simple one-step hydrothermal method, and they exhibit an excellent H₂ evolution rate of 8.91 mmol·g⁻¹·h⁻¹, which is about 4.4 times higher than that of ZIS. The reason for this high performance can be attributed to the enhancement of the photogenerated charge separation and transfer. Nevertheless, the doping strategy often acts as a double-edged sword, and it is not always beneficial. Recently, more and more researchers have proven that doping can certainly introduce some negative effects [39], especially detrimental defects, resulting in severe charge recombination and poor surface OER activity, which will limit the further improvement of PEC performance [39].

In addition to the above methods, another effective method for improving charge separation has also been confirmed, i.e., constructing Sv in the ZIS. Typically, Huang et al. [41] reported that ultrathin ZIS nanosheets with S_v (Sv-ZIS) can be treated as a promising photocatalyst for H₂O₂ photosynthesis, and the improved catalytic efficiency can be attributed to suppress their charge recombination via Sv. Yang et al. [42] demonstrated that porous ZIS with confined Sv can efficiently alleviate the poor activity issue from low charge separation efficiency and poor charge migration ability.

Although the above strategies exhibit a positive effect on the improvement of PEC performance, the photocurrent density of the ZIS photoanode is still far from a level at which applications can be considered. Based on the study mentioned above (i.e., sluggish OER and restricted charge transfer kinetic behavior), coupling Sv with element doping should be an effective way to overcome the above limitations, and realize highly efficient PEC performance. As such, phosphorus (P) is a promising dopant with low charge recombination and high electron mobility. As expected, Kang et al. [43] proved that an in situ P doping effect can enhance charge separation, and the porous P, Ti-Fe₂O₃ photoanode presented a high photocurrent density of 2.50 mA cm⁻² at 1.23 V_RHE. As far as we know, designing a ZIS-based photoanode with Sv and P element doping for enhancing the PEC performance has broad prospects, but has been rarely reported.

In this study, a general and facile calcination method to construct ZIS-P₅ photoanode is detailed. Benefitting from the synergistic effects of Sv and P doping, i.e., a “killing two birds with one stone” strategy, the targeted photoanode shows a largely improved performance of PEC water splitting and urea oxidation compared to the ZIS photoanode. Finally, the resulting configuration (ZIS-P₅) shows a higher photocurrent density for urea oxidation (4.13 mA cm⁻²) and water oxidation (1.66 mA cm⁻²) at 1.23 V vs. RHE, respectively.

2. Materials and Methods

2.1. Chemical Reagents and Instruments

Sodium hypophosphite monohydrate (NaH₂PO₂·H₂O, ≥98.00%), Sodium dihydrogen phosphate dihydrate (NaH₂PO₄·2H₂O, ≥99.00%), Disodium hydrogen phosphate dodecahydrate (Na₂HPO₄·2H₂O, ≥99.00%), Potassium chloride (KCl, ≥99.50%) were all selected from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). Indium chloride tetrahydrate (InCl₃·4H₂O, ≥98.00%) and Thiourea (CH₄N₂S, ≥99.00% ) are from Aladdin Biochemical Technology Co., Ltd. (Shanghai, China), zinc chloride (ZnCl₂, ≥99.00%) is from Maclean’s Biochemical Technology Co., Ltd. (Shanghai, China) and argon (Ar, ≥99.99%) is from Beipu Gas Co., Ltd. (Xi’an, China), Fluorine-doped SnO₂ (FTO, 14 Ω per square) substrates were purchased from Jinge Solar Energy Technology Co., Ltd. (Wuhan, China).

2.2. Materials Preparation

2.2.1. Preparation of ZIS Films

ZnCl₂ (0.0545 g), InCl₃·4H₂O (0.1759 g) and CH₄N₂S (0.1217 g) were dissolved in deionized water (40 mL, 2 h), and then aged in the above solution at room temperature for 3 h. The FTO-coated glass is placed in a V-shape in the Teflon-lined stainless steel autoclave with the FTO conductive side facing down, and 10 mL of precursor solution was poured into the Teflon-lined stainless steel autoclave. After undergoing reaction at 160 °C for 7 h, the sample was removed and then rinsed with deionized water to obtain a ZIS nanosheet array.

2.2.2. Preparation of ZIS-P_x

Control samples were prepared by annealing a pristine ZIS nanosheet array in argon gas at 320 °C for 1 h. For P doping, different masses of sodium hypophosphite (NaH₂PO₂, 10 mg, 5 mg, 0 mg) were placed at a tube furnace. The furnace was heated to 320 °C for 1 h (5 °C/min) under argon flow, and the resulting sample is denoted as ZIS-P_x (x =10, 5, 0).

2.3. Structural Characterization

The morphology of the photoanode was tested using field emission scanning electron microscopy (FESEM, SU8020). X-ray photoelectron spectroscopy was used to detect the chemical state and chemical composition (XPS, Escalab Xi⁺). The characterization of the crystal structure of different samples was carried out by powder X-ray diffraction (XRD, SmartLab 9 KW) at room temperature. A microscopic confocal laser Raman spectrometer was used to obtain the Raman spectrum of the material. The optical properties of different photoanodes were characterized using ultraviolet–visible (UV–vis) absorption spectroscopy (Shimadzu UV–3600). The structural characterization of samples was performed by Fourier Transform Infrared Spectrometer (Vertex70). Transmission electron microscopy (TEM) and high-resolution TEM (HR-TEM) imagery were carried out using a Tecnai G2 F30 (200 KV) with elements mapping. The detection of the state of existence of free radical ions was conducted using electron spin resonance spectroscopy (EMX–10/12).

2.4. Electrochemical Measurements

Electrochemical testing of ZIS-based photoelectrodes was carried out using an electrochemical workstation (CHI760E) with a conventional three-electrode system in 0.5 M PBS electrolyte. The electrochemical active surface area was measured at different scan rates.

2.5. Photoelectrochemical (PEC) Measurements

In this experiment, an electrochemical workstation (CHI760E) was used to investigate the photoelectrochemical properties of the sample. Among them, the light source is an AM 1.5 G xenon light source (simulating sunlight). A standard three-electrode system was used to test the PEC performance of the prepared samples. In this study, ZIS and ZIS-P_x were selected as the working electrodes, Ag/AgCl electrode was used as the reference electrode, with platinum sheets as the counter electrode, and 0.5 M PBS (pH 6.5) was used as the electrolyte solution. The photocurrent density was obtained using a linear scanning voltammetry (LSV) test with a sweep speed of 50 mV/s. Compared to a reversible hydrogen electrode (RHE), the obtained potential can be converted by the following formula:

E_(RHE) = E_(Ag/AgCl) + 0.197 + 0.0591 pH.

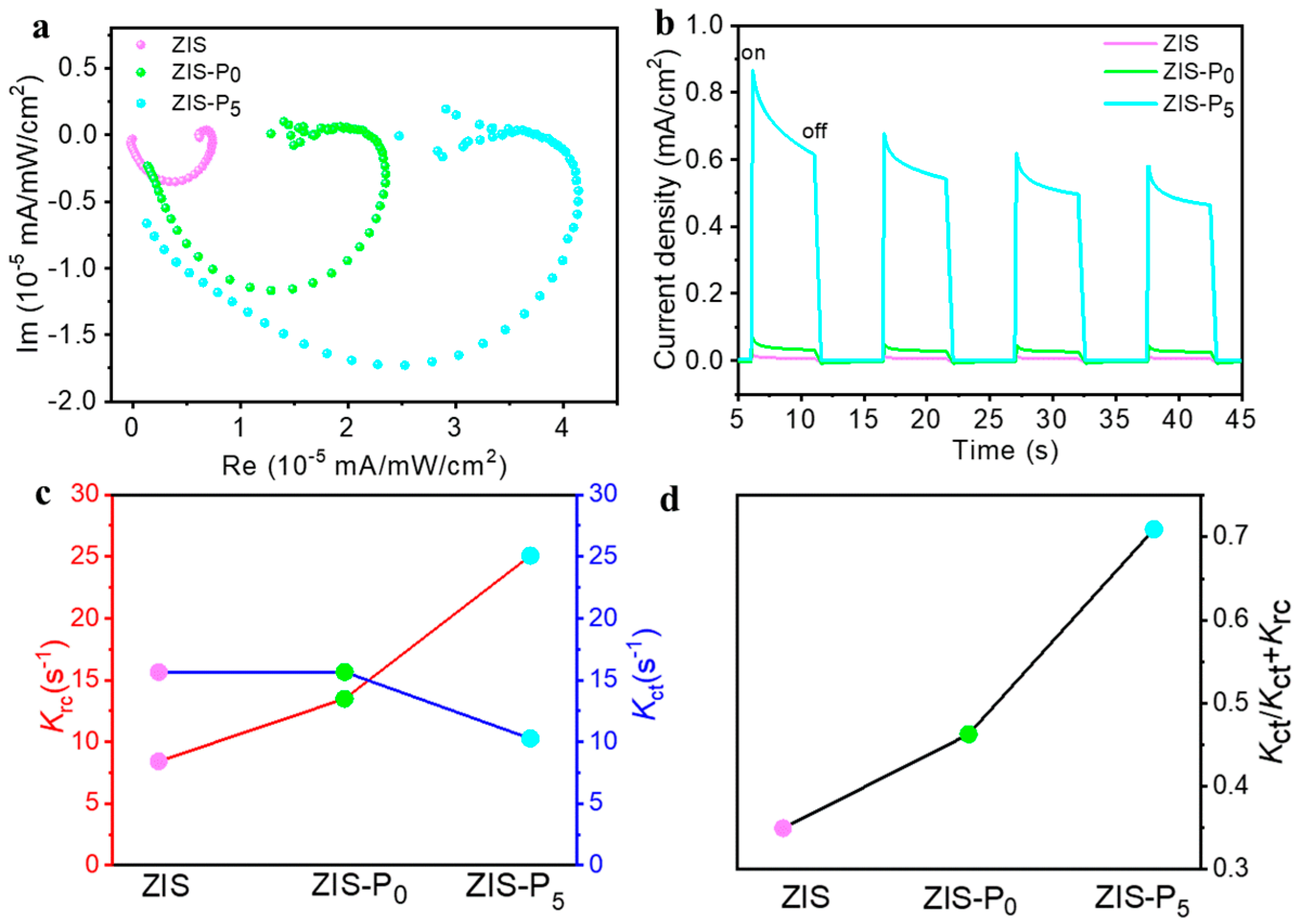

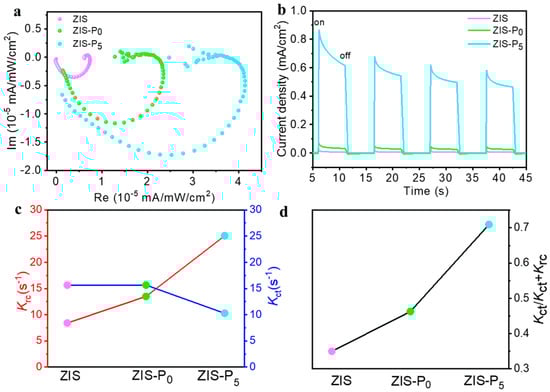

The electrochemical impedance spectroscopy (EIS) was tested under Autolab M204 at a frequency from 10 KHz to 0.1 Hz in open circuits. The intensity-modulated photocurrent spectroscopy (IMPS) and transient photocurrent response (i-t) were also measured by the photoechem system (LED, 470 nm) of Autolab M204. The electronic behavior and interfacial charge transfer properties of the ZIS photoanode under illumination were studied, and the differences between the impedance values of different structures were analyzed by fitting the results, where transient time (τ_d) can be calculated by using the following formula:

$${\tau }_{\mathrm{d}}={\displaystyle \frac{1}{{2\pi f}_{\mathrm{IMPS}}}}$$

(1)

where $f_{\mathrm{IMPS}}$ is the frequency located at the lowest point in the IMPS plot.

The applied bias photon-to-current efficiency (ABPE) was calculated by using the following equation:

$$\mathrm{ABPE}\left(\%\right)={\displaystyle \frac{(J_{\mathrm{light}}-J_{\mathrm{dark}})\times \left(1{.23 - V}_{\mathrm{app}}\right)}{P_{\mathrm{light}}}}\times 100\%$$

(2)

where $J_{\mathrm{light}}$ and $J_{\mathrm{dark}}$ are the photocurrent density (mA cm⁻²) in the light and dark, respectively. V_app is the applied potential (vs. RHE), and P_light is the power intensity of AM 1.5 G (100 mW cm⁻²).

3. Results and Discussion

Figure 1a shows the preparation process of the P element and Sv co-incorporated ZIS-P₅ integrated photoanode. Firstly, pristine ZIS was grown on a fluorine-doped tin oxide (FTO) glass substrate via a simple hydrothermal process in a pre-treated autoclave. Then, ZIS nanosheet arrays were treated by a simple phosphating process to introduce Sv and P element, and the resultant product is denoted as ZIS-P₅. Of course, the ZIS was subsequently annealed under Ar atmospheric conditions without NaH₂PO₂ precursors, which can introduce abundant Sv into the sample, denoted as ZIS-P₀. Scanning electron microscopy (SEM) was used to observe the microstructure. The SEM images in Figure 1b and Figure S1 indicate that the ordered two-dimensional (2D) ZIS nanosheets are vertically aligned on the FTO substrates. Figure S1b,c show the cross-sectional SEM images of the ZIS nanosheet arrays. Through the diagrams of the transmission electron microscope (TEM, Figure 1c,d), we can observe the ZIS nanoarrays with an ultrathin structure. As shown in Figure S1, ZIS and ZIS-P₅ show the similar 2D arrays vertically aligned on the FTO surface, indicating that P doping and heat treatment do not change the main morphology of ZIS.

To further analyze the crystal phase, X-ray diffraction (XRD) was acquired, as shown in Figure 1e and Figure S3. The main diffraction peaks of 21.3°, 28.3°, 33.79° and 47.11° can be detected, corresponding to the (009), (104), (018) and (110) planes of the ZIS (JCPDS: 72-1445) [26,44], respectively. Additionally, compared to the blank FTO, the ZIS-based photoanodes do not show any significant diffraction peaks, which proves that no impurities are introduced into the synthesized ZIS photoanode, constituting a preliminary confirmation of the synthesis of the target, which can be further verified by the Raman result (Figure S2). In addition, no obvious changes are shown in the XRD patterns (Figure S3) and Fourier transform infrared (FTIR, Figure S4) spectra, meaning that the annealing and doping processes negligibly influence the structure. However, Figure 1f exhibits the energy dispersive spectroscopy (EDS) elemental mapping of S, Zn, In, and P for ZIS-P₅ photoanode, further indicating the successfully doping of P into the ZIS. Although the P element can be doped with the phosphating strategy, it is still unknown whether Sv is introduced at the same time.

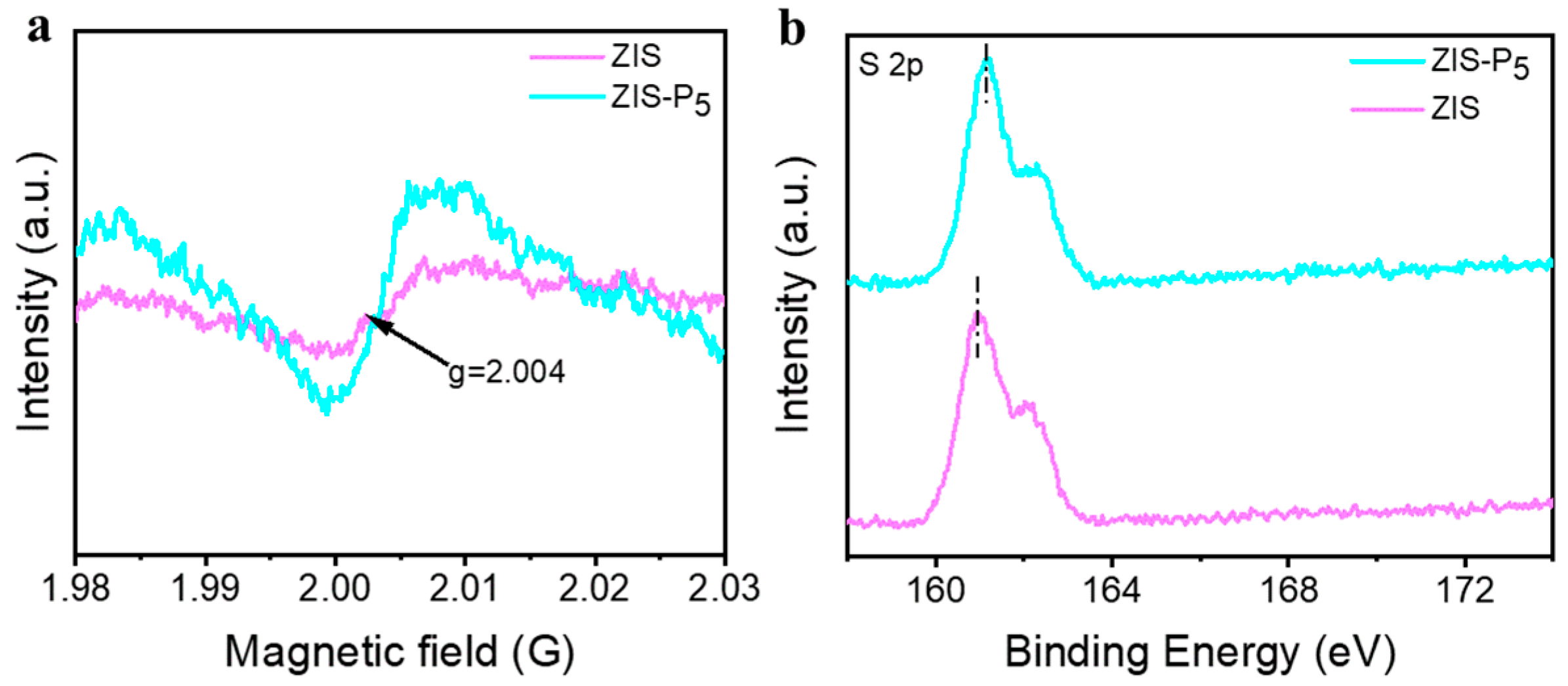

Accordingly, some necessary characterization is employed to explore Sv, wherein the defect characteristics of ZIS samples were investigated by electron paramagnetic resonance (EPR, Figure 2a) and X-ray photoelectron spectra (XPS, Figure 2b). EPR spectra uncover the presence of a vacancy structure from the escaping S atoms of ZIS. Typically, compared to ZIS and ZIS-P₀, ZIS-P₅ exhibits a higher EPR signal at a g-value of 2.004, verifying that ZIS-P₅ possess Sv in electron-trapped centers. More importantly, in comparison to that of ZIS, an intense signal at a g-value of 2.004 of ZIS-P₀ is shown in Figure S5, further confirming the existence of Sv. In the S 2p XPS, we can find that the peaks of ZIS-P₅ positively shift by ~0.20 eV in comparison to ZIS, which was due to the existence of the Sv (Figure 2b), consistent with the previous report [39]. In contrast, the binding energies of In 3d and Zn 2p in the high resolution XPS spectra of ZIS-P₅ were lower than those of ZIS (Figure S6). Of course, similar results are also confirmed in ZIS-P₀ (Figure S6). These results suggest that the phosphating process (discussed in the section detailing the experiment) can lead to the formation of Sv, and leave the P element in ZIS (i.e., ZIS-P₅).

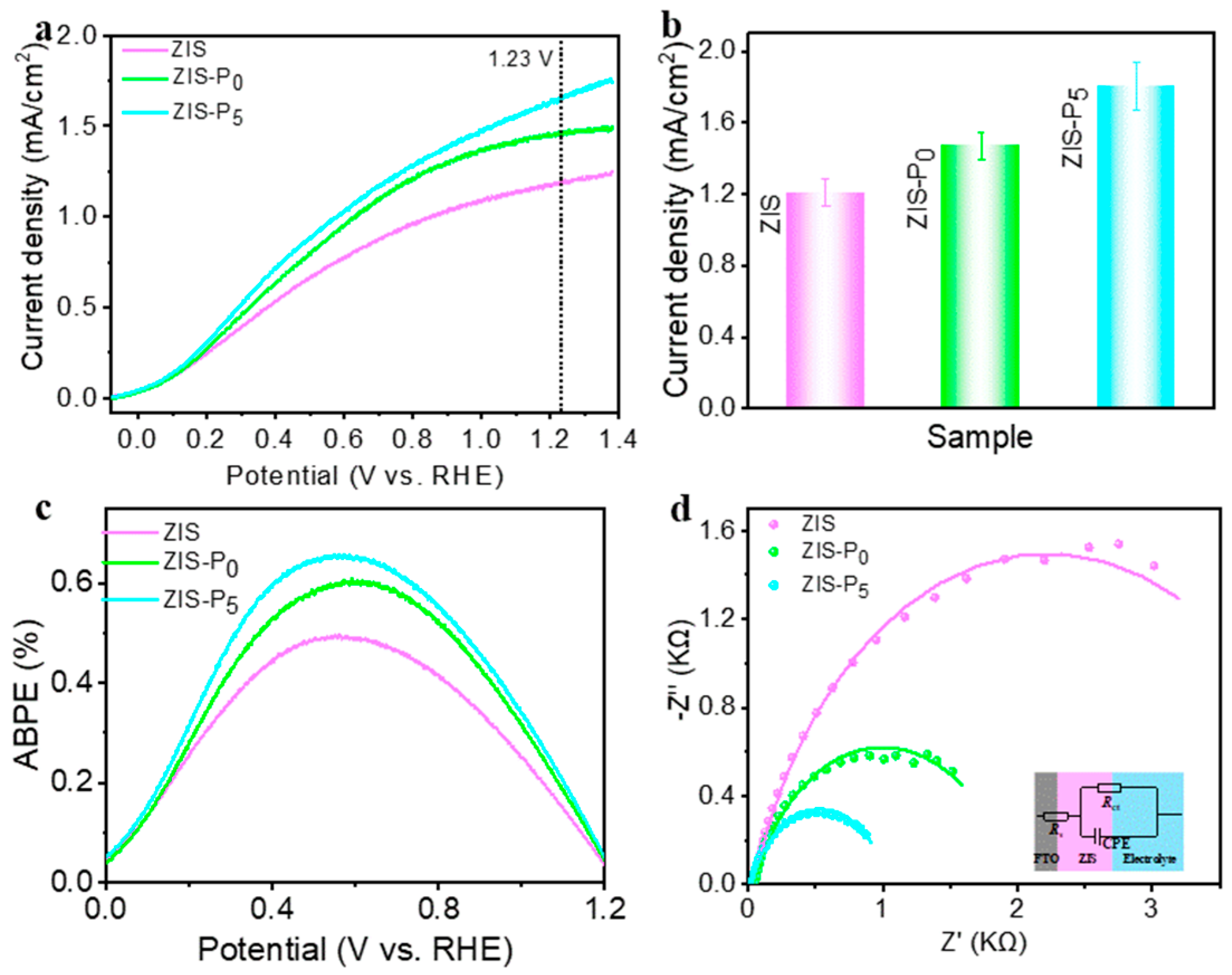

The PEC water splitting was measured with a traditional three-electrode system (AM 1.5 G illumination) in 0.5 M NaH₂PO₄/Na₂HPO₄ buffer solution (pH 6.5). The photocurrent-voltage (J-V) curves under different P doping conditions were investigated (Figure S7), including the time (0.5–1.5 h) and temperature (305–335 °C) of the phosphating process, and the P source mass (0, 5, 10 mg). To further confirm the synergistic effects of Sv and P doping, the photocurrent densities of six pieces of different film under AM 1.5 G illumination were collected (Figure S8). Finally, the optimal condition is 320 °C for 1 h with 5 mg P source. In Figure 3a, the pristine ZIS photoanode shows a relatively low photocurrent density (about 1.18 mA cm⁻²) at 1.23 V_RHE, mainly suffering from sluggish OER dynamics and severe charge recombination (discussed in the Introduction). Obviously, when the ZIS photoanode was annealed at the 320 °C (without the P source), the optimized ZIS-P₀ shows an enhanced photocurrent density of 1.46 mA cm⁻², possibly owing to the boosting charge separation or surface catalysis. However, simultaneously suppressing the charge recombination and accelerating the surface OER dynamics slowly is especially disputable. Interestingly, the doping of P into the ZIS (ZIS-P₅) can obviously improve PEC activity, and the photocurrent density can be increased up to 1.66 mA cm⁻² at 1.23 V_RHE (Figure 3a), accompanied by a much lower onset potential of 0.12 V vs. RHE. ABPE values of different samples can be calculated from the measured J-V curves. As shown in Figure 3c, after introducing the P element by the phosphating treatment, the resultant ZIS-P₅ photoanode exhibits a higher ABPE value of 0.65% at 0.50 V_RHE, which is much higher than that of ZIS-P₀ (0.6% at 0.6 V_RHE) and pristine ZIS (0.49% at 0.57 V_RHE), further confirming that the impressive improvement in PEC performance is due to P doping and Sv.

To further elucidate the above results, EIS was performed on different samples. Through the analysis of a Nyquist diagram (Figure 3d), we find that the bare ZIS photoanode has a large arc radius, indicating that the charge transfer impedance is large, and the relevant charge transfer kinetics are slow. Typically, the arc radius of ZIS-P₅ is significantly smaller than ZIS-P₀ and ZIS, indicating that ZIS-P₅ has a higher conductivity. An analysis of the fitting results further reveal notable distinctions for different samples. Specially, in Table S2, the impedance of ZIS-P₅ (931 Ω) stands out as lower compared to that of ZIS-P₀ (1770 Ω) and ZIS (4040 Ω). These results indicate the excellent conductivity and rapid charge transfer kinetics of the ZIS-P₅ photoanode, which is conducive to inhibiting charge recombination and improving the PEC water splitting performance.

In order to further gain in-depth insights into the fast charge transfer behavior of the ZIS-P₅, the time resolved photoluminescence (TRPL) of different photoanodes were tested. the lifetime of ZIS-P₅ (2.77 ns) is longer than ZIS-P₀ (2.61 ns) and ZIS (2.21 ns), suggesting that the P doping and Sv can ensure a long lifetime of charge carriers (Figure S9). To further explore the charge transfer kinetics, open-circuit potential (OCP) measurements were carried out. As shown in Figure S10, the photovoltage of the ZIS-P₅ photoanode is calculated to be 430 mV, which is 70 mV and 20 mV higher than that of the ZIS (360 mV) and photoanode ZIS-P₀ (410 mV), respectively, proving that the introduction of P element and Sv contribute to a larger photovoltage and thus promote highly efficient charge separation, which is in good agreement with the results of J-V curves.

The above series of characterizations confirm that P doping and Sv can obtain an excellent PEC performance, but the real reason for this is still unknown. To investigate the origin, it is necessary to investigate the charge transfer kinetics. First, the light harvesting ability was tested by UV–vis diffuse reflectance spectroscopy (DRS). As shown in Figure S11, we find that there is a slight influence of the light absorption upon the photocurrent density of the ZIS-based photoanodes, further indicating that the robust photocurrent density is mainly attributed to the charge transfer and surface catalysis. So, the intensity-modulated photocurrent spectroscopy (IMPS) curves of different samples were recorded to explore their charge transfer dynamics (Figure 4a). In general, when the charge transfer rate constant (K_rc) value is lower than the charge recombination rate constant (K_ct), the charge transfer dominates. Conversely, charge recombination prevails, where the ratio of K_ct/(K_rc + K_ct) can be achieved by comparing the steady state photocurrent density and the instantaneous photocurrent density (Figure 4b) [45]. For ZIS, K_rc is much higher (15.65 s⁻¹) than K_ct (8.42 s⁻¹), as depicted in Figure 4c, which is mainly due to the poor charge recombination and slow surface reaction. Notably, K_ct of ZIS-P₅ is about 2.98 times higher than that of ZIS after the introduction of the P element and Sv, suggesting that the synergistic effect of P and Sv can effectively accelerate the kinetics of hole transfer and then inhibit charge recombination, as supported by the results of the charge transfer efficiency (Figure 4d) and transient time (Figure S12).

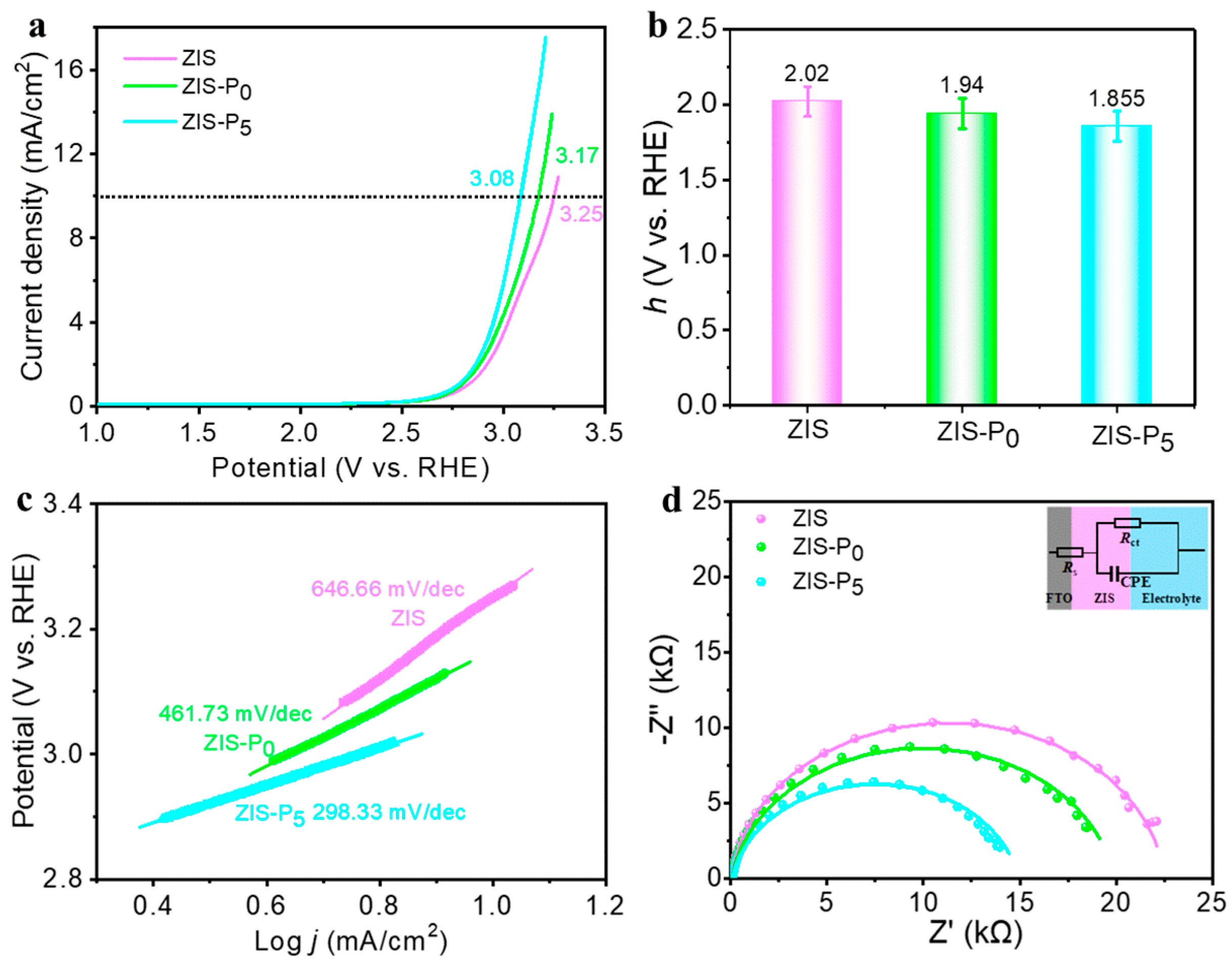

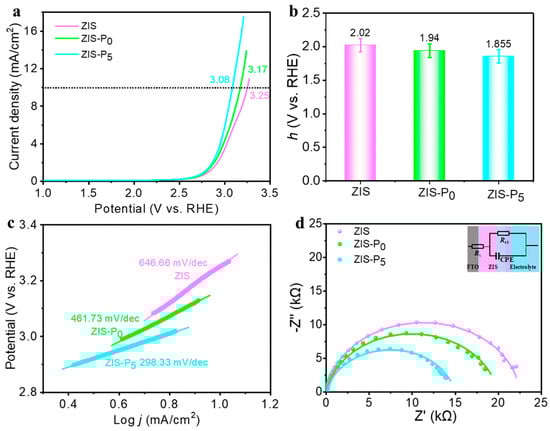

Except for efficient charge separation through the synergistic effect, whether the surface catalytic activity can be affected is ambiguous. Therefore, we measured the OER performance of different samples using a standard three-electrode system. In Figure 5a, the potentials of ZIS, ZIS-P₀, and ZIS-P₅ are 3.25 V, 3.17 V, and 3.08 V at a current density of 10 mA cm⁻², respectively. It can be seen that ZIS-P₅ has the lowest overpotential (Figure 5b) in all samples, indicating that ZIS-P₅ has better OER performance compared to its counterparts. In order to further confirm this result, the Tafel slopes were further investigated. (Figure 5c). In Figure 5c, ZIS-P₅ shows a much lower Tafel slope of 298.33 mV dec⁻¹ than that of ZIS-P₀ (461.73 mV dec⁻¹) and ZIS (646.66 mV dec⁻¹). The above results further confirm that the superior OER activity of ZIS-P₅ can mainly be ascribed to the sufficient active sites and excellent electrical conductivity through introducing the P element and Sv, which can be supported by the results of EIS (Figure 5d and Table S3) and cyclic voltammograms (CV, Figure S13).

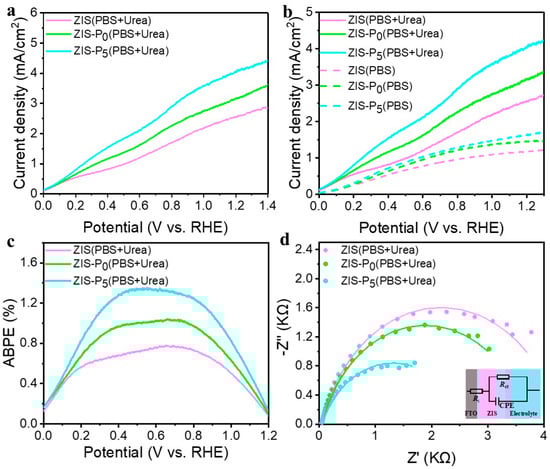

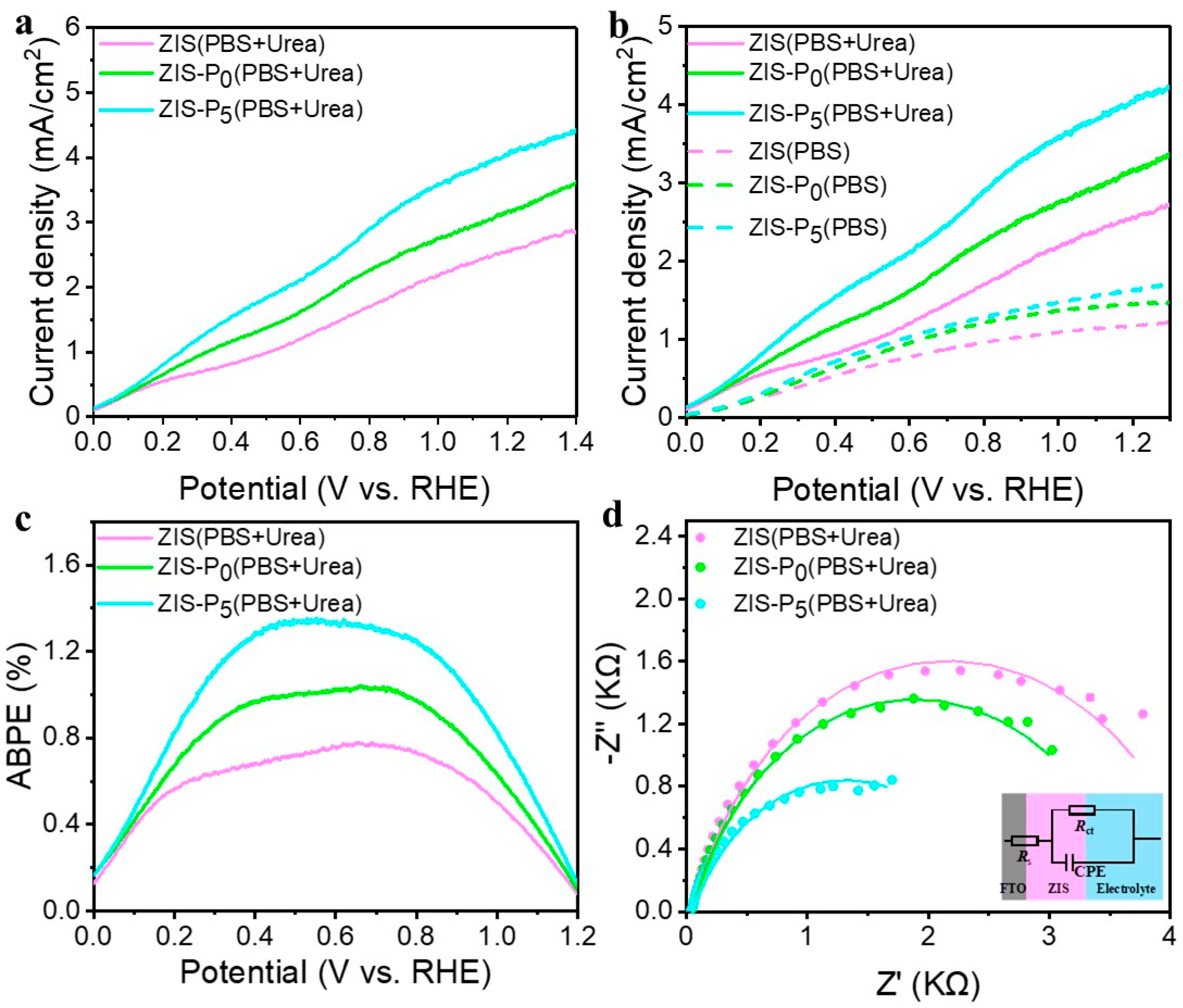

To further explore the advantages, the performance of ZIS-based photoanodes for urea oxidation under AM 1.5 G was studied. In comparison to the pristine ZIS and ZIS-P₀, ZIS-P₅ shows more negative onset potential and excellent PEC urea oxidation performance. As presented in Figure 6a, the ZIS-P₅ exhibits the best PEC urea oxidation performance, achieving a photocurrent density of 4.13 mA cm⁻² at 1.23 V vs. RHE. In the absence or presence of urea (Figure 6b), ZIS-based photoanodes have a higher photocurrent density for urea oxidation (4.13, 3.24, and 2.61 mA cm⁻² for ZIS-P₅, ZIS-P₀, and ZIS, respectively) than that of PEC water oxidation (1.66, 1.46, and 1.18 mA cm⁻² for ZIS-P₅, ZIS-P₀, and ZIS, respectively) at 1.23 V vs. RHE. In addition, the ABPE curves were calculated by LSV, where the value of ABPE decreases in the following order: ZIS-P₅ > ZIS-P₀ > ZIS (Figure 6c), which is consistent with the LSV results. To further elucidate that P doping and Sv still show positive effects in charge separation and surface catalysis, we performed an EIS test for different samples (Figure 6d). Through the analysis of Nyquist plots (Table S4), we find that ZIS-P₅ photoanode has a much smaller resistance (R_ct, 664 Ω) to that of ZIS-P₀ (1610 Ω) and ZIS (3480 Ω). All the results presented above prove that the charge separation and surface reaction kinetics can be simultaneously boosted by P doping and Sv.

4. Conclusions

In this work, a facile P doping strategy was developed to successfully construct a ZIS-P₅ photoanode. The PEC performance can be efficiently improved by the P element and Sv. The optimized photocurrent density of ZIS-P₅ is 1.41-fold increased compared to pure ZIS. As proven by IMPS and EIS results and OER tests, the desired PEC performance can be contributed to simultaneously tuning the charge separation and surface reaction kinetics. Specially, ZIS-P₅ presents the highest K_ct (25 s⁻¹), which is more than three times higher than that of ZIS (8.4 s⁻¹), and the Tafel slope of ZIS-P₅ is decreased from 646.66 to 298.33 mV dec⁻¹. Moreover, the synergistic effect can also enhance PEC urea oxidation performance. This finding provides a smart strategy for highly efficient hydrogen production.
