A 6 kW Level Linearly Polarized Near-Diffraction-Limited Monolithic Fiber Laser with a 0.43 nm Linewidth

Abstract

A high-power, narrow-linewidth, all-fiber polarization-maintaining (PM) amplifier has been demonstrated. A lasing power of 5870 W has been delivered in master oscillator power amplifier architecture with cascaded white noise source (WNS) phase modulation and bidirectional pumping schemes. The maximal power was limited by the onset of stimulated Brillouin scattering. At the maximum power operation, the amplifier exhibited a 3 dB spectral linewidth of 0.43 nm with beam quality being M² < 1.33 and polarization extinction ratio (PER) being 16.3 dB. To the best of our knowledge, this represents the highest spectral brightness and PER achieved by PM fiber laser systems around 6 kW-level operation.

1. Introduction

Due to the advantages of excellent spatial–temporal coherence, high electro-optic efficiency, efficient thermal management, and a nearly maintenance-free compact structure, high-power narrow linewidth linearly polarized fiber lasers with near-diffraction-limited beam quality have found widespread applications in various regimes, such as nonlinear frequency conversion, remote communication, beam combination, and gravitational wave detection [1,2,3,4,5,6]. Scaling the laser brightness has always attracted intense attention from the global researchers [7,8,9,10,11,12,13]. Due to the polarization dependence of the stimulated Brillouin scattering (SBS) effect [14,15], SBS has become one of the most notorious physical limitations during the power scaling struggle, and much research has been carried out to mitigate SBS, including increasing the effective mode area [16], controlling temperature or stress gradients [17,18], reducing the effective fiber length [19], and spectral broadening via phase modulation [20]. The phase modulation spectral broadening is operational simplicity and strong controllability and has become a widely adopted effective strategy for SBS suppression in high-power fiber lasers [21,22,23,24]. Sinusoidal modulation requires high modulation depths to obtain more spectral lines, while PRBS modulation, in which the modulated linewidth is approximately equal to the modulation frequency, requires a high-speed signal generator, both of which require high cost [25]. Among these techniques, phase modulation with white noise format has gained significant attention due to its simplicity in signal generation and implementation, making it a standard modulation technique in industrial fiber lasers [26,27,28,29,30,31]. In recent years, remarkable advancements have been witnessed in high-power narrow-linewidth fiber lasers by employing WNS phase modulation [32,33,34], and a record laser power of 5.85 kW has been reported in 2025 with linewidth being 0.6 nm and PER being 12.8 dB, but its output power is limited by the SRS and TMI [35]. For versatile applications of high-power narrow linewidth linearly polarized fiber lasers, lasers with higher spectral brightness and polarization purity are required to achieve better beam quality and higher combining efficiency [36,37,38,39,40,41,42].

In this work, we have achieved a breakthrough in PM fiber laser performance, demonstrating near-diffraction-limited 5.87 kW output power with a 3 dB spectral linewidth of 0.43 nm and PER of 16.3 dB. By cascaded WNS phase modulation and optimized laser parameter design, both the SBS and TMI thresholds have been effectively enhanced. To the best of our knowledge, this is the highest laser power with such a narrow laser linewidth and high PER, which may facilitate the deepened application of high-power narrow-linewidth linearly polarized fiber lasers.

2. Experimental Setup

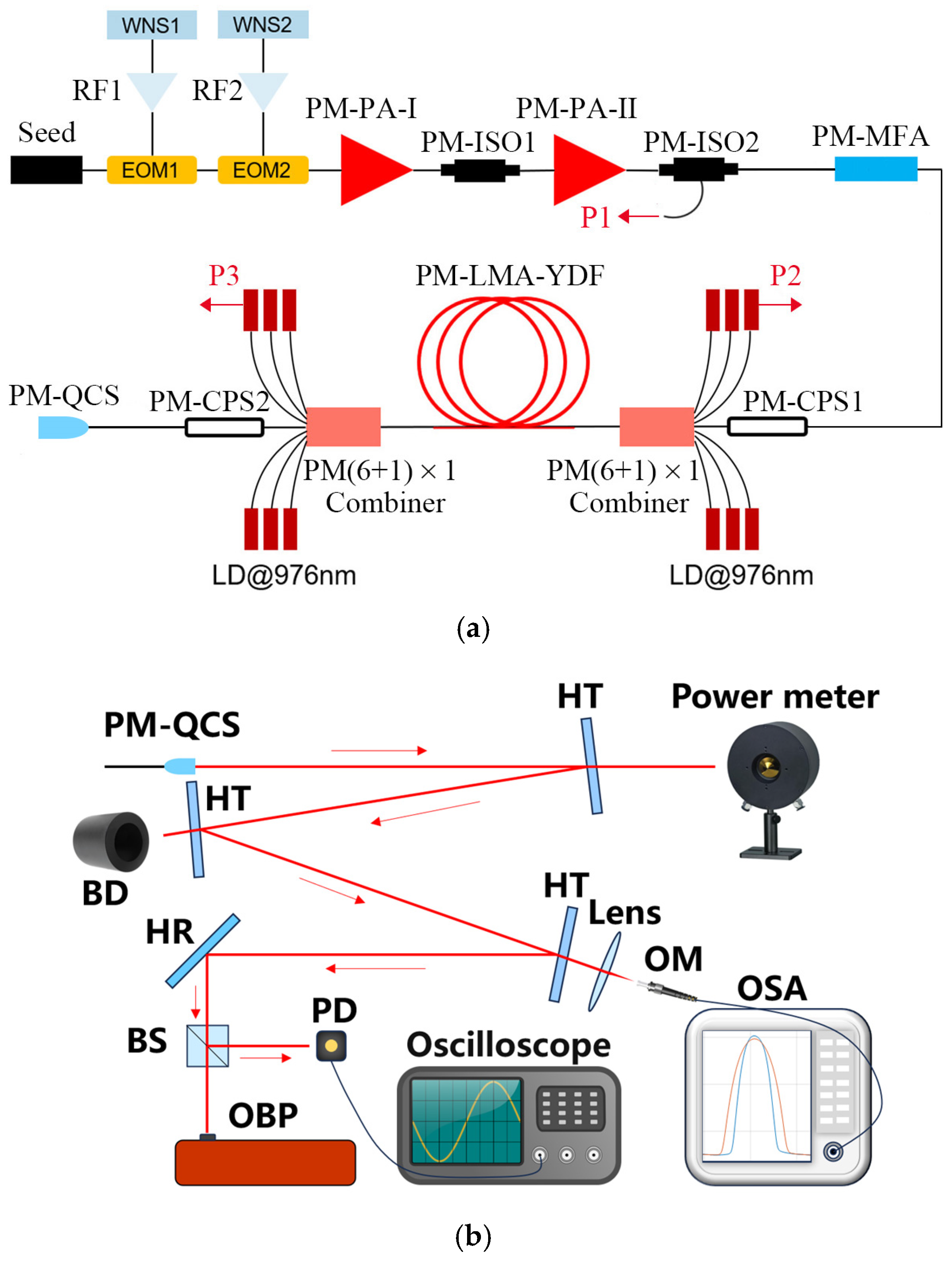

The experimental setup is shown in Figure 1a, which is based on master oscillator power amplification (MOPA) structure. A 1064 nm continuous wave single frequency fiber laser with output power being 30 mW and linewidth being <10 kHz acts as the seed. The seed laser is broadened to 0.32 nm for SBS suppression by a cascaded phase modulation, which is composed of two electro-optic phase modulators (EOM1, EOM2) with the modulation frequency being 10 GHz and Vπ being 1.7 V@1 GHz. Two white noise sources (WNS1, WNS2) have been employed to drive the phase modulators through RF (radio frequency) amplifiers (RF1, RF2), which can suppress SBS-induced self-pulsing effectively [29,30] and guarantee higher spectral brightness. The broadened seed laser was boosted to 20 W by two preamplifiers, which employed a piece of 3 m PM 10/125 µm YDF as the gain medium. The seed laser and pump laser were injected into the PM 10/125 YDF via a PM (1 + 1) × 1 pump/signal combiner in co-pumping configurations. Both the input and output signal ports of the PM (1 + 1) × 1 pump/signal combiner are PM fibers with core and cladding diameters being 10 µm and 125 µm, respectively, and 105/125 multimode fiber has been employed as the pump port fiber. Pre-amplifier 1 (PA-I) is pumped by a 5 W fiber-coupled multimode laser diode (MM LD), while a 30 W MM LD is used for pre-amplifier 2 (PA-II), which boosts the average power to 600 mW and 20 W, respectively. Homemade PM cladding light strippers have been employed to strip the residual power and stray light [43], and 20 W-level three-port isolators (ISO1, ISO2) with built-in bandpass filter components have been employed to block off the backward power and filter the amplified spontaneous emission (ASE) at the end of PA-I and PA-II [44]. The backward laser was guided out from the third port (P1) of ISO2, which was measured by a power meter and optical spectral analysis to monitor the onset of SBS. A mode field adapter (MFA) has been employed to achieve efficient coupling and single-mode transmission of large mode field fiber to single-mode fiber between the pre-amplification and main amplification stages [45,46]. The coupling efficiency and output beam quality of MFA affect the power enhancement of the laser system and the quality of the output beam [47].

The main amplification is composed of several critical components: a piece of PM large-mode-area YDF (LMA-YDF) with a core/cladding diameter of 20/400 µm, two (6 + 1) × 1 PM pump/signal combiners, two homemade PM cladding power strippers (CPS1 and CPS2), and a quartz beam hat (QBH). The output delivery fiber (passive PM fiber) is approximately 1.8 m to enable flexible beam routing. The effective mode field diameter of the PM LMA YDF was designed to be 15.74 µm and NA~0.066, which is a compromise between SBS and MI thresholds to achieve maximum output power and to maintain near-diffraction-limited beam quality. The cladding absorption coefficient of the active fiber is about 1.24 dB/m at 976 nm, and 12 m of active fiber is used in the main amplifier for efficient absorption of the pump power. To further increase the TMI, the active fiber was coiled to increase the relative loss of HOMs in the main amplifier [48,49]. Through the implementation of a high-precision bias-preserving fusion bonding process (less than 1° alignment error), the PER degradation of the fusion bonding point is controlled within 0.5 dB, the optimized coiling method suppresses stress-induced birefringence, and the integration of bi-directional pumping and temperature control system effectively enhances the system’s extinction ratio performance. Furthermore, optimization of the fiber coiling radius can suppress polarization degradation induced by higher-order modes [13,42]. The high-power laser diodes (LDs) with stabilized wavelength around 976 nm have been divided into two groups and injected into the gain fiber through the two (6 + 1) × 1 PM pump/signal combiners to realize bi-direction-pumping configurations, respectively. A piece of double-clad passive fiber terminated with an anti-reflection-coated collimated end cap is spliced to the output signal port of the backward pump/signal combiner for power delivery and projecting the collimated laser into free space safely. Homemade PM cladding power strippers (CPS1 and CPS2) have been employed at both sides of the main amplification to eliminate the unwanted cladding signal light and residual pump light, thus enhancing the overall performance of the laser system. To handle the waste heat generated at high power operation, the LMA-YDFs are meticulously placed on water-cooled aluminum plates to dissipate the waste heat.

As shown in the inset of Figure 1b, the measurement system consists of one power meter (PM), three high transmission (HT) mirrors, one high-reflection (HR) mirror, one convex lens, one beam dump (BD), one beam splitter (BS), one photodiode (PD), one optical multi-mode (OM) patch cable, one optical spectrum analyzer (OSA), one optical beam profiler (OBP), and one oscilloscope. A power meter is used to measure output power and test the error range ± 5%. The HT mirrors are used to split the beam and attenuate the output laser light for laser measurement. After the first attenuation, the transmitted light of the output laser at the second LR was collected by the BD. Using a convex lens to couple the transmitted light at the third HT into the OM patch cable to monitor the laser’s output spectrum, and our OSA has a testing error range of ±0.02 nm. The HR mirror and the third HT mirror are used to adjust the spot position, and the beam quality of the output laser was quantitatively characterized using a beam profiler with the 4σ method (tolerance range ± 5%). The time domain signal is monitored by BS splitting at the HR reflected light, and the split light is captured by the PD and displayed on the oscilloscope.

3. Experimental Results

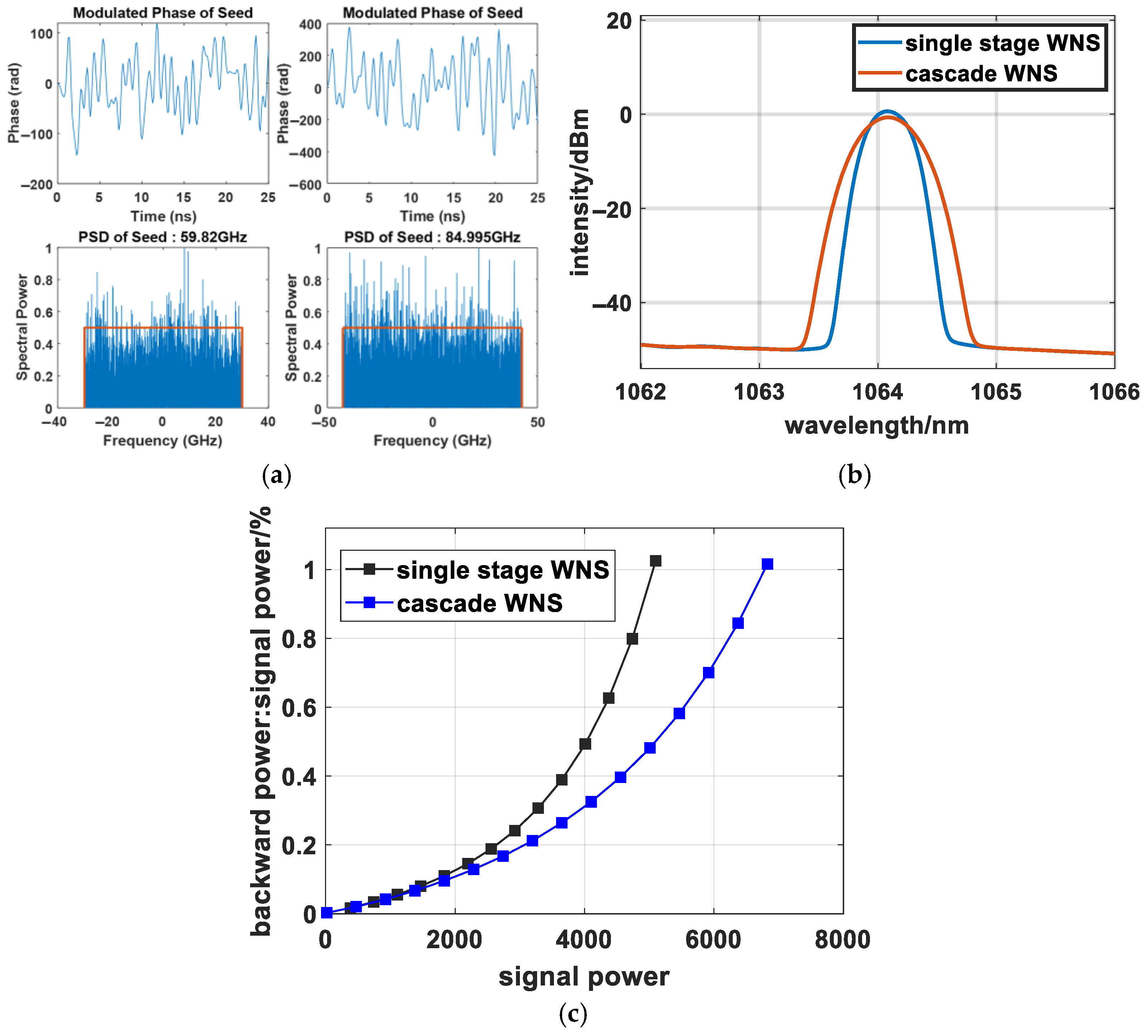

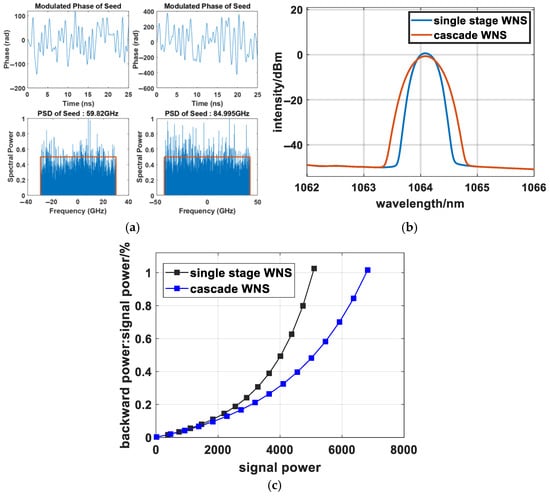

The seed source consists of a 30 mW single-frequency laser followed by two cascaded electro-optic phase modulators. By driving the EOMs with WNS signals sequentially, the broadened seed laser optical spectrum with single-stage and cascaded WNS phase modulation was measured. The WNS signal used to drive the phase modulators has been shown in Figure 2a with the corresponding spectrum. The top of the figure shows the Gaussian spreading signal generated by the simulated white noise source, and the spectrum of the single-frequency seed source after phase modulation by WNS is shown in the bottom of the figure. Figure 2b revealed the measured output spectrum. It has shown that single-stage WNS modulation yields a 3 dB linewidth of 0.23 nm, while cascaded WNS modulation broadens the spectrum to 0.32 nm. Based on these spectral measurements and the fiber amplifier parameters described in Section 2, we performed numerical simulations to predict the SBS threshold for each modulation scheme [50,51,52]. Due to that, the MI threshold of the system is highest when the counter pumping power accounts for 80% of the total power [53], so the counter pumping percentage is also taken as 80% during numerical simulation. The SBS threshold power is defined as 1% of output power. The simulated results have been shown in Figure 2c. It revealed that, during single-frequency operation, the system reached the SBS threshold when the output laser was 50.06 W. Implementing single-stage WNS phase modulation broadened the seed linewidth to 0.24 nm, significantly increasing the threshold to 5100.95 W—representing a 20.1 dB improvement over the single-frequency case. Further linewidth expansion to 0.32 nm through cascaded WNS modulation yielded a threshold of 6825.64 W (21.4 dB enhancement).

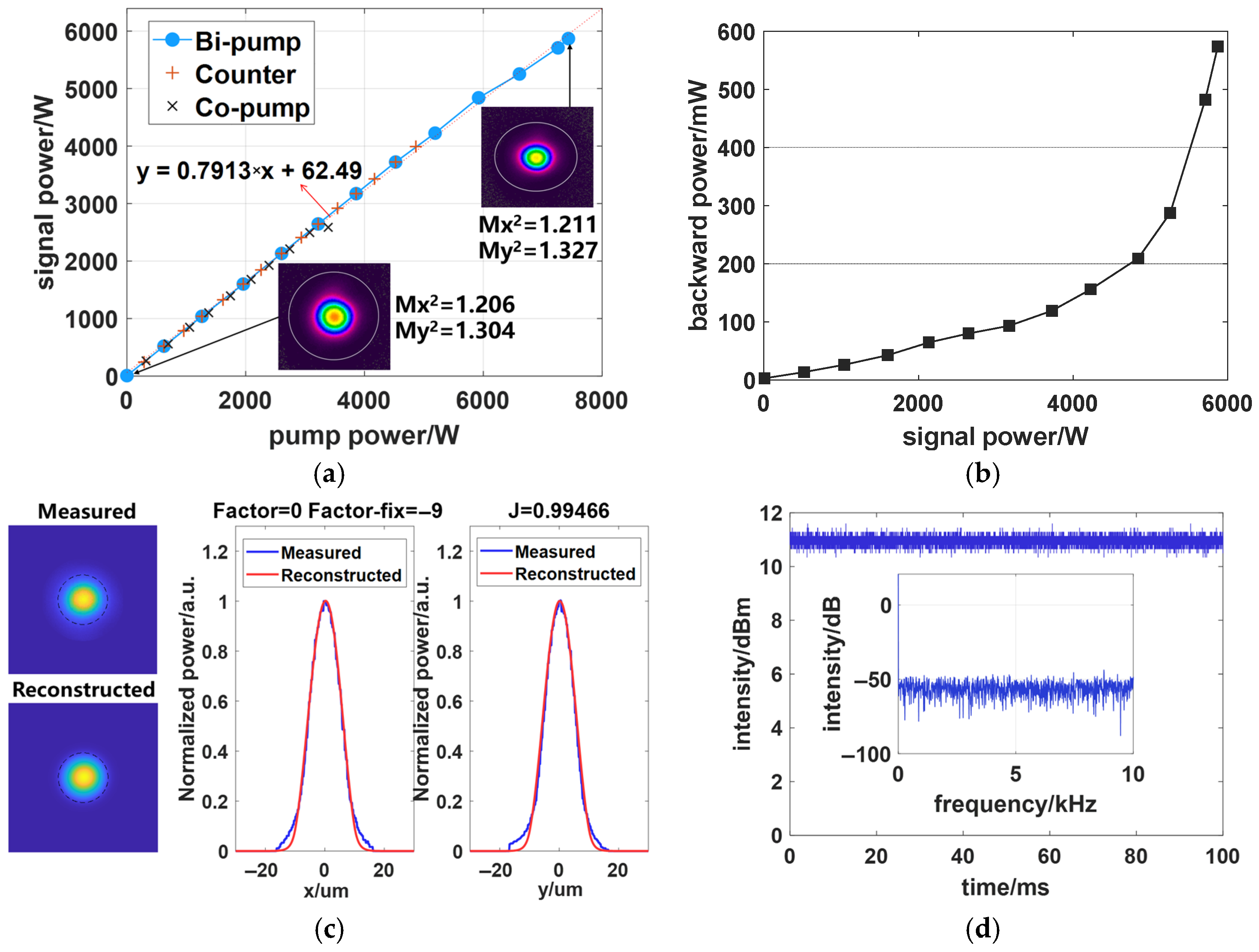

It has shown that the output properties of the fiber amplifier employing unidirectional pumping schemes could provide practical guidance for the optimal design and potential exploration of high-power narrow-linewidth fiber amplifiers employing the bidirectional pumping scheme [54], so the MI thresholds under unidirectional pumping configurations have been investigated, which is shown in Figure 3a. In the counter-pumping configuration, with all five pump modules (excluding P3) operating at maximum power (total 4864 W), no MI phenomenon was observed at 3992 W laser power. In the co-pumping configuration, MI onset occurred at a signal power of 2587 W. The TMI threshold trend agrees with the prediction in [55]. Based on the aforementioned results, one can conclude that our laser system is capable of delivering > 6579 W MI-free laser power in bi-directional pumping schemes. Then we implemented an optimized bidirectional pumping scheme, initially setting the counter-pump power to 4864 W before gradually increasing the co-pump power. The output laser power as a function of pump power is shown in Figure 3a with blue solid circles. As the output power increases, the intensity of the return light spectrum increases, and when the output power reaches 5870 W, a self-pulse peak is generated in the return light spectrum, which indicates that the SBS threshold of this experimental system is 5870 W, and further increase of the output power is limited by the SBS effect. The onset of SBS has been further confirmed by the backward power behavior measured at port P1 (Figure 1), which is presented in Figure 3b. Upon reaching maximum output power, the backward power exhibited rapid nonlinear growth. Due to the compact requirement of the ISO, no specially designed coupling optics were employed, and not all the backward power was coupled out in port P1 of the isolator, which results in the measured backward power not being a true backward power value, but the power behavior can be used to monitor the onset of SBS. The system ultimately achieved 5870 W output power with 7431.7 W total pump power, corresponding to a remarkable optical-to-optical efficiency of 79.13%. The beam propagation factors have been measured, which is shown in the inset of Figure 3a. With the preamplifiers being turned on, the beam quality is measured to be M_x² = 1.206 and M_y² = 1.304, which were measured to be M_x² = 1.211 and M_y² = 1.327 at maximum output power, demonstrating near-diffraction-limited beam quality.

It is known that, for narrow linewidth fiber lasers, M² cannot reflect the mode content accurately, which is influenced by intermodal phase [56,57,58]. To evaluate the fraction of fundamental mode, which is critical for applications [13,39,59], mode decomposition (MD) in [60] was employed. The MD method utilizing numerical analysis can perform fast and accurate MD when adapting the SPGD algorithm [61]. The merit function J employed in this paper is the cross-correlation function, written as follows:

$$J=\left|{\displaystyle \frac{\iint \Delta I_{re}\left(r,\phi \right)\Delta I_{me}\left(r,\phi \right)rdrd\phi }{\sqrt{\iint \Delta I_{re}^2\left(r,\phi \right)rdrd\phi \iint \Delta I_{me}^2\left(r,\phi \right)rdrd\phi }}}\right|$$

(1)

where ΔI_j(r, φ) = I_j(r, φ) − j with j = re, me (respectively, denoting the reconstructed and measured intensity) and j is the corresponding mean value of the intensity distribution.

The calculated results were shown in Figure 3c, which revealed that the cross-correlation function J = 0.99466 and the fraction of LP01 is 0.9761 for maximum output power, which means that the fiber laser system is suitable for beam combination. At the maximum output power, the time traces have been recorded in Figure 3d, and the corresponding Fourier spectrum has been shown in the inset. One can see that there are no characteristic frequency components indicating the onset of the MI effect [62], which denotes that the MI effect is suppressed effectively. The experimentally measured SBS threshold was approximately 14% lower than numerical predictions, which is primarily due to the following factors: (1) Signal distortion in the RF driving circuit, which inevitably results in non-ideal modulation waveforms; (2) Enhanced Brillouin seeding from discrete reflections at the output endcap and multiple fusion splices, collectively increasing the effective Stokes seeding [63,64]; (3) Discrepancy in pump power distribution, SBS threshold increases with increasing reverse pumping ratio [65], as simulations assumed an 80% counter-pump ratio (optimized for MI suppression) while the actual experiment operated at 65.45%. In addition, there are manufacturing tolerances in the fiber pulling process, coupling between fiber jumper heads, and internal factors within the fiber laser device.

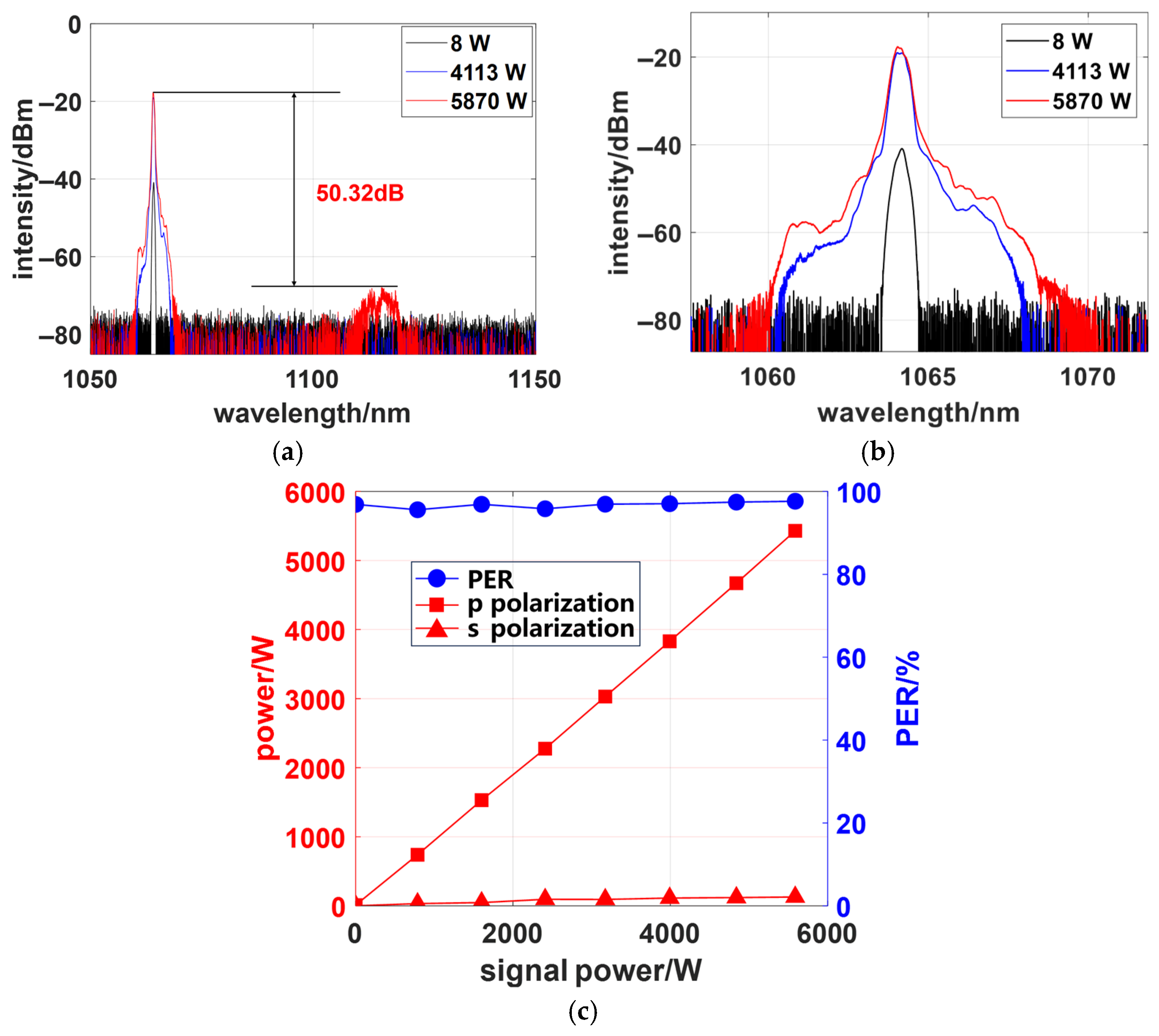

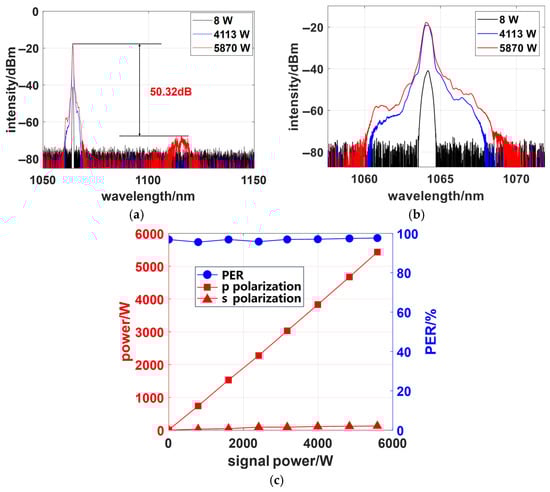

The optical spectra of the PM amplifiers were shown in Figure 4. At the highest power level, there is a sign of SRS, but the Raman peak is 50.32 dB lower than the signal peak as shown in Figure 4a, which means that further increase of the output power is not limited by SRS. As shown in Figure 4b, the linewidth broadened as the laser power increased, and the 3 dB linewidths are 0.32 nm (85 GHz) at 8 W, 0.43 nm (114 GHz) at 4113 W, and 0.43 nm (114 GHz) at 5870 W, respectively, which is attributed to nonlinear effects [66]. In high-power narrow-linewidth fiber amplifiers, broadband background spectral noise generated by spontaneous radiation noise at the seed laser or preamplifier stage can also be amplified during power scaling. Several studies have shown that the four-wave mixing (FWM) effect leads to a large conversion of energy from the single-frequency portion of the phase modulation into background spectral noise during the power scaling process [29,67]. Therefore, both the power scaling of ASE and the FWM effect lead to the enhancement of the background spectral noise, which ultimately leads to a broadening of the spectral wings and linewidth. Figure 4c shows the PER as a function of the output power, where the PER is calculated using the formula PER = −10 × log (Ps/Pp). The measured PER changes between 13.6 dB (95.7%) and 16.3 dB (97.7%), which just fluctuates within 2% during the power scaling process. At maximum output power, the PER of the PM amplifiers is measured to be 16.3 dB (97.7%).

4. Discussion

Our experimental results demonstrate that the 6 kW-class laser system is ultimately limited by SBS rather than MI or SRS. The most straightforward and effective approach to further enhance the SBS threshold would be further broadening the seed laser linewidth. According to the SBS threshold definition equation [68] and existing experimental reports [69], the SBS threshold is not linearly related to the spectral linewidth, which inevitably degrades the power spectral density and is particularly detrimental for applications requiring high spectral brightness, such as beam combination and non-linear frequency conversion.

For this laser system, a three-stage methodology is introduced. First, the delivery fiber length is minimized to elevate the SBS threshold. Subsequently, if SRS emerges as the bottleneck, Raman-suppressing gratings will be integrated directly into the output delivery fiber. Conversely, should MI become dominant prior to SRS, the reserved backward pump port will be utilized to increase the backward pump ratio. Critically, these stages are strategically coordinated to identify the equilibrium state among the competing nonlinear effects. For future work, we should focus on addressing nonlinear limitations through innovative fiber material engineering [70,71]. As demonstrated by Dragic et al., borosilicate doping (B₂O₃:4SiO₂) can significantly reduce the Brillouin gain coefficient (up to an 80% suppression) [72], directly enhancing the SBS threshold without compromising spectral linewidth. Dragic’s 2018 proposal for systematically tailoring the GeO₂-P₂O₅-B₂O₃ ternary system enables precise control over nonlinear coefficients [73]. Remarkably, Hawkins’ 2021 work on intrinsically low-Brillouin and thermo-optic Yb-doped fibers has already achieved >1 kW single-mode output with ultra-low optical losses (<0.1 dB/km) by optimizing Al/Yb co-doping and fiber microstructure, simultaneously suppressing both SBS and thermal lensing effects [74]. Rosales-García (2024) has further realized a groundbreaking 5.2 kW single-mode laser output (M²~1.2) using a thermally optimized Yb 20/400 fiber, demonstrating that advanced core composition design combined with low dn/dT coatings can push the TMI threshold beyond 5 kW while maintaining high efficiency (>80%) [75].

5. Conclusions

In this work, we present a 6 kW-class all-fiberized and polarization-maintained amplifier operating at 1064 nm with narrow linewidth and near-diffraction-limited beam quality based on a conventional MOPA configuration. During the power scaling process, the SBS effect is effectively suppressed by subsequently using two-stage cascaded WNS phase modulation systems, and the MI effect is managed by optimized coiling of the active fiber in the main amplifier. The amplifier achieves a maximum output power of up to 5.87 kW with an optical-to-optical conversion efficiency of 79.13%. At the maximum output power, the 3 dB spectral linewidth is measured to be 0.43 nm, and the beam quality approaches the diffraction limit. The PER just fluctuates within 2% during the power scaling process, and as high as 16.3 dB is obtained at 5870 W output power. To the best of our knowledge, this represents the highest output power achieved by an all-fiber laser at this spectral linewidth, as well as the highest spectral brightness of lasers in the 6 kW class and above. In our subsequent research, we will explore methods to mitigate SBS and aim to achieve higher-power laser output while maintaining the spectral linewidth.
