Article

The Structures and Bonding of Bismuth-Doped Boron Clusters: BiB4− and BiB5−

by
Hyun Wook Choi
,
Wei-Jia Chen
,
G. Stephen Kocheril
,
Dao-Fu Yuan
* and
Lai-Sheng Wang
*
Department of Chemistry, Brown University, 324 Brook Street, Providence, RI 02912, USA
*
Authors to whom correspondence should be addressed.
Inorganics 2023, 11(10), 405; https://doi.org/10.3390/inorganics11100405
Submission received: 24 September 2023 / Revised: 12 October 2023 / Accepted: 12 October 2023 / Published: 14 October 2023
(This article belongs to the Special Issue Boron Chemistry: Fundamentals and Applications)
Browse Figures
Versions Notes

Abstract

:
We present an investigation on the structures and chemical bonding of two Bi-doped boron clusters BiBn− (n = 4, 5) using photoelectron spectroscopy and theoretical calculations. The electron affinities of BiB4 and BiB5 are measured to be 2.22(2) eV and 2.61(2) eV, respectively. Well-resolved photoelectron spectra are obtained and used to compare with theoretical calculations to verify the structures of BiB4− and BiB5−. Both clusters adopt planar structures with the Bi atom bonded to the periphery of the planar Bn moiety. Chemical bonding analyses reveal that the Bn moiety maintains σ and π double-aromaticity. The Bi atom is found to induce relatively small structural changes to the Bn moiety, very different from transition metal-doped boron clusters.

Graphical Abstract

1. Introduction

Due to its electron deficiency, boron exhibits a wide range of bulk allotropes and compounds that consist of distinct three-dimensional (3D) building blocks [1,2,3]. Extensive research has been conducted over the past two decades, employing a combination of experimental and theoretical studies to investigate size-selected boron clusters [4,5,6,7]. Unlike their bulk counterparts, small boron clusters predominantly exhibit two-dimensional (2D) structures composed mainly of B3 triangles. Among the fascinating 2D boron clusters, the C6v B36 cluster stands out as it provides the first experimental evidence for the existence of atom-thin 2D boron (borophene) [8]. Borophenes have been successfully synthesized on metal substrates [9,10], becoming a novel type of synthetic 2D material [11,12]. Another important boron cluster is B40, which was found to have a cage structure, the first all-boron fullerene (borospherene) [13]. Numerous boron clusters doped with metals have also been generated and investigated [6,14,15,16], significantly extending the range of nanostructures that can be formed by boron.
After the discovery of ultrahigh thermal conductivity and important electronic properties in the cubic boron arsenide [17,18,19], the group III–V semiconductor families have gained increasing attention. However, arsenic compounds come with a significant drawback of toxicity [20,21]. On the other hand, bismuth, the heaviest group V element, is considered to be a “green metal” due to its low toxicity [22] and has attracted interest in chemistry and material sciences [23,24,25]. There is also growing interest in bismuth boride [26,27,28], but it has not yet been fabricated thus far. Small Bi boride clusters are ideal models to investigate the bonding between bismuth and boron, which lays the foundation to understand the bulk material and may help discover new Bi-B nanostructures.
Toward this goal, we have studied several Bi-B binary clusters using photoelectron spectroscopy (PES) and theoretical calculations, including BiBn− (n = 6–8) [29] and several di-bismuth boride clusters Bi2Bn− (n = 1–4) [30,31]. Most recently, we have reported an investigation of cold diatomic BiB− using high-resolution photoelectron imaging [32]. In the current article, we present a study on the structures and chemical bonding of two Bi-doped boron clusters, BiBn− (n = 4, 5), using PES and theoretical calculations. Well-resolved photoelectron spectra are measured and interpreted using the theoretical results. Both the BiB4− and BiB5− clusters are found to exhibit 2D structures. The Bi atom is found to be bonded to the edge of B4 and B5, respectively. The Bi atom is observed to induce relatively small structural changes to the Bn motif in comparison to the bare Bn clusters, in contrast to transition metal-doped boron clusters.

2. Experimental and Theoretical Methods

2.1. Photoelectron Spectroscopy

The experiments were conducted with a magnetic-bottle PES apparatus. Details of the experimental apparatus and procedures can be found elsewhere [5] and only essential features pertaining to this work are given here. The Bi-doped boron clusters were generated by laser ablation of a disk target made of Bi and 10B-enriched boron powders (1/1 Bi/B molar ratio). The plasma induced by the vaporization laser was quenched by a high-pressure He carrier gas containing 5% Ar. Clusters from the nozzle were carried by the carrier gas and cooled via supersonic expansion. Anionic clusters in the beam were extracted into a time-of-flight mass analyzer for mass analyses and cluster size selection. The BiBn− (n = 4, 5) clusters were each selected by a mass gate and decelerated before crossing a photodetachment laser beam. Three laser wavelengths were used for photodetachment, including 355 nm (3.496 eV) and 266 nm (4.661 eV) from a Nd:YAG laser and 193 nm (6.424 eV) from an ArF excimer laser. Photoelectrons were analyzed in a 3.5 m long electron time-of-flight tube of the magnetic-bottle PES spectrometer. Photoelectron spectra were calibrated with the known transitions of the Bi− atomic anion. The electron kinetic energy (Ek) resolution (ΔEk/Ek) of the magnetic-bottle analyzer was approximately 2.5%, i.e., about 25 meV for 1 eV electrons.

2.2. Theoretical Methods

Theoretical calculations were carried out to understand the structures and bonding of BiBn− (n = 4, 5) and help interpret the photoelectron spectra using the Gaussian 09 program packages [33]. Based on our prior experience [29,31], the Bi atoms tend to bond to the periphery of planar boron cluster motifs. Thus, the Bi atom was put around the planar B4 and B5 motifs [5,6], respectively, for the initial structural searches of BiB4− and BiB5− at the PBE/aug-cc-pVDZ-pp level. The low-lying isomers were reoptimized at the PBE level using the aug-cc-pVTZ basis set for B and the aug-cc-pVTZ-pp basis set with the relativistic pseudopotentials (ECP60MDF) for Bi [34,35,36]. We computed the adiabatic detachment energy (ADE) as the energy difference between the anion and the corresponding neutral at their optimized structures. The first vertical detachment energy (VDE1) was calculated as the energy difference between the anion and neutral at the optimized geometry of the anion. Higher VDEs were calculated using time-dependent DFT (TD-DFT) calculations at the PBE/aug-cc-pVTZ level of theory at the anion geometry [37,38]. Although spin–orbit coupling effects were not treated explicitly, we have found that the computed ADEs and VDEs in general agree well with the experimental data. We have also tried the calculations using other functionals, including TPSSH, B3LYP, and PBE0. The results are similar, though the PBE results give a better fit to the experiment.
The chemical bonding of BiBn−/0 (n = 4, 5) was analyzed with the adaptive natural density partitioning (AdNDP) method [39,40]. The AdNDP method has been proven to be an effective tool for understanding the bonding in boron and metal-doped boron clusters. All the AdNDP calculations were carried out with the multiwfn program [41].

3. Results

3.1. Experimental Results

The photoelectron spectra of BiB4− and BiB5− are shown in Figure 1 and Figure 2, respectively, at three photon energies. Detachment transitions are labeled with letters, where X refers to detachment transition from the ground electronic state of the anion to that of the corresponding neutral. The detachment bands labeled from A to D for BiB4− and A to G for BiB5− represent transitions from the ground state of the anion to excited states of the neutral final states.
The photoelectron spectra of BiB4− display a relatively simple spectral pattern with well-resolved detachment transitions (Figure 1). The first VDE of BiB4− is obtained from band X as 2.27 eV in Figure 1a. The ADE obtained from the onset of band X is 2.22 eV, which also represents the electron affinity (EA) of neutral BiB4. The ADE is estimated by drawing a straight line along the leading edge of band X and then adding the spectral resolution to the intersection with the binding energy axis. There is a large energy gap between band X and the broad band A at a VDE of 3.88 eV. Band B is slightly cut off at 266 nm (Figure 1b) but fully observed in the 193 nm spectrum (Figure 1c) at a VDE of 4.31 eV. Two closely spaced bands, C and D, are observed at VDEs of 4.71 eV and 4.96 eV, respectively. No other detachment transitions are observed at higher binding energies. The ADE and all the VDEs are given in Table 1, where they are compared with the theoretical results.
The photoelectron spectra of BiB5− (Figure 2) exhibit more complicated and congested spectral features due to its open-shell electronic structure. At 355 nm (Figure 2a), three closely spaced detachment transitions (X, A, B) are observed. The broader band X at a VDE of 2.74 eV should represent the transition from the ground electronic state of BiB5− to that of neutral BiB5. The ADE is estimated from band X to be 2.61 eV, i.e., the EA of BiB5. The A and B bands at VDEs of 2.99 and 3.15 eV, respectively, are sharp with partially resolved vibrational structures. The vibrational spacings for bands A and B are estimated to be 640 and 400 cm−1, respectively. Following an energy gap, a series of congested detachment transitions (C to G) are observed above 4 eV. Bands C and D at 3.95 and 4.05 eV, respectively, are very closely spaced and are shown to be quite sharp at 266 nm (Figure 2b). The 193 nm spectrum reveals three more bands, E, F, and G, at 4.33, 4.86, and 5.02 eV, respectively (Figure 2c). The signal-to-noise ratios are too poor above 5 eV in the 193 nm for definitive identification of more detachment features. The ADE and all VDEs for BiB5− are given in Table 2, where they are compared with the theoretical results.

3.2. Theoretical Results

The global minima and low-lying isomers for BiB4− and BiB5− are displayed in Figure 3 and Figure 4, respectively, as well as the corresponding neutral structures. The global minimum of BiB4− (GM, Figure 3a) was found to be closed-shell (1A) with a quasi-planar structure (C1 symmetry) at the PBE level of theory. The B4 motif of BiB4− is similar to the global minimum of the bare B4 cluster. In fact, the Bi atom can be viewed as replacing a B atom in B5−, which has a planar C2v structure. A 3D isomer is located for BiB4−, which is 1.30 eV above the GM structure (Iso1, Figure 3a).
The neutral ground state (Figure 3b) is similar to that of the anion, except that it is planar with a doublet spin state (Cs, 2A″). The low-lying isomer of neutral BiB4 (Iso1, Figure 3b) is also similar to that of the anion, but it is more symmetric with C2v symmetry. The large energy difference between Iso1 and the GM structure of the anion is maintained in the neutral system. The computed ADE and VDEs for the global minimum of BiB4− are compared with the experimental results in Table 1.
The global minimum of BiB5− (GM, Figure 4a) has a planar structure with a doublet spin state (Cs, 2A′). The Bi atom is bonded to the edge of a planar B5 motif, which is similar to the bare B5. In fact, the GM of BiB5− is similar to that of neutral B6 and the Bi atom can be viewed as substituting an apex B atom of the planar B6. The next low-lying isomer of BiB5− is 0.35 eV higher in energy than the GM structure at the PBE level, Iso1 (Cs, 2A′) in Figure 4a. The B5 motif in Iso1 of BiB5− is similar to that in the GM structure, but the position of the Bi atom is different. The second low-lying isomer (Iso2, Figure 4a) is a 3D structure, being 0.98 eV higher in energy than the GM structure. In Iso2, the Bi atom is located above a pentagonal B5 motif with C1 symmetry (2A). The triangular isomer with the Bi atom at one of the apexes is also found, but it is much higher in energy (1.78 eV above the GM). The neutral BiB5 GM and its low-lying isomers (Figure 4b) are similar to the anion with the same energy ordering. The computed ADE and VDEs for the GM of BiB5− are given in Table 2, where they are compared with the experimental results.

4. Discussion

4.1. Comparison between Experiment and Theory

The experimental PES data are essential for verifying the global minima of BiB4− and BiB5−. The assignments of the experimental PES features are presented in Table 1 and Table 2 for BiB4− and BiB5−, respectively, according to the computed VDEs for the global minimum of each cluster. The theoretical VDEs are also given as vertical bars under the 193 nm spectra in Figure 5 and Figure 6 for BiB4− and BiB5−, respectively. The valence molecular orbitals are presented in Figures S1 and S2 for BiB4− and BiB5−, respectively.

4.1.1. BiB4−

The computed VDE1/ADE of 2.16/2.11 eV for the GM structure of BiB4− at the PBE level agree well with the measured values of 2.27/2.22 eV (Table 1). Even though the isomer Iso1 also gives similar computed VDE1/ADE values (2.34/2.10 eV), its energy is higher than the GM structure by 1.30 eV. Thus, it can be ruled out from any contributions to the experimental spectra. In addition, the large difference between the computed VDE1 and ADE of Iso1, due to the significant geometry change between its neutral and anion (Figure 3), would suggest a broad detachment transition, which is inconsistent with the relatively sharp band X in the spectra of BiB4− (Figure 1). The calculated VDE for higher binding energy detachment channels of the C1 global minimum are compared with the experimental data in Table 1 and in Figure 5 as the vertical bars.
The first detachment channel is from the HOMO (22a), a π-type MO primarily of Bi 6pz character with a small contribution from the B4 moiety (Figure S1). The electron detachment from the HOMO leads to a geometry change from the quasi-planar structure (C1) to the planar neutral BiB4 (Cs) (Figure 3). The narrow width of band X agrees with the small structural change between the ground state of the anion and that of the neutral (Figure S3a). Electron detachment from the HOMO-1 (21a) gives a computed VDE of 3.68 eV, which agrees well with the measured VDE of band A at 3.88 eV. The HOMO-1 is an in-plane σ-type MO, involved in B–B bonding and Bi–B bonding (Figure S1). The bonding nature of the HOMO-1 is consistent with the relatively broad band A. Electron detachment from the HOMO-2 (20a) results in a theoretical VDE of 4.10 eV, in good agreement with the measured VDE of band B at 4.31 eV. The 20a orbital is also an in-plane σ-type MO, involved in B–B bonding and Bi–B bonding (Figure S1). The HOMO-3 (19a) and HOMO-4 (18a) are an in-plane σ MO and a π MO, respectively (Figure S1). The calculated VDEs from these orbitals (4.71 eV and 4.96 eV) also match well with the measured VDEs of band C (4.77 eV) and band D (4.97 eV), respectively. The closed-shell GM structure of BiB4− is responsible for its relatively simple photoelectron spectra. The computed VDEs are in good agreement with the observed spectral pattern (Figure 5), providing strong support for the quasi-planar C1 GM structure of BiB4−.

4.1.2. BiB5−

The computed VDE1/ADE for the global minimum of BiB5− are 2.92/2.70 eV at the PBE level (Table 2). The computed ADE agrees well with the measured value of 2.61 eV, though the theoretical VDE is overestimated by 0.18 eV compared to the experimental VDE of 2.74 eV. The larger theoretical discrepancy is probably due to the open-shell nature of BiB5−. The computed VDE1 of 2.79 eV and 2.64 for Iso1 and Iso2, respectively, at the PBE level are lower than that for the GM structure (Table S1). Very weak signals are observed on the lower binding energy side of band X. They could come from contributions of these higher-energy isomers, but their contributions to the main spectral features should be negligible. The computed VDEs for higher binding energy detachment channels of the GM structure of BiB5− are presented in Table 2 and in Figure 6 as vertical bars. Both singlet and triplet final states are possible for detachment from the open-shell GM of BiB5− (Figure 4a). The longer bars in Figure 6 represent triplet final states and the shorter bars represent singlet final states.
Although both the GM structures of BiB5− and neutral BiB5 are planar with Cs symmetry, there are significant bond length changes (Figure S3b), in accordance with the broad band X. The first detachment channel is from the 20a′ SOMO of BiB5−, which is an in-plane σ-type orbital (Figure S2). The next detachment channel is from the HOMO (5a″), resulting in a high-spin (3A″) and a low-spin (1A″) final state. The computed VDEs for the triplet and singlet final states, 2.93 eV and 3.25 eV (Table 2), agree well with the experimental observation for band A (2.99 eV) and band B (3.15 eV), respectively. Detachment from the HOMO-1 (19a′) similarly gives rise to a triplet (3A′) and a singlet (1A′) neutral state.
The calculated VDE for the 3A′ triplet state (3.85 eV) is consistent with band C at 3.95 eV, whereas that for the singlet 1A′ final state (4.43 eV) is consistent with band E at 4.33 eV. Detachment from the HOMO-2 (18a′) gives a high-spin final state (3A′) with a computed VDE of 3.99 eV and a low-spin (1A′) final state with a computed VDE of 5.03 eV, in good agreement with band D at 4.05 eV and F at 4.86 eV, respectively. Finally, detachment from the HOMO-3 (17a′) leads to a triplet final state (3A′) with a computed VDE of 4.63 eV and a singlet final state (1A′) with a computed VDE of 5.15 eV. Band E has a broad shoulder on the high binding energy side (not labeled), which agrees with the computed VDE of the triplet final state of the 17a′ HOMO-3, whereas the singlet final state is assigned to band G at 5.02 eV. The open-shell nature of BiB5− results in the congested spectral features, making their definitive assignment rather challenging. Nevertheless, the overall spectral pattern from the computed VDEs is in reasonable agreement with the experiment, as shown in Figure 6, providing credence for the Cs GM structure of BiB5−.

4.2. Chemical Bonding in the Bismuth–Boron Clusters

To gain insights into the structures and bonding of the BiB4− and BiB5− clusters, we conducted AdNDP analyses, as depicted in Figure 7 and Figure 8, respectively. The 6s2 electrons of the Bi atom are strongly stabilized due to the relativistic effects [42], rendering them less active in chemical bonding. Consequently, chemical bonding in Bi compounds primarily involves the 6p orbitals with little sp hybridization. The 6s2 electrons remain as a lone pair in all bismuth–boron clusters [29,30,31,32]. Similarly, we find a 6s2 lone pair in the current bismuth–boron clusters, whereas the 6px and 6py orbitals participate in σ-bonding with the Bn moiety and the 6pz orbital engages in π-bonding with the Bn moiety. Because of the large size of the Bi atom and the strong B–B bonds, it is not favorable for the Bi atom to insert into the Bn moiety. Thus, in both BiB4− and BiB5− we find that the Bi atom is bonded to the edge of the planar Bn moiety, similar to other binary Bi-B clusters [29,31].
In addition to the 6s lone pair, the AdNDP analysis for BiB4− (Figure 7) reveals four two-center two-electron (2c-2e) σ-bonds (three B–B bonds and one Bi–B bond) on the edge of the quasi-planar BiB4− cluster, one 2c-2e Bi–B π-bond, one delocalized 3c-2e σ-bond (BiB2), one delocalized 4c-2e σ-bond, and one delocalized 4c-2e π-bond on the B4 moiety. Each of the delocalized 4c-2e σ- and π-bonds satisfies the 4N + 2 Hückel rule for aromaticity, rendering the B4 moiety doubly aromatic, similar to the doubly aromatic bare B4 cluster [43]. Thus, the BiB4− cluster can be considered as Bi bridge-bonded to a doubly aromatic B4 cluster. It should be noted that the Bi atom has two different Bi–B bonds (2.20 and 2.41 Å) in BiB4− (Figure S3a). The shorter Bi–B bond is similar to a Bi=B double bond according to Pyykkö’s self-consistent atomic covalent radii of B and Bi (2.19 Å) [44].
The double Bi=B bond is borne out by the AdNDP analysis (Figure 7), where a 2c-2e Bi–B σ-bond and a 2c-2e Bi–B π-bond are clearly seen. The longer Bi–B bond in BiB4− is actually weaker than a single Bi–B bond (2.36 Å according to Pyykkö’s covalent atomic radii), because the longer Bi–B bond is involved in the delocalized 3c-2e σ-bond. The Bi atom induces relatively small structural changes to the B4 moiety compared to the bare B4. This bonding situation is very different from transition metal MB4 clusters [16], where the strong M–B bonding can completely change the B4 moiety relative to the bare B4. For example, the ReB4− cluster has a pentagonal structure and displays Möbius aromaticity due to the strong participation of the Re 4d orbitals in chemical bonding with boron [45,46].
For BiB5−, we chose to conduct the AdNDP analysis on the closed-shell BiB5 neutral for convenience, as shown in Figure 8. The AdNDP results reveal the expected 6s lone pair on Bi, three 2c-2e σ-bonds (two B–B bonds and one Bi–B bond) on the periphery of the planar BiB5 cluster, three delocalized 3c-2e σ-bonds (two over two B3 units and one over the BiB2 unit), one delocalized 3c-2e π-bond over the BiB2 unit, one delocalized 5c-2e π-bond, and one delocalized 5c-2e σ-bond over the B5 moiety. The delocalized σ- and π-bonds over the B5 moiety render it doubly aromatic, similar to the bare B5 cluster [43]. Thus, BiB5 can be viewed as a Bi atom bridge-bonded to the periphery of the B5 moiety. The two Bi–B bonds in BiB5 are also asymmetric, similar to those in BiB4–. Again, the Bi atom in BiB5 induces relatively small changes in the B5 moiety in comparison to the bare B5 cluster, very different from transition metal MB5 clusters [26]. For example, the TaB5 cluster has a fan-shaped structure, in which the Ta atom is bonded to all five B atoms. We found that the larger BiBn– (n = 6–8) clusters behave similarly [29], in that their GM structures can be viewed as Bi bonded to the edge of the planar Bn– clusters, respectively.

5. Conclusions

In conclusion, we report an investigation of the structures and bonding of two Bi-doped boron clusters, BiB4− and BiB5−, using photoelectron spectroscopy. Well-resolved photoelectron spectra are obtained and interpreted using theoretical calculations. Electron affinities of BiB4 and BiB5 are measured to be 2.22(2) eV and 2.61(2) eV, respectively, and the experimental vertical detachment energies are compared with theoretical calculations to verify the structures of BiB4− and BiB5−. The BiB4− cluster is found to be quasi-planar with C1 symmetry (1A), whereas BiB5− is found to be planar with Cs symmetry (2A′). Chemical bond analyses show that the Bi atom is bridge-bonded on the periphery of the respective Bn clusters with relatively small structural change relative to the bare Bn clusters. The two Bi–B bonds in the two clusters are asymmetric with a Bi=B double bond and a weak Bi–B single bond in both clusters.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/inorganics11100405/s1. Figure S1. The valence MOs of the global minimum of BiB4− (C1, 1A). Figure S2. The valence MOs of the global minimum of BiB5− (Cs, 2A′). Figure S3. The bond lengths (in Å) for (a) the ground state of BiB4− (C1, 1A) and BiB4 (Cs, 2A″) and (b) the ground state of BiB5− (Cs, 2A′) and BiB5− (Cs, 1A′).

Author Contributions

Conceptualization, H.W.C., W.-J.C. and L.-S.W.; methodology, H.W.C. and L.-S.W.; formal analysis, H.W.C.; investigation, H.W.C., W.-J.C., G.S.K., D.-F.Y. and L.-S.W.; data curation, H.W.C. and W.-J.C.; writing—original draft preparation, H.W.C.; writing—review and editing, W.-J.C., G.S.K., D.-F.Y. and L.-S.W.; supervision, L.-S.W.; funding acquisition, L.-S.W. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Science Foundation under grant CHE-2053541.

Data Availability Statement

The data presented in this study are available from the corresponding authors upon reasonable request.

Acknowledgments

The authors thank the National Science Foundation for the support of this work through grant CHE-2053541.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lipscomb, W.N. The boranes and their relatives. Science 1977, 196, 1047–1055. [Google Scholar] [CrossRef]
  2. Jemmis, E.D.; Prasad, D.L. Icosahedral B12, macropolyhedral boranes, β-rhombohedral boron and boron-rich solids. J. Solid State Chem. 2006, 179, 2768–2774. [Google Scholar] [CrossRef]
  3. Albert, B.; Hillebrecht, H. Boron: Elementary challenge for experimenters and theoreticians. Angew. Chem. Int. Ed. 2009, 48, 8640–8668. [Google Scholar] [CrossRef]
  4. Oger, E.; Crawford, N.R.; Kelting, R.; Weis, P.; Kappes, M.M.; Ahlrichs, R. Boron cluster cations: Transition from planar to cylindrical structures. Angew. Chem. Int. Ed. 2007, 46, 8503–8506. [Google Scholar] [CrossRef]
  5. Wang, L.S. Photoelectron spectroscopy of size-selected boron clusters: From planar structures to borophenes and borospherenes. Int. Rev. Phys. Chem. 2016, 35, 69–142. [Google Scholar] [CrossRef]
  6. Jian, T.; Chen, X.; Li, S.-D.; Boldyrev, A.I.; Li, J.; Wang, L.S. Probing the structures and bonding of size-selected boron and doped-boron clusters. Chem. Soc. Rev. 2019, 48, 3550–3591. [Google Scholar] [CrossRef]
  7. Pan, S.; Barroso, J.; Jalife, S.; Heine, T.; Asmis, K.R.; Merino, G. Fluxional boron clusters: From theory to reality. Acc. Chem. Res. 2019, 52, 2732–2744. [Google Scholar] [CrossRef]
  8. Piazza, Z.A.; Hu, H.S.; Li, W.L.; Zhao, Y.F.; Li, J.; Wang, L.S. Planar hexagonal B36 as a potential basis for extended single-atom layer boron sheets. Nat. Commun. 2014, 5, 3113. [Google Scholar] [CrossRef]
  9. Mannix, A.J.; Zhou, X.-F.; Kiraly, B.; Wood, J.D.; Alducin, D.; Myers, B.D.; Liu, X.; Fisher, B.L.; Santiago, U.; Guest, J.R.; et al. Synthesis of borophenes: Anisotropic, two-dimensional boron polymorphs. Science 2015, 350, 1513–1516. [Google Scholar] [CrossRef]
  10. Feng, B.; Zhang, J.; Zhong, Q.; Li, W.; Li, S.; Li, H.; Cheng, P.; Meng, S.; Chen, L.; Wu, K. Experimental realization of two-dimensional boron sheets. Nat. Chem. 2016, 8, 563–568. [Google Scholar] [CrossRef]
  11. Xie, S.Y.; Wang, Y.; Li, X.B. Flat boron: A new cousin of graphene. Adv. Mater. 2019, 31, 1900392. [Google Scholar] [CrossRef]
  12. Kaneti, Y.V.; Benu, D.P.; Xu, X.; Yuliarto, B.; Yamauchi, Y.; Golberg, D. Borophene: Two-dimensional boron monolayers: Synthesis, properties, and potential applications. Chem. Rev. 2022, 122, 1000–1051. [Google Scholar] [CrossRef]
  13. Zhai, H.J.; Zhao, Y.F.; Li, W.L.; Chen, Q.; Bai, H.; Hu, H.S.; Piazza, Z.A.; Tian, W.J.; Lu, H.G.; Wu, Y.B.; et al. Observation of an all-boron fullerene. Nat. Chem. 2014, 6, 727–731. [Google Scholar] [CrossRef]
  14. Romanescu, C.; Galeev, T.R.; Li, W.L.; Boldyrev, A.I.; Wang, L.S. Transition-metal-centered monocyclic boron wheel clusters (M© Bn): A new class of aromatic borometallic compounds. Acc. Chem. Res. 2013, 46, 350–358. [Google Scholar] [CrossRef]
  15. Li, W.L.; Chen, X.; Jian, T.; Chen, T.T.; Li, J.; Wang, L.S. From planar boron clusters to borophenes and metalloborophenes. Nat. Rev. Chem. 2017, 1, 0071. [Google Scholar] [CrossRef]
  16. Barroso, J.; Pan, S.; Merino, G. Structural transformations in boron clusters induced by metal doping. Chem. Soc. Rev. 2022, 51, 1098–1123. [Google Scholar] [CrossRef]
  17. Lindsay, L.; Broido, D.; Reinecke, T. First-principles determination of ultrahigh thermal conductivity of boron arsenide: A competitor for diamond? Phys. Rev. Lett. 2013, 111, 025901. [Google Scholar] [CrossRef]
  18. Tian, F.; Song, B.; Chen, X.; Ravichandran, N.K.; Lv, Y.; Chen, K.; Sullivan, S.; Kim, J.; Zhou, Y.; Liu, T.H. Unusual high thermal conductivity in boron arsenide bulk crystals. Science 2018, 361, 582–585. [Google Scholar] [CrossRef]
  19. Shin, J.; Gamage, G.A.; Ding, Z.; Chen, K.; Tian, F.; Qian, X.; Zhou, J.; Lee, H.; Zhou, J.; Shi, L. High ambipolar mobility in cubic boron arsenide. Science 2022, 377, 437–440. [Google Scholar] [CrossRef]
  20. Khairul, I.; Wang, Q.Q.; Jiang, Y.H.; Wang, C.; Naranmandura, H. Metabolism, toxicity and anticancer activities of arsenic compounds. Oncotarget 2017, 8, 23905. [Google Scholar] [CrossRef]
  21. Byeon, E.; Kang, H.-M.; Yoon, C.; Lee, J.S. Toxicity mechanisms of arsenic compounds in aquatic organisms. Aquat. Toxicol. 2021, 237, 105901. [Google Scholar] [CrossRef] [PubMed]
  22. Mohan, R. Green bismuth. Nat. Chem. 2010, 2, 336. [Google Scholar] [CrossRef] [PubMed]
  23. Ramler, J.; Lichtenberg, C. Bismuth species in the coordination sphere of transition metals: Synthesis, bonding, coordination chemistry, and reactivity of molecular complexes. Dalton Trans. 2021, 50, 7120–7138. [Google Scholar] [CrossRef] [PubMed]
  24. Zhang, Y.; Liu, Y.; Xu, Z.; Ye, H.; Yang, Z.; You, J.; Liu, M.; He, Y.; Kanatzidis, M.G.; Liu, S. Nucleation-controlled growth of superior lead-free perovskite Cs3Bi2I9 single-crystals for high-performance X-ray detection. Nat. Commun. 2020, 11, 2304. [Google Scholar] [CrossRef] [PubMed]
  25. Salvador, J.A.; Figueiredo, S.A.; Pinto, R.M.; Silvestre, S.M. Bismuth compounds in medicinal chemistry. Future Med. Chem. 2012, 4, 1495–1523. [Google Scholar] [CrossRef]
  26. Madouri, D.; Ferhat, M. How do electronic properties of conventional III–V semiconductors hold for the III–V boron bismuth BBi compound? Phys. Status Solidi B 2005, 242, 2856–2863. [Google Scholar] [CrossRef]
  27. Cui, S.; Feng, W.; Hu, H.; Feng, Z.; Wang, Y. First principles studies of phase stability, electronic and elastic properties in BBi compound. Comput. Mater. Sci. 2010, 47, 968–972. [Google Scholar] [CrossRef]
  28. Bagci, S.; Yalcin, B.G. Structural, mechanical, electronic and optical properties of BBi, BP and their ternary alloys BBi1−xPx. J. Phys. D Appl. Phys. 2015, 48, 475304. [Google Scholar] [CrossRef]
  29. Chen, W.J.; Kulichenko, M.; Choi, H.W.; Cavanagh, J.; Yuan, D.F.; Boldyrev, A.I.; Wang, L.S. Photoelectron spectroscopy of size-selected bismuth–boron clusters: BiBn– (n = 6–8). J. Phys. Chem. A 2021, 125, 6751–6760. [Google Scholar] [CrossRef]
  30. Jian, T.; Cheung, L.F.; Chen, T.T.; Wang, L.S. Bismuth–boron multiple bonding in BiB2O− and Bi2B−. Angew. Chem. Int. Ed. 2017, 56, 9551–9555. [Google Scholar] [CrossRef]
  31. Cheung, L.F.; Czekner, J.; Kocheril, G.S.; Wang, L.S. High resolution photoelectron imaging of boron-bismuth binary clusters: Bi2Bn− (n = 2–4). J. Chem. Phys. 2019, 150, 064304. [Google Scholar] [CrossRef]
  32. Gao, H.W.; Choi, H.W.; Hui, J.; Chen, W.J.; Kocheril, G.S.; Wang, L.S. On the electronic structure and spin-orbit coupling of BiB from photoelectron imaging of cryogenically-cooled BiB− anion. J. Chem. Phys. 2023, 159, 114301. [Google Scholar] [CrossRef]
  33. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09; Gaussian Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  34. Tao, J.; Perdew, J.P.; Staroverov, V.N.; Scuseria, G.E. Climbing the density functional ladder: Nonempirical meta–generalized gradient approximation designed for molecules and solids. Phys. Rev. Lett. 2003, 91, 146401. [Google Scholar] [CrossRef]
  35. Peterson, K.A. Systematically convergent basis sets with relativistic pseudopotentials. I. Correlation consistent basis sets for the post-d group 13–15 elements. J. Chem. Phys. 2003, 119, 11099–11112. [Google Scholar] [CrossRef]
  36. Kendall, R.A.; Dunning, T.H., Jr.; Harrison, R.J. Electron affinities of the first-row atoms revisited. Systematic basis sets and wave functions. J. Chem. Phys. 1992, 96, 6796–6806. [Google Scholar] [CrossRef]
  37. Bauernschmitt, R.; Ahlrichs, R. Treatment of electronic excitations within the adiabatic approximation of time dependent density functional theory. Chem. Phys. Lett. 1996, 256, 454–464. [Google Scholar] [CrossRef]
  38. Bannwarth, C.; Grimme, S. A simplified time-dependent density functional theory approach for electronic ultraviolet and circular dichroism spectra of very large molecules. Comp. Theor. Chem. 2014, 1040–1041, 45–53. [Google Scholar] [CrossRef]
  39. Zubarev, D.Y.; Boldyrev, A.I. Developing paradigms of chemical bonding: Adaptive natural density partitioning. Phys. Chem. Chem. Phys. 2008, 10, 5207–5217. [Google Scholar] [CrossRef] [PubMed]
  40. Zubarev, D.Y.; Boldyrev, A.I. Revealing intuitively assessable chemical bonding patterns in organic aromatic molecules via adaptive natural density partitioning. J. Org. Chem. 2008, 73, 9251–9258. [Google Scholar] [CrossRef]
  41. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef]
  42. Pyykkö, P. Relativistic effect in structural chemistry. Chem. Rev. 1988, 88, 563–594. [Google Scholar] [CrossRef]
  43. Zubarev, D.Y.; Boldyrev, A.I. Comprehensive analysis of chemical bonding in boron clusters. J. Comp. Chem. 2007, 28, 251–268. [Google Scholar] [CrossRef] [PubMed]
  44. Pyykkö, P. Additive covalent radii for single-, double-, and triple-bonded molecules and tetrahedrally bonded crystals: A summary. J. Phys. Chem. A 2015, 119, 2326–2337. [Google Scholar] [CrossRef] [PubMed]
  45. Cheung, L.F.; Kocheril, G.S.; Czekner, J.; Wang, L.S. Observation of Möbius aromatic planar metallaborocycles. J. Am. Chem. Soc. 2020, 142, 3356–3360. [Google Scholar] [CrossRef] [PubMed]
  46. Mauksch, M.; Tsogoeva, S.B. Demonstration of “Möbius” aromaticity in planar metallacycles. Chem. Eur. J. 2010, 16, 7843–7851. [Google Scholar] [CrossRef]
Inorganics 11 00405 g001

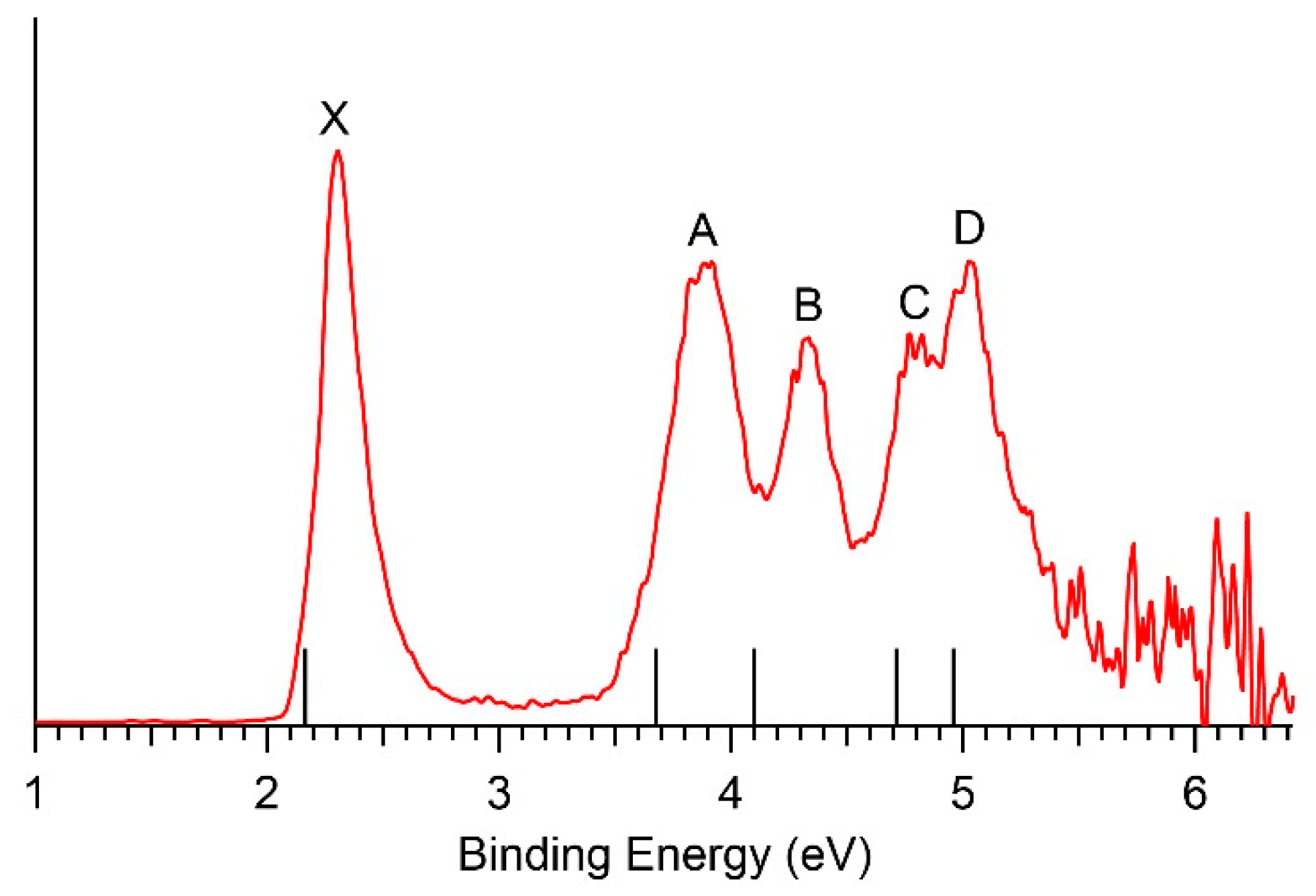

Figure 1. Photoelectron spectra of BiB4− at (a) 355 nm (3.496 eV), (b) 266 nm (4.661 eV), and (c) 193 nm (6.424 eV).
Figure 1. Photoelectron spectra of BiB4− at (a) 355 nm (3.496 eV), (b) 266 nm (4.661 eV), and (c) 193 nm (6.424 eV).
Inorganics 11 00405 g001
Inorganics 11 00405 g002

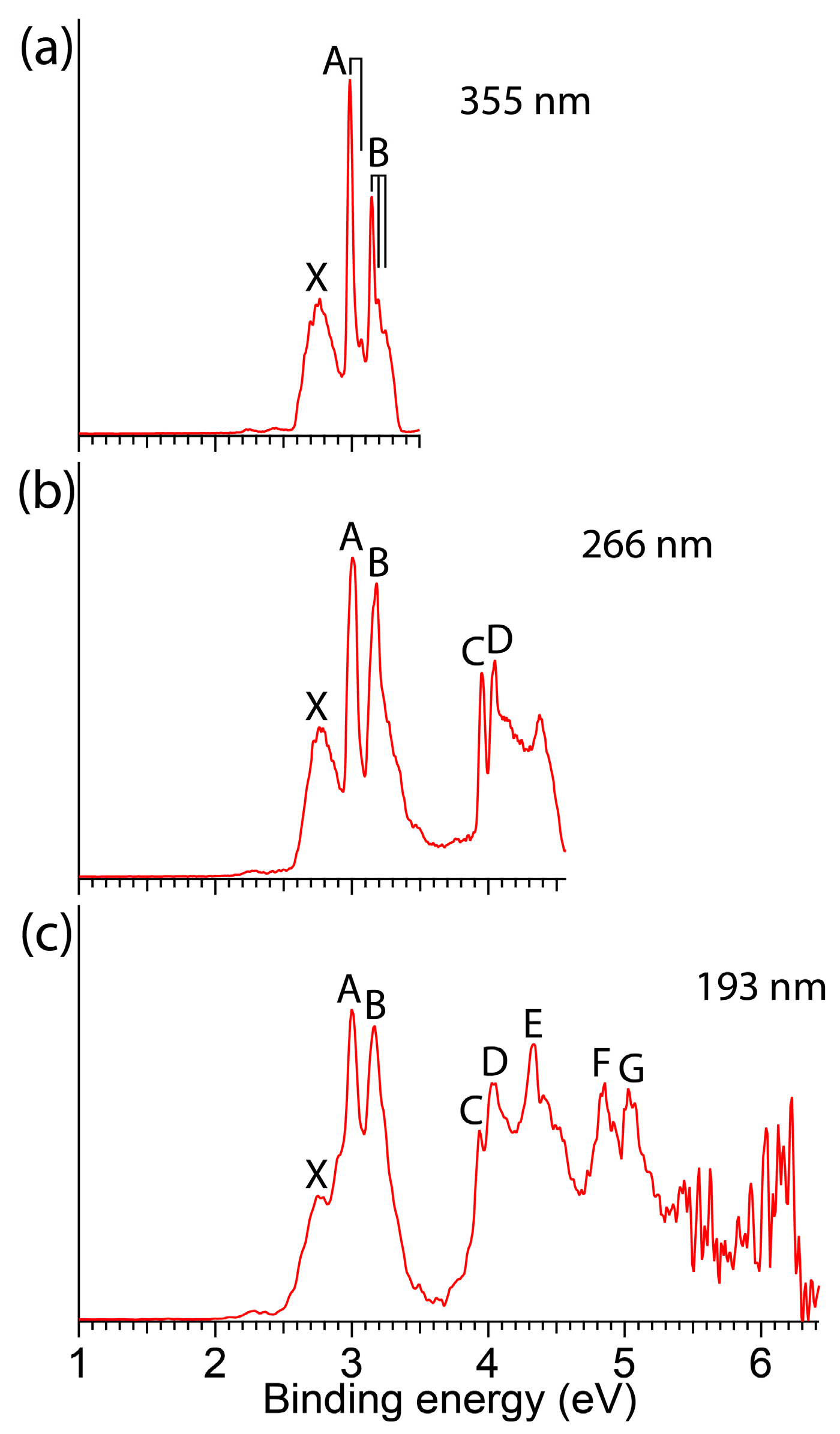

Figure 2. Photoelectron spectra of BiB5− at (a) 355 nm (3.496 eV), (b) 266 nm (4.661 eV), and (c) 193 nm (6.424 eV).
Figure 2. Photoelectron spectra of BiB5− at (a) 355 nm (3.496 eV), (b) 266 nm (4.661 eV), and (c) 193 nm (6.424 eV).
Inorganics 11 00405 g002
Inorganics 11 00405 g003

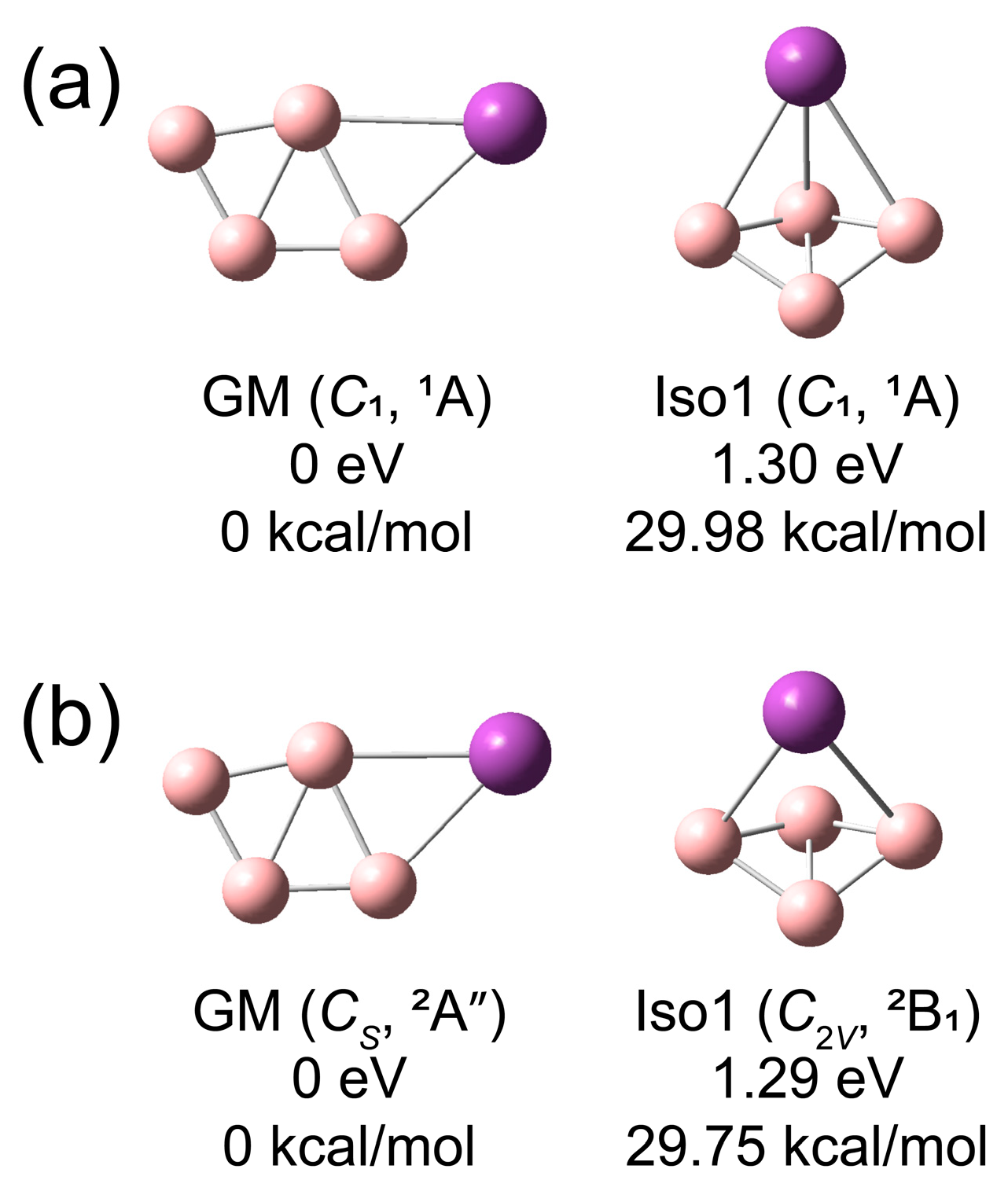

Figure 3. The global minima and a low-lying isomer of (a) BiB4− and (b) BiB4. Relative energies are given in eV and kcal/mol at the PBE/aug-cc-pVTZ level.
Figure 3. The global minima and a low-lying isomer of (a) BiB4− and (b) BiB4. Relative energies are given in eV and kcal/mol at the PBE/aug-cc-pVTZ level.
Inorganics 11 00405 g003
Inorganics 11 00405 g004

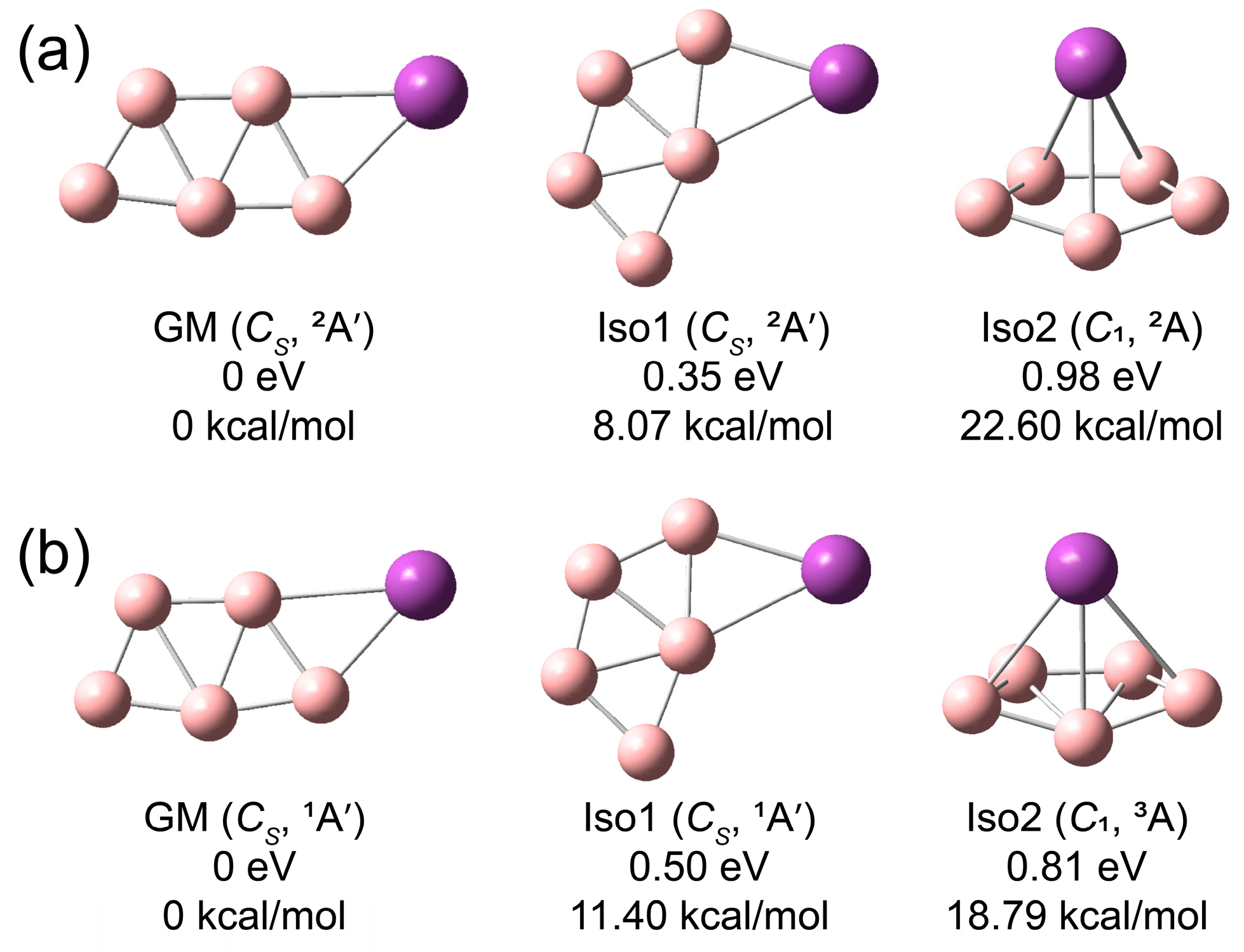

Figure 4. The global minima and low-lying isomers of (a) BiB5− and (b) BiB5. Relative energies are given in eV and kcal/mol at the PBE/aug-cc-pVTZ level.
Figure 4. The global minima and low-lying isomers of (a) BiB5− and (b) BiB5. Relative energies are given in eV and kcal/mol at the PBE/aug-cc-pVTZ level.
Inorganics 11 00405 g004
Inorganics 11 00405 g005
Figure 5. Comparison of the computed VDEs with the photoelectron spectrum of BiB4− at 193 nm. The vertical bars correspond to computed VDEs at the PBE/aug-cc-pVTZ level of theory.
Figure 5. Comparison of the computed VDEs with the photoelectron spectrum of BiB4− at 193 nm. The vertical bars correspond to computed VDEs at the PBE/aug-cc-pVTZ level of theory.
Inorganics 11 00405 g005
Inorganics 11 00405 g006
Figure 6. Comparison of the computed VDEs with the photoelectron spectrum of BiB5− at 193 nm. The vertical bars correspond to computed VDEs at the PBE/aug-cc-pVTZ level of theory. The longer and shorter bars correspond to transitions to triplet and singlet final states, respectively.
Figure 6. Comparison of the computed VDEs with the photoelectron spectrum of BiB5− at 193 nm. The vertical bars correspond to computed VDEs at the PBE/aug-cc-pVTZ level of theory. The longer and shorter bars correspond to transitions to triplet and singlet final states, respectively.
Inorganics 11 00405 g006
Inorganics 11 00405 g007

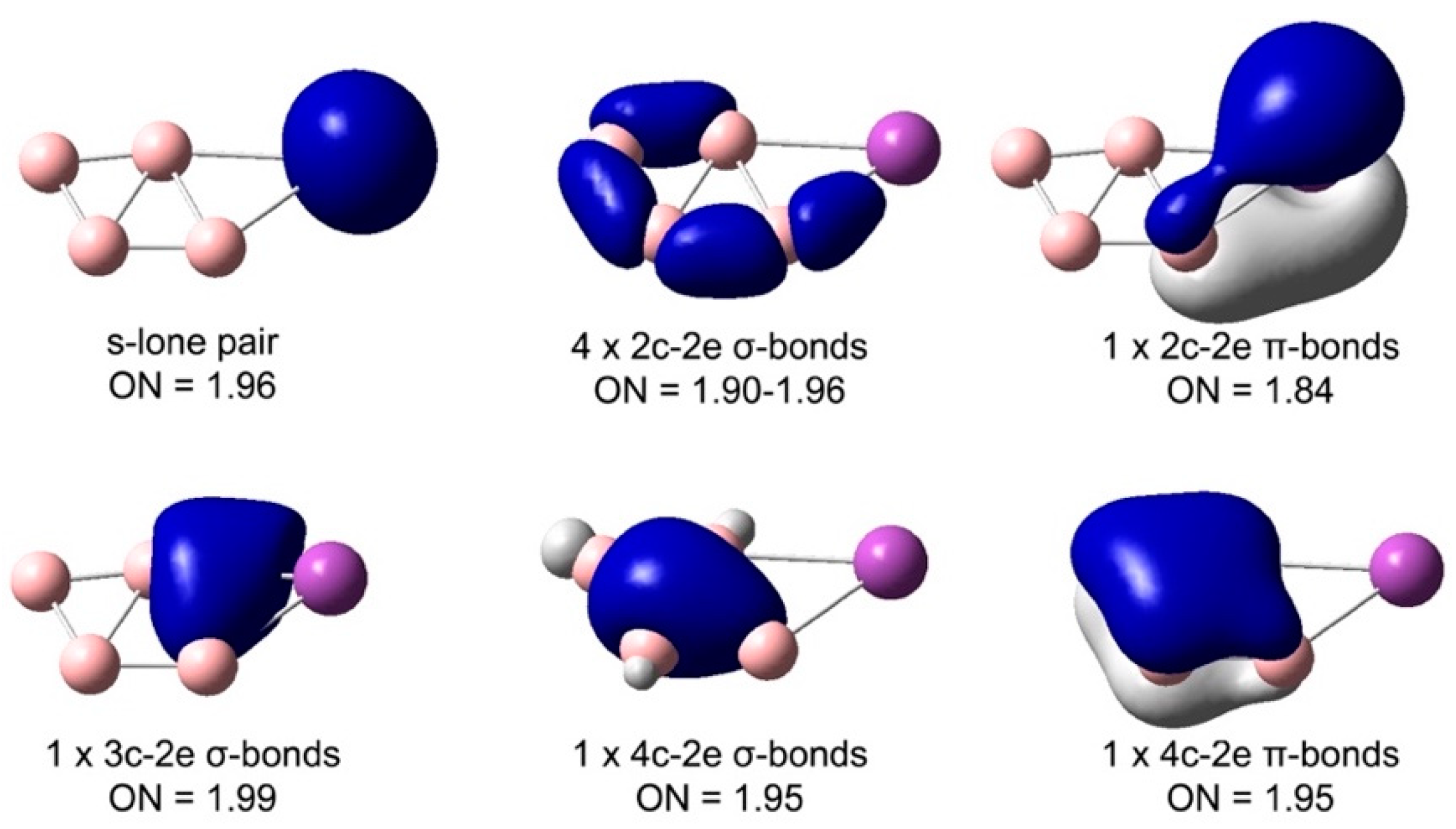

Figure 7. AdNDP bonding analysis for the global minimum structure of BiB4−. ON stands for occupation number.
Figure 7. AdNDP bonding analysis for the global minimum structure of BiB4−. ON stands for occupation number.
Inorganics 11 00405 g007
Inorganics 11 00405 g008

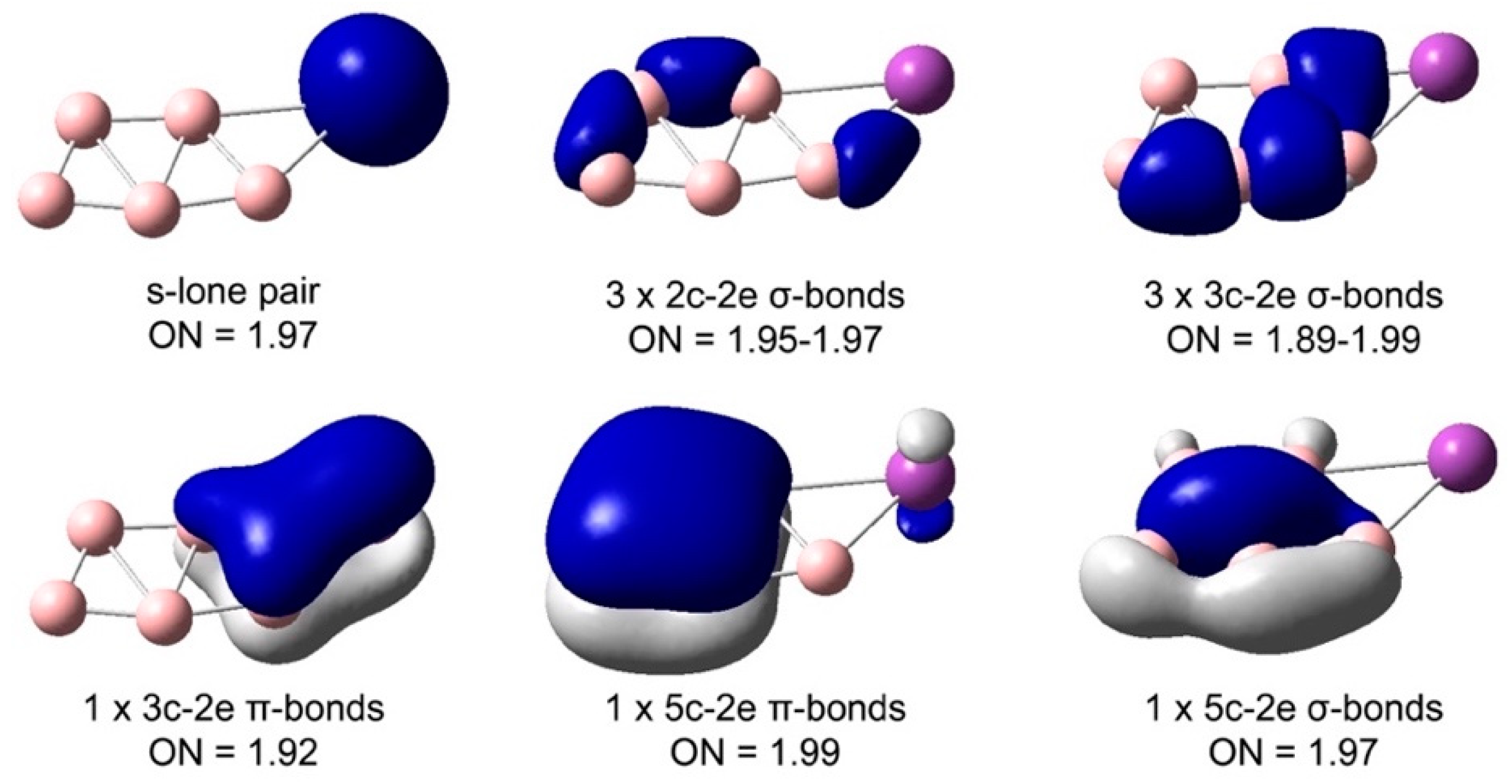

Figure 8. AdNDP bonding analysis for the global minimum structure of BiB5. ON stands for occupation number.
