Cyanide Addition to Diiron and Diruthenium Bis-Cyclopentadienyl Complexes with Bridging Hydrocarbyl Ligands

by
Alessia Cinci
1,
Gianluca Ciancaleoni
1,
Stefano Zacchini
2 and
Fabio Marchetti
1,*
1
Department of Chemistry and Industrial Chemistry, University of Pisa, Via G. Moruzzi 13, I-56124 Pisa, Italy
2
Department of Industrial Chemistry “Toso Montanari”, University of Bologna, Via P. Gobetti 85, I-40129 Bologna, Italy
*
Author to whom correspondence should be addressed.
Inorganics 2024, 12(6), 147; https://doi.org/10.3390/inorganics12060147
Submission received: 7 May 2024 / Revised: 23 May 2024 / Accepted: 23 May 2024 / Published: 28 May 2024
(This article belongs to the Special Issue Binuclear Complexes II)
Browse Figures
Versions Notes

Abstract

:
We conducted a joint synthetic, spectroscopic and computational study to explore the reactivity towards cyanide (from Bu4NCN) of a series of dinuclear complexes based on the M2Cp2(CO)3 scaffold (M = Fe, Ru; Cp = η5-C5H5), namely [M2Cp2(CO)2(µ-CO){µ,η1:η2-CH=C=CMe2}]BF4 (1Fe-Ru), [Ru2Cp2(CO)2(µ-CO){µ,η1:η2-C(Ph)=CHPh}]BF4 (2Ru) and [M2Cp2(CO)2(µ-CO){µ-CN(Me)(R)}]CF3SO3 (3Fe-Ru). While the reaction of 1Fe with Bu4NCN resulted in prevalent allenyl deprotonation, preliminary CO-NCMe substitution in 1Ru enabled cyanide addition to both the allenyl ligand (resulting in the formation of a h1:h2-allene derivative, 5A) and the two metal centers (affording 5B1 and 5B2). The mixture of 5B1-2 was rapidly converted into 5A in heptane solution at 100 °C, with 5A being isolated with a total yield of 60%. Following carbonyl-chloride substitution in 2Ru, CN− was incorporated as a terminal ligand upon Cl− displacement, to give the alkenyl complex 6 (84%). The reactivity of 3Fe and 3Ru is strongly influenced by both the metal element, M, and the aminocarbyne substituent, R. Thus, 7aRu was obtained with a 74% yield from cyanide attack on the carbyne in 3aRu (R = Cy, cyclohexyl), whereas the reaction involving the diiron counterpart 3aFe yielded an unclean mixture of the metastable 7aFe and the CO/CN− substitution product 8aFe. The cyano-alkylidene complexes 7aRu (R = Cy) and 7bFe (R = Me) underwent CO loss and carbene to carbyne conversion in isopropanol at 60–80 °C, giving 8aRu (48%) and 8bFe (71%), respectively. The novel compounds 5A, 5B1-2, 6 and 7aRu were characterized by IR and NMR spectroscopy, with the structure of 7aRu further elucidated by single crystal X-ray diffraction analysis. Additionally, the DFT-optimized structures of potential isomers of 5A, 5B1-2 and 6 were calculated.

Graphical Abstract

1. Introduction

Dinuclear metal complexes enable unique reactivity patterns on bridging ligands, arising from the cooperativity of the two closely situated metal centers, which are generally not attainable in related mononuclear species [1,2,3,4,5]. The readily available and cost-effective diiron compound [Fe2Cp2(CO)4] (Cp = η5-C5H5) serves as an ideal platform to explore this chemistry, and it has indeed been utilized as a starting material to build a diverse array of bridging organometallic architectures [6,7,8,9,10]. Typically, these reaction pathways initiate with the substitution of one carbonyl ligand, induced by either thermal or photolytic treatment. The parallel reactivity of the diruthenium homolog [Ru2Cp2(CO)4], though relatively less explored, exhibits substantial similarities compared to its diiron counterpart. However, the stronger Ru-Ru bond, compared to Fe-Fe, permits, in specific cases, the modification of bridging hydrocarbyl fragments, avoiding detrimental fragmentation pathways that may be favored with the diiron complexes (vide infra) [11]. Notably, the benchmark organometallic species [M2Cp2(CO)4] (M = Fe, Ru) has been extensively studied in the past decades to explore new routes for carbon–carbon bond formation, aiming to model the heterogeneously catalyzed Fischer–Tropsch process [6,12,13,14]. Essentially, these studies relied on the principle that a dimetallic framework may represent the simplest system suitable for modeling a metal surface [15].

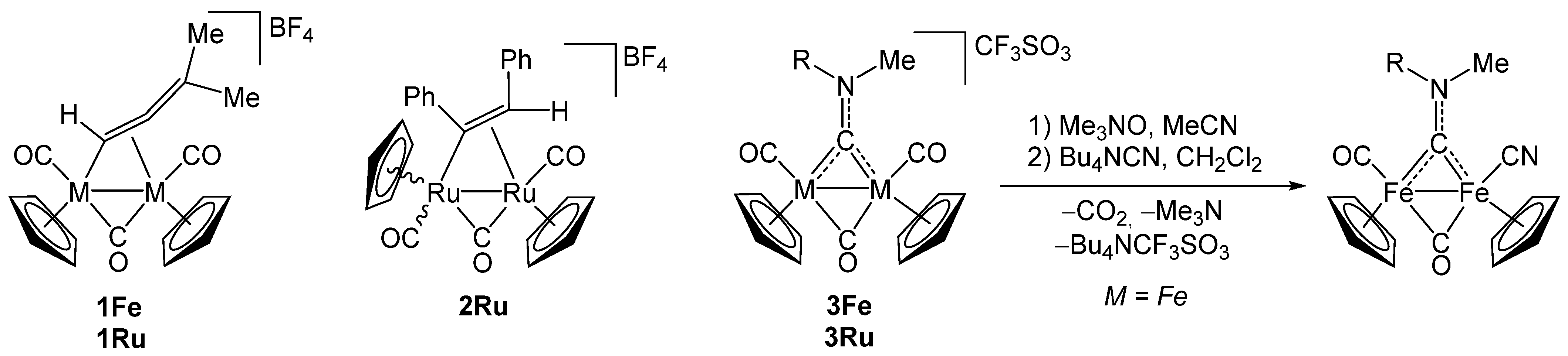

The present work focuses on the reactivity of selected derivatives of [M2Cp2(CO)4] (M = Fe, Ru) featuring distinct hydrocarbyl ligands occupying a bridging coordination site, namely allenyl (1), alkenyl (2) and aminocarbyne (3), see Scheme 1. These air-stable compounds can be prepared using synthetic methodologies involving the initial displacement of one CO ligand with, respectively, 2-methyl-3-butyn-2-ol (leading to 1Fe-Ru [16,17]), diphenylacetylene (2Ru [18,19]) and isocyanides CNR (3Fe-Ru [20,21,22]).
The diruthenium allenyl complex 1Ru exhibits a rich and versatile reactivity once a coordination site becomes available. This can be achieved using trimethylamine N-oxide (Me3NO = TMNO) in acetonitrile as a typical solvent, resulting in the selective substitution of one CO (eliminated as CO2) with a labile NCMe ligand [23,24]. This lability is equivalent to a coordination vacancy, facilitating the entry of unsaturated substrates (e.g., alkynes, alkenes), which then couple with the bridging hydrocarbyl ligand to generate diverse organometallic motifs [25,26]. However, the parallel chemistry of 1Fe is not accessible due to prevalent Fe-Fe bond cleavage induced by CO removal (see above) [16]. Similar considerations apply to related alkenyl complexes, with the diruthenium 2Ru (and similar compounds) providing access to diverse structures upon reaction with small unsaturated organic units [27,28]. Concerning the aminocarbyne complexes, 3Fe can be easily obtained, even in multigram scales, exploiting a straightforward and quite general synthetic route [20,21]. The successive CO-NCMe substitution takes place with preservation of the dinuclear structure, allowing for several derivatization reactions that have been documented in the literature [7,8]. Conversely, the synthesis of diruthenium aminocarbyne complexes (3Ru) is more challenging, and the N-cyclohexyl derivative (R = Cy in Figure 1) is the only one producible in a scale practically suitable for exploratory chemistry [22].
Cyanide addition serves as a valuable strategy for generating C-C bonds in organometallic chemistry [29,30], with tetrabutylammonium cyanide (Bu4NCN) being a convenient reagent due to its good solubility in common organic solvents [31,32]. To date, the reactivity of diiron and diruthenium μ-allenyl and μ-alkenyl complexes (1–2, and their acetonitrile derivatives) with Bu4NCN remains unexplored. Conversely, this chemistry has been investigated for a few compounds of type 3, showing a significant influence of the specific R substituent [20,33,34]. Moreover, diiron derivatives with a terminal cyanide ligand can be prepared from 3Fe in two steps, via the intermediate formation of labile acetonitrile adducts (Scheme 1) [35,36].
Expanding our understanding of the reactivity of 1–3 with cyanide is motivated by two primary reasons. First, the unsaturation within the bridging hydrocarbyl ligand offers opportunities to increase the complexity of the organic moiety [37,38,39], with the cyano group potentially acting as a nitrogen donor towards one of the two iron centers [40,41,42]. Second, the possibility of placing cyanide to occupy an iron coordination site deserves consideration for potential implications in catalysis [43]. In particular, previous studies have shown that diiron bis-cyclopentadienyl complexes with terminal cyanide and bridging carbyne ligands behave as models of [FeFe] hydrogenase [44,45], promoting the electrocatalytic production of dihydrogen from acetic acid [46]. It is hypothesized that the unsaturated carbon (carbyne) and nitrogen (CN) carbons bind the hydrogen atoms prior to H-H bond formation [47,48]. Herein, we present a synthetic, spectroscopic and computational study providing new insights into the chemistry of 1–3, and some of their related acetonitrile derivatives, with Bu4NCN.

2. Results and Discussion

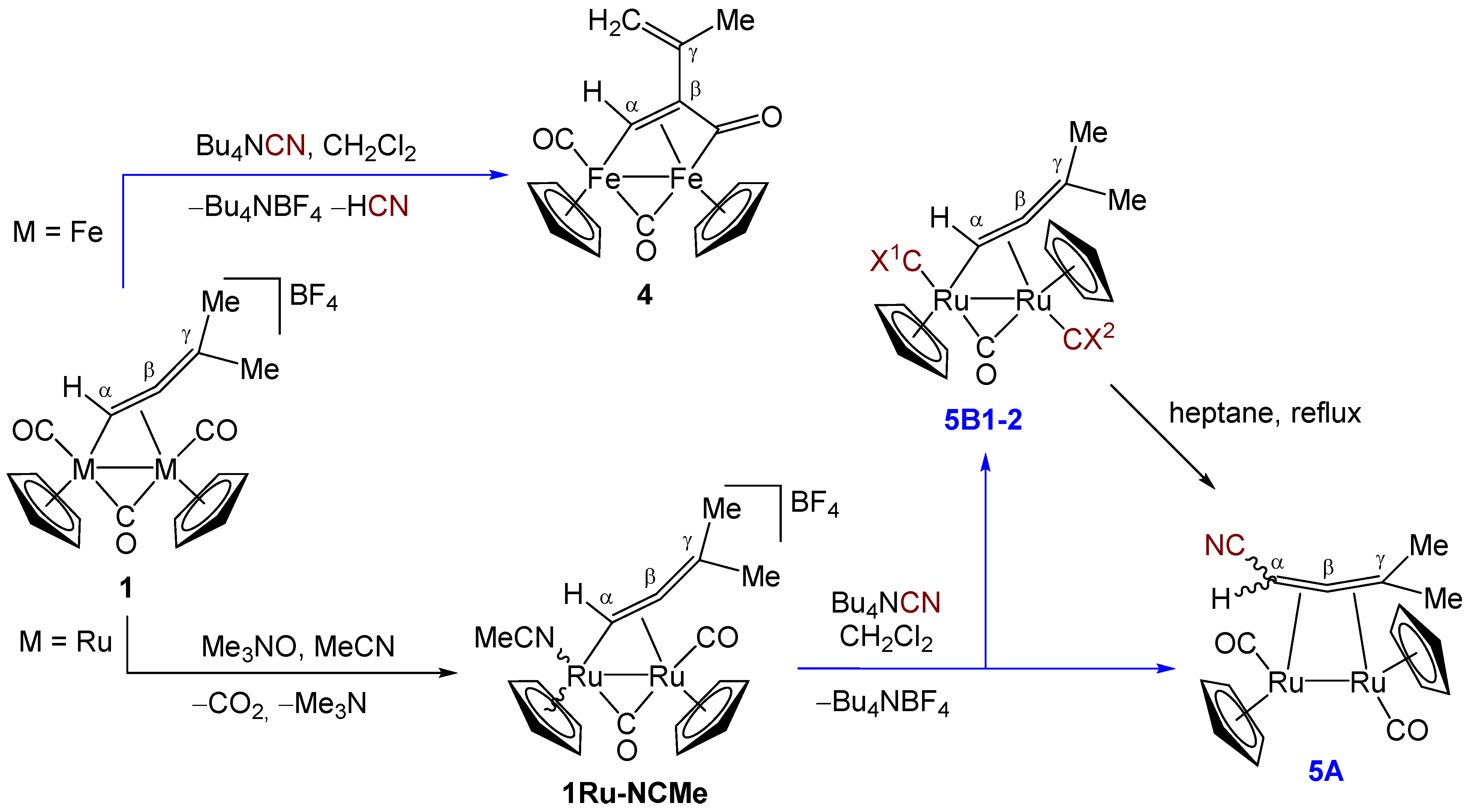

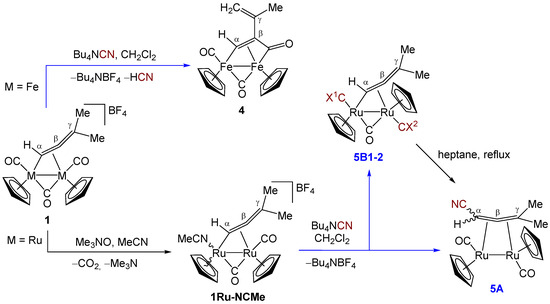

We started investigating the reactivity of the diiron allenyl complex 1Fe with Bu4NCN. This reaction predominantly yielded the diferracyclopentenone complex 4, resulting from the deprotonation of one methyl group [16] (Scheme 2). Given the ability of the cyanide ion to behave as a Brønsted base towards the allenyl ligand, we turned our attention to the acetonitrile derivative 1Ru-NCMe, which was prepared from 1Ru using the literature procedure [25]. The subsequent reaction with Bu4NCN produced a mixture of products (Scheme 2), which could be partially separated via careful column chromatography on alumina.
The first fraction eluted was complex 5A, comprising a μ-η2:η2 coordinated allene ligand resulting from CN− addition to the α carbon of the allenyl moiety. This product was isolated with a yield of approximately 30% and identified by IR and NMR spectroscopy. The infrared spectrum of 5A (in CH2Cl2 solution) exhibits the characteristic pattern of analogous diruthenium and diiron compounds [49,50], with two bands ascribable to the terminal carbonyls falling at 1948 and 1927 cm−1, the latter being more intense than the former. Additionally, the weak absorption at 2200 cm−1 accounts for the cyanide incorporated within the allene moiety. The NMR spectra of 5A (in CDCl3) show two sets of resonances in a molar ratio of 1.7, attributed to the two stereoisomers (5A-is1 and 5A-is2) differing in the spatial orientation of the Cα substituents (i.e., CN and H), with the Cp ligands adopting a mutual trans geometry (with respect to the Ru-Ru axis). Remarkably, the related complex [Ru2Cp2(CO)2{µ,η2:η2-CH2=C=CMe(Ph)}] was reported to exist in CD2Cl2 solution as two stereoisomers related to the spatial arrangement of Me and Ph [49]. We note that the trans configuration for the Cp rings has been recognized in the solid-state structures of all crystallographically characterized complexes based on the M2Cp2(CO)2 core (Cp = C5H5 or substituted cyclopentadienyl) and containing a bridging (substituted) µallene ligand [50,51,52].

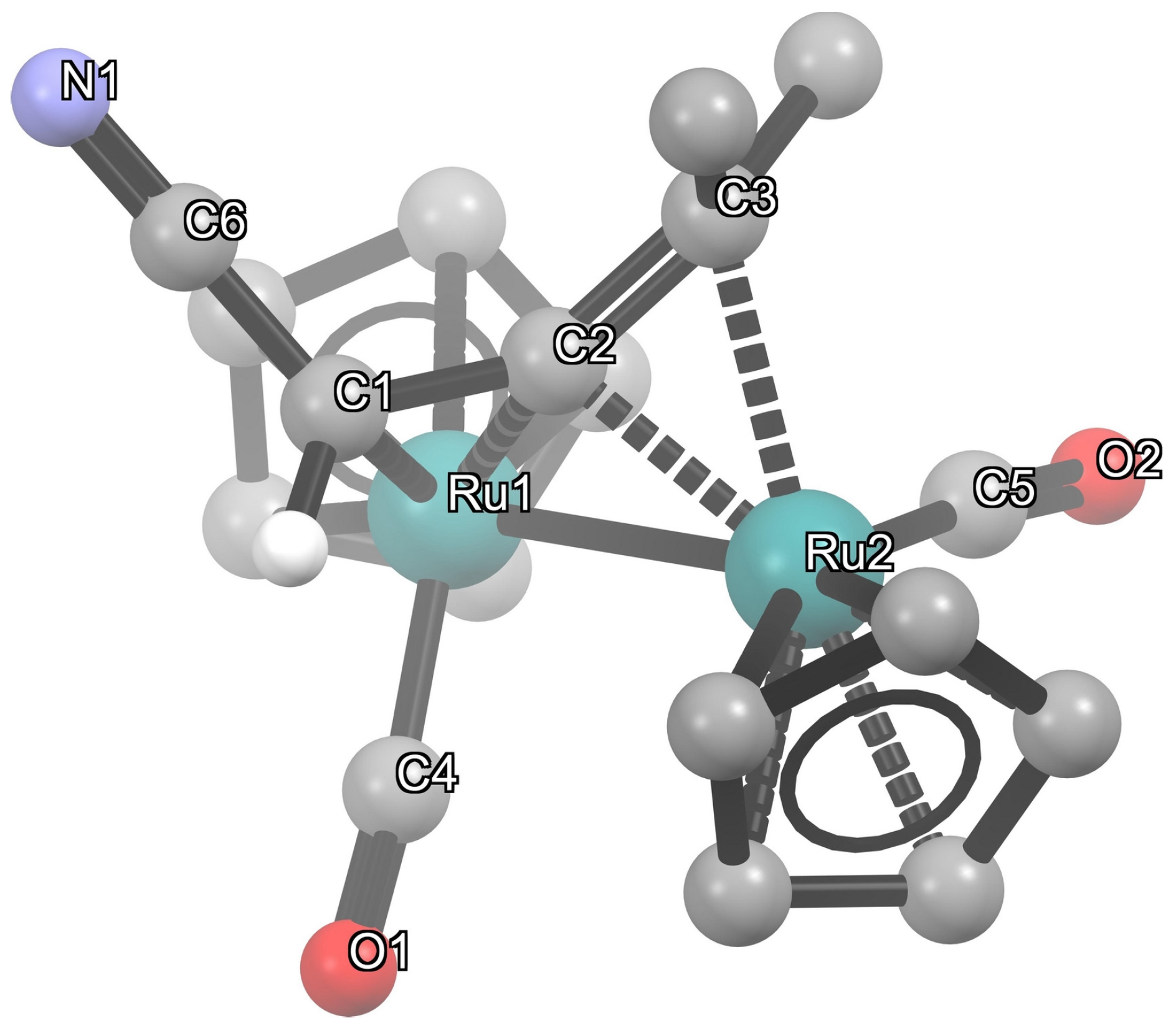

The optimized geometries of 5A-is1 and 5A-is2 were DFT calculated and are shown in Figure S1. The structure with the cyano group pointing far away from the Ru2Cp2 scaffold (5A-is1) was found to be more stable than the other one by approximately 1.4 kcal/mol; a view of this structure is depicted in Figure 1 along with the main calculated bonding parameters. The lower stability of the cis configuration for the Cps was confirmed on theoretical grounds (Figure S1).
In agreement with the existence of 5A-is1 and 5A-is2, the 1H NMR spectrum exhibits the resonance for the CαH hydrogen shifted by ca. 1 ppm in the two isomers (2.47 and 3.45 ppm, respectively). The Cp ligands were detected in the ranges 4.83–5.11 ppm (1H) and 85.9–87.8 ppm (13C). In the 13C NMR spectrum of 5A, the allene unit gives rise to three diagnostic resonances, at 189.8 (Cβ), 65.4 (Cγ) and 5.32 ppm (Cα), for the prevalent isomer. For comparison, the corresponding signals in the major isomer of [Ru2Cp2(CO)2{µ,η2:η2-CH2=C=CMe(Ph)}] were observed at 189.9 (Cβ), 62.1 (Cγ) and 25.0 ppm (Cα) [49].
The most abundant fraction collected from the column chromatography of the reaction mixture from 1Ru-NCMe and Bu4NCN consisted of a mixture of the diruthenium complexes 5B1 and 5B2 (in a ratio of ≈3.3 according to 1H NMR) that could not be separated from the ammonium salt by-product (Scheme 2). The identity of the isomers 5B1 and 5B2 was determined based on IR and 1H NMR spectra, with the assistance of DFT calculations and literature data. In both isomers, the infrared wavenumber for the cyanide group (2104 cm−1) is lowered by ca. 100 cm−1 compared to 5A, indicative of coordination to a low valent ruthenium center [35,53,54,55]. The predominant isomer (5B1, see the DFT-optimized structure in Figure 2) displays one terminal CO (1983 cm−1) and one semibridging CO ligand (1894 cm−1), with the cyano group bound to Ru1 and the Cp ligands adopting a trans configuration. The same geometry was previously recognized for the closely related chloride complex [Ru2Cp2(Cl)(CO)(µ-CO){µ,η1:η2-CH=C=CMe2}], 1Ru-Cl (Figure 2), crystallographically characterized [49]. In the IR spectrum of 1Ru-Cl (in CH2Cl2), the carbonyl absorptions fall at 1982 and 1882 cm−1. The semibridging coordination of one CO ligand is evident from the computational data obtained for 5B1, with the Ru1-μCO distance (1.904 Å) considerably shorter than Ru2-μCO (2.376 Å), analogous to what was reported for 1Ru-Cl [experimental distances of 1.886(3) and 2.403(2) Å, respectively]. Complex 5B2 features the cyanide ligand bound to Ru2, and terminal and classical bridging carbonyl ligands, with corresponding IR stretching vibrations occurring at 1983 and 1827 cm−1. The calculated Ru-µCO bond lengths are 2.022 and 2.083 Å (Figure 2).
The 1H NMR spectrum of the mixture 5B1/5B2 exhibits the typical low-field resonance for the Cα-H (9.06 ppm for 5B1, 9.44 ppm for 5B2) [49,56,57], confirming that the structure and coordination of the bridging allenyl ligand are not affected by the incorporation of the cyano group in the complex. The 1H NMR signals for the Cp rings of 5B1-2 fall in the range 5.08 to 5.30 ppm, indicating the same Cp arrangement in these two complexes. Since these chemical shift values are quite close to those reported for 1Ru-Cl (4.91, 5.26 ppm) and other trans-Ru2Cp2(CO)2 structures with bridging hydrocarbyl ligands [58], it is plausible that the trans geometry occurs in 5B1-2.
The computed Gibbs free energy difference between trans-5B1 and trans-5B2 is small (<1 kcal/mol), justifying the occurrence of both these geometric isomers. However, computer outcomes do not rule out the potential existence of cis structures (see Figure S2).
It appears that the formation of 5A and 5B1-2 takes place with a rearrangement of the Ru2Cp2 core, transitioning from the cis geometry observed in 1Ru [25] to the trans one. This phenomenon, well described for various CO-substituted bimetallic complexes, is believed to proceed according to the Adams–Cotton mechanism [8,59,60,61]. In this mechanism, cis and trans isomers may interconvert in solution via a bridge-opened structure, where bridging ligands move to terminal positions, followed by rotation around the metal–metal bond. The coordination switch from terminal to bridging sites and vice versa is likely responsible for the cyanide ligand in 5B1-2 binding to different ruthenium atoms. Notably, fast mobility of cyanide, moving from one metal center to another, was previously observed in [Fe2Cp2(CN)(CO)3]− [62] and trinuclear platinum clusters [63].
To assess the thermodynamic stability of 5A and 5B1-2, we subjected these compounds to heating in heptane solution at ca. 100 °C. While 5A, and its stereoisomeric ratio, remained unchanged after 2 h, selective conversion of 5B1-2 to 5A was complete in approximately 10 min. Complex 5A was subsequently purified by alumina chromatography, providing a total yield of this compound from 1Ru of 60%. The cyanide migration reaction converting 5B1-2 to 5A mirrors the migration of hydride from bridging metal coordination to the Cα allenyl carbon in a closely related diruthenium system [49].

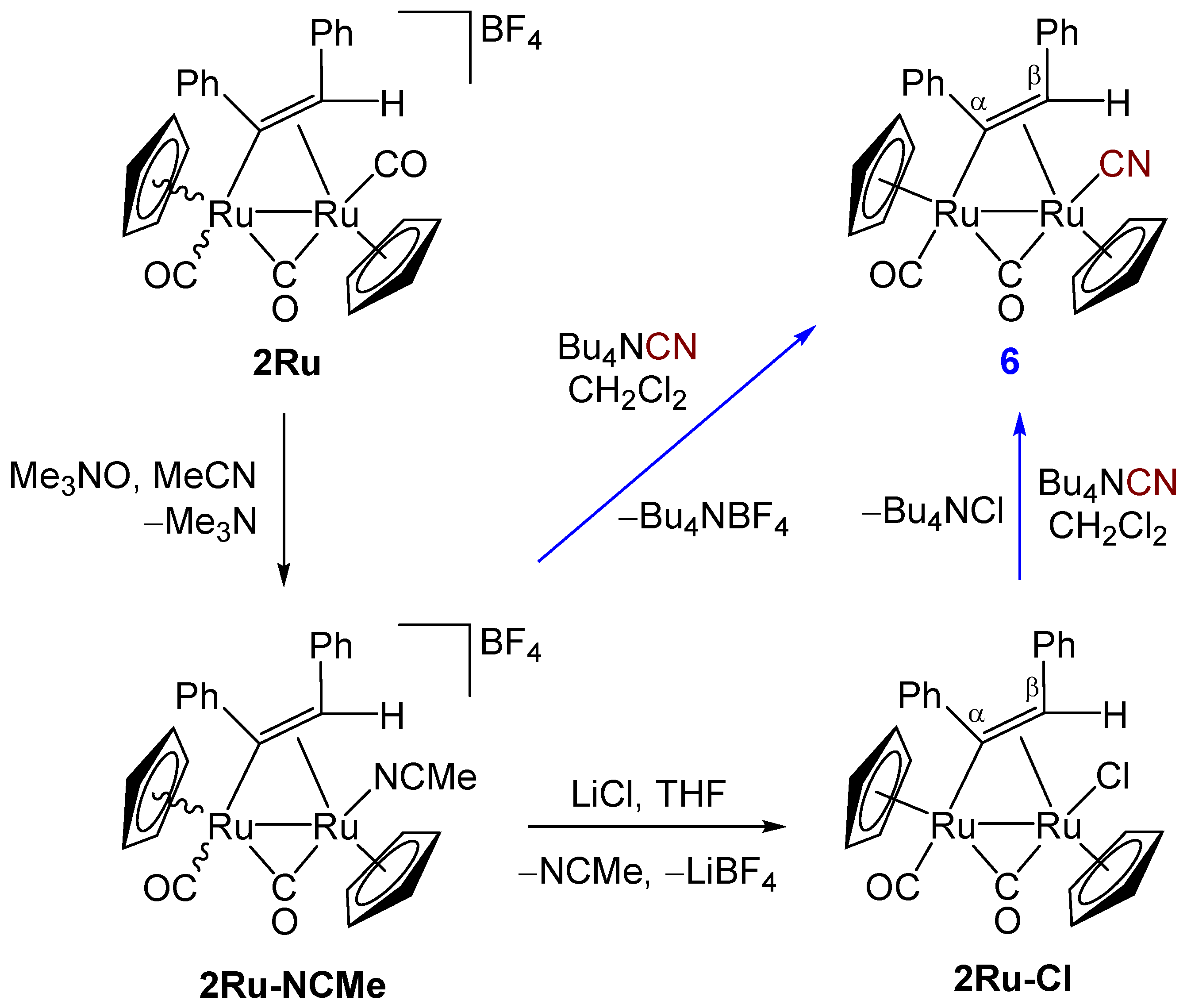

The diphenyl-alkenyl diruthenium complex 2Ru-NCMe was prepared using the TMNO strategy [18], then 2Ru-NCMe was allowed to react with Bu4NCN in dichloromethane solution. This reaction cleanly resulted in acetonitrile–cyanide substitution, giving rise to 6 (Scheme 3). However, all our attempts to isolate 6 from tetrabutylammonium tetrafluoroborate, formed as the by-product of the substitution reaction, were unsuccessful. Consequently, an alternative route was devised to obtain pure 6. Initially, 2Ru-NCMe was converted to the chloride derivative 2Ru-Cl following a literature procedure. Subsequently, the reaction of 2Ru-Cl with Bu4NCN proceeded smoothly at room temperature affording 6 which could be effectively separated from Bu4NCl by alumina chromatography. The novel complex 6 was finally isolated with an 84% yield.

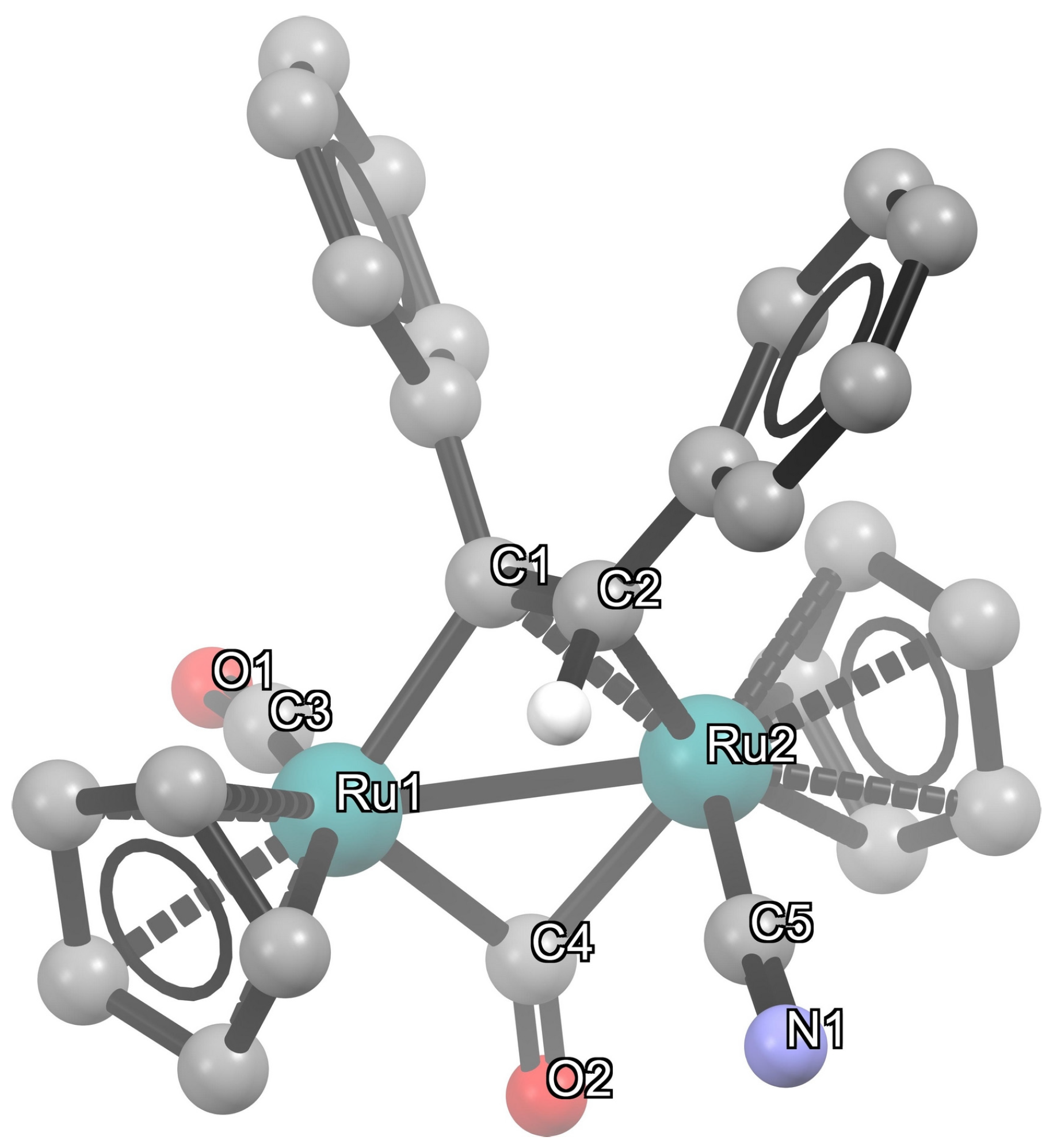

According to DFT calculations, the most stable structure of 6 features the cyano group bound to Ru2, with the Cp rings in the trans configuration (Figure 3). The bridging CO ligand is almost equidistant between the two ruthenium centers, the calculated Ru-μCO distances being 2.016 and 2.079 Å. Similarly, the alkenyl Cα carbon is nearly equidistant from the two ruthenium centers, with Ru-Cα distances of 2.097 and 2.169 Å.
Alternative isomers, respectively bearing Cp ligands in cis or the cyano bound to the other ruthenium (Ru1), appear significantly less probable on theoretical grounds (Figure S3). In particular, similar to the μ-allenyl complexes 5B1-2, the binding of cyanide to Ru1 would force one CO ligand to adopt a semibridging coordination fashion. Computed Ru-μCO distances in trans-6-1 are 1.902 and 2.347 Å, see Figure S3.
The spectroscopic data collected for 6 are in full agreement with the DFT outcomes. The IR spectrum, recorded in dichloromethane solution, exhibits three main absorptions accounting for a ruthenium-bound cyanide (2104 cm−1), a terminal carbonyl (1978 cm−1) and a bridging carbonyl ligand (1826 cm−1). The NMR spectra reveal a single species in CDCl3 solution, with the Cp rings resonating at 5.38 and 4.97 ppm (1H) and 93.3 and 93.0 ppm (13C). In the 1H spectrum, the alkenic CH appears at 4.92 ppm, while, in the 13C NMR spectrum, the alkenic carbons, Ca and Cb, have been detected, respectively, at 154.4 and 72.4 ppm, and the cyanide at 132.6 ppm. The values for Ca and Cb are quite close to those reported for the crystallographically characterized trans-2Ru-Cl [27], and in particular, the low-field chemical shift of Ca aligns with its bridging alkylidene character [7,8,27,64].

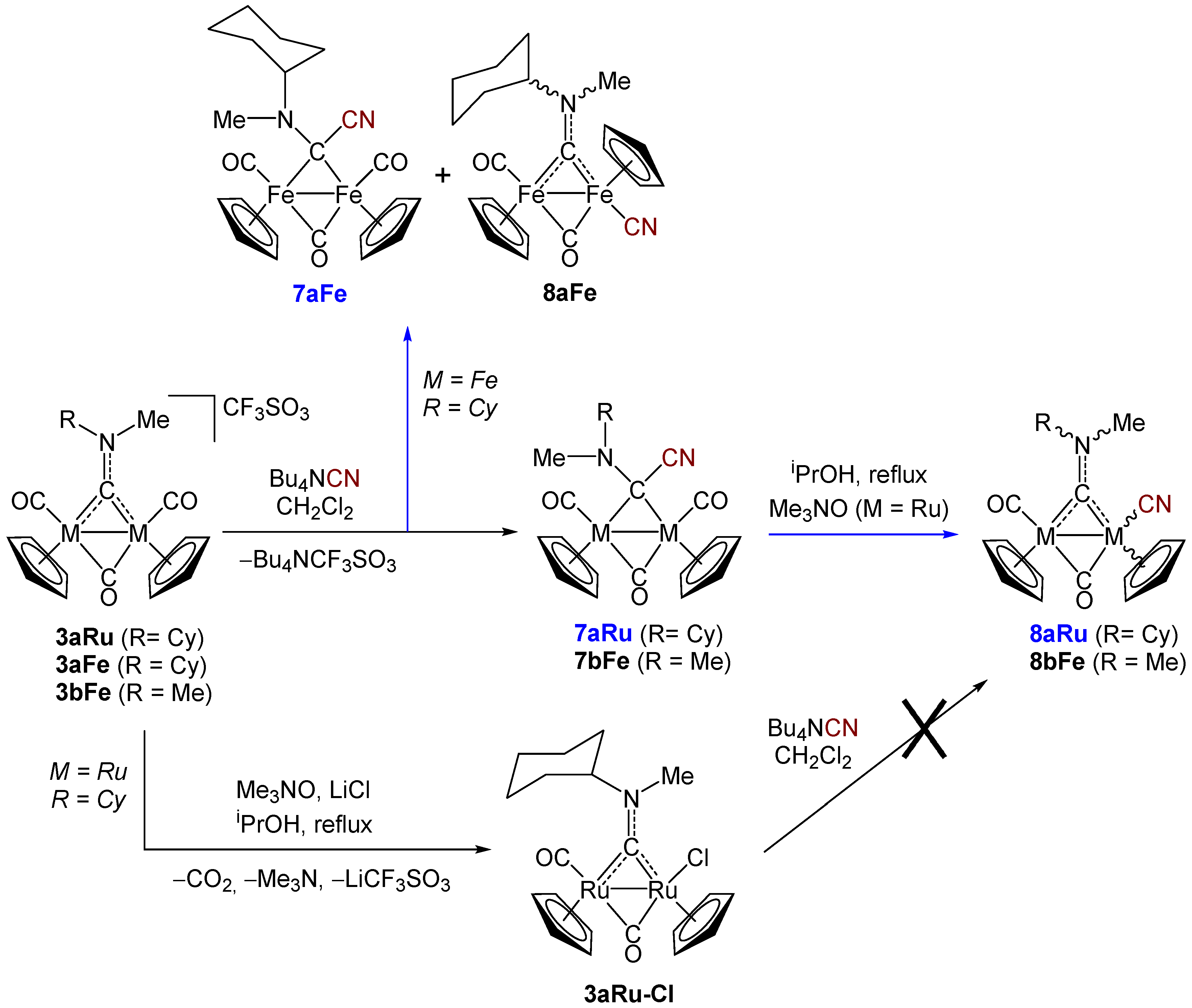

We extended our study to the reactivity of the diiron and diruthenium aminocarbyne complexes 3 with Bu4NCN (Scheme 4). The reaction involving the diruthenium complex 3aRu yielded the bridging µalkylidene derivative 7aRu, resulting from the selective cyanide addition to the carbyne center. This outcome aligns with the previous reaction involving the N-benzyl substituted homologue of 3aRu, [Ru2Cp2(CO)2(µ-CO){µ-CN(Me)(CH2Ph)}]CF3SO3, affording [Ru2Cp2(CO)2(µ-CO){µ-C(CN)NMe(CH2Ph)}] [34].
Complex 7aRu was isolated after alumina chromatography and isolated with a 74% yield. X-ray quality crystals of this compound were obtained from a dichloromethane/hexane mixture settled aside at −30 °C, and the molecular structure was subsequently determined through X-ray diffraction analysis (Figure 4). A few dinuclear complexes containing a bridging cyano-aminoalkylidene ligand have been crystallographically characterized, all based on the M2Cp2(CO)2 core (M = Fe, Ru) [34,38,65,66,67,68]. Bonding parameters of 7aRu resemble those previously reported for the closely associated compound [Ru2Cp2(CO)2(µ-CO){µ-C(CN)NMe(CH2Ph)}], featuring a benzyl group in place of cyclohexyl [34]. In both structures, the cyano group points towards the side with the Cp rings, which are in relative cis orientation. In 7aRu, the C(4)-N(1) contact [1.458(4) Å] is almost a pure single bond and, in keeping with this, N(1) strongly departs from sp2 hybridization [sum angles at N(1) 341.2(5)°]. The bridging µ-CO and µ-C(CN)N(Me)(Cy) ligands are perfectly symmetric [Ru(1)-C(3) 2.041(4), Ru(2)-C(3) 2.014(3), Ru(1)-C(4) 2.098(3), Ru(2)-C(4) 2.098(3) Å] with both Ru atoms bonded to terminal CO ligands.
The IR spectrum of 7aRu (in CH2Cl2) exhibits the pattern typical of a Ru2Cp2(CO)2(μ-CO) core, consisting of three carbonyl bands (2004, 1968 and 1800 cm−1, respectively). Additionally, the absorption at 2146 cm−1 accounts for the carbene-bound cyano moiety. The NMR spectra (CDCl3) reveals the presence of a single species in solution, likely corresponding to the same geometry observed in the solid-state structure, thereby indicating the absence of stereoisomerism arising from the orientation of the Cp ligands or the alkylidene substituent. The 13C NMR signal for the alkylidene carbon falls at 139.8 ppm, consistent with data on related diruthenium complexes [34,68].
Surprisingly, the reaction of the diiron counterpart of 3aRu, namely 3aFe, with cyanide revealed significant differences between these two homologous compounds (Scheme 4). A mixture of products was obtained from 3aFe, as indicated by the IR spectrum of the reaction mixture. Through careful chromatography under a strictly inert atmosphere, the alkylidene complex 7aFe and the aminocarbyne derivative 8aFe were separated. The unprecedented 7aFe proved to be strongly air-sensitive, converting upon air contact into 3aFe (detected by IR and 1H analyses) and a paramagnetic mixture of unidentified carbonyl species. Moreover, 7aFe is unstable in CH2Cl2 or CDCl3, where it slowly underwent cyanide loss to recover 3aFe, presumably via cyanide–chloride exchange with the solvent [69]. Thus, the identification of 7aFe relied on the solution IR spectrum and key NMR data, but a full spectroscopic characterization was not possible.
Complex 8aFe was previously synthesized from 3aFe using the acetonitrile substitution route (see Scheme 1) [36,70]. Diiron and diruthenium complexes with the general formula [M2Cp2(L)(CO)(µ-CO){µ-CN(Me)(R)}]0/+ (R ≠ Me, L = anionic or neutral ligand) can exhibit both cis/trans isomers, with reference to the geometry of the Cps, and α/β isomers, differing in the relative orientation of R and L [7,8,70], as shown in Scheme 5. The α/β isomerism arises from the inhibited rotation around the μ-(C-N) bond, which possesses a significant iminium character [8]. When L is a halide or pseudohalide ligand, the IR spectrum serves as a strongly diagnostic tool for detecting cis and trans forms. Typically, the bridging CO stretching wavenumber (around 1800 cm−1) is almost coincident in such two isomers, while the terminal CO stretching significantly differs, occurring at ca. 1980 and 1960 cm−1 in the cis and trans isomers, respectively [7,8,70].

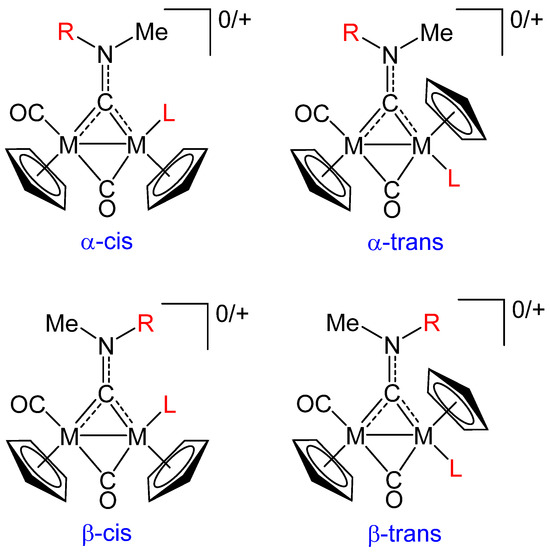

The IR and 1H NMR spectra of 8aFe indicate the presence in solution of α-trans and β-trans isomers, as previously reported [70].
The outcome of the reaction involving 3aFe contrasts with previous findings where 3bFe reacted with tetrabutylammonium cyanide yielding the cyano-alkylidene derivative 7bFe as the sole, stable product [33]. The steric hindrance introduced by the cyclohexyl group in 3aFe presumably plays a crucial role in disfavoring cyanide binding to the carbyne [20], although electronic factors should also be invoked, given the discrepancy observed between the reactivities of 3aFe and 3aRu.
To test the thermodynamic stability of the cyano-alkylidene complexes 7bFe and 7aRu, these were subjected to thermal treatment in various solvents. Interestingly, 7bFe underwent quantitative conversion to 8bFe when heated at around 60 °C in isopropanol, acetonitrile or tetrahydrofuran solutions. This conversion involved CO elimination and intramolecular cyanide migration. Isopropanol proved to be the most effective solvent for this transformation, yielding 8bFe in a 71% yield.
The IR spectrum of the reaction mixture revealed that the cyanide migration was nonselective when conducted in THF solution, resulting in the production of 8bFe in combination with minor, unidentified species. Note that the CO and Cp rings are potential sites of the addition of carbon nucleophiles to dinuclear complexes of type 3 [71,72].
Complex 8bFe, previously obtained via either CO-NCMe substitution (Scheme 1) [35] or selenocyanate decomposition [70], was identified by comparing spectroscopic data with the literature. The structure of 8bFe (as the bis-aqua species trans-8bFe·2H2O) was confirmed by X-ray diffraction (Figure S4). The structure of trans-8bFe was previously reported as a solvent-free crystal [70]. Bonding parameters and stereochemistry are almost identical and will not be commented on any further. Hydrogen bonds are present involving the cyanide ligand and the water molecules. The only other example of crystallographically characterized dimetallic bis-cyclopentadienyl carbonyl complex featuring a terminal CN ligand is the homolog of 8bFe exhibiting two cis-oriented methylcyclopentadienyl ligands (Cp′) [73].
The IR spectrum of 8bFe is diagnostic for a mixture of cis and trans isomers, with a prevalence of the former (CO bands at 1980, 1958 and 1803 cm−1, vide infra) [8,70]. Consistently, the 1H NMR spectrum revealed two sets of signals in an approximate 4.5 ratio.
The diruthenium complex 7aRu was sluggish to the CN− migration–CO removal process described for 7bFe. As a matter of fact, this reaction reached approximately 50% conversion after 24 h in isopropanol at reflux. Adding TMNO to the reaction mixture significantly accelerated the process, reaching completion after 30 min in isopropanol at 60 °C. However, the favorable action of TMNO was at the expense of selectivity, resulting in significant amounts of a secondary product. Following alumina chromatography, 8aRu was finally isolated in a moderate yield. We explored the alternative possibility of obtaining 8aRu via chloride–cyanide replacement, similar to the process described for the synthesis of 6 from 2Ru-Cl (see Scheme 3). However, this route proved impracticable, as 3aRu-Cl showed inertness towards Bu4NCN (Scheme 4).
The carbonyl pattern in the IR spectrum of 8aRu suggests the presence of trans and cis isomers, with a large prevalence of the former, revealing a prevalent cis to trans rearrangement of the Ru2Cp2 scaffold ongoing from 7aRu to 8aRu. The infrared absorption for the cyano group falls at 2098 cm−1, suggestive of a Ru-CN linkage. Moreover, the aminocarbyne μ-C-N bond manifests itself with a medium intensity band at 1540 cm−1, consistent with its partial double bond character [8,21].
The 1H NMR spectrum of 8aRu exhibits two sets of signals for each cis/trans species, attributable to the α and β forms (Scheme 5). The overall trans to cis ratio is approximately 6. In the 13C NMR spectrum, the carbyne center resonates in the typical low-field region characteristic of dinuclear μ-aminocarbyne complexes [8,74,75,76]. A comparative view of spectroscopic features of 8aRu and 8aFe (Table 1) highlights important electronic effects provided by the distinct metal centers. Regarding the IR signals, they are slightly shifted to lower wavenumbers in 8aFe compared to 8aRu. This observation is coherent with the generally higher degree of π-backdonation occurring to π-acceptor ligands from 3d soft metal centers compared to their 4d congeners, correlated with the lower electronegativity of the 3d elements, resulting in stronger 3d metal–ligand bonds [77,78,79,80].

3. Experimental Section

3.1. General Details

Complexes [M2Cp2(CO)4] (M = Fe, Ru) were purchased from Merck, while organic reagents were purchased from Merck or TCI Europe, and were of the utmost available purity. Complexes 1Ru-NCMe [25], 1Fe [16], 2-NCMe [27], 2Ru-Cl [27], 3aRu [22], 3aFe [21], 3bFe [20], 7bFe [33] were prepared according to the literature. Solvents were obtained from Merck (petroleum ether with a boiling point range of 40–60 °C). Dichloromethane, acetonitrile, tetrahydrofuran and hexane underwent drying using the solvent purification system mBraun MB SPS5. Reactions were carried out under N2 atmosphere using standard Schlenk techniques and anhydrous solvents, and were monitored through liquid infrared spectroscopy. Chromatographic separations were conducted on columns of deactivated alumina (Merck, 4% w/w water) under N2 atmosphere, using solvents from the bottle. Infrared spectra of solutions were recorded on a Perkin Elmer Spectrum 100 FT-IR spectrometer with a CaF2 liquid transmission cell (2300–1500 cm−1 range). IR spectra were processed with Spectragryph software [81]. NMR spectra were recorded at 298 K on a Jeol JNM-ECZ 400 MHz or a Jeol JNM-ECZ500R instrument, both equipped with Royal HFX Broadband probe. Chemical shifts (expressed in parts per million) are referenced to the residual solvent peaks (1H, 13C) [82]. NMR spectra were assigned with the assistance of 1H-13C (gs-HSQC and gs-HMBC) correlation experiments [83]. NMR signals due to secondary isomeric forms (where detectable) are italicized. Elemental analyses were performed on solid samples washed with pentane and prolongedly dried under vacuum, using a Vario MICRO cube instrument (Elementar). The isolated products were conserved under N2 atmosphere.

3.2. Reaction of Diiron μ-Allenyl Complex (1Fe) with Bu4NCN: Formation of [Fe2Cp2(CO)(µ-CO){µ,η1:η3-CH=C(MeC=CH2)C=O}] (4, Figure 5)

A solution of 1Fe (107 mg, 0.223 mmol) in CH2Cl2 (10 mL) was treated with Bu4NCN (66 mg, 0.246 mmol) and then left to stir for 3 h. The final solution was loaded on top of an alumina column, and the brown fraction corresponding to 4 was collected using a mixture of CH2Cl2 and THF (1:1 v/v) as the eluent. This product was obtained as a brown solid upon solvent evaporation under vacuum. Yield 44 mg, 50%. IR (CH2Cl2): ῦ/cm−1 = 1975vs (CO), 1796s (µ-CO), 1748m (C=O), 1611m (C=C).
Inorganics 12 00147 g005

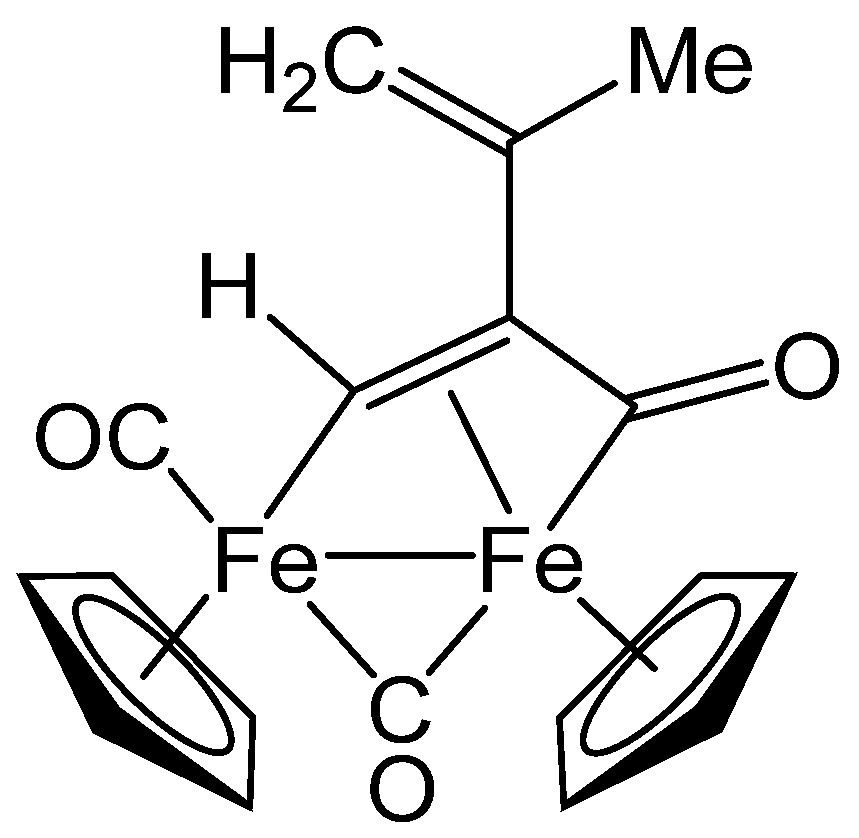

Figure 5. Structure of 4.
Figure 5. Structure of 4.
Inorganics 12 00147 g005

3.3. Reaction of Diruthenium μ-Allenyl Complex (1Ru-NCMe) with Bu4NCN: Synthesis and Isolation of [Ru2Cp2(CO)2{µ,η2:η2-CH(CN)=C=CMe2}] (5A, Figure 6), Identification of [Ru2Cp2(CN)(CO)(µ-CO){µ,η1:η2-CH=C=CMe2}] (5B1, 5B2, Figure 6)

A solution of 1Ru-NCMe, freshly prepared from 1Ru (118 mg, 0.207 mmol), in CH2Cl2 (10 mL) was treated with Bu4NCN (69 mg, 0.257 mmol). The resulting mixture was left to stir for 40 min, until it turned dark yellow. The final solution was loaded on top of an alumina column. A pale-yellow fraction was collected using neat dichloromethane as the eluent and corresponded to 5A. Subsequently, the second fraction (yellow) was isolated using a CH2Cl2/THF mixture (1/1 v/v), corresponding to a mixture of 5B1 and 5B2 contaminated with tetrabutylammonium. The solvent was evaporated from each solution under vacuum.
Inorganics 12 00147 g006

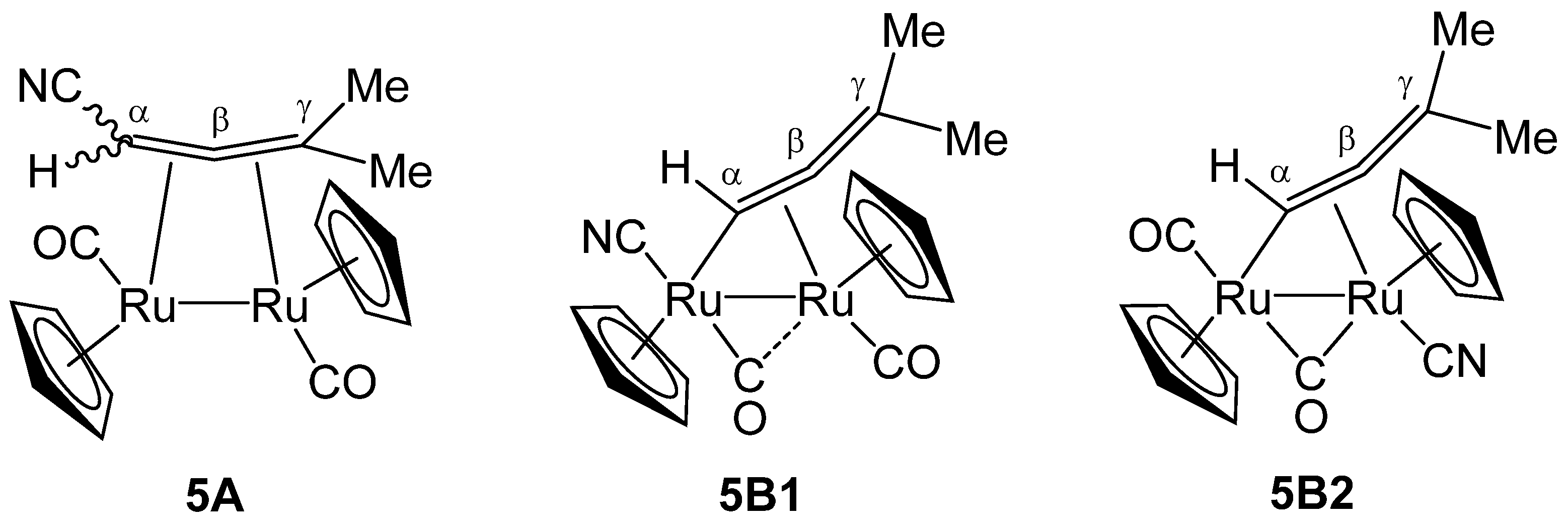

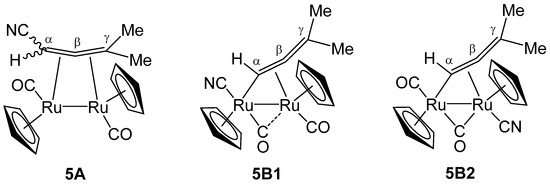

Figure 6. Structures of 5A, 5B1 and 5B2 (wavy bonds indicate stereoisomerism).
Figure 6. Structures of 5A, 5B1 and 5B2 (wavy bonds indicate stereoisomerism).
Inorganics 12 00147 g006
5A. Yellow solid, yield 27 mg (27%). Anal. calcd. for C18H17NO2Ru2: C, 44.90; H, 3.56; N, 2.91. Found: C, 44.65; H, 3.64; N, 2.80. IR (CH2Cl2): ῦ/cm−1 = 2200w (C≡N), 1948s (CO), 1928vs (CO). 1H NMR (CDCl3): δ/ppm = 5.11, 5.11, 5.08, 4.83 (s, 10H, Cp); 3.45, 2.47 (s, 1H, CαH); 2.07, 2.00, 1.92, 1.79 (s, 6H, Me). 13C{1H} NMR (CDCl3): δ/ppm = 207.7, 206.3, 206.2, 206.1 (CO); 189.8, 189.0 (Cβ); 125.8, 125.2 (C≡N); 87.8, 87.1, 85.9, 85.9 (Cp); 65.4, 64.1 (Cγ); 36.0, 35.7, 32.6, 32.5 (Me); 5.69, 5.32 (Cα). Isomer ratio ≈ 1.7.
5B1 + 5B2. Ochre-yellow solid, yield ≈56 mg (56%). IR (CH2Cl2): ῦ/cm−1 = 2104w-br (C≡N), 1983vs (CO), 1894m (μ-CO), 1827w (μ-CO). 1H NMR (CDCl3): δ/ppm = 9.44, 9.06 (m, 1H, CαH); 5.30, 5.26, 5.15, 5.08 (s, 10H, Cp); 2.29, 2.23, 1.98, 1.88 (d, 3H, 3JHH = 2.2 Hz, Me). 5B1/5B2 ratio ≈ 3.3.
The mixture of 5B1 and 5B2 was cleanly converted into 5A upon heating in heptane solution at reflux temperature for 2h. Afterwards, complex 5A was purified by alumina chromatography and finally isolated as a yellow solid with a total yield of 60%.

3.4. Reaction of Diruthenium μ-Vinyl Complex (2Ru-Cl) with Bu4NCN: Synthesis of [Ru2Cp2(CN)(CO)(µ-CO){µ,η1:η2-C(Ph)=CHPh}] (6, Figure 7)

A dark-orange solution of 2Ru-Cl (25 mg, 0.041 mmol) in CH2Cl2 (10 mL) was treated with Bu4NCN (14 mg, 0.052 mmol). The resulting mixture was left to stir for 1.5 h, and the final light-orange solution was loaded on top of an alumina column. The fraction corresponding to 6 was collected using a CH2Cl2/THF mixture (3/1 v/v). The title compound was obtained as a yellow solid upon solvent evaporation under vacuum. Yield 20 mg (84%). Anal. calcd. for C27H21NO2Ru2: C, 54.63; H, 3.57; N, 2.36. Found: C, 54.29; H, 3.45; N, 2.49. IR (CH2Cl2): ῦ/cm−1 = 2104w (C≡N), 1978vs (CO), 1826s (μ-CO). 1H NMR (CDCl3): δ/ppm = 7.30, 7.19, 7.06, 6.96 (m, 10H, Ph); 5.38, 4.97 (s, 10H, Cp); 4.92 (s, 1H, CβH). 13C{1H} NMR (CDCl3): δ/ppm = 226.3, 198.3 (CO); 174.6 (ipso-Ph); 154.4 (Cα); 143.4 (ipso-Ph); 132.6 (C≡N); 129.1, 128.6, 128.5, 128.2, 126.7, 126.1 (Ph); 93.3, 93.0 (Cp); 72.4 (Cβ).
Inorganics 12 00147 g007

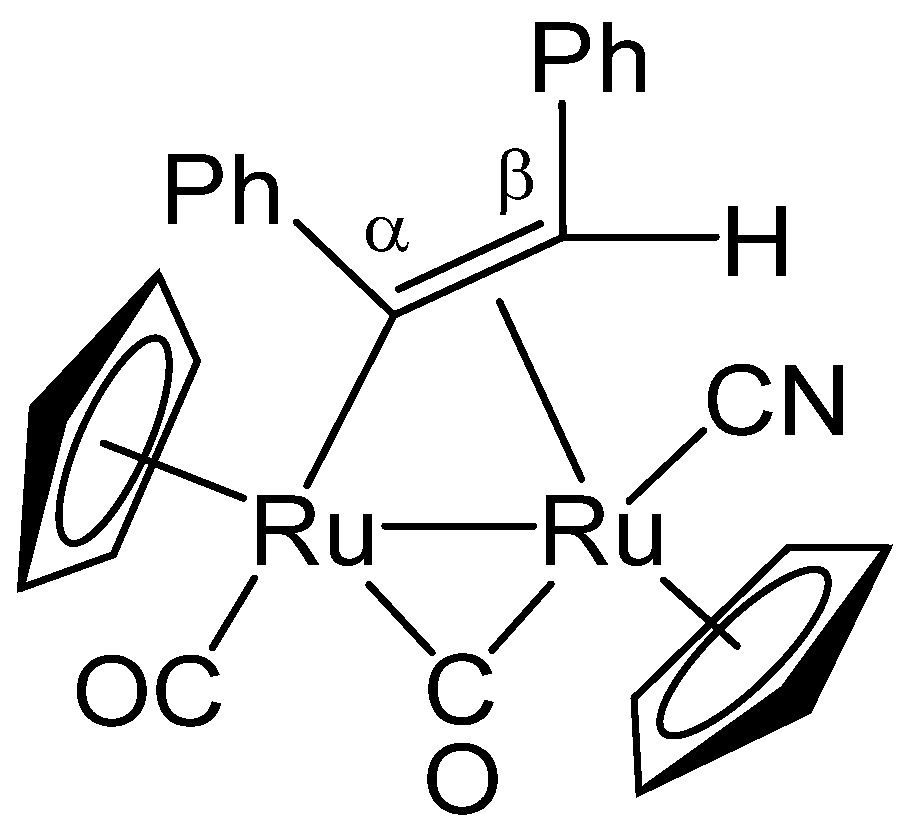

Figure 7. Structure of 6.
Figure 7. Structure of 6.
Inorganics 12 00147 g007

3.5. Reactions of Diiron and Diruthenium μ-Aminocarbyne Complexes (3) with Bu4NCN

3.5.1. Synthesis of [Ru2Cp2(CO)2(µ-CO){µ-C(CN)N(Me)(Cy)}] (7aRu, Figure 8)

A pale-yellow solution of 3aRu (90 mg, 0.131 mmol) in CH2Cl2 (7 mL) was treated with Bu4NCN (39 mg, 0.15 mmol). The solution turned immediately orange and was left to stir for an additional 30 min. Subsequently, the solution was filtered through an alumina column using neat dichloromethane as the eluent. The title compound was obtained as an orange solid upon solvent evaporation under vacuum. Yield 55 mg (74%). Anal. calcd. for C22H24N2O3Ru2: C, 46.64; H, 4.27; N, 4.94. Found: C, 46.25; H, 4.15; N, 5.03. IR (CH2Cl2): ῦ/cm−1 = 2146w (C≡N), 2004vs (CO), 1968m (CO), 1800s (μ-CO). 1H NMR (CDCl3): δ/ppm = 5.23 (s, 10H, Cp); 3.35 (m, 1H, CHCy); 2.75 (s, 3H, Me); 2.02, 1.81, 1.62, 1.37, 1.24 (m, 10H, CH2Cy). 13C{1H} NMR (CDCl3): δ/ppm = 229.2 (µ-CO); 196.1, 195.5 (CO); 139.8 (μ-CN); 130.3 (C≡N); 92.7 (Cp); 70.1 (CHCy); 38.8 (Me); 29.7, 26.9, 26.4 (CH2Cy). Crystals of 7aRu·CH2Cl2 suitable for X-ray analysis were obtained by slow diffusion of dichloromethane into a hexane solution of 7aRu, at −30 °C.
Inorganics 12 00147 g008

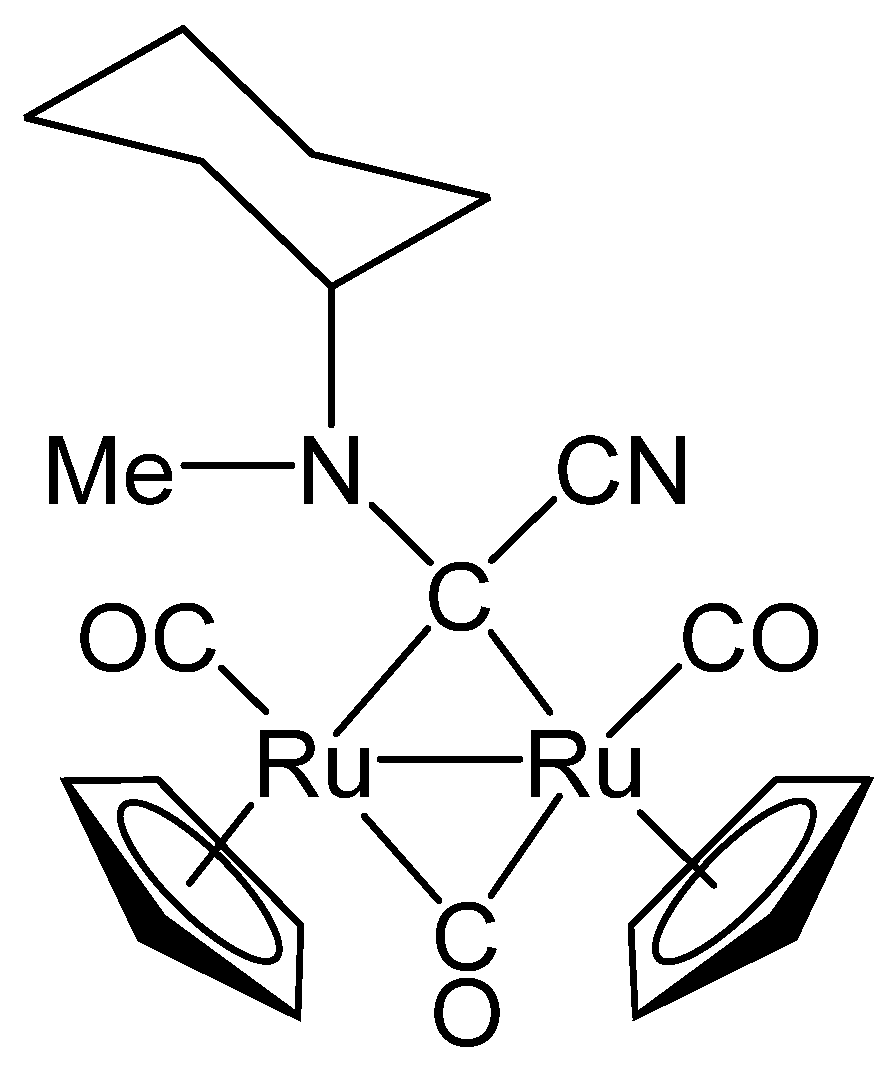

Figure 8. Structure of 7aRu.
Figure 8. Structure of 7aRu.
Inorganics 12 00147 g008

3.5.2. Formation of [Fe2Cp2(CO)2(µ-CO){µ-C(CN)N(Me)Cy}] (7aFe, Figure 9) and [Fe2Cp2(CN)(CO)(µ-CO){µ-CN(Me)Cy}] (8aFe, Figure 9)

A red solution of 3aFe (100 mg, 0.188 mmol) in CH2Cl2 (7 mL) was treated with Bu4NCN (58 mg, 0.22 mmol) and stirred for 1 h. The resulting solution was analyzed by IR spectroscopy [ῦ/cm−1 = 2142w, 2090w, 2068m, 2002vs, 1945s, 1796m, 1739s] and then loaded on top of an alumina column. Elution with neat dichloromethane afforded a purple fraction corresponding to 7aFe. Subsequently, a dark-green fraction corresponding to 8aFe was collected using acetonitrile as the eluent. The solvent was evaporated from each solution under vacuum.
Inorganics 12 00147 g009

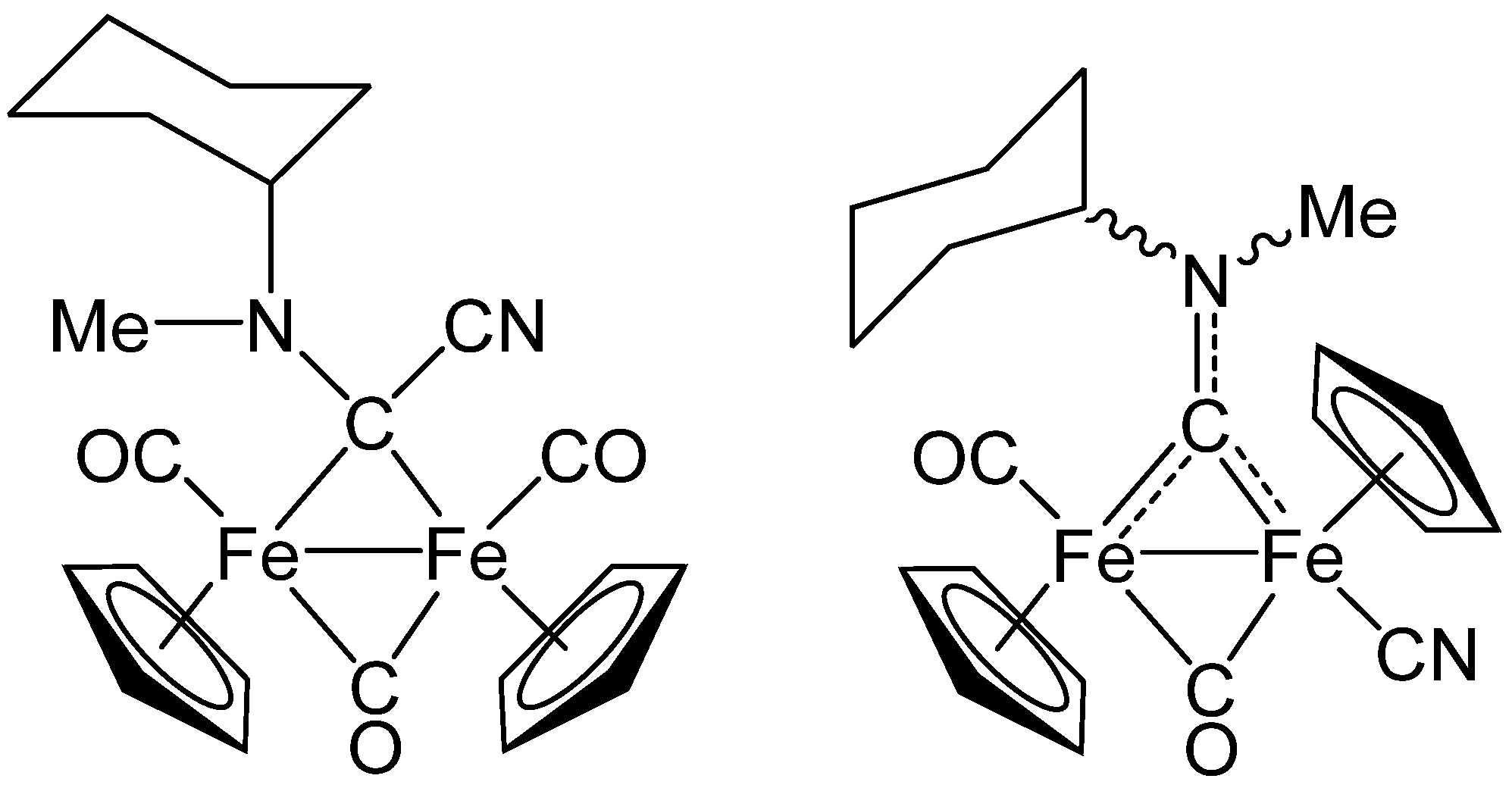

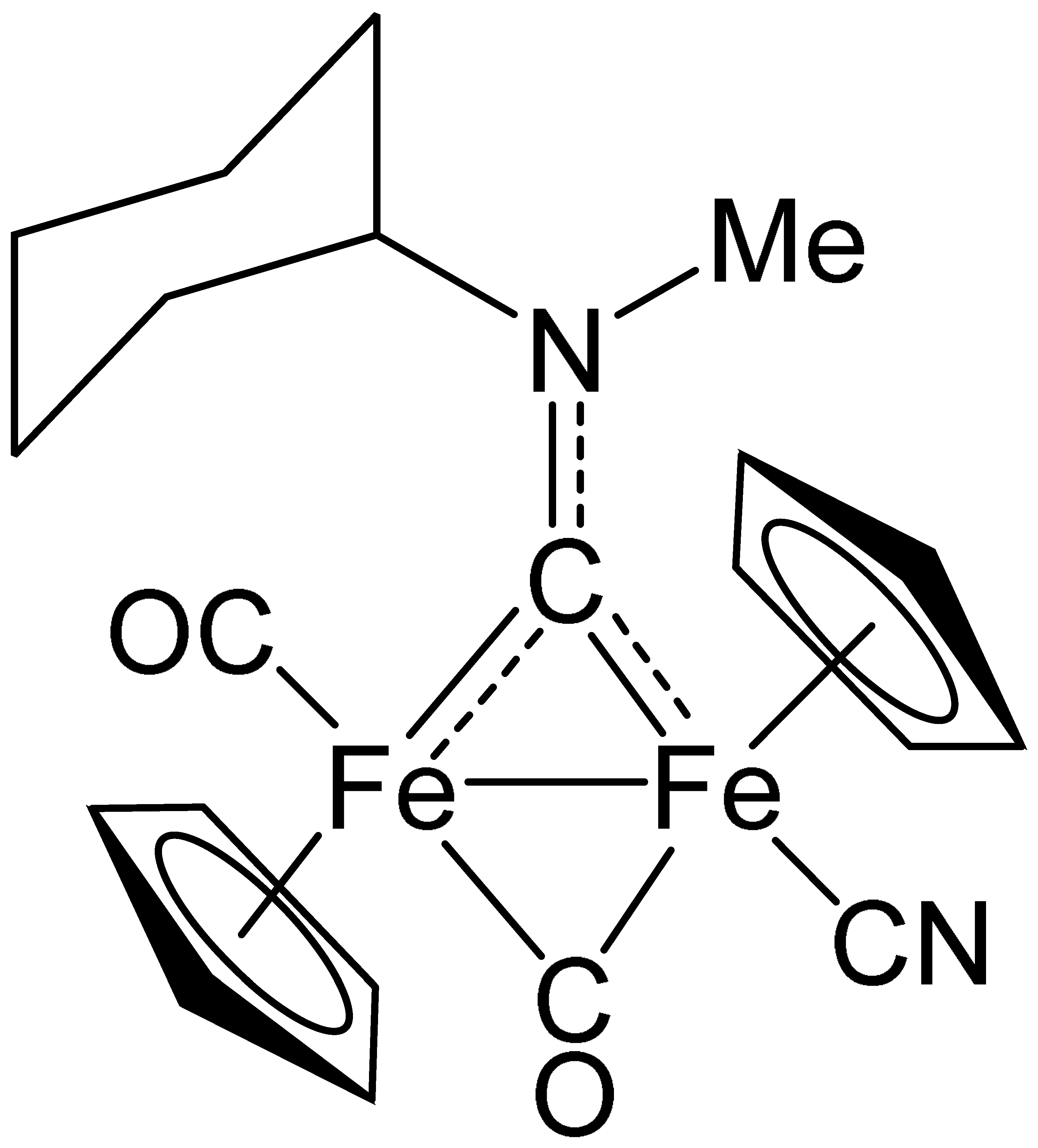

Figure 9. Structures of 7aFe and 8aFe (wavy bonds indicate stereoisomerism).
Figure 9. Structures of 7aFe and 8aFe (wavy bonds indicate stereoisomerism).
Inorganics 12 00147 g009
7aFe. Purple solid, yield 31 mg (35%). IR (CH2Cl2): ῦ/cm−1 = 2142w (C≡N), 2002vs (CO), 1966m (CO), 1796w (μ-CO). 1H NMR (CDCl3): δ/ppm = 5.46, 5.34 (s, 10H, Cp); 3.36 (m, 1H, CHCy); 2.56 (s, 3H, NMe); 1.97–1.20 (m, 10H, CH2Cy). Complex 7aFe completely decomposed in a few hours when stored in air or in a CH2Cl2 or CDCl3 solution, yielding [Fe2Cp2(CO)2(µ-CO){µ-CN(Me)Cy}]+ as the main species. AgNO3 test on a methanol solution of the degradation mixture resulted in abundant precipitation of a white solid (AgCl).
8aFe. Green solid, in admixture with [Bu4N]CF3SO3 (8a/Bu4N ratio ≈ 1). Yield 31 mg (37%). IR (CH2Cl2): ῦ/cm−1 = 2089w (C≡N), 1959vs (CO), 1803s (μ-CO), 1528w (µ-CN). 1H NMR (CDCl3): δ/ppm = 5.33, 5.13 (m, 1 H, CHCy); 4.80, 4.78, 4.65, 4.64 (s, 10 H, Cp); 4.17, 4.04 (s, 3 H, NMe); 2.27–2.17, 2.10–1.83, 1.64, 1.34–1.24 (m, 10 H, CH2Cy). Stereoisomer ratio (α/β) ≈ 2.4.

3.6. Thermal Decarbonylation Reactions

3.6.1. Synthesis of [Fe2Cp2(CN)(CO)(µ-CO){µ-CN(Me)2}] (8bFe, Figure 10)

A solution of 7bFe (70 mg, 0.13 mmol) in deaerated iPrOH (10 mL) was heated at 60 °C for 1 h. Afterwards, the volatiles were removed under vacuum, and the resulting residue was dissolved in the minimum volume of dichloromethane. A larger volume of diethyl ether was added to the solution, affording a precipitate which was isolated and dried under vacuum. Green-brown solid, yield 36 mg (71%). IR (CH2Cl2): ῦ/cm−1 = 2091m (C≡N), 1980vs (CO), 1958s-sh (CO), 1803s (μ-CO), 1578m (μ-CN). 1H NMR (CDCl3): δ/ppm = 4.84, 4.80, 4.77, 4.71 (s, 5H, Cp); 4.34, 4.25, 4.21, 4.11 (s, 3H, Me). Isomer ratio (cis/trans) ≈ 4.5. Crystals of trans-8bFe·2H2O suitable for X-ray analysis were obtained by slow evaporation of the solvent from a solution of 8bFe in a dichloromethane/hexane mixture, in contact with air.
Inorganics 12 00147 g010

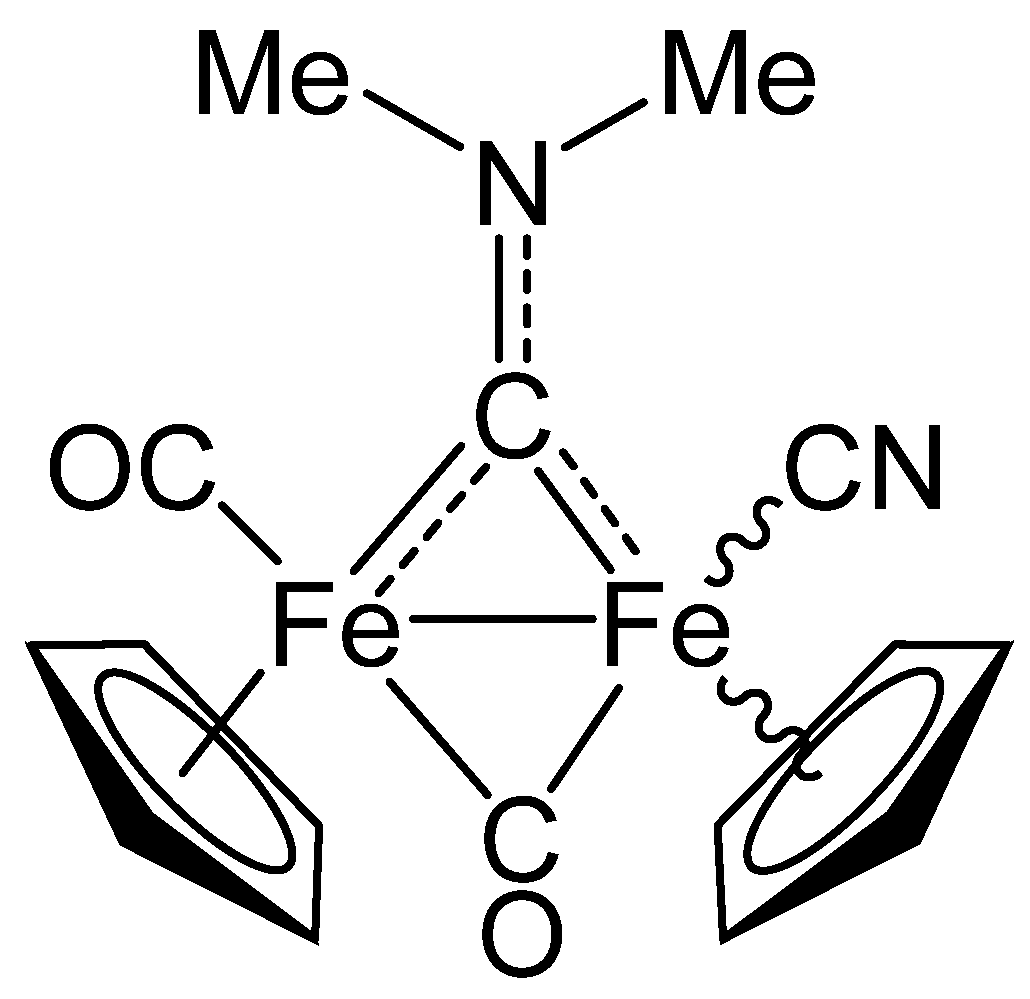

Figure 10. Structure of 8bFe (wavy bonds indicate stereoisomerism).
Figure 10. Structure of 8bFe (wavy bonds indicate stereoisomerism).
Inorganics 12 00147 g010

3.6.2. Synthesis of [Ru2Cp2(CN)(CO)(µ-CO){µ-CN(Me)(Cy)}] (8aRu, Figure 11)

A mixture of 7aRu (55 mg, 0.097 mmol) and Me3NO·2H2O (TMNO·2H2O; 12 mg, 0.11 mmol) in deaerated iPrOH (10 mL) was heated at 80 °C for 2 h. Afterwards, the volatiles were removed under vacuum, and the resulting residue was dissolved in the minimum volume of dichloromethane. This solution was loaded on top of an alumina column. Impurities were eluted using dichloromethane. Subsequently, the yellow fraction corresponding to the title product was collected using a CH2Cl2/THF mixture (1:1 v/v). The solvent was then evaporated under vacuum, affording a yellow solid. Yield 25 mg (48%). Anal. calcd. for C21H24N2O2Ru2: C, 46.83; H, 4.49; N, 5.20. Found: C, 46.58; H, 4.39; N, 5.16. IR (CH2Cl2): ῦ/cm−1 = 2098w (C≡N), ~1980w-sh, 1962vs (CO), 1804s (μ-CO), 1540m (μ-CN).
Inorganics 12 00147 g011

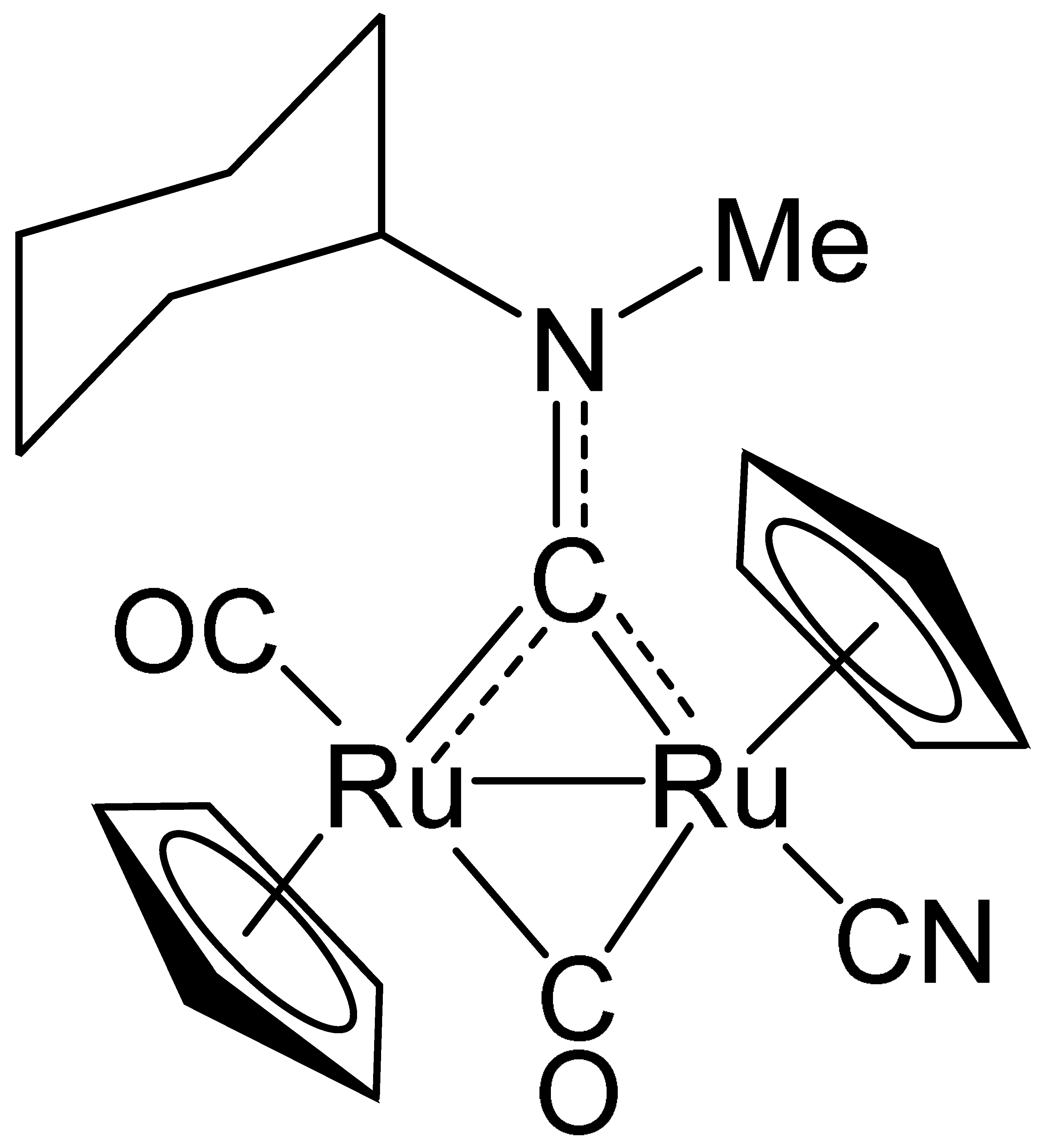

Figure 11. Structure of 8aRu (wavy bonds indicate stereoisomerism).
Figure 11. Structure of 8aRu (wavy bonds indicate stereoisomerism).
Inorganics 12 00147 g011
trans-8aRu. 1H NMR (CDCl3): δ/ppm = 5.33, 5.32, 5.21, 5.20 (s, 10H, Cp); 4.87–4.78, 4.74–4.66 (m, 1H, CHCy); 3.76, 3.76 (s, 3H, Me); 2.03–1.68 (m, 10H, CH2Cy). 13C{1H} NMR (CDCl3): δ/ppm = 304.0, 303.8 (µ-CN); 232.6, 229.5 (µ-CO); 199.3 (CO); 143.3 (C≡N); 91.5, 91.3, 90.2, 90.0 (Cp); 76.4, 76.0 (CHCy); 45.4, 44.7 (Me); 31.6–25.3 (CH2Cy). Isomer ratio (α/β) ≈ 1.1.
cis-8aRu. 1H NMR (CDCl3): δ/ppm = 5.24, 5.22, 5.20, 5.19 (s, 10H, Cp); 3.73, 3.69 (s, 3H, Me); 2.03–1.68 (m, 10H, CH2Cy). 13C{1H} NMR (CDCl3): δ/ppm = 88.6, 88.5, 88.5, 88.4 (Cp). Isomer ratio ≈ 1.1. Global trans/cis ratio (α/β) ≈ 6.

3.7. Attempt to Prepare 8aRu via Chloride–Cyanide Substitution

The chloride complex 3aRu-Cl was prepared using a procedure analogous to that reported for the synthesis of the homologous diiron compound [21]. A mixture of 3aRu (70 mg, 0.10 mmol), Me3NO·2H2O (TMNO·2H2O; 23 mg, 0.20 mmol) and LiCl (13 mg, 0.31 mmol) was refluxed in iPrOH (5 mL) for 2 h. The resulting red solution was allowed to cool to room temperature and taken to dryness under vacuum. Subsequently, 3aRu-Cl was recovered from alumina column chromatography using THF as the eluent. The eluate was taken to dryness under vacuum and the resulting orange solid was washed with hexane and dried. Yield: 62 mg, 87%. Anal. Calcd. for C20H24ClNO2Ru2: C, 43.84; H, 4.41; N, 2.56. Found: C, 43.65; H, 4.28; N, 2.49. IR (CH2Cl2): ῦ/cm−1 = 1972s (CO), 1796s (µ-CO), 1545m (µ-CN). Then, a solution of 3aRu-Cl (30 mg, 0.055 mmol) and Bu4NCN (22 mg, 0.082 mmol) in dichloromethane (8 mL) was left to stir at room temperature for 4 h. Analysis via IR spectroscopy of the resulting mixture revealed the absence of any conversion.

4. X-ray Crystallography

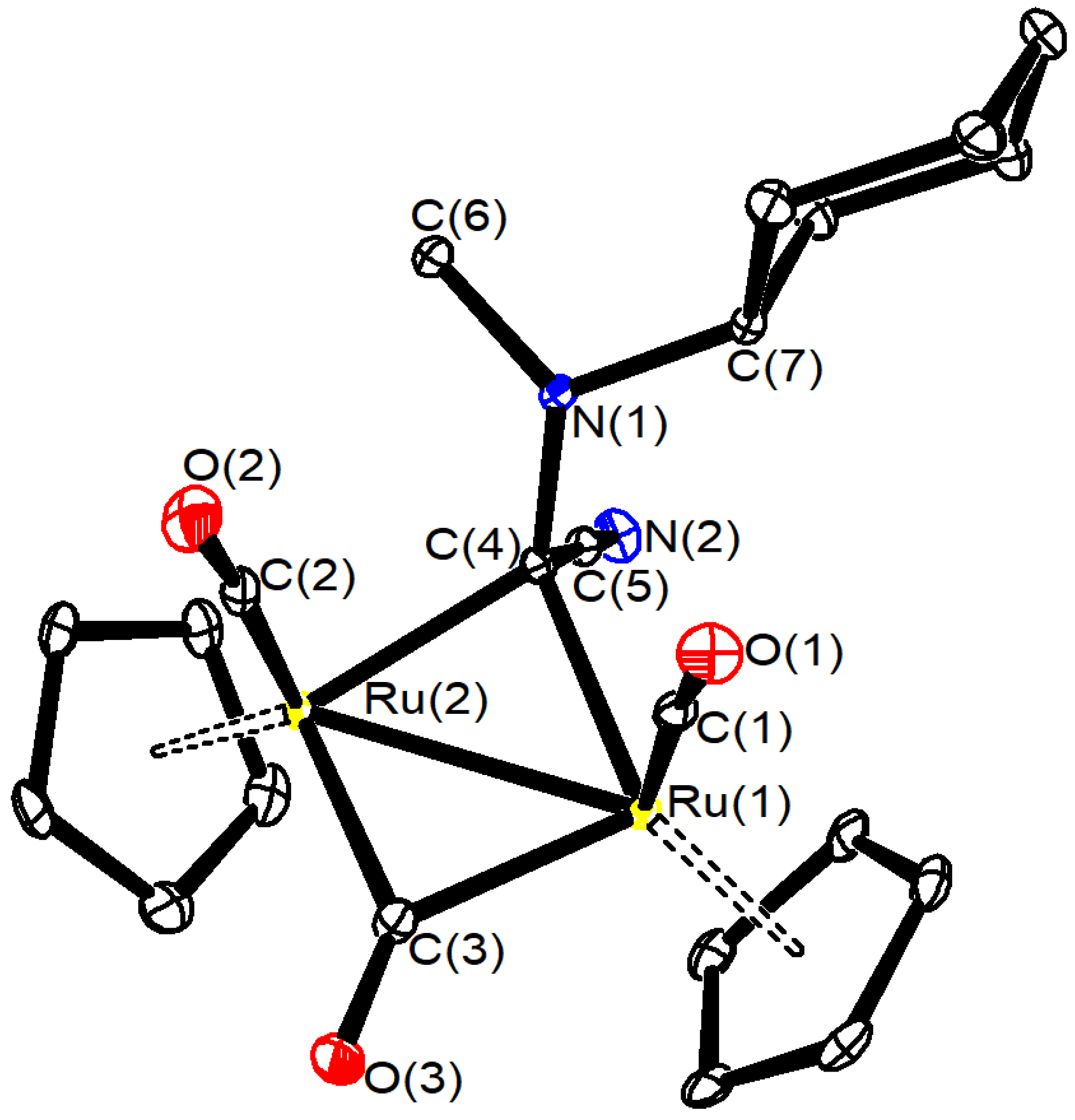

Crystal data and collection details for 7aRu·CH2Cl2 and trans-8bFe·2H2O are reported in Table 2. Data were recorded on a Bruker APEX II diffractometer equipped with a PHOTON2 detector using Mo–Kα radiation. Data were corrected for Lorentz polarization and absorption effects (empirical absorption correction SADABS) [84]. The structures were solved by direct methods and refined by full-matrix least-squares based on all data using F2 [85]. Hydrogen atoms were fixed at calculated positions and refined by a riding model, excepts those of the water molecules of trans-8bFe·2H2O which were located in the Fourier difference map and refined isotropically with restraints on the O-H and H···H distances. All non-hydrogen atoms were refined with anisotropic displacement parameters.

5. Details of DFT Calculations

All geometries were optimized with ORCA 5.0.3 [86] using the BP86 functional with the zero-order regular approximation (ZORA) to take relativistic effects into account and in conjunction with a triple-ζ quality basis set (ZORA-def2-TZVP) and the auxiliary basis set SARC/J. For ruthenium, the basis set “SARC-ZORA-TZVP” [87] was used. The dispersion corrections were introduced using the Grimme D3-parametrized correction and the Becke–Johnson damping to the DFT energy [88]. All the structures were confirmed to be local energy minima (no imaginary frequencies). The solvent was considered through the continuum-like polarizable continuum model (C-PCM, dichloromethane).

6. Conclusions

Dimetallic compounds offer uncommon reactivity enabled by cooperative effects provided by the interconnected metal centers, and diiron and diruthenium complexes based on the M2Cp2(CO)3 scaffold serve as versatile substrates to explore reaction patterns and build new organometallic ligands. In this work, we explore the reactivity of a series of these types of complexes, featuring different hydrocarbyl ligands (CxHy) on one bridging site, towards the cyanide ion. We demonstrate that cyanide addition may be favored by the prior extrusion of one CO ligand, and can be directed to the metal centers or the CxHy fragment, depending on the cases. However, intramolecular cyanide migration, from one site to another, can be promoted thermally, and is facilitated by the flexibility of the M2Cp2(CO)n framework, where the Cp and CO ligands easily exchange their positions and spatial arrangements adapting to structural changes on the hydrocarbyl moiety. Interestingly, the reactivity of aminocarbyne complexes highlights a significant influence of the metal type, with the aminocarbyne moiety manifesting enhanced stability in diiron complexes compared to diruthenium homologues. Overall, our findings expand the knowledge on the reactivity of easily accessible organometallic platforms and may provide useful insights for future synthetic design and catalytic studies.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/inorganics12060147/s1. NMR spectra. DFT-optimized structures (figures and XYZ coordinates); X-ray structure of 8bFe; NMR spectra of products. DFT geometries are also collected in a separate .xyz file.

Author Contributions

A.C. performed the synthesis, the spectroscopic characterization and the DFT investigation of the complexes; G.C. supervised the DFT study; S.Z. performed the X-ray diffraction analyses; F.M. supervised the work and wrote the manuscript with the assistance of the other authors. All authors have read and agreed to the published version of the manuscript.

Funding

The authors are grateful to the University of Pisa for financial support (Fondi di Ateneo 2023).

Data Availability Statement

CCDC reference numbers 2350081 (7aRu) and 2350082 (8bFe) contain the supplementary crystallographic data for the X-ray studies reported in this work. These data are available free of charge at www.ccdc.cam.ac.uk/conts/retrieving.html (or from the Cambridge Crystallographic Data Centre, 12, Union Road, Cambridge CB2 1EZ, UK; e-mail: [email protected]).

Conflicts of Interest

The authors declare no conflicts of interest.
