CuFe₂O₄ Nanofiber Incorporated with a Three-Dimensional Graphene Sheet Composite Electrode for Supercapacitor and Electrochemical Sensor Application

Abstract

The demand for regenerative energy and electric automotive applications has grown in recent decades. Supercapacitors have multiple applications in consumer alternative electronic products due to their excellent energy density, rapid charge/discharge time, and safety. CuFe₂O₄-incorporated three-dimensional graphene sheet (3DGS) nanocomposites were studied by different characterization studies such as X-ray diffraction, transmission electron microscopy, and scanning electron microscopy. The electrochemical studies were based on cyclic voltammetry (CV), galvanostatic charge–discharge (GCD), and electrochemical impedance spectroscopy (EIS) measurements. As prepared, 3DGS/CuFe₂O₄ nanocomposites exhibited an excellent surface area, high energy storage with appreciable durability, and excellent electrocatalysis properties. A supercapacitor with 3DGS/CuFe₂O₄-coated nickel foam (NF) electrodes exhibited an excellent specific capacitance of 488.98 Fg⁻¹, a higher current density, as well as a higher power density. After charge–discharge cycles in a 2.0 M KOH aqueous electrolyte solution, the 3DGS/CuFe₂O₄/NF electrodes exhibited an outstanding cyclic stability of roughly 95% at 10 Ag⁻¹, indicating that the prepared nanocomposites could have the potential for energy storage applications. Moreover, the 3DGS/CuFe₂O₄ electrode exhibited an excellent electrochemical detection of chloramphenicol with a detection limit of 0.5 µM, linear range of 5–400 µM, and electrode sensitivity of 3.7478 µA µM⁻¹ cm⁻².

1. Introduction

Research on sustainable and renewable energy sources is ongoing due to the declining fossil fuel reserves and growing population [1,2]. Meanwhile, energy storage devices are widely used in digital communications, electric motor vehicles, data storage, and portable electronic devices. Numerous batteries and high-performance capacitors have been developed for such uses [3]. Among these, supercapacitors, also called ultracapacitors or micro-capacitors, are essential to accumulator systems because they can supply significant power over a brief period in addition to receiving and storing energy. Research on cutting-edge energy storage technologies has gained significant attention in recent decades [4,5]. Supercapacitors are an appealing energy storage technology because of their extended cycle life, superior operational safety, and high power capabilities over secondary batteries [6]. Supercapacitors will displace batteries in the future due to their advantages of rapid power transmission, fast charging, discharging capability, increased power density, and good cycle stability. The energy storage density of supercapacitors is currently lower than that of batteries; hence, the main goal of current research on supercapacitors is to increase the energy storage density [7,8].

Supercapacitors have been classified into three categories based on the electrode materials’ charge or energy storage mechanism: electrochemical double-layered capacitors (EDLC), pseudo-capacitors, and hybrid supercapacitors [9]. EDLC capacitors store energy or a charge through ion adsorption at the electrode/electrolyte interface, whereas pseudo capacitors store a charge or energy through the electrochemically reversible faradic process. Hybrid supercapacitors have more advantages than EDLC and pseudo-capacitors [10,11,12,13]. EDLCs are efficient electrical energy storage devices because of their simple structure, cycle stability, and high power density. EDLC mechanisms commonly follow the charge storage of carbon-based electrode materials and their derivatives. In contrast, charge storage by conducting polymers or metal oxides is followed by pseudocapacitive mechanisms [14,15].

The safety concerns and low charge–discharge cycles of the lithium-ion batteries on the market make the development of high-energy supercapacitors an urgent necessity for all portable electronic devices [16,17]. Nevertheless, the primary issue impeding the advancement of supercapacitors has been their poor energy density. There are two primary study areas for increasing the energy density of supercapacitors. One focuses on creating new electrode materials; the other aims to create new electrolytes. Therefore, a suitable chemical composition must be chosen, and the electrode material must be improved to boost the specific capacity and long-term cycle stability [18,19].

Chloramphenicol (CAP) is a broadly and frequently used antibiotic drug to treat bacterial infections in both humans and animals [20]. Furthermore, an excess of CAP can build up in food and water, posing a severe risk to human health as well as the welfare of all animals [21]. Currently, the use of CAP in animal husbandry has been globally prohibited, and the highest allowable residual amount of CAP in food is 0.3 μg/kg. Moreover, CAP can accumulate in food and water, endangering not just the health of humans but also the welfare of all other living things [22,23]. However, because of its high effectiveness and low cost, CAP is still used illegally to treat illnesses in cattle and other animals. Therefore, it is crucial to create a sensitive and dependable sensor for identifying CAP in food and medicine samples [24,25]. Commonly used detection methods for CAP detection are gas chromatography–mass spectrometry, surface-enhanced Raman scattering, liquid chromatography–tandem mass spectrometry, and fluorescence. However, using the required instrumentation for on-site direct detection is challenging because of the complex processes, the need for professional operators, and heavy equipment. However, electrochemical detection has the advantages of simplicity, portability, and low pollution, and it offers various analytical techniques such as cyclic voltammetry, square-wave voltammetry, linear sweep voltammetry, and differential pulse voltammetry [26].

The spinel-structured transition metal ferrites having a general formula of MFe₂O₄ (M = Cu, Cr, Ag, Au, Pd, Pt, Ru, Mn, Co, Cu, and Ni) have been used in electronics and capacitors in recent years due to their environmental friendliness, variable oxidation states, electronic conductivity, capacitive nature, chemical stability, rapid redox properties, unique crystal structures, low price, high theoretical capacity, and great abundance [27,28]. The properties of the ferrite complexes can be changed by varying the identity of the divalent M²⁺ cation with the electronic configuration of 3d¹⁰4s¹ [29,30].

Transition metal ferrite fiber structure materials are a significant field of investigation because they have potential applications in many areas due to their high theoretical capacity [31,32]. Moreover, transition metal ferrite fiber can be synthesized by numerous techniques, including the template, sol-gel, co-precipitation, solvothermal, electrodeposition, microwave, and hydrothermal methods [33,34]. Among these techniques, electrospinning method is an effective and simple way to prepare transition metal ferrite fibers. Transition metal oxide nanofibers provide an efficient charge and ion transfer that is beneficial for electrochemical signal production [35]. The specific surface areas of the relatively smooth fiber morphologies are generally low compared to those of porous or 2D structures [36].

M. Israr et al. studied CuFe₂O₄/GNPs for supercapacitors and photocatalytic applications [37]. K. Atacan et al. reported CuFe₂O₄/RGO/gold nanoparticles for L-cysteine detection [38]. H. Yang et al. reported CoFe₂O₄/rGO nanoparticles for oxygen reduction [39]. G. A. T. Battad et al. studied CuFe₂O₄/RGO for a malathion sensor [40]. M. Baghayeri et al. developed MWCNTs/CuFe₂O₄ for bisphenol detection [41]. S. Tajik et al. studied ZnFe₂O₄/RGO for the detection of hydrazine [42]. G. Bharath et al. reported Ru–CoFe₂O₄/RGO for high-performance photoelectrodes [43]. R. Khan et al. developed CuFe₂O₄-Fe₂O₃ for high-performance capacitor electrodes [44]. S. Tajik et al. reported CuFe₂O₄ nanoparticles for the detection of sunset yellow [45]. W. Liang et al. fabricated CuFe₂O₄ for electrical energy storage [46]. J. C. Bhangoji et al. identified CuO-CuFe₂O₄@rGO for paracetamol sensing [47]. V. Mahdikhah et al. reported CoFe₂O₄/rGO for the degradation of organic dyes [48]. Y. Zhang et al. reported good results for CoFe₂O₄/rGO for peroxymonosulfate activation [49]. Therefore, based on the above work, copper ferrite (CuFe₂O₄) was chosen in the current study.

CuFe₂O₄ has a formidable chemical stability, high catalytic activity, excellent mechanical strength, high theoretical capacity, thermal stability, chemical stability, electrical properties, and natural abundance [50]. Therefore, based on the aforementioned findings, CuFe₂O₄ has been widely used in electronics, sensors, catalysts, magnetic memory, high-frequency equipment, medication delivery, lithium-ion batteries, and anode materials. Furthermore, CuFe₂O₄ can be characterized as a tetragonal I41/amd structure or a cubic (Fd₃m) structure based on the amount of Cu²⁺ that occupies the octahedral sites. Additionally, Cu²⁺ and Fe³⁺ ions occupy two distinct interstitial positions in a cubic close-packed arrangement of oxygen ions for an inverted spinel structure. Furthermore, because of the remarkable efficiency of inter-valence electron migration from Cu⁺ to Cu²⁺ and Fe²⁺ to Fe³⁺ ion pairs in the octahedral sites, CuFe₂O₄ has the best electron transmission efficiency among all metal ferrites in terms of catalytic activity [51].

In addition, electrospinning preparation is considered an efficient and simple method for fabricating hollow nanofibers, with inorganic, organic, and polymer fiber nanomaterials prepared by this facile method [52,53]. Electrospun nanofibers can be widely used in various applications due to their high surface area and electrical conductivity. Predominantly, the formation of hollow nanofibers by the electrospinning process is attributed to the decomposition of organic polymers at high temperatures [54]. Compared with other traditional preparation methods, electrospinning is attractive because it is very simple, effective, and low cost, with a good repeatability, high yield, and scalability. However, it has also been reported that ferrite-modified electrodes have defects such as a low electronic conductivity, improper volume changes during the charge/discharge processes, and poor cycling stability. Therefore, carbon needs to be incorporated for high-performance capacitance to be achieved [55,56,57].

Carbon materials like graphite, graphene, multi-walled carbon nanotubes, and activated carbon are used to increase the specific capacitance and energy densities. Graphene is especially used for energy storage devices due to its high conductivity, thermal conductivity, transparency, excellent mechanical strength, large surface area (theoretical value 2630 m²g⁻¹), and chemical stability. Because of its unique mechanical, thermal, and electrical properties, graphene has attracted a lot of attention in different fields of application. In addition, 2D van der Waals heterostructure materials have gained a lot of attention because of their potential application to create unique electrical and optoelectronic memory devices, field-effect transistors, photodetectors, light-emitting diodes, solar cells, and memory devices [58]. Furthermore, using 2D materials in sensors presents built-in benefits for creating adaptable, quick-operating memory devices with significant charge storage capacities. However, graphene oxide exhibits stable dispersion in aqueous medium due to its highly hydrophilic nature, so the 2D nature of graphene will be lost. Hence, a 2D graphene-based capacitor has a low specific capacitance, which is the reason for the parallel restacking and agglomeration of graphene sheets by the van der Waals interactions between the neighboring graphene sheets. Therefore, the restacking and aggregation of the nanosheets efficiently reduce the surface area of 2D graphene on which charges are accumulated to form double-layer capacity, leading to loss of capacitance [59,60,61,62].

To solve this problem, the modification of GO is essential to suppress the aggregation of graphene. Currently, three-dimensional graphene sheet (3DGS) materials are considered excellent materials for supercapacitors due to their random orientation, partial stacking, microporous structure, highly wrinkled structure, and atomistic perforations. This unique structural orientation of 3DGS improves the storage capacity and the free movement of the ions via porous geometry. Furthermore, 3DGS have a low density, high electrical conductivity, easy electrolyte penetration, low diffusion resistance, and high specific surface area. These 3DGS can play a major role in improving composite efficiency, charge, and discharge. The properties above of the 3DGS make them a promising material for high-performance supercapacitor electrodes with better capacitance performance [63,64,65,66,67].

In this work, we have prepared a CuFe₂O₄ fiber using the electrospinning approach and applied to supercapacitor electrode preparation. The highly active and highly specific surface area of 3DGS with CuFe₂O₄ fiber exhibited a significant power density, high capacitance, and stable cyclic performance due to the synergetic effect between the 3DGS and CuFe₂O₄ fiber. The prepared 3DGS/CuFe₂O₄/NF electrode obtained significant specific capacitance (Fg⁻¹), marvelous cycling stability (Ag⁻¹), excellent charge–discharge process, and practical applications. In addition, the GCE/3DGS/CuFe₂O₄ modified electrode has been used for the accurate electrochemical detection of CAP by cyclic voltammetry and differential pulse voltammetry. The electroanalytical performances of the GCE/ 3DGS/CuFe₂O₄ electrode were tested for the limit of detection, linearity, repeatability, and reproducibility. The electrochemical application of this GCE/3DGS/CuFe₂O₄ electrode will be expanded in future work.

2. Preparation of Three-Dimensional Graphene Sheets/Copper Ferrite Fiber Composite (3DGS/CuFe₂O₄)

2.1. 3DGS Preparation

As reported in previous research, graphene oxide was prepared using a modified Hummers’ method. Briefly, graphite (5.0 g) and concentrated sulfuric acid (60 mL) were stirred at room temperature, and sodium nitrate (2.5 g) was slowly added. After that, the mixture was cooled in an ice water bath. To maintain the low temperature, KMnO₄ (5.0 g) was slowly added to the system under vigorous agitation. The whole reaction mixture was shifted to a 35 °C water bath and stirred for about 3 h, after which H₂O₂ (20 mL) and water (500 mL) were added to the reaction mixture for about 1 h. Finally, the reaction mixture was filtered and cleaned with diluted HCl solution and continuously washed with water to remove the acid and unreacted materials. The obtained GO powder was characterized and stored in a desiccator for further use. Samples of 3DGS were prepared through the traditional hydrothermal reduction process. First, GO (2.0 g) was added to deionized water with ultrasonication for 1 h. Afterward, the prepared GO solution with H₂SO₄ (2 mL) mixture was sonicated and stirred for up to 20 min. Finally, the stirred solution was transferred into a Teflon-coated sealed autoclave and held at 150 °C in an oven for 12 h. After the heating, the autoclave was cooled to laboratory temperature, and the black-colored product was obtained. Finally, the product was collected and washed with water to obtain the 3DGS. The prepared 3DGS were further used for electrochemical studies.

2.2. Transition Metal Ferrite Fiber Preparation

To prepare the transition metal ferrite, copper (II) nitrate hexahydrate (Cu(NO₃)₂·xH₂O), iron (III) nitrate nonahydrate (Fe(NO₃)₃·9H₂O), poly (vinyl pyrrolidone) (PVP), and N, N-dimethylformamide (DMF) were used as the starting chemicals. In a typical preparation procedure, calculated amounts of copper (II) nitrate hexahydrate and iron (III) nitrate nonahydrate were dissolved into N, N-dimethylformamide with magnetic stirring. Then, a calculated amount of polyvinyl pyrrolidone (PVP) was dissolved into the aforementioned solution under vigorous stirring for more than 12 h at laboratory temperature to form a precursor solution. The copper and iron metal precursor solution was transferred to an electrospinning instrument in a horizontal programmable glass syringe pump (diameter = 4.2 mm) equipped with a capillary tube needle (ID = 0.5 mm), connected to a high-voltage source with the flow at 0.02 mL/h. Aluminum foil was fixed as a collector 15 cm from the capillary needle to form an electrospinning jet. After the electrospinning process, CuFe₂O₄ electrospun nanofibers were collected on the aluminum foil. The collected CuFe₂O₄ nanofibers were calcined at 800 °C for 5 h with a heating rate of 10 °C min⁻¹ to evaporate any impurities and polymer to obtain the CuFe₂O₄ fiber.

2.3. The 3DGS/CuFe₂O₄ Fiber Composite Preparation

The calculated amount of 3DGS was dispersed in methanol and sonicated for 30 min. Afterward, the prepared electrospun transition metal ferrite fiber (CuFe₂O₄) was mixed with the above-mentioned mixture and stirred for 10 min. After that, the prepared precursor solution was transferred into the autoclave, which was tightly sealed. The loaded autoclave was placed in an oven and the reaction temperature was maintained at 180 °C for 12 h. After the reaction, the autoclave was allowed to cool gradually to room temperature. The resultant product, the 3DGS/CuFe₂O₄ composite was filtered, washed with cooling water, and dried.

2.4. Supercapacitor Electrode Preparation and Studies

Electrochemical experiments were performed at an electrochemical workstation with three-electrode electrochemical cells in optimized electrolytes. A coated nickel foam electrode was the working electrode, platinum wire was the counter electrode, and silver/silver chloride (Ag/AgCl) was the reference electrode. All the electrochemical studies were conducted at room temperature. The cyclic voltammetry (CV) and galvanostatic charge–discharge (GCD) experiments were performed on a CHI electrochemical workstation. The as-synthesized three-dimensional graphene sheets/CuFe₂O₄ composite material (80 wt %) and carbon black (15 wt %) were mixed with N-methyl pyrrolidinone (0.4 mL) to form a homogeneous mixture. After that, 15 μL of the mixture was coated on a 1 × 1 cm² area of the nickel foam (NF) electrode via drop-casting (solution-casting method) and dried overnight. The prepared electrode was soaked in electrolyte for a few minutes before the electrochemical experiment began. A 2M KOH electrolyte solution was prepared by a simple chemical method. PVA (1 g) was mixed with DI water and then stirred to form a clear solution. After that, 10 mL of KOH (2.0 M) solution was mixed with the above solution to form a gel-like homogeneous electrolyte solution.

2.5. Glassy Carbon Electrode Entrapped with 3DGS/CuFe₂O₄ Nanofiber Composite (GCE/3DGS/CuFe₂O₄) Preparation

The following process was used to prepare the GCE/3DGS/CuFe₂O₄ electrode. First, 2 mg of 3DGS/CuFe₂O₄ nanomaterial was dispersed in 1 mL of ethanol by the ultrasonication method for 15 min. Initially, 2 mg of 3DGS/CuFe₂O₄ nanomaterial was mixed with 1 mL of ethanol using an ultrasonication technique for 15 min to form a composite. Next, the drop-casting process was used to coat the 6 µL of dispersed 3DGS/CuFe₂O₄ composite material over the GCE surface. Then, the prepared GCE/3DGS/CuFe₂O₄ electrode was allowed to dry for a few hours at room temperature. The GCE/3DGS/CuFe₂O₄ electrode preparation and electrochemical usage are illustrated in Scheme 1.

2.6. Capacitance and Energy Density Calculation

Electrode capacitance and energy density were calculated by the equation below. The electrochemical performance of the prepared electrodes was studied using a three-electrode electrochemical system in the presence of a suitable electrolyte. The proposed materials coated on the Ni foam were used as the working electrode, Pt wire as a counter electrode, and Ag/AgCl as a reference electrode. The galvanostatic charge–discharge (GCD) and cyclic voltammetry (CV) experiments were performed on an electrochemical workstation. To prepare the supercapacitor electrode, 8 mg material, 1.72 mg carbon black, 0.8 mg PVDF, and 50 μL NMP were mixed and stirred for 15 min. Then, the paste was applied to a 1 × 1 cm NF and dried overnight. The specific capacitance of the electrodes was calculated using the equations below.

From the CV measurements,

C = Q/mΔV

(1)

where C is the specific capacitance (Fg⁻¹), m is the mass of the active material (unit of g), Q represents the average charge during the charge–discharge (GCD) process (C), and ΔV is the working potential (V).

From the GCD measurements,

C = IΔt/mΔV

(2)

where I (A) is the applied current density during the GCD process and Δt (s) is the discharge time.

The energy density was calculated by

E = 1/2CΔV²

(3)

and power density was calculated by

P = E/t

(4)

where E (Whkg⁻¹) is the energy density, C (Fg⁻¹) is the specific capacitance, P (Wkg⁻¹) is the power density, and t (s) is the discharge time.

3. Characterization Studies

3.1. Crystalline Structure

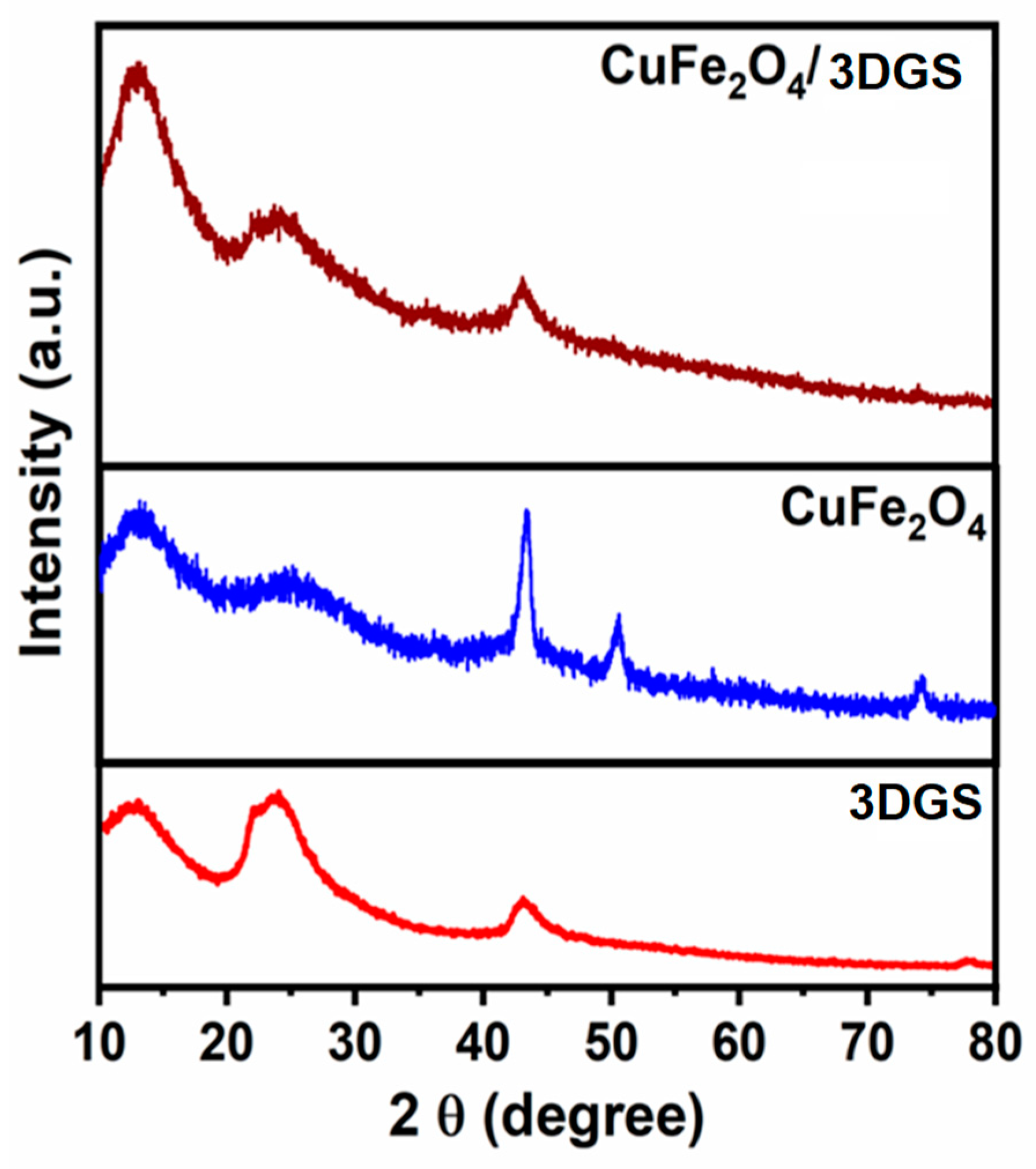

The structures of 3DGS, CuFe₂O₄, and 3DGS/CuFe₂O₄ were characterized by XRD, EDS, FESEM, TEM, Raman spectra, and EIS analysis. Figure 1 shows the X-ray diffraction patterns of the as-prepared 3DGS, CuFe₂O₄ fiber, and 3DGS/CuFe₂O₄ composite analyzed by X-ray powder diffraction. The 3DGS carbon material exhibits two major characteristic peaks at 2θ = 25° and 43°. The XRD patterns of CuFe₂O₄ fiber peaks presented at 18.51°, 30.17°, 35.64°, 37.17°, 43.4°, 57.05°, 62.77°, and 74.54° for the (111), (220), (311), (222), (400), (422), (511), and (533) planes. Furthermore, the XRD plane was consistent with the standard spectrum of face-centered cubic phase CuFe₂O₄ with no detectable impurity phases, demonstrating that the CuFe₂O₄ fiber could be prepared by the electrospinning method after a calcination treatment. The diffraction peaks and positions matched the standard XRD data for CuFe₂O₄ (JCPDS 01-077-0010). The same characteristic peaks were observed in the previously reported composite materials. Therefore, the XRD patterns indicated the good formation of the 3DGS/CuFe₂O₄ composite.

3.2. FESEM and TEM Studies

Figure 2 shows the FESEM image of the prepared (A–D) CuFe₂O₄ fiber, (E,F) 3DGS, and (G–I) 3DGS/CuFe₂O₄ composites. The FESEM images of the CuFe₂O₄ fibers revealed continuous nanofibers with a uniform ∼400 ± 2 nm diameter. The surfaces of the CuFe₂O₄ nanofibers were smooth, and the average diameter of the CuFe₂O₄ nanofibers was reduced due to the decomposition of PVP and PAN. The SEM images of the 3DGS/CuFe₂O₄ composite show CuFe₂O₄ fibers well incorporated with 3DGS. Also, the prepared nanofibers appeared to have smooth surfaces due to the amorphous nature of the 3DGS/CuFe₂O₄ composites. Figure 2D–H presents the composite elemental mapping.

Additionally, the EDX spectra exhibited a homogenous and consistent elemental distribution throughout the composite. Figure 2I shows the elemental mappings of the 3DGS/CuFe₂O₄ composite, exhibiting Cu, O, C, and Fe elements. The EDS spectra revealed that only copper (Cu), oxygen (O), carbon (C), and iron (Fe) were present without contaminants. Additionally, the elemental mapping results in Figure 2J–M demonstrated that the copper, oxygen, carbon, and iron in the scanning area were distributed uniformly in the 3DGS/CuFe₂O₄ composite. Figure 2N displays the EDX spectra of the 3DGS/CuFe₂O₄ composite, showing the elemental distributions of Cu, O, C, and Fe.

TEM images revealed more information about the 3DGS/CuFe₂O₄ composite. Figure 3 presents typical TEM images of (A) the CuFe₂O₄ fiber, (B) 3DGS, and (C,D) the 3DGS/CuFe₂O₄ composite. The image of CuFe₂O₄ shows good fiber formation with an average fiber diameter of 400 nm. The TEM image of 3DGS shows a good curtain sheet structure, and those of the 3DGS/CuFe₂O₄ composite show that CuFe₂O₄ nanofibers were randomly aligned and intercalated on the 3DGS surface, consistent with FESEM and TEM observation.

3.3. Raman and EIS Studies

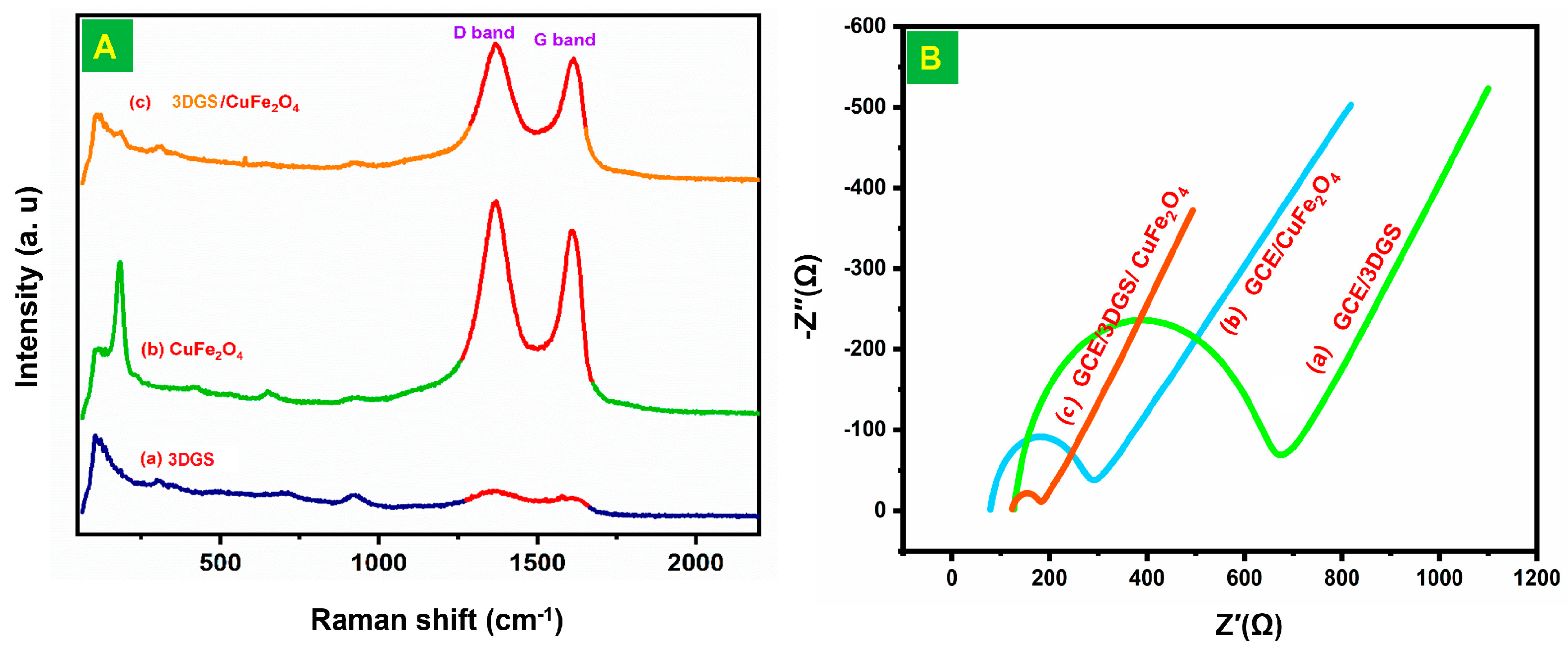

Raman spectra were used to confirm the composite synthesis and electronic interaction between 3DGS and CuFe₂O₄ fibers. Figure 4A shows the Raman spectra of 3DGS, CuFe₂O₄ fibers, and 3DGS/CuFe₂O₄ composite. The spectra of 3DGS display two prominent D and G bands at 1354 and 1606 cm⁻¹, respectively, while CuFe₂O₄ fibers have D and G bands at 1354 cm⁻¹ and 1606 cm⁻¹. It is well known that the D and G bands arise due to the E₂g mode. In addition, the 3DGS/CuFe₂O₄ composite shows the D and G bands at 1354 and 1606 cm⁻¹. The ID/IG band intensity ratios of RGO, CuFe₂O₄, and 3DGS/CuFe₂O₄ were found to be ID/IG = 0.97, ID/IG = 0.86, and ID/IG = 1.17, respectively. These Raman spectra confirm the possible electronic interaction between the 3DGS and CuFe₂O₄ fiber, indicating a conjugated graphene oxide network (sp²) after the loading of the CuFe₂O₄ fiber.

Electrochemical impedance spectroscopy analysis was used to identify electron transfer and electrode resistance. The Nyquist plot has two regions. The semicircular region is electron transfer resistance (R_ct), and the linear region is a diffusion-controlled process. Figure 4B exhibits the EIS spectra of (a) 3DGS, (b) CuFe₂O₄ fibers, and (c) 3DGS/CuFe₂O₄ composite-decorated GCE electrodes in 5 mM [Fe(CN)₆]^4−/3− solution with 0.05 M phosphate buffer (pH 7) with 0.1 M KCl electrolyte. The range of frequencies of the EIS spectra was 0.1 Hz⁻¹ MHz. The electrode R_ct values were determined by using the Randles equivalent circuit model to fit the Nyquist plot. After the modification of GCE with 3DGS and CuFe₂O₄ fibers, the R_ct values were 545 Ω and 217 Ω, respectively. Finally, the R_ct values of the 3DGS/CuFe₂O₄ composite exhibited smaller R_ct values (61 Ω) than the electrodes with 3DGS and CuFe₂O₄ fibers due to the excellent electron transfer and low resistance. The reason was that the 3DGS and CuFe₂O₄ fibers created a strong π-π noncovalent interaction, enhancing the electrical conductivity of GCE/3DGS/CuFe₂O₄ electrodes. In other words, the low resistance of the 3DGS/CuFe₂O₄ electrode should be ascribed to the high electronic conductivity and fast electron flow rate.

4. Supercapacitor Studies

A comparison of the capacitive performances of the three modified electrodes 3DGS/NF, CuFe₂O₄/NF, and 3DGS/CuFe₂O₄/NF using cyclic voltammetry in 2 M KOH was conducted in the potential range of 0 to +0.45 V at 50 mVs⁻¹, and the results are displayed in Figure 5A. The cyclic voltammograms of 3DGS/NF, CuFe₂O₄/NF, and 3DGS/CuFe₂O₄/NF showed the presence of redox couples at about 0.26, 0.23, and 0.21 V, respectively. In the 2 M KOH electrolyte system, CuFe₂O₄ shows Faradaic redox reactions in the positive potential side due to the intervalence charge transfer between Cu²⁺/Cu⁺ and Fe³⁺/Fe²⁺. A pair of redox peaks of CuFe₂O₄ indicates its pseudocapacitive nature [68].

CuFe₂O₄ + H₂O + 2e⁻ ⇆ CuO + 2FeO + 2OH⁻

(5)

2CuO + H₂O + 2e⁻ ⇆ Cu₂O + 2OH⁻

(6)

The electrophoretic peak of 3DGS exhibited a weak voltammetry response with very little background current in the potential range of 0 to +0.45 V. After that, the CuFe₂O₄/NF electrode exhibited a rapid increase in the peak current because CuFe₂O₄ oxidizes above this potential. Finally, the 3DGS/CuFe₂O₄/NF electrode obtained a higher Faradaic capacitance due to the higher electrocatalysis and good intercalation between 3DGS and CuFe₂O₄. The cyclic voltammetry area of the supercapacitor electrode serves as a window into the specific capacitance. The cyclic voltammetry area of the 3DGS/CuFe₂O₄/NF electrode was higher than those of the 3DGS and CuFe₂O₄ electrodes. Curiously, the cyclic voltammogram of the 3DGS/CuFe₂O₄/NF electrode displayed an even larger region, and the rectangular voltammogram form was indicative of a hybrid capacitor. In addition, the 3DGS/CuFe₂O₄/NF electrode displayed rectangular-shaped voltammograms typical of a hybrid capacitor, with contributions from the Faradaic reaction and double–layer charging. Moreover, the intercalation and deintercalation of K⁺ ions in the 3DGS/CuFe₂O₄/NF electrode were the cause of the higher Faradaic capacitance. The electrode capacitance was calculated using the formula given in Equation (7).

C = Q/ΔV mFg⁻¹

(7)

where “ΔV” is the potential window of capacitance, “Q” refers to the total charge of the anodic and cathodic peak cycle, and “m” is the weight of the electrode material. The specific capacitance of the CuFe₂O₄/NF electrode (202.22 Fg⁻¹) was higher than that of the 3DGS/Nf electrode (75.55 Fg⁻¹). However, the 3DGS/CuFe₂O₄/NF (488.98 Fg⁻¹) exhibited a remarkable increase in specific capacitance compared to 3DGS/NF and CuFe₂O₄/NF. The aforementioned results confirmed that the effective capacitance of CuFe₂O₄ and 3DGS led to the increased specific capacitance.

The cyclic voltammograms of the 3DGS/CuFe₂O₄/NF electrode in a 2 M KOH solution at different scan rates (10 to 100 mVs⁻¹) are displayed in Figure 5B. In that figure, the anodic and cathodic peak currents plotted against the square root scan rate show a linear trend, indicating that the Na⁺ ion intercalation and deintercalation processes were diffusion-controlled.

Figure 5C presents a plot of the specific capacitance values vs. the scan rate. These findings indicate that increasing the scan rate from 10 to 100 mVs⁻¹ decreased the specific capacitance value. The K⁺ ions can easily diffuse into practically all accessible areas of the electrode materials at low scan rates, resulting in a sufficient insertion reaction and nearly flawless capacitive behavior. At a high scan rate, the K⁺ ion can approach the outer surface of the electrode material, and the K⁺ ion is located away from the 3DGS/CuFe₂O₄/NF electrode surface; hence, it makes little contribution to the electrochemical capacitive behavior because the outer active surface is used for charge storage and electroactive materials are used at high discharge current densities, preventing ions in the electrolyte from entering the inner surface of the active material [9,10,13]. However, the current densities are decreasing, and ions in the electrolytes are entering the inner surface of the 3DGS/CuFe₂O₄/NF electrode materials. As a result, the scan rate increases to reduce capacitance.

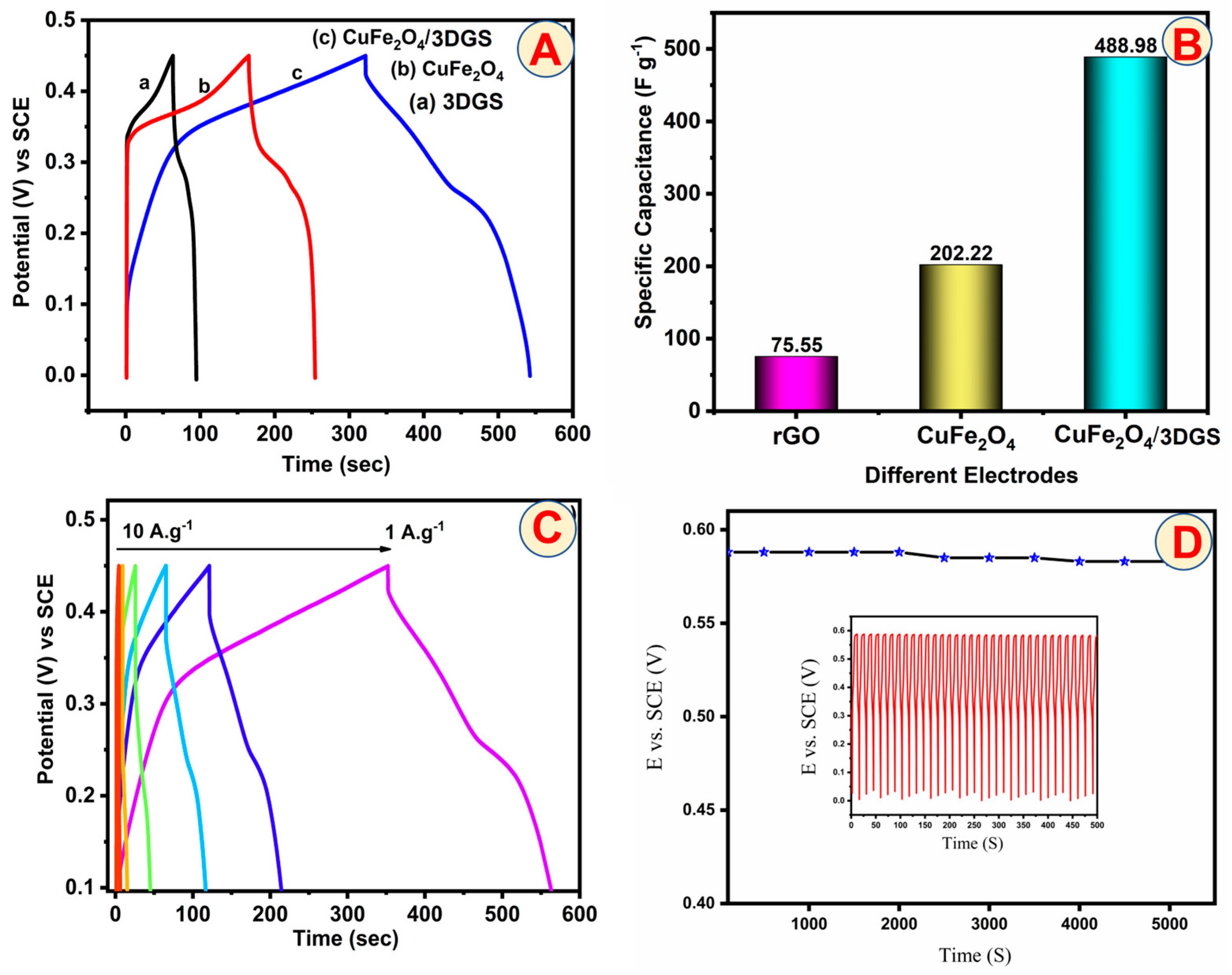

GCD measurement is a very useful technique for the analysis of the specific capacitance of prepared supercapacitor electrode materials. Figure 6A shows the specific capacitance of the as-prepared 3DGS/CuFe₂O₄ composite after increasing the charge and discharging current density. Consequently, the galvanostatic discharge time of the 3DGS/CuFe₂O₄/NF composites was longer than that of the other produced materials, namely 3DGS/NF and CuFe₂O₄/NF. In addition, the results indicated that the 3DGS/CuFe₂O₄ composite had a more significant charge capacity nature, which was well consistent with the CV investigations (Figure 5A). The 3DGS/NF, CuFe₂O₄/NF, and 3DGS/CuFe₂O₄/NF electrodes’ galvanostatic charge–discharge behavior is depicted in Figure 6A under an applied constant current density of 2 Ag⁻¹ in the potential range of 0.4 to 0.5 V in 2 M KOH. The following Equation (8) was used to calculate the capacitance values.

Cs = i ∆t/(m∆v)

(8)

where “m” is the mass of the supercapacitive material, “∆v” is the potential window, “I” is the charge or discharge current (A), and “∆t” is the discharge time (S).

The specific capacitance of the prepared electrodes was made of all materials at a constant density of 1 Ag⁻¹. Another observation is that there is very good agreement between the specific capacitance values obtained from charge–discharge experiments and cyclic voltammetry. Furthermore, the curves show two variation ranges during the charge and discharge steps. The time dependence of the potential is linear below approximately −0.3 V, demonstrating the behavior of pure double-layer capacitance resulting from the separation of charges at the electrode/electrolyte interface. Above −0.3 V, the dependency becomes nonlinear, indicating the normal behavior of pseudo capacitance. The specific capacitance values of the as-made 3DGS/CuFe₂O₄/NF electrode are better in 3DGS/NF and CuFe₂O₄/NF. The comparison results show that our 3DGS/CuFe₂O₄/NF electrode performs better than several similar electrodes. One of the critical elements affecting the supercapacitor capacitive behavior is current density. Figure 6A displays the charge–discharge curves of the 3DGS/CuFe₂O₄/NF electrode, which were measured in 0.5 M KOH at current densities of 1 Ag⁻¹ to 10 Ag⁻¹ between 0.1 and 0.45 V. For the same current density values mentioned above, the calculated specific capacitance values were 488.98, 202.22, and 75.55 Fg⁻¹, respectively. Figure 6B shows the bar diagram of specific capacitance values of the 3DGS/CuFe₂O₄/NF, CuFe₂O₄/NF, and 3DGS/NF electrodes. The 3DGS/CuFe₂O₄ composite system exhibits capacitive characteristics during the charging and discharging operations, as seen by the asymmetric charge–discharge lines. Due to the asymmetry between the charge–discharge and charge curves of the 3DGS/CuFe₂O₄/NF electrode, it may be concluded that these systems are pseudocapacitive and show double-layer contributions. The specific capacitance diminishes progressively as the current densities rise. Moreover, the specific capacitance performance of 3DGS/CuFe₂O₄ compared with other same material literature, and mentioned in Table S1.

As shown in Figure 6C, the specific capacitance of the prepared supercapacitor electrodes was examined at various current densities. Due to the redox reaction, the discharge reaction produced a non-linear curve and low potential decay; deep ion intercalation illustrates the pseudocapacitive nature of the prepared materials. Because ions in the electrolyte cannot penetrate the inner surface of the active material, only the outer active surface is used for charge storage, which results in the limited utilization of electroactive materials at high discharge current densities. Because ions from the electrolytes are penetrating the inner surface of the active materials at low current densities, the capacitance falls as current densities rise. One of the key features of hybrid nanostructure-based supercapacitors is the cycle stability test. Through repeated galvanostatic charge–discharge testing between 0 and 0.6 V at a constant current density of 1 Ag⁻¹ for more than 5000 cycles, the cycle stability of the 3DGS/CuFe₂O₄/NF electrode was determined. Figure 6D displays the estimated specific capacitance values for a few intermittent cycles against the corresponding cycles. Figure 6D plots cycle numbers against certain capacitance values. The specific capacitance value was identified during the first 500 s cycles mentioned in the inset. Then, it was noticed that the decay slowed down, resulting in an overall loss of 20% by the end of 5000 cycles.

5. Electrochemical Sensor Performance

5.1. Different Modified Electrode Studies toward the Detection of CAP

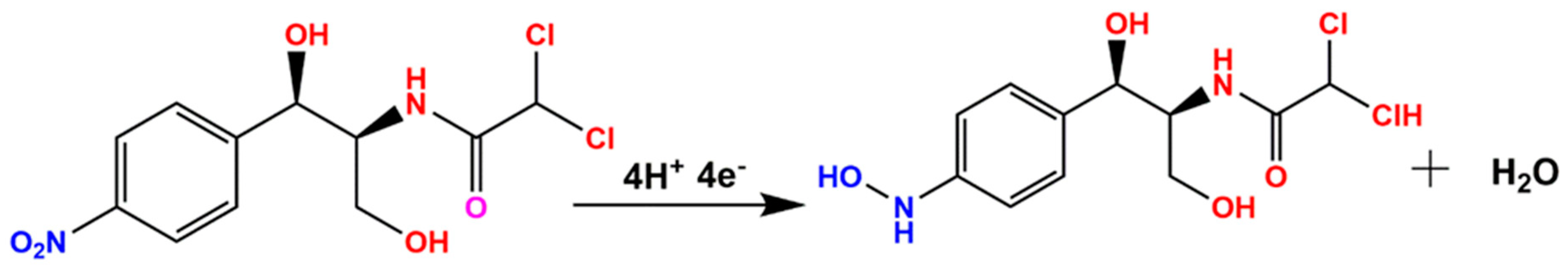

Electrochemical studies on the detection of CAP were conducted using the normal three-electrode system in the presence of 50 µM of CAP in PBS (pH 7) at a scan rate of 50 mVs⁻¹ using various modified electrodes. Figure 7A reveals the CV curves for the reduction of CAP for bare GCE, GCE/3DGS, GCE/CuFe₂O₄, and GCE/3DGS/CuFe₂O₄ modified electrodes. The reduced peak currents of the bare GCE are shown at −0.12 V, with the peak current of CAP being 22.2 µA. Additionally, the GCE/3DGS electrode exhibited a peak current of 83.8 µA at −0.89 V. Conversely, the GCE/CuFe₂O₄ electrode exhibited a peak current of 88.8 µA at a potential of −0.53 V. In the presence of CAP, the detection peak current was well-sharpened when the bare GCE surface was modified with GCE/CuFe₂O₄. The final GCE/3DGS/CuFe₂O₄ modified electrode also displayed a reduction peak of 105.7 µA at a potential of −0.68 V. The final GCE/3DGS/CuFe₂O₄ electrode showed a more significant peak current than the bare GCE, GCE/3DGS, and GCE/CuFe₂O₄ electrodes because of their superior electrocatalytic activity. The obtained CAP detection peak current bar graph diagram is provided in Figure 7B. Overall, the electrochemical detection of CAP compared with previously published CAP sensor reports showed better results. Without CAP added, the GCE/3DGS/CuFe₂O₄ electrode CV curves exhibited no electrochemical response in this potential range. This indicated that the GCE/3DGS/CuFe₂O₄ electrode only showed a selective response in the presence of CAP. The GCE/3DGS/CuFe₂O₄ electrode showed the reduction peak (R1) and a distinct pair of redox peaks (Q1, R2) at −0.155 V, −0.784 V, and −0.034 V, respectively. CAP was directly reduced to phenylhydroxylamine to show an R1 peak. At the same time, two redox peaks (R2 and O1) were linked to the two-electron redox process that reduces nitroso derivatives into hydroxylamine and then oxidizes hydroxylamine into a nitroso derivative (Scheme 2). We discovered that the GCE/3DGS/CuFe₂O₄ electrode showed the R2 peak current to be very high for CAP reduction due to the strong interaction between 3DGS and CuFe₂O₄. Moreover, the peak current of R1 was lower than those of R2 and Q1, indicating that the CAP reduction at the GCE/3DGS/CuFe₂O₄ electrode forms aryl hydroxylamine at a lower rate than the nitroso formation. Scheme 2 suggests a potential electrochemical redox mechanism of CAP on the GCE/3DGS/CuFe₂O₄ electrode. This demonstrates that the combination of the high electrical conductivity and the ideal large surface area of the 3DGS/CuFe₂O₄ composite was the reason behind the effective interaction of the CAP molecules compared to 3DGS and CuFe₂O₄ fiber.

5.2. Effect of Different Concentration and Scan Rate Studies

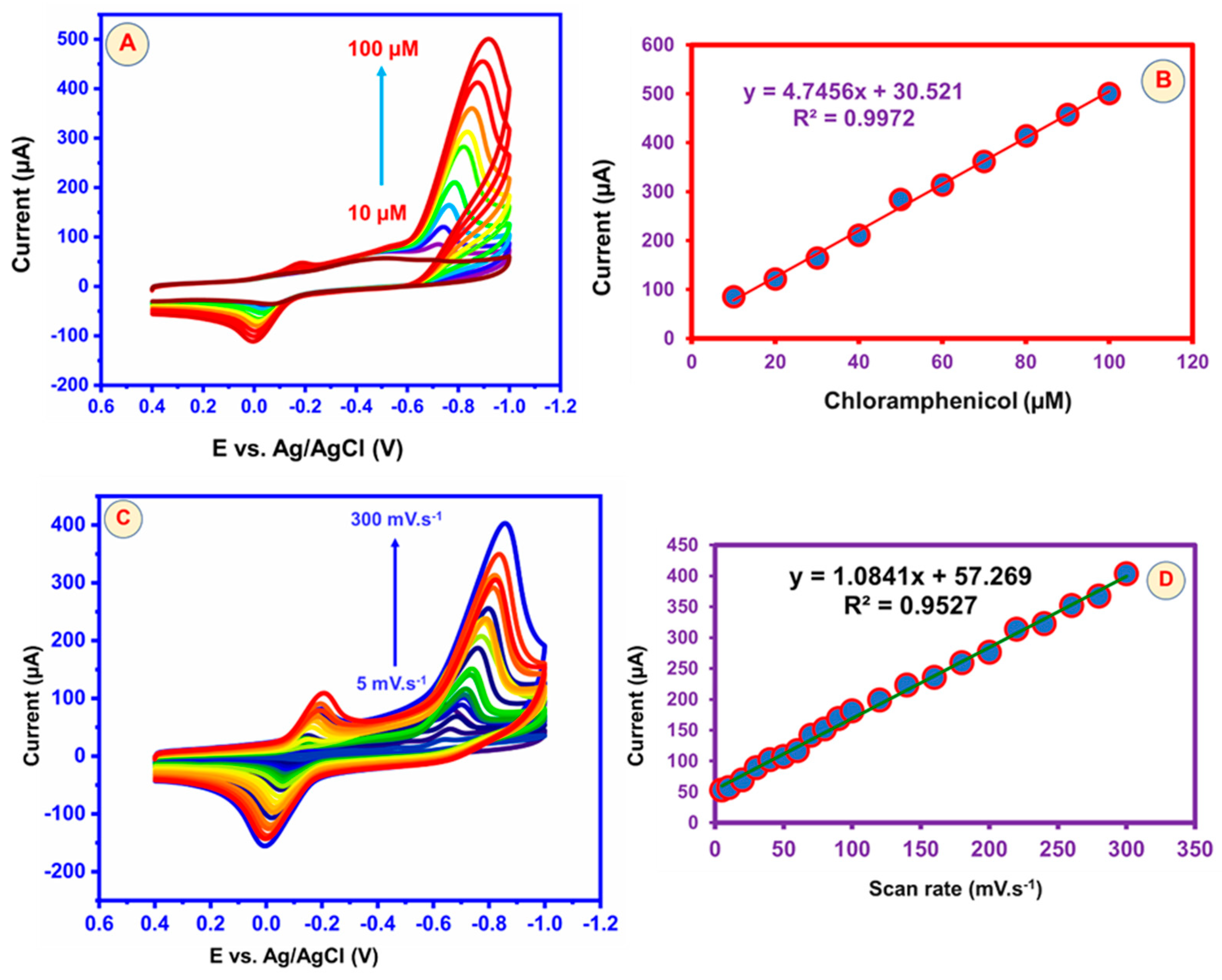

Different concentration and scan rate studies are essential in developing electrochemical sensors. Figure 8A presents the CV curves for CAP reduction performance at different concentrations in N₂-saturated 0.05 M PBS. The GCE/3DGS/CuFe₂O₄ electrode had linear concentration ranges up to 100 μM. The CAP reduction peak current was significantly increased for the different concentration additions of CAP. The GCE/3DGS/CuFe₂O₄ electrode showed a good surface area, electrocatalytic activity, and electron transport responses due to the π–π stacking interaction. Figure 8B shows the linear plot between the CAP reduction peak current and different concentrations of CAP. The CAP concentration and peak current were plotted in a linear relation with the linear equation y = 4.7456x + 30.521 and the coefficient of R² = 0.9972. These studies proved that the GCE/3DGS/CuFe₂O₄ electrode exhibited a good CAP electrocatalytic activity. Since the slope value was nearly equal to 1, it was likely a first-order kinetic reaction involving the electrocatalytic oxidation of CAP.

Figure 8C depicts the CV response and impact of the scan rate on the GCE/3DGS/CuFe₂O₄ electrodes toward the detection of CAP. The influence of the scan rate response of 50 µM of CAP was conducted for 5–300 mVs⁻¹ scan rates in a 0.05 M PBS solution at pH 7. Figure 8D shows that increasing the scan rate also increased the CAP reduction peak current. The reduction peak current was plotted against various scan rates, and the results exhibited a good linearity, with a slope of 1.0841 and a correlation coefficient of 0.952. The good linearity suggests that the CAP reduction was a process that was regulated by an adsorption controlled reaction. The scan rate studies confirmed that the CAP reduction peak current increased for the different scan rates. Finally, the scan rate studies confirmed that the electrochemical reaction of CAP was a surface-controlled process. The scan rate results were consistent with previous CAP reports.

5.3. Effect of pH

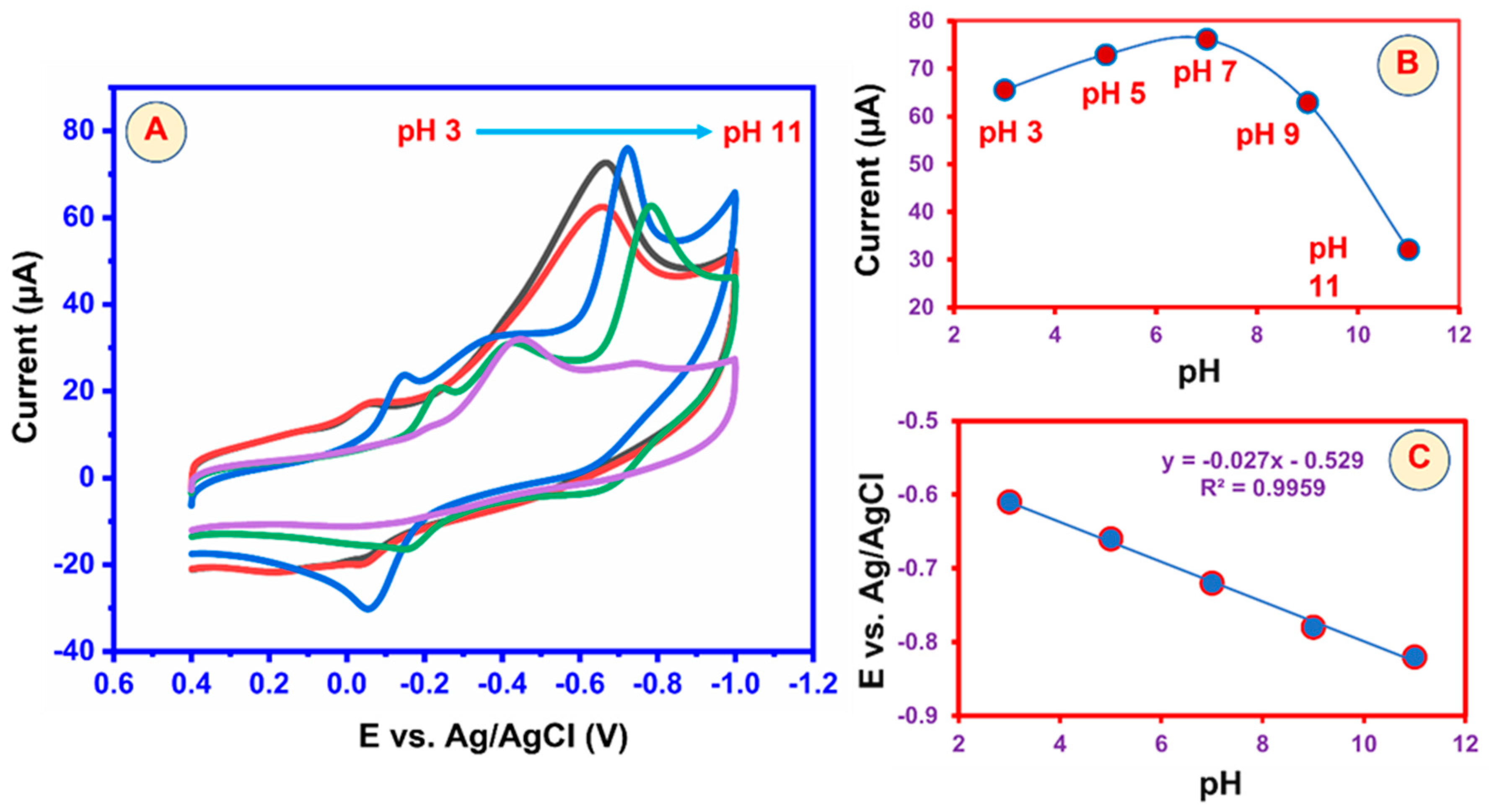

The pH of the electrolyte solution influences the electrochemical detection performance of CAP. Therefore, we used a CV study to determine the impact of pH on the detection of CAP. The scan rate was set at 100 mVs⁻¹ and the pH was altered between 3 and 11. Figure 9A shows the electrochemical detection peaks of CAP from a low pH solution to a high pH solution. The maximum peak current response was at pH 7; after that, it decreased slowly to pH 11. The increases in peak current up to pH 7 due to the pKa value of CAP (5.52) influenced the amount of CAP adsorbed on the GCE/3DGS/CuFe₂O₄ electrode surface. The peak current response loss above pH 7 was attributed to the hydrolysis of CAP. Moreover, the peak potentials shifted to more negative potentials as the pH increased from 3 to 9 for CAP determination, implying that the proton is involved in the redox reaction process. pH 7 was the most appropriate for the adsorption of CAP on the GCE/3DGS/CuFe₂O₄ electrode surface. The possible electrochemical reaction mechanism of CAP on the GCE/3DGS/CuFe₂O₄ electrode can be described by Scheme 2. Therefore, we used pH 7 for all the electrochemical studies. Figure 9B shows the linear plot relation between anodic peak potential (Ep) and pH. The slope value was near the Nernst value. This result revealed that the numbers of protons and electrons in the CAP oxidation at the GCE/3DGS/CuFe₂O₄ electrode were equal.

5.4. DPV Studies toward the Detection of CAP over the GCE/3DGS/CuFe₂O₄ Electrode

Differential pulse voltammetry (DPV) is a very sensitive method compared to other CV techniques. The electrochemical and detection ability performances of the 3DGS/CuFe₂O₄ electrode were evaluated by the DPV method in optimal pH 7 PBS. The electrolyte solution was well mixed before DPV measurements to ensure that the additional CAP was thoroughly blended. As a result, DPV tests were used to determine the electrode sensitivity, detection limit, and linearity of the GCE/3DGS/CuFe₂O₄ electrodes for CAP reduction. Figure 10A shows the performance of GCE/3DGS/CuFe₂O₄ electrode DPV in N₂-purged PBS (pH 7) at different CAP concentrations. The peak value of the DPV increased steadily with increasing CAP concentration. There was a finite number of active spots on the electrode surface. The active site of the GCE/3DGS/CuFe₂O₄ electrode decreased after a CAP concentration of 400 µM because of CAP accumulation throughout the electrochemical process. At low concentrations of CAP, full occupancy of the active sites was not achieved. The CAP detection peak current rose with increases in CAP concentration. The corresponding results showed that up to 400 μM of CAP concentration was added. Furthermore, the linear calibration plot of the decreased peak current (Ipc) against CAP concentration is shown in Figure 10B, and it relates to the correlation coefficient determination of R² = 0.9925. Ip = 0.2661 [CAP]/μM + 24,698. Furthermore, based on the slope/electrode area (sensitivity = slope/electrode active area), the electrode sensitivity was determined to be 3.7478 μAμM⁻¹cm⁻², and its linear concentration response varied from 5 to 400 μM. Furthermore, the limits of quantification (10× standard deviation/slope, S/N = 10) and detection (LOD) (3× standard deviation/slope, S/N = 3) were found to be 0.04 μM and 0.5 μM, respectively. The results were compared with those of earlier studies (

Table 1. Comparison of the electrochemical sensor performances of different modified electrochemical sensors for the detection of CAP under different analytical conditions.

Modified Electrode	Linear Range (µM)	Detection Limit (µM)	References
P(EBT)/GCE)	0.01–4.0	3	[23]
C-BN	0.1–700	0.035	[69]
Cu−BCN/GCE	0.01−1.12	2.41	[22]
Gr/CuPc/GCE	1–30	0.75	[21]
GO/ZnO/GCE	0.2–124	0.01	[70]
rGO/PdNPs/GCE	0.05	0.05–1	[71]
ZnO NPs/SWCNTs	10–140	0.03	[72]
Activated SPCE	0.05–100	0.02	[73]
CuNDs/MWCNTs/GCE	0.15–12.0	9.84	[74]
g-C3N4/EuMoO4	50–400	0.4	[24]
GCE/3DGS/CuFe2O4	5–400 µM	0.5	This work

). The electrochemical detection of CAP at the GCE/3DGS/CuFe₂O₄ electrode was lower than those of the other reported electrodes, such as P(EBT)/GCE) [LOD = 3 µM] [23], C-BN [LOD = 0.035 µM] [69], Cu–BCN/GCE [LOD = 2.41 µM] [22], Gr/CuPc/GCE [LOD = 0.75 µM] [21], GO/ZnO/GCE [LOD = 0.01 µM] [70], rGO/PdNPs/GCE [LOD = 0.02–1 µM] [71], ZnONPs/SWCNTs [LOD = 0.03 µM] [72], activated SPCE [LOD = 0.02 µM] [73], CuNDs/MWCNTs/GCE [LOD = 9.84 µM] [74], and g-C₃N₄/EuMoO₄ [LOD = 0.4 µM] [24]. The comparison data show that the GCE/g-C₃N₄/EuMoO₄ electrode had a better sensor response for the detection of CAP.

The findings show that, in terms of high sensitivity, low detection limit, and detection speed, the GCE/3DGS/CuFe₂O₄ electrode performed better than most prior sensor reports. Furthermore, the electrochemical detection of CAP at the GCE/3DGS/CuFe₂O₄ electrode is lower compared to other reported electrodes. The GCE/3DGS/CuFe₂O₄ electrode demonstrated a low detection limit of 0.5 μM, a wide linear range of 5–400 μM, and a respectable selectivity toward the detection of CAP. Furthermore, according to the data, CuFe₂O₄ may be a suitable electrocatalyst for the reduction of CAP due to its relatively high electron transfer rate. Furthermore, 3DGS materials have a large surface area and promote effective interaction with CuFe₂O₄. As a result, the GCE/3DGS/CuFe₂O₄ electrode can be used for the electrochemical sensing of CAP.

5.5. Repeatability, Reproducibility, and Stability of GCE/3DGS/CuFe₂O₄ Electrodes

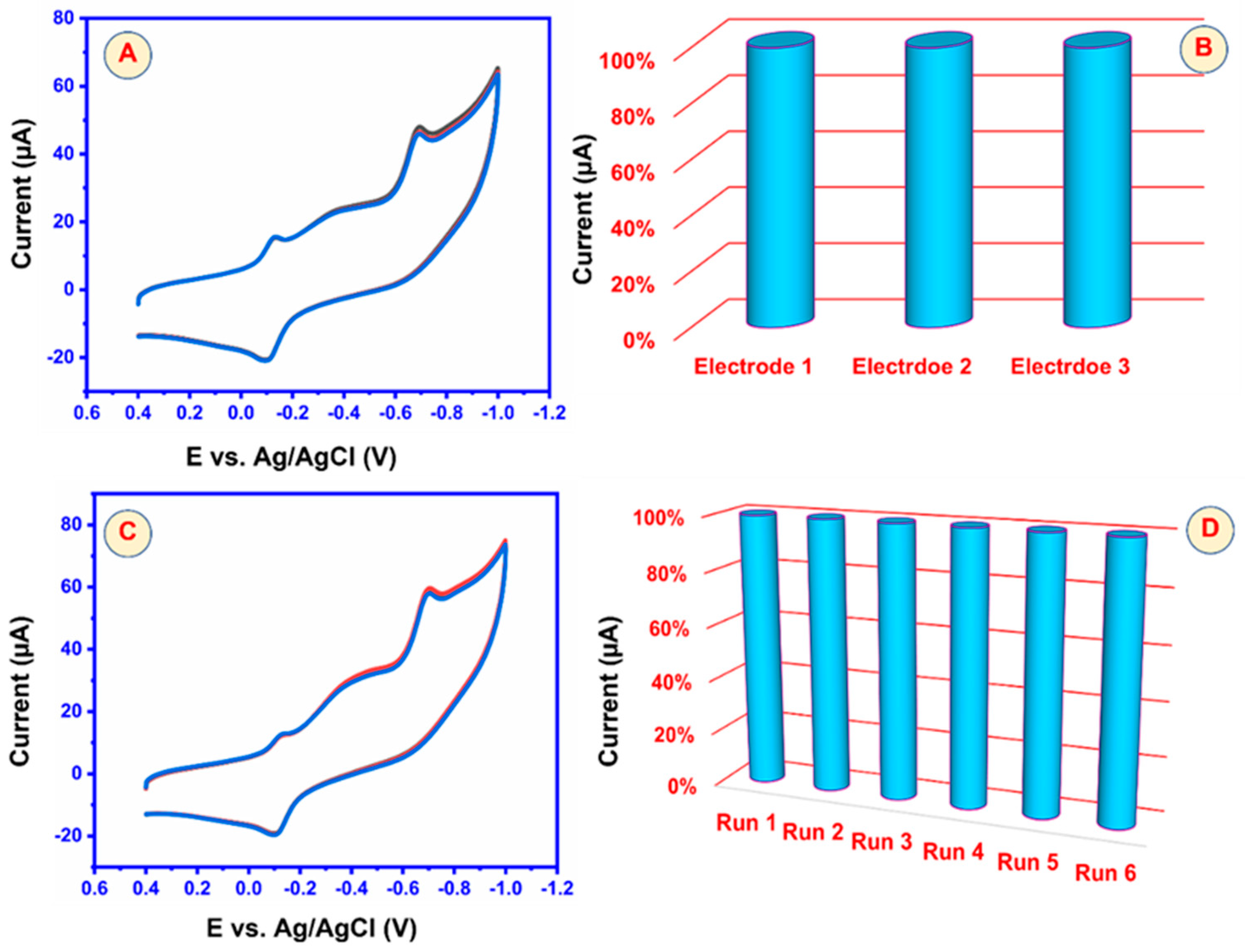

The prepared GCE/3DGS/CuFe₂O₄ electrodes were tested for repeatability and reproducibility using the CV method in N₂-purged PBS with 50 μM of CAP at a scan rate of 50 mVs⁻¹. As shown in Figure 11A, the repeatability of the modified electrode was studied with six repeated electrochemical runs of the GCE/3DGS/CuFe₂O₄ electrode for the detection of CAP. Figure 11B shows the repeatability studies of the bar diagram of the GCE/3DGS/CuFe₂O₄ electrode. The CV curves demonstrated comparable cathodic currents of CAP detection with an RSD value of 2.5%, demonstrating the outstanding reproducibility of the GCE/3DGS/CuFe₂O₄ electrode. As illustrated in Figure 11C, the reproducibility investigation was carried out using CAP detection over three distinct GCE/3DGS/CuFe₂O₄ electrodes for each concentration at fixed time intervals. Figure 11D shows the reproducibility studies of the bar diagram of the GCE/3DGS/CuFe₂O₄ electrode. The average relative standard deviation (RSD) exhibited was 2.5%, well within the acceptable levels according to guidelines. The RSD value of the reproducibility studies was 2.1%. These results suggest that the electrode can be reliably fabricated.

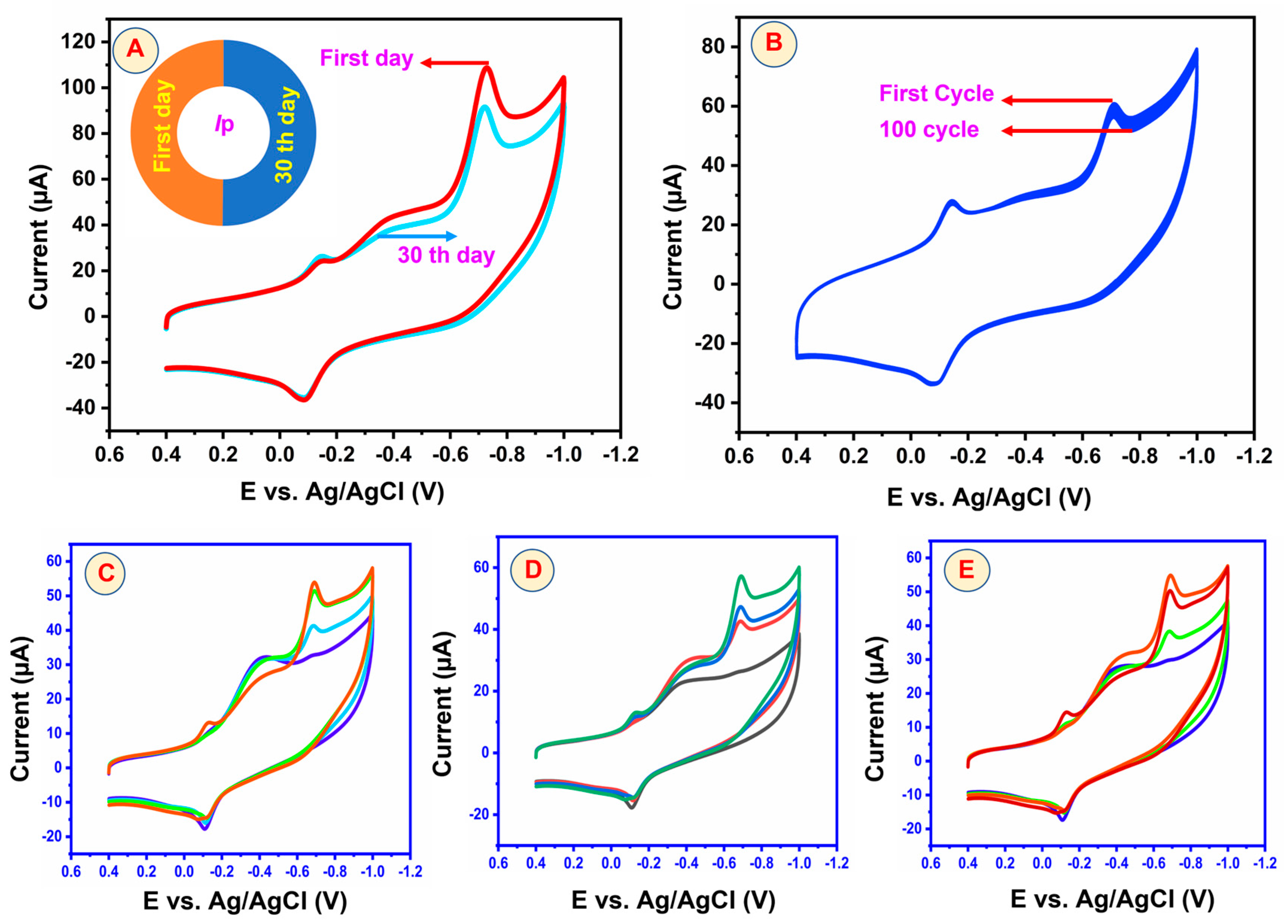

Stability experiments of the GCE/3DGS/CuFe₂O₄ electrode were also conducted. Figure 12A presents the storage stability results of the GCE/3DGS/CuFe₂O₄ electrode, and Figure 12B shows the cyclic stability results of the GCE/3DGS/CuFe₂O₄ electrode. The GCE/3DGS/CuFe₂O₄ electrode was kept in 0.1 M PBS (pH = 7.4) at 25 °C for 30 days to examine its long-term stability. The GCE/3DGS/CuFe₂O₄ electrode demonstrated that the sensor retained 90.1% of its initial peak response, indicating the long-term 30-day storage stability of the GCE/3DGS/CuFe₂O₄ electrode. Additionally, the cyclic stability of the GCE/3DGS/CuFe₂O₄ electrode was examined with CV experiments. In CV experiments, 95.32% of the initial current response was maintained after 100 cycles, indicating high stability. The aforementioned studies show that the GCE/3DGS/CuFe₂O₄ electrode has a good stability, repeatability, and reproducibility in the detection of CAP.

5.6. Real Sample Analysis of the GCE/3DGS/CuFe₂O₄ Electrode

Figure 12C,D present the results of real sample analysis with the GCE/3DGS/CuFe₂O₄ electrode. We conducted such analyses in (C) milk, (D) honey, and (E) eye drop samples. These real samples were obtained from local markets and pharmacies in Taipei, Taiwan. The collected samples were diluted appropriately with distilled water and then spiked with known amounts of CAP. The assay parameters matched those applied to the laboratory specimens. The recovery rate of CAP was assessed using the standard addition method.

Table 2. Real sample analysis of CAP in milk, honey, and eye drop samples.

Sample	Added (µM)	Found (µM)	Recovery (µM)	RSD (%)
Milk	20	19.2	96	2.52
	40	35.6	89	2.15
	60	58.7	97.8	2.19
Honey	20	19.5	97.5	2.25
	40	39.5	98.7	1.95
	60	59.8	99.6	2.36
Eye drop	20	19.8	99	2.42
	40	39.3	98.2	1.93
	60	58.6	97.6	2.12

lists the results of the real sample analysis of milk, honey, and eye drops, showing satisfactory CAP recovery rates ranging from 97.53% to 102.53%. These real sample analyses demonstrated that the GCE/3DGS/CuFe₂O₄ electrode could detect real-time CAP in food and drug products.

6. Materials and Methods

Graphite, nitric acid (HNO₃), sulfuric acid (H₂SO₄), monosodium phosphate (NaH₂PO₄), disodium hydrogen phosphate (Na₂HPO₄), N-methyl pyrrolidinone (NMP), potassium ferric cyanide (K₃Fe(CN)₆·3H₂O), potassium ferrocyanide (K₄Fe(CN)₆·3H₂O), sodium hydroxide (NaOH), potassium hydroxide (KOH), copper nitrate hexahydrate, iron nitrate nonahydrate, dimethylformamide were obtained from ACROS chemical company, Taiwan. Ni foam (NF) (1 × 1 cm²), glassy carbon (GC) electrode, silver/silver chloride electrode (Ag/AgCl), platinum wire (BAS Inc. Tokyo Japan), nitrogen (N₂) gas, and ultra-pure double distilled water were used for all the experiments. Material preparation and characterization were carried out by suitable physical and chemical characterization techniques such as X-ray diffraction analysis (XRD) (XRD, D2 Phaser, Bruker, Billerica, Massachusetts, USA) using Cu Kα radiation (λ = 1.5406 Å). After the diffraction, the data were analyzed in MDI JADE5.0 software and compared with the JCPDS Card database. Field emission scanning electron microscopy (SEM) (JEOL, JSM-7610F, Tokyo, Japan, and Hitachi Regulus 8100, Tokyo, Japan, respectively), energy dispersive X-ray analysis (EDX), transmission electron microscopy (TEM) (Japan Electron Optic Co., Ltd., JEOL 2100F, Tokyo, Japan), Raman spectroscopy (ACRON, UniNanoTech Co., Ltd., Yonginsi, Korea), and electrochemical impedance spectroscopy (EIS) (CH Instruments, Inc. 3700 Tennison Hill Drive Austin, TX 78738 – 5012 USA). The supercapacitor performance has been determined by CHI cyclic voltammetry (CV) and the galvanostatic charge–discharge technique (CH Instruments, Inc. 3700 Tennison Hill Drive Austin, TX 78738-5012, USA). The electrochemical performance of the GCE/3DGS/CuFe₂O₄ modified electrode was assessed by cyclic voltammetry (CV) and differential pulse voltammetry (DPV).

7. Conclusions

In conclusion, the CuFe₂O₄/3DGS composite was successfully synthesized and employed for supercapacitor and electrochemical sensor applications. Several electrochemical techniques including electrochemical impedance, cyclic voltammetry, differential pulse voltammetry, and chronopotentiometry were used to assess the electrochemical performance of the GCE/3DGS/CuFe₂O₄ electrode. The 3DGS played a significant role in the 3DGS/CuFe₂O₄/NF electrode to improve the electrochemical capacitance and electrochemical sensor. Because of the hierarchical structure and good electrical conductivity, the 3DGS/CuFe₂O₄ composites had an excellent specific capacitance, a high current density, and a high power density. Accordingly, the results indicated that the prepared composites were promising electrodes for supercapacitor materials. Furthermore, the prepared 3DGS/CuFe₂O₄ composite has an excellent electrochemical performance toward the identification of CAP, with a detection limit of 0.5 µM, linear range of 5–400 µM, and electrode sensitivity of 3.7478 µA µM⁻¹ cm⁻². Furthermore, the GCE/3DGS/CuFe₂O₄ electrode revealed a good selective detection of CAP in real sample analysis. It also exhibited excellent repeatability, reproducibility, and stability. In conclusion, the CuFe₂O₄/3DGS composite exhibited a superior capacitance performance and superior electrochemical sensing.
