Optimization of Gamma-Aminobutyric Acid Production by Lactiplantibacillus plantarum FRT7 from Chinese Paocai

by
Hongying Cai
1,2,†,
Xuan Li
1,†,
Daojie Li
1,
Weiwei Liu
1,
Yunsheng Han
1,
Xin Xu
1,
Peilong Yang
1,2 and
Kun Meng
1,*
1
Key Laboratory of Feed Biotechnology of Ministry of Agriculture and Rural Affairs, Institute of Feed Research, Chinese Academy of Agricultural Sciences, Beijing 100081, China
2
National Engineering Research Center of Biological Feed, Beijing 100081, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Foods 2023, 12(16), 3034; https://doi.org/10.3390/foods12163034
Submission received: 29 June 2023 / Revised: 28 July 2023 / Accepted: 10 August 2023 / Published: 12 August 2023
(This article belongs to the Special Issue Probiotics, Prebiotics, Synbiotics, Postbiotics and Paraprobiotics—New Perspective for Functional Foods and Nutraceuticals—Volume II)
Browse Figures
Versions Notes

Abstract

:
Gamma-aminobutyric acid (GABA) is a widely available non-protein amino acid whose physiological importance goes beyond its role as an inhibitory neurotransmitter in mammals. The GABA synthesis ability of ten strains of Lactiplantibacillus plantarum was screened. They produced GABA ranging from 48.19 ± 3.44 to 100.75 ± 1.63 mg/L at 24 h-cultivation. Among them, Lp. plantarum FRT7 showed the highest GABA production. Therefore, FRT7 was chosen for GABA yield optimization. A one-factor-at-a-time strategy analysis of the GABA yield of FRT7 was performed, including the culture temperature, incubation time, inoculum volume, initial pH, the initial amount of monosodium glutamate (MSG), and pyridoxal 5’-phosphate (PLP) concentration, based on which the response surface methodology (RSM) was performed. After being cultured in an MRS culture medium supplemented with 3% MSG and 2 mmol/L of PLP at 40 °C with an initial pH of 7.0 for 48 h, the GABA reached a maximum yield of 1158.6 ± 21.22 mg/L. The results showed the experimental value of the GABA yield was in good agreement with the predicted values. Furthermore, the results from the RSM also indicated that the initial MSG addition, PLP concentration, and incubation time were significant variables. These results suggest that Lp. plantarum FRT7 has the potential to be a health-beneficial probiotic with commercial capabilities.

1. Introduction

Gamma-aminobutyric acid (GABA) is a non-protein amino acid widely found in animals, plants, and microorganisms [1]. GABA is an important inhibitory neurotransmitter in mammals [2]. Intracellular GABA accumulation in some microorganisms can enhance the tolerance to environmental acid stress [3]. The role of GABA in plants includes responding to abiotic and biotic stress factors, maintaining carbon/nitrogen (C/N) balance, and regulating plant development [4]. Furthermore, GABA shows a variety of physiological functions, including enhancing immunity [5], improving sleeplessness and depression [6,7], improving memory functions [8], regulating blood pressure [9], fighting obesity [10], and preventing diabetes [11,12]. Thus, in food and pharmaceuticals, GABA has the potential to be a bioactive ingredient. However, the content of GABA in natural animal and plant-based foods is relatively low [13,14]. Therefore, in recent years, GABA-containing food has attracted a lot of research due to its unique physiological characteristics and wide range of applications.
GABA can be produced by a variety of microorganisms, including yeast [15], fungi [16], and bacteria [17], and their production ability depends on the species and strains [18]. Microbial synthesis of GABA is obtained by the decarboxylation of monosodium glutamate (MSG) under the action of glutamate decarboxylase (GAD: EC 4.1.1.15) [19]. Because its renewable resources, safety, efficiency, and environmental friendliness, and its microbial production method meet the specific needs of the food and pharmaceutical industries, it is considered to be an attractive and promising approach [20]. GABA produced by lactic acid bacteria (LAB) has special physiological activity and commercial potential and can be used as a starter for fermented foods, such as kimchi [21], fermented dairy [22], fermented sausage [23], etc. In recent years, several GABA-producing LAB species have been reported, including Lp. plantarum [24], L. paracasei [25], L. brevis [26], Streptococcus lactobulus [27], L. rhamnosus [28], etc. Among these, the key species for the production of GABA was found to be Lp. plantarum and L. brevis [29]. In particular, Lp. plantarum has been generally recognized as safe (GRAS), with a qualified presumption of safety (QPS) status [30]. Furthermore, Lp. plantarum strains have been used as probiotics due to their immunomodulation properties [31], pathogen suppression [32], modulation of intestinal balance [33], and cholesterol-lowering ability [34]. Therefore, GABA produced by Lp. plantarum in appropriate foods can take full advantage of GABA’s health-promoting properties, as well as the Lp. plantarum strains themselves.
The ability of LAB to produce GABA widely varies among the strains [35] and is affected significantly by culture conditions, including the substrates, pH, temperature, time, the amount of MSG, etc. [36]. The one-factor-at-a-time (OFAT) strategy is the simplest statistical way to study one key factor, while the interactions among the individual factors are not taken into account, and optimized conditions are often not produced. Response surface methodology (RSM) is a series of mathematical and empirical methods to study the optimal conditions of a multivariable system. The advantage of RSM is that it reduces the number of experiments for evaluating multiple factors and their interactions, thus saving time as well as lowering experimental costs [37]. In this study, ten Lp. plantarum strains were screened for GABA-producing ability, and then the strain with the highest production of GABA was chosen to maximize the GABA production by OFAT experiments and the RSM method.

2. Materials and Methods

2.1. Materials

A de Man, Rogosa, and Sharpe (MRS) agar and MRS broth, used as the selective culture medium for Lactobacilli, were purchased from Beijing Solarbio Science & Technology Co., Ltd. (Beijing, China). MSG was purchased from China Huishi Biochemical Reagent Co., Ltd. (Shanghai, China). Anhydrous ethanol was obtained from China National Pharmaceutical Group Corp (Beijing, China). Phthalaldehyde (OPA) was purchased from Shimadzu Analytical China Ltd. (Shanghai, China). Sulfosalicylic acid was bought from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). pH analyses were carried out at room temperature using a pH meter (Mettler Toledo®- Five Easy, Columbus, OH, USA). GABA production was analyzed using high-performance liquid chromatography (HPLC) (LC-20A, Shimazu, Kyoto, Japan) with a chromatographic column (AJS-02, Shimazu, Kyoto, Japan).

2.2. Strains and Microorganism Activation

A total of ten Lp. plantarum strains named FRT1 to FRT10 were originally isolated from bean pickles, cabbage pickles, northeast China pickles, yogurt, fermented bean curd soup, fermented fish, Chinese paocai, brewing vinegar, fermented mare’s milk, Poland sourdough, and celery pickles, respectively, identified as Lp. plantarum by 16S rRNA sequencing, and preserved in the Key Laboratory of Feed Biotechnology of the Ministry of Agriculture and Rural Affairs. The strains were revived and activated through scribing on the MRS agar plates and then cultured in the MRS liquid culture medium for two generations for each use. The cultivation conditions were as follows: 37 °C, stationary cultivation for 24 h. Afterward, the microbial suspension was prepared with an absorbance value of 1.3 at 600 nm.

2.3. Screening of GABA-Producing LAB

When assessing GABA production, the strains were cultivated in an MRS culture medium (natural pH) containing 3% (w/v) MSG 30 °C for 24 h in 100 mL flasks containing 30 mL of the medium. The inoculum volume was 3% (v/v), and then the GABA content in the supernatants was measured after incubation.

2.4. Measurement of GABA Content

After 24 h of incubation, the MRS culture medium of Lp. plantarum strains from FRT1 to FRT10 was centrifuged at 8000 r/min for 10 min, respectively, and the supernatants were harvested. GABA was purified as follows: we briefly added 1 mL of the supernatant to 1 mL of anhydrous ethanol, oscillated at 200 r/min for 30 min, then centrifuged at 10,000 r/min for 5 min, and then the supernatants were harvested. A total of 2 mL of 5% sulfosalicylic acid was added into 1 mL of the supernatant, ultra-sounded at low temperature for 30 min, and centrifuged at 10,000 r/min for 10 min. The extract was cleaned up by a 0.22-microm filter membrane, and then the GABA concentration was detected by HPLC analysis. OPA was used as the pre-column derivatization reagent. The chromatographic column was the AJS-02 special column for amino acid analysis (C18, 4.6 × 150 mm, 3 μm) (Shimazu, Kyoto, Japan). Disodium phosphate-sodium tetraborate buffer solution (pH 8.2) was the mobile phase A, and methanol–acetonitrile–water (9:9:2) was the mobile phase B. The detection wavelength was 338 nm (first-order amino acid). The column temperature was 50 °C, and the flow rate was 1.6 mL/min. The sample size was 2 μL. The peak area was compared with the corresponding GABA standard to calculate the GABA content.
GABA in the samples was calculated as X, and its value was expressed as mg/L, calculated according to Formula (1):
X = (Ax × Ci × Vi)/As
  • X—The content of GABA in the test;
  • Ax—Peak area of GABA in test solution;
  • As—Peak area of the GABA standard;
  • Ci—The concentration of the GABA standard, expressed in (mg/L);
  • Vi—Dilution ratio of test product solution.

2.5. OFAT Strategy for GABA Optimization

Lp. plantarum FRT7, with the highest GABA yield among the strains, was selected for the optimization of the culture conditions based on the OFAT approach, which means changing one factor to evaluate the impact of that factor on the GABA yield while the other factors remain unchanged. The optimization parameters included culture temperature (30, 35, 37, 40, and 42 °C), incubation time (12, 24, 36, 48, and 60 h), inoculum volume (0, 1, 2, 3, 4, and 5%), initial pH (4, 4.5, 5, 5.5, 6, 6.5, 7, and 7.5), initial MSG addition (0, 0.5, 1, 1.5, 2, and 3%), and pyridoxal 5’-phosphate concentration (PLP) (0.1, 0.5, 1, 1.5, 2, 4, 6, and 8 mmol/L) on GABA production by Lp. plantarum FRT7 under basic fermentation conditions (fermentation time, 24 h, fermentation temperature, 30 °C, 3% of the inoculum volume, 3% of MSG-addition, initial pH 6). The accumulation of GABA in the medium was detected by HPLC. Each experiment was repeated in triplicates.

2.6. Experimental Design

Through the analysis and treatment of OFAT experiment results, culture temperature, incubation time, inoculum volume, initial pH, MSG concentration, and PLP concentration were selected for the RSM experiment based on a central composite design (CCD), and the GABA yield was taken as the response values. In this study, threelevels of sixvariables were used to produce a total of 54 combinations (Table 1). Culture temperature (37, 40, 42℃), incubation time (36, 48, 60 h), inoculum volume (3, 4, 5%), initial pH (6.5, 7, 7.5), initial MSG concentration (1, 2, 3%), and PLP concentration (1, 2, 4 mmol/L) were the independent factors for FRT7 to optimize the GABA yield. The 54 treatments were randomized in order to avoid bias, and each experiment was carried out in triplicate.

2.7. Response Surface Methodology (RSM)

The optimal polynomial equation was obtained by fitting the RSM model with the experimental data of the CCD design. Interpreted Design Expert version 8.0.6 trial software (Stat Ease Inc., Minneapolis, MN, USA) was used to perform the data analysis. Analysis of variance (ANOVA), regression analysis, and response surface mapping were used as the main analytical steps to determine the optimal conditions for the production of GABA. Then, the predicted values of the RSM model were compared with actual values to test the model. Finally, the experimental values of the predicted optimal conditions were used as the validating set and compared with the predicted values.

2.8. Statistical Analysis

Data were expressed as three repeated means ± standard deviations. One-way ANOVA was used to test the difference between the means, and then Duncan’s multiple-range tests were performed. DesignExpert 8.06 software was used to design the response surface tests, and the results were analyzed. p < 0.05 was considered statistically significant. All analyses were carried out using SPSS v.16.0 (SPSS Inc., Chicago, IL, USA).

3. Results

3.1. Evaluation of GABA-Producing Lp. plantarum

Ten Lp. plantarum strains in this study were evaluated for their GABA-producing ability in an MRS culture medium containing 3% MSG, all of which could produce GABA (Figure 1), and among which Lp. plantarum FRT7 from Chinese paocai showed the highest GABA content of 100.75 ± 1.63 mg/L, as measured using HPLC, while the GABA levels of other Lp. plantarum strains were lower than 85 mg/L. Therefore, FRT7 was selected for further studies.

3.2. Single-Parameter Analysis

3.2.1. Effect of Culture Temperature on the Production of GABA by Lp. plantarum FRT7

The influence of the culture temperature on the production of GABA was studied in the modified MRS medium under the following conditions (an incubation time of 24 h; an initial pH of 6; an initial MSG addition of 3%; inoculum volume of 3%). As shown in Figure 2A, a high production of GABA was 164.29 ± 3.10 mg/L at 40 °C and 176.51 ± 10.75 mg/L at 35 °C. The yield of the GABA decreased significantly when the temperature increased to 42°. There was no significant difference in the GABA production between 35 °C and 40 °C. A study reported that GAD activity increases with a temperature increase for L. brevis 9530 [38]. At the same time, we found that 40 °C had no effect on FRT7 growth. Therefore, 40 °C was selected as the optimal culture temperature for GABA production.

3.2.2. Effect of Incubation Time on the Production of GABA by Lp. plantarum FRT7

The influence of the incubation time from 12 to 60 h on the production of GABA in the modified MRS medium was studied under the following conditions (an initial MSG addition of 3%; an inoculum volume of 3%; a culture temperature of 40 °C; an initial pH of 6). From 12 to 48 h, GABA production gradually increased with the increase of the incubation time, among which the maximum GABA yield was 285.30 ± 0.88 mg/L at 48 h, and the GABA production decreased after 48 h (Figure 2B).

3.2.3. Effect of Inoculum Volume on the Production of GABA by Lp. plantarum FRT7

The influence of the inoculum volume from 1 to 5% on the production of GABA in the modified MRS medium was studied under the following conditions (an initial MSG addition of 3%; a culture temperature of 40 °C; an incubation time of 48 h; an initial pH of 6). The inoculum volume was 3%, with approximately 1.8 × 1010 CFU. Figure 3C shows the increase in GABA production as the inoculum volume increased from 1 to 5%. The peak GABA yield of 5% of the inoculum volume was 261.48 ± 22.69 mg/L. Considering that there were no significant differences in the inoculum from 3% (220.69 ± 4.09 mg/L) to 5% with the GABA production and saving costs, an inoculum volume of 3% was selected as the optimal condition for the production of GABA in this study.

3.2.4. Effect of Initial pH on the Production of GABA by Lp. plantarum FRT7

The effect of the initial pH from 4 to 7.5 on the production of GABA in the modified MRS medium was studied under the following conditions (an initial MSG addition of 3%; a culture temperature of 40 °C; an incubation time of 48 h; an incubation volume of 3%). As shown in Figure 2D, as the initial pH increased from 4 to 7, GABA production increased and, subsequently, the GABA production decreased. When the initial pH was 7, the GABA concentration reached the maximum value (335.88 ± 9.19 mg/L).

3.2.5. Effect of Initial MSG Addition on the Production of GABA by Lp. plantarum FRT7

The influence of the initial MSG addition from 0 to 3% on the production of GABA in the modified MRS medium was studied under the following conditions (a culture temperature of 40 °C; an incubation time of 48 h; an initial pH of 6; an incubation volume of 3%). As shown in Figure 2E, GABA production was dramatically reduced in the absence of MSG (only 117.92 ± 3.97 mg/L). When the amount of MSG went from 0.5 to 3%, the GABA yield increased in a dose-dependent manner. The maximum GABA production was achieved at 3% with 381.71 ± 4.15 mg/L.

3.2.6. Effect of PLP Addition Concentration on the Production of GABA by Lp. plantarum FRT7

The influence of PLP addition on the production of GABA was assessed with concentrations of 0.1–4 mmol/L in the modified MRS medium under the following conditions (an initial MSG addition of 3%; a culture temperature of 40 °C; an incubation time of 48 h; an initial pH of 6; an incubation volume of 3%). As shown in Figure 2F, the maximum GABA production at the PLP concentration of 2 mmol/L was 1085 ± 24.03 mg/L. However, a further increase in the PLP concentration of more than 2 mmol/L resulted in a decrease in the GABA production from 1085 ± 24.03 to 689.54 ± 37.17 mg/L for Lp. plantarum FRT7. The results indicated that PLP addition had a positive impact on GABA production within a certain range.

3.3. Analysis of RSM

3.3.1. Further Optimization of the Key Factors by RSM

In order to establish the fermentation process model based on single variable optimization, the incubation temperature, incubation time, inoculum volume, initial pH, initial MSG addition, and PLP concentration were selected as valid variables in the response surface design in which the incubation temperature of 40 °C, incubation time of 48 h, inoculum volume of 4%, initial pH of 7, MSG concentration of 2% and PLP concentration of 2 mmol/L were fixed as the central point of the response surface for the response surface analysis, as shown in Table 2.

3.3.2. Response Surface Methodology

Using the experimental data of the CCD’s response surface optimization design, the RSM model was fitted to find the best polynomial equation. Explained Design Expert version 8.0.6 experimental software was employed to analyze the data. Through three main analytical steps, the best model was established to explain the influence of effective factors on the GABA yield.
[GABA] = +1162.04 − 112.13A + 68.88B − 18.88C + 25.39D + 23.86E + 40.71F − 22.83AB − 39.81AC + 6.95AD − 0.14AE + 22.25AF + 4.13BC + 12.07BD + 33.24BE + 48.36BF − 8.91CD − 0.76CE + 14.76CF − 7.69DE + 26.25DF − 55.83EF − 381.95A2 − 255.60B2 − 153.91C2 − 177.20D2 − 161.29E − 283.42F2
where A is the culture temperature, B is the incubation time, C is the inoculum volume, D is the initial pH, E is the initial MSG concentration, and G is the PLP concentration.
ANOVA was performed for the GABA production to verify the regression coefficient (Table 3). The “model p-value” of the ANOVA was very small (<0.0001), the “lack of fit” was not significant (p-value of 0.1097), and it had the appropriate coefficient of determination (R2 = 0.98) and adjusted coefficient of determination (R2adjusted = 0.96), so the quadratic polynomial model was highly significant and sufficient to represent the actual relationship between the response and the significant variables.
By drawing three-dimensional response surface curves (holding the other variables at the center point), the optimum level of each variable and its interactions with the production of GABA were investigated as a function of two variables. The analysis of variance (Table 2) and three-dimensional plots (Figure 3) show that the incubation time, initial MSG addition amount, and PLP concentration had a significant impact on the production of GABA. Therefore, it was used to develop the model. Figure 3 indicates an effective increase in the production of GABA with the increasing incubation time, initial MSG amount, and PLP concentration up to a certain value and that it then declined after the maximum value.
Figure 3A shows the influence of the initial MSG and incubation time on the production of GABA. The yield of the GABA increased with the increase of the initial MSG addition and incubation time, while the GABA production reached the highest point in the range of 2–2.5% and 48–54 h for the initial MSG addition and incubation time, respectively. In addition, Figure 3A shows that the incubation time’s F value of 37.48 had a significant impact on the production of GABA.
Figure 3B shows the influence of the PLP concentration and incubation time on the production of GABA. The yield of the GABA increased with the increased PLP concentration and incubation time, with the GABA production reaching its highest point when the PLP was added at 2.5–3 mmol/L. In addition, Figure 3B shows that the F value of the PLP was 13.09, which also had an important effect on the GABA yield.
Figure 3C shows the influence of the initial MSG and PLP concentration on the production of the GABA. The yield of the GABA increased with the increase of the initial addition of the MSG and PLP concentration. The initial MSG addition and PLP concentration reached the highest point of GABA production in the range of 2–2.5% and 2.5–3 mmol/L, respectively. This suggests a significant interaction between the initial MSG addition and PLP concentration.

3.3.3. Verification of the Fitted Model and Optimum Point

The actual values of the GABA yield of FRT7 were compared with the predicted values to verify the model. Design Expert software 8.0.6was used to set the best value of the quadratic equation. The experimental conditions fitted to the model were the maximum GABA level predicted by the model (a predicted value of 1179.37 mg/L) at a fermentation temperature of 39.6 °C, a fermentation time of 49.9 h, an inoculum of 3.96%, a pH of 7.0, MSG addition of 2.31%, and PLP concentration of 2.84 mmoL/L. In the actual experiment, the fermentation temperature was adjusted to 40 °C, the fermentation time was 50 h, the inoculum was 4%, the pH was 7.0, the MSG addition was added at 2.3%, the PLP concentration was adjusted to 2.8 mmol/L, and the result showed that the GABA yield of FRT7 was verified to be 1158.6 ± 21.22 mg/L. The predicted value was very close to the actual value of the GABA, and the difference between the two was less than 5%, indicating that the model has high accuracy and reliability.

4. Discussion

GABA, as the key metabolite produced by LAB, varied greatly among the strains. The use of LAB as a cell factory for the production of GABA is a fascinating project that opens up broad prospects for the use of GABA and LAB. There is an opportunity to isolate and identify strains that produce GABA for use in functional foods or as probiotics.
In this study, the GABA production ability of ten Lp. plantarum strains isolated from Chinese paocai, yogurt, fermented fish, sourdoughs, etc., was investigated. Lp. plantarum FRT7, with the highest GABA concentration, was chosen as the most suitable strain for the OFAT optimization of the fermentative parameters to enhance GABA synthesis. LAB’s ability to produce GABA is affected significantly by culture conditions. Temperature has been shown to have a strong effect on GABA production in LAB because both cell growth and GAD activity depend on temperature [18]. Lp. plantarum is a mesophilic bacterium with an optimal growth temperature of approximately 37 °C [39]. As shown in Figure 2A, the optimal temperature for the GABA production of Lp. plantarum FRT7 was determined at 35 °C. Considering that there were no significant differences between 35 °C and 40 °C and a higher temperature benefits GAD activity, 40 °C was selected as the optimal temperature for further study. Similar results were obtained in previous studies. The production of the highest GABA by Lp. plantarum Taj-Apis362 and Lp. plantarum Y7 from honeybees and kimchi, respectively, was produced at 37 °C [24,40]. The production of the highest GABA by Lp. plantarum DSM19463 was produced between 30 °C and 35 °C [41]. Furthermore, the influence of culture temperature on the production of GABA is mainly due to its effect on GAD activity. Yang et al. reported that when the temperature rose to a certain extent, the GAD activity reached the maximum value, and then the GDA activity would gradually decrease as the temperature further increased [42].
Regarding the effect of incubation time on GABA yield, we observed that the incubation time at 48 h allowed the highest GABA productivity (Figure 2B). However, with a longer incubation time, GABA production decreased; the culture time of the strain was too long, the consumption of the medium was not conducive to the growth of the strain, and the bacteria were in a decline period, which is not conducive to GABA synthesis. Furthermore, the GABA yield decreased in most strains at 72 h compared with 48 h, which may be linked to the degradation by the GABA aminotransferase (GABA-AT, EC 2.6.1.19) [43]. This enzyme degrades GABA into succinic semialdehyde, which is subsequently converted into succinate semialdehyde dehydrogenase (EC 1.2.1.16) for entry into the TCA cycle [44].
Microbial synthesis of GABA is regulated by acidity [29] and is directly related to tolerance to environmental acid stress [19,45]. As shown in Figure 2D, Lp. plantarum FRT7 produced a small amount of GABA at an initial of pH 4, and an initial pH of 6.5 to 7 was more helpful to GABA production. Similarly, Thuy et al. [46] reported that the production of GABA reached the maximum level by Pediococcus pentosaceus MN12 at a pH of 7. Ko et al. [47] reported that the production of GABA by LAB decreased considerably at an initial pH of 4, with the highest production of GABA at a pH of 6.4. Komatsuzaki et al. [25] reported that an optimal pH value for maintaining LAB GAD activity, and either too high or too low of a pH value, may lead to a partial loss of GAD activity. In microorganisms, GAD is the key enzyme for GABA biosynthesis [48]. GAD has been isolated from several LAB and the biochemical characteristics of some GAD have been characterized [25,49]. The results indicate that although most LAB were active at acidic pH, Lp. plantarum FRT7 produced the most GABA in the alkaline pH range, which is beneficial to GAD activity of Lp. plantarum FRT7, and this needs further study.
The role of MSG and PLP in the production of GABA is considered a cofactor of GAD, and GAD converts MSG into GABA [50]. An excessive initial MSG concentration of the fermentation substrate can inhibit cell growth or inhibit the production of GABA, while a low MSG concentration may not meet the needs of the high production of GABA [51]. The effect of MSG concentration on the production of GABA in the range of 0 to 3% was assessed. The optimal concentration of MSG for the production of GABA was 3% (Figure 2E), as the GAD coenzyme, PLP, can influence the production rate of GABA in LAB [19]. As shown in Figure 2F, the GABA contents of Lp. plantarum FRT7 increased as the PLP concentration increased to 2 mmol/L and then decreased as the PLP concentration further increased from 2 to 4 mmol/L. These results are consistent with the previous studies that the addition of PLP can improve GAD activity and GABA production [52,53]. The dose–effect relationship between PLP concentration and GABA production needs to be further studied.
The maximum value of GABA production by Lp. plantarum FRT7 predicted from the model was 1179.37 mg/L. The experiments were carried out under optimized conditions to verify the predicted results, and the experimental value was 1158.6 ± 21.22 mg/L, which was 115% higher than that in the basal MRS culture medium. Meanwhile, the experimental values of GABA production agreed well with the predicted values. The GABA yield by Lp. plantarum Taj-Apis362 and Lp. plantarum FBT215 increased from 1.76 to 7.15 mM and 144.02 ± 14.40 to 1812.16 mg/L under optimal culture conditions, respectively [40,54]. These results indicate that Lp. plantarum FRT7 has great potential for industry application.

5. Conclusions

In this study, ten Lp. plantarum strains successfully isolated from Chinese paocai, yogurt, fermented fish, sourdoughs, etc., had GABA production of 48.20 ± 3.44 ~100.74 ± 1.63 mg/L in an MRS culture medium. Lp. plantarum FRT7, with the highest GABA yield among the ten Lp. plantarum strains, was then selected for the optimization of the culture conditions. The medium composition and culture conditions were optimized by OFAT experiments. The results showed that the optimal conditions for the production of GABA were a culture temperature of 40℃, an incubation time of 48 h, an inoculum volume of 3%, an initial pH of 7, an MSG addition amount of 3%, and a PLP concentration of 2 mmol/L. The results showed that the GABA yield increased significantly from 100.75 ± 1.63 to 1158.6 ± 21.22 mg/L under optimal culture conditions via the OFAT strategy and RSM method. The prediction model is accurate and reliable, which provides guidance for follow-up research. Lp. plantarum FRT7 represents a promising strain for the production of GABA in the food industry. However, this still requires the determination of costs and other related factors.

Author Contributions

Conceptualization, H.C. and K.M.; Methodology, H.C. and X.L.; Software, D.L., Y.H. and X.X.; Validation, H.C. and X.L.; Formal Analysis, H.C., X.L. and Y.H.; Investigation, X.L., D.L. and X.X.; Resources, K.M., P.Y. and W.L.; Data Curation, H.C., X.L. and W.L.; Writing—Original Draft Preparation, H.C. and X.L.; Writing—Review & Editing, K.M. and P.Y.; Visualization, D.L., Y.H. and W.L.; Supervision, K.M.; Project Administration, K.M., W.L. and P.Y.; Funding Acquisition, K.M., W.L. and P.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key Research and Development Program of China, grant number 2022YFD1300601, the National Innovation Program of Agricultural Science and Technology in the Chinese Academy of Agricultural Sciences, grant number CAAS-ZDRW202305, and the Central Public-interest Scientific Institution Basal Research Fund, grant number 1610382023020.

Data Availability Statement

The datasets generated for this study are available on request to the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ngo, D.H.; Vo, T.S. An updated review on pharmaceutical properties of gamma-aminobutyric acid. Molecules 2019, 24, 2678. [Google Scholar] [CrossRef] [Green Version]
  2. Wu, J.Y.; Matsuda, T.; Roberts, E. Purification and characterization of glutamate decarboxylase from mouse brain. J. Biol. Chem. 1973, 248, 3029–3034. [Google Scholar] [CrossRef]
  3. Krulwich, T.A.; Sachs, G.; Padan, E. Molecular aspects of bacterial pH sensing and homeostasis. Nat. Rev. Microbiol. 2011, 5, 330–343. [Google Scholar] [CrossRef] [Green Version]
  4. Li, L.; Dou, N.; Zhang, H.; Wu, C. The versatile GABA in plants. Plant Signal Behav. 2021, 16, 1862565. [Google Scholar] [CrossRef] [PubMed]
  5. Nájera-Martínez, M.; López-Tapia, B.P.; Aguilera-Alvarado, G.P.; Madera-Sandoval, R.L.; Sánchez-Nieto, S.; Giron-Pérez, M.I.; Vega-López, A. Sub-basal increases of GABA enhance the synthesis of TNF-α, TGF-β, and IL-1β in the immune system organs of the Nile tilapia. J. Neuroimmunol. 2020, 348, 577382. [Google Scholar] [CrossRef]
  6. Wu, Z.; Wang, P.; Pan, D.; Zeng, X.; Guo, Y.; Zhao, G. Effect of adzuki bean sprout fermented milk enriched in γ-aminobutyric acid on mild depression in a mouse model. J. Dairy Sci. 2021, 104, 78–91. [Google Scholar] [CrossRef]
  7. Abdou, A.M.; Higashiguchi, S.; Horie, K.; Kim, M.; Hatta, H.; Yokogoshi, H. Relaxation and immunity enhancement effects of gamma-aminobutyric acid (GABA) administration in humans. BioFactors 2006, 26, 201–208. [Google Scholar] [CrossRef]
  8. Kalueff, A.; Nutt, D.J. Role of GABA in memory and anxiety. Depress. Anxiety 1996, 4, 100–110. [Google Scholar] [CrossRef]
  9. Hayakawa, K.; Kimura, M.; Kasaha, K.; Matsumoto, K.; Sansawa, H.; Yamori, Y. Effect of a gamma-aminobutyric acid-enriched dairy product on the blood pressure of spontaneously hypertensive and normotensive Wistar-Kyoto rats. Br. J. Nur. 2004, 92, 411–417. [Google Scholar]
  10. Ikegami, R.; Shimizu, I.; Sato, T.; Yoshida, Y.; Hayashi, Y.; Suda, M.; Katsuumi, G.; Li, J.; Wakasugi, T.; Minokoshi, Y.; et al. Gamma-aminobutyric acid signaling in brown adipose tissue promotes systemic metabolic derangement in obesity. Cell Rep. 2018, 24, 2827–2837.e5. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Hagiwara, H.; Seki, T.; Ariga, T. The effect of pre-germinated brown rice intake on blood glucose and PAI-1 levels in streptozotocin-induced diabetic rats. Biosci. Biotechnol. Biochem. 2004, 68, 444–447. [Google Scholar] [CrossRef]
  12. Adeghate, E.; Ponery, A.S. GABA in the endocrine pancreas: Cellular localization and function in normal and diabetic rats. Tissue Cell 2002, 34, 1–6. [Google Scholar] [CrossRef]
  13. Chang, V.H.; Chiu, T.H.; Fu, S.C. In vitro anti-inflammatory properties of fermented pepino (Solanum muricatum) milk by γ-aminobutyric acid-producing Lactobacillus brevis and an in vivo animal model for evaluating its effects on hypertension. J. Sci. Food Agric. 2016, 96, 192–198. [Google Scholar] [CrossRef]
  14. Ramesh, S.A.; Tyerman, S.D.; Gilliham, M.; Xu, B. γ-Aminobutyric acid (GABA) signalling in plants. Cell Mol. Life Sci. 2017, 74, 1577–1603. [Google Scholar] [CrossRef]
  15. Hao, R.; Schmit, J.C. Cloning of the gene for glutamate decarboxylase and its expression during conidiation in Neurospora crassa. Biochem. J. 1993, 293, 735–738. [Google Scholar] [CrossRef] [Green Version]
  16. Kono, I.; Himeno, K. Changes in gamma-aminobutyric acid content during beni-koji making. Biosci. Biotechnol. Biochem. 2000, 64, 617–619. [Google Scholar] [CrossRef]
  17. Maras, B.; Sweeney, G.; Barra, D.; Bossa, F.; John, R.A. The amino acid sequence of glutamate decarboxylase from Escherichia coli. Evolutionary relationship between mammalian and bacterial enzymes. Eur. J. Biochem. 1992, 204, 93–98. [Google Scholar] [CrossRef] [PubMed]
  18. Cui, Y.; Miao, K.; Niyaphorn, S.; Qu, X. Production of gamma-aminobutyric acid from lactic acid bacteria: A systematic review. Int. J. Mol. Sci. 2020, 21, 995. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Sarasa, S.B.; Mahendran, R.; Muthusamy, G.; Thankappan, B.; Selta, D.R.F.; Angayarkanni, J. A brief review on the non-protein amino acid, gamma-amino butyric acid (GABA): Its production and role in microbes. Curr. Microbiol. 2020, 77, 534–544. [Google Scholar] [CrossRef] [PubMed]
  20. Luo, H.; Liu, Z.; Xie, F.; Bilal, M.; Liu, L.; Yang, R.; Wang, Z. Microbial production of gamma-aminobutyric acid: Applications, state-of-the-art achievements, and future perspectives. Crit. Rev. Biotechnol. 2021, 41, 491–512. [Google Scholar] [CrossRef]
  21. Lee, K.W.; Shim, J.M.; Yao, Z.; Kim, J.A.; Kim, J.H. Properties of kimchi fermented with GABA-producing lactic acid bacteria as a starter. J. Microbiol. Biotechnol. 2018, 28, 534–541. [Google Scholar] [CrossRef]
  22. Dovom, M.R.E.; Habibi Najafi, M.B.; Rahnama Vosough, P.; Norouzi, N.; Ebadi Nezhad, S.J.; Mayo, B. Screening of lactic acid bacteria strains isolated from Iranian traditional dairy products for GABA production and optimization by response surface methodology. Sci. Rep. 2023, 13, 440. [Google Scholar] [CrossRef]
  23. Yu, H.H.; Choi, J.H.; Kang, K.M.; Hwang, H.J. Potential of a lactic acid bacterial starter culture with gamma-aminobutyric acid (GABA) activity for production of fermented sausage. Food Sci. Biotechnol. 2017, 26, 1333–1341. [Google Scholar] [CrossRef]
  24. Kim, J.; Yoon, Y.W.; Kim, M.S.; Lee, M.H.; Kim, G.A.; Bae, K.; Yoon, S.S. Gamma-aminobutyric acid fermentation in MRS-based medium by the fructophilic Lactiplantibacillus plantarum Y7. Food Sci. Biotechnol. 2022, 31, 333–341. [Google Scholar] [CrossRef]
  25. Komatsuzaki, N.; Nakamura, T.; Kimura, T.; Shima, J. Characterization of glutamate decarboxylase from a high gamma-aminobutyric acid (GABA)-producer, Lactobacillus paracasei. Biosci. Biotechnol. Biochem. 2008, 72, 278–285. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Jin, Y.; Wu, J.; Hu, D.; Li, J.; Zhu, W.; Yuan, L.; Chen, X.; Yao, J. Gamma-aminobutyric acid-producing Levilactobacillus brevis strains as probiotics in litchi juice fermentation. Foods 2023, 12, 30. [Google Scholar] [CrossRef] [PubMed]
  27. Linares, D.M.; O’Callaghan, T.F.; O’Connor, P.M.; Ross, R.P.; Stanton, C. Streptococcus thermophilus APC151 strain is suitable for the manufacture of naturally GABA-enriched bioactive yogurt. Front. Microbiol. 2016, 7, 1876. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Lin, Q. Submerged fermentation of Lactobacillus rhamnosus YS9 for γ-aminobutyric acid (GABA) production. Braz. J. Microbiol. 2013, 44, 183–187. [Google Scholar] [CrossRef] [Green Version]
  29. Li, H.; Cao, Y. Lactic acid bacterial cell factories for gamma-aminobutyric acid. Amino Acids 2010, 39, 1107–1116. [Google Scholar] [CrossRef]
  30. Seddik, H.A.; Bendali, F.; Gancel, F.; Fliss, I.; Spano, G.; Drider, D. Lactobacillus plantarum and its probiotic and food potentialities. Probiotics Antimicrob. Proteins 2017, 9, 111–122. [Google Scholar] [CrossRef]
  31. Raheem, A.; Wang, M.; Zhang, J.; Liang, L.; Liang, R.; Yin, Y.; Zhu, Y.; Yang, W.; Wang, L.; Lv, X.; et al. The probiotic potential of Lactobacillus plantarum strain RW1 isolated from canine faeces. J. Appl. Microbiol. 2022, 132, 2306–2322. [Google Scholar] [CrossRef] [PubMed]
  32. Zheng, Z.Y.; Cao, F.W.; Wang, W.J.; Yu, J.; Chen, C.; Chen, B.; Liu, J.X.; Firrman, J.; Renye, J.; Ren, D.X. Probiotic characteristics of Lactobacillus plantarum E680 and its effect on hypercholesterolemic mice. BMC Microbiol. 2020, 20, 239. [Google Scholar] [CrossRef]
  33. Cai, H.; Wen, Z.; Li, X.; Meng, K.; Yang, P. Lactobacillus plantarum FRT10 alleviated high-fat diet-induced obesity in mice through regulating the PPARα signal pathway and gut microbiota. Appl. Microbiol. Biotechnol. 2020, 104, 5959–5972. [Google Scholar] [CrossRef]
  34. Wang, G.; Chen, X.; Wang, L.; Zhao, L.; Xia, Y.; Ai, L. Diverse conditions contribute to the cholesterol-lowering ability of different Lactobacillus plantarum strains. Food Funct. 2021, 12, 1079–1086. [Google Scholar] [CrossRef]
  35. Letizia, F.; Albanese, G.; Testa, B.; Vergalito, F.; Bagnoli, D.; Di Martino, C.; Carillo, P.; Verrillo, L.; Succi, M.; Sorrentino, E.; et al. In Vitro assessment of bio-functional properties from Lactiplantibacillus plantarum strains. Curr. Issues Mol. Biol. 2022, 44, 2321–2334. [Google Scholar] [CrossRef] [PubMed]
  36. Pannerchelvan, S.; Rios-Solis, L.; Faizal Wong, F.W.; Zaidan, U.H.; Wasoh, H.; Mohamed, M.S.; Tan, J.S.; Mohamad, R.; Halim, M. Strategies for improvement of gamma-aminobutyric acid (GABA) biosynthesis via lactic acid bacteria (LAB) fermentation. Food Funct. 2023, 14, 3929–3948. [Google Scholar] [CrossRef]
  37. Zhu, Y.; Yu, J.; Jiao, C.; Tong, J.; Zhang, L.; Chang, Y.; Sun, W.; Jin, Q.; Cai, Y. Optimization of quercetin extraction method in Dendrobium officinale by response surface methodology. Heliyon 2019, 5, e02374. [Google Scholar] [CrossRef] [Green Version]
  38. Lyu, C.; Zhao, W.; Peng, C.; Hu, S.; Fang, H.; Hua, Y.; Yao, S.; Huang, J.; Mei, L. Exploring the contributions of two glutamate decarboxylase isozymes in Lactobacillus brevis to acid resistance and γ-aminobutyric acid production. Microb. Cell Fact. 2018, 7, 180. [Google Scholar] [CrossRef] [PubMed]
  39. Matejcekova, Z.; Spodniakova, S.; Dujmic, E.; Liptakova, D.; Valik, L. Modelling growth of Lactobacillus plantarum as a function of temperature: Effects of media. J. Food Nutr. Res. 2019, 58, 125–134. [Google Scholar]
  40. Tajabadi, N.; Ebrahimpour, A.; Baradaran, A.; Rahim, R.A.; Mahyudin, N.A.; Manap, M.Y.; Bakar, F.A.; Saari, N. Optimization of γ-aminobutyric acid production by Lactobacillus plantarum Taj-Apis362 from honeybees. Molecules 2015, 20, 6654–6669. [Google Scholar] [CrossRef] [Green Version]
  41. Di Cagno, R.; Mazzacane, F.; Rizzello, C.G.; De Angelis, M.; Giuliani, G.; Meloni, M.; De Servi, B.; Gobbetti, M. Synthesis of gamma-aminobutyric acid (GABA) by Lactobacillus plantarum DSM19463: Functional grape must beverage and dermatological applications. Appl. Microbiol. Biotechnol. 2010, 86, 731–741. [Google Scholar] [CrossRef]
  42. Yang, T.; Rao, Z.; Kimani, B.G.; Xu, M.; Zhang, X.; Yang, S.T. Two-step production of gamma-aminobutyric acid from cassava powder using corynebacterium glutamicum and Lactobacillus plantarum. J. Ind. Microbiol. Biotechnol. 2015, 42, 1157–1165. [Google Scholar] [CrossRef]
  43. Le Vo, T.D.; Kim, T.W.; Hong, S.H. Effects of glutamate decarboxylase and gamma-aminobutyric acid (GABA) transporter on the bioconversion of GABA in engineered Escherichia coli. Bioprocess Biosyst. Eng. 2012, 35, 645–650. [Google Scholar] [CrossRef] [PubMed]
  44. Kim, N.Y.; Kim, S.K.; Ra, C.H. Evaluation of gamma-aminobutyric acid (GABA) production by Lactobacillus plantarum using two-step fermentation. Bioprocess Biosyst. Eng. 2021, 44, 2099–2108. [Google Scholar] [CrossRef] [PubMed]
  45. Liu, Y.; Tang, H.; Lin, Z.; Xu, P. Mechanisms of acid tolerance in bacteria and prospects in biotechnology and bioremediation. Biotechnol. Adv. 2015, 33, 1484–1492. [Google Scholar] [CrossRef] [PubMed]
  46. Thuy, D.T.B.; Nguyen, A.; Khoo, K.S.; Chew, K.W.; Cnockaert, M.; Vandamme, P.; Ho, Y.C.; Huy, N.D.; Cocoletzi, H.H.; Show, P.L. Optimization of culture conditions for gamma-aminobutyric acid production by newly identified Pediococcus pentosaceus MN12 isolated from ‘mam nem’, a fermented fish sauce. Bioengineered 2021, 12, 54–62. [Google Scholar] [CrossRef]
  47. Ko, C.Y.; Lin, H.-T.V.; Tsai, G.J. Gamma-aminobutyric acid production in black soybean milk by Lactobacillus brevis FPA 3709 and the antidepressant effect of the fermented product on a forced swimming rat model. Process Biochem. 2013, 48, 559–568. [Google Scholar] [CrossRef]
  48. Wu, Q.; Tun, H.M.; Law, Y.S.; Khafipour, E.; Shah, N.P. Common distribution of gad operon in Lactobacillus brevis and its gadA contributes to efficient GABA synthesis toward cytosolic near-neutral pH. Front Microbiol. 2017, 8, 206. [Google Scholar] [CrossRef] [Green Version]
  49. Shin, S.M.; Kim, H.; Joo, Y.; Lee, S.J.; Lee, Y.J.; Lee, S.J.; Lee, D.W. Characterization of glutamate decarboxylase from Lactobacillus plantarum and its C-terminal function for the pH dependence of activity. J. Agric. Food Chem. 2014, 62, 12186–12193. [Google Scholar] [CrossRef] [PubMed]
  50. Hussin, F.S.; Chay, S.Y.; Hussin, A.S.M.; Wan Ibadullah, W.Z.; Muhialdin, B.J.; Abd Ghani, M.S.; Saari, N. GABA enhancement by simple carbohydrates in yoghurt fermented using novel, self-cloned Lactobacillus plantarum Taj-Apis362 and metabolomics profiling. Sci. Rep. 2021, 11, 9417. [Google Scholar] [CrossRef]
  51. Yang, S.Y.; Lü, F.X.; Lu, Z.X.; Bie, X.M.; Jiao, Y.; Sun, L.J.; Yu, B. Production of gamma-aminobutyric acid by Streptococcus salivarius subsp. thermophilus Y2 under submerged fermentation. Amino Acids 2008, 34, 473–478. [Google Scholar] [CrossRef]
  52. Wu, C.H.; Hsueh, Y.H.; Kuo, J.M.; Liu, S.J. Characterization of a potential probiotic Lactobacillus brevis RK03 and efficient production of γ-aminobutyric acid in batch fermentation. Int. J. Mol. Sci. 2018, 19, 143. [Google Scholar] [CrossRef] [Green Version]
  53. Elbaloula, M.F.; Hassan, A.B. Effect of different salt concentrations on the gamma-aminobutyric-acid content and glutamate decarboxylase activity in germinated sorghum (Sorghum bicolor L. Moench) grain. Food Sci. Nutr. 2022, 10, 2050–2056. [Google Scholar] [CrossRef]
  54. Kim, J.; Lee, M.H.; Kim, M.S.; Kim, G.H.; Yoon, S.S. Probiotic properties and optimization of gamma-aminobutyric acid production by Lactiplantibacillus plantarum FBT215. J. Microbiol. Biotechnol. 2022, 32, 783–791. [Google Scholar] [CrossRef]
Foods 12 03034 g001

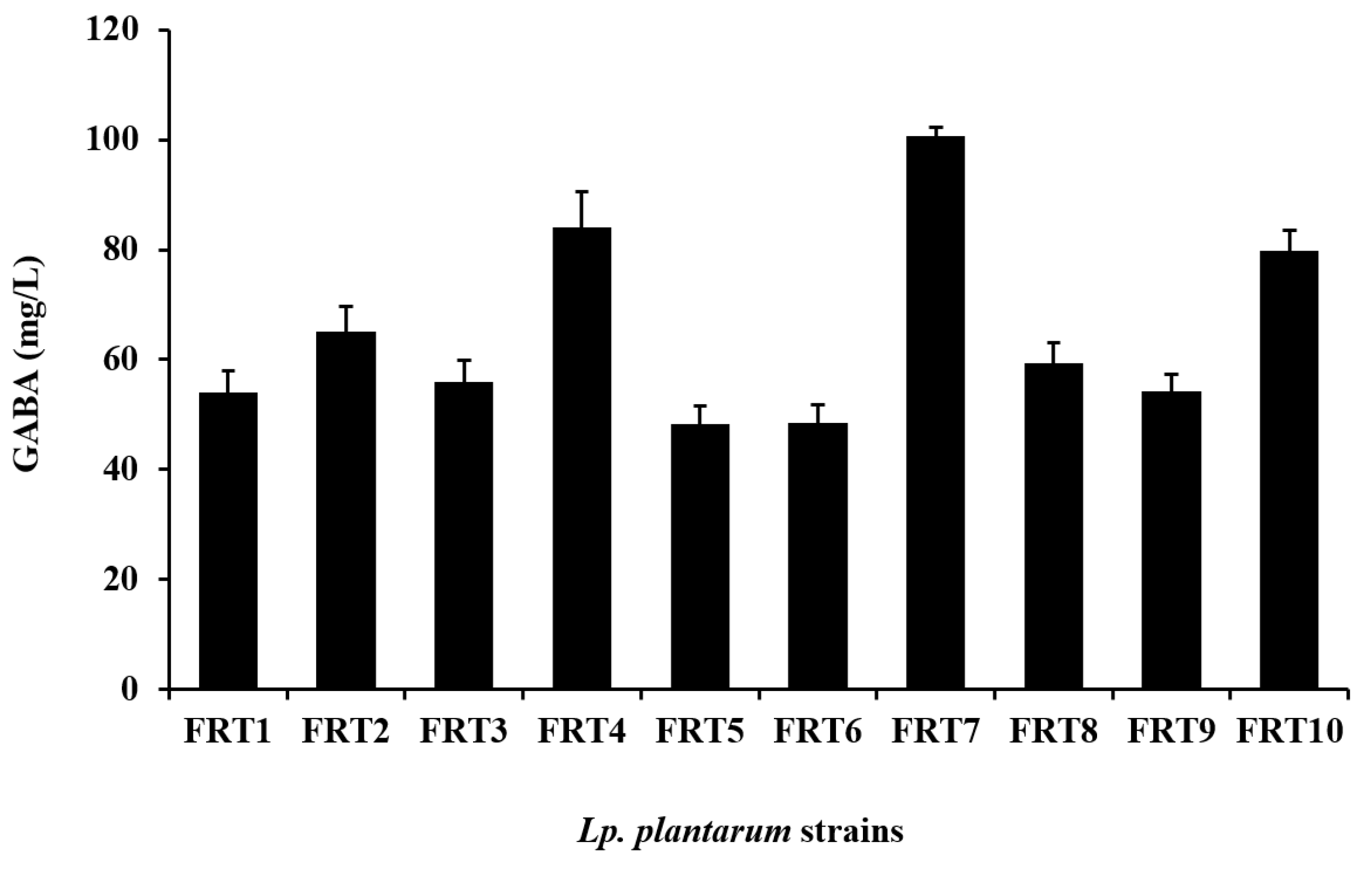

Figure 1. Comparison of GABA production in ten Lp. plantarum strains. The strains were cultured in an MRS culture medium containing 3% MSG at 30 °C for 24 h. Data were expressed as the mean ± SD of three replicates.
Figure 1. Comparison of GABA production in ten Lp. plantarum strains. The strains were cultured in an MRS culture medium containing 3% MSG at 30 °C for 24 h. Data were expressed as the mean ± SD of three replicates.
Foods 12 03034 g001
Foods 12 03034 g002

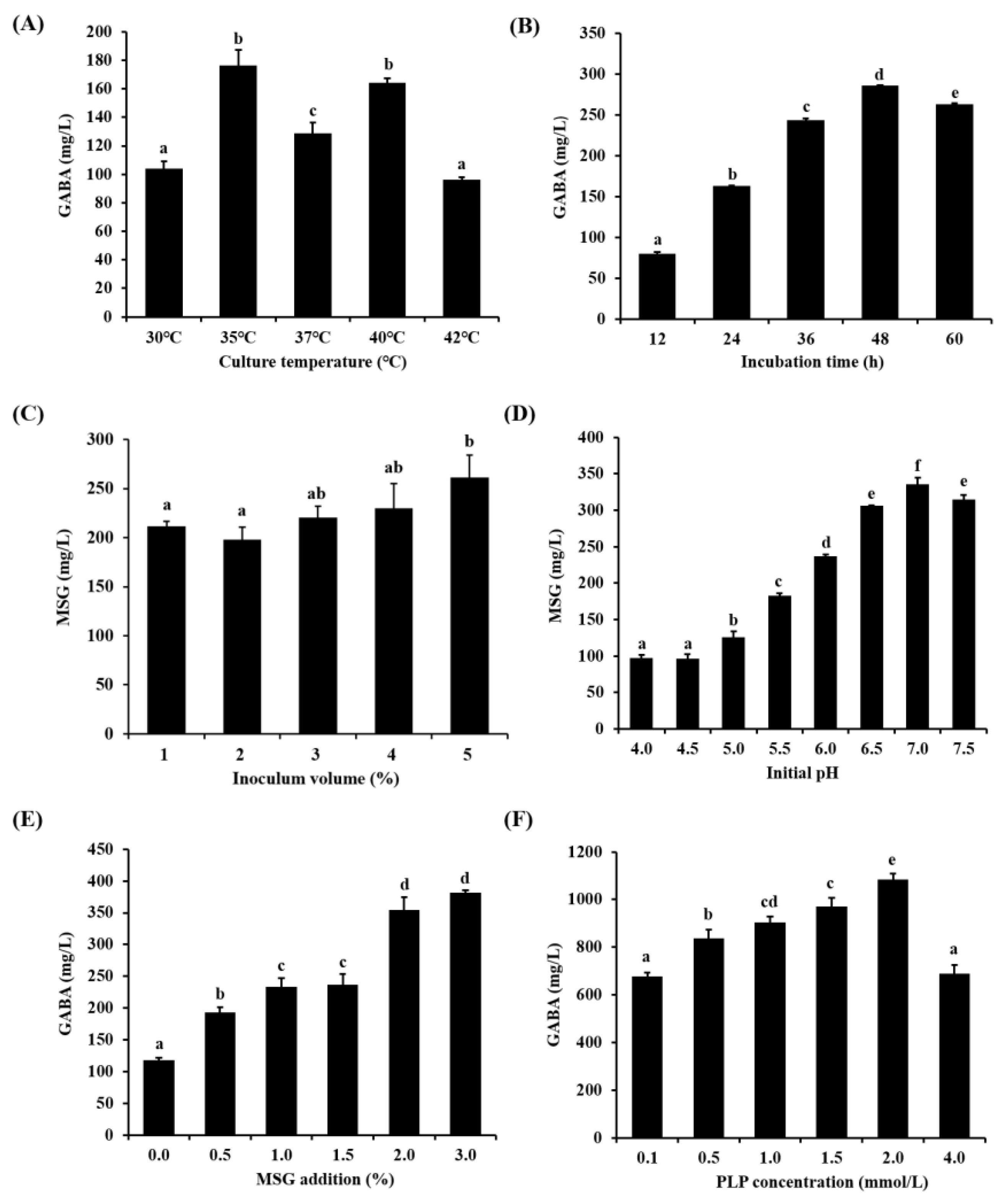

Figure 2. The GABA yield by Lp. plantarum FRT7 in the modified MRS culture medium. (A) Effect of fermentation temperature on the production of GABA by Lp. plantarum FRT7. (B) Effects of fermentation time on the production of GABA by Lp. plantarum FRT7. (C) Effects of inoculum volume on the production of GABA by Lp. plantarum FRT7. (D) Effects of initial pH on the production of GABA by Lp. plantarum FRT7. (E) Effect of initial MSG addition on the production of GABA. (F) Effect of PLP addition on the production of GABA. The vertical bars represent the SD from 3 replicates. Bars without a common letter had significant differences (p < 0.05).
Figure 2. The GABA yield by Lp. plantarum FRT7 in the modified MRS culture medium. (A) Effect of fermentation temperature on the production of GABA by Lp. plantarum FRT7. (B) Effects of fermentation time on the production of GABA by Lp. plantarum FRT7. (C) Effects of inoculum volume on the production of GABA by Lp. plantarum FRT7. (D) Effects of initial pH on the production of GABA by Lp. plantarum FRT7. (E) Effect of initial MSG addition on the production of GABA. (F) Effect of PLP addition on the production of GABA. The vertical bars represent the SD from 3 replicates. Bars without a common letter had significant differences (p < 0.05).
Foods 12 03034 g002
Foods 12 03034 g003
Figure 3. The three-dimensional curved surface diagram shows the influence of different variables on the production of GABA. (A) Effects of initial MSG addition and incubation time on GABA yield. (B) Effects of PLP concentration and incubation time on GABA yield. (C) Effects of PLP concentration and initial MSG addition on GABA yield.
Figure 3. The three-dimensional curved surface diagram shows the influence of different variables on the production of GABA. (A) Effects of initial MSG addition and incubation time on GABA yield. (B) Effects of PLP concentration and incubation time on GABA yield. (C) Effects of PLP concentration and initial MSG addition on GABA yield.
Foods 12 03034 g003
Table 1. Factors and levels used in response surface analysis.
Table 1. Factors and levels used in response surface analysis.
FactorsLevels
−101
(A) culture temperature (°C)374042
(B) incubation time (h)364860
(C) inoculum volume (%)345
(D) initial pH6.577.5
(E) MSG concentration (%) 123
(F) PLP concentration (mmol/L)124
Table 2. Lp. plantarum FRT7 treatment’s incorporation and responses in the CCD with actual and predicted values of the production of GABA.
Table 2. Lp. plantarum FRT7 treatment’s incorporation and responses in the CCD with actual and predicted values of the production of GABA.
RunCulture Temperature (℃)Incubation Time (h)Inoculum Volume (%)pHMSG Concentration
(%) 		PLP Concentration (mmol/L)Actual GABA
(mg/L)		Predicted GABA
(mg/L)
10−1−10−10495.79 ± 14.03553.98
2001−101604.77 ± 35.52541.36
300−1−10−1551.66 ± 24.03532.39
4−110100555.92 ± 37.05581.63
50000001179.39 ± 24.981162.04
60000001190.21 ± 39.011162.04
70100−1−1274.63 ± 17.05328.61
81−10100193.7 ± 25.15209.39
9−1001−10586.33 ± 41.55555.86
10−10100−1406.06 ± 16.24442.59
11100−1−10263.19 ± 16.35265.71
120000001148.86 ± 32.071162.04
130−1−1010540.41 ± 45.10536.74
140−100−11455.2 ± 15.09450.41
15110−100200.08 ± 19.79236.79
16−1−10100390.07 ± 13.20374.07
17−100110611.71 ± 41.66 588.47
18−100−110559.62 ± 27.21566.96
190000001186.71 ± 32.451162.04
20−100−1−10509.63 ± 40.5503.59
211001−10332.41 ± 9.15345.78
220100−11568.81 ± 26.12618.39
2301001−1619.11 ± 25.88554.47
24001−10−1412.36 ± 20.89482.92
250−1001−1427.09 ± 16.12446.94
26−10−1001412.6 ± 19.98437.65
271−10−100173.84 ± 3.96168.84
2800−110−1545.36 ± 27.21548.49
29100−110318.78 ± 25.07328.54
30−101001472.55 ± 7.89509.02
310−100−1−1430.75 ± 11.20354.04
32011010690.45 ± 45.23701.70
33110100313.76 ± 21.00325.62
34101001202.99 ± 15.51249.66
3501−1010715.84 ± 30.22732.72
360−10011304.53 ± 29.28319.99
3710100−1179.55 ± 3.3594.22
380−110−10456.94 ± 12.47509.49
3910−1001434.32 ± 20.58337.51
4010−100−1217.31 ± 15.19241.11
410000001100.2 ± 31.241162.04
42100110351.1 ± 5.89377.85
43−1−10−100393.89 ± 21.30361.32
440000001166.85 ± 25.601162.04
45001101667.84 ± 15.09626.83
460110−10654.79 ± 21.34589.02
47010011613.66 ± 35.04620.93
4800110−1438.92 ± 27.39463.40
490−11010512.22 ± 35.71489.21
50−110−100557.01 ± 20.72520.61
5100−1101663.17 ± 35.81652.88
5200−1−101495.99 ± 29.11531.79
53−10−100−1416.65 ± 13.45430.26
5401−10−10663.43 ± 27.82617.00
Notes: Values are means of three replicates ± SDs. The Box–Behnken design was used in the experiment, and the predicted value was obtained by regression equation analysis.
Table 3. Analysis of variance for GABA production by Lp. plantarum FRT7.
Table 3. Analysis of variance for GABA production by Lp. plantarum FRT7.
SourceSSDFMSF ValueProb > F
Model3.66 × 106271.36 × 10544.66<0.0001significant
 A-A3.02 × 10513.02 × 10599.31<0.0001
 B-B1.14 × 10511.14 × 10537.48<0.0001
 C-C8553.7718553.772.820.1053
 D-D15,477.24115,477.245.090.0326
 E-E13,662.24113,662.244.50.0437
 F-F39,770.41139,770.4113.090.0013
 AB4171.0414171.041.370.2519
 AC12,676.3112,676.34.170.0513
 AD772.841772.840.250.6183
 AE0.1510.154.89 × 10-50.9945
 AF3960.9513960.951.30.2639
 BC136.211136.210.0450.834
 BD1165.2411165.240.380.5411
 BE17,677.7117,677.75.820.0232
 BF18,705.65118,705.656.160.0199
 CD634.571634.570.210.6515
 CE4.6414.641.53 × 10-30.9691
 CF3485.7213485.721.150.294
 DE472.941472.940.160.6964
 DF5511.9815511.981.810.1896
 EF24,935.91124,935.918.210.0081
 A^21.50 × 10611.50 × 106493.91<0.0001
 B^26.72 × 10516.72 × 105221.19<0.0001
 C^22.44 × 10512.44 × 10580.2<0.0001
 D^23.23 × 10513.23 × 105106.3<0.0001
 E^22.68 × 10512.68 × 10588.07<0.0001
 F^28.26 × 10518.26 × 105271.95<0.0001
Residual78,991.76263038.14
Lack of Fit73,267.54213488.933.050.1097not significant
Pure Error5724.2151144.84
Cor Total3.74 × 10653
Notes: SS, sum of squares; MS, mean squares; A, culture temperature; B, incubation time; C, inoculum volume; D, pH; E, initial MSG addition; G, PLP concentration.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cai, H.; Li, X.; Li, D.; Liu, W.; Han, Y.; Xu, X.; Yang, P.; Meng, K. Optimization of Gamma-Aminobutyric Acid Production by Lactiplantibacillus plantarum FRT7 from Chinese Paocai. Foods 2023, 12, 3034. https://doi.org/10.3390/foods12163034

AMA Style

Cai H, Li X, Li D, Liu W, Han Y, Xu X, Yang P, Meng K. Optimization of Gamma-Aminobutyric Acid Production by Lactiplantibacillus plantarum FRT7 from Chinese Paocai. Foods. 2023; 12(16):3034. https://doi.org/10.3390/foods12163034

Chicago/Turabian Style

Cai, Hongying, Xuan Li, Daojie Li, Weiwei Liu, Yunsheng Han, Xin Xu, Peilong Yang, and Kun Meng. 2023. "Optimization of Gamma-Aminobutyric Acid Production by Lactiplantibacillus plantarum FRT7 from Chinese Paocai" Foods 12, no. 16: 3034. https://doi.org/10.3390/foods12163034

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
