iTRAQ-Based Proteomic Analyses of Regulation of Isothiocyanate and Endogenous Selenium Metabolism in Broccoli Sprouts by Exogenous Sodium Selenite

by
Xiaolan Quan
1,
Yuwei Cheng
1,
Zhengfei Yang
1,
Jia Yang
2,*,
Weiming Fang
1 and
Yongqi Yin
1,*
1
College of Food Science and Engineering, Yangzhou University, Yangzhou 225127, China
2
Yangzhou Center for Food and Drug Control, Yangzhou 225009, China
*
Authors to whom correspondence should be addressed.
Foods 2023, 12(7), 1397; https://doi.org/10.3390/foods12071397
Submission received: 3 March 2023 / Revised: 23 March 2023 / Accepted: 23 March 2023 / Published: 25 March 2023
(This article belongs to the Special Issue Plant-Based Food：From Nutritional Value to Health Benefits)
Browse Figures
Versions Notes

Abstract

:
Broccoli sprouts have high isothiocyanate and selenium accumulation capacity. This study used a combination of methods, including physiological and biochemical, gene transcription and proteomic, to investigate the isothiocyanate and endogenous selenium accumulation mechanisms in broccoli sprouts under exogenous sodium selenite treatment during germination. Compared with the control, the sprouts length of broccoli sprouts under exogenous selenium treatment was significantly lower, and the contents of total phenol and malondialdehyde in 6-day-old broccoli sprouts were substantially higher. The contents of isothiocyanate and sulforaphane in 4-day-old were increased by up-regulating the relative expression of genes of UGT74B1, OX-1, and ST5b. The relative expression of BoSultr1;1, BoSMT, BoHMT1, and BoCOQ5-2 genes regulating selenium metabolism was significantly up-regulated. In addition, 354 proteins in 4-day-old broccoli sprouts showed different relative abundance compared to the control under selenium treatment. These proteins were classified into 14 functional categories. It was discovered that metabolic pathways and biosynthetic pathways of secondary metabolites were significantly enriched. The above results showed that exogenous selenium was beneficial in inducing the accumulation of isothiocyanate and selenium during the growth of broccoli sprouts.

1. Introduction

Broccoli, an edible plant in Brassica, is rich in a variety of functional, active ingredients beneficial to human health, such as isothiocyanates (ITCs), sulforaphane (SFN), glucosinolates (GLs), phenolic compounds, etc. [1,2,3]. Shapiro et al. [4] showed that high consumption of broccoli could reduce the incidence of cancer, which is mainly related to ITCs [5]. In plants, ITCs are hydrolysates produced by hydrolysis of GLs under the action of myrosinase (MYR, EC3.2.1.147) [6], and ITCs are effective carcinogenic blockers, widely existing in broccoli [7]. They have many effects, such as antioxidation [8], anti-inflammatory [9], and prevention of cardiovascular disease [10]. In addition, SFN, an ITC has proven, has been found to have anticancer activity [11]. Broccoli sprouts are more suited to the enrichment of ITCs than mature broccoli because of the physiological and biochemical changes that occur during germination [12]. Moreover, abiotic stress is a widely used and effective strategy to promote the enrichment of ITCs in broccoli sprouts [13]. Based on the above factor, the enrichment of ITCs in broccoli sprouts under abiotic stress has aroused people’s interest.
Selenium (Se) is one of the trace elements found in the human body. It plays a crucial part in the regular function of the immune system and thyroid gland [14]. The primary source of Se in the human body is the consumption of plants high in Se. Therefore, a practical and effective way to produce foods containing Se is to enhance plants with Se at the proper concentration. Se supplementation can also promote the accumulation of various healthy secondary metabolites in plants [15,16]. Tian et al. [17] showed that the contents of SFN, anthocyanin, and flavonoids in broccoli sprouts increased markedly after Se treatment. In addition, broccoli sprouts can accumulate high Se, and the total Se content is dramatically increased under exogenous Se treatment [18]. Exogenous Se treatment increased the Se content in broccoli sprouts [17,18]. However, the molecular mechanism of exogenous Se in promoting the accumulation of ITCs and Se in broccoli sprouts is still unclear.
Based on the aforementioned issues, the proteome modifications caused by exogenous Se stress were investigated using the isobaric tag for the relative and absolute quantitative (iTRAQ) labeling approach. The findings of physiological and biochemical analyses, gene expression levels, and comparative proteomics analysis all contribute to a better understanding of the mechanisms affecting ITCs metabolism and Se metabolism in broccoli sprouts in response to Na2SeO3 treatment.

2. Materials and Methods

2.1. Plant Growth and Experimental Design

The broccoli seeds (Brassica oleracea L. var. Italica) were cleaned before being sterilized for 15 min with 1% (v/v) sodium hypochlorite. They were then soaked in distilled water at 30 °C for 4 h. The soaked seeds were then equally distributed over a clear case, covered with vermiculite, and allowed to germinate at 30 °C in an incubator with a 16 h light/8 h dark cycle. After a day of sprouting with distilled water, the treatments were carried out with different additives: (1) CK: distilled water; (2) Se: 0.10 mM Na2SeO3. Samples of 4-day-old and 6-day-old broccoli sprouts were taken randomly, then flash-frozen in liquid nitrogen and kept at −20 °C for later examination. The concentration of Na2SeO3 and the germination time depended on our pre-experiments.

2.2. Determination of Sprout Length, Fresh Weight, Malondialdehyde Content, and Total Phenolics Content

Thirty sprouts from each treatment were randomly selected to be measured in length with a micrometer and weighed in fresh weight (FW) with an electronic balance. The contents of malondialdehyde (MDA) and the total phenolics were determined following the protocol by Zhuang et al. [19] and Mencin et al. [20], respectively.

2.3. Determination of ITCs Content, Myrosinase Activity, Glucosinolates Content, and Sulforaphane Content

The content of ITCs was determined following the protocol by Ding et al. [5]. Absorbance was measured using a spectrophotometer (UV-7504C, Xinmao Instrument Co., Shanghai, China) at 365 nm. A standard curve was prepared with sulforaphane. The ITCs content was expressed as mg/100 g fresh weight of broccoli sprouts. MYR activity determination was conducted as described by Burow et al. [21]. Glucose content was determined by glucose kit (F006-1-1, Nanjing Jiancheng Biological Engineering Research Institute, Nanjing, China). Each minute was converted to 1 nmol glucose by MYR as one enzyme activity unit (U/mg protein). The GL content was measured according to Guo et al. [22]. Extraction and determination of SFN were performed according to Guo et al. [23]. The extracts were analyzed using a Thermo UHPLC U3000 Pump system (Thermo Fisher Scientific, San Jose, CA, USA) with a Gemini-NX C18 RP column (5 μm particle size, 3 × 250 mm, Phenomenex, Warsaw, Poland).

2.4. Determination of Inorganic Selenium and Organic Selenium Content

The separation of inorganic Se and organic Se was, according to Sun et al. [24]. The content of Se in the supernatant and precipitate measured based on the method of Lyi et al. [25] indicates the inorganic and organic Se content of the sample, respectively.

2.5. RNA Extraction and Quantitative Real-Time PCR Analysis

The total RNA isolated and reverse transcription was performed using the E.A.N.A.TM Plant RNA Kit (R6827-01, OMEGA, Norcross, GA, USA) and the PrimeScriptTM RT Master Mix Kit (RR047A, Takara, Japan), respectively. Quantitative real-time PCR was performed on the cDNA samples using TB Green Premix DimerEraserTM (RR091A, Takara, Japan). A list of the sequence-specific primers employed in this study is provided in Table 1.

2.6. Protein Extraction, Digestion, and iTRAQ Labeling

The total protein in 4-day-old broccoli sprouts was extracted, determined by using the Plant Total Protein Extraction Kit (PE0230, Sigma-Aldrich, St. Louis, MO, USA) and the PierceTM Coomassie Protein Assay Kit (23200, Thermo Fisher Scientific, Waltham, MA, USA), respectively. Following the procedure by Cheng et al. [26], the sample was reduced, alkylated, and then subjected to trypsin digestion. The iTRAQ 8-plex Kit (4381662, Sigma-Aldrich, St. Louis, MO, USA) was then used to label each sample individually by the manufacturer’s instructions. All samples were mixed and lyophilized finally.

2.7. LC-MS/MS and Data Analysis

The labeled samples were fractionated using a Thermo UHPLC U3000 Pump system (Thermo Fisher Scientific, San Jose, CA, USA) with a Gemini-NX C18 RP column (5 μm particle size, 3 × 250 mm, Phenomenex, Torrance, CA, USA). Detailed specific parameters for the liquid chromatography tandem mass spectrometry analysis are given in our previous research [26,27]. The raw tandem mass spectrometry files were processed using the Proteome Discoverer Software. Protein identification was performed using the uniport Arabidopsis thaliana database. The search parameters were as follows: trypsin was selected as the enzyme, with the tolerance set at one missed cleavage, a peptide allowance of 10 ppm, and an MS and MS/MS allowance of 0.02 Da. A protein had to contain at least two distinct peptides with a p-value less than 0.05 and a fold change larger than 1.5 or less than 0.67 to be classified as important differentially abundant proteins (DAPs) [28]. Identified proteins were annotated with their biological functions according to Kyoto Encyclopedia of Genes and Genomes (KEGG, http://www.kegg.jp/kegg/pathway.html, accessed on 10 July 2022) and the literature. Information on the DAPs was obtained from the universal protein resource (http://www.uniprot.org/, accessed on 10 July 2022). Pathway enrichment analysis was performed using DAVID6.8 (https://david.ncifcrf.gov/, accessed on 10 July 2022).

2.8. Statistical Analyses

The mean values ± standard deviation of the experimental data was expressed with three replications. One-way ANOVA and Tukey’s multiple tests were used to assess the data statistically, and a p-value of 0.05 was deemed significant. Relative gene expression was analyzed by the 2−ΔΔCt method [29].

3. Results

3.1. Effect of Selenium on Growth Performance, Sprout Length, Fresh Weight, Malondialdehyde Content, and Total Phenolic Content of Broccoli Sprouts

The Na2SeO3 treatment considerably reduced the length of the broccoli sprouts and hindered their growth and development (Figure 1I,II) compared to the CK. However, it did not significantly affect their fresh weight (Figure 1III). MDA content, as a sign of membrane damage, significantly increased in 6-day-old broccoli sprouts treated with Na2SeO3 (p < 0.05) (Figure 1IV). To grow normally, total phenols with certain antioxidant capacities played a role, and their content increased dramatically by Na2SeO3 treatment (p < 0.05) (Figure 1V). The above facts showed that Na2SeO3 treatment hindered the growth and development of broccoli sprouts.

3.2. Effect of Selenium on ITCs Content, Myrosinase Activity, Glucosinolates Content, and Sulforaphane Content of Broccoli Sprouts

GLs can be transformed by MYR into ITCs in plants. With Na2SeO3 treatment, the content of ITCs and SFN in broccoli sprouts all dramatically improved during germination as compared to the CK (p < 0.05), and the contents of ITCs and SFN in 6-day-old broccoli sprouts under Na2SeO3 treatment were 1.73 and 1.77 times more than the CK, respectively (Figure 2I,IV). The MYR activity and GLs content in 6-day-old broccoli sprouts increased significantly in 6-day-old broccoli sprouts (p < 0.05) (Figure 2II,III). In contrast to the CK, the GLs content dramatically dropped after 4 days of germination (p < 0.05) (Figure 2III). The above facts showed that Na2SeO3 treatment could promote the accumulation of ITCs in broccoli sprouts.

3.3. Effect of Selenium on Inorganic Selenium Content and Organic Selenium Content of Broccoli Sprouts

When broccoli sprouts were exposed to Na2SeO3 during germination, both the inorganic and organic Se contents drastically increased (p < 0.05) (Figure 3), and in 4-day-old broccoli sprouts treated with Na2SeO3, the contents of inorganic and organic Se were 199.19 and 153.06 times higher than the CK, respectively. According to the information, Na2SeO3 treatment can encourage Se accumulation in broccoli sprouts.

3.4. Changes in Gene Expression of ITCs and Selenium Metabolism Key Enzyme in Broccoli Sprouts

Figure 4I–VI showed the relative expression of ITCs metabolism key enzyme in broccoli sprouts treated with exogenous Se. As the figures show, the expression of ESP, UGT74B1, OX-1, and ST5b was significantly induced by Se treatment of 4-day-old broccoli sprouts, which were 118.48, 15.58, 7.62, and 31.34 times more than that of CK, respectively. While the expression of MYR and MYB28 showed no significant change under Na2SeO3 treatment (p > 0.05).
Figure 4 VII–XI showed the relative expression of the Se metabolism key enzyme in broccoli sprouts under Na2SeO3 treatment. After Na2SeO3 treated 4-day-old broccoli sprouts, the expressions of BoSultr1;1, BoSMT, BoHMT1 and BoCOQ5-2 were 31.05-, 123.93-, 505.17-, and 22.63-fold of that in the CK, respectively, while Na2SeO3 treatment significantly decreased the expression level of BoSAT (p < 0.05). Compared with the CK, the expression of BoSAT, BoSMT BoHMT1, and BoCOQ5-2 showed no significant change in 6-day-old broccoli sprouts (p > 0.05).

3.5. iTRAQ Analysis and Identification of Differentially Abundant Proteins

When the expression ratio is more than 1.50 or less than 0.67 and p < 0.05, it is considered DAPs [28]. The Se/CK samples in the present study had 354 DAPs, including 343 up-regulated and 11 down-regulated proteins (Table S1 and Figure 5).
In this study, these DAPs could be classified into 14 functional classes based on the molecular functions listed on the UniProt and KEGG websites, i.e., amino acid metabolism, carbohydrate metabolism, cell growth/division, defende/stress, energy, lipid metabolism, nucleotide metabolism, protein biosynthesis, protein destination and storage, protein folding and degradation, secondary metabolism, signal transduction, and transcription, transport and other (Figure 6I). After four days of germination in Na2SeO3, the abundance of all DAPs in the carbohydrate metabolism, cell growth/division, defende/stress, lipid metabolism, nucleotide metabolism, protein destination and storage, protein folding and degradation, and signal transduction classes increased significantly (Figure 6II).
Bioinformatics methods were used to evaluate these DAPs to get pertinent route data. To gather pertinent pathway data, these DAPs were analyzed utilizing bioinformatics methods. Biological process (BP), cellular component (CC), and molecular function (MF) were the three main gene ontology (GO) categories into which all the discovered peptides and DAPs under the Na2SeO3 treatment were categorized. The most frequent CC is chloroplasts and the cytosol, while the most frequent MF involves ribosome structural components. The most frequent BP was oxidation-reduction reactions and translation (Figure 7).
The KEGG database was used to do additional studies on the DAPs and examine the affected metabolic pathways. With a threshold of a p-value of less than 0.05, the pathway enrichment analysis discovered 22 KEGG pathways (Table 2). Most of the KEGG pathways were metabolic pathways, such as the synthesis of secondary metabolites, biosynthesis of antibiotics, and carbon metabolism. In the present study, a total of 23 differentia-regulated proteins involved in ITCs and selenium metabolism in 4-day-old broccoli sprouts were identified (Figure 8).

4. Discussion

The level of secondary metabolites in plants can be affected by abiotic stress [13]. For example, the production of sulfur-containing compounds GLs and SFN increased under sulfate stress [30]. While under the stress of exogenous Se, the growth and development of broccoli sprouts were significantly inhibited, and the length of the sprouts was significantly shortened (Figure 1I,II), which may be due to the production of many cellular structure-destroying components [31]. The MDA content, a sign of membrane damage, increased significantly in 6-day-old broccoli sprouts in this study (Figure 1IV). Total phenols with specified antioxidant capabilities were required for optimal growth, and their concentration increased considerably after Na2SeO3 treatment (Figure 1V). When plants are stressed, the GLs are hydrolyzed by MYR [32], and the ITCs content increased significantly under Se stress compared with the control in this study (Figure 2I). Gui et al. [33] also showed that Se could participate in vital physiological and metabolic processes and improve the antioxidant defence system in plants. Moreover, 343 DAPs out of 354 DAPs were up-regulated, and all DAPs associated with stress were up-regulated to ensure broccoli sprout development (Figure 5). In addition, the concentration of selenium also affects the growth of broccoli sprouts. A low concentration of Se can promote the growth of plants, while a high concentration of Se will inhibit the growth of sprouts [31]. Therefore, it may be that the concentration of Se used in this experiment was too high, which inhibited the growth and development of broccoli sprouts.
S and Se are members of the VI–A elemental family of chalcogens. Thus, they have similar physical and chemical characteristics and share a common metabolic pathway in plants. Selenite treatment is beneficial to the biosynthesis of GLs and promotes the accumulation of Se in plants [34]. In our study, exogenous Se treatment enhanced the content of ITCs and SFN in broccoli sprouts (Figure 2I,IV). While the GLs content in 4-day-old broccoli sprouts decreased significantly (Figure 2III), it differed from the conclusion of Wang et al. [34]. It could be because broccoli and cabbage are different species or the consumption of cysteine in broccoli sprouts treated with Na2SeO3, as McKenzie et al. [35] showed that cysteine is the S donor of GLs and Se will bind to cysteine in the process of metabolism in plants to form selenocysteine. The level of inorganic Se and organic Se in broccoli sprouts increased considerably after treatment with exogenous Se (Figure 3), consistent with Avila et al. [36].
The transcription levels of key genes related to ITCs and Se metabolism in broccoli sprouts under Na2SeO3 treatment were analyzed using qRT-PCR (Figure 4). MYB28, OX-1, and ST5b regulate the synthesis of GLs, MYR is involved in the hydrolysis of GLs to ITCs, while ESP is involved in the conversion of GLs to nitrile products, and UGT74B1 regulates the production of SFN, which is an ITC [3,37]. In this study, Na2SeO3 treatment caused several alterations in the expression of genes associated with ITC production. Na2SeO3 up-regulated the gene expression of OX-1 and ST5b while related to GLs metabolism in 4-day-old broccoli sprouts. Nevertheless, GLs content in broccoli sprouts has no significant change compared to the control, which may be related to the excessive concentration of selenite that consumed the S donor cysteine of GLs [35]. The up-regulation of UGT74B1 promoted the accumulation of sulforaphane in 4-day-old broccoli sprouts. BoSultr1;1 and BoCOQ5-2 are involved in promoting the absorption of Se in plants, and BoSMT, BoSAT, and BoHMT1 play an important role in transforming the inorganic Se to organic Se [38,39]. In our study, under the treatment of exogenous Se, BoSultr1;1, BoSMT, BoHMT1 and BoCOQ5-2 genes in broccoli sprouts were significantly up-regulated, which promoted the absorption and transformation of selenite by 4-day-old broccoli sprouts.
The proteomic study further clarified the mechanism of accumulation of ITCs and endogenous Se in 4-day-old broccoli sprouts treated with Na2SeO3. A total of 354 DAPs were found in the current study’s Se/CK comparison group, of which protein biosynthesis, amino acid metabolism, carbon metabolism, and defence-related DAPs accounted for 17.5%, 15.3%, 11.3%, and 10.2%, respectively. According to the GO functional analysis, the proteins related to chloroplast and cytosol were highly expressed, which was beneficial to the enrichment of endogenous Se in broccoli sprouts, for chloroplasts played a key role in the absorption and transformation of Se in plants [39]. In addition, ATP-sulfurylase plays a catalytic selenate role in the cytosol [40]. The biological pathway of expressed proteins has been described using KEGG pathway analysis. A total of 22 metabolic pathways were identified, most of which belonged to metabolic pathways, such as the synthesis of secondary metabolites, biosynthesis of antibiotics and carbon metabolism, etc.
As shown in Figure 8, methylthioalkylmalate synthase 1 (MAM1), isopropylmalate isomerase 2 (IPMI2), 3-isopropylmalate dehydratase large subunit (IIL1), 3-isopropylmalate dehydrogenase (IMD1), branched-chain-amino-acid aminotransferase 3 (BCAT3), cytosolic sulfotransferase 16 (STO16), cytosolic sulfotransferase 17 (SOT17), cytosolic sulfotransferase 18 (SOT18), myrosinase 1 (MYR1), myrosinase 2 (MYR2), epithiospecifier protein (ESP) and nitrilespecilier protein 2 (NSP2) play an important role in the formation of ICTs (Figure 8). The enzymes IPMI2 (A0A178VZE1), IIL1 (Q94AR8), IMD1 (Q5XF32), SOT16 (Q9C9D0), SOT17 (Q9FZ80) and CYP83B1 (O65782) were involved in the metabolism of aliphatic glucosinolates, while MAM1 (Q9FG67), BCAT3 (Q9M401) and SOT18 (Q9C9C9) were involved in the metabolism of indole GLs [13,41]. Among these enzymes, only the relative expression of BCAT3 was significantly up-regulated, while the enzymes MYR1 and MYR2 that hydrolyzed GLs were significantly up-regulated, which could also explain the drop of GLs content in 4-day-old broccoli sprouts treated with exogenous Se. According to the National Library of Medicine and the study of others [42,43], 11 enzymes involved in Se metabolism were identified (Figure 8). They were methionine S-methyltransferase (MMT, Q9LTB2), 5-methyltetrahydropteroyltriglutamate-homocysteine methyltransferase 2 (MS2, Q9SRV5), 5-methyltetrahydropteroyltriglutamate-homocysteine methyltransferase 3 (MS3, Q0WNZ5), 5-methyltetrahydropteroyltriglutamate-homocysteine methyltransferase 1 (ATMS1, O50008), pyridoxal phosphate (PLP)-dependent transferases superfamily protein (MTO1, A0A178VB36), thioredoxin reductase (NTRA, A0A1P8AZS7), hioredoxin reductase 2 (NTRA2, Q39242), tnitrilase 1 (NTRB, Q39243), ATP-sulfurylase 1 (APS1, B2CT25), ATP-sulfurylase 2 (APS2, A0A178WAV9), ATP-sulfurylase 3 (APS3, A0A1P8B8I9). After exogenous Se treatment, the relative expression of these enzymes was dramatically up-regulated compared to the control, which was consistent with the result of the significant increase in organic Se and inorganic Se content.

5. Conclusions

Exogenous Se decreased the sprouts length of broccoli sprouts, increased the content of MDA, and hindered the growth and development of broccoli sprouts. However, from another perspective, the total phenolic content increased under exogenous Se treatment, and the abundance of ITCs and selenium metabolism-related proteins increased by up-regulating the expression level of ITCs and selenium metabolism genes and promoting the enrichment of ITCs and endogenous selenium, thereby increasing the value of broccoli sprouts.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/foods12071397/s1, Table S1: Differentially abundant proteins in 4-day-old broccoli sprouts under exogenous selenium treatments.

Author Contributions

Writing—original draft preparation, X.Q. and Y.C.; writing—review and editing, Y.Y. and Z.Y.; supervision, J.Y. and W.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by Postgraduate Research & Practive Innovation Program of Jiangsu Province (Yangzhou University SJCX_221701).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, L.; Sun, Y.; Liu, H.; Song, S. The increase of antioxidant capacity of broccoli sprouts subject to slightly acidic electrolyzed water. Food Bio. 2022, 49, 101856. [Google Scholar] [CrossRef]
  2. Matusheski, N.V.; Juvik, J.A.; Jeffery, E.H. Heating decreases epithiospecifier protein activity and increases sulforaphane formation in broccoli. Phytochemistry 2004, 65, 1273–1281. [Google Scholar] [CrossRef] [PubMed]
  3. Vanduchova, A.; Anzenbacher, P.; Anzenbacherova, E. Isothiocyanate from Broccoli, Sulforaphane, and Its Properties. J. Med. Food 2019, 22, 121–126. [Google Scholar] [CrossRef]
  4. Shapiro, T.A.; Fahey, J.W.; Wade, K.L.; Stephenson, K.K.; Talalay, P. Chemoprotective glucosinolates and isothiocyanates of broccoli sprouts: Metabolism and excretion in humans. Cancer Epidemiol. Biomark. Prev. 2001, 10, 501–508. [Google Scholar]
  5. Jiao, D.; Yu, M.C.; Hankin, J.H.; Low, S.-H.; Chung, F.-L. Total isothiocyanate contents in cooked vegetables frequently consumed in Singapore. J. Agric. Food Chem. 1998, 46, 1055–1058. [Google Scholar] [CrossRef]
  6. Bai, Y.; Wang, X.; Zhao, S.; Ma, C.; Cui, J.; Zheng, Y. Sulforaphane protects against cardiovascular disease via Nrf2 activation. Oxid. Med. Cell Longev. 2015, 2015, 407580. [Google Scholar] [CrossRef]
  7. Mukhopadhyay, P.; Fahey, J.W.; Holtzclaw, W.D.; Wehage, S.L.; Wade, K.L.; Stephenson, K.K.; Talalay, P. Sulforaphane bioavailability from glucoraphanin-rich broccoli: Control by active endogenous myrosinase. PLoS ONE 2015, 10, e0140963. [Google Scholar] [CrossRef]
  8. Mitsiogianni, M.; Koutsidis, G.; Mavroudis, N.; Trafalis, D.T.; Botaitis, S.; Franco, R.; Zoumpourlis, V.; Amery, T.; Galanis, A.; Pappa, A.; et al. The role of isothiocyanates as cancer chemo-preventive, chemo-therapeutic and anti-melanoma agents. Antioxidants 2019, 8, 106. [Google Scholar] [CrossRef]
  9. Burčul, F.; Generalić Mekinić, I.; Radan, M.; Rollin, P.; Blažević, I. Isothiocyanates: Cholinesterase inhibiting, antioxidant, and anti-inflammatory activity. J. Enzym. Inhib. Med. Chem. 2018, 33, 577–582. [Google Scholar] [CrossRef]
  10. Mohanty, S.; Sahoo, A.K.; Konkimalla, V.B.; Pal, A.; Si, S.C. Naringin in combination with isothiocyanates as liposomal formulations potentiates the anti-inflammatory activity in different acute and chronic animal models of rheumatoid arthritis. ACS Omega 2020, 5, 28319–28332. [Google Scholar] [CrossRef]
  11. Nieto, J.A.; Hellín, P.; Pérez, B.; Viadel, B.; Alapont, A.; Agudelo, A. Fresh Brassicaceae sprouting broccoli (Bimi®) glucosinolates profile characterization and bioaccessibility through an in vitro dynamic digestion study. J. Food Compos. Anal. 2023, 115, 104941. [Google Scholar] [CrossRef]
  12. Guo, Q.; Guo, L.; Wang, Z.; Zhuang, Y.; Gu, Z. Response surface optimization and identification of isothiocyanates produced from broccoli sprouts. Food Chem. 2013, 141, 1580–1586. [Google Scholar] [CrossRef] [PubMed]
  13. Yin, Y.; Liu, Y.; Cheng, C.; Yang, Z.; Luo, Z.; Fang, W. iTRAQ-based proteomic and physiological analyses of broccoli sprouts in response to exogenous melatonin with ZnSO4 stress. RSC Adv. 2021, 11, 12336–12347. [Google Scholar] [CrossRef]
  14. Stuss, M.; Michalska-Kasiczak, M.; Sewerynek, E. The role of selenium in thyroid gland pathophysiology. Endokrynol. Pol. 2017, 68, 440–465. [Google Scholar] [CrossRef] [PubMed]
  15. Hossain, A.; Skalicky, M.; Brestic, M.; Maitra, S.; Sarkar, S.; Ahmad, Z.; Vemuri, H.; Garai, S.; Mondal, M.; Bhatt, R.; et al. Selenium biofortification: Roles, mechanisms, responses and prospects. Molecules 2021, 26, 881. [Google Scholar] [CrossRef] [PubMed]
  16. Wu, Q.; Wang, J.; Huang, H.; Mao, S.; Wu, Q.; Huang, K. Exogenous selenium treatment promotes glucosinolate and glucoraphanin accumulation in broccoli by activating their biosynthesis and transport pathways. Appl. Sci. 2022, 12, 4101. [Google Scholar] [CrossRef]
  17. Tian, M.; Xu, X.; Liu, Y.; Xie, L.; Pan, S. Effect of Se treatment on glucosinolate metabolism and health-promoting compounds in the broccoli sprouts of three cultivars. Food Chem. 2016, 190, 374–380. [Google Scholar] [CrossRef]
  18. Tian, M.; Xu, X.; Liu, F.; Fan, X.; Pan, S. Untargeted metabolomics reveals predominant alterations in primary metabolites of broccoli sprouts in response to pre-harvest selenium treatment. Food Res. Int. 2018, 111, 205–211. [Google Scholar] [CrossRef]
  19. Zhuang, L.; Xu, K.; Zhu, Y.; Wang, F.; Xiao, J.; Guo, L. Calcium affects glucoraphanin metabolism in broccoli sprouts under ZnSO4 stress. Food Chem. 2021, 334, 127520. [Google Scholar] [CrossRef]
  20. Mencin, M.; Jamnik, P.; Mikulič Petkovšek, M.; Veberič, R.; Terpinc, P. Enzymatic treatments of raw, germinated and fermented spelt (Triticum spelta L.) seeds improve the accessibility and antioxidant activity of their phenolics. LWT 2022, 169, 114046. [Google Scholar] [CrossRef]
  21. Burow, M.; Losansky, A.; Muller, R.; Plock, A.; Kliebenstein, D.J.; Wittstock, U. The genetic basis of constitutive and herbivore-induced ESP-independent nitrile formation in Arabidopsis. Plant Physiol. 2009, 149, 561–574. [Google Scholar] [CrossRef]
  22. Guo, L.; Yang, R.; Wang, Z.; Guo, Q.; Gu, Z. Glucoraphanin, sulforaphane and myrosinase activity in germinating broccoli sprouts as affected by growth temperature and plant organs. J. Funct. Foods 2014, 9, 70–77. [Google Scholar] [CrossRef]
  23. Guo, L.; Gu, Z.; Jin, X.; Yang, R. iTRAQ—Based proteomic and physiological analyses of broccoli sprouts in response to the stresses of heat, hypoxia and heat plus hypoxia. Plant Soil 2016, 414, 355–377. [Google Scholar] [CrossRef]
  24. Sun, M.; Liu, G.; Wu, Q. Speciation of organic and inorganic selenium in selenium-enriched rice by graphite furnace atomic absorption spectrometry after cloud point extraction. Food Chem. 2013, 141, 66–71. [Google Scholar] [CrossRef]
  25. Lyi, S.M.; Heller, L.I.; Rutzke, M.; Welch, R.M.; Kochian, L.V.; Li, L. Molecular and biochemical characterization of the selenocysteine Se-methyltransferase gene and Se-methylselenocysteine synthesis in broccoli. Plant Physiol. 2005, 138, 409–420. [Google Scholar] [CrossRef]
  26. Cheng, C.; Liu, Y.; Fang, W.; Tao, J.; Yang, Z.; Yin, Y. iTRAQ-based proteomic and physiological analyses of mustard sprouts in response to heat stress. RSC Adv. 2020, 10, 6052–6062. [Google Scholar] [CrossRef] [PubMed]
  27. Yin, Y.; Qi, F.; Gao, L.; Rao, S.; Yang, Z.; Fang, W. iTRAQ-based quantitative proteomic analysis of dark-germinated soybeans in response to salt stress. RSC Adv. 2018, 8, 17905–17913. [Google Scholar] [CrossRef]
  28. Jin, X.; Yang, R.; Guo, L.; Wang, X.; Yan, X.; Gu, Z. iTRAQ analysis of low-phytate mung bean sprouts treated with sodium citrate, sodium acetate and sodium tartrate. Food Chem. 2017, 218, 285–293. [Google Scholar] [CrossRef]
  29. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  30. Yang, R.; Guo, L.; Jin, X.; Shen, C.; Zhou, Y.; Gu, Z. Enhancement of glucosinolate and sulforaphane formation of broccoli sprouts by zinc sulphate via its stress effect. J. Funct. Foods 2015, 13, 345–349. [Google Scholar] [CrossRef]
  31. Ríos, J.J.; Rosales, M.A.; Blasco, B.; Cervilla, L.M.; Romero, L.; Ruiz, J.M. Biofortification of Se and induction of the antioxidant capacity in lettuce plants. Sci. Hortic. 2008, 116, 248–255. [Google Scholar] [CrossRef]
  32. Williams, D.J.; Critchley, C.; Pun, S.; Nottingham, S.; O’Hare, T.J. Epithiospecifier protein activity in broccoli: The link between terminal alkenyl glucosinolates and sulphoraphane nitrile. Phytochemistry 2008, 69, 2765–2773. [Google Scholar] [CrossRef] [PubMed]
  33. Gui, J.-Y.; Rao, S.; Huang, X.; Liu, X.; Cheng, S.; Xu, F. Interaction between selenium and essential micronutrient elements in plants: A systematic review. Sci. Total Environ. 2022, 853, 158673. [Google Scholar] [CrossRef]
  34. Wang, J.; Mao, S.; Xu, H.; Wu, Q.; Liang, M.; Yuan, Y.; Liu, M.; Huang, K.; Wu, Q. Effects of sulfur and selenium on glucosinolate biosynthesis in cabbage. Plant Mol. Biol. Rep. 2019, 38, 62–74. [Google Scholar] [CrossRef]
  35. McKenzie, M.J.; Chen, R.K.Y.; Leung, S.; Joshi, S.; Rippon, P.E.; Joyce, N.I.; McManus, M.T. Selenium treatment differentially affects sulfur metabolism in high and low glucosinolate producing cultivars of broccoli (Brassica oleracea L.). Plant Physiol. BioChem. 2017, 121, 176–186. [Google Scholar] [CrossRef]
  36. Avila, F.W.; Faquin, V.; Yang, Y.; Ramos, S.J.; Guilherme, L.R.; Thannhauser, T.W.; Li, L. Assessment of the anticancer compounds Se-methylselenocysteine and glucosinolates in Se-biofortified broccoli (Brassica oleracea L. var. italica) sprouts and florets. J. Agric. Food Chem. 2013, 61, 6216–6223. [Google Scholar] [CrossRef]
  37. Zuluaga, D.L.; Graham, N.S.; Klinder, A.; van Ommen Kloeke, A.E.E.; Marcotrigiano, A.R.; Wagstaff, C.; Verkerk, R.; Sonnante, G.; Aarts, M.G.M. Overexpression of the MYB29 transcription factor affects aliphatic glucosinolate synthesis in Brassica oleracea. Plant Mol. Biol. 2019, 101, 65–79. [Google Scholar] [CrossRef]
  38. El Mehdawi, A.F.; Jiang, Y.; Guignardi, Z.S.; Esmat, A.; Pilon, M.; Pilon-Smits, E.A.H.; Schiavon, M. Influence of sulfate supply on selenium uptake dynamics and expression of sulfate/selenate transporters in selenium hyperaccumulator and nonhyperaccumulator Brassicaceae. New Phytol. 2018, 217, 194–205. [Google Scholar] [CrossRef]
  39. Zhou, X.; Yuan, Y.; Yang, Y.; Rutzke, M.; Thannhauser, T.W.; Kochian, L.V.; Li, L. Involvement of a broccoli COQ5 methyltransferase in the production of volatile selenium compounds. Plant Physiol. 2009, 151, 528–540. [Google Scholar] [CrossRef]
  40. Ramos, S.J.; Yuan, Y.; Faquin, V.; Guilherme, L.R.; Li, L. Evaluation of genotypic variation of broccoli (Brassica oleracea var. italic) in response to selenium treatment. J. Agric. Food Chem. 2011, 59, 3657–3665. [Google Scholar] [CrossRef]
  41. Sonderby, I.E.; Geu-Flores, F.; Halkier, B.A. Biosynthesis of glucosinolates—Gene discovery and beyond. Trends Plant Sci. 2010, 15, 283–290. [Google Scholar] [CrossRef] [PubMed]
  42. Ramos, S.J.; Rutzke, M.A.; Hayes, R.J.; Faquin, V.; Guilherme, L.R.; Li, L. Selenium accumulation in lettuce germplasm. Planta 2011, 233, 649–660. [Google Scholar] [CrossRef] [PubMed]
  43. White, P.J. Selenium accumulation by plants. Ann. Bot. 2016, 117, 217–235. [Google Scholar] [CrossRef] [PubMed]
Foods 12 01397 g001 550

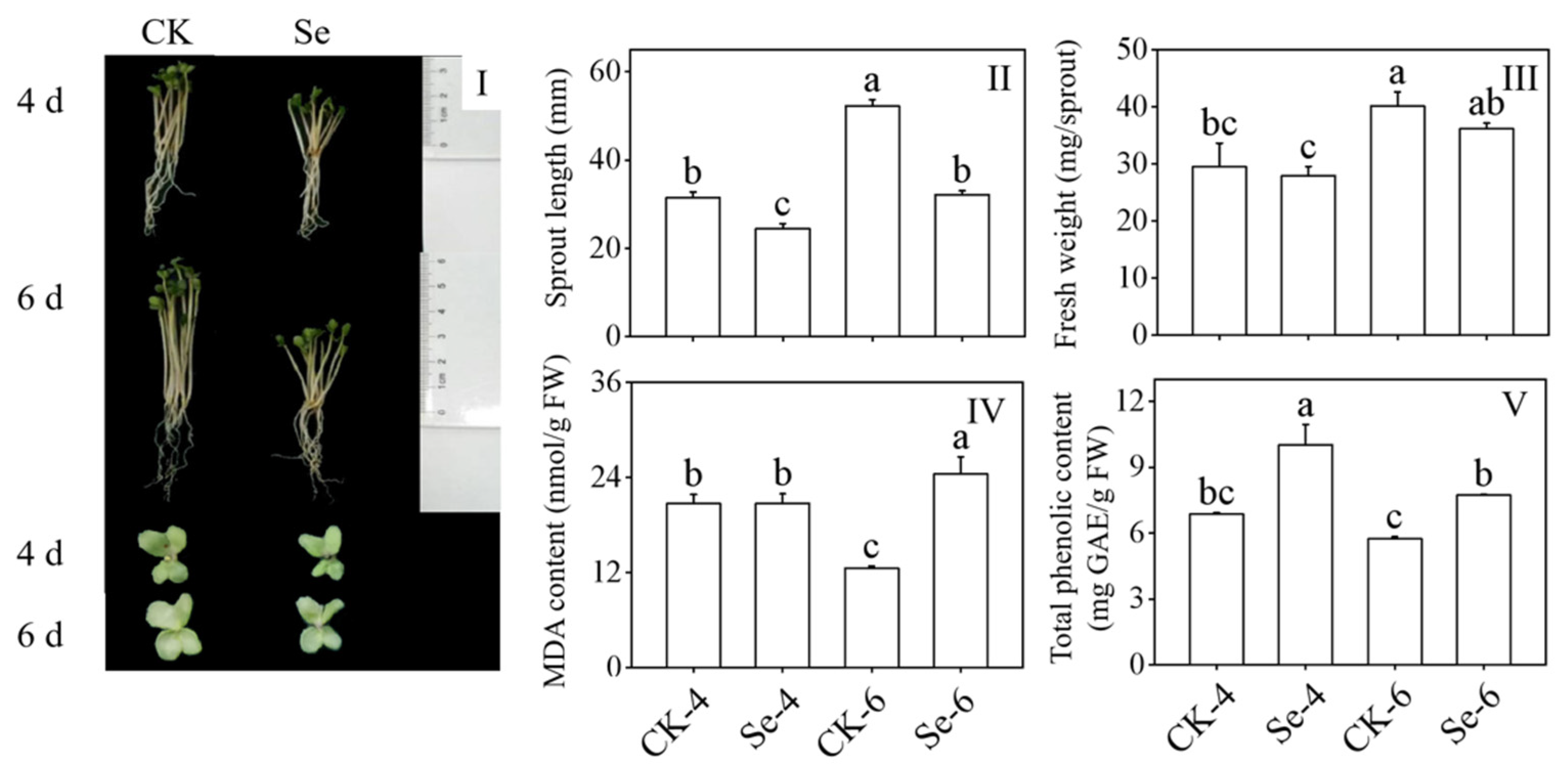

Figure 1. Effect of exogenous selenium on growth performance (I), sprout length (II), fresh weight (III), malondialdehyde content (IV), and total phenolic content (V) of broccoli sprouts during germination. Each data point represents the average of three independent biological replications (average ± SD). Lowercase letters reflected the significance of differences in indexes among treatments at different germination times using Tukey’s test (p < 0.05). For example, CK-4, Se-4, CK-6 and Se-6 indicated the 4- and 6-day-old broccoli sprouts treated with distilled water and 0.10 mM Na2SeO3, respectively.
Figure 1. Effect of exogenous selenium on growth performance (I), sprout length (II), fresh weight (III), malondialdehyde content (IV), and total phenolic content (V) of broccoli sprouts during germination. Each data point represents the average of three independent biological replications (average ± SD). Lowercase letters reflected the significance of differences in indexes among treatments at different germination times using Tukey’s test (p < 0.05). For example, CK-4, Se-4, CK-6 and Se-6 indicated the 4- and 6-day-old broccoli sprouts treated with distilled water and 0.10 mM Na2SeO3, respectively.
Foods 12 01397 g001
Foods 12 01397 g002 550

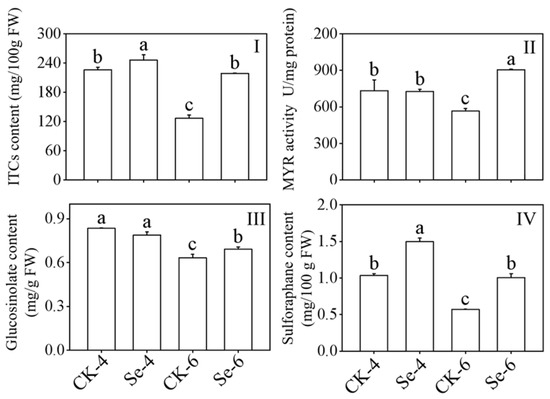

Figure 2. Effect of exogenous selenium on ITCs content (I), myrosinase activity (II), glucosinolate content (III), and sulforaphane content (IV) of broccoli sprouts during germination. Each data point represents the average of three independent biological replications (average ± SD). Lowercase letters reflected the significance of differences in indexes among treatments at different germination times using Tukey’s test (p < 0.05). For example, CK-4, Se-4, CK-6 and Se-6 indicated the 4- and 6-day-old broccoli sprouts treated with distilled water and 0.10 mM Na2SeO3, respectively.
Figure 2. Effect of exogenous selenium on ITCs content (I), myrosinase activity (II), glucosinolate content (III), and sulforaphane content (IV) of broccoli sprouts during germination. Each data point represents the average of three independent biological replications (average ± SD). Lowercase letters reflected the significance of differences in indexes among treatments at different germination times using Tukey’s test (p < 0.05). For example, CK-4, Se-4, CK-6 and Se-6 indicated the 4- and 6-day-old broccoli sprouts treated with distilled water and 0.10 mM Na2SeO3, respectively.
Foods 12 01397 g002
Foods 12 01397 g003 550

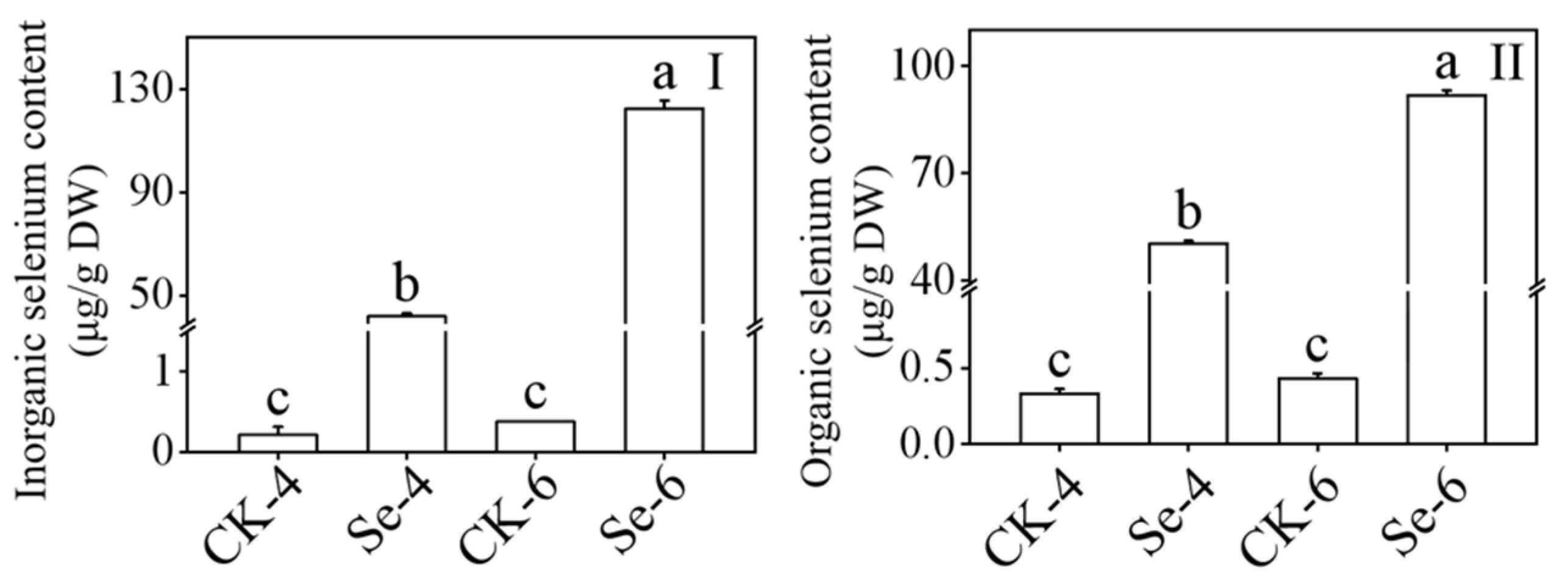

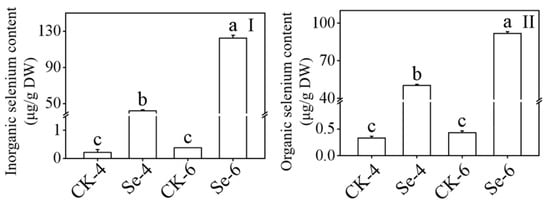

Figure 3. Effect of exogenous selenium on inorganic selenium content (I) and organic selenium content (II) of broccoli sprouts during germination. Each data point represents the average of three independent biological replications (average ± SD). Lowercase letters reflected the significance of differences in indexes among treatments at different germination times using Tukey’s test (p < 0.05). For example, CK-4, Se-4, CK-6 and Se-6 indicated the 4- and 6-day-old broccoli sprouts treated with distilled water and 0.10 mM Na2SeO3, respectively.
Figure 3. Effect of exogenous selenium on inorganic selenium content (I) and organic selenium content (II) of broccoli sprouts during germination. Each data point represents the average of three independent biological replications (average ± SD). Lowercase letters reflected the significance of differences in indexes among treatments at different germination times using Tukey’s test (p < 0.05). For example, CK-4, Se-4, CK-6 and Se-6 indicated the 4- and 6-day-old broccoli sprouts treated with distilled water and 0.10 mM Na2SeO3, respectively.
Foods 12 01397 g003
Foods 12 01397 g004 550

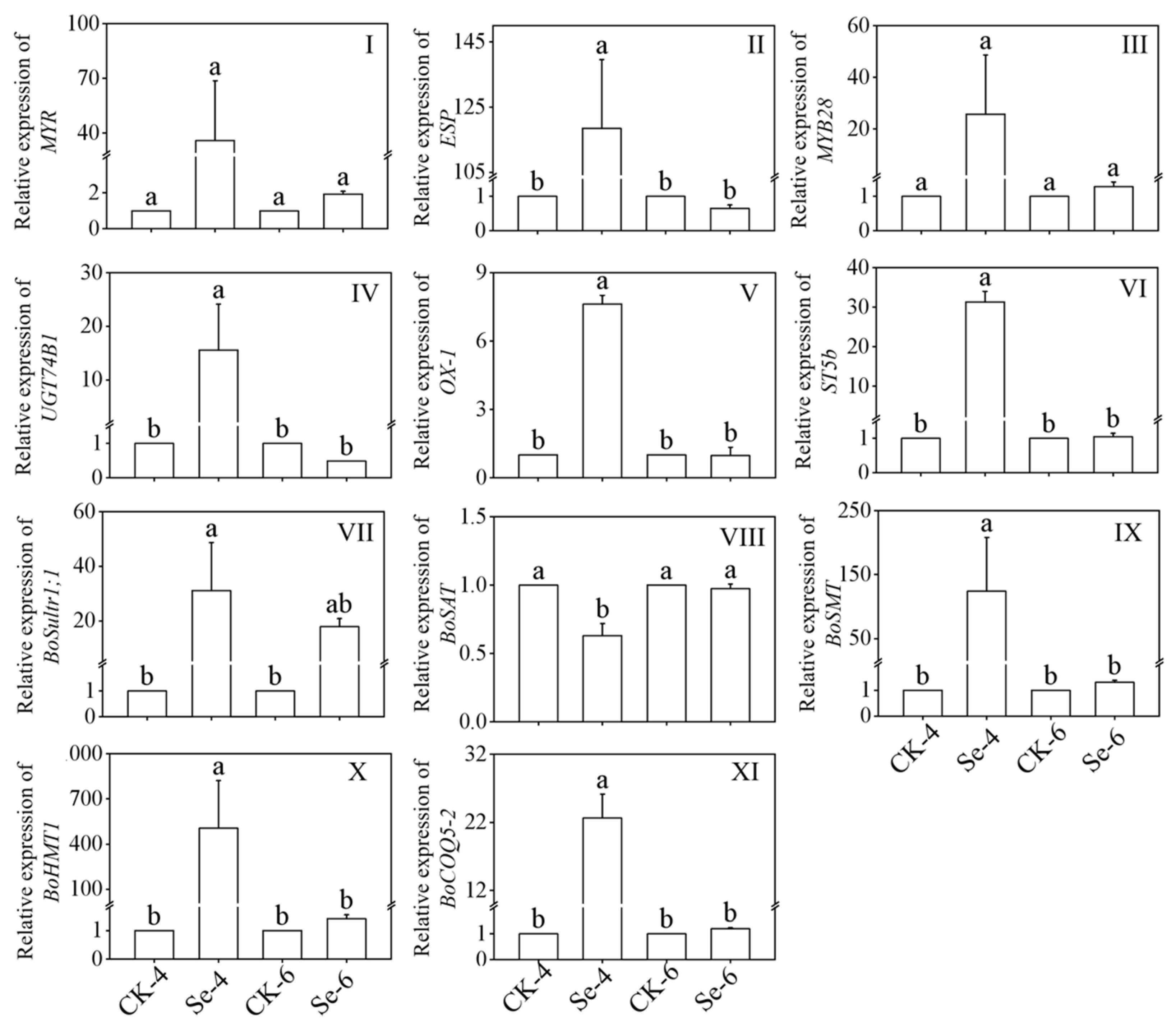

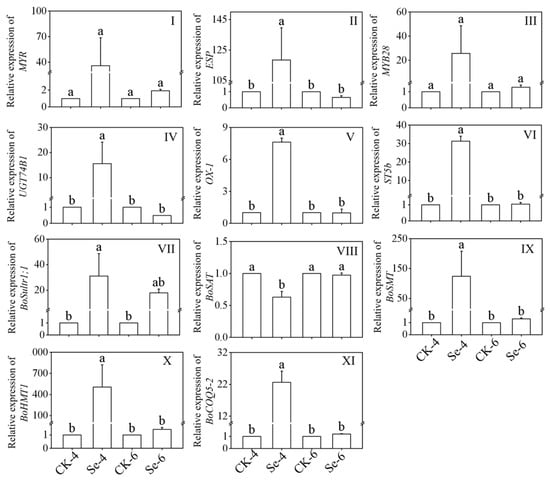

Figure 4. Changes of MYR (I), ESP (II), MYB28 (III), UGT74B1 (IV), OX-1 (V), ST5b (VI), BoSultr1;1 (VII), BoSAT (VIII), BoSMT (IX), BoHMT1 (X), and BoCOQ5-2 (XI) relative expression in broccoli sprouts under selenium treatment during germination. Each data point represents the average of three independent biological replications (average ± SD). Lowercase letters reflected the significance of differences in indexes among treatments at different times using Tukey’s test (p < 0.05). For example, CK-4, Se-4, CK-6 and Se-6 indicated the 4- and 6-day-old broccoli sprouts treated with distilled water and 0.10 mM Na2SeO3, respectively.
Figure 4. Changes of MYR (I), ESP (II), MYB28 (III), UGT74B1 (IV), OX-1 (V), ST5b (VI), BoSultr1;1 (VII), BoSAT (VIII), BoSMT (IX), BoHMT1 (X), and BoCOQ5-2 (XI) relative expression in broccoli sprouts under selenium treatment during germination. Each data point represents the average of three independent biological replications (average ± SD). Lowercase letters reflected the significance of differences in indexes among treatments at different times using Tukey’s test (p < 0.05). For example, CK-4, Se-4, CK-6 and Se-6 indicated the 4- and 6-day-old broccoli sprouts treated with distilled water and 0.10 mM Na2SeO3, respectively.
Foods 12 01397 g004
Foods 12 01397 g005 550

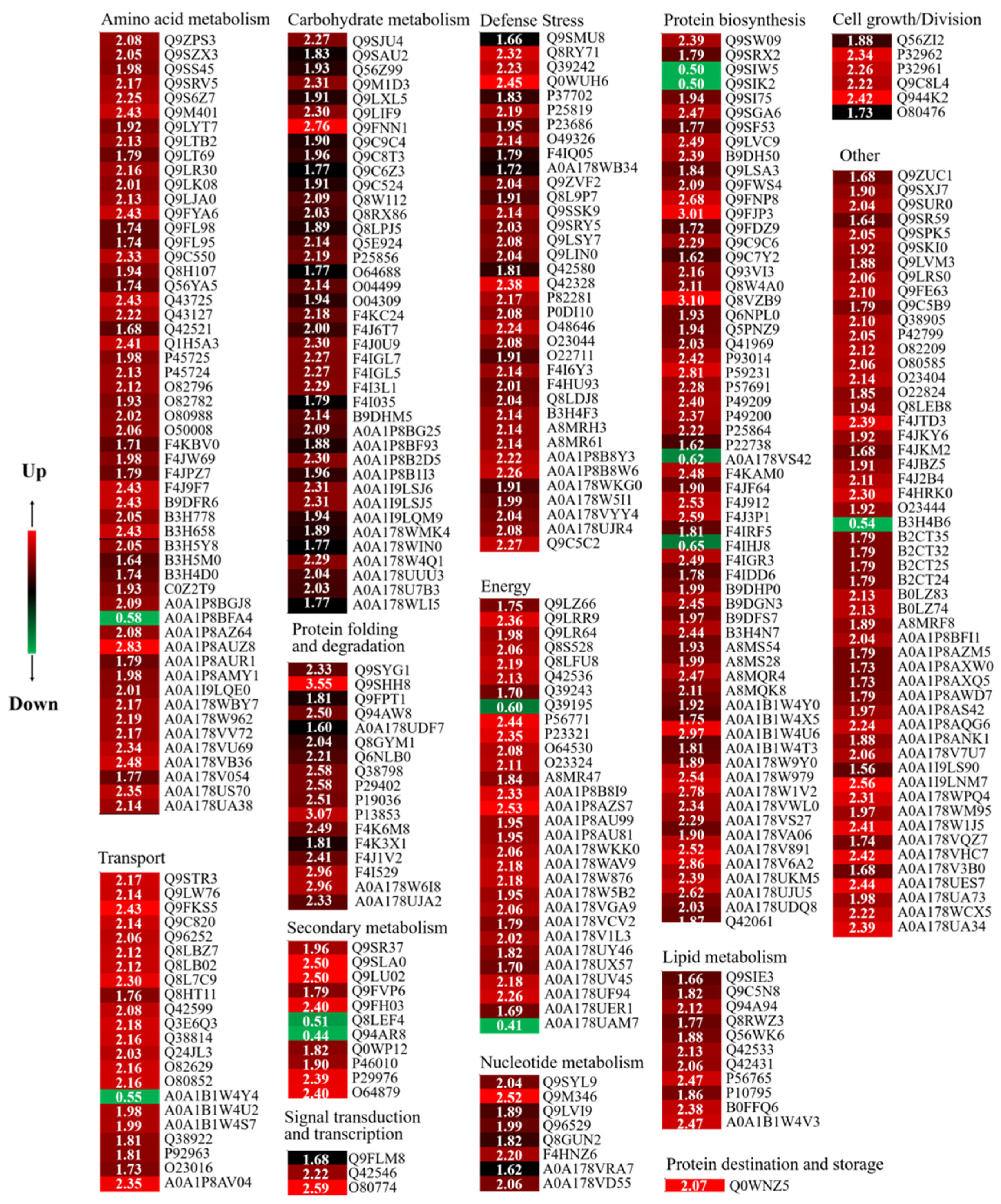

Figure 5. Heatmaps and cluster analysis of DAPs in Se/CK of 4-day-old broccoli sprouts. CK: control; Se: 0.10 mM Na2SeO3. Expression changes were made based on the log 2 conversion expression ratios of the proteins applying Gene Cluster 3.0 software. Visualize results using JAVA Treeview software. The numbers in the color scale are the changes in the abundance of the DAPs.
Figure 5. Heatmaps and cluster analysis of DAPs in Se/CK of 4-day-old broccoli sprouts. CK: control; Se: 0.10 mM Na2SeO3. Expression changes were made based on the log 2 conversion expression ratios of the proteins applying Gene Cluster 3.0 software. Visualize results using JAVA Treeview software. The numbers in the color scale are the changes in the abundance of the DAPs.
Foods 12 01397 g005
Foods 12 01397 g006 550

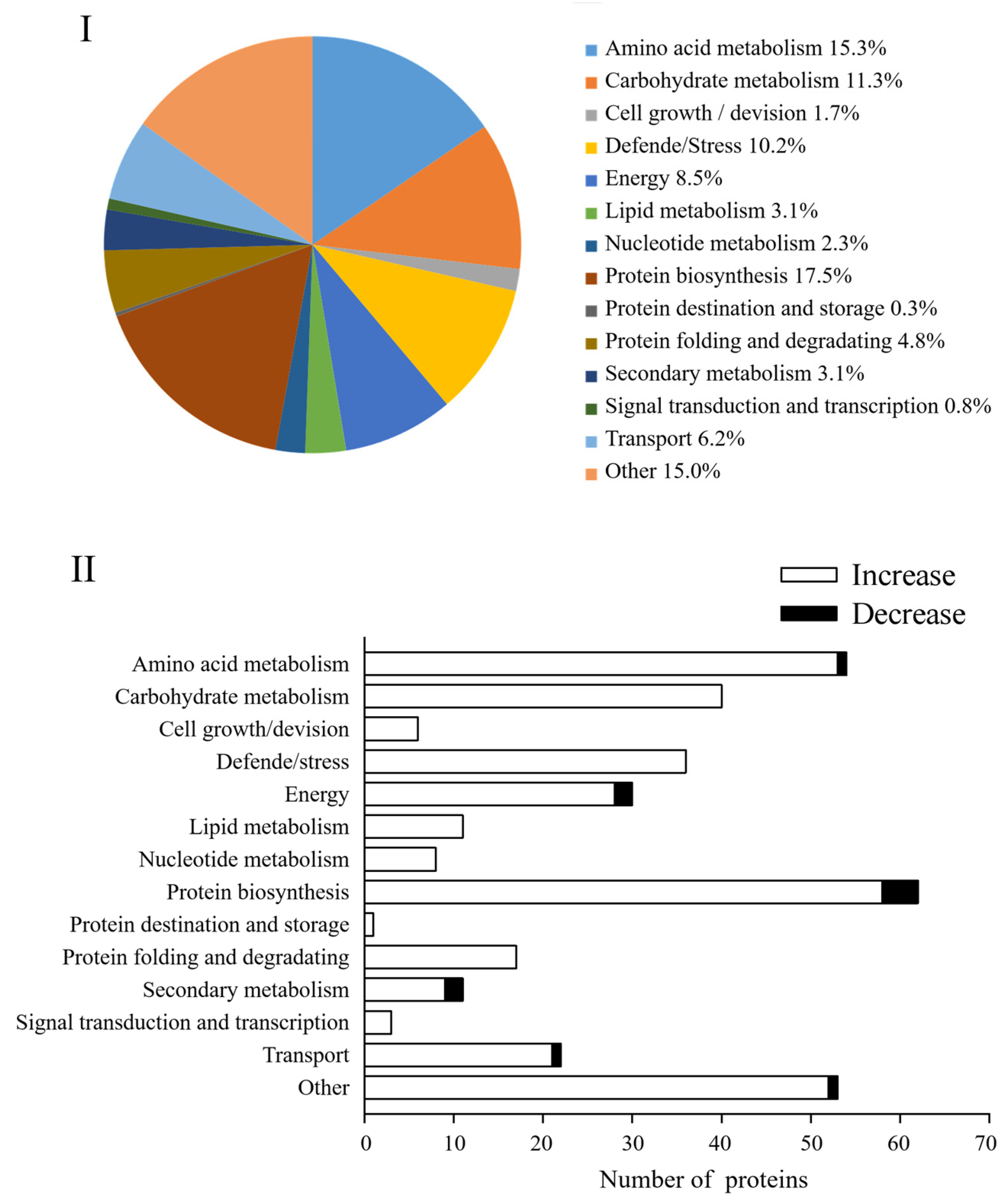

Figure 6. Comparison of proteomes of 4 d broccoli sprouts: The functions (I) and functional classification (II) of DAPs in Se/CK of 4-day-old broccoli sprouts. CK: control; Se: 0.10 mM Na2SeO3.
Figure 6. Comparison of proteomes of 4 d broccoli sprouts: The functions (I) and functional classification (II) of DAPs in Se/CK of 4-day-old broccoli sprouts. CK: control; Se: 0.10 mM Na2SeO3.
Foods 12 01397 g006
Foods 12 01397 g007 550

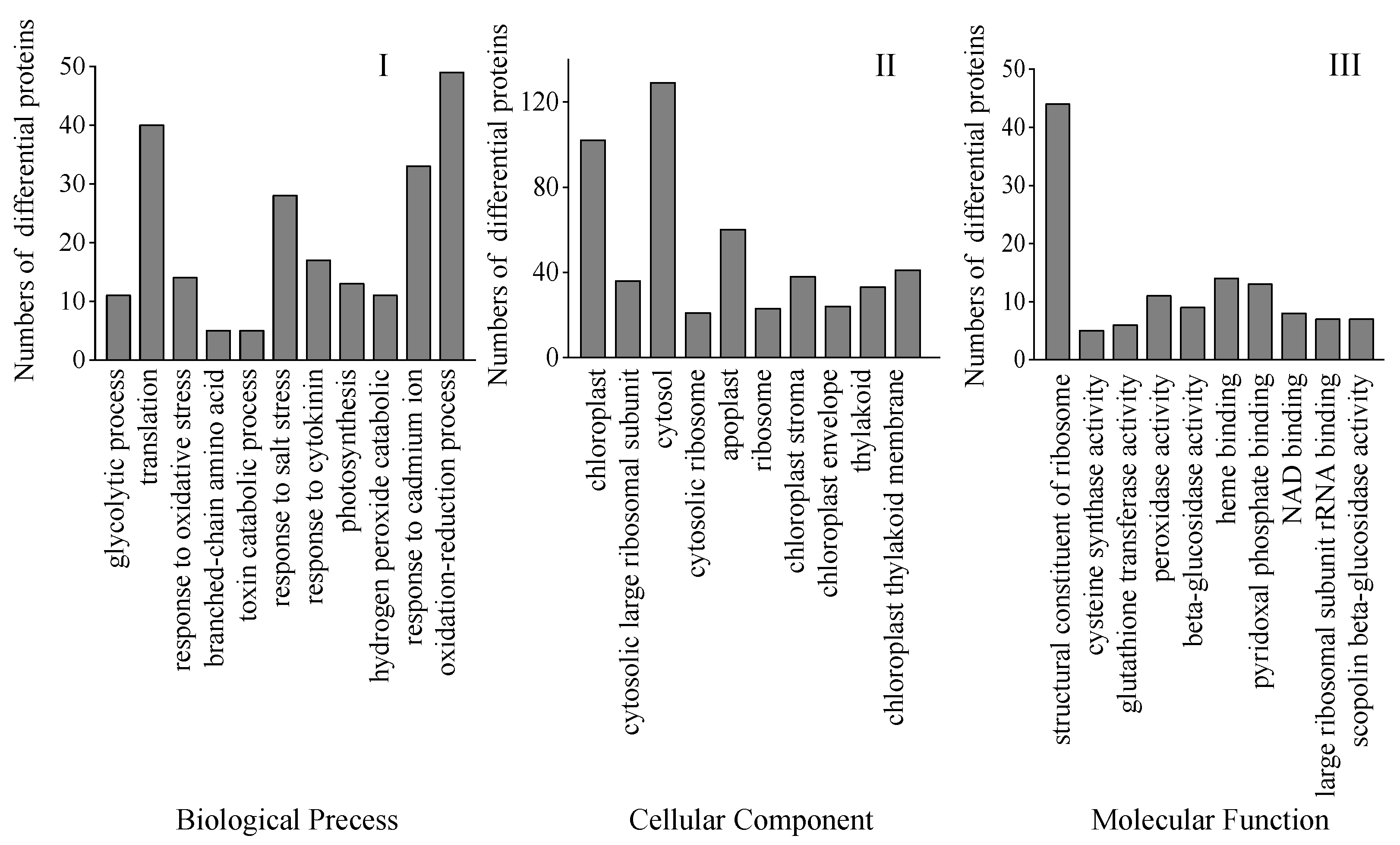

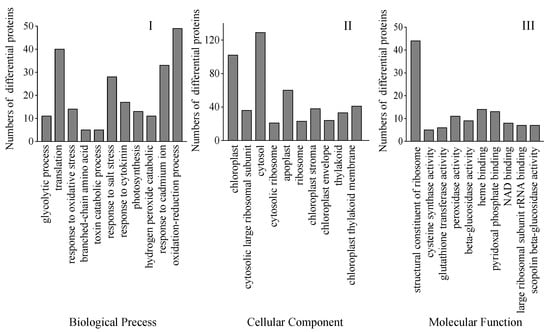

Figure 7. GO classification of all DAPs found in 4-day-old broccoli sprouts under exogenous selenium. Numbers of proteins in pathways of the biological process classification (I), cellular components (II), and molecular function classification (III).
Figure 7. GO classification of all DAPs found in 4-day-old broccoli sprouts under exogenous selenium. Numbers of proteins in pathways of the biological process classification (I), cellular components (II), and molecular function classification (III).
Foods 12 01397 g007
Foods 12 01397 g008 550

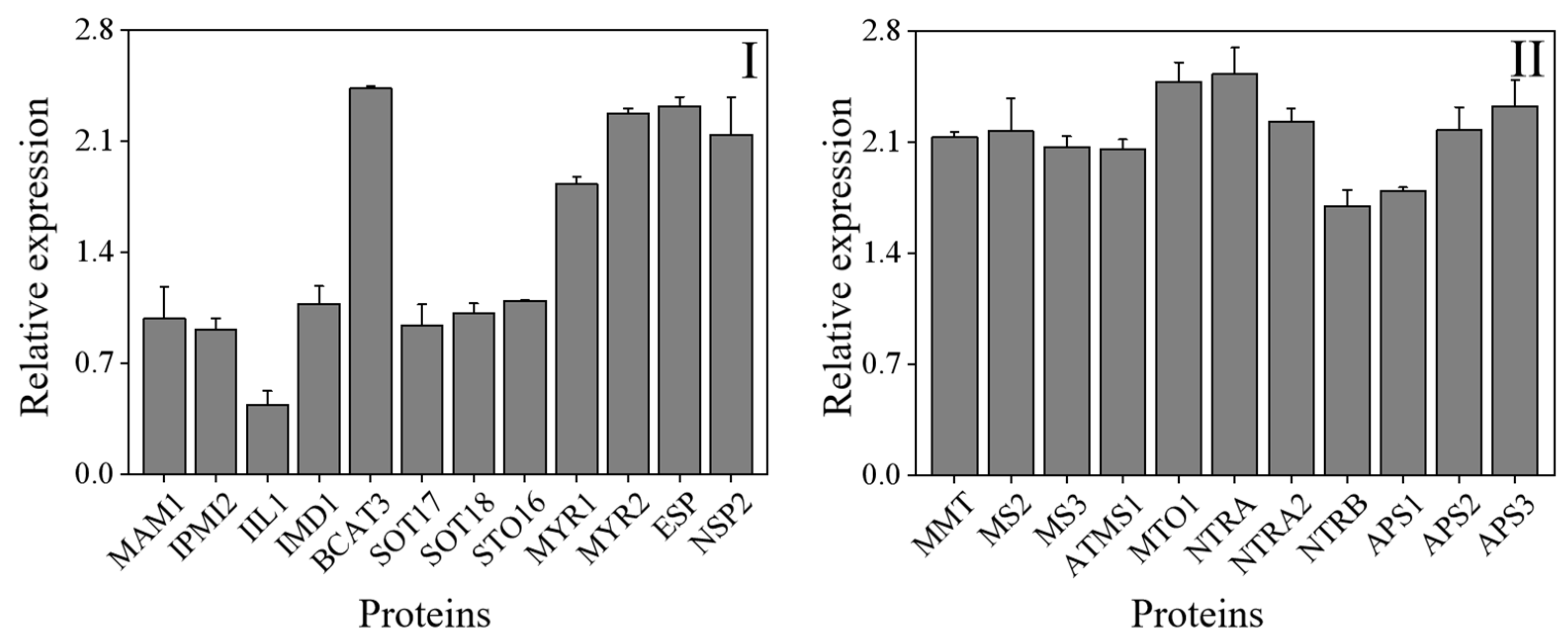

Figure 8. The differentia-regulated proteins involved in ITCs (I) and selenium (II) metabolism in 4-day-old broccoli sprouts on Se/CK. CK: control; Se: 0.10 mM Na2SeO3.
Figure 8. The differentia-regulated proteins involved in ITCs (I) and selenium (II) metabolism in 4-day-old broccoli sprouts on Se/CK. CK: control; Se: 0.10 mM Na2SeO3.
Foods 12 01397 g008
Table
Table 1. The primer sequence of ITCs and Se metabolism genes in broccoli sprouts.
Table 1. The primer sequence of ITCs and Se metabolism genes in broccoli sprouts.
PrimerForward Primer (5′-3′)Reverse Primer (5′-3′)
ActinCTGTTCCAATCTACGAGGGTTTCTGCTCGGCTGTGGTGGTGAA
MYB28AGACTGCGATGGACTAACTACCTAAACCGACCACTTGTTTCCACGA
UGT74B1CAAAGACGATAAAGGCTACGGCTCCCAAAGGAACCAAACGAA
ST5bCCGACACTACCTTACCGAACCACGTGAGGAAAAGAGGCGATG
OX-1GTGGACATTATACCGAACCTTACGTGTGGACTTCTTTGGCGACCT
MYRAAGGTCATCAGGGAGAAGGGTGTGTTTGGCAGGGTTCTTAGTGG
ESP-FACATTTGGGACCAGGGACGTTTCCATACACGGTGGCAGTC
BoSultr1;1GATTCTGCTGCAAGTGACGAACGCGAATGATCAAGATTCC
BoSAT1;1ATATCCATCCAGCAGCGAAGCTGTCTCCGCAAGCTTTACC
BoHMT1TTCAGGAATGCCTTGAAACCTTAGCTTTTCCGTCCCACAC
BoSMTGATCAACTGTACCCCTCCAAGTCCCAACTCCTGTGTTTTCC
BoCOQ5-2AAGGAAAGACTCGTTGGGAAGTCCTAAACGCAACATCACCC
Table
Table 2. Pathway enrichment analysis of differential proteins in 4-day-old broccoli sprouts. C: control; Se: 0.10 mM Na2SeO3.
Table 2. Pathway enrichment analysis of differential proteins in 4-day-old broccoli sprouts. C: control; Se: 0.10 mM Na2SeO3.
Pathway IDPathwayInput Numberp-Value
Se/CSe/C
ath00195Photosynthesis120.0007
ath00250Alanine, aspartate and glutamate metabolism80.0061
ath00260Glycine, serine and threonine metabolism100.0056
ath00270Cysteine and methionine metabolism120.0057
ath00290Valine, leucine and isoleucine biosynthesis50.0198
ath00380Tryptophan metabolism80.0048
ath00450Selenocompound metabolism102.82 × 10−8
ath00460Cyanoamino acid metabolism100.0016
ath00480Glutathione metabolism100.0273
ath00620Pyruvate metabolism90.0395
ath00630Glyoxylate and dicarboxylate metabolism142.69 × 10−5
ath00710Carbon fixation in photosynthetic organisms110.0011
ath00920Sulfur metabolism157.49 × 10−10
ath00940Phenylpropanoid biosynthesis190.0003
ath01100Metabolic pathways1329.41 × 10−11
ath01110Biosynthesis of secondary metabolites811.48 × 10−7
ath01130Biosynthesis of antibiotics522.01 × 10−10
ath01200Carbon metabolism451.23 × 10−14
ath012102-Oxocarboxylic acid metabolism90.0202
ath01230Biosynthesis of amino acids376.95 × 10−10
ath03010Ribosome444.03 × 10−9
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Quan, X.; Cheng, Y.; Yang, Z.; Yang, J.; Fang, W.; Yin, Y. iTRAQ-Based Proteomic Analyses of Regulation of Isothiocyanate and Endogenous Selenium Metabolism in Broccoli Sprouts by Exogenous Sodium Selenite. Foods 2023, 12, 1397. https://doi.org/10.3390/foods12071397

AMA Style

Quan X, Cheng Y, Yang Z, Yang J, Fang W, Yin Y. iTRAQ-Based Proteomic Analyses of Regulation of Isothiocyanate and Endogenous Selenium Metabolism in Broccoli Sprouts by Exogenous Sodium Selenite. Foods. 2023; 12(7):1397. https://doi.org/10.3390/foods12071397

Chicago/Turabian Style

Quan, Xiaolan, Yuwei Cheng, Zhengfei Yang, Jia Yang, Weiming Fang, and Yongqi Yin. 2023. "iTRAQ-Based Proteomic Analyses of Regulation of Isothiocyanate and Endogenous Selenium Metabolism in Broccoli Sprouts by Exogenous Sodium Selenite" Foods 12, no. 7: 1397. https://doi.org/10.3390/foods12071397

APA Style

Quan, X., Cheng, Y., Yang, Z., Yang, J., Fang, W., & Yin, Y. (2023). iTRAQ-Based Proteomic Analyses of Regulation of Isothiocyanate and Endogenous Selenium Metabolism in Broccoli Sprouts by Exogenous Sodium Selenite. Foods, 12(7), 1397. https://doi.org/10.3390/foods12071397

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
