In Situ Toxicity Reduction and Food Safety Assessment of Pak Choi (Brassica campestris L.) in Cadmium-Contaminated Soil by Jointly Using Alkaline Passivators and Organic Fertilizer

by
Wei Jiao
1,†,
Zhi Li
2,†,
Ruiping Li
3,
Jiafeng Guo
4,
Xiaoshu Hou
5,*,
Xi Zhang
6,* and
Fangli Wang
2,*
1
Shandong Provincial Key Laboratory of Water and Soil Conservation and Environmental Protection, College of Resources and Environment, Linyi University, Linyi 276000, China
2
School of Resources and Environment, Qingdao Agricultural University, Qingdao 266109, China
3
School of Geography and Tourism, Qufu Normal University Rizhao Campus, Rizhao 276800, China
4
Qingdao Hairun Water Group Co., Ltd., Qingdao 266000, China
5
Chinese Academy of Environmental Planning, Beijing 100012, China
6
Institute of Agricultural Resources and Regional Planning, Chinese Academy of Agricultural Science, Beijing 100081, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Toxics 2023, 11(10), 824; https://doi.org/10.3390/toxics11100824
Submission received: 30 August 2023 / Revised: 23 September 2023 / Accepted: 25 September 2023 / Published: 29 September 2023
(This article belongs to the Section Toxicity Reduction and Environmental Remediation)
Browse Figures
Versions Notes

Abstract

:
An economical and effective method is still lacking for cadmium (Cd) toxicity reduction and food product safety improvement in soil–vegetable systems. Therefore, this study aimed to reduce the Cd toxicity to pak choi (Brassica campestris L.) by jointly using passivators and organic fertilizer, highlighting food products’ safety based on pot experiments. The results showed that compared with the control, organic fertilizer decreased the Cd content in edible parts and the soil’s available Cd by 48.4% and 20.9% on average, respectively, due to the 0.15-unit increases in soil pH. Once jointly applied with passivators, the decrements increased by 52.3–72.6% and 32.5–52.6% for the Cd content in edible parts and for the soil’s available Cd, respectively, while the pH increment increased by 0.15–0.46 units. Compared with the control, the transport factor of Cd was reduced by 61.9% and 50.9–55.0% when applying organic fertilizer alone and together with the passivators, respectively. The combination treatment of biochar and organic fertilizer performed the best in decreasing the Cd content in the edible parts and the soil’s available Cd. The combination treatment of fish bone meal and organic fertilizer induced the greatest increases in soil pH. The grey relational analysis results showed that the combination treatment of biochar and organic fertilizer performed the best in reducing the potential Cd pollution risk, thereby highlighting the vegetable food safety. This study provides a potential economical and effective technology for toxicity reduction and food safety in Cd-polluted soil.

1. Introduction

Global soil contamination with cadmium (Cd) is experiencing an alarming escalation due to the rapid growth of industrial activities [1,2]. Among all soil pollutants, Cd pollution stands out as the most severe, surpassing the allowed threshold by over 7% [3]. International regulatory bodies such as the Food and Agriculture Organization (FAO) and the World Health Organization (WHO) have established a safety limit of 1 mg kg−1 for Cd concentration in soil [4]. Cd is a major pollutant in soil worldwide, and Cd pollution in the soil environment is the most serious in China [5]. Cd can be enriched in the human body through the food chain and potentially damage human health [6]. The safety of agricultural food products contaminated by Cd has been a key issue in environmental science for decades. The methods to reduce Cd pollution in soil mainly include physical, chemical, biological, agroecological, and combined technologies [7]. As a typical chemical technology, passivation technology has been widely used in the remediation of Cd-polluted soil due to its advantages of low cost, simple operation, and less harm to soil [8]. Studies have shown that the cadmium removal rates of red mud at 35 °C and pH 9 are 97.31% and 96.20%, respectively [9]. Zhou et al. [10] found that high passivation rates of Cd, Cu, and Pb could be obtained by adding sawdust charcoal and wheat straw charcoal to composted pig manure. However, an economical and effective method is still lacking for reducing Cd toxicity and ensuring food products’ safety while increasing the food production in soil–vegetable systems.
Organic fertilizer (OF) is a popular fertilizer that highly increases agricultural production [11]. Organic fertilizer, which excludes the direct deposition of animal excreta by grazing animals, encompasses organic amendments such as animal manure, sewage sludge, compost, and other biowastes [12]. Previous studies have reported that OF easily combines with heavy metals to form steady-state compounds, reduce their bioavailability, and inhibit plant enrichment [13]. However, some studies have indicated that dissolved organic matter released by OF itself and the decomposition process chelates with Cd to improve its plant availability [14]. The effects of OF on the Cd availability in soil and the Cd accumulation in crops remain controversial [15]. To overcome the OF-induced problems in agricultural production, researchers have suggested jointly using OF with alkaline passivators when remedying Cd-polluted soil [16]. Alkaline passivators (such as calcium carbonate, clay minerals, phosphate rock powder, or biochar) can effectively reduce heavy metals’ bioavailability and reduce heavy-metal enrichment in crops [17]. However, previous research has mainly addressed the combined effect on the improvement of the heavy-metal bioavailability and heavy-metal enrichment in crops relative to OF or alkaline passivators alone, comparisons among different joint effects of OF, and different alkaline passivators at different growth stages of crops. Moreover, few studies have focused on food production safety, which has a closed relationship with human health.
Production safety assessment is extremely important, especially when it is hard to test the impact of different remediation methods for Cd-polluted soils. Grey relational analysis (GRA) is an excellent method and is widely used for quantitative description and comparison of the dynamic trend of a system’s development [18]. Erum and Shazia analyzed the relationships among carbon emissions, population, economy, and other factors in Asia through GRA [19]. Soil erosion vulnerability was assessed using the GRA method by Shachi et al. [20]. The GRA method selects the best application combination by calculating the grey correlation degree between various sequences [21,22]. It mainly judges whether they are closely related according to the similarity of a sequence of geometric shapes, reflecting the degree of correlation between multiple factors [23]. GRA is widely applied in many fields (such as economics, industrial technology, and environmental science), with its simple operation, reliable results, and no excessive requirements for sample size [24].
We hypothesized that the Cd toxicity to vegetables could be significantly reduced while increasing the products’ production by jointly applying alkaline passivators with organic fertilizer. To test the hypothesis, three alkaline passivators (i.e., biochar, fish bone, and phosphate rock powder) were separately applied in combination with organic fertilizer to Cd-polluted soil based on pot experiments. This study aimed to (1) study the impact on the Cd toxicity reduction in edible pak choi plants at different growth stages, (2) investigate whether the vegetable production was increased, and (3) assess the food safety using the GRA method.

2. Materials and Methods

2.1. Experimental Design and Implementation

The experiment was designed with five treatments: (1) without organic fertilizer or passivator (CK), (2) 1% pig manure organic fertilizer (PM), (3) 1% biochar combined with 1% organic fertilizer (CBP), (4) 0.5% phosphate rock powder combined with 1% organic fertilizer (PRP), and (5) 0.5% fish bone meal combined with 1% organic fertilizer (FBP). Each treatment was replicated 9 times, and the total pot number was 45. Three alkaline passivators were selected due to their good performance in heavy-metal stabilization with low costs and abundant resources [25,26].
Each pot was filled with 2 kg of Cd-polluted soil. The soil was sampled from an agricultural field in Liuyang, China. The basic characteristics of the soil, OF, and alkaline passivators are listed in Table 1. The Cd pollution value of the soil was 1.17 mg/kg, which largely exceeded the soil risk screening value of 0.3 mg/kg in the Chinese Soil Environmental Quality Soil Pollution Risk Control Standard for Agricultural Land (GB15618-2018). The soil had a pH of 5.88, a total organic matter content of 21.2 g/kg, and a total cation exchangeable capacity (CEC) content of 8.71 cmol/kg.
In each pot, 8 pak choi seeds were sown, and the variety was Qingnong-8 (Brassica campestris L.), which is widely planted in this local region. When the seedlings grew to 2 cm, 3 seedlings with uniform and good growth were kept in each pot. The pots were kept in a greenhouse at 20–25 °C and watered regularly.

2.2. Sampling and Determination

Three pots of each treatment were randomly selected to collect plant and soil samples on the 15th, 30th, and 45th days after emergence. The aboveground plant parts were weighed to obtain the fresh edible biomass. Both the aboveground plant and soil samples were dried, ground, and screened. The soil pH was determined using a pH meter. A pH meter (SevenExcellence S400 Basic, METTLER TOLEDO, New York, NY, USA) was used to determine the soil pH value by mixing 20 g of soil with 50 mL of deionized water. The content of available Cd in the soil was extracted with diethyltriamine pentaacetic acid solution (DTPA) and then determined via atomic absorption spectrometry. The plant subsamples were digested in the HNO3-HClO4 acid mixture (7:1), and soil subsamples were digested in the HNO3-HF-H2O2 acid mixture (5:1:2) to measure the total Cd content via inductively coupled plasma optical emission spectroscopy (ICP-OES, Perkin-Elmer Optima 8 × 00, Perkin-Elmer, MA, USA).
Quality assurance and quality control measures were implemented with nine duplicates of standard reference materials (GBW07401, GBW07603 GSV-2) from the Chinese Academy of Measurement Sciences for each batch of samples. Method blanks were run for background correction and to identify the other sources of the error. Cd standards were detected every 10 samples, with recovery rates within 100 ± 5%. The detection limit (LOD) and the quantification (LOQ) of Cd were 1.86 × 10−7 and 1.04 × 10−6 mg L−1, respectively.

2.3. Statistical Analysis

2.3.1. Calculation of Bioenrichment Factor, Absorption Factor, and Transport Factor

The bioenrichment factor (BAF), absorption factor (AF), and transport factor (TF) were calculated and analyzed to indicate the ability of plants to accumulate, uptake, and transport Cd [27,28].
The calculation formulas are as follows:
B A F = P S C S C
A F = P U C S C
T F = P S C P U C
where PSC and PUC represent the heavy-metal contents in the aboveground and underground parts, respectively, in mg kg−1; SC represents the available Cd content in the soil, in mg kg−1.

2.3.2. Grey Relational Analysis

The soil pH, soil available Cd content, Cd content in the edible parts, BAF, AF, and TF were screened to represent the main factors that affect the safe production of pak choi in Cd-contaminated soil [27,29]. Food safety was assessed using the GRA method, and the brief procedure was conducted as follows:
(1)
First, the evaluation index X was selected as the soil pH, available Cd content, Cd content in the edible part, BAF, AF, and TF, which are denoted as X(k), k = 1, 2, 3… 6, respectively.
(2)
The optimal value of each evaluation index was used to establish the corresponding optimal sequence, which is denoted as X0(k) [23].
(3)
The original data were standardized and denoted as Xi(k):
When the indexes with a greater value implies a better effect, Xi(k) was calculated
as   X i ( k ) = X k − m i n X i ( k ) m a x X i k − m i n X i ( k ) ;
When the indexes with a smaller value indicates a better effect Xi(k) was calculated
as   X i ( k ) = m a x X i k − X k m a x X i k − m i n X i ( k ) ;
where Xi(k) and X(k) represent the standardized and the original data, respectively; minXi(k) and maxXi(k) represent the minimum and maximum values of the original data, respectively.
(4)
The absolute deviation of grey correlation degree was calculated as:
∆ m i n = m i n i m i n k X i k − X 0 ( k )   and   ∆ m a x = m a x i m a x k X 0 k − X i ( k ) .
(5)
The correlation coefficient (ηi (k)) between the optimal sequence and the comparison sequence was calculated as:
η i ( k ) = ∆ m i n + ρ ∆ m a x X 0 k − X i ( k ) + ρ ∆ m a x   ( The   resolution   coefficient   ρ = 0.5 ) .
(6)
Finally, the grey correlation degree (r) between the matching application and each index was obtained as:
r = ∑ i = 0 n η i ( k ) n .
Descriptive data and statistical analyses were carried out with SPSS v.20.0 and Origin v.2019b, providing the means ± S.D. (standard deviation) of the three replicates. All the plant Cd contents were determined on a dry-weight basis. Statistically significant differences between the different treatments were identified via two-way analysis of variance (ANOVA) using Duncan’s test at a significance level of 0.05. The differences were significant when the significance values were below 0.05.

3. Results

3.1. Edible Plant Biomass and Cd Content

As shown in Figure 1, the edible fresh biomass was significantly affected by the treatments, incubation time, and their interaction according to the two-way ANOVA results. The edible fresh biomass significantly increased with the incubation time increasing across all the five treatments. Compared with CK, the treatment-induced promotion of plant growth was non-significant, and no significant difference was observed between the different treatments on the 15th day. The fresh biomass quantity was significantly higher than that of CK on the 30th and on the 45th day: 12.4–32.8% and 10.8–29.6%, respectively, and the CBP treatment performed the best. No significant difference was observed between the treatments of PRP and PM, no matter whether it was the 30th or the 45th day. However, the FBP treatment performed significantly better than the FM or the PRP treatment did on the 30th day.
Relative to CK, the edible plant Cd contents significantly decreased by 6–48%, 23–72%, 14–52%, and 18–62% in the PM-, CBP-, PRP-, and FBP-treated soils, respectively, except a non-significant increase in the FM-treated soil on the 15th day (Figure 2). The combination treatment of CBP and FBP significantly induced more decrements than FM did across all three incubation periods. However, there was no significant difference between FM and PRP. In particular, the edible plant Cd contents significantly decreased with the incubation time increasing from the 15th day to the 30th day in all the treatments but CK. From the 30th day to the 45th day, the most significant inhibition of plant Cd accumulation was caused by the CBP treatment, although there was a significant interaction between the incubation time and different treatments.

3.2. Ability of Plants to Accumulate, Absorb, and Transport Cd

To analyze the ability of plants to accumulate, absorb, and transport Cd, the BAF, AF, and TF values were calculated and are listed in Table 2, respectively. The incubation time induced significant decreases in the BAF and TF values across the four OF treatments, while no significant change was observed in the AF values on the 30th day. Compared with CK, the BAF and TF values in the four treatments significantly decreased, while the AF values significantly increased. However, there was a non-significant difference among the different OF treatments on the 15th day. In particular, no regular phenomenon was observed among the different treatments across the whole incubation period.

3.3. Soil pH and Available Cd Content

The incubation time, OF treatments, and their interactions generally had a significant impact on the soil pH (Figure 3). Compared with CK, the PRP and FBP treatments significantly increased soil pH by 0.20–0.57, 0.38–0.57, and 0.37–0.48 units on the 15th, 30th, and 45th days, respectively. The impacts of CBP and PM treatments varied with different incubation periods with non-significant changes on the 15th day. The four OF treatments significantly increased the soil pH after a 30-day incubation period, despite the increments decreasing on the 45th day.
The available Cd contents in the four OF-treated soils significantly decreased both on the 30th and 45th days (Figure 4). On the 15th day, the available Cd content was significantly decreased on average by 14.1% and 15.4% in the CBP- and FBP-treated soil, respectively, while the PM and PRP treatments induced no significant change. The decrements enlarged by 22.3–26.2%, 47.6–52.6%, 29.5–32.5%, and 46.7–48.2% in the PM-, CBP-, PRP-, and FBP-treated soils, respectively, during the 30th and 45th days. Generally, the OF treatments, the incubation time, and their interactions showed significant effects on the available Cd content. According to the Pearson correlation analysis results, the soil pH showed a significant negative relationship with both the soil available Cd and edible plant Cd, which had a significant positive correlation.

3.4. Food Safety Assessment via GRA

As shown in Figure 5, the r values followed a descending sequence of CBP > FBP > PRP > PM > CK. In detail, the r values of the FBP and CBP treatments were higher than the others on the 15th day, while FBP showed a maximal r value on the 30th day, followed by CBP. However, CBP outperformed FBP and had a maximal r value when the incubation time increased to 45 days. PRP had a higher r value relative to that of CK across all the incubation times, while that of PM was higher solely on the 15th day.

4. Discussion

OF is rich in both organic matter and beneficial microorganisms [30,31]. Organic matter highly correlates with soil Cd availability and migration via adsorption, chelation, and complexation [8]. The hydrophilic components of organic matter could bind to Cd2+ in soil, change the absorption capacity of soil particles to Cd2+, and increase the availability of Cd2+ [32]. The high-molecular-weight humic acid released from the decomposition of organic matter strongly binds metals, making them unavailable in soil solutions [33]. Beneficial microorganisms in OF actively reduce plant Cd toxicity by sorbing and enriching Cd or by changing the Cd element content from high to low state [34]. However, previous research indicated that dissolved organic matter released by OF itself and the decomposition process chelates with Cd to improve its plant availability [35]. Low-molecular-weight humic acids released from organic matter decomposition improve metal availability by forming chelates and preventing metal adsorption on solid surfaces [36]. To overcome OF-induced problems in agricultural production, research suggests jointly using OF with alkaline passivators when treating Cd-polluted soil. The addition of a passivator changes the nutrient content of the compost matrix and then changes the microbial community [37], which further affects the passivation of Cd [38].
In this study, we jointly applied alkaline passivators (i.e., biochar, phosphate rock powder, and fish bone meal) and OF to in situ Cd-polluted soil to solve the OF-induced problems in vegetable production. The results showed that the combination of passivators and OF generally performed better than the sole application of OF did in food safety and productivity improvement by reducing the edible plant Cd contents and soil Cd availability while increasing the soil pH. The results are consistent with previous studies, which reported that the combined application of passivators and organic fertilizers increases plant productivity by increasing the soil pH and fertility [39,40].
Agegnehu et al. [41] found that biochar and compost were more effective in improving the soil properties and field crop yields than biochar alone was. The BAF and TF values of the four treatments with the passivator decreased significantly. This indicates that the passivation agent can significantly reduce the enrichment of Cd in the available fraction. At the same time, the transfer of the Cd content from root to shoot was also reduced. In general, BAF and TF values below 1.0 indicate a weak response of shoot to metal concentrations in the soil and a low translocation of Cd from the root to the shoot [42,43]. Among them, adding biochar had the most obvious effect on reducing the quantity of Cd. Sun et al. [44] also showed that biochar is an effective treatment for Cd-contaminated soil. The AF value increased, indicating that the passivator promoted Cd uptake in lettuce roots. The enrichment of Cd in lettuce roots helped to reduce Cd in the soil and did not affect edible parts of the shoot. With the increase in incubation time, the BAF and TF values decreased significantly. Similarly, studies have found that the combined application of a passivator and organic fertilizer reduces the bioavailability of Cd [15], thus further reducing the uptake of cadmium by pak choi.
In this study, the content of Cd in shoot, BAF, and TF significantly decreased after adding passivators. Cd available from soil organisms is transferred to plant roots in the form of organometallic complexes [45,46]. Passivation materials can limit the mobility of heavy metals and reduce their uptake by plants [47]. Reducible and oxidizable Cd represent Cd adsorbed by Fe-Mn oxide and organic matter, respectively [48,49]. These forms do not go directly to the plant roots and are therefore not phytotoxic. However, they are easily affected by changes in the soil pH value, organic matter content, and other factors [50]. Kamran et al. [51] proposed that there is an obvious negative correlation between the pH and bioavailable heavy metals in the soil. Other researchers also suggested that passivators increase soil alkalinity to reduce Cd availability [52,53]. The PRP and PBP treatments caused the most significant increase in the pH value. Passivating material leads to an increase in the soil pH, which may be due to different characteristics in the material, such as basic functional groups (produced by carbonate and single-bond OH groups) and ash content [51,54]. In addition, the soil pH increases after biochar application, which reduces the extractability of heavy metals as new adsorption sites are provided in biochar-treated soils [55]. Changes in the soil pH affect the bioavailability of Cd, which indirectly affects the pak choi yield.
The OF treatment improved soil fertility and promoted the growth of the pak choi yield [56]. The CBP treatment caused the largest decrease in the Cd content in the shoots, while the PM treatment caused the smallest decrease. The content of Cd in the aboveground parts decreased from about 0.07 mg/kg to about 0.03 mg/kg, indicating that organic fertilizer and passivators could significantly inhibit the absorption and transport of Cd in pak choi. However, except for the PM treatment, the other treatments showed no significant decrease between 30 d and 45 d. Feng et al. [57] found that a low concentration of Cd (0–1 mg/kg) could promote the growth of pak choi. When the concentration of Cd is higher than 5 mg/kg, the pak choi yield will be lower. The content of Cd in the aboveground parts decreased gradually. In addition to the reduction of plant availability of Cd due to both the OF and passivators [58], the root growth of pak choi was significantly inhibited under the stress of Cd2+. Stem inhibition was not obvious. The results show that Cd was mainly concentrated in the root of pak choi [59]. Most Cd is enriched in the roots of plants, complexed with proteins and polysaccharides to form a precipitation and is fixed, and the part containing Cd migrates aboveground. In addition to root migration, a small part of Cd in the aboveground parts comes from stem and leaf direct absorption [60]. Li et al. [61] also found that pak choi weakly transports Cd and mainly concentrates heavy metals in the roots, which is relatively safe for the human body. These findings suggest that the combination of a passivator and OF can increase the aboveground biomass and reduce the absorption of Cd in pak choi, which is of great significance for the safe production of pak choi.
Biochar has a porous structure with many oxygen-containing functional groups on the surface, which can effectively adsorb Cu, Pb, Zn, and Cd [62]. It can significantly reduce the bioavailability of heavy metals. Phosphate rock powder is a phosphate fertilizer, which can be passivated via ion exchange adsorption, precipitation, and the dissolution of Pb, Zn, and Cd [63]. The main components of bone meal are mineral salt, protein, and fat. Fish bone meal can effectively raise the soil pH value and reduce the biological activity level of Cd [25]. This study showed that the combined application of passivators and OF directly affects the content of available Cd in soil. Compared with CK, the weight of the edible part of pak choi was significantly increased with each combination treatment. Among them, the CBP and FBP treatments had the best effect. The difference between them was not significant, which could increase the aboveground weight of pak choi by 15.3–32.8%. These treatments could indirectly affect the available Cd content by affecting the soil pH. It was found that the pH value of soil with the organic fertilizer and passivating agent was higher than that treated with CK, and the content of available Cd was lower than that in the soil treated with CK. The soil pH values after the PRP and FBP treatments were significantly higher than those subjected to the other treatments, with an increase of 0.28–0.54 units. The FBP treatment had the best effect (Figure 1). Compared with the CK treatment, FBP reduced the available Cd content in the soil by 46.7–48.2% (Figure 2). The soil pH value was negatively correlated with the available Cd content in the soil. The higher the pH value was, the lower the available Cd content was. Soil pH determines the form of heavy metals in soil to a certain extent. Increasing the pH will cause some of the ion exchange parts of Cd, Pb, and Zn to precipitate hydroxide, thus reducing the available content in the soil [64]. The application of a pig manure organic fertilizer could significantly reduce the content of available Cd in the soil by 0–13.33% and thus inhibit the absorption and accumulation of Cd by crops [6]. The reason for this may be that an organic fertilizer can improve the pH value of soil and convert some heavy-metal ions into sediment, thus reducing the content of available Cd [26]. It can be seen from Figure 2 that the combined application of fish bone meal and an organic fertilizer can significantly reduce the content of available Cd in soils. It is speculated that the content of available Cd in acidic soil decreases by 2.9–17% after the application of fish bone meal. This is because the main component of fish bone meal is alkaline mineral salt, which can directly improve the pH value of soil when it is applied to soil. Moreover, it can react with heavy-metal ions on the surface, thus reducing the activity of heavy metals [65]. The amount of negative charge carried by soil colloids will increase with the increase in the pH, enhancing the adsorption affinity of soil for heavy-metal ions and playing a role in fixing heavy-metal ions [66].
The application of an organic fertilizer alone or the combined application of passivators and an organic fertilizer could reduce the content of available Cd in the soil and reduce the biological activity and harm caused by Cd. An organic fertilizer can promote the secretion of plant roots and microorganisms and activate heavy metals [67]. Hu et al. [16] also found that the combined application of organic fertilizer and passivators could significantly reduce the content of available Cd in soils. Biochar has a good structure and large specific surface area and is porous, and it is beneficial for the adsorption, complexation, and ion exchange of Cd and other heavy metals [68]. This can help reduce Cd damage to crops. These findings suggest that the combined application of passivators and an organic fertilizer could directly affect the content of available Cd in soil or indirectly affect the pH value of soil, thus reducing the uptake of Cd by crops.

5. Conclusions

In this study, the hypothesis that the toxicity of Cd to vegetables can be significantly reduced by the combined application of an alkaline passivator and organic fertilizer, while increasing product yield, was verified via a pot experiment. The results showed that the addition of organic fertilizers and passivators resulted in an increase in the soil pH while decreasing the Cd content in the edible parts and the available Cd content in the soil and increasing the biomass. The combined application of an organic fertilizer and passivator resulted in the best reduction of the cadmium content in the edible fraction and soil available cadmium content by 52.3–72.6% and 32.5–52.6%, respectively. The combined application of biochar and an organic fertilizer showed the best performance in reducing the Cd content in the edible portions and available Cd content in the soil. These results are supported by the highest GRA value of the treatment. Compared with the control, the migration coefficients of Cd were reduced by 61.9% and 50.9–55.0% via the application of organic fertilizer alone and the combined application of a passivator, respectively, which effectively blocked the migration of Cd between the plants and soil. These results suggest that the combined application of biochar and an organic fertilizer perform best in reducing the risk of potential Cd contamination, thus emphasizing vegetable food safety. This study provides a potential green technology for toxicity reduction and food safety in Cd-polluted soil, with a low cost and a high efficiency.

Author Contributions

Conceptualization, W.J., R.L., X.Z. and F.W.; methodology, R.L., J.G., X.H. and F.W.; software, R.L. and X.H.; validation, X.H. and F.W.; formal analysis, W.J. and F.W.; investigation, Z.L. and F.W.; resources, X.Z. and F.W.; data curation, Z.L., J.G., X.Z. and F.W.; writing—original draft, W.J., Z.L., R.L. and F.W.; writing—review and editing, W.J., Z.L., X.H., X.Z. and F.W.; visualization, R.L., J.G. and F.W.; supervision, F.W.; project administration, W.J., X.Z. and F.W.; funding acquisition, X.Z. and F.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research and the APC was funded by the Natural Science Foundation of Shandong Province, grant numbers [ZR2022MD118 and ZR2021MD105], and the Humanities and Social Science Foundation Project of Ministry of Education, grant numbers [22YJCZH166].

Data Availability Statement

Data will be made available on request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yang, Y.; Yuan, X.; Chi, W.; Wang, P.; Hu, S.; Li, F.; Li, X.; Liu, T.; Sun, Y.; Qin, H. Modelling Evaluation of Key Cadmium Transformation Processes in Acid Paddy Soil under Alternating Redox Conditions. Chem. Geol. 2021, 581, 120409. [Google Scholar] [CrossRef]
  2. Yang, X.; Li, J.; Liang, T.; Yan, X.; Zhong, L.; Shao, J.; El-Naggar, A.; Guan, C.-Y.; Liu, J.; Zhou, Y. A Combined Management Scheme to Simultaneously Mitigate As and Cd Concentrations in Rice Cultivated in Contaminated Paddy Soil. J. Hazard. Mater. 2021, 416, 125837. [Google Scholar] [CrossRef] [PubMed]
  3. Rui, D.; Wu, Z.; Ji, M.; Liu, J.; Wang, S.; Ito, Y. Remediation of Cd- and Pb-Contaminated Clay Soils through Combined Freeze-Thaw and Soil Washing. J. Hazard. Mater. 2019, 369, 87–95. [Google Scholar] [CrossRef] [PubMed]
  4. Bibi, I.; Niazi, N.K.; Shahid, M.; Ali, F.; Masood ul Hasan, I.; Rahman, M.M.; Younas, F.; Hussain, M.M.; Mehmood, T.; Shaheen, S.M.; et al. Distribution and Ecological Risk Assessment of Trace Elements in the Paddy Soil-Rice Ecosystem of Punjab, Pakistan. Environ. Pollut. 2022, 307, 119492. [Google Scholar] [CrossRef]
  5. Li, Z.; Liang, Y.; Hu, H.; Shaheen, S.M.; Zhong, H.; Tack, F.M.G.; Wu, M.; Li, Y.-F.; Gao, Y.; Rinklebe, J.; et al. Speciation, Transportation, and Pathways of Cadmium in Soil-Rice Systems: A Review on the Environmental Implications and Remediation Approaches for Food Safety. Environ. Int. 2021, 156, 106749. [Google Scholar] [CrossRef]
  6. Wang, N.; Wu, X.; Liao, P.; Zhang, J.; Liu, N.; Zhou, Z.; Huang, H.; Zhang, L. Morphological Transformation of Heavy Metals and Their Distribution in Soil Aggregates during Biotransformation of Livestock Manure. Biocatal. Agric. Biotechnol. 2021, 32, 101963. [Google Scholar] [CrossRef]
  7. Shahkolaie, S.S.; Baranimotlagh, M.; Dordipour, E.; Khormali, F. Effects of Inorganic and Organic Amendments on Physiological Parameters and Antioxidant Enzymes Activities in Zea mays L. from a Cadmium-Contaminated Calcareous Soil. S. Afr. J. Bot. 2020, 128, 132–140. [Google Scholar] [CrossRef]
  8. Wang, W.; Zhang, J.; Li, X.; Zang, Y.; Li, R. Effects of Typical Modified Passivators on Speciation of Heavy Metals in Protein Extracted from Sewage Sludge. Environ. Sci. Pollut. Res. 2019, 26, 10875–10886. [Google Scholar] [CrossRef]
  9. Xu, Z.; Lu, Z.; Zhang, L.; Fan, H.; Wang, Y.; Li, J.; Lin, Y.; Liu, H.; Guo, S.; Xu, M.; et al. Red Mud Based Passivator Reduced Cd Accumulation in Edible Amaranth by Influencing Root Organic Matter Metabolism and Soil Aggregate Distribution. Environ. Pollut. 2021, 275, 116543. [Google Scholar] [CrossRef]
  10. Zhou, H.; Meng, H.; Zhao, L.; Shen, Y.; Hou, Y.; Cheng, H.; Song, L. Effect of Biochar and Humic Acid on the Copper, Lead, and Cadmium Passivation during Composting. Bioresour. Technol. 2018, 258, 279–286. [Google Scholar] [CrossRef]
  11. Jiang, Y.; Li, K.; Chen, S.; Fu, X.; Feng, S.; Zhuang, Z. A Sustainable Agricultural Supply Chain Considering Substituting Organic Manure for Chemical Fertilizer. Sustain. Prod. Consum. 2022, 29, 432–446. [Google Scholar] [CrossRef]
  12. Segura, C.; Cardenas, L.; McDowell, R.; Morgan, S.; Blackwell, M.S.A. Effects on Soil of Grassland Management for Pasture, Hay and Silage. In Encyclopedia of Soils in the Environment, 2nd ed.; Goss, M.J., Oliver, M., Eds.; Academic Press: Oxford, UK, 2023; pp. 102–112. ISBN 978-0-323-95133-3. [Google Scholar]
  13. Wang, Q.; Huang, Q.; Guo, G.; Qin, J.; Luo, J.; Zhu, Z.; Hong, Y.; Xu, Y.; Hu, S.; Hu, W.; et al. Reducing Bioavailability of Heavy Metals in Contaminated Soil and Uptake by Maize Using Organic-Inorganic Mixed Fertilizer. Chemosphere 2020, 261, 128122. [Google Scholar] [CrossRef] [PubMed]
  14. Arif, M.S.; Riaz, M.; Shahzad, S.M.; Yasmeen, T.; Ashraf, M.; Siddique, M.; Mubarik, M.S.; Bragazza, L.; Buttler, A. Fresh and Composted Industrial Sludge Restore Soil Functions in Surface Soil of Degraded Agricultural Land. Sci. Total Environ. 2018, 619–620, 517–527. [Google Scholar] [CrossRef] [PubMed]
  15. Hong, Y.; Li, D.; Xie, C.; Zheng, X.; Yin, J.; Li, Z.; Zhang, K.; Jiao, Y.; Wang, B.; Hu, Y.; et al. Combined Apatite, Biochar, and Organic Fertilizer Application for Heavy Metal Co-Contaminated Soil Remediation Reduces Heavy Metal Transport and Alters Soil Microbial Community Structure. Sci. Total Environ. 2022, 851, 158033. [Google Scholar] [CrossRef]
  16. Hu, X.; Huang, X.; Zhao, H.; Liu, F.; Wang, L.; Zhao, X.; Gao, P.; Li, X.; Ji, P. Possibility of Using Modified Fly Ash and Organic Fertilizers for Remediation of Heavy-Metal-Contaminated Soils. J. Clean. Prod. 2021, 284, 124713. [Google Scholar] [CrossRef]
  17. Wei, X.; Zhang, P.; Zhan, Q.; Hong, L.; Bocharnikova, E.; Matichenkov, V. Regulation of As and Cd Accumulation in Rice by Simultaneous Application of Lime or Gypsum with Si-Rich Materials. Environ. Sci. Pollut. Res. 2021, 28, 7271–7280. [Google Scholar] [CrossRef]
  18. Wu, L.; Liu, J.; Zhou, J.; Zhang, Q.; Song, Y.; Du, S.; Tian, W. Evaluation of Tar from the Microwave Co-Pyrolysis of Low-Rank Coal and Corncob Using Orthogonal-Test-Based Grey Relational Analysis (GRA). J. Clean. Prod. 2022, 337, 130362. [Google Scholar] [CrossRef]
  19. Rehman, E.; Rehman, S. Modeling the Nexus between Carbon Emissions, Urbanization, Population Growth, Energy Consumption, and Economic Development in Asia: Evidence from Grey Relational Analysis. Energy Rep. 2022, 8, 5430–5442. [Google Scholar] [CrossRef]
  20. Pandey, S.; Nautiyal, R.; Kumar, P.; Chandra, G.; Pal Panwar, V. A Grey Relational Model for Soil Erosion Vulnerability Assessment in Subwatershed of Lesser Himalayan Region. Catena 2022, 210, 105928. [Google Scholar] [CrossRef]
  21. Fang, F.; Zeng, R.J.; Sheng, G.-P.; Yu, H.-Q. An Integrated Approach to Identify the Influential Priority of the Factors Governing Anaerobic H2 Production by Mixed Cultures. Water Res. 2010, 44, 3234–3242. [Google Scholar] [CrossRef]
  22. Sun, M.; Li, W.-W.; Yu, H.-Q.; Harada, H. A Novel Integrated Approach to Quantitatively Evaluate the Efficiency of Extracellular Polymeric Substances (EPS) Extraction Process. Appl. Microbiol. Biotechnol. 2012, 96, 1577–1585. [Google Scholar] [CrossRef] [PubMed]
  23. Huang, H.; Rizwan, M.; Li, M.; Song, F.; Zhou, S.; He, X.; Ding, R.; Dai, Z.; Yuan, Y.; Cao, M.; et al. Comparative Efficacy of Organic and Inorganic Silicon Fertilizers on Antioxidant Response, Cd/Pb Accumulation and Health Risk Assessment in Wheat (Triticum aestivum L.). Environ. Pollut. 2019, 255, 113146. [Google Scholar] [CrossRef]
  24. Guiqin, J.; Fuliang, Y.; Yong, Z. An Analysis of Vulnerability to Agricultural Drought in China Using the Expand Grey Relation Analysis Method. Procedia Eng. 2012, 28, 670–676. [Google Scholar] [CrossRef]
  25. Hamid, Y.; Tang, L.; Hussain, B.; Usman, M.; Lin, Q.; Rashid, M.S.; He, Z.; Yang, X. Organic Soil Additives for the Remediation of Cadmium Contaminated Soils and Their Impact on the Soil-Plant System: A Review. Sci. Total Environ. 2020, 707, 136121. [Google Scholar] [CrossRef] [PubMed]
  26. Zhang, Z.; Guo, G.; Wang, M.; Zhang, J.; Wang, Z.; Li, F.; Chen, H. Enhanced Stabilization of Pb, Zn, and Cd in Contaminated Soils Using Oxalic Acid-Activated Phosphate Rocks. Environ. Sci. Pollut. Res. 2018, 25, 2861–2868. [Google Scholar] [CrossRef]
  27. Al-Maliki, S.; Al-Shamary, A. Vital Evidence for Arbuscular Mycorrhizal Fungi, Bacteria and Cattail Plant to Remove Pb-Cd Heavy Metals from Contaminated Soils. Acta Ecol. Sin. 2022, 42, 392–397. [Google Scholar] [CrossRef]
  28. Jan, M.; Panhwar, S.K.; Zafar, F.H.S. Ecosystem Based Approach to Delineate Coastal Degradation of Hawks Bay, Karachi, Pakistan. Chemosphere 2022, 301, 134648. [Google Scholar] [CrossRef]
  29. Zhuang, Z.; Nino-Savala, A.G.; Mi, Z.; Wan, Y.; Su, D.; Li, H.; Fangmeier, A. Cadmium Accumulation in Wheat and Maize Grains from China: Interaction of Soil Properties, Novel Enrichment Models and Soil Thresholds. Environ. Pollut. 2021, 275, 116623. [Google Scholar] [CrossRef]
  30. Pu, R.; Wang, P.; Guo, L.; Li, M.; Cui, X.; Wang, C.; Liu, Y.; Yang, Y. The Remediation Effects of Microbial Organic Fertilizer on Soil Microorganisms after Chloropicrin Fumigation. Ecotoxicol. Environ. Saf. 2022, 231, 113188. [Google Scholar] [CrossRef]
  31. Wang, H.; Xu, J.; Liu, X.; Zhang, D.; Li, L.; Li, W.; Sheng, L. Effects of Long-Term Application of Organic Fertilizer on Improving Organic Matter Content and Retarding Acidity in Red Soil from China. Soil Tillage Res. 2019, 195, 104382. [Google Scholar] [CrossRef]
  32. Wang, P.; Peng, H.; Liu, J.; Zhu, Z.; Bi, X.; Yu, Q.; Zhang, J. Effects of Exogenous Dissolved Organic Matter on the Adsorption–Desorption Behaviors and Bioavailabilities of Cd and Hg in a Plant–Soil System. Sci. Total Environ. 2020, 728, 138252. [Google Scholar] [CrossRef] [PubMed]
  33. Parvin, A.; Moniruzzaman, M.; Hossain, M.K.; Saha, B.; Parvin, A.; Suchi, P.D.; Hoque, S. Chemical Speciation and Potential Mobility of Heavy Metals in Organic Matter Amended Soil. Appl. Environ. Soil Sci. 2022, 2022, e2028860. [Google Scholar] [CrossRef]
  34. Fu, H.; Yu, H.; Li, T.; Zhang, X. Influence of Cadmium Stress on Root Exudates of High Cadmium Accumulating Rice Line (Oryza sativa L.). Ecotoxicol. Environ. Saf. 2018, 150, 168–175. [Google Scholar] [CrossRef]
  35. Marinova, S. Distribution and Forms of Heavy Metals in Some Agricultural Soils. Pol. J. Environ. Stud. 2003, 12, 629–633. [Google Scholar]
  36. Amoakwah, E.; Van Slycken, S.; Tack, F.; Essumang, D. Assessing the Extraction Efficiency of CaCl2 and Rhizon Extraction Methods after the Application of Organic Matter and CaCl2 as Soil Amendments to Enhance the Mobility of Cd and Zn. J. Environ. Anal. Toxicol. 2013, 3, 1000167. [Google Scholar]
  37. Chen, X.; Liu, R.; Hao, J.; Li, D.; Wei, Z.; Teng, R.; Sun, B. Protein and Carbohydrate Drive Microbial Responses in Diverse Ways during Different Animal Manures Composting. Bioresour. Technol. 2019, 271, 482–486. [Google Scholar] [CrossRef]
  38. Chen, X.; Zhao, Y.; Zeng, C.; Li, Y.; Zhu, L.; Wu, J.; Chen, J.; Wei, Z. Assessment Contributions of Physicochemical Properties and Bacterial Community to Mitigate the Bioavailability of Heavy Metals during Composting Based on Structural Equation Models. Bioresour. Technol. 2019, 289, 121657. [Google Scholar] [CrossRef]
  39. Ye, L.; Camps-Arbestain, M.; Shen, Q.; Lehmann, J.; Singh, B.; Sabir, M. Biochar Effects on Crop Yields with and without Fertilizer: A Meta-Analysis of Field Studies Using Separate Controls. Soil Use Manag. 2020, 36, 2–18. [Google Scholar] [CrossRef]
  40. Ye, Z.; Zhang, L.; Huang, Q.; Tan, Z. Development of a Carbon-Based Slow Release Fertilizer Treated by Bio-Oil Coating and Study on Its Feedback Effect on Farmland Application. J. Clean. Prod. 2019, 239, 118085. [Google Scholar] [CrossRef]
  41. Agegnehu, G.; Srivastava, A.K.; Bird, M.I. The Role of Biochar and Biochar-Compost in Improving Soil Quality and Crop Performance: A Review. Appl. Soil Ecol. 2017, 119, 156–170. [Google Scholar] [CrossRef]
  42. Bashir, S.; Gulshan, A.B.; Iqbal, J.; Husain, A.; Alwahibi, M.S.; Alkahtani, J.; Dwiningsih, Y.; Bakhsh, A.; Ahmed, N.; Khan, M.J.; et al. Comparative Role of Animal Manure and Vegetable Waste Induced Compost for Polluted Soil Restoration and Maize Growth. Saudi J. Biol. Sci. 2021, 28, 2534–2539. [Google Scholar] [CrossRef] [PubMed]
  43. Mirecki, N.; Agič, R.; Šunić, L.; Milenković, L.; Ilić, Z.S. Transfer Factor as Indicator of Heavy Metals Content in Plants. Fresenius Environ. Bull. 2015, 24, 4212–4219. [Google Scholar]
  44. Sun, Y.; Sun, G.; Xu, Y.; Liu, W.; Liang, X.; Wang, L. Evaluation of the Effectiveness of Sepiolite, Bentonite, and Phosphate Amendments on the Stabilization Remediation of Cadmium-Contaminated Soils. J. Environ. Manag. 2016, 166, 204–210. [Google Scholar] [CrossRef] [PubMed]
  45. Haider, F.U.; Liqun, C.; Coulter, J.A.; Cheema, S.A.; Wu, J.; Zhang, R.; Wenjun, M.; Farooq, M. Cadmium Toxicity in Plants: Impacts and Remediation Strategies. Ecotoxicol. Environ. Saf. 2021, 211, 111887. [Google Scholar] [CrossRef] [PubMed]
  46. Bandara, T.; Franks, A.; Xu, J.; Bolan, N.; Wang, H.; Tang, C. Chemical and Biological Immobilization Mechanisms of Potentially Toxic Elements in Biochar-Amended Soils. Crit. Rev. Environ. Sci. Technol. 2020, 50, 903–978. [Google Scholar] [CrossRef]
  47. Chen, X.; He, H.-Z.; Chen, G.-K.; Li, H.-S. Effects of Biochar and Crop Straws on the Bioavailability of Cadmium in Contaminated Soil. Sci. Rep. 2020, 10, 9528. [Google Scholar] [CrossRef]
  48. Fathollahzadeh, H.; Kaczala, F.; Bhatnagar, A.; Hogland, W. Speciation of Metals in Contaminated Sediments from Oskarshamn Harbor, Oskarshamn, Sweden. Environ. Sci. Pollut. Res. 2014, 21, 2455–2464. [Google Scholar] [CrossRef]
  49. Matong, J.M.; Nyaba, L.; Nomngongo, P.N. Fractionation of Trace Elements in Agricultural Soils Using Ultrasound Assisted Sequential Extraction Prior to Inductively Coupled Plasma Mass Spectrometric Determination. Chemosphere 2016, 154, 249–257. [Google Scholar] [CrossRef]
  50. Liu, G.; Dai, Z.; Tang, C.; Xu, J. The Immobilization, Plant Uptake and Translocation of Cadmium in a Soil-Pakchoi (Brassica chinensis L.) System Amended with Various Sugarcane Bagasse-Based Materials. Environ. Pollut. 2022, 311, 119946. [Google Scholar] [CrossRef]
  51. Kamran, M.; Malik, Z.; Parveen, A.; Zong, Y.; Abbasi, G.H.; Rafiq, M.T.; Shaaban, M.; Mustafa, A.; Bashir, S.; Rafay, M.; et al. Biochar Alleviates Cd Phytotoxicity by Minimizing Bioavailability and Oxidative Stress in Pak Choi (Brassica chinensis L.) Cultivated in Cd-Polluted Soil. J. Environ. Manag. 2019, 250, 109500. [Google Scholar] [CrossRef]
  52. Li, H.; Liu, Y.; Luo, Z.; Zhou, Y.; Hou, D.; Mao, Q.; Zhi, D.; Zhang, J.; Yang, Y.; Luo, L. Effect of RM-Based-Passivator for the Remediation of Two Kinds of Cd Polluted Paddy Soils and Mechanism of Cd(II) Adsorption. Environ. Technol. 2021, 42, 1623–1633. [Google Scholar] [CrossRef] [PubMed]
  53. Tang, X.; Li, X.; Liu, X.; Hashmi, M.Z.; Xu, J.; Brookes, P.C. Effects of Inorganic and Organic Amendments on the Uptake of Lead and Trace Elements by Brassica chinensis Grown in an Acidic Red Soil. Chemosphere 2015, 119, 177–183. [Google Scholar] [CrossRef] [PubMed]
  54. Jiang, J.; Xu, R.; Jiang, T.; Li, Z. Immobilization of Cu(II), Pb(II) and Cd(II) by the Addition of Rice Straw Derived Biochar to a Simulated Polluted Ultisol. J. Hazard. Mater. 2012, 229, 145–150. [Google Scholar] [CrossRef] [PubMed]
  55. Lahori, A.H.; Mierzwa-Hersztek, M.; Rashid, M.; Kalhoro, S.A.; Memon, M.; Naheed, Z.; Ahmed, M.; Zhang, Z. Residual Effects of Tobacco Biochar along with Different Fixing Agents on Stabilization of Trace Elements in Multi-Metal Contaminated Soils. J. Environ. Sci. 2020, 87, 299–309. [Google Scholar] [CrossRef]
  56. Yari, M.; Rahimi, G.; Ebrahimi, E.; Sadeghi, S.; Fallah, M.; Ghesmatpoor, E. Effect of Three Types of Organic Fertilizers on the Heavy Metals Transfer Factor and Maize Biomass. Waste Biomass Valorization 2017, 8, 2681–2691. [Google Scholar] [CrossRef]
  57. Feng, R.; Qiu, W.; Lian, F.; Yu, Z.; Yang, Y.; Song, Z. Field Evaluation of in Situ Remediation of Cd-Contaminated Soil Using Four Additives, Two Foliar Fertilisers and Two Varieties of Pakchoi. J. Environ. Manag. 2013, 124, 17–24. [Google Scholar] [CrossRef]
  58. Wang, R.; Guo, J.; Xu, Y.; Ding, Y.; Shen, Y.; Zheng, X.; Feng, R. Evaluation of Silkworm Excrement and Mushroom Dreg for the Remediation of Multiple Heavy Metal/Metalloid Contaminated Soil Using Pakchoi. Ecotoxicol. Environ. Saf. 2016, 124, 239–247. [Google Scholar] [CrossRef]
  59. Han, H.; Cai, H.; Wang, X.; Hu, X.; Chen, Z.; Yao, L. Heavy Metal-Immobilizing Bacteria Increase the Biomass and Reduce the Cd and Pb Uptake by Pakchoi (Brassica chinensis L.) in Heavy Metal-Contaminated Soil. Ecotoxicol. Environ. Saf. 2020, 195, 110375. [Google Scholar] [CrossRef]
  60. Hou, S.; Zheng, N.; Tang, L.; Ji, X. Effects of Cadmium and Copper Mixtures to Carrot and Pakchoi under Greenhouse Cultivation Condition. Ecotoxicol. Environ. Saf. 2018, 159, 172–181. [Google Scholar] [CrossRef]
  61. Li, Q.; Cai, S.; Mo, C.; Chu, B.; Peng, L.; Yang, F. Toxic Effects of Heavy Metals and Their Accumulation in Vegetables Grown in a Saline Soil. Ecotoxicol. Environ. Saf. 2010, 73, 84–88. [Google Scholar] [CrossRef]
  62. Zhang, X.; Wang, H.; He, L.; Lu, K.; Sarmah, A.; Li, J.; Bolan, N.S.; Pei, J.; Huang, H. Using Biochar for Remediation of Soils Contaminated with Heavy Metals and Organic Pollutants. Environ. Sci. Pollut. Res. 2013, 20, 8472–8483. [Google Scholar] [CrossRef] [PubMed]
  63. Basta, N.T.; Gradwohl, R.; Snethen, K.L.; Schroder, J.L. Chemical Immobilization of Lead, Zinc, and Cadmium in Smelter-Contaminated Soils Using Biosolids and Rock Phosphate. J. Environ. Qual. 2001, 30, 1222–1230. [Google Scholar] [CrossRef] [PubMed]
  64. Liu, Y.; Sun, X.; Li, S.; Li, S.; Zhou, W.; Ma, Q.; Zhang, J. Influence of Green Waste Compost on Pb-Polluted Soil Remediation, Soil Quality Improvement, and Uptake by Pakchoi Cabbage (Brassica campestris L. Ssp). Environ. Sci. Pollut. Res. 2020, 27, 7693–7701. [Google Scholar] [CrossRef] [PubMed]
  65. Azeem, M.; Ali, A.; Arockiam Jeyasundar, P.G.S.; Li, Y.; Abdelrahman, H.; Latif, A.; Li, R.; Basta, N.; Li, G.; Shaheen, S.M.; et al. Bone-Derived Biochar Improved Soil Quality and Reduced Cd and Zn Phytoavailability in a Multi-Metal Contaminated Mining Soil. Environ. Pollut. 2021, 277, 116800. [Google Scholar] [CrossRef]
  66. Bashir, S.; Adeel, M.; Gulshan, A.B.; Iqbal, J.; Khan, S.; Rehman, M.; Azeem, M. Effects of Organic and Inorganic Passivators on the Immobilization of Cadmium in Contaminated Soils: A Review. Environ. Eng. Sci. 2019, 36, 986–998. [Google Scholar] [CrossRef]
  67. Meng, L.; Huang, T.; Shi, J.; Chen, J.; Zhong, F.; Wu, L.; Xu, J. Decreasing Cadmium Uptake of Rice (Oryza sativa L.) in the Cadmium-Contaminated Paddy Field through Different Cultivars Coupling with Appropriate Soil Amendments. J. Soils Sediments 2019, 19, 1788–1798. [Google Scholar] [CrossRef]
  68. Bandara, T.; Franks, A.; Xu, J.; Chathurika, J.B.A.J.; Tang, C. Biochar Aging Alters the Bioavailability of Cadmium and Microbial Activity in Acid Contaminated Soils. J. Hazard. Mater. 2021, 420, 126666. [Google Scholar] [CrossRef]
Toxics 11 00824 g001

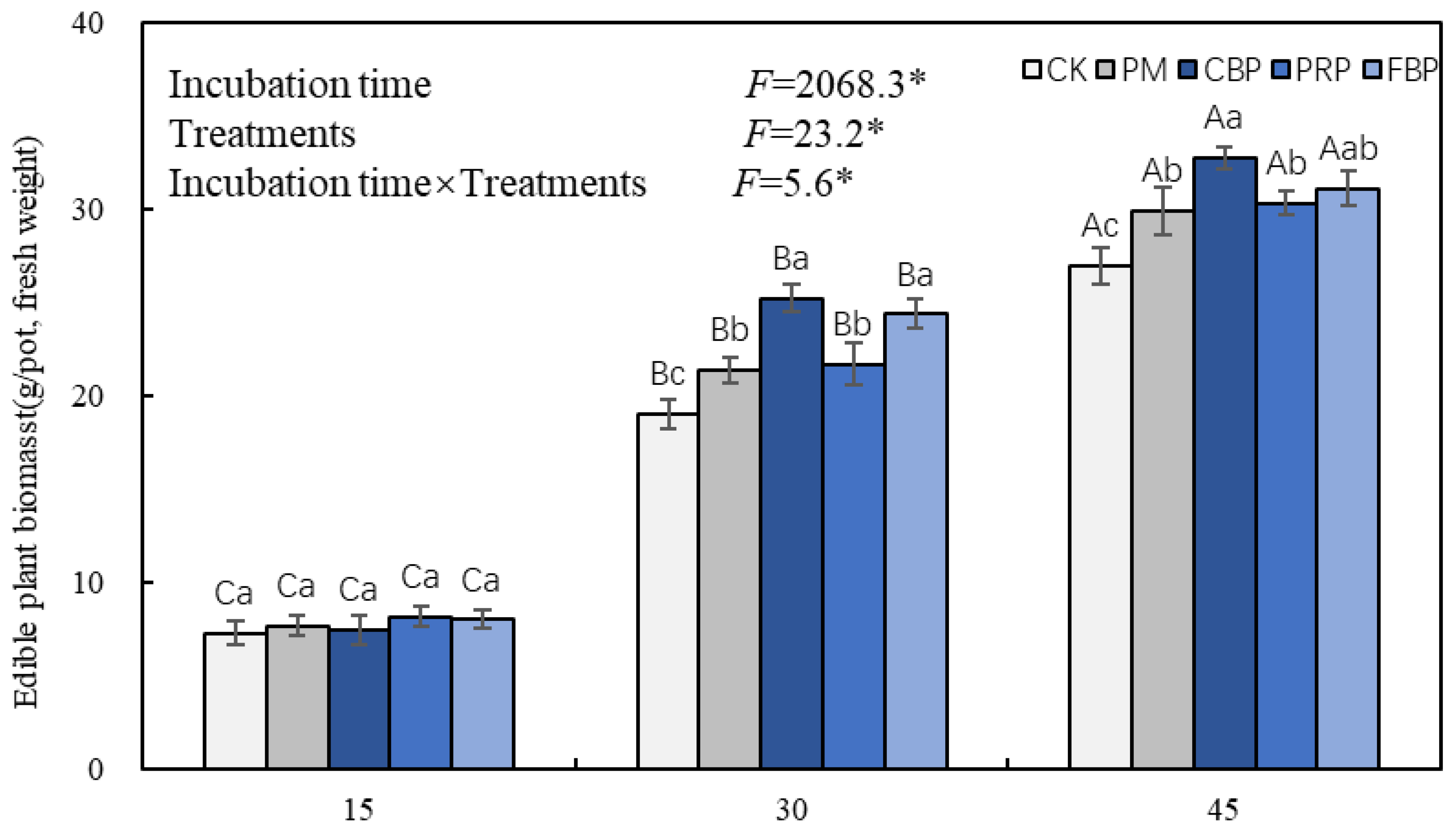

Figure 1. The effect of different treatments on edible fresh biomass. Note: The vertical bars above and within the columns indicate the standard errors (n = 3). * implies incubation periods, treatments, and their joint effects induced significant changes in the edible fresh biomass at the 5% level. Different lowercase (uppercase) letters symbolize the significance of the edible fresh biomass across the incubation periods (treatments) at the 5% level according to Duncan’s test. The same notation is presented in the following figures.
Figure 1. The effect of different treatments on edible fresh biomass. Note: The vertical bars above and within the columns indicate the standard errors (n = 3). * implies incubation periods, treatments, and their joint effects induced significant changes in the edible fresh biomass at the 5% level. Different lowercase (uppercase) letters symbolize the significance of the edible fresh biomass across the incubation periods (treatments) at the 5% level according to Duncan’s test. The same notation is presented in the following figures.
Toxics 11 00824 g001
Toxics 11 00824 g002
Figure 2. The effect of different treatments on edible plant Cd content. *** implies incubation periods, treatments, and their joint effects induced significant changes in the edible fresh biomass at the 5% level. Different lowercase (uppercase) letters symbolize the significance of the edible fresh biomass across the incubation periods (treatments) at the 5% level according to Duncan’s test. The same notation is presented in the following figures.
Figure 2. The effect of different treatments on edible plant Cd content. *** implies incubation periods, treatments, and their joint effects induced significant changes in the edible fresh biomass at the 5% level. Different lowercase (uppercase) letters symbolize the significance of the edible fresh biomass across the incubation periods (treatments) at the 5% level according to Duncan’s test. The same notation is presented in the following figures.
Toxics 11 00824 g002
Toxics 11 00824 g003

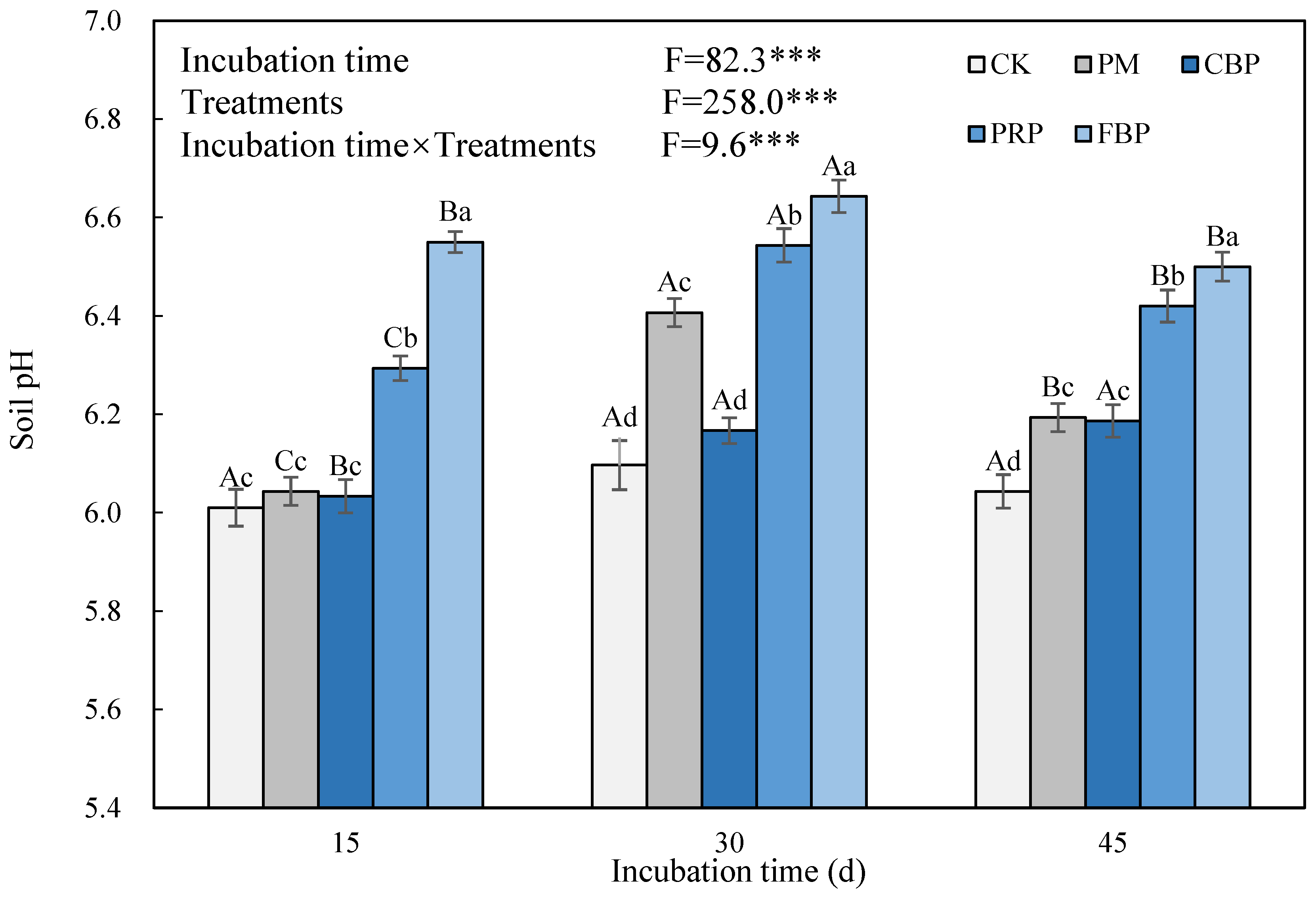

Figure 3. The effect of different treatments on soil pH. *** implies incubation periods, treatments, and their joint effects induced significant changes in the edible fresh biomass at the 5% level. Different lowercase (uppercase) letters symbolize the significance of the edible fresh biomass across the incubation periods (treatments) at the 5% level according to Duncan’s test. The same notation is presented in the following figures.
Figure 3. The effect of different treatments on soil pH. *** implies incubation periods, treatments, and their joint effects induced significant changes in the edible fresh biomass at the 5% level. Different lowercase (uppercase) letters symbolize the significance of the edible fresh biomass across the incubation periods (treatments) at the 5% level according to Duncan’s test. The same notation is presented in the following figures.
Toxics 11 00824 g003
Toxics 11 00824 g004

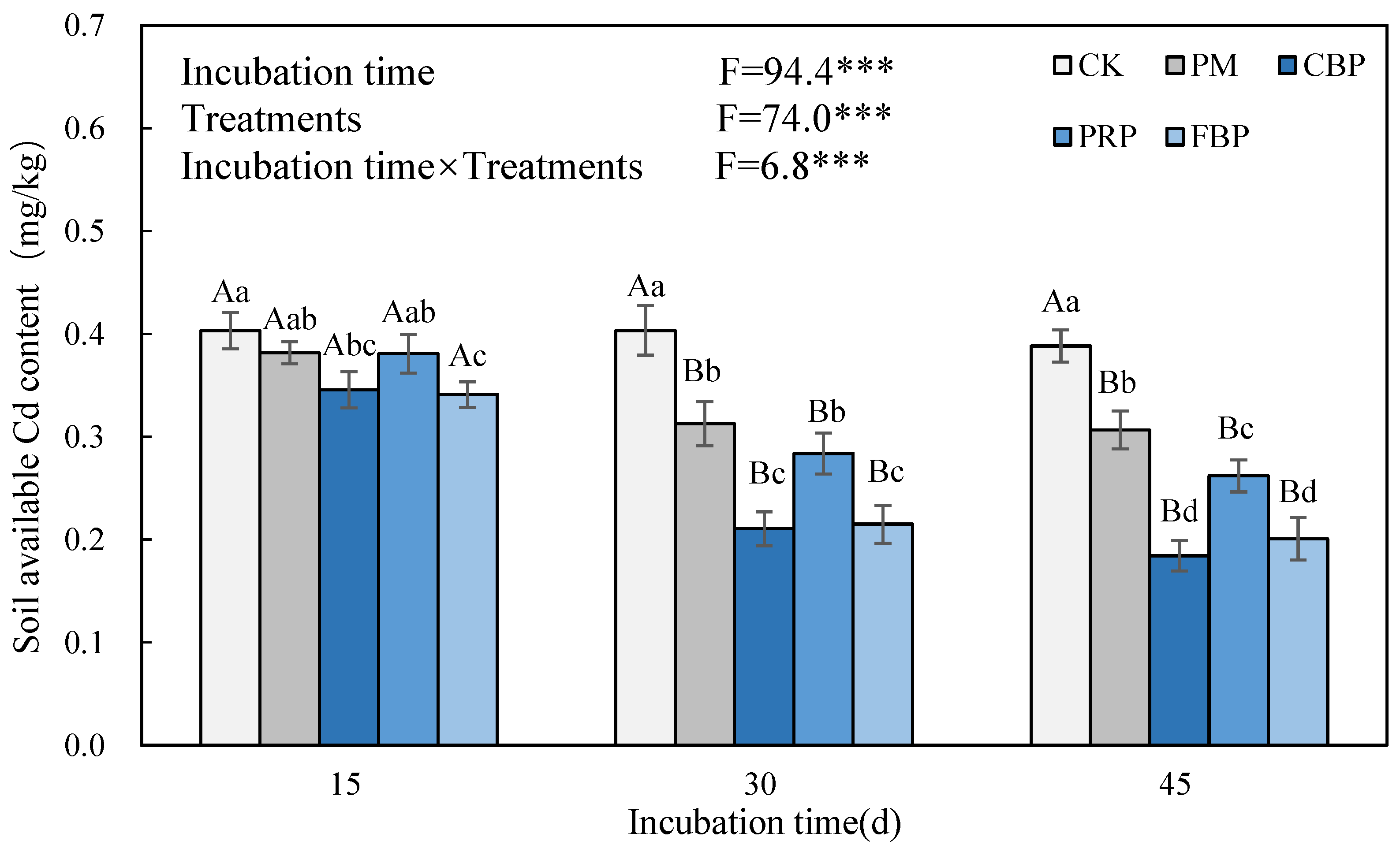

Figure 4. The effect of different treatments on soil available Cd. *** implies incubation periods, treatments, and their joint effects induced significant changes in the edible fresh biomass at the 5% level. Different lowercase (uppercase) letters symbolize the significance of the edible fresh biomass across the incubation periods (treatments) at the 5% level according to Duncan’s test. The same notation is presented in the following figures.
Figure 4. The effect of different treatments on soil available Cd. *** implies incubation periods, treatments, and their joint effects induced significant changes in the edible fresh biomass at the 5% level. Different lowercase (uppercase) letters symbolize the significance of the edible fresh biomass across the incubation periods (treatments) at the 5% level according to Duncan’s test. The same notation is presented in the following figures.
Toxics 11 00824 g004
Toxics 11 00824 g005
Figure 5. Relationships among soil pH, available Cd, and the effect of different treatments on soil available Cd.
Figure 5. Relationships among soil pH, available Cd, and the effect of different treatments on soil available Cd.
Toxics 11 00824 g005
Table 1. Basic characteristics of soil, organic fertilizer, and passivators.
Table 1. Basic characteristics of soil, organic fertilizer, and passivators.
MaterialsBasic Characteristics
pHTotal Cd
(mg kg−1)		CEC
(cmol kg−1)		Organic Matter
(g kg−1)
Soil5.881.178.7121.2
Organic fertilizer8.040.46-485
Biochar9.370.47118.64129.6
Phosphate rock powder8.420.07-4.4
Fish bone meal7.910.668.05345
Table 2. Bioenrichment factor (BAF), absorption factor (AF), and transport factor (TF) of plant Cd subjected to different treatments.
Table 2. Bioenrichment factor (BAF), absorption factor (AF), and transport factor (TF) of plant Cd subjected to different treatments.
TreatmentsBAFAFTF
15 d30 d45 d15 d30 d45 d15 d30 d45 d
CK0.186 Aa0.179 Aa0.186 Aa0.332 Ab0.345 Ad0.331 Ac0.563 Aa0.521 Aa0.564 Aa
PM0.184 Aa0.136 Bb0.122 Bbc0.455 Ba0.632 Aa0.567 Aa0.406 Ab0.217 Bb0.215 Bc
CBP0.168 Aa0.116 Bb0.109 Bc0.404 Aa0.455 Ac0.391 Ab0.417 Ab0.254 Bb0.277 Bb
PRP0.169 Aa0.144 Ab0.132 Bbc0.445 Ba0.534 Ab0.519 Aa0.381 Ab0.268 Bb0.254 Bbc
FBP0.181 Aa0.130 Bb0.139 Bb0.467 Ba0.562 Aab0.518 ABa0.387 Ab0.232 Bb0.269 Bb
Note: Different lowercase (uppercase) letters symbolize significance in indexes across the incubation periods (treatments) at the 5% level according to Duncan’s test.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Jiao, W.; Li, Z.; Li, R.; Guo, J.; Hou, X.; Zhang, X.; Wang, F. In Situ Toxicity Reduction and Food Safety Assessment of Pak Choi (Brassica campestris L.) in Cadmium-Contaminated Soil by Jointly Using Alkaline Passivators and Organic Fertilizer. Toxics 2023, 11, 824. https://doi.org/10.3390/toxics11100824

AMA Style

Jiao W, Li Z, Li R, Guo J, Hou X, Zhang X, Wang F. In Situ Toxicity Reduction and Food Safety Assessment of Pak Choi (Brassica campestris L.) in Cadmium-Contaminated Soil by Jointly Using Alkaline Passivators and Organic Fertilizer. Toxics. 2023; 11(10):824. https://doi.org/10.3390/toxics11100824

Chicago/Turabian Style

Jiao, Wei, Zhi Li, Ruiping Li, Jiafeng Guo, Xiaoshu Hou, Xi Zhang, and Fangli Wang. 2023. "In Situ Toxicity Reduction and Food Safety Assessment of Pak Choi (Brassica campestris L.) in Cadmium-Contaminated Soil by Jointly Using Alkaline Passivators and Organic Fertilizer" Toxics 11, no. 10: 824. https://doi.org/10.3390/toxics11100824

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
