The First Miniature, Small Foliose, Brown Xanthoparmelia in the Northern Hemisphere

by
Guillermo Amo de Paz
1,*,
Pradeep K. Divakar
1,
Ana Crespo
1,
Helge Thorsten Lumbsch
2 and
Víctor J. Rico
1
1
Departamento de Farmacología, Farmacognosia y Botánica (U.D. Botánica), Facultad de Farmacia, Universidad Complutense, Plaza de Ramón y Cajal s/n, 28040 Madrid, Spain
2
Collections, Conservation and Research, The Field Museum, 1400 S. Lake Shore Drive, Chicago, IL 60605, USA
*
Author to whom correspondence should be addressed.
J. Fungi 2024, 10(9), 603; https://doi.org/10.3390/jof10090603
Submission received: 28 July 2024 / Revised: 19 August 2024 / Accepted: 23 August 2024 / Published: 25 August 2024
(This article belongs to the Special Issue Lichen Forming Fungi—in Honour of Prof. Ana Rosa Burgaz)
Browse Figures
Review Reports Versions Notes

Abstract

:
The genus Xanthoparmelia includes several subcrustose, squamulose, small foliose, and small subfruticose species, primarily in the Southern Hemisphere. Here, we report on the first small foliose species lacking usnic acid in the genus occurring in the Holarctic. The species has been previously known as Lecanora olivascens Nyl., but subsequent studies of the morphology, secondary chemistry, and molecular data of the nuITS rDNA indicate that this species instead belongs to Xanthoparmelia. Consequently, the new combination Xanthoparmelia olivascens (Nyl.) V.J. Rico and G. Amo is proposed, and an epitype is designated here. We discuss the unique presence of a subcrustose Xanthoparmelia species lacking cortical usnic acid in the Northern Hemisphere. This species fits phylogenetically into a clade that was previously only known from the Southern Hemisphere, and hence represents another example of N-S disjunction in lichenized fungi.

1. Introduction

The diversity of fungi and their estimated huge numbers is one of the great questions of evolutionary biology [1]. As has been frequently noted, Parmeliaceae is one of the largest families of lichenized fungi, encompassing a major clade primarily composed of foliose to fruticose species known as the parmelioid clade, with approximately 1500 described species [2,3]. Within the parmelioid lichens, nine clades have been identified [4]. Of these, one remarkable monophyletic group is the Xanthoparmelia clade, which includes the single genus Xanthoparmelia (Vain.) Hale. This is one of the most speciose genera of lichen-forming fungi. Noteworthy, only two genera are known to be ultra-diverse (>500 species) in lichen-forming fungi [5]; one of these is Xanthoparmelia. This genus includes over 800 described species predominantly found in arid to semiarid regions, where they thrive on siliceous rocks or soil. Contrarily to the high diversity in Australia, South Africa, and North and South America, fewer species are known from Asia and Europe [6]. Xanthoparmelia species are characterized by their Xanthoparmelia-type cell wall polysaccharides and arachiform vacuolar bodies in their ascospores [7,8,9]. However, phenotypic variations are found in growth forms, including foliose, fruticose, and subcrustose, and thallus color, including a yellow, grey, and brown upper surface. The latter is due to the presence of usnic acid, atranorin, and melanin substances, respectively, in the upper cortex. Brown subcrustose species are rare in Xanthoparmelia and, so far, known from the Southern Hemisphere [10].
In the monophyletic and highly diverse genus Xanthoparmelia, no robust main clades were identified, which may reflect rapid adaptive radiation following a shift towards drier habitats and a switch to rocks and soils at the base of the Xanthoparmelia clade [11,12]. These habitat shifts likely gave rise to various morphological adaptations, including growth forms, attachment structures (e.g., rhizines), apothecia morphology, ascospores, pycnidia, and more, the significance of which has been previously overestimated in classification efforts. The genus Xanthoparmelia is a clear example of how phylogenies based on evolutionary DNA markers have been used to reinterpret morphological characters and their evolution and re-evaluate the systematics of the group [7,9,13,14,15]. The phylogenetic multi-locus reconstructions within Xanthoparmelia elucidate evolutionary relationships, estimate divergence times, reconstruct biogeographical histories, and hypothesized an African origin during the Miocene [16,17,18]. Moreover, the latter study identifies several monophyletic clusters within Xanthoparmelia based on their geographies, such as Holarctic, several South African and Kenya+South African clades, two Australian clades, three Kenyan clades, several other clades specific to taxonomic groups, and a Southern Hemisphere clade. The phenotypic diversity of growth forms observed in different Xanthoparmelia clades suggests that these forms may have evolved independently multiple times within the genus. However, the foliose growth form has been reconstructed as an ancestral state for the Xanthoparmelia clade [12]. This phenotypic diversity is particularly noteworthy within the “Southern Hemisphere” clade in [18] or in Clade VIII in [19], which incorporates miniature parmelioid species with small laciniate prostrate, small foliose rhizinate, subcrustose (needed of a careful examination), or squamulose peltate thalli. That is, small-scale thalli with a maximum of a few centimeters of development and a close relation with the substrate. What we call miniature species are found in several branches of the genus Xanthoparmelia in [18], such as some species of the synonymized genus Karoowia [14] or the well-known X. mougeotii. They are in the “Southern Hemisphere” clade [18] and in Clade VIII [19], where all the species treated have this miniature morphology.
Over the last couple of years, some of us collected a saxicolous, silicicolous, subcrustose, or small foliose brown lichen tentatively identified as Xanthoparmelia in Spain. The material was analyzed, and the possibility of it being a new species was considered. Simultaneously, research on the genus Protoparmelia was conducted, involving an analysis of the type specimens of certain names, including Lecanora olivascens Nyl. Curiously, the type material of L. olivascens was found to be conspecific with our Xanthoparmelia sample. The taxonomic placement of Lecanora olivascens was unclear since it was described in [20]: it was classified into six different genera over time, most recently in Protoparmelia (Llimona in [21]). Studies have repeatedly shown that molecular phylogenies are powerful to address taxonomic issues and the classification of species of lichen-forming fungi and fungi in general (see e.g., [4,22,23,24,25,26,27]). Hence we performed a molecular phylogenetic analysis of Lecanora olivascens, including a sample from the type locality, to address the phylogenetic relationships of this species. In addition, detailed morphological, anatomical, and chemical analyses were conducted.

2. Materials and Methods

2.1. Morphological, Anatomical, and Chemical Examinations

For morphological and chemical studies, we examined eight specimens of the species from the MAF-Lich. and H-NYL herbaria, and eight specimens of additional species were used for comparison from MAF-Lich (Table 1). Morphological and anatomical examinations were performed under a Nikon SMZ-1500 stereomicroscope (Tokyo, Japan) and a Nikon Eclipse-80i microscope (Tokyo, Japan), with bright field and DIC images. Pictures were taken with a Nikon DS-Ri2 digital camera (Tokyo, Japan) coupled to the microscope and the stereomicroscope. Habit pictures were taken with a Fujifilm X-T1 digital camera (Ebina-shi, Japan) paired with a Zeiss Touit f2.8 Macro lens (Jena, Germany), and all were coupled to a Kaiser Reproständer RS1 5507 stand with a Kaiser LED-Beleuchtungseinrichtungen illumination (Schalksmühle, Germany). To combine successive focal image levels, we used the free Combine ZP software v.1.0 from Alan Hadley (downloaded in 2012 but currently not available). Areoles, lobes, and apothecia sizes were determined with a Leitz-Wetzlar 8× scale magnifying lens (Wetzlar, Germany). Observations and measurements of anatomy, ascospores, and conidia were made using thin hand sections mounted in water. Extreme values have been noted between brackets when they represented no more than 5% of the readings. When possible, at least 30 spores and conidia from different thalli were measured with a 100× magnification objective, and only developed spores outside the asci were measured. Current mycological terminology is used following [28]. Spot tests (K, C, I, and PD) and thin-layer chromatography (TLC) were carried out following [29]. We used TLC solvent system C (200 mL of toluene/30 mL of acetic acid) and silica gel 60 F254 aluminum sheets (Merck, Darmstadt, Germany) for the chemical analysis.

2.2. DNA Extraction, PCR Amplification, Sequencing, and Phylogenetic Analyses

Two Xanthoparmelia specimens were used to generate new sequences: MAF-Lich. 25204 (nuITS GenBank acc. no. PP968419) and MAF-Lich. 24758 (nuITS GenBank acc. no. PP968420). In the megablast search, the ITS sequence of Lecanora olivascens showed the highest similarity with Xanthoparmelia sequences. Therefore, to elucidate the systematic placement at the genus level of Lecanora olivascens specimens, we exclusively employed the nuITS marker and incorporated it into a larger data matrix of 127 specimens that encompasses species of the major clades within the genus Xanthoparmelia, as outlined in [18,19].
We performed secondary metabolite extractions from selected lobes for TLC analyses using acetone (Panreac, Castellar del Vallès, Spain). Subsequently, the same lobes were mechanically disrupted using sterile glass pestles in liquid nitrogen and total DNA was extracted from the homogenized samples using the Speedtools plant DNA Extraction Kit (Biotools, Madrid, Spain) by following the manufacturer’s protocol. We used ITS1-LM [30] and ITS-2KL [31] primers for PCR amplification. We used a reaction mixture for amplification containing 5 μL of DNA extraction (second elution), 12.5 μL of DNA Amplitools Master Mix (Biotools), 1.5 μL of each primer, and 4.5 μL of H2O. PCRs were carried out in an automatic thermocycler (Bioer Xpcycler, Hangzhou, China). PCRs were performed with the following steps: 1.—initial denaturation at 94 °C for 5 min; 2.—35 cycles of 94 °C for 1 min, 56 °C for 1 min, and 72 °C for 1.5 min; and 3.—a final extension at 72 °C for 5 min. PCR products were cleaned using a DNA purification kit (Biotools). The PCR products were sequenced using the ABI Prism Dye Terminator Cycle Sequencing Ready reaction kit using the same primers (Applied Biosystems, Foster City, CA, USA) and were electrophoresed on a 3730 DNA analyzer (Applied Biosystems).
New sequence fragments were assembled and edited with BioEdit ver. 7.0.9 [32]. We employed two matrices to elucidate the phylogenetic position of the specimens. First, we used a matrix with 127 OTUs representing all the major clades within the genus Xanthoparmelia and major clades in parmelioid lichens (as an outgroup). These clades within the genus Xanthoparmelia were selected from previous studies [18,19]. Sequences were taken from data sampling of three previous studies [16,17,18] and completed with some sequences downloaded from GenBank. Sequences of matrix 1 (127 OTUs) with the GenBank acc. nos. are listed in Table S1. In the following step, we used a second matrix with 22 OTUs of the clade “Southern Hemisphere” from [18] and “Clade VIII” [19]. We performed independent alignments for each matrix using the program MAFFT v.7 [33] with the FFT-NS-i alignment algorithm and the remaining parameters were the default values.
We used maximum likelihood (ML) and Bayesian analyses (BAs) for the phylogenetic analyses. ML analyses were performed in RaxML-HPC2 on XSEDE v.8.2.10 [34] on Cipres Science Gateway (http://www.phylo.org) [35] with the GTR+G+I substitution model and 1000 bootstrap pseudoreplicates. BAs were performed with the same substitution model in MrBayes v. 3.2.6 [36,37]. For BAs, we used two parallel Markov chain Monte Carlo (MCMC) runs with 8,000,000 generations in each run and sampled every 1000 steps. We discarded the first 3000 trees as burn-in, and with the rest, we used a 50% majority-rule consensus tree. The convergence parameters were close to 1.0 in all the cases. We used Fig Tree v.1.4.0 [38] to visualize the tree files.

2.3. Cell Wall Polysaccharide Analysis

The type of lichenan in the hyphal cell wall was determined with the histochemical method following [39,40]. The reagents were prepared following [29]. We follow the same steps as explained in [15] using Xanthoparmelia mougeotii and Parmotrema reticulatum as control taxa (specimens listed in Table 1).

3. Results and Discussion

3.1. Phylogeny and Morpho-Chemical Studies

We show the results of the phylogenetic analyses using maximum likelihood (ML) and Bayesian analyses (BAs) with the two data matrices (Figure 1 and Figure 2). In both cases, ML analyses and BAs were congruent. Figure 1 shows the results with the matrix of 127 taxa. In this analysis, the two specimens (one from Spain and another from France, the type locality) of Lecanora olivascens grouped within the genus Xanthoparmelia. The clades presented in Figure 1 are congruent with the major phylogenies of the genus Xanthoparmelia found previously [18,19]. In Xanthoparmelia, samples of L. olivascens clustered within the so-called “Southern Hemisphere” clade [18] or Clade VIII [19]. The circumscription of Clade VIII in [19] is a little broader, grouping its sister clade formed by specimens of Xanthoparmelia subruginosa, but the topologies are also congruent.
This phylogenetic result is congruent with the results of our morpho-chemical studies, i.e., the presence of an arachiform vacuolar body in the ascopore (Figure 3g) and the presence of the xantholichenan-type cell wall polysaccharide. The shape of the vacuolar body and the type of the cell wall polysaccharide are the two taxonomic characters to recognize the Xanthoparmelia-clade [7,9]. Consequently, a new combination of that species into Xanthoparmelia is proposed below.
Figure 2 shows the result of the phylogenetic analysis (ML and BA) of the data matrix 2 (22 taxa), including the samples grouped in Clade VIII sensu [19]. The two samples of Xanthoparmelia olivascens MAF-Lich. 25204 (France, nuITS GenBank acc. no. PP968419) and MAF-Lich. 24758 (Spain, nuITS GenBank acc. no. PP968420) grouped in the same supported clade inside Clade VIII. In this clade, we can find a group of foliose and subcrustose species of Xanthoparmelia with usnic acid in the cortex from South Africa and Kenya. In addition, there is an unsupported clade without usnic acid in the cortex. This latter clade, including X. olivascens, also contains other species from South Africa and South America. Although subcrustose species mainly cluster in this clade, there are also species with squamulose peltate morphologies (X. peltata) or species with a laciniate prostrate growth form (X. azaniensis and X. ovealmbornii), which were previously considered as independent genera Omphalodiella [14,41] and Almbornia [13,42], respectively. To our knowledge, Xanthoparmelia olivascens is the only Holarctic species in Clade VIII dominated by species from South Africa, South America, and East Africa.

3.2. Taxonomy

Xanthoparmelia olivascens (Nyl.) V. J. Rico and G. Amo comb. nov. Figure 2 and Figure 3.
≡ Lecanora olivascens Nyl., Bull. Soc. Linnéenne Normandie, sér. 2, 6: 263, 1872 (Basionym).
≡ Lecanora badia var. olivascens (Nyl.) Boistel, Nouv. Fl. Lich., II partie (partie scientifique): 142, 1903.
≡ Squamaria olivascens (Nyl.) H. Olivier, Mém. Soc. Sci. Nat. Cherbourg 37: 61, 1909.
≡ Solenopsora olivascens (Nyl.) M. Choisy and Werner, Bull. Soc. Hist. Nat. Afr. N. 22: 11, 1931.
≡ Placolecanora olivascens (Nyl.) Räsänen ex B. de Lesd., Rev. Bryol. Lichénol. 18: 75, 1949.
≡ Placodium olivascens (Nyl.) Motyka, Porosty (Lichenes). 4, Rodzina Lecanoraceae. Placodium, Squamarina, Harpidium, Trapelina, Mosigia (Lublin): 84, 1996.
≡ Protoparmelia olivascens (Nyl.) Llimona ex J.-M. Sussey, Bull. Inf. Ass. Française Lichénol. 36(1): 57, 2011.
Type: France, Pyrénées-Orientales, “Schistes argileux de Força-Réal, W. Nylander s.n., [16-VII-]1872” (Holotype: H-NYL 25742 = H9506918!; with norstictic and stictic acids + unknown substances according to F.J. Walker 1980 in a label); France, Occitanie, Pyrénées-Orientales, Perpignan, Millas, Força-Réal, SSE steep slope, 42°43′28.9′′ N, 02°42′08.6′′ E, 366 m, Quercus ilex–Q. coccifera forest with profuse bushes on slates and schists with quartz intrusions, 12-VI-2023: G. Amo de Paz and V. J. Rico 5190/1 (epitype designated here: MAF-Lich. 25204!), GenBank: ITS = PP968419, MycoBank: MBT 10021536; ibid.: G. Amo de Paz and V. J. Rico 5190/2, 5191, 5192 (isoepitypes: MAF-Lich. 25205, 25206, 25207!).
MycoBank: MB 855007.
Description: Thallus saxicolous silicicolous, small foliose (subcrustose), ± areolate in the central part and radially lobate in the margins, appressed and adnate to the rock, 0.2–3.0 cm in diameter; fertile but without soredia, isidia, or pseudocyphellae. Lobes 0.2–2.5 mm long × 0.15–1.2 mm wide, linear elongate to ± deeply sinuated, dichotomously to palmately branched at the ends, the longest with transverse fractures that originate the areoles, mainly contiguous, convex but sometimes ± plane at lobe ends, ends rounded, surface smooth, dull or slightly shiny at the ends, lateral margin of the lobes gently descending to the lower cortex and darker than the surface to black, loose to rhizinate or attached to the rock by tufts of lower cortex rhizoidal hyphae. Inward areoles 0.3–1.5 mm diameter, polygonal to rounded or elongate, sometimes fissured, convex, surface smooth to rugose by apothecia primordia or by regeneration also in new lobes, lateral margin of the lobes mainly angled or gently descending to the lower cortex, marked, dark brown to black, adnate and appressed to rarely loose, areoles seems to be originated by lobules fragmentation or arise from divisions of the lobes during their growth. Upper surface dark reddish-brown to dark greyish-brown or brown-black, sometimes paler olivaceous to yellowish in the lobe tips. Lower surface mainly black, brown, light brown to beige, dull, flat to somewhat irregular, free or with simple, short, sparse, concolorous to dark rhizines in lobed loose areas, or directly fixed to the substratum by tufts of rhizoidal hyphae from the lower cortex, especially in central areolate areas. Thallus heteromerous. Upper cortex 7–37 μm tall, reddish-brown in the upper 2–3 cell rows, distinctly limited and paraplectenchymatous, K+ yellowish under microscope, with a gelatinous epicortex. Algal layer up to 90 μm tall, irregular and continuous to rarely discontinuous, K-, with Trebouxia-type algal cells, up to 18 μm in diameter. Medulla hyaline or greyish (under stereomicroscope) or greyish (under microscope), variable in thickness, mainly with irregularly branched, intermixed, pachydermatous hyphae covered with greyish crystals (microscope), K+ red generating acicular crystals. Lower cortex 14–60 μm tall, or probably more in central areoles, light brown, reddish-brown to dark brown or black, distinctly delimited and paraplectenchymatous, with 3 or more cell rows, free or attached to the substrate by simple, short dark rhizines (this in the lobes) or by tufts of light brown to beige strands of rhizoidal hyphae, with ±short, parallel, conglutinated and gelatinous cells (seen when the lobes/areoles are removed, part of the lower cortex remains attached to the rock), K+ yellowish under microscope.
Ascomata apothecia, common, lecanorine, immersed when young becoming adnate or sessile, sometimes slightly constricted at the base when adult, rounded to irregular by pressure, up to 1.1 mm in diameter, margin entire, even to irregular, 1 to several per areole and mainly at thallus center. Disc black to dark brown, dull, flat to slightly concave or slightly convex. Thalline exciple persistent, concolorous with thallus, smooth and dull, forming an entire to slightly crenate margin (stereomicroscope). Proper exciple cupulate, coherent, hyaline, brown in the exposed sometimes slightly flabellate margins where, under the microscope, it is clearly located between the hymenium and the thalline exciple, 30–60 μm thick in the center of apothecia. Hymenium hyaline to ochraceous, coherent, 40–60 µm tall; epihymenium brown to reddish-brown, up to 20 µm tall, upper with an amorphous reddish gelatinous matrix; subhymenium hyaline to slightly ochraceous, reduced to a narrow band. Paraphyses coherent in water, branched and anastomosed, pachydermatous, apices thickened (up to 7 μm in K, and up to 8 µm wide in water), with brown light caps and a hyaline to brown mucilaginous hood. Asci clavate, claviform, eight spored, tholus and surrounding mucilage amyloid (excluding the axial mass), Lecanora type. Ascospores hyaline to slightly yellow-orange, simple, 12–17.5 (–23) × 4.5–7.5 μm (n = 80), narrowly ellipsoidal to oval or cylindrical (l:b = (1.7–) 2.0–3.0 (–3.8), l:b average = 2.4), wall 0.5–1.0 μm wide, with arachiform vacuolar body (Figure 3g).
Pycnidia frequent, immersed, laminal, punctiform, globose to oblong, up to 120 μm wide, wall hyaline, ostiole tissue with brown to black pigmented walls. Conidiophores similar to type V with shorter ramifications [43], and intermediate to those in Protoparmelia and Pleurosticta in [44]. Conidia simple, hyaline, narrowly fusiform, straight, 7–12 × 1–2 µm (n = 40).
Chemistry: Cortex HNO+ blue-green; medulla K+ yellow turning red and producing large, acicular crystals, C-, PD+ yellow, I-. Constituents (TLC): norstictic acid (major), hyposalazinic acid (minor), connorstictic acid (minor), consalazinic acid (minor), subnorstictic acid (traces), and stictic acid (traces).
Habitat and distribution: Xanthoparmelia olivascens is currently known from its type locality in France (Força-Réal) and from central Spain (San Martín de Valdeiglesias, Madrid). These locations have a NW, W to SW exposure and feature typical Mediterranean evergreen Quercus forests and garrigue formations on siliceous substrata. In the type locality, it grows on slates and schists with quartz intrusions, often accompanied by Acarospora spp., Aspicilia cinerea, Buellia atrocinerella, B. stellulata, Monerolechia badia, Rhizocarpon spp., Usnochroma carphinea, and Xanthoparmelia verruculifera. At times, it may be overgrown by M. badia and X. verruculifera, and especially in its marginal areas, it can be mistaken for small lobes lacking isidia of X. verruculifera. In the Madrid locality, where it is relatively common, Xanthoparmelia olivascens grows on horizontal to sloped granite rock formations, which are highly exposed to sun, rain, and winds, primarily in northwest to southwest orientations, corresponding to the prevailing humid winds. In addition to known Mediterranean species, it has been collected alongside Acarospora fuscata, Candelariella vitellina, Circinaria hoffmanniana, Dimelaena oreina, Miriquidica deusta, Pyrenopsis triptococca, Rhizocarpon geographicum agg., and Xanthoparmelia tinctina. Frequently, it intermingles with or serves as a substrate for A. fuscata and P. triptococca.
Historical literature records of Xanthoparmelia olivascens, or some of its synonyms, span across various European regions, including France, Corsica, Bulgaria, Greece, Spain, and the Canary Islands [45,46,47,48,49,50,51]. However, the taxonomic accuracy of these records remains uncertain and warrants a comprehensive examination. Given the potential existence of different Protoparmelia species within these records, at least some of those may not belong to X. olivascens but similar Protoparmelia species.
No lichenicolous fungi were observed in the studied specimens.
Additional specimens examined: France, Pyrénées-Orientales, Força-Réal: 1-VI-1884, W. Nylander (H-NYL p.m. 3299 = H9234912); id.: 300 m, 1-VI-1884, W. Nylander s.n. (H-NYL 25741 = H9234913). Spain, Madrid, San Martín de Valdeiglesias, desembocadura del río Cofio en el embalse de San Juan, cerro de El Yelmo, 664 m, 40°23′21′′ N, 04°18′50′′ W, sobre granito: 6-VI-2013, V.J. Rico 4605/1 (MAF-Lich. 24759); id.: 21-II-2014, V.J. Rico 4616/1, 4616/2, 4616/3, 4616/4, A. Crespo and C. Ruibal (MAF-Lich. 24760, 24761, 24762, 24763).
Comments: In Nylander’s original description of Lecanora olivascens in [20], no type specimen was explicitly indicated. However, within the collections held at H-NYL, three original Nylander specimens labeled as Lecanora olivascens are preserved. It is noteworthy that two of these specimens (H-NYL 25741 = H9234913 and H-NYL p.m. 3299 = H9234912) were mistakenly designated as lectotype and type by J. Motyka in 1965 and F.J. Walker in 1980, respectively. Additionally, Llimona in 1979 erroneously ranked one of these specimens (H-NYL p.m. 3299 = H9234912) as an isotype, as also noted B. Ryan in 1992 in a separate tag. Since these two specimens were collected in 1884, which is twelve years after the original description, they cannot be considered as type specimens.
The third folder (H-NYL 25742 = H9506918) contains material collected by Nylander from the original locality at the time of the species’ publication [20]. This folder includes a separate tag, incorrectly labeled as syntype by J. Motyka in 1965. The original label of this third folder contains manuscript notes by Nylander, which clearly correspond to different characters described in the protologue (Figure 4, left panel). It is evident that this material was used for the original species description. As no other original material was located, we consider the H-NYL 25742 = H9506918 specimen of Lecanora olivascens as the holotype, following Art. 9.1 of the International Code of Nomenclature for algae, fungi, and plants (ICN, [52]).
Although the holotype material is limited and aged (Figure 4, right panel), we examined it; however, it is physically incomplete, and we did not attempt to study its marginal lobes and the presence or absence of rhizines, its anatomy or to extract DNA or conduct a TLC analysis, which conveys a certain hesitation and uncertainty in the application of the name. It is deductible, nonetheless, that the holotype material taxonomically belongs to Xanthoparmelia and comprises a thin, small foliose (subcrustose), brown lichen with lecanorine and flat apothecia. This appearance could also lead to potential confusion with tiny thalli of Xanthoparmelia pulla group taxa, with which it occasionally cohabits. TLC analyses performed by F.J. Walker in 1980 indicated the presence of norstictic and stictic acids, accompanied by unidentified substances (as noted in a separate tag). On the other hand, the H-NYL not type specimens mentioned above (H-NYL 25741 = H9234913 and H-NYL p.m. 3299 = H9234912) are conspecific with the holotype and have helped us to characterize the species and include it in the genus Xanthoparmelia, since they are larger, are preserved in better condition, and we have been able to morphologically study them in more detail, although the cells are collapsed.
To provide precision in the application of the name and to establish its taxonomy and phylogenetic position within Xanthoparmelia, considering Art. 9.9 of the International Code of Nomenclature for algae, fungi, and plants (Shenzhen Code, [52]; San Juan Chapter F, [53]) and following suggestions by [54], we have designated here a morphologically studied, DNA-sequenced, and TLC-analyzed epitype (Figure 3). This epitype aligns morphologically, chemically, and geographically with the holotype. Furthermore, the selected epitype and isoepitypes were collected by us in the original type locality, Força-Real, in Southeast France. As a result, the morphological description, chemical analysis, and molecular data primarily rely on samples from the epitype and isoepitypes collected at the type locality, in addition to the Spanish specimens and the not type Nylander specimens.
The name Lecanora olivascens has an intriguing history marked by uncertainties stemming from its original description. In Nylander’s protologue [20], he described this lichen as cracked-areolate, thin, adnate, and dark brown, featuring contiguous lobate margins and lecanorine apothecia. However, he expressed uncertainties about its taxonomic placement. Nylander compared the newly described species to “Lecanora” montagnei (now recognized as Protoparmelia montagnei (Fr.) Poelt and Nimis 1987) and “L.” badia (currently Protoparmelia badia (Hoffm.) Hafellner 1984). He mentioned that he would have categorized the species in the genus Parmelia (in the sense of the 19th century) based on its thallus development, which resembled the more placodioid or parmelioid growth form, as well as its subfusiform acicular conidia (referred to as bacilliform in “Lecanora” badia and related species). However, he noted that macroscopically the apothecia are lecanorine and not cup-shaped, as seen in Parmelia. Nylander’s observations led him to conclude that paraphyses and pycnidia in the new species were similar to those in “Lecanora” badia, “L.” montagnei, and Parmelia species, thus establishing a connection between these groups of taxa, which are now recognized at different subfamily levels in Parmeliaceae [24]. With these brief notes, Nylander placed Lecanora olivascens within the “Lecanora” badia-montagnei group.
Furthermore, Nylander reiterated the position of the species in 1891 [55], providing a similar description and discussion to that in 1872. He replaced “parmelioid” thallus with “subparmelioid” thallus in his short discussion, ultimately concluding that Lecanora olivascens is a lineage of “Lecanora” badia. Subsequently, later authors, in a sort of refereed records, likely without direct access to the original material and following Nylander’s conclusion that Lecanora olivascens was a crustose, non-parmelioid species, combined it into various non-parmelioid genera (see synonyms). Eventually, it was classified within the genus Protoparmelia (Llimona in [21]), although photographs of a Protoparmelia, which is part of our study, were included, but not a small-foliose Xanthoparmelia. This uncertainty regarding the classification of Lecanora olivascens has persisted for about 150 years.
During the 20th century, most authors followed Nylander’s circumscription of our species within the “Lecanora” badia-montagnei group, with Harmand [56] notably highlighting this placement. Poelt [57] described a group of taxa known as the “Lecanora-olivascens-Gruppe” within the lobed Lecanora species. This group included our species along with “Lecanora” demissa (currently Olegblumia demissa, placed in Teloschistaceae). In his discussion of the group, Poelt [57] partially linked Lecanora olivascens with the South African subcrustose brown species Placolecanora natalensis (synonymous with Xanthoparmelia dregeana according to [58], as Neofuscelia dregeana, which requires revision). Eigler [59], in a comprehensive study following Poelt’s groups, suggested that Lecanora olivascens should be placed in a separate genus distinct from Lecanora. Finally, Ryan and Nash III [60] refer to Poelt’s “Lecanora olivascens-Gruppe” as being of uncertain position.
This historical account underscores the importance of meticulous morphological studies in shedding light on the taxonomy and systematic placement of lichenized fungi. Such studies complement molecular phylogenetic analyses and contribute to our understanding of evolutionary traits.
Our data reveal some variability among the studied populations of Xanthoparmelia olivascens, both in central Spain and southeastern France. In the southeastern France population, the thallus exhibits a more greyish-brown hue, with rhizines being more frequent in the lobes. Additionally, this population produces a higher proportion of longer ascospores and conidia, falling within the previously described measurements. Conversely, the central Spain population features a more reddish-brown hue on the thallus surface, with rhizines being relatively rare in the lobes. Moreover, it displays a higher proportion of shorter ascospores and conidia. Furthermore, the ITS sequences of the central Spain population exhibit three substitutions, if we compare them with those of the southeastern France population. While it is known that Xanthoparmelia includes species with differences comparable to those outlined above (e.g., Xanthoparmelia pulla group), this aspect falls beyond the scope of our current contribution. We believe it is prudent to await further material and data from various locations in the Mediterranean region and to gain a better understanding of specific morphological traits (e.g., thallus structure, ascospores, pycnidia, and conidia) before drawing taxonomic conclusions in this complex.
Xanthoparmelia olivascens exhibits an appressed and adnate thallus structure characterized by developing a lower cortex, an areolate inner part, and lobate margins, but in small-scale compared with other European brown foliose species of Xanthoparmelia. Technically it is classified as a foliose lichen [28], but with miniature thalli, small loosely arranged lobes, and short and simple rhizines that originate from the lower cortex (Figure 3d). Additionally, it features an areolate center firmly anchored to the substrate by tufts or strands of rhizoidal hyphae emerging from the lower cortex (Figure 3c). As was described in other comparable Xanthoparmelia species [61], the areoles seem to have been formed by the growth of the lobes, their fragmentation into portions, and, subsequently, by a stronger attachment to the substrate. This attachment strategy is such that when these areoles are removed, a portion of the lower cortex remains affixed to the substrate by tufts or strands of lower cortex rhizoidal hyphae; in this way, it can be confused with a crustose lichen.
In contrast, species of Protoparmelia typically possess a clearly crustose thallus structure, which can range from areolate to squamulose. They lack a lower cortex and rhizines, and occasionally have margins that are not clearly lobated [62,63].
These types of miniature foliose lichens with a lower cortex and rhizines are often referred also to as subcrustose (e.g., [14,61]). Similar attachment strategies, involving lobate and rhizinate margins along with rhizoidal strands of lower cortex hyphae in the thallus center, have been observed in other genera within Parmeliaceae, such as Hypogymnia [64], and in different Xanthoparmelia species, such as in Xanthoparmelia pulla species group and in X. mougeotii (own observations). However, those small lichens are not clearly subcrustose. We introduce the terminology miniature or small-scale foliose and miniature or small-scale fruticose lichens for these types of species in Xanthoparmelia since they develop a lower cortex throughout their thallus, from which rhizines emerge, reserving the term subcrustose for those species that are lobed but without a lower cortex and true rhizines throughout the entire thallus. We assume that this type of attachment to the substrate would probably favor the radial growth of the thalli in dry and warm rocky places. We also believe that these terms best fit to the thallus morphology of this type of lichens. It is worth noting that further study and detailed comparisons among lichens with similar features in Xanthoparmelia will be necessary to refine our understanding of these unique thallus organizations.
Based on our current knowledge and incorporating the molecular phylogenetic findings, Xanthoparmelia olivascens stands out as a unique brown Xanthoparmelia species in the Northern Hemisphere characterized by a combination of distinctive traits: (a) thallus morphology—X. olivascens is the sole brown species in the Northern Hemisphere that develops miniature small-foliose thalli ([14,15], and this characteristic is also supported by recent regional floras); (b) ascomatal characters—this species produces long ascospores (measuring 12–17.5 (–23) × 4.5–7.5 μm), which are narrowly ellipsoidal to oval or cylindrical, contrasting with the majority of Xanthoparmelia species, whose ascospores typically range from 6–13 × 4–7 μm and are mainly ellipsoidal [9,65]; (c) chemistry—X. olivascens is characterized by the production of norstictic acid as the major substance, along with hyposalazinic, connorstictic, and consalazinic acids as minor compounds, and this chemical profile forms a distinctive combination among brown Xanthoparmelia species in the Northern Hemisphere but is common among Xanthoparmelia species in the Southern Hemisphere [10]; and (d) distribution—currently, X. olivascens is exclusively known from siliceous rocks in Mediterranean localities within southwestern Europe. Table 2 shows a comparison of morphological, chemical, and distributional characters of brown, small foliose Xanthoparmelia species.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/jof10090603/s1: Table S1. Samples used in matrix 1 (parmelioid and Xanthoparmelia lineages) with GenBank acc. nos.; and Table S2. Samples used in matrix 2 (clade “Southern Hemisphere” from [18] and “Clade VIII” from [19]) with GenBank acc. nos.

Author Contributions

Conceptualization, V.J.R. and G.A.d.P.; morphological analysis, molecular experiments, and data analysis, V.J.R. and G.A.d.P.; validation, V.J.R., G.A.d.P., P.K.D., A.C. and H.T.L.; writing—original draft preparation, G.A.d.P. and V.J.R.; writing—review and editing, V.J.R., G.A.d.P., P.K.D., A.C. and H.T.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Spanish Ministry of Science and Innovation project PID2019-105312GB-I00.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The sequences presented in this study are openly available at https://www.ncbi.nlm.nih.gov/ (accessed on 20 July 2024) (see Tables S1 and S2 for the accession numbers). The new combination and the selected epitype were registered in MycoBank (http://www.mycobank.org/ (accessed on 20 July 2024)). The materials were collected in France according to the Nagoya protocol IRCC number ABSCH-IRCC-FR-261975-1 and were deposited in the MAF-Lich. Herbarium.

Acknowledgments

We are grateful to the H Herbarium curators for sending the original materials from Nylander collections. G.A.d.P. is grateful to Ana Millanes for her kind help.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Hawksworth, D.L.; Lücking, R. Fungal diversity revisited: 2.2 to 3.8 million species. Microbiol. Spectr. 2017, 5, 10–1128. [Google Scholar] [CrossRef] [PubMed]
  2. Hale, B.W.; De Priest, P.T.; Mason, E. Hale’s list of epithets in the parmelioid genera. Bryologist 1999, 102, 462–544. [Google Scholar] [CrossRef]
  3. Crespo, A.; Lumbsch, H.T.; Mattsson, J.E.; Blanco, O.; Divakar, P.K.; Articus, K.; Wiklund, E.; Bawingan, P.A.; Wedin, M. Testing morphology-based hypotheses of phylogenetic relationships in Parmeliaceae (Ascomycota) using three ribosomal markers and the nuclear rpb1 gene. Mol. Phylogenet. Evol. 2007, 44, 812–824. [Google Scholar] [CrossRef]
  4. Crespo, A.; Kauff, F.; Divakar, P.K.; del Prado, R.; Pérez-Ortega, S.; Amo de Paz, G.; Ferencova, Z.; Blanco, O.; Roca-Valiente, B.; Núñez-Zapata, J.; et al. Phylogenetic generic classification of parmelioid lichens (Parmeliaceae, Ascomycota) based on molecular, morphological and chemical evidence. Taxon 2010, 59, 1735–1753. [Google Scholar] [CrossRef]
  5. Lücking, R.; Hodkinson, B.P.; Leavitt, S.D. The 2016 classification of lichenized fungi in the Ascomycota and Basidiomycota—Approaching one thousand genera. Bryologist 2016, 119, 361–416. [Google Scholar] [CrossRef]
  6. Hale, M.E. A synopsis of the lichen genus Xanthoparmelia (Vainio) Hale (Ascomycotina, Parmeliaceae). Smithson. Contrib. Bot. 1990, 74, 1–250. [Google Scholar] [CrossRef]
  7. Blanco, O.; Crespo, A.; Elix, J.A.; Hawksworth, D.L.; Lumbsch, H.T. A molecular phylogeny and a new classification of parmelioid lichens containing Xanthoparmelia-type lichenan (Ascomycota: Lecanorales). Taxon 2004, 53, 959–975. [Google Scholar] [CrossRef]
  8. Blanco, O.; Crespo, A.; Ree, R.H.; Lumbsch, H.T. Major clades of parmelioid lichens (Parmeliaceae, Ascomycota) and the evolution of their morphological and chemical diversity. Mol. Phylogenetics Evol. 2006, 39, 52–69. [Google Scholar] [CrossRef]
  9. Del Prado, R.; Ferencova, Z.; Armas-Crespo, V.; Amo de Paz, G.; Cubas, P.; Crespo, A. The arachiform vacuolar body: An overlooked shared character in the ascospores of a large monophyletic group within Parmeliaceae (Xanthoparmelia clade, Lecanorales). Mycol. Res. 2007, 111, 685–692. [Google Scholar] [CrossRef]
  10. Esslinger, T.L. A chemosystematic revision of the brown Parmeliae. J. Hattori Bot. Lab. 1977, 42, 1–211. [Google Scholar]
  11. Lumbsch, H.T.; Hipp, A.L.; Divakar, P.K.; Blanco, O.; Crespo, A. Accelerated evolutionary rates in tropical and oceanic parmelioid lichens (Ascomycota). BMC Evol. Biol. 2008, 8, e257. [Google Scholar] [CrossRef] [PubMed]
  12. Divakar, P.K.; Kauff, F.; Crespo, A.; Leavitt, S.D.; Lumbsch, H.T. Understanding phenotypical character evolution in parmelioid lichenized fungi (Parmeliaceae, Ascomycota). PLoS ONE 2013, 8, e83115. [Google Scholar] [CrossRef]
  13. Thell, A.; Feuerer, T.; Elix, J.A.; Kärnefelt, I. A contribution to the phylogeny and taxonomy of Xanthoparmelia (Ascomycota, Parmeliaceae). J. Hattori Bot. Lab. 2006, 100, 797–807. [Google Scholar]
  14. Amo de Paz, G.; Lumbsch, H.T.; Cubas, P.; Elix, J.A.; Crespo, A. The morphologically deviating genera Omphalodiellla and Placodiella belong to Xanthoparmelia (Parmeliaceae). Bryologist 2010, 113, 376–386. [Google Scholar] [CrossRef]
  15. Amo de Paz, G.; Lumbsch, H.T.; Cubas, P.; Elix, J.A.; Crespo, A. The genus Karoowia (Parmeliaceae, Ascomycota) includes unrelated clades nested within Xanthoparmelia. Aust. Syst. Bot. 2010, 23, 173–184. [Google Scholar] [CrossRef]
  16. Amo de Paz, G.; Cubas, P.; Divakar, P.K.; Lumbsch, H.T.; Crespo, A. Origin and diversification of major clades in parmelioid lichens (Parmeliaceae, Ascomycota) during the Paleogene inferred by Bayesian analysis. PLoS ONE 2011, 6, e28161. [Google Scholar] [CrossRef] [PubMed]
  17. Amo de Paz, G.; Cubas, P.; Crespo, A.; Elix, J.A.; Lumbsch, H.T. Transoceanic dispersal and subsequent diversification on separate continents shaped diversity of the Xanthoparmelia pulla group (Ascomycota). PLoS ONE 2012, 7, e39683. [Google Scholar] [CrossRef]
  18. Leavitt, S.D.; Kirika, P.M.; Amo de Paz, G.; Huang, J.-P.; Hur, J.-S.; Elix, J.A.; Grewe, F.; Divakar, P.K.; Lumbsch, H.T. Assessing phylogeny and historical biogeography of the largest genus of lichen-forming fungi, Xanthoparmelia (Parmeliaceae, Ascomycota). Lichenologist 2018, 50, 299–312. [Google Scholar] [CrossRef]
  19. Barcenas-Peña, A.; Sipman, H.J.; Wirth, V.; Grewe, F.; Lumbsch, H.T. Using morphological, chemical, and molecular data to study the diversity of Xanthoparmelia species from South Africa (Ascomycota, Parmeliaceae). Lichenologist 2023, 55, 265–273. [Google Scholar] [CrossRef]
  20. Nylander, W. Observata Lichenologica in Pyrenaeis orientalibus. Bull. Soc. Linn. Normandie 1872, 6, 256–328. [Google Scholar]
  21. Sussey, J.-M. Les fiches du débutant (13ème serie). Bull. Inf. Ass. Fr. Lichénol. 2011, 36, 35–61. [Google Scholar]
  22. Miadlikowska, J.; Kauff, F.; Högnabba, F.; Oliver, J.C.; Molnár, K.; Fraker, E.; Stenroos, S. Multigene phylogenetic synthesis for 1307 fungi representing 1139 infrageneric taxa, 312 genera and 66 families of the class Lecanoromycetes (Ascomycota). Mol. Phylogenetics Evol. 2014, 79, 132–168. [Google Scholar] [CrossRef]
  23. Zhao, X.; Leavitt, S.D.; Zhao, Z.T.; Zhang, L.L.; Arup, U.; Grube, M.; Lumbsch, H.T. Towards a revised generic classification of lecanoroid lichens (Lecanoraceae, Ascomycota) based on molecular, morphological and chemical evidence. Fungal Divers. 2016, 78, 293–304. [Google Scholar] [CrossRef]
  24. Divakar, P.K.; Crespo, A.; Kraichak, E.; Leavitt, S.D.; Singh, G.; Schmitt, I.; Lumbsch, H.T. Using a temporal phylogenetic method to harmonize family-and genus-level classification in the largest clade of lichen-forming fungi. Fungal Divers. 2017, 84, 101–117. [Google Scholar] [CrossRef]
  25. Wei, X.; Schmitt, I.; Hodkinson, B.; Flakus, A.; Kukwa, M.; Divakar, P.K.; Lumbsch, H.T. Circumscription of the genus Lepra, a recently resurrected genus to accommodate the Variolaria group of Pertusaria sensu lato (Pertusariales, Ascomycota). PLoS ONE 2017, 2, e0180284. [Google Scholar] [CrossRef]
  26. Singh, G.; Aptroot, A.; Rico, V.J.; Otte, J.; Divakar, P.K.; Crespo, A.; da Cáceres, M.E.S.; Lumbsch, H.T.; Schmitt, I. Neoprotoparmelia gen. nov. and Maronina (Lecanorales, Protoparmelioideae): Species description and generic delimitation using DNA barcodes and phenotypical characters. MycoKeys 2018, 44, 19–50. [Google Scholar] [CrossRef]
  27. Wijayawardene, N.N.; Hyde, K.D.; Al-Ani, L.K.T.; Tedersoo, L.; Haelewaters, D.; Rajeshkumar, K.C.; Castañeda-Ruiz, R.F. Outline of Fungi and fungus-like taxa. Mycosphere 2020, 11, 1060–1456. [Google Scholar] [CrossRef]
  28. Kirk, P.M.; Cannon, P.F.; Minter, D.W.; Stalpers, J.A. Dictionary of the Fungi, 10th ed.; CABI Publishing: Wallingford, UK, 2008; p. 771. [Google Scholar]
  29. Orange, A.; James, P.W.; White, F.J. Microchemical Methods for the Identification of Lichens. Second Edition with Additions and Corrections; British Lichen Society: London, UK, 2010; p. 101. [Google Scholar]
  30. Myllys, L.; Lohtander, K.; Källersjö, M.; Tehler, A. Sequence insertions and ITS data provide congruent information on Roccella canariensis and R. tuberculata (Arthoniales, Euascomycetes) phylogeny. Mol. Phylogenetics Evol. 1999, 12, 295–309. [Google Scholar] [CrossRef] [PubMed]
  31. Lohtander, K.; Myllys, L.; Sundin, R.; Källersjö, M.; Tehler, A. The species pair concept in the lichen Dendrographa leucophaea (Arthoniales): Analyses based on ITS sequences. Bryologist 1998, 404–411. [Google Scholar]
  32. Hall, T. BioEdit: An important software for molecular biology. GERF Bull. Biosci. 2011, 2, 60–61. [Google Scholar]
  33. Katoh, K.; Standley, D.M. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef]
  34. Stamatakis, A. RAxML version 8: A tool for phylogenetic analysis and post-analysis of large phylogenies. Bioinformatics 2014, 30, 1312–1313. [Google Scholar] [CrossRef] [PubMed]
  35. Miller, M.A.; Pfeiffer, W.; Schwartz, T. Creating the CIPRES Science Gateway for inference of large phylogenetic trees. In Proceedings of the Gateway Computing Environments workshop (GCE), New Orleans, LO, USA, 14 November 2010; pp. 1–8. [Google Scholar]
  36. Huelsenbeck, J.P.; Ronquist, F. MRBAYES: Bayesian inference of phylogenetic trees. Bioinformatics 2001, 17, 754–755. [Google Scholar] [CrossRef] [PubMed]
  37. Ronquist, F.; Huelsenbeck, J.P. MrBayes 3: Bayesian phylogenetic inference under mixed models. Bioinformatics 2003, 19, 1572–1574. [Google Scholar] [CrossRef] [PubMed]
  38. Rambaut, A. FigTree Version 1.4.2. Computer Program Distributed by the Author. 2021. Available online: http://tree.bio.ed.ac.uk/software/figtree/ (accessed on 4 January 2021).
  39. Nash, T.H., III; Hafellner, J.; Common, R.S. Omphalora, a new genus in the Parmeliaceae. Lichenologist 1990, 22, 355–365. [Google Scholar] [CrossRef]
  40. Common, R.S. The distribution and taxonomic significance of lichenan and isolichenan in the Parmeliaceae (lichenized Ascomycotina), as determined by iodine reactions. I, Introduction and methods. II, The genus Alectoria and associated taxa. Mycotaxon 1991, 41, 67–112. [Google Scholar]
  41. Henssen, A. Omphalodiella patagonica, a new peltate lichen genus and species from South America. Lichenologist 1991, 23, 333–342. [Google Scholar] [CrossRef]
  42. Esslinger, T.L. Almbornia, a new lichen genus from South Africa. Nord. J. Bot. 1981, 1, 125–127. [Google Scholar] [CrossRef]
  43. Vobis, G. Bau und Entwichlung der Flechten-Pycnidien und ihrer Conidien. Biblioth. Lichenol. 1980, 14, V + 141 + 215 illustrations. [Google Scholar]
  44. Arup, U.; Grube, M. Is Rhizoplaca (Lecanorales, lichenized Ascomycota) a monophyletic genus? Canada J. Bot. 2000, 78, 318–327. [Google Scholar] [CrossRef]
  45. Arcadia, L. The Lichens and Lichenicolous Fungi of Greece. Online Draft Version. 2023. Available online: www.lichensofgreece.com (accessed on 30 May 2023).
  46. Denchev, C.M.; Shivarov, V.V.; Denchev, T.T.; Mayrhofer, H. Checklist of the lichenized and lichenicolous fungi in Bulgaria. Mycobiota 2022, 12, 1–106. [Google Scholar] [CrossRef]
  47. Roux, C.; Association Française de Lichénologie. Catalogue des Lichens et Champignons Lichénicoles de France Métropolitaine, 3rd ed.; Revue et Augmentée; Édit. Association Française de Lichénologie (AFL): Fontainebleau, France, 2020; p. 1796. [Google Scholar]
  48. Llimona, X.; Hladun, N.L. Checklist of the lichens and lichenicolous fungi of the Iberian Peninsula and Balearic Islands. Bocconea 2001, 14, 1–581. [Google Scholar]
  49. Topham, P.B.; Walker, F.J. New and interesting lichen records, in the Field Meeting in Tenerife, Canary Islands. Lichenologist 1982, 14, 61–75. [Google Scholar] [CrossRef]
  50. Clauzade, G.; Roux, C. Lichenoj de Okcidenta Europo. Ilustrita Determinlibro. Bull. Soc. Bot. Centre-Ouest Nouv. Sér. Núm. Spéc. 1986, 7, 1–893. [Google Scholar]
  51. Poelt, J.; Vĕzda, A. Bestimmungschlüssel Europäischer Flechten. Ergänzungsheft, I. Biblioth. Lichenol. 1977, 9, 1–258. [Google Scholar]
  52. Turland, N.J.; Wiersema, J.H.; Barrie, F.R.; Greuter, W.; Hawksworth, D.L.; Herendeen, P.S.; Knapp, S.; Kusber, W.-H.; Li, D.-Z.; Marhold, K.; et al. (Eds.) International Code of Nomenclature for algae, fungi, and plants (Shenzhen Code) adopted by the Nineteenth International Botanical Congress Shenzhen, China, July 2017. Regnum Veg. 2018, 159, 254. [Google Scholar]
  53. May, T.W.; Redhead, S.A.; Bensch, K.; Hawksworth, D.L.; Lendemer, J.; Lombard, L.; Turland, N.J. Chapter F of the International Code of Nomenclature for algae, fungi, and plants as approved by the 11th International Mycological Congress, San Juan, Puerto Rico, July 2018. IMA Fungus 2019, 21, 24. [Google Scholar] [CrossRef] [PubMed]
  54. Sennikov, A.N. The concept of epitypes in theory and practice. Nord. J. Bot. 2022, 8, e03535. [Google Scholar] [CrossRef]
  55. Nylander, W. Lichenes Pyrenaeorum Orientalibus Observatis Novis; Paul. Schmidt: Paris, France, 1891; pp. IV + 103. [Google Scholar]
  56. Harmand, J. Lichens de France. Catalogue systématique et descriptif. Vol. 5, Crustacés: Pannariés, Heppiés, Lécanorés, Pertusariés, Thélotrémés; Léon Lhomme: Paris, France, 1913; pp. 761–1185. [Google Scholar]
  57. Poelt, J. Die Lobaten Arten der Flechtengattung Lecanora Ach. sensu ampl. in der Holarktis. Mitt. Bot. Staatssamm. München 1958, 19, 411–589. [Google Scholar]
  58. Esslinger, T.L. Notes on the brown-colored species of Parmeliaceae (Lichenized Ascomycota) in South Africa. Bryologist 2000, 103, 568–591. [Google Scholar] [CrossRef]
  59. Eigler, G. Studien zur Gliederung der Flechtengattung Lecanora. Dissert. Bot. 1969, 4, III + 195 + 30 Tafeln. [Google Scholar]
  60. Ryan, B.D.; Nash, T.H., III. Placodioid taxa of Lecanoraceae Zahlbr. (lichenized Ascomycota) in North America: Taxa excluded from Lecanora subgen. Placodium. Nova Hedwigia 1997, 64, 393–420. [Google Scholar] [CrossRef]
  61. Henssen, A.; Titze, A. Neofuscelia squamariata and Neofuscelia almbornii sp. nov.(Parmeliaceae). Lichenologist 1992, 24, 203–213. [Google Scholar] [CrossRef]
  62. Coppins, B.J.; Chambers, S.P. Protoparmelia, M. Choisy (1929). In The Lichens of Great Britain and Ireland; Smith, C.W., Aptroot, A., Coppins, B.J., Flechter, A., Gilbert, O.L., James, P.W., Wolseley, P.A., Eds.; British Lichen Society-Natural History Museum Publications: London, UK, 2009; pp. X + 1046. [Google Scholar]
  63. Ryan, B.D.; Nash, T.H., III; Hafellner, J. Protoparmelia. In Lichen Flora of the Greater Sonoran Desert Region, Vol II; Nash, T.H., III, Ryan, B.D., Diederich, P., Gries, C., Bungartz, F., Eds.; Lichens United–Arizona State University: Tempe, AZ, USA, 2004; pp. 425–430. [Google Scholar]
  64. Wei, X.-L.; Chen, K.; Lumbsch, H.T.; Wei, J.-C. Rhizines occasionally occur in the genus Hypogymnia (Parmeliaceae, Ascomycota). Lichenologist 2015, 47, 69–75. [Google Scholar] [CrossRef]
  65. Elix, A.J. Progress in the generic delimitation of Parmelia sensu lato lichens (Ascomycotina: Parmeliaceae) and a synoptic key to Parmeliaceae. Bryologist 1993, 93, 359–383. [Google Scholar] [CrossRef]
Jof 10 00603 g001

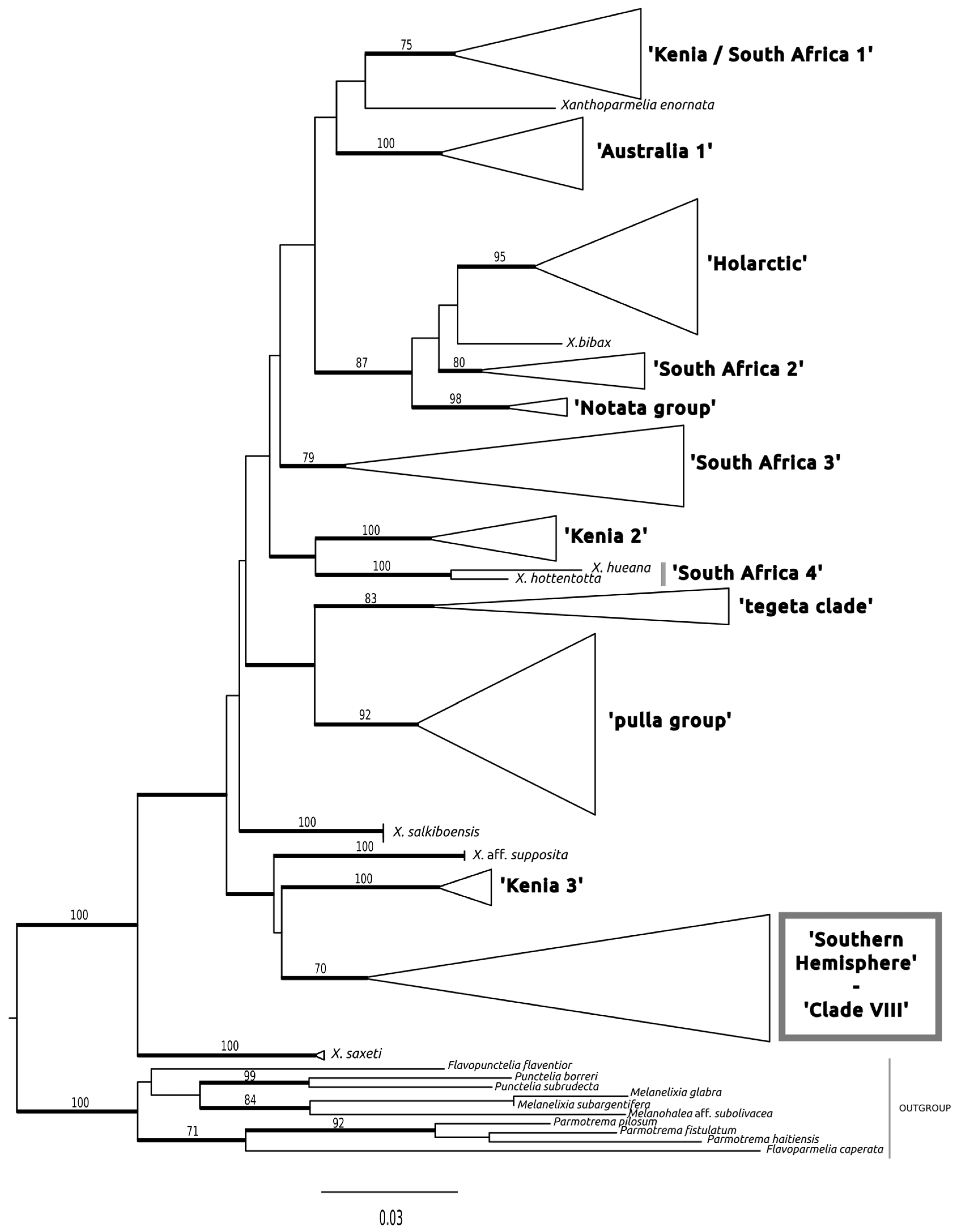

Figure 1. Phylogenetic tree with 127 taxa showing the phylogenetic placement of Xanthoparmelia olivascens in the Xanthoparmelia clade. Maximum likelihood tree inferred from nuITS sequences. The name of the major clades inside the Xanthoparmelia genus follows [18,19] for Clade VIII. Branches with posterior probabilities equal to or above 0.95 are shown in bold and bootstrap values equal to and above 70% under ML are indicated on the branches. Xanthoparmelia olivascens appears inside the “Southern Hemisphere—Clade VIII” clade, framed in grey. Tree by G. Amo de Paz.
Figure 1. Phylogenetic tree with 127 taxa showing the phylogenetic placement of Xanthoparmelia olivascens in the Xanthoparmelia clade. Maximum likelihood tree inferred from nuITS sequences. The name of the major clades inside the Xanthoparmelia genus follows [18,19] for Clade VIII. Branches with posterior probabilities equal to or above 0.95 are shown in bold and bootstrap values equal to and above 70% under ML are indicated on the branches. Xanthoparmelia olivascens appears inside the “Southern Hemisphere—Clade VIII” clade, framed in grey. Tree by G. Amo de Paz.
Jof 10 00603 g001
Jof 10 00603 g002

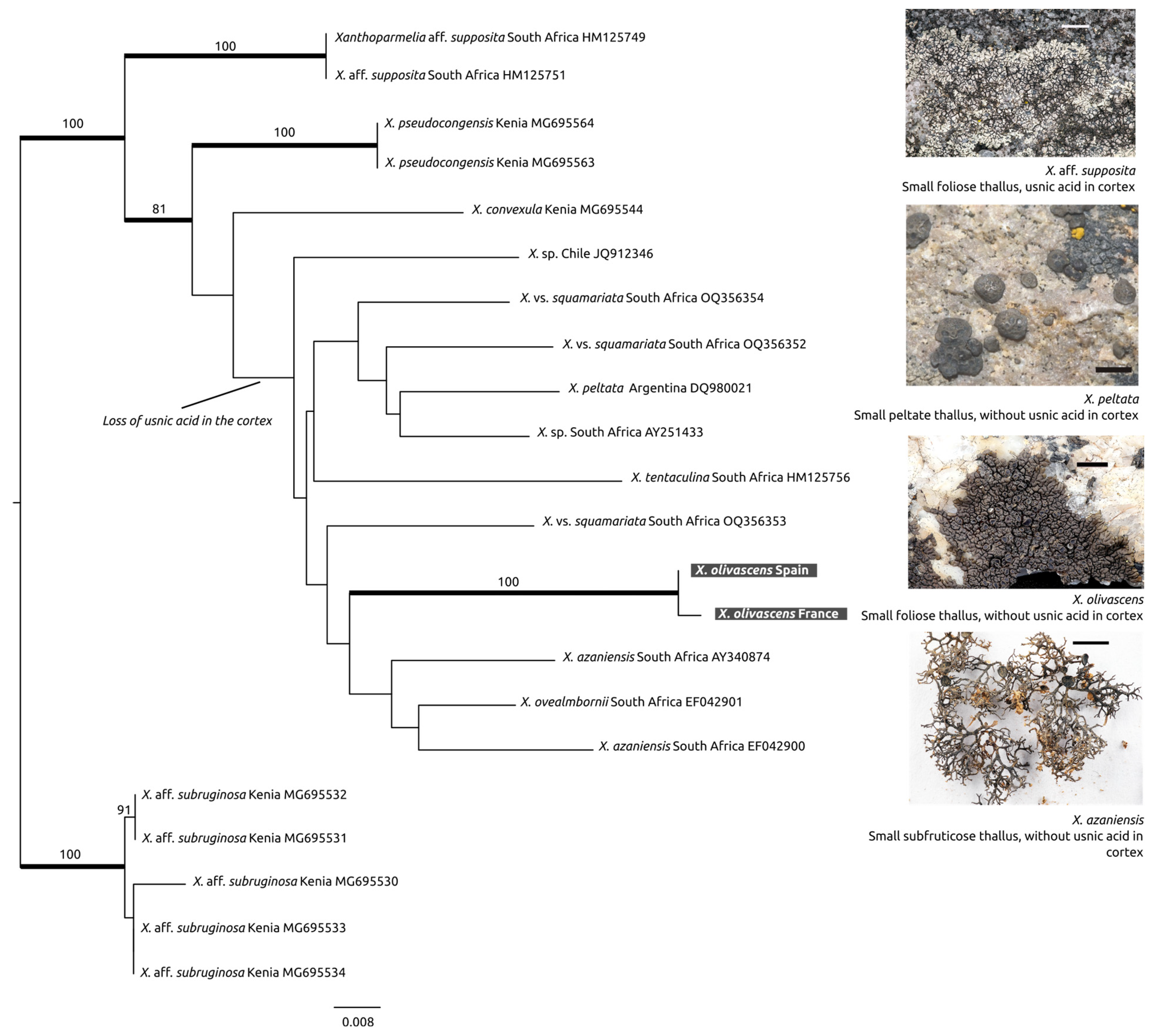

Figure 2. Phylogenetic tree with 22 taxa showing the phylogenetic placement of Xanthoparmelia olivascens in the “Southern Hemisphere–Clade VIII” clade inside the Xanthoparmelia clade [18,19]. Maximum likelihood tree inferred from nuITS sequences. Branches with posterior probabilities equal to or above 0.95 are shown in bold and bootstrap values equal to and above 70% under ML are indicated on the branches. Images by V.J. Rico, and tree by G. Amo de Paz. Scale bars: 3 mm. Samples photographed: MAF-Lich. 16206 Xanthoparmelia aff. supposita, UPS-11036a (Lumbsch et al.) Xanthoparmelia peltata, MAF-Lich. 24760 Xanthoparmelia olivascens, and MAF-Lich. 14269 Xanthoparmelia azaniensis.
Figure 2. Phylogenetic tree with 22 taxa showing the phylogenetic placement of Xanthoparmelia olivascens in the “Southern Hemisphere–Clade VIII” clade inside the Xanthoparmelia clade [18,19]. Maximum likelihood tree inferred from nuITS sequences. Branches with posterior probabilities equal to or above 0.95 are shown in bold and bootstrap values equal to and above 70% under ML are indicated on the branches. Images by V.J. Rico, and tree by G. Amo de Paz. Scale bars: 3 mm. Samples photographed: MAF-Lich. 16206 Xanthoparmelia aff. supposita, UPS-11036a (Lumbsch et al.) Xanthoparmelia peltata, MAF-Lich. 24760 Xanthoparmelia olivascens, and MAF-Lich. 14269 Xanthoparmelia azaniensis.
Jof 10 00603 g002
Jof 10 00603 g003
Figure 3. Xanthoparmelia olivascens, epitype (MAF-Lich. 25204), except c (MAF-Lich. 24759): (a) habit, stacked; (b) section of apothecium margin, note the cupular proper excipulum (arrow), DIC, stacked; (c) section of thallus areole, showing the medulla (left layer) and the lower cortex with raising tufts of attaching rhizoidal hyphae (arrow), DIC, stacked; (d) lower surface with short rhizines (arrows); (e) conidiophores, DIC; (f) conidia, DIC; (g) ascospores, DIC. Images by V.J. Rico. Scale bars: (a) = 5 mm; (b) = 15 μm; (c) = 20 μm; (d) = 0.5 mm; and (e–g) = 5 μm.
Figure 3. Xanthoparmelia olivascens, epitype (MAF-Lich. 25204), except c (MAF-Lich. 24759): (a) habit, stacked; (b) section of apothecium margin, note the cupular proper excipulum (arrow), DIC, stacked; (c) section of thallus areole, showing the medulla (left layer) and the lower cortex with raising tufts of attaching rhizoidal hyphae (arrow), DIC, stacked; (d) lower surface with short rhizines (arrows); (e) conidiophores, DIC; (f) conidia, DIC; (g) ascospores, DIC. Images by V.J. Rico. Scale bars: (a) = 5 mm; (b) = 15 μm; (c) = 20 μm; (d) = 0.5 mm; and (e–g) = 5 μm.
Jof 10 00603 g003
Jof 10 00603 g004
Figure 4. Lecanora olivascens Nyl. Holotype (H-NYL 25742 = H9506918): (left panel), label; (right panel), specimen, stacked. Images by V.J. Rico. Scale bar = 1 mm.
Figure 4. Lecanora olivascens Nyl. Holotype (H-NYL 25742 = H9506918): (left panel), label; (right panel), specimen, stacked. Images by V.J. Rico. Scale bar = 1 mm.
Jof 10 00603 g004
Table 1. Samples used in the morphological and chemical analyses with the herbarium no.
Table 1. Samples used in the morphological and chemical analyses with the herbarium no.
Herbarium Acc. No. LocalitySpecies
H-NYL 25742 = H9506918Força-Real, Perpignan, FranceXanthoparmelia olivascens (type locality)
MAF-Lich. 25204Força-Real, Perpignan, FranceXanthoparmelia olivascens (type locality)
MAF-Lich. 25205Força-Real, Perpignan, FranceXanthoparmelia olivascens (type locality)
MAF-Lich. 25206Força-Real, Perpignan, FranceXanthoparmelia olivascens (type locality)
MAF-Lich. 25207Força-Real, Perpignan, FranceXanthoparmelia olivascens (type locality)
MAF-Lich. 24758San Martín de Valdeiglesias, Madrid, SpainXanthoparmelia olivascens
MAF-Lich. 24760San Martín de Valdeiglesias, Madrid, SpainXanthoparmelia olivascens
MAF-Lich. 24761San Martín de Valdeiglesias, Madrid, SpainXanthoparmelia olivascens
MAF-Lich. 16206Coegmansilellof, Cape Province, South AfricaXanthoparmelia aff. supposita
MAF-Lich. 17125Temuco, IX Región, ChileXanthoparmelia sp.
MAF-Lich. 16445Alexander Bay, N Cape Province, South AfricaXanthoparmelia tentaculina
MAF-Lich. 14268Matroosberg, Cape Province, South AfricaXanthoparmelia ovealmbornii
MAF-Lich. 14269Matroosberg, Cape Province, South AfricaXanthoparmelia azaniensis
MAF-Lich. 21716Flinders Ranges, South Australia, AustraliaXanthoparmelia subcrustulosa
MAF-Lich. 11441Río de Cárdenas, Zamora, SpainXanthoparmelia mougeotii
MAF-Lich. 16978Pico del Inglés, Tenerife, SpainParmotrema reticulatum
Table 2. Comparison of morphological, chemical, and distributional characters of selected brown, small foliose Xanthoparmelia species. ma = major acid; mi = minor acid; tr = substance in trace amounts.
Table 2. Comparison of morphological, chemical, and distributional characters of selected brown, small foliose Xanthoparmelia species. ma = major acid; mi = minor acid; tr = substance in trace amounts.
Xanthoparmelia hensseniaeX. squamariatellaX. subsquamariataX. substygiodesX. patagonicaX. olivascens
Thallus 1>2 cm wide1–6 cm wide>4 cm wide>6 cm wide>2 cm wide0.2–3 cm wide
Lobessublinear to subirregular, 0.2–0.5 × 0.8 mm widecontiguous to slightly imbricate, 0.3–0.8 (–1.0) mm wideflat to weakly convex, sublinear to subirregular, 0.3–1.0 mm widediscrete and more or less elongate1–2 × 0.2–0.6 mm widelinear to palmate, 0.2–2.5 × 0.15–1.2 mm wide
Lower cortexpale to blackpale to brownpalepale, tan to blackishabsent, medulla black pigmented under apotheciablack, brown, light brown to beige
Rhizinesmoderately rhizinateerhizinate or unclearly rhizinatemoderately rhizinateerhizinateerhizinate or unclearly rhizinaterhizinate in lobes, tufts of rhizoidal hyphae in areoles
Ascosporesellipsoidal, 12–13 × 4.5–6 µmglobose to ellipsoidal, 5–7 × 3.5–5.5 µmellipsoidal, 7–9 × 4–6 µmglobose, c. 5–5.5 μm wideglobose to ellipsoidal, 3.5–7 × 3.5–6 µmnarrowly ellipsoidal to cylindrical, 12–17.5 (–23) × 4.5–7.5 μm
Conidiabacilliform to bifusiform, 8–10 (–14) × 1 µm.bacilliform, 5–6 × 1 µmbacilliform to weakly bifusiform, 6–7 × 1 µmfusiform to bifusiform, c. 6–8 × 1 μmfiliform to slightly bifusiform, 9–16 × 0.8 μmbacilliform to narrowly fusiform, 7–8 × 1–1.5 µm
Chemistry 2connorstictic (mi), cryptostictic (tr)connorstictic (mi), hyposalazinic (mi)caperatic (ma), connorstictic, norcaperatic (mi), hyposalazinic (tr)hyposalazinic (mi), connorstictic (tr)connorstictic, cryptostictic (mi), hyposalazinic (tr)connorstictic, hyposalazinic, consalazinic (mi), subnorstictic, stictic (tr)
DistributionSouth AfricaAustralia, New ZealandSouth AfricaSouth AfricaSouth Americasouthwestern Europe
1 All species with a miniature, small foliose thallus. 2 All species with norstictic acid as the major substance.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Amo de Paz, G.; Divakar, P.K.; Crespo, A.; Lumbsch, H.T.; Rico, V.J. The First Miniature, Small Foliose, Brown Xanthoparmelia in the Northern Hemisphere. J. Fungi 2024, 10, 603. https://doi.org/10.3390/jof10090603

AMA Style

Amo de Paz G, Divakar PK, Crespo A, Lumbsch HT, Rico VJ. The First Miniature, Small Foliose, Brown Xanthoparmelia in the Northern Hemisphere. Journal of Fungi. 2024; 10(9):603. https://doi.org/10.3390/jof10090603

Chicago/Turabian Style

Amo de Paz, Guillermo, Pradeep K. Divakar, Ana Crespo, Helge Thorsten Lumbsch, and Víctor J. Rico. 2024. "The First Miniature, Small Foliose, Brown Xanthoparmelia in the Northern Hemisphere" Journal of Fungi 10, no. 9: 603. https://doi.org/10.3390/jof10090603

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
