Mitochondrial Porin Is Involved in Development, Virulence, and Autophagy in Fusarium graminearum

by
Xueqin Han
,
Qingyi Li
,
Xuenan Li
,
Xiang Lv
,
Li Zhang
,
Shenshen Zou
,
Jinfeng Yu
,
Hansong Dong
,
Lei Chen
* and
Yuancun Liang
*
Key Laboratory of Agricultural Microbiology, College of Plant Protection, Shandong Agricultural University, Tai’an 271018, China
*
Authors to whom correspondence should be addressed.
J. Fungi 2022, 8(9), 936; https://doi.org/10.3390/jof8090936
Submission received: 11 August 2022 / Revised: 28 August 2022 / Accepted: 2 September 2022 / Published: 4 September 2022
(This article belongs to the Special Issue Genomics of Fungal Plant Pathogens)
Browse Figures
Review Reports Versions Notes

Abstract

:
Mitochondrial porin, the voltage-dependent anion-selective channel (VDAC), is the most abundant protein in the outer membrane, and is critical for the exchange of metabolites and phospholipids in yeast and mammals. However, the functions of porin in phytopathogenic fungi are not known. In this study, we characterized a yeast porin orthologue, Fgporin, in Fusarium graminearum. The deletion of Fgporin resulted in defects in hyphal growth, conidiation, and perithecia development. The Fgporin deletion mutant showed reduced virulence, deoxynivalenol production, and lipid droplet accumulation. In addition, the Fgporin deletion mutant exhibited morphological changes and the dysfunction of mitochondria, and also displayed impaired autophagy in the non-nitrogen medium compared to the wild type. Yeast two-hybrid and bimolecular fluorescence complementation assays indicated that Fgporin interacted with FgUps1/2, but not with FgMdm35. Taken together, these results suggest that Fgporin is involved in hyphal growth, asexual and sexual reproduction, virulence, and autophagy in F. graminearum.

1. Introduction

Fusarium graminearum is one of the main pathogens causing Fusarium head blight (FHB) on wheat and other cereal crops [1], which leads to yield losses and produces secondary metabolic toxins. Importantly, these mycotoxins pose a serious threat to human and animal health [2]. Deoxynivalenol (DON), one of the trichothecene mycotoxins produced by F. graminearum, is considered an important virulence factor during plant infection [3,4]. Ascospores are considered to cause primary infection; FHB possibly occurs during wheat flowering and spreads through the air. A lack of disease-resistant varieties and fungicide resistance frequently leads to FHB epidemics, especially under suitable climatic conditions [5].
Mitochondria are key organelles comprising of the inner membrane (IM) and the outer membrane (OM). Mitochondrial porin, the voltage-dependent anion-selective channel (VDAC), is the most abundant protein in OM [6], and facilitates the exchange of ions and small metabolites such as ATP between mitochondria and cytosol, through its β-barrel structure [7,8]. Many organisms possess more than one porin isoform. In Saccharomyces cerevisiae, there are two porin homologs, porin1 and porin2. Porin1 is the most abundant protein in the yeast mitochondrial outer membrane, with up to 16,000 copies per mitochondria [9]. If porin1 is disrupted, the porin1 mutant cannot grow on non-fermentative carbon sources such as glycerol, due to an impaired respiratory function [10,11,12]. Porin1 deficiency also reduces autophagic capacity, triggers lysosomal dysfunction, and leads to altered vacuolar and lipid homeostasis [13]. Yeast porin is involved in phospholipid metabolism, and porin1 interacts with the IMS (inter membrane space), Mdm35, which forms the lipid transporter complexes with Ups1/2 to transport phosphatidic acid (PA) and phosphatidylserine (PS) from OM to IM for subsequent cardiolipin (CL) and phosphatidylethanolamine (PE) synthesis [14,15,16]. The filamentous fungus Neurospora crassa has a single porin; the deletion of porin displays reduced growth and hyphal defects [17]. There are three porins in mammals, mammalian VDAC members are found to play roles in male reproduction, the central nervous system, glucose homeostasis, apoptosis, and carcinogenesis [18,19,20,21].
In this study, one Fgporin in F. graminearum was investigated and identified. The results showed that the Δporin mutant was defective in hyphal growth, conidiation, and perithecia formation. More importantly, the Δporin mutant significantly reduced plant infection, mitochondrial function, and autophagy.

2. Materials and Methods

2.1. Fungal Strains and Culture Conditions

In this study, Fusarium graminearum wild type strain PH-1 was used as the parent for transformation experiments to construct gene deletion mutants. Mutant strains were screened using TB3 medium supplemented with hygromycin B (Roche, San Francisco, CA, USA) [22]. Strains were cultured on potato dextrose agar (PDA) medium, complete medium (CM), and 1.5% glycerol medium (containing only non-fermented carbon sources; 1.5% glycerol, 0.1 g/L casein tryptone, 0.05 g/L yeast extract, 0.05 g/L casein acid hydrolysate, 0.3 g/L NaNO3, 0.025 g/L KCl, 0.25 g/L MgSO4·7H2O, 0.075 g/L KH2PO4, and 9 g/L agar) at 25 °C for 3 days. For conidial production, a 4-day-old culture in CMC (carboxymethylcellulose) liquid medium was harvested [22]. The formation of the perithecia was assayed on carrot agar medium, and 7-day-old aerial hyphae were gently pressed down on carrot agar plates after the addition of 2.5% Tween 20 solution [23]. TBI (trichothecene biosynthesis induction) liquid medium was used for DON toxin production [24]. Each experiment was repeated three times.

2.2. Construction of Gene Deletion and Complementation Strains

The split-marker approach and PEG-mediated protoplast transformation [25,26] were employed to construct Fgporin deletion mutants. Hygromycin-resistant transformants were identified using PCR with the specified primers (Supplementary Table S1) and Southern blotting. Southern blot hybridization was prepared using the High Prime DNA Labeling and Detection Starter kit I (Roche Diagnostics, Mannheim, Germany) to confirm single-copy integration. For complementary analysis, a recombinant pFL2 vector containing the full-length Fgporin with its promoter sequence was introduced into the protoplasts of the Δporin mutant; after geneticin (BBI Life Sciences Ltd., Beijing, China) screening on PDA plates, geneticin-resistant transformants were verified by PCR as the complemented strains. Similar approaches were used to generate FgUps1/2 and Fgmdm35 mutants.

2.3. Plant Infection and DON Production Assays

After incubation in CMC medium for 4 days, conidia were collected and subsequently resuspended in sterile distilled water to a concentration of 2 × 105/mL. Virulence determination was performed on flowering wheat heads and the coleoptiles of wheat cultivars Jimai 22 through point-inoculating conidial suspension. Middle spikelets were inoculated with 10 µL of conidial suspension during the flowering stage, as previously described [27], and the number of infected spikelets was recorded at 14 days post-inoculation (dpi). A 2 µL aliquot of conidial suspension was inoculated on the coleoptile and the infection length was detected at 10 dpi. To determine the production of DON, 200 µL conidial suspension (1 × 105/mL) was added into TBI medium and cultured in the dark for 7 days [24]; the DON content in the culture medium was determined using the Fusarium deoxynivalenol detection kit (Beijing Anyi Century Trading Co., Ltd., Beijing, China).

2.4. Quantitative Reverse Transcription-Polymerase Chain Reaction (qRT-PCR) Assays

Total RNA was isolated from hyphae collected from the TBI medium using RNAiso reagent (TaKaRa, Dalian, China). The expression of TRI5, TRI6, and TRI10 genes was detected using primer pairs TRI5-F/TRI5-R, TRI6-F/TRI6-R, and TRI10-F/TRI10-R (Supplementary Table S1), respectively. The GAPDH gene of F. graminearum was used as the internal control. The relative expressions of TRI5, TRI6, and TRI10 were calculated using the 2−ΔΔCt method [28].

2.5. Mitochondrial Membrane Potential, ATP, and H2O2 Analysis

Analysis of mitochondrial function was conducted using a mitochondrial membrane potential (MMP) detection kit, an ATP assay kit, and a H2O2 assay kit (Biyuntian Biotechnology Research Institute, Shanghai, China) according to the manufacturer’s instructions. Briefly, mycelia stained with JC-1 solution were examined under a fluorescent microplate to determine MMP by the change of the florescence intensity. A total of 0.05 g mycelial samples were collected and the corresponding lysis buffer was added. After lysis, the solution was detected with a fluorescent microplate reader. The quantification of ATP and H2O2 were determined following the manufacturer’s instructions, respectively. Experiments were repeated three times.

2.6. Fluorescence and Transmission Electron Microscopy Assays

Lipid droplets in conidia and mycelia were stained with 25 µg/mL Nile red solution and then examined via laser scanning confocal microscopy (LSM 880 NLO, Zeiss, Oberkochen, Germany). pFL2-TRI1-GFP and pFL2-TRI4-GFP plasmids were transferred to the protoplasts of PH-1 and Δporin strains, respectively, and the correct transformants were obtained using PCR and fluorescence screening. After 3 days of incubation in TBI liquid medium, the formation of toxisomes in the hyphae was observed under the confocal microscope. For transmission electron microscopy (TEM) assays, the hyphae of PH-1 and the Δporin strain were washed twice with phosphate-buffered saline (PBS) for 10 min, stained with osmium tetroxide for 1 h, and washed twice with PBS and once with 0.1 N acetate buffer for 10 min. The samples were embedded using the Spurr Low Viscosity Embedding kit, and stained with 1% uranyl acetate and 0.4% lead citrate. The samples were visualized using an accelerating voltage of 80 kV on a FEI Tecnai G2 Twin TEM (FEI, Hillsboro, OR, USA).

2.7. Autophagy Detection

Transformation of the vector carrying GFP-FgAtg8 into the protoplasts of PH-1 and Δporin strains was performed using PEG-mediated transformation methods. After the incubation of the PH-1/GFP-FgAtg8 and Δporin/GFP-FgAtg8 strains in CM liquid medium at 25 °C for 24 h, the hyphae were transferred to MM-N (minimal medium without nitrogen) liquid medium for 6 h, and stained with 10 μM CMAC (7-amino-4-chloromethylcoumarin) solution [29,30]; autophagy was observed via confocal microscopy fluorescence. For the Western blot assays, total protein extracts were prepared using the Filament Protein Extraction Kit (Shanghai Beibo Biotechnology Co., Ltd., Shanghai, China), isolated via electrophoresis in a 10% SDS-PAGE gel, transferred to a PVDF membrane, and then labeled using GFP-specific monoclonal antibodies (Cell Signaling Technology, Danvers, MA, USA). GAPDH was used as an internal protein control detected using GAPDH-specific monoclonal antibodies (Huaan Biotechnology, Hangzhou, China).

2.8. Yeast Two-Hybrid and Bimolecular Fluorescence Complementation (BiFC) Assays

For yeast two-hybrid assays, using the full-length cDNA of Fgporin, FgUps1 (FGSG_10309), FgUps2 (FGSG_10319), and FgMdm35 (FGSG_06057) as templates to construct recombinant plasmids, the resulting vectors of pGADT7-Fgporin, pGADT7-FgUps1/2, pGADT7-FgMdm35, and pGBKT7-Fgporin were constructed, respectively. The recombinant plasmids were co-transferred into the yeast strain AH109 [31]; transformants were coated on a SD-Trp-Leu solid medium and then cultured on SD-Trp-Leu-His-Ade solid medium at 28 °C, as described previously [32]. The positive and negative controls were provided in the Matchmaker library construction kit (Clontech, San Jose, CA, USA).
For the BiFC assays, pHZ65 and pHZ68 plasmids with the N and C terminals of the YFP protein were applied, respectively. The Fgporin-YFPN, FgUps1-YFPN, FgUps2-YFPN, FgMdm35-YFPN, and Fgporin-YFPC fusion expression vectors were constructed. The recombinant plasmids were co-transferred into PH-1 in pairs. Transformants were generated via geneticin resistance screening and PCR, and YFP signals in the hyphae were examined using laser confocal fluorescence.

3. Results

3.1. Identification of Fgporin in F. graminearum

Using the amino acid sequences of Saccharomyces cerevisiae porin1 (NP_014343.1) and porin2 (NP_012152.3) as templates, the Blastp sequence alignment tool was used to obtain the predicted F. graminearum Fgporin (FGSG_09933), which encoded 283 amino acids. Through amino acid sequence alignment, it was found that Fgporin was 100% similar to porin of F. oxysporum, 82% similar to porin of N. crassa, and 43% and 33% similar to porin1 and porin2 of S. cerevisiae, respectively (Figure 1A, Supplementary Table S2). Secondary structure analysis showed that Fgporin had one α-helix and 19 β-sheets, and that the β-sheets formed a barrel structure, that was similar to the secondary structure of S. cerevisiae porin1 and porin2 (Figure 1B). In order to further determine the homology between Fgporin and other fungal porins, multiple fungal porin proteins were selected, and the results showed that porins of F. graminearum and F. oxysporum had the closest relationship among nine fungi (Figure 1C).

3.2. Generation of Fgporin Deletion Mutants and Complementation Strains

To characterize the functions of Fgporin, Fgporin deletion mutants were obtained via homologous recombination (Supplementary Figure S1A). Transformants were screened via hygromycin B resistance medium, and further identified using PCR and Southern blot. Four independent Fgporin deletion mutants were generated (Supplementary Figure S1B), and one of the mutants (Δporin) was used for the subsequent experiments. To confirm that the phenotypic alterations of the Δporin mutant were caused by the deletion of Fgporin, complementation experiments of Δporin strain were performed, and the resulting transformants were screened via geneticin, and verified using PCR (Supplementary Figure S1C), and one of the transformants was regarded as the complemented strain Δporin-C.

3.3. The Δporin Mutant Is Defective in Mycelial Growth, Conidiation, and Sexual Reproduction

To investigate the biological roles of Fgporin in F. graminearum, the growth and reproduction of the Δporin mutant were examined. PH-1, Δporin and Δporin-C strains were cultured on PDA, CM, and 1.5% glycerol plates for 3 days, and the colony diameters were determined. The results showed that the Δporin mutant was defective in colony growth and reduced the ability to utilize non-fermentable carbon sources (Figure 2A). Colony growth was reduced by 40.7%, 46.1%, and 69.1% on PDA, CM, and 1.5% glycerol media, respectively, compared to PH-1 (Figure 2B), indicating that Fgporin is involved in the regulation of growth. After 4 days of incubation in CMC liquid medium, the conidiation of the Δporin mutant was decreased by 81.5% compared with PH-1 (Figure 2C). In addition, the Δporin strain was found to produce smaller conidia (Table 1); most abundant conidia of the Δporin strain had only three septa. By contrast, the conidia of PH-1 mostly had five septa (Figure 2D,E). The sexual reproduction was also assayed on carrot agar plates. As shown in Figure 2F, both the PH-1 and Δporin-C strains normally produced a large number of black perithecia, but the Δporin mutant failed to produce perithecia until 20 days post-fertilization, indicating that the Fgporin mutant is defective in sexual reproduction. Therefore, these results indicate that Fgporin is involved in hyphal growth, conidiation, and sexual reproduction in F. graminearum.

3.4. Δporin Strain Reduces Virulence and DON Production

To determine the effect of Fgporin on virulence, wheat heads and coleoptiles were inoculated with conidial suspension. Wheat heads inoculated with the Δporin strain displayed fewer necrotic spikelets and had a smaller disease index on the wheat heads, while the PH-1 and Δporin-C strains could infect most of the spikelets after 14 days of inoculation (Table 1; Figure 3A). Coleoptiles inoculated with the Δporin strain developed brown lesions only at the inoculation sites, whereas PH-1 and Δporin-C strains caused longer lesions on the coleoptiles (Table 1; Figure 3B). To prove whether the decline in virulence is caused by DON, the DON production was assayed. The results showed that the DON toxin content in the Δporin strain was decreased by 96.6% compared with the wild-type PH-1 (Figure 3C). To further demonstrate the effects of Fgporin on DON toxin production, TRI expression levels were assayed using qRT-PCR. The results showed that the expression levels of TRI5, TRI6, and TRI10 genes in the Δporin strain were significantly decreased compared with the PH-1 strain (Figure 3D). These results indicate that the deletion of Fgporin significantly reduces virulence and DON production in F. graminearum.

3.5. Fgporin Is Involved in the Formation of Toxisomes and Lipid Droplets

To understand whether Fgporin regulates the formation of toxisomes, fluorescent toxisomes were observed in the Δporin strain. After incubation in TBI liquid medium for 3 days, the toxisome formation in hyphae was observed using a laser confocal microscope. The results showed that PH-1 was able to form a large number of crescent toxisomes in the hyphae, while the toxisomes were almost invisible in the Δporin strain, indicating that Fgporin is directly involved in the formation of toxisomes (Figure 4A). To further examine whether Fgporin regulates the biosynthesis of lipid droplets (LDs) in F. graminearum, the hyphae of the PH-1 and the Δporin strains were stained with Nile red. As shown in Figure 4B, LDs were synthesized in large quantities in PH-1 compared to the Δporin strain. In the TBI medium, only fewer LDs were formed in the Δporin strain, indicating that Fgporin regulates LD biosynthesis.

3.6. The Δporin Strain Results in Defects in Mitochondrial Morphology and Function

To investigate whether Fgporin is important for mitochondria, the mitochondrial morphology and functions were examined via transmission electron microscopy (TEM) and biochemical experiments. The TEM results showed that the mitochondria in the Δporin strain were malformed and had fewer tubular cristae (Figure 5A). To verify mitochondrial functions in the Δporin strain, mitochondrial membrane potential, endogenous H2O2, and ATP production were analyzed. The results showed that the Δporin strain cultured in CM and TBI medium displayed an approximate 20% decrease in membrane potential, an approximate 63% decrease in endogenous H2O2, and an approximate 35% decrease in ATP production compared to PH-1 (Figure 5B–D). Overall, Fgporin is essential for normal mitochondrial morphology and functions.

3.7. The Fgporin Deletion Mutant Is Defective in Autophagy

To determine whether or not the deletion of Fgporin affects autophagy, an autophagy marker fusion gene GFP-FgAtg8 was introduced into PH-1 and the Δporin mutant to monitor autophagic flux. GFP fluorescence in the mycelia was examined using confocal microscopy, and the accumulation of GFP-FgAtg8 proteolysis was achieved through Western blot assays. For fluorescence examination, more green fluorescence dots representing autophagosomes existed in vacuoles in PH-1 than that in the Δporin strain grown in MM-N medium for 6 h (Figure 6A,B). As shown in Figure 6C, few GFP-FgAtg8 degradations occurred in Δporin grown in MM-N medium for 6 h, and the Δporin mutant grown in MM-N medium exhibited a lower GFP:GFP-FgAtg8 ratio compared with PH-1 grown in MM-N medium for 6 h. Taken together, these data suggest that the deletion of the Fgporin mutant is defective in autophagy in F. graminearum.

3.8. Fgporin Interacts with Itself and FgUps1/2, but Not with FgMdm35

To investigate whether Fgporin interacts with itself and FgUps1/2-FgMdm35, yeast two-hybrid and BiFC assays were used. The yeast two-hybrid results showed that colonies could grow on SD-Trp-Leu-His-Ade plates for pGADT7-Fgporin+pGBKT7-Fgporin, pGADT7-FgUps1+pGBKT7-Fgporin, pGADT7-FgUps2+pGBKT7-Fgporin, and positive control strains (Figure 7A). Furthermore, BiFC analysis displayed the same interactions as the yeast two-hybrid results. YFP signals were observed in Fgporin–Fgporin and FgUps1/2–Fgporin interactions. However, the YFP signals were not observed in the FgMdm35-YFPN and Fgporin-YFPC transformants (Figure 7B). These results indicate that Fgporin exists in self-interaction, and directly interacts with FgUps1/2, but it fails to interact with FgMdm35. To determine the functions of FgUps1/2 and FgMdm35, similar methods to Fgporin deletion were carried out. However, only FgUps2 deletion mutants were obtained, and the results of the phenotypic experiments showed that FgUps2 had no effect on the growth and virulence of F. graminearum (Figure 7C,D). FgUps1 and FgMdm35 were unable to obtain mutants through several transformants, indicating that the deletion of FgUps1 and FgMdm35 may be lethal.

4. Discussion

Mitochondrial porin is the most abundant protein in the outer membrane and is involved in processes such as metabolite exchange and mitochondrial protein import [6]. Porin has three homologs in mammals and two in yeast, and its function has been progressively identified [10,33]. However, to date, little is known about the roles of the porin homologue in plant pathological fungi. In this study, one Fgporin was identified in F. graminearum; our findings demonstrate that Fgporin plays important roles in fungal development, virulence, and autophagy.
The Fgporin deletion mutant exhibited reduced growth, which was consistent with porins in S. cerevisiae and N. crassa [13,34]. The Δporin mutant failed to produce perithecia, indicating that Fgporin positively regulates sexual reproduction. The Δporin mutant displayed reduced virulence, which was consistent with the decline in DON content. DON is a main virulence factor in F. graminearum [3,4]. DON biosynthesis is required for the expression of TRI genes; TRI1 and TRI4 proteins have been reported to localize in toxisomes [5,35,36]. The Fgporin deletion mutant obviously reduced the production of toxisomes. Studies have shown that toxisomes are also closely associated with lipid droplet formation [36,37]. Lipid droplets, formed at the endoplasmic reticulum in eukaryotes, are important organelles that are responsible for stores of neutral lipids. In F. graminearum, lipid droplet biogenesis plays critical roles in development and virulence [37]. Recently, results have shown showed that the deletion of porin1 resulted in increased lipid droplet content in yeast cells [38]. In contrast to our results, both in mycelia and conidia, the Fgporin deletion mutant had relatively lower intracellular lipid droplet content compared to the wild type PH-1. These data suggest that Fgporin plays a critical role in the formation of lipid droplets and toxisomes.
It is known that normal mitochondrial morphology makes for maintaining its functions. In Taxoplama gondii and Drosophila, the deletion of porin resulted in changes of mitochondrial morphology [39,40]. Consistent with this study, the Fgporin deletion strain displayed severe morphological changes of mitochondria in F. graminearum. Mitochondria are key regulators of redox balance [41]. The main source of endogenous ROS (reactive oxygen species) is a normal by-product of electron leakage in the mitochondrial respiratory chain [42,43]. It is widely accepted that mitochondrial function mainly includes mitochondrial ATP production, MMP, and ROS production, which are regarded as the markers of mitochondrial function. In the present study, both ATP production and MMP were significantly reduced in the Δporin mutant compared to the wild type PH-1, while H2O2 content was also significantly reduced compared to the wild type, which was consistent with the previous study in yeast [38,44]. These results suggest that the Fgporin deletion mutant exhibits abnormal mitochondrial morphology and functions.
Autophagy, a primordial and highly conserved intracellular process in eukaryotes, is important for the lysosomal (vacuolar) degradation of proteins and membrane recycling. In phytopathogenic fungi, autophagy is closely related to fungal growth and infection [26,45]. More recently, the porin1 deletion strain displays reduced autophagy in yeast [13]. A previous study showed that autophagy is necessary for plant colonization in F. gramineaeum [45]. In this study, the deletion of Fgporin also resulted in impaired autophagy, which is likely to provide more metabolites due to mitochondrial dysfunction.
In yeast, porin and Ups1/2-Mdm35 form lipid transporter complexes to transport PA and PS from OM to IM for subsequent CL and PE synthesis [14,15,16]. The Ups family is highly conserved in eukaryotes; the import of Ups proteins into the IMS is mediated by interactions with Mdm35. Ups–Mdm35 complexes are required for phospholipid metabolism [14]. Interestingly, only one Fgporin was identified in F. graminearum, and it formed a dimer via self-interaction. In yeast, porin directly interacts with Mdm35, which also interacts with Ups1/2. However, in F. graminearum, Fgporin failed to interact with FgMdm35, while Fgporin directly interacted with FgUps1/2.
Taken together, our results suggest that mitochondrial porin is involved in hyphal growth, conidiation, sexual reproduction, virulence, mitochondrial function, and autophagy in F. graminearum. These results could provide novel targets to control diseases caused by F. graminearum.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jof8090936/s1. Figure S1: Generation and identification of Fgporin deletion mutants. Figure S2: Southern blot analysis of Fgporin deletion mutants. Genomic DNA was digested with Xho I. Figure S3: PCR verification of Fgporin deletion mutants and Fgporin complementation strains. Figure S4: The original picture of Western blot. The upper band was GFP-FgAtg8, and the lower band was GFP. Figure S5: The original picture of Western blot. The band was GAPDH. Table S1: Primers used in this study. Table S2: The amino acid similarity of Fgporin with other fungal porins.

Author Contributions

Conceived and designed the experiments: X.H. and Q.L. Performed the experiments: X.H., Q.L., X.L. (Xuenan Li), X.L. (Xiang Lv), L.C., and S.Z. Analyzed the data: L.C. and S.Z. Wrote the paper: X.H., Q.L., and L.Z. Originated research leading up to this paper and provided guidance and review: J.Y., H.D., L.C., and Y.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Natural Science Foundation of Shandong Province (ZR2020MC120), the Key Technologies R&D Program of Shandong Province (2019GNC106094), the wheat innovation team of Shandong province modern agricultural industry technology system (SDAIT-01-09), and the Funds of the Shandong “Double Tops” Program (SYL2017XTTD11).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Goswami, R.S.; Kistler, H.C. Heading for disaster: Fusarium graminearum on cereal crops. Mol. Plant Pathol. 2004, 5, 515–525. [Google Scholar] [CrossRef] [PubMed]
  2. McMullen, M.; Jones, R.; Gallenberg, D. Scab of wheat and barley: A re-emerging disease of devasting impact. Plant Dis. 1997, 81, 1340–1348. [Google Scholar] [CrossRef] [PubMed]
  3. Desjardins, A.E.; Hohn, T.M.; McCormick, S.P. Trichothecene biosynthesis in fusarium species: Chemistry, genetics, and significance. Microbiol. Rev. 1993, 57, 595–604. [Google Scholar] [CrossRef] [PubMed]
  4. Proctor, R.H.; Hohn, T.M.; McCormick, S.P. Reduced virulence of Gibberella zeae caused by disruption of a trichothecene toxin biosynthetic gene. Mol. Plant-Microbe Interact. 1995, 8, 593–601. [Google Scholar] [CrossRef] [PubMed]
  5. Chen, Y.; Kistler, H.C.; Ma, Z. Fusarium graminearum trichothecene mycotoxins: Biosynthesis, regulation, and management. Annu. Rev. Phytopathol. 2019, 57, 15–39. [Google Scholar] [CrossRef]
  6. Schmitt, S.; Prokisch, H.; Schlunck, T.; Camp Ii, D.G.; Ahting, U.; Waizenegger, T.; Scharfe, C.; Meitinger, T.; Imhof, A.; Neupert, W.; et al. Proteome analysis of mitochondrial outer membrane from Neurospora crassa. Proteomics 2006, 6, 72–80. [Google Scholar] [CrossRef]
  7. Hiller, S.; Abramson, J.; Mannella, C.; Wagner, G.; Zeth, K. The 3D structures of VDAC represent a native conformation. Trends Biochem. Sci. 2010, 35, 514–521. [Google Scholar] [CrossRef]
  8. Messina, A.; Reina, S.; Guarino, F.; De Pinto, V. VDAC isoforms in mammals. Biochim. Biophys. Acta Biomembr. 2012, 1818, 1466–1476. [Google Scholar] [CrossRef]
  9. Morgenstern, M.; Stiller, S.B.; Lübbert, P.; Peikert, C.D.; Dannenmaier, S.; Drepper, F.; Weill, U.; Höß, P.; Feuerstein, R.; Gebert, M.; et al. Definition of a high-confidence mitochondrial proteome at quantitative scale. Cell Rep. 2017, 19, 2836–2852. [Google Scholar] [CrossRef]
  10. Dihanich, M.; Suda, K.; Schatz, G. A yeast mutant lacking mitochondrial porin is respiratory-deficient, but can recover respiration with simultaneous accumulation of an 86-kd extramitochondrial protein. EMBO J. 1987, 6, 723–728. [Google Scholar] [CrossRef]
  11. Lee, A.C.; Xu, X.; Blachly-Dyson, E.; Forte, M.; Colombini, M. The role of yeast VDAC genes on the permeability of the mitochondrial outer membrane. J. Membr. Biol. 1998, 161, 173–181. [Google Scholar] [CrossRef] [PubMed]
  12. Graham, B.H.; Craigen, W.J. Genetic approaches to analyzing mitochondrial outer membrane permeability. Curr. Top. Dev. Biol. 2004, 59, 87–118. [Google Scholar] [CrossRef] [PubMed]
  13. Broeskamp, F.; Edrich, E.S.M.; Knittelfelder, O.; Neuhaus, L.; Meyer, T.; Heyden, J.; Habernig, L.; Kreppel, F.; Gourlay, C.W.; Rockenfeller, P. Porin 1 modulates autophagy in yeast. Cells 2021, 10, 2416. [Google Scholar] [CrossRef]
  14. Tamura, Y.; Iijima, M.; Sesaki, H. Mdm35p imports Ups proteins into the mitochondrial intermembrane space by functional complex formation. EMBO J. 2010, 29, 2875–2887. [Google Scholar] [CrossRef] [PubMed]
  15. Miyata, N.; Fujii, S.; Kuge, O. porin proteins have critical functions in mitochondrial phospholipid metabolism in yeast. J. Biol. Chem. 2018, 293, 17593–17605. [Google Scholar] [CrossRef] [PubMed]
  16. Endo, T.; Sakaue, H. Multifaceted roles of porin in mitochondrial protein and lipid transport. Biochem. Soc. Trans. 2019, 47, 1269–1277. [Google Scholar] [CrossRef]
  17. Summers, W.A.T.; Wilkins, J.A.; Dwivedi, R.C.; Ezzati, P.; Court, D.A. Mitochondrial dysfunction resulting from the absence of mitochondrial porin in Neurospora crassa. Mitochondrion 2012, 12, 220–229. [Google Scholar] [CrossRef]
  18. Craigen, W.J.; Graham, B.H. Genetic strategies for dissecting mammalian and drosophila voltage-dependent anion channel functions. J. Bioenerg. Biomembr. 2008, 40, 207–212. [Google Scholar] [CrossRef]
  19. Kinnally, K.W.; Peixoto, P.M.; Ryu, S.-Y.; Dejean, L.M. Is mPTP the gatekeeper for necrosis, apoptosis, or both? Biochim. Biophys. Acta Molecul. 2011, 1813, 616–622. [Google Scholar] [CrossRef]
  20. Maldonado, E.N.; Sheldon, K.L.; DeHart, D.N.; Patnaik, J.; Manevich, Y.; Townsend, D.M.; Bezrukov, S.M.; Rostovtseva, T.K.; Lemasters, J.J. Voltage-dependent anion channels modulate mitochondrial metabolism in cancer cells: Regulation by free tubulin and erastin. J. Biol. Chem. 2013, 288, 11920–11929. [Google Scholar] [CrossRef] [Green Version]
  21. Bosc, C.; Broin, N.; Fanjul, M.; Saland, E.; Farge, T.; Courdy, C.; Batut, A.; Masoud, R.; Larrue, C.; Skuli, S.; et al. Autophagy regulates fatty acid availability for oxidative phosphorylation through mitochondria-endoplasmic reticulum contact sites. Nat. Commun. 2020, 11, 4056. [Google Scholar] [CrossRef]
  22. Hou, Z.; Xue, C.; Peng, Y.; Katan, T.; Kistler, H.C.; Xu, J.-R. A mitogen-activated protein kinase gene (Mgv1) in Fusarium graminearum is required for female fertility, heterokaryon formation, and plant infection. Mol. Plant-Microbe Interact. 2002, 15, 1119–1127. [Google Scholar] [CrossRef]
  23. Cavinder, B.; Sikhakolli, U.; Fellows, K.M.; Trail, F. Sexual development and ascospore discharge in Fusarium graminearum. J. Vis. Exp. 2012, 61, 3895. [Google Scholar] [CrossRef] [PubMed]
  24. Gardiner, D.M.; Kazan, K.; Manners, J.M. Nutrient profilin reveals potent inducers of trichothecene biosynthesis in Fusarium graminearum. Fungal Genet. Biol. 2009, 46, 604–613. [Google Scholar] [CrossRef] [PubMed]
  25. Catlett, N.L.; Lee, B.; Yoder, O.; Turgeon, B. Split-marker recombination for efficient targeted deletion of fungal genes. Fung. Genet. Rep. 2003, 50, 9–11. [Google Scholar] [CrossRef]
  26. Liu, Z.; Friesen, T.L. Polyethylene glycol (PEG)-mediated transformation in filamentous fungal pathogens. Plant Fung. Pathog. 2011, 835, 365–375. [Google Scholar] [CrossRef]
  27. Goswami, R.S.; Kistler, H.C. Pathogenicity and in planta mycotoxin accumulation among members of the Fusarium graminearum species complex on wheat and rice. Phytopathology 2005, 95, 1397–1404. [Google Scholar] [CrossRef]
  28. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2-ΔΔCt method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  29. Ohneda, M.; Arioka, M.; Nakajima, H.; Kitamoto, K. Visualization of vacuoles in aspergillus oryzae by expression of CPY–EGFP. Fungal Genet. Biol. 2002, 37, 29–38. [Google Scholar] [CrossRef]
  30. Shi, H.-B.; Chen, N.; Zhu, X.-M.; Su, Z.-Z.; Wang, J.-Y.; Lu, J.-P.; Liu, X.-H.; Lin, F.-C. The casein kinase moyck1 regulates development, autophagy, and virulence in the rice blast fungus. Virulence 2019, 10, 719–733. [Google Scholar] [CrossRef] [Green Version]
  31. Schiestl, R.H.; Gietz, R.D. High efficiency transformation of intact yeast cells using single stranded nucleic acids as a carrier. Curr. Genet. 1989, 16, 339–346. [Google Scholar] [CrossRef] [PubMed]
  32. Zhou, X.; Liu, W.; Wang, C.; Xu, Q.; Wang, Y.; Ding, S.; Xu, J.-R. A MADS-box transcription factor MoMcm1 is required for male fertility, microconidium production and virulence in Magnaporthe oryzae. Mol. Microbiol. 2011, 80, 33–53. [Google Scholar] [CrossRef]
  33. Sampson, M.J.; Lovell, R.S.; Craigen, W.J. The murine voltage-dependent anion channel gene family: Conserved structure and function. J. Biol. Chem. 1997, 272, 18966–18973. [Google Scholar] [CrossRef] [PubMed]
  34. Shuvo, S.R.; Kovaltchouk, U.; Zubaer, A.; Kumar, A.; Summers, W.A.; Donald, L.J.; Hausner, G.; Court, D.A. Functional characterization of an N-terminally truncated mitochondrial porin expressed in Neurospora crassa. Can. J. Microbiol. 2017, 63, 730–738. [Google Scholar] [CrossRef] [PubMed]
  35. Menke, J.; Weber, J.; Broz, K.; Kistler, H.C. Cellular development associated with induced mycotoxin synthesis in the filamentous fungus Fusarium graminearum. PLoS ONE 2013, 8, e63077. [Google Scholar] [CrossRef]
  36. Chong, X.; Wang, C.; Wang, Y.; Wang, Y.; Zhang, L.; Liang, Y.; Chen, L.; Zou, S.; Dong, H. The dynamin-like GTPase FgSey1 plays a critical role in fungal development and virulence in Fusarium graminearum. Appl. Environ. Microbiol. 2020, 86, e02720-19. [Google Scholar] [CrossRef]
  37. Liu, N.; Yun, Y.; Yin, Y.; Hahn, M.; Ma, Z.; Chen, Y. Lipid droplet biogenesis regulated by the FgNem1/Spo7-FgPah1 phosphatase cascade plays critical roles in fungal development and virulence in Fusarium graminearum. New Phytol. 2019, 223, 412–429. [Google Scholar] [CrossRef]
  38. Magrì, A.; Di Rosa, M.C.; Orlandi, I.; Guarino, F.; Reina, S.; Guarnaccia, M.; Morello, G.; Spampinato, A.; Cavallaro, S.; Messina, A.; et al. Deletion of voltage-dependent anion channel 1 knocks mitochondria down triggering metabolic rewiring in yeast. Cell. Mol. Life Sci. 2020, 77, 3195–3213. [Google Scholar] [CrossRef]
  39. Mallo, N.; Ovciarikova, J.; Martins Duarte, E.; Baehr, S.; Biddau, M.; Wilde, M.-L.; Uboldi, A.D.; Lemgruber, L.; Tonkin, C.J.; Wideman, J.G.; et al. Depletion of a Toxoplasma porin leads to defects in mitochondrial morphology and contacts with the ER. J. Cell Sci. 2021, 134. [Google Scholar] [CrossRef]
  40. Park, J.; Kim, Y.; Choi, S.; Koh, H.; Lee, S.-H.; Kim, J.-M.; Chung, J. Drosophila porin/VDAC affects mitochondrial morphology. PLoS ONE 2010, 5, e13151. [Google Scholar] [CrossRef] [Green Version]
  41. Handy, D.E.; Loscalzo, J. Redox regulation of mitochondrial function. Antioxid. Redox Signal. 2012, 16, 1323–1367. [Google Scholar] [CrossRef] [PubMed]
  42. Danley, D.L.; Hilger, A.E.; Winkel, C.A. Generation of hydrogen peroxide by candida albicans and influence on murine polymorphonuclear leukocyte activity. Infect Immun. 1983, 40, 97–102. [Google Scholar] [CrossRef] [PubMed]
  43. Staniek, K.; Gille, L.; Kozlov, A.V.; Nohl, H. Mitochondrial superoxide radical formation is controlled by electron bifurcation to the high and low potential pathways. Free Radic. Res. 2002, 36, 381–387. [Google Scholar] [CrossRef] [PubMed]
  44. Magrì, A.; Di Rosa, M.C.; Tomasello, M.F.; Guarino, F.; Reina, S.; Messina, A.; De Pinto, V. Overexpression of human SOD1 in VDAC1-less yeast restores mitochondrial functionality modulating beta-barrel outer membrane protein genes. Biochim. Biophys. Acta 2016, 1857, 789–798. [Google Scholar] [CrossRef] [PubMed]
  45. Josefsen, L.; Droce, A.; Sondergaard, T.E.; Sørensen, J.L.; Bormann, J.; Schäfer, W.; Giese, H.; Olsson, S. Autophagy provides nutrients for nonassimilating fungal structures and is necessary for plant colonization but not for infection in the necrotrophic plant pathogen Fusarium graminearum. Autophagy 2012, 8, 326–337. [Google Scholar] [CrossRef] [Green Version]
Jof 08 00936 g001 550

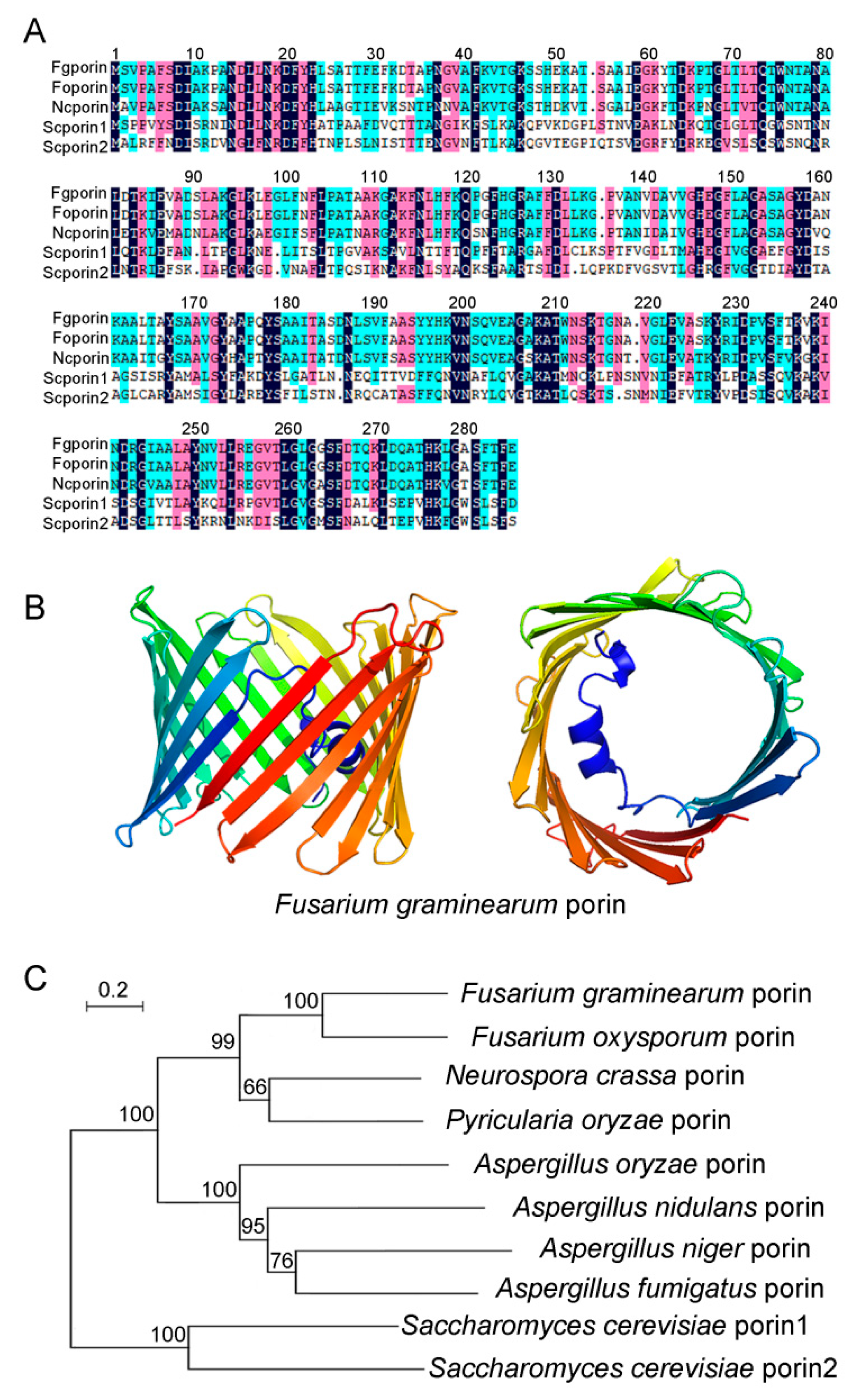

Figure 1. Multiple sequence alignment, secondary structure, and phylogenetic tree analysis of Fgporin. (A) Amino acid sequence alignment among Fusarium graminearum and other fungal porins. Fg, Fusarium graminearum; Fo, Fusarium oxysporum; Nc, Neurospora crassa; Sc, Saccharomyces cerevisiae. (B) Front and top views of the Fgporin secondary structure. (C) Phylogenetic tree analysis of F. graminearum Fgporin and other fungal porins. MEGA 7.0 was used to construct a phylogenetic tree based on a conserved sequence alignment pattern.
Figure 1. Multiple sequence alignment, secondary structure, and phylogenetic tree analysis of Fgporin. (A) Amino acid sequence alignment among Fusarium graminearum and other fungal porins. Fg, Fusarium graminearum; Fo, Fusarium oxysporum; Nc, Neurospora crassa; Sc, Saccharomyces cerevisiae. (B) Front and top views of the Fgporin secondary structure. (C) Phylogenetic tree analysis of F. graminearum Fgporin and other fungal porins. MEGA 7.0 was used to construct a phylogenetic tree based on a conserved sequence alignment pattern.
Jof 08 00936 g001
Jof 08 00936 g002 550

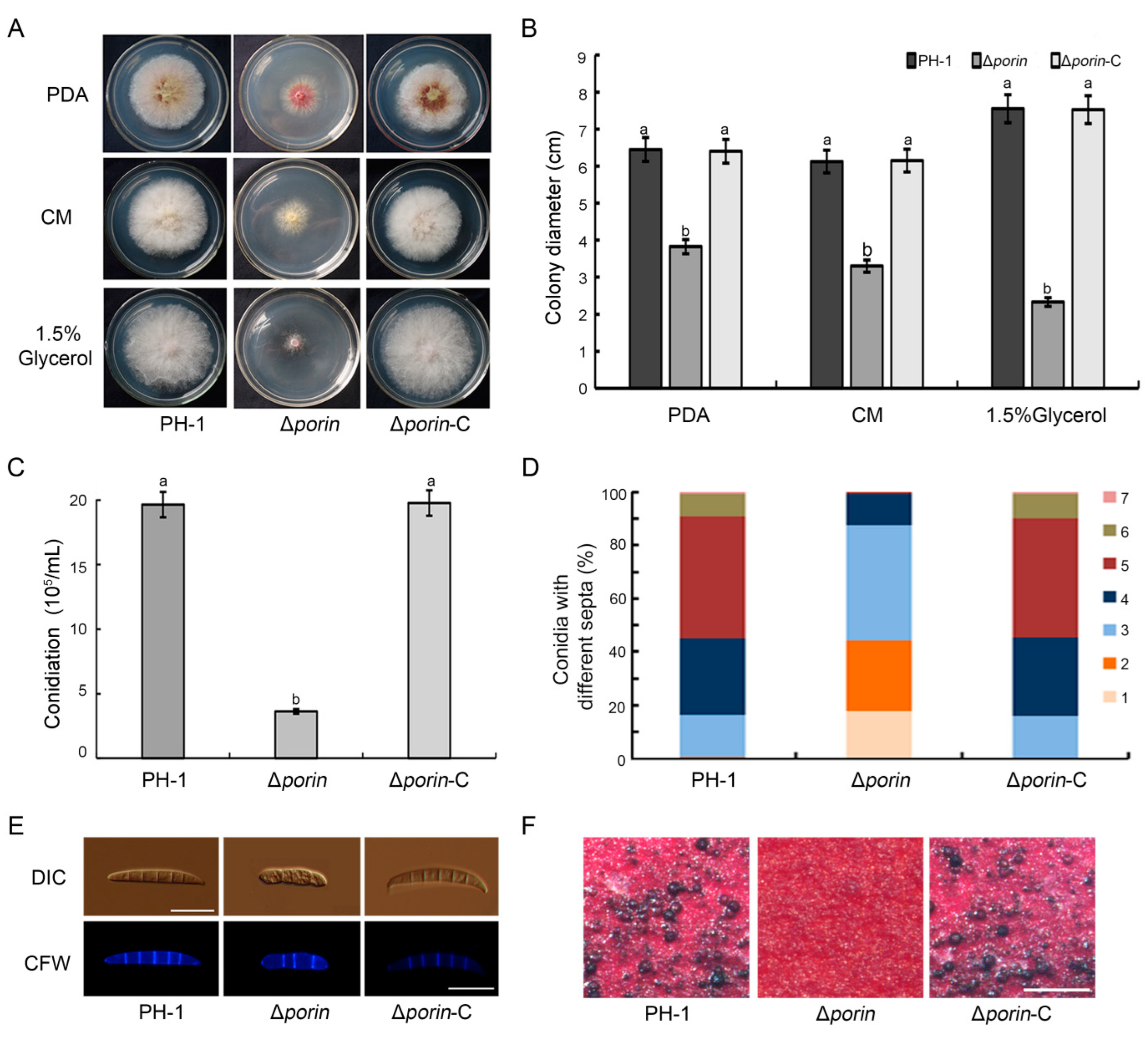

Figure 2. Effects of Fgporin on mycelial growth, conidiation, and sexual reproduction. (A) Colony of PH-1, ∆porin, and ∆porin-C strains on PDA, CM, and 1.5% glycerol medium at 25 °C for 3 days. (B) Colony diameters of PH-1, ∆porin, and ∆porin-C were examined. (C) Conidiation produced by PH-1, ∆porin, and ∆porin-C was counted using 4-day-old culture in CMC medium. (D) Conidial morphology of PH-1, ∆porin, and ∆porin-C. (E) Conidial septa were stained with 1 μg/mL CFW (Calcofluor white) solution and observed via fluorescence microscopy. Bar = 10 µm. (F) Perithecia formation in PH-1, ∆porin, and ∆porin-C on carrot agar plates. Bar = 500 µm. Values followed by the same letter are not significantly different (p < 0.05) using the Tukey test.
Figure 2. Effects of Fgporin on mycelial growth, conidiation, and sexual reproduction. (A) Colony of PH-1, ∆porin, and ∆porin-C strains on PDA, CM, and 1.5% glycerol medium at 25 °C for 3 days. (B) Colony diameters of PH-1, ∆porin, and ∆porin-C were examined. (C) Conidiation produced by PH-1, ∆porin, and ∆porin-C was counted using 4-day-old culture in CMC medium. (D) Conidial morphology of PH-1, ∆porin, and ∆porin-C. (E) Conidial septa were stained with 1 μg/mL CFW (Calcofluor white) solution and observed via fluorescence microscopy. Bar = 10 µm. (F) Perithecia formation in PH-1, ∆porin, and ∆porin-C on carrot agar plates. Bar = 500 µm. Values followed by the same letter are not significantly different (p < 0.05) using the Tukey test.
Jof 08 00936 g002
Jof 08 00936 g003 550

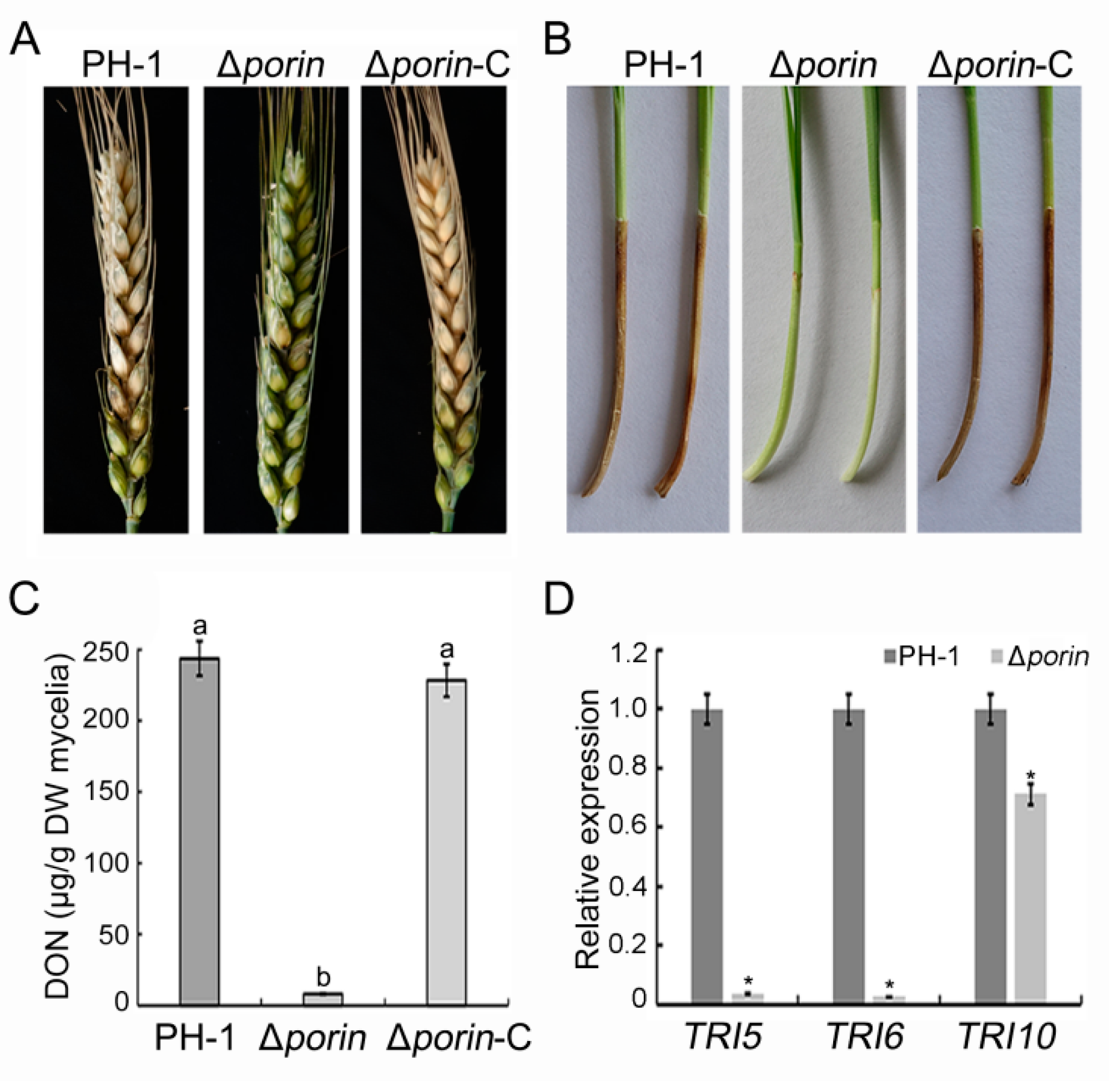

Figure 3. Fgporin regulates virulence and DON production. (A) Virulence of PH-1, ∆porin, and ∆porin-C strains on wheat spikelets at 14 days post-inoculation (dpi). (B) Virulence of PH-1, ∆porin, and ∆porin-C strains on wheat coleoptiles at 10 dpi. (C) PH-1, ∆porin, and ∆porin-C strains were cultured in TBI medium, and DON production was measured at 7 dpi. Values followed by the different letters are significantly different (p < 0.05) according to the Tukey test. (D) Relative expressions of FgTRI5, FgTRI6, and FgTRI10 in PH-1 and ∆porin strains. The expression of FgGAPDH was used as an internal control. The relative expressions of FgTRI5, FgTRI6, and FgTRI10 in PH-1 were all set at 1.0. Asterisks indicate significant differences (p < 0.05) using the Student’s t-test.
Figure 3. Fgporin regulates virulence and DON production. (A) Virulence of PH-1, ∆porin, and ∆porin-C strains on wheat spikelets at 14 days post-inoculation (dpi). (B) Virulence of PH-1, ∆porin, and ∆porin-C strains on wheat coleoptiles at 10 dpi. (C) PH-1, ∆porin, and ∆porin-C strains were cultured in TBI medium, and DON production was measured at 7 dpi. Values followed by the different letters are significantly different (p < 0.05) according to the Tukey test. (D) Relative expressions of FgTRI5, FgTRI6, and FgTRI10 in PH-1 and ∆porin strains. The expression of FgGAPDH was used as an internal control. The relative expressions of FgTRI5, FgTRI6, and FgTRI10 in PH-1 were all set at 1.0. Asterisks indicate significant differences (p < 0.05) using the Student’s t-test.
Jof 08 00936 g003
Jof 08 00936 g004 550

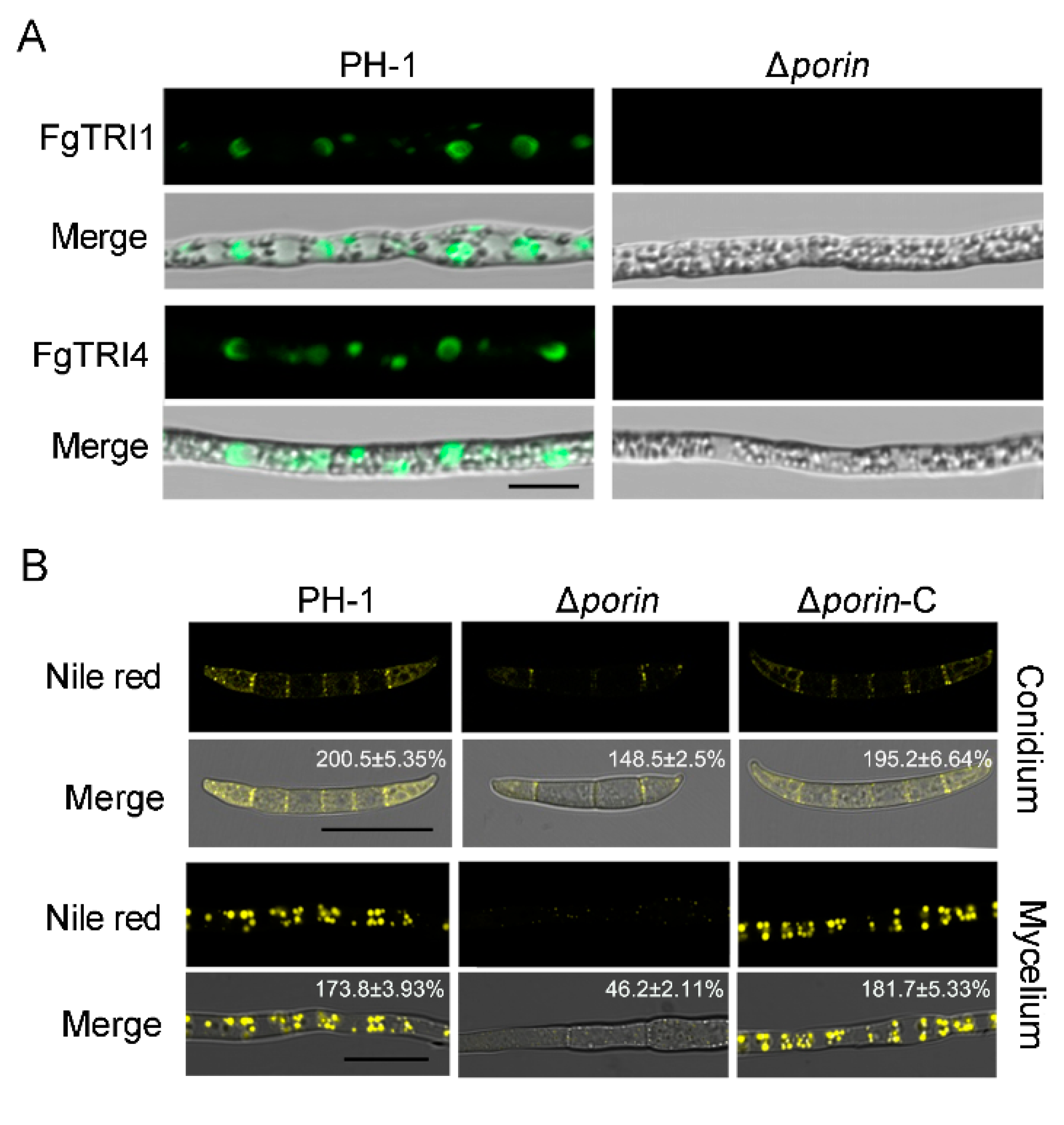

Figure 4. Fgporin regulates the formation of toxisomes and lipid droplets. (A) The Δporin strain was defective in the formation of toxisomes. PH-1 and Δporin strains tagged with plasmids carrying TRI1-GFP and TRI4-GFP were incubated in TBI medium at 25 °C for 3 days. Bar = 10 μm. (B) Defective LDs biogenesis in the Δporin strain. PH-1 and Δporin strains were incubated in TBI medium at 25 °C for 2 days. Hyphae were stained with 25 μg/mL Nile red. The numbers in the graphs represent the fluorescence intensity, and at least five fluorescent pictures were measured using ImageJ 1.53e software for each treatment. Bar = 10 μm.
Figure 4. Fgporin regulates the formation of toxisomes and lipid droplets. (A) The Δporin strain was defective in the formation of toxisomes. PH-1 and Δporin strains tagged with plasmids carrying TRI1-GFP and TRI4-GFP were incubated in TBI medium at 25 °C for 3 days. Bar = 10 μm. (B) Defective LDs biogenesis in the Δporin strain. PH-1 and Δporin strains were incubated in TBI medium at 25 °C for 2 days. Hyphae were stained with 25 μg/mL Nile red. The numbers in the graphs represent the fluorescence intensity, and at least five fluorescent pictures were measured using ImageJ 1.53e software for each treatment. Bar = 10 μm.
Jof 08 00936 g004
Jof 08 00936 g005 550

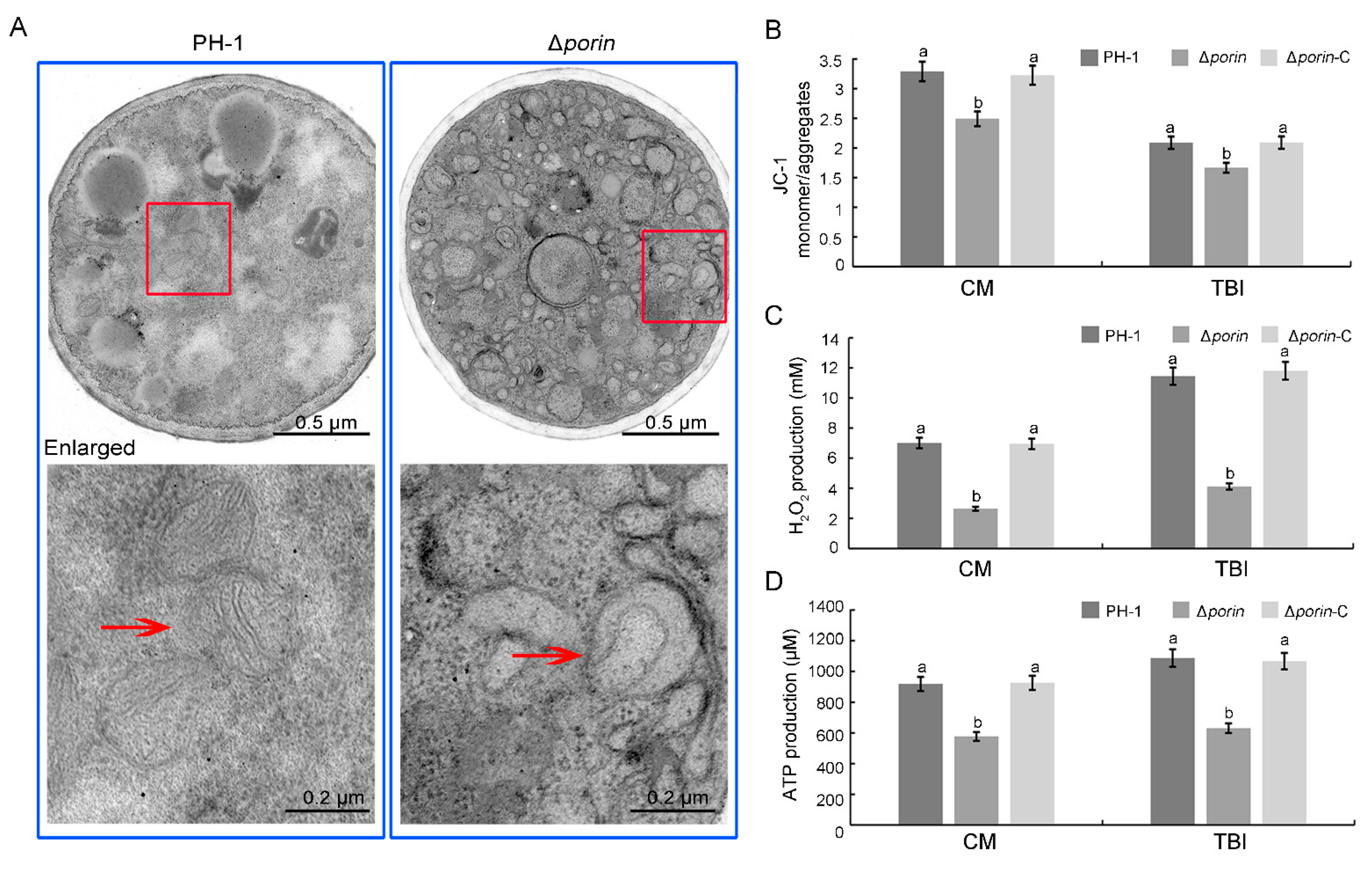

Figure 5. Fgporin causes changes in mitochondrial morphology and function. (A) Swollen mitochondria and fewer cristae in the Δporin mutant. The ultrastructural morphology of the mitochondria in each strain was visualized via transmission electron microscopy. The cell structure indicated by the arrow was the mitochondrion. The down panel was enlarged from the red box. Bar dimensions are shown in the images. The Fgporin mutant reduced mitochondrial membrane potential (B), endogenous H2O2 production (C), and ATP production (D). Mycelia cultured in CM and in TBI were harvested for the detection of membrane potential, H2O2 and ATP, respectively. Values followed by the different letters are significantly different (p < 0.05) according to the Tukey test. Bar = 10 μm.
Figure 5. Fgporin causes changes in mitochondrial morphology and function. (A) Swollen mitochondria and fewer cristae in the Δporin mutant. The ultrastructural morphology of the mitochondria in each strain was visualized via transmission electron microscopy. The cell structure indicated by the arrow was the mitochondrion. The down panel was enlarged from the red box. Bar dimensions are shown in the images. The Fgporin mutant reduced mitochondrial membrane potential (B), endogenous H2O2 production (C), and ATP production (D). Mycelia cultured in CM and in TBI were harvested for the detection of membrane potential, H2O2 and ATP, respectively. Values followed by the different letters are significantly different (p < 0.05) according to the Tukey test. Bar = 10 μm.
Jof 08 00936 g005
Jof 08 00936 g006 550

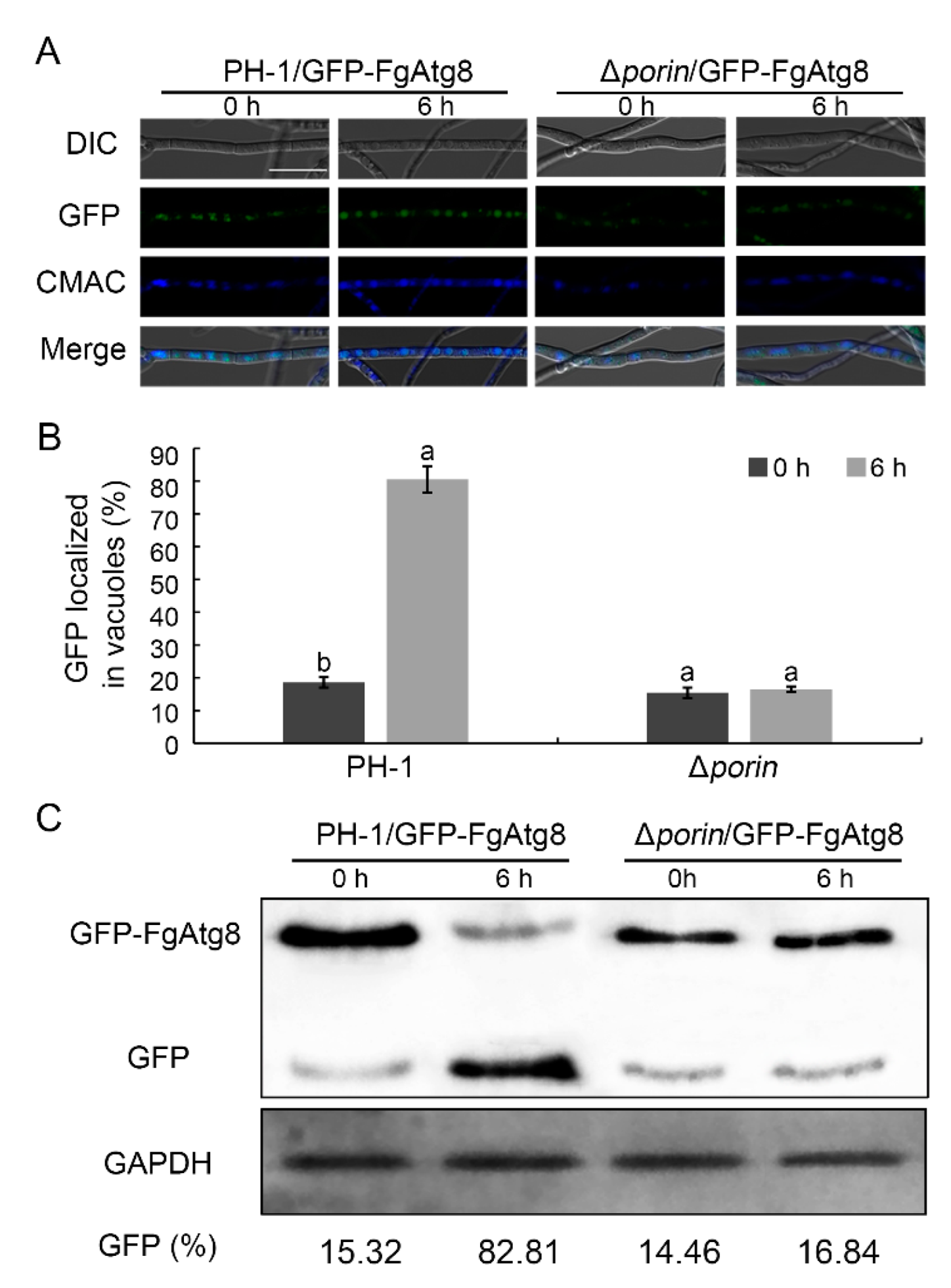

Figure 6. Deletion of Fgporin resulted in impaired autophagy. (A) Fluorescence assays of autophagy in the Δporin mutant. PH-1 and the Δporin mutant expressing a GFP:FgAtg8 fusion gene (PH-1/GFP:FgAtg8 and Δporin/GFP:FgAtg8) were subjected to MM-N medium for 6 h, stained with 10 µM CMAC (7-amino-4-chloromethylcoumarin), and then examined under a laser scanning confocal microscope. MM-N, minimal medium without nitrogen. Bar = 20 μm. (B) The quantitation of green fluorescence dots localized in vacuoles. Different letters indicate significant differences (p < 0.05) using the Student’s t-test. (C) GFP:FgAtg8 proteolysis was examined using Western blot in PH-1/GFP:FgAtg8 and Δporin/GFP:FgAtg8 strains. GAPDH was used as an internal control.
Figure 6. Deletion of Fgporin resulted in impaired autophagy. (A) Fluorescence assays of autophagy in the Δporin mutant. PH-1 and the Δporin mutant expressing a GFP:FgAtg8 fusion gene (PH-1/GFP:FgAtg8 and Δporin/GFP:FgAtg8) were subjected to MM-N medium for 6 h, stained with 10 µM CMAC (7-amino-4-chloromethylcoumarin), and then examined under a laser scanning confocal microscope. MM-N, minimal medium without nitrogen. Bar = 20 μm. (B) The quantitation of green fluorescence dots localized in vacuoles. Different letters indicate significant differences (p < 0.05) using the Student’s t-test. (C) GFP:FgAtg8 proteolysis was examined using Western blot in PH-1/GFP:FgAtg8 and Δporin/GFP:FgAtg8 strains. GAPDH was used as an internal control.
Jof 08 00936 g006
Jof 08 00936 g007 550

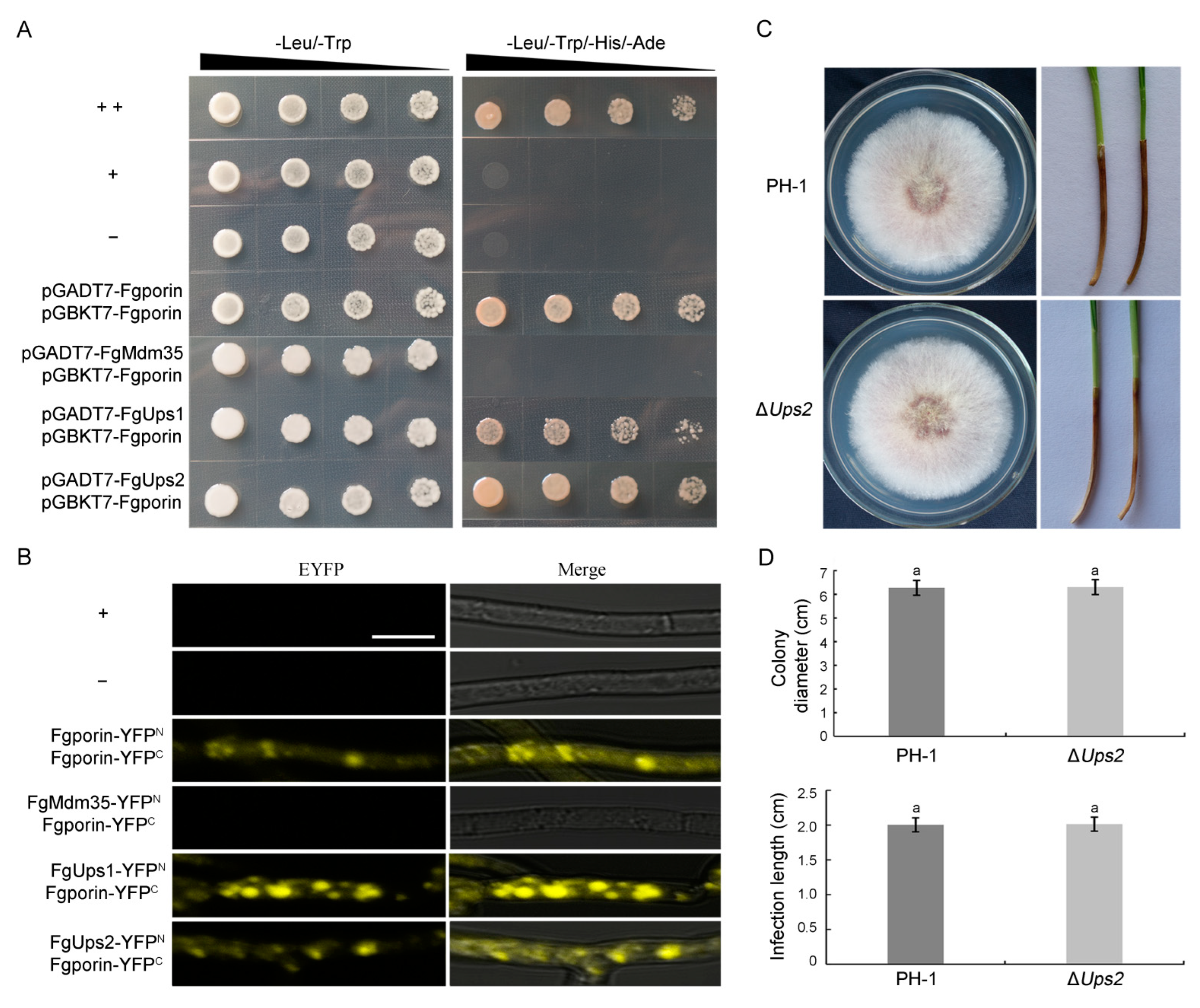

Figure 7. Fgporin displays self-interaction and interacts with FgUps1/2. (A) Yeast two-hybrid assays of Fgporin self-interaction and interactions with FgUps1/2. ‘++’: pGADT7-T + pGBKT7-53, ‘+’: pGADT7-FgMdm35/FgUps1/FgUps2/Fgporin + pGBKT7, or pGADT7 + pGBKT7-Fgporin, ‘−’: pGADT7-T + pGBKT7-Lam. (B) BiFC assays of Fgporin self-interaction and interactions with FgUps1/2. Hyphae were incubated in CM medium for 24 h and harvested for fluorescence examination. ‘+’: Fgporin/FgMdm35/FgUps1/FgUps2-YFPN + YFPC, or YFPN + Fgporin-YFPC, ‘−’: YFPN+YFPC. Bar = 10 µm. (C) The ∆Ups2 mutant displayed normal colony morphology and virulence compared with PH-1. PH-1 and ∆Ups2 were cultured on PDA medium for 3 days (left panel), and wheat coleoptiles were inoculated with conidial suspension (right panel). (D) The ∆Ups2 mutant displayed the same growth and virulence compared with PH-1. Colony diameter (up panel) and infection length (down panel) were counted on PDA plates and coleoptiles, respectively. Values followed by the same letter are not significantly different (p < 0.05) according to the Student’s t-test.
Figure 7. Fgporin displays self-interaction and interacts with FgUps1/2. (A) Yeast two-hybrid assays of Fgporin self-interaction and interactions with FgUps1/2. ‘++’: pGADT7-T + pGBKT7-53, ‘+’: pGADT7-FgMdm35/FgUps1/FgUps2/Fgporin + pGBKT7, or pGADT7 + pGBKT7-Fgporin, ‘−’: pGADT7-T + pGBKT7-Lam. (B) BiFC assays of Fgporin self-interaction and interactions with FgUps1/2. Hyphae were incubated in CM medium for 24 h and harvested for fluorescence examination. ‘+’: Fgporin/FgMdm35/FgUps1/FgUps2-YFPN + YFPC, or YFPN + Fgporin-YFPC, ‘−’: YFPN+YFPC. Bar = 10 µm. (C) The ∆Ups2 mutant displayed normal colony morphology and virulence compared with PH-1. PH-1 and ∆Ups2 were cultured on PDA medium for 3 days (left panel), and wheat coleoptiles were inoculated with conidial suspension (right panel). (D) The ∆Ups2 mutant displayed the same growth and virulence compared with PH-1. Colony diameter (up panel) and infection length (down panel) were counted on PDA plates and coleoptiles, respectively. Values followed by the same letter are not significantly different (p < 0.05) according to the Student’s t-test.
Jof 08 00936 g007
Table
Table 1. Conidial length, disease index, and lesion size in the wild type PH-1, ∆porin, and ∆porin-C strains.
Table 1. Conidial length, disease index, and lesion size in the wild type PH-1, ∆porin, and ∆porin-C strains.
StrainConidial Length
(μm) a		Disease Index on
Wheat Heads b		Lesion Length on
Coleoptiles (cm) c
PH-145.41 ± 6.52 a12.4 ± 1.5 a1.82 ± 0.18 a
∆porin35.73 ± 5.12 b0.7 ± 0.3 b0.12 ± 0.04 b
∆porin-C45.32 ± 4.32 a12.6 ± 1.8 a1.88 ± 0.13 a
Different superscript letters denote a significant difference (p < 0.05) using the Tukey test. a Conidia were harvested from 4-day-old cultures, and at least 300 conidia were counted for measurement. b The disease index on wheat heads was counted at 14 days post-inoculation (dpi). c Lesion length on wheat coleoptiles was counted at 10 dpi.
