Hydrogen Production from Sugarcane Bagasse Pentose Liquor Fermentation Using Different Food/Microorganism and Carbon/Nitrogen Ratios under Mesophilic and Thermophilic Conditions

Abstract

Hydrogen is a well-known clean energy carrier with a high energetic yield. Its versatility allows it to be produced in diverse ways, including biologically. Specifically, dark fermentation takes advantage of organic wastes, such as agro-industrial residues, to obtain hydrogen. One of these harmful wastes that is poorly discharged into streams is sugarcane bagasse pentose liquor (SBPL). The present study aimed to investigate hydrogen generation from SBPL fermentation in batch reactors by applying different food/microorganism (2–10 F/M) and carbon/nitrogen (10–200 C/N) ratios under mesophilic and thermophilic conditions. Biohydrogen was produced in all pentose liquor experiments along with other soluble microbial products (SMPs): volatile fatty acids (VFAs) (at least 1.38 g L⁻¹ and 1.84 g L⁻¹ by the average of C/N and F/M conditions, respectively) and alcohols (at least 0.67 g L⁻¹ and 0.325 g L⁻¹ by the average of C/N and F/M conditions, respectively). Thermophilic pentose liquor reactors (t-PLRs) showed the highest H₂ production (H₂ maximum: 1.9 ± 0.06 L in 100 C/N) and hydrogen yield (HY) (1.9 ± 0.54 moles of H₂ moles of substrate⁻¹ in 2 F/M) when compared to mesophilic ones (m-PLRs). The main VFA produced was acetate (>0.85 g L⁻¹, considering the average of both nutritional conditions), especially through the butyrate pathway, which was the most common metabolic route of experimental essays. Considering the level of acid dilution used in the pretreatment of bagasse (H₂SO₄ (1%), 1.1 atm, 120 °C, 60 min), it is unlikely that toxic compounds such as furan derivatives, phenol-like substances (neither was measured), and acetate (<1.0 g L⁻¹) hinder the H₂ production in the pentose liquor reactors (PLRs). Sugarcane bagasse pentose liquor fermentation may become a suitable gateway to convert a highly polluting waste into a renewable feedstock through valuable hydrogen production.

1. Introduction

The continuing depletion of fuel reserves and the steady rise of environmental awareness are two major reasons for seeking alternative and sustainable energy sources. Hydrogen emerges as one of the most interesting candidates as it generates water after its combustion since its molecular backbone has no carbon, sulfur, or nitrogen included, showing a high energy yield of 122 kJ g⁻¹ [1], which is 2.75 times greater than regular fossil fuels [2]. To date, total H₂ production comes almost exclusively from reforming fossil fuels (natural gas, oils, and coal) [3]. As H₂ has become an important energy source, its production and distribution encompass concepts of ecological sustainability (especially during its production stage).

Among the various forms of obtaining hydrogen, the biological way is likely the most environmentally friendly as it achieves two goals at once: Commonly associated with anaerobic digestion, it gives a final destination for hard-degradation residues that have no clear safe disposal, and it produces biofuel, which has potential energetic and economic assets [4,5]. Dark fermentation (DF) is a feasible technology when considering cost efficiency. A large range of feeds can be managed by DF, often including organic wastes [6,7].

The biohydrogen generated through DF can be obtained by adopting mesophilic and thermophilic conditions. The evaluation of optimum temperature ranges for hydrogen production is complex because it involves multiple parameters (pH, type of inoculum, residue characteristics, and reactor configuration) that interfere with the overall process. In general, thermophilic temperatures are more favorable for hydrogen production as they reduce the probable development of H₂ consumers in microbiota reactors, enhance enzymatic reaction rates, and thereafter boost the hydrolysis of solid particles [8,9,10,11]. Some of these possible explanations were brought to light by [11] when the authors reported higher HY (0.81 molH₂ molglucose⁻¹) in thermophilic fermentation than in mesophilic conditions (0.47 molH₂ molglucose⁻¹) using cheese whey powder as raw material. The thermophilic condition was also more favorable for higher hydrogen production than the mesophilic condition, as indicated in [12]. This study adopted hydrolyzed wheat as a substrate in one of its experimental conditions, and it had the highest cumulative production (752 mL) and the highest HY (2.40 molH₂ molglucose⁻¹) at 55 °C. Hot temperatures (70–80 °C) ease the H₂ transference from the liquid to gas phase, reducing the inhibitory effect for H₂ producers caused by high H₂ partial pressure in liquid media. Thus, at high temperatures, reactors could contain a greater amount of H₂, with pressure values above 2000 Pa [13,14]. On the other hand, mesophilic conditions have no energetic demands for heating, which substantially reduces the operational cost. In addition to cost benefits, running the system under mild temperature conditions does not face some of the disadvantages encountered under harsh temperature conditions, such as poor efficiency in effluent removal, dewatering of residual sludge, and operation complexity in achieving two objectives, namely H₂ production during thermophilic fermentation and wastewater depuration [15].

There are other operational parameters that also affect H₂ production, such as carbon/nitrogen (C/N) and food/microorganism (F/M) ratios. They are usually analyzed to enhance clarification processes in wastewater treatments. However, there is also a large number of scientific papers that evaluated C/N and F/M ratios and their effect on H₂ production using different substrates [5,16,17,18]. Optimum values of C/N and F/M ratios for biohydrogen production have been exhibited with great variability over different studies: For instance, a study found C/N = 47:1 using anaerobic sewage sludge as the seed and sucrose as the substrate in batch reactors [19], whereas C/N was 100:2.2 in anaerobic sequencing batch reactors (ASBRs) used for the fermentation of cassava wastewater [20]. In another study, the authors determined F/M = 7–10 to be optimal when they evaluated the effect of F/M ratios (1–10) on H₂ production using anaerobic sludge in batch reactors filled with mixed food as substrate under two different temperatures: 35 and 50 °C [16]. Lastly, F/M = 0.5–1.0 was evaluated in a study in which the authors aimed to investigate the effect of several parameters (initial pH, initial pH combined with F/M ratio, different types of seed, and the initial pH applied in substrate pretreatment) on the H₂ yield using complex biomass waste [4]. This shows a strong interrelation between these operational parameters with a reactor configuration and/or physicochemical characteristics of a specific substrate.

No matter which temperature conditions are adopted for hydrogen production, a feasible feedstock should be chosen that encompasses energetic, environmental, and economic aspects. Lignocellulose residues from agroindustry activities are well suited considering the above-mentioned features. They are available in large amounts, they are inexpensive, and they show energetic potential [21,22,23]. The molecular structure is made up of 5- and 6-carbon sugar polymers that act as fermentable sugars. Sugarcane bagasse is one of the most abundant lignocellulosic residues produced worldwide, mostly in tropical countries. Nowadays, around 50% of sugarcane bagasse is stockpiled [24,25], representing a notable risk of self-combustion and a waste of potential energy resources. In Brazil (mainly in São Paulo state) over the last decades, environmental legislation against traditional land burning practices before harvesting has been enforced [26], leading to restraint in throwing away even more bagasse residues which could have been taken advantage of as energetic feedstock.

Second-generation bioethanol production uses sugarcane bagasse as lignocellulosic core material. After a pretreatment stage (commonly steam explosion or diluted acid treatment) that breaks down hemicellulose structure into pentose and hexose monomers, softening the cellulose molecule to ease enzymatic hydrolysis attack, a xylose-rich hydrolysate is produced. As the usual 6-carbon sugar fermenter yeast Saccharomyces cerevisiae is not able to deal with 5-carbon sugars [27] and the genetically modified pentose fermenting microorganisms are highly priced and yield poorly under ordinary hexose fermentation, sugarcane bagasse pentose liquor (SBPL) is often discharged into streams without suitable wastewater treatment. It is a concerning pollutant in virtue of its high chemical oxygen demand (COD) concentration and recalcitrant features: above 1500 mgCOD L⁻¹ (calculated from simulated data of pentose liquor stream in a biorefinery concept) [27], impurities as free alkali and sulfates and other remaining components comprising lignin, hemicellulose, sugar, and organic acids [28]. To avoid environmental issues and to generate newly revenues in refineries from SBPL, the authors in [27] evaluated economically simulated scenarios of 1G and 2G integrated bioethanol refinery concepts. Some propositions would take advantage of pentose sugars extracted from pretreatment of lignocellulose portion to produce biogas or butanol. As basal operations defined for all scenarios (503 tonnes of sugarcane stalks per hour in 167 days of operation, 122 kg of bagasse per dry stalk, 5% of bagasse stockpiled for boilers, and 58 dry tonnes of bagasse per hour available for biorefinery), the schemes that produced biogas or butanol from pentose liquor obtained, at least, an Internal Rate Return (IRR) of 11%.

Regarding the dark fermentation hydrogen from the SBPL, most studies were accomplished on a lab scale pursuing the optimization of H₂ production using the observation of operational parameters such as the type of pretreatment of bagasse (biological, physical, chemical), or the usage of more than one method combined [29,30,31,32], the kind of inoculum [30,33,34,35], mineral supplementation [36], etc. To date, there is no operational biorefinery on an industrial scale conceptualized to generate hydrogen from xylose-rich liquor of sugarcane bagasse. The main bottlenecks to be overcome regarding the production of added value byproducts (such as hydrogen, organic acids, butanol, acetone) from SBPL in 2G biorefinery lie in obtaining cost-effective and greener pretreatments for the sugarcane bagasse [37] and pentose sugar fermentation with high yield and low-cost at large scale [38].

The present study aimed at producing biohydrogen using different C/N and F/M ratios in batch reactors under thermophilic and mesophilic conditions. In addition, through this work, we aimed to contribute new insights into biofuel production using unconventional agro-industrial residues, such as SBPL.

2. Methods

2.1. Overall Procedure for H₂ Production

H₂ production was carried out in 2 L batch reactors (Duran^® flasks, DWK Life Sciences GmbH, Wertheim, Germany) with a reactional volume of 1 L at different temperatures (30 and 55 °C). Under both mesophilic and thermophilic conditions (represented here by codes “m” and “t”, respectively) the same experiments were carried out: in the first round, the F/M ratio was verified, whilst in the second, different C/N ratios were tested. All reactors were maintained under constant agitation in reciprocating shakers (100 min⁻¹) with an initial pH of 6.0 over 35 days. The autoclaved nutritional media (described further in another topic) were injected with N₂ gas for 10 min to keep an anaerobic environment. The main carbon source came from xylose obtained from pentose liquor (almost 85% of the liquid content comprised xylose). For comparative purposes, blank samples of pure xylose (Sigma-Aldrich^®, Merck KGaA, Darmstadt, Germany) were used. In the first round, different F/M ratios were applied to reactors with varying organic matter loadings (1000–20,000 mgO₂ L⁻¹), fixing biomass concentration at the same time (500 mgSVT⁻¹). Thus, the F/M ratios were 2, 10, 20, and 40 mgO₂ L⁻¹ mgTVS⁻¹ corresponding to FMI, FMII, FMIII, and FMIV conditions, respectively. In the second round, different C/N ratios were applied to reactors (10, 50, 100, and 200 mgC mgN⁻¹ matched to CNI, CNII, CNIII, and CNIV conditions, respectively). To meet these ratios, the nitrogen source was fixed by applying 93.5 mg of CH₄N₂O L⁻¹ (urea) in xylose reactors (xrs) and 5.1 mg in pentose liquor reactors (plrs). The same feeding procedure adopted in the first round was also adopted in the second round.

2.2. Composition of Substrate

Organic matter loadings were measured in terms of COD. The xrs showed xylose concentrations of 935, 4673, 9346, and 18,692 mg L⁻¹ for FM/CNI, FM/CNII, FM/CNIII, and FM/CNIV conditions, respectively. The COD values of plrs were measured after extraction of 5-carbon rich liquor. It was obtained from sugarcane bagasse adopting a procedure adapted from a previous study [39]. Briefly, the experimental extraction consisted of lignocellulose material hydrolysis with diluted acid (a H₂SO₄ solution (1% v/v)) applied onto dry bagasse (1:9 w/w). The heterogeneous solution was autoclaved under 1.1 atm, at 120 °C for 60 min. The mixture was filtered for separation of the solid/liquid phases. The hydrolysate showed 13,825 mg total sugars L⁻¹, accounting for 25,000 mg O₂ L⁻¹ in terms of COD and a nitrogen concentration of 80 mgTKN L⁻¹, where TKN means total Kjeldahl nitrogen. Thus, to reach the desirable COD concentrations under the FM/CNI, FM/CNII, FM/CNIII, and FM/CNIV conditions, the hydrolysate was poured into reactors in amounts of 40, 200, 400, and 800 mL, respectively. As previously mentioned, nitrogen sources for both types of reactors (xrs and plrs) were obtained by adding urea. The minimum salt solution was applied to flasks according to [40]: NiSO₄·6H₂O (0.5 mg L⁻¹), FeSO₄·7H₂O (2.5 mg L⁻¹), FeCl₃·6H₂O (0.25 mg L⁻¹), CoCl₂·6H₂O (0.04 mg L⁻¹), CaCl₂·6H₂O (2.06 mg·L⁻¹), SeO₂ (0.14 mg·L⁻¹), KH₂PO₄ (5.36 mg·L⁻¹), K₂HPO₄ (1.30 mg·L⁻¹), and Na₂HPO₄ (2.70 mg·L⁻¹). As the pentose liquor registered a low pH (<3.0), bicarbonate salt was added to adjust the initial pH to 6.0.

2.3. Inoculum

All reactors received a pre-treated inoculum from a poultry slaughterhouse UASB reactor from Dacar Industrial S.A, hosted in Tietê, São Paulo, Brazil. The steps for pretreatment of the sludge consisted of macerating and pouring a concentrated HCl solution until reaching pH 3.0 at room temperature, keeping the solution still for 24 h. Afterward, a NaOH solution was added until reaching pH 6.0 and it was kept for 48 h at room temperature. The main objective of this procedure was to inhibit the H₂ consumer microorganisms.

2.4. Monitoring Analyses

The COD, pH, and sulfate parameters were measured according to Standard Methods [41]. The total sugars were measured according to [42].

Biogas measurements (CH₄, CO₂, N₂ and H₂) were carried out by gas chromatography using Shimadzu^® GC equipment (Shimadzu Corporation, Kyoto, Japan) with a Carboxen^® 1010 (Merck KGaA, Darmstadt, Germany) (30 m × 0.53 mm × 0.30 µm) capillary column, and thermal conductivity detector (TCD) with argonium as effluent and synthetic compressed air as make-up at a 12 mL min⁻¹ rate. The injector and detector worked at 220 and 230 °C, respectively. The oven was programmed with an initial temperature of 40 °C for 2 min; it was increased to 60 °C at a rate of 5 °C min⁻¹, then heated until 95 °C at a rate of 25°C min⁻¹. This temperature was maintained throughout the analysis (5 min). The volume of injected biogas was 30 µL.

The ideal gas equation was used for biogas volume measurements expressed under normal temperature and pressure (NTP) conditions. The variations in biogas pressure were measured using a digital manometer. The cumulative pressure was adopted by equalizing the internal flask pressure to atmospheric pressure after each measurement of the biogas pressure. The calculations of equivalent gas volume and volumetric gas rate can be observed in Equations (1) and (2), respectively.

$${\mathrm{V}}_{\mathrm{T}\mathsf{\alpha }}=\left({\displaystyle \frac{\mathrm{P}{\mathrm{V}}_{\mathrm{H}}}{\mathrm{T}}}{\displaystyle \frac{{\mathrm{T}}_{\mathrm{C}\mathrm{N}\mathrm{T}\mathrm{P}}}{{\mathrm{P}}_{\mathrm{C}\mathrm{N}\mathrm{T}\mathrm{P}}}}\right){\mathrm{x}}_{\mathsf{\alpha }}$$

(1)

V_Tα: total volume of equivalent gas α under NTP (L); P: absolute pressure of headspace (atm); V_H: volume of headspace (L); T: temperature (K); T_CNTP: temperature under NTP (273 K); P_CNTP: pressure under NTP (1 atm); x_α: gas fraction, where α = H₂, N₂, CO₂, and CH₄.

$${\mathsf{\Gamma }}_{\mathsf{\alpha }}={\sum }_{\mathrm{i}=0}^{\mathrm{n}}{\mathrm{V}}_{\mathrm{T}\mathsf{\alpha }}^{\mathrm{i}+1}-{\mathrm{V}}_{\mathrm{H}}^{\mathrm{i}}.{\mathrm{x}}_{\mathsf{\alpha }}^{\mathrm{i}}$$

(2)

Γ_α: equivalent gas α volumetric rate (L).

Volatile fatty acid (VFA) concentrations were measured by liquid chromatography using a modular Shimadzu^® chromatograph (Shimadzu Corporation, Kyoto, Japan) with a pumper system (LC-10AD), oven (CTO-20A), controller (SCL-10A), and photodiode array detector (PDA) that was adjusted to read wavelengths from 190 to 370 nm (UV spectra) at 1 nm steps, as described by [43]. The fixed phase was formed by a BIO-RAD Aminex HPX-87H (Bio-Rad Laboratories, Hercules, CA, USA) 3000 × 7.8-mm column at a constant temperature of 55 °C. The eluent consisted of 100 μL of the 0.005 mol L⁻¹ H₂SO₄ at a 0.8 mL min⁻¹ rate.

Concentration measurements of different alcohols such as ethanol, methanol, n-butanol were performed with a Shimadzu^® GC2010 headspace gas chromatograph. The flame ionization detector (FID) was maintained at 280 °C and fed with a mixture of H₂ and synthetic air at 30 and 300 mL min⁻¹, respectively. A Hewlett-Packard INNOWAX^® column (Agilent Technologies Inc., Santa Clara, CA, USA) with a 30 m × 0.25 mm and 0.25 μm film thickness and an H₂ flow rate of 1.6 mL min⁻¹ (the same as the mobile phase) was used. The injector was maintained at 250 °C with an oven temperature of 35 °C. The temperature was increased at a rate of 2 °C min⁻¹ until a temperature of 38 °C. Then, the rate was increased to 10 °C min⁻¹ until reaching 75 °C. Then, a rate of 2 °C min⁻¹ was adopted until reaching 120 °C. Finally, the flux was increased to 10 °C min⁻¹ until a temperature of 170 °C was obtained. N₂ was used as the make-up gas (to sweep components through the detector to minimize band broadening) at a flow rate of 30 mL min⁻¹. Sample preparation was carried out by adding 1 g of NaCl, 70 μL of 1 g L⁻¹ isobutanol solution (as an internal standard), and 200 μL of 2 mol L⁻¹ H₂SO₄ solution into 2 mL volume. The sample flask was heated for 13 min at 100 °C, and 400 μL of the sample headspace was injected with a syringe heated at 100 °C [44].

2.5. Kinetic Analysis

The present study adopted a residual first-order model for a kinetic approach due to low substrate concentrations visualized in the experimental tests. This kinetic model originated through Monod’s model simplification as described by [43] (Equation (3)).

$$\mathrm{C}(\mathrm{t})={\mathrm{C}}_{\mathrm{R}}+({\mathrm{C}}_{\mathrm{I}}-{\mathrm{C}}_{\mathrm{R}})·{\mathrm{e}}^{-{\mathrm{k}}_1^{\mathrm{a}\mathrm{p}\mathrm{p}}·\mathrm{t}}$$

(3)

C(t): xylose concentration (mg∙L⁻¹); C_R: residual xylose concentration (mg L⁻¹); C_I: initial xylose concentration (mg L⁻¹); t: time(hours); ${\mathrm{k}}_1^{\mathrm{a}\mathrm{p}\mathrm{p}}$: apparent kinetic constant (h⁻¹).

Thus, the absolute efficiency (Ea) was calculated as follows (Equation (4)):

$${\mathrm{E}}_{\mathrm{a}}=1-{\displaystyle \frac{{\mathrm{C}}_{\mathrm{R}}}{{\mathrm{C}}_{\mathrm{I}}}}$$

(4)

The accumulated hydrogen production was verified using a simple dose–response sigmoidal model as shown in Equation (5).

$$\mathrm{H}(\mathrm{t})={\displaystyle \frac{{\mathrm{H}}_{\mathrm{m}\mathrm{á}\mathrm{x}}}{1+{10}^{(\mathrm{l}-\mathrm{t})·\mathrm{p}}}}$$

(5)

H(t): accumulated H₂ production at time t (L); H_máx: maximum H₂ production (L); l: time to achieve the maximum H₂ production rate (h); p: average H₂ production rate at exponential phase (L h⁻¹).

The kinetic parameters were adjusted with the Levenberg–Marquadt algorithm using Microcal Origin^® v 8.1 software (OriginLab Corporation, Northampton, MA, USA).

2.6. Statistical Analysis

Hydrogen yield (HY) measured in terms of moles of H₂ per moles of substrate was statistically compared among all experimental conditions by the ANOVA one-way test (F-value with p = 0.05). Regarding temperature evaluation, HY pairwise comparisons between mesophilic and thermophilic temperatures with the same F/M or C/N ratios were carried out using the Tukey test (p = 0.05).

3. Results

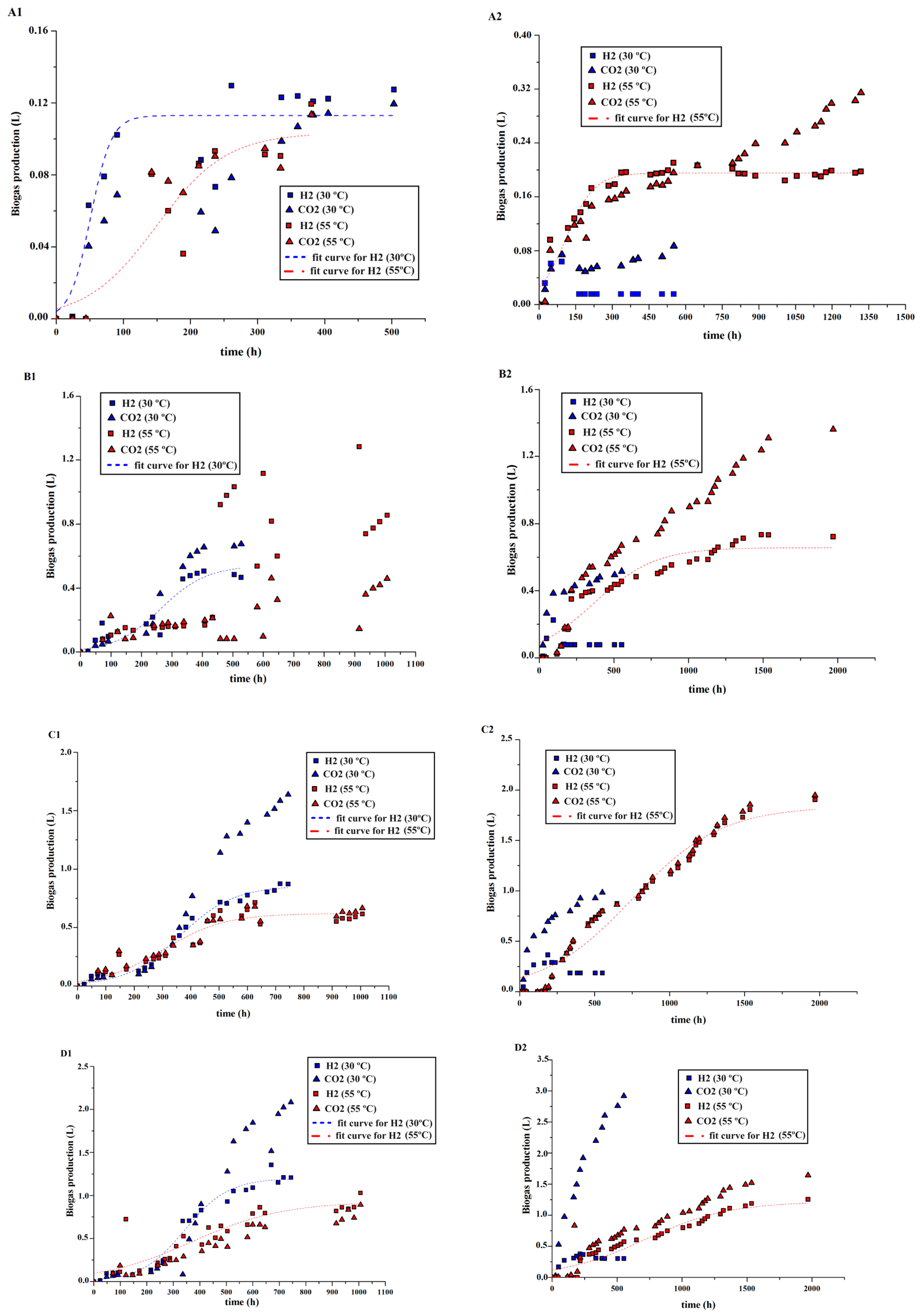

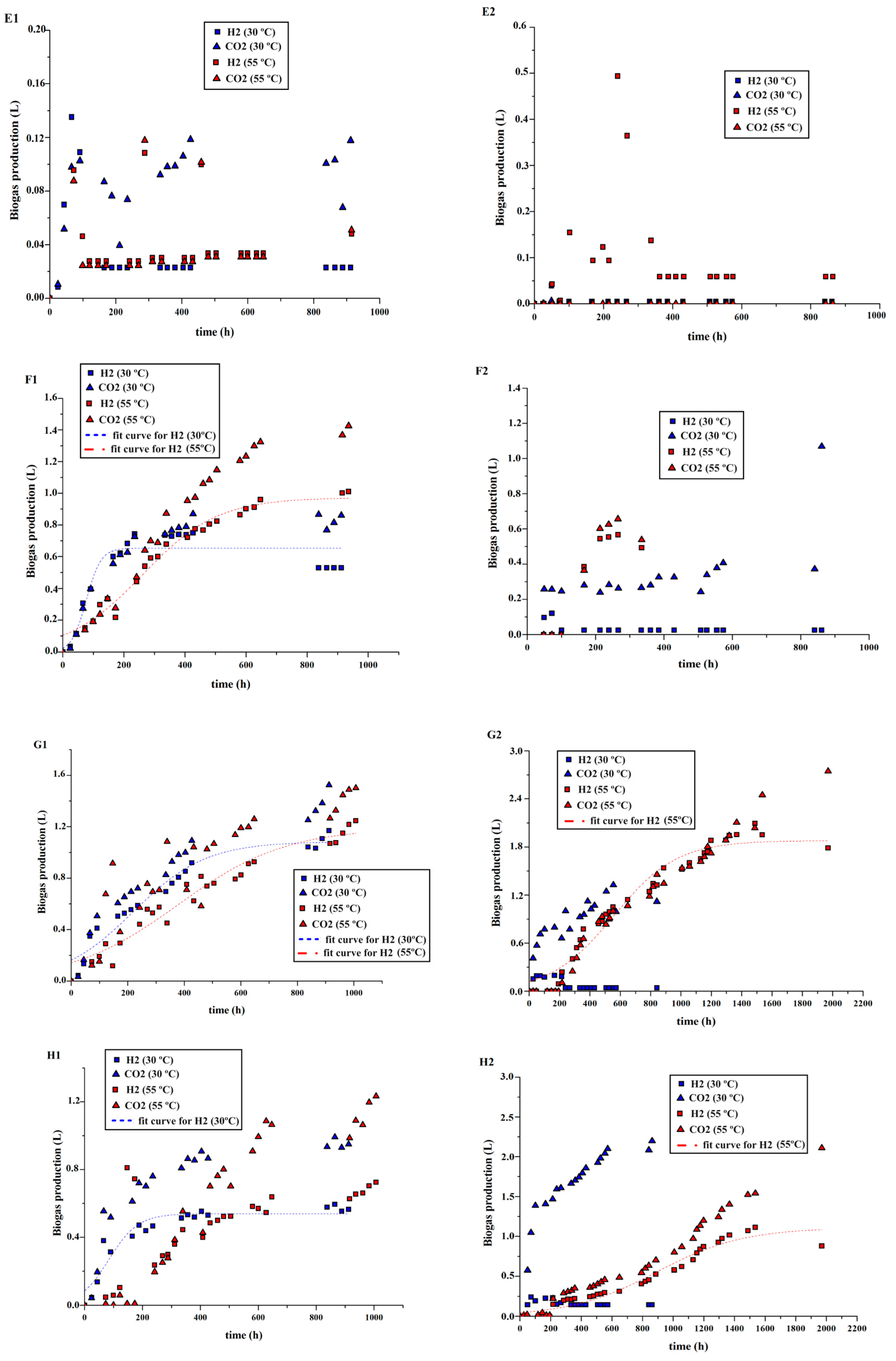

H₂ and CO₂ production took place throughout the fermentative process varying between 500 and 2000 h (21–83 days), depending on which experimental condition was observed (Figure 1). Large numbers of mplrs did not fit the sigmoidal dose–response model for H₂ production, thus their production rates (p) with tplrs (

Table 1. Kinetic parameters of substrate degradation and biogas production.

		Kinetic Parameters of Substrate					Kinetic Parameters of Biogas Production
Reactor	Condition	${\mathbf{k}}_{\mathbf{1}}^{\mathbf{a}\mathbf{p}\mathbf{p}}$ (h−1)	CI (mg L−1)	CR (mg L−1)	EA	R2	Hmax (L)	l (h)	p (L h−1)	R2	HY ii (molH2 molS−1)	CO2 (L)
mxr	F/M I	0.02 ± 0.003	1101.1 ± 76.7	1.3 ± 28	0.99	0.95	0.11 ± 0.006	52 ± 7.9	0.029 ± 0.013	0.83	0.61 ± 0.21	0.12
	F/M II	0.006 ± 0.0007	4355 ± 283.5	0.0 i	1.00	0.93	0.54 ± 0.07	262.3 ± 33.9	0.006 ± 0.002	0.85	0.85 ± 0.48	0.68
	F/M III	0.004 ± 0.0005	10,789.5 ± 750.1	0.0 i	1.00	0.89	0.86 ± 0.02	360.9 ± 9.7	0.004 ± 0.0004	0.99	0.35 ± 0.14	1.6
	F/M IV	-	-	-	-	-	1.2 ± 0.04	342.8 ± 12	0.005 ± 0.0007	0.97	0.84 ± 0.37	2.1
mplr	F/M I	0.02 ± 0.002	692.5 ± 31.9	0.0 i	1.00	0.98	-	-	-	-	0.36 ± 0.33	0.09
	F/M II	0.02 ± 0.003	3313.3 ± 223.3	0.0 i	1.00	0.95	-	-	-	-	0.22 ± 0.09	0.52
	F/M III	0.01 ± 0.002	5553.4 ± 308.2	265 ± 134.9	1.00	0.96	-	-	-	-	0.31 ± 0.11	0.98
	F/M IV	0.01 ± 0.001	10,183 ± 284.1	206.7 ± 161.7	1.00	0.99	-	-	-	-	0.22 ± 0.07	2.9
txr	F/M I	0.016 ± 0.004	1658.27 ± 140	82 ± 69.4	1.00	0.93	0.10 ± 0.014	149.2 ± 27.6	0.008 ± 0.004	0.80	0.24 ± 0.16	0.11
	F/M II	0.001 ± 0.0001	5330.4 ± 171.5	0.0 i	1.00	0.90	-	-	-	-	1.4 ± 0.72	0.46
	F/M III	-	-	-	-	-	0.62 ± 0.029	301 ± 22.5	0.004 ± 0.0007	0.89	1.0 ± 0.28	0.67
	F/M IV	-	-	-	-	-	0.93 ± 0.083	369.9 ± 49.8	0.002 ± 0.0006	0.79	0.9 ± 0.44	0.89
tplr	F/M I	0.03 ± 0.005	642.5 ± 47.5	49.4 ± 11.3	1.00	0.90	0.20 ± 0.003	109 ± 8.6	0.008 ± 0.001	0.93	1.9 ± 0.54	0.31
	F/M II	0.005 ± 0.0006	3164.8 ± 207	0.0 i	1.00	0.91	0.66 ± 0.024	367.2 ± 33	0.002 ± 0.0003	0.90	0.82 ± 0.32	1.4
	F/M III	0.001 ± 0.00001	5067.4 ± 24.2	0.0 i	1.00	0.99	1.83 ± 0.098	749.5 ± 49.7	0.001 ± 0.0001	0.95	0.99 ± 0.62	2.0
	F/M IV	-	-	-	-	-	1.2 ± 0.10	713.5 ± 86	0.001 ± 0.0004	0.93	0.78 ± 0.48	1.6
mxr	C/N I	0.022 ± 0.003	1620 ± 117.8	78.9 ± 33.7	1.00	0.92	-	-	-	-	0.18 ± 0.13	0.12
	C/N II	0.012 ± 0.001	6548.9 ± 364.5	0.0 i	1.00	0.96	0.65 ± 0.02	76.5 ± 9.3	0.018 ± 0.007	0.88	0.70 ± 0.15	0.86
	C/N III	0.003 ± 0.0003	11,167.5 ± 662.4	1753.1 ± 571	1.00	0.92	1.1 ± 0.04	220.1 ± 20	0.003 ± 0.0004	0.94	0.64 ± 0.12	1.5
	C/N IV	-	-	-	-	-	0.54 ± 0.02	83.6 ± 12.9	0.009 ± 0.002	0.89	0.52 ± 0.16	0.95
mplr	C/N I	-	-	-	-	-	-	-	-	-	0.12 ± 0.08	0.0
	C/N II	0.03 ± 0.001	4677.9 ± 76.1	124.1 ± 20.2	1.00	0.99	-	-	-	-	0.06 ± 0.04	1.1
	C/N III	0.02 ± 0.003	5026.2 ± 294.8	310.8 ± 80.8	1.00	0.94	-	-	-	-	0.13 ± 0.11	1.1
	C/N IV	0.019 ± 0.003	10,892 ± 833.9	577.3 ± 236	1.00	0.90	-	-	-	-	0.12 ± 0.03	2.2
txr	C/N I	0.02 ± 0.0004	935.6 ± 7.2	4.25 ± 1.8	1.00	1.00	-	-	-	-	0.31 ± 0.15	0.05
	C/N II	0.004 ± 0.0006	5369.7 ± 287.3	0.0 i	1.00	0.95	0.97 ± 0.03	260.2 ± 12.2	0.003 ± 0.0003	0.97	1.2 ± 0.18	1.4
	C/N III	-	-	-	-	-	1.2 ± 0.05	378.4 ± 27	0.002 ± 0.0003	0.95	1.4 ± 0.41	1.5
	C/N IV	-	-	-	-	-	-	-	-	-	0.75 ± 0.34	1.2
tplr	C/N I	0.01 ± 0.001	531.1 ± 27.7	0.0 i	1.00	0.96	-	-	-	-	1.6 ± 1.1	0.00
	C/N II	0.01 ± 0.002	4473.9 ± 305.2	0.0 i	1.00	0.96	-	-	-	-	0.38 ± 0.38	0.54
	C/N III	0.002 ± 0.0002	5308 ± 285	0.0 i	1.00	0.83	1.9 ± 0.06	555.4 ± 28.9	0.002 ± 0.0002	0.96	1.4 ± 0.76	2.8
	C/N IV	-	-	-	-	-	1.1 ± 0.06	890.1 ± 48.9	0.001 ± 0.0001	0.96	0.56 ± 0.33	2.1

ⁱ Fixed parameters to adjust to significant values in kinetic models. ⁱⁱ HYs (in terms of mLH₂ gSubstrate⁻¹): mxr-FMI: 84.04 ± 33.38; mxr-FMII: 115.09 ± 63.25; mxr-FMIII: 45.98 ± 21.99; mxr-FMIV: 141.52 ± 75.91; mplr-FMI: 40.35 ± 28.62; mplr-FMII: 27.90 ± 10.27; mplr-FMIII: 42.75 ± 16.68; mplr-FMIV: 29.32 ± 9.99; txr-FMI: 36.31 ± 24.54; txr-FMII: 203.08 ± 108.22; txr-FMIII: 156.29 ± 46.26; txr-FMIV: 165.72 ± 109.05; tplr-FMI: 283.73 ± 86.73; tplr-FMII: 110.08 ± 52.62; tplr-FMIII: 143.22 ± 94.40; tplr-FMIV: 150.68 ± 104.72; mxr-CNI: 24.72 ± 16.65; mxr-CNII: 94.71 ± 29.59; mxr-CNIII: 84.54 ± 24.56; mxr-CNIV: 79.79 ± 27.24; mplr-CNI: 15.98 ± 8.02; mplr-CNII: 7.86 ± 4.60; mplr-CNIII: 19.35 ± 15.11; mplr-CNIV: 16.48 ± 4.01; txr-CNI: 44.46 ± 21.30; txr-CNII: 165.97 ± 25.66; txr-CNIII: 185.70 ± 48.84; txr-CNIV: 130.11 ± 62.51; tplr-CNI: 223.97 ± 160.22; tplr-CNII: 51.20 ± 56.88; tplr-CNIII: 206.78 ± 120.17; tplr-CNIV: 112.45 ± 73.22.

) could not be compared. Most experimental conditions (except the mxr-FMIII that showed the same value of txr-FMIII) reported greater H₂ production rates (HPRs) at mesophilic temperature than thermophilic ones when we compared the same F/M or C/N by turn (Table 1). In terms of the volume of H₂ produced (L), the thermophilic conditions showed higher hydrogen production compared to their pairwise mesophilic conditions (except for mxr-FMI, mxr-FMII, and mxr-FMIV which showed higher values). Even if these mesophilic conditions had reported higher volumes of hydrogen than txr-FMI, txr-FMIII, and txr-FMIV, it is worth noting that txr-FMIII and txr-FMIV showed higher H₂ yields (HYs) compared to their similar mesophilic versions from mxrs—1.0 and 0.9 mol H₂ mol S⁻¹ (or 165.72 and 156 mL H₂ gSubstrate⁻¹), respectively.

Mxr-FMIV (0.005 L h⁻¹), mxr-CNII (0.018 L h⁻¹), and mxr-CNIII (0.003 L h⁻¹) reported greater values of H₂ productivity compared to txr-FMIV (0.002 L h⁻¹), txr-CNII (0.003 L h⁻¹), and txr-CNIII (0.002 L h⁻¹), respectively (Table 1). Interestingly, these mesophilic experimental conditions showed lower HYs compared to thermophilic equivalents (txr-FMIV, txr-CNII, and txr-CNIII): 0.84 to 0.9 (141.52 to 156 mLH₂ gSubstrate⁻¹), 0.7 to 1.2 (94.71 to 165.97 mLH₂ gSubstrate⁻¹), and 0.64 to 1.4 mol H₂ mol S⁻¹ (84.54 to 185.70 mLH₂ gSubstrate⁻¹), respectively.

We decided to do inter and intra group comparisons with HY values (explained below). The following abbreviations will appear in the next paragraph: “F” stands for “F-value”; the first term inside parenthesis represents the degree of freedom; the second term is the total number of samples analyzed; and “prob” is the calculated α-value, i.e., the significance value of the test.

The HY values throughout F/M ratios within the mxrs, txrs, and tplrs groups showed significant differences, statistically speaking: F (3;59) = 4.34, prob = 0.008; F (3;69) = 8.57, prob = 6.5 × 10⁻⁵; and F (3;82) = 19.65, prob = 1.08 × 10⁻⁹, respectively. The HYs within the mplrs group were not significantly different (F(3;44) = 1.26, prob = 0.3). When the evaluation focused on temperature conditions between mxrs and txrs equivalents (same F/M ratio) using the Tukey Test, only the FMIII condition showed a significant difference (qvalue = 6.49, prob = 2.73 × 10⁻⁴). Meanwhile, the pairwise comparisons between mplrs and tplrs, (the pentose liquor reactors) reported differences under all conditions: mplr-FMI × tplr-FMI showed qvalue = 12.96 and prob = 4.16 × 10⁻⁸; mplr-FMII × tplr-FMII showed qvalue = 4.97 and prob = 0.01; mplr-FMIII × tplr-FMIII showed qvalue = 5.62 and prob = 0.003; and mplr-FMIV × tplr-FMIV showed qvalue = 4.70 and prob = 0.025 (remembering in this study, the standardized α-value was p = 0.05).

The results throughout the C/N ratios recorded significant differences in HYs within each group constituted by mxrs, txrs, and tplrs: F (3;64) = 38.69, prob = 2.2 × 10⁻¹⁴; F (3;85) = 29.54, prob = 3.50 × 10⁻¹³; F (3;73) = 6.05, prob = 9.71 × 10⁻⁴, respectively. No statistical differences were reported within the mplrs using different C/N conditions: F (3;70) = 1.65, prob = 0.18. The C/N ratio pairwise comparisons based on temperature conditions between the xrs and plrs apparently showed no clear tendency in relation to HY results. Considering the xrs, two comparisons were statistically different: mxr-CNII × txr-CNII (qvalue = 6.93, prob = 6.6 × 10⁻⁵) and mxr-CNIII × txr-CNIII (qvalue = 9.71, prob = 3.83 × 10⁻⁸). On the other hand, the mxr-FMI × txr-FMI (qvalue = 1.64, prob = 0.94) and mxr-CNIV × txr-CNIV (qvalue = 3.18, prob = 0.33) were not significantly different. In plrs, there were also two comparisons which were significantly different (mplr-CNI × tplr-CNI (qvalue= 8.70, prob = 2.29 × 10⁻⁷) and mplr-CNIII × tplr-CNIII (qvalue = 8.26, prob = 9.4 × 10⁻⁷)). Meanwhile, the mplr-CNII × tplr-CNII (qvalue= 1.69, prob = 0.93) and mplr-FMIV × tplr-FMIV (qvalue = 2.81, prob = 0.49) were statistically equivalent.

In general, the HYs were higher at thermophilic temperature than mesophilic temperature, considering the same F/M or C/N ratio comparison. The highest cumulative H₂ production was observed at the mxrs versus txrs and at the tplrs versus mplrs when analyzing F/M ratios. In the case of C/N samples, higher cumulative H₂ production was found at the txrs compared with the mxrs, and at the tplrs than when compared with mplrs, evaluating C/N ratios. Figure 1 shows higher lag phase periods under mesophilic conditions compared to thermophilic flasks within the same nutritional ratio spectrum. The lag phase range values experienced variations due to substrate concentrations (in terms of 5-carbon amount) at both temperatures.

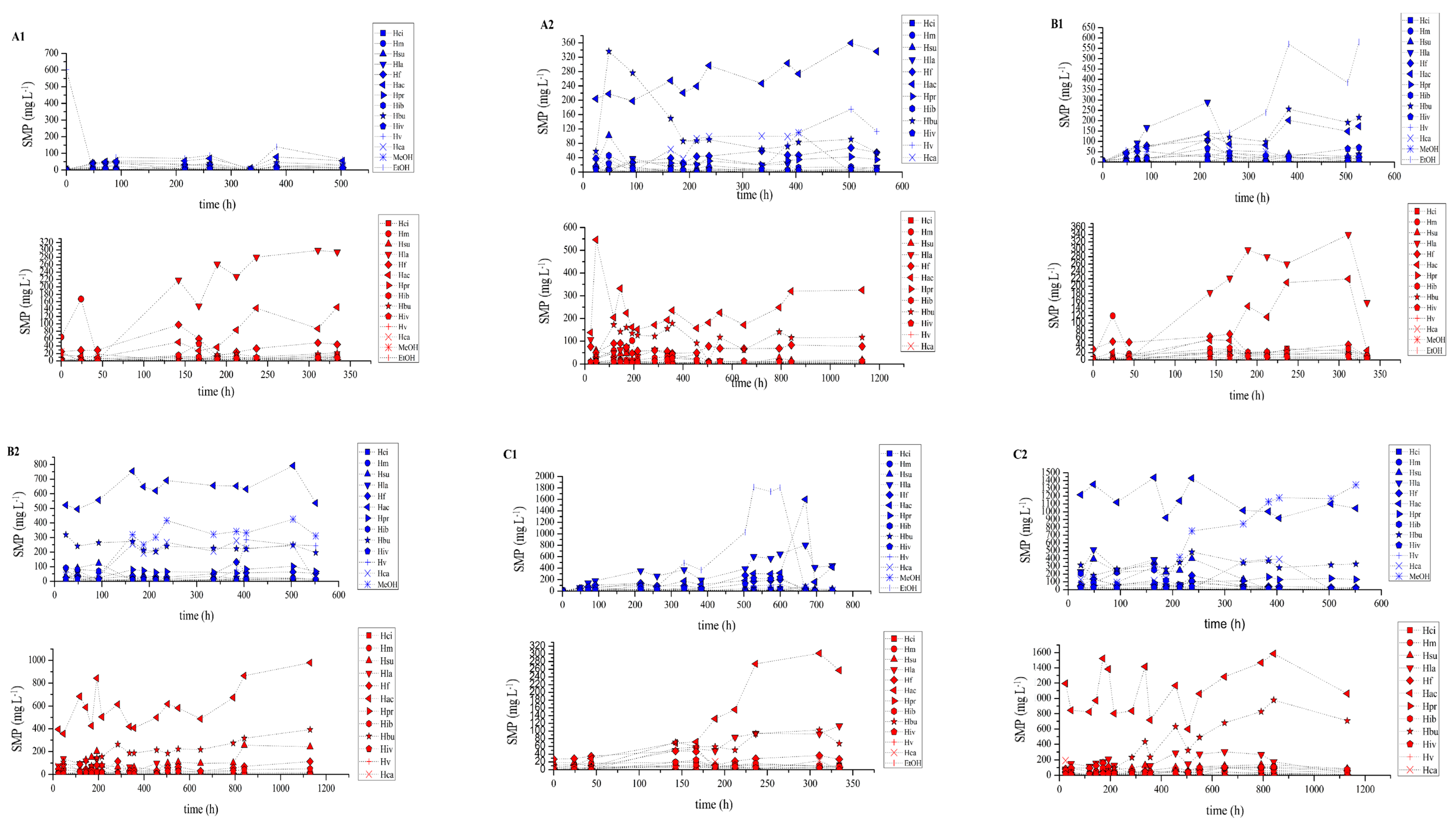

Within addition to H₂ production, volatile fatty acids (VFAs) and alcohols were produced throughout the dark fermentation period in all reactors (Figure 2). Acetate, butyrate, and ethanol (EtOH) are the main soluble microbial products (SMPs) (

Table 2. Soluble metabolic products from all experimental conditions (in terms of mgCOD L⁻¹).

Reactors	Experimental Conditions	Hci (Citric Acid)	Hm (Malic Acid)	Hsu (Succinic Acid)	Hlac (Lactic Acid)	Hf (Formic Acid)	Hac (Acetic Acid)	Hp (Propionic Acid)	Hib (Isobutyric Acid)	Hbu (Butyric Acid)	Hiv (Isovaleric Acid)	Hva (Valeric Acid)	Hca (Caproic Acid)	EtOH (Etha-nol)	MeOH (Methanol)	SMPtotal
mxr	F/M I	0.89	3.93	8.36	16.21	9.13	49.46	11.34	8.76	29.88	6.69	138.74	0.00	108.01	28.53	419.95
	F/M II	2.10	8.71	23.82	77.62	13.19	109.42	7.21	9.25	180.09	67.90	17.00	0.00	407.28	48.71	1035.30
	F/M III	6.60	11.95	29.42	387.48	34.67	281.37	10.83	22.77	12.36	132.41	53.45	2.85	1067.51	37.47	2091.16
	F/M IV	3.76	18.27	37.54	649.45	35.40	406.85	12.70	13.15	31.20	209.49	86.74	0.00	1691.69	64.47	3260.72
mplr	F/M I	3.88	2.37	14.00	18.25	14.63	280.95	38.37	17.93	219.70	15.40	86.48	124.45	0.00	0.00	835.44
	F/M II	3.33	12.51	33.83	14.08	16.46	673.50	91.72	54.80	435.73	26.20	149.04	357.73	0.00	381.89	2250.83
	F/M III	4.62	8.10	162.92	147.41	22.17	1222.06	148.41	172.98	579.18	45.44	10.28	310.23	0.00	921.00	3754.80
	F/M IV	7.30	11.52	269.02	167.62	21.96	1409.78	497.69	375.37	657.49	137.04	251.39	190.96	0.00	0.00	3997.14
txr	F/M I	2.78	20.62	5.15	185.39	14.14	65.46	6.45	16.61	18.72	20.81	11.76	0.00	3.72	3.67	375.28
	F/M II	11.03	18.00	9.14	186.42	13.19	92.06	9.10	33.00	7.10	19.75	9.53	0.00	22.58	0.67	431.56
	F/M III	4.08	9.04	9.92	57.88	10.91	139.66	7.63	17.36	92.91	14.08	0.00	9.57	23.51	0.00	396.57
	F/M IV	8.80	33.60	11.89	113.41	13.73	120.85	7.29	106.87	18.22	16.30	14.15	16.24	10.45	2.16	493.96
tplr	F/M I	3.10	14.19	15.81	35.06	23.41	250.80	2.86	24.54	202.42	24.40	9.11	5.84	0.00	0.00	611.53
	F/M II	4.11	14.86	100.96	63.64	20.79	625.79	6.25	8.79	323.16	39.26	6.54	26.68	0.00	0.00	1240.81
	F/M III	6.98	18.63	85.84	167.38	28.04	1179.37	16.54	94.73	619.06	87.23	8.82	81.53	0.00	0.00	2394.16
	F/M IV	7.05	27.23	44.52	711.02	40.80	1347.06	22.82	179.79	616.02	47.37	13.11	73.38	0.00	0.00	3130.16
mxr	C/N I	2.36	5.96	5.34	3.28	15.89	241.72	29.76	21.70	160.46	9.99	2.60	5.71	0.00	0.86	505.65
	C/N II	2.35	2.80	12.87	3.39	12.85	468.41	65.00	26.97	881.39	14.69	2.38	21.53	0.00	215.23	1729.87
	C/N III	2.47	5.60	15.95	2.40	16.28	426.46	173.77	80.96	927.56	36.12	8.71	29.90	29.87	1261.75	3017.82
	C/N IV	2.65	11.96	21.92	11.36	14.99	379.48	191.35	63.97	767.95	11.03	6.61	16.10	22.78	2845.25	4367.40
mplr	C/N I	2.77	4.22	14.92	12.98	14.09	328.75	25.82	7.43	13.98	30.79	40.63	14.26	0.00	0.00	510.65
	C/N II	3.13	7.78	27.17	6.79	11.73	871.10	128.48	28.27	107.45	27.08	128.76	33.48	0.00	981.62	2362.86
	C/N III	3.88	6.77	47.30	8.32	10.21	869.92	227.08	24.33	80.49	34.80	35.72	35.04	0.00	430.98	1814.84
	C/N IV	3.33	13.13	126.51	9.02	11.54	1477.81	349.28	98.50	87.28	37.85	46.22	23.25	0.00	1300.96	3584.69
txr	C/N I	2.32	1.55	5.41	21.42	12.94	217.70	6.70	31.73	145.50	34.67	1.68	13.76	0.00	0.00	502.33
	C/N II	2.78	2.26	7.40	11.45	12.32	506.29	9.29	2.03	296.56	84.93	0.00	24.69	0.00	0.00	960.02
	C/N III	5.92	7.95	5.94	61.48	13.94	476.31	13.75	2.10	386.06	75.59	1.32	11.01	0.00	0.00	1061.38
	C/N IV	3.60	17.97	7.00	180.44	14.35	318.28	20.05	2.27	231.27	42.84	1.17	0.00	0.00	0.00	839.25
tplr	C/N I	2.60	1.60	7.00	6.17	14.33	197.80	8.60	11.41	49.47	27.97	4.84	3.71	0.00	0.00	335.79
	C/N II	2.40	3.65	13.92	9.95	20.06	518.85	8.59	40.05	171.46	34.08	13.86	34.00	0.00	0.00	870.87
	C/N III	11.05	20.59	85.49	159.45	27.26	1076.47	7.12	56.48	567.40	77.61	5.75	45.01	1.97	0.00	2141.60
	C/N IV	17.61	43.47	63.90	977.04	58.12	1865.24	20.31	328.99	147.67	72.59	2.72	0.00	0.00	0.00	3597.64

) generated in most H₂ fermentation processes, thus some parameters such as Hbu (butyric acid)/SMP_total, Hac (acetic acid)/SMP_total, EtOH/SMP_total, Hbu/Hac, and Hbu/EtOH were measured to better understand the fermentative liquid bulk of substances produced in the reactors (

Table 3. Main ratios of soluble substances and pH values from all experimental conditions.

Reactors	Experimental Conditions	Hbu/SMPtotal	Hac/SMPtotal	EtOH/SMPtotal	Hbu/Hac	Hac/EtOH	pH Initial	pH Final
mxr	F/M I	0.07	0.11	0.26	0.60	0.46	6.4	4.0
	F/M II	0.17	0.10	0.39	1.65	0.27	6.4	3.5
	F/M III	0.006	0.13	0.50	0.04	0.26	6.3	3.0
	F/M IV	0.009	0.12	0.51	0.08	0.24	6.1	2.9
mplr	F/M I	0.26	0.34	0.00	0.78	-	5.3	4.7
	F/M II	0.19	0.30	0.00	0.65	-	6.0	4.2
	F/M III	0.15	0.32	0.00	0.47	-	6.1	4.3
	F/M IV	0.16	0.35	0.00	0.47	-	6.6	5.3
txr	F/M I	0.05	0.17	0.01	0.29	17.66	7.1	3.1
	F/M II	0.02	0.21	0.05	0.08	4.08	6.0	3.6
	F/M III	0.23	0.35	0.06	0.66	5.94	6.1	3.5
	F/M IV	0.04	0.24	0.02	0.15	11.56	6.1	3.6
tplr	F/M I	0.33	0.41	0.00	0.81	-	6.0	4.8
	F/M II	0.26	0.50	0.00	0.51	-	6.9	4.7
	F/M III	0.26	0.49	0.00	0.52	-	6.7	4.6
	F/M IV	0.20	0.43	0.00	0.46	-	6.4	4.6
mxr	C/N I	0.32	0.48	0.00	0.66	-	6.6	4.5
	C/N II	0.51	0.27	0.00	1.88	-	6.0	3.9
	C/N III	0.30	0.14	0.01	2.17	14.3	5.7	3.5
	C/N IV	0.18	0.09	0.005	2.02	16.66	5.3	3.6
mplr	C/N I	0.03	0.64	0.00	0.04	-	6.0	6.4
	C/N II	0.04	0.36	0.00	0.12	-	6.1	4.6
	C/N III	0.04	0.48	0.00	0.09	-	6.1	5.2
	C/N IV	0.02	0.41	0.00	0.06	-	6.1	5.3
txr	C/N I	0.29	0.43	0.00	0.67	-	6.0	4.3
	C/N II	0.30	0.52	0.00	0.59	-	5.8	3.8
	C/N III	0.36	0.45	0.00	0.81	-	6.1	3.6
	C/N IV	0.27	0.38	0.00	0.73	-	6.1	3.5
tplr	C/N I	0.15	0.58	0.00	0.25	-	6.1	5.0
	C/N II	0.19	0.59	0.00	0.33	-	6.0	4.6
	C/N III	0.26	0.50	0.0009	0.53	546.43	6.5	4.6
	C/N IV	0.04	0.52	0.00	0.08	-	6.6	4.7

). Ethanol plus acetate dominated the SMP production over the mxr-FMI-IV conditions (Figure 2), showing EtOH/SMP_total of 0.26, 0.39, 0.50, and 0.51 in mxr-FMI, mxr-FMII, mxr-FMIII, and mxr-FMIV, respectively (Table 3). The acetate comprised around 10% of the total SMPs produced in these conditions. However, the mxr-FMI, the mxr-FMII, mxr-FMIII, and mxr-FMIV had an EtOH/SMP_total above 0.30. The sum of acetate and ethanol in these reactors represented around 60% of total SMPs produced, indicating ethanol-type fermentation. Knowing that Hbu/Hac is one of the most common parameters used to evaluate H₂ production stability in fermentation media, the highest value ratio in each of the mxr-FMs (1.65 in mxr-FMII), mplr-FMs (0.78 in mplr-FMI), tplr-FMs (0.81 in tplr-FMI), and txr-CNs (0.81 in txr-CNIII) matched up with the highest HYs of each reactor group: 0.85 (115.09 mLH₂ gSubstrate⁻¹) in mxr-FMII, 0.36 (40.35 mLH₂ gSubstrate⁻¹) in mplr-FMI, 1.9 (283.73 mL H₂ gSubstrate⁻¹) in tplr-FMI, and 1.4 mol H₂ mol S⁻¹ (185.70 mL H₂ gSubstrate⁻¹) in txr-CNIII. This correlation was not observed in other reactor groups, such as txr-FMs, mxr-CNs, mplr-CNs, and tplr-CNs. However, within the mxr-CNs and mplr-CNs groupings, the values of the highest HYs and the highest Hbu/Hac ratios were quite close.

Propionic acid (Hp) production peaked after 300 h (12.5 days) of fermentation under mplr-FMIV conditions, which was the second most produced SMP until the end of acidogenesis (Figure 2). This reactor showed low HY with 0.22 moles H₂ moles xylose⁻¹ (29.33 mL H₂ gSubstrate⁻¹). Mostly, mplrs had the lowest HYs along with the highest levels of propionate.

In addition to the above-mentioned SMPs, other substances such as lactate are highlighted in terms of production. Lactic acid (Hlac) became one of the main SMPs that was largely found at thermophilic temperatures, particularly in the txr-FMI, txr-FMII, txr-FMIV, and txr-CNIV conditions, accounting for 49, 43, 23, and 25% of the total SMPs, respectively.

Other VFAs with considerable production at least in one condition were isobutyric (Hib), valeric (Hva), and caproic acids (Hca). The Hib in the txr-FMIV reached values close to 100 mg L⁻¹ at the end of the fermentation process (Figure 2). The Hva showed high production under some operational conditions: the mplr-FMI reached its maximum concentration of 160 mg L⁻¹ after 500 h (20.83 days), the mplr-FMII peaked around 250 mg L⁻¹ after 300 h, and the mplr-FMIV achieved nearly 300 mg L⁻¹ after 400 h (16.7 days) (Figure 2). Finally, the Hca showed a constant production around 250 mg L⁻¹ in the mplr-FMII at 100 h (4.17 days).

Considerable concentrations of methanol (MeOH) were observed under mplr-FMII (381.89 mg COD L⁻¹), mplr-FMIII (921 mg COD L⁻¹), mxr-CNII (215.23 mg COD L⁻¹), mxr-CNIII (1261.75 mg COD L⁻¹), mxr-CNIV (2845.25 mg COD L⁻¹), mplr-CNII (981.62 mg COD L⁻¹), mplr-CNIII (430.98 mg COD L⁻¹), and mplr-CNIV (1300.96 mg COD L⁻¹) conditions (Table 2). Their concentrations accounted for 17, 24, 12, 42, 65, 41, 24, and 36% of the total SMPs produced during fermentation, respectively.

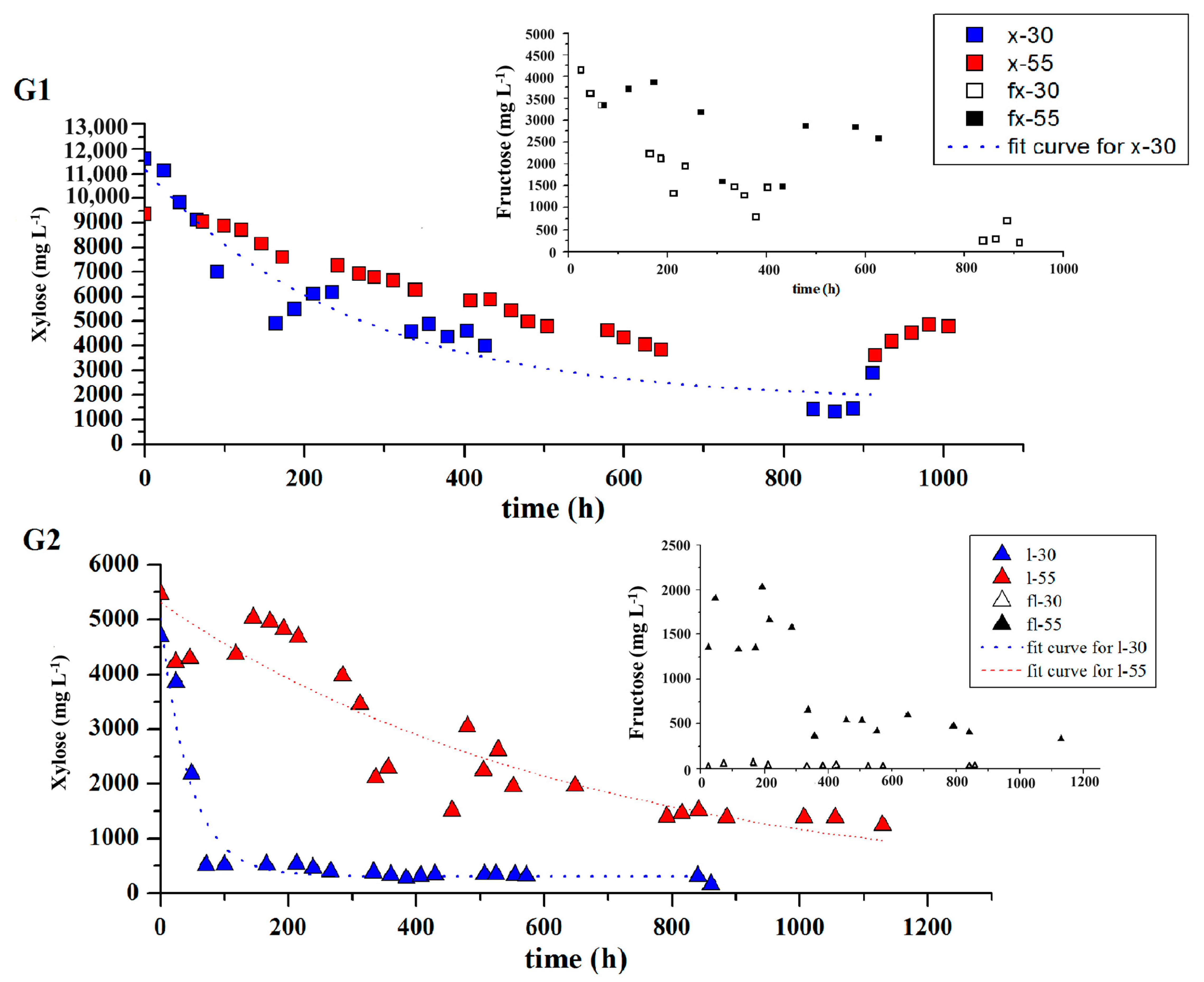

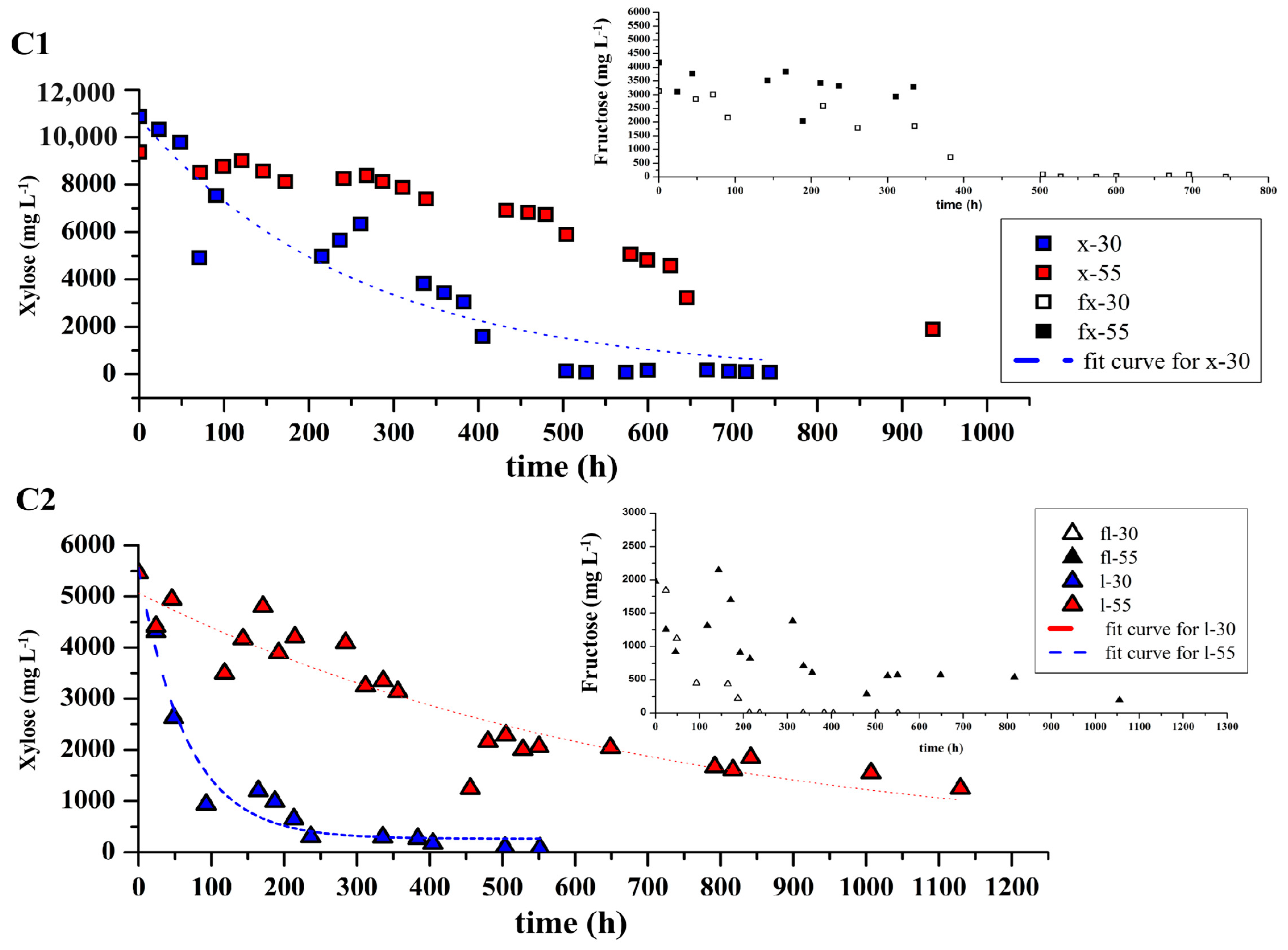

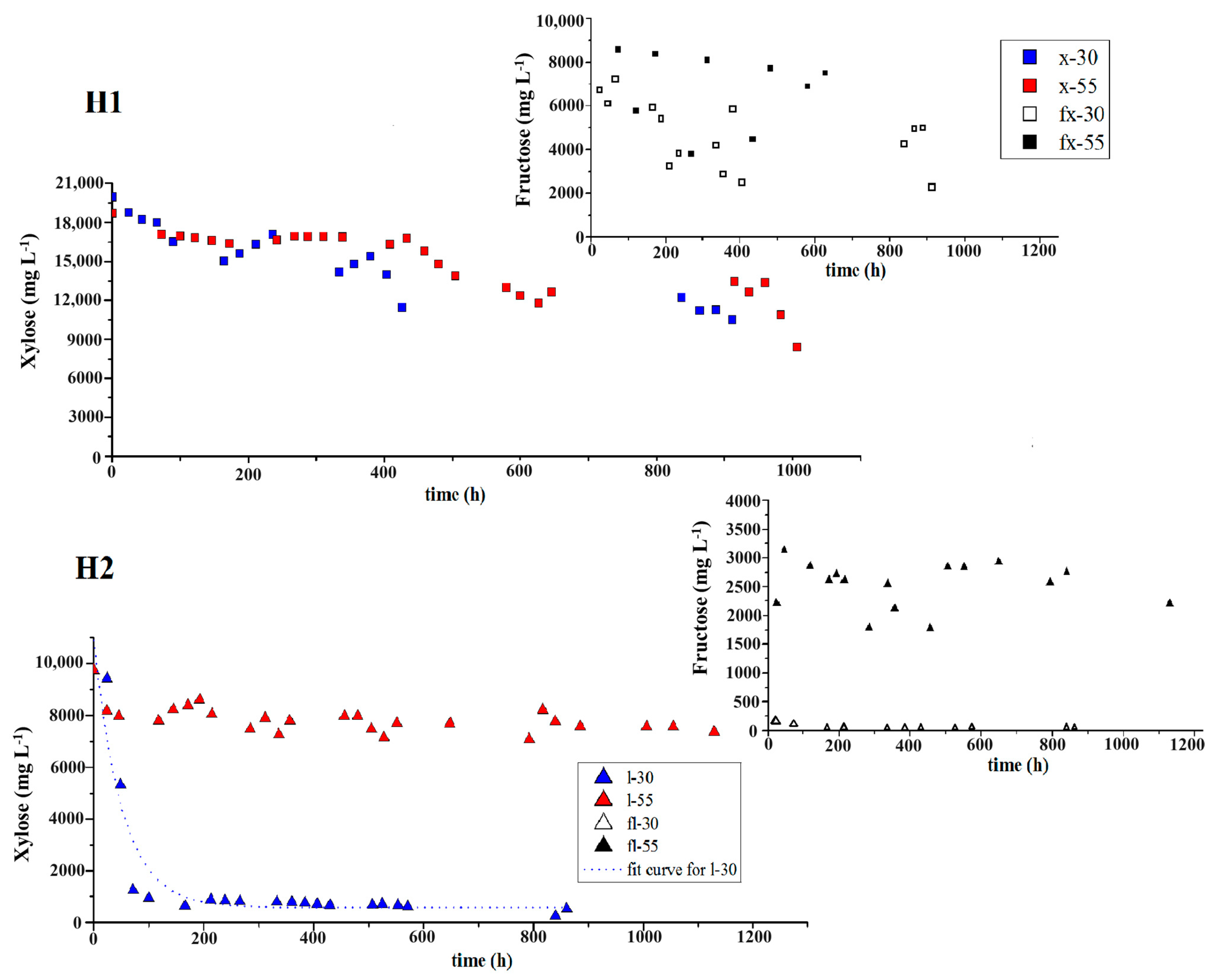

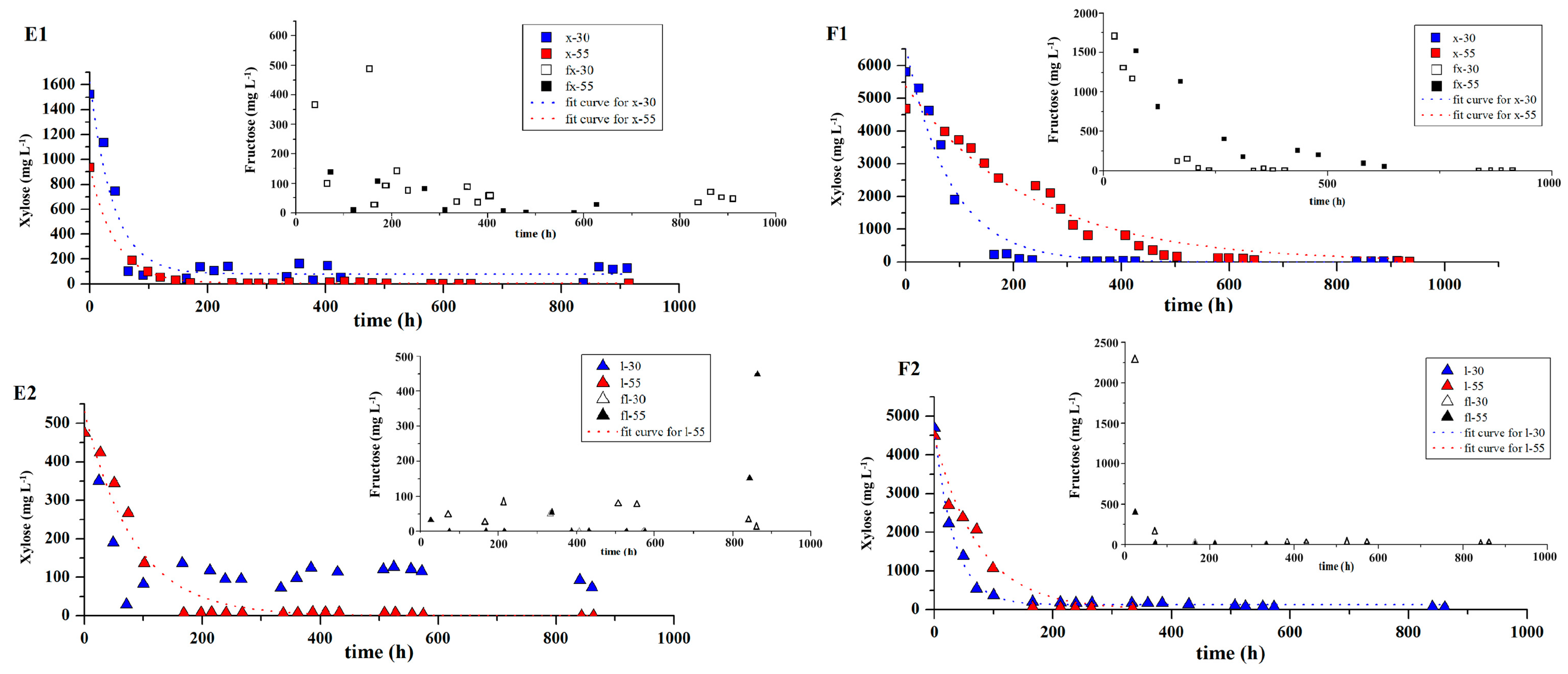

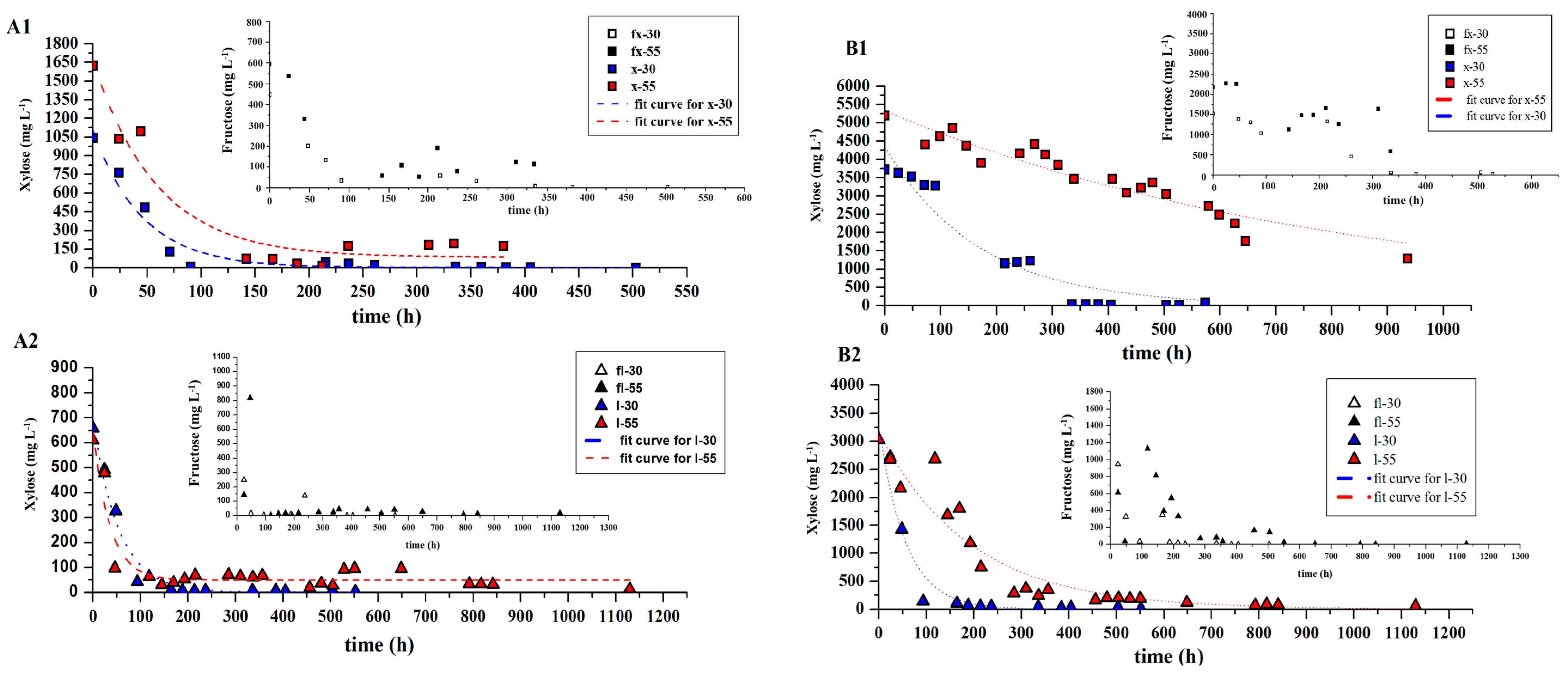

Almost total fructose degradation before total xylose consumption under mplr-FMI, mplr-FMII, mplr-FMIII, mxr-FMIII, and tplr-CNII conditions were observed probably due to initial lower fructose concentrations compared to xylose (Figure 3). In the present study, a possible strong substrate inhibition in mxr-CNIV (19.9 g L⁻¹ of xylose), txr-CNIV (18.7 g L⁻¹ of xylose), txr-FMIV (19.8 g L⁻¹ of xylose), tplr-FMIV (8.2 g L⁻¹ of xylose), and tplr-CNIV (9.8 g L⁻¹ of xylose) was verified as shown in Figure 3.

Overall, the pairwise comparison of reactors between mild and high temperatures fixing the same substrate, C/N and F/M ratios, and mesophilic environment showed higher values of ${\mathrm{k}}_1^{\mathrm{a}\mathrm{p}\mathrm{p}}$ than thermophilic conditions (Table 1). This behavior can be related to greater SMP production at 30 °C when compared to 55 °C as shown in Table 2. Some lower kinetic parameter values also showed the highest HYs. The following conditions agreed with the last statement: txr-CNII (0.004 h⁻¹; 1.2 mol H₂ mol xylose⁻¹ or 165.97 mL H₂ g xylose⁻¹), mxr-CNII (0.012 h⁻¹; 0.70 mol H₂ mol xylose⁻¹ or 94.71 mL H₂ g xylose⁻¹), txr-FMII (0.001 h⁻¹; 1.4 mol H₂ mol xylose⁻¹ or 203.08 mL H₂ g xylose⁻¹), and tplr-CNIII (0.002 h⁻¹; 1.4 mol H₂ mol xylose⁻¹ or 206.78 mL H₂ g xylose⁻¹). Moreover, greater substrate degradations were observed in the plrs when compared to their similar xrs in terms of nutritional requirements (same F/M or C/N ratio) at both temperatures.

It is worth noting that some experimental conditions (mainly thermophilic ones) did not fit the modified Monod model as predicted in the present work.

4. Discussion

4.1. H₂ and SMP Production Outlook Using Thermophilic and Mesophilic Reactors under F/M and C/N Ratios

The sigmoidal curve model adopted in this study did not fit the H₂ curve for mplrs. The instability of the fermentation process (in terms of pH maintenance in certain intervals of values, suitable H₂ pressure, presence of toxic compounds, etc.) probably acted as a preponderant factor for low H₂ production in the abovementioned reactors.

Temperatures in the thermophilic range tend to favor hydrogen production in virtue of lowering H₂ pressure into liquid media by the increase in the gas escape rate from it. In addition, it should be taken into account that the hydrolysis of complex substances is a limiting step in dark fermentation as the organic molecules lie “hidden” inside the microbial cell wall or entangled in an extracellular polymeric matrix, and their breakdown is carried out by extracellular enzymes. Therefore, it is expected that elevated temperatures enhance the dissolution of biodegradable content and also the releasing of hydrolytic enzymes from thermophilic bacteria into aqueous media [45,46].

Although a simple sugar (xylose) as the main substrate was applied to the xrs, the sludge used as seed for the fermentation process itself contained a bulk of organic substances entrapped in cell walls or extracellular matrices which did not allow efficient contact between the microorganisms and the biodegradable content (xylose and fructose). Diverse comparative studies using either complex (cellulose and starch, for instance) or simple sugars reported higher H₂ production at thermophilic temperatures than mesophilic ones [10,11,12,47].

In the thermophilic range, H₂-consuming bacteria have limited growth. Regarding bacterial diversity inside sewage seed, it is more probable we will find, proportionally, a larger number of thermophilic H₂-producing bacteria species than mesophilic H₂-producing strains [48,49].

When evaluating the influence of different temperatures on H₂ production from anaerobic mixed flora using batch reactors and xylose as the main substrate, the authors in [19] found higher HPRs in the mesophilic range (30–40 °C) than thermophilic conditions (45–55 °C). It is not necessarily mandatory that the highest values of HPR and HY are found at the same experimental temperature. High HPRs tend to be reached in mesophilic conditions due to the presence of low cell densities in outward flow, while high HYs in thermophilic conditions are related to slow growth rates observed in extremophilic microorganisms [50]. Ref. [10] performed a comparative study adopting mesophilic and thermophilic temperatures to H₂ production. They used a preheated mesophilic anaerobic digester sludge as inoculum and reported, using starch as substrate, a maximum hydrogen production rate (MHPR) of 5 at 60 °C and 11 mL h⁻¹ at 37 °C while HYs were 1.13 (60 °C) and 1.00 mol H₂ mol hexose_added⁻¹ (37 °C). The initial mesophilic characteristic of anaerobic seed adopted in the present study, as in [10], might have affected kinetic parameters related to the H₂ production rate in the thermophilic range. However, as these cells have low proliferation rates, they showed, at least in most of the tplrs, higher HYs in comparison to mplrs.

It is worth mentioning that there is no consensus about which temperature range is better for hydrogen production through dark fermentation. Previous work [51], for example, reported higher HY at mesophilic temperature (37 °C) than thermophilic (55 °C): 1.8 and 1.0 mol H₂ mol glucose⁻¹, respectively. On the other hand, [11] found higher cumulative hydrogen production (171 mL), HY (111 mL H₂ g total sugar⁻¹), and SHPR (3.46 mL H₂ L⁻¹ h⁻¹) at 55 °C when compared to 37 °C using cheese whey powder solution as substrate. In addition to the mesophilic or thermophilic H₂ production being related to seed enrichment with H₂ producers, other factors should be considered, such as the inoculum type, the substrate adopted as the carbon source, the hydraulic reactor regime, and the mineral supplements applied.

Evaluation of nutritional requirements such as F/M or C/N ratios have been presented in previous studies [52,53,54,55] as important operational parameters to achieve better H₂ production rates in distinct types of substrates used during the dark fermentation process. Ref. [51] evaluated the influence of the C/N ratio in an H₂ production context using palm oil effluent. The authors observed optimum hydrogen generation at C/N = 140 and a reduction of this gas at C/N = 190, showing that the nitrogen deficiency could affect microorganism metabolism, such as those related to H₂ production. Apart from this, taking the F/M ratio into consideration, ref. [52] reported over a F/M range of 1.5–38.2 (as in the present study) with a prominent HY value of 137.73 mLH₂.g substrate⁻¹ at F/M = 38.2 using condensed molasses as substrate in a batch reactor. There is a wide variation in values of organic load ratios, which enhance quantities of cumulative H₂ produced, or even improve values of HYs. Likewise, regarding the influence of temperature, varying numbers regarding feed ratios seem to lie in the uniqueness of microbial seeds, chosen substrate, working temperature, initial organic load level applied, and hydraulic regime.

The proportion of SMPs such as acetate, butyrate, propionate, and ethanol in liquid bulk contributes to evaluating the fermentation stability and the HY itself. Concerning ethanol, the known ethanol-type fermentation is associated with several fermentative reactions that globally result in ethanol production accounting for almost 30% (calculated as equivalent COD) of total SMPs, and the quantity of acetate and ethanol together is more than 50% of the total produced by fermentation in liquid bulk [44]. Anaerobic process stability often focuses on evaluating VFA (acetate, butyrate, and propionate) concentrations, although some authors have associated better H₂ production and overall process stability by analyzing ethanol-type fermentation [18,56,57]. The balance between NAD⁺/NADH + H⁺ of approximately 1:1 is essential to ensure a suitable intracellular pH and continuous hydrogen production. For ethanol or propionic acid generation, as well as acetate, 2 moles of NADH + H⁺ are formed through glucose degradation to produce 2 moles of pyruvate, one of which generates 1 mol of acetate (without NAD⁺ formation), and the other generates 1 mol of ethanol/propionate which produces 2 moles of NAD⁺; thus, a dynamic equilibrium between reduced and oxidized forms of the nicotinamide molecule [56,58] is achieved. Therefore, the closer the ethanol/acetate ratio to one, the more stable the fermentative metabolism and biohydrogen production will be [59]. The probable ethanol-type occurrence under mxr-FMII, mxr-FMIII, and mxr-FMIV conditions showed the closest values of optimum ethanol/acetate ratio (except for mxr-FMI): 0.27 (mxr-FMII), 0.26 (mxr-FMIII) and 0.24 (mxr-FMIV) (Table 3). The propionic pathway (Equation (8)), however, consumes H₂ and produces acidic forms that contribute to reducing pH, hindering the fermentation process. Comparing ethanol-type fermentation to butyrate-type (Equations (6) and (7), respectively), the first provides more fermentation stability, whilst the second yields the same 2 H₂ moles per hexose but produces a theoretical NAD⁺/NADH + H⁺ ratio of 1:2, leaving the fermentation process unstable [57].

$$\begin{gathered} {\mathrm{C}}_6{\mathrm{H}}_{12}{\mathrm{O}}_6+{\mathrm{H}}_2\mathrm{O}\to {\mathrm{C}}_2{\mathrm{H}}_6\mathrm{O}+{\mathrm{C}}_2{\mathrm{H}}_4{\mathrm{O}}_2+2{\mathrm{C}\mathrm{O}}_2+2{\mathrm{H}}_2 \\ (2\mathrm{NAD}+2\mathrm{NADH}+{\mathrm{H}}^{+}⟶2\mathrm{NAD}+2\mathrm{NADH}+{\mathrm{H}}^{+}) \end{gathered}$$

(6)

$$\begin{gathered} {\mathrm{C}}_6{\mathrm{H}}_{12}{\mathrm{O}}_6\to 0.5{\mathrm{C}}_4{\mathrm{H}}_8{\mathrm{O}}_2+{0.75\mathrm{C}}_2{\mathrm{H}}_4{\mathrm{O}}_2+2{\mathrm{C}\mathrm{O}}_2+2{\mathrm{H}}_2 \\ (2\mathrm{NAD}+1\mathrm{NADH}+{\mathrm{H}}^{+}⟶1\mathrm{NAD}+2\mathrm{NADH}+{\mathrm{H}}^{+}) \end{gathered}$$

(7)

$$\begin{gathered} {\mathrm{C}}_6{\mathrm{H}}_{12}{\mathrm{O}}_6+1.2{\mathrm{H}}_2\to 1.2{\mathrm{C}}_3{\mathrm{H}}_6{\mathrm{O}}_2+{1.2\mathrm{C}}_2{\mathrm{H}}_4{\mathrm{O}}_2+1.2{\mathrm{H}}_2\mathrm{O} \\ (2\mathrm{NAD}+2\mathrm{NADH}+{\mathrm{H}}^{+}⟶2\mathrm{NAD}+2\mathrm{NADH}+{\mathrm{H}}^{+}) \end{gathered}$$

(8)

Considering the availability of NADH + H⁺ as a precursor to H₂ formation through ferrodoxin reduction, butyrate-type fermentation has a higher potential to produce H₂ than ethanol-type fermentation, in virtue of higher NAD_reduced concentration. However, the stability of the anaerobic process is hindered (H₂ production as well) eventually due to an imbalance between NAD⁺/NADH + H⁺ forms, resulting in acidification of bulk media. Some authors consider that the HBu/HAc ratio is proportional to HYs [47,60], and some of them suggest that the ideal ratios to find the highest HYs are 1.6–2.2 [60,61,62]. Other authors reported greater results in HY with the HBu/HAc ratio above 2.6 [63,64,65]. Theorizing acetate and butyrate production by xylose degradation, this metabolic pathway would be able to yield 2.5 mol H₂ mol xylose⁻¹ and an HBu/HAc ratio of 0.5 (Equation (9)). None of the batches reached this HY value (or close to it) as a result of limiting factors, which is further discussed. The HBu/HAc ratio analyses only make sense for butyrate-type fermentation that appears when butyrate encompasses 30% of the total SMPs and the sum of butyrate and acetate exceeds 50% of fermentation products [44]. In the present study, the butyrate-type fermentation has possibly been found in tplr-FMI, mxr-CNI, mxr-CNII, mxr-CNIII, txr-CNII, and txr-CNIII conditions (Table 3). The low Hbu/SMP_total values in most of the plrs could be explained by a high initial concentration of acetate in comparison to other VFAs, such as butyric acid. A higher relative presence of butyrate at thermophilic rather than mesophilic reactors might be related to lower VFA production at elevated temperatures. Thermophilic conditions tend to produce H₂ from traditional acetate or butyric routes in a stable way, often without a considerable amount of other VFA compounds.

$${\mathrm{C}}_5{\mathrm{H}}_{10}{\mathrm{O}}_5+0.835{\mathrm{H}}_2\mathrm{O}\to 0.415{\mathrm{C}}_4{\mathrm{H}}_8{\mathrm{O}}_2+{0.835\mathrm{C}}_2{\mathrm{H}}_4{\mathrm{O}}_2+1.67{\mathrm{C}\mathrm{O}}_2+2.5{\mathrm{H}}_2$$

(9)

Propionic acid is one of the VFAs that must be constantly monitored over the fermentation period to ensure steady H₂ production. High propionate concentrations in a liquid bulk promote an intense cellular pH drop, collapsing the fermentative process. Through xylose degradation, 1.67 moles of H₂ are consumed per mole of C5 sugar, yielding 1.67 moles of propionate per mol of substrate (Equation (10)). The propionic acid-type fermentation can be determined as the propionate reaches between 15–20% of the total SMPs [44]. The mplr-FMIV condition possibly showed propionic acid-type fermentation due to high propionate production allied to its low HY.

$${\mathrm{C}}_5{\mathrm{H}}_{10}{\mathrm{O}}_5+1.67{\mathrm{H}}_2\to 1.67{\mathrm{C}}_3{\mathrm{H}}_6{\mathrm{O}}_2+1.67{\mathrm{H}}_2\mathrm{O}$$

(10)

Some studies reported acetate and lactate as the main intermediate SMPs at 70 °C using sucrose [66] and xylose [67] as main substrates. Lactic producers are commonly found at mesophilic temperatures competing with other fermentative bacteria and many of them are not able to degrade xylose-rich compounds [68]. Previous works reported the existence of one solely thermophilic lactate producer named Bacillus coagulans [69,70] which can degrade both glucose and xylose sugars under 50–55 °C using simpler culture media such as MRS medium [71]. As lactic acid produced through several conditions in the present study was accomplished with considerable production of acetate, formate, and in some cases, butyrate (Figure 2 and Table 2), it is reasonable to assume lactate formation through the heterofermentative pathway derived from previous xylose breakdown by the phosphoketolase pathway (discussed in detail later). Basically, two alternative metabolic routes simultaneously appear: (1) The breaking of xilulose-5P into glyceraldehyde 3-P (GAP), followed by pyruvate generation, and lastly lactate or formate; and (2) production of acetil-P through the phosphoketolase pathway by the presence of xilulose-5P, followed by acetate production or acetil-CoA generation from acetil-P, and further formation of acetate, butyrate, ethanol, etc. [62,72].

Isobutyrate can be produced by thermophilic bacteria which are able to transform pyruvate molecules from glycolysis into isobutyraldehyde (in a similar way to the Ehrlich pathway in amino acid degradation) using the 2-ketoacid decarboxylase enzyme [73]. It is probable that greater carbon availability under FMIV conditions have contributed to larger metabolic route diversification.

Medium-chain fatty acids (MCFAs) are the result of carbon chain elongation from short-chain fatty acids (SCFAs) such as acetic, butyric, and lactic acids without necessarily being coupled with hydrogen production. Higher SCFA concentrations in mplr-FMs (Table 2) might have allowed further carbon chain elongation in possible metabolic pathways. In a previous study [74], among the diverse routes of caproate production cited, the authors suggested the formation of this acid along with H₂ by anterior ethanol dehydrogenation. As there was no ethanol presence in mplr-FMII, it is more reasonable to assume caproate production from acetate and/or butyrate with H₂ as the electron donor.

As methanol was reported in plrs, its presence could be explained by dissociation of methyl and methoxy groups from lignin and hemicellulose polymers during acid pretreatment of sugarcane bagasse at elevated temperatures [75]. How would the existence of methanol be explained in xrs and its increasing production throughout the fermentation process? The methanol found in mxr-CNII, mxr-CNIII, and mxr-CNIV must have originated from poultry slaughterhouse inoculum. The use of glycerin from the biodiesel industry as a food complement in poultry diets is common in Brazil [76]. During the industrial biodiesel process, excess methanol is reacted with glycerin, and a considerable quantity of this alcohol is not separated after the end of the reaction. Continuous production in some conditions (mplr-CNII, mplr-FMIII, and mplr-CNIV, for example) suggests the metabolic production of methanol from microorganisms with enzymes such as pectin methylesterase (acts on methoxyl esters), found in some Clostridium strains [77]. To date, there is no description of any presence of methanol in metabolic reactions associated with H₂.

In general, at hot temperatures, few microorganisms are capable of surviving, and thus, a poor variety of metabolic routes is observed with predominance of some thermophilic strains of Clostridium. Fewer SMPs generated during the fermentation process at 55 °C indicate less availability of carbon sources, and consequently a reduced number of metabolic pathways related to H₂ when compared to mesophilic temperatures.

4.2. H₂ Production Drawbacks from Non-Fermentative Products

Considering the maximum HY of 3.33 mol H₂ mol xylose⁻¹ when acetate is a byproduct (Equation (11)) and the values of HYs observed in the present study, there was no similar yield registered under any experimental conditions. Aside from the H₂ production by aforementioned fermentation types which yielded low HYs, this section intends to bring other issues faced in obtaining high HYs to light.

$${\mathrm{C}}_5{\mathrm{H}}_{10}{\mathrm{O}}_5+1.67{\mathrm{H}}_2\mathrm{O}\to {1.67\mathrm{C}}_2{\mathrm{H}}_4{\mathrm{O}}_2+1.67{\mathrm{C}\mathrm{O}}_2+3.33{\mathrm{H}}_2$$

(11)

Certain aspects of substrate degradation might be related to lower HYs than those theoretically expected. Glucose and fructose are commonly preferentially metabolized by the most anaerobic microorganisms once the glycolytic pathway is present in all known fermentative bacteria in opposition to efficient xylose-degrading enzymatic machinery. Evidence that glucose transporters found in Saccharomyces cerevisiae can also accomplish xylose uptake but at the cost of much lower rates [78] might also be assumed to exist in fermentative bacteria; this is quite probable. As no bioaugmentation with xylose-degrading strains took place, it is reasonable to assume low xylose uptake rates. Depending on the origin of the mixed culture adopted, higher HYs can be obtained in reactors fed with xylose rather than glucose as shown by [79].

D-xylose is not readily degraded as glucose and fructose, because this C5 sugar does not go directly to the glycolysis pathway. Instead, it is converted into D-xylulose-5-phosphate (X5P). This metabolite can follow two separate ways: the pentose phosphate pathway (PPP), or the phosphoketolase pathway (PKP) [80]. The PPP consists of a set of X5P rearrangement reactions into different sugars to generate glyceraldehyde-3-phosphate (G3P), one of the most important intermediates of glucose metabolism [79]. In the PKP, X5P is cleaved into G3P and acetylphosphate. The latter is converted into acetate [71]. Preferential acetate production by PKP leads to a lesser possibility of H₂ formation as only 1 mole of G3P is generated per mole of xylose, while the PPP produces 2 G3P molecules per mole of xylose.

Substrate inhibition was not an issue we could overlook, as xylose concentrations were increasing during the experimental plan. Several authors reported substrate inhibition in xylose-rich media at different concentrations with different seeds: 10 g L⁻¹ using mixed culture [81], 15 g L⁻¹ with isolated strain [82], and 20 g L⁻¹ with pure culture [83]. This substrate concentration range was adopted in the present study. The substrate inhibitions should have occurred as of 10 g L⁻¹ in trs and at 20 g L⁻¹ in mxrs. It is worth remembering that xylose concentrations measured in plrs were lower than in xrs due to the presence of other substances in the hydrolysate which accounted for the increase in COD measurements. High initial acetate concentrations exhibited in plrs (Table S1) should be taken into consideration to evaluate ongoing xylose degradation in these reactors.

The mesophilic feature of microflora showing a substantial number of xylose-degrading species in mild conditions when compared to thermophilic seeds may explain lower ${\mathrm{k}}_1^{\mathrm{a}\mathrm{p}\mathrm{p}}$ values therein. It is worth noting that high ${\mathrm{k}}_1^{\mathrm{a}\mathrm{p}\mathrm{p}}$ values do not necessarily mean higher H₂ yields. To illustrate this [10], using mesophilic seeds reported higher HYs both at thermophilic cellulose-only and starch-only batches compared with mesophilic ones, although the overall specific utilization rate (r_su/X) values were higher in mesophilic conditions. Instead of hydrogen, higher ${\mathrm{k}}_1^{\mathrm{a}\mathrm{p}\mathrm{p}}$ values seem to head the production of SMP byproducts. Elevated temperature conditions that had lower ${\mathrm{k}}_1^{\mathrm{a}\mathrm{p}\mathrm{p}}$ numbers and high H₂ yields were supported by low cell quantities, associated with a small proportion of H₂-consumers concomitant with an elevated percentage of H₂-producers. As discussed in the previous section and through all the content in this paragraph, the occurrence of higher HPRs in mxrs than txrs, and greater HYs in the latter under a pairwise comparison context is not surprising (Table 1).

H₂ inhibitory compounds such as acetate, furfural, hydroxymethylfurfural (HMF), and phenolic derivatives are produced with acid pretreatment hydrolysis of sugarcane bagasse. Excess of acetic acid can lead to a reduction in intracellular pH causing fermentation inhibition [84]. Moreover, furan substances may affect the glycolysis enzymes and cause DNA damage in some fermentative bacteria [85]. Meanwhile, phenolic compounds may alter the cell membrane permeability, hindering the fermentation process [86].

Based on several studies [85,87,88,89], furan derivatives and phenolic compounds show an inhibitory effect on H₂ production in concentrations of up to approximately 1 g L⁻¹. These toxic compounds commonly worsen hydrogen generation in concentrations close to 1 g L⁻¹, which is quite improbable to have been found in any plr. Values of furfural were reported close to 1 g L⁻¹ by [90] when dilute acid pretreatment of sugarcane bagasse (2% H₂SO₄ (v/v), 122 °C, and 60 min) was used. A previous study [86], promoting corn stover hydrolysis (2% H₂SO₄ (v/v), 121 °C, and 90 min), obtained 0.1 g L⁻¹ of phenolic compounds and 0.85 g L⁻¹ of furan derivatives. These works applied higher temperatures and acid concentration in the hydrolysis process of sugarcane bagasse compared to the present study. Furthermore, proper xylose and COD concentrations were achieved after further dilution of hydrolysate.

There is no consensus regarding the threshold acetate concentration for H₂ inhibition, but it seems to be found at high concentrations (up to 5 g L⁻¹), with which some related issues were noticed [91,92,93,94]. In [90], the authors applied a mixed seed with glucose as a carbon source exhibiting an inhibition constant (K_c) of 8.27 g L⁻¹ of acetate for H₂ production. Using mixed seed and glucose as feed, Ref. [91] showed a decrease of 50% at HPR (mL h⁻¹) when 6 g L⁻¹ of acetate was added. Considering that the highest acetic acid concentration found in plrs was lower than 2.5 g L⁻¹ (mplr-FMIV) (Table S1), its inhibitory effect on H₂ production seems unexpected and hard to measure in the present study.

High sulfate concentrations were found at higher xylose concentrations in plrs due to sulfuric acid dissolution in the hydrolysis process (Table S1). Sulfate in high concentrations leads to a reduction in H₂ production by the proliferation of sulfate-reducing bacteria (SRB). Some SRBs can lead to sulfate reduction using H₂ as an electron donor and non-complex molecules such as acetate or ethanol as carbon sources [95]. However, this metabolic pathway hardly took place in plrs, as SRB are not able to survive at low pH values (<5.5) commonly presented in fermentative processes [96].

5. Conclusions

Sugarcane bagasse pentose liquor is a feasible source of fermentative hydrogen. This highly pollutant agro-waste becomes an economic asset, being a raw material for energy carrier production, and at the same time, having a clean destination for it, avoiding the pollution of streams. In general, hydrolysate reactors under thermophilic temperatures showed higher HYs and cumulative hydrogen production than mesophilic ones. Elevated temperatures can ensure better contact between substrate and microorganisms, inhibit most H₂ consumers, and enable favorable thermodynamic conditions for hydrogen release from liquid bulk media.

Variations in F/M and C/N ratios mostly implied significant HY differences even at the same temperature. Relevant discrepancies were also verified under both mesophilic and thermophilic environments for the same F/M or C/N ratio. Therefore, nutritional and temperature aspects might have affected the hydrogen production parameters.

Diversification of experimental conditions drove H₂ production through several fermentation types (ethanol, butyric, and propionic-fermentation types), where acetate was one of the main SMPs in a large majority of reactors. Other SMPs also had prominent production in at least one condition. The unusual detection of methanol in substantial quantities under some experimental conditions appeared to be intricately connected with it being embedded into the inoculum. It could also have been produced by microorganisms from sludge which contained enzymes, such as pectin methylesterases.

Aside from bacteria competition and their fermentative products, important drawbacks for H₂ production seemed to be more related to constraints concerning xylose uptake. Occurrences of substrate inhibition at high xylose concentrations fitted better as a response to poor H₂ production than toxic substances such as acetate, furan derivatives, and phenolic compounds presented therein.
