Screening and Engineering Yeast Transporters to Improve Cellobiose Fermentation by Recombinant Saccharomyces cerevisiae

by
Leonardo G. Kretzer
1,2,
Marilia M. Knychala
1,3,
Lucca C. da Silva
1,
Isadora C. C. da Fontoura
1,
Maria José Leandro
3,4,
César Fonseca
3,†,
Kevin J. Verstrepen
2 and
Boris U. Stambuk
1,*
1
Department of Biochemistry, Federal University of Santa Catarina, Florianopolis 88040-900, Brazil
2
Department of Microbial and Molecular Systems, VIB-KU Leuven Center for Microbiology, KU Leuven, Heverlee, 3001 Leuven, Belgium
3
Laboratório Nacional de Energia e Geologia, I.P., Unidade de Bioenergia, Estrada do Paço do Lumiar 22, 1649-038 Lisboa, Portugal
4
ITQB NOVA, Instituto de Tecnologia Química e Biológica António Xavier, Av. da República, 2780-157 Oeiras, Portugal
*
Author to whom correspondence should be addressed.
†
Current address: Novonesis, R&D, 2970 Horsholm, Denmark.
Fermentation 2024, 10(9), 490; https://doi.org/10.3390/fermentation10090490
Submission received: 20 August 2024 / Revised: 17 September 2024 / Accepted: 19 September 2024 / Published: 22 September 2024
(This article belongs to the Special Issue New Insights into the Biodiversity and Industrial Applications of Saccharomyces cerevisiae, 2nd Edition)
Browse Figures
Review Reports Versions Notes

Abstract

:
Developing recombinant Saccharomyces cerevisiae strains capable of transporting and fermenting cellobiose directly is a promising strategy for second-generation ethanol production from lignocellulosic biomass. In this study, we cloned and expressed in the S. cerevisiae CEN.PK2-1C strain an intracellular β-glucosidase (SpBGL7) from Spathaspora passalidarum and co-expressed the cellobiose transporter SiHXT2.4 from Scheffersomyces illinoinensis, and two putative transporters, one from Candida tropicalis (CtCBT1 gene), and one from Meyerozyma guilliermondii (MgCBT2 gene). While all three transporters allowed cell growth on cellobiose, only the MgCBT2 permease allowed cellobiose fermentation, although cellobiose consumption was incomplete. The analysis of the β-glucosidase and transport activities revealed that the cells stopped consuming cellobiose due to a drop in the transport activity. Since ubiquitinylation of lysine residues at the N- or C-terminal domains of the permease are involved in the endocytosis and degradation of sugar transporters, we constructed truncated versions of the permease lacking lysine residues at the C-terminal domain (MgCBT2ΔC), and at both the C- and N-terminal domain (MgCBT2ΔNΔC) and co-expressed these permeases with the SpBGL7 β-glucosidase in an industrial strain. While the strain harboring the MgCBT2ΔC transporter continued to produce incomplete cellobiose fermentations as the wild-type MgCBT2 permease, the strain with the MgCBT2ΔNΔC permease was able to consume and ferment all the cellobiose present in the medium. Thus, our results highlight the importance of expressing cellobiose transporters lacking lysine at the N- and C-terminal domains for efficient cellobiose fermentation by recombinant S. cerevisiae.

1. Introduction

The production and use of sustainable alternatives to fossil fuels have been growing for the last few decades, and it will certainly become a necessity in the near future due to the environmental impact of fossil fuels on the climate. Bioethanol is the primary liquid biofuel used in the USA and Brazil, responsible for approx. 85% of the global production [1,2,3]. This so-called first-generation (1G) bioethanol is made from food-based plant sugars from corn (starch) or sugarcane (sucrose). Although accounting for approx. 1% of the global fuel ethanol production, second-generation (2G) bioethanol is made from plant residues rich in lignocellulosic biomass [3,4,5]. This renewable biomass is composed of cellulose (a linear polymer of β-1,4 linked glucose molecules), hemicellulose (a branched and highly heterogeneous polymer containing both hexoses and pentoses), and lignin. The biochemical conversion of lignocellulosic biomass involves several steps, including pre-treatment, enzymatic hydrolysis, and fermentation, being the efficient conversion of all the sugars available is a major requirement for an economically feasible 2G bioethanol process [5,6,7,8].
An optimized enzyme blend (containing endoglucanases, exoglucanases, hemicellulases, pectinases, β-glucosidases, xylanases, β-xylosidases, laccases, etc.), is required for the efficient conversion of cellulose and hemicellulose polymers into sugar syrups to be fermented by yeasts [9,10]. To avoid cellobiose accumulation, a strong inhibitor of both cellobiohydrolases and endoglucanases [11,12,13,14], enzyme blends usually contain high levels of β-glucosidases, increasing 2G bioethanol production costs. Thus, a solution for the efficient conversion of lignocellulose to ethanol is the use of microorganisms capable of efficient cellobiose fermentation. Cellobiose can be found in small amounts in some fruits, honey, or sugar beet, but the main source of this disaccharide is cellulose degradation by microorganisms. Many yeasts can secrete β-glucosidases, and cellobiose is hydrolyzed to glucose in the extracellular environment, followed by glucose uptake and fermentation [15,16,17,18]. Other yeast species have intracellular β-glucosidases, and thus, cellobiose needs to be transported into the cell by cellodextrin permeases to allow its fermentation [19,20,21,22,23]. Some yeasts may even have both pathways, extracellular hydrolysis besides transport and intracellular hydrolysis of cellobiose [24,25].
S. cerevisiae is a platform for microbial engineering efforts to produce biofuels from cellulosic hydrolysates because of its industrial robustness and easy genetic manipulation, but it lacks the capacity to ferment cellobiose. The uptake and intracellular hydrolysis of cellobiose, an abundant mechanism for cellobiose utilization in filamentous fungi and also engineered in S. cerevisiae [26,27], is a strategy to avoid the production of glucose in the medium and thus the competition between glucose and xylose for the HXT transporters of S. cerevisiae [28], which often considerable delays xylose consumption and the fermentation process [29,30,31,32,33]. Furthermore, complete enzymatic conversion of cellulose to glucose is problematic because high glucose concentrations inhibit both cellulases and β-glucosidases [10,11,12]. The first report showing the successful expression in S. cerevisiae of cellodextrin transporters and intracellular β-glucosidase was with genes from the cellulolytic fungi Neurospora crassa [26]. The authors expressed an intracellular β-glucosidase (encoded by the gh1-1 gene) and two transporters (CDT-1 and CDT-2 genes) that transport cellobiose and higher cellodextrins, as well as play a critical role in hemicellulose sensing and utilization by N. crassa, while CDT-2 seems to also transport xylobiose and longer xylodextrins [26,34,35,36]. Another difference between these permeases is that CDT-1 is an active transporter, while CDT-2 seems to transport cellobiose by facilitated diffusion, although both transporters were reported to have very similar affinity to cellobiose [26,36].
There are dozens of other manuscripts reporting the use of the gh1-1 β-glucosidase and CDT-1 and CDT-2 transporters for cellobiose fermentation by several recombinant yeasts, and while other fungal cellodextrin/xylodextrin permeases have been expressed in S. cerevisiae, unfortunately these transporters were characterized just by growth assays, with little information regarding kinetics of cellobiose transporters and their contribution to ethanol production during growth [27]. Regarding cellobiose transporters from yeasts, only two permeases (HXT2.4 from Sc. stipitis and Ls120451 from Lipomyces starkeyi) have been shown to allow cellobiose fermentation by recombinant S. cerevisiae when also expressing the gh1-1 β-glucosidase from N. crassa [37,38].
In the present work, we have cloned an intracellular β-glucosidase (SpBGL7) from the cellobiose fermenting yeast Spathaspora passalidarum [39] and used a S. cerevisiae laboratory strain CEN.PK2-1C expressing this β-glucosidase to screen for cellobiose transporters from yeasts. The co-expression of the cellobiose transporter SiHXT2.4 from Scheffersomyces illinoinensis and two putative transporters, one from Candida tropicalis (CtCBT1) and one from Meyerozyma guilliermondii (MgCBT2) allowed growth on cellobiose by the recombinant S. cerevisiae strains. However, only the MgCBT2 permease allowed cellobiose fermentation, although the consumption of cellobiose was incomplete. We analyzed this transporter in relation to the presence of lysine residues in the N- or C-terminal domains with the potential for ubiquitinylation and, thus, for being involved in transporter downregulation through endocytosis and vacuolar degradation [40,41]. The construction of a truncated version of the transporter lacking lysine residues at both the C- and N-terminal domain (MgCBT2ΔNΔC) allowed efficient fermentation of all the cellobiose present in the medium by an industrial fuel ethanol yeast strain. The results obtained highlight the importance of removing lysine residues involved in endocytosis to allow efficient expression of heterologous sugar transporters in S. cerevisiae.

2. Materials and Methods

2.1. Strains, Media, and Growth Conditions

The yeast strains and plasmids used in this study are listed in Table 1. The Escherichia coli DH5α strain (F’/endA1hsdR17 (rK-mK+) glnV44 thi-1 recA1 gyrA (NaIr) relA1Δ (lacZYA-argF) U169 deoR Φ80dlac Δ(LacZ) M15) [42], was used for cloning and plasmid propagation, and was grown in Luria broth containing 1% tryptone, 0.5% yeast extract, 0.5% sodium chloride, pH 7.0, and 100 mg/L ampicillin when required (Sigma-Aldrich Brazil Ltd.a., São Paulo, SP, Brazil).
Yeasts were grown in rich YP medium (1% yeast extract, 2% Bacto peptone, Sigma-Aldrich), or in synthetic complete (YNB) medium (0.67% yeast nitrogen base without amino acids, supplemented with 1.92 g/L of yeast synthetic drop-out media without uracil, or 1.82 g/L without uracil and tryptophan, Sigma-Aldrich), with 20 g/L glucose or cellobiose as carbon source. The pH of the medium was adjusted to pH 5.0 with HCl, and when required, 2% Bacto agar (Sigma-Aldrich) or 0.1 g/L nourseothricin (cloNAT, WERNER BioAgents GmbH, Jena, Germany) were added to the medium. The laboratory strains transformed with plasmids were pre-grown in YNB with glucose as carbon source and used to inoculate new YNB medium containing 20 g/L cellobiose with an initial cell concentration of 0.1 optical density at 600 nm (A600nm), measured with a Cary 60 UV–VIS spectrophotometer (Agilent Technologies, Santa Clara, CA, USA). Growth was performed aerobically in cotton-plugged Erlenmeyer flasks filled to 1/5 of the volume with medium at 28 °C with 160 rpm orbital shaking. Cellular growth was followed by absorbance measurements at 600 nm (A600nm). For batch fermentations, cells were collected in the exponential phase of growth, centrifuged at 6000× g for 5 min at 4 °C, washed twice with sterile water, and inoculated at a high cell density (~10 g dry cell weight/L) into a 25 mL flask containing 20 mL of rich YP medium containing 20 g/L cellobiose at 30 °C, with shaking at 100 rpm. For the industrial strains, fermentations were also performed in rich YP medium containing 20 g/L glucose or cellobiose or 20 g/L cellobiose plus 20 g/L xylose. Culture samples were harvested regularly, centrifuged (5000× g, 1 min at 4 °C), and supernatants were used for the quantification of substrates and fermentation products.

2.2. Molecular Biology Techniques

Standard procedures for DNA manipulation and analysis, as well as bacterial and yeast transformation, were employed [52,53]. Purification of plasmids, PCR products, or Gibson Assembly products was performed using the QIAquick PCR Purification Kit (QIAGEN Benelux B.V., Antwerp, Belgium). The genomic DNA from the yeast strains was purified using a YeaStar Genomic DNA kit (Zymo Research, Irvine, CA, USA). For plasmid extraction, we used the manual mini-prep method [53] or the commercial QIAprep Spin Miniprep Kit (QIAGEN). DNA fragments for cloning, sequencing, or transformations were PCR-amplified using Phusion High-Fidelity (Thermo Fisher Scientific Inc., Waltham, MA, USA) or PrimeSTAR® GXL DNA polymerases (Takara Bio Europe SAS, Saint-Germain-en-Laye, France). Purified plasmids, products of Gibson Assembly, or cells lysed by incubation at 100 °C in 20 mM NaOH for 10 min (colony PCR) served as DNA templates.
Based on the genome of C. tropicalis and M. guilliermondii [54], Sc. stipitis [55] and Sp. passalidarum [56], primers were designed (Table 2) to amplify genes encoding a β-glucosidase from Sp. passalidarum (SpBGL7, NCBI Gene ID: 18871961, primers SpBGL7-F and SpBGL7-R), the cellobiose transporters HXT2.4 from Sc. illinoinensis (the HXT2.4 gene from Sc. stipitis has NCBI Gene ID: 4850978, primers HXT2.4-F and HXT2.4-R), CtCBT1 from C. tropicalis (NCBI Gene ID: 8298855, primers CtCBT1-F and CtCBT1-R), and MgCBT2 from M. guilliermondii (NCBI Gene ID: 5129179, primers MgCBT2-F and MgCBT2-R), introducing restriction sites (for BamHI, EcoRI, HindIII, SalI or XhoI enzymes) for cloning into multicopy shuttle vectors containing strong and constitutive promoters and terminators (pGPD-424 and pGPD-426, Table 1) as well as the TRP1 and URA3 genes used as selective marker.
To clone and overexpress modified versions of the MgCBT2 transporter, we amplified the MgCBT2 gene from the pGPD-426-MgCBT2 plasmid (Table 1) using specific primer pairs: MgCBT2ΔC-F and MgCBT2ΔC-R (Table 2) for generating a version of the gene that encodes a truncated permease in the C-terminal region (pGPD-426-MgCBT2ΔC plasmid, Table 1), and MgCBT2ΔNΔC-F and MgCBT2ΔC-R (Table 2) for generating a version that encodes a truncated permease in both N- and C-terminal regions (pGPD-426-MgCBT2ΔNΔC plasmid, Table 1). These primers ensured the retention of the ATG codon for the initial methionine and the TGA stop codon for protein synthesis termination. The gene encoding the transporter truncated in the C-terminal lacked base pairs 4 to 60, resulting in a protein lacking the first 19 amino acid residues after the initial methionine. The gene encoding the transporter truncated in both N- and C-terminal regions, in addition to having the same modification described above, also lacked the last 36 coding base pairs, resulting in a protein lacking the last 12 amino acid residues in addition to the first 19 after the initial methionine.
The pV1382 plasmid (Table 1) served as the platform for expressing the CRISPR-Cas9 system in S. cerevisiae [51]. The ARS208 and ARS1309 loci were chosen for integrating the overexpression modules of the SpBGL7 and MgCBT2 genes, respectively, based on the research by Reider Apel and colleagues [57]. After sequencing both regions of interest in the MP-C5H1 strain genome (Table 1), we identified 20 bp segments to serve as the crRNA recognition sites. These segments were required to be followed by a protospacer adjacent motif (PAM) sequence recognized by the CRISPR-Cas9 system (“NGG” in this case). For the ARS208 site, the selected sequence was “GTCCGCTAAACAAAAGATCT”, followed by the PAM sequence “TGG”, located approximately 325 base pairs upstream of the ARS208 locus. For the ARS1309 site, the chosen sequence was “CCTGTGGTGACTACGTATCC”, followed by the PAM sequence “AGG”, situated approximately 180 base pairs upstream of the ARS1309 locus.
Each DNA fragment responsible for crRNA transcription, specific to the sequences mentioned above, was cloned into pV1382 as described [51]. The vector pV1382 was treated with enzyme BsmBI (New England Biolabs, Leiden, The Netherlands), and the 5’ ends of each DNA strand of the linearized plasmid were dephosphorylated using alkaline phosphatase (Quick CIP, New England Biolabs), followed by purification. The digested plasmid and the specific pair of oligonucleotides (sgRNA.ARS1309-F and sgRNA.ARS1309-R, Table 2) to target the CRISPR-Cas9 system to the ARS1309 locus, and sgRNA.ARS208-F and sgRNA.ARS208-R primers (Table 2) for the ARS208 locus were incubated at 15 °C for 16 h in the presence of T4 DNA ligase (Thermo Fisher). The resulting plasmids were sequenced using the seq.p1382.sgRNA-F and seq.p1382.sgRNA-R primers (Table 2) to verify the correct insertion of the DNA fragments, yielding plasmids pV1382-ARS1309 and pV1382-ARS208 (Table 1).
To assemble the PCR-amplified DNA fragments for constructing the repair and gene overexpression modules, we utilized Gibson Assembly® with the NEBuilder® HiFi DNA Assembly kit (New England Biolabs). Each PCR reaction employed a pair of primers (primer sequences can be provided upon request) designed with at least 20 base pairs at the 3’ end that anneal to the beginning or end of the intended amplification region and at least 20 nucleotides at the 5’ end identical to the adjacent end of the DNA portion in the other DNA molecule intended for joining. For constructing the repair fragment for inserting the gene encoding each version of the MgCBT2 transporter, three initial fragments were joined: (I) a 515 bp DNA fragment identical to the region upstream of the cleavage site of the ARS1309 locus (5’ARS1309, obtained via colony PCR from the industrial strain MP-C5H1, Table 1); (II) a DNA fragment containing the PTDH3 promoter, the desired MgCBT2 version, and the TCYC1 terminator (obtained via PCR using pGPD-426-MgCBT2, pGPD-426-MgCBT2ΔC, or pGPD-426-MgCBT2ΔNΔC plasmids as templates, Table 1); and (III) a 624 bp DNA fragment identical to the region downstream of the cleavage site of the ARS1309 locus (3’ARS1309, obtained via colony PCR from the industrial strain MP-C5H1).
For constructing the repair fragment containing the SpBGL7 overexpression module, circular construction was chosen due to the low efficiency of Gibson Assembly in forming linear molecules from more than three distinct fragments. Circularization was achieved using the pMV vector (Table 1). The repair fragment was constructed by joining five distinct initial fragments: (I) a 695 bp DNA fragment identical to the region upstream of the cleavage site of the ARS208 locus (5’ARS208, obtained via colony PCR from strain MP-C5H1); (II) a DNA fragment containing 608 bp immediately upstream of the coding region of the TEF1 gene, corresponding to its promoter region (PTEF1, obtained via colony PCR from strain MP-C5H1); (III) a DNA fragment containing the SpBGL7 gene (obtained via PCR using pGPD-424-SpBGL2 plasmid as template); (IV) a DNA fragment containing the 428 bp immediately downstream of the coding region of the PGK1 gene, corresponding to its terminator region (TPGK1, obtained via colony PCR from strain MP-C5H1); and (V) a 742 bp DNA fragment identical to the region downstream of the cleavage site of the ARS208 locus (3’ARS208, obtained via colony PCR from strain MP-C5H1). We changed the constitutive promoter (PTEF1) and terminator (TPGK1) controlling the SpBGL7 gene to avoid any chromosomal instability with the promoter (PTDH3) and terminator (TCYC1) used for the MgCBT2 permeases. Each purified PCR fragment was incubated at 50 °C for 60 min in the presence of NEBuilder® HiFi DNA Assembly reagent. After incubation, the resulting plasmid (pMV-SpBGL7, Table 1) was transformed into E. coli DH5α.
For the insertion of the SpBGL7 repair/overexpression module into the genome of the MP-C5H1 strain, transformations were performed using 300 ng of the purified pV1382-ARS208 plasmid and 10 µg of the repair/overexpression module amplified using primers ARS208-F and ARS208-R (Table 2) and the pMV-SpBGL7 plasmid as template (Table 1). Transformants were selected in YP-20 g/L glucose plates containing 0.1 g/L nourseothricin. Flipout of the pV1382-ARS208 plasmid was performed by overnight growth (twice) in nonselective liquid YP-20 g/L glucose medium. Drug-sensitive colonies, which had lost the plasmid, were identified by plating for single colonies on nonselective media and subsequent identification by replica plating to selective media. The correct insertion of the SpBGL7 module at ARS208 in the MP-B7 strain (Table 1) was confirmed by sequencing. The same concentrations of the pV1382-ARS1309 plasmid and the repair/overexpression modules containing the different MgCBT2 transporters (MgCBT2, MgCBT2ΔC or MgCBT2ΔNΔC), produced by Gibson Assembly, were used to transform strain MP-B7, yielding strains MP-B7-CBT2, MP-B7-CBT2ΔC and MP-B7-CBT2ΔNΔC, respectively (Table 1). All insertions at the ARS1309 locus were confirmed by sequencing.

2.3. Enzymatic and Transport Activity Assays

The hydrolysis of p-nitrophenyl-β-D-glucopyranoside (pNPβG), cellobiose, or p-nitrophenyl-β-D-xylopyranoside (pNPβX) was determined using permeabilized yeast cells [58]. Approximately 50 μL of permeabilized cell suspension (at concentrations ranging from approximately 0.1 to 0.4 g/L) were added to 450 μL of 100 mM MOPS-NaOH, pH 6.8 buffer containing the desired amount of substrate, and incubated at 30 °C for 10 min. The reaction was stopped by placing the tubes at 100 °C for 3 min. Pre-boiled cells for 3 min were used as controls. We used final concentrations ranging from 0.05 to 10 mM of pNPβG and pNPβX, or 1 to 80 mM cellobiose as substrates. After the reaction, cells were centrifuged at 2600× g for 5 min, and the supernatant from assays using pNPβG and pNPβX was used to determine the enzymatic activity by measuring the concentration of p-nitrophenol released by substrate hydrolysis at an absorbance of 400 nm. To determine cellobiose hydrolysis, the supernatant from the assays was used to measure the concentration of glucose formed using a commercial glucose oxidase–peroxidase kit (Glicose Pap Liquiform Labtest, Centerlab, Belo Horizonte, MG, Brazil). Activities are expressed as nmol of p-nitrophenol or glucose produced by (mg dry cell weight)−1 min−1. The values of Km and Vmax were determined through nonlinear regression applied to the Michaelis–Menten kinetic model using the GraphPad Prism v. 8.0 software (GraphPad Software, Boston, MA, USA).
The transport assays followed a colorimetric method originally developed for determination of α-glucoside (p-nitrophenyl-α-D-glucopyranoside) transport by yeast maltose permeases [59]. Cells were harvested from liquid culture, washed twice with chilled (4 °C) sterile distilled water, and resuspended in 50 mM succinate–Tris pH 5.0 buffer to achieve a cell concentration of approximately 30 g/L. Aliquots of 50 μL of this cell suspension were transferred to Eppendorf tubes, and a volume of 50 μL of 10 mM pNPβG or pNPβX in the same buffer was added. The cells were incubated at 30 °C for 10 min, during which the internalized substrate underwent hydrolysis due to the activity of the intracellular β-glucosidase. The reaction was stopped by incubating the tubes at 100 °C for 3 min. Subsequently, 200 μL of 2 M NaHCO3 was added. Pre-boiled cells for 3 min were used as negative controls. Cells were centrifuged at 2600× g for 5 min, and the supernatant was used to determine the concentration of p-nitrophenol produced, measured by absorbance at 400 nm. The transport activities are expressed as nmol of pNPβG or pNPβX transported (p-nitrophenol produced) by (mg dry cell weight)−1 min−1.

2.4. Analytical Methods

Cellobiose and xylose substrates, and ethanol, xylitol, and glycerol products in medium samples were quantified by high-performance liquid chromatography (Prominence HPLC system) equipped with a RID-20A refractive index detector (Shimadzu Co., Tokyo, Japan) using an Aminex HPX-87H column (Bio-Rad Laboratories, Hercules, CA, USA). The HPLC apparatus was operated at 50 °C using 5 mM H2SO4 as mobile phase at a flow rate of 0.6 mL/min, and 10 μL injection volume.

2.5. Prediction of Lysine Residues in MgCBT2 Transporter with Ubiquitinylation Potential

To predict potential transmembrane domains (TMs) of the MgCBT2 transporter (NCBI GenBank ID: PP826654.1), we used PRALINE with the PSIPRED and HMMTOP methods [60]. The lysine residues with ubiquitinylation potential in the N- and C-terminal domains of the permease were determined with the BDM-PUB [61] and UbPred programs [62].

3. Results

3.1. Cloning and Expression of an Intracellular Yeast β-Glucosidase in S. cerevisiae

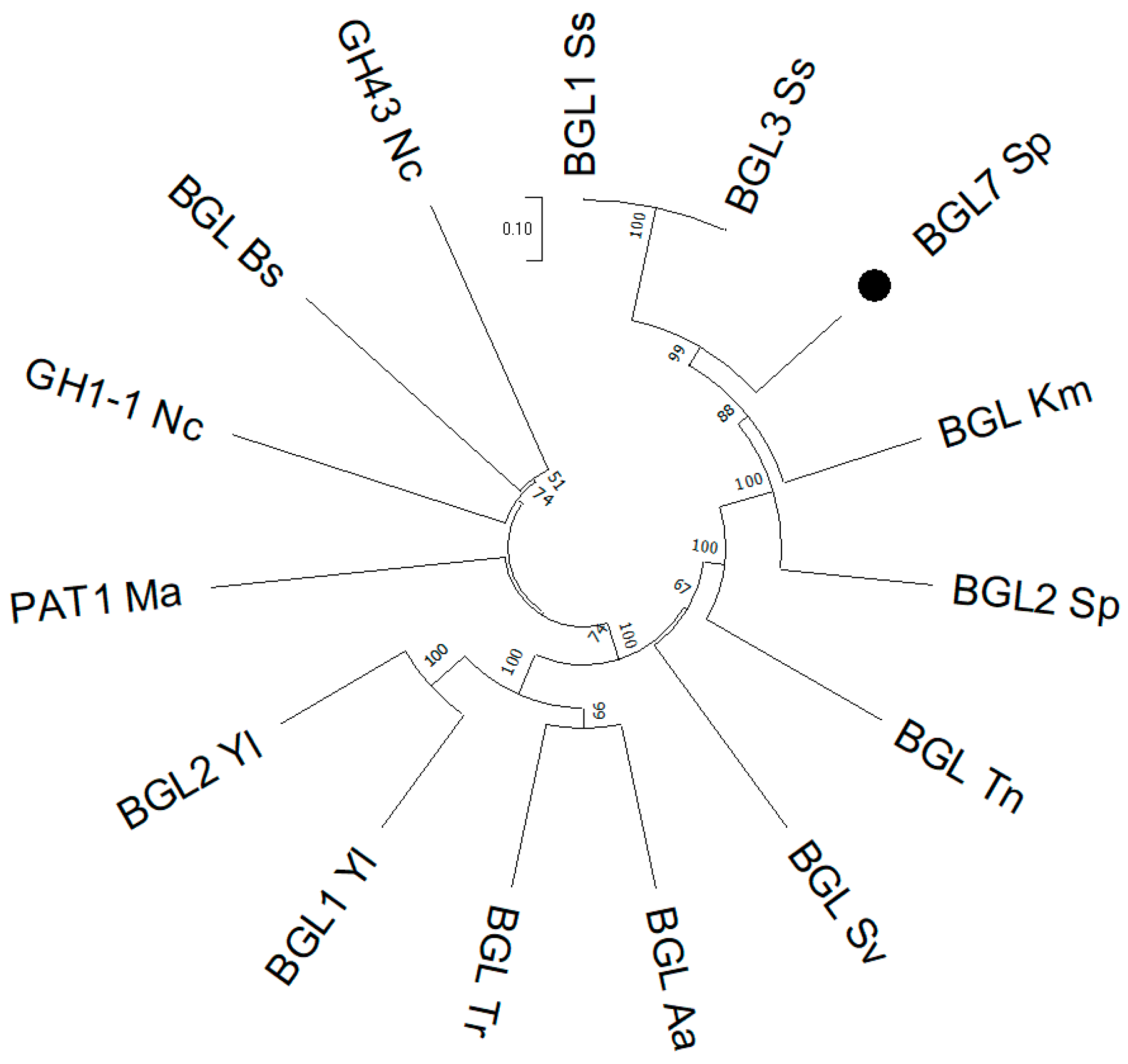

Initially, we used the amino acid sequence of the intracellular β-glucosidase encoded by the gh1-1 gene from N. crassa [26] to search for putative β-glucosidases from yeasts, but our analysis did not reveal a gene with significant identity. However, using the sequence of the β-glucosidase from the cellulolytic fungi Thielavia terrestris (TtBG gene, NCBI Gene ID: 11519932 [27]) revealed two genes with 33% (annotated as SpBGL2) and 29% (SpBGL7) of identity in the genome of the cellobiose-fermenting yeast Sp. passalidarum [39,56]. Attempts to clone the SpBGL2 gene from the Sp. passalidarum UFMG-CM-Y474 strain (Table 1) failed, but we succeeded in cloning the SpBGL7 β-glucosidase into the pGPD-424 plasmid (Table 1). When the pGPD-424-SpBGL7 plasmid was transformed into strain CEN.PK2-1C, the obtained strain (B7) could not use or grow on cellobiose (Figure 1), but we could clearly detect intracellular β-glucosidase activity when we used permeabilized yeast cells, with a Km of 18.2 ± 3.9 mM and Vmax of 1188 ± 85 nmol mg−1 min−1 with cellobiose, and higher affinity (Km of 0.8 ± 0.2 mM and Vmax of 5368 ± 199 nmol mg−1 min−1) with pNPβG. This enzyme also had hydrolytic activity with pNPβX (a synthetic analog of xylobiose), with a Km of 1.0 ± 0.5 mM and Vmax of 1088 ± 175 nmol mg−1 min−1.

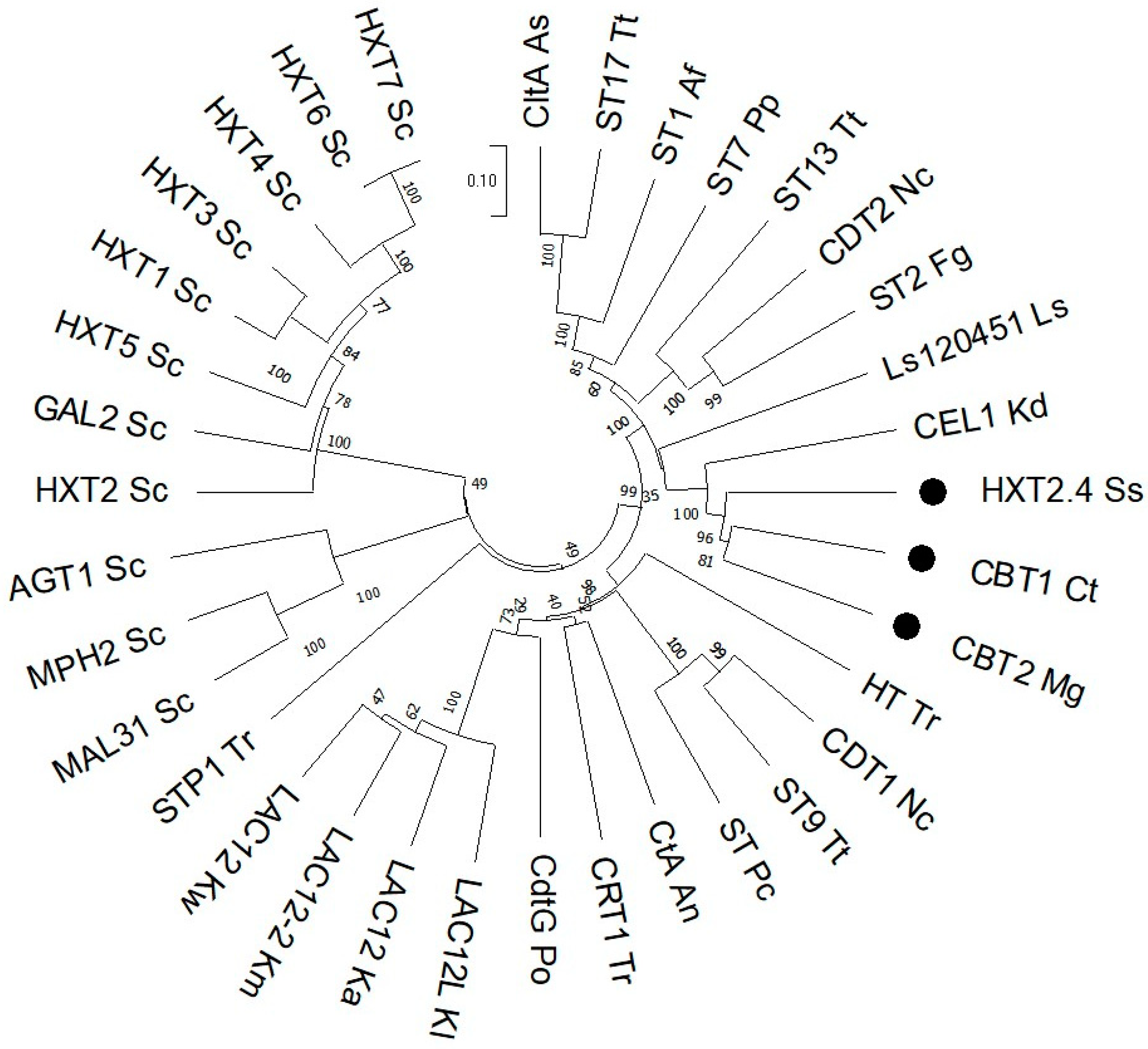

3.2. Cloning and Expression of Yeast Sugar (Cellobiose) Transporters in S. cerevisiae

The S. cerevisiae strain B7, having high intracellular β-glucosidase activity but unable to grow on cellobiose, was used as a platform to identify putative sugar transporters capable of mediating the uptake of cellobiose. First, and taking into account the close relationship between Sc. stipitis and Sc. illinoinensis [63], we used the genomic information of Sc. stipitis [56] to design primers and amplify the corresponding HXT2.4 cellobiose transporter [37] from Sc. illinoinensis. Primers HXT2.4-F and HXT2.4-R (Table 2) allowed the amplification of a 1.7-1.8 Kb DNA fragment from the genome of Sc. illinoinensis, which was cloned into the pGPD-426 plasmid (Table 1). We also used the amino acid sequence of the CDT-2 cellobiose transporter from N. crassa [26,34,36] to search for yeast putative cellobiose transporters and found two sequences, one with 28% identity with CDT-2 present in the genome of the yeast C. tropicalis (and thus named CtCBT1), and another sequence with 27% identity in the genome of M. guilliermondii (named as MgCBT2). Using specific primers for these genes (Table 2), these putative cellobiose transporters were cloned into the pGPD-426 plasmid (Table 1). As can be seen in Figure 1, the co-expression in S. cerevisiae of the intracellular SpBGL7 β-glucosidase together with any of the three transporters (SiHXT2.4, CtCBT1, and MgCBT2) allowed cell growth on cellobiose, although cellobiose consumption and cell growth was lower in the strain expressing the SiHXT2.4 permease. Very low growth rates were obtained during cellobiose consumption, with μ = 0.0403 h−1 for the strain expressing the SiHXT2.4 permease, μ = 0.0408 h−1 for the strain with the CtCBT1 transporter, and μ = 0.0413 h−1 for the strain expressing the MgCBT2 permease.

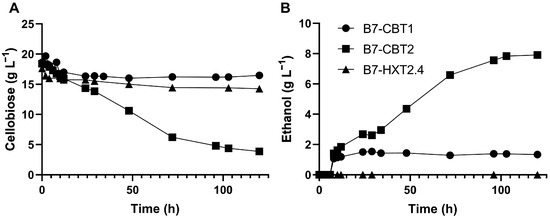

We next tested the capacity of these laboratory yeast strains to ferment cellobiose under microaerobic conditions (Figure 2). While the strain harboring the SiHXT2.4 permease consumed small amounts of cellobiose and could not produce any ethanol, the strain with the CtCBT1 transporter also consumed very small amounts of cellobiose and produced less than 1.5 g/L of ethanol from the sugar. The best results regarding cellobiose fermentation were with the strain expressing the SpBGL7 β-glucosidase together with the MgCBT2 permease, which consumed more than 16 g/L of cellobiose and produced almost 8 g/L of ethanol, although the fermentation was incomplete.

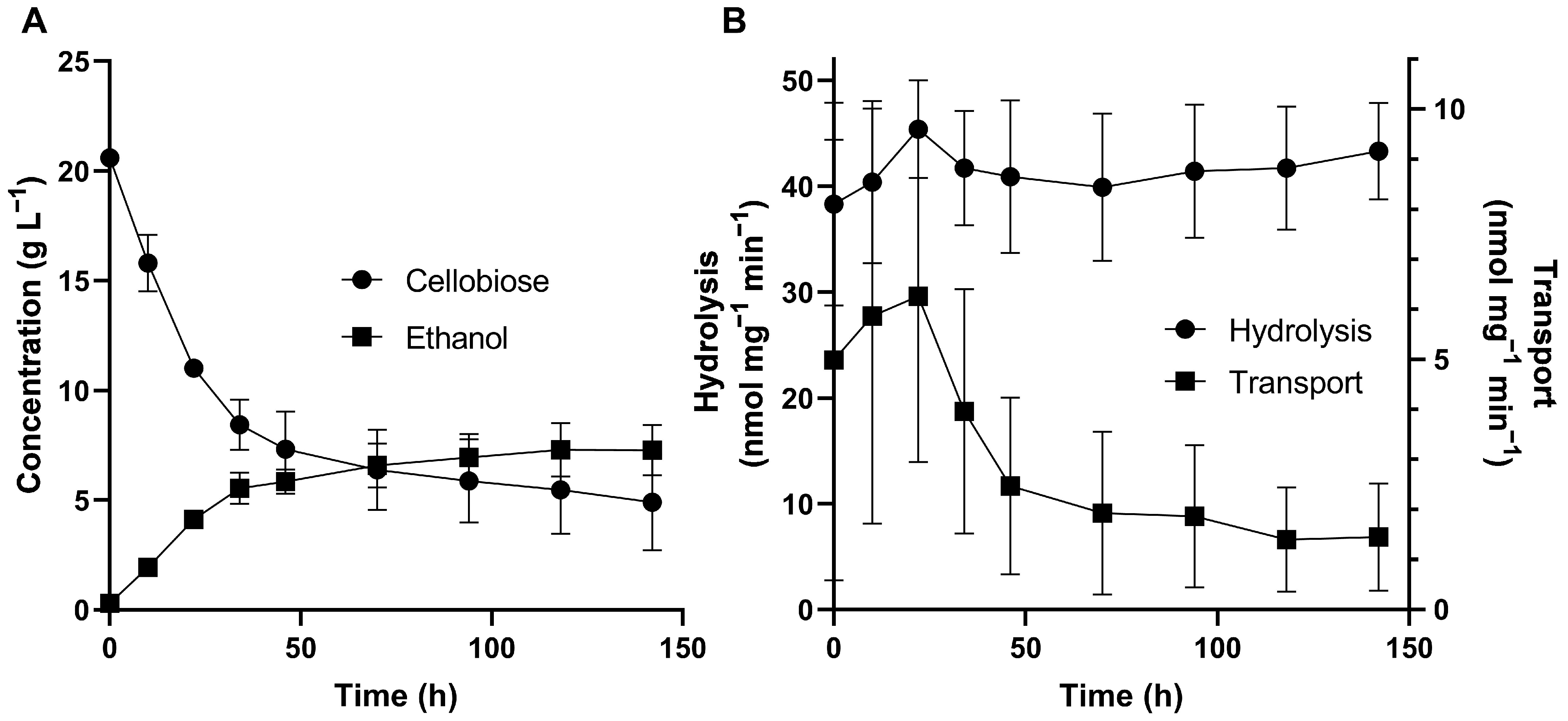

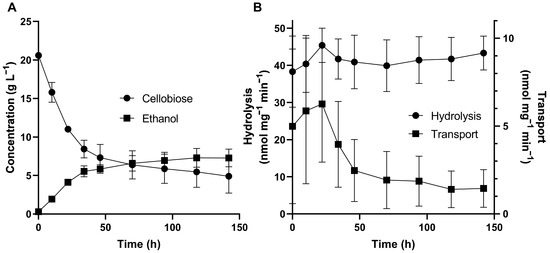

In order to better understand the reason for the cellobiose incomplete fermentation by strain B7-CBT2 (pGPD-424-SpBGL7 + pGPD-426-MgCBT2, Table 1), we initially used pNPβG, a synthetic analog of cellobiose, in a colorimetric assay to determine the transport activity of the MgCBT2 permease, as already described for the maltose permeases of S. cerevisiae [59]. After growth on cellobiose, the B7-CBT2 strain was capable of transporting 7.4 ± 1.6 nmol of pNPβG mg−1 min−1. The B7-CBT2 cells were also capable of transporting pNPβX (3.3 ± 0.1 nmol mg−1 min−1), indicating that the MgCBT2 permease probably also transports xylobiose. Figure 3 shows the intracellular β-glucosidase activity (determined with pNPβG), as well as the pNPβG transport activity (both activities were determined with 5 mM of substrate), during the incomplete cellobiose fermentation by strain B7-CBT2.
It is evident in Figure 3B that the intracellular β-glucosidase activity remained high throughout the fermentation period, while the transport activity was higher only in the first 36 h of the fermentation (at the time in which cellobiose was rapidly consumed and fermented, Figure 3A), and from 48 h on the transport activity dropped, and was accompanied by a significant drop in cellobiose consumption by the cells. Thus, our results indicate that the incomplete cellobiose consumption is a consequence of a drop in the transport activity and not in the intracellular hydrolysis of the disaccharide. Since a possible explanation for the drop in the transport activity is the well-known post-transcriptional mechanism of downregulation of yeast sugar permeases involving ubiquitinylation, endocytosis, and vacuolar degradation [64], we next identified lysine residues (the site of ubiquitinylation) in the N- and C-terminal domains of the MgCBT2 transporter, in order to develop strategies to avoid this drop in transport activity causing cellobiose incomplete fermentations.

3.3. Identification of Possible Lysine Residues Involved in Ubiquitinylation and Down-Regulation of the MgCBT2 Cellobiose Transporter Expressed in S. cerevisiae

Our data indicated that the best cellobiose transporter from yeasts that we cloned was MgCBT2 from M. guilliermondii, but it still could not allow the use and fermentation of all cellobiose (incomplete fermentation) present in the medium. The analysis of the presence of lysine residues (K) with ubiquitinylation potential at the cytoplasmic C-terminal domain of the MgCBT2 transporter revealed 3 lysine residues (K534, K536 and K544) with high ubiquitinylation potential present in the last 12 amino acids of the transporter (Figure 4), while at the cytoplasmic N-terminal domain only 2 lysine residues (K10 and K20) were found with medium ubiquitinylation potential (Figure 4).

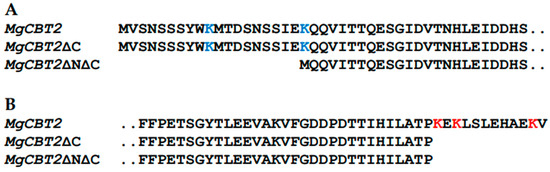

Considering that lysine residues with ubiquitinylation potential are involved in removing the transporters from the plasma membrane through endocytosis [64,65], we decided to remove these terminal lysine residues by simply truncating the MgCBT2 permease. We removed the last 12 amino acid residues of the protein (with 3 lysine residues with high ubiquitinylation potential) by introducing a premature stop codon during cloning as described in Materials and Methods, and this modified transporter was denominated MgCBT2ΔC (Figure 4). Another truncated version of MgCBT2 was produced where we not only removed the last 12 amino acid residues but also the first 19 amino acid residues of the protein (after the initial methionine), producing the MgCBT2ΔNΔC transporter lacking all lysine residues with ubiquitinylation potential from both the N- and C-terminal domains (Figure 4).

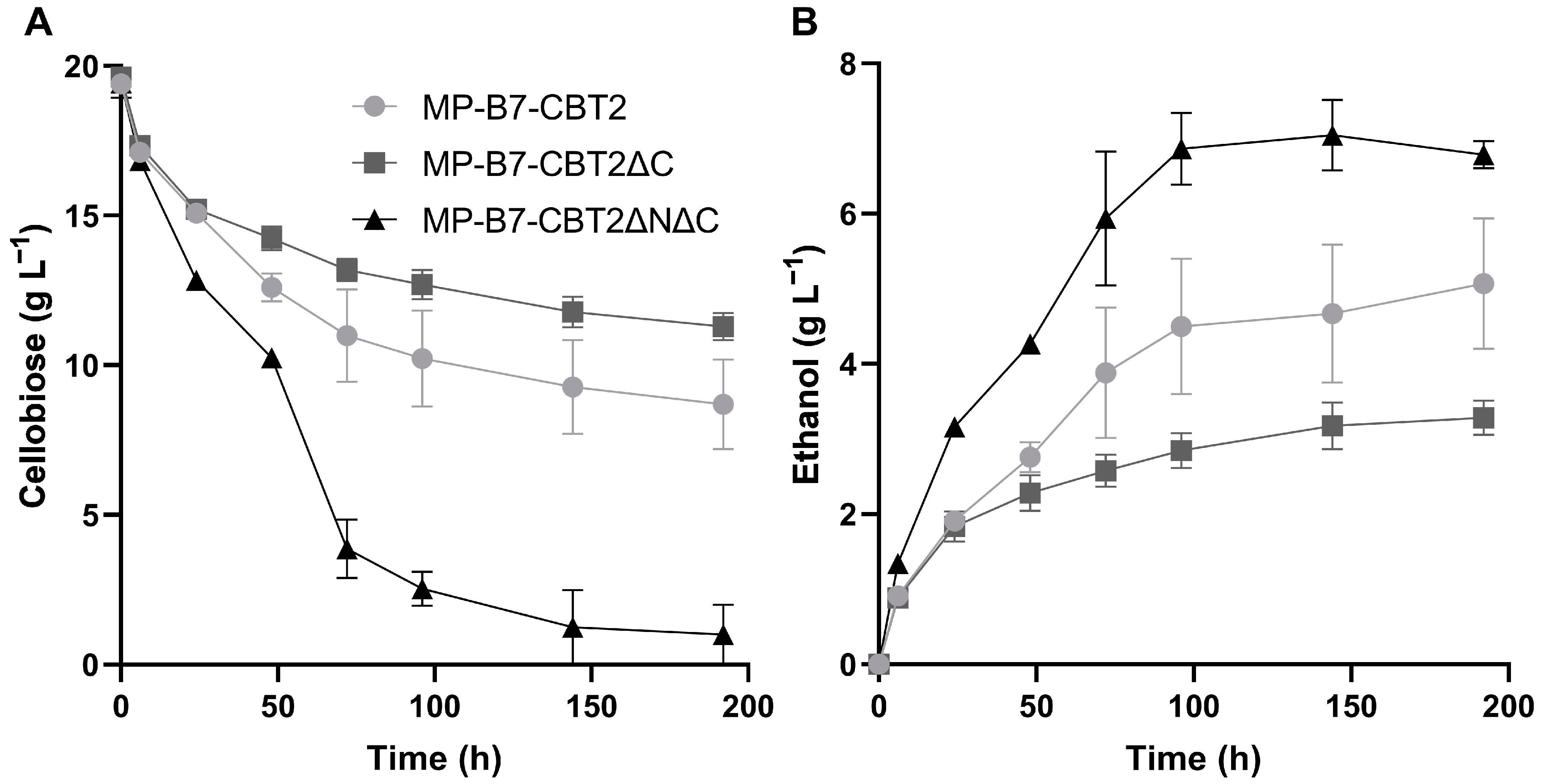

These cellobiose transporters (MgCBT2, MgCBT2ΔC, and MgCBT2ΔNΔC), as well as the intracellular SpBGL7 β-glucosidase, were introduced into the genome of an industrial S. cerevisiae strain (MP-C5H1) capable of fermenting xylose, using CRISPR-Cas9 as described in Materials and Methods. As can be seen in Figure 5, while the strain harboring the MgCBT2ΔC transporter continued to produce incomplete cellobiose fermentations as the strain with the wild-type MgCBT2 permease, the strain with the MgCBT2ΔNΔC permease was able to consume and ferment all the cellobiose present in the medium, producing higher levels of ethanol. However, is important to note that although this yeast strain with MgCBT2ΔNΔC consumes all the sugar, the ethanol yield (Yp/s = 0.38 ± 0.01 g of ethanol/g of consumed cellobiose) is very similar to the one obtained with the strain harboring the truncated MgCBT2ΔC transporter (Yp/s = 0.39 ± 0.01 g of ethanol/g of consumed cellobiose), and lower when compared with the wild-type MgCBT2 permease (Yp/s = 0.47 ± 0.02 g of ethanol/g of consumed cellobiose).

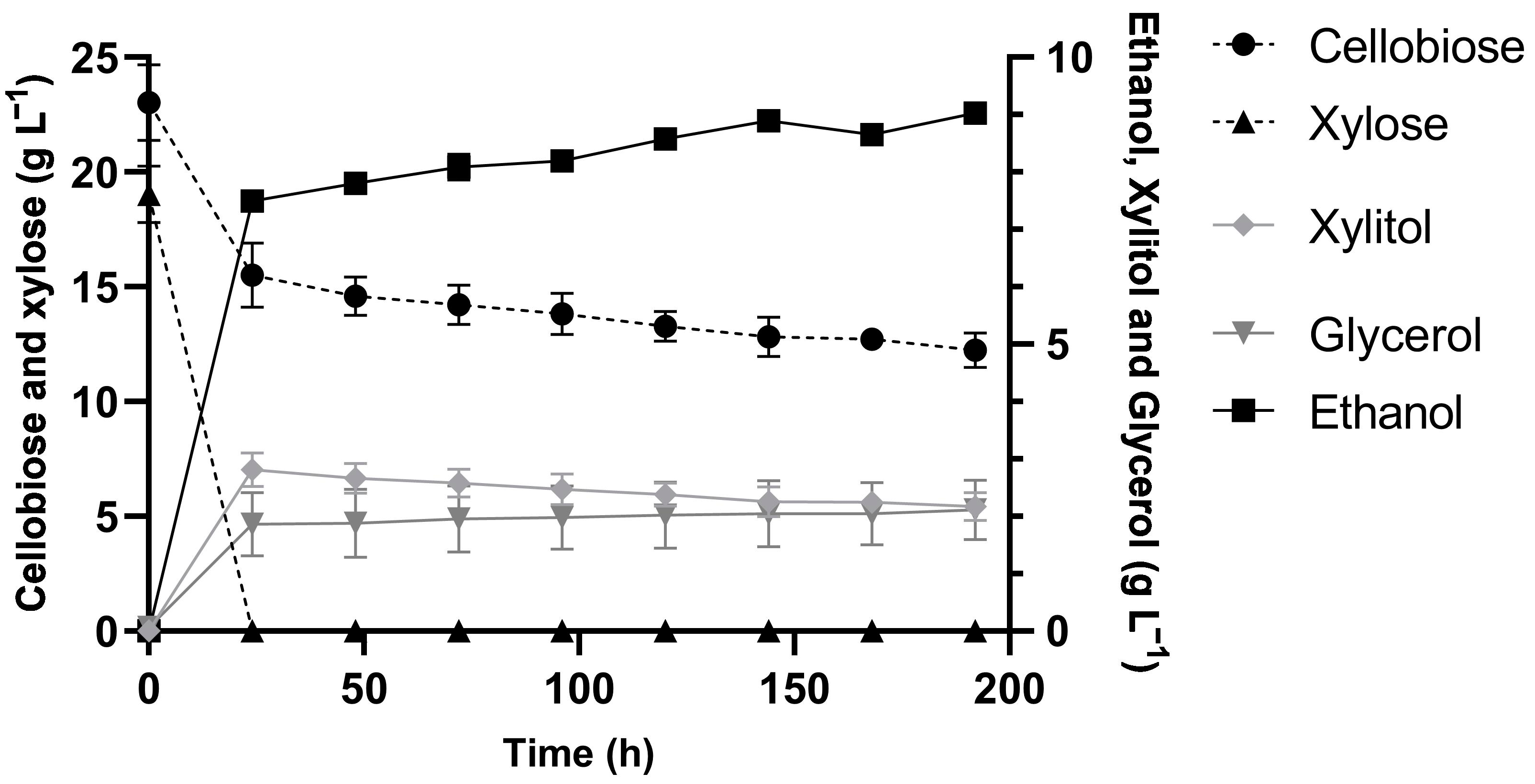

Finally, since cellobiose transport and intracellular hydrolysis by recombinant S. cerevisiae may contribute to cellobiose–xylose co-fermentations [29,30,31], we performed such fermentations with the industrial xylose-fermenting strain MP-C5H1 harboring the MgCBT2ΔNΔC transporter and SpBGL7 β-glucosidase (strain MP-B7-CBT2ΔNΔC, Table 1). As can be seen in Figure 6, xylose is indeed totally consumed and fermented in the first 24 h, and although cellobiose is also consumed during that period, it is consumed very slowly after that time point (thus an incomplete cellobiose fermentation), even considering that the strain harbors the MgCBT2ΔNΔC transporter lacking lysine residues in both the N- and C-terminal domains. While cellobiose is consumed slowly, the xylitol produced from xylose fermentation also drops, thus both are probably contributing to the slight increase in ethanol produced (from 7.5 to 8.9 g/L) by the cells during the slow fermentation.

4. Discussion

We have cloned an intracellular β-glucosidase gene (SpBGL7) from the cellobiose fermenting yeast Sp. passalidarum [39] and expressed it in S. cerevisiae. While the β-glucosidase gh1-1 from N. crassa belongs to the GH1 family of glycosyl hydrolases, the cloned enzyme belongs to the GH3 family, where are found not only β-glucosidases but also β-xylosidases and other enzymes. The SpBGL7 enzyme had higher affinity with pNPβG and pNPβX, and lower affinity with cellobiose, as already reported for other β-glucosidases characterized biochemically from yeasts [66,67]. Figure 7 shows a phylogenetic analysis of some β-glucosidases from yeasts and fungi, including the BGL7 from Sp. passalidarum cloned in this work. Using the S. cerevisiae strain expressing the SpBGL7 enzyme allowed the identification and cloning of three yeast cellobiose transporters that permitted the growth of the strain in the presence of cellobiose. Figure 8 shows that the three transporters (we included the HXT2.4 permease from Sc. stipitis [37], although the transporter we cloned was from Sc. illinoinensis) are close to the known yeast cellobiose transporters, including the one cloned from L. starkeyi [38] and a cellobiose transporter CEL1 from Kluyveromyces dobzhanskii (that allows growth of S. cerevisiae on cellobiose, but no fermentation data are available) [68]. Note that in general, Kluyveromyces yeasts can utilize cellobiose through the lactose permease encoded by LAC12. The cloned transporters are also closer to CDT-2 from N. crassa, and other transporters known to transport cellodextrins and xylobiose.
Although the three transporters allowed the growth on cellobiose by the recombinant S. cerevisiae strain, only the MgCBT2 permease from M. guilliermondii allowed cellobiose fermentation, but the consumption of the sugar stopped after 50–75 h, leading to an incomplete fermentation. Our analysis revealed that the reduced transport activity over time was responsible for this incomplete fermentation, and that prompted us to look for lysine residues in the N- or C-terminal cytoplasmic domains of the MgCBT2 transporter that could be ubiquitinylated, a signal that triggers the endocytosis and vacuolar degradation of plasma membrane transporters. Indeed, some years ago Sen and co-workers [69] showed that S. cerevisiae cells expressing the CDT-2 cellobiose transporter also produced incomplete cellobiose fermentations, and that cellobiose transport triggers the internalization of the permease, and they were able to identify that four α-arrestins (ROD1, ROG3, ALY1, and ALY2) are primarily responsible for this ubiquitinylation and internalization of the CDT-2 transporter. We have also shown that other heterologous sugar transporters expressed in S. cerevisiae are removed from the plasma membrane through the action of the ROD1 and ROG3 α-arrestins [70]. In another approach, mutated versions of the CDT-2 permease were engineered changing cytoplasmic lysine residues into arginine and revealing that lysine residues in the C-terminal domain were responsible for the α-arrestin mediated internalization of the transporter. A truncated C-terminal CDT-2 transporter (losing the last lysine, K522) was also shown to remain stable at the plasma membrane, and either the mutant CDT-2 permease lacking lysine residues at the C-terminal domain, or the same transporter truncated at this C-terminal domain, showed improved cellobiose consumption and fermentation [69]. Truncation at the C-terminal domain of other sugar transporters is an interesting strategy that allows stable expression of the permeases at the plasma membrane, allowing better sugar consumption and fermentation [70,71,72]. However, for other permeases (e.g., HXT1, GAL2) the lysine residues involved in ubiquitinylation and endocytosis can be present in the N-terminal domain [73,74]. For example, the HXT1 hexose transporter from S. cerevisiae lacking practically all the N-terminal domain is stable and functional at the plasma membrane, allowing efficient xylose fermentation by recombinant S. cerevisiae cells [49,74,75,76].
In the case of the MgCBT2 transporter, we found three lysine residues at the C-terminal domain with high ubiquitinylation potential, and two others (with medium ubiquitinylation potential) at the N-terminal domain. Truncation of the MgCBT2 permease at the C-terminal domain did not improve cellobiose consumption, when the transporter was expressed in an industrial S. cerevisiae strain (Figure 5), but when both cytoplasmic terminal domains were truncated (removing the first 19 amino acids, and the last 12 amino acids), the MgCBT2ΔNΔC transporter allowed total cellobiose consumption and fermentation by the recombinant yeast cells. Although the ethanol yield of the strain with the MgCBT2ΔNΔC transporter was lower than the ethanol yield of the unchanged MgCBT2 permease, there was a clear advantage with the MgCBT2ΔNΔC transporter in terms of ethanol titer, as the transporter truncated in the N- and C-terminal domains produced 33.7% more ethanol than the MgCBT2 permease, and more than doubled the amount of ethanol produced with the MgCBT2ΔC transporter (Figure 5). However, during co-fermentation of cellobiose with xylose, the cells expressing the MgCBT2ΔNΔC transporter could not consume all the cellobiose present in the medium after the total consumption and fermentation of xylose, indicating that probably other factors are impairing the activity of the MgCBT2ΔNΔC permease, or the intracellular metabolism of cellobiose. One such factor could be the ethanol produced during fermentation, as many nutrient transporters are sensitive to high ethanol concentrations [77,78]. Indeed, when we performed a co-fermentation of 20 g/L sucrose plus 20 g/L cellobiose by the industrial yeast strain harboring the MgCBT2ΔNΔC transporter, sucrose was efficiently fermented in 24 h, producing 10 g/L ethanol, and although some cellobiose was consumed initially, from that time point on, cellobiose was consumed very slowly, producing an incomplete fermentation.
In general, cellobiose fermentation by recombinant S. cerevisiae yeasts is much slower than the fermentation of other sugar (e.g., glucose), with also lower ethanol yields [26,27], see Table 3. As expected, the fermentation performance is influenced by the yeast strain background, the genes used, and the concentration of cellobiose. Is worth noting that, compared with other yeast cellobiose transporters (e.g., HXT2.4 and Ls120451), the one cloned and engineered in this work (MgCBT2) gave better results (Table 3). In general, industrial strains perform better than laboratory strains, and mutant versions (or truncated versions) of the transporter genes also show interesting results. Several other strategies have been employed to increase cellobiose consumption and fermentation, including mutagenesis, direct evolution/selection (also called evolutionary engineering) [37,79,80,81,82,83], as well as increasing the copy number of transporter or β-glucosidase genes [84,85]. Our results show that the identification of cytoplasmatic lysine residues in the N- or C-terminal domain capable of ubiquitinylation, and removing such residues by truncating the transporter, is another interesting strategy for enhancing cellobiose consumption and fermentation. Another issue that needs to be considered is the fact that cellobiose is not recognized by S. cerevisiae as a sugar to be fermented [86], and thus it is also required to introduce/engineer transcriptional factors to increase cellobiose fermentation by this industrial yeast [87,88]. Another strategy recently described to increase cellobiose fermentation is the deletion of the mitochondrial adenylate kinase encoded by the ADK2 gene, or the deletion of the MRX1 gene involved in the response to oxidative stress that was shown to increase cellobiose (and xylose) fermentation by recombinant S. cerevisiae [89,90]. It would be interesting to verify if some of these strategies would enhance cellobiose fermentation by an industrial S. cerevisiae expressing the intracellular β-glucosidase encoded by the SpBGL7 gene and the MgCBT2ΔNΔC cellobiose transporter.

5. Conclusions

In the present work, we have cloned an intracellular β-glucosidase encoded by the SpBGL7 gene from the xylose-fermenting yeasts Sp. passalidarum, and three cellobiose transporters from yeasts (HXT2.4 from Sc. illinoinensis, CBT1 from C. tropicalis, and CBT2 from M. guilliermondii) that allowed the growth of recombinant S. cerevisiae cells on this carbon source. While the CBT2 transporter allowed an incomplete fermentation of cellobiose, the truncation of the N- and C-terminal domains, removing lysine residues with ubiquitinylation potential, allowed the complete consumption and fermentation of cellobiose by an industrial yeast strain. This work therefore highlights the importance of post-translational modifications in the correct expression of novel sugar transporters in recombinant S. cerevisiae strains.

Author Contributions

Conceptualization, L.G.K., M.M.K. and B.U.S.; investigation, methodology, and formal analysis, L.G.K., M.M.K., L.C.d.S., I.C.C.d.F. and M.J.L.; resources, C.F., M.J.L., K.J.V. and B.U.S.; writing—review and editing, C.F., M.J.L. and B.U.S.; project administration and funding acquisition, C.F., K.J.V. and B.U.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported in part by grants and fellowships from the Brazilian agencies CAPES (process no 7207-15-8 and 88887.575075/2020-00), CNPq (process no 307290/2012-3, 478841/2013-2, 30862/2015-6, 308389/2019-0 and 309047/2023-4), and FINEP (process no 01.09.0566.00/1421-08), and also by the Fundação para a Ciência e a Tecnologia (FCT), Portugal (CAPES/FCT process no 359/14 and postdoctoral fellowship SFRH/BPD/102803/2014 to M.J.L.) and I.P., Project MOSTMICRO-ITQB. K.J.V. acknowledges funding from VIB, VLAIO, KU Leuven, FWO, and project FWO SBO S004624N LAPLACE. This work is also part of the project “INCT Yeasts: Biodiversity, preservation and biotechnological innovation”, supported by grants and fellowships from CNPq (process 406564/2022-1).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data used in this study are included in the manuscript, and further inquiries can be directed to the corresponding author.

Acknowledgments

We would like to thank Carlos A. Rosa (Federal University of Minas Gerais, Brazil) for providing some of the yeast strains used in the present work.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
