Functional Alpha and Beta Diversity of Fish Communities and Their Relationship with Environmental Factors in the Huanghe River (Yellow River) Estuary and Adjacent Seas, China

Abstract

Fisheries and bottom seawater data were collected in July in 2022 and 2023 from 15 sampling stations in the Huanghe River estuary and adjacent seas in China. The patterns of functional alpha and beta diversity of fish communities in this area and their relationships with environmental factors were studied using trait-based analysis. Five functional classifications, which included 16 functional traits, four functional alpha diversity indices (functional richness, functional evenness, functional divergence, and community-weighted mean), three functional beta diversity indices (functional beta diversity and its turnover and nestedness components), and 14 bottom environmental factors were considered. The dominant traits of fish communities were the following: benthivorous feeding habits, small and front-facing mouths, high trophic level, demersal, anguilliform, low growth coefficient, medium resilience, low vulnerability, and adapted to warm temperate conditions. The dominant migration traits and types of fish eggs varied by year, and fish abundance was the main factor affecting the dominant traits of the communities. The results of multiple regression on distance matrices and variance partitioning analysis indicated that ammonia nitrogen content, total phosphorus content, and pH were the main environmental factors that affected fish functional diversity. The N/P ratio had a bottom-up control effect on fish functional diversity. Our findings also revealed that high pH gradients and distant geographical distances can inhibit trait turnover in fish communities.

1. Introduction

Determining biodiversity distribution patterns, maintenance mechanisms, and response mechanisms to environmental change are core issues in community ecology [1,2,3]. In the 1960s, Whittaker divided biodiversity patterns into three scales: alpha diversity (α), beta diversity (β), and gamma diversity (γ) [4,5]. Alpha and gamma diversity share the same characteristics but are applied at different scales. The alpha diversity scale is the smallest and describes the species diversity of a quadrat. The gamma diversity scale is the largest and describes the diversity of species in an entire ecosystem or study area. Beta diversity describes differences in community composition between habitats or the rate at which species are replaced along environmental gradients. Understanding these three types of diversity patterns can solve many ecological and evolutionary biology problems, and they are extremely important for understanding ecosystem functioning and effective biodiversity conservation, as well as ecosystem management [6]. However, for a long time, scholars primarily focused on alpha and gamma diversity. The beta diversity decomposition method was proposed in 2010, and beta diversity-related studies rapidly increased [7].

In terms of diversity research, traditional community ecology mainly focuses on species diversity, such as species composition and quantity. In fact, communities with the same number of species are likely to have substantial differences in living habits, forms, and other aspects [8]. Therefore, traditional taxonomic diversity does not truly reflect the status of species in ecosystems and their impact on ecosystem functions [9,10]. In recent years, ecologists have found that functional diversity based on the functional traits of species is more closely related to the environment than taxonomic diversity. This provides a more scientific basis for species conservation and management [11,12]. An increasing number of scholars have proposed that functional diversity should be used instead of species diversity to study communities.

From the perspective of functional diversity, functional alpha diversity reflects the difference or diversity of functional traits of species within a community. Mason et al. [13] divided functional alpha diversity into functional richness, functional evenness, and functional dispersion, and they proposed a calculation method. Recent studies on the functional alpha diversity of fishes in China has mainly focused on freshwater fishes, and there have been few studies on marine fish communities, with studies only having been conducted in Haizhou Bay [14], Pipa Island Ocean Ranch [15], and Changdao Island [16] in Shandong, China. The functional traits commonly used in the above studies include feeding, movement, and morphological characteristics, such as feeding, mouth position, habitat position, and migration type.

Unlike functional alpha diversity, functional beta diversity describes the changes in the composition of functional diversity between communities under different environmental gradients [17,18]. Recent studies indicated that differing functional beta diversity between communities is mainly due to two processes—species increase or loss and species replacement or turnover. The former leads to differences in species richness between communities, whereas the latter leads to a decrease in common species and an increase in endemic species between communities [19,20,21]. When a community with fewer species is a subset of a community with more species, it appears as a nested pattern [22,23]. Therefore, functional beta diversity can be decomposed into the form of the addition of the turnover and nested components [24,25,26]. In China, studies have only been conducted on the functional beta diversity of marine fishes in Haizhou Bay in Shandong Province [27,28] and offshore of Yantai and Weihai [29].

The Huanghe River is the second largest river in China, and its mouth is located in Bohai Bay, China. Here, water of the river and ocean converge to form a sensitive and complex ecosystem at the Huanghe River estuary [30,31]. The average water depth of the Huanghe River estuary and adjacent seas is 11.2 m, with a maximum depth of 18 m and a minimum depth of 2.8 m. The channel width of the Huanghe River at Lijin station (79 km from the estuary) is 0.58 km. In the past 20 years, the annual average runoff at Lijin Station was 168.56 × 10² hm³, of which the runoff during the flood season was 90.52 × 10² hm³ and 78.04 × 10² hm³ during the non-flood season. The minimum value was 41.90 × 10² hm³ in 2002, and the maximum value was 359.79 × 10² hm³ in 2020 [32,33]. The influx of freshwater creates a low-salinity zone in the estuary. This area provides a suitable shelter for marine life to reproduce and survive. Additionally, the freshwater and sediment of the Huanghe River transport a lot of nutrients to the coastal area of the estuary. For example, the concentration of dissolved organic carbon from the estuary to offshore of the Huanghe River during the flood season can reach 2.6–3.1 mg L⁻¹, which increases primary productivity [34,35]. Therefore, this area is an important spawning, breeding, and feeding ground for fishes in the Yellow and Bohai Seas of China [36]. The unique environmental gradient is an important reason for the high level of biodiversity in the Huanghe River estuary. According to historical records, there were more than 600 marine species in the Huanghe River estuary [37].

The fish community is an important part of the biodiversity in the Huanghe River estuary. Most studies on fish communities focus on biological characteristics, resource density, species diversity, and community structure, but there are no reports on functional diversity. Comparative studies of alpha and beta diversity on a regional scale represent important research in ecology [38]. The main objectives of this study were to (1) describe the functional alpha and beta diversity patterns of fish communities in the Huanghe River estuary and (2) identify the relationship between their biodiversity patterns and environmental gradients in the estuary. These results can improve our understanding of estuarine and marine biodiversity and will contribute to their conservation and maintenance.

2. Materials and Methods

2.1. Data Source

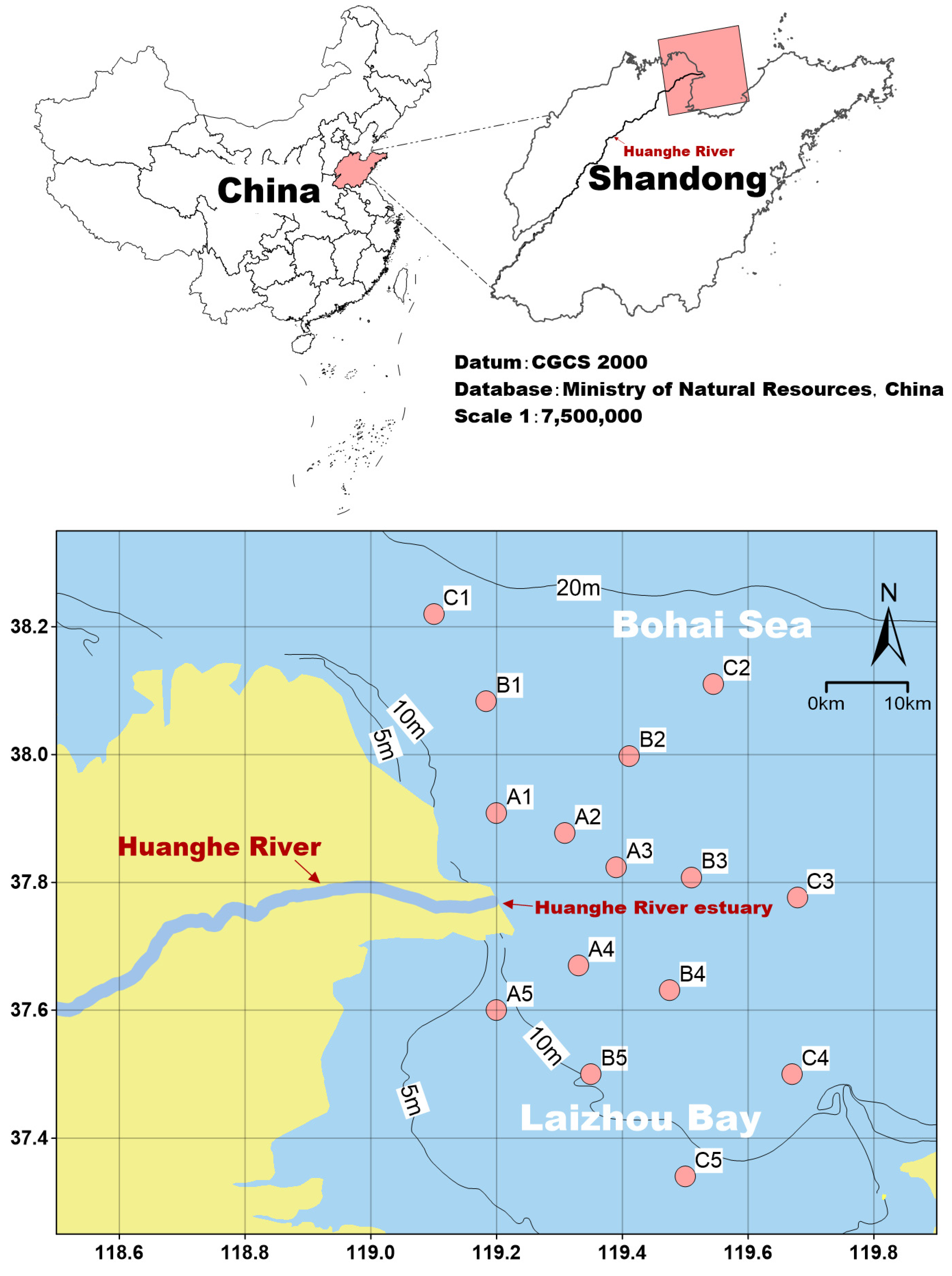

We conducted bottom trawl surveys of fishery resources in July 2022 and 2023 in offshore areas of the Huanghe River estuary in China. The survey range was 119°00′–119°08′ E, 37°02′–38°03′ N. Samples were collected from 15 sampling stations (37°20′–38°09′ N, 119°05′–119°40′ E), which were divided into three groups according to the distance from the Huanghe River mouth. Sections A, B, and C were located 15–20, 25–35, and 40–55 km from the estuary mouth, respectively (Figure 1).

The fishing vessel used for surveys was “Luchangyu 60003”. This vessel has a Yuchai MKF56K00018 engine (Guangxi Yuchai Machinery Group Co., Ltd., Yulin, China), which has a power of 260 kW. The vessel is 24.4 m long and 6.0 m wide and weighs 68 t. A single bottom trawl was used. The trawl mouth has a 30.6 m circumference, 20 mm bag mesh, and ~8 m diameter when towing. The designed average towing speed at each station was 2 kn, and the trawling time was 1 h. The catches were identified on site and counted, and biological parameters (e.g., body length and weight, accurate to 1 mm) measured. The bottom-water temperature (TEM), salinity (SAL), depth (DEP), pH, and dissolved oxygen (DO) were recorded using a profiler (YSI EXO Handheld; Yellow Springs Instrument Co., Inc., Yellow Springs, OH, USA). Bottom chemical oxygen demand (COD) was determined using the basic potassium permanganate method. Bottom dissolved inorganic phosphate (DIP) and nitrogen (DIN, including NO₃–N, NO₂–N, and NH₄–N) were analyzed using segmented flow analysis. Bottom total nitrogen (TN) and total phosphorus (TP) were measured using the potassium persulfate oxidation method. Chlorophyll a (Chla) was measured using a fluorescence spectrophotometer. Suspended solids (SSs) were measured using the membrane filtration method. Biological and environmental samples were collected simultaneously. All indicators were collected and measured according to the Specification for Oceanographic Survey Part of the National Standards of PRC (GB/T 12763–2007).

2.2. Methods

2.2.1. Functional Traits

Sixteen functional traits related to fish feeding, motility, reproduction, population dynamics, and ecological adaptation were selected, including 9 categorical traits and 7 continuous traits (

Table 1. Classification of functional traits of fishes in the Huanghe River Estuary and adjacent seas.

Classification of Function	Type of Functional Traits	Variable Type	Functional Trait
Food acquisition	Feeding habits	Ordered categorical variables	Herbivorous (H), Planktivorous (P), Planktivorous and Benthivorous (P–B), Benthivorous (B), Benthivorous and Nektivorous (B–N), Nektivorous (N)
	Mouth position	Ordered categorical variables	Lower, Front, Upper
	Relative mouth size	Ordered categorical variables	Small (S), Comparatively small (CS), Medium (M), Comparatively big (CB), Big (B)
	Trophic level	Continuous variable	2.5~4.8
Locomotion	Habitat	Unordered categorical variable	Demersal (De), Pelagic (Pe)
	Migration type	Ordered categorical variables	Settlement type (ST), Coastal migratory (CM), Offshore migratory (OM), Distantly migrating (DM)
	Body shape	Unordered categorical variable	Fusiform (1), Compressiform (2), Depressiform (3), Anguilliform (4), Asymmetry (5), Sub-cylinder (6), Slightness (7), Cylindrical anterior part and compressed posterior part (8), Band shape (9), Depressed anterior part and compressed posterior part (10), Sub-cylindrical anterior part and compressed posterior part (11)
	Maximum body length (cm)	Continuous variable	9.0~113.0
Reproduction	Body length at first sexual maturity (cm)	Continuous variable	6.8~52.7
	Age at first sexual maturity (a)	Continuous variable	0.8~3.8
	Generation time (a)	Continuous variable	1.0~8.5
	Ecological type of eggs	Unordered categorical variable	Pelagic eggs (PE), Adhesive eggs (AE), Demersal adhesive eggs (DAE), Pelagic adhesive eggs (PAE), Ovoviviparous (O)
Population dynamics	Growth coefficient (k)	Continuous variable	0.18~0.80
	Resilience	Ordered categorical variables	Low resilience (Lr), Medium resilience (Mr), High resilience (Hr)
	Vulnerability	Continuous variable	10~60
Ecological adaptation	Thermophily	Unordered categorical variable	Cold temperate (CT), Warm temperate (T), Warm water (WW)

). The values or types of functional traits were mainly obtained from the World Fish Database (FishBase) [39] and previous papers [14,15,40,41,42,43,44,45,46,47]. The “species–traits” matrix of fishes is detailed in Appendix A

Table A1. List of fish species in the Huanghe River estuary and adjacent seas in 2022 and 2023 and their functional traits.

Family	Species	Feeding Habit	Mouth Position	Mouth Relative Size	Trophic Level	Habitat	Migration Type	Body Shape	Maximum Body Length (cm)	Body Length at First Sexual Maturity (cm)	Age at First Sexual Maturity (a)	Generation Time (a)	Ecological Type of Eggs	Growth Coefficient (k)	Vulnerability	Resilience	Thermo- phily
Apogonidae	Apogon lineatus	B	Front	CB	3.7	De	OM	2	9.00	6.8	0.8	1.0	PAE	0.50	12	Hr	WW
Callionymidae	Callionymus beniteguri	B	Front	S	3.3	De	ST	3	13.96	-	-	-	PE	0.52	13	Hr	T
Clupeidae	Konosirus punctatus	H	Front	CS	2.9	Pe	OM	2	32.00	18.1	2.9	3.2	PE	0.65	36	Hr	T
	Sardinella zunasi	P	Front	CS	3.4	Pe	OM	2	18.00	11.0	1.0	2.2	PE	0.50	22	Hr	T
Cottidae	Trachidermus fasciatus	B–N	Front	B	3.0	De	OM	10	17.00	10.9	1.0	-	DAE	-	10	Lr	CT
Cynoglossidae	Cynoglossus joyeri	B	Lower	S	4.3	De	CM	5	24.00	17.2	3.8	4.1	PE	0.20	40	Mr	T
	Cynoglossus semilaevis	B	Lower	S	3.7	De	CM	5	61.10	34.6	2.8	3.8	PE	0.26	44	Mr	T
Engraulidae	Engraulis japonicus	P	Lower	B	3.6	Pe	OM	2	18.00	10.0	1.0	4.0	PE	0.79	10	Hr	T
	Setipinna taty	P	Lower	B	3.6	Pe	OM	2	22.20	12.4	1.0	-	PE	0.57	17	Hr	WW
	Thrissa kammalensis	P	Lower	B	3.4	Pe	OM	2	18.00	8.9	2.4	3.3	PE	0.56	32	Mr	T
	Thrissa mystax	P	Lower	B	3.6	Pe	OM	2	19.00	13.0	1.0	-	PE	0.56	11	Hr	WW
Gobiidae	Acanthogobius ommaturus	B	Front	CB	3.4	De	ST	8	50.00	12.1	1.0	1.0	AE	0.20	50	Lr	T
	Amblychaeturichthys hexanema	B	Front	S	3.4	De	ST	4	17.40	11.4	1.9	2.5	AE	0.70	10	Mr	T
	Amoya pflaumi	B	Front	CS	3.1	De	ST	8	12.00	8.9	1.0	1.4	AE	0.44	10	Hr	WW
	Chaeturichthys stigmatias	B	Front	S	3.8	De	ST	4	28.20	11.8	2.7	2.9	AE	0.45	18	Mr	T
	Ctenotrypauchen chinensis	B	Front	S	3.8	De	ST	2	19.20	-	-	-	AE	-	13	Mr	T
	Myersina filifer	B	Front	CS	3.4	De	ST	2	13.20	-	-	-	AE	-	10	Hr	WW
	Odontamblyopus lacepedii	B	Front	CB	3.9	De	ST	4	33.40	20.3	3.7	4.2	AE	0.19	31	Mr	WW
	Tridentiger barbatus	B	Front	S	3.5	De	ST	8	10.40	7.3	1.5	2.0	AE	0.56	14	Hr	T
Hexagrammidae	Hexagrammos otakii	P–B	Front	S	3.8	De	OM	2	57.00	11.6	2.0	2.9	AE	0.36	34	Mr	CT
Mugilidae	Liza haematocheila	P	Lower	S	2.5	De	ST	11	80.00	48.0	2.5	8.1	PE	0.31	58	Mr	T
Paralichthyidae	Paralichthys olivaceus	N	Front	M	4.5	De	CM	5	103.00	40.0	2.0	7.3	PE	0.24	60	Mr	T
Pholididae	Enedrias fangi	P–B	Front	M	3.2	De	CM	9	16.80	11.2	1.1	1.5	O	0.61	10	Hr	CT
Platycephalidae	Platycephalus indicus	B–N	Front	M	3.6	De	OM	3	100.00	45.7	1.8	2.5	PE	0.30	35	Mr	WW
Pleuronectidae	Kareius bicoloratus	B	Front	S	3.7	De	CM	5	50.00	31.6	3.7	4.8	PE	0.18	46	Lr	CT
Sciaenidae	Collichthys niveatus	P–B	Front	CS	3.6	De	CM	2	17.00	8.8	1.0	4.0	PE	0.42	17	Hr	T
	Johnius belengerii	B	Lower	CS	3.3	De	OM	2	30.00	12.5	1.3	1.5	PE	0.53	20	Hr	WW
	Larimichthys polyactis	B–N	Front	M	3.7	De	OM	2	40.00	18.1	1.0	3.0	PE	0.45	27	Mr	T
	Pennahia argentata	B	Lower	M	4.1	De	OM	2	40.00	11.1	1.6	2.0	PE	0.42	34	Hr	T
Scombridae	Scomberomorus niphonius	N	Front	CB	4.8	Pe	DM	1	113.00	37.0	1.0	8.5	PE	0.53	34	Mr	T
Serranidae	Lateolabrax maculatus	N	Upper	M	4.7	De	CM	2	102.00	52.7	2.0	5.2	PE	0.42	52	Mr	T
Sillaginidae	Sillago sihama	B	Front	S	3.4	De	OM	6	31.00	16.7	1.4	1.5	PE	0.80	24	Hr	WW
Stromateidae	Pampus argenteus	P	Front	S	3.3	Pe	DM	2	60.00	25.3	1.3	1.5	PE	0.56	31	Mr	WW
Syngnathidae	Syngnathus acus	P	Front	S	3.3	De	ST	7	50.00	16.3	-	-	O	-	40	Mr	T
Tetraodontidae	Takifugu niphobles	P–B	Front	S	3.4	De	OM	6	20.00	11.0	1.0	-	DAE	0.31	44	Mr	CT
	Takifugu pseudommus	P–B	Front	S	3.4	De	OM	6	35.00	-	-	-	DAE	-	33	Mr	T
Trichiuridae	Eupleurogrammus muticus	B	Front	CB	4.1	De	OM	9	87.00	-	-	-	PE	-	48	Hr	WW

H: Herbivorous; P: Planktivorous; P–B: Planktivorous and benthivorous; B: Benthivorous; B–N: Benthivorous and nektivorous; N: Nektivorous; S: Small; CS: Comparatively small; M: Medium; CB: Comparatively big; B: Big; De: Demersal; Pe: Pelagic; ST: Settlement type; CM: Coastal migratory; OM: Offshore migratory; DM: Distantly migrating; (1) Fusiform; (2) Compressiform; (3) Depressiform; (4) Anguilliform; (5) Asymmetry; (6) Sub-cylinder; (7) Slightness; (8) Cylindrical anterior part and compressed posterior part; (9) Band shape; (10) Depressed anterior part and compressed posterior part; (11) Sub-cylindrical anterior part and compressed posterior part; PE: Pelagic eggs; AE: Adhesive eggs; DAE: Demersal adhesive eggs; PAE: Pelagic adhesive eggs; O: Ovoviviparous; Lr: Low resilience; Mr: Medium resilience; Hr: High resilience; CT: Cold temperate; T: Warm temperate; WW: Warm water.

.

2.2.2. Functional Alpha Diversity

In this study, four functional diversity indices were used to measure the spatio-temporal variation of functional alpha diversity in fish communities [48,49]:

• Functional richness, FRic, quantifies the size of the ecological space occupied by a species within a community, thus reflecting the stability of the community and its ability to buffer environmental disturbances and resist ecological invasion [50]. FRic was calculated as follows. First, a species with an extreme character value was identified and used as the end point of the smallest convex shape in the N-dimensional character space. Then, the endpoints were connected to form a minimum convex polygon. Finally, the area or volume of the minimum convex polygon was calculated [48].
• Functional evenness, FEve, quantifies the evenness of the abundance of functional traits of species within a community that is distributed in functional space, thus reflecting the overall utilization of resources by species [50]. FEve was calculated as follows:

  $$dist\left(i,j\right)=\sqrt{{(a_i-a_j)}^2+{(b_i-b_j)}^2+\cdots +{(m_i-m_j)}^2}$$

  (1)

  $${EW}_l=dist\left(i,j\right)/(w_i+w_j)$$

  (2)

  $${PEW}_l={EW}_l/{\sum }_{l=1}^{S-1}{EW}_l$$

  (3)

  $${FE}_{ve}=\frac{\sum _{l=1}^{S-1}min\left({PEW}_l,\frac{1}{S-1}\right)-\frac{1}{S-1}}{1-\frac{1}{S-1}}$$

  (4)

  where a to m represent the 16 functional traits of species i and j in a multidimensional trait space, dist(i, j) is the Euclidean distance between species i and j, EW_l is the branch length, w_i and w_j are the relative abundances of species i and j, PEW_l is the branch length weight, and S is the number of species.
• Functional divergence, FDiv, quantifies the dispersion of species functional trait abundance within the community in the functional space, thus reflecting the degree of niche differentiation and resource competition among species within the community [51]. FDiv was calculated as follows:

  $$g_k=\frac{1}{S}{\sum }_{i=1}^S{x}_{ik}$$

  (5)

  $$d{G}_i=\sqrt{{\sum }_{k=1}^T{\left(x_{ik}-g_k\right)}^2}$$

  (6)

  $$\overline{dG}=\frac{1}{S}{\sum }_{i=1}^{S}d{G}_i$$

  (7)

  $$\mathsf{\Delta }d={\sum }_{i=1}^S{w}_i\times \left(d{G}_i-\overline{dG}\right)$$

  (8)

  $$\mathsf{\Delta }\left|d\right|={\sum }_{i=1}^S{w}_i\times \left|d{G}_i-\overline{dG}\right|$$

  (9)

  $${FD}_{iv}=\frac{\mathsf{\Delta }d+\overline{dG}}{\mathsf{\Delta }\left|d\right|+\overline{dG}}$$

  (10)

  where x_ik is the value of trait k for species I, g_k is the centroid of trait k, S is the number of species, T is the number of traits, $\overline{dG}$ is the average distance between species i and the centroid, Δd is the dispersion weighted by abundance, and w_i is the relative abundance of species i. The usage conditions were S > T.
• Community-weighted mean, CWM, quantifies the weighted average of functional traits of species within a community, thus reflecting the changes in dominant trait values of fish communities. CWM is very important for evaluating community dynamics [10]. CWM was calculated as follows:

  $$WM={\sum }_{i=1}^S{p}_i\times {trait}_i$$

  (11)

  where p_i represents the relative abundance of species i, trait_i is the trait value of species i, and S is the number of species in the community.

2.2.3. Functional Beta Diversity

Species occurrence and non-occurrence data (i.e., occurrence is 1, non-occurrence is 0) were used to calculate the functional beta diversity of fish communities. Before calculation, a Gower distance transformation was performed on the species–traits matrix, and the trait distance was calculated between species. Then, principal coordinate analysis was used to reduce dimensionality. The first four axes (cumulative explanation rate > 90%) were selected as input data for calculating the beta diversity of functional traits [52]. Using the additive decomposition method proposed by Baselga [24], the Sørensen dissimilarity index and multi-dimensional functional space were used to calculate the functional beta diversity of fish communities. This method decomposes functional beta diversity into the sum of turnover and nested components [48]. Measure the contribution of turnover components to functional beta diversity by their proportion to functional beta diversity. A ratio greater than 0.5 indicates that beta diversity is mainly dominated by turnover components, whereas a ratio less than 0.5 indicates that beta diversity is mainly dominated by nested components [18]. Functional beta diversity was calculated as follows:

^Fβ_sor = ^Fβ_sim + ^Fβ_sne

(12)

^Fβ_ratio = ^Fβ_sim/^Fβ_sne

(13)

where ^Fβ_sor represents the functional beta diversity, ^Fβ_sim is the turnover component of functional beta diversity, ^Fβ_sne is the nestedness component of functional beta diversity, and ^Fβ_ratio is the proportion of the turnover component to functional beta diversity.

2.2.4. Data Analysis

The functional alpha diversity indices were calculated using the “FD” package. The functional beta diversity and its components were calculated using the “betapart” package. Multiple regression on distance matrices (MRM) analysis was used to explore the relationship between spatial distance and environmental factors matrices with functional diversity and its components. Environmental factors were tested for correlation using a collinearity test, with correlation indicated by Spearman ρ² < 0.7. MRM analysis was performed in the “ecodist” package, and all p-values were obtained by 9999 Mantel tests. The distances between two stations and between each station and river mouth were calculated using the “distm” function of the “geosphere” package based on latitude and longitude. The Euclidean distance matrix of environmental factors was calculated using the “vegdist” function of the “vegan” package. A collinearity test on environmental factors was performed using the “varclus” function of the “Hmisc” package, and highly correlated (Spearman ρ² > 0.7) environmental factors were excluded. To compare the relative importance of each factor, the “stdize” function in the “MuMIn” package was performed to standardize the Euclidean distance matrix of each factor before running the MRM analysis [52]. Variance partitioning analysis (VPA) was performed to evaluate the contribution of geographic distance and environmental factors to the variance in functional diversity. VPA was performed using the “vegan” package [53].

All statistical analyses were conducted in R 4.2.2 and SPSS 17.0. Surfer 14, and Origin 2022 was also used to plot data.

3. Results

3.1. Fish Species Composition in the Huanghe River Estuary and Adjacent Seas

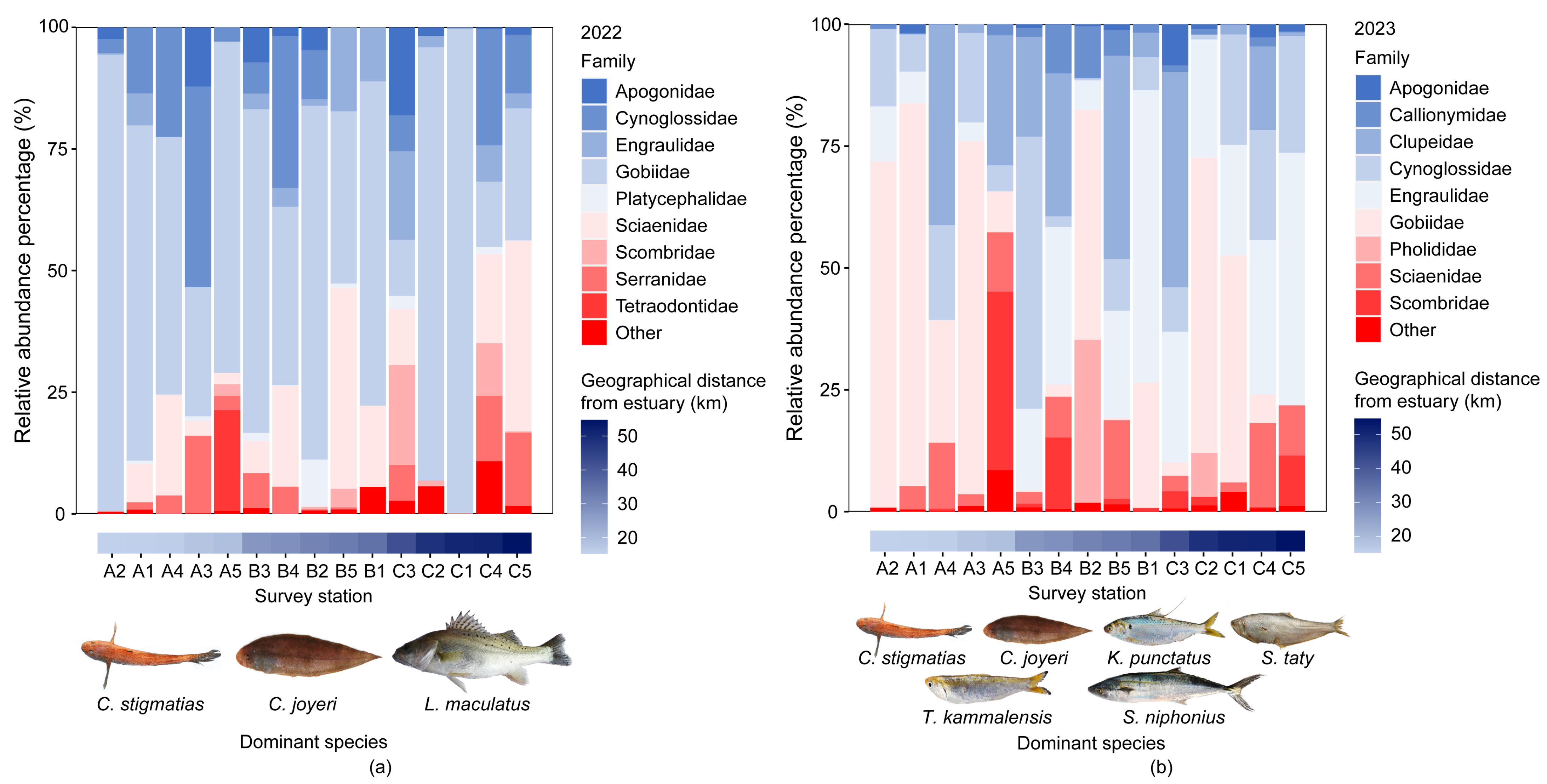

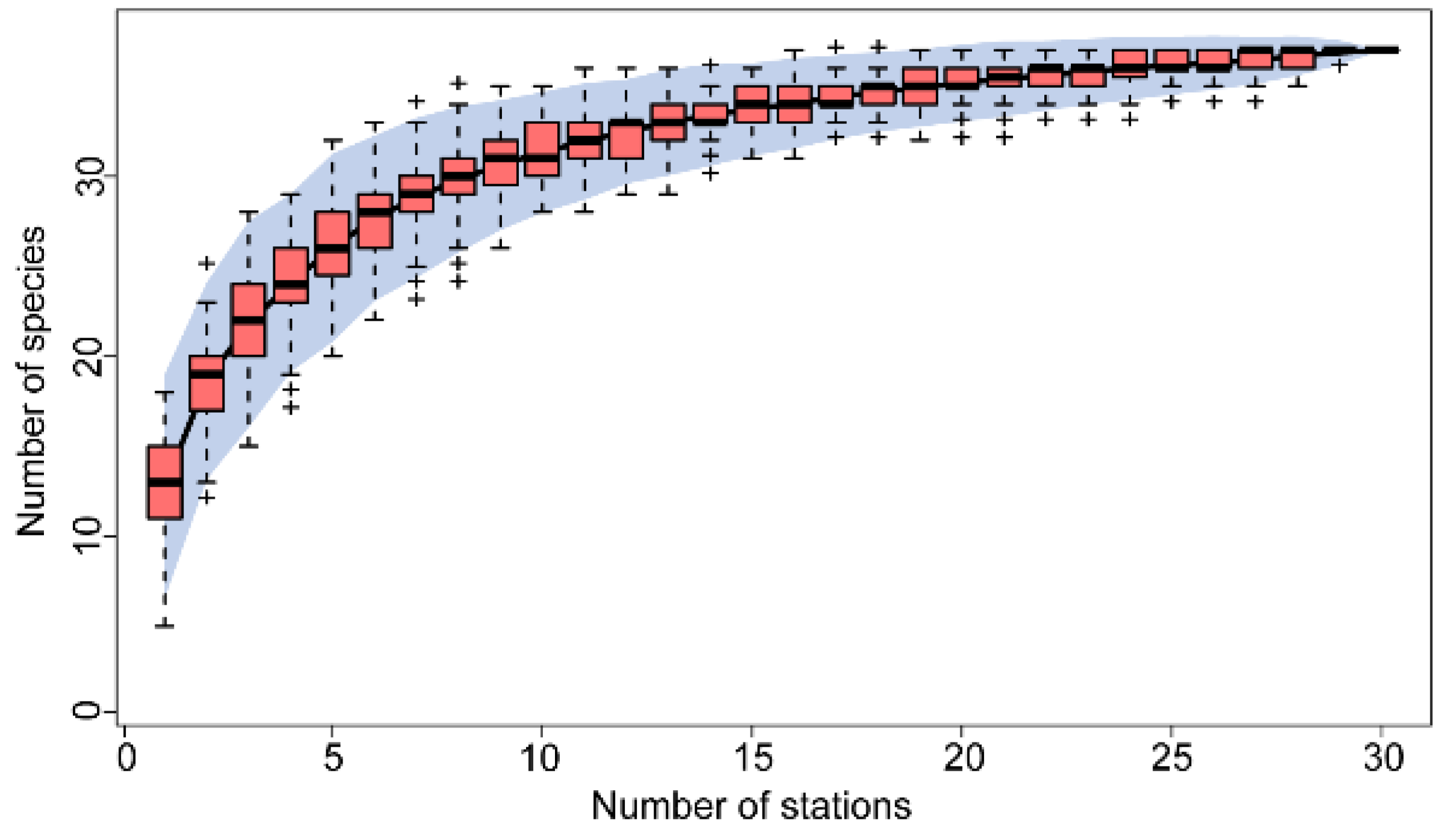

In the two cruises, a total of 30 sampling stations were surveyed. The species accumulation curve showed a stable upward trend, and the number of samples showed a gradual flattening (Appendix B Figure A1). This indicated that the sampling in this study was adequate. In 2022 and 2023, a total of 37 fish species were caught by bottom trawl surveys in the Huanghe River estuary and adjacent seas; these species belong to 35 genera, 21 families, nine orders, and one class (Appendix A Table A1). Among these species, Perciformes accounted for the highest number of species (19). In 2022, the average species count per station was 12 ± 3, and the dominant species were Chaeturichthys stigmatias, Cynoglossus joyeri, and Lateolabrax maculatus. In 2023, the average species count per station was 17 ± 2, and the dominant species were C. stigmatias, C. joyeri, Konosirus punctatus, Setipinna taty, Thrissa kammalensis, and Scomberomorus niphonius. The species count at each station in both years followed a normal distribution. A paired t-test revealed a significant difference in species count between the two years (p < 0.001). Stacked plots of species abundance percentages (Figure 2) showed that Gobiidae consistently accounted for the highest proportion of species at each station across two years; in 2022 and 2023, it constituted 73.55% and 35.57%, respectively, of the total species abundance. Furthermore, the proportion of Gobiidae was unaffected by the geographical distance between the stations and the estuary.

3.2. Functional Alpha Diversity and Dominant Community Trait Composition of Fishes in the Huanghe River Estuary and Adjacent Seas

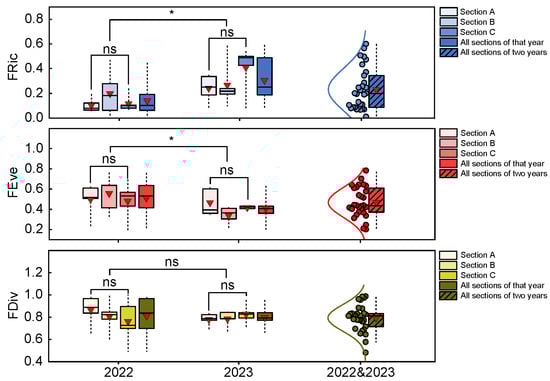

Alpha diversity analysis of fish communities in the Huanghe River estuary (Figure 3) revealed that the average FRic index values for 2022, 2023, and the two-year period were 0.140 ± 0.117, 0.307 ± 0.175, and 0.223 ± 0.169, respectively. This indicated that the number of species occupying ecological niches in fish communities significantly increased over the two-year period (one-way ANOVA p < 0.05). The average FEve index values were 0.514 ± 0.166, 0.408 ± 0.104, and 0.461 ± 0.147, respectively, which indicated that the evenness of functional trait abundance distribution among fish species in the multi-dimensional trait space decreased over the two-year period (p < 0.05). The average FDiv index values were 0.812 ± 0.155, 0.798 ± 0.075, and 0.805 ± 0.120, respectively, but the differences were not significant (p > 0.05). This indicated that the dominant species in the fish community deviated from the center of gravity in the multi-dimensional trait space. The abundance distribution of the species’ functional traits exhibited a high level of dispersion during the survey period. There was not a significant difference in the functional alpha diversity indices among different sections across survey years. This indicated that the distribution pattern of the functional alpha diversity was not affected by the distance gradient between sampling stations and the river mouth.

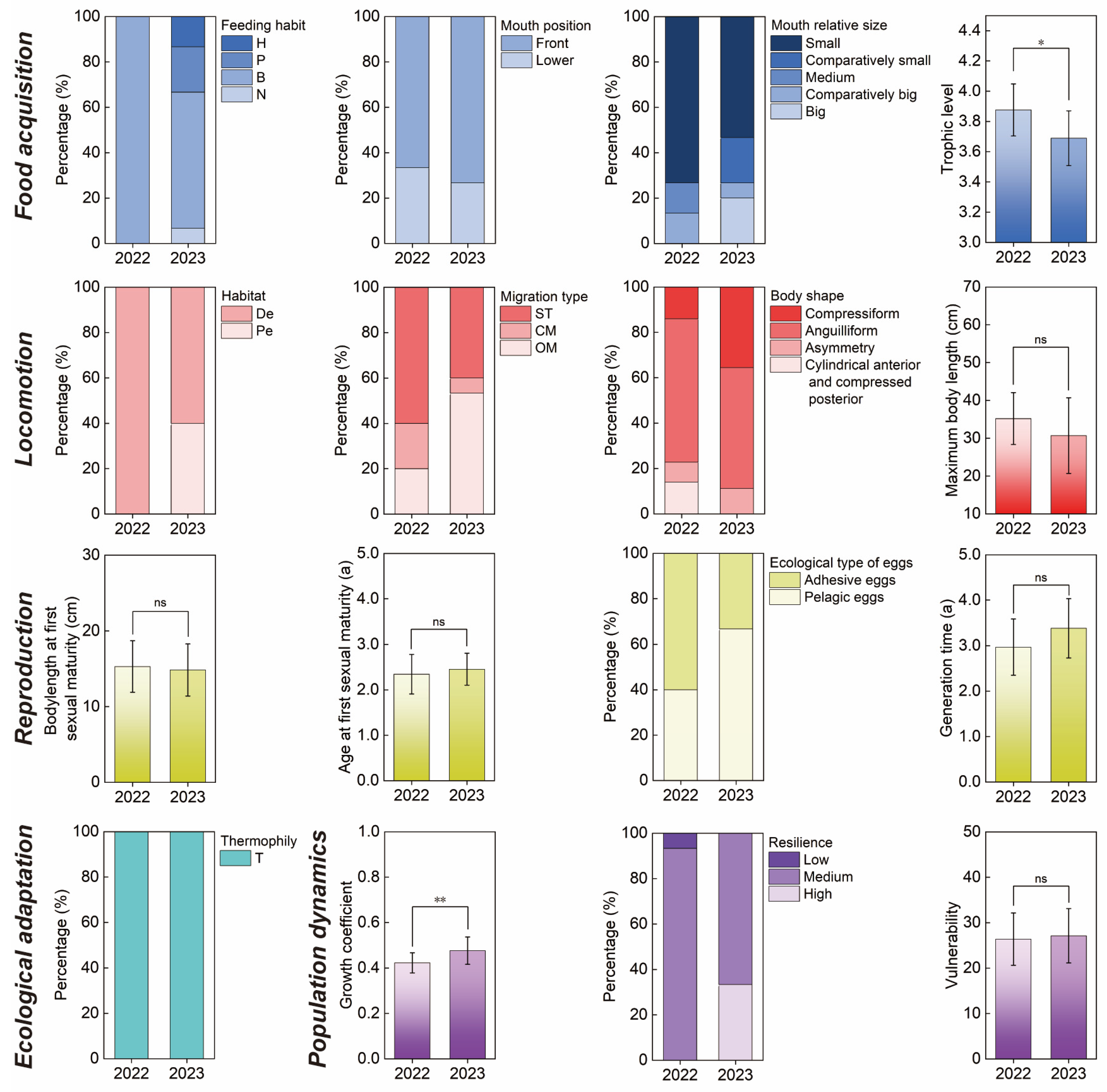

The CWM reflected the dominant trait composition pattern of fish communities in the Huanghe River estuary and adjacent seas (Figure 4). In terms of food acquisition, species with benthivorous feeding habits; small, front-facing mouths; and higher trophic levels were dominant during the survey period. Feeding habits shifted from benthivorous species in 2022 to benthivorous, herbivorous, planktivorous, and nektivorous species in 2023. The trophic levels of dominant species in 2022 and 2023 were 3.876 ± 0.172 and 3.689 ± 0.181, respectively, with significant differences between the two years (p < 0.05).

Of the locomotion traits, species that are demersal, anguilliform, and have a maximum body length 30–40 cm were dominant. The dominant migration types shifted from settlement type in 2022 to offshore migratory in 2023. The proportion of species inhabiting pelagic layers also increased. The maximum body lengths of dominant fishes in 2022 and 2023 were 35.21 ± 6.86 cm and 30.70 ± 10.02 cm, respectively, with no significant difference between the two years (p > 0.05).

Of the fish reproduction traits, the dominant ecological type of eggs shifted from adhesive eggs in 2022 to pelagic eggs in 2023. The dominant body lengths at first sexual maturity in 2022 and 2023 were 15.09 ± 3.42 cm and 15.09 ± 3.45 cm, respectively. The ages at first sexual maturity were 2.35 ± 0.44 years and 2.46 ± 0.35 years, respectively. The generation times were 2.97 ± 0.62 years and 3.38 ± 0.65 years, respectively. During the survey period, there were no significant differences in body lengths, ages at first sexual maturity, or generation times (p > 0.05).

The dominant population dynamics of fish were low growth coefficient, moderate resilience, and low vulnerability during the survey period. The growth coefficients for 2022 and 2023 were 0.423 ± 0.044 and 0.476 ± 0.060, respectively, with a highly significant difference between the two years (p < 0.01). The dominant resilience of the fish populations shifted from moderate resilience to coexistence of species with moderate and high resilience. The population vulnerabilities were 26.39 ± 5.75 and 27.14 ± 5.98, respectively, with no significant difference between the two years (p > 0.05). In terms of thermophily, warm temperate was the dominant trait during the survey period.

3.3. Functional Beta Diversity of Fishes in the Huanghe River Estuary and Adjacent Seas

In 2022, the mean values of ^Fβ_sor, ^Fβ_sim, and ^Fβ_sne of the fish communities in the study area were 0.661 ± 0.180, 0.391 ± 0.221, and 0.271 ± 0.224, respectively. The turnover component contributed 59.15% to the functional beta diversity. In 2023, the mean values of the three components were 0.661 ± 0.180, 0.391 ± 0.221, and 0.271 ± 0.224, respectively, and the ^Fβ_sim contributed 51.36%. During the research period, the ^Fβ_sim dominated the functional beta diversity of the Huanghe River estuary and adjacent seas, but its contribution showed a declining trend. The results of the two years of surveys were consistent with a normal distribution (p > 0.05, single-sample K–S test). The single-sample t-test did not show a significant difference between the functional beta diversity and its mean value between 2022 and 2023 (p > 0.05, two-tailed test). The paired-sample t-test showed a significant difference in functional beta diversity among sample pairs between 2022 and 2023 (p < 0.001, two-tailed test) (

Table 2. Normality test and t-test results for functional beta diversity in 2022 and 2023.

Year	Normality Test		t-Test
	Kolmogorov–Smirnov Z	P (Two-Tailed Test)	t-Value	df	P (Two-Tailed Test)
2022	0.781	0.575	0.009	104	0.993
2023	0.895	0.400	−0.016	104	0.987
2022–2023	-	-	4.894	104	<0.001 ***

Asterisks denote a highly significant difference (*** p < 0.001).

).

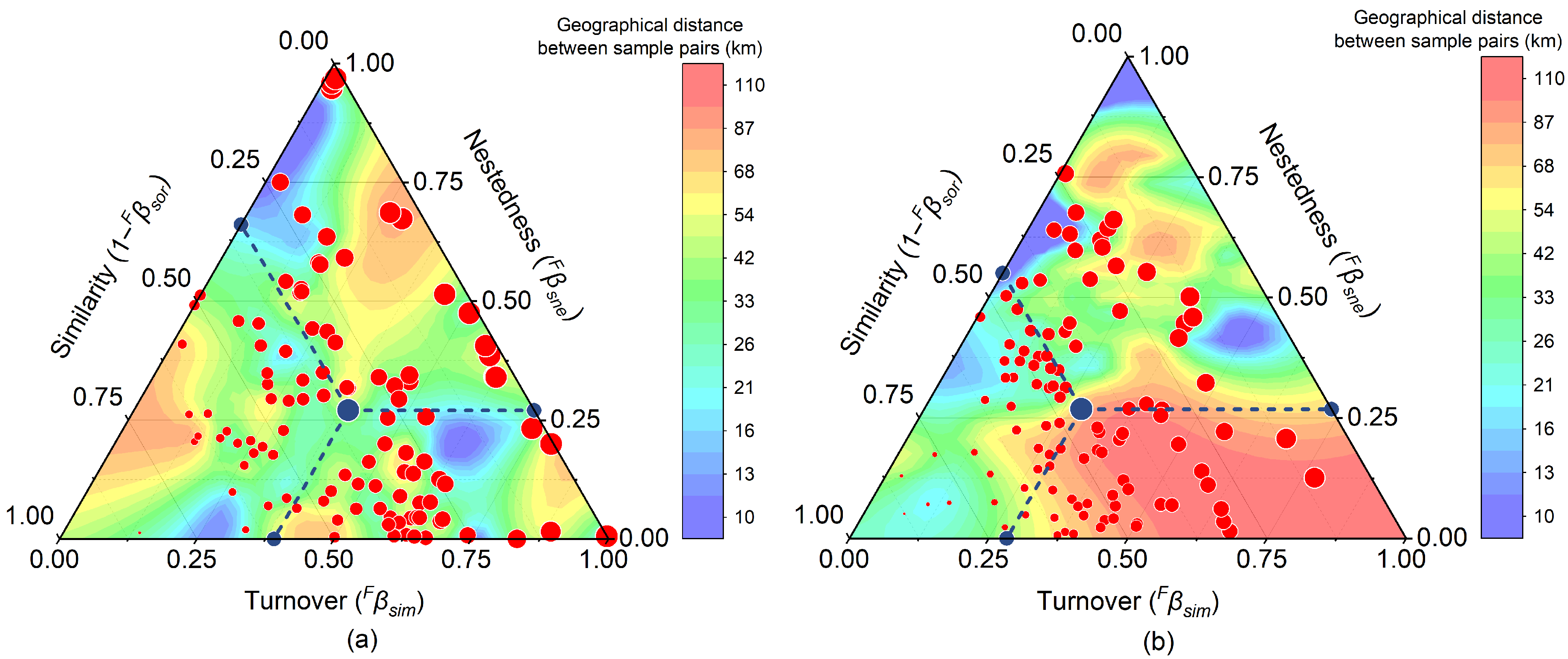

The functional beta diversity of the fishes in the Huanghe River estuary and adjacent seas and the functional beta diversity components are shown in Figure 5. From 2022 to 2023, the ^Fβ_sim center of gravity significantly shifted toward lower values, although there was not a significant change in the ^Fβ_sne (Figure 5). This caused the similarity values (1–^Fβ_sor) of sample pairs to be pulled toward high values, which led to a reduction in the number of high-value sample pairs for the ^Fβ_sor. The three-dimensional contour map of geographic distance distribution for sample pairs showed that, during the survey period, the geographic distance among sample pairs significantly increased as the values of ^Fβ_sor and ^Fβ_sim decreased. Therefore, there may be a negative correlation between the fish functional beta diversity and geographical distance in the Huanghe River estuary and adjacent seas.

3.4. Relationship between Functional Diversity of Fishes and Environmental Factors in the Huanghe River Estuary and Adjacent Seas

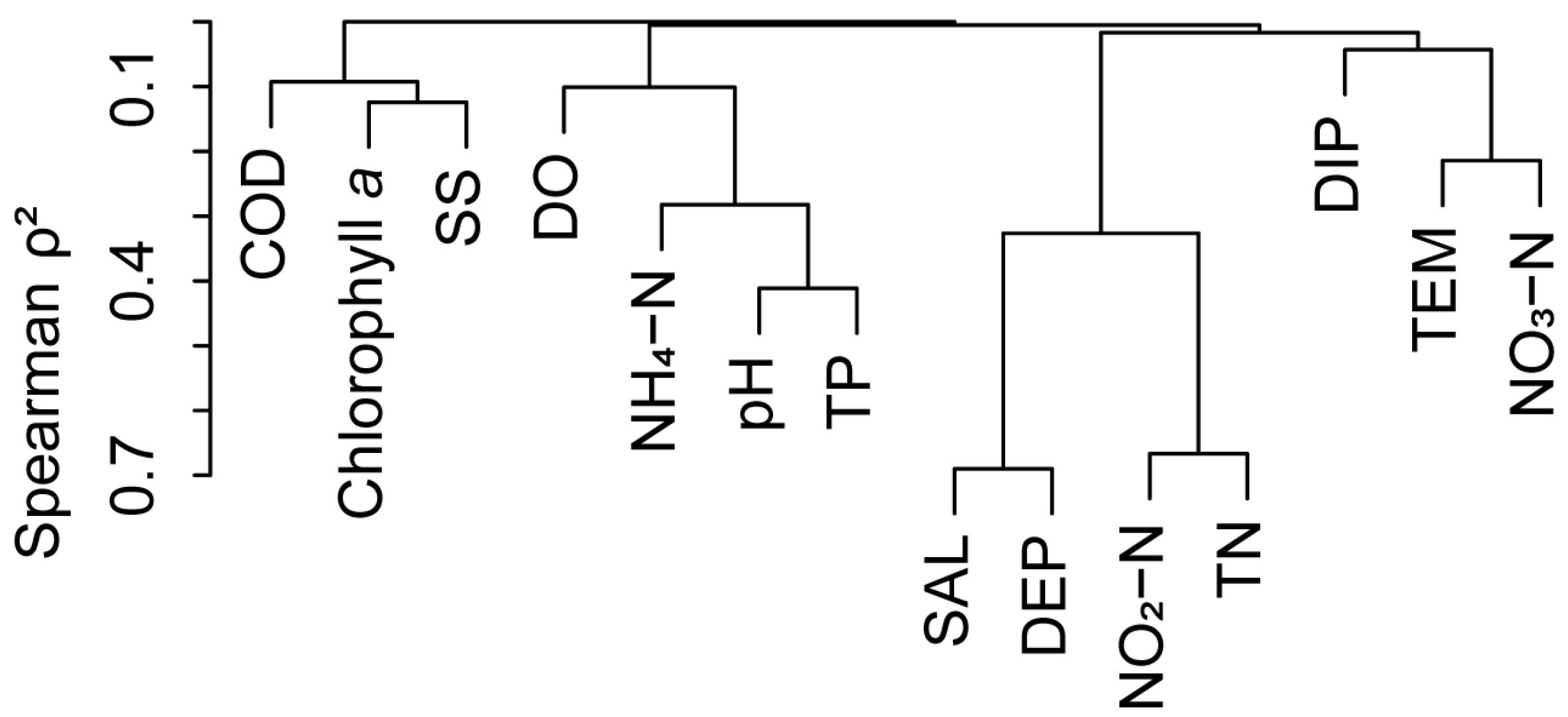

Environmental factors were tested for correlation using a collinearity test, with correlation indicated by Spearman ρ² < 0.7 (Appendix C Figure A2). Therefore, all environmental factors were incorporated into the MRM model, and geographic distance factors were also included in the analysis. The results indicated that the NH₄–N and TP levels were the principal environmental factors that influenced the FRic and FEve (p < 0.05). There was not a significant correlation between the geographical distance and functional alpha diversity indicators (p > 0.05). For the ^Fβ_sor, only ammonia nitrogen showed a significant positive correlation (p < 0.05). The ^Fβ_sim exhibited a highly significant negative correlation with pH (p < 0.01) and a significant negative correlation with the geographic distance (p < 0.05). The ^Fβ_sne showed significant positive correlations with the TP and pH (p < 0.05). The correlation analysis between the FRic and ^Fβ_sor revealed an extremely significant negative correlation (p < 0.001) (

Table 3. MRM results showing relationships of functional alpha and beta diversity indices and components with environmental factors.

Diversity Index	Fβsor		NH4–N		TP		pH		Geographic Distance
	Coefficient	p	Coefficient	p	Coefficient	p	Coefficient	p	Coefficient	p
FRic	−0.1157	0.0001 ***	−0.1550	0.0371 *	0.7977	0.0249 *	-	-	-	-
FEve	-	-	−0.0400	0.0161 *	-	-	-	-	-	-
FDiv	-	-	-	-	-	-	-	-	-	-
Fβsor	-	-	0.0317	0.0376 *	-	-	-	-	-	-
Fβsim	-	-	-	-	-	-	−0.0393	0.0066 **	−0.0510	0.046 *
Fβsne	-	-	-	-	0.1134	0.0318 *	0.0301	0.0379 *	-	-

Asterisks denote significant differences (* p < 0.05) and highly significant differences (** p < 0.01, *** p < 0.001).

).

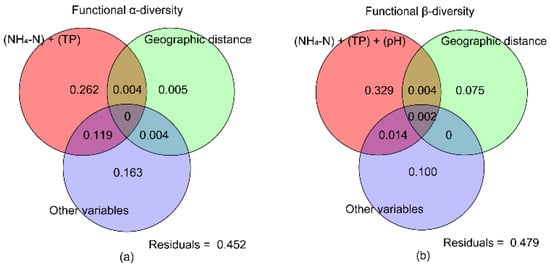

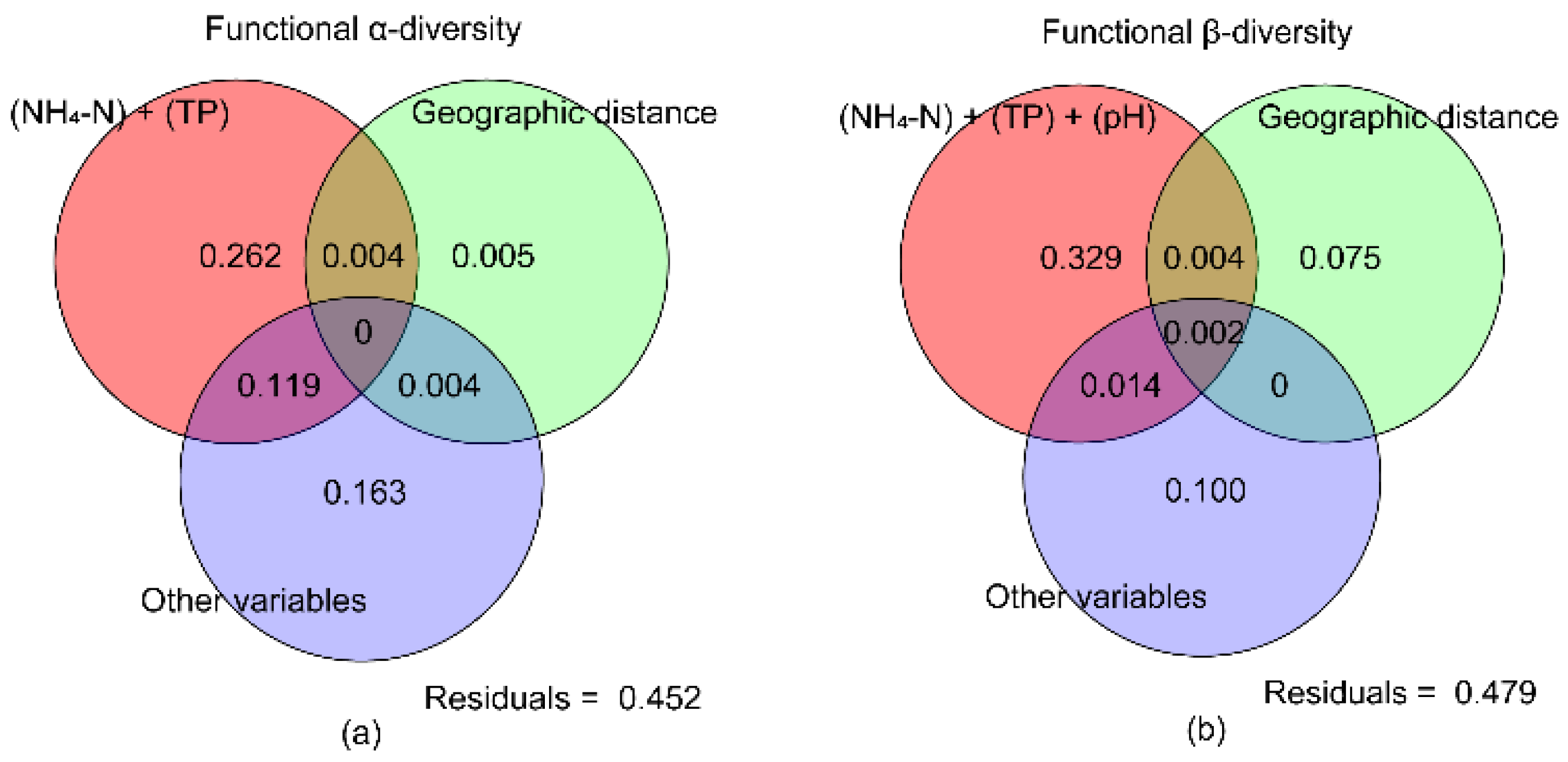

The VPA results showed that NH₄–N and TP played more important roles than other variables in determining the functional alpha diversity of the fish communities in the Huanghe River estuary and adjacent seas. All environmental factors accounted for 54.44% of the functional alpha diversity, of which NH₄–N and TP each accounted for 26.22%. However, the geographical distance had minimal explanatory power on the distribution pattern of functional alpha diversity in the fish communities. In terms of the functional beta diversity, all environmental factors accounted for 44.31%, of which geographic distance variables accounted for 7.59%. However, the combined explanatory power of the alpha and beta diversity was relatively low. Of all the environmental factors, NH₄–N, TP, and pH contributed 32.90% to the functional beta diversity, whereas other environmental factors contributed 10.01% (Figure 6).

4. Discussion

Numerous studies have been conducted on traditional fish species diversity, thus focusing on indices such as the Margalef richness index and Shannon–Wiener diversity index. These studies have primarily compared the species number and abundance within communities. This approach was referred to as taxonomic alpha diversity and has been used to quantify fish diversity. As research progressed, traits were introduced into the study of diversity. Studies have shown that differences in species traits can lead to differences in the β diversity in communities with the same α diversity [54]. Functional diversity research, which is based on “species–trait–abundance”, can more effectively explain various ecological issues than traditional “species–abundance” research.

Factors that influence fish functional diversity include environmental gradients, geographical distance, and functional traits. The construction of a fish functional traits matrix is crucial to elucidating their impacts on fish communities, and functional traits must be selected that are associated with research objectives [38]. The morphological traits of fishes reflect the complex interplay between them and their environment. Existing research on fish functional traits has primarily relied on morphological characteristics and focused on freshwater fishes. For example, there are characteristics of motoric function that are reflected by ratios of body length to body height and ratios of minimum caudal peduncle height to maximum caudal fin height [55]. Additionally, there are measurements that reflect habitat, such as eye position, eye diameter, and head height [12]. Although morphological characteristics can effectively describe fish traits related to food acquisition, movement, and other functions, and they are the only functional traits that can be reasonably quantified [56], and they cannot fully reflect all the roles of fishes in the ecosystem. Therefore, some studies have also introduced other functional categories, such as life history strategy, habitat use, nutrient budget, and defense against predation [57,58]. There are few studies on the functional traits of marine fish [14,15,16]. In this study, in addition to selecting five morphological traits, such as mouth position, size, and body shape, 16 functional traits were also selected according to existing reports. These traits covered five characteristics of fishes, food acquisition, locomotion, reproduction, population dynamics, and ecological adaptation, which comprehensively reflect the functional diversity of fish communities in the Huanghe River estuary and adjacent seas.

Functional alpha diversity calculation revealed that the FRic was solely associated with the alteration in the “species–traits” matrix and the frequency of species occurrence within communities, and it was unaffected by species abundance. However, the influence of species abundance must be considered when calculating the FEve, FDiv, and CWM. In this study, 32 species were identified across 2022 and 2023 in the study area. Of these, 27 species were common in both years. However, the FRic was significantly higher in 2023 than 2022. This may be attributed to the significant increase in the frequency of various species across all sampling stations in 2023 compared to that in 2022. Moreover, variations in species occurrence between the two years may have altered the extreme traits within communities, although this was unlikely to be the primary factor. On the basis of these findings, we infer that the fish community in the studied area exhibited greater stability in 2023 compared to that in 2022.

The CWM indicated that there were significant changes in the composition of seven dominant traits, including feeding habits, trophic levels, and migration patterns, of the fish communities in the Huanghe River estuary and adjacent seas during 2022 and 2023. The survey results showed that the average abundance of Chaeturichthys stigmatias declined from 12,205 to 922 ind. h⁻¹ over the two-year period, whereas the average abundance of Acanthogobius ommaturus, which is within the same family, dropped from 140 to 10 ind. h⁻¹. Over the two years, the influence of various previously dominant traits decreased, including benthivorous feeding habits, settlement migratory type, adhesive eggs, low growth coefficient, and low to medium resilience, and the abundance of Gobiidae also decreased. Conversely, the average abundance of Konosirus punctatus increased from 4 to 365 ind. h⁻¹, whereas that of Setipinna taty increased from 30 to 284 ind. h⁻¹. The dominance of herbivorous and planktivorous feeding habits, offshore migratory type, pelagic eggs, and high growth coefficients and resilience of the aforementioned two types were enhanced. Moreover, Engraulidae and Clupeidae primarily occupy the middle to upper water layers, whereas Gobiidae primarily occupy the bottom layer; this also contributed to the yearly variations in the habitat traits of the fish communities. A bottom trawl is unlikely to underestimate the amount of pelagic fishes because they tend to remain near the sea bottom during the day [59]. Therefore, we speculated that the significant fluctuation in fish abundance in the study area was a principal factor that influenced the dominant traits of the community. This fluctuation may be influenced by the annual average water temperature and fishing intensity.

Previous studies showed that, along a specific environmental gradient, community nestedness and turnover contribute to the spatial variation of beta diversity, which in turn depends, to a certain extent, on the attributes of functional groups. If environmental factors undergo a continuous gradual change, the fish community composition tends to be dominated by a nestedness structure [60]. However, if environmental factors undergo a sudden or abrupt shift, the fish community composition is dominated by turnover [61]. Studies by Oikonomou et al. [62] and Lansac-Tôha et al. [63] indicated that the beta diversity of fish communities primarily resulted from species turnover, with a negligible influence of nestedness components. This study revealed that the fish community functional beta diversity in the Huanghe River estuary and adjacent seas was dominated by turnover components, which is consistent with existing research findings. However, although the contribution of turnover was comparable to that of nestedness, it was significantly lower than what was observed in other sea areas [28,29] and exhibited an annual decline. These findings could differ because the scale of the research area was relatively small. The sampling stations were close to the shore (within a 20 m water depth). Habitat connectivity and fish adaptability to the environment contributed to their relatively strong dispersal ability in the research area. The functional homogeneity of fish communities was previously found to be relatively high in this area [28]. However, fishing pressure and environmental changes may have resulted in an increase in the proportion of shared functional traits among fish communities and a decrease in the diversity of functional traits.

Based on the correlation between functional diversity and environmental factors, it was observed that the functional alpha diversity of fish communities in the Huanghe River estuary and adjacent seas was negatively correlated with NH₄–N and positively correlated with TP. The functional beta diversity was positively correlated with the NH₄–N and TP gradients in sample pairs, which indicated that the functional beta diversity was influenced by a bottom-up control effect of the N/P ratio in the environment. Studies showed that increased nitrogen concentration and decreased phosphorus concentration in the Bohai Sea led to a decreased dominance of algae susceptible to phosphorus limitation and an increased dominance of algae susceptible to nitrogen limitation, which was not beneficial for the growth of high-trophic-level fishery resources [32,64]. We observed that the functional traits of high-trophic-level fish species in the study area were being gradually lost with a decrease in their species and abundance, which will weaken the top-down control effect of the population. This may be one of the reasons for the shift toward fish communities with lower trophic levels in the Huanghe River estuary and adjacent seas. This study further revealed that high pH gradients in the research area suppressed the turnover of functional traits in these fish communities while promoting the formation of nestedness patterns. The formation of a pH gradient may be closely related to the flow of the Huanghe River into the sea and the implementation of a water and sediment regulation project.

Apart from environmental factors, within this small-scale research area, an increase in the geographical distance between communities negatively impacted the turnover of the fish functional traits. The geographical distance between communities and the distance between communities and estuaries did not have an apparent impact on the functional alpha diversity. Zhang et al. [38] found that a vertical gradient distribution of river fishes had opposite beta and alpha diversity patterns, which is consistent with the findings of this study. These differences occur because alpha diversity describes the current status of the ecological space occupied by species within a community, whereas beta diversity is used to quantify the extent or differentiation of functional differences between communities. Additionally, different species exhibit different adaptability along one or several environmental gradients. This is reflected in differences in functional traits or abundance. Therefore, these two types of diversity may exhibit different spatial patterns along the same spatial gradient [65].

5. Conclusions

In this study we found that the FRic, FEve, and FDiv of the fish functional alpha diversity was 0.223, 0.461, and 0.805, respectively, and the functional beta diversity was 0.661 in the Huanghe River estuary. The fish abundance and turnover component were the main factors that affected the alpha and beta diversity. The ammonia nitrogen content, total phosphorus content, and pH were the main environmental factors that affected the fish functional diversity. The N/P ratio had a bottom-up control effect on the fish functional diversity. Within a small-scale research scope, high pH gradients and distant geographical distances can inhibit trait turnover in fish communities.
