A Comparative Study of Low Cost Open Source EEG Devices ^†

Abstract

A comparison of two open source electroencephalography devices designed to acquire signals associated to the brain activity is presented in this work. The experiments are developed considering the task of determining the user eye state i.e., open eyes or closed eyes, applying an algorithm based on computing the sliding Fourier Transform of the captured signals.

1. Introduction

The recent development of low cost Electroencephalography (EEG) devices has promoted the creation of new Brain Computer Interfaces (BCI) applications to different areas, such as home automation control or stress and fatigue monitoring, among others. We have shown in [1,2] a self-designed EEG prototype for Internet of Things (IoT). This prototype allows us to classify eye states i.e., open eyes and closed eyes, using a simple criterion based on the power of alpha and beta bands. The frequency-domain components of these brain rhythms are computed using the Fourier Transform (FT) over non-overlapped windows. The main limitation of this approach is the significant delay time required to determine changes in eye states.

In this paper, we study the use of sliding FT applied to overlapped windows as a solution for minimising that delay. We will test the performance of this proposed method using a self-designed prototype [2] and the consumer-grade OpenBCI device [3].

2. Materials and Methods

In our study, two different EEG devices have been used to capture user brain activity (see Figure 1). The consumer-grade OpenBCI platform [3] has been configured using the Cyton board and the 8 channels headset Ultracortex Mark IV. An electrode located in the O2 position was used as input channel, while the reference and ground were located in A2 and A1 positions, respectively. A sampling frequency of $250 \mathrm{Hz}$ has been used to capture the EEG signals. On the other hand, the self-designed prototype [2] employs a sampling frequency of $128 \mathrm{Hz}$, an input channel located in O2 and ground and reference electrodes in the positions corresponding to right mastoid and FP2, respectively.

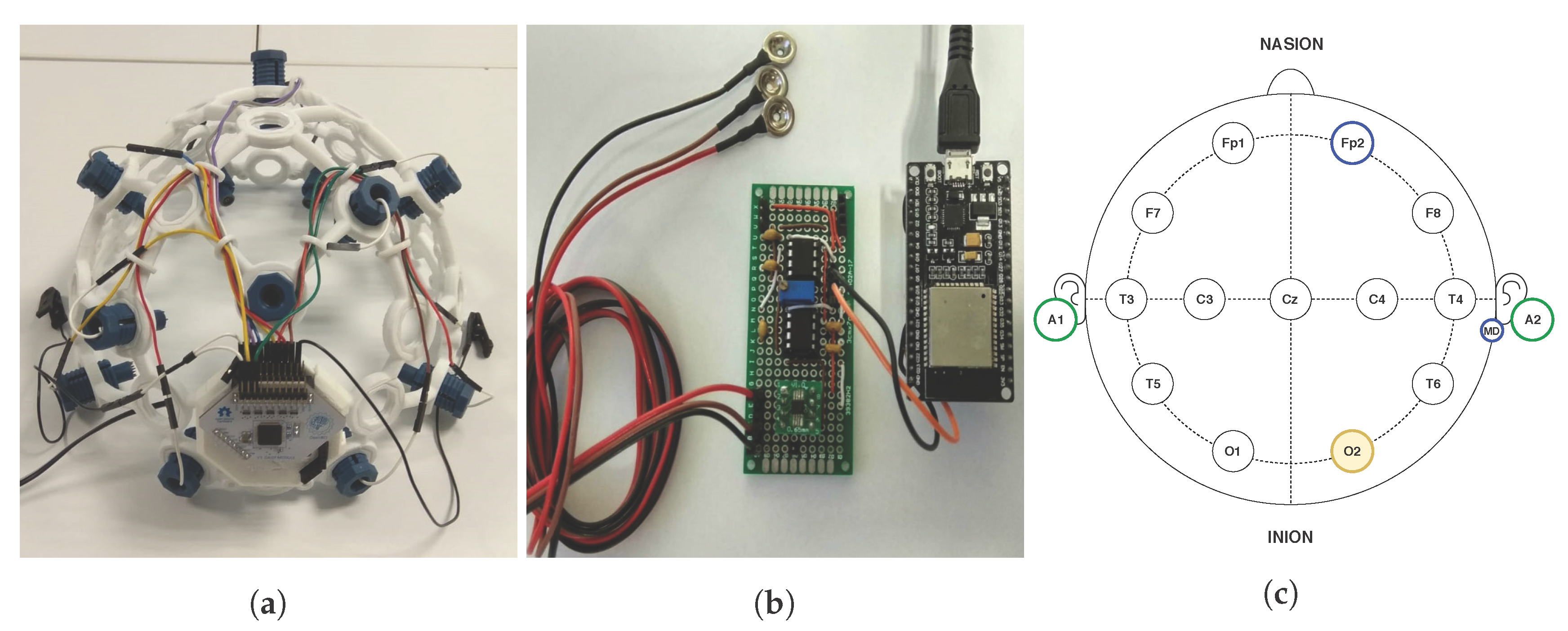

Figure 1. Both open source EEG devices employed in the experiment (Figure 1a,b). Figure 1c shows the electrode position used by the self-designed prototype (bordered by blue) and the OpenBCI hardware (bordered by green). The O2 electrode represents the common input channel used by both devices (bordered and filled in yellow). (a) OpenBCI device; (b) Self-designed prototype; (c) Electrode locations.

The brain activity of 5 male subjects was recorded and analysed for each experiment. Their mean age was 25 years old and none of them suffered from any disease or pain during the recordings. All the experiments were conducted in a quiet room and with the subject seated in a comfortable chair.

Recordings were composed of two tasks: 20 s of open eyes (OE) and 20 s of closed eyes (CE) with 3 s of rest between both tasks. A total of 10 recordings were registered for each subject. During the OE tasks, the subjects were asked for looking at a cross projected in the centre of a monitor just in front of them.

The acquired signals have been processed off-line using Matlab. Our algorithm computes the method already proposed in [2] using sliding FT. During the training step, the threshold parameter is calculated for each subject using 3 random recordings. This value will allow us to classify eye states for the remaining 7 test recordings, applying for this purpose the decision rule detailed in [2]. The best window size for each subject is also determined.

3. Experimental Results

The performance of both EEG devices is also analysed in a realistic scenario. For this purpose, the test recordings were concatenated composing eye tasks of different duration, thus simulating a continuous EEG recording with real eye state changes. The classification is performed for each subject taking into account the threshold parameters obtained from the training.

Table 1 and Table 2 show the accuracy achieved for all the subjects considering four time frames of eye tasks, denoting by t that time size, and applying a 70% of overlapping for the sliding windows. The classification algorithm will apply the window size adequate to each subject as done in [2]. Therefore, the system delay suffered by all the subjects is not the same, as it is shown in Table 3 for both EEG devices.

Table 1. Accuracy obtained by the classification system for eye tasks of t duration and an overlap of 70% using OpenBCI hardware.

t	S1	S2	S3	S4	S5	Mean
19 s	69.92	68.05	83.83	75.56	85.71	76.61
38 s	79.82	87.19	88.16	79.82	91.67	85.33
57 s	87.28	93.86	87.72	85.53	97.37	90.35
76 s	94.08	99.34	94.08	88.16	100	95.13

Table 2. Accuracy obtained by the classification system for eye tasks of t duration and an overlap of 70% using the self-designed prototype.

t	S1	S2	S3	S4	S5	Mean
19 s	74.04	80.08	78.2	74.56	73.46	76.07
38 s	88.95	89.91	89.04	81.67	86.64	87.24
57 s	90.88	95.61	89.91	86.18	90.82	90.68
76 s	95.28	100	82.24	82.67	96.63	91.36

Table 3. Delay obtained by the classification system applying sliding windows with an overlap of 70%.

EEG Device	S1	S2	S3	S4	S5
OpenBCI	3 s	4.2 s	3 s	3 s	3 s
Self-designed	3.9 s	3 s	3 s	4.8 s	4.2 s

4. Conclusions

The study presented in this paper shows that the sliding Fourier Transform allows us to reduce the delay between changes produced in eye states and their corresponding decision performed by the classifier. It can be noticed that the system performance is highly subject-dependent, but there are no significant deviations between average performances of both EEG devices. In addition, regardless of the hardware used to capture the brain signals, it can be seen that the classifier exhibits better accuracy for long-term eye tasks.
