Additive Manufacturing of Ti₃AlC₂/TiC and Ti₃AlC₂/SiC Ceramics Using the Fused Granules Fabrication Technique

Abstract

In this work, SiC–Ti₃AlC₂ and TiC–Ti₃AlC₂ composites produced by additive manufacturing are investigated. The issue of obtaining ceramic materials using additive manufacturing technologies is currently relevant, since not many modern additive technologies are suitable for working with ceramic materials. The study is devoted to the optimization of additive manufacturing parameters, as well as the study of the structure and properties of the resulting objects. The fused granules fabrication (FGF) method as one kind of the material extrusion additive manufacturing (MEAM) technology is used to obtain composite samples. The main advantage of the FGF technology is the ability to obtain high-quality samples from ceramic materials by additive manufacturing. Composites with different ratios between components and different powder/polymer ratios are investigated. The technological features of the additive formation of composites are investigated, as well as their structure and properties. The optimal sintering temperature to form the best mechanical properties for both composites is 1300 °C. The composites have a regulatable porosity. Ti₃AlC₂ content, sintering temperature, and polymer content in the feedstock are the main parameters that regulate the porosity of FGF samples.

1. Introduction

Ceramic composites are growing rapidly in today’s world because they provide excellent high-temperature properties and low coefficients of thermal expansion, and they also exhibit high hardness, wear resistance, resistance to thermal cycling, ablation, and other properties [1,2,3]. In this regard, ceramic composites are often used as structural materials, while porous ceramic materials are increasingly being used.

TiC-based ceramics belong to high-temperature structural materials and are used in various industries, including aviation and space. TiC has a high melting point (3140 °C) and low density (4.94 g/cm³) and is attractive as a high-temperature and lightweight material. TiC ceramics have excellent properties, such as high hardness (25.1 GPa), low electrical resistance (68 $\mathsf{\mu }\mathsf{\Omega }$·cm), excellent thermal conductivity (21 W·m⁻¹·K⁻¹), and a high elastic modulus (410–450 GPa) [4,5,6]. Porous TiC has a high specific surface area, high porosity, small bulk density, high temperature resistance, and corrosion resistance. Therefore, porous TiC can be used for filtration, separation, catalytic reaction, and hydrogen storage [7].

SiC-based ceramics are also often used in high-temperature applications because they exhibit a high melting point, high strength, high thermal conductivity, high hardness (24 GPa), high stiffness, good chemical resistance, good electrical conductivity, and remarkable wear resistance [8,9]. Therefore, SiC is often used for heating elements and also has tribological applications. Porous SiC-based materials are distinguished separately [7,10,11,12]. Such materials can be used for further impregnation with a solid lubricant phase during wear operation [13]. Cases of using porous SiC as filters are also described (for example, for chlorine) [14].

MAX phases are ternary carbides and nitrides with the formula M_n+1AX_n (n = 1, 2, and 3; M is an early transition metal; A is an A group element; and X is C and/or N) and are promising materials because of the unique combination of both metal and ceramic properties [15]. The Ti₃AlC₂ MAX phase is one of the most promising MAX phases, since it has good prospects in many fields such as heat exchange materials, high-temperature structural materials, corrosion-resistant components, and electrical contact materials [15]. All these fields are suitable both for TiC and SiC. It is difficult to obtain bulk products from the MAX phase powders by powder metallurgy methods, in particular, due to the decomposition of the MAX phase at elevated temperatures [16,17,18,19]. Due to the fact that the MAX phase has a layered structure and its high-temperature molding is impossible due to decomposition processes, products from the MAX phase are predominantly porous. Using the MAX phase as a component in ceramic composites may be one of the ways to improve MAX phase high-temperature stability [20,21].

FGF technology has a number of advantages over the most common metal additive manufacturing technology, selective laser melting (SLM). Among them are a wider choice of materials, high printing speed, and increased strength and structural integrity of samples. Also, compared to SLM, FGF samples does not have internal thermal stresses. The key advantage is the ability to work with ceramic materials, as well as with powders of complex shapes. A feature of FGF technology compared to SLM is the larger size of structural elements (lower printing accuracy) and low productivity, since debinding of large parts takes several days. Nevertheless, the above advantages of FGF technology allow us to distinguish it as a separate class of additive manufacturing technologies, as one of the few technologies that allows for obtaining high-quality ceramic parts, which is especially important in this work.

This work investigates SiC–Ti₃AlC₂ and TiC–Ti₃AlC₂ composites produced by additive manufacturing. The study is devoted to the optimization of additive formation parameters, as well as the study of the structure and properties of the resulting objects. The fused granules fabrication (FGF) method as one kind of material extrusion additive manufacturing (MEAM) technology is used. Composites use different ratios between components and different powder/polymer ratios. The technological features of the additive formation of composites are investigated, as well as their structure and properties.

2. Materials and Methods

2.1. Feedstock Preparation

To obtain ceramic compositions, mixtures of Ti₃AlC₂:SiC (TAC:SiC) and Ti₃AlC₂:TiC (TAC:TiC) powders were used in different volume ratios TAC:SiC and TAC:TiC (70:30, 50:50, 30:70). The powders used were Ti₃AlC₂ MAX phase (Jiangsu XFNANO Materials Tech Co., Ltd, Jiangsu, China; 98% purity, d₅₀ = 5 µm), SiC powder (DENSITEC L, SIKA, Oslo, Norway, d₅₀ = 5 µm), and TiC powder (Reakhim, Smolensk, Russia; d₅₀ = 5 µm). Mixing of the powders was carried out by the dry method in a Turbula-type mixer (Turbula S2.0, Vibrotechnik JSC, Saint Petersburg, Russia). The resulting mixtures were used to prepare feedstock and for spark plasma sintering.

A feedstock was prepared with the MC2162 polymer binder (Emery Oleochemicals, Dusseldorf, Germany). The MC2162 binder is a mixture of polyester and polyamide with a ratio of 1:5 by mass. This commercial binder is suitable for powder injection molding and MEAM technologies. The amount of polymer was 30, 35, and 40 vol.% for the studied compositions. The amount of binder was selected to ensure high flowability of the feedstock and high density of the final products. The dry pre-mixture of powder mixtures with the polymer binder was prepared in a Z-blade mixer SPQ-10 (Welber, Moscow, Russia), with a 60 rev/min rotational speed and a mixing time of 6 h. Premixed material was then extruded in a single-screw extruder LE45–30 (Scientific, Saint Petersburg, Russia) at 145 °C to obtain a homogeneous feedstock. The extruded filament was cooled and air dried, followed by granulation on a Meizlon MTE20 automated line (Jiangsu Meizlon Machinery Co., Ltd., Nanjing, China).

2.2. Fabrication of Ceramic Composites

Bulk samples were produced in two ways: additive manufacturing (AM) using the fused granules fabrication (FGF) method and spark plasma sintering (SPS).

To obtain samples using the FGF method, a Bizon-2 3D printer (3DiY, Moscow, Russia) with a custom screw-based pellet-fed printing head was used. Bulk samples 20 × 5 × 5 mm³ were obtained. The following fixed printing parameters were used in the work: nozzle diameter 0.8 mm, layer thickness 0.2 mm, no table heating.

Open source slicer OrcaSLicer was used to prepare 3D models for 3D printing. The printing parameters were varied to obtain a maximum printing density without macro-size printing defects. Debinding was carried out in acetone. The debinding duration and process temperature were studied separately. During the debinding process, samples were removed from acetone, dried in a SNOL 7.2 muffle furnace (AB “UMEGA GROUP”, Utena, Lithuania) at 60 °C for 4 h, then weighed on an OHAUS Adventurer Pro AV264C scale (OHAUS, Parsippany, NJ, USA). After debinding, samples were sintered in a Nabertherm RHTC 80-230/15 vacuum furnace (Nabertherm, Germany) at different temperatures (1250, 1300, and 1350 °C) with a 4 h dwell time. A heating rate of 5 °C/min was used, with additional dwelling at 200, 400, 600, and 800 °C for 1 h.

Spark plasma sintering was performed using an SPS 10-4 unit (GT Advanced Technologies, Hudson, NH, USA) at 1200, 1250, and 1300 °C at 50 MPa for 5 min. Cylindrical samples of 6 grams each were sintered in crucibles with a diameter of 20 mm.

2.3. Characterization

To characterize the rheological properties of the feedstock, two parameters were used: the melt flow index (MFI), measured using a Zwick/Cflow plastometer (ZwickRoell GmbH & Co., KG, Ulm, Germany), and viscosimetry using a CR-6000-10 capillary rheometer (Gotech Testing Machines Co., Ltd., Taichung, Taiwan). MFI determination was carried out in accordance with ASTM D1238 [22] and viscometry in accordance with ASTM D3835 [23].

The samples were studied by optical metallography (Axiovert 200-MAT, Carl Zeiss GmbH, Jena, Germany) and scanning electron microscopy (Apreo S, Thermo Fisher Scientific, Waltham, MA, USA). For the study, cross-sections were prepared on a disc grinding-polishing machine (Saphir 520, ATM Qness GmbH, Mammelzen, Germany) using SiC paper with a 400–1600 mesh size and diamond discs with a 2000–4000 mesh size.

The phase composition of the samples was studied using an XRD-7000S X-ray diffractometer (Shimadzu, Kyoto, Japan) in the Bragg–Brentano configuration using CuK$\alpha$ radiation with a long wavelength of $\lambda$ = 0.154 nm at X-ray tube parameters of 40 kV and 30 mA. For each of the samples, a spectrum was collected with the following parameters: scanning step—0.0143°; sample scanning speed—10°/min; range of angles in 2$\theta$—10–90°.

The three-point bending test was performed on a Gotech Al-7000M setup (Gotech Testing Machines Co., Ltd., Taichung, Taiwan), with one impact and two supporting rollers. The data collection at a 124 Hz frequency was started by Gotech data acquisition at the minimum load on the sample (0.1 N). The loading rate was set up as 0.5 mm/min according to the ASTM E290 [24]. The span distance was equal to 22 mm, and all samples were located under the middle point of the impact roller. The microhardness of the samples was measured on a microhardness tester (Duramin-500, Struers, Denmark) by the Vickers method (HV) at a load of 500 gf in accordance with ASTM E384 [25].

3. Results and Discussion

3.1. Parameters of Additive Manufacturing

Selection of printing parameters is one of the most important stages in the formation of parts, since it is responsible for formation of non-defective structure and correct geometry of the part [26]. In some cases, the post-processing of printed parts is impossible or very difficult, especially for products with complex geometries, which are advisable to produce using additive manufacturing technologies. When forming objects, both monolithic and porous, it is important that there are no printing defects, such as delamination, discontinuities, voids, and others. To maintain the geometry of the product, it is necessary to correctly calculate the printing algorithm. The calculation is performed automatically using slicer software. When slicing, it is necessary to take into account the geometric parameters of the object and the printer, such as the diameter of the nozzle, the thickness of the layer, the amount of perimeter, and more. It is also necessary to take into account the properties of the material (feedstock), including the rheological properties, the optimal printing temperature suitable for this particular material, the extrusion coefficient that ensures the correct size of the part in accordance with the 3D model, and other parameters.

The printing parameters are set in the slicer software, and the real meaning of many parameters remains unclear to the end user. From this point of view, the slicer is a black box for the user. Changes in a number of parameters in the slicer leads to changes in the rotation speed of the motors (table and extruder). Thus, many parameters specified in the slicer are interdependent, and their relationship is hidden from the user.

There are a number of empirical approaches to determining optimal printing parameters. Basically, they are set in the slicer, and OrcaSlicer allows you to conduct a series of calibration printing sessions that allow you to identify and optimize printing parameters. Briefly, the procedure for selecting optimal parameters can be described as follows: first, the temperature is selected, since it depends on the polymer binder used. Then, the extrusion coefficient is selected that specifies the extrusion value at which the diameter of the extruded line will coincide with the diameter specified in the slicer. The last thing that is regulated is the flow or the volumetric printing speed. The flow includes the head movement speed, extrusion speed, extrusion width, as well as other parameters responsible for print quality. If the temperature and extrusion ratio are selected correctly, the volumetric flow of the material can be calculated with sufficient accuracy.

The selection of the correct temperature was carried out at the feedstock development stage [27]. The optimal operating temperature is determined by the properties of the polymer binder. The operating temperature and maximum temperature of the polymer binder are determined by the manufacturer. In our case, when determining the MFI, a temperature of 150 °C was used. During printing experiments, this temperature also proved to be optimal. The extrusion coefficient is calculated on samples that are automatically generated in OrcaSlicer (Figure 1a).

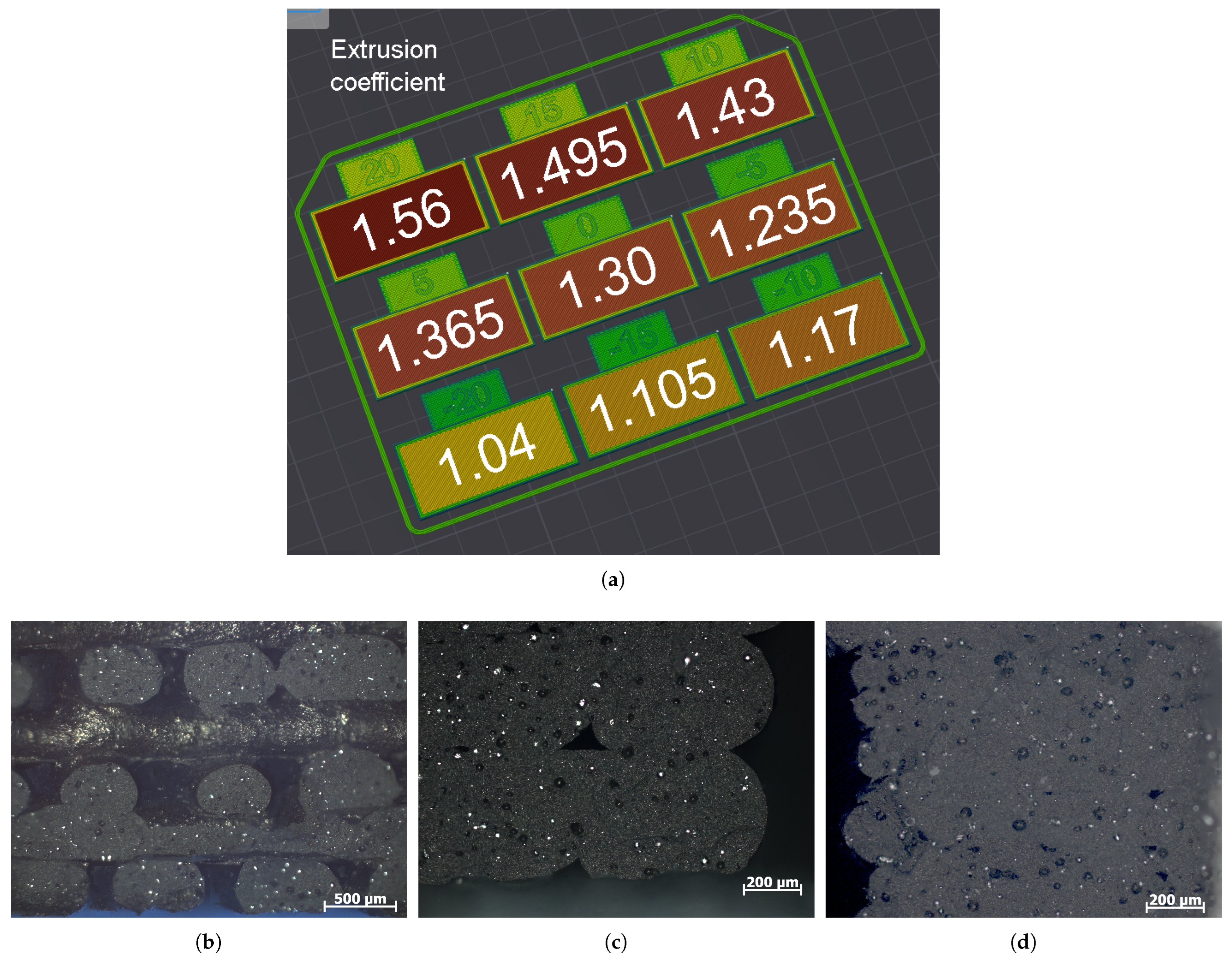

The samples are rectangular plates in which the extrusion coefficient changes. It is necessary to select an extrusion coefficient at which there are no internal macro-defects and compliance with the external geometry of the part is achieved (there is no significant over-extrusion). On the samples generated by the slicer, deviations from the specified value of the extrusion coefficient are written as a percentage. In this work, the coefficient 1.3 was used as the initial one (Figure 1c). Thus, the coefficient varied from 1.04 to 1.56 in increments of 0.065. It was found that, with a coefficient value of 1.43 (sample +10, Figure 1d), the most dense structure in the cross-section is formed. A further increase in extrusion leads to significant sagging of the side edges and lowering of the quality of the top surface. A low extrusion coefficient leads to critical under-extrusion (Figure 1b).

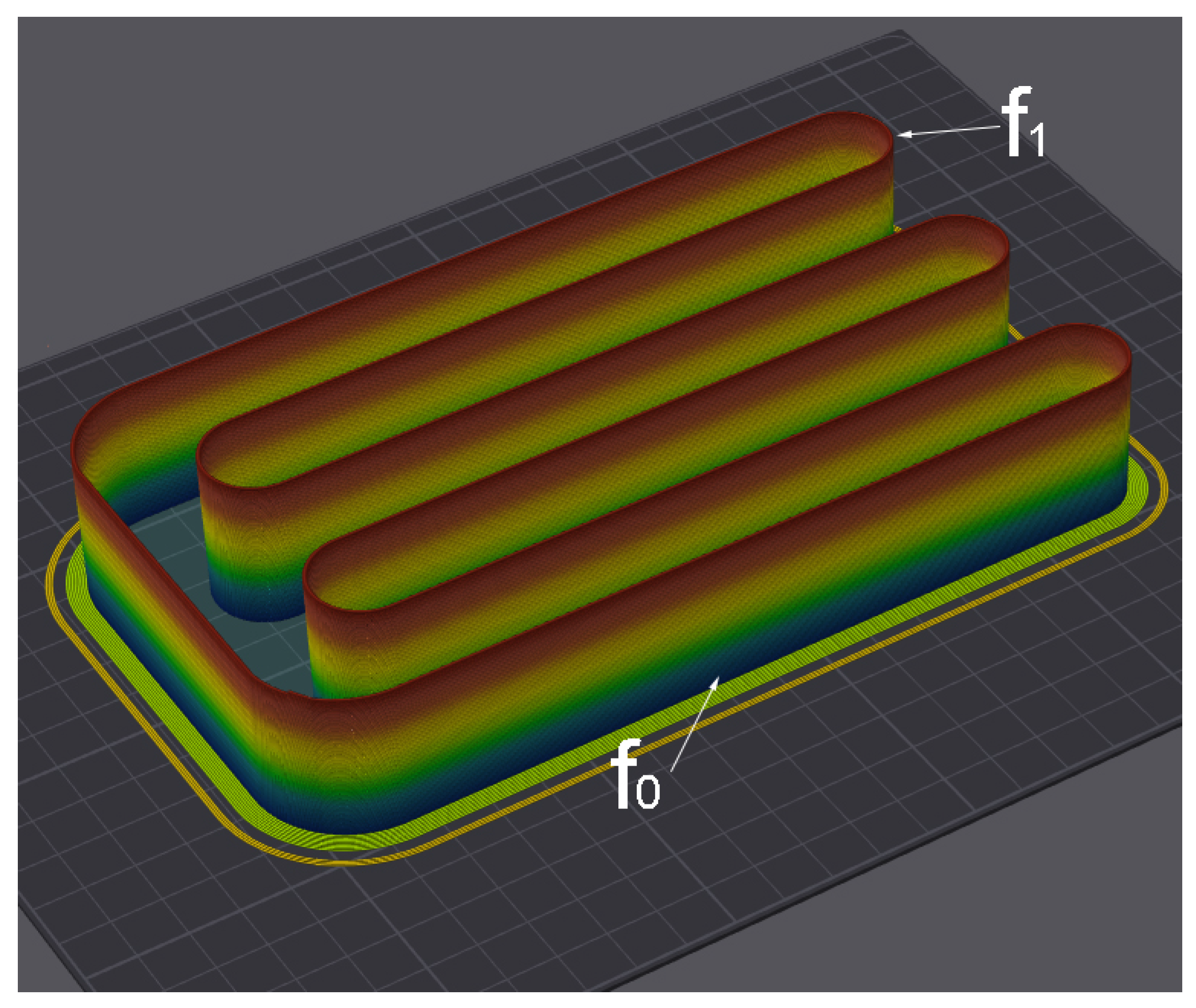

To determine the optimal flow, the standard OrcaSlicer test was used, which involved printing a calibration part in which the volumetric flow of material was varied at each layer (Figure 2). When preparing the test, the initial flow $f_0$, the final flow $f_1$, and the step along the flow $\Delta f$ are specified. After printing, the smoothest layer is visually found in which there are no printing defects, in particular, under-extrusion or over-extrusion. The height h from the substrate to the layer in millimeters is calculated, and the optimal flow f is calculated using Equation (1):

$$f=f_0+h\Delta f.$$

(1)

To calibrate the flow, the parameters $f_0$ = 1 mm³/s, $f_1$ = 10 mm³/s, and $\Delta f$ = 0.25 mm³/s were used. The test showed that the skips begin at height h = 18 mm, which gives a flow value of f = 5.5 mm³/s. A 10% flux margin was used in the work, so a flux of f = 5.0 mm³/s was used. Setting the extrusion ratio and flow is enough for the slicer to form the remaining printing parameters. If high-precision printing of samples is necessary, it is necessary to additionally calibrate pressure advance, tolerance test, and other parameters; however, they do not affect the structure of the bulk samples and were not studied in this work. The following fixed printing parameters were used in the work: nozzle diameter 0.8 mm, layer thickness 0.2 mm, no table heating. These parameters were used to print the sample (Figure 3).

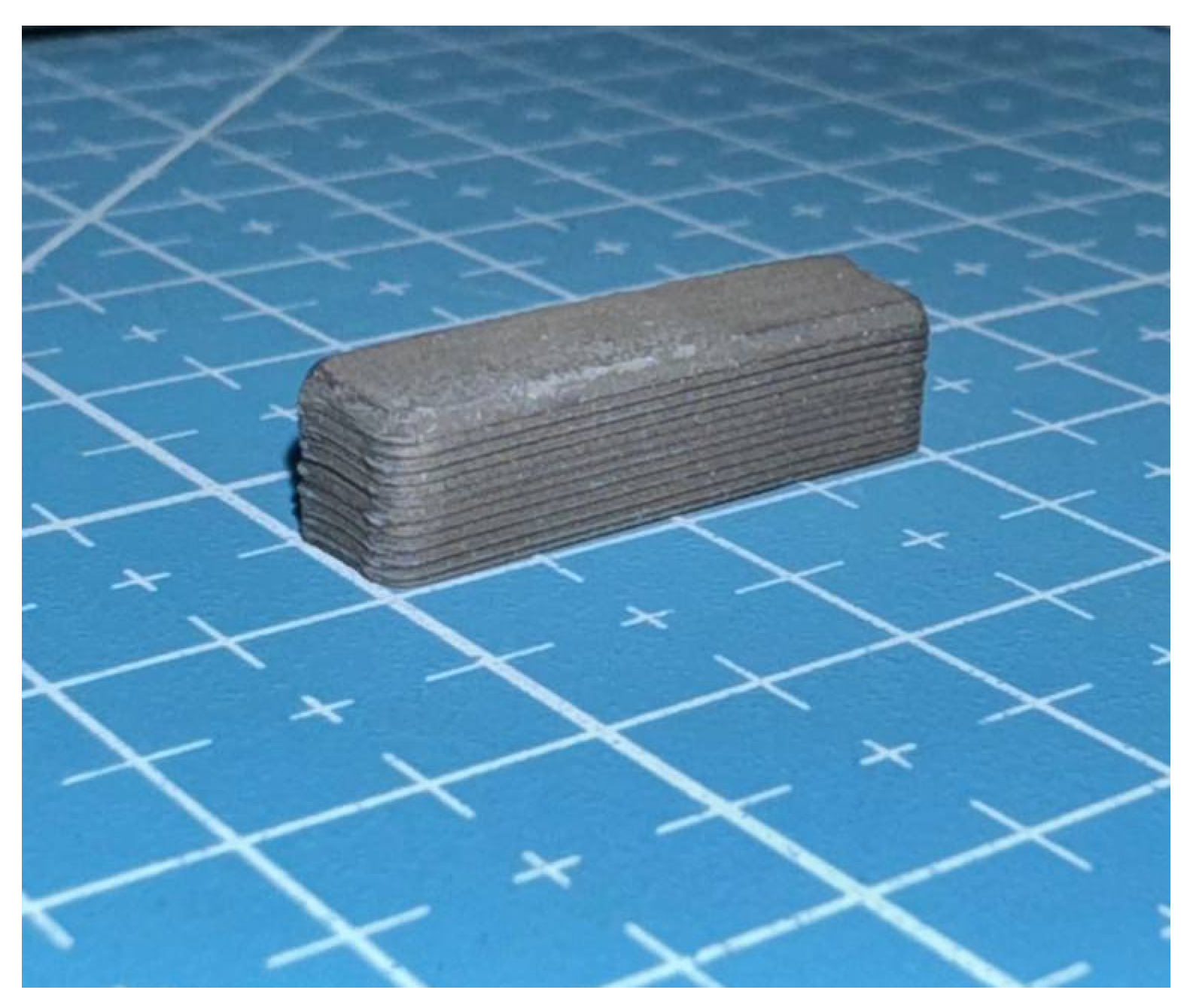

3.2. Debinding

Debinding parameters must be selected individually for different materials. The main purpose of debinding is the complete removal of the soluble polymer binder. We use acetone for debinding, since the polymer binder we use is soluble in acetone. Obtaining dense, defect-free green samples is important for the debinding stage, since internal cavities when filled with acetone are difficult to free from acetone in the future. As a result, during the sintering process, acetone boils inside the sample, which leads to the formation of large macro-defects up to the complete destruction of the sample. At the stage of forming the green part, parameters for dense printing of the samples were selected, improving the quality of the samples after debinding and preventing destruction.

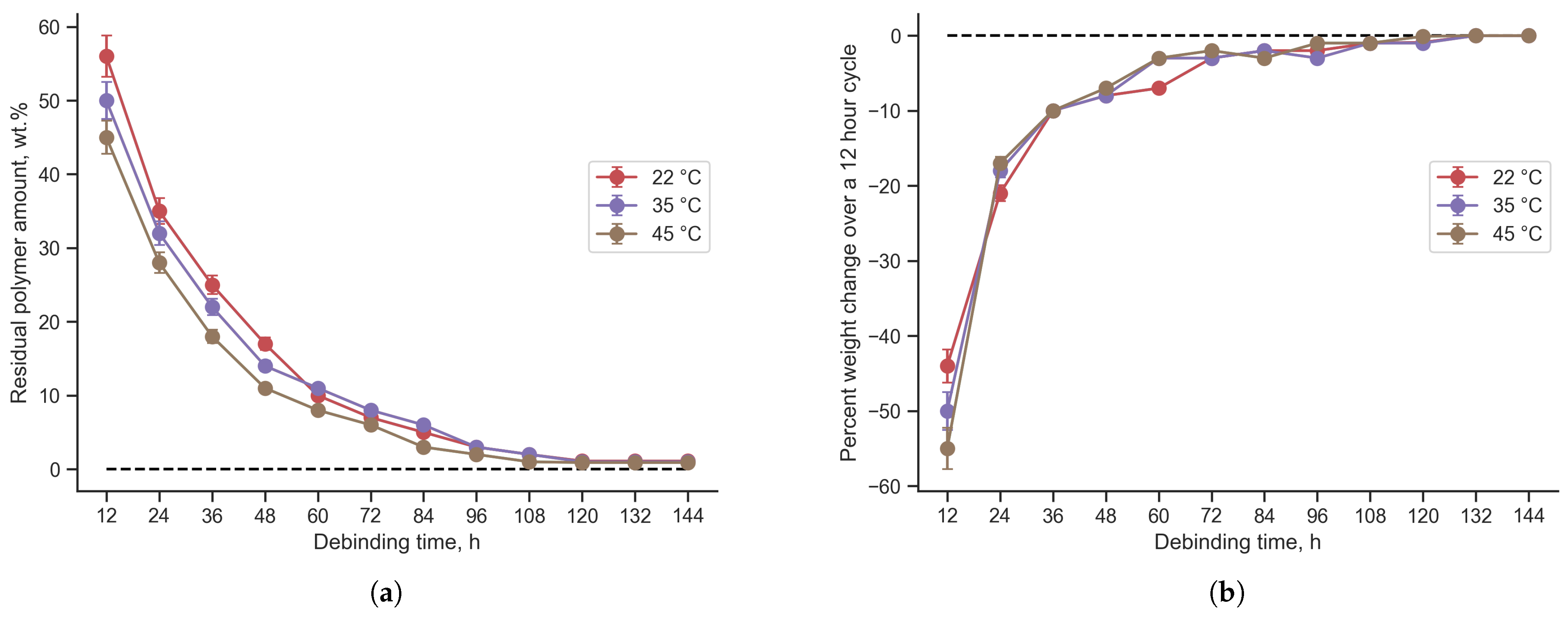

The work carried out studies of the effect of acetone temperature on the debinding speed and also investigated the required debinding time for complete removal of the binder in the samples. Debinding was studied in acetone at room temperature, as well as in acetone heated up to 35 °C and 45 °C (Figure 4a). It was found that temperature accelerates debinding in the initial stages, after which the difference in the rate of binder removal is almost equalized. Thus, the option of debinding at room temperature is optimal, taking into account the absence of energy consumption for multi-day heating of acetone.

The decrease in mass over a 12 h period varies with time (Figure 4b). The change in $\Delta m_i$ was calculated using Equation (2) as follows:

$$\Delta m_i=\frac{m_i-m_{i-1}}{12},$$

(2)

where $m_i$ is the mass value in the current time period, and $m_{i-1}$ is the mass value in the previous time period. The resulting graph is a numerical derivative of the graph of mass changes during the debinding process. The resulting graph of the derivative is smooth, which indicates a uniform decrease in mass. After 108 h (3.5 days) of debinding at all temperatures, the change in mass over a 12 h cycle is less than 1%. After 132 h (5.5 days) of debinding at all temperatures, the change in mass over a 12 h cycle is less than 0.1%.

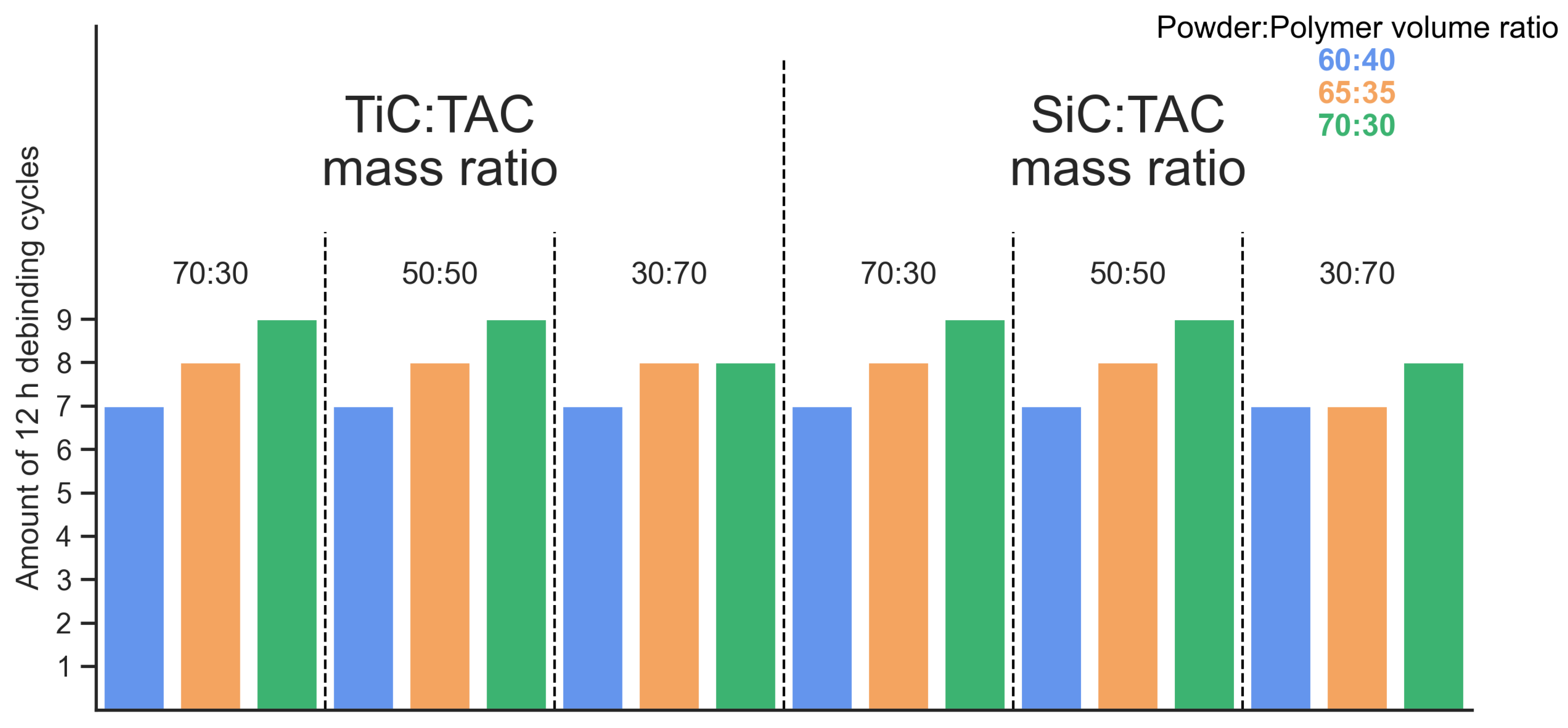

Monitoring of changes in mass during the debinding process was carried out on samples every 12 h (Figure 5). Therefore, all samples were subject to a minimum number of 12 h cycles required to remove <1% binder. For all samples, it took at least 7 cycles (84 h or 3.5 days) to reach 1%. A higher binder removal rate is demonstrated by samples with a large amount of polymer (powder/polymer ratio = 60:40) and by samples with a large amount of TAC. The first group has a higher debinding rate due to the fact that more polymer is available for removal due to the small amount of powder. In such samples, the powders are less likely to prevent penetration into the sample and are less effective at retaining acetone inside during drying. Since TAC has a layered, angular morphology, samples with it have a lower bulk density and also allow the formation of larger polymer layers that are more easily removed during the debinding process.

Taking into account the obtained dependence for all compositions and the fact that after 5.5 days the rate of mass change is less than 0.1% per 12 h, during the experiment, a fixed debinding time of 6 days was used for all compositions.

3.3. Structure, Phase Composition, and Mechanical Properties

3.3.1. TiC-Containing Composites

The samples after debinding were sintered at different temperatures. The temperature range of 1200–1300 °C was used, since in this range the decomposition of the MAX phase begins, and TiC and SiC powder is sintered. The same sintering temperatures were chosen for SPS. The idea was to form a sintered skeleton and ensure that the sample did not collapse as a result of incorrect printing and debinding parameters.

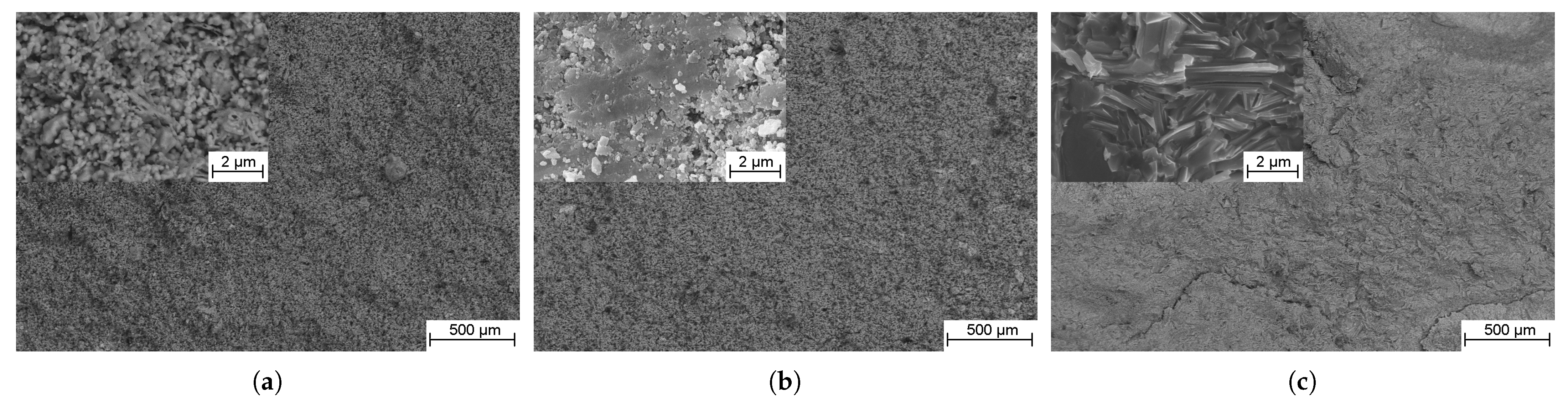

In FGF TiC:TAC samples, after sintering, a structure with submicron-sized elements is formed (Figure 6a,b). Submicron pores are visible on the fracture and on the cross-section. At low magnification, the polished section and the fracture are practically the same in morphology; the polished sample is matte and does not shine. The mechanics of sample wear during grinding and polishing are such that TiC particles are completely torn out of the sample, since their wear resistance to diamonds in the polishing paste is higher than the sintering strength in the skeleton. As a result of sintering, the TAC decomposes into TiC and Al, and tin is also released, which is used as an additive that suppresses the growth of the Ti₂AlC phase during the synthesis of Ti₃AlC₂ [28]. Thus, the structure is represented mainly by TiC particles and preserved particles of the MAX phase.

The samples obtained by SPS retain much more of the MAX phase, which is clearly visible on the fracture surface of the samples (Figure 6c). With SPS, the sintering time is 5 min, but the intensity of the impact is higher, which is determined by the peculiarities of the technology. As a result, the density of the samples is higher—the porous structure of FGF samples is not observed.

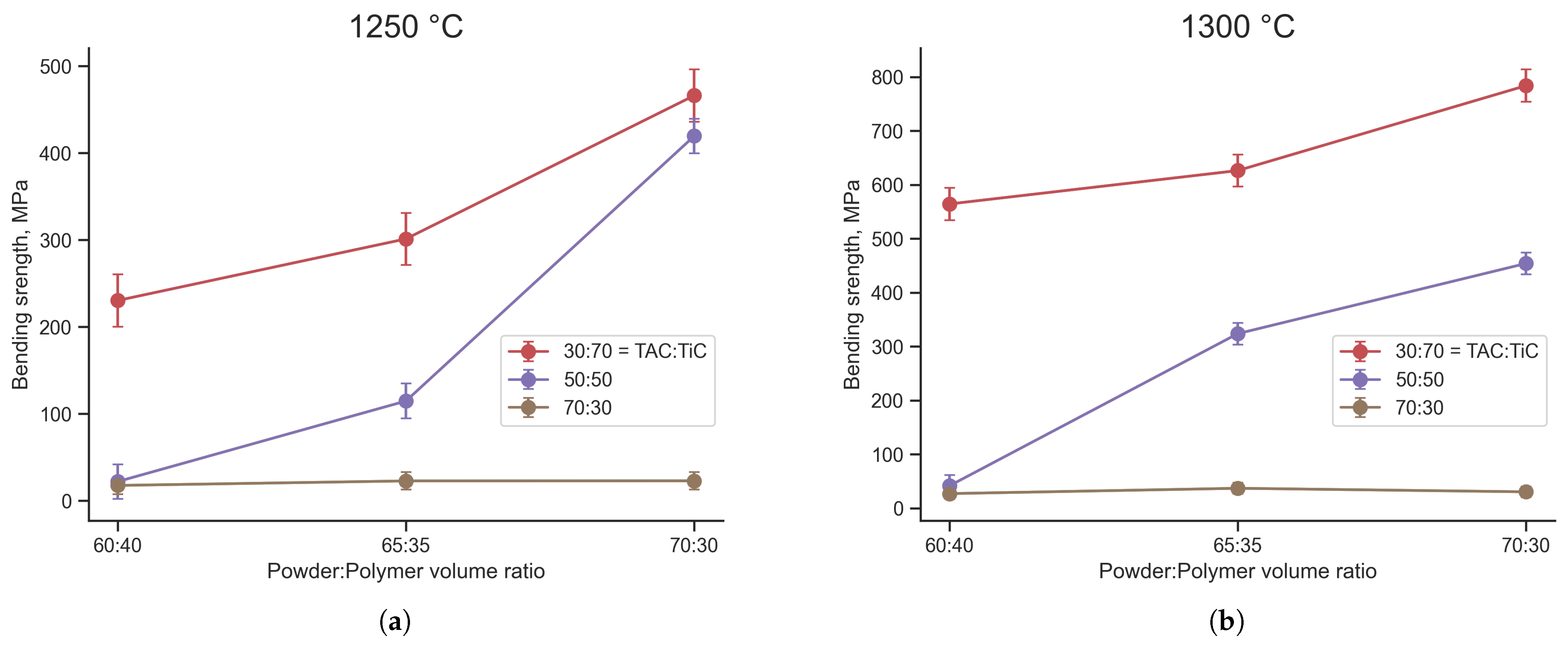

Despite the highly porous skeleton that was formed, the bending strength of FGF samples after sintering reaches 784 ± 9 MPa for compositions with excess TiC after sintering at 1300 °C (Figure 7). An increase in sintering temperature leads to an increase in bending strength for samples of all compositions. At the same time, samples with excess TAC have a bending strength of less than 40 MPa for all compositions and temperatures. As a result of the decomposition of TAC, TiC carbide is formed, which must undergo sintering to form a strong skeleton. Since the processes of decomposition of the MAX phase and sintering of TiC as a product of decomposition of the MAX phase are slower than the sintering of the original TiC, the strength of the sintered skeleton is lower. In addition, the sintering kinetics of TiC [29] are higher than the sintering kinetics of TAC [30], which increases the strength of a sample with a higher TiC content even without taking into account the decomposition of TAC.

If we consider samples with the same TiC:TAC ratio sintered at the same temperature, it turns out that the less polymer in the initial feedstock, the higher the strength of the sample that can be achieved. When forming a product from feedstock, macroscopic regions are inevitably formed that contain only polymer and no powder particles. After debinding, these areas turn into voids that are not filled with material. Sintering does not allow these voids to be completely filled, despite the fact that the shrinkage of the samples after sintering is comparable to the volume filled with the polymer. Thus, for samples with 30 vol.% polymer, the shrinkage of the sintered product relative to the green one is 24 ± 3%. For samples with 40 vol.% polymer, the shrinkage is 29 ± 4%. Thus, the less polymer in the original feedstock and green part, the more dense the part with a stronger skeleton can be made.

3.3.2. SiC-Containing Composites

For SiC:TAC samples, feedstocks with only powder/polymer volume ratio = 70:30 were used, since lower powder load leads to the formation of very brittle, high-porous samples for further investigation. Sintering of dense SiC samples is carried out at high temperatures—usually at least 1700 °C, whereas the optimal range is 1900–2100 °C—and it is necessary to use additives to achieve high density [31,32,33]. It is possible to obtain porous SiC starting from a temperature of 1200 °C [34], while the structure and strength properties of the samples are significantly lower than those of densely sintered ones. However, the scope of application of such materials (catalyst supports, high-temperature filters, and more) does not require high mechanical properties.

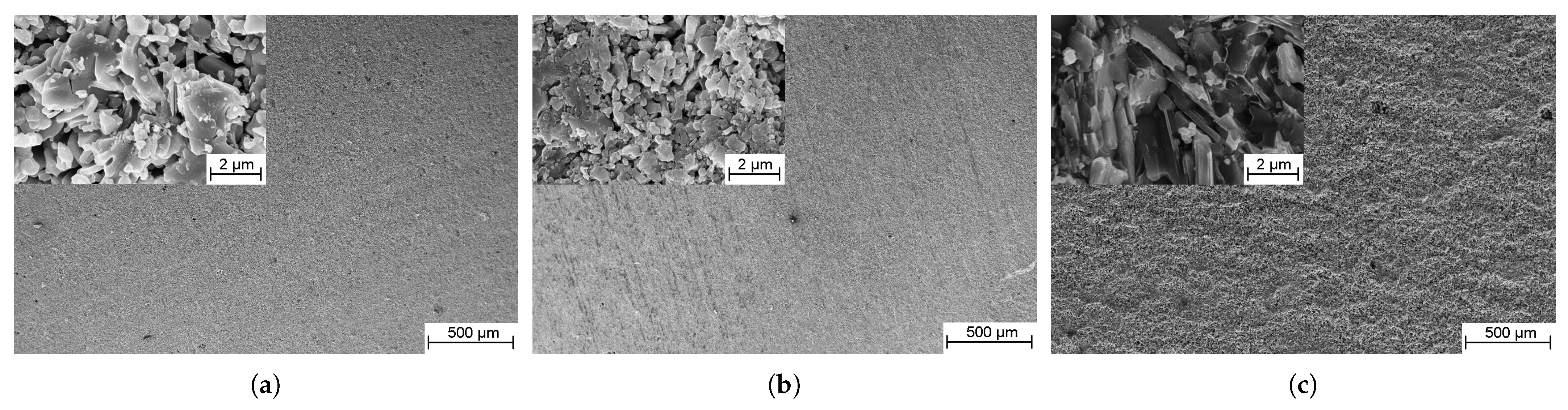

Like TiC:TAC composites, the morphology of the cross-section and the fracture surface are close to each other. SEM images (Figure 8) at low magnification show that there are no printing defects in the samples—there are no known macro-defects of FGF samples with incorrect printing modes. There are also no cracks that could form as a result of an improper debinding procedure.

The microstructure of the samples is represented by micron SiC particles with submicron TiC satellites, as well as micron TAC particles. The main skeleton of the sample is formed by SiC particles, while TAC and its decomposition products are distributed along the boundaries of the skeleton particles and increase its strength. In samples obtained by the SPS method, as in TiC:TAC composites, more initial particles of the MAX phase are present, and the structure is less porous.

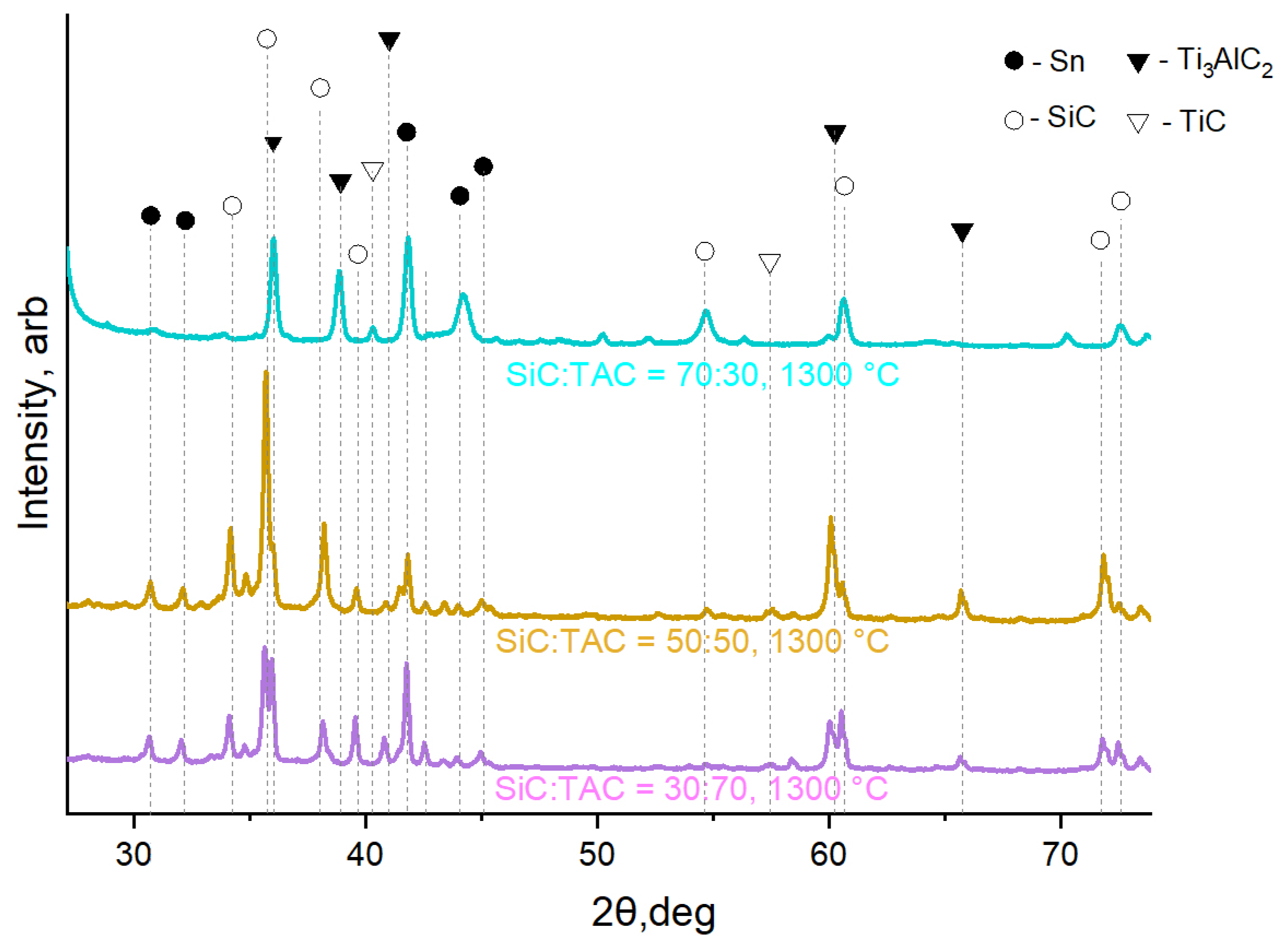

XRD phase analysis (Figure 9) shows four main phases present in the material: the initial components (TAC and SiC) and the decomposition products of TAC (TiC and Sn). The Sn phase is actually a Sn–Al solid solution based on Sn. Since there is no TiC in the reagents in the SiC:TAC composite, all TiC detected by XRD is a product of TAC decomposition. Judging by the XRD patterns, the decomposition of TAC is at its initial stage and a large amount of the original TAC phase is present in the composite. The ratio of SiC to other components corresponds to that calculated for the original samples.

The greater the open porosity of the resulting materials, the more TAC was used in the initial feedstock (Figure 10). In addition to the difference in sintering kinetics, as in the case of TiC, the SiC:TAC composite adds the mutual chemical inertness of SiC and TAC. Cases of mutual interaction in the Ti₃AC₂ system (A = Al, Si) are considered in the literature [35,36]. It is indicated that the Ti–Si bond in such compounds is stronger than the Ti–Al bond. Thus, when free Si and Ti₃AlC₂ interact, the formation of Ti₃SiC₂ should be expected. Since the Gibbs free energy at 1300 °C (1573 K) for SiC [37] is much lower than for Ti₃AlC₂ [38], the transition of Si to the MAX phase is thermodynamically impossible under equilibrium or quasi-equilibrium conditions. In this work, XRD also does not reveal the formation of the Ti₃SiC₂ phase or the decomposition products of SiC. The main contribution to the strength properties of the composite comes from the sintering of the SiC skeleton. Sintering of TiC is slower and requires higher sintering temperatures, but it increases the strength of the sintered skeleton if TAC does not limit contact between SiC particles.

The hardness of the samples obtained by FGF and SPS was measured. Since the porosity of the samples in the technologies differs, a direct comparison of the values is incorrect. However, for samples of the same composition (SiC:TAC = 70:30) sintered at 1300 °C, the hardness of the SPS samples is 290 ± 15 HV (0.5/10), and the hardness of the FGF samples is 89 ± 5 HV (0.5/10). The difference in hardness depends on the porosity and phase composition of the samples.

A decrease in the porosity of the composite leads to an increase in its flexural strength (Figure 10). In this case, the sintering temperature has a greater effect on strength than on porosity. The flexural strength of the composite with TAC excess does not exceed 20 MPa for all sintering temperatures. With increasing SiC content and increasing temperature, the sintering kinetics increase, which increases the strength and reduces the porosity of the composite. Thus, the use of TAC in this case can be considered an additional factor in adjusting the porosity of the composite along with the main factors: sintering temperature and polymer content in the feedstock. The resulting strength–porosity relationship can be approximated using the minimum solid area model [39,40,41], which is described by Equation (3):

$$\sigma ={\sigma }_0{e}^{-bP},$$

(3)

where $\sigma$ is the measured strength of the porous structure, ${\sigma }_0$ is the calculated strength of the nonporous structure, P is the measured porosity, and b is a parameter determined by pore characteristics and particle stacking type. In this work, it is assumed that a change in the initial composition will continue to have the same effect on porosity as in the studied range, since the author of the model assumes a constant composition. This assumption is acceptable, since we do not consider various factors influencing porosity separately but rather observe the general trend of its change. However, in the future, we plan to construct a larger number of experimental points for additional verification.

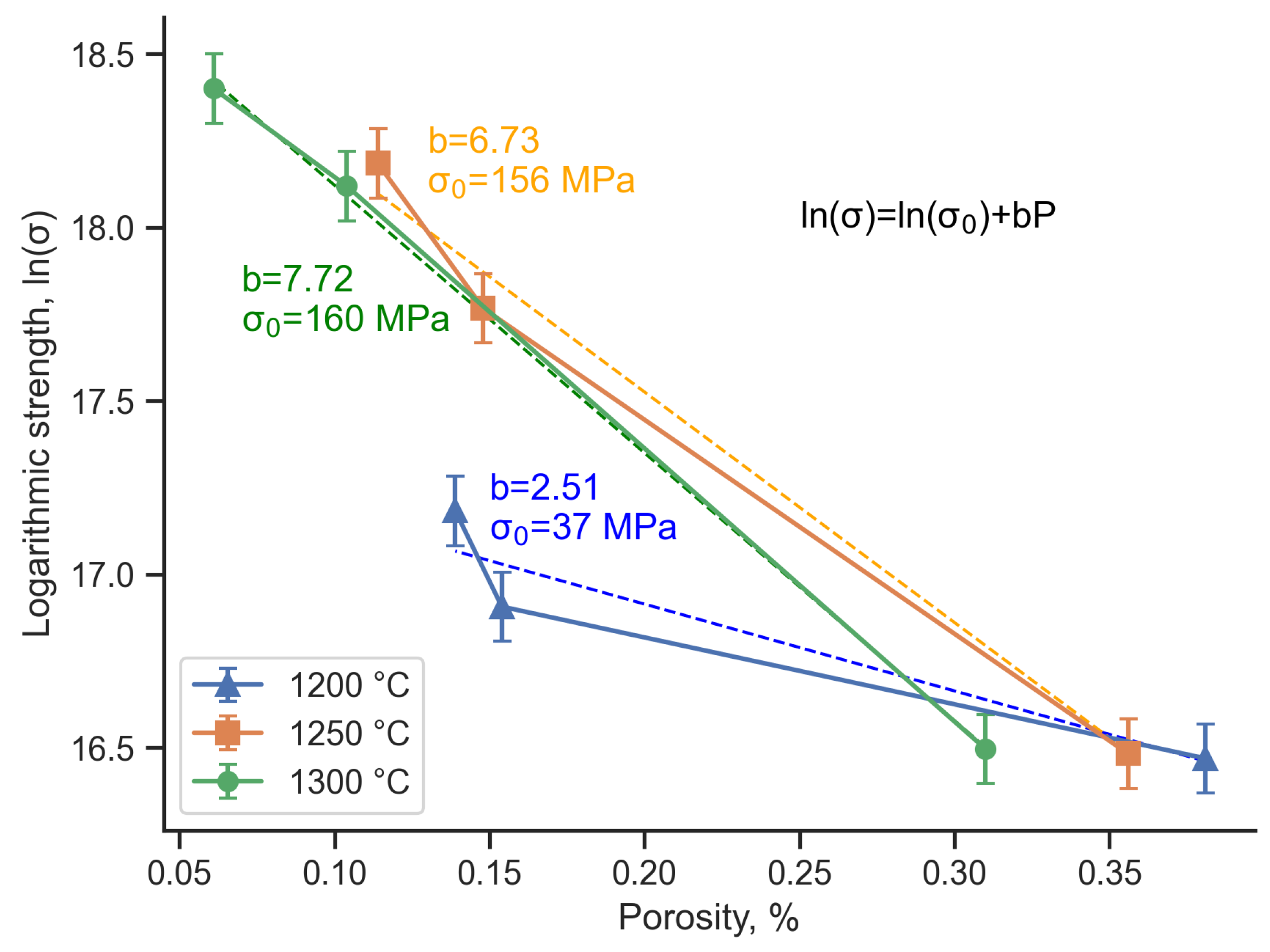

The results obtained indicate that temperature significantly affects the strength properties of the composite (Figure 11). A change in coefficient b also indicates a change in packing during the sintering process, depending on temperature. For samples sintered at 1300 °C, the calculated ${\sigma }_0$ of the nonporous state is 156 MPa, which is comparable with the literature data [42,43,44]. For samples sintered at 1200 °C, the calculated ${\sigma }_0$ is 37 MPa, which is a low value for SiC-based composites and is primarily due to the low intensity of sintering at this temperature.

4. Conclusions

-

FGF samples of TiC:TAC and SiC:TAC composites were successfully printed without any macroscopic printing defects. Debinding and sintering parameters have been optimized. Minimum debinding time for samples with a $5\times 5$ mm cross-section that is enough to remove 99% of polymer is 84 h. The optimal sintering temperature to form the best mechanical properties for both TiC:TAC and SiC:TAC composites is 1300 °C.

-

Both SiC:TAC and TiC:TAC samples are porous, and the more TAC that is in the sample, the more porous it is. Thus, TAC content, sintering temperature, and polymer content in the feedstock are the main parameters that regulate the porosity of FGF samples.

-

Mechanical properties of the samples depend on composition, porosity of the samples, and sintering temperature. The highest bending strength is 784 ± 9 MPa for TiC:TAC composition and 95 ± 7 MPa for SiC:TAC composition after sintering at 1300 °C. Calculated bending strength for nonporous SiC:TAC sample is 156 MPa, which is comparable with the literature data.
