Martensitic Transformation and Magnetic Properties of Ni-Mn Quinary Heusler Alloy
Abstract
:1. Introduction
2. Materials and Methods
3. Results and Discussion

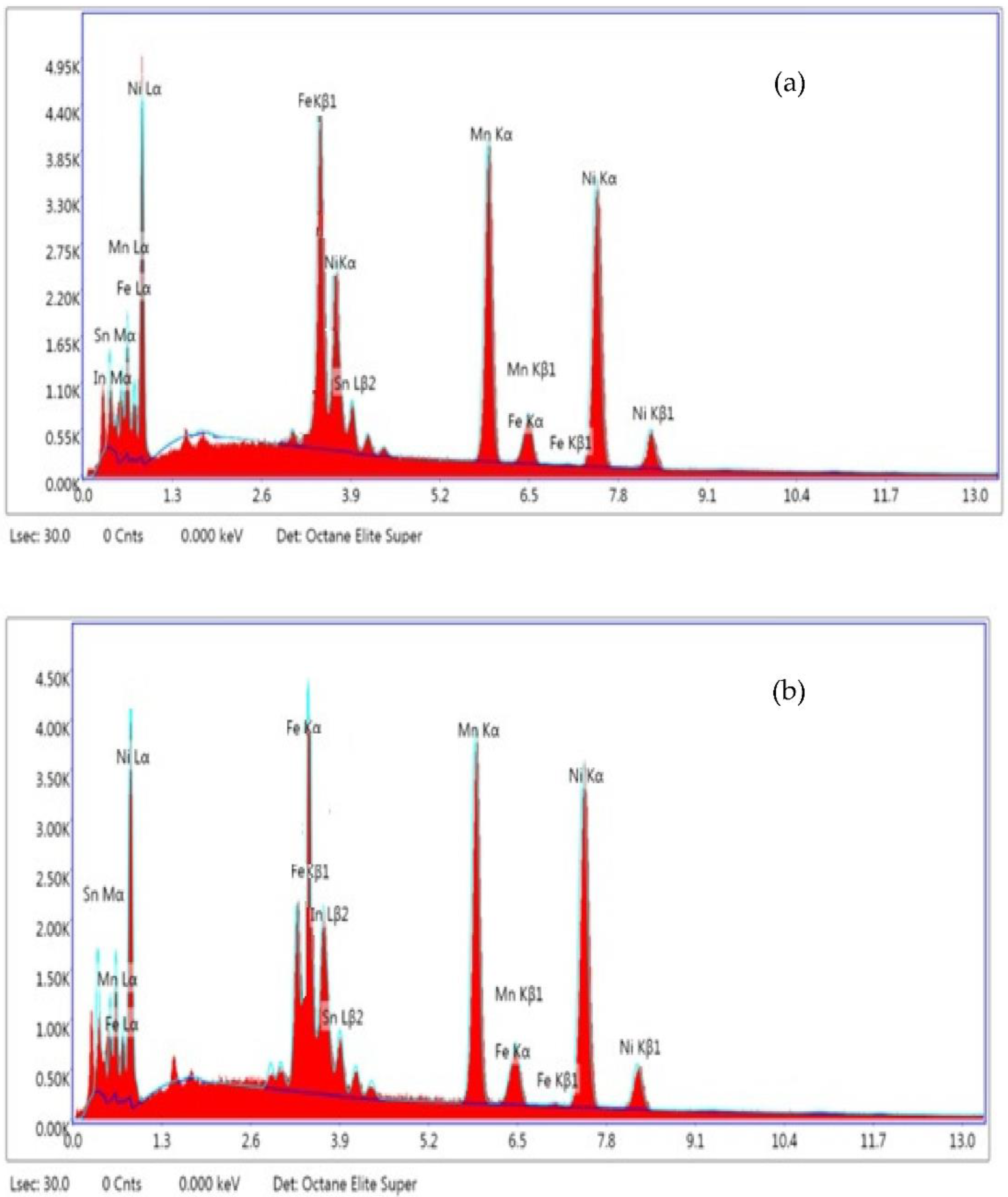

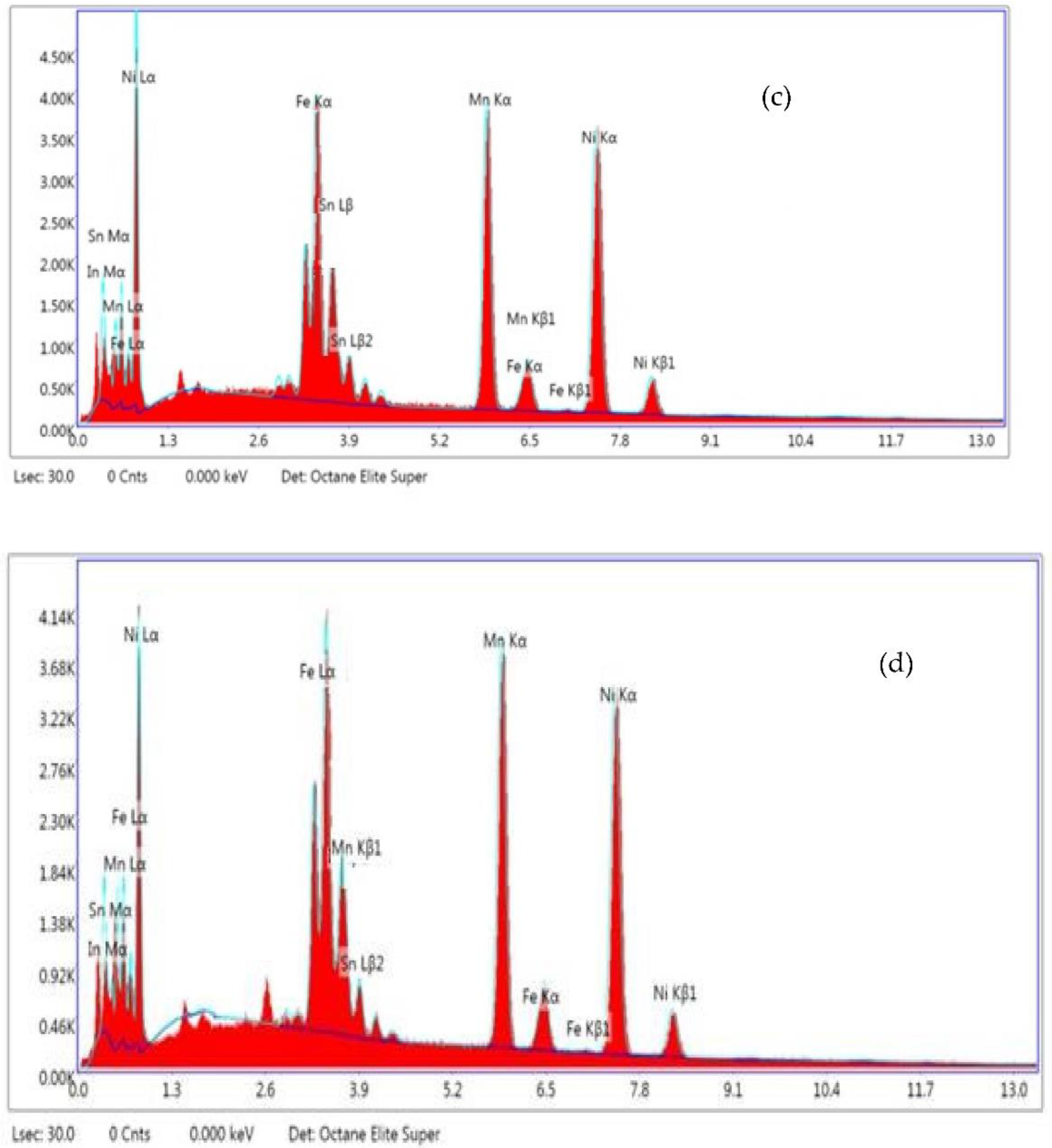

3.1. Compositonal Analysis

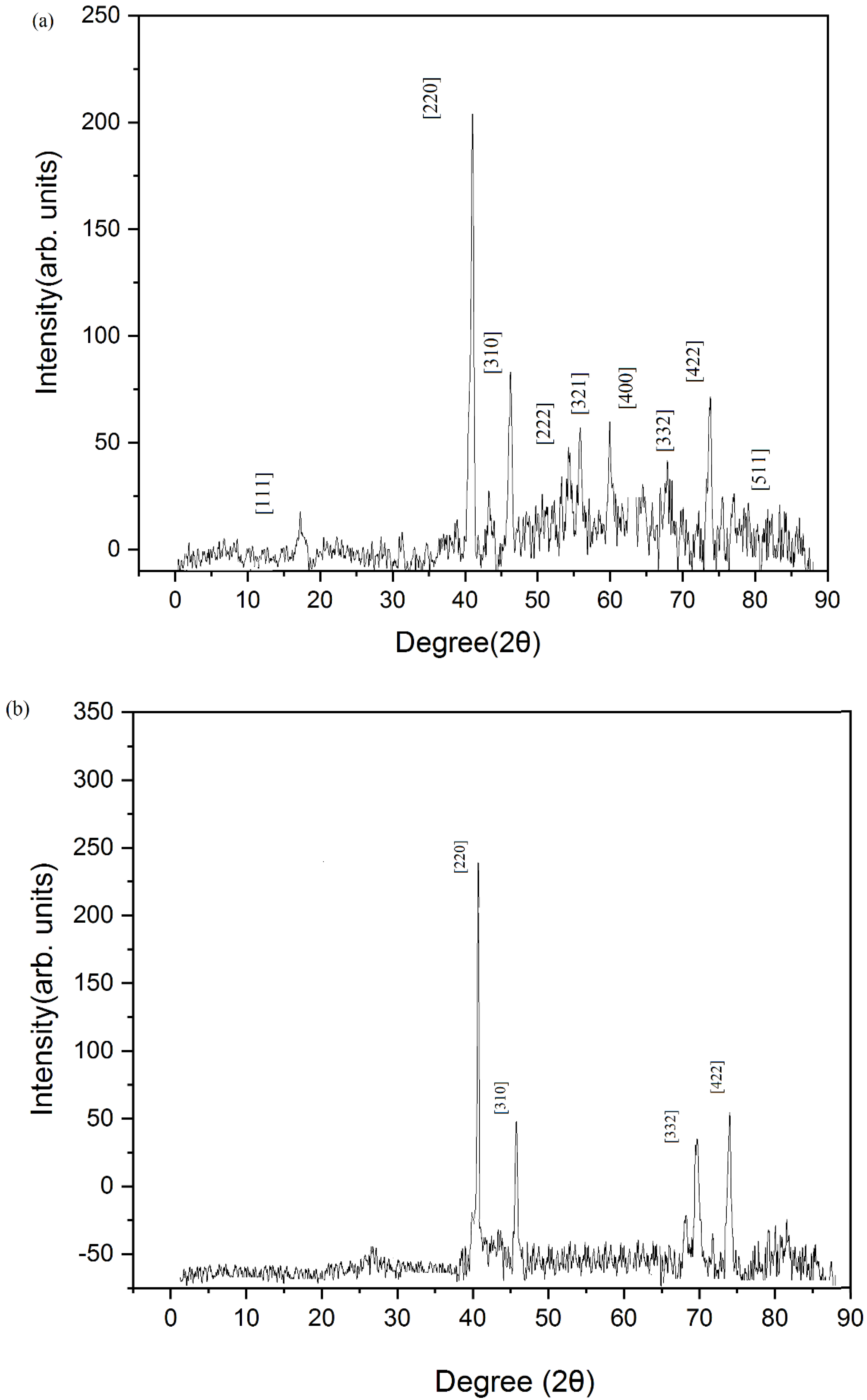

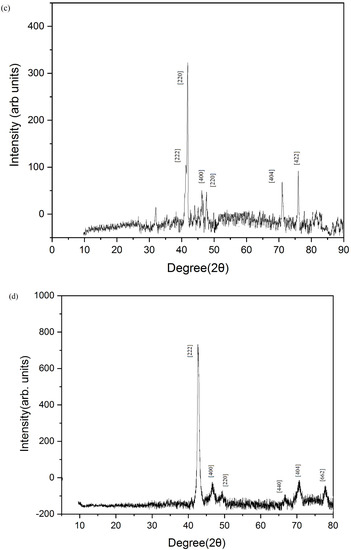

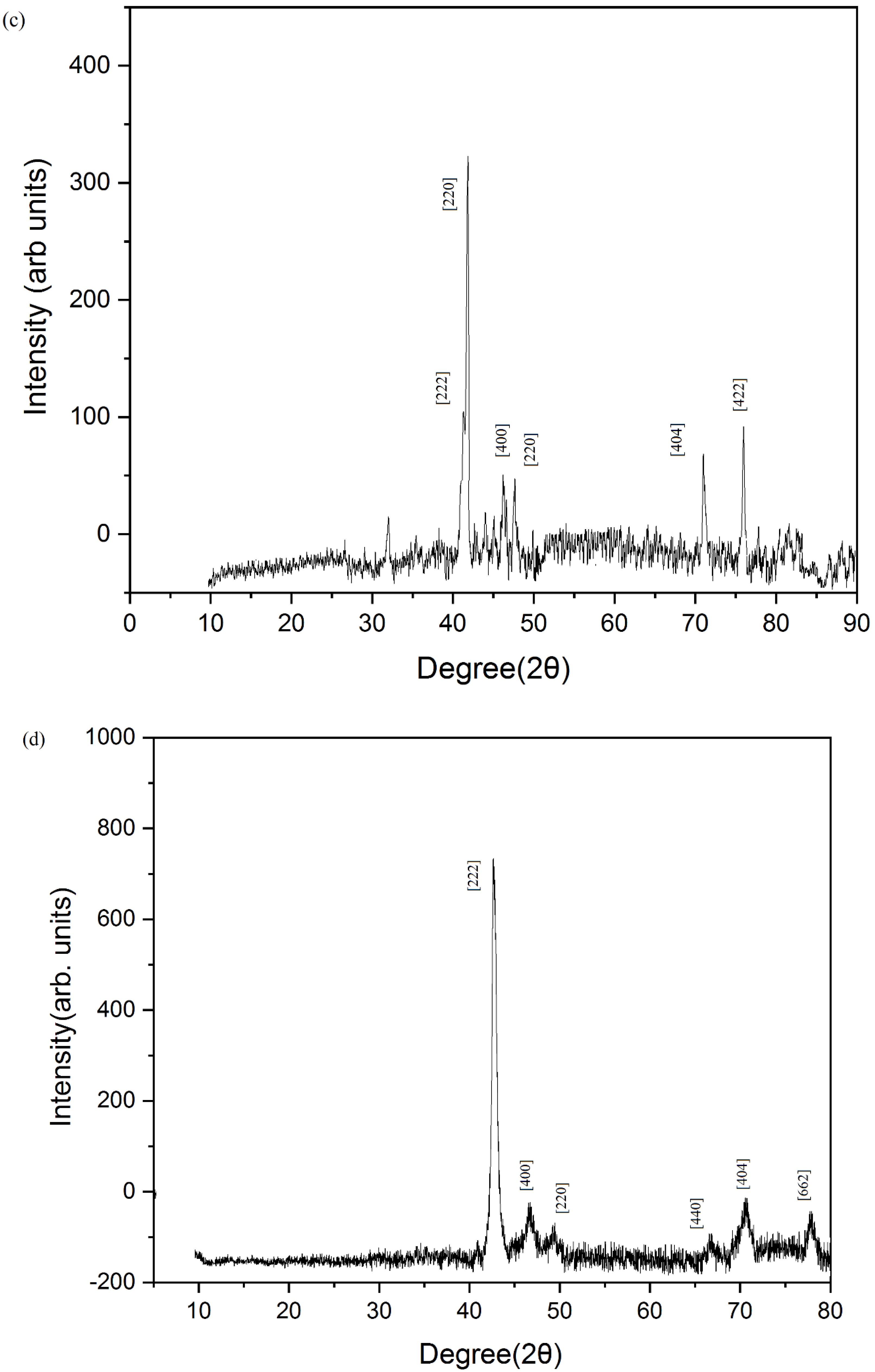

3.2. Structural Analysis Using XRD

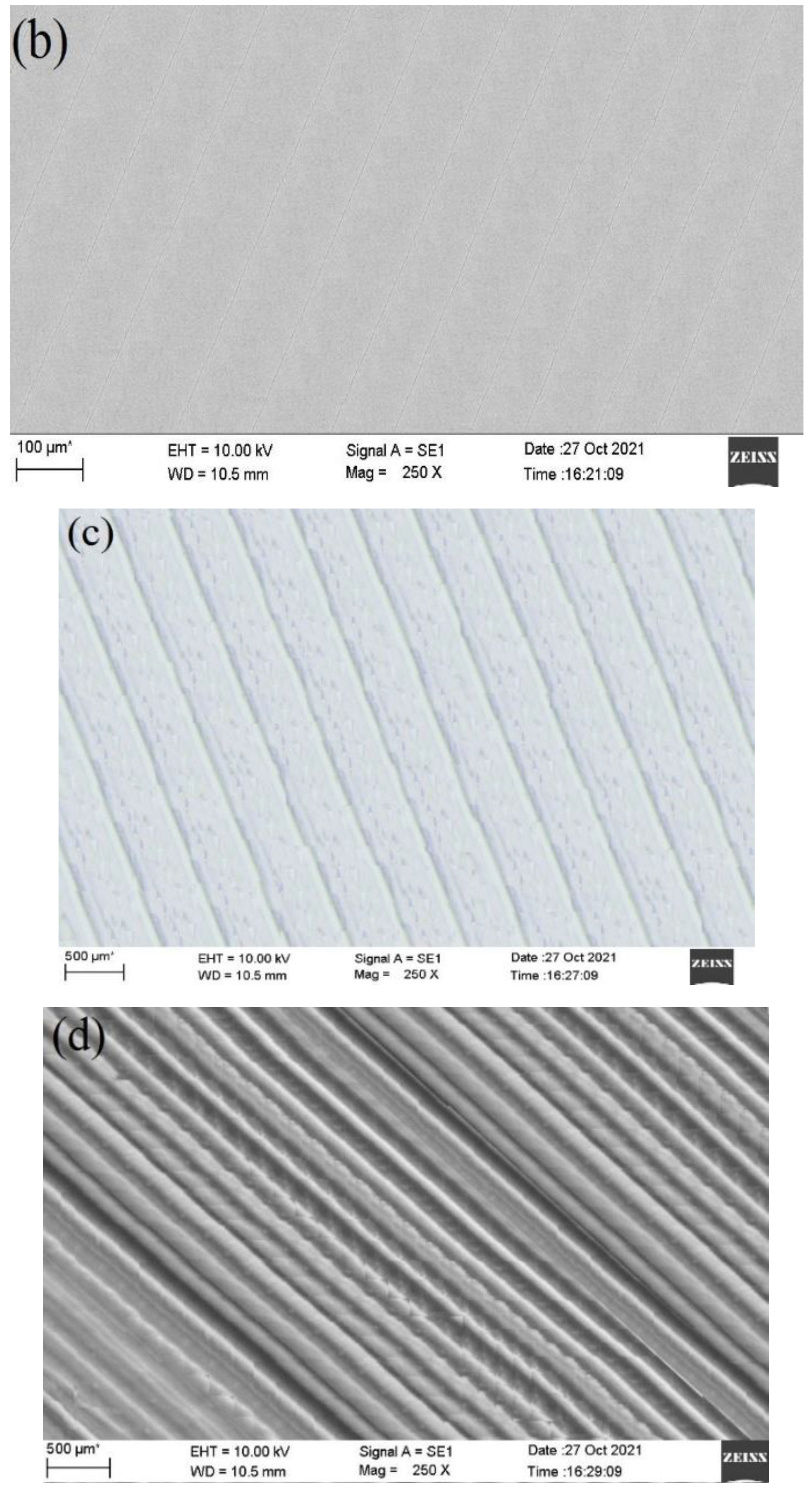

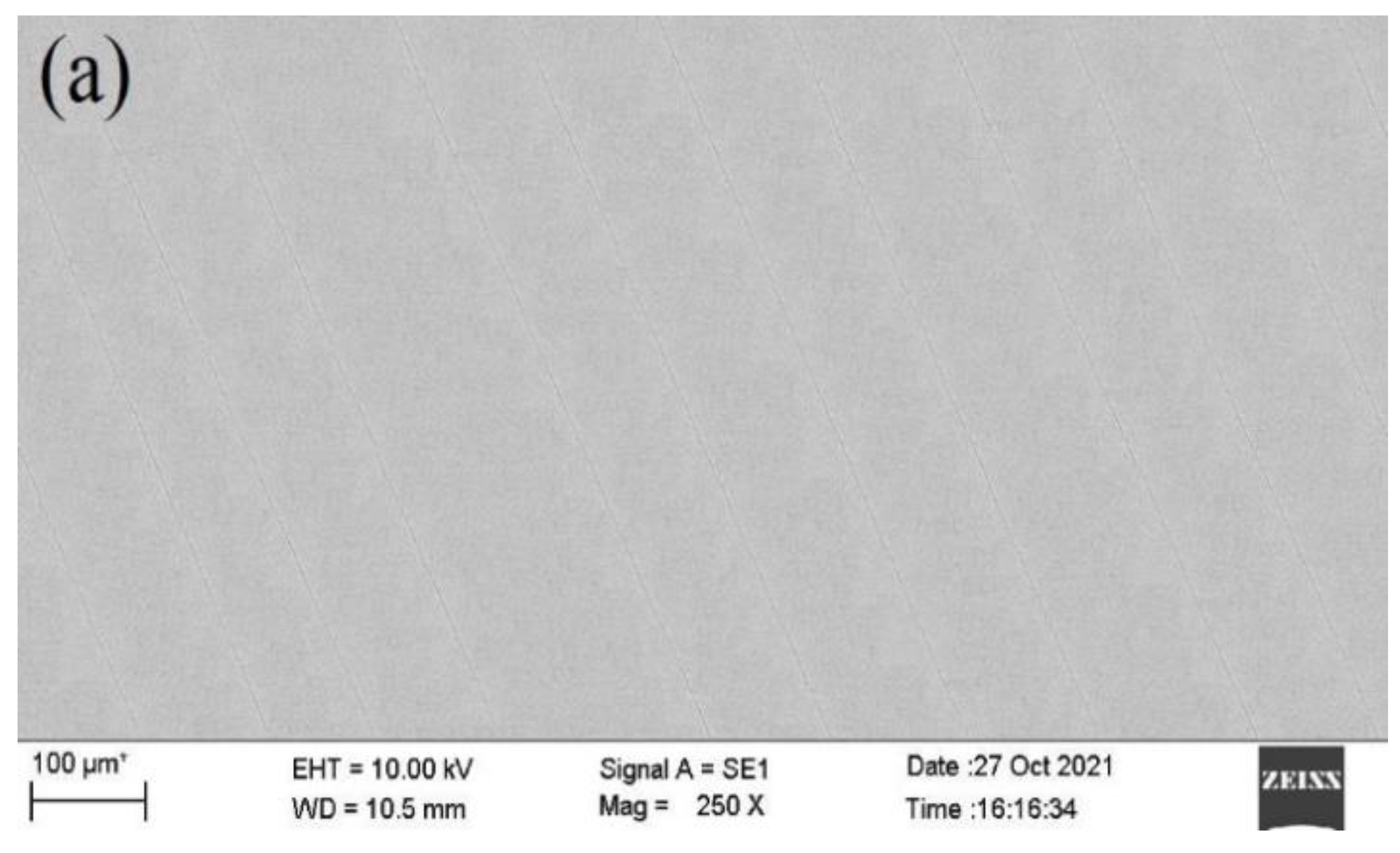

3.3. Microstructure

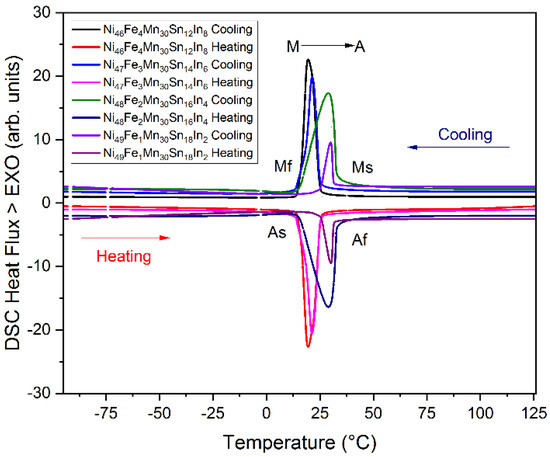

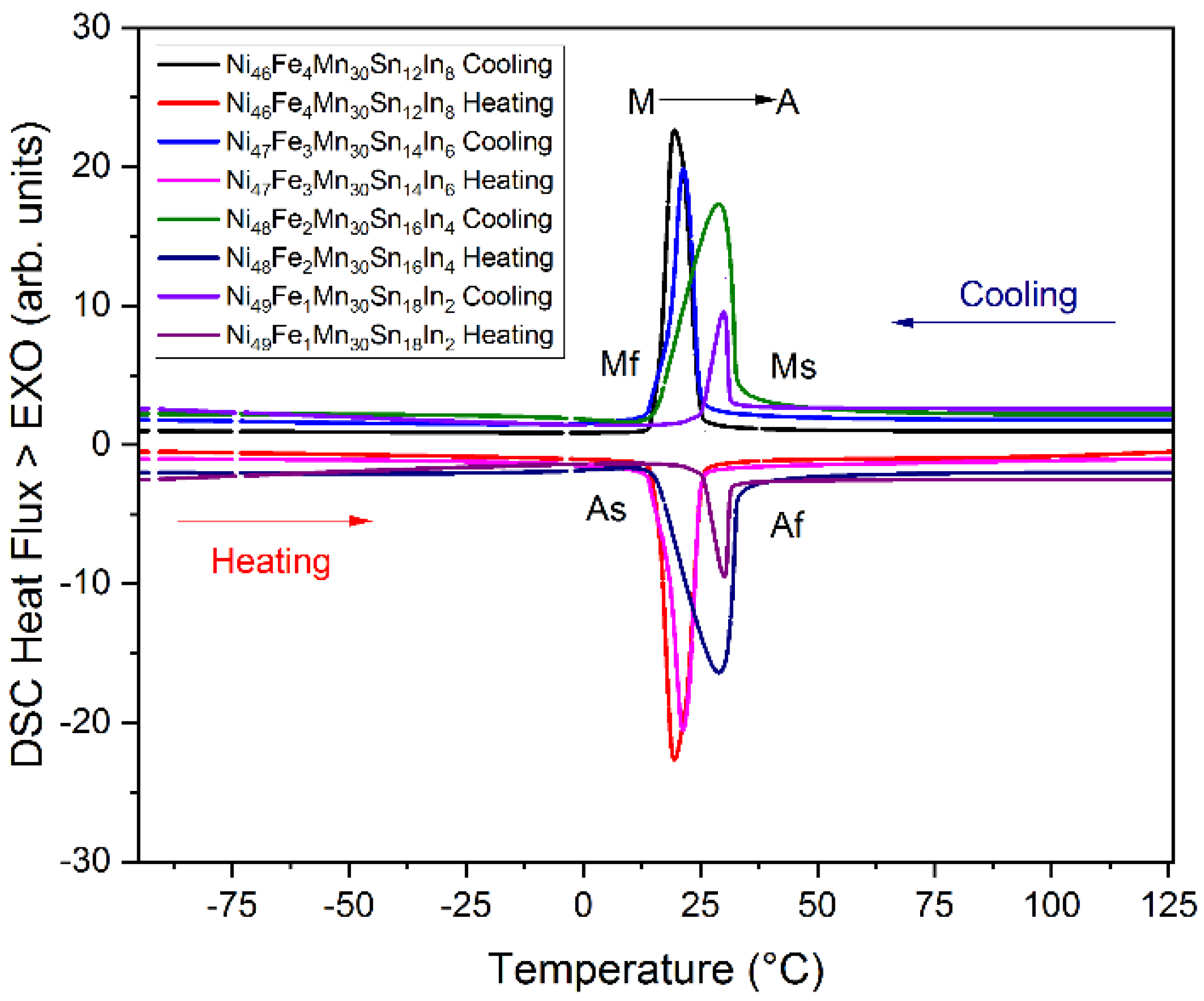

3.4. Calorimetric Transition

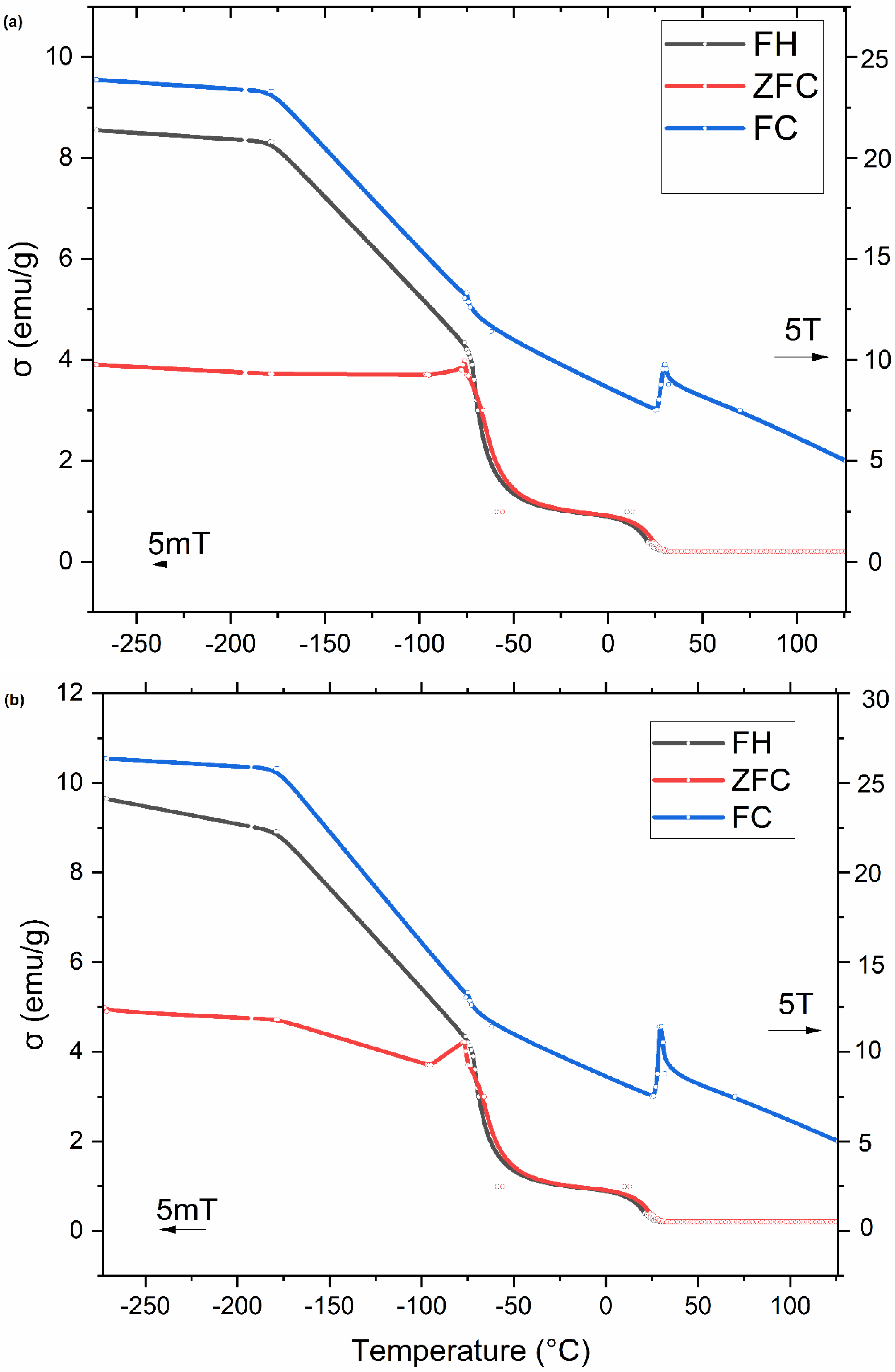

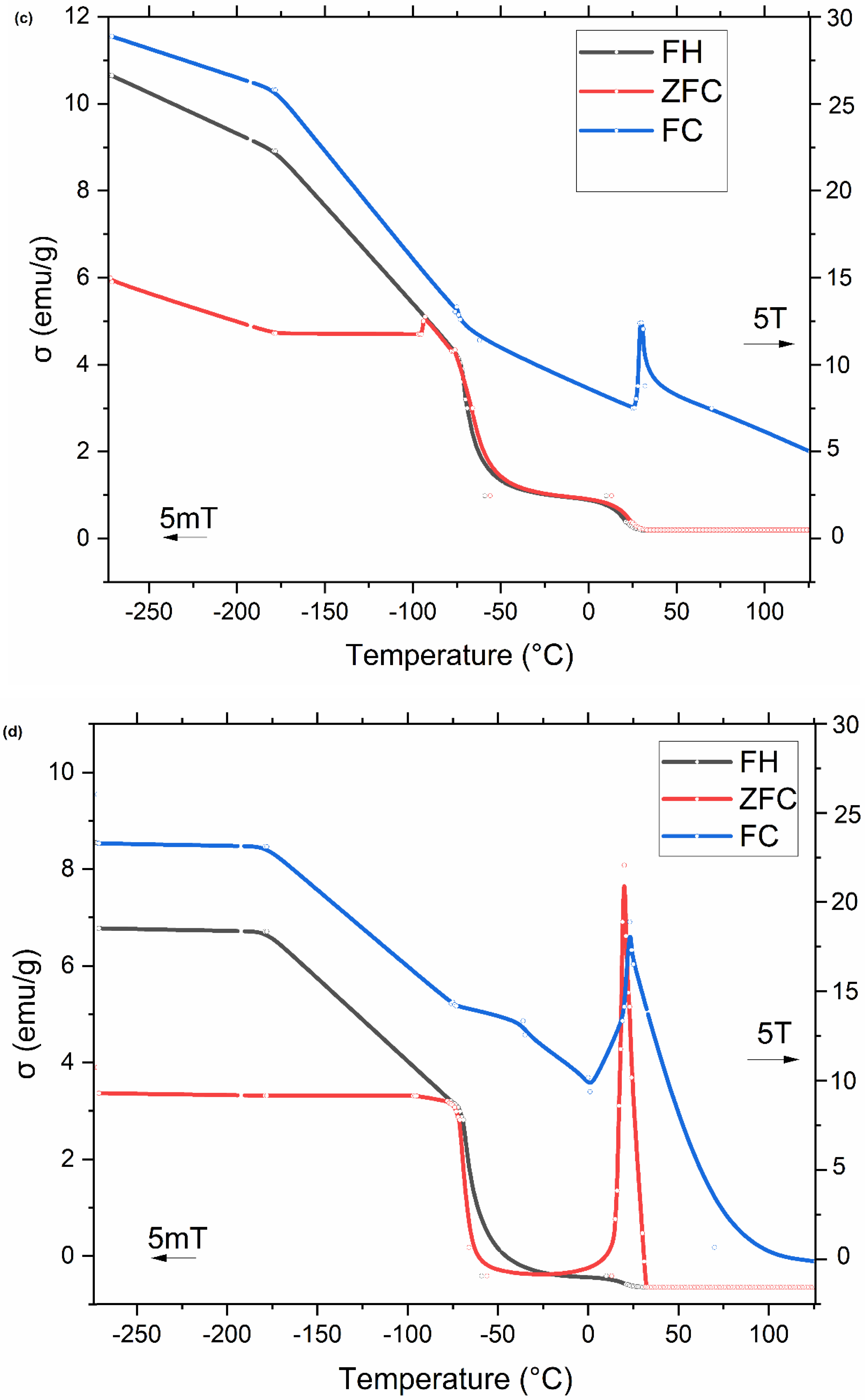

3.5. Thermomagnetic Curves

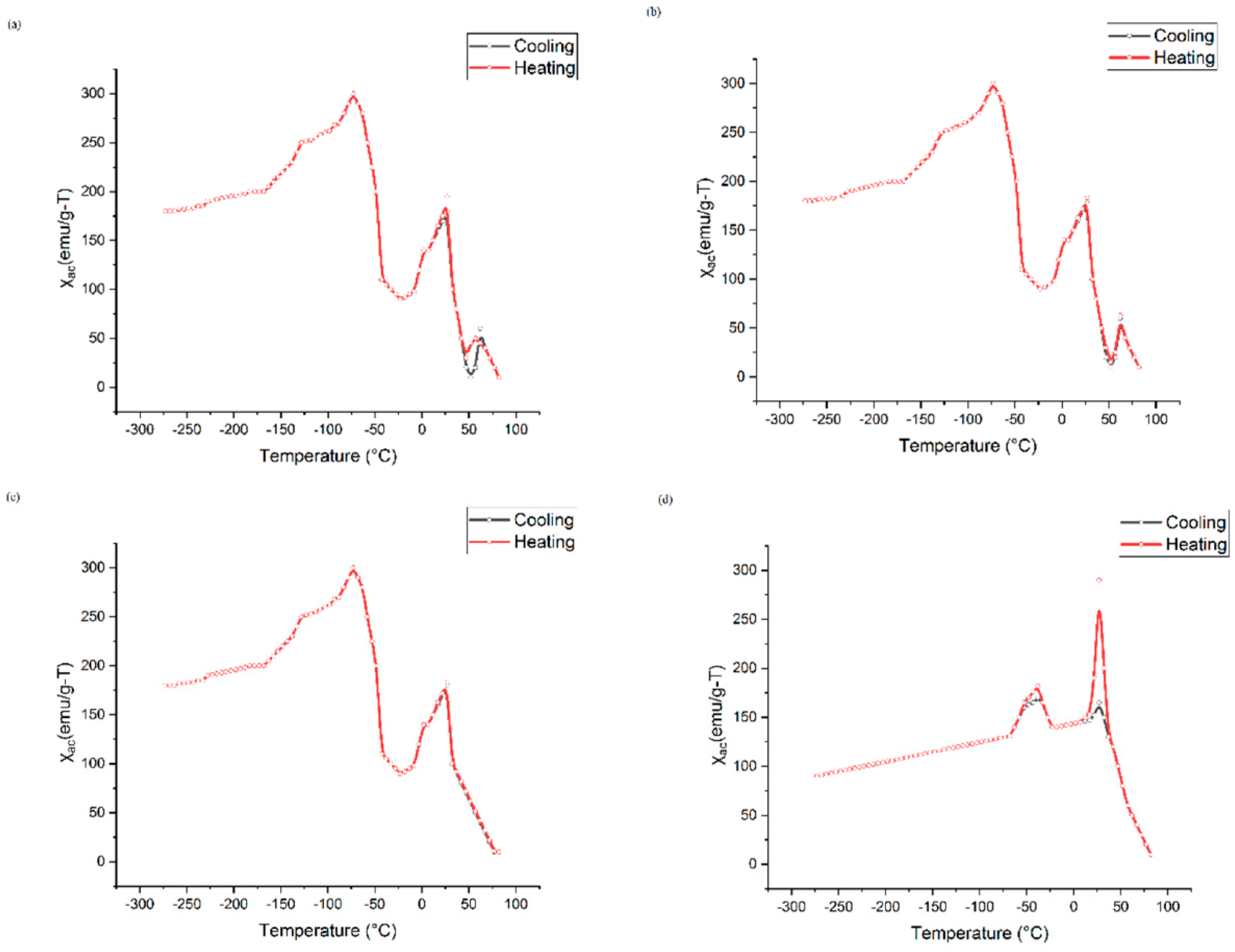

3.6. Magnetic Susceptibility
4. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Everhart, W.; Newkirk, J. Mechanical properties of Heusler alloys. Heliyon 2019, 5, e01578. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Heusler, F. Über Manganbronze und über die Synthese magnetisierbarer Legierungen aus Unmagnetischen Metallen; Angewandte Chemie: Berlin, Germany, 1904; pp. 260–264. [Google Scholar]
- Society, R. Available online: https://royalsocietypublishing.org/ (accessed on 13 May 2022).
- Graf, T.; Felser, C.; Parkin, S.S. Progress in Solid state chemistry simple rules for the understanding of Heusler compounds. Prog. Solid State Chem. 2011, 39, 1–50. [Google Scholar] [CrossRef]
- Zhang, Y.; Billman, J.; Shamberger, P.J. Size effects in the martensitic transformation hysteresis in Ni–Mn–Sn Heusler alloy film. Acta Mater. 2019, 180, 116–125. [Google Scholar] [CrossRef]
- Czaja, P.; Przewoźnik, J.; Fitta, M. Heat treatment effect on the evolution of magnetic properties of martensite in magnetic shape memory Ni48Mn39. 5Sn9. 5Al3 Heusler alloy ribbons. Mater. Res. Bull. 2021, 135, 111120. [Google Scholar] [CrossRef]
- Liu, Z.H.; Liu, G.D.; Wu, G.H.; Meng, F.B.; Li, Y.X. The influence of heat treatment on the magnetic and phase transformation properties of quaternary Heusler alloy Ni50Mn8Fe17Ga25 ribbons. Scr. Mater. 2004, 51, 1011–1015. [Google Scholar] [CrossRef]
- Popa, F.; Chicinas, H.F.; Marinca, T.F.; Chicinas, I. Influence of mechanical alloying and heat treatment processing on the Ni2MnSn Heusler alloy structure. J. Alloys Compd. 2017, 716, 137–143. [Google Scholar] [CrossRef]
- Bradley, A.J.; Rodgers, J.W. The crystal structure of the Heusler alloys. Proc. R. Soc. London. Ser. A 1934, 144, 340–359. [Google Scholar]
- Liu, H.-X.; Yan, H.-L.; Jia, N.; Tang, S.; Cong, D.; Yang, B.; Li, Z.; Zhang, Y.; Esling, C.; Zhao, X.; et al. Machine-learning-assisted discovery of empirical rule for inherent brittleness of full Heusler alloys. J. Mater. Sci. Technol. 2022, 131, 1–13. [Google Scholar] [CrossRef]
- Zhang, Y.; Kumar, S.V.; Xiang, W.; Wu, Z.; Sun, Z. Martensitic transformation and mechanical properties of grain refined Ni–Co–Mn–Sn Heusler alloys via Cr doping. Mater. Sci. Eng. A 2021, 804, 140777. [Google Scholar] [CrossRef]
- Notonegoro, H.A.; Ferdian, D.; Prasetyo, Y.; Manaf, A. Microstructure analysis of synthesized iron substituted Ni44Fe6Mn32Al18 Heusler alloy. AIP Conf. Proc. 2016, 1729, 20036. [Google Scholar] [CrossRef]
- Yu, B.; Liu, M.; Egolf, P.W.; Kitanovski, A. A review of magnetic refrigerator and heat pump prototypes built before the year. Int. J. Refrig. 2010, 33, 1029–1060. [Google Scholar] [CrossRef]
- Dubenko, I.; Ali, N.; Stadler, S.; Zhukov, A.; Zhukova, V.; Hernando, B.; Granovsky, A. Magnetic, magnetocaloric, magnetotransport, and magneto-optical properties of Ni–Mn–In-based Heusler alloys: Bulk, ribbons, and microwires. Nov. Funct. Magn. Mater. 2016, 231, 41–82. [Google Scholar] [CrossRef] [Green Version]
- Nambiar, S.S.; Murthy, B.R.N.; Sharma, S.; Prasanna, A.A.; Chelvane, A.J. Microstructure and mechanical properties of annealed quinary Ni-Mn-Sn-Fe-In Heusler alloy. Eng. Sci. 2022, 17, 303–308. [Google Scholar]
- Álvares da Silva, G.H.; Otubo, J. Designing NiTiAg shape memory alloys by vacuum arc remelting: First practical insights on melting and casting. Shape Mem. Superelasticity 2018, 4, 402–410. [Google Scholar] [CrossRef]
- Ghosh, A.; Mandal, K. Effect of structural disorder on the magnetocaloric properties of Ni-Mn-Sn alloy. Appl. Phys. Lett. 2014, 104, 031905. [Google Scholar] [CrossRef]
- Xuan, H.C.; Xie, K.X.; Wang, D.H.; Han, Z.D.; Zhang, C.L.; Gu, B.X.; Du, Y.W. Effect of annealing on the martensitic transformation and magnetocaloric effect in Ni44.1Mn44.2Sn11.7 ribbons. Appl. Phys. Lett. 2008, 92, 242506. [Google Scholar] [CrossRef]
- Kumar, S.V.; Singh, R.; Raja, M.M.; Kumar, A.; Bysakh, S.; Mahendran, M. Microstructure and nanomechanical properties of Mn-rich Ni–Mn–Ga thin films. Intermetallics 2016, 71, 57–64. [Google Scholar] [CrossRef]
- Peruman, K.V.; Chokkalingam, R.; Mahendran, M. Annealing effect on phase transformation in nano structured Ni–Mn–Ga ferromagnetic shape memory alloy. Phase Transit. 2010, 83, 509–517. [Google Scholar] [CrossRef]
- Taubel, A.; Gottschall, T.; Fries, M.; Riegg, S.; Soon, C.; Skokov, K.P.; Gutfleisch, O. A Comparative Study on the Magnetocaloric Properties of Ni-Mn-X(-Co) Heusler Alloys. Phys. Status Solidi (b) 2018, 255, 1700331. [Google Scholar] [CrossRef]
- Babita, I.; Raja, M.M.; Gopalan, R.; Chandrasekaran, V.; Ram, S. Phase transformation and magnetic properties in Ni–Mn–Ga Heusler alloys. J. Alloys Compd. 2007, 432, 23–29. [Google Scholar] [CrossRef]
- Titov, I.; Acet, M.; Farle, M.; González-Alonso, D.; Mañosa, L.; Planes, A.; Krenke, T. Hysteresis effects in the inverse magnetocaloric effect in martensitic Ni-Mn-In and Ni-Mn-Sn. J. Appl. Phys. 2012, 112, 073914. [Google Scholar] [CrossRef]
- Prasanna, A.A.; Ram, S.; Fecht, H.-J. Consecutive magnetic and magnetocaloric transitions in herringbone nanostructured Heusler Mn50Ni41Sn9 alloy. J. Nanosci. Nanotechnol. 2013, 13, 5351–5359. [Google Scholar] [CrossRef] [PubMed]
- Li, Z.; Jing, C.; Chen, J.; Yuan, S.; Cao, S.; Zhang, J. Observation of exchange bias in the martensitic state of Ni50Mn36Sn14 Heusler alloy. Appl. Phys. Lett. 2007, 91, 112505. [Google Scholar] [CrossRef]
- Czaja, P.; Chulist, R.; Szczerba, M.J.; Przewoźnik, J.; Olejnik, E.; Chrobak, A.; Maziarz, W.; Cesari, E. Magnetostructural transition and magnetocaloric effect in highly textured Ni-Mn-Sn alloy. J. Appl. Phys. 2016, 119, 165102. [Google Scholar] [CrossRef]
- Long, Y.; Zhang, Z.Y.; Wen, D.; Wu, G.H.; Ye, R.C.; Chang, Y.Q.; Wan, F.R. Phase transition processes and magnetocaloric effects in the Heusler alloys NiMnGa with concurrence of magnetic and structural phase transition. J. Appl. Phys. 2012, 98, 046102. [Google Scholar] [CrossRef] [Green Version]
- Basso, V.; Sasso, C.; Skokov, K.; Gutfleisch, O.; Khovaylo, V.V. Hysteresis and magnetocaloric effect at the magnetostructural phase transition of Ni-Mn-Ga and Ni-Mn-Co-Sn Heusler alloys. Phys. Rev. B 2012, 85, 014430. [Google Scholar] [CrossRef]
- Yüzüak, E. The magnetothermal characterization of Ni-Cu-Mn-Sn alloy. Mater. Res. Bull. 2021, 142, 111398. [Google Scholar] [CrossRef]
- Guo, J.; Zhong, M.; Zhou, W.; Zhang, Y.; Wu, Z.; Li, Y.; Zhang, J.; Liu, Y.; Yang, H. Grain Size Effect of the γ Phase Precipitation on Martensitic Transformation and Mechanical Properties of Ni–Mn–Sn–Fe Heusler Alloys. Materials 2021, 14, 2339. [Google Scholar] [CrossRef]
- Zhao, X.G.; Tong, M.; Shih, C.W.; Li, B.; Chang, W.C.; Liu, W.; Zhang, Z.D. Microstructure, martensitic transitions, magnetocaloric, and exchange bias properties in Fe-doped Ni-Mn-Sn melt-spun ribbons. J. Appl. Phys. 2013, 113, 913. [Google Scholar] [CrossRef]
- Stevens, E.; Toman, J.; Kimes, K.; Chernenko, V.; Wojcik, A.; Maziarz, W.; Chmielus, M. Microstructural Evaluation of Magnetocaloric Ni-Co-Mn-Sn Produced by Directed Energy Deposition. Microsc. Microanal. 2016, 22, 1774–1775. [Google Scholar] [CrossRef] [Green Version]
- Deltell, A.; Escoda, L.; Saurina, J.; Suñol, J.J. Martensitic Transformation in Ni-Mn-Sn-Co Heusler Alloys. Metals 2015, 5, 695–705. [Google Scholar] [CrossRef] [Green Version]
- Moya, X.; Mañosa, L.; Planes, A.; Krenke, T.; Duman, E.Y.Ü.P.; Acet, M.; Wassermann, E.F. Calorimetric study of the inverse magnetocaloric effect in ferromagnetic Ni–Mn–Sn. J. Mag. Mag. Mater. 2007, 316, 572–574. [Google Scholar] [CrossRef]
- Kamantsev, A.P.; Koledov, V.V.; Mashirov, A.V.; Dilmieva, E.T.; Shavrov, V.G.; Cwik, J.; Los, A.S.; Nizhankovskii, V.I.; Rogacki, K.; Tereshina, I.S.; et al. Magnetocaloric and thermomagnetic properties of Ni2.18Mn0.82Ga Heusler alloy in high magnetic fields up to 140 kOe. J. Appl. Phys. 2015, 117, 163903. [Google Scholar] [CrossRef] [Green Version]
- Fukushima, K.; Sano, K.; Kanomata, T.; Nishihara, H.; Furutani, Y.; Shishido, T.; Ito, W.; Umetsu, R.; Kainuma, R.; Oikawa, K.; et al. Phase diagram of Fe-substituted Ni–Mn–Sn shape memory alloys. Scr. Mater. 2009, 61, 813–816. [Google Scholar] [CrossRef]
Alloy Constituents | Method | Composition (%) | |||||
---|---|---|---|---|---|---|---|
x | y | Ni | Fe | Mn | Sn | In | |
ICP-OES | 37.2 | 26.55 | 31.54 | 3.90 | 0.70 | ||
1 | 2 | EDX | 37.4 | 26.63 | 31.27 | 3.93 | 0.77 |
ICP-OES | 37.15 | 26.42 | 27.39 | 7.09 | 1.19 | ||
2 | 4 | EDX | 37.04 | 26.52 | 27.28 | 7.04 | 1.12 |
ICP-OES | 37.12 | 26.85 | 23.65 | 10.53 | 1.45 | ||
3 | 6 | EDX | 37.0 | 26.91 | 23.59 | 10.68 | 1.37 |
ICP-OES | 36.95 | 26.95 | 20.96 | 13.71 | 1.68 | ||
4 | 8 | EDX | 36.88 | 26.92 | 20.91 | 13.74 | 1.75 |
x | y | Phase | e/a | Lattice Parameters | |||
---|---|---|---|---|---|---|---|
a (nm) | c (nm) | c/a | V (nm3) | ||||
1 | 2 | L21(A) | 7.86 | 0.6024 | 0.6024 | 1 | 0.218 |
2 | 4 | L21(A) | 7.82 | 0.634 | 0.634 | 1 | 0.219 |
3 | 6 | L10(M) | 7.75 | 0.639 | 0.639 | 1 | 0.220 |
4 | 8 | L10(M) | 7.71 | 0.788 | 0.695 | 0.88 | 0.431 |
Alloy | Ms/°C | Mf/°C | Af/°C | As/°C | TA/°C |
---|---|---|---|---|---|
1 | 32 | 22.9 | 32.6 | 22.9 | 27.75 |
2 | 32 | 13.5 | 32.1 | 13.3 | 22.7 |
3 | 25.2 | 13.2 | 27 | 13.1 | 20.05 |
4 | 25.3 | 13 | 25.3 | 13 | 19.15 |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Nambiar S., S.; B. R. N., M.; Sharma, S.; A. A., P. Martensitic Transformation and Magnetic Properties of Ni-Mn Quinary Heusler Alloy. J. Compos. Sci. 2023, 7, 1. https://doi.org/10.3390/jcs7010001
Nambiar S. S, B. R. N. M, Sharma S, A. A. P. Martensitic Transformation and Magnetic Properties of Ni-Mn Quinary Heusler Alloy. Journal of Composites Science. 2023; 7(1):1. https://doi.org/10.3390/jcs7010001
Chicago/Turabian StyleNambiar S., Sandeep, Murthy B. R. N., Sathyashankara Sharma, and Prasanna A. A. 2023. "Martensitic Transformation and Magnetic Properties of Ni-Mn Quinary Heusler Alloy" Journal of Composites Science 7, no. 1: 1. https://doi.org/10.3390/jcs7010001
