Development and Improvement of a “Paper Actuator” Based on Carbon Nanotube Composite Paper with Unique Structures

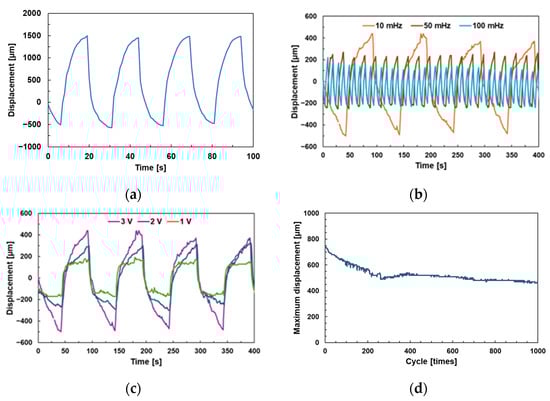

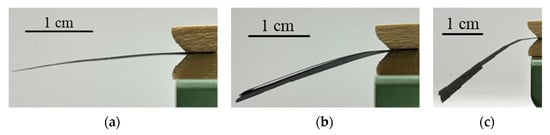

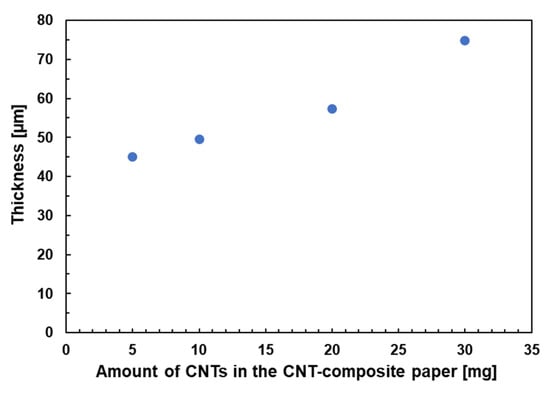

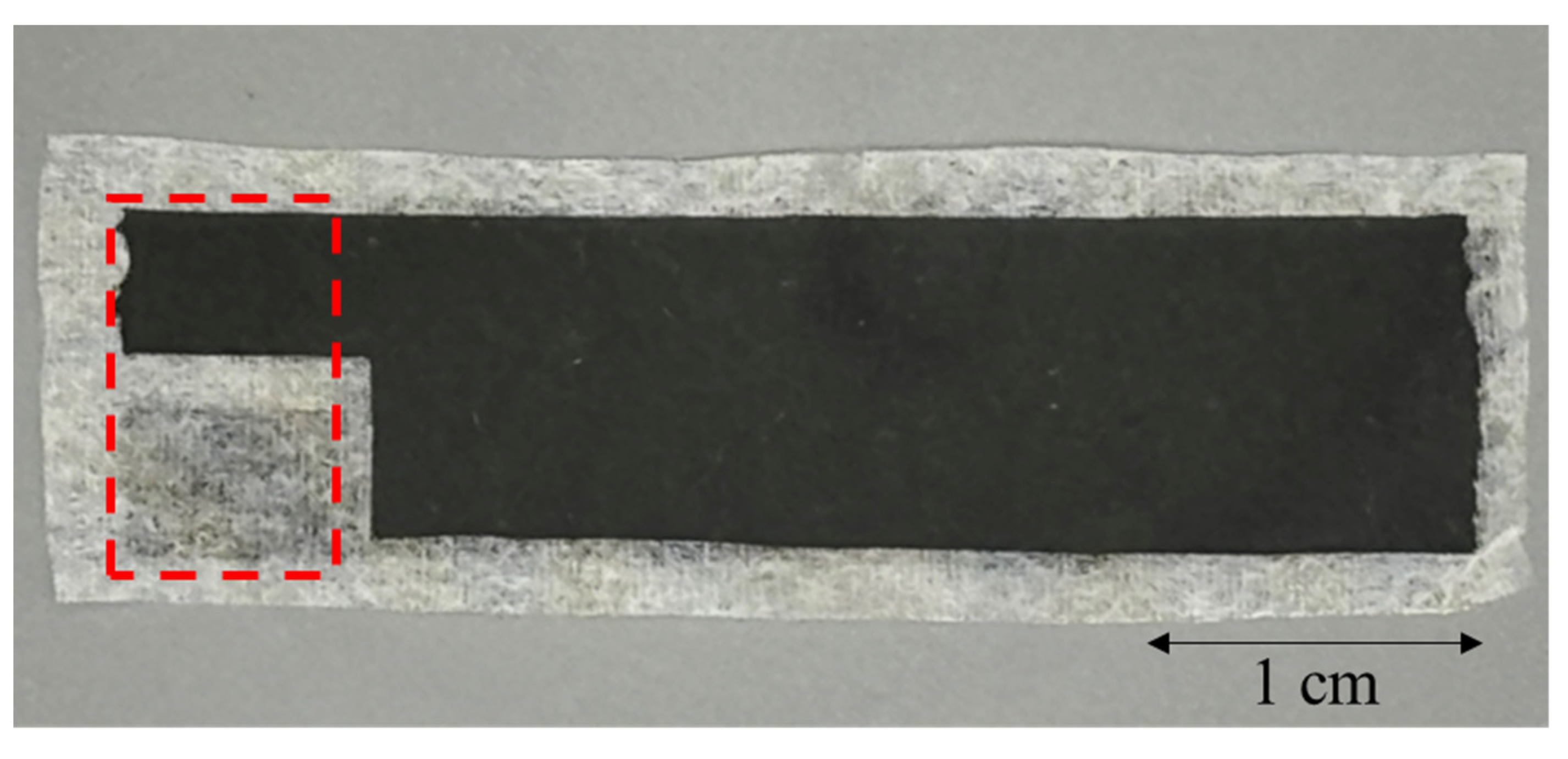

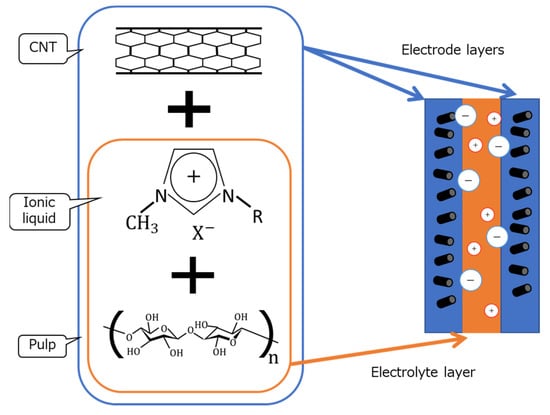

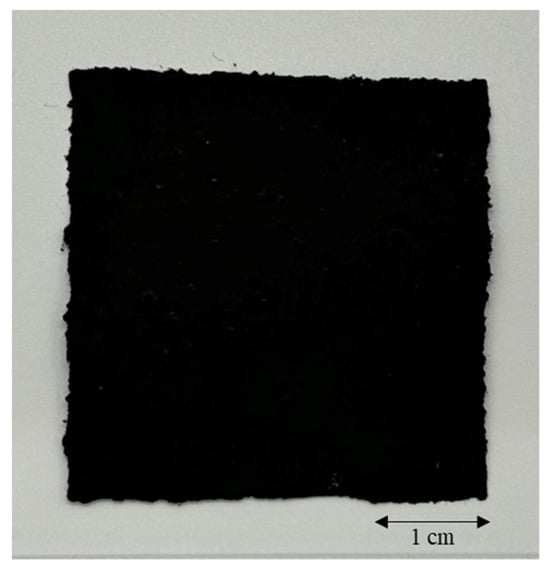

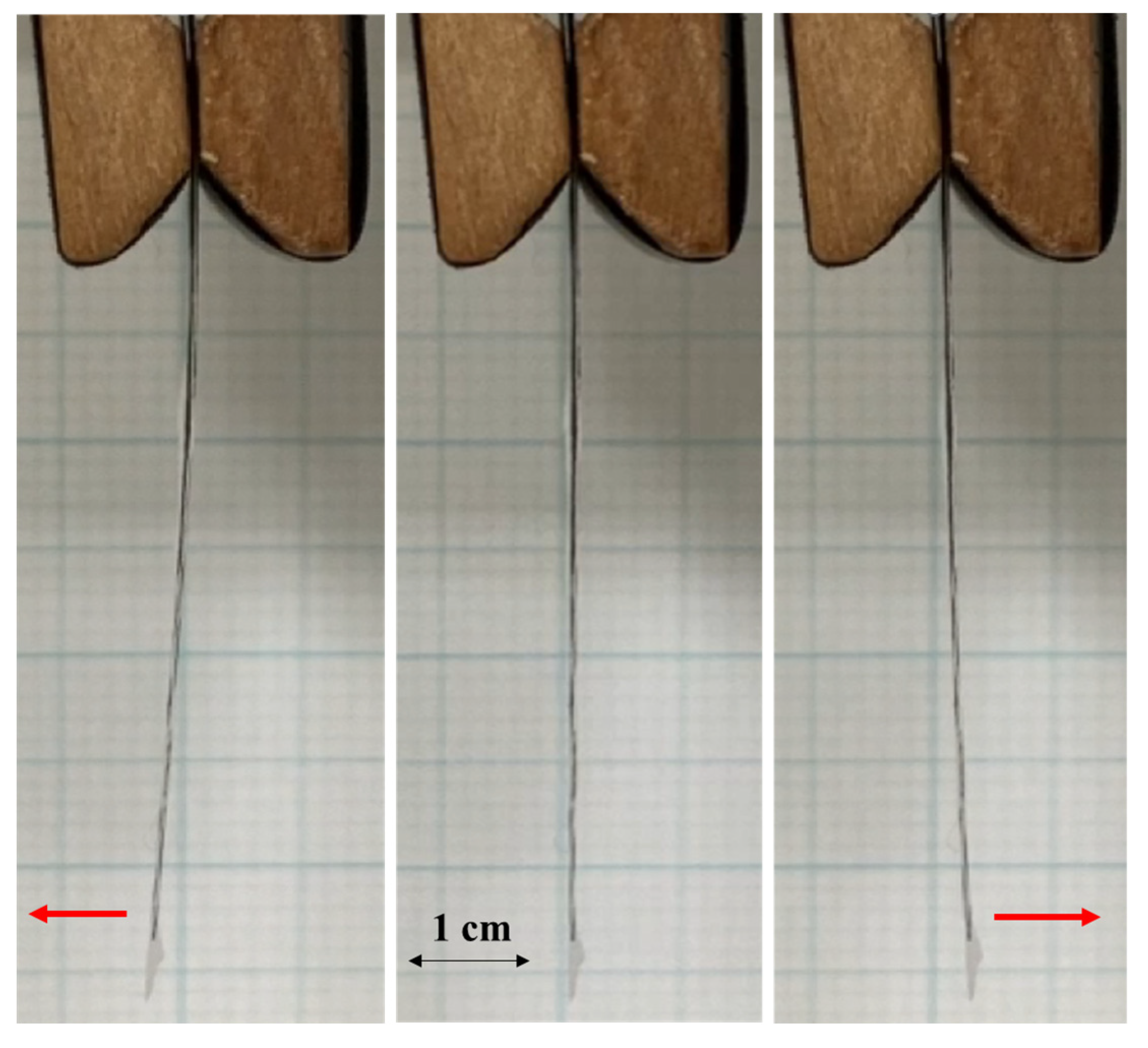

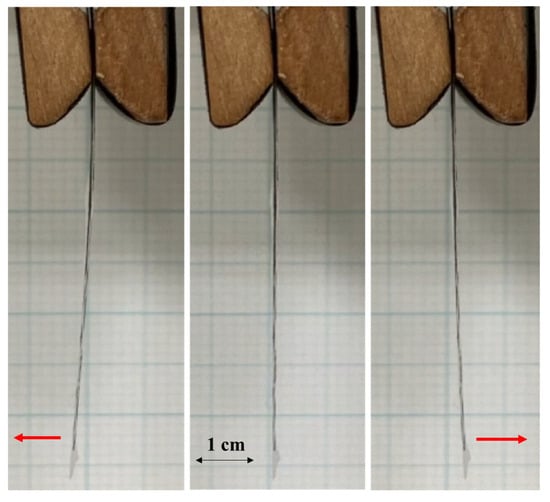

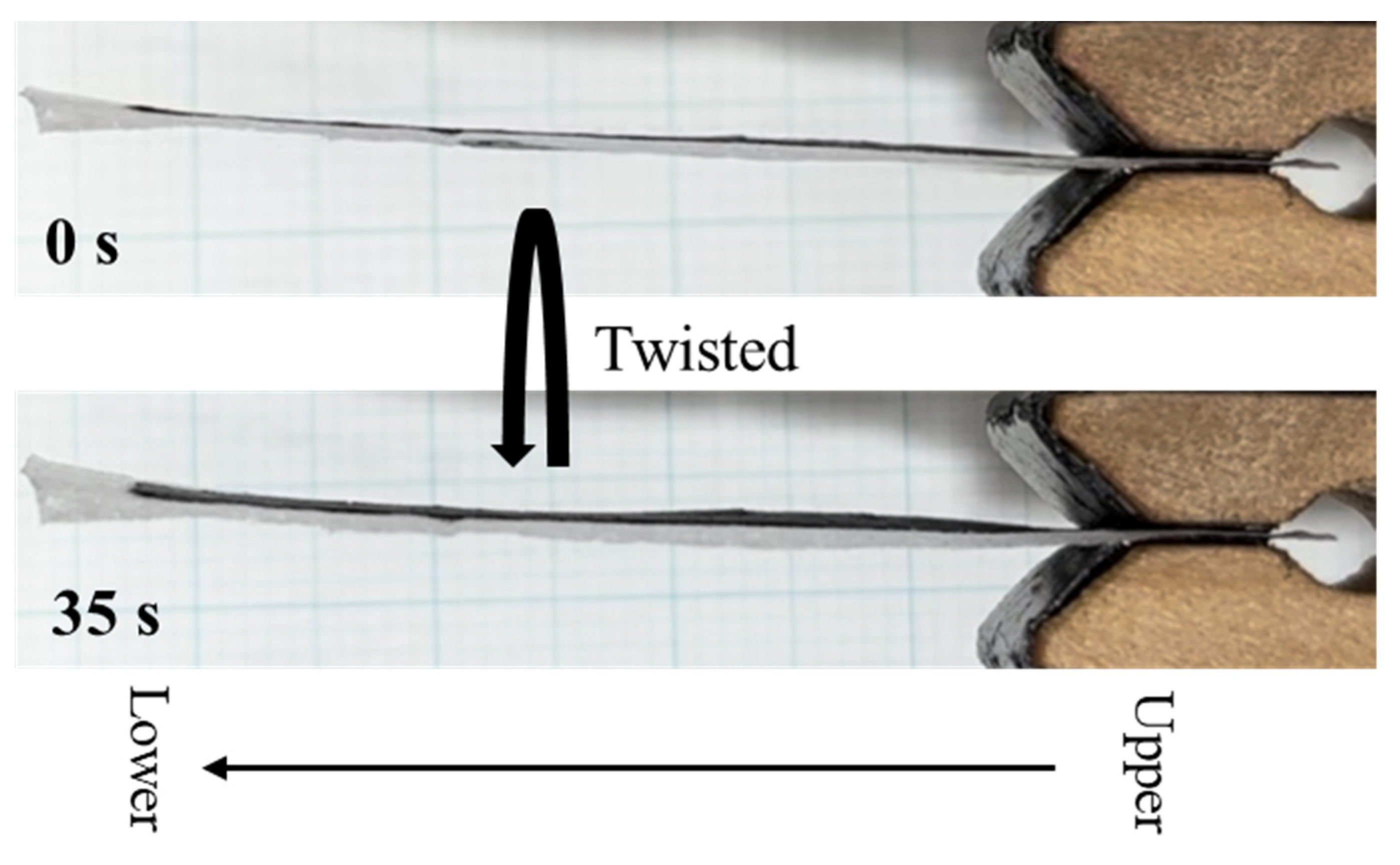

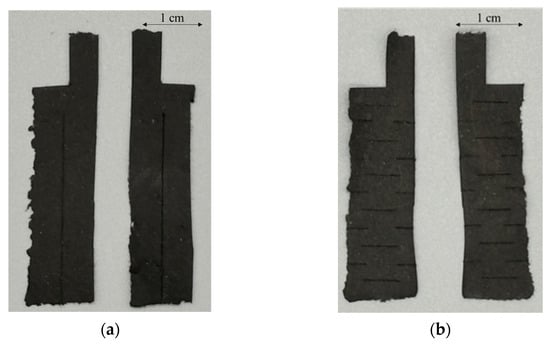

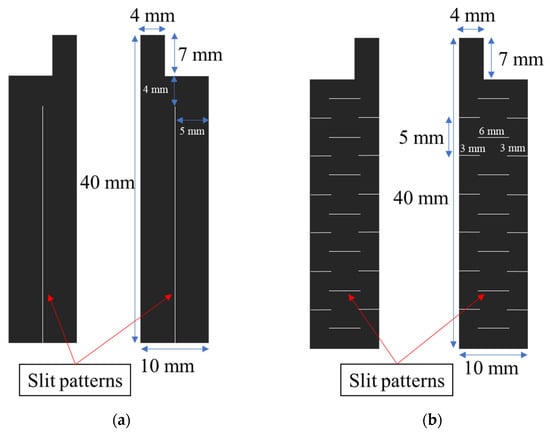

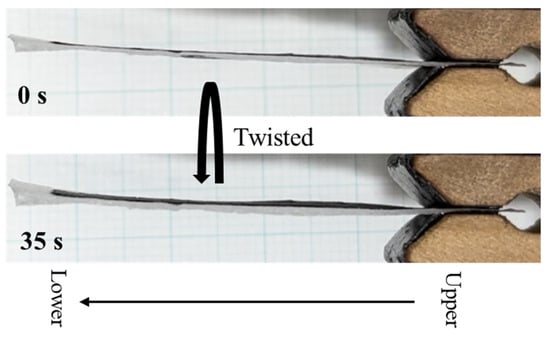

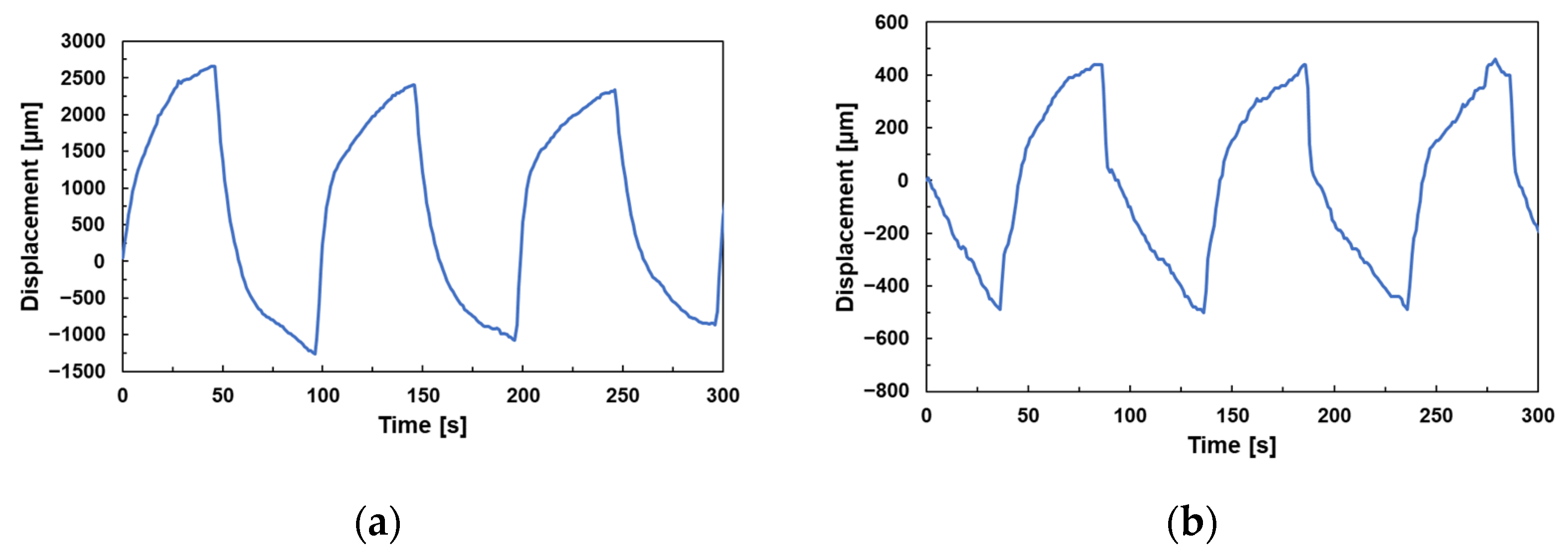

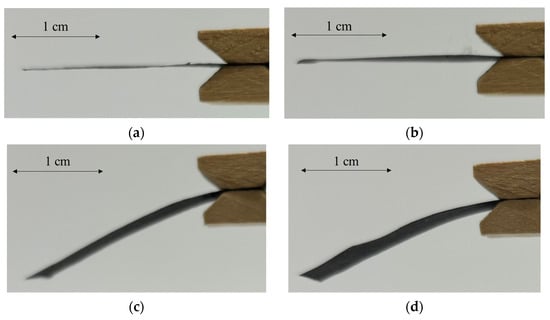

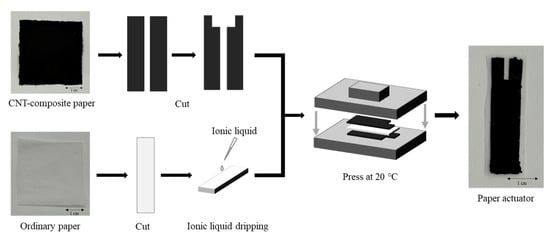

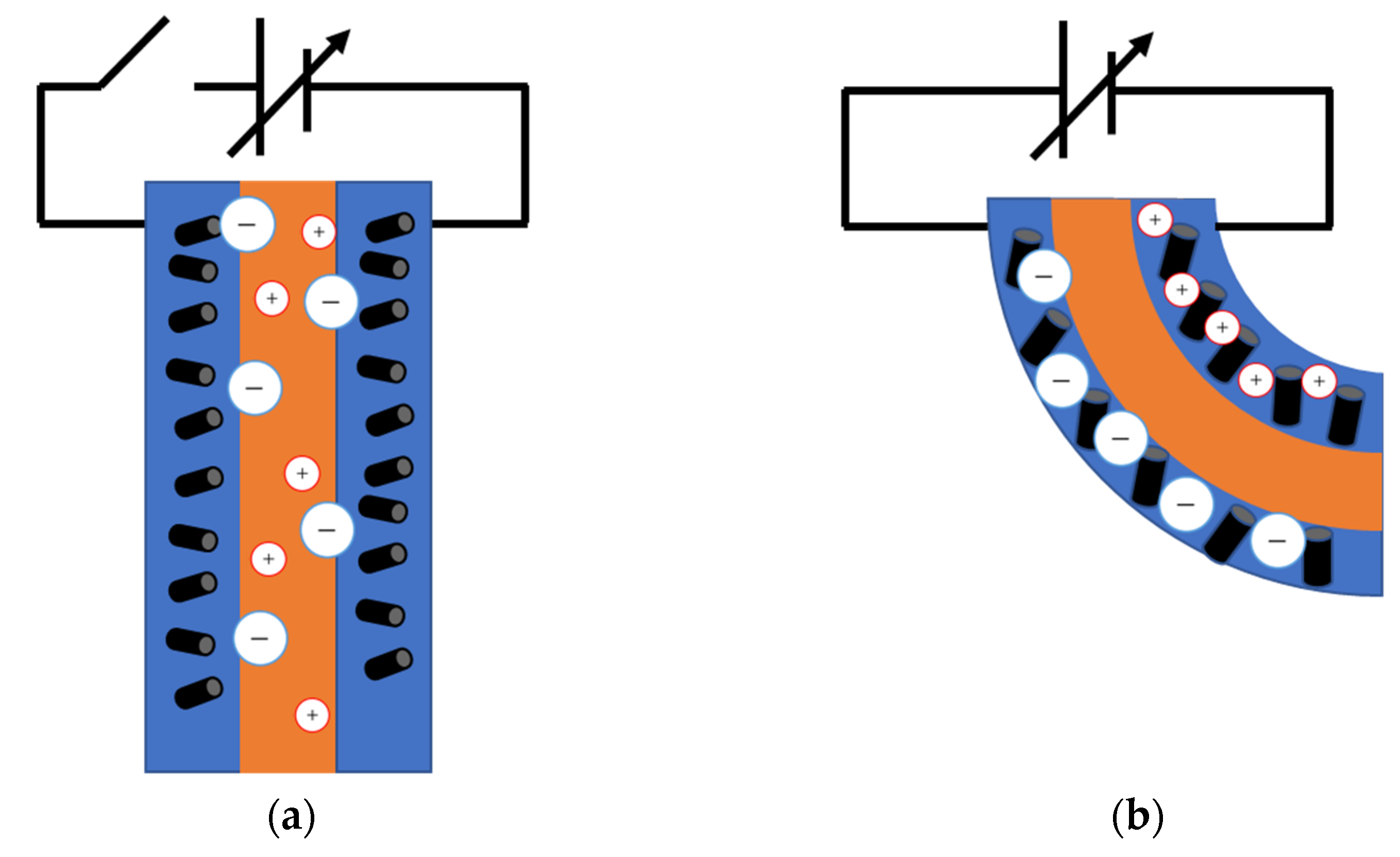

We propose a new type of soft actuator based on carbon nanotube (CNT) composite paper (CNTCP), i.e., a paper actuator. In our previous study, we demonstrated that actuator operation was possible when using CNTCPs as electrodes with ordinary paper containing ionic liquid between the electrodes; however, their bending motion was not sufficient. Therefore, we here attempt to modify the paper actuator. For this, we tried to soften CNTCPs by first reducing the ratio of contained CNTs. In addition, as a new strategy, we took advantage of the fact that the proposed actuator was made of paper and introduced the Kirigami (introducing periodical slits to papers) technique into the structure of our paper actuator. As a result, the performance of the actuator was improved, and its bending motion became visibly larger. The response of the improved actuator to the input voltage was investigated in detail, and the detailed operating conditions could be clarified. Moreover, it was found that not only a bending motion but also a twisting motion could be realized in specific slit patterns. It is thought that the fact that the variation in movement can be increased simply by adding incisions is unique to the proposed paper actuator.
