Article

Whale Collections and Exhibitions at the Natural History Museum of the University of Pisa (Italy)

by
Simone Farina
1,
Chiara Sorbini
1,
Patrizia Scaglia
1,
Marco Merella
1,
Alberto Collareta
1,2,* and
Giovanni Bianucci
1,2
1
Museo di Storia Naturale, Università di Pisa, Via Roma 79, 56011 Calci, Italy
2
Dipartimento di Scienze della Terra, Università di Pisa, Via Santa Maria 53, 56126 Pisa, Italy
*
Author to whom correspondence should be addressed.
Heritage 2024, 7(9), 4933-4961; https://doi.org/10.3390/heritage7090233
Submission received: 9 August 2024 / Revised: 2 September 2024 / Accepted: 4 September 2024 / Published: 9 September 2024
Browse Figures
Versions Notes

Abstract

:
The Natural History Museum of the University of Pisa hosts the most important osteological collection of extant cetaceans in Italy as well as one of the most relevant all over Europe. Furthermore, it also preserves a significant palaeontological collection that includes several holotypes and otherwise unique specimens of Archaeoceti (archaic cetaceans), Mysticeti (baleen whales) and Odontoceti (toothed whales). Here, we provide a historical overview of these collections and the corresponding displays, with special attention paid to the origin, development and design of the ‘Archaeocete Hall’ and ‘Cetacean Gallery’. These comprise what may be the largest exhibition worldwide among those dedicated exclusively to cetaceans—one that includes 28 complete skeletons and one skull belonging to 27 extant species as well as fossils of nine extinct species. Our review also reveals that the museum exhibitions feature the oldest known specimen of Mesoplodon bowdoini and the type specimen of Ziphius savi, the latter being a validly described species that is currently regarded as a junior synonym of Ziphius cavirostris. Also significant is the display of several holotype specimens of fossil species such as the protocetid archaeocete Aegyptocetus tarfa, the balaenid baleen whales Balaena montalionis and Balaenula astensis, and the monodontid Casatia thermophila. The Archaeocete Hall and Cetacean Gallery are highly appreciated by visitors as well as perused by the museum’s educational team. The online archiving of 3D models of many of the MSNUP specimens on the open-access digital repository Sketchfab and their subsequent dissemination through the Wikimedia platforms has led to the creation of a major osteological resource—one that is broadly accessible to internet users worldwide.

1. Introduction

Man’s curiosity towards whales and dolphins dates back to the dawn of history. That being said, if it is true that cetaceans were described as early as in the 4th century BC in Aristotle’s Historia animalium [1] and then in 77–78 AD in Pliny the Elder’s Naturalis historia [2], research and scientific treatises on these fascinating marine mammals only began to spread during the Renaissance, with the boom of oceanographic explorations and the intensification of whaling.
Frankly speaking, the Renaissance studies on whales are strongly affected by the kind of approach that links science, and in particular zoology, to fantastic imagination, a significant example of which is provided by the Swiss naturalist Conrad Gessner’s Historia animalium [3]. While recognising the absurdity of many mythical animals, Gessner still described and figured cetaceans with the appearance of sea monsters, and it was only in the 18th century that anatomical studies started to focus on the direct observation of stranded and captured specimens.
The consecration of cetology as a major division of zoology, however, only occurred in the 19th century thanks to a steadily increasing number of studies focusing mainly on anatomy and systematics. The greatest naturalists of the 1800s used to deal both with extant and with extinct cetaceans, thus publishing detailed descriptions of the skeletons of living and fossil taxa that are currently gathered to form rich osteological collections in natural history museums worldwide, and especially in northern Europe.
Among these prominent scholars is the great French naturalist Georges Cuvier, who in his works Le Règne animal distribué d’après son organisation [4] and Recherches sur les ossements fossiles [5] dealt with the comparative anatomy of different cetaceans, and described new living and fossil species, thus effectively laying the foundations of modern cetology, which was to gain full recognition in the second half of the century with the works of two other great European scientists. Between 1868 and 1880, the Belgian zoologist Pierre-Joseph Van Beneden and the French palaeontologist Paul Gervais published the Ostéographie des cétacés vivants et fossiles, an impressive monograph on the skeletal anatomy of living and fossil cetaceans, in which detailed illustrations were provided for dozens of skeletons, most of which are stored in the Muséum national d’Histoire naturelle in Paris [6,7]. Meanwhile, the Englishmen William Henry Flower [8] and John Edward Gray [9] published two important catalogues of the cetacean specimens preserved in the British Museum in London.
On the occasion of the 120th anniversary of the death of Sebastiano Richiardi (b. 1834–d. 1904), who may be regarded as the father of the extant cetological collection of the Natural History Museum of the University of Pisa (=Museo di Storia Naturale dell’Università di Pisa; hereinafter, MSNUP), and the 10th anniversary of the death of Luigi Cagnolaro (b. 1934–d. 2014), who is rightly considered the founder of modern cetology in Italy, the present paper sketches the history of the MSNUP cetological collection and exhibitions, with special attention paid to the present-day ‘Archaeocete Hall’ and ‘Cetacean Gallery’. In doing so, the many singularities and the unique evolutionary rationale behind these scientifically remarkable exhibitions are explained and discussed.

2. The Cetacean Collections of MSNUP

2.1. The Extant Cetaceans

The interest in acquiring skeletons of extant cetaceans dates back to the early days of the MSNUP. In fact, the oldest evidence for the presence of cetaceans in the MSNUP collection can be found in the Inventario della Galleria e del Giardino de’ Semplici di Sua Altezza Serenissima in Pisa drawn up by Fra’ Matteo Pandolfini on 16 July 1626, where remains of at least two skeletons (probably a sperm whale and a baleen whale) are mentioned, which unfortunately are no longer present in the collection [10,11].
The oldest cetacean specimens still preserved in the MSNUP are the incomplete skeleton of a fin whale (Balaenoptera physalus) (Figure 1C) and the tooth-bearing mandibles of a sperm whale (Physeter macrocephalus) (Figure 1B) that were donated to the Grand Duke Cosimo III de’ Medici in 1713 and 1714, respectively [12]. Both specimens derive from strandings that occurred in Populonia (Leghorn Province, central Italy). The presence of these skeletons in the MSNUP was reported as early as in 1723 by the then-director Michelangelo Tilli (b. 1655–d. 1740) in his Catalogus Plantarum Horti Pisani. Indeed, Tilli [13] sketchily figured cetacean bones in the map of the Botanic Garden of the University of Pisa (Figure 1A), and wrote the following about the sperm whale remains from Populonia:
Physeteris ossa ex dentium structura ea esse judico, quae in hujus Horti Pisani aditu reperiuntur, et fortasse sunt eadem, quae olim Florentiae, postea huc…
[From the structure of the teeth, I judge that the bones that are found at the entrance of this Garden in Pisa belong to a sperm whale, and perhaps they are the same that were already in Florence, and have since been brought here...]
During Paolo Savi’s direction (1823–1871), the cetological collection of the MSNUP gained some new specimens, so that when Savi’s successor Sebastiano Richiardi began his direction (1871–1904) eight skeletons were kept in the MSNUP besides the aforementioned sperm and fin whale remains. According to Richiardi [14], these additional eight skeletons included two fin whales, a bottlenose dolphin (Tursiops truncatus), a common dolphin (Delphinus delphis), a pilot whale (Globicephala melas), a Cuvier’s beaked whale (Ziphius cavirostris), a beluga (Delphinapterus leuca), and an isolated narwhal tusk (Monodon monoceros). Except for the two fin whales, all these specimens had already been mentioned by Van Beneden [15]; nowadays, only the pilot whale, the beaked whale and one of the fin whale skeletons are still part of the MSNUP collections [11].
It was Richiardi who had the enormous merit of substantially enriching the MSNUP cetacean collection so much so that at Richiardi’s death it was already close numerically to the present one. Indeed, Richiardi aimed at creating a cetological collection that brought together at least one specimen of every living genus. Richiardi’s aim was not only purely collectible but also conservational, as he was particularly willing to acquire specimens of species threatened with extinction due to unbridled whaling [16]. To carry out this ambitious project, he exchanged materials with various museums and scientific institutions worldwide, bought several skeletons from private companies, and ordered the collection of cetacean carcasses stranded along the coasts of Italy and Northern Europe. For example, Richiardi bought most of the largest cetacean skeletons, including those of the blue whale (Balaenoptera musculus), fin whale, humpback whale (Megaptera novaeangliae), sei whale (Balaenoptera borealis) and North Atlantic right whale (Eubalaena glacialis), from the University Museum of Bergen (a hub for the redistribution of cetacean specimens all over Europe; [17]). In turn, Richiardi purchased the skeletons of a narwhal and an Irrawaddy dolphin (Orcaella brevirostris) from the private company Gerrard & Sons in London, whereas the skeletons of a northern bottlenose whale (Hyperoodon ampullatus), a killer whale (Orcinus orca) and a Ganges river dolphin (Platanista gangetica) were bought from the private company of Gustav Adolph Frank in London [11]. Among the skeletons from stranded carcasses gathered by Richiardi, that of a sperm whale from Otranto (Lecce Province, southern Italy) deserves a special mention.
After Richardi’s death in 1904, the extant cetological collection of the MSNUP was implemented with a few specimens originating from animals stranded along the Italian coasts. Nowadays, the osteological collection of extant cetaceans of the MSNUP is the most important countrywide [18,19], with as many as seven species being found nowhere else as far as Italian museums are concerned. These include the blue whale, sei whale, Hector’s dolphin (Cephalorhynchus hectori), white-beaked dolphin (Lagenorhynchus albirostris), Indo-Pacific finless porpoise (Neophocaena phocaenoides), Andrews’ beaked whale (Mesoplodon bowdoini) and northern bottlenose whale, all of which are represented by complete skeletons at the MSNUP.

2.2. The Fossil Cetaceans

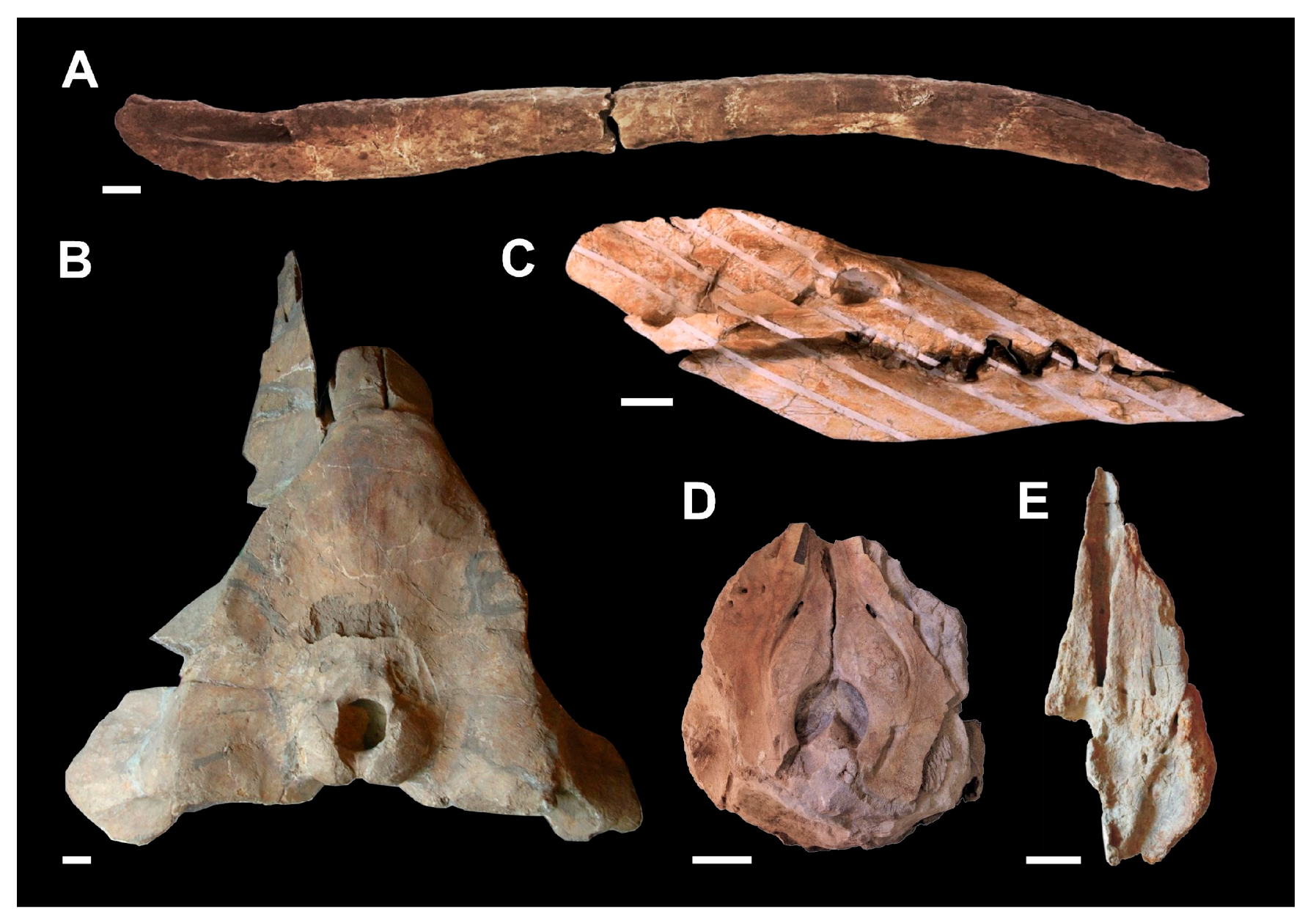

The collection of fossil cetaceans of the MSNUP originated in the second half of the 19th century. The first fossil cetacean acquired by the MSNUP may have been the baleen whale skull recovered near Montaione (Florence Province, central Italy) in 1871, purchased by the palaeontologist Charles Immanuel Forsyth Major (b. 1943–d. 1923), and eventually donated to the MSNUP in 1874. Thirty years later, this important find was described by Capellini [20] as the holotype of the then-new species Balaena montalionis (Figure 2B).
In the same years, the MSNUP received significant donations of fossil cetaceans from Roberto Lawley (b. 1818–d. 1881), a remarkable avocational palaeontologist [21] who collected and studied fossil vertebrates (especially sharks) from various Pliocene localities of Tuscany, central Italy [22,23]. The Lawley collection of the MSNUP includes a mysticete mandible from the Pliocene of Orciano Pisano (Pisa Province), which was certainly stored in the museum as early as 1876 (Figure 2A). This is demonstrated by the work by Trevisan [24], where a letter dated 5 April 1876 from the MSNUP’s archive is mentioned, in which Giovanni Capellini provided information on this fossil to the then-director of the MSNUP, Mario Canavari. The Lawley collection also includes other cetacean remains from the Pliocene of Orciano Pisano that came to be part of the MSNUP as the result of a donation occurring in 1884, and specifically a dolphin skeleton that was first described as ‘Steno bellardii Portis’ by Ugolini [25] and then referred to Etruridelphis giulii by Bianucci et al. [26].
Between the end of the 19th century and the beginning of the 20th century, Canavari purchased several other fossils of marine vertebrates collected by Antonio Di Paco (a “well-known fossil hunter”; Ugolini [27]) at Orciano Pisano. These fossils, which are still found in the MSNUP collections, include fragmentary mysticete and delphinid remains that were subsequently described by Fucini [28] and Ugolini [27]. Especially important are some odontocete ear bones acquired by the museum in 1896; these were referred to as ‘Dioplodon sp.’ by Ugolini [29] and then assigned to the genus Kogia by Pilleri [30] and Bianucci [31].
In the first decades of the 20th century, the MSNUP did not acquire significant cetacean fossils, but in 1940 an exceptionally well-preserved baleen whale skull from the Pliocene of Portacomaro d’Asti (Asti Province, northern Italy) was donated to the MSNUP. This significant specimen was described by Trevisan [32] as the holotype of the new species Balaenula astensis.
At the beginning of the 1960s, many fragmentary, as yet undescribed remains of both mysticetes and odontocetes from the Miocene Arenarie di Ponsano Formation (Pisa Province) were collected and deposited in the MSNUP [33].
Towards the end of the same decade, Angelo Varola (b. 1939–d. 2019) collected and deposited in the MSNUP several cetacean specimens from the Miocene Pietra Leccese formation (Lecce Province). This material includes a mandibular fragment as well as an isolated tooth referred to as the physeteroid ‘Scaldicetus grandis’ by Menesini and Tavani [34]. Many other cetacean fossils were collected in the 1980s–1990s from the Pietra Leccese thanks to the long-lasting collaboration between Varola and the palaeontologists of the University of Pisa. Some such remains were still embedded in limestone when deposited in the MSNUP. Furthermore, a handful of copies of specimens that had already been prepared and published were also deposited in the MSNUP by Varola. Some of the entombed fossils have recently been prepared and studied in detail, including two partial skeletons of physeteroids, one of which was described as the holotype of the new genus and species Angelocetus cursiensis [35,36]. The collaboration with Varola also led to the recovery of the almost complete, as yet undescribed skeleton of a Pleistocene dolphin that was found in 2005 in a quarry at Cutrofiano (Lecce Province) and may represent a new genus and species of Delphinidae.
In 1995, the MSNUP recovered a fragmentary Pliocene baleen whale skeleton at a clay pit near Empoli (Florence Province) [37].
Other fragmentary remains of cetaceans preserved in the MSNUP come from field trips conducted in Ecuador from 1987 to 2004 by the palaeontologists of the University of Pisa. These fossils were collected from Mio-Pleistocene deposits exposed in the Esmeraldas [38] and Manta [39] provinces.
In 2002, the MSNUP received reports of presumed “dinosaur” bones visibly preserved in six slabs of nummulitic limestone (a commercial stone) from Egypt. Actually, the bones belong to an archaeocete, of which the skull and parts of the vertebral column and rib cage are preserved. The MSNUP acquired the six slabs and, after a long-lasting preparation, the skeleton was cleaned completely of the hard entombing sediment. Thus, the Egyptian archaeocete was finally studied, and became the holotype of the new genus and species Aegyptocetus tarfa [40] (Figure 2C).
The most recent acquisitions of fossil cetaceans made by the MSNUP include the holotype skull of the new monodontid genus and species Casatia termophila (Figure 2D), a fragmentary referred skeleton from the Pliocene sands of the Arcille quarry (Grosseto Province, central Italy) [41,42], and the holotype skull of the new kogiid genus and species Pliokogia apenninica from the Pliocene of Sant’Andrea dei Bagni (Parma Province, northern Italy) [43] (Figure 2E).
In addition to the aforementioned casts of specimens from the Pietra leccese formation, the MSNUP keeps other casts of fossil cetaceans that were acquired over the years, including: the holotype skulls of the Pliocene delphinids Hemisyntrachelus cortesi [44] and H. pisanus [45], coming respectively from Colle della Terrazza (Piacenza Province, northern Italy) and Orciano Pisano; a fragmentary rostrum with teeth of Squalodon sp. from the Lower Miocene of the Montagna della Majella [46]; and the partial skeleton of Brachydelphis mazeasi from the Late Miocene of the Pisco Basin (Peru) [47,48]. Finally, the MSNUP collection also includes the casts of some teeth of the holotype of Livyatan melvillei [49] as well as a full-size reconstruction of the skull of this giant extinct sperm whale from the Late Miocene of the Pisco Basin.

3. History and Description of the Cetacean Exhibitions of MSNUP

The most important cetacean specimens pertaining to both the zoological and palaeontological collections of the MSNUP are exhibited in the so-called Archaeocete Hall and Cetacean Gallery (Table 1), the former being located immediately before the latter, of which it represents the natural introduction. Other relevant specimens, including a mandible of the diminutive balaenid Balaenula [32] and an incomplete forelimb described by Ugolini [27] from the historical locality of Orciano Pisano, are on display in the ‘Gallery of Geological Eras’ (see Collareta et al. [50] for a detailed overview thereof), whereas the oldest extant specimens among those that are found in the present-day collections of the MSNUP (namely, the fin whale and sperm whale specimens recorded by Targioni Tozzetti [12]) are exhibited in the museum’s ‘Historical Gallery’. In the following, the past and present of the two major cetacean exhibitions of the MSNUP are summarised, and their scientific and museological relevance is briefly discussed.

3.1. The First Cetacean Gallery

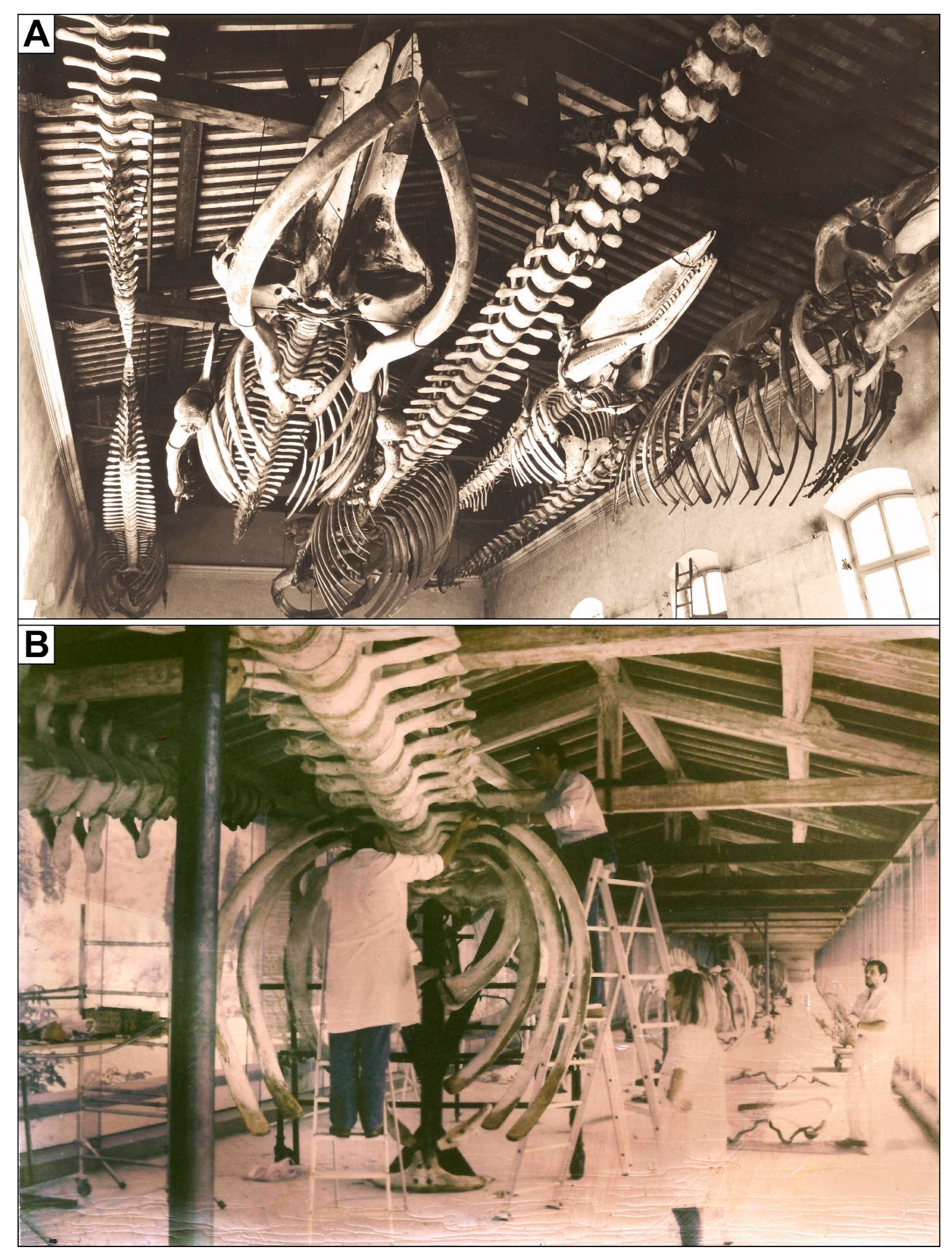

The cetacean osteological collection of the University of Pisa was originally housed in the town centre of Pisa, in a large shed that was built during Richiardi’s direction, in 1900. This shed was found in the Pisa city centre, adjacent to the Botanic Garden; here, the largest cetacean skeletons were hanged from the ceiling (Figure 3A). The collection remained there for most of the 20th century, except for a short stay in the friary of S. Croce in Fossabanda in Pisa, until it was transferred to the Charterhouse of Pisa, in the Calci village (ca. 10 km from Pisa), together with the largest majority of the naturalistic collections of the University. This ambitious project of setting up a “Museo di Storia Naturale e del Territorio” was strongly supported by Ezio Tongiorgi (b. 1912–d. 1987), who acted as the (new) museum’s first director and personally supervised the transfer of the specimens.
With the scientific supervision of the Italian cetologist Luigi Cagnolaro, most of the whale skeletons were set up during the direction of Marco Franzini (b. 1938–d. 2010), the successor of Ezio Tongiorgi from 1986 to 1996, in the more-than-100 m-long ‘Cetacean Gallery’. The latter was originally the monastic barn, made of brick columns and a roof with wooden beams ad terracotta tiles, used by the monks as a drying place for their crops, as well as a place for their “spatiamentum” (an extended walk performed by the Carthusians as a weekly routine to spend some time together and talk freely) in case of bad weather (Figure 3B). Originally open on both long sides, the barn was closed with glass walls to protect the skeletons and retain the original setting of the building as well as the splendid landscape view on the surrounding valley (Valgraziosa). Transporting and assembling the cetacean skeletons, many of which were huge and heavy, took several years of work [51,75]. The Cetacean Gallery was finally inaugurated in 1992, and remained substantially unchanged for more than twenty years. Here, the giant skeletons acquired by Richiardi found their eventual collocation, one that provides the visitors with the opportunity to be admired in all their majesty in the unique setting of the ancient barn of the Charterhouse.
This first Cetacean Gallery included 23 mounted complete skeletons and two skulls (Table 1) [51]. The skeleton of Mesoplodon bowdoini and the baleen of a newborn of B. physalus were also added to the exhibition shortly after the inauguration.
The old Cetacean Gallery followed a systematic criterion, with the skeletons of the odontocetes being encountered by the visitors before those of the mysticetes. The smallest skeletons, including those of several odontocete taxa, were mounted on panels and metal structures along the sides of the gallery (Figure 4A), while the larger skeletons (including all the mysticetes, plus the odontocetes Hyperoodon ampullatus, Mesoplodon bowdoini, Monodon monoceros, Physeter macrocephalus and Ziphius cavirostris) were mounted partly by using their original supports and partly by building robust iron structures to support the heavy bones (Figure 4B). The explanatory panels were limited to simple captions associated with each specimen, wherein basic information (common and scientific names, and geographic range of occurrence) was reported for each species.

3.2. The Archaeocete Hall

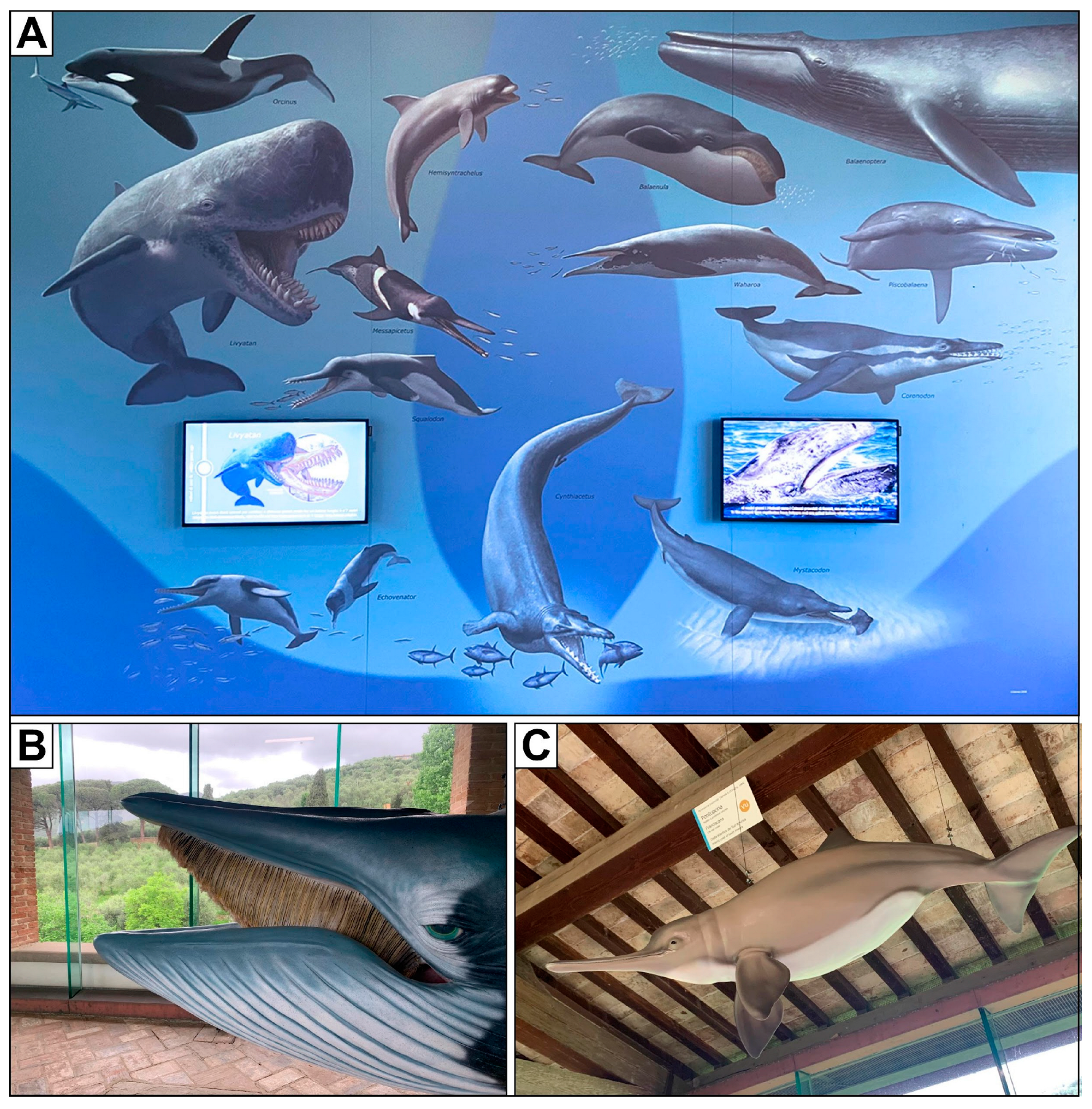

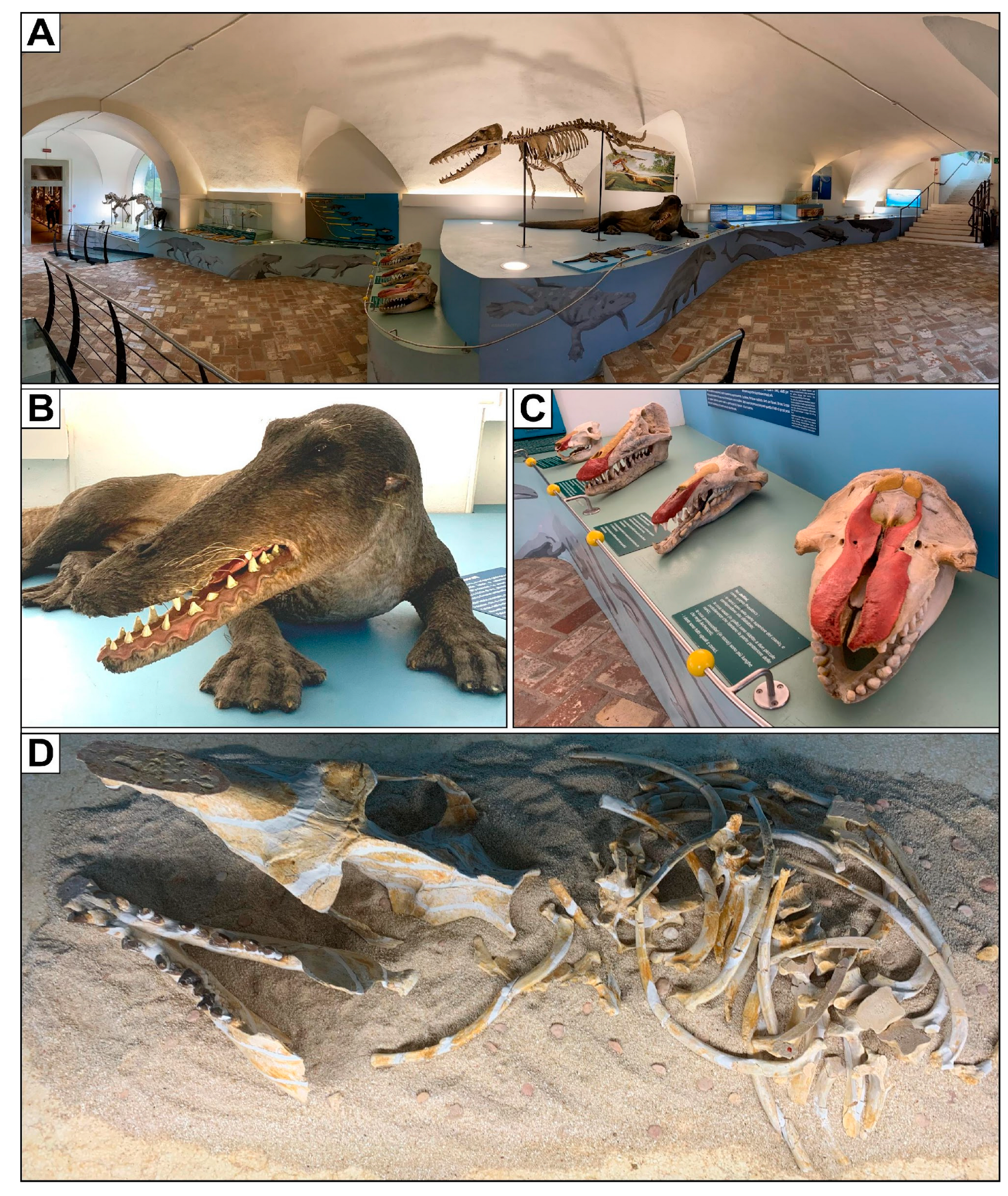

Inaugurated in December 2010, the Archaeocete Hall builds upon the principles of universal design in an attempt to prove accessible and captivating for children, adults, the elderly and disabled users, with particular attention being paid to the needs of the visually impaired and blind. The path is thus linear and develops on only one side of a long room where a handrail guides the visitors to explore the large touchable exhibition, which involves the senses of sight, touch and hearing. All along the platform, the presence of items to touch or audio sources to activate is highlighted by tactile signs. The room is divided by short stairs into three areas located at different levels. The exhibition was designed to associate each of these levels with three distinct phases of the cetaceans’ evolutionary transition from land to sea (Figure 5A).
The lower level deals with the issues of cetacean ancestry, and compares different hypotheses on the cetacean origins by exhibiting a life-size reconstruction of the Eocene artiodactyl Indohyus and an original mounted skeleton of Hippopotamus ‘tiberinus’, a fossil relative of the extant hippos that lived in Italy during the Pleistocene. Between the lower and intermediate levels is a life-size reconstruction of Pakicetus, which at ∼50 Ma is one of the geologically oldest cetaceans as well as one that walked on land with a quadrupedal gait [76]. At the intermediate level, the transformation of cetaceans from four-legged animals to fish-like swimmers is illustrated by direct comparisons between various anatomical structures (skulls, limbs and tails) in a terrestrial mammal, an archaic cetacean and a modern cetacean (Figure 5C). At the upper level, the first ‘attractions’ are a cast of the skeleton of Ambulocetus [77,78] and the life-size reconstruction of this amphibian, crocodile-like archaeocete (Figure 5B). That said, the most important element of the entire exhibition is certainly the original holotype skeleton of the Eocene protocetid Aegyptocetus tarfa, which is exposed in the same position in which the carcass of this ancient whale deposited on the seabed and was buried by sediment 40 million years ago [40] (Figure 5D).

3.3. The Present-Day Cetacean Gallery

In 2015, the Cetacean Gallery began to be renewed with the purpose of updating the display and including several skeletons that were still stored in the MSNUP’s deposit. Even without moving the largest skeletons, whose position had to fulfil precise static requirements, the entire exhibition was revised, and its aspect completely changed.
The main goal of the project for the new Cetacean Gallery was to better integrate it with the Archaeocete Hall along the exhibition route. Thus, a large panel with an introductory artistic illustration was placed on the wall that the visitors see while coming from the underlying Archaeocete Hall. Here, the radiation of the two lineages of modern cetaceans (i.e., Neoceti; [79]) is schematically represented, along with some artistic reconstructions of fossil and extant cetaceans, by toothed whales (Odontoceti) on the left side of the panel, and by baleen whales (Mysticeti) on the right, both starting from a derived archaeocete (Basilosauridae) at the bottom centre of the panel. Two monitors running supporting videos are also integral to the panel (Figure 6A).

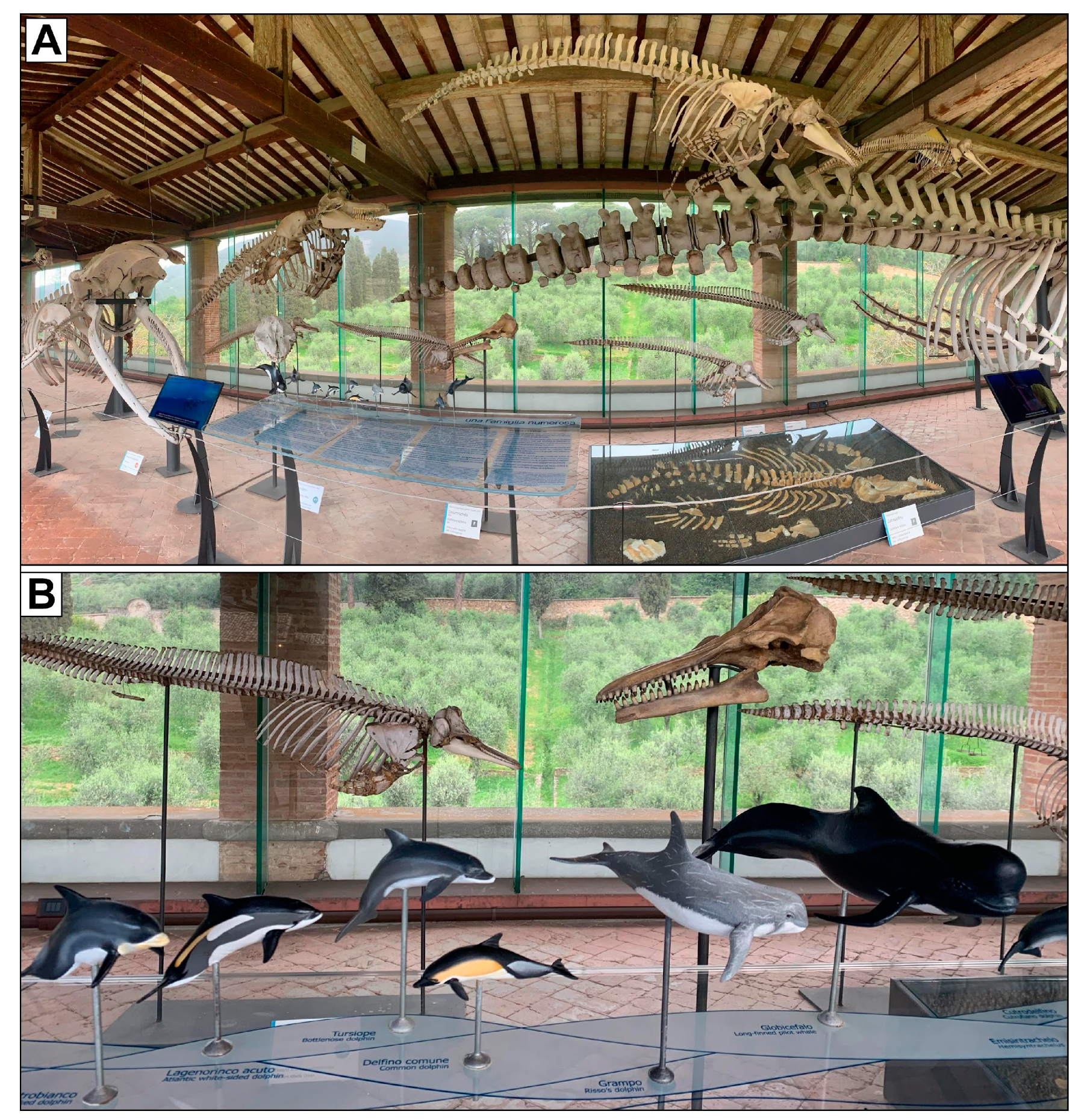

The Cetacean Gallery is organised around eight distinct thematic areas that follow one another along the gallery. Most thematic areas feature the skeletons of both extant and extinct cetaceans: the main aim here is to highlight common characters in distinct groups of skeletons/species that may be related to similar adaptive-evolutionary drivers. On the one hand, the integration of extant and fossil species in the same exhibition makes some adaptive characters of the extant species more comprehensible (for example, the peculiar cranial morphology and dentition of the extant sperm whale are best explained in terms of differences from those of the Miocene ancestors of Physeter, namely Livyatan and Zygophyseter).
On the other hand, it makes the often-incomplete fossil specimens more readable thanks to the immediate comparison with similar, complete skeletons (including, e.g., the fossil skull of Balaenula astensis, which is best understood in parallel with the skeleton of its extant relative, the North Atlantic right whale). More generally, the presence of fossil specimens alongside their extant relatives helps to better integrate the Cetacean Gallery and the contiguous Archaeocete Hall. In light of this, further cetacean skeletons—including representatives of both extant and extinct species—were also added to the exhibition (Table 1). Concerning the extant taxa, these comprise the skeletons of the sei whale, a female narwhal and an adult beluga, whereas the added fossils material in the exhibition include some holotypes (e.g., those of Balaena montalionis and Casatia termophila), some casts of notable specimens (e.g., that of the holotype skull of Zygophyseter varolai) and a full-size reconstruction of the skull of Livyatan melvillei.
The juxtaposition of skeletons that characterises the present-day Cetacean Gallery was also designed to stimulate comparisons by emphasising similarities and differences between homologous skeletal structures. For example, the male and female narwhal skeletons have been placed close to each other to highlight this species’ signature sexual dimorphism (i.e., the elongated tusk that is present in adult males), whereas the adult beluga skeleton has been placed near the skeleton of its juvenile conspecific to point out ontogenetic morphological variations. Similarly, the smaller dolphin skeletons have been placed near the huge sei whale skeleton to emphasise the broad spectrum of body size values explored by the modern cetaceans.
Furthermore, greater dynamism was given to the set-up, both by changing the disposition of some skeletons from the linear, rigid style that was typical of 19th century preparations to a more dynamic one that reproduces swimming or immersion postures and by substituting the previous iron supports projecting from the floor with steel ropes hanging from the roof beams. When the visitors turn their gaze toward the ancient monastic barn, they find themselves in front of a large ‘herd’ of different whales swimming together toward them. Most such whales are actually mounted skeletons, although several life-size body models of extant cetacean species are also present in the aforementioned ‘herd’, besides the corresponding osteological specimens (Figure 6B,C).
Recalling the luminous transparency of the glass walls of the Cetacean Gallery, where skeletons can be admired against the background of the Charterhouse gardens, bilingual (Italian and English) explicative texts are placed directly on eight glass panels placed in correspondence of each thematic area; here, three-dimensional tactile body models of all the cetacean species on display are present in place of traditional, 2D photographs or drawings. All the models were realised at the same scale to better highlight the body size similarities and differences between the various cetacean species. Some full-sized casts of fossils were also placed above the glass panels (i.e., two physeteroid teeth, the partial skeleton of Brachydelphis mazeasi, and three whale barnacle shells).
Each skeleton on display is associated with a tag presenting its scientific name, vulgar names (both in Italian and in English), and the conservation status of the species worldwide according to the IUCN (=International Union for Conservation of Nature) Red List. The choice to include the conservation status of the living taxa, which has also been adopted elsewhere in the MSNUP, aims at communicating the importance of safeguarding biodiversity on our planet [80]. In fact, the MSNUP adheres to the #UnitedforBiodiversity Global Coalition for Biodiversity, promoted by the European Commission to raise awareness on the need to protect all forms of life on Earth.

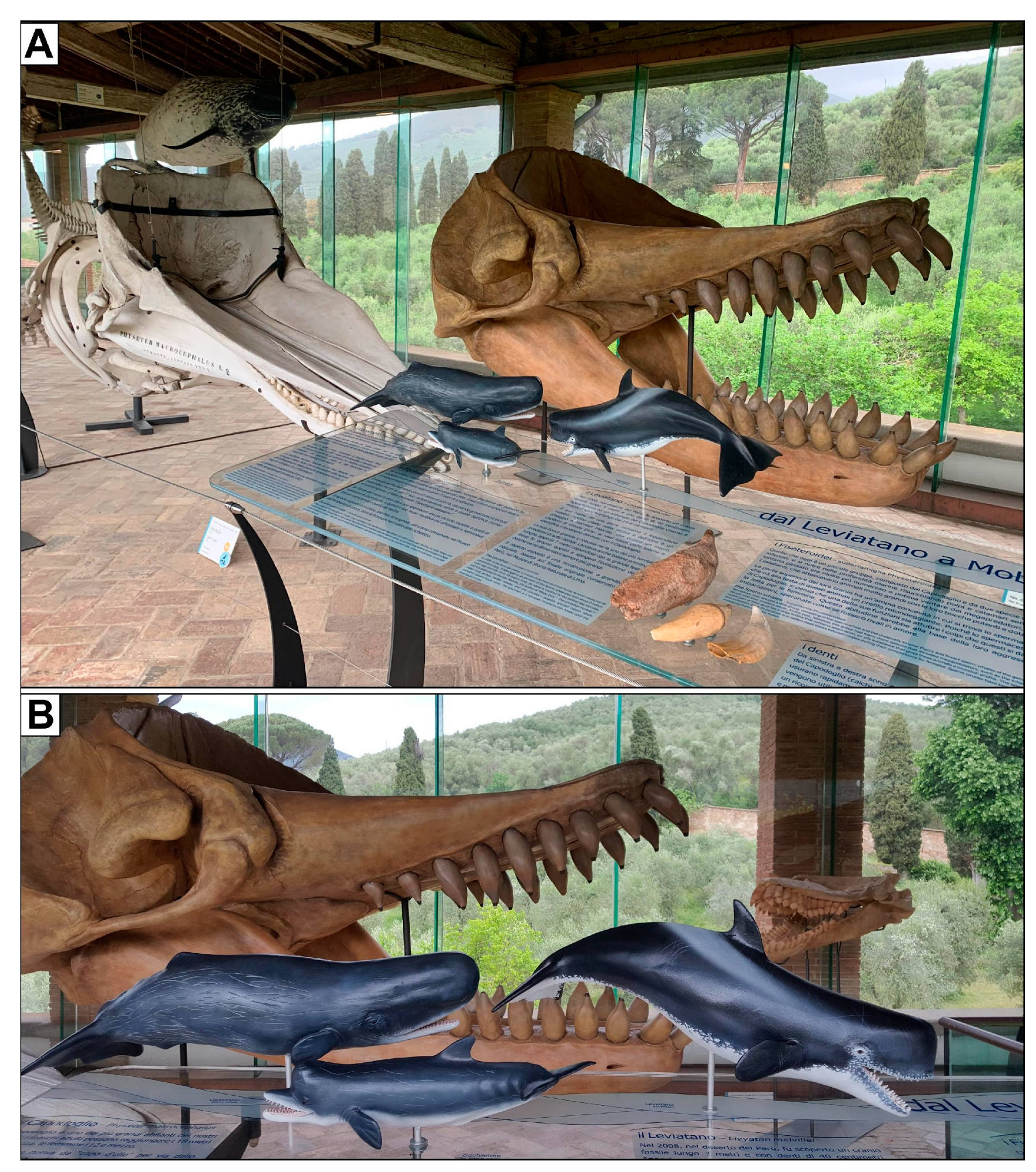

The first thematic area, called ‘From Leviathan to Moby Dick’, includes the skeleton of the extant suction-feeding sperm whale Physeter macrocephalus as well as replicas of the skulls and teeth of its fossil relatives, the macropredators Livyatan melvillei and Zygophyseter varolai (Figure 7A,B). Special emphasis is given to L. melvillei and the Miocene radiation of the macropredatory physeteroids, all of which were equipped with large, robust teeth and a powerful bite [49].

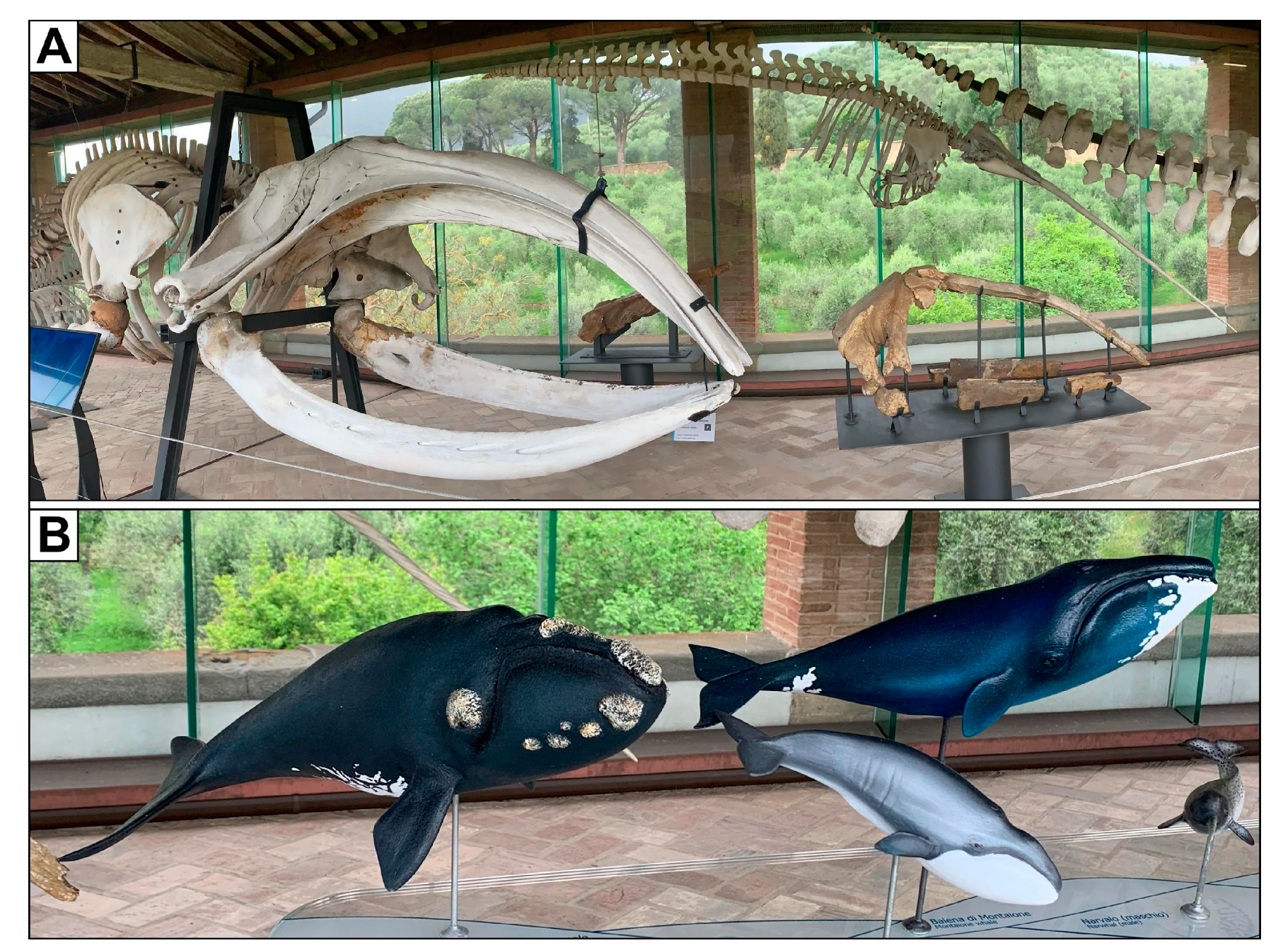

The second thematic area, called ‘In the kingdom of the Ice’, hosts the skeletons of some extant cetaceans that reside or migrate in cold, (sub)Arctic waters (i.e., the right whale, the narwhal and the beluga whale; [81]) along with the skulls of their fossil relatives that inhabited the then-subtropical waters of the Pliocene Mediterranean (i.e., Balaena montalionis, Balaenula astensis and Casatia thermophila) (Figure 8A,B). The importance of the Quaternary glaciations in driving the evolution and geographical distribution of these cetaceans [82] is underlined in this thematic area.

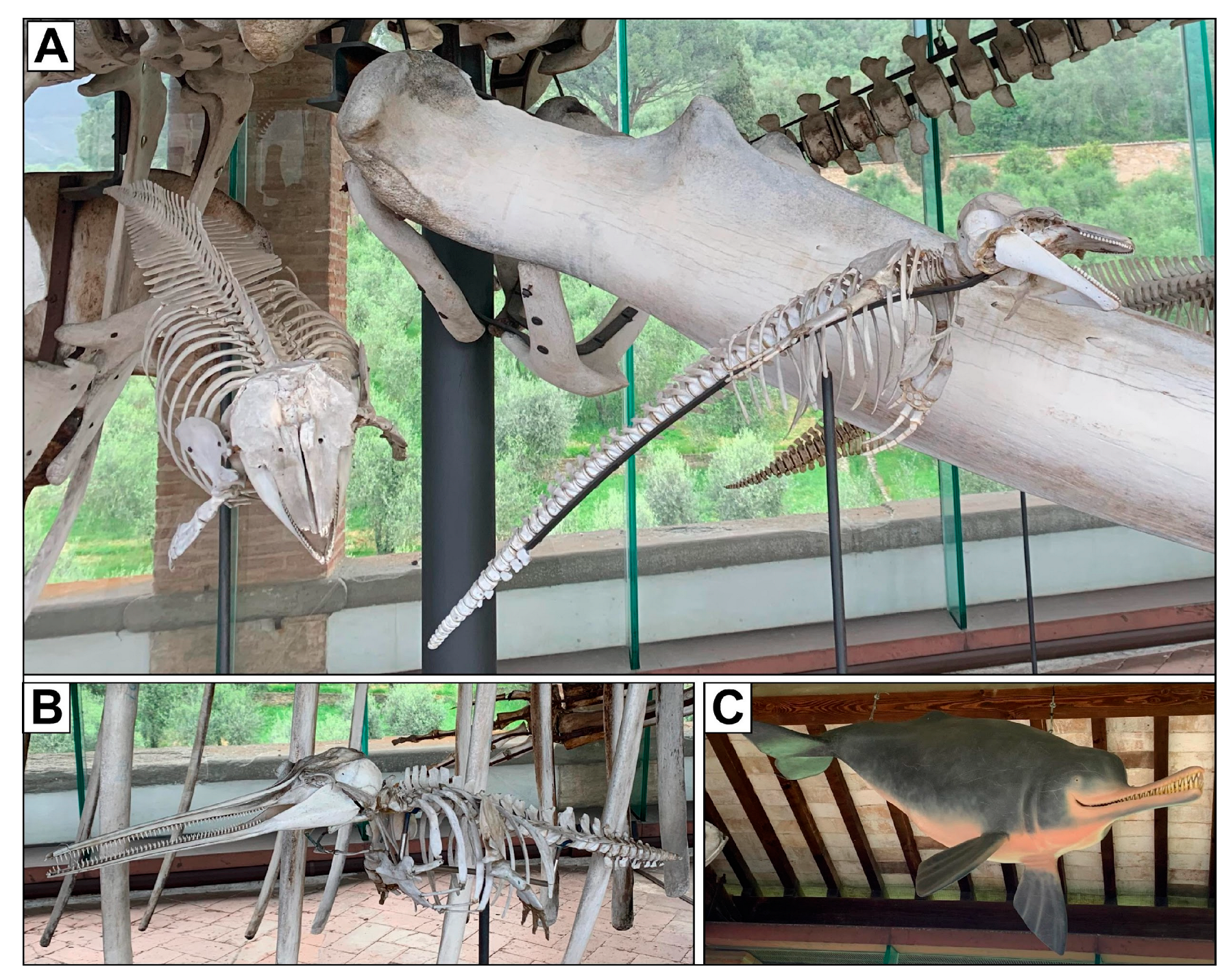

The third thematic area, called ‘The Lords of the Abyss’, exhibits the skeletons of three extant beaked whales (the Cuvier’s beaked whale, northern bottlenose whale and Andrews’ beaked whale) (Figure 9A,B) as well as the skull of their Late Miocene confamilial Messapicetus longirostris (Figure 9C). This thematic area focuses on the extreme adaptations to forage by sucking squid in very deep waters, including a drastic reduction in the number of teeth, evolved by the modern representatives of this cetacean family [83,84,85]. Such characters are not present in the epipelagic feeder M. longirostris, which features an elongated rostrum equipped with a complete set of functional teeth [86].

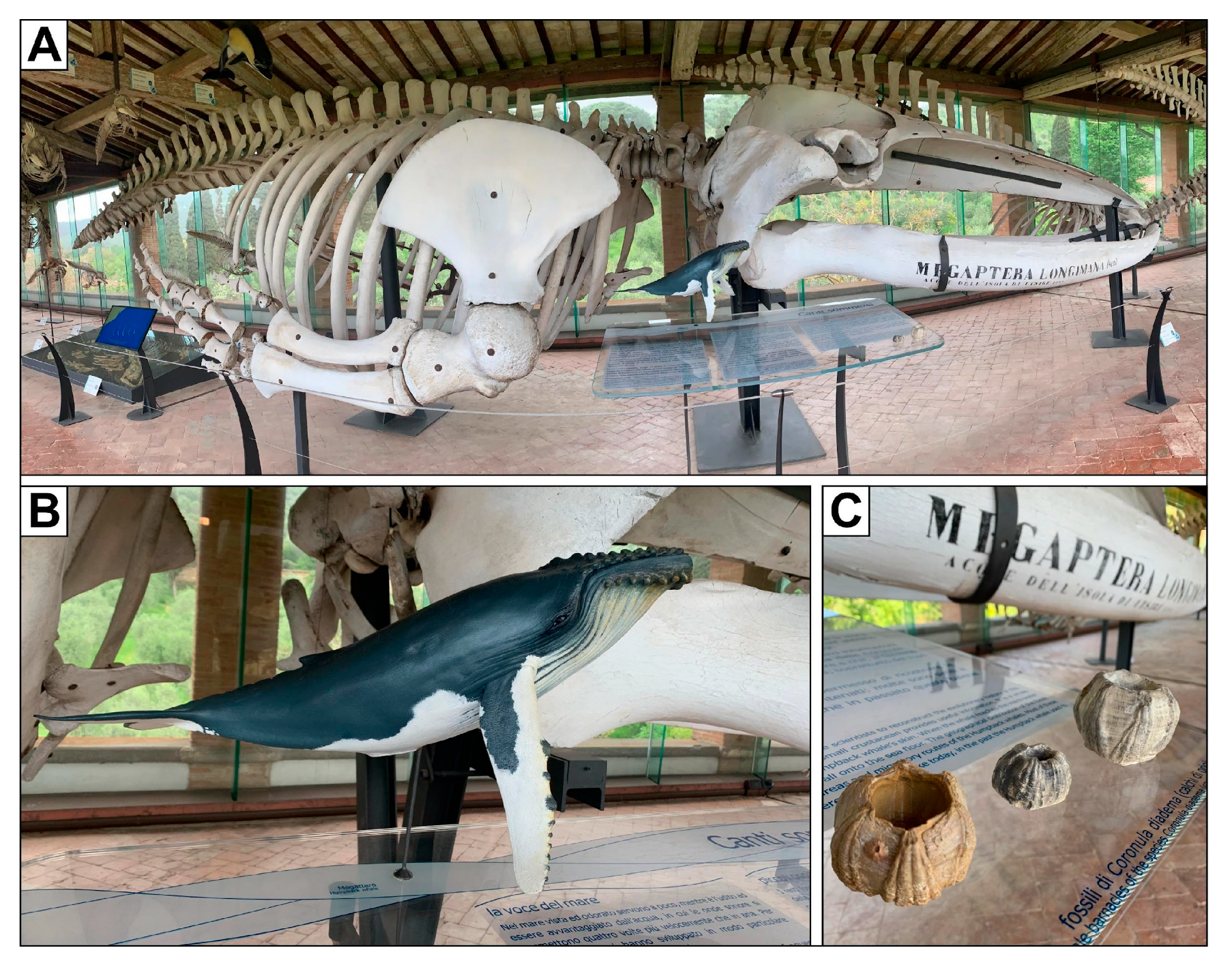

The fourth thematic area deals with the humpback whale, and is centred around the skeleton of this marine giant (Figure 10A,B). The name of this area, ‘Submerged songs’, recalls the ability of these cetaceans (and other mysticetes as well) to communicate over long distances through low-frequency sounds [87]. The extraordinary migrations of these cetaceans [88] are also evoked by replicas of three fossil whale barnacle shells (Figure 10C), which provide indirect but robust evidence of ancient migratory routes [39,89].
The fifth thematic area, called ‘A large family’, is dedicated to the oceanic dolphins (family Delphinidae), a clade of odontocetes that has radiated explosively in relatively recent times [90], so much so that nowadays the delphinids comprise the most speciose cetacean family [91]. The skeletons of eight extant species of delphinids (i.e., the Atlantic white-sided dolphin, bottlenose dolphin, common dolphin, false killer whale—skull only, killer whale, pilot whale, Risso’s dolphin and white-beaked dolphin) and the remains of two fossil delphinids (the skeleton of an as-yet undescribed Pleistocene dolphin from Apulia and the cast of the skull of the Pliocene Hemisyntrachelus cortesii) are exposed herein (Figure 11A,B). Adaptations to different feeding strategies are associated with different morphologies of the skull and dentition as well as with remarkably different body sizes [92].
Seven skeletons of small odontocetes, including the finless porpoise, franciscana, harbor porpoise, Hector’s dolphin, Irrawaddy dolphin and south Asian river dolphin, are grouped together in the sixth thematic area, called ‘Small but not too much’ (Figure 12A–C). Three aspects of this seemingly homogeneous set of cetacean taxa are emphasised herein: (1) it is not a monophyletic group, but rather the result of distinct adaptations due to similar selective pressures (e.g., in riverine habitats); (2) due to physiological evolutionary constraints, these dolphins are “small but not too much” (i.e., not less than 1 m in total length, not even in the diminutive fossil pontoporiid Brachydelphis, whose skeleton is also on display in the form of a cast positioned on the glass panel to be explored by touch); (3) most of these species are vulnerable and seriously threatened by human activity (e.g., Reeves and Martin [93]).

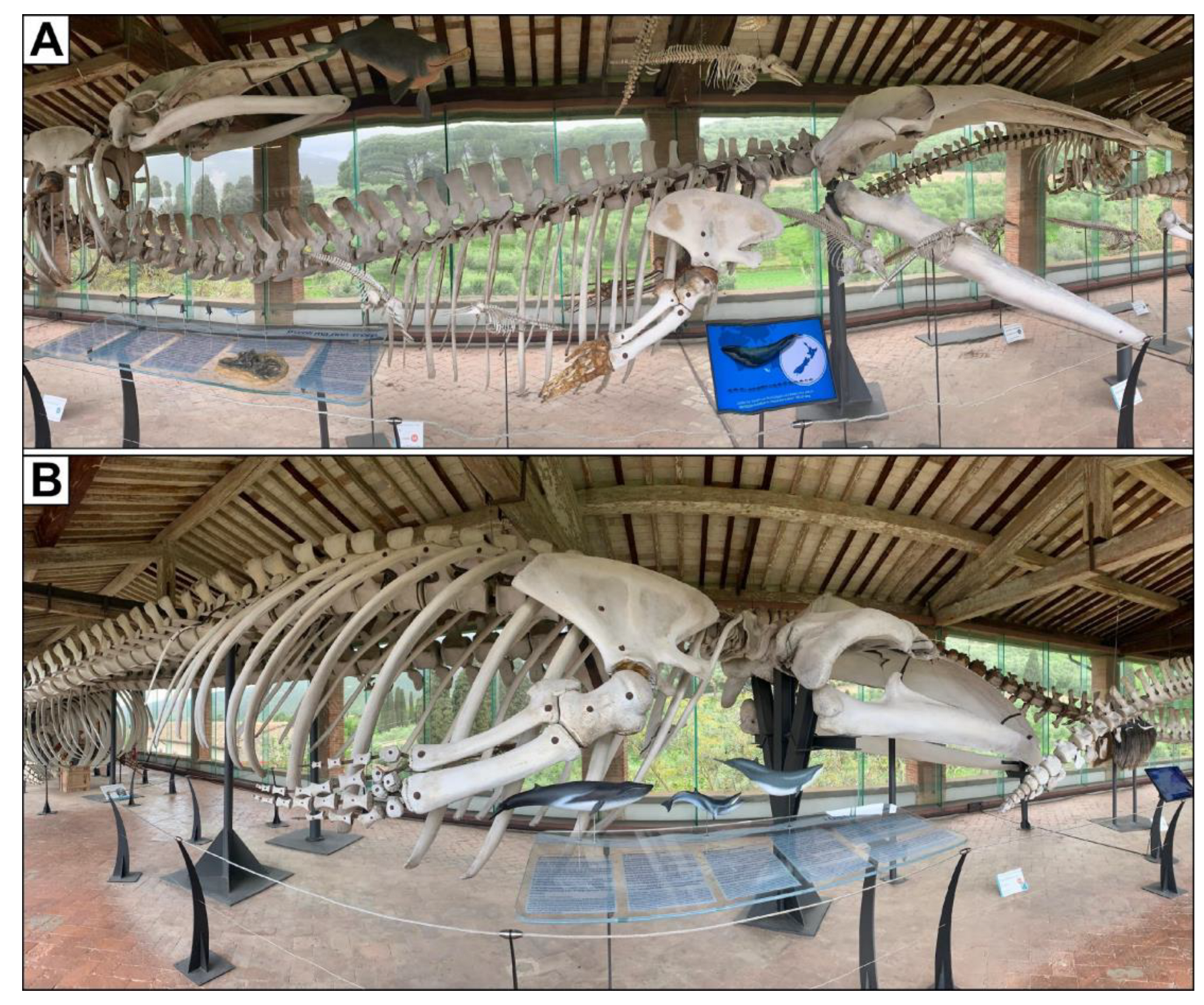

The seventh thematic area, called ‘The giants of the sea’, includes the skeletons of three rorquals: the fin whale (Figure 13B), sei whale and common minke whale (Figure 13A). It is underlined that, in spite of their huge body size, these cetaceans have a streamlined body that is well-suited for fast swimming. Emphasis is also given to the causes that are suspected to have led these and other baleen whales to evolve gigantism in the course of the last few million years [94,95,96].
Directly connected to the aforementioned is the eighth and final thematic area, which is dedicated to the ‘Queen of the oceans’ (i.e., the blue whale) (Figure 14A,B). In front of the more-than-20 m-long skeleton of this whale, the unique characters of what is the largest living animal are illustrated along with the devastating effects of over 100 years of unbridled whaling that brought this and other giants of the sea to the brink of extinction [97].
At the very end of the Cetacean Gallery, a reconstruction of the studio of Sebastiano Richiardi was set up as a tribute to his effort in acquiring a good deal of the cetacean skeletons that are now on display at the MSNUP. Through audio/video supports, some excerpts from the correspondence of Richiardi are disseminated as a testament to the remarkable personality and endurance of a scientist whose dedication led to creating a collection unique in the world.

4. Scientific Relevance of the Cetacean Exhibitions

At some 135 m of linear length and more than 900 m2 of surface area, the MSNUP exhibition of extant and extinct cetaceans may be the largest worldwide. Even in terms of numbers of specimens and taxa, the MSNUP exhibition is possibly unrivalled, counting as it does as many as 28 complete skeletons plus one skull of extant cetaceans belonging to 27 different species (Table 1). The fossil cetaceans on display, though less consistent in number and taxonomic richness than the extant ones, feature the holotypes of as many as nine extinct species (including four original specimens and five casts). The cetacean exhibition of the MSNUP is also impressive in the way it displays two skeletons longer than 20 m as well as another four skeletons between 10 and 20 m in length. Furthermore, five of these skeletons belong to some of the largest animals worldwide, namely the blue, fin, sei, right and humpback whales.
Concerning the fossils on display, the holotypes of Aegyptocetus tarfa, Balaena montalionis and Balaenula astensis are by all means unique specimens that comprise the only known representatives of the corresponding extinct species. Along with the holotype of Casatia thermophila, they are a testament to major episodes of the evolutionary history of cetaceans, including their archaic amphibious stage (A. tarfa), the Neogene radiation of various lineages of diminutive baleen whales (B. astensis), the (sub)tropical roots of iconic inhabitants of the high latitudes such as the monodontids (C. thermophila), and the rise of the modern genera (B. montalionis).
With respect to the extant specimens, it is worth mentioning the large (female) sperm whale skeleton, which measures 10.38 m in length without considering the spaces of the missing intervertebral discs (estimated body length of the specimen: 11.28 m). It is likely that the body size of this animal was close to the maximum documented body size for females of Physeter macrocephalus (12.3 m; [98]). Although the humpback whale skeleton does not reach the record-breaking length of 16.60 m reported by Braschi et al. [11], at 13.26 m (the length obtained by removing the space between the vertebrae in the mounted skeleton) it is still remarkable, as it evokes an animal well over 14 m in total body length (adults of M. novaeangliae are typically in the 14–15 m length range; [99]).
The MSNUP skeleton of the Andrews’ beaked whale, Mesoplodon bowdoini, had been regarded for a long time as belonging to the Sowerby’s beaked whale, Mesoplodon bidens [100]. This specimen is also particularly significant as it represents one of the few musealised skeletons of this rare species [101]. Interestingly, the MSNUP skeleton of the Andrews’ beaked whale was acquired by the museum in 1897; that is, as many as eleven years before Andrews [102]) described the then-new species M. bowdoini based on a specimen stranded in 1904. Therefore, the MSNUP specimen represents the oldest known skeleton of M. bowdoini—though one that went unrecognised for a long time.
Still concerning the ziphiids, the MSNUP Cuvier’s beaked whale skeleton also deserves a mention, having been figured in two tables, featuring detailed illustrations of the bones, drawn by Sebastiano Richiardi under the new name ‘Ziphius Savi’ [11]. Braschi et al. [11] considered this specimen (MSNUP C 270) to represent an invalid type due to the lack of a formal description and because Richiardi’s plates have never been formally published. However, the following facts should be taken into account: 1) as clearly stated by Braschi et al. [11], Richiardi’s plates were widely distributed to museums and other colleagues by Richiardi himself; 2) Richiardi’s intention to describe a new taxon is clear from the tables themselves, which include the binomial name of the proposed new species (as ‘Ziphius Savi N. Sp.’), the repository of the figured material (as ‘Mus. Pis.’), and the expected publication year (1873). Therefore, in our opinion, Richiardi’s plates fall within the requirements of article 12.2.7 of the International Code of Zoological Nomenclature (ICZN, 1999) regarding names published before 1931: the name is to be considered described by indication as only the plate exists, without any accompanying description.
In conclusion, Ziphius savi Richiardi, 1873 is a validly described and available species name, regardless of the fact that Z. savi has been considered a junior synonym of Ziphius cavirostris from Van Beneden and Gervais [7] onwards. Another interesting piece of historical information regarding the type of Ziphius savi is that it was mentioned for the first time as well as rightly referred to as Ziphius cavirostris by Flower [102]. Indeed, Flower [102]) recorded this specimen as follows in a list of the eleven skeletons of Z. cavirostris known at his time: “A skeleton in the Museum at Pisa from the Mediterranean. Professor Gervais has informed me of this specimen, which has not been described”. Interestingly, the type skeleton of Ziphius Savi originates from a beaked whale individual that stranded in 1824 at Forte dei Marmi (Lucca Province, central Italy); as such, it may represent the second oldest skeleton ever collected of this species after the famous Cuvier’s skull, which beached in 1804 at the Bouches-du-Rhône (Mediterranean France).

5. Visitors’ Experience and Dissemination Strategies

The MSNUP is a large and constantly growing museum. In 2023, it totalled 73,977 visitors, the highest number ever reached since it was moved to the Charterhouse. For years, the museum has systematically monitored visitors’ satisfaction by using a bilingual (Italian and English) questionnaire to analyse the socio-demographic profile of the visitors as well as their level of appreciation of the museum experience. Since its renewal was completed in 2018, the Cetacean Gallery has constantly polled as the most or second-most appreciated exhibit of the MSNUP. In the 2018–2023 five-year time period, 144 teaching activities and 761 guided visits were held at the Archaeocete Hall and Cetacean Gallery by the museum itself. These figures should be read against the fact that access to the MSNUP and in-person events have been severely limited and at times even forbidden between 2020 and 2022 due to the COVID-19 pandemic. On the whole, the undertaken activities targeted a remarkably heterogeneous audience, including adults, young people, children, students, teachers and persons with special needs. In addition, two temporary exhibitions were organised in the Cetacean Gallery, being dedicated respectively to the problem of plastic pollution [103] and to the history of the Cetacean Gallery itself. All these data indicate that the Archaeocete Hall and Cetacean Gallery are highly appreciated by the general public as well as perused by the museum’s educational team.
The outstanding cetacean exhibitions of the MSNUP have been recently subjected to a project of digital archiving and dissemination aimed at further promoting their scientific and museological impact [104]. Several odontocete skeletons and mysticete cranial and postcranial elements have been surface-scanned through an EinScan Pro HD handheld structured light scanner. All the resulting 3D models, which occasionally underwent some degree of post-production, were then uploaded onto the open-access digital repository Sketchfab and made freely accessible at the following link: https://sketchfab.com/MuseoStoriaNaturaleUnipi (accessed on 1 August 2024). At present, the Sketchfab profile of the MSNUP numbers 175 3D models in several collections. All the scanned extant cetaceans are included in either the “Cetaceans” collection (https://sketchfab.com/MuseoStoriaNaturaleUnipi/collections/cetaceans; accessed on 1 August 2024) or the “Fossils” collection (https://sketchfab.com/MuseoStoriaNaturaleUnipi/collections/fossils; accessed on 1 August 2024). This new way of disseminating the cetological collection and exhibitions of the MSNUP aligns the latter to the largest and most important natural history museums while making an invaluable osteological resource broadly accessible to internet users worldwide. Not only the general public, but also the scientific community takes advantage of the digitization of the MSNUP cetacean collections: as a matter of fact, eight different professional researchers have asked to date for high-resolution versions of the 3D models that are found on the museum’s Sketchfab profile, which has since resulted in at least one published article that expressly acknowledges the contribution of such an effort of digital archiving [105]. Furthermore, earlier this year, the MSNUP joined the project “Tutti i musei su Wikipedia” and was selected as the recipient of a related grant by Wikimedia Italia. With this project, which will end in October 2024, the Museum has made one hundred 3D models from the Sketchfab collections available through the Wikimedia platforms (including Wikimedia commons and Wikipedia), thus further promoting broad access to its online osteological resource. Such models, which include all the complete skeletons included in the “Cetaceans” collection on Scketchfab, can indeed be downloaded for free under a CC BY-SA 4.0 license at the following link: https://commons.wikimedia.org/wiki/Category:STL_files_from_Museo_di_storia_naturale_dell%27Universit%C3%A0_di_Pisa (accessed on 1 August 2024). To date, the 3D models uploaded by the MSNUP onto the Wikimedia platforms have totalised almost one billion views.

6. Conclusions

The rearrangement of the Cetacean exhibitions of the MSNUP according to an adaptive-evolutionary criterion rather than a strictly systematic one has allowed to increase the number of skeletons on display as well as the inclusion of fossils and life-size body models of some of the most representative skeletons with the aim of integrating the Cetacean Gallery and Archaeocete Hall along a unified exhibition route. At some 135 m of linear length and more than 900 m2 of surface area, with 28 complete skeletons of extant species (two of which are longer than 20 m, while four are in the 10–20 m length interval) and fossil representatives of nine extinct species (including the holotypes of Aegyptocetus tarfa, Balaena montalionis, Balaenula astensis and Casatia thermophila), the cetacean exhibition of the MSNUP may be the largest worldwide. The gallery is organised around eight distinct thematic areas that in most cases feature the skeletons of both extant and extinct cetaceans with the aim of highlighting common characters in distinct groups that may be related to similar adaptive-evolutionary drivers, and making the contents clearer and more easily understandable for visitors. Our review made it possible to verify that the Cetacean Gallery includes the oldest Andrews’ beaked whale specimen existing worldwide as well as the type specimen of Ziphius savi (a validly described species and a junior synonym of Ziphius cavirostris). The cetacean exhibitions of the MSNUP are perused by the museum’s educational team and highly appreciated by visitors. The digitization of many of the MSNUP specimens, their subsequent archiving on the on the open-access online repository Sketchfab and their dissemination through Wikimedia platforms such as Wikimedia commons and Wikipedia has led to the creation of a major osteological resource that is broadly accessible to internet users worldwide.

Author Contributions

Conceptualization, S.F.; Data curation, S.F., C.S., M.M. and P.S.; Formal analysis, S.F., A.C. and G.B.; Funding acquisition, S.F., C.S., P.S. and A.C.; Investigation, S.F., A.C. and G.B.; Methodology, S.F., C.S., P.S. and M.M.; Project administration, S.F.; Resources, M.M., A.C. and G.B.; Software, S.F., M.M., A.C. and G.B.; Supervision, S.F. and C.S.; Validation, G.B.; Visualization, S.F., M.M. and G.B.; Writing—original draft, S.F. and G.B.; Writing—review & editing, C.S., P.S., M.M. and A.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by a grant from the Italian Ministero dell’Università e della Ricerca (PRIN Project 2022MAM9ZB to A.C.).

Data Availability Statement

The Sketchfab account and the 3D models of the MSNUP are available at the following link: https://sketchfab.com/MuseoStoriaNaturaleUnipi (accessed on 1 August 2024).

Acknowledgments

First and foremost, our gratitude goes to Roberto Barbuti and Elena Bonaccorsi (former and present directors of the Natural History Museum of the University of Pisa, respectively) for encouraging the project of rearrangement of the gallery and its future completion. We are also grateful to all the other former directors of the Natural History Museum of the University of Pisa after its transfer to the Charterhouse of Pisa, Ezio Tongiorgi, Marco Franzini, Franco Strumia, Walter Landini and Damiano Marchi, for contributing to the development and enhancement of the Cetacean Gallery over the last 40 years. Not least, we thank Verónica Díez Díaz, two anonymous reviewers and the journal editors, for contributing to the present work with constructive comments and suggestions. With the present work, we would like to pay homage to Sebastiano Richiardi, Luigi Cagnolaro and Angelo Varola, for their huge contribution to the establishment and study of the extant and extinct cetological collections of the MSNUP.

Conflicts of Interest

The authors declare no conflicts of interest.
