Relative Sea Level and Coastal Vertical Movements in Relation to Volcano-Tectonic Processes at Mayotte Island, Indian Ocean

by
Julien Gargani
1,2
1
Geosciences Paris-Saclay, CNRS, Université Paris-Saclay, 91405 Orsay, France
2
Centre d’Alembert, Université Paris-Saclay, 91405 Orsay, France
GeoHazards 2024, 5(2), 329-349; https://doi.org/10.3390/geohazards5020017
Submission received: 8 February 2024 / Revised: 21 March 2024 / Accepted: 8 April 2024 / Published: 12 April 2024
Browse Figures
Versions Notes

Abstract

:
During the last 10 kyr, significant subsidence and uplift occurred on Mayotte Island in the Comoros archipelago (Indian Ocean), but the role of volcanic processes in Holocene vertical movements has been neglected in the research so far. Here, we show that an abrupt subsidence of 6–10 m occurred between 9.4 and 10 kyr ago, followed by an uplift of the same amplitude at a rate of 9 mm/yr from 8.1 to 7 kyr ago. A comparison of the relative sea level of Mayotte and a reference sea level curve for the global ocean has been conducted using a modeling approach. This shows that an increasing and decreasing pressure at depth, equivalent to the process caused by a deep magma reservoir (50–70 km), was responsible for ~6–10 m subsidence and 6–10 m uplift, whereas loading by new volcanic edifices caused subsidence during the last few thousand years. Surface movements and deep pressure variations may be caused by pulses from the deep mantle, related to superplume activity, but uncertainties and unknowns about these phenomena are still present and further studies are needed. A better understanding of the volcano-tectonic cycle may improve assessments of volcanic hazards.

1. Introduction

Recent volcano-seismic events in unexpected places or with significant unforeseen impacts challenge our understanding of volcanic activity. First, these events suggest that the role of volcanic activity on local natural hazards should be reconsidered [1,2,3,4,5], promoting specific studies on the reduction in risk [6] associated with volcanic activity [7,8,9,10,11,12]. Second, the potential interrelationship between short-term volcanic activity and long-term volcano-tectonic evolution challenges our understanding of volcanic processes and the evolution of Earth’s surface.
The hazards associated with volcanic activities are not simply a response to magmatic explosive or effusive eruptions and lava flows but are also a consequence of induced landslides [13,14] and of subsidence [15,16] increasing the risk of marine submersion and tsunamis [13]. Subsidence in a volcanic context may be associated, among many other causes, with loading of the volcanic edifice [15,17] or with magma reservoir deflation [18,19]. The relationship between volcanic activity and significant relative sea level variation has been highlighted in previous studies—with concerning contemporary observations and past events [20,21,22,23,24,25]. Tectonic deformations may cause either uplift or subsidence of volcanic structures [16,23]. The tectonic context of convergent, divergent, or transform boundaries (the last as in Mayotte, Comoros archipelago), may also cause vertical displacements [26,27,28,29,30,31].

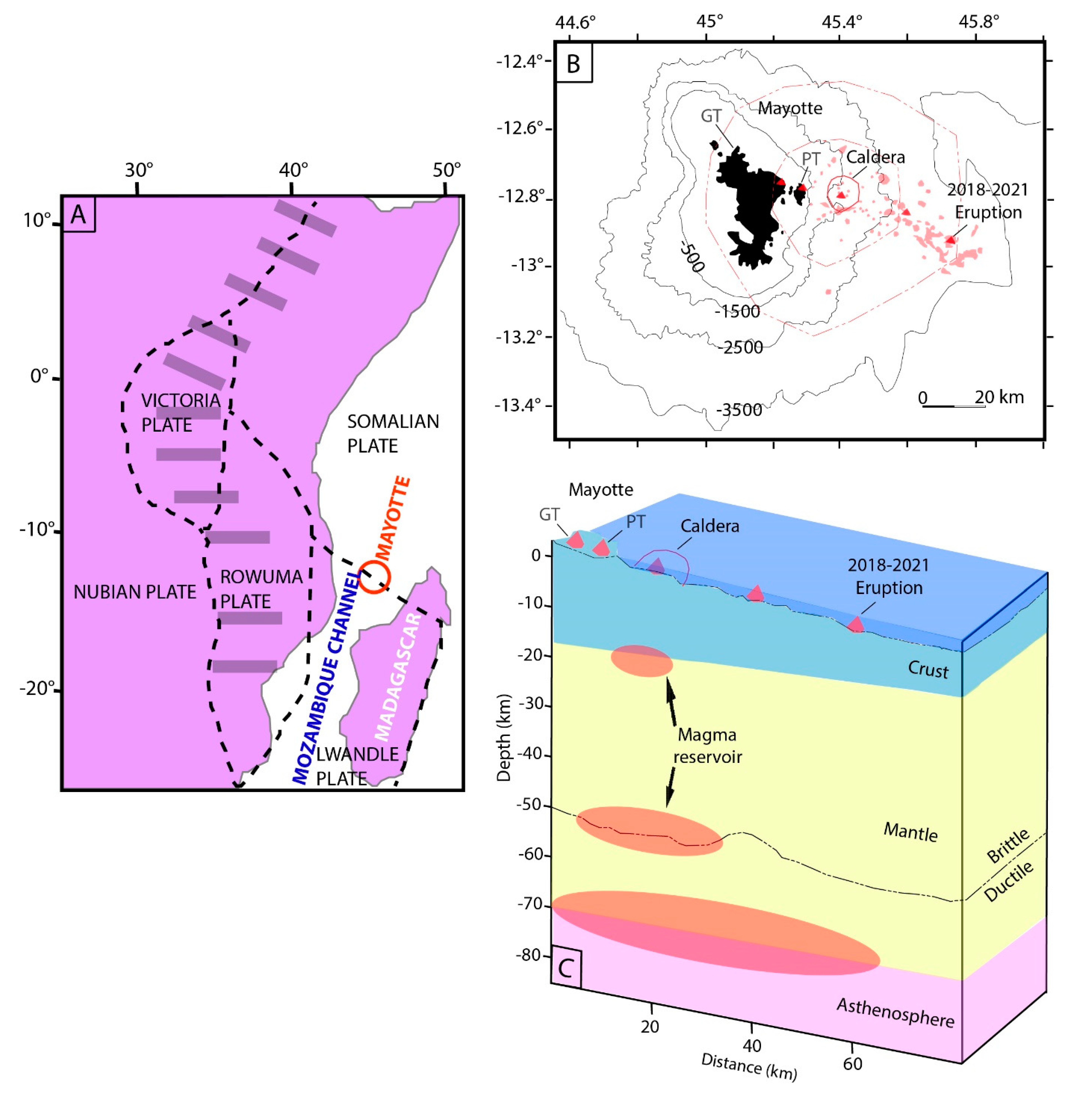

Mayotte Island (Comoros archipelago, SW Indian Ocean, between Africa and Madagascar) has experienced significant seismic activity since May 2018, with more than 11,000 reported earthquakes of up to magnitude 5.9, including unusually long-period events (more than 400) and surface deflation of up to 200 mm/yr [19,32]. This seismic activity [19,32,33,34] and petrological and geophysical analyses [35,36] underline the presence of magma reservoirs at 20–30 km depth, 50 km [37] and 70 km from Petite Terre Island, Mayotte. Details of the geometry of the active system have been improved by tomography of the area [38] and petrological analysis suggests that the primitive magma came from a >10 km3 magma reservoir of evolved basanites (~5 wt % MgO) [14]. The 70 km and 50 km depth reservoirs are connected via rapid magma propagation in the lithosphere [35,39]. The diameters of the magma reservoir are 10–20 km at 20–30 km depth and 20–30 km at ~50 km depth [19,32,33,39] (Figure 1), but further studies are needed to improve our knowledge about the accurate geometries of magma reservoirs. During the 2018–2021 seismo-volcanic event, the magma reservoir at ~50 km depth suffered deflation [19,32,33,39]. This resulting movement caused the formation of an 820 m tall, 5 km3 volcanic edifice offshore on the eastern slope of Mayotte at the tip of a 50 km long volcanic ridge comprising many other recent edifices and lava flows [33].
Before the 2018–2021 event, the most recent volcanic activity in the archipelago was to the west, in the Comoros Islands (Karthala volcano), 200 km from Mayotte [40]. Studies have suggested that a hotspot would explain the sublinear E-W trend of the Comoros volcanic archipelago [41,42,43,44], but this is controversial [45,46]. Other researchers have interpreted the E-W seismic alignment in the region as highlighting the activity of structures associated with the continuity of the East African Rift and in relation to the drift of Madagascar on an E-W-trending axis [19,31,45,47]. In detail, the overall E-W trend is associated with a N130 to N160 distribution of seismicity and of the volcanic patterns along the Somali/Lwandle plate right-lateral transform boundary [31,45,48,49].
The main volcanic building phase of Mayotte Island is estimated to have occurred from 10.6 Ma to 1.25 Ma [50]. The estimated age of the initiation of the volcanism in Mayotte by Michon (2016) [51] is ~20 Ma, and by Masquelet et al. (2022) [52] is ~26.5 Ma. The lava chemistry demonstrates shallow lithospheric but also deeper mantle sources, suggesting lithospheric melt as well as the existence of an ascending mantle plume [50]. A composite polygenetic growth during a long time span is probable. The mantle depths range from 17 km to 70 km below Mayotte [33].
Volcanic island growth stages initiate with a submarine phase, that could be explosive, and the building of the volcano shield with relatively steep slopes often caused by effusive eruptions. When the shield building stage allows the volcano to reach the sea, surface erosive processes increased due to the interaction with sea waves. Due to the enormous weight of the shield volcanoes, subsidence occurred and reef growth is documented. (Volcano subsidence could be very low to moderate, as in the Canary Archipelago (until 2 mm/yr) [53,54], or moderate to high, as at the Hawaii (until 4.8 mm/yr) [55].
Here, I focus on volcanic activities during the last thousands of years. Some volcanic events on Mayotte have been dated to 6.5–7 kyr B.P. (ash), 8 and 2.2 kyr B.P. (phonolite), 4 kyr and 4.12 ± 0.04 kyr B.P. (pumice stone), and 5.98 ± 0.14 kyr B.P. (volcanic mud) [56,57,58]. These activities highlight volcanic episodes during the Holocene. However, the volume of volcanic materials that erupted during this phase is unknown. Furthermore, the duration of the complete volcanic cycle from magma ascent to volcanic edifice construction in Mayotte during the Holocene has never been estimated.
Relative sea level may be used to quantify vertical movements [17,22,59,60,61]. Previous studies on coral reefs have obtained accurate data on relative sea levels in Mayotte during the Holocene [56,57,58,62,63,64,65]. These studies have discussed the role of climate variation and postglacial floods, as well as glacio-hydro-isostatic adjustment, on relative sea level. After the last glacial age, maximum sea levels rose at a mean rate of 10–12 m/ka between 14 and 8 kyr B.P. [61,66,67], but the rate slowed in the last 7 ka. However, the potential effects of volcanic and tectonic activity, as well as abrupt mass unloading (erosion or landslides), on relative sea level rise and fall have not been analyzed in Mayotte.
This study considers vertical movement of Mayotte in the last 10 kyr by modeling magma reservoir pressure together with volcanic edifice loading and compares these parameters with global/relative sea level discrepancies. More precisely, volcanic activities, such as magma reservoir overpressure (amplitude and duration) and the volume of volcanic edifice during the last 10 kyr in Mayotte, are estimated. The implications of these results at the regional scale are discussed.

2. Materials and Methods

2.1. Overpressure and Surface Uplift

The vertical displacement Uz of a spheric magma reservoir of radius rs at a depth −Z with an overpressure ∆P is given by the following equation [68,69]:
Uz = (1 − ν) (∆P rs3 Z)/[G (R2 + Z2)]3/2 × [1 − (rs/Z)3 × [(1 − ν)/[2 (7 − 5ν)] − [15 (2 − ν)]/[4 (7 − 5ν)] × Z2/(R2 + Z2)]]
where ν is the Poisson’s ratio for simplicity fixed at ν = 0.25, and R is the distance from the expansion source embedded at position ξ to point j on the free surface and corresponds to the radial distance from the source (center of the magma chamber). G is the shear modulus and usual values of 15 GPa are considered [70]. The shear modulus G = E/(2 × (1 + ν)) could range between 12 and 30 GPa, when the Young’s modulus E ranges between 30 and 75 GPa [71,72,73].
The depths of the magma reservoir that are considered in this study are 20 km, 50 km [37], and 70 km, which agree with the estimates by Feuillet et al. (2021) [33]. The radii of the modeled magma reservoirs range from 5 km to 25 km, in agreement with recent studies by Berthod et al. (2021) [35], Cesca et al. (2021) [32], Feuillet et al. (2021) [33], Foix et al. (2021) [38], and Dolfal et al. (2022) [37]. The magma reservoir is considered as a sphere because there are no arguments to give any accurate shape. The horizontal distance between the center of the magma reservoir and the point influenced by vertical movement is at the maximum of 20 km, as suggested by the location of the caldera and the distance of the Caldera from the Mayotte lagoon (Figure 1B). The influence of magma reservoir pressure at different depths was also modeled. The overpressure and depressurization tested in this study range from 20 to 150 MPa following Gerbault et al. (2012) [74]. Overpressure was estimated using the observed uplift of 10 ± 1 m.

2.2. Volcanic Edifice Loading and Isostatic Adjustment

The loading of volcanic edifices on the lithosphere causes subsidence [15]. Modeling the isostatic adjustment in response to loading is performed using a classical law [75] that has been applied in various studies [76,77,78]. Turcotte and Schubert (2001) [75] used the equation ∇2(D∙∇2w(x)) + (ρa + ρv)g∙w(x) = ρvg[zinit(x) + z(x)] to model the flexure of the lithosphere, where D is the rigidity of the lithosphere, w(x) represents the uplift, ρa and ρv are the densities of the asthenosphere and volcanic rock, g is the acceleration of gravity, zinit(x) is the initial topography and z(x) is the topography after the construction of the new volcanic edifice. The rigidity is defined by D = ETe3/[12(1 − ν2)], where E is Young’s modulus and Te is the effective elastic thickness.
The E-W sublinear trend of the Comoros volcanic archipelago allows us to analyze the symmetry axis of this 200 km long structure and to simplify the numerical problem using a 2-D approach. This is a first order approximation adapted to the objective of the present work. The elastic thickness in Mayotte is 40 ± 5 km [79], corresponding to a flexural rigidity that ranges from 3.8 × 1022 N.m2 to 8.1 × 1022 N.m2. In the calculation, E = 1010 Pa.
The resulting vertical motion rates are calculated by considering a constant displacement during the 10 kyr after the abrupt mass displacement, which is the time necessary to relax the viscous properties of the lithosphere 10 ± 5 kyr after isostatic adjustment [80,81]. The average velocity obtained is a first-order estimation sufficient to describe the main dynamics of the system.
Different loading masses corresponding to various volumes of volcanic rock involved in volcanic edifice building were simulated in models of several volcanic edifices 200 m tall and with diameters of 3.5 km as suggested by bathymetric data [48,49,82], corresponding to a conical volume of 0.6 km3 and a mass of 1.8 × 1012 kg. This study discusses the loading mass that explains the observed subsidence. Two different locations have been considered (0 km and 20 km from the coast of Mayotte) [33,83] and results have been compared with observed vertical movements.

2.3. Relative Sea Level and Vertical Movement

Samples from well-preserved coral reefs in Mayotte have been dated [58,62,63] and used to produce a relative sea level curve [58,63]. The 14C data from Zinke et al. (2003) [63] were recalibrated using a radiocarbon calibration program CALIB REV8.2 [84] and more recent calibration datasets, such as Marine20 [85] and SHcal20 [86], than IntCal98 and Marine98 that were used to recalibrate Mayotte’s 14C ages in a previous study (Table 1). The Marine20 dataset was used to recalibrate 14C ages of marine samples (bivalves, molluscs, in situ corals), whereas the SHcal20 dataset was used for continental/organic samples (mangrove roots fragments, organic matter). The recalibration using the SHcal20 dataset is more appropriate than IntCal20 [87] because Mayotte is in the southern hemisphere. However, recalibration using the SHcal20 dataset provided only very small differences from our IntCal20 recalibration results. The complete dataset reconstructing relative sea level on Mayotte has been produced using U-Th age from Camoin et al. (1997) [62], and 14C ages from Zinke et al. (2003) [63] (Table 2) recalibrated in this study with depth estimated by Zinke et al. (2003) [63] (Table 2). In the case of Mayotte, there are two contemporaneous variations: (1) the global ocean level variations identical all around the Earth, called “reference sea level variations” or “reference sea level curve”, (2) the Mayotte Island uplift/subsidence due to volcano-tectonic processes.
In Mayotte, these two processes have been recorded in the sediments/coral reef. These records are called “relative sea level variations”, but is caused by both processes (i.e., global ocean level variations and local uplift/subsidence in Mayotte). This does not mean that the sea level was different in Mayotte in comparison to the sea level elsewhere, but that the records of past sea levels have been modified by vertical movements. Alternatively, the difference between the “reference sea level” and the “relative sea level” permit one to estimate the vertical movements caused. Comparison of the relative sea level curve of Mayotte with a reference sea level curve permits estimation of the vertical movement in Mayotte from 10 kyr to 1 kyr B.P.
The reference sea level curve used in this study was based on Bard et al. (1990; 1996; 2010) [88,89,90], Deschamps et al. (2012) [91], and Hallman et al. (2018) [92] for Tahiti, and Peltier and Fairbank (2006) [93], Abdul et al. (2016) [94], and Bard et al. (1990) [95] for Barbados. In this study, the reference sea level curve is reconstructed by using two accurate datasets instead of heterogeneous data. The reference sea level curve reconstructed far from the study area is not impacted by local deformation. During the last 12 kyr, the difference between these two sets is not significant, as suggested by the comparison with the Lambeck et al. (2014) [67] reference curve (Figure 2). For accuracy, only U–Th ages are used for the reference sea level curve. For coherence, only the coral Acropora palmata from Barbados is included in the reference curve. For the construction of the sea level curve using Tahiti data, I have used subsidence rate corrections of 0.25 mm/yr before 6 kyr B.P. [88,95] and 0.15 mm/yr after 6 kyr B.P. [90]. Uplift rates of 0.34 mm/yr before 11.18 kyr B.P. and 0.8 mm/yr during the last 11.18 kyr B.P. are used for Barbados [17,96].
The uncertainties are associated with the following: (i) the collection of samples in Mayotte lagoon, (ii) the distances between coral reefs that could reach more than 10 km, (iii) dating method uncertainties for mangrove roots as well as coral reefs, (iv) the uncertainties of the position of the sea surface that is inferred from the coral species, and (v) the uncertainties associated with the reference sea level curve reconstruction. In particular, the depth estimates of drilling methods, coral reefs, and mangrove roots generate uncertainties on the paleo sea level that cannot be neglected. Zinke et al. (2003) [57] estimated that sea level involved a maximum of 2 m uncertainty, but in many cases, uncertainty is less than 1 m. To avoid any underestimation, an uncertainty of 4 m will be considered for the interpretation.

3. Results

Comparison of the relative sea level in Mayotte and the reference sea level suggests that subsidence of the Island of Mayotte of approximately 6–10 m occurred abruptly between 10 and 9.4 kyr B.P., taking less than 600 yr at a minimum rate of 16.7 mm/yr (Figure 3). This was followed by uplift of +6–10 m occurred from 8.1 to 7 kyr B.P. during 1.1 kyr at a rate of 9 mm/yr. From 6 ± 0.4 kyr B.P. to 5.8 ± 0.5 kyr B.P., the increasing difference between the reference sea level curve and the relative sea level curve of Mayotte suggests an uplift of around 4 m in 0.5–2 kyr. Progressive subsidence at a maximum rate of 1.0 ± 0.1 mm/yr occurred from 5.8 ± 0.5 kyr B.P. to 1 kyr B.P.
An increase in the pressure at depth, equivalent to the one that could be estimated in the magma reservoir associated with some magma ascent, could explain the uplift of the surface observed between 8.1 and 7 kyr ago. More precisely, an overpressure of 80 ± 20 MPa at a depth of 50 km with a diameter of 20 km could explain an uplift of 10 ± 1 m (Figure 4). The position of magma reservoirs with different radiI and their distances from the Mayotte Lagoon (around Petite Terre –PT– and Grande Terre –GT–), where the coral reef has been collected, is represented in Figure 1B. Equally, an overpressure of 80 ± 20 MPa at a depth of 70 km with a magma reservoir with a radius of 25 km could produce similar uplift (Figure 5). Overpressure of 40 ± 20 MPa at a depth of 50 km explains only a 4 m uplift (Figure 4).
The cause of the 6–10 m subsidence that occurred 9.7 ± 0.3 kyr ago in Mayotte could be explained by a decrease in pressure by the same order (i.e., a pressure decrease of 80 ± 20 MPa at a depth of 50 km, with an equivalent magma reservoir size of 20 km, or a pressure decrease of 80 ± 20 MPa at a depth of 70 km for an equivalent magma reservoir with a radius of 25 km). With a maximum duration of 600 yr for abrupt subsidence, the minimum subsidence rate for this example was 1.6 cm/yr. This hypothetical and putative existence of a very deep reservoir able to produce significant effects during non-negligible durations will be discussed later. The potential influence of other processes on this vertical movement will be discussed later.
The subsidence that occurred in the last few thousand years (observed by comparison between Mayotte data/model and the reference sea level curve) could be due to the progressive deflation of a deep structure and/or a loading of the lithosphere by one or more new volcanic edifices. In this study, I also explore the potential role of the volcanic edifice loading on vertical movements without excluding the other processes, such as the potential contemporaneous effect of a magma reservoir deflation. The loading by a volcanic edifice located at a distance of 0 km from Mayotte with a height of 200 m and an elastic thickness ranging from 35 km to 45 km caused 1.4 ± 0.2 m of subsidence due to isostatic adjustment (Figure 6). This value corresponds to a subsidence rate of 0.14 mm/yr, assuming a duration of 10 kyr for isostatic adjustment. Considering a second edifice 200 m high at a maximum distance of 40 km from Mayotte (GT), the total subsidence could reach 2.5 m. To obtain the observed subsidence rate of ~1.0 mm/yr (i.e., 6.5 m in 6.5 kyr, Figure 3), it is necessary to load the lithosphere by a mass of 12.6 × 1012 kg, corresponding to a volume of 4.2 km3 (i.e., equivalent to five volcanic edifices; Figure 7). Deflation of a deep structure with a pressure reduction of 40–75 MPa at depths of 50–70 km could cause a subsidence of 6–7 m (Figure 4 and Figure 5) with similar subsidence rates.

4. Discussion

4.1. Vertical Movement Rates

The total vertical movement sequence in Mayotte is characterized by an abrupt subsidence of approximately 6–10 m at 9.7 ± 0.3 kyr ago, at a minimum subsidence rate of 16.7 mm/yr. From 8.1 to 7 kyr ago, a progressive uplift of 6–10 m at a rate of approximately 9 mm/yr resulted from increasing pressure at depth. A second episode of increasing pressure is suggested around 6 kyr B.P., but the duration is not well defined (Figure 3). Slow subsidence, caused by deep magma reservoir deflation and/or loading by new volcanic edifices, are potential long-term evolutionary processes in this area.
The magnitude of the abrupt subsidence rate that occurred 9.7 ± 0.3 kyr ago or slightly before can be compared to the subsidence rate that occurred from May 2018 to January 2020 in Mayotte, even if the duration is different (i.e., ~2 yr vs. ~100–600 yr). It is estimated that at the peak of the volcanic event, downward surface deformation was 186 mm/yr, and the observed mean subsidence was 120 mm in 1.5 yr using the Global Navigation Satellite System (GNSS) and Interferometric Synthetic Aperture Radar (INSAR) during the 2018–2021 event [19]. The approach developed in this study allows an approximation of the vertical movements that provides some insight into the first order dynamic of Mayotte during the last 10 kyr. Comparing long-term (>1000 yr) and short term (<daily) vertical movements is tricky but gives some insight about potential processes. Even if alternative interpretations are possible, such as a purely tectonic process or shallow volcanic processes, it seems difficult to exclude the role of deep volcanic dynamics.

4.2. Influence of Tectonic Processes

Seismicity is documented along an E-W trending axis. A right-lateral strike-slip transform fault [45,47] located at the boundary between the Somalia plate and the Lwandle plate (Figure 1) allows for interpretation of the seismicity and deformations and is compatible with a relative velocity along the plate boundary of less than 1 mm/yr [47]. Historical focal mechanisms indicate mainly E-W strike-slip deformations, but indications of normal faulting were also observed during the 2018–2020 seismic swarm, striking N-S along the Davie Ridge, and, rarely, of thrust faulting focal mechanisms [45]. Volcano-tectonic activities such as the ones that occurred in 2018–2020 are able to produce vertical movements. However, E-W strike-slip transform faulting is not expected to cause vertical movements. An en échelon faults geometry, with the ability to cause vertical movements, is not documented locally. There are still knowledge gaps about the regional tectonic and geodynamic context [45]. In this context, a pure tectonic process cannot be discarded, as well as the influence of a pure volcanic process. In the present study, the maximum influence of volcanic processes has been investigated. The volcano-tectonic activity is relevant to explain the vertical movements that occurred in this area during the Holocene. Accurately discriminating volcanic from tectonic processes in the Mayotte geodynamical context is difficult, also considering that these processes are not totally independent. Furthermore, seismicity is recorded and contributes to the observed deformations during volcanic events.

4.3. Vertical Movements and Isostatic Adjustments

The rapid and relatively brief (<0.6 kyr) subsidence that occurred 9.7 ± 0.3 kyr ago cannot be explained as a result of loading of isolated new volcanic edifices due to the duration of isostatic adjustment (10 ± 5 kyr). Glacio-isostatic adjustment should be correlated with specific climatic change [98] (i.e., mass loading caused by the change in the weight of the seawater and ice), which is not the case here. Similarly, the significant uplift from 8.1 to 7.1 kyr cannot be explained by abrupt mass unloading. Landslides or erosion might cause isostatic adjustment, and influence either subsidence or uplift rates and relative sea level, but over a longer period [17,61]. But, such phenomena cannot explain uplift that lasted for 1 kyr because isostatic adjustment would take ~10 times longer [80,81]. Erosion and landslides in Mayotte [2,99] have not caused significant isostatic adjustment in the last 13 kyr, because a permanent uplift or a reduction in subsidence would be visible.
The estimated subsidence rate of 1.0 ± 0.1 mm/yr of Mayotte from 5.5 ± 1 kyr to 1 kyr B.P. might have been caused by loading from new volcanic edifices and/or by magma reservoir deflation. Slow subsidence is active on the island [57,58], but estimated long-term subsidence rate for this period is slightly higher than that estimated over longer periods, ranging from 0.13 to 0.25 mm/yr [58]. However, neglecting vertical fluctuations of −6–10 m at 9.7 ± 0.3 kyr B.P. followed by +6–10 m from 8.1 to 7 kyr BP (and also the potential vertical fluctuations that may have occurred between 6.5 and 4 kyr B.P.) provides an average subsidence value of approximately 3.5 ± 1 m in 12 ± 1 kyr B.P., in agreement with previous studies [58].

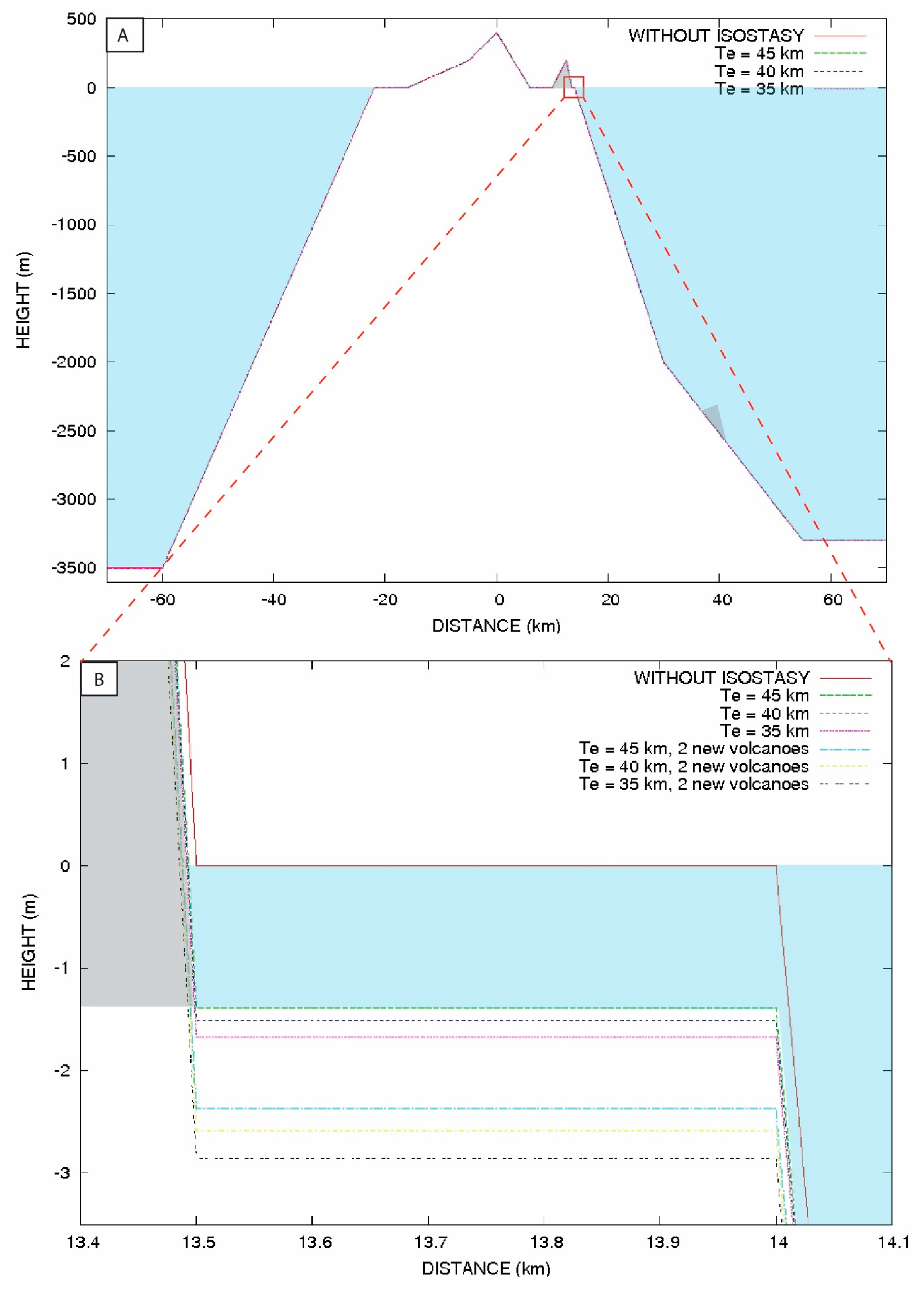

New volcanic edifices have been built in the last few thousand years during the sea level rise, including relatively young volcanic features east of Mayotte [1,33,48,49], along the slope of the main structure and volcanic rocks ranging in age from 2.2 to 7.965 kyr [56,57,58]. To our knowledge, there are no published ages for submarine edifices on the Mayotte slope. The beginning of the current subsidence phase, during the last few thousand years, is not well defined and could have been from 7 to 4.5 kyr B.P., compatibly with the depth/age of the most recent coral reefs in Mayotte.
A delay of around 10 kyr between sea level lowering and increasing magma reservoir pressure may be a consequence of the viscous properties of the lithosphere [21,25] and consequently the volcanic activity recorded at 9.7 ± 0.3 kyr could results from the low stand at 24 kyr to 18 kyr BP [66,67]. However, neither this potential effect nor its duration are well studied.

4.4. Volcanic Activity and Deep Magmatic Root

A decrease in magma reservoir pressure, beginning at 9.7 ± 0.3 kyr B.P., or an increase from 8.1 kyr to 7.1 kyr, is consistent with the volcanic context, as attested by the current eruption observed since 2018 in offshore Mayotte, and explains the vertical movements (Table 3). The observation of altered phonolite in the Mayotte lagoon dated at 7.965 ± 0.045 kyr also suggests volcanic activity [57]. Phonolite has been also observed onshore [99] and in the deep offshore, in a horseshoe-shaped caldera [35]. The presence of various volcanic rocks, such as ankaramitic basalt [99], phonolite [57,99], pumice-stone [57], basanite, and tephra-phonolite [10]) suggests that different volcanic dynamics [100] extended along the chain. A deep magma reservoir has been suggested by the study of the recent volcano-tectonic activity in Mayotte [33]. The cores and rocks dredged offshore during the post-2018 marine surveys, MAYOBS, SISMAORE, SCRATCH, and GEOFLAMME [101], will certainly provide new ages for volcanic activity. Seismological findings that show a complex geometry of a plume of hot upwelling rock rooted in the deep mantle, imply the existence of hotspot volcanism beneath the Comoros archipelago [102,103,104].

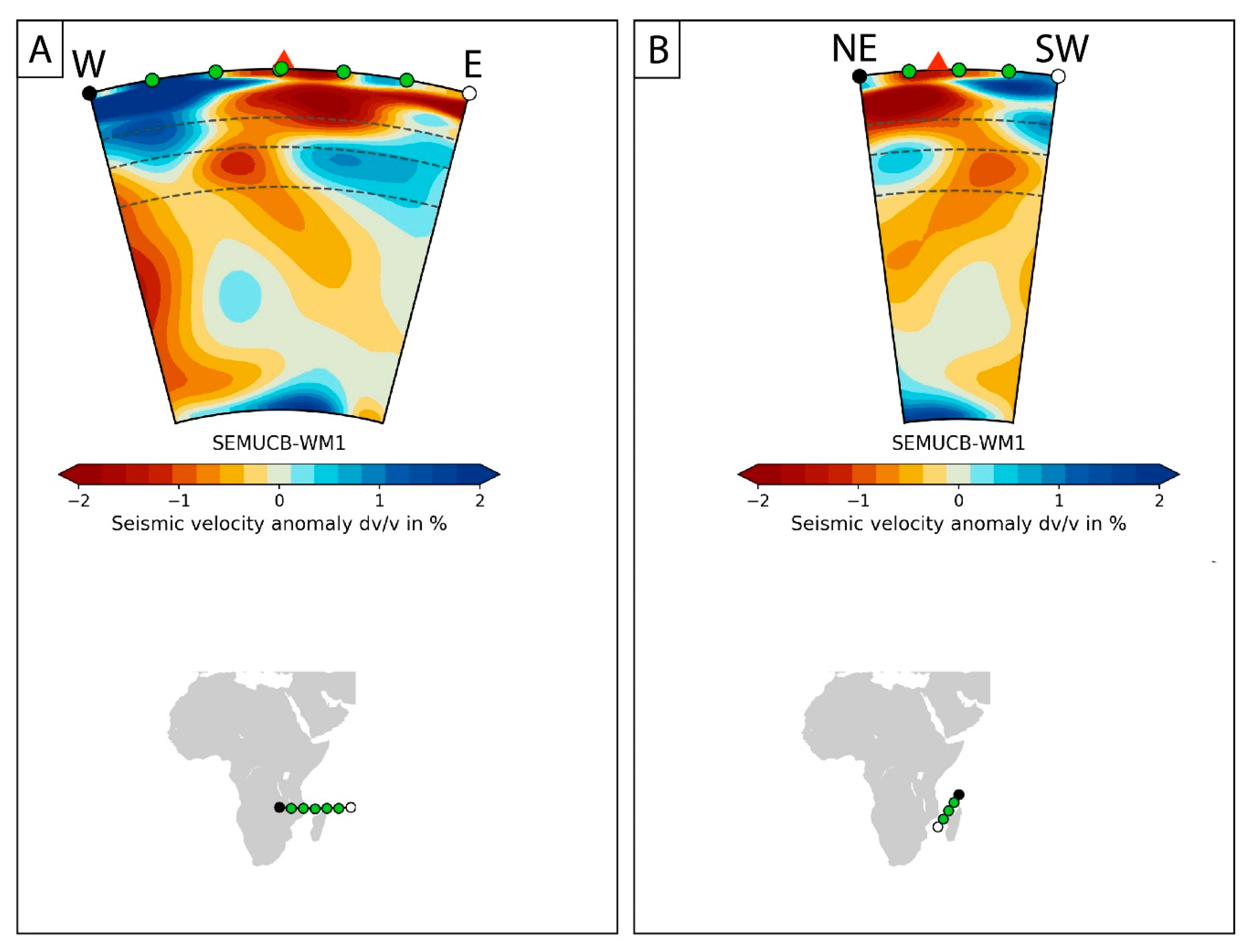

A negative seismic velocity anomaly indicative of hot materials can be observed below Mayotte and the Comoros archipelago (Figure 8) in a global radially anisotropic shear-velocity model of the earth’s upper mantle and transition zone [102,105]. Geophysical observations are consistent with geochemical data showing a nonvolatile superplume isotopic signature in the Comoros–Mayotte and Madagascar systems [103]. The geochemical and petrographic characteristics of lavas from Mayotte indicate a deep mantle source [50,106]. In turn, this suggests a complex hotspot origin for volcanic activity [41,107] or upwelling, reflecting complex volcano-tectonic activity at the boundary between the Somali and the Lwandle plates, in the extension of the East African Rift. A wholly tectonic process could have caused vertical deformation and cannot be excluded. The accurate volcano-tectonic cycle that may have occurred has to be better documented (volcanic activity ages, volcanic and tectonic geometries and processes) and modeled. Nevertheless, the occurrence of volcanic activity at this time suggests that it may have contributed to the vertical deformations observed. The relatively persistence (1 kyr) of the deep (50–70 km) overpressure suggests that the magmatic pulsing beneath Mayotte and the Comoros in the past 13 kyr was caused by deep mantle processes [108]. Potentially, this mantle/asthenospheric flow might be a pulse from either a complex hotspot system or a tectono-volcanic system with a deep root in the extension of the East African Rift, at the boundary of the Somali and Lwandle plates (Figure 8). An incipient plate boundary or a mantle heterogeneity could have triggered the volcano-tectonic evolution [109] and caused a complex volcano-tectonic cycle.

4.5. Uncertainties and Unknown

Uncertainties regarding the reference sea level curve may be estimated by comparison with Lambeck et al.’s (2014) [67] results. The reconstruction proposed here is identical to the Lambeck et al. (2014) [67] curve from 12 to 10 kyr, but is 0.5–3 m below the Lambeck et al. (2014) [67] curve from 10 to 6 kyr B.P., and slightly above the curve from 6 to 1 kyr BP (Figure 2). As a consequence, there are a maximum of 2 m of uncertainty on the reference curve. The conclusions here are compatible with a total of 4 m of uncertainty.

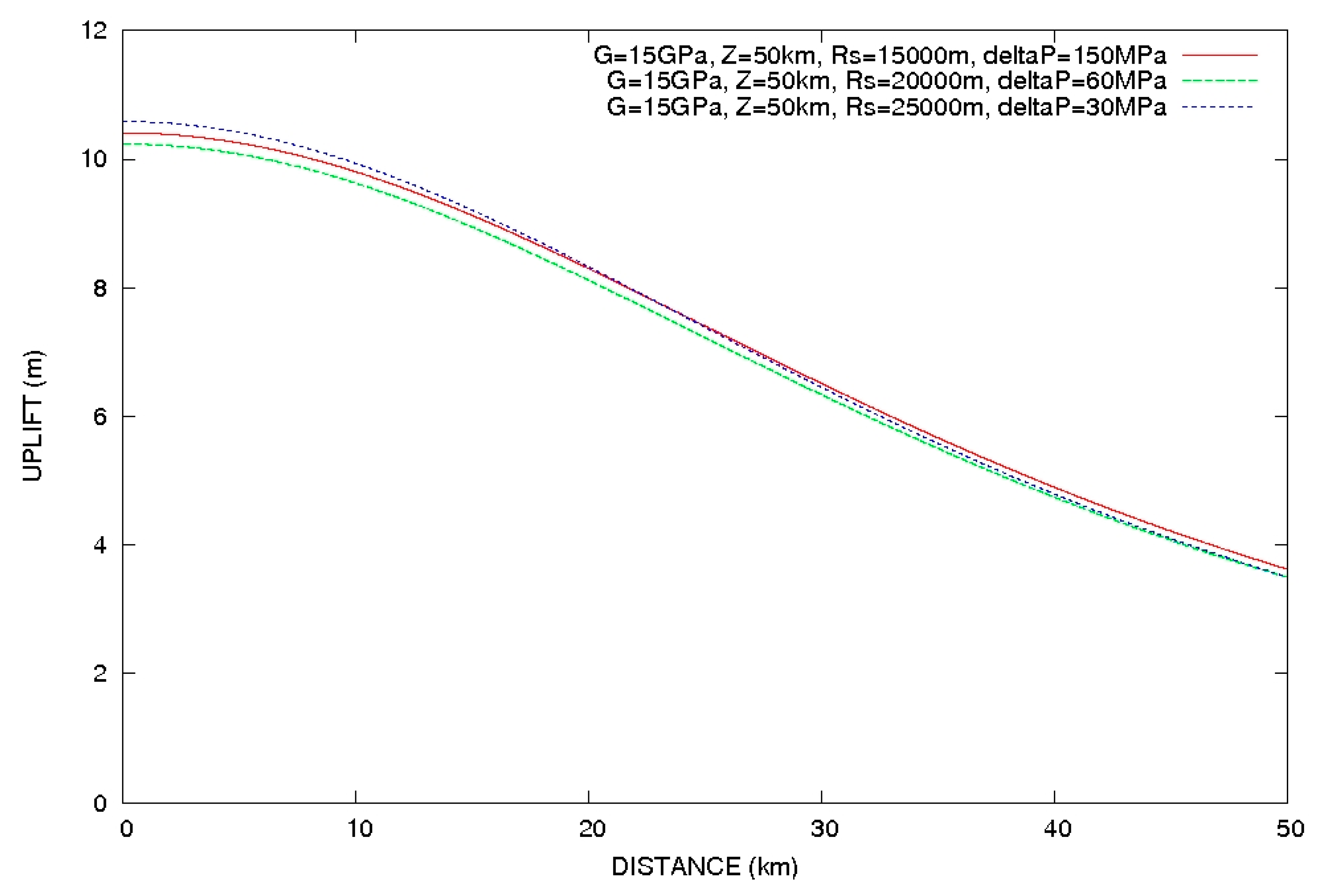

The results suggest that a variation of pressure at depths equivalent to those caused by a magma reservoir located at a 50–70 km depth is able to fit the data (Figure 4 and Figure 5). Uncertainties regarding the depth and radius of the potential magma reservoir are significant but are compatible with interpreting observed vertical movements as evidence of the influence of magma activity. The maximum uncertainties on the reservoir characteristics are 20 km for depth, 20 km for lateral position of the center of the magma reservoir from the coral reef, 10 km for diameter and 40 MPa for pressure. At depth > 50 km, a pressure increase of ∆P > 100 MPa is necessary to cause vertical movements > 6 m with an equivalent magma reservoir radius of <20 km. If shallow magma reservoirs (~20 km depth) could cause significant vertical movements with moderate pressure variation (~50 MPa) of a large magma reservoir (~10 km), it is necessary for deep magma reservoirs (>50 km) to be very large (>15 km) and experience high pressure variations (>100 MPa) to obtain the same results (Figure 9). Deep sources spread their effects over large areas. The accurate position of the magma reservoir relative to the Mayotte lagoon is not known. However, the position of the seismicity during the 2018–2020 eruption, as well as the offshore caldera position around 10 km to the east of the Mayotte lagoon, suggest that the center of the deep magma reservoir is located at a maximum lateral distance of 20 km from the Mayotte lagoon where the data have been collected. This study suggests a maximum vertical movement rate caused by deep volcanic processes. The fact that the potential values for the parameters vary means that the interpretation of the vertical movements may be used to improve the development of models, especially those that explain the duration of the processes. The relationship between very deep processes and surface movements must be still improved.

5. Conclusions

During the last 10 kyr, significant magmatic activity caused uplift and subsidence in Mayotte. The subsidence of −6–10 m is interpreted as due to a pressure decrease at 9.7 ± 0.3 kyr B.P., whereas the uplift of +6–10 m is caused by a pressure increase of 80 ± 20 MPa at 50–70 km depth. The significant duration of the overpressure may reflect a quasi-permanent deep magmatic flow lasting 1 kyr and suggests a deep magmatic root. The increase in pressure was contemporaneous with volcanic activity. The accumulation of volcanic material around the Mayotte edifice could have contributed to the slow subsidence of more than 2.5 m in the last few thousand years. The volcano-tectonic cycle of approximately 10 kyr was recorded by changes in relative sea level that provide new insight for understanding the volcanic activity of the Comoros archipelago. A plume of hot upwelling rock, rooted in the deep mantle and the asthenosphere, extends from the East African Rift below the Comoros archipelago, and reaches the surface at the boundary between the Somali and Lwandle plates. This complex system may be responsible for the volcano-tectonic activity of Mayotte.

Funding

This research received no external funding.

Data Availability Statement

The research codes required to reproduce the reported manuscript are available here: https://data.mendeley.com/datasets/h4mg2z84k9/1 accessed on 31 December 2023 [111]. The tomography model used has been implemented with the Submachine software [57]. The 14C data from Zinke et al. (2003) [57] were recalibrated using a radiocarbon calibration program CALIB REV8.2 [97].

Acknowledgments

The 4 reviewers and the editorial staff are acknowledged for their constructive suggestions and their help to improve the manuscript.

Conflicts of Interest

The authors declare no conflicts of interest.
