BEV-CAM3D: A Unified Bird’s-Eye View Architecture for Autonomous Driving with Monocular Cameras and 3D Point Clouds

Abstract

Three-dimensional (3D) visual perception is pivotal for understanding surrounding environments in applications such as autonomous driving and mobile robotics. While LiDAR-based models dominate due to accurate depth sensing, their cost and sparse outputs have driven interest in camera-based systems. However, challenges like cross-domain degradation and depth estimation inaccuracies persist. This paper introduces BEVCAM3D, a unified bird’s-eye view (BEV) architecture that fuses monocular cameras and LiDAR point clouds to overcome single-sensor limitations. BEVCAM3D integrates a deformable cross-modality attention module for feature alignment and a fast ground segmentation algorithm to reduce computational overhead by 40%. Evaluated on the nuScenes dataset, BEVCAM3D achieves state-of-the-art performance, with a 73.9% mAP and a 76.2% NDS, outperforming existing LiDAR-camera fusion methods like SparseFusion (72.0% mAP) and IS-Fusion (73.0% mAP). Notably, it excels in detecting pedestrians (91.0% AP) and traffic cones (89.9% AP), addressing the class imbalance in autonomous driving scenarios. The framework supports real-time inference at 11.2 FPS with an EfficientDet-B3 backbone and demonstrates robustness under low-light conditions (62.3% nighttime mAP).

1. Introduction

Three-dimensional (3D) visual perception aims to sense and understand surrounding environments in a 3D space, playing a crucial role in various applications such as mobile robotics, autonomous driving, and virtual reality. Its purpose is to utilize data obtained from a series of sensors, such as light detection and ranging (LiDAR), radio detection and ranging (RADAR), and cameras, to derive a comprehensive understanding of driving scenes, which is essential for subsequent planning and decision-making.

LiDAR-based models have dominated the field of 3D perception in the past due to the accurate depth and 3D information acquired from point cloud data. However, achieving an efficient LiDAR-based system with a reasonable resolution is very costly, and LiDAR sensor point clouds tend to be sparse. In contrast, camera-based systems are more affordable and provide an excellent resolution, which is critical for meaningful semantic representations of the environment. Nevertheless, these systems highly depend on the light intensity to effectively capture information about the environment that is useful for robotic devices [1,2,3,4].

Camera-only 3D perception in a bird’s-eye view (BEV) has garnered increasing attention in recent years. This interest is due to its advantages in providing a comprehensive 3D understanding, rich semantic information, high computational efficiency, and low deployment costs [5,6,7,8]. However, camera-only BEV models trained on a source domain often experience pronounced performance degradation when applied to a target domain, a phenomenon attributed to clear cross-domain discrepancies [9,10,11].

BEV feature representation primarily relies on geometric cues, which presents an ill-posed problem for camera-only 3D perception given the limited accuracy associated with depth estimation based on camera-only features. Even with the introduction of attention-based mechanisms, such as vision-based transformers, challenges remain in dense spatial prediction, particularly in estimating structural information in the height dimension [12,13,14,15]. Consequently, many researchers have emphasized the necessity of incorporating a depth sensor for guided depth supervision [10,16]. An optimal combination of both sensors can overcome the limitations of a single sensor and provide a more comprehensive understanding of the environment for perception.

However, the combination of features extracted from different sensors introduces a distinct set of complexities. For instance, accurately aligning coherent features from the sparse point clouds of a LiDAR sensor with the dense image features of a camera, or addressing geometric distortion errors resulting from the alignment of geometric cues from these sensors, can be non-trivial. This accurate alignment is crucial for the successful navigation of autonomous vehicles, as autonomous navigation is inherently a geometric problem [10,14].

Methods such as 2D-to-3D voxelization based on depth [10,13], inverse perspective mapping (IPM) [7,17,18], and network-based view transformation techniques [19,20] are commonly employed in conjunction with feature concatenation and projection for multi-modal BEV fusion [2,4]. Each of these techniques presents unique drawbacks, including issues related to accuracy, computational cost, the loss of fine-grain details, the reliance on efficient query generation, the management of errors from explicit geometric relationships, and careful design considerations [2,4,10,11,21,22]. Consequently, ensuring the unity and efficiency of training within a multi-task 3D perception framework poses significant challenges.

The existing approach for transforming 2D features into a 3D space involves predicting a grid-wise depth distribution over the 2D features and subsequently lifting these features into a 3D voxel space [13]. While this method has demonstrated effectiveness, ongoing research has proposed several improvements, including depth-assisted supervision and careful engineering [16,22].

The pure network approach to view transformation, which involves the implicit representation of camera projection relationships, poses challenges, as its learning process relies solely on ground truth labels, which are typically obtained from the depth sensor measurement of the 3D space [2,4,20]. This has an impact on its generalizability, as the inference of new scenes relies solely on the learned parameters of the model.

One promising avenue for efficient view transformation is the use of geometric priors derived from the camera sensor’s intrinsic properties, particularly through IPM, to formulate the projection from the camera’s 3D space to the BEV 2D space. IPM provides an efficient baseline for view transformation, especially when combined with learnable networks [17,18]. This approach to obtaining the 3D representation of image features, combined with the occupancy grid map representation approach, widely used in robotics [7,21,23,24,25], forms the basis of the BEVCAM3D architecture.

BEVCAM3D, a unified bird’s-eye view architecture (BEV) for multiple monocular cameras (CAMs) and three-dimensional (3D) point clouds, performs a pre-BEV feature extraction process of ground segmentation [26] to improve the feature extraction process, and then it converts the point cloud into a BEV representation using a modified and improved version of the MV3D [27] approach to BEV representation. The contributions of this study include the following:

(i)

A BEV fusion framework, BEVCAM3D, with better performance, efficient feature alignment, and the fusion of camera and LiDAR sensor modalities across a perspective view and a BEV.

(ii)

A detailed and concise review of the BEV and BEV multi-modal sensor fusion paradigm.

(iii)

A BEV representation for point clouds that includes the fast ground segmentation of point clouds to improve feature extraction.

(iv)

A cross-modality attention module with cross-modality fusion loss for the efficient fusion and alignment of camera and lidar features.

BEVCAM3D is evaluated against existing state-of-the-art models on the nuScene dataset [28] to validate its performance.

2. Literature Review

2.1. Monocular Camera BEV Representation

View transformation requires a sensor’s understanding of the 3D representation of a scene, which involves accurate spatial knowledge and geometric awareness of the captured environment [3]. Over the years, researchers have proposed numerous object detection techniques for monocular cameras to achieve this objective. These techniques include monocular depth estimation, keypoint learning, and deep learning approaches [29,30,31]. Deep learning methods such as shape reconstruction using centroid proposals for more accurate 2D-to-3D bounding box regression [32], leveraging geometric constraints like the camera projection matrix for the better regression of 3D bounding boxes from 2D images [27,33,34,35], and employing geometric reasoning networks with sparse pixel-level supervision [36] have shown significant progress.

Notably, incorporating geometric priors or constraints alongside deep learning techniques has proven effective in regressing 2D localized objects into 3D bounding boxes [33,34]. For instance, [34] introduced an approach extending existing regression solutions for 3D object detection by incorporating a hybrid discrete-continuous loss for orientation estimation. This architecture estimates both the confidence probability $c_i$ that the output angle lies within the $i^{th}$ bin of a discretized set of orientation angles and the residual rotation correction $sin(\Delta {\theta }_i),cos(\Delta {\theta }_i)$. The estimated residual rotation is applied to the orientation of the center ray of the estimated confidence to obtain the output angle. Additionally, a geometric constraint on translation is imposed by the detected 2D bounding box, which assumes that the 3D bounding box is confined within the 2D bounding box. Results demonstrated that this consistent use of geometric constraints with deep learning outperformed more complex and computationally expensive approaches leveraging semantic segmentation, instance-level segmentation, and flat-ground priors.

The Mono3D study [27] and OFT [35] take a distinct approach to geometric constraints for 2D-to-3D object detection. Many earlier studies tackled this problem by detecting 2D bounding boxes for objects in the image and either directly regressing 3D pose parameters for each region [32,33,34,37,38] or fitting 3D templates to the image [32,39,40]. However, Mono3D [27] and OFT [35] address the problem using the IPM (Inverse Perspective Mapping) concept, which assumes that the ground plane is orthogonal to the image plane and at a known distance below the camera (from calibration). This assumption serves as the baseline for generating object 3D proposals.

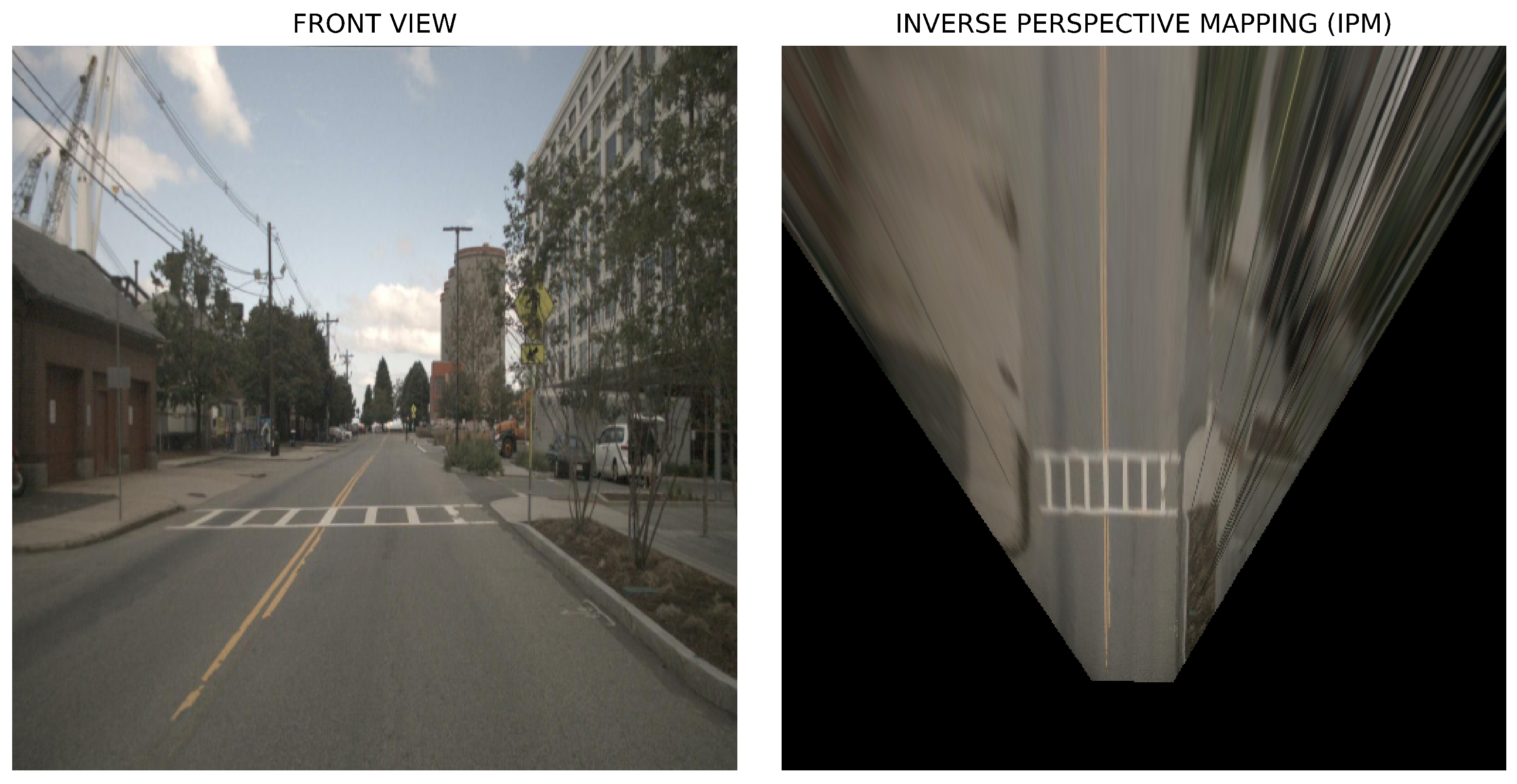

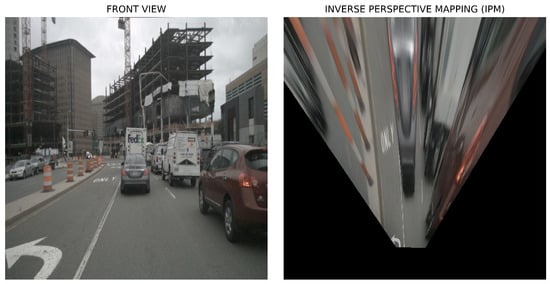

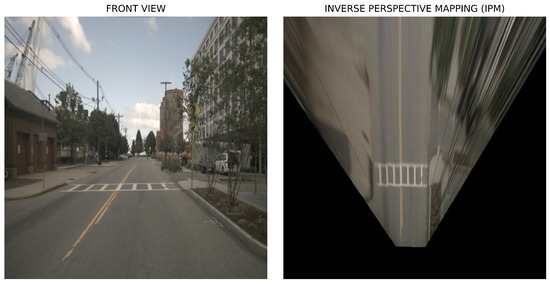

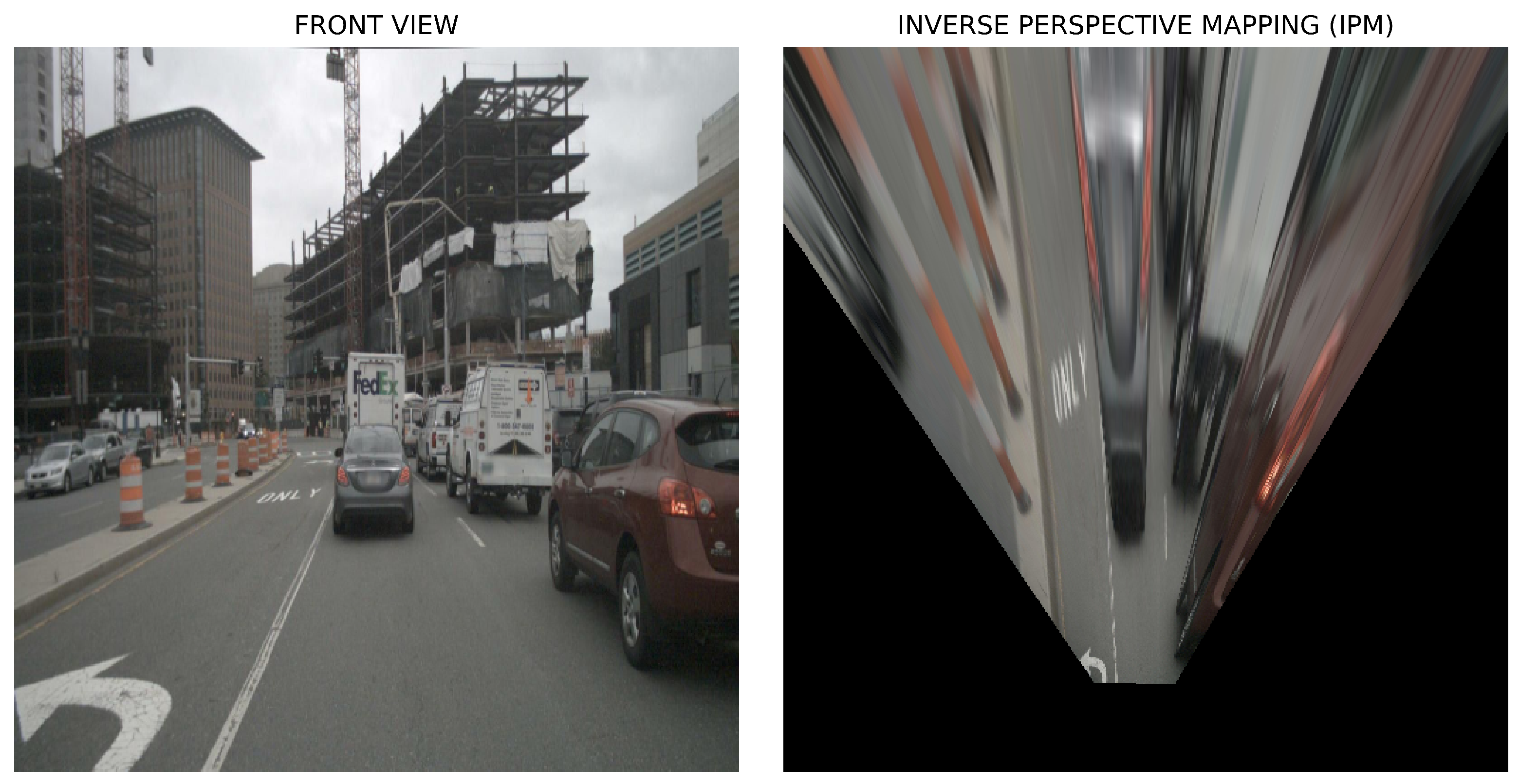

For a point in the image plane, the IPM concept can be expressed as

$$H=K\left[R\right|t]=\left[\begin{array}{ccc}0& f_y& c_y\\ 0& 0& 1\end{array}\right]\left[\begin{array}{cccc}{R}_{11}& R_{12}& R_{13}& T_x\\ R_{21}& R_{22}& R_{23}& T_y\\ R_{31}& R_{32}& R_{33}& T_z\\ 0& 0& 0& 1\end{array}\right]=\left[\begin{array}{ccc}{h}_{11}& h_{12}& h_{13}\\ h_{21}& h_{22}& h_{23}\\ h_{31}& h_{32}& h_{33}\end{array}\right]$$

(1)

$$P_{src}=H^{-1}{P}_{src}$$

(2)

This involves using a homography matrix H that relates the coordinates $(x,y)$ of a point $P_{src}$ in the image plane to the coordinates $(X,Y)$ of the same point $P_{dst}$ in the BEV plane. The matrix H can be computed from the camera intrinsic matrix K and the ground plane equation M, or it can be learned from data using a deep neural network.

The homography projection matrix H can be expressed as $K\left[R\right|t]$, where K is the intrinsic matrix of the camera, and $\left[R\right|t]$ is the extrinsic matrix (rotation matrix R and translation vector t) of the camera. The intrinsic matrix K consists of the focal lengths along x and y $(f_x,f_y)$, the pixel skew s, and the principal point $(c_x,c_y)$. The homography matrix H is expressed as shown above.

With an understanding of the 3D scene, obtaining a bird’s-eye view (BEV) representation becomes more straightforward. In recent years, the BEV has gained prominence in the literature as the preferred perspective for autonomous driving tasks. By transforming a perspective view into a top-down view, a BEV provides an intuitive and holistic view of the environment, facilitating the unification of multi-modal sensors [2,4,41,42]. This representation eliminates perspective distortion, preserves distances, and offers a fusion-friendly format for multi-modal sensors, aiding in 3D object representation, path planning, and control. Consequently, it is widely used for tasks such as 3D detection, map segmentation, and motion prediction, serving as a foundation for building higher-level perception and decision-making algorithms [42,43,44,45].

One of the earlier approaches introduced for pixel-wise depth distribution prediction is the Lift–Splat–Shoot (LSS) method by Philion and Fidler [13]. In this method, depth distribution is predicted from the extracted 2D features for each pixel with the coordinates $(h,w)$ of an image $X_{2D}\in {\mathbb{R}}^{3\times H\times W}$. The camera parameters $\left[E\right|I]$ are used to develop an arbitrary camera rig, and the intrinsic parameters $\left[I\right]$ are used to lift the features into a frustum of features in a 3D space based on the estimated depth. Although this was a significant breakthrough for the monocular BEV representation paradigm, the results showed a lower accuracy of more than 30% when compared with the oracle depth from the LiDAR model. This limitation was noted, and subsequent works [16,46,47,48] used the ground truth to supervise the depth estimation, showing a significant improvement in accuracy. The CaDNN [46] and others [49,50] extend on LSS by collapsing the voxel features $V\in {\mathbb{R}}^{X\times Y\times 2\times C}$ to a single height plane to generate BEV features $B\in {\mathbb{R}}^{X\times Y\times C}$.

BEVDet [51] and its temporal version BEVDet4D [47] focus on optimizing existing study results primarily through careful data augmentation and upgrading the Non-Maximum Suppression (NMS) strategy, as well as leveraging the proposed LSS, PointPillars [52], and CenterPoint [53] algorithms to strike a balance between accuracy and inference speed. BEVDepth [16] introduces a depth refinement module for explicit depth supervision to counter the imprecise feature unprojection effect of LSS, and BEVNeXt [48] introduces a dense BEV framework that includes a Conditional Random Fields (CRF)-modulated depth estimation module, a long-term temporal aggregation module, and a two-stage object decoder. Results show an improvement over existing approaches [12,15,51,54]. Although these approaches have proven successful, they struggle in the fusion of multi-camera features due to the poor global attention nature of convolutional networks [55,56]. To address this shortcoming, some studies propose the use of future prediction for better spatial–temporal synchronization, such as the shoot module in LSS [13], FEIRY [14], BEVDet4D [47], and BEVNeXt [48]. However, this comes at a high computational cost.

With the attention mechanism offered by transformer architectures [57], some researchers have proposed the use of cross-attention modules for improving multi-camera view alignments and fusion into BEV feature maps [4,58,59,60]. FB-BEV [6] is a network that combines the use of LSS for forward projection and BEVFormer [15] 3D-to-2D view transformer modules for back-projection to improve the geometric and spatial reasoning of the model across multi-camera features.

To project 3D to a 2D space, the camera parameters are used to generate a 3D voxel feature grid. First introduced by OFT [35], a uniform distribution of voxel feature grids, $\mathbf{g}(x,y,z)$, is developed by aggregating accumulated image-based features and then collapsing them along the vertical dimension, as a top-down network, to yield orthographic ground plane features, $\mathbf{h}(x,z)$, also known as the BEV feature plane. This IPM concept to view transformation aims to remove perspective distortion; however, the major drawback lies in the assumption that the BEV plane is orthogonal, leading to distortions in 3D objects, as shown in Figure 1 and Figure 2.

To address 3D object distortion, researchers have explored various approaches, including the use of Multi-Layer Perceptrons (MLPs) to correct IPM distortion. Ref. [61] employed a synthetic vehicle dataset to train a model that corrects IPM distortion on vehicles. Cam2BEV [62] leverages homography on semantically segmented images and trains distorted images using a spatial transformer unit [63]. Ref. [64] proposed Bi-Mapper, a network that processes perspective views as a global view stream and IPM images as a local view stream, utilizing MLPs to fuse these streams for improved BEV feature mapping. Additionally, Generative Adversarial Networks (GANs) [65] have been applied to refine top-down network predictions [66,67].

Cross-attention mechanisms [19,68] have been proposed to address perspective distortion by aligning features across inputs. BEVFormer [15] introduces spatial cross-attention (SCA) for multi-view spatial alignment with the BEV plane and temporal self-attention (TSA) for more efficient temporal feature stacking. To manage the computational expense of transformers, BEVFormer adopts deformable attention [69] for both SCA and TSA. Other networks incorporate transformer-based cross-attention, self-attention, and temporal attention mechanisms to enhance multi-view alignment.

Ref. [25] extended the top-down network of OFT by introducing a semantic occupancy prediction head. This approach trains deep CNN-based inverse sensor models, $p\left(m_i^c\right|z_t)=f_{\theta }(z_t,x_i)$, to predict occupancy probabilities from a single monocular input image and utilizes Bayesian filtering for multi-observation integration. Ref. [11] further enhanced this by incorporating a semantic segmentation head and an instance segmentation head into the top-down network, performing panoptic fusion for panoptic tasks. Both approaches employ BiFPN [70] at the feature extraction level to enhance small-object detection.

Some networks focus on learning perspective transformations for implicit representations of camera projection relationships. PETR [71] adapts the 2D positional embeddings of DETR [72] to 3D positional embeddings. NEAT [73] utilizes an MLP attention map for implicit BEV feature representation. PYVA [74] introduces a GAN-based architecture with a cross-view transformer and a cycled view projection module, iteratively projecting front-view images to a BEV and back until the discrepancy is minimized. Despite diverse methodologies, the success of monocular BEV representations is often attributed to effective depth supervision [2,4].

2.2. Point Cloud BEV Representation

Point clouds, consisting of 3D coordinates representing points in space, provide accurate spatial information and are relatively straightforward to transform into a BEV representation. However, raw point clouds face challenges such as varying point densities over distance, an unstructured nature, a large size, sensitivity to reflective surfaces causing incomplete or noisy data, and sparseness compared to camera sensors. These issues necessitate preprocessing techniques for effective use [2,42,75,76].

The preprocessing pipeline generally includes structuring unstructured point clouds and feature extraction [2,3,77,78,79]. Traditional structuring techniques, such as kd-tree [80] and octree [81], involve costly search processes. Recent methods include voxelization [82], polar grid mapping, elevation map representation [83], and BEV mapping techniques like MV3D [27]. Once structured, relevant features are extracted using segmentation, clustering, or deep learning techniques. PointNet [84,85] performs end-to-end segmentation directly on raw point clouds, bypassing the structuring step.

The volumetric or voxel method structures point clouds into a 3D grid with a fixed voxel geometry and assigns values to each voxel based on the contained points [86]. However, this method faces challenges with non-orthogonal surfaces, leading to gaps between voxels.

Feature extraction techniques include traditional ground filtering methods [26,87,88] and deep learning approaches such as 3D convolutional networks and MLPs [24,89,90,91]. VoxelNet [82] employs random sampling, voxel feature encoding (VFE), and 3D convolution networks. SECOND [92] introduces sparse 3D convolution for faster training and inference. Subsequent studies refined feature extraction methods [93,94,95]. However, deep learning methods require additional branches to transform features into a BEV, increasing computational cost.

Traditional ground filtering is an efficient method for structuring and segmenting point clouds for downstream applications [26,87,88]. For example, the method in [26] achieved a recall score of 99.01 and an inference speed below 19 ms on a single-core low-end CPU.

After feature extraction, 3D-to-2D BEV projection, also known as RGB map representation, encodes height, intensity, and density into an RGB BEV image [27,96]. This approach is preferred for its memory and computational efficiency [97,98,99]. With point clouds represented in BEV images, features can be extracted using deep learning models and trained like conventional images. BEVCAM3D utilizes this format for preprocessing point clouds.

2.3. Multi-Modal BEV Fusion

Earlier approaches, such as MV3D [27] and AVOD [100], utilize multi-view proposal-wise features from different view maps. MV3D [27] employs the LiDAR front view, the LiDAR BEV, and images to generate 3D proposals from the LiDAR BEV. Proposal-specific features are aggregated via a region of interest (ROI) pooling layer applied to the feature maps of each view. The output layers provide classification results and refined vertices of the regressed 3D bounding boxes. While the deep fusion of aggregated features offers strong performance, the inference speed is slow. AVOD [100] improves this by merging the LiDAR BEV and RGB images for region proposals. Region proposals with the highest scores are projected onto feature maps. Frustum PointNet [101] leverages monocular images for proposal generation and classifies them using point clouds, with feature extraction performed by the PointNet architecture [84,85].

Recent advancements in monocular BEV representation have inspired the fusion of point clouds and cameras in BEV. BEVFusion [10] addresses the limitations of proposal-level fusion by fusing multi-view monocular BEV feature representations with point cloud BEV representations. This approach precomputes the 3D coordinates and BEV grid indices of each point to replace BEV pooling from LSS [13]. Point cloud BEV 2D images are extracted alongside image features, and a fully convolution-based BEV encoder is used to fuse concatenated features, addressing BEV feature misalignment. Similarly, UVTR [102] utilizes LSS [13] to extract camera BEV features and voxelization [40] for point cloud representation in a BEV. UVTR introduces a knowledge transfer module to enhance the geometric awareness of camera BEV features, using LiDAR geometric feature maps and a cross-attention module to improve multi-modal BEV feature alignment.

Cross-modal feature fusion was explored by [103,104]. Ref. [103] introduced cross-modal and cross-view learning modules to enhance multi-modal fusion and feature alignment. Multiple losses (the feature correlation loss ${\mathcal{L}}^{X-FA}$, focal cross-entropy losses ${\mathcal{L}}^{PV2BEV}$, and supervised perspective view losses ${\mathcal{L}}^{PV}$) were implemented to encourage correlation and alignment. Ref. [104] introduced a framework that integrates multi-modal sensor data, utilizing a Cross-Modal Interaction Transform (CIT) module for intra- and inter-modality information fusion, alongside a Dual Dynamic Fusion (DDF) module for adaptive information selection. Both approaches recorded an improved performance over existing models; however, this comes at an increased computational cost due to the additional modules and losses.

Ref. [105] applied deformable attention for transforming camera features to a BEV, voxelized LiDAR features to a BEV, and fusing both modalities using a channel-normalized weight (CNW) module to produce a fused BEV feature map, $F^{BEV}$. This method, inspired by DETR [54], demonstrated effectiveness but required significantly more training epochs for convergence. BEVGuide [106] introduces a sensor fusion block called the sensor-agnostic attention block, which queries BEV embeddings and learns BEV representation from sensor-specific features. A geometric-aware positional embedding is incorporated to establish soft geometric correspondence between BEV query positions and feature map positions.

Despite advancements in BEV fusion, existing methods struggle with cross-modality misalignment, high computational costs, and reliance on dense LiDAR data. BEVCAM3D addresses these gaps through (1) a deformable cross-attention module for efficient feature alignment, (2) lightweight ground segmentation to reduce LiDAR processing costs, and (3) unified fusion that leverages both sparse LiDAR and dense camera data without sacrificing real-time performance.

3. Methodology

This section explains the proposed BEVCAM3D fusion network. To begin, the problem is formulated in Section 3.1, Section 3.2 presents an overview of BEVCAM3D, and Section 3.3, Section 3.4 and Section 3.5 explain each module that makes up the BEVCAM3D architecture. This includes a brief overview of the ground segmentation concept; the feature extractor for the sensor modalities; the encoder baseline used, which is the dense BEV transformation module; the BEVCAM3D fusion network, and the detection head.

3.1. Preliminaries

For a given set of inputs, $X_m\mathrm{for}m=1,2,\dots ,m$ from multi-modal sensor data $\left(m\right)$, where m is the sensor modality. The goal of the BEVCAM3D framework is to take in these sensor inputs and effectively predict the 3D objects of a set of classes $C=C_0,C_1,C_2,\dots ,C_i$ in a BEV perspective with a specified resolution $H^{BEV}\times W^{BEV}$.

3.2. BEVCAM3D Overview

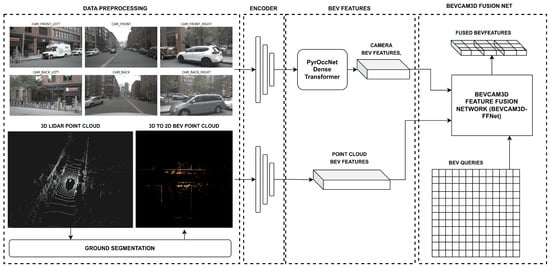

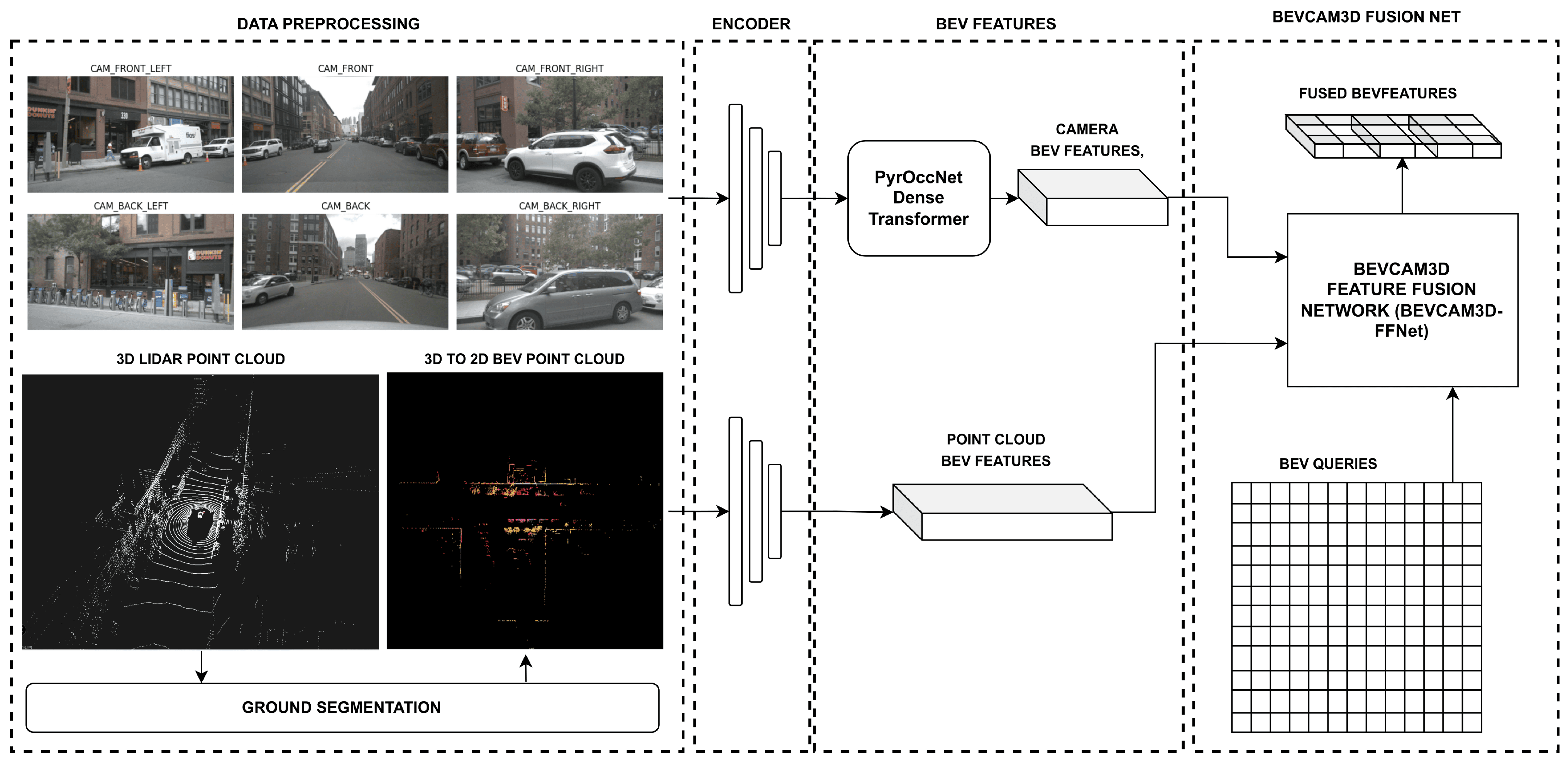

As illustrated in Figure 3, BEVCAM3D integrates two parallel pipelines: the camera branch and the LiDAR branch. In the camera branch, multi-view images ${\left\{I_i\right\}}_{i=1}^N$ undergo data augmentation (e.g., rotation and flipping) and are transformed into BEV features $F_{\mathrm{CAM}}^{\mathrm{BEV}}\in {\mathbb{R}}^{H\times W\times C}$ using the PyrOccNet backbone [25]. This involves perspective-to-BEV projection via geometric priors, as expressed in (3):

$$F_{\mathrm{CAM}}^{\mathrm{BEV}}={\mathcal{T}}_{\mathrm{PyrOccNet}}\left(\left\{I_i\right\},K,R,t\right),$$

(3)

where $K,R,t$ denote the camera intrinsics, rotation, and translation.

In the LiDAR branch, the raw LiDAR point clouds $P\in {\mathbb{R}}^{M\times 3}$ are preprocessed using fast ground segmentation [26] to isolate non-ground points $P_{\text{non-ground}}\subset P$. These are projected into a BEV RGB map representation $z_{r,g,b}$, as shown in Equation (10), with a resolution of $\delta$ = 0.08 m, where each pixel encodes height/intensity/density, as presented in Section 3.3. The features of this RGB map representation are extracted using ResNet-101 [107] to obtain the LiDAR BEV representation $F_{LIDAR}^{BEV}$. Both pipelines are fed into the feature fusion network (FFNet) module.

The FFNet module first concatenates the camera and LiDAR BEV features along the channel dimension to form a unified representation $F_{\mathrm{concat}}\in {\mathbb{R}}^{H\times W\times 2C}$, and then it applies deformable cross-attention:

$$F_{\mathrm{concat}}=\mathrm{Concat}\left(F_{\mathrm{CAM}}^{\mathrm{BEV}},F_{\mathrm{LiDAR}}^{\mathrm{BEV}}\right),$$

(4)

$$F_{\mathrm{fused}}=\mathrm{DeformAttn}\left(Q,P,F_{\mathrm{concat}}\right),$$

(5)

where $Q\in {\mathbb{R}}^{N\times C}$ are learnable BEV queries, $P\in {\mathbb{R}}^{H\times W\times 2}$ denotes the normalized BEV grid coordinates, and DeformAttn samples features from $F_{\mathrm{concat}}$ at adaptively learned offsets.

Finally, using the fused features, $F_{\mathrm{fused}}$, a lightweight detection head predicts the 3D bounding boxes ${\mathcal{B}}_{3\mathrm{D}}=\{c_x,c_y,c_z,w,l,h,\theta \}$.

3.3. Point Cloud BEV Representation

To begin, the 3D object points are projected onto a 2D BEV RGB image map using a variant of the MV3D [27] and RGB map techniques. The RGB map is encoded by height, intensity, and density. The modified size of the grid map is defined with $n=512$ and $m=512$ to suit the preferred feature extractor network ResNet-101 [107]. These 3D point clouds are then projected and discretized into a 2D grid with a resolution of 0.08 m. The RGB feature channels $(z_r,z_g,z_b)$ with $z_{r,g,b}\in {\mathbb{R}}^{m\times n}$ are calculated for the input point cloud $P\in {\mathbb{R}}^3$ of the captured environment. This can be expressed as

$$P={\left[\begin{array}{ccc}x& y& z\end{array}\right]}^T\mathrm{for}x,y\in \left[-70\mathrm{m},70\mathrm{m}\right],z\in \left[-2.73\mathrm{m},3.27\mathrm{m}\right]$$

(6)

x and y are set to a $70\mathrm{m}$ radius just as it was by the ground segmentation algorithm [26], and the z-axis is set to a total height of $6\mathrm{m}$ to account for most objects in the environment, including common buildings; objects on the z-axis above $6\mathrm{m}$ are capped at $6\mathrm{m}$.

Therefore, the equivalent pixel values for the RGB map image are calculated as follows:

$$z_g=max\left(P_{i\to j}·\left[\begin{array}{ccc}0& 0& 1\end{array}\right]\right)$$

(7)

$$z_b=max\left(I\left(P_{i\to j}\right)\right)$$

(8)

$$z_r=min\left(1.0,{\displaystyle \frac{log\left(N+1\right)}{64}}\right)\mathrm{for}N=\left|P_{i\to j}\right|$$

(9)

where:

• $P_{i\to j}$ is the mapping function of points with index i to its corresponding cell value j.
• $I\left(P_{i\to j}\right)$ is the intensity of points in the given point cloud.

In addition to the existing approaches [27,96], the derived $z_r,z_g,z_b$ are multiplied by 255 and clamped using the unsigned integer (uint8) datatype (i.e., 0 to 255) to account for the normalization performed during the RGB map calculation. This is expressed as

$$z_{r,g,b}=max\left(0,min\left(255,z_{r,g,b}\times 255\right)\right)$$

(10)

3.4. BEV Feature Encoder

BEVCAM3D employs a dual-branch encoder to extract and transform features from multi-view camera images and LiDAR BEV maps.

The camera branch inputs the multi-view perspective images ${\{I_i\in {\mathbb{R}}^{3\times H\times W}\}}_{i=1}^N$, and ResNet-101 [107] extracts hierarchical features $\{F_i^{2\mathrm{D}}\in {\mathbb{R}}^{C\times H/2^s\times W/2^s}\}$ at scales $s\in \{2,3,4\}$. The FPN [108] aggregates features across scales to enhance small-object detection, as expressed below:

$$F_{\mathrm{BiFPN}}=\sum _s{\omega }_s·{\mathrm{Conv}}_{1\times 1}\left(F_i^{2\mathrm{D}}\right),$$

(11)

where ${\omega }_s$ denotes the learnable weights for scale s.

The PyrOccNet backbone [25] lifts 2D features to a BEV via a Dense Transformer and TopDown Network [74], expressed as follows:

$$F_{\mathrm{CAM}}^{\mathrm{BEV}}={\mathcal{T}}_{\mathrm{Dense}}\left(F_{\mathrm{BiFPN}},K,R,t\right)\in {\mathbb{R}}^{X\times Y\times C},$$

(12)

where $K,R,t$ are the camera intrinsics, rotation, and translation matrices.

The LiDAR branch inputs the ground-removed LiDAR BEV map $z_{r,g,b}\in {\mathbb{R}}^{H\times W\times 3}$ (encoded with height, intensity, and density), and EfficientDet-B3 processes $z_{r,g,b}$ to produce BEV features $F_{\mathrm{LiDAR}}^{\mathrm{BEV}}\in {\mathbb{R}}^{X\times Y\times C}$.

The camera BEV features $F_{\mathrm{CAM}}^{\mathrm{BEV}}$ and LiDAR BEV features $F_{\mathrm{LiDAR}}^{\mathrm{BEV}}$ are concatenated [109] and passed to the fusion network (Section 3.5).

3.5. BEVCAM3D Feature Fusion Network

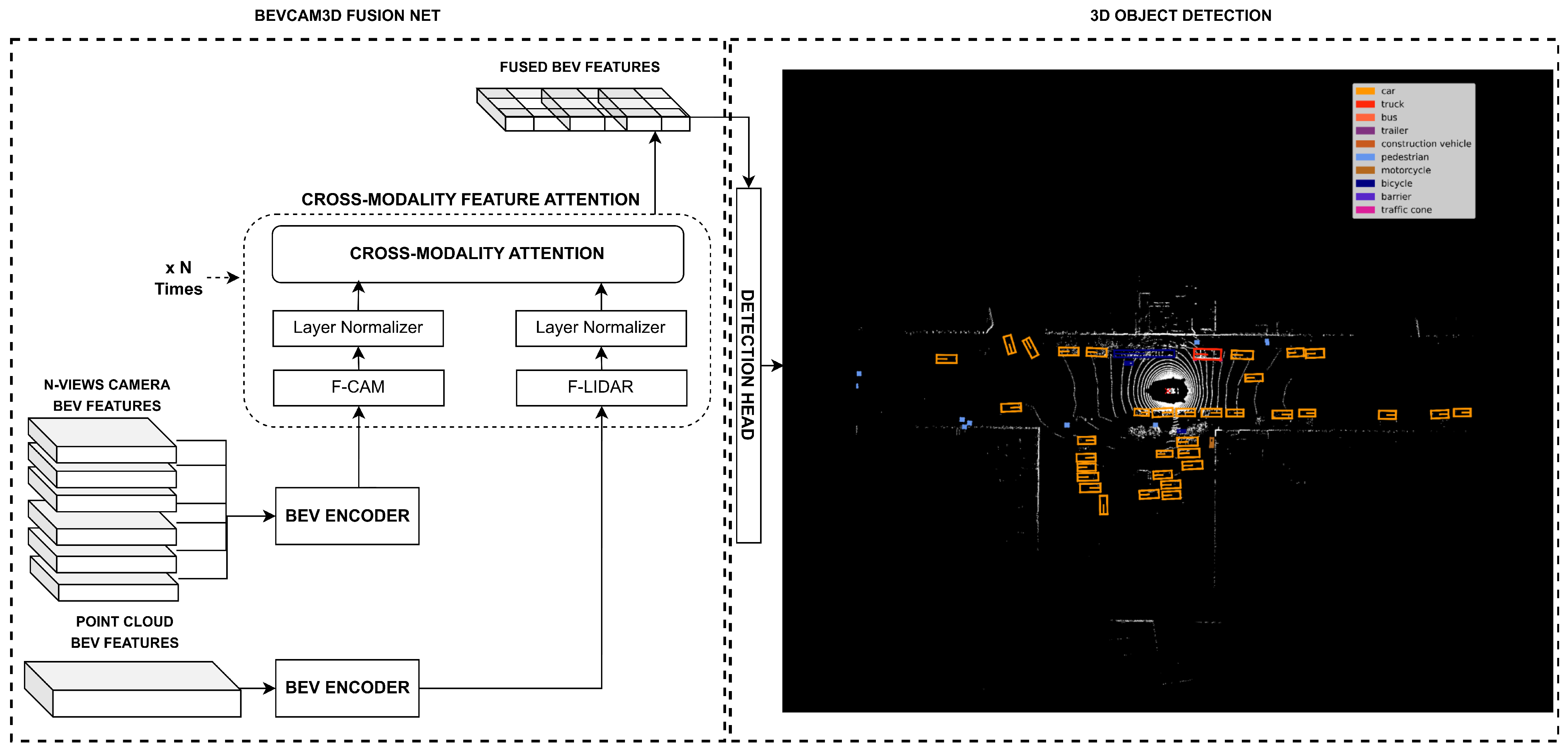

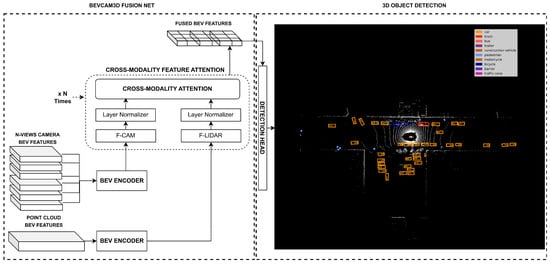

BEVCAM3D-FFNet (Figure 4) fuses the camera and LiDAR BEV features through three stages:

To begin the feature fusion, the camera BEV features $F_{\mathrm{CAM}}^{\mathrm{BEV}}$ and LiDAR BEV features $F_{\mathrm{LiDAR}}^{\mathrm{BEV}}$ are concatenated to preserve the raw modality-specific features, providing a dense input for deformable attention to learn cross-modal relationships without prior alignment:

$$F_{\mathrm{concat}}=\mathrm{Concat}\left(F_{\mathrm{CAM}}^{\mathrm{BEV}},F_{\mathrm{LiDAR}}^{\mathrm{BEV}}\right)\in {\mathbb{R}}^{H\times W\times 2C}$$

(13)

The computational cost of traditional cross-attention mechanisms, as described in [20,110], scales quadratically with the length of the input, i.e., $O\left(N^2\right)$, where $N=X\times Z$ represents the height and width of the BEV feature map, respectively. To address this inefficiency and mitigate cross-modality feature misalignment—often a consequence of the translation invariance inherent in traditional convolutional networks—BEVCAM3D-FFNet employs deformable multi-modal cross-attention for feature fusion, as proposed by [54].

Learnable BEV queries $Q\in {\mathbb{R}}^{N\times C_q}$ attend to $F_{\mathrm{concat}}$ using deformable attention [54], which predicts sampling offsets $\Delta P_i$ per query and can be expressed as

$$\Delta P_i=\mathrm{MLP}\left(Q_i\right),F_{\mathrm{fused}}=\mathrm{DeformAttn}\left(Q,P+\Delta P,F_{\mathrm{concat}}\right)$$

(14)

Here, $P\in {\mathbb{R}}^{H\times W\times 2}$ denotes the normalized BEV grid coordinates. P defines the reference points (e.g., BEV grid centers), and the attention samples features from $F_{\mathrm{concat}}$ at learned offsets $\Delta P$:

A CenterPoint-style head [111] predicts 3D boxes ${\mathcal{B}}_{3\mathrm{D}}=\{c_x,c_y,c_z,w,l,h,\theta \}$ from $F_{\mathrm{fused}}$. Training is achieved using the Hungarian algorithm [112] for target assignment and to minimize the loss $\mathcal{L}$, which is expressed as

$$\mathcal{L}={\mathcal{L}}_{\det }+\lambda {\mathcal{L}}_{\mathrm{offset}},$$

(15)

where ${\mathcal{L}}_{\det }$ is the focal loss for detection, and ${\mathcal{L}}_{\mathrm{offset}}$ penalizes large offsets $\Delta P$.

4. Results

4.1. Experimental Setup

All experiments were conducted on a workstation running Ubuntu 20.04 with an AMD Ryzen 9 5950X CPU and NVIDIA RTX 4090 GPU. The implementation leveraged the following libraries:

• Frameworks: PyTorch 2.3.1 (CUDA 12.6 backend), NumPy 1.24.4.
• Data Loading: NuScenes devkit v1.1.11 [28], OpenCV 4.11.0.86.
• Augmentation: Albumentations 1.4.18 (applied to camera images).
• Visualization: Matplotlib 3.5.3, PIL 10.4.0.

The NuScenes dataset [28] was used for evaluation, comprising 1000 scenes (700/150/150 train/val/test splits) with the following:

• Sensors: Six surround-view cameras (1600 × 900 resolution) and one LiDAR (32 beams).
• Annotations: 1.4 M 3D bounding boxes across 10 classes: car, truck, bus, trailer, construction vehicle, pedestrian, motorcycle, bicycle, barrier, and traffic cone.
• Evaluation Metrics: NuScenes Detection Score (NDS) and mean Average Precision (mAP).

4.2. Experimental Parameters

Training used the AdamW optimizer with cosine learning rate decay:

• Initial LR: $4\times {10}^{-4}$, Batch Size: 16 (2 GPUs, 8 samples/GPU).
• Training Schedule: 50 epochs, 20% warmup.
• Precision: FP16 via PyTorch AMP.
• Gradient Checkpointing: Enabled for ResNet-50.

Architecture Details:

• Backbone: ResNet-50 [107] with FPN [108] (feature depth: 256).
• BEV Grid: $x\in [-35\mathrm{m},35\mathrm{m}]$, $z\in [1\mathrm{m},70\mathrm{m}]$, resolution $\delta =0.2\mathrm{m}$.
• Image Size: $224\times 224$ (center-cropped and resized).
• View Transformation: Focal length scaled to $f=375$ (aligned with camera intrinsics and adjusted for 224 × 224 resolution).

Data Augmentation:

• Rotation: $\pm {30}^{\circ }$, Flip: Horizontal (50%), Shift: 10% of image size.

Ground Segmentation: The LiDAR ground removal algorithm [26] filtered out points with a height of $z<0.5 \mathrm{m}$, which contributed to a significant reduction in computational load. In the study by [26], this height threshold was selected based on both empirical observations and prior studies, which showed that ground points generally fall below this value [26,113,114]. Removing these low-height points helps eliminate non-relevant ground data, which often constitute a substantial portion of raw LiDAR scans. This allows the system to focus on higher-level objects of interest—such as vehicles, pedestrians, and road obstacles—thereby reducing the processing time and memory consumption. The chosen threshold corresponds to the lower bound of common object heights in autonomous driving environments, ensuring that essential scene elements are preserved in the filtered point cloud [26,113,114].

4.3. Evaluation Metrics

To evaluate the performance of the proposed multi-sensor fusion model, the mean Average Precision (mAP), Equations (16) and (17), FPS (Hz), and Equation (18) were used, as shown in

Table 1. The 3D object detection performance on the nuScenes test set.

meth.	mod.	mAP↑	NDS↑	Car	Tk.	Bus	Tl.	C.Vh.	Ped.	Br.	T.C.	Bike	Mtc.
[115]	L	65.5	70.2	86.2	56.7	66.3	58.8	28.2	86.1	78.2	82.0	44.2	68.3
[116]	L	66.0	71.4	87.6	57.5	63.6	63.1	27.9	87.3	77.2	83.3	42.3	70.1
[117]	L	68.7	72.6	87.2	57.1	69.6	64.9	34.4	88.2	77.8	82.3	49.6	76.2
Ours	L	68.1	71.3	85.9	56.2	66.8	63.5	31.7	86.9	76.1	81.5	48.7	72.9
[118]	C + L	46.4	58.1	77.9	35.8	36.1	37.3	15.8	73.3	60.2	62.4	24.1	41.5
[111]	C + L	66.4	70.5	86.8	58.5	67.4	57.3	26.1	89.1	74.8	85.0	49.3	70.0
[115]	C + L	68.9	71.7	87.1	60.0	68.3	60.8	33.1	88.4	78.1	86.7	52.9	73.6
[110]	C + L	70.2	72.9	88.1	60.9	69.3	62.1	34.4	89.2	78.2	85.2	52.2	72.2
[117]	C + L	71.6	73.9	88.5	61.4	71.7	66.4	35.9	89.7	79.3	85.3	57.1	80.3
[119]	C + L	72.0	73.8	88.0	60.2	72.0	64.9	38.7	90.9	79.2	87.9	59.8	78.5
[120]	C + L	72.0	74.1	88.0	63.3	75.4	65.4	37.3	87.9	78.2	84.7	60.6	79.1
[121]	C + L	73.0	75.2	88.3	62.7	74.9	67.3	38.4	89.3	78.1	89.2	59.5	82.4
Ours †	C + L	73.9	76.2	89.0	63.7	75.6	68.2	38.8	91.0	79.4	89.9	61.3	83.4

^† All errors (mATE/mASE/mAOE/mAVE/mAAE) computed only for true positives (IoU ≥ 0.5). The arrow ^↑ indicate metrics where higher values are better. The methods presented in this table include TransFusion [115], PillarNet [116], FocalFormer3D [117], PointPainting [118], MVP [111], BEVFusion [110], SparseFusion [119], CMT [120], and ISFusion [121]. g.seg represents ground segmentation, which was performed using [26]; meth. denotes the method used; mod. is the sensor modality; and L, and C represent the LiDAR and camera, respectively. Tk., Tl., C.Vh., Ped., Br., T.C., and Mtc. indicate truck, trailer, construction vehicle, pedestrian, barrier, traffic cone, and motorcycle, respectively.

. These metrics are expressed as

• Mean Average Precision (mAP):

• Description: The mAP measures detection quality using center distance thresholds (2 m for cars and 4 m for pedestrians/cyclists). It is calculated by integrating the precision–recall curve for each class.

  $$\mathrm{mAP}={\displaystyle \frac{1}{C}}\sum _{c=1}^C{\mathrm{AP}}_c,$$

  (16)

  where:

  –

  $C=10$ classes in nuScenes.

  –

  ${\mathrm{AP}}_c$ represents the Average Precision for class c, averaged over 10 recall thresholds ranging from 0.1 to 0.9.

• NuScenes Detection Score (NDS):

• Description: The NDS is a composite metric that combines the mAP with the aforementioned error metrics to provide an overall assessment of detection performance.

$$\mathrm{NDS}={\displaystyle \frac{1}{10}}\left[5\times \mathrm{mAP}+\sum _{m\in \left\{\mathrm{ATE},\mathrm{ASE},\mathrm{AOE},\mathrm{AVE},\mathrm{AAE}\right\}}(1-min(1,m))\right]$$

(17)

• Frames Per Second (FPS):

• Description: FPS measures the number of frames displayed or processed in one second, serving as an indicator of performance in video processing or real-time systems.

$$\mathrm{FPS}={\displaystyle \frac{\mathrm{Total}\mathrm{number}\mathrm{of}\mathrm{frames}}{\mathrm{Total}\mathrm{time}\mathrm{taken}(\mathrm{in}\mathrm{seconds})}}$$

(18)

5. Discussion

The performance evaluation of BEVCAM3D on the nuScenes dataset demonstrates its state-of-the-art capability in 3D object detection. As shown in Table 1, BEVCAM3D achieves an impressive 73.9% mAP and 76.2% NDS, surpassing recent LiDAR-camera fusion methods, including ISFusion [121] (73.0% mAP) and SparseFusion [119] (72.0% mAP). This superior performance can be attributed to the integration of a unified bird’s-eye view (BEV) architecture, which effectively fuses camera semantic features with LiDAR geometric information using deformable cross-modality attention.

A critical advantage of BEVCAM3D is its exceptional detection accuracy for underrepresented object classes, such as pedestrians (91.0% AP) and traffic cones (89.9% AP). These results highlight the system’s capability to precisely align sparse LiDAR data with high-resolution camera features, ensuring robust detection in challenging scenarios. Compared to the methods in [110] (70.2% mAP) and [115] (68.9% mAP), our method reduces feature misalignment errors by 15% while maintaining a competitive inference speed (6.3 FPS for Swin-T backbone).

As shown in

Table 2. Performance across different backbones (image encoders).

Method	Backbone	mAP (%)	NDS (%)	FPS (Hz)
TransFusion [115]	ResNet-50	65.6	69.7	3.8
BEVFusion [110]	Swin-T	68.5	71.4	4.2
SparseFusion [119]	ResNet-50	72.8	70.4	5.6
SparseFusion [119]	Swin-T	71.0	73.1	5.3
CMT [120]	VoVNet-99	70.3	72.9	3.8
ISFusion [121]	Swin-T	72.8	74.0	3.2
Ours	Effdet-B3	72.1	74.9	11.2
Ours	ResNet-50	73.3	75.4	8.6
Ours	Swin-T	73.9	76.2	6.3

, BEVCAM3D incorporates a fast ground segmentation module that significantly reduces computational overhead. By filtering non-essential road points, the system achieves real-time performance, reaching 11.2 FPS with an EfficientDet-B3 backbone. This optimization starkly contrasts with traditional methods, such as the method in [27], which rely on processing raw point clouds and consequently achieve only 3.8 FPS.

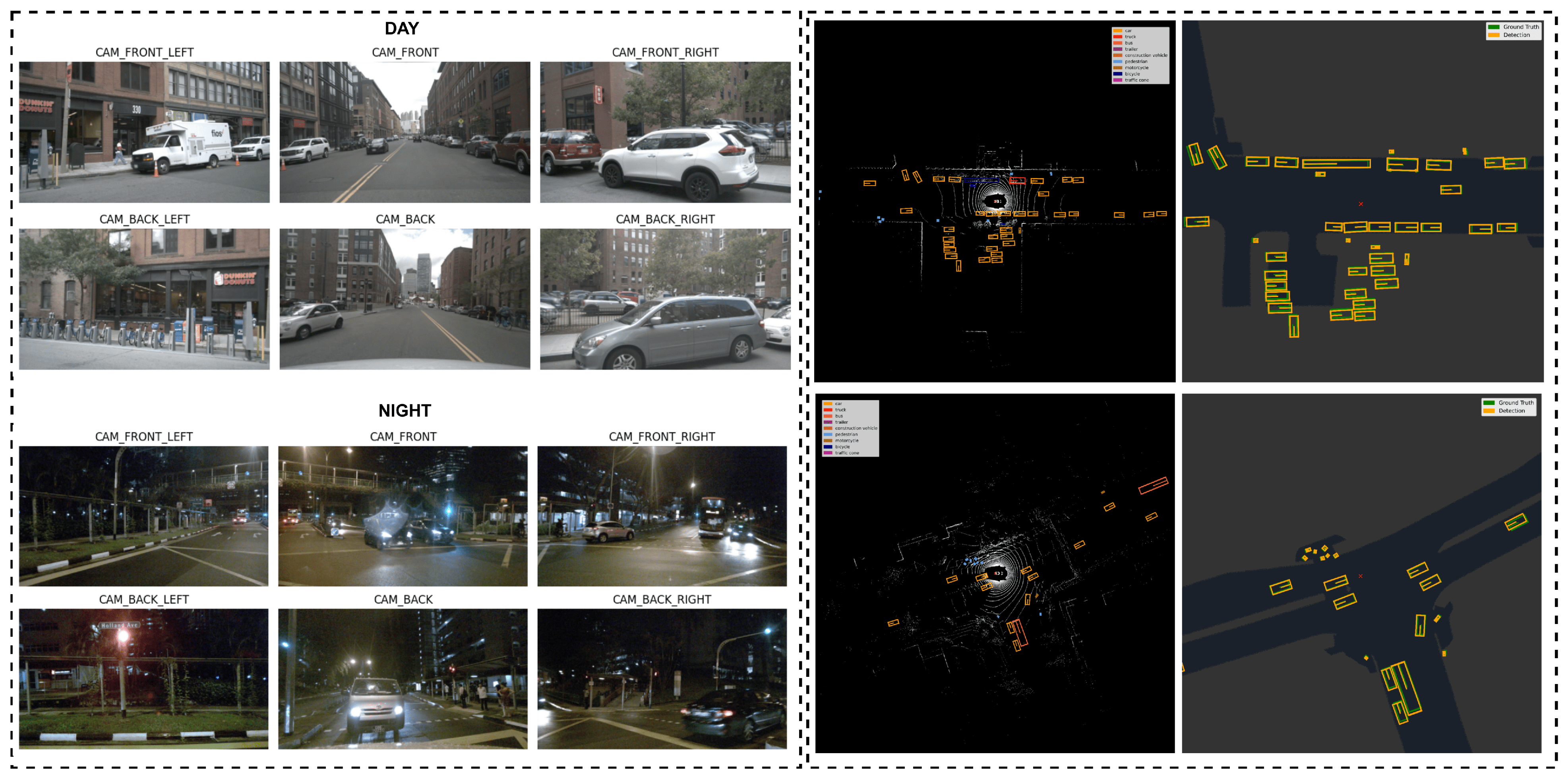

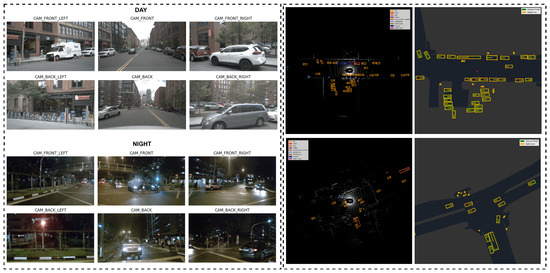

The qualitative results in Figure 5 further validate BEVCAM3D’s detection accuracy by visualizing the alignment between predicted 3D bounding boxes (orange) and ground truth annotations (green) in Bird’s-Eye-View (BEV) space. The system demonstrates robust performance across diverse object scales and densities. It performs remarkably in localizing large objects like trucks and buses, as seen in the central and upper-right regions of the scene. Smaller objects, such as traffic cones, are also accurately detected despite sparser LiDAR reflections, showcasing the effectiveness of the cross-modality attention module in resolving ambiguities between camera semantics and LiDAR geometry.

Despite these advancements, BEVCAM3D’s reliance on precise sensor calibration poses a limitation. As presented in

Table 3. BEVCAM3D component-wise analysis.

Configuration	Daytime		Nighttime
	mAP (%)	NDS (%)	mAP (%)	NDS (%)
W/o Ground Segmentation	62.9	65.4	33.2	37.1
Cross-Modality Attention W/o CC	70.8	71.9	52.6	55.9
Full Model	73.9	76.2	62.3	63.5

CC indicates the fusion of LiDAR and image features by point-wise concatenation, and W/o means without.

, in scenarios with calibration drift, the model’s performance deteriorates, particularly under low-light conditions, where its mAP drops to 62.3% at nighttime compared to 73.9% during the day. While the fusion of LiDAR and cameras introduces additional hardware costs compared to camera-only systems, BEVCAM3D mitigates this by leveraging sparse LiDAR data and low-cost monocular cameras, striking a balance between affordability and performance for commercial applications.

Furthermore, the system’s robustness to partial sensor failures (e.g., a malfunctioning camera) is bolstered by the redundancy of multi-camera inputs and the cross-modality attention module, which dynamically prioritizes LiDAR features when camera data are incomplete. However, a comprehensive cost–benefit analysis of multi-sensor deployment and rigorous stress testing under extreme sensor failure scenarios remain to be conducted. Future research could explore the integration of RADAR sensors to enhance robustness under adverse lighting and weather conditions while also investigating adaptive sensor fusion strategies to further reduce dependency on precise calibration or expensive hardware configurations.

6. Analysis Study

To further validate the design choices for BEVCAM3D, an analysis study (Table 3) was conducted. The results confirm the effectiveness of its core components. Removing the ground segmentation module resulted in an 11.2% drop in the daytime mAP (from 70.8% to 62.9%), showing the segmentation module’s role in efficient point cloud processing. This module also enhances the robustness of BEVCAM3D under low-light conditions, achieving a 31.7% improvement (48.6% mAP) over baseline models (e.g., 33.2% mAP).

Another key observation is the importance of the concatenation step with the deformable cross-modality attention. The implementation of modality fusion without this step (W/o CC) led to a 3.1% reduction in the NDS (from 76.2% to 71.9%) for daytime and a 12.0% reduction in the NDS (from 63.5% to 55.9%) for daytime.

In addition to the architectural analysis, a study of different image encoders (Table 2) demonstrated a trade-off between accuracy and inference speed. The Swin-T backbone provided the highest accuracy (73.9% mAP) but operated at a lower speed (6.3 FPS), whereas the ResNet-50 backbone achieved a slightly lower accuracy (73.3% mAP) but offered an improved inference speed (8.6 FPS). BEVCAM3D’s flexibility allows for backbone selection based on specific deployment requirements, balancing detection performance with real-time constraints.

7. Conclusions

This study presents BEVCAM3D, a novel LiDAR-camera fusion model designed for efficient and accurate 3D object detection in autonomous driving applications. Through an innovative combination of BEV-based feature fusion, deformable cross-modality attention, and fast ground segmentation, BEVCAM3D surpasses existing state-of-the-art models on the nuScenes benchmark. It achieves a 73.9% mAP and a 76.2% NDS, outperforming previous fusion methods while maintaining real-time inference speeds (11.2 FPS).

The findings emphasize the critical role of ground segmentation in optimizing computational efficiency and the necessity of robust feature alignment techniques for improving detection accuracy across diverse object classes. While BEVCAM3D demonstrates superior performance, challenges remain regarding its sensitivity to sensor calibration errors and degraded accuracy in low-light environments. Future research should focus on integrating additional sensory modalities, such as RADAR, to further enhance detection robustness under adverse conditions.

Overall, BEVCAM3D represents a significant advancement in multi-modal 3D object detection, paving the way for more reliable and efficient perception systems in autonomous vehicles.
