Palladium Cyclometallated Compounds: Evaluation of Their Catalytic Activity in Cross-Coupling Reactions ^†

Abstract

Catalysts are substances that can increase the speed of a chemical reaction and are often used in the chemical industry. Palladium is one of the most widely used metal centers in metal-based catalysts, and a lot of palladium complexes have been extensively used in many reactions, particularly in cross-coupling reactions with a carbon−carbon bond formation. All their possible applications as catalysts, along with their uses in biological assays as anticancer agents, make these family of complexes very interesting and highly studied, allowing the modification of the ligands around the metal and the extreme modulation of their properties. Herein we report the synthesis of several palladium cyclometallated compounds with thiosemicarbazone ligands and bis(diphenylphosphino)methane (dppm). Additionally, we evaluate their catalytic activity in a Suzuki−Miyaura cross-coupling reaction, using 4-bromoacetophenone and phenylboronic acid as reagents and following the reaction with ¹H-NMR spectroscopy. A final comparison between the catalytic conversions and the complexes allows us to propose the best structure for a catalytic purpose in these conditions.

1. Introduction

The chemistry of transition metals has been extensively studied over the years [1,2]. The high number of different metals and the ligands that can coordinate around them make this kind of complex very extensive with different properties and applications in coordinative and organometallic chemistry.

Among all these metals, palladium is one of the most interesting. Its coordinative ability to many donor atoms [3,4,5], including carbon atoms to synthesized cyclometallated compounds [6,7,8], makes this metal an excellent choice. The square-planar geometry facilitates the coordination of multidentate ligands [9,10], creating very stable complexes.

Cyclometallated compounds with palladium, using thiosemicarbazone ligands, are reported in this research work [11,12,13,14,15]. We show the catalytic activity for these ligands with different metal complexes [16]. The catalytic activity of all species synthesized is discussed for the Suzuki−Miyaura’s reaction.

2. Experimental

The reactions to obtain the thiosemicarbazone ligands, tetranuclear compounds with palladium and reaction of these compounds with dppm were carried out following the procedure we reported earlier [17].

Synthesis of Homodinuclear Compounds (10–12)

Compounds 7–9 (15 mg) and bis(benzonitrile)palladium (II) chloride (quantities shown in

Table 1. Summary of yields and colors of complexes 10–12.

Compound	Reagent	R	(PhCN)2PdCl2/mg	Yield/%	Appearance
10	7	H	8.1	60	Red solid
11	8	Me	7.9	52	Orange solid
12	9	Et	7.8	55	Orange solid

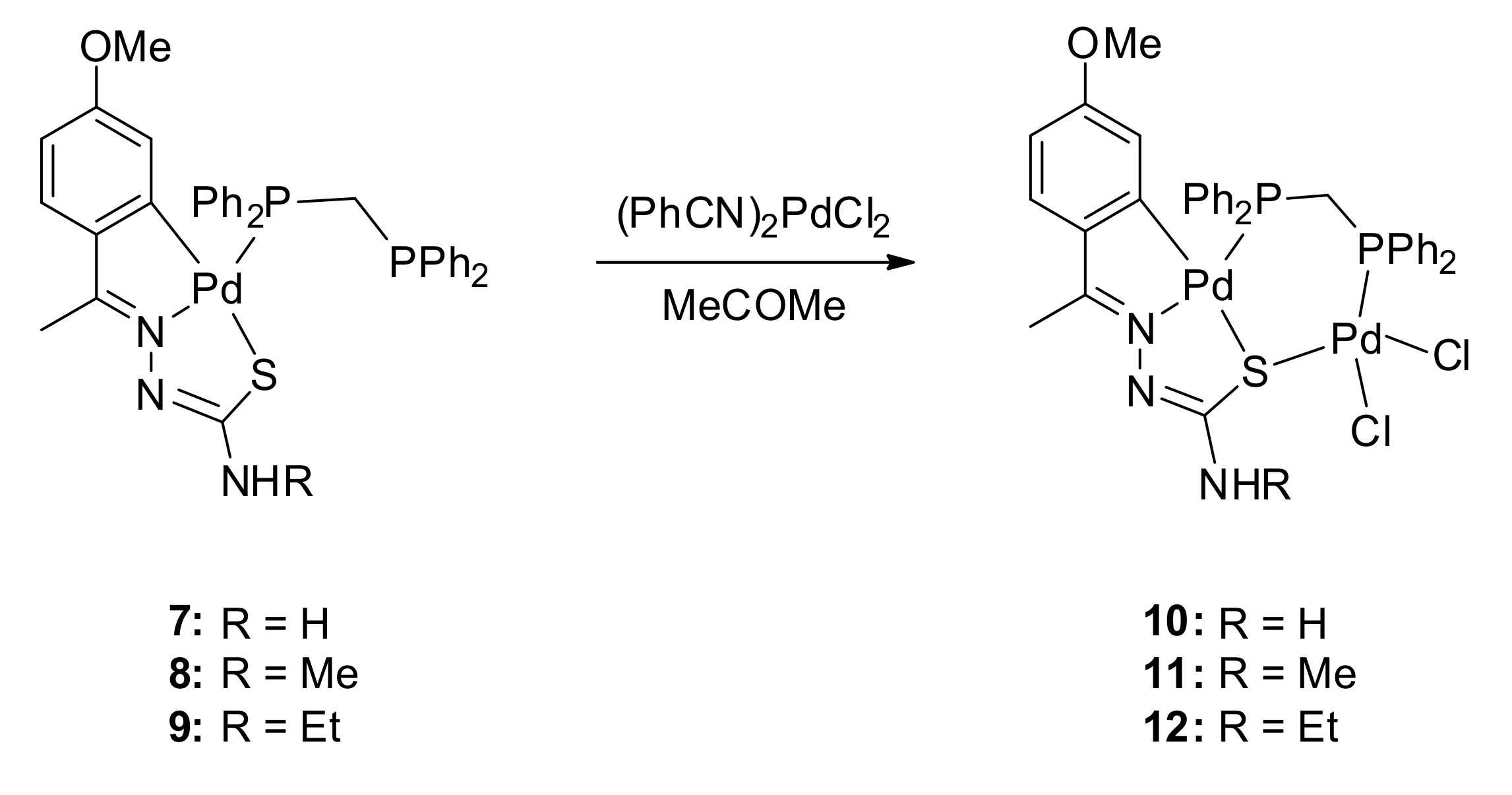

) were added under nitrogen in a deoxygenated solution of acetone (Scheme 1). After stirring for 24 h at room temperature, the solvent was removed under a reduced pressure, and the residue was treated with dichloromethane-hexane, centrifugated and dried under a vacuum.

3. Results and Discussion

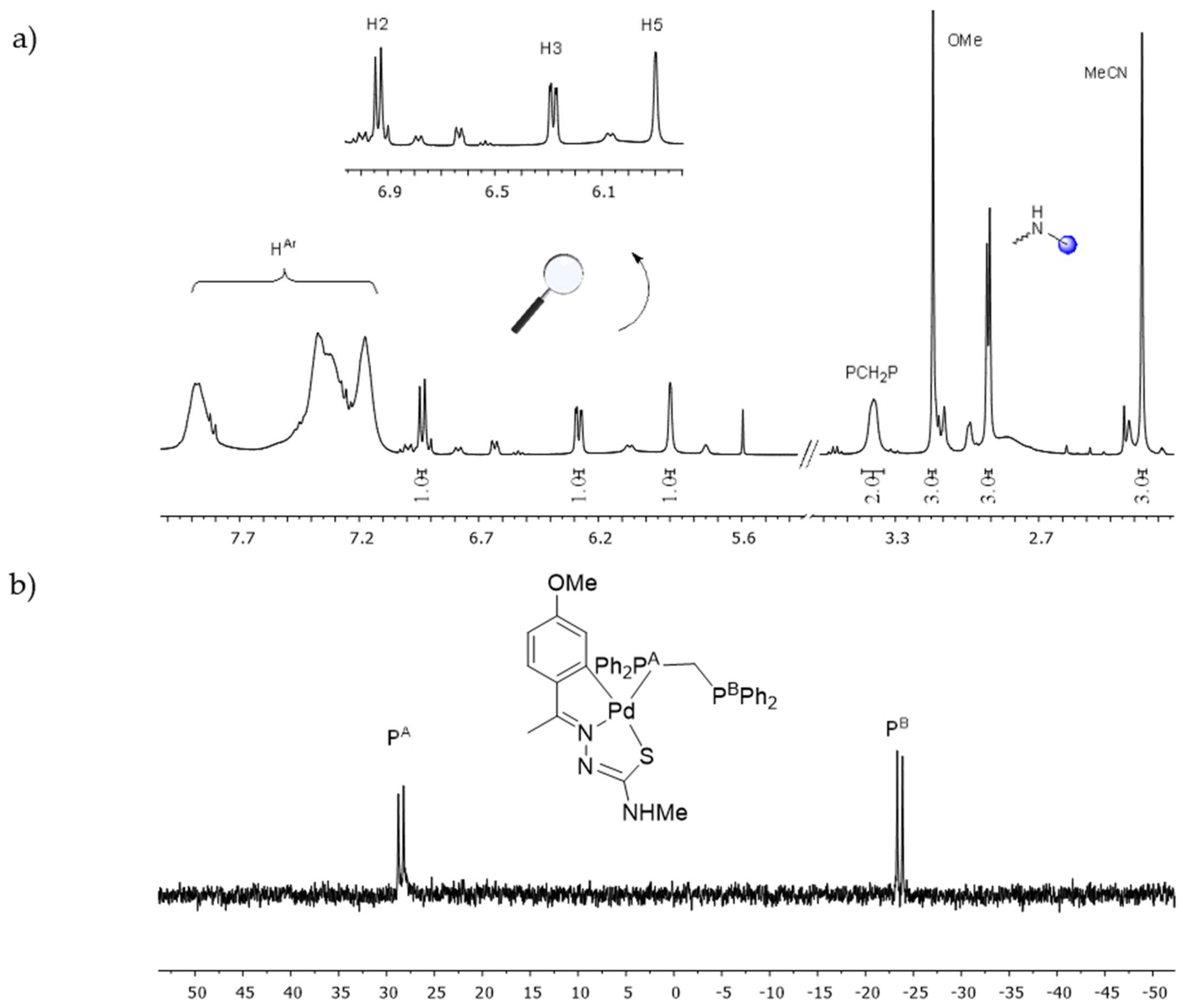

The previous synthetic route is shown in Scheme A1 and NMR spectra are included in Figure A1 and Figure A2. The general procedures and characterization data are listed in Appendix B.

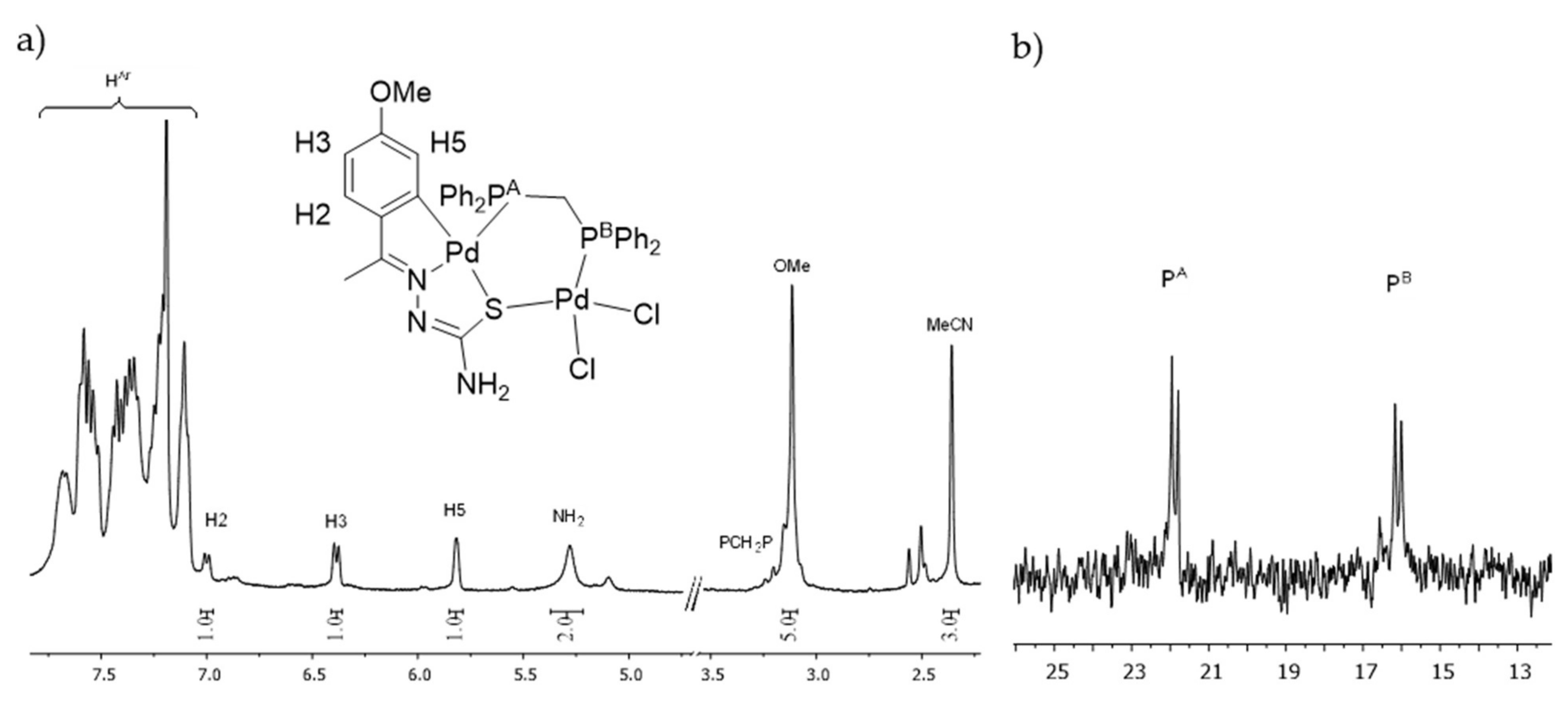

The comparison of the ¹H NMR spectra between the dinuclear compounds (10-12) with the previous ones (7–9) does not show very significant changes. The most remarkable one is the high field shift of the PCH₂P protons, due to the second metal coordination to the free phosphorus atom. This fact is supported with the ³¹P-{¹H} NMR spectrum of 10 because two doublets appear downfield, caused by the coordination of the two phosphorus atoms to different palladium metal centers (as shown in Figure 1).

4. Catalytic Conversion

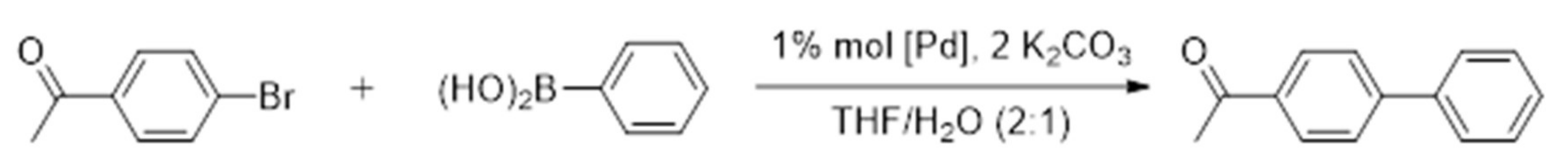

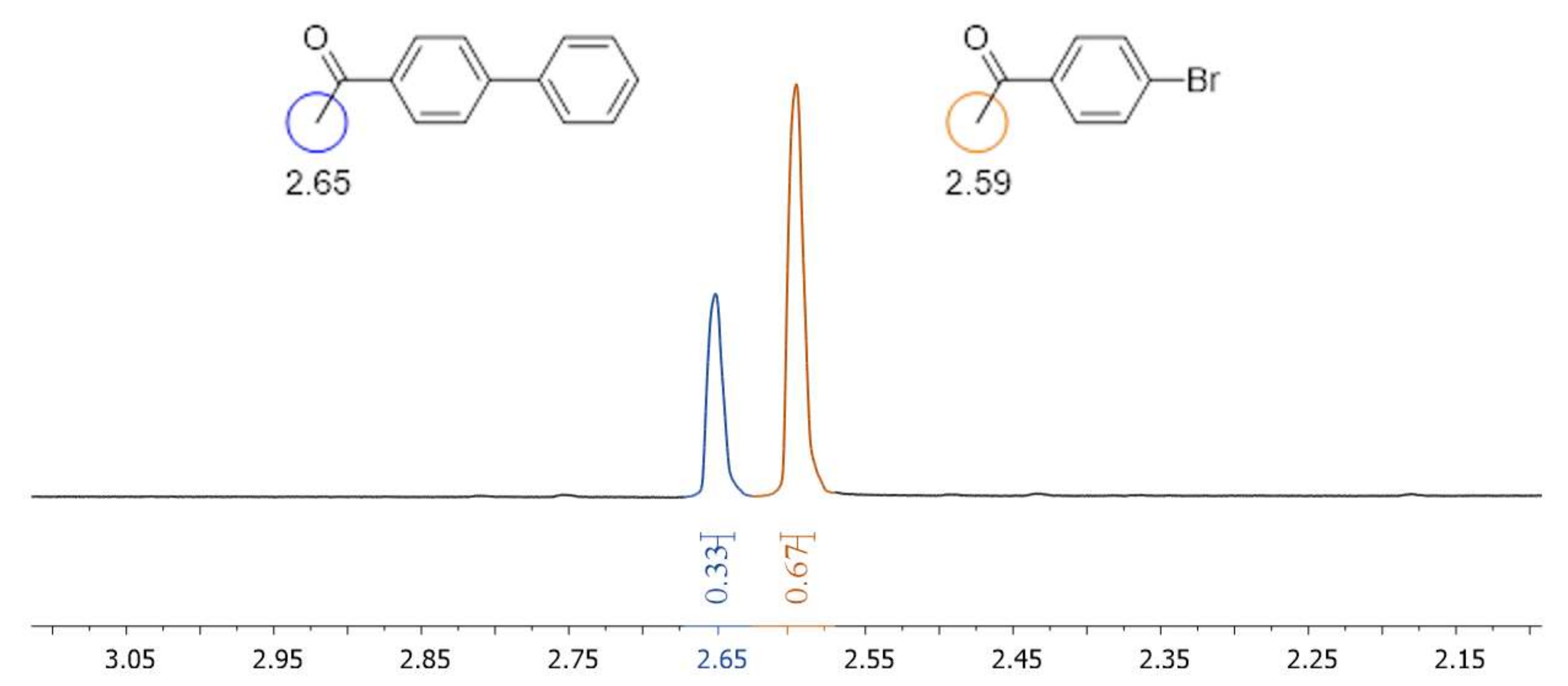

The Suzuki−Miyaura reaction was carried out using 4-bromoacetophenone and phenylboronic acid as reagents (see Scheme 2). Aliquots were taken during the reaction, and results were monitored with ¹H NMR spectroscopy as shown in Figure 2.

Conversion results are shown in

Table 2. Results obtained for catalytic assays.

Compound	Reaction Time/h	Conversion/%
4	24	0
5	24	15
6	24	18
7	24	12
8	24	17
9	24	22
10	2	45
	8	89
	24	98
11	2	36
	8	74
	24	97
12	2	43
	8	65
	24	96

Aliquots in 4–9 reactions are not listed due to the low conversion. Reactions were carried out using 4-bromoacetophenone (0.2 mmol), phenylboronic acid (1.2 eq.), catalyst (1 mol%) and potassium carbonate (2 eq.) in TFH:H₂O (2:1) at 80 °C. Conversion was determined by ¹H NMR spectroscopy.

for all reactions.

The results show that the dinuclear compounds are extremely good catalysts, probably due to the Pd−Cl bond. The bond lability allows these compounds to be very effective in these conditions.

Compounds 4–9 show poor catalytic activity in these conditions, especially compared to their homodinuclear counterparts.

5. Conclusions

• Homodinuclear compounds were satisfactorily synthesized, showing a six-membered ring with two palladium atoms.
• NMR spectra of compounds 10–12 confirm the product structure.
• Catalytic assays were performed for compounds 4–12.
• Catalytic results show that the dinuclear compounds are better catalysts for the Suzuki−Miyaura reaction.
