Developing a Benzimidazole-Silica-Based Hybrid Sol–Gel Coating with Significant Corrosion Protection on Aluminum Alloys 2024-T3 ^†

Abstract

The inherent reactivity of Al–Cu–Mg alloys is such that their use for building structural, maritime, and airplane components with great strength/weight ratios would not be possible without good anti-corrosion systems. These systems could be considered as imitations of the protection mechanism found in the conventional hexavalent chromium-based system, but with additional limited environmental impact, and in particular without toxic or carcinogenic effects. These coatings also are intended to be eco-friendly, using less of the valuable raw materials and energy than more traditional methods. Silica-based hybrid protective coatings have been shown to exhibit excellent chemical stability combined with the ability to reduce the corrosion of metal substrates. However, research shows that sol–gel has some limitations in terms of the period of the anti-corrosive properties. Therefore, this work reports the performance of a silica-based hybrid sol–gel coating encapsulated with benzimidazole (BZI) that can be applied to light alloys to form an inherently inhibited and crack-free coating. This coating was applied on AA 2024-T3 and cured at 80 °C. The high corrosion resistance performance results from the combination of good adhesion, the hydrophobic property of the silica-based hybrid coating, and the presence of the encapsulated (BZI) film-forming volatile corrosion inhibitor, which is released at pores within the coating system, resulting in film-forming, reducing the reaction at cathodic sites. The evaluation of this mechanism is based on using electrochemical testing techniques. The anti-corrosion properties of the coatings were studied when immersed in 3.5% NaCl by using electrochemical impedance spectroscopy (EIS) and potential-dynamic polarization scanning (PDPS). The chemical confirmation was performed by infrared spectroscopy (ATR-FTIR), supported by analyzing the morphology of the surface before and after the immersion testing by using scanning electron microscopy (SEM). The benzimidazole-silica-based hybrid coating exhibited excellent anti-corrosion properties, providing an adherent protective film on the aluminum alloy 2024-T3 samples compared to sol–gel-only and bare metals, as a cost-effective and eco-friendly system.

1. Introduction

Silica-based hybrid protective coatings using sol–gel technology have shown an exceptional ability to reduce corrosion on the metal surface combined with high chemical stability. However, using the sol–gel technique alone has some limitations in terms of barrier anti-corrosive properties due to pores in the matrix, which could lead to cracking of the coating. The use of encapsulated corrosion inhibitors will enhance the system’s corrosion protection. The systematic development of corrosion inhibitor compounds has produced many effective inhibitors. For example, compounds with heterocyclic organic functional groups consisting of oxygen or nitrogen, with phosphorus or sulfur attached as heteroatoms, are very desirable [1,2].

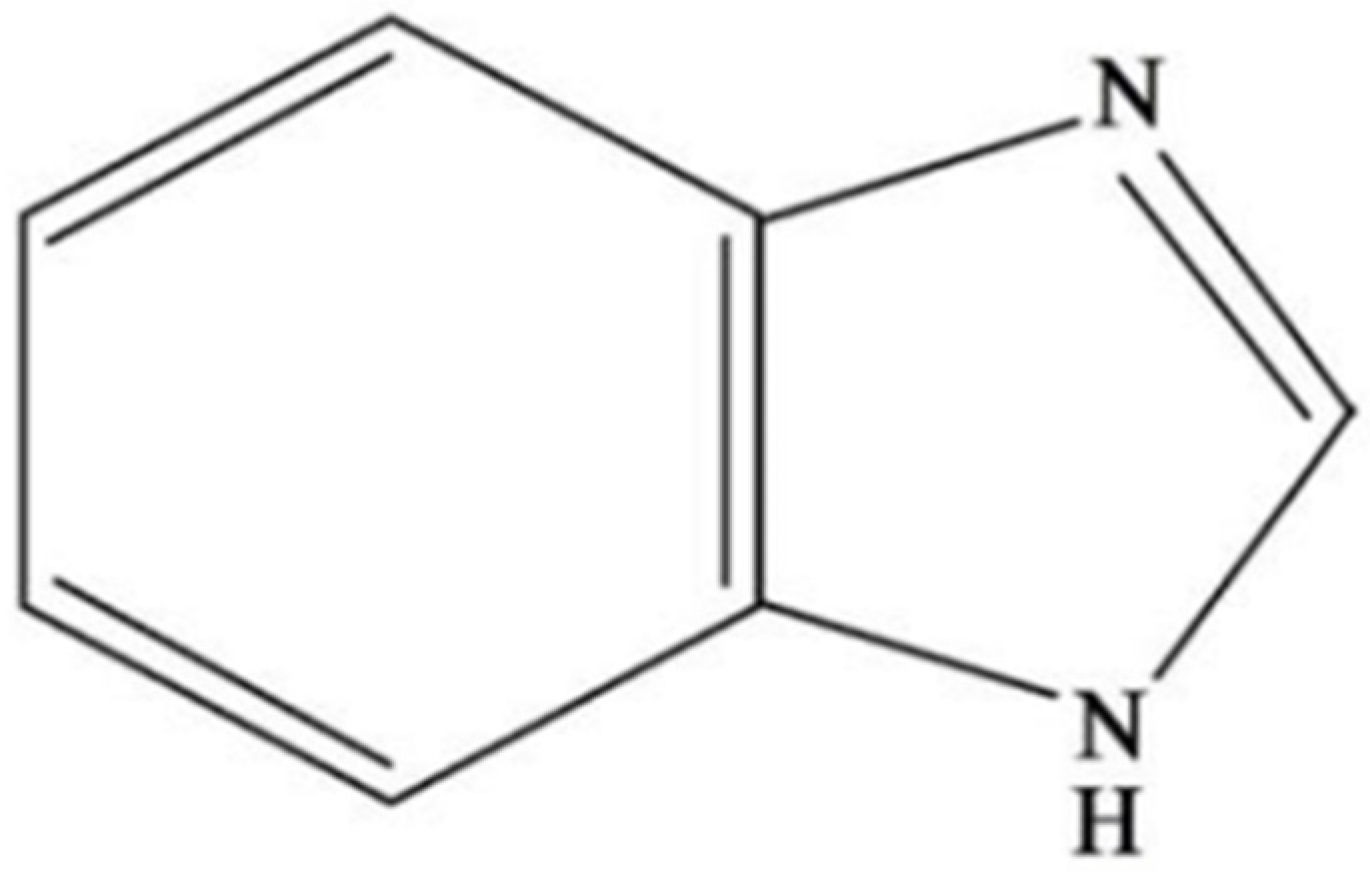

For instance, benzimidazole (BZI) (structure shown in Figure 1) has been identified as a low-pH film-forming effective corrosion inhibitor used for copper and steel. It possesses a heterocyclic aromatic organic compound structure that is suitable as both an effective volatile or injectable corrosion inhibitor with other soluble carriers. It has a chemical structure containing both a benzene group and the active group imidazole used in oil and gas production [3].

The main advantages are that BZI is commercially available and cost-effective as a raw material for various uses, the most common of which is as a fungicide in pharmaceutical applications [4]. In addition, BZI derivatives are used in various corrosion applications in applied science. For example, Antonijevic et al. [2] described it as a powerful inhibitor that showed excellent corrosion prevention to protect carbon steel pipelines in corrosive acidic HCl solutions [2,5].

The mechanism of inhibition by BZI or its derivatives on metal has been studied deeply, especially on copper and steel [5,6,7]. Furthermore, it has been found that BZI and its derivatives may be positioned in a parallel adsorption arrangement, a close joining with the surface, creating a thin layer. The adsorption of BZI in this position may be due to the donation of the π electron on the BZI’s nitrogen atoms to the unoccupied D-orbital, balancing the benzimidazole molecules with excited iron or copper atoms [5,6]. These interactions explain the strong adsorption connection to the surface that protects the mild steel or copper from direct corrosion [5,6].

Related research has mentioned the use of BZI chemistries and related derivatives and patents: J. Colreavy et al. and S. Vijaykumar et al. mentioned using the same family of these inhibitors in their patented sol–gel technique on steel or other metals. This work demonstrated the specific application of BZI as a simple silica-based sol–gel additive used as a corrosion inhibitor for aluminum alloy AA2024-T3 [8,9].

2. Experimental Procedures

2.1. Sol–Gel Preparation

In this study, the hybrid silica-based sol–gel was synthesized from tetraethyl orthosilicate silane (TEOS) and trimethoxymethyl silane (MTMS) precursors, purchased from Sigma-Aldrich. The precursors were mixed in isopropyl alcohol by adding deionized (DI) water dropwise in a molar ratio of 18:14:17:220, respectively, until the hydrolyzing and condensation reactions. As mentioned in the previous work, the silica-based sol–gel mixture was then enhanced by adding the poly-siloxane (PSES) solution [10]. The base formula used was labelled as SHX-80.

The benzimidazole-modified hybrid silica-based sol–gel was labelled as BZI-SHX-80 and prepared by encapsulating 3.5 vol.% of a 1:1 solution of ethanol and benzimidazole (BZI) (Sigma-Aldrich) in the base formula SHX-80, added dropwise while stirring. The formulation was then left for 24 h.

2.2. Substrate Preparation and Film Deposition

The aluminum alloy substrates used were purchased from Q-Lab as Standard aluminum alloy AA2024-T3 Q-panels with dimensions of (102 mm × 25 mm × 1.6 mm) [11]. The received Q-panels were washed with a commercial aluminum base surfactant cleaner, then rinsed with DI water, followed by acetone washing to remove the organic residues on the surface.

Then, the sol–gel was sprayed onto the pre-cleaned aluminum alloy substrates. The distance from the spraying gun to the surface was approximately 150 mm. The coating was built up over three passes to keep the thickness standard for all samples at about 15 ± 2 µm. After that, the coated samples were left in the air for 10 min before being annealed at 80 °C for 4 h.

Table 1. Sample identification table.

No.	Identifier	Formula Base Composite	(BZI) v/v%	Curing Temperature
1-	SHX-80	TEOS + MTMS + PSX	-	80 °C
2-	ZBI-SHX-80	TEOS + MTMS + PSX	3.5%	80 °C
3-	Bare AA2024-T3	-	-	-

shows the experiment codes used to identify the samples.

2.3. Coating Testing and Characterization

Electrochemical tests were performed on the bare and coated samples to assess their corrosion resistance. Tests were conducted by using a Princeton Applied Research PARSTAT 2273. The corrosion performance of the sol–gel-coated and uncoated aluminum alloy was evaluated using electrochemical impedance spectroscopy (EIS) and potentiodynamic polarization (PDPS) scans. An area of 1.00 mm² in the center of the samples in aerated 3.5% NaCl was tested. The tests were carried out at room temperature (20 ± 2 °C). The electrode potential was monitored for approximately 1 h before polarization in the electrolyte solution until stability. The sample was polarized with PDPS at a scanning rate of 1.667 mVs⁻¹ from the initial potential of −250 mV vs. OCP to +750 mV vs. SCE. The electrochemical impedance measurements were recorded between 100 kHz and 10 MHz with a sinusoidal AC RMS value of 10 mV [12].

3. Results and Discussion

3.1. ATR-FTIR for the BZI-SBX-80 Sol–Gel Chemical Composition

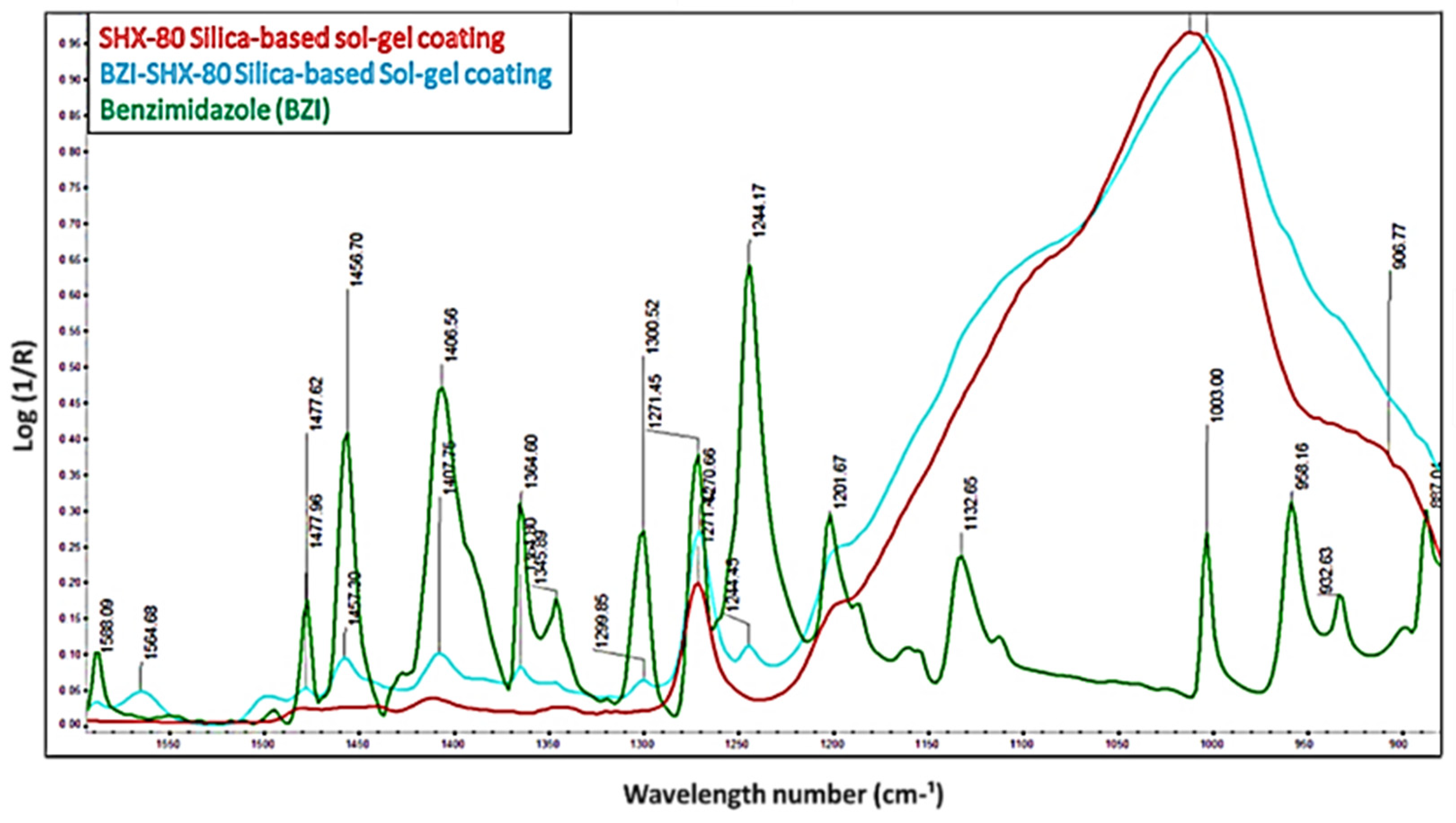

The organic BZI was successfully incorporated into the SHX sol–gel base formula by comparing the infrared spectrum obtained from the BZI-SHX-80 coating to that of the unmodified SHX-80. This is enlarged in Figure 2. In the spectrum of the BZI-modified coating, several peaks are seen related to the BZI molecule. These peaks can be observed and were retained in the sol–gel-coated BZI-SBX-80 sample. They are as follows: weak imine C=N stretching at 1564.5 cm⁻¹; carbon double-bond C=C stretching peaks at about 1477 cm⁻¹, 1458 cm⁻¹, and 1408 cm⁻¹, respectively. Similarly, the fingerprint of the aromatic amine stretching C–N can be detected at 1364 cm⁻¹ and 1300 cm⁻¹, respectively, which can be used to confirm the benzimidazole’s presence in the new sol–gel formula. The C–H out-of-plane bending is characterized by the peaks at 768 cm⁻¹ and 745 cm⁻¹ [13].

3.2. Water Contact Angle of the SBX and BZI-SBX Coatings

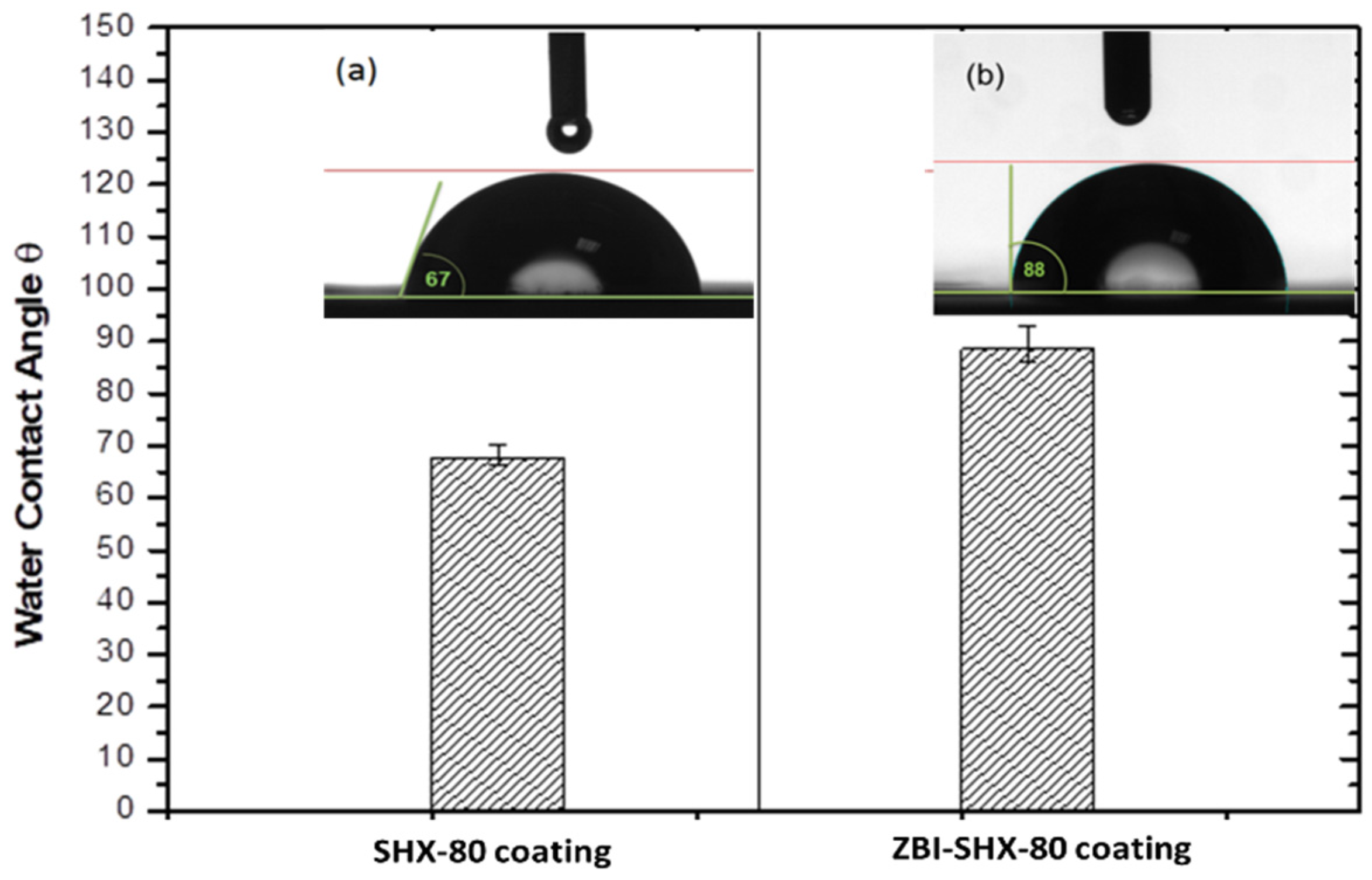

As shown in Figure 3, the measured water contact angle (WCA) of the base SHX-80 coating was about 67 ± 2°, as shown in Figure 3a, and the measured WCA on the modified BZI-SHX-80 sol-gel coating was 88 ± 4°, as shown in Figure 3b; the higher water contact angle recorded for the BZI-SHX-80 shows that its wettability is lower than that of the original SHX-80 [14].

3.3. Potentiodynamic Polarization Scanning

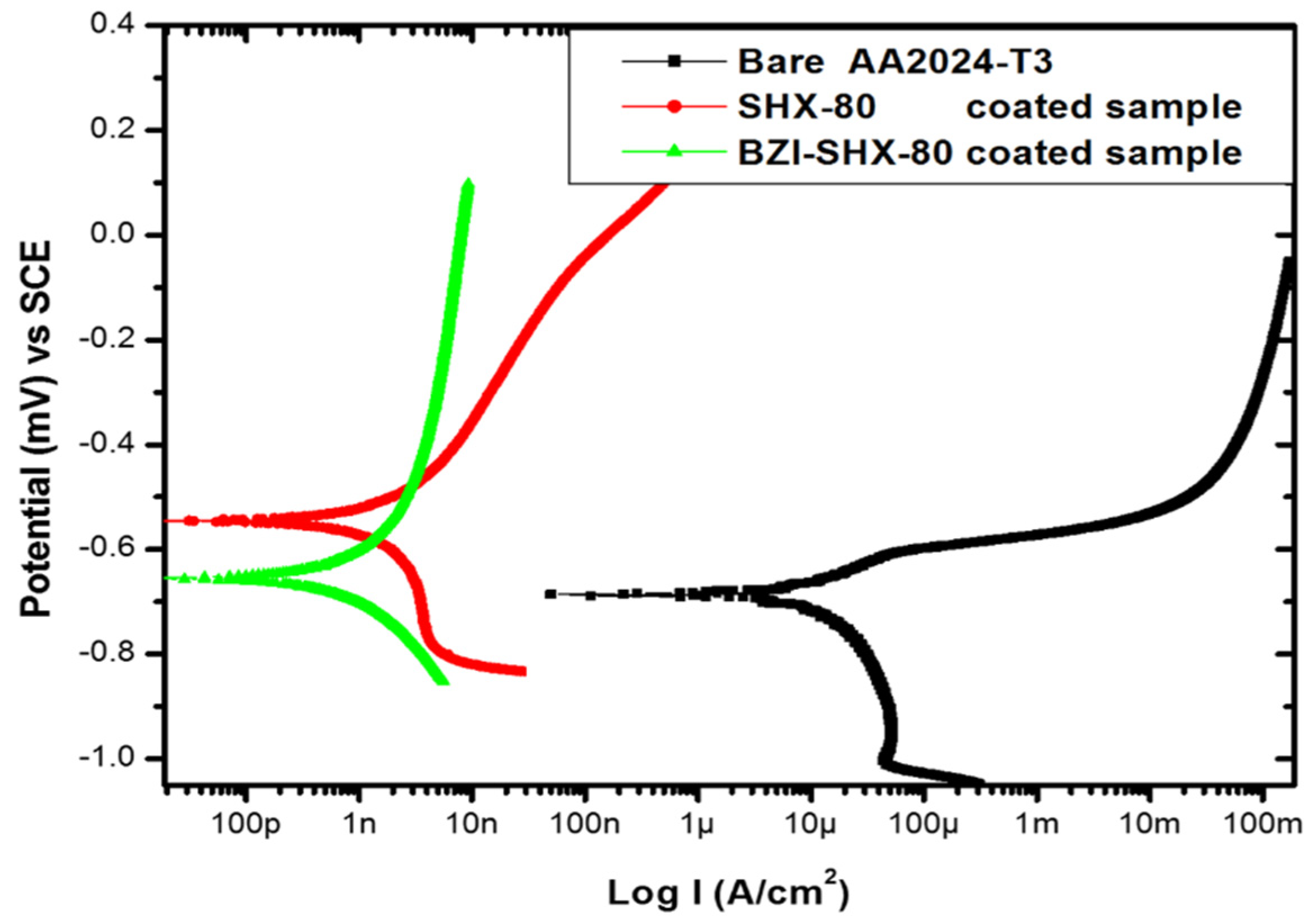

All coated samples displayed significantly improved performance compared to the bare AA2024-T3 sample. The corrosion potential (E_corr) and corrosion current density (I_corr) were obtained from PDPS, as shown in Figure 4. The current density on the cathodic branch of the Tafel curve for all coated samples was reduced by more than four magnitudes when compared to the bare AA2024-T3. Nevertheless, the current density of the BZI-SHX-80-coated sol–gel sample was the lowest, as it was reduced by seven orders of magnitude compared to the bare AA2024-T3. This reduction may be attributed to benzimidazole’s surface activity and high electronegativity [5]. The SHX-80 sol–gel only showed a reduction in the anodic branch by about four and a half orders of magnitude less than the bare AA2024-T3. The corrosion current densities of the bare and coated samples were reduced to $5.98\times {10}^{-10}\mathrm{A}/{\mathrm{cm}}^2$ for BZI-SHX-80 and $1.1\times {10}^{-9}\mathrm{A}/{\mathrm{cm}}^2$ for SHX-80, respectively, compared to $7.1\times {10}^{-6}\mathrm{A}/{\mathrm{cm}}^2$ for the bare AA2024-T3 alloy. The shift in E_corr indicates that the anode is inhibited to a greater degree than the cathode in the BZI-SHX 80 sol–gel mixture. This could be attributed to the active benzimidazole nitrogen atoms bridging the substrate surface [5,6].

3.4. Electrochemical Impedance Spectroscopy

3.4.1. Impedance Magnitude Bode Plots

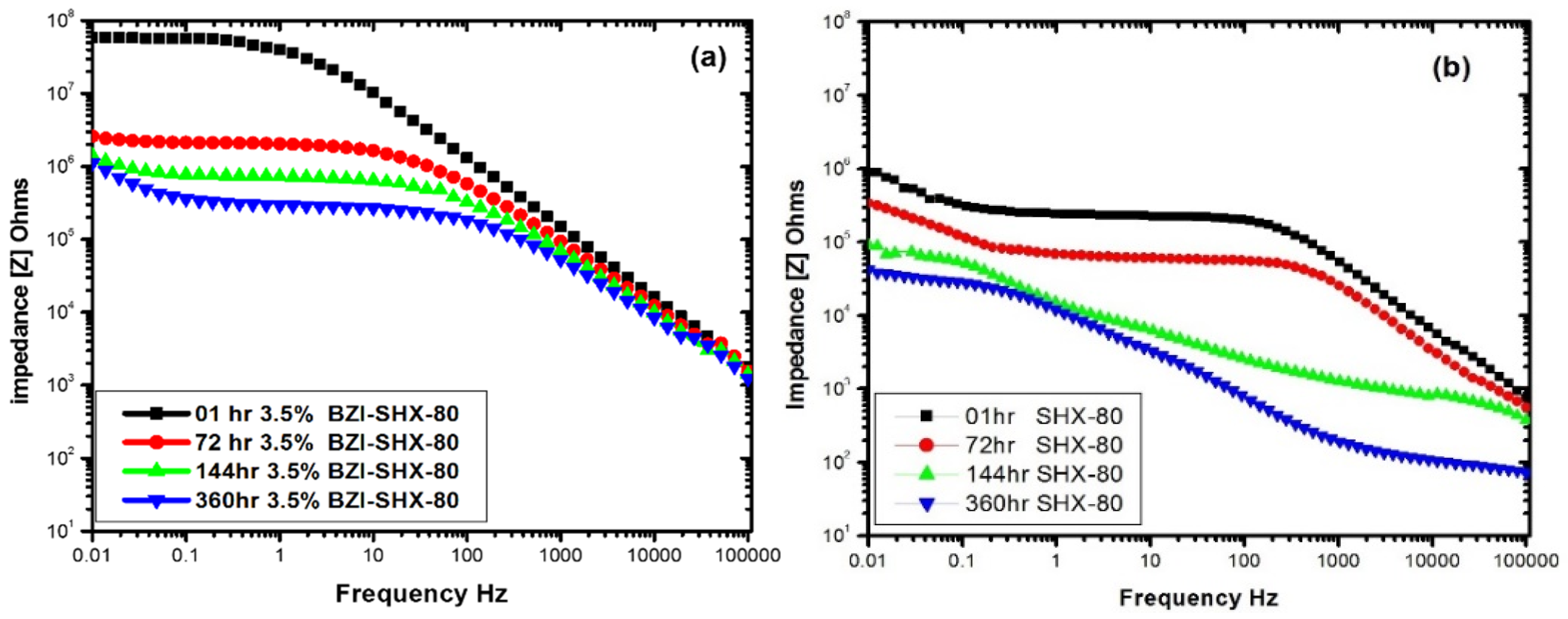

As shown in Figure 5a,b, after the first hour of immersion, the overall impedance of the BZI-SHX-80 at low frequencies was higher by approximately two orders of magnitude compared to the SHX-80-coated samples, with values of 5.7 × 10⁷ ohms cm⁻² and 9.1 × 10⁵ ohms cm⁻² for BZI-SHX-80 and SHX-80, respectively.

After 360 h, the impedance of the BZI-SHX-80-coated samples dropped by about one and a half orders of magnitude; this could be due to the electrolyte diffusion and expansion of the pores in the sol–gel coating matrix. However, this drop was not reflected in the visible protection in the electrolyte, suggesting that the film of the sol–gel/BZI on the metal surface was stable [10].

A noticeable drop in impedance was observed for the SHX-80-coated sample at about 3.4 × 10⁴ ohms cm⁻² after 360 h. This might be attributed to the reduction of the coating resistance due to the development of rounded pitting under the coatings. The high-frequency impedance also dropped by about one order of magnitude; this impedance is considered higher than that of the SBX-80 coating in the mid-frequency range between 10⁵ Hz and 10⁶ Hz. This may be attributed to the coating’s pores and the cracking that occurred.

3.4.2. Using Nyquist Plots to Investigate the Corrosion-Protective Behavior

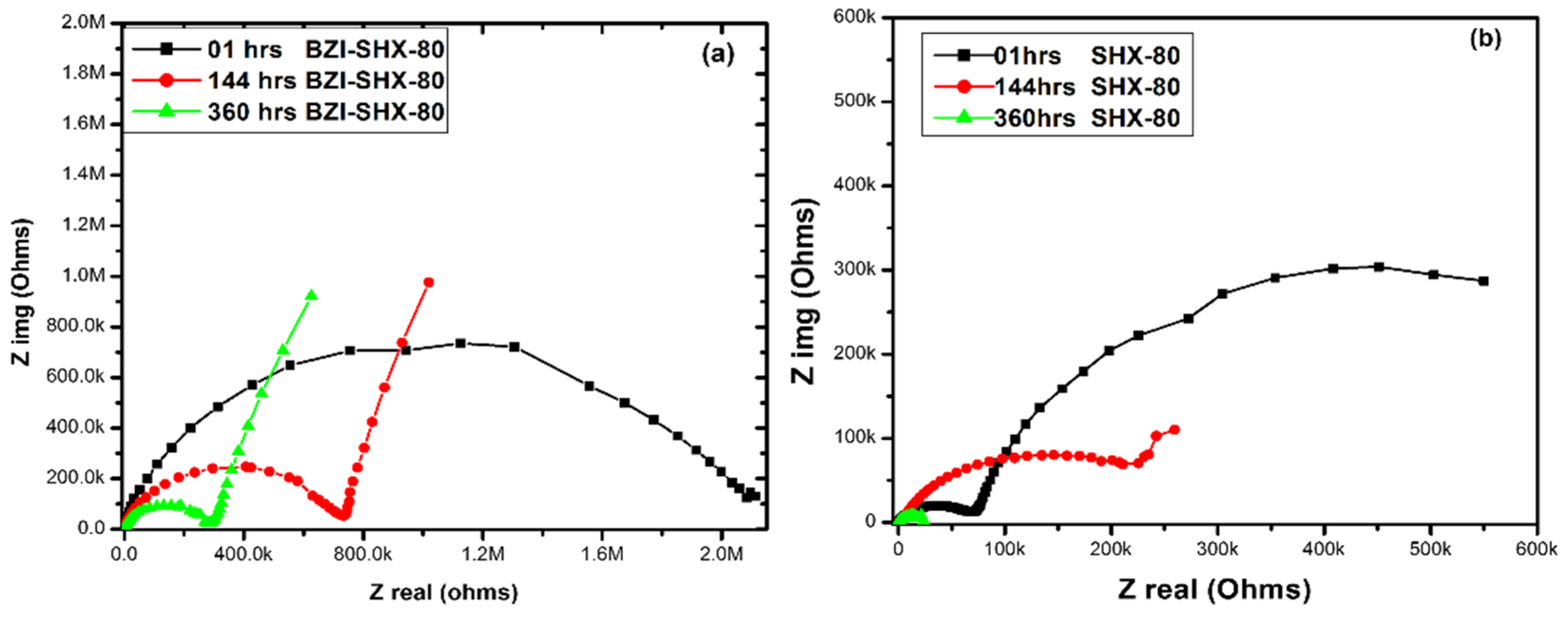

Figure 6 shows the Nyquist plots for both the BZI-SHX-80- (Figure 6a) and the OA-SHX-80- (Figure 6b) coated samples from 1–360 h, respectively. The plots show that the BZI-SHX-80 has the maximum impedance. These plots were used to obtain the equivalent circuit modelling fit using the ZSimpwin electrochemical impedance spectroscopy (EIS) data analysis software.

Table 2. The fit data obtained from the EIS spectra for the BZI-SHX-80 sol–gel coating after various immersion times in 3.5 wt. % NaCl solution.

Circuit	Element	Immersion Time (H)
		01	48	144
		R(Q(R(QR)))	R(Q(R(Q(RW))))	R(Q(R(Q(RW))))
	Rs	105	160	201
	Qct	1.471 × 10−9	4.549 × 10−9	9.148 × 10−9
	n	0.9626	0.887	0.8406
	Rct	1.326 × 107	1.301 × 106	6.991 × 105
	QiL	3.453 × 10−9	6.406 × 10−8	9.016 × 10−8
	n	0.800	0.650	0.800
	RiL	4.697 × 107	5.885 × 105	1.778 × 103
	W	-	4.349 × 10−8	7.044 × 10−10

and

Table 3. The fit data obtained from the EIS spectra for the SHX-80 sol–gel coating after various immersion times in 3.5 wt. % NaCl solution.

Circuit	Element	Immersion Time (H)
		01	48	144
		R(Q(R(QR)))	R(Q(R(Q(R(QR)))))	R(Q(R(Q(R(QR)))))
	Rs	100	205	225
	Qct	1.079 × 10−7	2.850 × 10−7	4.771 × 10−6
	n	0.800	0.627	0.490
	Rct	7.287 × 104	815	253
	QiL	4.933 × 10−6	1.151 × 10−6	3.912 × 10−6
	n	0.850	0.694	0.896
	RiL	7.793 × 105	4.022 × 105	1.221 × 105
	Qp	-	7.364 × 10−5	4.835 × 10−5
	n	-	0.900	0.455
	Rp	-	1.369 × 106	1 × 1020

below demonstrate the fit data for the SHX-80 and the BZI-SHX-80 coatings after various immersion times. The equivalent circuits were used to simulate the corrosion reaction on the surface of the coated samples at 1 h, 48 h and 144 h, respectively. In these circuits, instead of using an ideal capacitor (C), a time-constant element (Q) was used to compare the current leakage in the capacitor and/or frequency dispersion effect of the alternating current signals [12]. The suggested equivalent circuits for each EIS plot after 144 h are provided in Figure 7 for both systems.

The element identifiers used for the equivalent circuits were solution resistance (R_s), coating resistance (R_ct), coating constant phase elements (Q_ct), interfacial layer resistance (R_iL), interfacial layer capacitance (Q_iL), oxide layer (pitting) resistance (R_p), oxide layer (pitting) capacitance (Q_p), and the Warburg circuit element (W) [15].

3.5. Scanning Electron Microscopy Images after Immersion

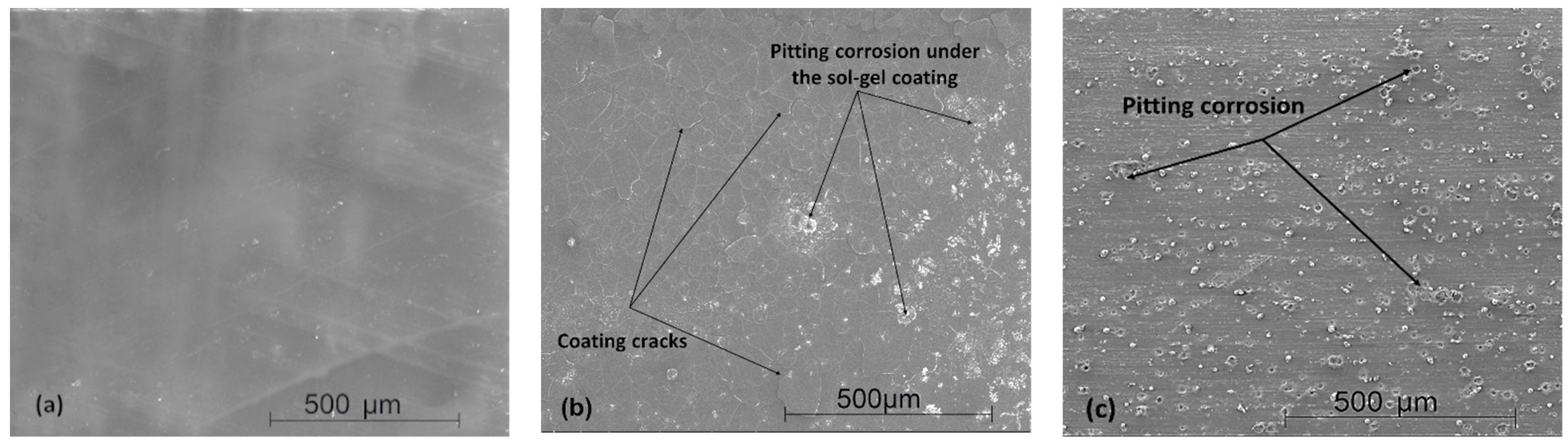

Figure 8 shows the surface morphology of the three samples, BZI-SHX-80 (Figure 8a), SHX-80 (Figure 8b), and bare alloy AA2024-T3 (Figure 8c).

As presented in Figure 8a, the BZI-SBX-80 coating showed excellent resistance to corrosion and cracks under similar circumstances. It was expected that the ZBI-SHX-80 would be more stable than the SHX-80, which may prevent the coating system’s diffusion, in line with the benzimidazole self-healing inhibition properties.

As shown in Figure 8b, in the SHX-80-coated samples, cracks around 1–6 µm wide were observed on the surface of the coating, with some pitting corrosion under the coating. Due to the cracking of the coating, the cracks could adversely affect the barrier corrosion protection, which has implications for future performance under wet/dry cycling.

On the other hand, the bare sample AA2024-T3 was attacked by aggressive pitting corrosion after 360 h of immersion, as shown in Figure 8c.

4. Conclusions

The base SHX sol-gel formula can provide moderate barrier protection without the presence of any inhibitor. The protection can last for at least 10 d in 3.5% NaCl solution before cracks and pitting corrosion appear visually under the coating surface.

However, by encapsulating the benzimidazole in the silica-based sol–gel, excellent corrosion protection can be achieved, which can provide protection over two weeks without any signs of failure, including cracks and pitting corrosion. Adding benzimidazole as an inhibitor to the sol–gel matrix provides active protection due to the high electronegativity of the active azole group. This was demonstrated by the physical appearance and through AC impedance measurements. In addition, the benzimidazole-sol–gel coating revealed an excellent resistance to post cracking after a long immersion.
