Proceeding Paper

Design of Three-Level NPC AC/DC Bidirectional Converter Using Model Predictive Controller for DC Bus Voltage Stability of Subway †

by
Mohsin Ihsan
and
Shunfeng Yang
*
School of Electrical Engineering, Southwest Jiaotong University, Chengdu 611756, China
*
Author to whom correspondence should be addressed.
†
Presented at the 8th International Electrical Engineering Conference, Karachi, Pakistan, 25–26 August 2023.
Eng. Proc. 2023, 46(1), 37; https://doi.org/10.3390/engproc2023046037
Published: 28 September 2023
(This article belongs to the Proceedings of The 8th International Electrical Engineering Conference)
Browse Figures
Versions Notes

Abstract

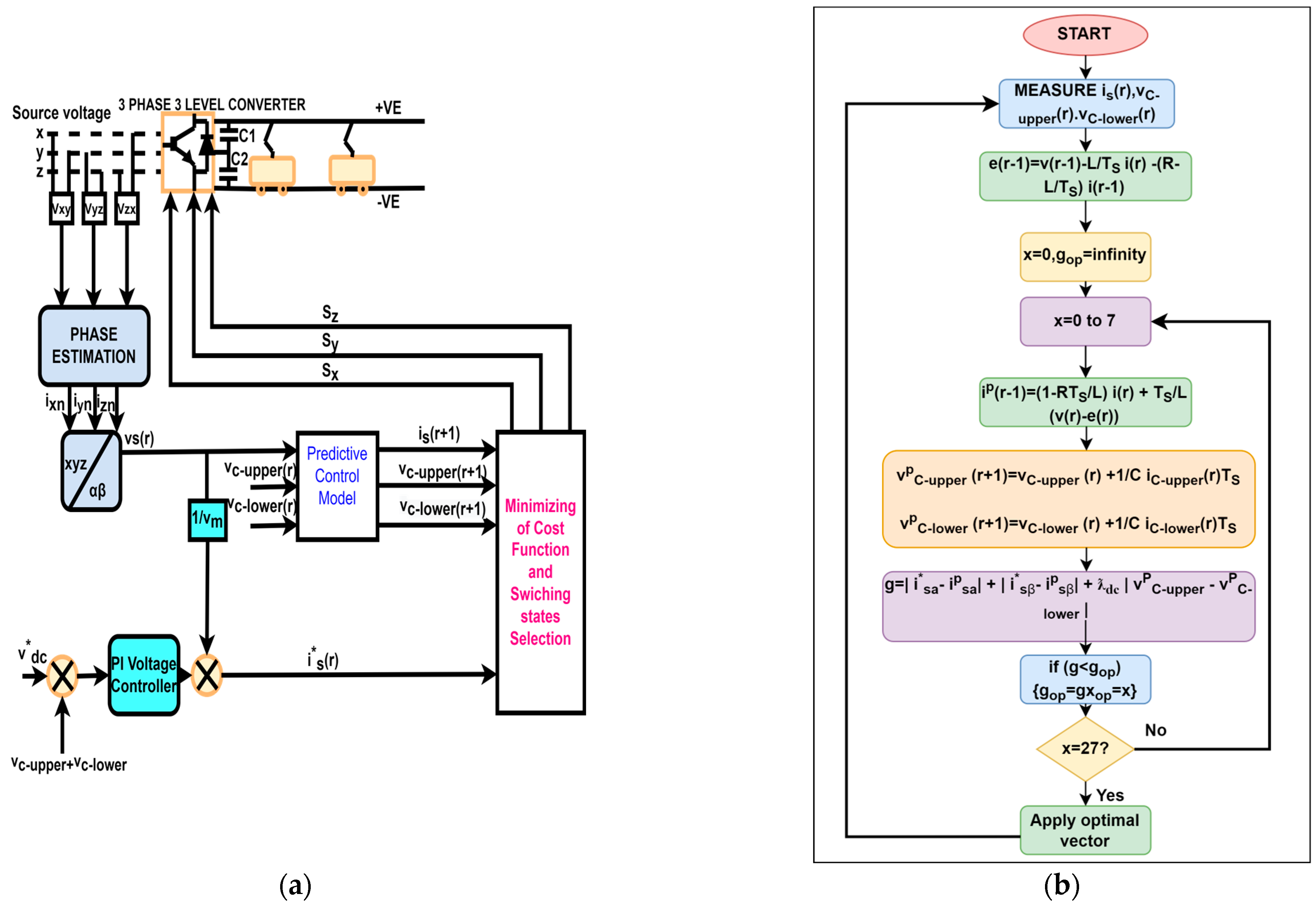

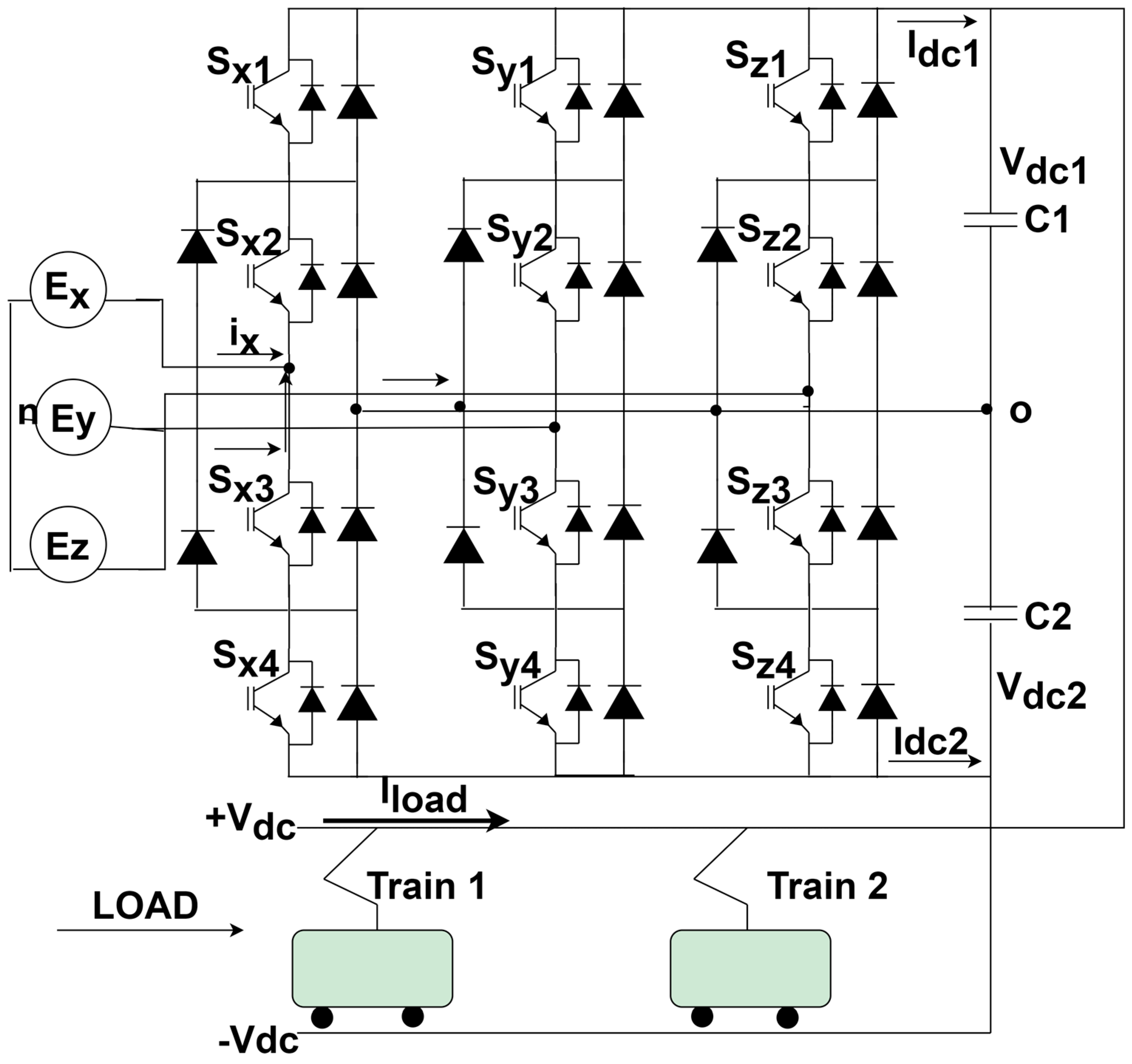

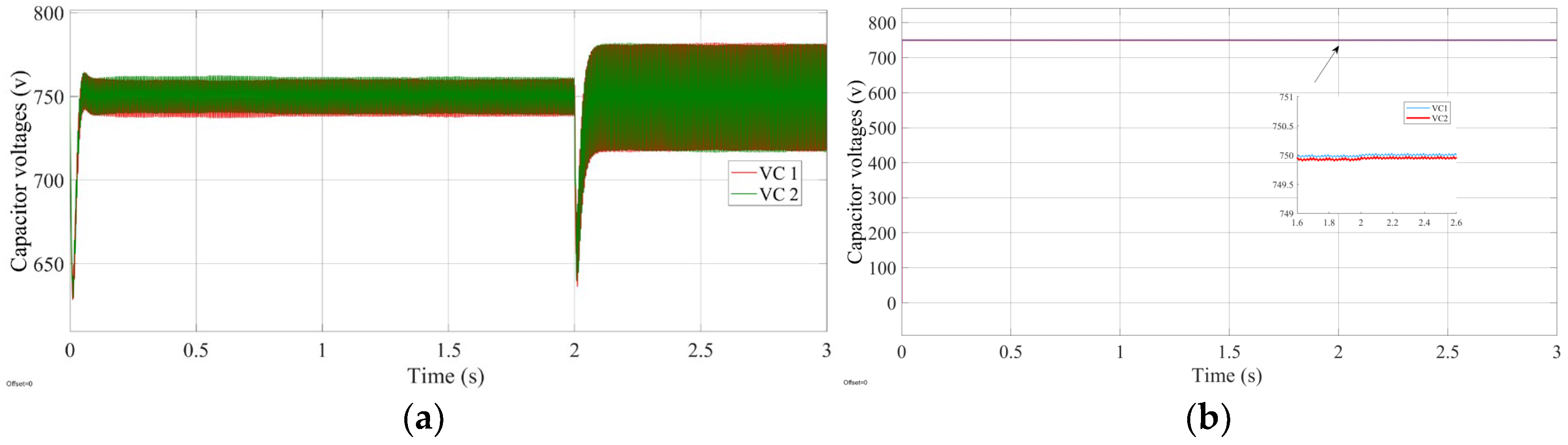

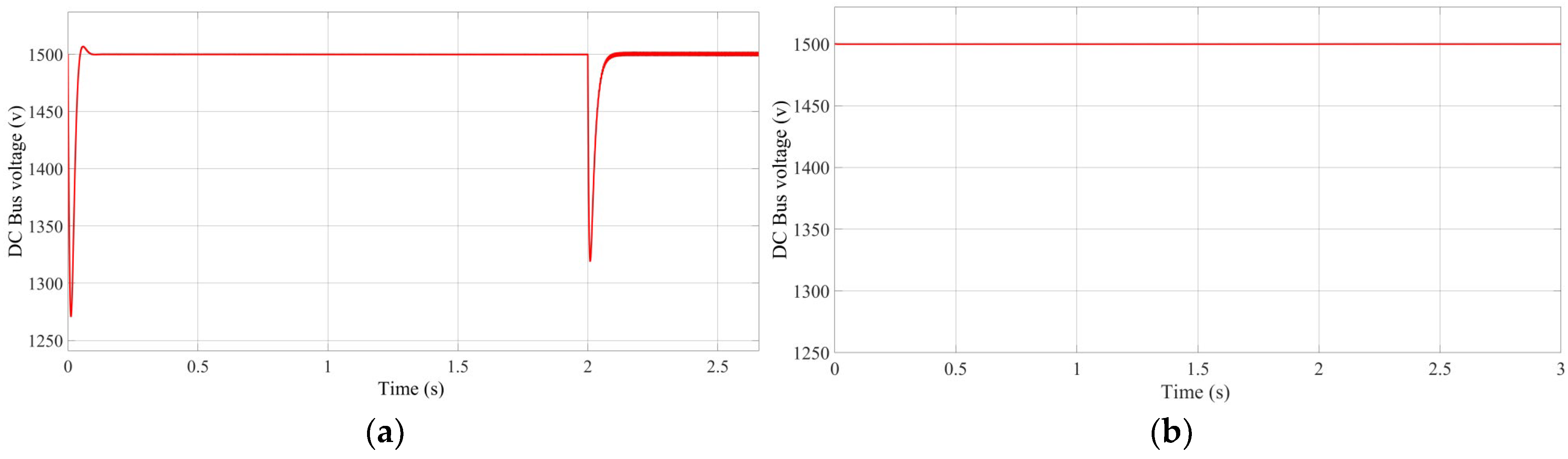

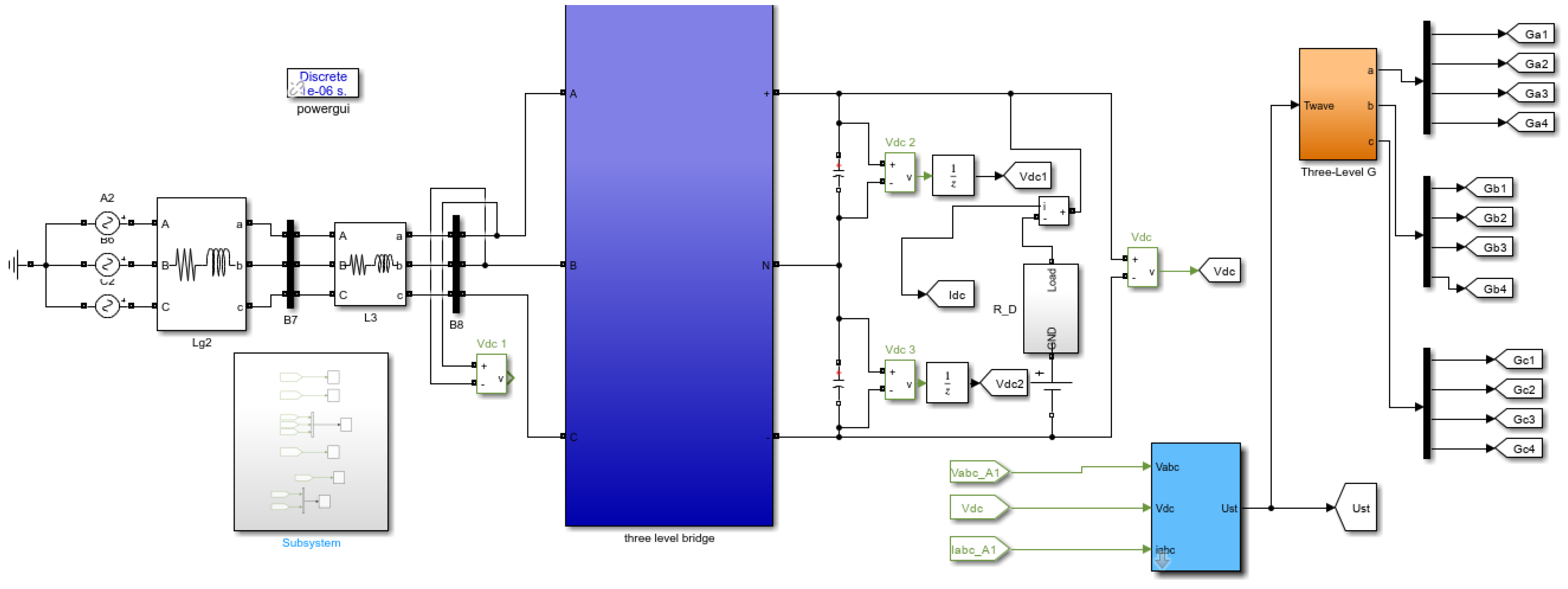

In this paper, the model predictive control technique is proposed to control the voltage balancing for the subway train 1500 V DC system for variable loads. This paper compares the conventional neutral point clamped converter (NPC) using the control technique of a PI controller with model predictive control in variable load conditions. MPC enhances the stability of the system during variable loads in comparison with the conventional technique. Consequently, the suggested control technique using MPC can maintain the DC bus output voltage dynamics at variable loads for the subway. Simulation results are provided to demonstrate the accuracy of the DC bus output voltage dynamics for the proposed control method.
Keywords: neutral point clamped (NPC); model predictive control (MPC); cost function; proportional integral (PI) control; space vector pulse width modulation (SVPWM) neutral point clamped (NPC); model predictive control (MPC); cost function; proportional integral (PI) control; space vector pulse width modulation (SVPWM)
