1. Introduction
Amyloid deposition in the heart tissues presents such symptoms as breathlessness and fatigue, is caused by the progressive loss of elasticity of the myocardium [
1], and leads to cardiac failure.
The most known forms of cardiac amyloidosis are as transthyretin-related (ATTR) and immunoglobulin light chain (AL) amyloidoses. In the case of the AL type, the median survival of patients is half a year from the beginning of heart failure [
2]. There are more than 30 proteins involved in the cardiac amyloidosis development that make the development of the in vitro and in vivo models quite difficult. The molecular mechanisms of cardiac amyloidosis are still not clear; the most recent information about its mechanisms is discussed in a recent review [
3].
To obtain the markers of disease development and progression, a rather useful tool is through the use of in silico models, which also have great potential for drug discovery opportunity. The main basis for in silico model creation includes a collection of experimental data describing the main indicators and possible mechanisms of the disease development.
In this review, we present an overview of the modern models developed for cardiac amyloidosis and consider their scope and limitations, especially for in silico models.
2. In Vivo Models
Most of the known animal and cell models are discussed in a recent review [

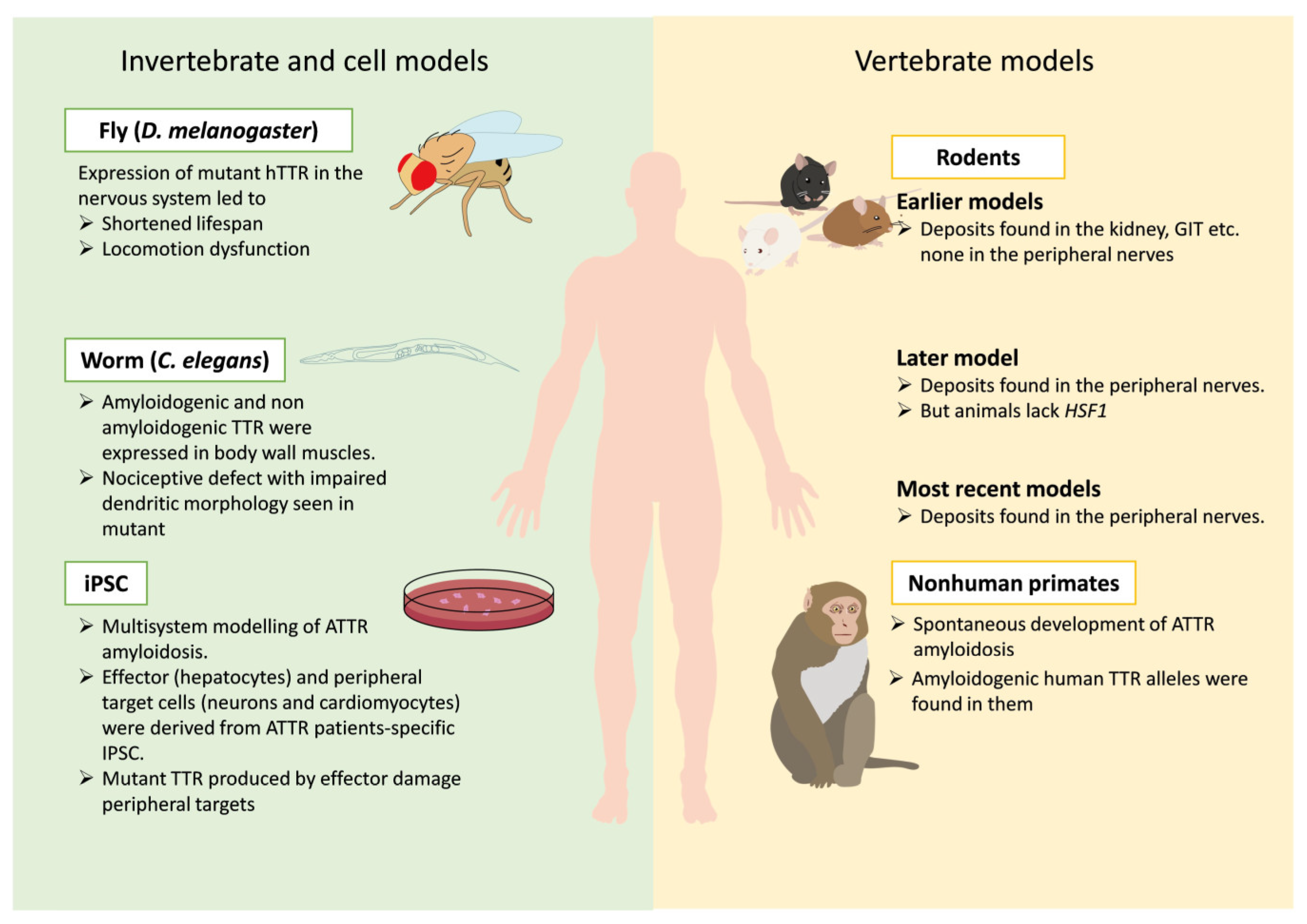

4], wherein the authors focused on ATTR amyloidosis. A summary of the main current models available for studying ATTR amyloidosis is presented in
Figure 1.
This important review very well demonstrates that amyloidosis is a systemic disease which affects several organs because unfolded TTR aggregates are found in the heart, peripheral nerves and other organs, which results in difficulties in modeling the development of diseases, especially cardiac amyloidosis. This is well illustrated by the data cited in this review, which demonstrate that a majority of the models are related to amyloid polyneuropathy. The only example of a spontaneous development of ATTR cardiac amyloidosis is that which was seen in several vervet monkeys, as indicated in this review.

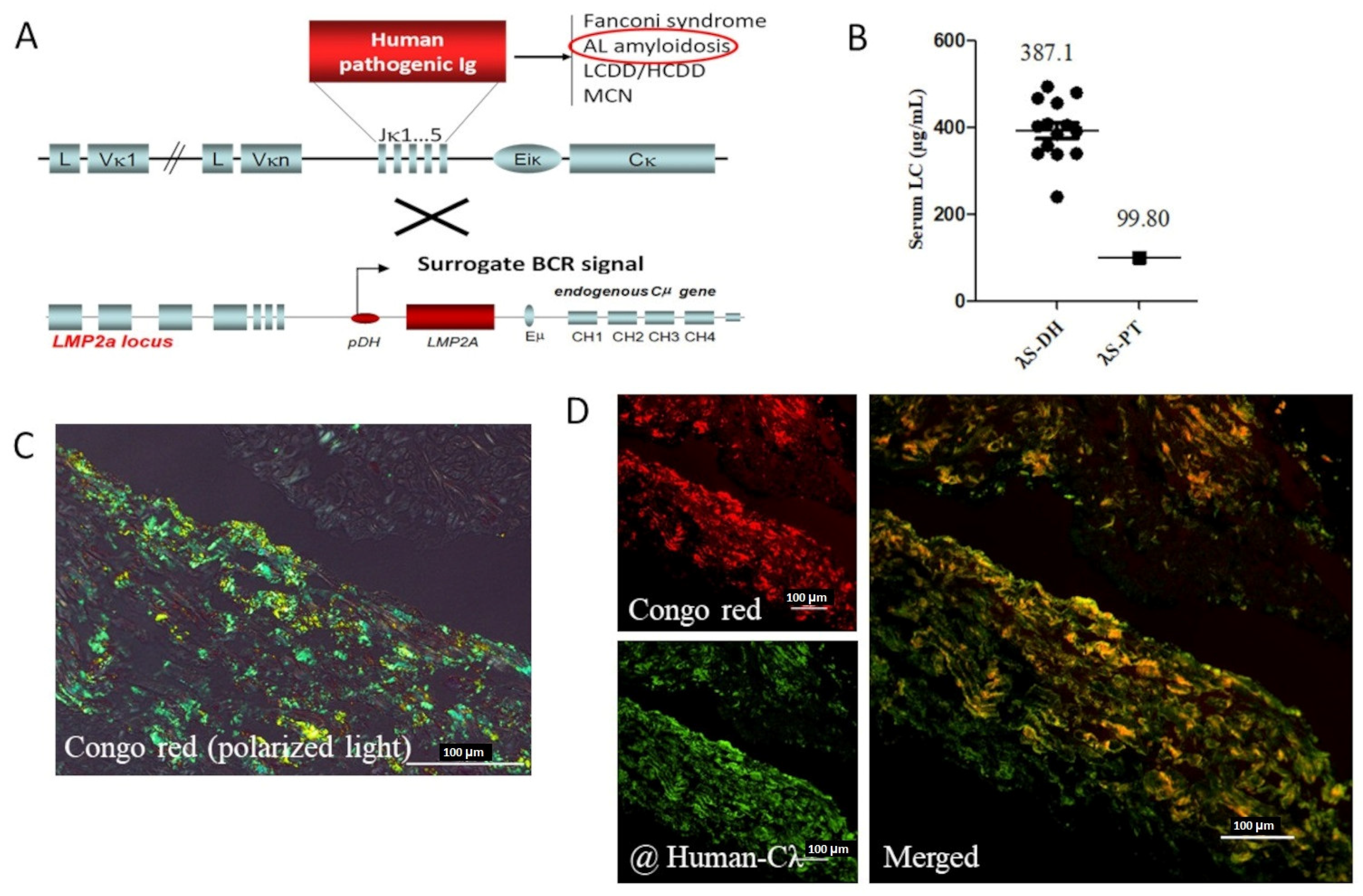

Among the in vivo models, an article about the first transgenic mouse model of cardiac AL amyloidosis, based on the insertion of the human pathogenic LC gene in the endogenous mouse kappa locus, was previously published [
5]. The transgenic strategy includes the insertion of the human lg gene in the endogenous murine kappa locus (
Figure 2).
The authors underline that AL amyloidosis was not developed under strong LC production, because only the variable domain (IGLV6) was able to form fibrils, while a full-length LC showed resistance against amyloid formation after single-injection fibrils were found in the spleen, liver, the kidney and mainly in heart.
3. In Silico Models
It is important to have an indicator of cardiac tissue function, which is important for treatment. Li et al. used mathematical models of the left ventricle derived from routine clinical magnetic resonance imaging to find new markers and demonstrated the agreements with clinical symptoms (double-blinded test in six out of the seven sample cases). The following factors were evaluated in a group of amyloidosis patients before and after treatment: the strains, stresses, p–V curve, LV shape and volume (
Figure 3) [
6].
The authors underline that the results should be interpreted carefully, because many factors have to be considered, and no single biomarker is able to provide a prediction due to the complexity of the processes in the heart.
A random forest machine learning model was developed, and it was demonstrated that the data of medical claims well identify patients with wild-type transthyretin amyloid cardiomyopathy. The model was validated in three nationally representative cohorts (9412 cases, 9412 matched controls) and a single-center electronic health record-based cohort (261 cases, 39,393 controls) [
7].
Based on combined factors such as age, gender, carpal tunnel syndrome, interventricular septum in diastole thickness and low QRS interval voltages, with an area under the curve (AUC) of 0.92, the model for ATTR-CA diagnosis has been developed (the score had an AUC of 0.86). In all three of the following clinical validation cohorts, the model demonstrated good diagnostic accuracy [
8]: (1) hypertensive cardiomyopathy (n = 327); (2) severe aortic stenosis (n = 105); and (3) heart failure with preserved ejection fraction (n = 604).
A model based on the evaluation of circulating retinol-binding protein 4 (RBP4) concentration was developed for the identification of ATTR V122I amyloidosis in elderly African American patients [
9]. The authors noted that RBP4 concentration may be considered as a predictor marker of disease progression.
The number of diseases, which is associated with amyloid fibrils formation, is more than 50.

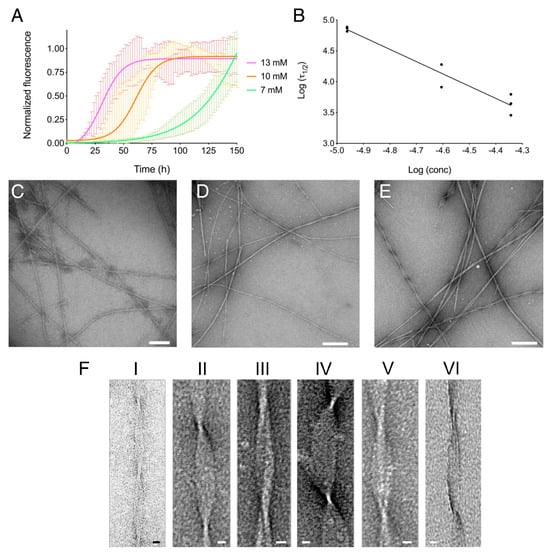

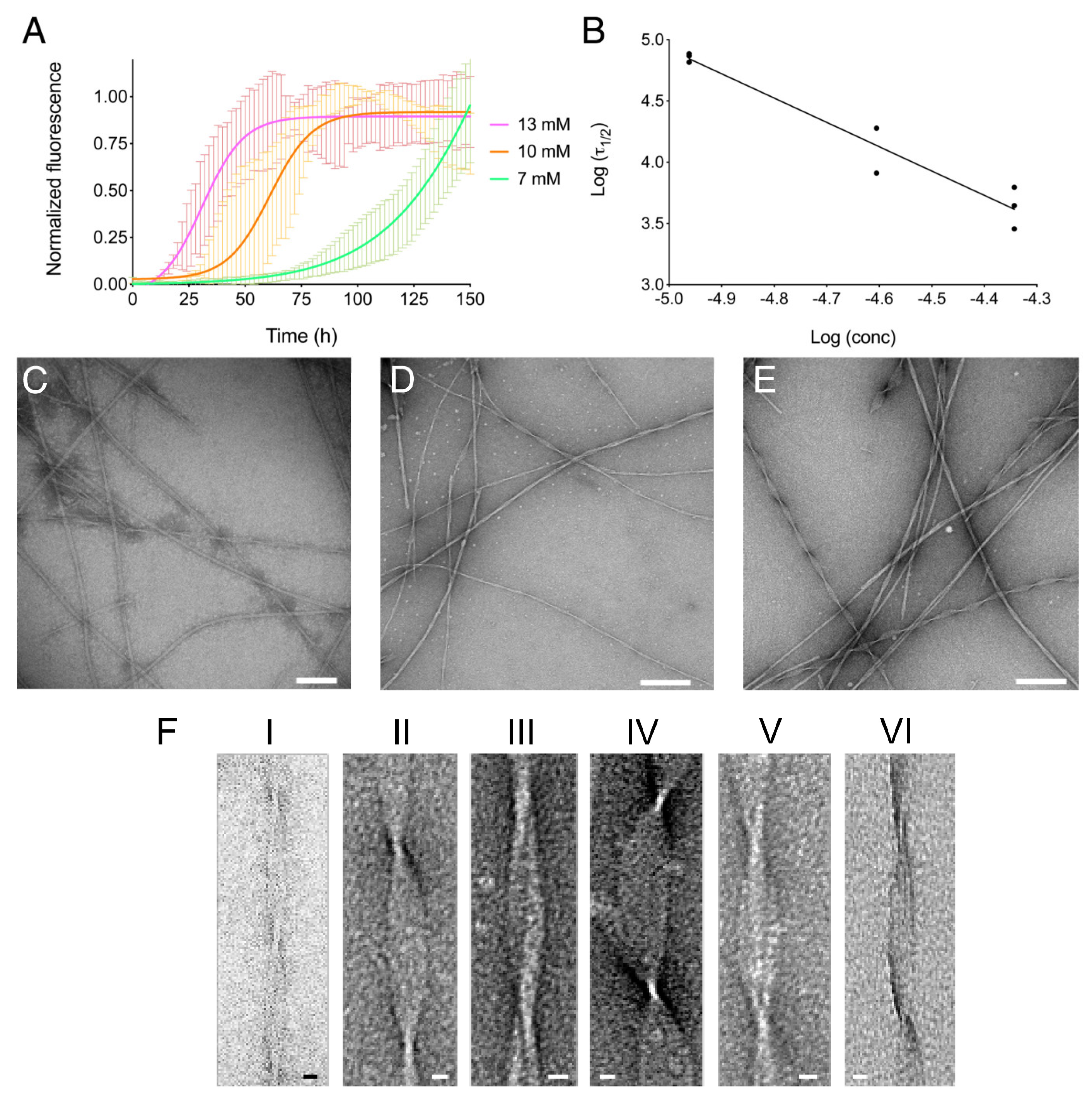

A hybrid structure-based model (molecular dynamics simulations), describing the conformational dynamics of monomers as well as the structure of fibrils, was developed and named multi-eGO. This model considers the structure and kinetics of protein aggregation, including the aggregation of thousands of monomers. Data about concentration dependence and structural features of the fibrils formed are in good agreement with in vitro and in vivo experimental data for transthyretin (
Figure 4). This model may be quite useful for the development of drugs against cardiac amyloidosis [
10].
Several other approaches such as the use of artificial intelligence for conducting cardiac amyloidosis predictions were very recently reviewed [
11].
4. Conclusions
The development of in silico models for the understanding of cardiac amyloidosis mechanisms and pathology, as well as for drug target and biomarker discovery, face many challenges, because these models do not recapitulate all symptoms, especially neurological presentation. Nevertheless, several computer-based models are in good correlation with clinical symptoms. In most cases, the predictive models were tested on a small cohort of patients, and external validation in a larger, independent patient population is required. Taking into account the complexity of disease mechanisms, a multi-target drug design is required.
Author Contributions
Conceptualization, P.S. and S.M.; methodology, P.S.; validation, S.M.; formal analysis, P.S. and S.M.; resources, P.S., S.M. and M.U.; writing—original draft preparation, P.S. and S.M.; writing—review and editing, S.M.; visualization, P.S.; supervision, S.M.; project administration, S.M. and M.U. All authors have read and agreed to the published version of the manuscript.
Funding
This research was funded by the Russian Science Foundation, project number 21-74-20093. Link to information about the project:
https://rscf.ru/en/project/21-74-20093/, (accessed on 28 September 2023).
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
No new data were created or analyzed in this study. Data sharing is not applicable to this article.
Conflicts of Interest
The authors declare no conflicts of interest.
