Efficient Unmanned Aerial Vehicle Design: Automated Computational Fluid Dynamics Preprocessing from Geometry to Simulation ^†

Abstract

Current trends in the aerospace and UAV sectors emphasize integrating Artificial Intelligence (AI) technologies into the design process. AI technologies necessitate extensive data to capture the non-linearities in fluid phenomena. To address these needs, this work focuses on automating the data aggregation process for fixed-wing platforms, ranging from Micro–Mini to HALE-Strike UAVs, as classified by NATO. Specifically, this paper presents a framework for automating the tedious tasks required for geometry generation, mesh generation, and solution setup in a commercial Computational Fluid Dynamics (CFD) solver, for any arbitrary wing within the aforementioned design space. By combining various well-established open-source suites and commercial software via Python scripting, the preprocessing steps up to the solution require only a few minutes on a typical laptop workspace. Despite the rapid geometry acquisition, mesh generation, and solution setup through the pipeline, the guidelines and common practices for subsonic external flow simulations are still strictly followed. This results in solutions with a deviation of merely sub 5% from those of an experienced designer, even for the extremes of the flight envelope. The proposed framework significantly reduces design iteration times, enabling more efficient and innovative UAV development. Additionally, the framework’s ability to accumulate high-quality data for machine learning enhances predictive modeling and optimization capabilities across UAV design practices.

1. Introduction

Unmanned Aerial Vehicles (UAVs) have gained significant traction in various applications, ranging from surveillance and reconnaissance to cargo transport and environmental monitoring [1,2]. As UAVs grow in popularity and their operational requirements become increasingly complex, the aerospace sector is focusing on streamlining their design processes to achieve optimized performance in less time. Automation and machine learning (ML) are becoming essential components of these efforts, particularly in the context of Computational Fluid Dynamics (CFD), where the efficient preprocessing of geometry and mesh plays a crucial role in shortening the development cycle.

CFD analyses are fundamental for assessing aerodynamic properties and optimizing UAV designs, but traditional workflows involve labor-intensive mesh generation and simulation setups, often requiring expert intervention. The introduction of automated preprocessing frameworks addresses these challenges by enabling consistency, accuracy, and significantly faster turnaround times [3,4]. High-fidelity methods, such as Reynolds-Averaged Navier–Stokes (RANS) simulations, require detailed meshes that can be laborious to generate and validate, adding significant overhead to the design process.

Recent advancements in computational power, particularly through the use of Graphics Processing Units (GPUs), have enabled accelerated CFD analysis, making high-quality simulation an option for rapid optimization and data generation. Despite these advancements, maintaining accuracy while reducing manual input remains a significant challenge in developing robust preprocessing workflows. Relevant studies have demonstrated the need for combining automated geometry generation with reliable mesh processing to facilitate general applicability across a wide range of UAV configurations.

This study aims to fill this gap by presenting a framework for automating the preprocessing and CFD simulation of UAV wing designs. By integrating various well-established open-source and commercial tools through Python scripting, the proposed method ensures rapid, consistent, and high-quality CFD analysis for a broad UAV design space, from Micro–Mini to high-altitude long-endurance (HALE) platforms. Additionally, this study aims to create a framework that will be utilized for generating data for machine learning (ML) applications.

2. Design Space

The goal of this framework is to be able to provide reliable automated CFD results for a wide variety of UAVs. More specifically, the generated wing geometries and their simulation conditions were influenced by a wide range of UAVs and their operating conditions. The design space consisted of UAVs from the Micro category (<2 kg MTOW), all the way up to MALE and HALE-Strike (>600 kg MTOW), as classified by NATO and presented in [5]. A quick summary of the UAV categories, alongside their respective operating condition ranges, are presented in

Table 1. Operating conditions for UAV classifications according to NATO.

Class	Category	GTOW [kg]	Altitude [ft]	Cruise Speed Range [km/h]	Reynolds Number Range	Flow Regime
Class I	Micro	$<2$	$<200$	$30–100$	${10}^4–{10}^6$	Laminar to transitional
	Mini	$2–15$	$<3000$	$30–100$
	Small	$15–150$	$<5000$	$50–150$
Class II	Tactical	$150–600$	$<\mathrm{18,000}$	$100–400$	${10}^6–{10}^7$	Predominantly turbulent
Class III	MALE	$>600$	$<\mathrm{45,000}$	$200–300$	$>{10}^7$	Fully turbulent
	HALE	$>600$	$<\mathrm{65,000}$	$400–800$
	Strike	$>600$	$<\mathrm{65,000}$	$400–800$

.

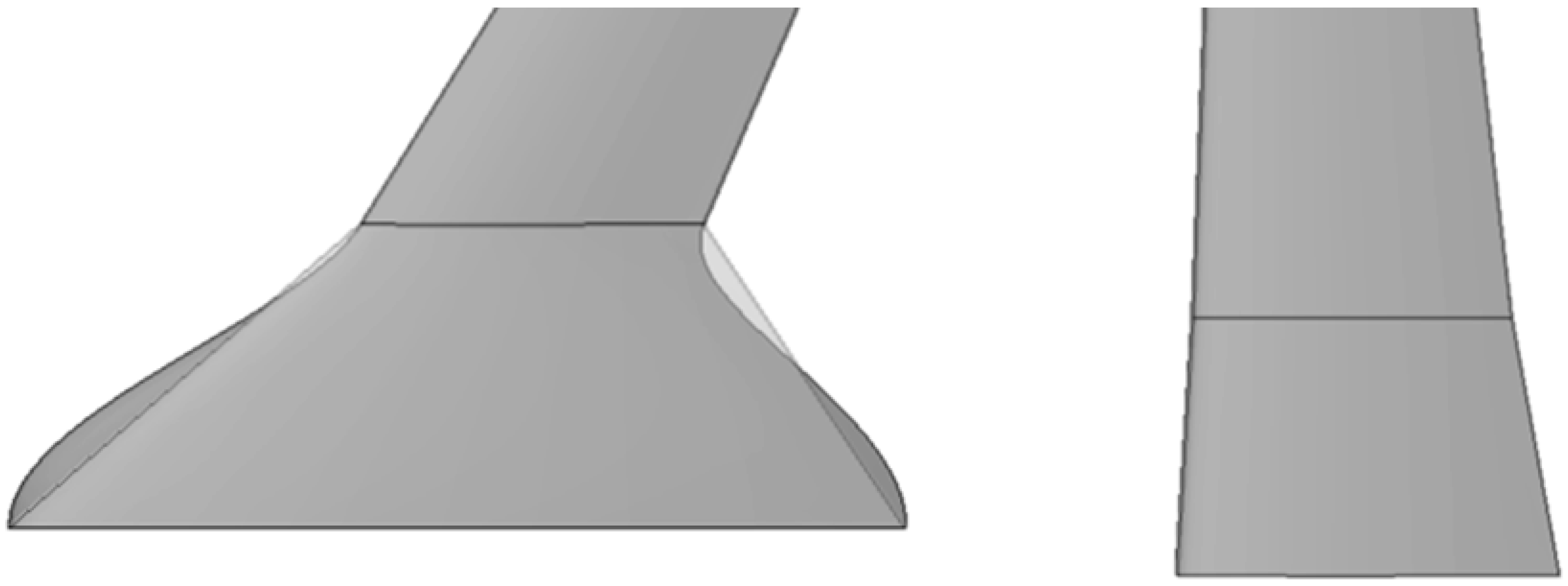

To enable fully autonomous geometry generation without human intervention, the wing planform must be parameterized in such way as to account for the degrees of freedom necessary for a designer during the conceptual and preliminary stages of UAV design. Since the design space of the framework covers both BWB-type UAVs and conventional ones, it is necessary to use at least two spanwise wing sections, thus enabling the generation of the “kink” airfoil or otherwise “cranked” wings.

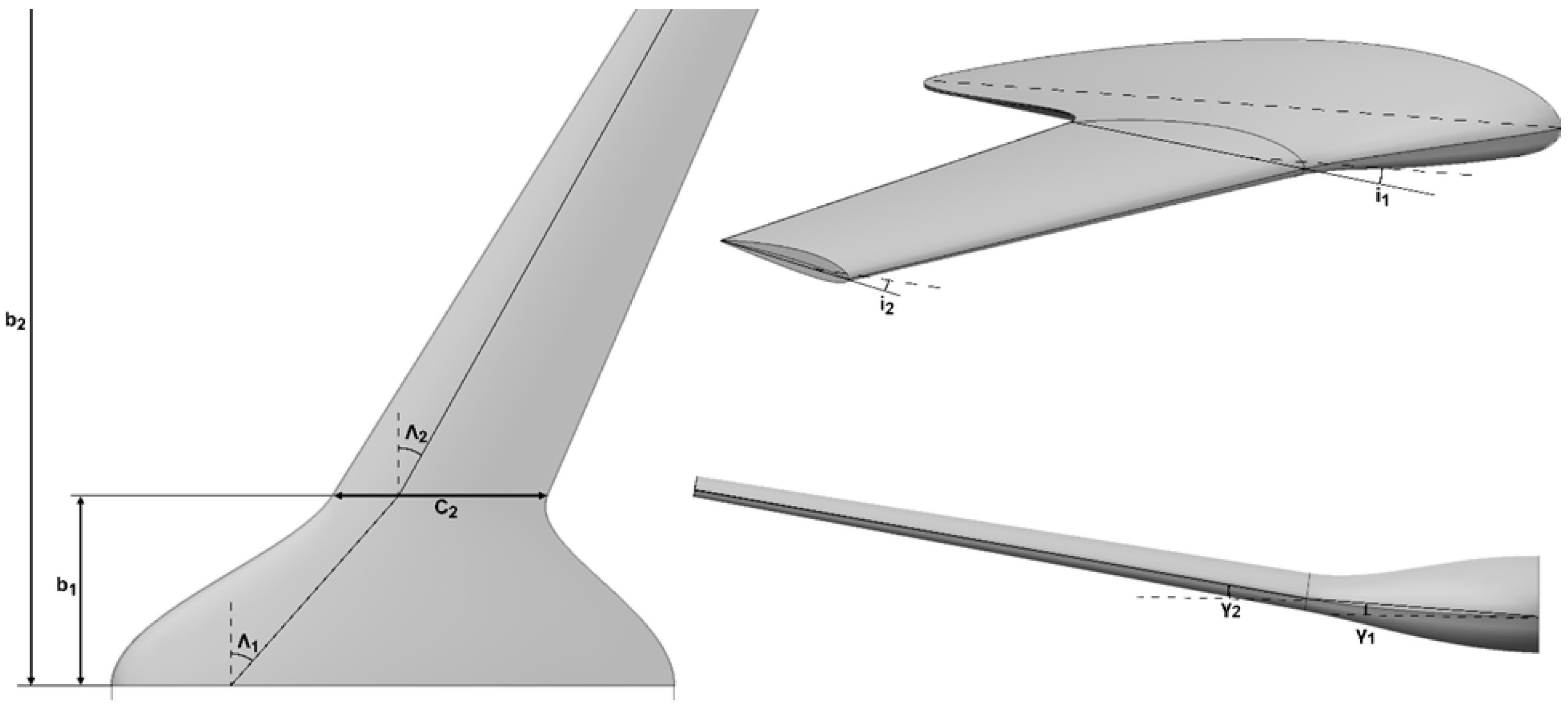

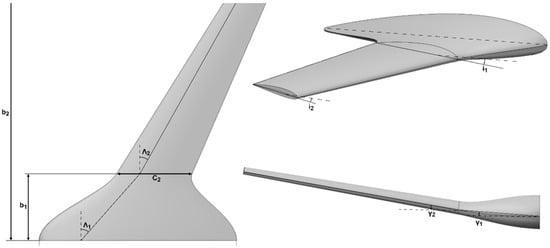

The selected design variables are depicted in Figure 1, and their corresponding limits are showcased in

Table 2. Design variables used to parameterize the wing planform and their respective ranges.

Planform Parameter	Description	Units	Limits
$c_1$	Centerline chord length	$\mathrm{m}$	$c_1\in [0.2, 10]$
$c_2$	Root chord length	$\mathrm{m}$	$c_2\in [0.3\times c_1, c_1]$
$c_3$	Tip chord length	$\mathrm{m}$	$c_3\in [0.3\times c_2, c_2]$
$b_1$	$c_2$ spanwise location	$\mathrm{m}$	$b_1\in [0.1\times b_2, {0.9\times b}_2]$
$b_2$	$c_3$ spanwise location (semispan)	$\mathrm{m}$	$b_2\in [1, 10]$
${\Lambda }_1$	$\mathrm{Sweep} \mathrm{angle} \mathrm{of} \mathrm{section} 1 @ c/4$	$\mathrm{deg}$	${\Lambda }_1 \in [0, 60]$
${\Lambda }_2$	$\mathrm{Sweep} \mathrm{angle} \mathrm{of} \mathrm{section} 2 @ c/4$	$\mathrm{deg}$	${\Lambda }_2 \in [0, 60]$
$i_1$	$\mathrm{Twist} \mathrm{angle} \mathrm{of} c_2$$@ c/4$	$\mathrm{deg}$	$i_1 \in [-5, 5]$
$i_2$	$\mathrm{Twist} \mathrm{angle} \mathrm{of} c_3$$@ c/4$	$\mathrm{deg}$	$i_2 \in [-7, 7]$
${\gamma }_1$ ${\gamma }_2$	Dihedral angle of section 1	$\mathrm{deg}$	${\gamma }_1 \in [-10, 10]$
	Dihedral angle of section 2	$\mathrm{deg}$	${\gamma }_2 \in [-10, 10]$

. These low-level parameters are selected as the minimum number of variables required to completely describe the wing planform, while also keeping the interpretability high for the design team.

3. Software Packages/Tools

Streamlining the software suites with the target of seamless geometry modeling, mesh generation, and, finally, a complete CFD analysis, required a high degree of controllability of the available tools. Thus, Python 3.11 was equipped, since every chosen suite provided a Python API with almost complete authority on the underlying features. In this section, the three main software packages will be showcased, describing how they are utilized, as well as which procedure is followed to align their output as an input for the next module in the pipeline.

3.1. Vehicle Sketch Pad—OpenVSP

OpenVSP (Open Vehicle Sketch Pad) is an open-source parametric aircraft geometry modeling tool developed by NASA, which is widely used in aerospace engineering for conceptual design and analysis [6]. It enables users to create detailed, parametric representations of aircraft geometries that can be readily exported to various formats for further aerodynamic and structural analysis. OpenVSP also provides a robust API, allowing its seamless integration into custom workflows and enabling the automation of geometry generation, modification, and data extraction processes, which is particularly advantageous for research and optimization tasks [7]. In this study, OpenVSP 3.40.1 was used due to its compatibility with the selected Python version.

Beyond geometry generation, OpenVSP supports advanced modeling tasks, including trailing edge (TE) treatments and surface blending, which are essential for aerodynamic fidelity and meshing automation. For the TE designs, straight cuts were chosen over rounded edges to prioritize robustness in feature recognition by the meshing pre-processors. OpenVSP allows for the precise parameterization of TE cut thicknesses, which were set to 1% of the chord length in accordance with the CFD guidelines [8]. This process was automated using OpenVSP’s API, ensuring its consistent application across airfoil sections while preserving aerodynamic characteristics. Blending between wing sections is another critical operation performed seamlessly through OpenVSP’s API. By applying universal blending rules, sharp transitions are avoided without adding dimensionality to the design space, as depicted in Figure 2. Adjustments ensure tangency at key points and symmetry at the centerline, using a consistent “blending strength” for the smooth integration of sections. This automation enables the efficient modeling of complex geometries, such as Blended Wing Body (BWB) configurations, while maintaining aerodynamic consistency across varying design spaces.

The final output from OpenVSP is a STEP file, which serves as a high-fidelity representation of the modeled geometry. This format is well suited for compatibility with downstream meshing software, facilitating the creation of computational grids for aerodynamic and structural analyses.

3.2. ANSA

ANSA, developed by BETA CAE Systems, is an advanced preprocessing tool widely used in the engineering field for preparing models for Finite Element Analysis (FEA) and CFD. It offers robust tools for geometry cleanup, meshing, and simulation setup, ensuring high-quality and efficient model preparation. ANSA also features a powerful Python API, enabling the automation of repetitive tasks and providing complete control over mesh parameters, the customization of workflows, and effortless integration with other software tools, making it particularly valuable for handling complex geometries and large-scale simulations. In this study, v24.1.0 (Root, Switzerland) was utilized.

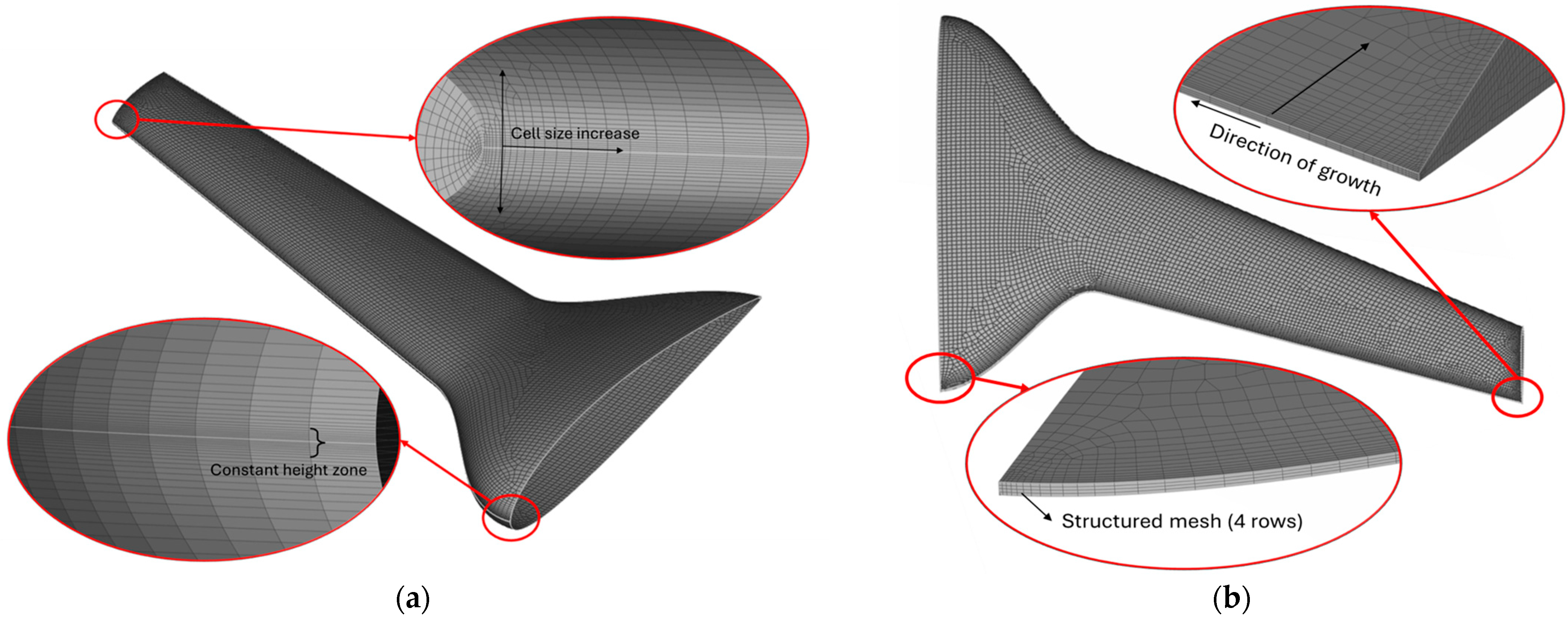

Surface meshing is a critical step in the CFD preprocessing workflow, directly influencing simulation accuracy and stability [9]. Using ANSA’s CFD meshing algorithm, an unstructured curvilinear surface mesh is generated, consisting of first-order quadrilateral elements, with triangular elements applied in areas where quadrilaterals cannot form. Mesh sizing and curvature refinement parameters are globally defined to ensure smooth transitions and maintain fidelity in curved regions [9]. The leading edge (LE) is treated with an anisotropic quad surface mesh, featuring four constant-height rows near the stagnation zone to accurately capture steep gradients. Similarly, the trailing edge (TE) is addressed using a structured, anisotropic grid with four rows of elements, where the initial height is set to one-quarter of the TE cut thickness, ensuring smooth transitions across the surfaces [Figure 3]. These tailored treatments enhance the surface mesh quality, ensuring the numerical stability and precise resolution of aerodynamic features, particularly in areas with high curvature or sharp geometric transitions [9,10].

Accurately resolving the boundary layer near aerodynamic surfaces is essential for capturing critical flow phenomena such as skin friction, separation points, and laminar-to-turbulent transition. A non-dimensional wall distance (y+) of approximately 1 is targeted to ensure the first inflation layer cell lies within the viscous sublayer, enabling precise turbulence modeling in Reynolds-Averaged Navier–Stokes (RANS) simulations. This approach ensures the accurate prediction of aerodynamic performance metrics like Lift and Drag [8]. The first layer height is calculated based on freestream flow properties, surface shear velocity, and fluid viscosity, ensuring the correct resolution of steep velocity gradients near walls.

The volume mesh is composed of a structured hexahedral grid (inflation layer and additional layers) near the wall to capture near-wall effects, while the far-field regions are meshed with an unstructured hexahedral grid. Best practices are followed for control volume placement, with upstream boundaries at 10 chord lengths, downstream boundaries at 25 chord lengths, and lateral boundaries at 10 chord lengths, minimizing boundary effects while maintaining computational efficiency [8,9,11]. Also, trapezoidal-shaped bodies of influence are constructed around the wing, providing the ability to utilize the same grid for multiple angles of attack. This hybrid grid approach ensures high accuracy and robust simulation results.

The aforementioned meshing practices are fully parametrized with the geometric design variables and simulation conditions, aiming to achieve the “fully autonomous” goal of this framework. Finally, the output of the meshing module is an .msh.h5 mesh file compatible with the ANSYS software suite [v2023-R2].

3.3. PyFluent

ANSYS Fluent is a powerful CFD software widely used for simulating fluid dynamics [12]. PyFluent, the Python API for Fluent, enables users to automate tasks such as setup, execution, and the postprocessing of simulations. This API allows for the scripting of workflows, including geometry import, solver configuration, and results extraction. Through the integration of PyFluent, UAV wings can be evaluated rapidly and consistently, minimizing manual effort and enabling efficient design validation within the automated preprocessing framework. In this study, ANSYS Fluent 2023R2 and PyFluent version 0.21 were used, ensuring compatibility and leveraging the latest features for streamlined simulation workflows. Additionally, the GPU native solution offered by Fluent was utilized to accelerate the analyses, significantly reducing computation time and enhancing the overall efficiency of the simulation process [13].

The solution setup involved selecting an appropriate turbulence model, assigning boundary conditions, and monitoring the convergence criteria to ensure simulation accuracy. The turbulence model selected for this study was the k-omega SST, which is well suited for capturing both boundary layer separation and flow transition phenomena. The turbulence viscosity ratio was assigned according to [14], and scaled with the Reynolds number to ensure the appropriate modeling of turbulence effects across varying flow regimes. Residuals were monitored throughout the simulation to track convergence, with specific attention paid to Lift and Drag forces over a moving window of 100 iterations. Convergence was declared when both Lift and Drag changed by less than 0.1%, or a periodic behavior was detected, even if this led to residuals higher than 0.1%.

The simulation module provided all the required outputs to the user in multiple files of the .txt format, comprising the forces exerted on the wing, the residuals from the partial differential equations, and information about convergence. Simultaneously, an .xml file was constructed containing concisely the key elements of the simulation (converged forces, iterations, $y^{+}$ values) assisting in rapid decision making and/or the coupling of an optimizer.

4. Analysis Efficiency and Validation

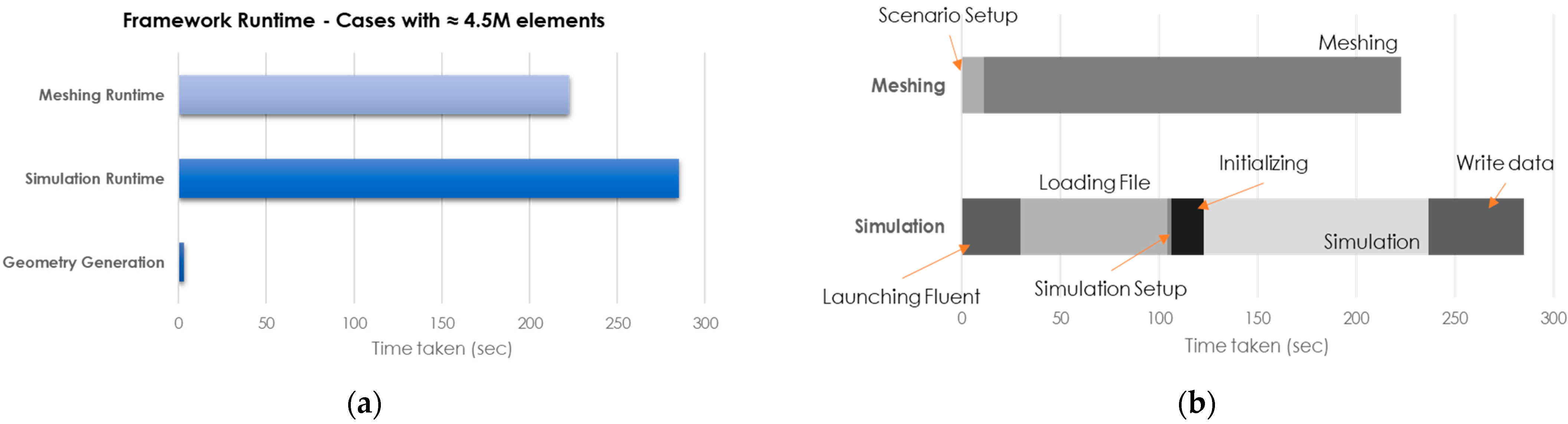

This section presents the performance assessment of the automated CFD framework in terms of simulation efficiency and accuracy. The geometry generation time is minimal compared to meshing and simulation [Figure 4a]. The mesh is generated only once per wing and can be reused for multiple angles of attack (AoAs), increasing the overall efficiency. Additionally, the usage of GPUs has significantly lowered the computational cost of the simulations, reducing time, and making high-fidelity aerodynamic analysis more feasible.

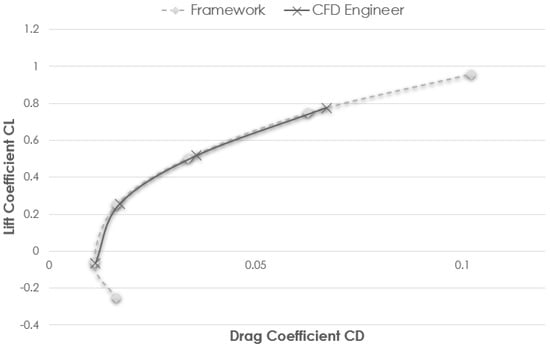

The accuracy of the CFD framework was evaluated using the ONERA M6 wing at its operational conditions, a well-known benchmark geometry chosen for its simplicity and established aerodynamic characteristics [15]. The specialist, a CFD mechanical engineer with over five years of experience, manually prepared the simulation (both mesh and setup) for comparison. The results show that the drag polar predicted by the automated framework is within 3% of the expert’s values, demonstrating high reliability [Figure 5]. This agreement highlights the framework’s capability to match expert-level precision while reducing manual effort.

5. Conclusions

The presented approach demonstrates the significant potential for automating the preprocessing and execution of CFD analyses for UAV wings, providing considerable time savings compared to traditional manual processes. By leveraging Python scripting and GPU acceleration, this automated workflow minimizes human intervention while ensuring consistent quality in the generated meshes and simulations. The results obtained have proven to be both reliable and robust, aligning closely with those produced by experienced CFD engineers. Furthermore, adherence to common aerodynamic guidelines ensures that the methodology is applicable to a wide range of wing geometries, covering diverse configurations within the UAV design space. This generalizability makes the proposed framework a practical and scalable solution for future aerodynamic studies, streamlining the process of Computational Fluid Dynamics analysis in aerospace design.
