In Situ Growth of Nano-MoS2 on Graphite Substrates as Catalysts for Hydrogen Evolution Reaction

by
Yifan Zhao
1,2,
Mingyang Zhang
1,2,
Huimin Zhao
1,2,
Zhiqiang Zeng
1,2,
Chaoqun Xia
1,2 and
Tai Yang
1,2,*
1
School of Materials Science and Engineering, Hebei University of Technology, Tianjin 300130, China
2
Tianjin Key Laboratory of Laminating Fabrication and Interface Control Technology for Advanced Materials, Hebei University of Technology, Tianjin 300130, China
*
Author to whom correspondence should be addressed.
Materials 2023, 16(13), 4627; https://doi.org/10.3390/ma16134627
Submission received: 29 April 2023 / Revised: 31 May 2023 / Accepted: 13 June 2023 / Published: 27 June 2023
Browse Figures
Versions Notes

Abstract

In order to synthesize a high-efficiency catalytic electrode for hydrogen evolution reactions, nano-MoS2 was deposited in situ on the surface of graphite substrates via a one-step hydrothermal method. The effects of the reactant concentration on the microstructure and the electrocatalytic characteristics of the nano-MoS2 catalyst layers were investigated in detail. The study results showed that nano-MoS2 sheets with a thickness of about 10 nm were successfully deposited on the surface of the graphite substrates. The reactant concentration had an important effect on uniform distribution of the catalyst layers. A higher or lower reactant concentration was disadvantageous for the electrochemical performance of the nano-MoS2 catalyst layers. The prepared electrode had the best electrocatalytic activity when the thiourea concentration was 0.10 mol·L−1. The minimum hydrogen evolution reaction overpotential was 196 mV (j = 10 mV·cm−2) and the corresponding Tafel slope was calculated to be 54.1 mV·dec−1. Moreover, the prepared electrode had an excellent cycling stability, and the microstructure and the electrocatalytic properties of the electrode had almost no change after 2000 cycles. The results of the present study are helpful for developing low-cost and efficient electrode material for hydrogen evolution reactions.

1. Introduction

Renewable energy is seen as a powerful way to reduce global carbon emissions, and it will become an integral part of energy in the future [1]. Sustainable, cheap, safe, and clean energy sources are a research hotspot in the pursuit of a green economy and due to increasing demands for energy [2,3]. Solar, wind, geothermal, bioenergy, and hydrogen energies are among the types of renewable energy [4]. Of these, hydrogen energy is clean, green, and sustainable and has a high energy density. It is also easy to produce. The evolution of hydrogen from natural gas is the common approach in current hydrogen-evolution methods, but reserves are insufficient [5]. When coal is used to produce hydrogen, CO and CO2 are generated during the reaction process, polluting the environment [6]. In the biological hydrogen evolution process, many impurities are generated, and purification is difficult [7]. Photocatalytic hydrogen evolution is a promising method, but there are still some unresolved issues. The instability of photocatalysts and the low efficiency of energy conversion limit its application [8,9,10].
The reaction conditions for electrocatalytic hydrogen evolution are mild, and no impurities are produced during the preparation process. Electrocatalytic hydrogen evolution has received much attention because of its virtuous cycle and its ease of operation [11,12]. In this case, the process of hydrogen preparation using electrolysis of water is considered to be a feasible approach [13]. To improve the efficiency of electrocatalysis for water decomposition, there is an immediate requirement to develop effective and reliable catalysts to expedite hydrogen evolution reaction (HER) dynamics [14,15]. Platinum is the most important HER catalyst owing to its suitable free energy of hydrogen adsorption [16]. However, as a noble metal catalyst, platinum is expensive and scarce, which limit its wide application [17,18]. Therefore, the development of low-cost and high-activity electrocatalysts is urgently needed [19,20].
Transition metal sulfides have become important materials due to their high-potential HER performance and low cost [21,22]. The sulfur element in transition metal sulfides can modulate the electronic properties of metals and improve their catalytic activity. Metal sulfides such as CoS2, NiS2, and MoS2 have been shown to have good HER activity. Among them, CoS2 has been widely studied because of its rich composition, semimetallic conductivity, large surface area, and significant catalytic activity. Importantly, CoS2 has low chemisorption energy for hydrogen, which facilitates hydrogen generation [23]. Zhang et al. [24] used a hydrothermal method to deposit CoS2 on titanium foil and showed that an extended treatment time of the hydrothermal reaction induced pyramidal CoS2 morphology formation. The catalyst of the hydrothermal reaction at 15 h showed a very small onset potential of about 81 mV. Pyrite-based NiS2 was reported to have unlimited potential to be widely used in hydrogen precipitation reactions due to its low cost, good stability, and ease of preparation [25,26]. Ma et al. [27] synthesized two-dimensional nickel disulfide grown on nickel foam with an average thickness of 10 nm and an overpotential of 161 mV at a current density of 100 mA·cm−2. WS2 has significant electrochemical activity due to its rapid diffusion of ions, easily accessible edge site structure, and large surface area [28]. Duan et al. [29] delaminated bulk WS2 to obtain 2D WS2 nanolayers and then doped the WS2 nanolayers into graphene films. The catalyst exhibited extraordinary HER performance, with a high current density and long-lasting stability, because the 2D WS2 surface area and the exposed edges were significantly increased, which was very favorable for HER.
MoS2 is a typical two-dimensional material [30,31]. Like graphite, it features a lamellar structure, with layers bonded internally by strong covalent bonds and layers connected through weak van der Waals forces [32]. It can be easily peeled off between layers an thus, has excellent properties for catalysis and lubrication. For these reasons, this new material has attracted much attention in recent years [33,34]. Therefore, MoS2 is often used as a catalyst for photocatalytic and electrocatalytic hydrogen evolution. Lin et al. [35] prepared a 10 nm thick MoS2 monolayer via a stripping method. The nanoscale MoS2 monolayer had a larger contact area, which improved the activity of the catalyst in the photocatalytic reaction. Fu et al. [36] prepared PCN/MoS2 via an ultrasonic dispersion method. The band structure of PCN and MoS2 was staggered, which improved the separation rate of the photocarrier an thus, improved photocatalytic efficiency. However, MoS2, in its pure form, lacks catalytic activity. The inherent low electrical conductivity inhibits effective electron transfer and the associated electrochemical kinetics, affecting the speed of HER [37]. To improve the electrocatalytic properties of MoS2, researchers have used various methods [38]. A novel nanostructure with an increased surface area is an effective way to increase the number of exposed edges. Nguyen et al. [39] developed a hybrid material with a mesoporous nanosheet heterostructure, and a unique hollow core–shell structure with strong electronic interactions between the core part and the core shell was obtained. The electronic structure of MoS2 can be effectively tuned by introducing heteroatoms in the MoS2 base plane. Tang et al. [40] prepared Fe-hybridized MoS2 nanosheets and found that doping with Fe not only affected the synthesis processes of MoS2 nanosheets but also optimized the edge sites and the electronic properties of MoS2.
To date, most of the prepared HER catalytic agents have been sold in powder form. When performing electrocatalytic reactions, powdered electrocatalysts require Nafion as a binder to drip-coat catalysts on a conductive carrier. Powdered samples can suffer from flaking and loss during electrocatalysis, leading to errors in experimental testing. In addition, adhesive addition can reduce the conductivity of an electrode. Directly depositing nanometer catalysts on a conducting material is an effective way to solve the problem. When a graphite substrate is used as the reaction substrate, there is direct contact between catalyst and electrolyte, and their contact area is increased. Additionally, there is no need to use Nafion as binder, and the conductivity of electrodes is not affected. This method optimizes the electrode preparation process and reduces the experimental cost.
Therefore, in the current study, we worked on preparing an effective and economical HER electrocatalyst for MoS2 deposition in situ on a graphite substrate. The graphite substrate was used as a reaction substrate material to avoid catalyst dropout during hydrogen evolution. Moreover, this method reduced MoS2 nanosheet buildup and exposed more edges to accelerate electron transfer, hence greatly improving the overall conductivity of the HER electrode.

2. Experimental Details

2.1. Materials

Sodium molybdate (Na2MoO4·2H2O) and thiourea (CH4N2S) were purchased from Tianjin Kemeiou Chemical Reagent Co., Ltd. (Tianjin, China). Nitric acid was purchased from Tianjin Fuchen Chemical Reagent Co., Ltd. (Tianjin, China). Graphite plates with a thickness of 2 mm were obtained from Zibo Baofeng Graphite Co., Ltd. (Zibo, China). The materials used in the experiments did not require additional treatment. To reduce the risk of sample contamination, deionized water was used throughout the experimental procedure.

2.2. Sample Preparation Method

Graphite plates were cut into a size of 10 mm × 10 mm, leaving a 3 mm wide section on one side for electrode clamping. We sanded the cut graphite plates with sandpaper until the surfaces were shiny and free of scratches. Then graphite plates were ultrasonicated in concentrated nitric acid for 2 h. After washing and drying, the acid-corroded graphite plates could be used as a substrate for depositing nano-MoS2 catalyst.
The working electrodes that nano-MoS2 in situ deposited on graphite substrates (MoS2@Gr) were prepared via a one-step hydrothermal method. The mixed solution for the hydrothermal process was prepared by ultrasonically dispersing Na2MoO4·2H2O and CH4N2S in 60 mL of deionized water until completely dissolved. One graphite substrate was vertically placed in a 100 mL reaction vessel and subjected to hydrothermal reaction at 200 °C for 24 h. When finished with the reactions, products were cleaned with deionized water and ethanol for 5 min and then dried at 60 °C in a vacuum drying oven. Five different reactant concentrations were used in this study. The concentration of thiourea was 0.05, 0.07, 0.10, 0.12, or 0.15 mol·L−1; the concentration of Na2MoO4 was one-third of that of thiourea. For convenience, the products with different thiourea concentrations were named MoS2@Gr-0.05, MoS2@Gr-0.07, MoS2@Gr-0.10, MoS2@Gr-0.12, and MoS2@Gr-0.15, respectively. In addition, pure MoS2 powders were prepared under the same synthesis conditions with a thiourea concentration of 0.10 mol·L−1, and this product was labeled MoS2.

2.3. Structural Characterizations

The microscopic appearance of the MoS2@Gr samples was determined with a scanning electron microscope (SEM, JEM-7100F, JEOL Ltd., Akishima, Japan). Structural properties of the electrodes were characterized via X-ray diffraction (XRD) using a Bruker D8 Discover-type powder diffractometer (Bruker, Billerica, MA, USA) with Cu-Kα radiation. The elemental composition and valence bonding state of electrode surface were determined with an ESCALAB 250Xi X-ray photoelectron spectrometer (XPS) (Thermo Fisher Scientific, Waltham, MA, USA). In addition, a confocal Raman spectrum analyzer with an excitation wavelength of 532 nm for Raman analysis was applied. Contact angle measurement of surface wettability was performed using a contact angle meter with a camera (Powereach, JC2000, Shanghai, China). Atomic force microscopy (AFM, NYSE: A; Agilent, Santa Clara, CA, USA) was used to measure the roughness and surface area of graphite.

2.4. Electrochemical Tests

An electrochemical workstation (CHI660E) was selected for the electrochemical tests. A saturated calomel electrode (SCE) was used as a standard reference electrode, a platinum mesh served as a counter electrode, the prepared MoS2@Gr samples were directly treated as the working electrode, and 0.5 M H2SO4 solution was substituted as the electrolyte. Electrochemical tests of pure MoS2 powders were performed with the aid of a glassy carbon electrode, and the test electrode was obtained by referring to the preparation method of Wang et al. [41]. All the tests were carried out at room temperature. During electrochemical testing, ESCE was calibrated with a reversible hydrogen electrode (RHE) and converted to ERHE, where ERHE = ESCE + 0.059 pH + 0.241 V. Linear sweep voltammetry (LSV) was tested over a range of −0.6~0 V (vs. RHE), and the sampling rate was 2 mV·s−1. The electrochemical impedance spectra (EIS) were measured in a frequency range of 100 kHz to 0.01 Hz with an AC voltage of 5 mV. To measure the double-layer capacitance (Cdl) of each electrode, cyclic voltammograms (CV) with different sweep rates (10, 20, 40, 60, 80, 100, or 120 mV·s−1) were collected in a voltage range of 0.15~0.35 V (vs. RHE). Chronoamperometry measurements were also recorded at an overpotential of 200 mV, and changes in polarization curves were compared after 2000 cycles of CV tests to investigate the stability of the catalyst.

3. Results and Discussion

3.1. Morphology and Structure of MoS2@Gr Samples

Graphite is very suitable for electrodes due to its high conductivity and low cost. However, its disadvantages are its low surface tension, a wide area without defects, fewer oxygen-containing functional groups on the surface, and poor hydrophilicity. There is no force between the catalyst and graphite substrate, which is not conducive to the adsorption of transition metal ions. Therefore, graphite substrates were first modified using acid corrosion to increase the surface area and improve the hydrophilicity of the substrate surfaces. Figure 1 shows the SEM images and contact angle of the polished and acid-corroded graphite substrate. It can be seen from Figure 1a that the polished graphite substrate surface was relatively smooth, and some small mottling existed on the substrate surface. This was because the graphite layers were not firmly bonded together during the pressing and sintering process. The water contact angle of the polished substrate was evaluated to be 92.4°. Acid corrosion significantly changed the surface morphology of a substrate. Many graphite layers were exposed on the surface under the effect of ultrasonic and acid corrosion treatment. Moreover, the water contact angle of the acid-corroded substrate reduced to 70.3°. Clearly, acid corrosion improved the specific surface area and hydrophilicity of the graphite substrate. This favored the growth of MoS2 on graphite and the formation of a relatively stable structure. More importantly, the graphite substrates could be activated by nitric acid to increase the content of the oxygen-containing functional groups on the graphite substrate surface. The oxygen-containing functional groups could improve the hydrophilicity of graphite substrates, which is consistent with the contact angle measurements [42].
Figure 2 shows XPS spectra of polished graphite and acid-corroded graphite. As can be seen from Figure 2a,b, the polished and acid-corroded graphite substrates contained C and O elements. The C1s spectra of the polished and acid-corroded graphite substrates are shown in Figure 2c,d. The obvious peaks at 284.8 eV are both the binding states of C-C bonds. The peak at 286.2 eV corresponds to C-O-C binding, and the peak at 288.9 eV is O-C=O binding [43]. As can be seen in Table 1, after modification with HNO3, the proportion of the C-C peak significantly decreased, while the proportions of C-O-C and O-C=O binding states increased. This indicated that acidification increased the content of oxygen-containing functional groups. Oxygen-containing functional groups could improve the hydrophilicity of the graphite substrates, which is consistent with the results in Figure 1.
Figure 3a,b show the 3D surface morphology of the polished graphite. As can be seen from the AFM results in Figure 3a, the surface of the polished graphite was relatively flat, with a roughness Ra of 75.6 nm and a surface area of 2.647 × 10−9 m2. Figure 3c,d show the 3D morphology and roughness of graphite surface after HNO3 acidification. The roughness Ra and surface area of graphite increased to 718.4 nm and 3.84 × 10−9 m2, respectively, as shown in Figure 3c, due to the formation of a fold layer on the surface. The fold layer increased the surface area of the graphite and provided more sites for MoS2 deposition on the surface.
The microstructures of MoS2@Gr electrodes were characterized via SEM. As shown in Figure 4, nano-MoS2 was successfully deposited on the graphite substrate surface, while the reactant concentration had a great impact on the distribution morphology of the MoS2 catalyst layers. It can be seen from Figure 4a that spherical MoS2 particles were distributed on the substrate surface, and these flower spherical structures were not fully formed. The graphite substrate surfaces were not completely covered by MoS2 particles, and graphite substrates could still be observed in some locations. The main reason for this is that the low concentration of the reactant prevented the formation of enough MoS2 particles to cover the surface of graphite substrate. In contrast, the MoS2 layer was uniformly distributed on the electrode surface of MoS2@Gr-0.10, as shown in Figure 4b. At high magnification, it can be seen that the deposition layer was also composed of flower spherical MoS2 particles. Each spherical MoS2 particle consisted of lots of nano-MoS2 sheets with a thickness of about 10 nm. These nanosheets interspersed with each other and continuously accumulated and thickened to form regular microspheres. A higher reactant concentration was disadvantageous for nano-MoS2 catalyst layer deposition. Cracks were clearly observed on the MoS2@Gr-0.15 electrode surface because the higher reactant concentration les to an increase in the deposition layer thickness. A thicker deposition layer on the electrode surface can easily crack during cleaning and drying process. It can also be observed from Figure 4 that the thickness of the MoS2 flakes in each sample was close to 10 nm, and most of these nanoflakes vertically grew on the graphite substrate. According to Jaramillo et al. [44], the edges of folded flakes are more easily exposed, promoting the exposure of unsaturated sulfur atoms and improving hydrogen evolution activity.
The XRD patterns obtained from the graphite substrate, MoS2@Gr, and pure MoS2 powders are shown in Figure 5. The diffraction peaks of graphite were the characteristic peaks of graphite substrates, and no other impurity peaks could be observed in the substrate, as shown in Figure 5a. In comparison, small diffraction peaks at 2θ ≈ 14° and 2θ ≈ 33° corresponding to MoS2 were detected in the MoS2@Gr samples. The diffraction peak intensity of MoS2 became stronger with increasing reactant concentration, indicating that MoS2 was successfully deposited on the graphite substrate surface. These results are consistent with the SEM results. In addition, the SEM images and XRD pattern of the pure MoS2 powders are compared in Figure 5b. The analysis of the results indicated that there was no trace of impurities in the as-synthesized MoS2 powders, and the powder sample consisted of spheroidal particles with an average diameter of about 3 μm. The high-magnification SEM image illustrated that each spheroidal particle was also formed of nano-MoS2 sheets. The morphological features were similar to those of the deposited MoS2 layers shown in Figure 4.
Raman measurements of the graphite substrate after acidification, pure MoS2, and MoS2@Gr-0.10 were carried out to further characterize the structural features of the samples, and the results are shown in Figure 6a. Two sharp peaks at 1347 cm−1 and 1596 cm−1 of the graphite substrate after the acidification sample represent D and G peaks, respectively, which reflect the degree of graphite disorder and order, respectively [45]. The D peak indicates a defective peak caused by the vibrations of sp3-hybridized carbon atoms in the amorphous carbon in a sample, and the G peak represents a graphite peak generated by vibrating sp2-hybridized carbon atoms in graphitic carbon [46]. The peaks at 378 cm−1 and 403 cm−1 for the pure MoS2 sample indicated the existence of 2H phases of MoS2 [47,48]. The two peaks correspond to two different vibrational modes of in-plane and out-of-plane Mo-S, where the frequency differences between the vibrational modes mean that MoS2 nanosheets have a multilayer structure [49]. Both graphite and MoS2 peaks could be observed in the MoS2@Gr-0.10 sample, also indicating that the MoS2 catalyst layer was successfully deposited on the graphite substrate.
XPS testing was used to characterize the surface elemental composition and valence bonding state of the MoS2@Gr-0.10 sample, and the results are shown in Figure 6b–f. As can be seen in Figure 6b that the MoS2@Gr-0.10 sample was mainly composed of C, O, Mo, and S elements. The carbon mainly originated from the graphite substrate. In Figure 6d, two overlapped peaks can be observed. The peak at 530.7 eV indicates C=O bonding, and the peak at 532.1 eV indicates C-O-Mo bonding. According to Lu et al. [50], the presence of C-O-Mo bonding indicates that the chemical interaction between MoS2 and graphite substrate occurs through C-O-Mo. This makes the MoS2 and graphite substrate tightly bonded to each other, which facilitates the structural stability of catalyst layers. The main peaks at 229.6 eV and 232.8 eV shown in Figure 6e belong to Mo 3d5/2 and Mo 3d3/2 orbitals, respectively, corresponding to Mo4+ [51,52]. Moreover, there was a weak peak corresponding to Mo6+ at 235.8 eV, indicating that MoS2 caused mild oxidation in the air. The peaks at 161.2 eV and 163.6 eV in Figure 6f belong to S 2p3/2 and S 2p1/2, respectively, which correspond to the −2 valence in the sulfur of MoS2, reflecting the formation of the 2H phase of MoS2 [53,54].

3.2. Electrochemical HER Performance

The electrochemical HER property of the prepared electrodes was tested in a typical three-electrode system. For comparison, the electrocatalytic properties of Pt and pure MoS2@Gr samples were also measured under the same conditions. The LSV curves of the samples are shown in Figure 7a. As shown, these samples produced different electrocatalytic performances. The graphite substrate had almost no catalytic activity in the HER process, and the pure MoS2 also exhibited poor catalytic activity. In contrast, the prepared MoS2@Gr electrodes showed good HER catalytic performance. The overpotential of the MoS2@Gr electrodes at a current density of 10 mA·cm−2 first increased and then decreased with the increase in the reactant concentration, and the MoS2@Gr-0.10 sample had the lowest initial HER overvoltage of 113 mV. The variation in the HER catalytic properties of the MoS2@Gr electrodes was mainly affected by the microstructural difference caused by the reactant concentration (see Figure 4). For the MoS2@Gr-0.05 and MoS2@Gr-0.07 samples, the exposed MoS2 edges were not enough on the electrode surface, resulting in poor HER catalytic performance. With respect to the MoS2@Gr-0.12 and MoS2@Gr-0.15 samples, excessive MoS2 nanosheets accumulated on the electrode surface, leading to the edge coverage of active sites and lower conductivity of catalyst layer. The Pt electrode had the best general performance. In this study, nano-MoS2 was successfully deposited on a graphite substrate, and its catalytic activity for HER may be further improved via structural modification [55], heteroatoms doping [56], etc.
Under ideal conditions, Tafel slopes usually represent the intrinsic properties of electrocatalysts and reaction kinetic issues that can well explain the active sites of catalysts and enable analysis of HER mechanisms [57]. According to Lin et al. [58,59], a smaller Tafel slope represents a faster current density growth when the overpotential increases by an equal amount. As shown in Figure 7b, the Tafel slopes of the MoS2@Gr-0.05, MoS2@Gr-0.07, MoS2@Gr-0.10, MoS2@Gr-0.12, and MoS2@Gr-0.15 electrodes were calculated as 81.1, 68.6, 54.1, 58.1, and 65.1 mV·dec−1, respectively. Clearly, the MoS2@Gr-0.10 electrode had the lowest Tafel slope value after that of the Pt electrode.
The electron exchange process in electrochemical reactions usually occurs at an electrode surface between the electrons in an electrode and the ions in the solution, and this process often occurs in redox reactions. Therefore, EIS tests were conducted to describe the kinetic process of electron transfer rate at the electrode surface. A lower charge transfer resistance means faster HER kinetic properties. As shown in Figure 7c, Nyquist plots are presented as semicircles in the high-frequency region and slanted lines in the low-frequency region. These electrochemical measurements are represented by a fitted circuit in Figure 7c, where Rs, Rp, and Rct represent the resistance, electrode porosity, and charge transfer resistance of the electrolyte solution, respectively; CPE is a constant phase angle element that represents a solid double-layer capacitance of an electrode in real situations; and Zw represents ion diffusion process in liquid solution.
To better understand the electrochemical catalytic activity of each electrode, Tafel slopes and Rct values are compared in Figure 7d. It can be observed that Pt has the lowest Tafel slope value. For the other samples, the Tafel slope values present a trend of first decreasing and then increasing. Additionally, the Rct values first decrease and then increase, which is consistent with the Tafel slope values. The much smaller Rct values of the MoS2@Gr samples compared with those of the graphite substrate suggested that the MoS2@Gr samples had superior ion diffusion behavior. Among these MoS2@Gr electrodes, the MoS2@Gr-0.10 sample exhibited the best HER catalytic performance. Clearly, the microstructure of deposition catalyst layer was the decisive factor for HER catalytic activity. The microstructure of catalyst layer could be conveniently controlled by changing the hydrothermal reaction conditions, such as reactant concentration, reaction temperature, reaction time, and so on.
Generally, there is a linear relationship between Cdl and electrochemically active surface area (ECSA) [60]. Electrochemical CV curves were obtained in the voltage range of 0.15–0.35 V (vs. RHE) at multiple scan rates (10–120 mV·s−1), and the results are shown in Figure 8a–f. According to Feng et al. [61], Cdl can be estimated by plotting the differences in current density (∆j = ja − jc) at 0.241 V as a function of the scan rate. Based on the slopes of the line shown in Figure 8g, the Cdl values were calculated and are displayed in Figure 8h. By comparing the Cdl values of MoS2@Gr samples, we concluded that the ECSA of MoS2@Gr-0.10 was larger than that of the other samples. The higher Cdl value of the MoS2@Gr-0.10 electrode was closely related to its microstructure feature: the increase in MoS2 edges on the MoS2@Gr-0.10 electrode remarkably promoted its HER process.

3.3. Cycling Stability

In addition to electrocatalytic performance, stability is an important criterion to evaluate the performance of electrocatalysts. The electrochemical stability of the MoS2@Gr-0.10 electrode was determined via long-term CV tests. As shown in Figure 9a, after 2000 CV cycles, the change in the polarization curve of the sample was almost negligible. There was no loss of any current density, and the curves before and after CV cycles overlapped relatively well. This indicates that the MoS2@Gr-0.10 catalyst had very good stability and excellent HER performance during a long electrochemical time in 0.5 M H2SO4 solution. After that, the electrode was subjected to a chronoamperometry, and the results are shown in Figure 9b. After 660 min durability experiments, the current density of the acidic solution showed variances but with small fluctuations.
The good cycling performance of the MoS2@Gr-0.10 electrode was mainly due to its structural stability during electrochemical cycling process. As illustrated in Figure 9d, nano-MoS2 was still clearly visible on the electrode surface after 2000 CV cycling tests. There was no obvious exfoliation of MoS2 sheets, indicating that the catalyst layer had a good adhesion force with the graphite substrate. This mainly benefitted from the inherent stability of graphite and the in situ growth of MoS2 on the graphite substrate. In summary, based on the microstructural characterization of the materials and the comparison of the results of HER performance, we found that the MoS2@Gr-0.10 electrocatalyst had a good morphological structure and excellent HER performance. Although the in situ growth of MoS2 on graphite substrates is a simple and rapid process, its activity can be further improved as a catalyst for hydrogen evolution. In subsequent work, the surface area of graphite can be further increased, the size of MoS2 can be decreased, and metal atoms can be doped to improve the hydrogen evolution activity of the catalysts. The HER performance of MoS2@Gr was compared with that of the reported electrocatalysts, and the results are tabulated in Table 2.

4. Conclusions

(1)
Nano-MoS2 was successfully deposited on the surface of a graphite substrate via a one-step hydrothermal method, and the microstructure of the MoS2 layers could be controlled by changing concentration of reactant.
(2)
A dense and uniform MoS2 layer was the key factor to improve the HER catalytic activity of the MoS2@Gr electrodes. However, a higher reactant concentration led to an increase in the deposited MoS2 layer thickness, which resulted in edge coverage of active sites and a decrease in the conductivity of the catalyst.
(3)
The MoS2@Gr-0.10 electrode showed the best electrochemical performance with an overpotential of 196 mV at 10 mA·cm−2 and a Tafel slope of 54.1 mV·dec−1.
(4)
There was no catalytic activity loss of the MoS2@Gr-0.10 electrode after 2000 CV cycles, and the electrode exhibited good stability performance.

Author Contributions

Data curation and writing—original draft, Y.Z.; data curation and methodology, M.Z.; resources, H.Z.; resources, Z.Z.; conceptualization, C.X.; conceptualization, writing—review and editing, T.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the National Natural Science Foundation of China (grant No. 52001107) and Hebei Provincial Natural Science Foundation China (E2021202167).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing is not applicable to this article as no new data were created or analyzed in this study.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Wang, J.; Kong, H.; Zhang, J.; Hao, Y.; Shao, Z.; Ciucci, F. Carbon-based electrocatalysts for sustainable energy applications. Carbon-based electrocatalysts for sustainable energy applications. Prog. Mater. Sci. 2021, 116, 100717. [Google Scholar] [CrossRef]
  2. Abbasi, K.R.; Shahbaz, M.; Zhang, J.; Irfan, M.; Alvarado, R. Analyze the environmental sustainability factors of China: The role of fossil fuel energy and renewable energy. Renew. Energy 2022, 187, 390–402. [Google Scholar] [CrossRef]
  3. Moustakas, K.; Loizidou, M.; Rehan, M.; Nizami, A.S. A review of recent developments in renewable and sustainable energy systems: Key challenges and future perspective. Renew. Sustain. Energy Rev. 2020, 119, 109418. [Google Scholar] [CrossRef]
  4. Gapp, E.; Pfeifer, P. Membrane reactors for hydrogen production from renewable energy sources. Curr. Opin. Green Sustain. Chem. 2023, 41, 100800. [Google Scholar] [CrossRef]
  5. Abdin, Z.; Zafaranloo, A.; Rafiee, A.; Mérida, W.; Lipiński, W.; Khalilpour, K.R. Hydrogen as an energy vector. Renew. Sustain. Energy Rev. 2020, 120, 109620. [Google Scholar] [CrossRef]
  6. Bhutto, A.W.; Bazmi, A.A.; Zahedi, G. Underground coal gasification: From fundamentals to applications. Prog. Energy Combust. 2013, 39, 189–214. [Google Scholar] [CrossRef]
  7. Yi, L.; Fan, Y.; Yang, R.; Zhu, R.; Zhu, Z.; Hu, J. Fabrication and optimization of CdS photocatalyst using nature leaf as biological template for enhanced visible-light photocatalytic hydrogen evolution. Catal. Today 2022, 402, 241–247. [Google Scholar] [CrossRef]
  8. Daulbayev, C.; Sultanov, F.; Korobeinyk, A.V.; Yeleuov, M.; Azat, S.; Bakbolat, B.; Umirzakov, A.; Mansurov, Z. Bio-waste-derived few-layered graphene/SrTiO3/PAN as efficient photocatalytic system for water splitting. Appl. Surf. Sci. 2021, 549, 149176. [Google Scholar] [CrossRef]
  9. Daulbayev, C.; Sultanov, F.; Bakbolat, B.; Daulbayev, O. 0D, 1D and 2D nanomaterials for visible photoelectrochemical water splitting. A Review. Int. J. Hydrogen Energy 2020, 45, 33325–33342. [Google Scholar] [CrossRef]
  10. Sultanov, F.; Daulbayev, C.; Azat, S.; Kuterbekov, K.; Bekmyrza, K.; Bakbolat, B.; Bigaj, M.; Mansurov, Z. Influence of Metal Oxide Particles on Bandgap of 1D Photocatalysts Based on SrTiO3/PAN Fibers. Nanomaterials 2020, 10, 1734. [Google Scholar] [CrossRef]
  11. Wang, M.; Wang, Z.; Gong, X.; Guo, Z. The intensification technologies to water electrolysis for hydrogen production—A review. Renew. Sustain. Energy Rev. 2014, 29, 573–588. [Google Scholar] [CrossRef]
  12. Thomas, J.M.; Edwards, P.P.; Dobson, P.J.; Owen, G.P. Decarbonizing energy: The developing international activity in hydrogen technologies and fuel cells. J. Energy Chem. 2020, 51, 405–415. [Google Scholar] [CrossRef]
  13. Hosseini, S.E.; Wahid, M.A. Hydrogen production from renewable and sustainable energy resources: Promising green energy carrier for clean development. Renew. Sustain. Energy Rev. 2016, 57, 850–866. [Google Scholar] [CrossRef]
  14. Hu, J.; Zhu, S.; Liang, Y.; Wu, S.; Li, Z.; Luo, S.; Cui, Z. Self-supported Ni3Se2@NiFe layered double hydroxide bifunctional electrocatalyst for overall water splitting. J. Colloid Interface Sci. 2021, 587, 79–89. [Google Scholar] [CrossRef]
  15. Li, S.; Sun, J.; Guan, J. Strategies to improve electrocatalytic and photocatalytic performance of two-dimensional materials for hydrogen evolution reaction. Chin. J. Catal. 2021, 42, 511–556. [Google Scholar] [CrossRef]
  16. Jiang, G.; Zhang, C.; Liu, X.; Bai, J.; Xu, M.; Xu, Q.; Li, Y.; Long, L.; Zhang, G.; Li, S.; et al. Electrocatalytic hydrogen evolution of highly dispersed Pt/NC nanoparticles derived from porphyrin MOFs under acidic and alkaline medium. Int. J. Hydrogen Energy 2022, 47, 6631–6637. [Google Scholar] [CrossRef]
  17. Li, J.; Liu, H.X.; Gou, W.; Zhang, M.; Xia, Z.; Zhang, S.; Chang, C.R.; Ma, Y.; Qu, Y. Ethylene-glycol ligand environment facilitates highly efficient hydrogen evolution of Pt/CoP through proton concentration and hydrogen spillover. Energy Environ. Sci. 2019, 12, 2298–2304. [Google Scholar] [CrossRef]
  18. Anantharaj, S.; Karthik, P.E.; Subramanian, B.; Kundu, S. Pt nanoparticle anchored molecular self-assemblies of DNA: An extremely stable and efficient HER electrocatalyst with ultralow Pt content. ACS Catal. 2016, 6, 4660–4672. [Google Scholar] [CrossRef]
  19. Laszczyńska, A.; Tylus, W.; Szczygieł, I. Electrocatalytic properties for the hydrogen evolution of the electrodeposited Ni–Mo/WC composites. Int. J. Hydrogen Energy 2021, 46, 22813–22831. [Google Scholar] [CrossRef]
  20. Yang, Y.; Yao, H.; Yu, Z.; Islam, S.M.; He, H.; Yuan, M.; Yue, Y.; Xu, K.; Hao, W.; Sun, G.; et al. Hierarchical nanoassembly of MoS2/Co9S8/Ni3S2/Ni as a highly efficient electrocatalyst for overall water splitting in a wide pH range. J. Am. Chem. Soc. 2019, 141, 10417–10430. [Google Scholar] [CrossRef] [PubMed]
  21. Yin, W.; He, D.; Bai, X.; Yu, W.W. Synthesis of tungsten disulfide quantum dots for high-performance supercapacitor electrodes. J. Alloys Compd. 2019, 786, 764–769. [Google Scholar] [CrossRef]
  22. Pataniya, P.M.; Sumesh, C.K. Enhanced electrocatalytic hydrogen evolution reaction by injection of photogenerated electrons in Ag/WS2 nanohybrids. Appl. Surf. Sci. 2021, 563, 150323. [Google Scholar] [CrossRef]
  23. Shajaripour Jaberi, S.Y.; Ghaffarinejad, A.; Khajehsaeidi, Z.; Sadeghi, A. The synthesis, properties, and potential applications of CoS2 as a transition metal dichalcogenide (TMD). Int. J. Hydrogen Energy 2023, 48, 15831–15878. [Google Scholar] [CrossRef]
  24. Zhang, H.C.; Li, Y.J.; Zhang, G.X.; Wan, P.B.; Xu, T.H.; Wu, X.C.; Sun, X.M. Highly crystallized cubic cattierite CoS2 for electrochemically hydrogen evolution over wide pH range from 0 to 14. Electrochim. Acta 2014, 148, 170–174. [Google Scholar] [CrossRef]
  25. Guo, Y.J.; Guo, D.; Ye, F.; Wang, K.; Shi, Z.Q. Synthesis of lawn-like NiS2 nanowires on carbon fiber paper as bifunctional electrode for water splitting. Int. J. Hydrogen Energy 2017, 42, 17038–17048. [Google Scholar] [CrossRef]
  26. Liu, P.; Li, J.; Lu, Y.; Xiang, B. Facile synthesis of NiS2 nanowires and its efficient electrocatalytic performance for hydrogen evolution reaction. Int. J. Hydrogen Energy 2018, 43, 72–77. [Google Scholar] [CrossRef]
  27. Ma, Q.Y.; Hu, C.Y.; Liu, K.L.; Hung, S.F.; Ou, D.H.; Chen, H.M.; Fu, G.; Zheng, N.F. Identifying the electrocatalytic sites of nickel disulfide in alkaline hydrogen evolution reaction. Nano Energy 2017, 41, 148–153. [Google Scholar] [CrossRef]
  28. Li, W.; Bi, R.; Liu, G.X.; Tian, Y.; Zhang, L. 3D Interconnected MoS2 with enlarged interlayer spacing grown on carbon nanofibers as a flexible anode toward superior sodium-ion batteries. ACS Appl. Mater. Interfaces 2018, 10, 26982–26989. [Google Scholar] [CrossRef]
  29. Zhao, L.P.; Qi, L.; Wang, H. MoS2–C/graphite, an electric energy storage device using Na+-based organic electrolytes. RSC Adv. 2015, 5, 15431–15437. [Google Scholar] [CrossRef]
  30. Veerasubramani, G.K.; Park, M.S.; Nagaraju, G.; Kim, D.W. Unraveling the Na-ion storage performance of a vertically aligned interlayer-expanded two-dimensional MoS2@C@MoS2 heterostructure. J. Mater. Chem. A 2019, 7, 24557–24568. [Google Scholar] [CrossRef]
  31. Li, X.; Zhu, H.W. Two-dimensional MoS2: Properties, preparation, and applications. J. Mater. 2015, 1, 33–44. [Google Scholar] [CrossRef]
  32. Liu, Q.L.; Shi, H.D.; Yang, T.Y.; Yang, Y.; Wu, Z.S.; Yu, J.Q.; Silva, S.R.P.; Liu, J. Sequential growth of hierarchical N-doped carbon-MoS2 nanocomposites with variable nanostructures. J. Mater. Chem. A 2019, 7, 6197–6204. [Google Scholar] [CrossRef]
  33. Gong, F.L.; Ye, S.; Liu, M.M.; Zhang, J.W.; Gong, L.H.; Zeng, G.; Meng, E.; Su, P.; Xie, K.F.; Zhang, Y.H.; et al. Boosting electrochemical oxygen evolution over yolk-shell structured O–MoS2 nanoreactors with sulfur vacancy and decorated Pt nanoparticles. Nano Energy 2020, 78, 105284. [Google Scholar] [CrossRef]
  34. Wu, Z.; Fang, B.; Wang, Z.; Wang, C.; Wilkinson, D.P. MoS2 Nanosheets: A designed structure with high active site density for the hydrogen evolution reaction. Acs Catal. 2013, 3, 2101–2107. [Google Scholar] [CrossRef]
  35. Lin, H.; Zhang, K.; Yang, G.; Li, Y.; Liu, X.; Chang, K.; Xuan, Y.; Ye, J. Ultrafine nano 1T-MoS2 monolayers with NiOx as dual co-catalysts over TiO2 photoharvester for efficient photocatalytic hydrogen evolution. Appl. Catal. B Environ. 2020, 279, 119387. [Google Scholar] [CrossRef]
  36. Fu, W.; Zhao, Y.; Wang, H.; Chen, X.; Liu, K.; Zhang, K.; Wei, Q.; Wang, B. Study on preparation, photocatalytic performance and degradation mechanism of polymeric carbon nitride/Pt/nano-spherical MoS2 composite. J. Phys. Chem. Solids 2022, 166, 110700. [Google Scholar] [CrossRef]
  37. Yu, Y.F.; Huang, S.Y.; Li, Y.P.; Steinmann, S.N.; Yang, W.; Cao, L.Y. Layer-dependent electrocatalysis of MoS2 for hydrogen evolution. Nano Lett. 2014, 14, 553–558. [Google Scholar] [CrossRef] [PubMed]
  38. Zhang, X.; Jia, F.; Song, S. Recent advances in structural engineering of molybdenum disulfide for electrocatalytic hydrogen evolution reaction. Chem. Eng. J. 2021, 405, 127013. [Google Scholar] [CrossRef]
  39. Nguyen, D.C.; Luyen Doan, T.L.; Prabhakaran, S.; Tran, D.T.; Kim, D.H.; Lee, J.H.; Kim, N.H. Hierarchical Co and Nb dual-doped MoS2 nanosheets shelled micro-TiO2 hollow spheres as effective multifunctional electrocatalysts for HER, OER, and ORR. Nano Energy 2021, 82, 105750. [Google Scholar] [CrossRef]
  40. Tang, B.S.; Yu, Z.G.; Seng, H.L.; Zhang, N.D.; Liu, X.X.; Zhang, Y.W.; Yang, W.F.; Gong, H. Simultaneous edge and electronic control of MoS2 nanosheets through Fe doping for an efficient oxygen evolution reaction. Nanoscale 2018, 10, 20113–20119. [Google Scholar] [CrossRef] [PubMed]
  41. Wang, M.; Jian, K.; Lv, Z.; Li, D.; Fan, G.; Zhang, R.; Dang, J. MoS2/Co9S8/MoC heterostructure connected by carbon nanotubes as electrocatalyst for efficient hydrogen evolution reaction. J. Mater. Sci. Technol. 2021, 79, 29–34. [Google Scholar] [CrossRef]
  42. Wang, Y.; Zhou, W.; Gao, J.H.; Ding, Y.N.; Kou, K.K. Oxidative modification of graphite felts for efficient H2O2 electrogeneration: Enhancement mechanism and long-term stability. J. Electroanal. Chem. 2019, 833, 258–268. [Google Scholar] [CrossRef]
  43. Zhou, Y.; Liu, G.; Zhu, X.; Guo, Y. Ultrasensitive NO2 gas sensing based on rGO/MoS2 nanocomposite film at low temperature. Sens. Actuat. B Chem. 2017, 251, 280–290. [Google Scholar] [CrossRef]
  44. Jaramillo, T.F.; Jørgensen, K.P.; Bonde, J.; Nielsen, J.H.; Horch, S.; Chorkendorff, I. Identification of active edge sites for electrochemical H2 evolution from MoS2 nanocatalysts. Science 2007, 317, 100–102. [Google Scholar] [CrossRef] [PubMed]
  45. Rowley-Neale, S.J.; Brownson, D.A.C.; Smith, G.C.; Sawtell, D.A.G.; Kelly, P.J.; Banks, C.E. 2D nanosheet molybdenum disulphide (MoS2) modified electrodes explored towards the hydrogen evolution reaction. Nanoscale 2015, 7, 18152–18168. [Google Scholar] [CrossRef]
  46. Ferrari, A.C.; Robertson, J. Interpretation of Raman spectra of disordered and amorphous carbon. Phys. Rev. B 2000, 61, 14095–14107. [Google Scholar] [CrossRef]
  47. Patel, P.P.; Velikokhatnyi, O.I.; Ghadge, S.D.; Hanumantha, P.J.; Datta, M.K.; Kuruba, R.; Gattu, B.; Shanthi, P.M.; Kumta, P.N. Electrochemically active and robust cobalt doped copper phosphosulfide electro-catalysts for hydrogen evolution reaction in electrolytic and photoelectrochemical water splitting. Int. J. Hydrogen Energy 2018, 43, 7855–7871. [Google Scholar] [CrossRef]
  48. Vikraman, D.; Hussain, S.; Ali, M.; Karuppasamy, K.; Santhoshkumar, P.; Hwang, J.H.; Jung, J.; Kim, H.S. Theoretical evaluation and experimental investigation of layered 2H/1T-phase MoS2 and its reduced graphene-oxide hybrids for hydrogen evolution reactions. J. Alloys Compd. 2021, 868, 159272. [Google Scholar] [CrossRef]
  49. Shilpa, R.; Sibi, K.S.; Pai, R.K.; Sarath Kumar, S.R.; Rakhi, R.B. Electrocatalytic water splitting for efficient hydrogen evolution using molybdenum disulfide nanomaterials. Mater. Sci. Eng. B 2022, 285, 115930. [Google Scholar] [CrossRef]
  50. Lu, H.; Tian, K.; Bu, L.M.; Huang, X.; Li, X.Y.; Zhao, Y.; Wang, F.; Bai, J.; Gao, L.; Zhao, J.Q. Synergistic effect from coaxially integrated CNTs@MoS2/MoO2 composite enables fast and stable lithium storage. J. Energy Chem. 2021, 55, 449–458. [Google Scholar] [CrossRef]
  51. Guan, X.B.; Zhao, L.P.; Zhang, P.; Liu, J.; Song, X.F.; Gao, L. Electrode material of core-shell hybrid MoS2@C/CNTs with carbon intercalated few-layer MoS2 nanosheets. Mater. Today Energy 2020, 16, 100379. [Google Scholar] [CrossRef]
  52. Jiang, Y.; Guo, Y.; Lu, W.; Feng, Z.; Xi, B.; Kai, S.; Zhang, J.; Feng, J.; Xiong, S. Rationally incorporated MoS2/SnS2 nanoparticles on graphene sheets for lithium-ion and sodium-ion batteries. ACS Appl. Mater. Interfaces 2017, 9, 27697–27706. [Google Scholar] [CrossRef]
  53. Hong, Z.A.; Hong, W.T.; Wang, B.C.; Cai, Q.; He, X.; Liu, W. STable 1T –2H MoS2 heterostructures for efficient electrocatalytic hydrogen evolution. Chem. Eng. J. 2023, 460, 141858. [Google Scholar] [CrossRef]
  54. Wang, D.Z.; Su, B.Y.; Jiang, Y.; Li, L.; Ng, B.K.; Wu, Z.Z.; Liu, F. Polytype 1T/2H MoS2 heterostructures for efficient photoelectrocatalytic hydrogen evolution. Chem. Eng. J. 2017, 330, 102–108. [Google Scholar] [CrossRef]
  55. Xu, Y.; Qu, J.T.; Li, Y.; Zhu, M.Y.; Liu, Y.; Zheng, R.; Cairney, J.M.; Li, W.X. Bridging metal-ion induced vertical growth of MoS2 and overall fast electron transfer in (C, P)3N4-M (Ni2+, Co2+)-MoS2 electrocatalyst for efficient hydrogen evolution reaction. Sustain. Mater. Techno. 2020, 25, e00172. [Google Scholar] [CrossRef]
  56. Wu, L.Q.; Xu, X.B.; Zhao, Y.Q.; Zhang, K.Y.; Sun, Y.; Wang, T.T.; Wang, Y.Q.; Zhong, W.; Du, Y. Mn doped MoS2/reduced graphene oxide hybrid for enhanced hydrogen evolution. Appl. Surf. Sci. 2017, 425, 470–477. [Google Scholar] [CrossRef]
  57. Anantharaj, S.; Noda, S. How properly are we interpreting the Tafel lines in energy conversion electrocatalysis? Mater. Today Energy 2022, 29, 101123. [Google Scholar] [CrossRef]
  58. Lin, Y.; Pan, Y.; Zhang, J.; Chen, Y.J.; Sun, K.; Liu, Y.; Liu, C. Graphene oxide co-doped with nitrogen and sulfur and decorated with cobalt phosphide nanorods: An efficient hybrid catalyst for electrochemical hydrogen evolution. Electrochim. Acta 2016, 222, 246–256. [Google Scholar] [CrossRef]
  59. Ye, J.B.; Yu, Z.T.; Chen, W.X.; Chen, Q.N.; Xu, S.R.; Liu, R. Facile synthesis of molybdenum disulfide/nitrogen-doped graphene composites for enhanced electrocatalytic hydrogen evolution and electrochemical lithium storage. Carbon 2016, 107, 711–722. [Google Scholar] [CrossRef]
  60. Anantharaj, S.; Ede, S.R.; Karthick, K.; Sam Sankar, S.; Sangeetha, K.; Karthik, P.E.; Kundu, S. Precision and correctness in the evaluation of electrocatalytic water splitting: Revisiting activity parameters with a critical assessment. Energy Environ. Sci. 2018, 11, 744–771. [Google Scholar] [CrossRef]
  61. Feng, J.H.; Zhou, H.; Wang, J.P.; Bian, T.; Shao, J.X.; Yuan, A.H. MoS2 supported on MOF-derived carbon with core-shell structure as efficient electrocatalysts for hydrogen evolution reaction. Int. J. Hydrogen Energy 2018, 43, 20538–20545. [Google Scholar] [CrossRef]
  62. Lin, Z.; Feng, T.; Ma, X.; Liu, G. Fe/Ni bi-metallic organic framework supported 1T/2H MoS2 heterostructures as efficient bifunctional electrocatalysts for hydrogen and oxygen evolution. Fuel 2023, 339, 127395. [Google Scholar] [CrossRef]
  63. Ambrosi, A.; Pumera, M. Templated electrochemical fabrication of hollow molybdenum sulfide microstructures and nanostructures with catalytic properties for hydrogen production. ACS Catal. 2016, 6, 3985–3993. [Google Scholar] [CrossRef]
  64. Zhao, M.; Ma, X.; Yan, S.; Xiao, H.; Li, Y.; Hu, T.; Zheng, Z.; Jia, J.; Wu, H. Solvothermal synthesis of oxygen-incorporated MoS2-x nanosheets with abundant undercoordinated Mo for efficient hydrogen evolution. Int. J. Hydrogen Energy 2020, 45, 19133–19143. [Google Scholar] [CrossRef]
  65. Kang, H.; Youn, J.S.; Oh, I.; Manavalan, K.; Jeon, K.J. Controllable atomic-ratio of CVD-grown MoS2-MoO2 hybrid catalyst by soft annealing for enhancing hydrogen evolution reaction. Int. J. Hydrogen Energy 2020, 45, 1399–1408. [Google Scholar] [CrossRef]
  66. Wu, C.L.; Huang, P.C.; Brahma, S.; Huang, J.L.; Wang, S.C. MoS2-MoO2 composite electrocatalysts by hot-injection method for hydrogen evolution reaction. Ceram. Int. 2017, 43, S621–S627. [Google Scholar] [CrossRef]
  67. Wang, H.B.; Zhu, H.; Sun, Y.S.; Ma, F.; Chen, Y.Z.; Zeng, D.J.; Zhou, L.; Ma, D.Y. Ultra-thin pine tree-like MoS2 nanosheets with maximally exposed active edges terminated at side surfaces on stainless steel fiber felt for hydrogen evolution reaction. J. Alloys Compd. 2021, 876, 160163. [Google Scholar] [CrossRef]
  68. Cao, K.; Sun, S.; Song, A.; Ba, J.; Lin, H.; Yu, X.; Xu, C.; Jin, B.; Huang, J.; Fan, D. Increased 1T-MoS2 in MoS2@CoS2/G composite for high-efficiency hydrogen evolution reaction. J. Alloys Compd. 2022, 907, 164539. [Google Scholar] [CrossRef]
Materials 16 04627 g001
Figure 1. (a–c) SEM images and contact angle of polished graphite substrate; (d–f) SEM images and contact angle of acid-corroded graphite substrate.
Figure 1. (a–c) SEM images and contact angle of polished graphite substrate; (d–f) SEM images and contact angle of acid-corroded graphite substrate.
Materials 16 04627 g001
Materials 16 04627 g002

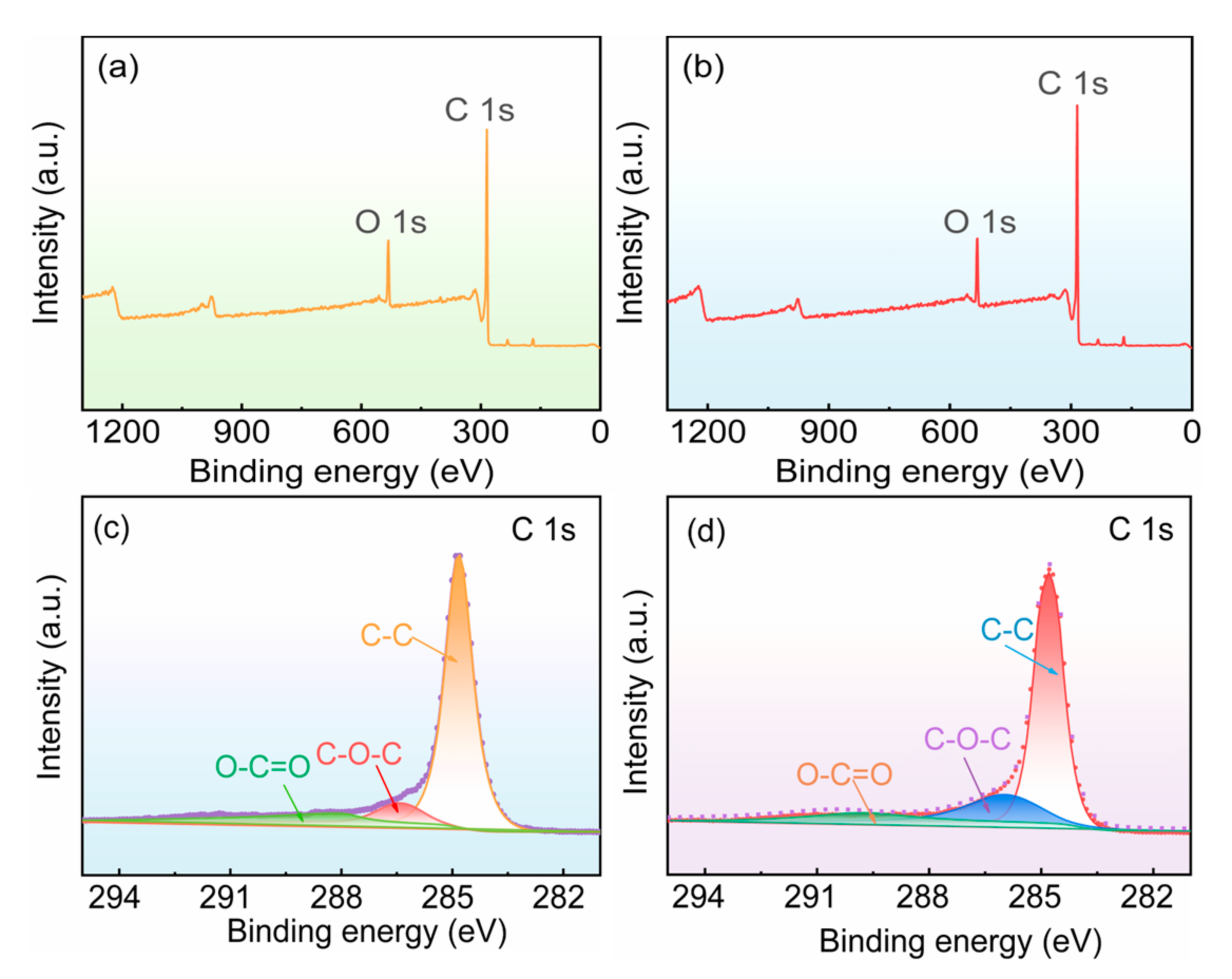

Figure 2. XPS spectra of polished graphite substrate and acid-corroded graphite substrate: (a,b) total spectra; (c,d) C1s spectra.
Figure 2. XPS spectra of polished graphite substrate and acid-corroded graphite substrate: (a,b) total spectra; (c,d) C1s spectra.
Materials 16 04627 g002
Materials 16 04627 g003

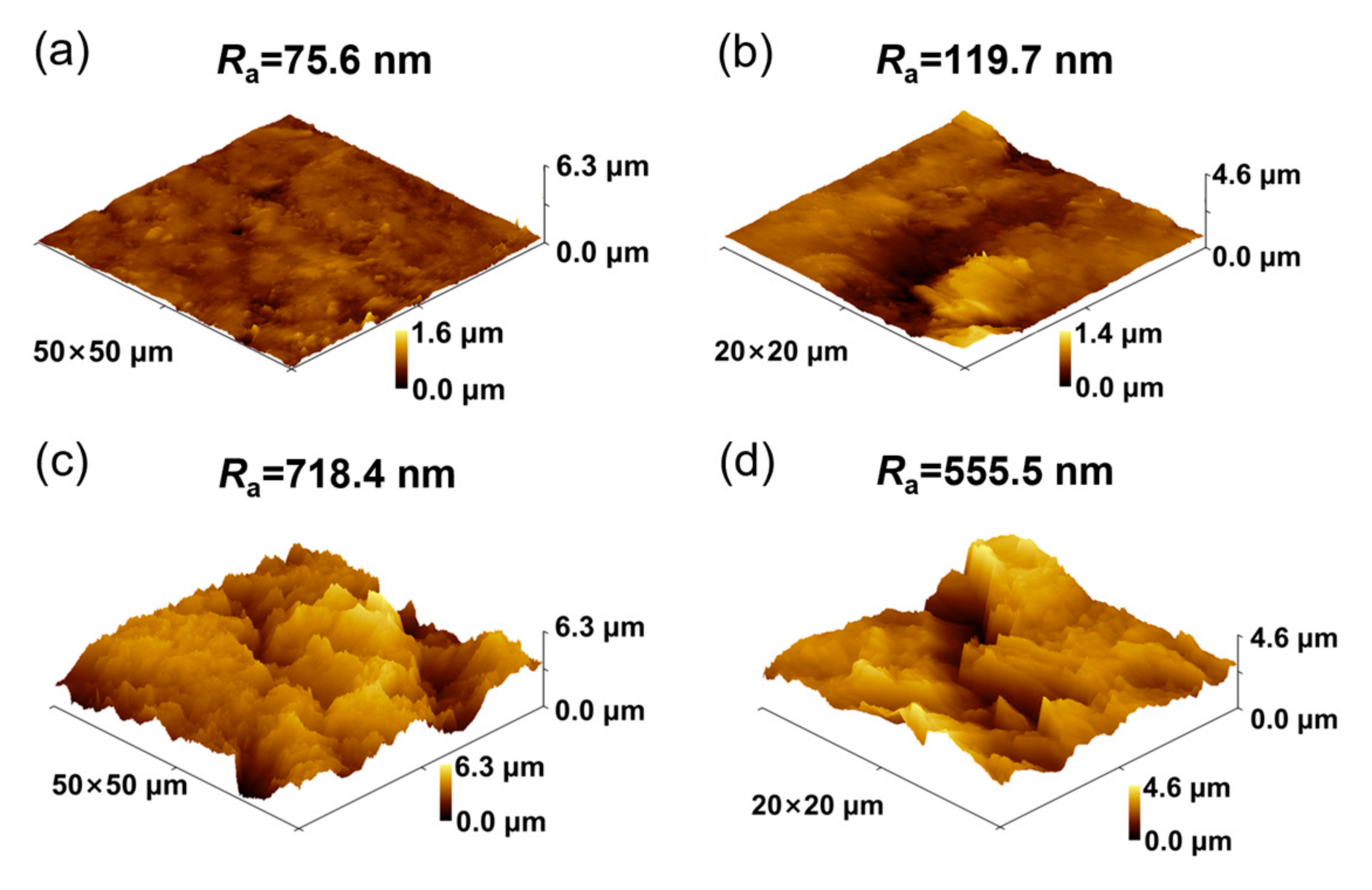

Figure 3. (a,b) AFM images of polished graphite substrate; (c,d) AFM images of acid-corroded graphite substrate.
Figure 3. (a,b) AFM images of polished graphite substrate; (c,d) AFM images of acid-corroded graphite substrate.
Materials 16 04627 g003
Materials 16 04627 g004
Figure 4. SEM images of prepared MoS2@Gr electrodes: (a) MoS2@Gr-0.05; (b) MoS2@Gr-0.10; (c) MoS2@Gr-0.15.
Figure 4. SEM images of prepared MoS2@Gr electrodes: (a) MoS2@Gr-0.05; (b) MoS2@Gr-0.10; (c) MoS2@Gr-0.15.
Materials 16 04627 g004
Materials 16 04627 g005

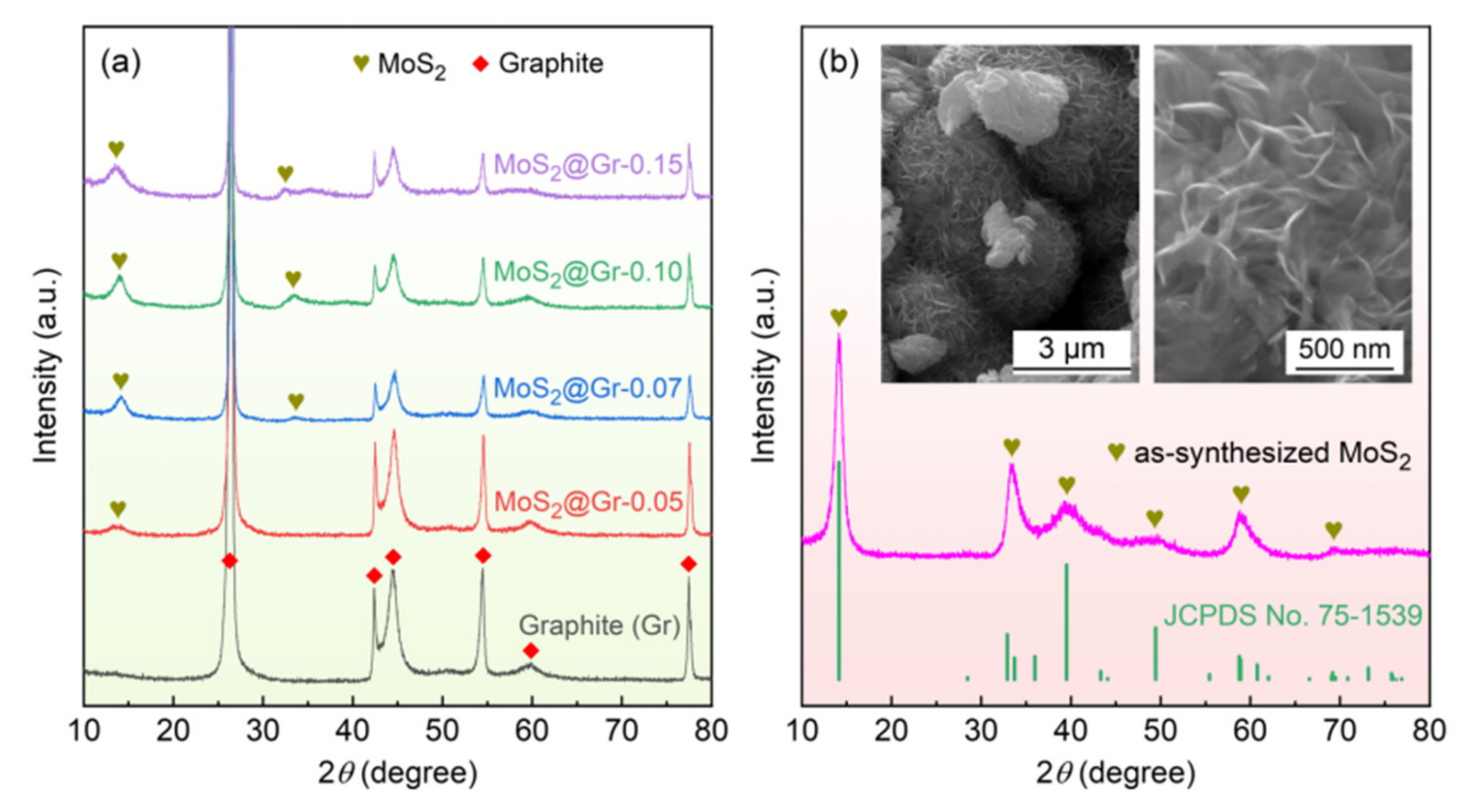

Figure 5. XRD patterns of prepared samples: (a) graphite substrate and MoS2@Gr electrodes; (b) as-synthesized pure MoS2 powders.
Figure 5. XRD patterns of prepared samples: (a) graphite substrate and MoS2@Gr electrodes; (b) as-synthesized pure MoS2 powders.
Materials 16 04627 g005
Materials 16 04627 g006

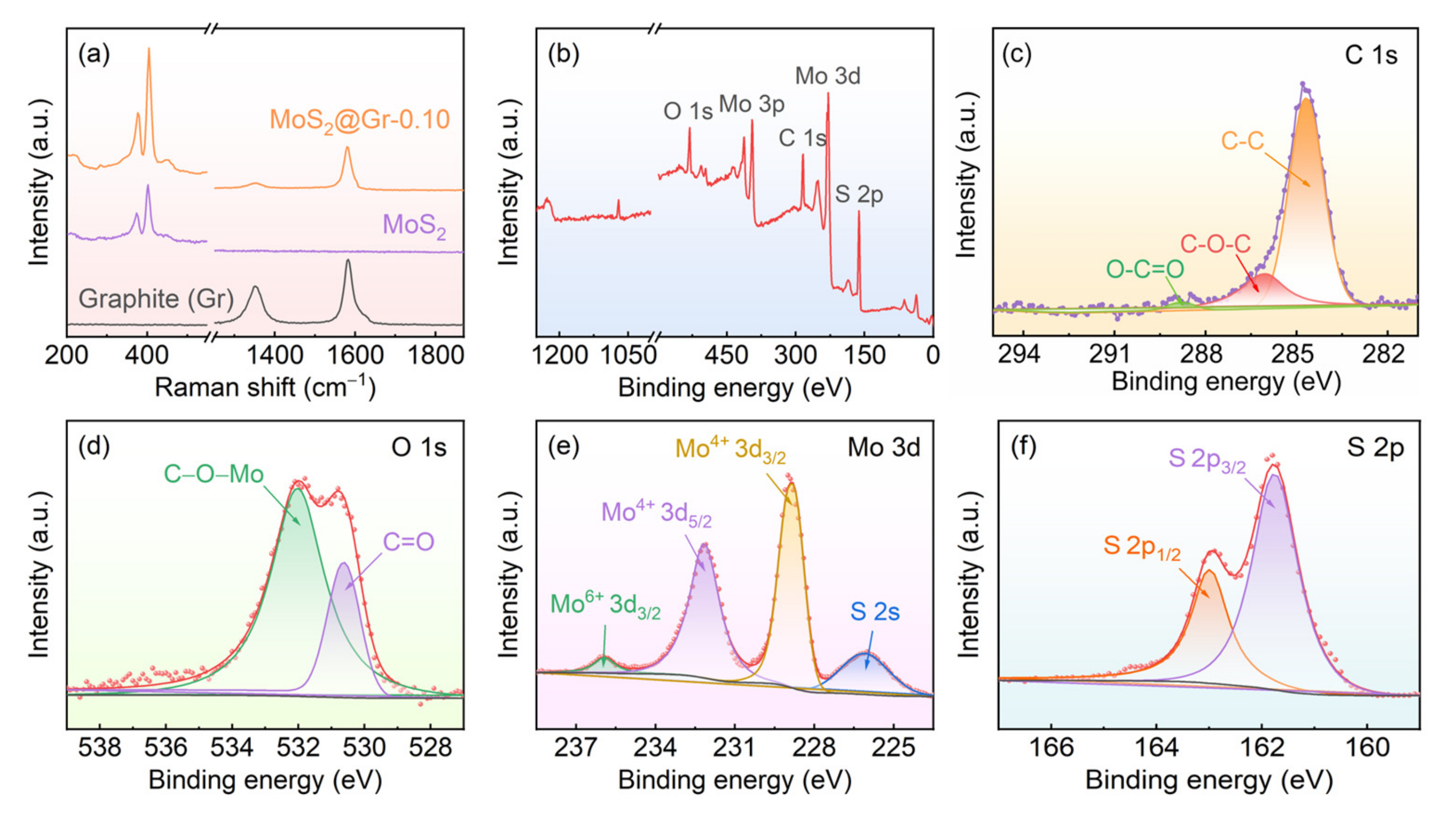

Figure 6. (a) Raman spectra of graphite substrate, MoS2, and MoS2@Gr-0.10 sample; (b–f) XPS spectra of MoS2@Gr-0.10.
Figure 6. (a) Raman spectra of graphite substrate, MoS2, and MoS2@Gr-0.10 sample; (b–f) XPS spectra of MoS2@Gr-0.10.
Materials 16 04627 g006
Materials 16 04627 g007

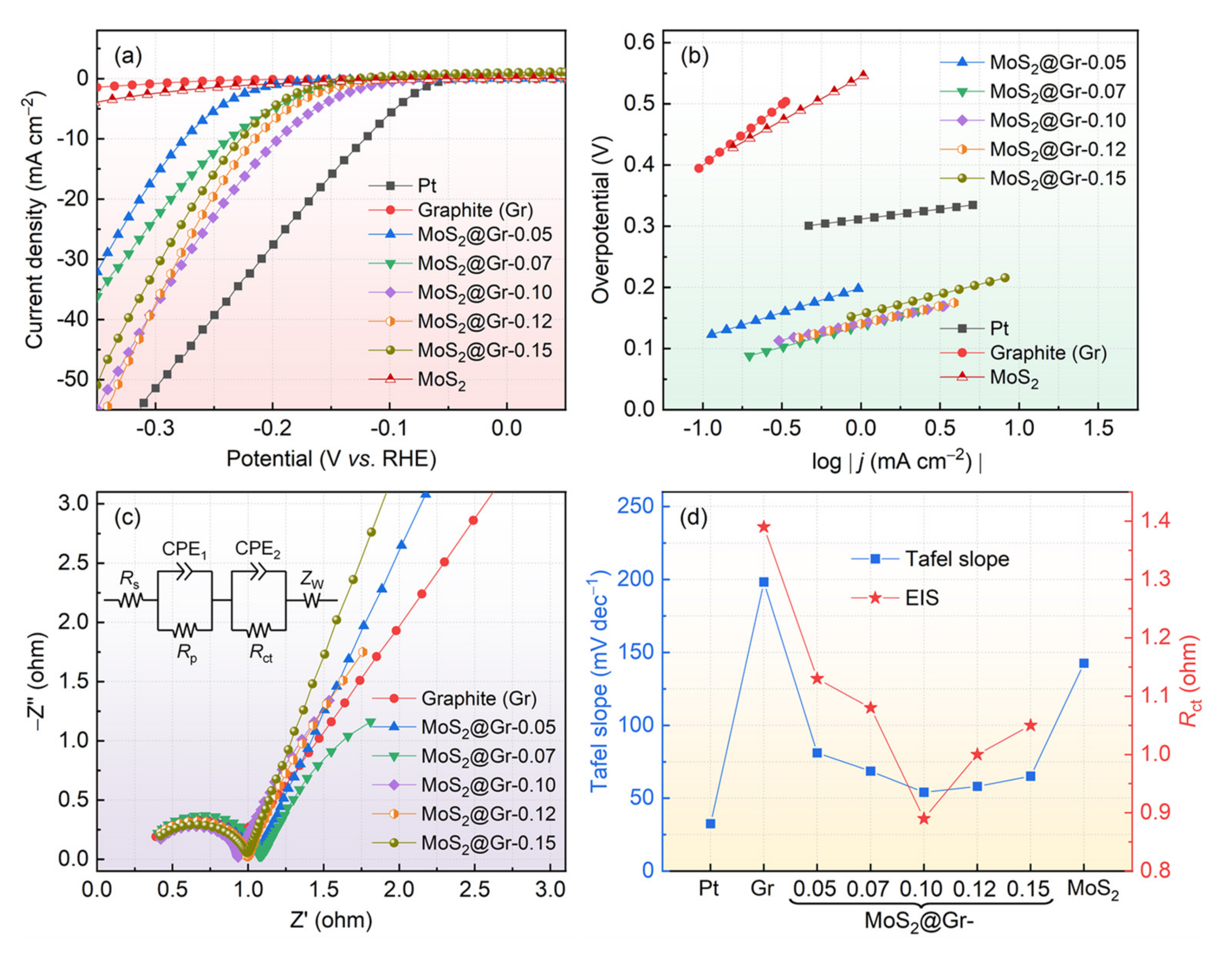

Figure 7. (a) Polarization curves of Pt and MoS2@Gr samples; (b) Tafel slops of Pt and MoS2@Gr samples; (c) Nyquist curve of MoS2@Gr samples; (d) comparison of Tafel slopes and Rct.
Figure 7. (a) Polarization curves of Pt and MoS2@Gr samples; (b) Tafel slops of Pt and MoS2@Gr samples; (c) Nyquist curve of MoS2@Gr samples; (d) comparison of Tafel slopes and Rct.
Materials 16 04627 g007
Materials 16 04627 g008
Figure 8. (a–f) CV curves of the samples at different scan rates; (g) linear fitting curve of current density and scanning rate; (h) comparison of Cdl values.
Figure 8. (a–f) CV curves of the samples at different scan rates; (g) linear fitting curve of current density and scanning rate; (h) comparison of Cdl values.
Materials 16 04627 g008
Materials 16 04627 g009

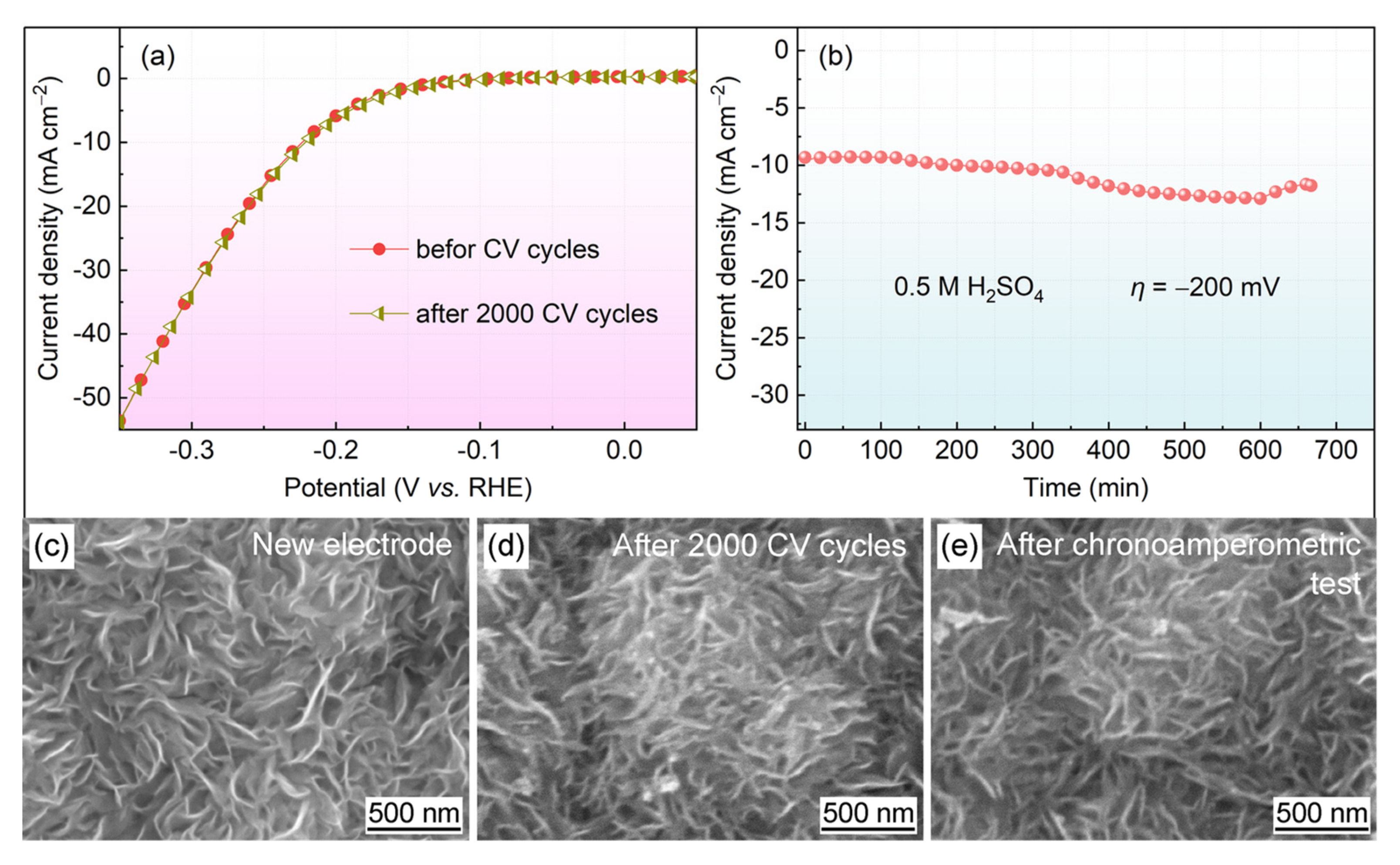

Figure 9. (a) Polarization curves of the MoS2@Gr-0.10 electrode before and after 2000 CV cycles; (b) chronoamperometric curve of the MoS2@Gr-0.10 electrode; (c–e) SEM images of the MoS2@Gr-0.10 electrode.
Figure 9. (a) Polarization curves of the MoS2@Gr-0.10 electrode before and after 2000 CV cycles; (b) chronoamperometric curve of the MoS2@Gr-0.10 electrode; (c–e) SEM images of the MoS2@Gr-0.10 electrode.
Materials 16 04627 g009
Table 1. Area percentages of peaks in the C1s spectra of polished and acid-corroded graphite substrates.
Table 1. Area percentages of peaks in the C1s spectra of polished and acid-corroded graphite substrates.
SampleArea Percentage (%)
C-CC-O-CO-C=O
Polished graphite substrate82.249.338.43
Acid-corroded graphite substrate69.0421.589.38
Table 2. Comparison of differences between MoS2@Gr electrode and previous MoS2 electrode preparation methods.
Table 2. Comparison of differences between MoS2@Gr electrode and previous MoS2 electrode preparation methods.
CatalystSynthesis ApproachNafionη10 (mV vs. RHE)Tafel (mV·dec−1)Ref.
MoS2@Fe/Ni-MOF600HydrothermalYes214170.7[62]
GC/MoS2 filmElectrodepositionNo20248[63]
MoS2−xSolvothermalYes19167[64]
MoS2-MoO2CVDNo19866.8[65]
MoS2-MoO2Hot-injection methodYes210129[66]
MoS2/SSFHydrothermalNo15155.7[67]
MoS2/GSulfurization treatmentYes20859[68]
MoS2/GrHydrothermalNo19654.1This work
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhao, Y.; Zhang, M.; Zhao, H.; Zeng, Z.; Xia, C.; Yang, T. In Situ Growth of Nano-MoS2 on Graphite Substrates as Catalysts for Hydrogen Evolution Reaction. Materials 2023, 16, 4627. https://doi.org/10.3390/ma16134627

AMA Style

Zhao Y, Zhang M, Zhao H, Zeng Z, Xia C, Yang T. In Situ Growth of Nano-MoS2 on Graphite Substrates as Catalysts for Hydrogen Evolution Reaction. Materials. 2023; 16(13):4627. https://doi.org/10.3390/ma16134627

Chicago/Turabian Style

Zhao, Yifan, Mingyang Zhang, Huimin Zhao, Zhiqiang Zeng, Chaoqun Xia, and Tai Yang. 2023. "In Situ Growth of Nano-MoS2 on Graphite Substrates as Catalysts for Hydrogen Evolution Reaction" Materials 16, no. 13: 4627. https://doi.org/10.3390/ma16134627

APA Style

Zhao, Y., Zhang, M., Zhao, H., Zeng, Z., Xia, C., & Yang, T. (2023). In Situ Growth of Nano-MoS2 on Graphite Substrates as Catalysts for Hydrogen Evolution Reaction. Materials, 16(13), 4627. https://doi.org/10.3390/ma16134627

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
