Search Results (10)

Micro-electrical discharge machining is valuable in industry thanks to its ability to realise precise micro-holes with high aspect ratios. However, a limitation of the technology is represented by its low material removal rate compared to other material removal technologies. Therefore, different strategies are under investigation to make the process faster. One of these strategies consists of adding powders into the dielectric. This process is called powder-mixed electrical discharge machining (PMEDM). This paper focusses on the optimisation of different aspects of this process, particularly the effects of the powder concentration, the presence of the surfactant, the stirring of the dielectric during the machining and the stability in time of the dielectric in micro-drilling. Graphite was used as powder in pure water, and in some tests a dispersant was also added. The concentration of the powder was varied, maintaining the same ratio between the graphite and the surfactant. The optimal graphite concentration was also used without the dispersant but with a changed parameter for the stirring system. The powder-mixed dielectrics showed better removal performance than pure water, and the best graphite concentration was the highest. The material removal rate increased by 40–150% compared to pure water. The tests made without dispersant showed that its presence did not improve the machining rate, while the stirring system deeply affected the process. The electrode wear benefitted from the reduction in machining time, and when the dispersant was used, electrode wear was lowered up to 50% compared to pure water. The trend of the electrode law of motion was affected by the concentration of the contaminant (debris from the erosion and powder). The geometrical characteristics were also affected by the presence of the powder, which changed the spark length. With the highest graphite concentration, radial overcut increased up to 50% compared to pure water. The stability in time of the dielectric when the powder was added was also evaluated and it was found that an efficient stirring system without the use of dispersant is a good solution, able to limit the possible sedimentation and aggregation of the powder. Full article

The powder-mixed electro-discharge machining (PM-EDM) technique has shown its advantages in forming surfaces and depositing elements on the machined surface. Moreover, using hydroxyapatite (HA) powder in PM-EDM enhances the biocompatibility of the implant’s surfaces. Ti-6Al-4V alloy has tremendous advantages in biocompatibility over other metallic biomaterials in bone replacement surgeries. However, the increasing demand for orthopedical implants is leading to a more significant number of implant surgeries, increasing the number of patients with failed implants. A significant portion of implant failures are due to bacterial inflammation. Despite that, there is a lack of current research investigating the antibacterial properties of Ti-6Al-4V alloys. This paper focuses on studying the performance of HA PMEDM on Ti-6Al-4V alloy and its effects on antibacterial properties. By changing the capacitance (1 nF, 10 nF and 100 nF), gap voltage (90 V, 100 V and 110 V) and HA powder concentration (0 g/L, 5 g/L and 10 g/L), machining performance metrics such as material removal rate (MRR), overcut, crater size and hardness were examined through the HA PM micro-EDM (PM-μ-EDM) technique. Furthermore, the surface roughness, contact angle, and antibacterial properties of HA PM micro-wire EDM (PM-μ-WEDM)-treated surfaces were evaluated. The antibacterial tests were conducted for Staphylococcus aureus, Pseudomonas aeruginosa, Escherichia coli, and Bacillus subtilis bacteria. The key results showed a correlation between the discharge energy and powder concentration with the antibacterial properties of the modified surfaces. The modified surfaces exhibited reduced biofilm formation under low discharge energy and a 0 g/L powder concentration, resulting in a 0.273 μm roughness. This pattern persisted with high discharge energy and a 10 g/L powder concentration, where the roughness measured 1.832 μm. Therefore, it is possible to optimize the antibacterial properties of the surface through its roughness. Full article

Since the inception of electric discharge machining (EDM), it has facilitated the production industries, for instance, die & mold, automotive, aerospace, etc., by providing an effective solution for machining hard-to-cut materials and intricate geometries. However, achieving high machining rates and a fine surface finish is an inherent issue with the traditional EDM process. The emergence of the powder mixed electric discharge machining (PMEDM) process has not only provided the opportunity for enhancing productivity and surface finish but also opened a window for its potential application in surface modification/coating of biomaterials. The process incorporates simultaneous machining and coating of bioimplants, i.e., lacking in the already available chemical and physical coating methods while requiring costly post-treatment procedures. This study comprehends the influence of powder characteristics and EDM process parameters on the performance parameters. The impact of tool electrodes and additive powders on the machined and coated surface of commonly used biomaterials. Furthermore, the study depicts the most frequently used methods for optimizing the PMEDM process, future research directions, challenges, and research trends over the past decade. Full article

In the present study, the effect of alumina (Al₂O₃) nano-powder was investigated for the electrical discharge machining (EDM) of a Nitinol shape memory alloy (SMA). In addition to the nano-powder concentration, other parameters of pulse-on-time (T_on), pulse-off-time (T_off), and current were selected for the performance measures of the material removal rate (MRR), surface roughness (SR), and tool wear rate (TWR) of Nitinol SMA. The significance of the design variables on all the output measures was analyzed through an analysis of variance (ANOVA). The regression model term has significantly impacted the developed model terms for all the selected measures. In the case of individual variables, Al₂O₃ powder concentration (PC), T_off, and T_on had significantly impacted MRR, TWR, and SR measures, respectively. The influence of EDM variables were studied through main effect plots. The teaching–learning-based optimization (TLBO) technique was implemented to find an optimal parametric setting for attaining the desired levels of all the performance measures. Pursuant to this, the optimal parametric settings of current at 24 A, PC at 4 g/L, T_off at 10 µs, and T_on of 4 µs have shown optimal input parameters of 43.57 mg/min for MRR, 6.478 mg/min for TWR, and 3.73 µm for SR. These results from the TLBO technique were validated by performing the experiments at the optimal parametric settings of the EDM process. By considering the different user and application requirements, 40 Pareto points with unique solutions were generated. Lastly, scanning electron microscopy (SEM) performed the machined surface analysis. The authors consider this to be very beneficial in the nano-powder-mixed EDM process for appropriate manufacturing operations. Full article

Multi-criteria decision making (MCDM) is used to determine the best alternative among various options. It is of great importance as it hugely affects the efficiency of activities in life, management, business, and engineering. This paper presents the results of a multi-criteria decision-making study when using powder-mixed electrical discharge machining (PMEDM) of cylindrically shaped parts in 90CrSi tool steel. In this study, powder concentration, pulse duration, pulse off time, pulse current, and host voltage were selected as the input process parameters. Moreover, the Taguchi method was used for the experimental design. To simultaneously ensure minimum surface roughness (RS) and maximum material-removal speed (MRS) and to implement multi-criteria decision making, MARCOS (Measurement of Alternatives and Ranking according to Compromise Solution), TOPSIS (Technique for Order of Preference by Similarity to Ideal Solution), and MAIRCA (Multi-Attributive Ideal–Real Comparative Analysis) methods were applied. Additionally, the weight calculation for the criteria was calculated using the MEREC (Method based on the Removal Effects of Criteria) method. From the results, the best alternative for the multi-criteria problem with PMEDM cylindrically shaped parts was proposed. Full article

In the current study, an optimization process of powder-mixed electrical discharge machining (PMEDM) process when machining cylindrically shaped parts made of hardened 90CrSi steel is reported. In this study, SiC powder was mixed into the Diel MS 7000 dielectric solution. Additionally, graphite was chosen as the electrode material. The multi-objective functions were minimizing the surface roughness (SR) and electrode wear rate (EWR) and maximizing the material removal rate (MRR). The used input parameters of the optimization process included the powder concentration, the pulse-on time, the pulse-off time, the pulse current, and the servo voltage. A combination between the Taguchi method and the grey relation analysis (GRA) method with the support of Minitab R19 software was used to design the experiment and analyze the results. It was found that the optimal set of process parameters that can satisfy the above responses are Cp of 0.5 g/L, Ton of 8 µs, Toff of 8 µs, IP of 5 A, and SV of 4 V. Full article

Powder mixed electrical discharge machining (PM-EDM) is a technological advancement in electrical discharge machining (EDM) processes where fine powder is added to dielectric to improve the machining rate and surface quality. In this paper, machining of Nimonic-90 was carried out using fabricated PM-EDM, setup by adding silicon powder to kerosene oil. The influence of four input process parameters viz. powder concentration (P_C), discharge current (I_P), spark on duration (S_ON), and spark off duration (S_OFF) has been investigated on surface roughness and recast layer thickness. L9 Taguchi orthogonal and grey relational analysis have been employed for experimental design and multi-response optimization, respectively. With the addition of silicon powder to kerosene oil, a significant decrease in surface roughness and recast layer thickness was noticed, as compared to pure kerosene. Spark on duration was the most significant parameter for both surface roughness and the recast layer thickness. The minimum surface roughness (3.107 µm) and the thinnest recast layer (14.926 μm) were obtained at optimum process parameters i.e., P_C = 12 g/L, I_P = 3 A, S_ON = 35 μs, and S_OFF = 49 μs using grey relational analysis. Full article

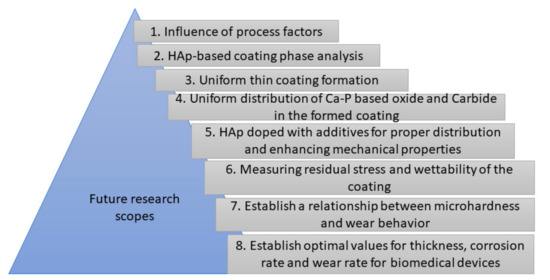

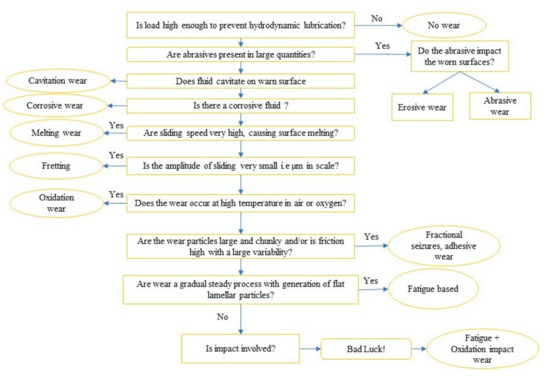

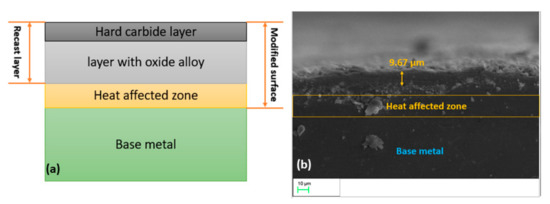

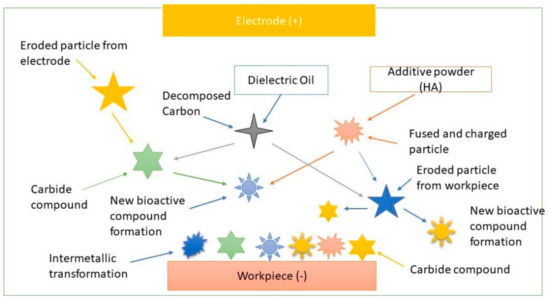

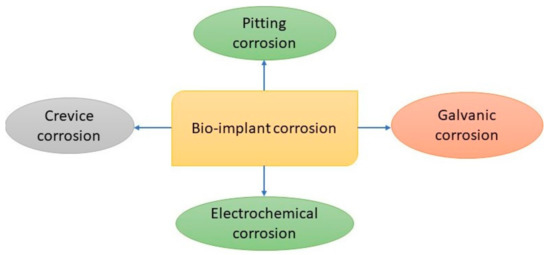

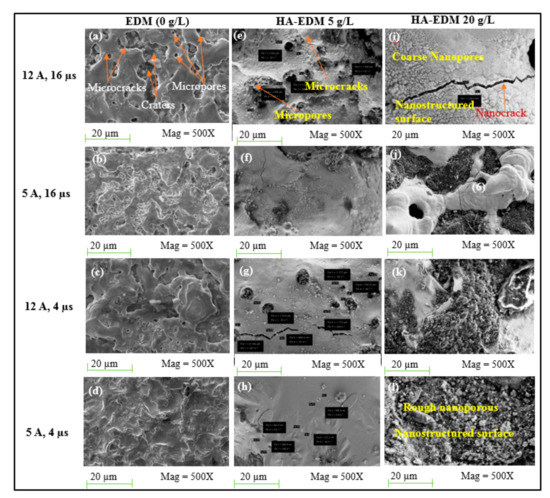

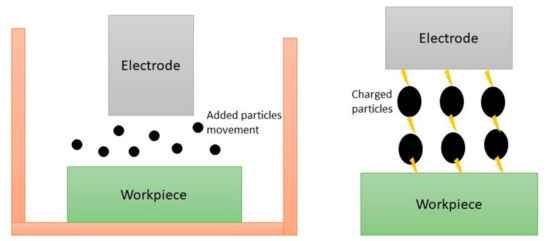

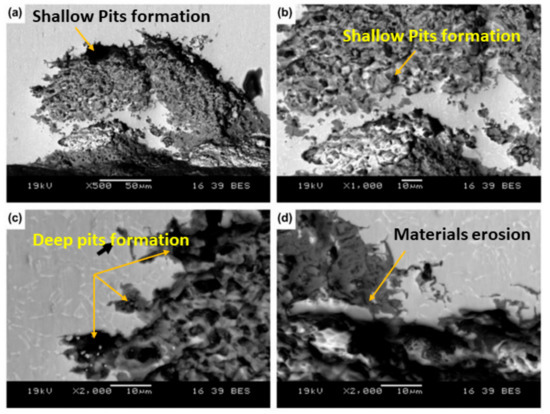

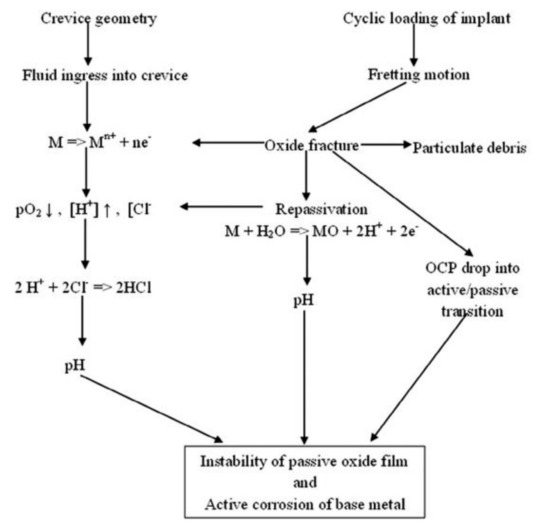

Together, 316L steel, magnesium-alloy, Ni-Ti, titanium-alloy, and cobalt-alloy are commonly employed biomaterials for biomedical applications due to their excellent mechanical characteristics and resistance to corrosion, even though at times they can be incompatible with the body. This is attributed to their poor biofunction, whereby they tend to release contaminants from their attenuated surfaces. Coating of the surface is therefore required to mitigate the release of contaminants. The coating of biomaterials can be achieved through either physical or chemical deposition techniques. However, a newly developed manufacturing process, known as powder mixed-electro discharge machining (PM-EDM), is enabling these biomaterials to be concurrently machined and coated. Thermoelectrical processes allow the migration and removal of the materials from the machined surface caused by melting and chemical reactions during the machining. Hydroxyapatite powder (HAp), yielding Ca, P, and O, is widely used to form biocompatible coatings. The HAp added-EDM process has been reported to significantly improve the coating properties, corrosion, and wear resistance, and biofunctions of biomaterials. This article extensively explores the current development of bio-coatings and the wear and corrosion characteristics of biomaterials through the HAp mixed-EDM process, including the importance of these for biomaterial performance. This review presents a comparative analysis of machined surface properties using the existing deposition methods and the EDM technique employing HAp. The dominance of the process factors over the performance is discussed thoroughly. This study also discusses challenges and areas for future research. Full article

Electrical discharge machining (EDM) is an advanced machining method which removes metal by a series of recurring electrical discharges between an electrode and a conductive workpiece, submerged in a dielectric fluid. Even though EDM techniques are widely used to cut hard materials, low efficiency and high tool wear remain remarkable challenges in this process. Various studies, such as mixing different powders to dielectric fluids, are progressing to improve their efficiency. This paper reviews advances in the powder-mixed EDM process. Furthermore, studies about various powders used for the process and its comparison are carried out. This review looks at the objectives of achieving a more efficient metal removal rate, reduction in tool wear, and improved surface quality of the powder-mixed EDM process. Moreover, this paper helps researchers select suitable powders which are exhibiting better results and identifying different aspects of powder-mixed dielectric fluid of EDM. Full article

As a successful solution applied to electrical discharge machining (EDM), powder-mixed electrical discharge machining (PMEDM) has been proposed as an upgrade of the EDM process. The optimization of the process parameters of PMEDM is essential and pressing. In this study, Taguchi methods and analysis of variance (ANOVA) were used to find the main parameters affecting surface roughness in the EDM process with SiC powder-mixed-dielectric of hardened 90CrSi steel. The PMEDM parameters selected were the powder concentration, the pulse-on-time, the pulse-off-time, the pulse current, and the server voltage. It was found that SiC powder exhibits positive effects on reducing surface roughness. The roughness obtained with the optimum powder concentration of 4 g/L was reduced by 30.02% compared to that when processed by conventional EDM. Furthermore, the pulse-off-time was found to be the most influential factor that gave an important effect on surface roughness followed by the powder concentration. The EDM condition including a powder concentration of 4 g/L, a pulse-on-time of 6 µs, a pulse-off-time of 21 µs, a pulse current of 8 A, and a server voltage of 4 V resulted in the best surface roughness. Full article
