Search Results (13)

This work examines the effect of thermal modification temperature (180, 200, and 220 °C) in comparison with reference (untreated) samples on selected optical properties of six tropical wood species—Sp. cedar (Cedrala odorata), iroko (Chlorophora excelsa), merbau (Intsia spp.), meranti (Shorea spp.), padouk (Pterocarpus soyauxii), and teak (Tectona grandis). The main goal is to expand the existing knowledge in the field of wood thermal modification by understanding the related degradation mechanisms associated with the formation of chromophoric structures and, above all, to focus on the change in the content of extractive substances. For solid wood, the CIELAB color space parameters (L*, a*, b*, and ΔE*), yellowness (Y), ISO brightness, and UV-Vis diffuse reflectance spectra were obtained. Subsequently, these wood samples were extracted into three individual solvents (acetone, ethanol, and ethanol-toluene). The yields of the extracted compounds, their absorption spectra, and again L*, a*, b*, ΔE*, and Yi parameters were determined. With increasing temperatures, the samples lose brightness and darken, while their total color difference grows (except merbau). The highest yield of extractives (mainly phenolic compounds, glycosides, and dyes) from thermally modified samples was usually obtained using ethanol. New types of extractives (e.g., 2-furaldehyde, lactones, formic acid, some monomer derivatives of phenols, etc.) are already created around a temperature of 180 °C and may undergo condensation reactions at higher temperatures. For padouk, merbau, teak, and partially iroko modified at temperatures of 200 and 220 °C, there was a detected similarity in the intensities of their UV-Vis DR spectra at the wavelength regions corresponding to phenolic aldehydes, unsaturated ketones, quinones, stilbenes, and other conjugated carbonyl structures. Overall, a statistical assessment using PCA sorted the samples into five clusters. Cluster 3 consists of almost all samples modified at 200 and 220 °C, and in the other four, the reference and thermally modified samples at 180 °C were distributed. The yellowness of wood (Y) has a very high dependence (r = 0.972) on its brightness (L*) and the yellowness index of the extractives in acetone Yi(Ac), whose relationship was described by the equation Y = −0.0951 × Y(Ac) + 23.3485. Full article

Co-pyrolysis is one possible method to handle different biomass leftovers. The success of the implementation depends on several factors, of which the quality of the produced bio-oil is of the highest importance, together with the throughput and constraints of the feedstock. In this study, the fast co-pyrolysis of palm kernel shell (PKS) and woody biomass was conducted in a micro-pyrolyser connected to a Gas Chromatograph–Mass Spectrometer/Flame Ionisation Detector (GC–MS/FID) at 600 °C and 5 s. Different blend ratios were studied to reveal interactions on the primary products formed from the co-pyrolysis, specifically PKS and two woody biomasses. A comparison of the experimental and predicted yields showed that the co-pyrolysis of the binary blends in equal proportions, PKS with mahogany (MAH) or iroko (IRO) sawdust, resulted in a decrease in the relative yield of the phenols by 19%, while HAA was promoted by 43% for the PKS:IRO-1:1 pyrolysis blend, and the saccharides were strongly inhibited for the PKS:MAH-1:1 pyrolysis blend. However, no difference was observed in the yields for the different groups of compounds when the two woody biomasses (MAH:IRO-1:1) were co-pyrolysed. In contrast to the binary blend, the pyrolysis of the ternary blends showed that the yield of the saccharides was promoted to a large extent, while the acids were inhibited for the PKS:MAH:IRO-1:1:1 pyrolysis blend. However, the relative yield of the saccharides was inhibited to a large extent for the PKS:MAH:IRO-1:2:2 pyrolysis blend, while no major difference was observed in the yields across the different groups of compounds when PKS and the woody biomass were blended in equal amounts and pyrolysed (PKS:MAH:IRO-2:1:1). This study showed evidence of a synergistic interaction when co-pyrolysing different biomasses. It also shows that it is possible to enhance the production of a valuable group of compounds with the right biomass composition and blend ratio. Full article

Heat release rate (HRR) is the principal fire characteristic of materials. There are three known methods for the measurement of HRR (based on oxygen consumption, mass loss rate, and combustion products temperature rise). The method based on oxygen consumption is considered to be the reference. However, this method is expensive and for a large part of laboratories and universities unavailable. The simplest method is based on combustion products’ temperature rise. However, this method has a fundamental problem with the temperature dependence of the heat capacity of combustion products and the thermal inertia of the measurement system. This problem has been solved by training neural networks to predict molar heat capacity and the amount of substance (chemical amount) flow rate of combustion products in the cone calorimeter exhaust duct. Data were obtained for six different wood species: birch (Betula verrucosa Ehrh.), oak (Quercus robur L.) spruce (Picea abies (L.) H. Karst.), locust (Robinia pseudoacacia L.), poplar (Populus nigra × P. maximowiczii L.), and willow (Salix alba L.) woods at heat fluxes from 25 to 50 kW m⁻² have been used for neural network training. Data from three other wood species iroko (Milicia excelsa (Welw.) C.C. Berg), pine (Pinus sylvestris L.), and paulownia (Paulownia tomentosa (Thunb.) Steud.) woods have been used for testing of trained neural network. The average percentage ratio of the predicted to the true value of HRR (during the test) has been 103.8%. In addition to that, some key average fire characteristics of wood have been determined: critical heat flux 20.7 kW m⁻², effective heat of combustion 14.01 MJ kg⁻¹, and the average value of molar heat capacity of combustion products 0.045 kJ mol⁻¹ K⁻¹. Full article

A high load of inorganics in raw lignocellulosic biomass is known to inhibit the yield of bio-oil and alter the chemical reactions during fast pyrolysis of biomass. In this study, palm kernel shell (PKS), an agricultural residue from palm oil production, and two other woody biomass samples (mahogany (MAH) sawdust and iroko (IRO) sawdust) were pretreated with distilled water or an acidic solution (either acetic, formic, hydrochloric (HCl) or sulfuric acid (H₂SO₄)) before fast pyrolysis in order to investigate its effect on the primary products and pyrolysis reaction pathways. The raw and pretreated PKS, MAH and IRO were pyrolysed at 600 °C and 5 s with a micro-pyrolyser connected to a gas chromatograph–mass spectrometer/flame ionisation detector (GC-MS/FID). Of the leaching solutions, HCl was the most effective in removing inorganics from the biomass and enhancing the primary pyrolysis product formed compared to the organic acids (acetic and formic acid). The production of levoglucosan was greatly improved for all pretreated biomasses when compared to the original biomass but especially after HCl pretreatment. Additionally, the relative content of the saccharides was maximised after pretreatment with H₂SO_4, which was due to the increased production of levoglucosenone. The relative content of the saccharides increased by over 70%. This increase may have occurred due to a possible reaction catalysed by the remaining acid in the biomass. The production of furans, especially furfural, was increased for all pretreatments but most noticeable when H₂SO₄ was used. However, the relative content of acids and ketones was generally reduced for PKS, MAH and IRO across all leaching solutions. The relative content of the phenol-type compound decreased to a large extent during pyrolysis after acid pretreatment, which may be attributed to dehydration and demethoxylation reactions. This study shows that the production of valuable chemicals could be promoted by pretreatment with different acid solutions. Full article

The purpose of the study was to measure the Brinell hardness (HB) of six wood species and evaluate the ability to recover the depth of the imprint (self-re-deformation). Straight-grain clear samples of ash, beech, alder, birch, iroko, and linden wood were prepared. Measurements were made in the three main reference timber cross-sections: radial (R), tangential (T), and axial/longitudinal (L) and with two measuring loads of 30 kG and 100 kG (294.2 N and 980.7 N). The tested wood species could be classified into hard (ash, beech), medium-hard (alder, birch, iroko), and soft (linden) wood species. The HBs of each tested wood species differed in the cross-sections, i.e., side hardness (R, T) and end hardness (L). Higher HB values were obtained at 100 kG load in all species and all three cross-sections. The lowest influence of the measurement force value on the HB value was revealed for the soft wood species (linden: 107–118%). This influence was visible for the other five medium-hard and hard wood species, ranging from 125% to 176%. The percentage of temporary imprint in total imprint depth (x/H) varied from 12 to 33% (linden 12–18%—the lowest self-re-deformation ability; beech 25–33%—the highest self-re-deformation ability). The results of this study underline that the higher the density of the wood, the higher the Brinell hardness, and, simultaneously, the greater the measurement force used, the higher the Brinell hardness measured. The ability of self-re-deformation in wood’s R and T cross-sections depends on the wood density and the measuring force used. In contrast, this ability only depends on the wood density in the L cross-section. Those observations imply that the compaction of the cell structure during side compression is mainly non-destructive, while the longitudinal deformation of the cell structure (the buckling of cell walls and fracture of ends of the cells) is to a great degree destructive and irreversible. These results can be used in the construction and furniture sectors, especially when designing products and planning the woodworking of highly loaded wood floors and furniture elements. Full article

The aim of the study was to determine the selected surface and physical properties of iroko (Milicia excelsa (Welw.) C.C. Berg) and tauari (Couratari spp.) wood after thermo-mechanical treatment (TMT) in relation to extractive content. During TMT, no chemicals are introduced into the wood, which distinguishes this method from a number of wood modification methods. The iroko and tauari wood were subjected to volumetric densification in a hydraulic press. The wood was densified in a radial direction at a temperature of 100 and 150 °C. The wood color parameters were measured using the mathematical CIE L*a*b* and L*C*h color space models. The roughness parameters of Ra and Rz parallel and perpendicular to the grain were investigated. The contact angle (CA) of the wood with distilled water was determined based on the sessile drop method. The equilibrium moisture content (EMC) and dimensional changes of the wood were determined for a climate with a temperature of 20 °C and a relative humidity (RH) of 9%, 34%, 55%, 75% and 98%. The tauari wood was less prone to color changes under the influence of TMT than the iroko wood. After densification, the iroko and tauari wood displayed a different character of roughness changes. The iroko wood featured the lowest level of roughness after TMT at 100 °C, and the tauari wood after TMT at 150 °C. The densified iroko and tauari wood were characterized by weaker dynamics in the changes in their respective contact angles than the non-densified wood. The higher the temperature of the TMT, the lower the EMC of the wood. Higher EMC values were observed for the tauari wood than for the iroko wood. This was due to the lower content of chloroform-ethanol extractives. Similar dependencies were obtained in the case of hot water extractives. The thermo-mechanically treated wood displayed a greater tendency towards dimensional changes in a climate with high relative air humidity, i.e., above 70%, compared to the non-modified wood. Full article

Despite their favorable physical and mechanical properties for structural use, tropical woods, such as Iroko (Milicia excelsa), present knowledge gaps to be filled mainly about their mechanical characterization, which currently limit their use or result in under- or overdimensioned structural elements. Visual classification, one of the most used methods for characterizing wood, is inaccurate in the case of Iroko due to the wide variety of geographical locations in which this species can be found. In addition, mechanical characterization using test pieces with structural dimensions leads to high and impractical costs. In this context, this study aims to verify the mechanical properties of Iroko (imported from the Republic of the Congo) from small size specimens, a process that is currently standardized only for softwoods, and to verify the correlation of different properties through bending properties and ultrasound tests. Prior to the bending tests, the speed of propagation of ultrasonic waves was measured using the direct method. The results obtained show a good correlation between density and bending properties and the velocity of propagation of ultrasonic waves. Full article

The bonding of wood with assembly adhesives is crucial for manufacturing wood composites, such as solid wood panels, glulam, furniture parts, and sport and musical instruments. This work investigates 13 hardwoods—bangkirai, beech, black locust, bubinga, ipé, iroko, maçaranduba, meranti, oak, palisander, sapelli, wengé and zebrano—and analyzes the impact of their selected structural and physical characteristics (e.g., the density, cold water extract, pH value, roughness, and wettability) on the adhesion strength with the polyvinyl acetate (PVAc) adhesive Multibond SK8. The adhesion strength of the bonded hardwoods, determined by the standard EN 205, ranged in the dry state from 9.5 MPa to 17.2 MPa, from 0.6 MPa to 2.6 MPa in the wet state, and from 8.5 MPa to 19.2 MPa in the reconditioned state. The adhesion strength in the dry state of the bonded hardwoods was not influenced by their cold water extracts, pH values, or roughness parallel with the grain. On the contrary, the adhesion strength was significantly with positive tendency influenced by their higher densities, lower roughness parameters perpendicular to the grain, and lower water contact angles. Full article

We hypothesize that the ability to recovery the depth of the indentation increases with increasing the hardness of the flooring material. The research was carried out for ten lignocellulosic flooring materials: merbau, oak, maple, red oak, laminated HDF (high-density fiberboard), innovative plywood, beech, pine, peasantry, iroko. The hardness was examined using the Brinell method, and additionally, the elastic indentation of the indenter was measured during the hardness test. On this basis, the permanent (plastic) and temporary (elastic) component of total deformation was determined. Different ability to recovery was found. The harder materials were the higher percentage of elastic indentation in total indentation depth. Moreover, it was found that the measurement of the indentation diameter in wood materials is characterized by high uncertainty and measurements based on the depth of the indentation are more unambiguous and of greater practical importance, especially when testing hard lignocellulosic flooring materials. Full article

Thermal modification is an environmentally friendly method to improve dimensional stability, durability, and aesthetic properties of wood. Changes in lignin as one of the main wood components markedly influence wood product properties and recycling possibilities of thermowood at the end of its life cycle. Teak and iroko wood samples were thermally treated at the temperatures of 160 °C, 180 °C and 210 °C following the Thermowood process. Dioxane lignin was isolated from treated and untreated wood and analysed by nitrobenzene oxidation (NBO), size exclusion chromatography (SEC) and Fourier transform infrared spectroscopy (FTIR). The yields of both acid-insoluble and dioxane lignins increased with an increasing treatment temperature. Dioxane lignins are GS-types containing more guaiacyl units compared to syringyl ones with S/G ratios of 0.91 and 0.84, respectively. In the process of thermal modification, several degradation and condensation reactions were observed. The cleavage of methoxyl groups and side chains, oxidation reactions, cleavage of the β-O-4 ether linkage and cross-linking radicals arising at higher temperatures were all confirmed. However, during the thermal treatment, teak lignin changed in a different way than iroko lignin, e.g., the molecular weight of iroko lignin decreased at all applied temperatures while it increased at 180 °C and 210 °C in teak lignin, and the change in S/G ratio and the cleavage of alkyl-aryl bonds are different in both wood species. Full article

Interesting aesthetic properties of tropical woods, like surface texture and colour, are rarely impaired due to weathering, rotting and other degradation processes. This study analyses the colour of 21 tropical woods before and after six weeks of intentional attack by the brown-rot fungus Coniophora puteana. The CIEL^*a^*b^* colour system was applied for measuring the lightness, redness and yellowness, and from these parameters the hue tone angle and colour saturation were calculated. Lighter tropical woods tended to appear a less red and a more yellow, and had a greater hue tone angle. However, for the original woods was not found dependence between the lightness and colour saturation. Tropical woods at attack by C. puteana lost a weight from 0.08% to 6.48%. The lightest and moderately light species—like okoumé, iroko, ovengol and sapelli—significantly darkened, while the darkest species—wengé and ipé—significantly lightened. The majority of tropical woods obtained a brighter shade of yellow, typically wengé, okoumé and blue gum, while some of them also a brighter shade of green, typically sapelli, padouk and macaranduba. C. puteana specifically affected the hue tone angle and colour saturation of tested tropical woods, but without an apparent changing the tendency of these colour parameters to lightness. The total colour difference of tested tropical woods significantly increased in connection with changes of their lightness (ΔE^*_ab = 5.92 − 0.50·ΔL^*; R² = 0.37), but it was not influenced by the red and yellow tint changes, and weight losses. Full article

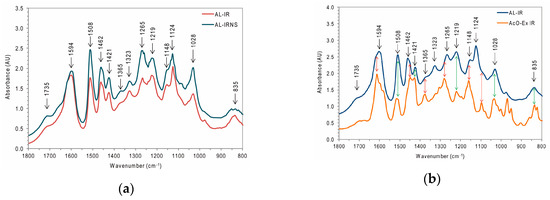

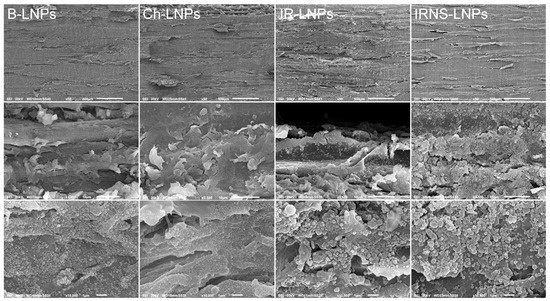

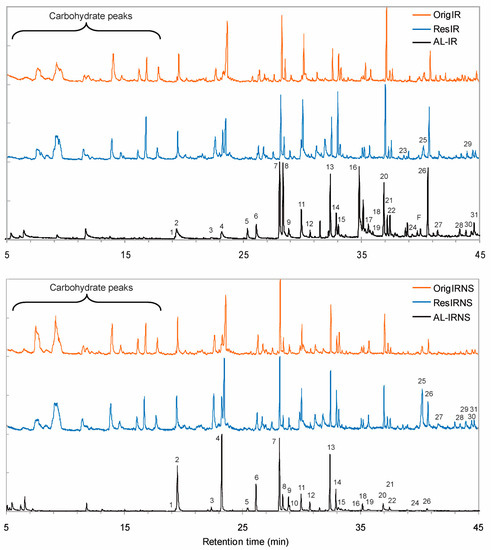

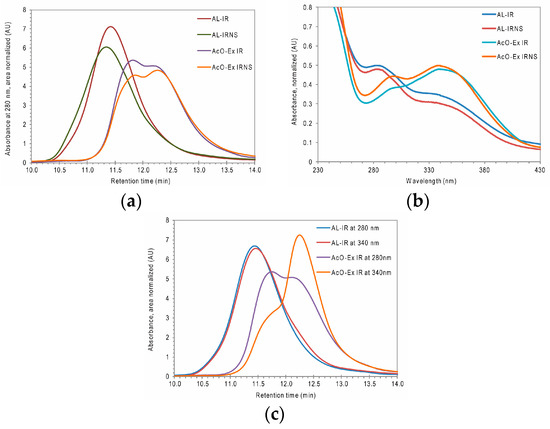

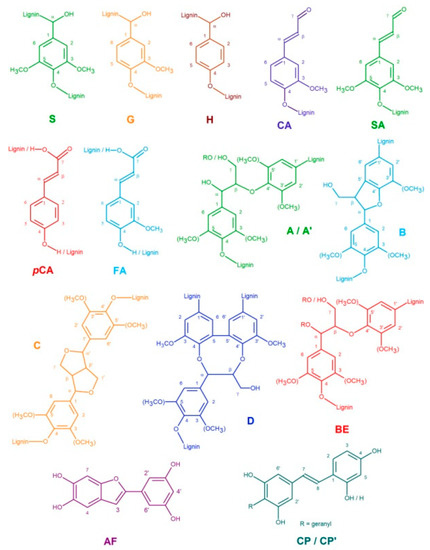

Lignin was isolated from wood wastes comprising Iroko sawdust (IR) and mixed sawdust from Iroko and Norway spruce (IRNS), furnished by a local wood houses producer. The respective acidolysis lignin fractions were structurally characterized using pyrolysis (Py)-GCMS, two-dimensional heteronuclear single quantum correlation nuclear magnetic resonance (2D HSQC NMR), Fourier-transform infrared FTIR and ultraviolet-visible (UV-VIS) spectroscopies, size exclusion chromatography, and standard wet-chemistry methods for Klason lignin and polysaccharides determination. The isolated lignin fractions were subsequently used for the preparation of lignin nanoparticles (LNPs) using a non-solvent method. LNPs were then used for wood surface treatment using a dip-coating technique. The coated wood samples were analyzed by colorimetry and scanning electron microscopy (SEM) before and after artificial weathering experiments in a UV chamber to investigate the UV protection potential of the LNPs coatings. Wood samples dip-coated with LNPs showed promising surface modifications resembling a sort of film of fused LNPs. Coatings made from IR-LNPs and IRNS-LNPs performed significantly better in artificial weathering experiments than uncoated reference samples. Full article

To develop silvicultural guidelines for high-value timber species of Central African moist forests, we assessed the performance of the pioneer Milicia excelsa (iroko, Moraceae), and of the non-pioneer light demander Pericopsis elata (assamela, Fabaceae) in logging gaps and in plantations in highly degraded areas in south-eastern Cameroon. The survival and size of each seedling was regularly monitored in the silvicultural experiments. Differences in performance and allometry were tested between species in logging gaps and in plantations. The two species performance in logging gaps was significantly different from plantations and concurred with the expectations of the performance trade-off hypothesis but not with the expectations of species light requirements. The pioneer M. excelsa survived significantly better in logging gaps while the non-pioneer P. elata grew significantly faster in plantations. The high mortality and slow growth of M. excelsa in plantations is surprising for a pioneer species but could be explained by herbivory (attacks from a gall-making psyllid). Identifying high-value native timber species (i) with good performance in plantations such as P. elata is of importance to restore degraded areas; and (ii) with good performance in logging gaps such as M. excelsa is of importance to maintain timber resources and biodiversity in production forests. Full article
