Search Results (6)

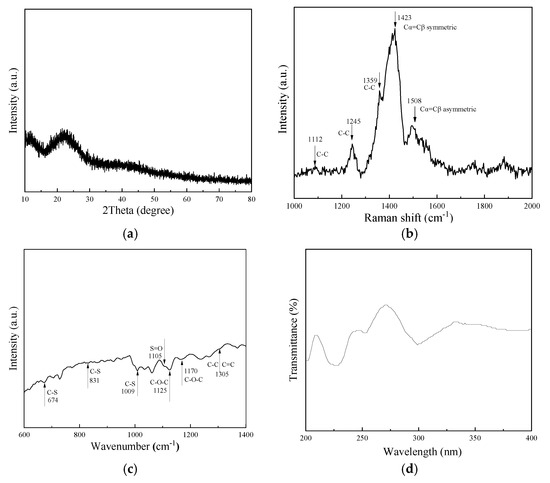

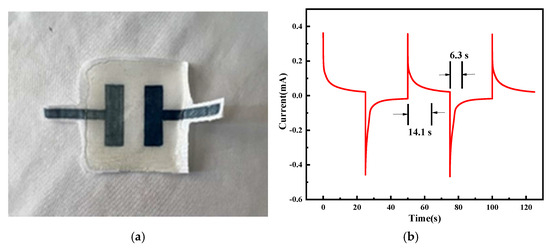

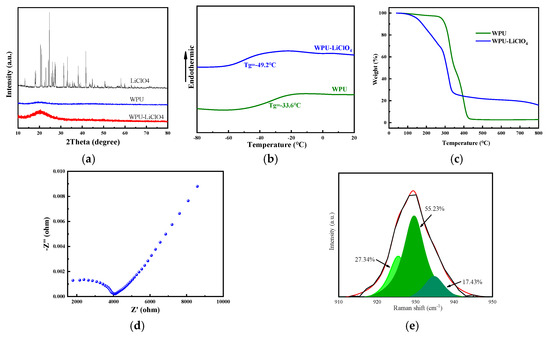

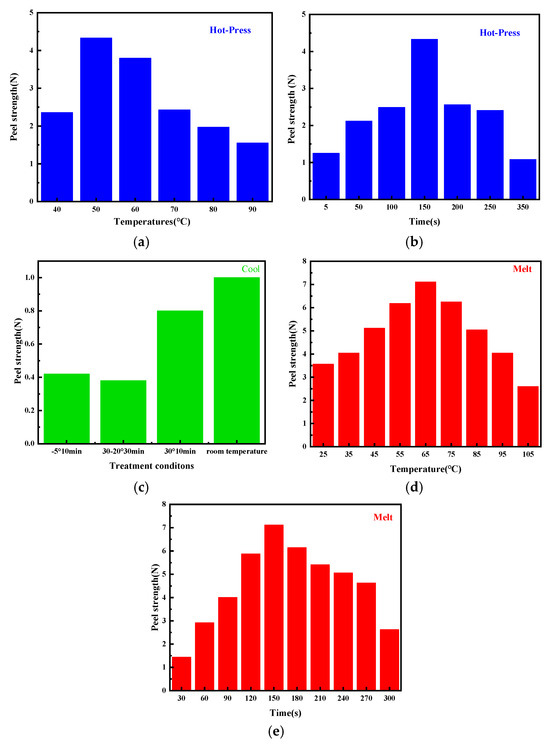

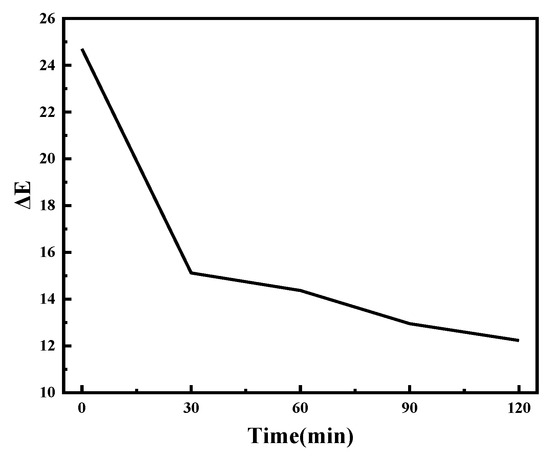

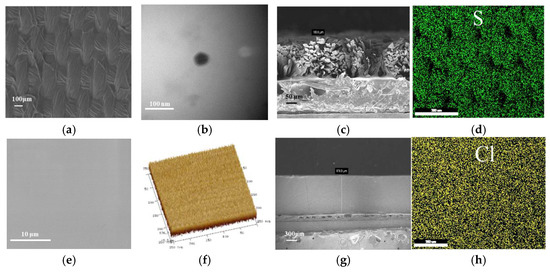

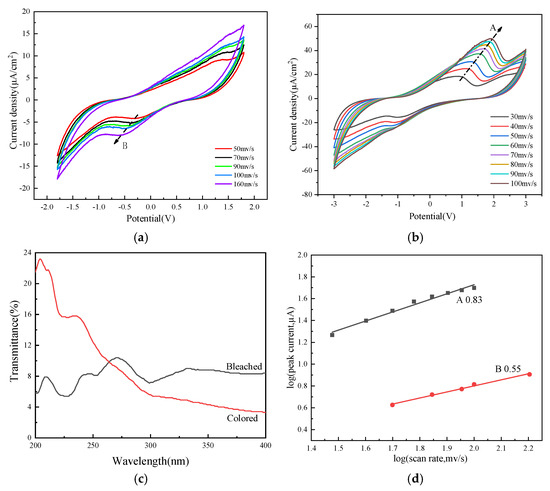

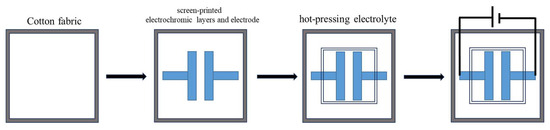

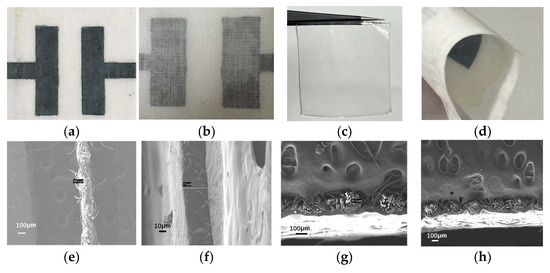

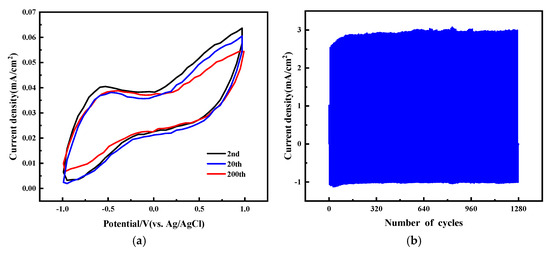

Electrochromic fabrics (ECFs) can be applied to wearable displays and military camouflage clothing, and they have great potential in developing wearable products. Current ECFs are often bulky, involve complicated processes, and have high production costs. In this study, we report a novel strategy for preparing electrochromic fabrics that require only a three-layer structure: cotton fabric as the substrate, poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) as the electrochromic layer and the electrodes, and an ion-conducting film (ICF) bonded to the fabric by hot pressing. Compared with conventional ECFs, this method does not require the extra preparation of electrode layers on the fabric, as these layers affect the color-changing effect. Hot pressing eliminates the need for a complex sealing process and is more suitable for fabrics with poor wicking effects, which increases the method’s applicability. Cotton fabrics offer the value of biodegradability and are more environmentally friendly. Meanwhile, unlike carbon cloth, the fabric’s color does not interfere with the electrochromic effect. The ICF is non-liquid and can maintain the dryness of the fabric. Additionally, the ICF provides high-temperature protection up to 150 °C. The ECFs exhibit exceptional thinness at 161 µm and a lightweight construction with a 0.03 g/cm² weight. Furthermore, the ECFs exhibit a relatively long sustain time of 115 min without voltage, demonstrating impressive performance. Improved peel strength to 7.11 N is achieved through an improved hot-pressing process. The development strategy for ECFs can also be applied to other electrochromic substances, potentially advancing intelligent applications such as wearable fabrics and military camouflage while promoting rapid progress in electrochromic fabrics. Full article

As the thickness of an ultra-thin flattened heat pipe (UTHP) decreases, the fabrication difficulty increases exponentially, and the thermal performance deteriorates rapidly. In this study, three types of composite wicks were developed for UTHPs with a 0.6 mm thickness: copper foam and mesh wick (CFMW), two layers of different mesh wick (TDMW), and three layers of the same mesh wick (TSMW). The startup and steady-state performances of the UTHPs with liquid filling ratios of 60% to 120% were investigated. The findings indicated that the CFMW UTHP with a filling ratio of 100% exhibited the best startup performance, with the highest equilibrium temperature of 58.37 °C. The maximum heat transport capacities of the CFMW, TDMW, and TSMW UTHP samples were 9, 8, and 8.5 W, respectively, at their corresponding optimum filling ratios of 110%, 90%, and 100%. The CFMW UTHP exhibited the lowest evaporation and condensation thermal resistances of 0.151 and 0.189 K/W, respectively, which were 24.67% and 41.85% lower than those of the TSMW UTHP. CFMW can be used to improve the thermal performance of UTHPs. This study provides important guidelines for the structural design, fabrication technology, and performance improvement of high-performance UTHPs used in portable electronic devices. Full article

Ultra-thin vapor chambers (UTVCs) are widely used to cool high-power electronics due to their excellent thermal conductivity. In this study, a UTVC of 82 mm × 58 mm × 0.39 mm with composite wick was prepared. The composite wick is composed of two layers of copper mesh and multiple spiral-woven meshes (SWMs), and the composite wick was applied in UTVC to improve liquid replenishment performance and temperature uniformity. Furthermore, the thermal performance of UTVCs with different support column diameters, filling ratios (FRs), and SWM structures was experimentally studied. The results found that the equivalent thermal conductivity (ETC) decreases as the diameter of the support column increases; the UTVC with 0.5 mm support column diameter has the highest ETC, at 3473 W/(m·K). Then, the effect of FR on the heat transfer performance of UTVCs with SWM numbers of 0, 1, 2, and 3 (0 SWMs, 1 SWM, 2 SWMs, 3 SWMs) is consistent, the 30% FR UTVC with 3 SWMs having the highest ETC, at 3837 W/(m·K). Finally, the increased number of SWMs can significantly improve the ultimate power of the UTVCs, the UTVC with 3 SWMs having the highest ultimate power, at 26 W. The above experimental studies indicate that the designed and manufactured UTVCs have great potential advantages in thermal dissipation for electronics. Full article

In a two-phase heat transfer device, achieving a high capillarity of the wick while reducing flow resistance within a limited space becomes the key to improving the heat dissipation performance. As a commonly used wick structure, mesh is widely employed because of its high permeability. However, achieving the desired capillary performance often requires multiple layers to be superimposed to ensure an adequate capillary, resulting in an increased thickness of the wick. In this study, an ultra-thin biomimetic copper forest structural modification of copper mesh was performed using an electrochemical deposition to solve the contradiction between the permeability and the capillary. The experiments were conducted on a copper mesh to investigate the effects of various conditions on their morphology and capillary performance. The results indicate that the capillary performance of the modified copper mesh improves with a longer deposition time. The capillary pressure drops can reach up to 1400 Pa when using ethanol as the working fluid. Furthermore, the modified copper mesh demonstrates a capillary performance value (ΔP_c·K) of 8.44 × 10⁻⁸ N, which is 1.7 times higher than that of the unmodified samples. Notably, this enhanced performance is achieved with a thickness of only 142 μm. The capillary limit can reach up to 45 W when the modified copper mesh is only 180 μm. Microscopic flow analysis reveals that the copper forest modified structure maintains the original high permeability of the copper mesh while providing a greater capillary force, thereby enhancing the overall flow characteristics. Full article

The ultrafast water permeation property of graphene nanoplatelets (GNPs) synergically enhances the evaporation and water circulation processes in a micro heat pipe (MHP). An MHP is a promising phase-change heat-transfer device capable of transferring large amounts of heat energy efficiently. The hydrophobic, atomically smooth carbon walls of GNPs nanostructures provide a network of nanocapillaries that allows water molecules to intercalate frictionlessly among the graphene layers. Together with the attraction force of the oxygenated functional groups, a series of hydrophobic and hydrophilic surfaces are formed that significantly improve the water circulation rate. The intercalation of water molecules encourages the formation of water-thin film for film-wise evaporation. The effect of nano-wick thickness on the thermal performance of the MHP is investigated. A thinner GNP nano-wick is more favorable to film-wise evaporation while a thicker nano-wick promotes a higher water circulation rate from the condenser to the evaporator, leading to the existence of an optimal thickness. By benchmarking with the uncoated MHP, the thermal conductance of an MHP with a 46.9-µm GNP nano-wick manifests a maximum enhancement of 128%. This study provides insights on the feasible implementation of GNP nano-wicks into a highly efficient micro-scale electronics cooling device for environmental sustainability. Full article

The characteristics of the wetting process of the porous surface of silica gel when penetrated by base liquids (water and n-octane), ethanol and stable drug systems (naproxen, ibuprofen and cyclosporine A), as biologically active substances in two ethanol concentrations, were determined by the wetting rate vs. time. The tests were performed for contacted and non-contacted plates with the vapours of the wetting liquid. Thin-layer liquid chromatography was used to determine the penetration rate of the SiO₂-coated plates, taking into account the linear dependence consistent with the Washburn equation. Additionally, the changes in the adhesive tension ΔG were determined for the tested drugs. Drug stability tests were conducted using the dynamic light scattering technique and microelectrophoresis. The penetration time of the plate depends on the properties and structure of the wetting liquid droplets. The types of interactions (dispersive, electrostatic and hydrogen bonding) formed between the silanol surface groups of the silica gel and the groups contained in the adsorbate particles are also very important factors. The greater the impact force, the slower the wetting process due to the strong penetration of the liquid into the pores of the substrate. The characteristics of the drug wetting/stability process may contribute to the development of their new forms, creating delivery systems with greater efficiency and lower side effects. Full article
