Article

Palladium-Catalyzed Heck Coupling Reaction of Aryl Bromides in Aqueous Media Using Tetrahydropyrimidinium Salts as Carbene Ligands

by
Sedat Yaşar
1,
Emine Özge Özcan
2,
Nevin Gürbüz
2,
Bekir Çetinkaya
3 and
İsmail Özdemir
2,*
1
Department of Chemistry, Faculty of Science and Art, Gaziosmanpaşa University, 60240 Tokat, Turkey
2
Department of Chemistry, Faculty of Science and Art, İnönü University, 44280 Malatya, Turkey
3
Department of Chemistry, Faculty of Science, Ege University, 35100 İzmir, Turkey
*
Author to whom correspondence should be addressed.
Molecules 2010, 15(2), 649-659; https://doi.org/10.3390/molecules15020649
Submission received: 16 December 2009 / Revised: 1 January 2010 / Accepted: 12 January 2010 / Published: 28 January 2010
(This article belongs to the Special Issue Heck Coupling)
Browse Figures
Versions Notes

Abstract

:
An efficient and stereoselective catalytic system for the Heck cross coupling reaction using novel 1,3-dialkyl-3,4,5,6-tetrahydropyrimidinium salts (1, LHX) and Pd(OAc)2 loading has been reported. The palladium complexes derived from the salts 1a-f prepared in situ exhibit good catalytic activity in the Heck coupling reaction of aryl bromides under mild conditions.

1. Introduction

The Heck reaction, one of the most utilized cross-coupling reactions, is the palladium-catalyzed arylation of an olefin with an aryl halide under basic conditions. Since its independent discovery in the early 1970s by Heck [1] and Mizoroki [2], the Heck reaction has been widely used as a tool for organic synthesis because of its importance in the direct attachment of olefinic groups to aromatic rings [3,4,5]. Numerous review articles on various aspects of the Heck and other cross-coupling reactions with palladium catalysts have been published [6,7,8,9]. Many types of ligands have been explored for the palladium catalysts in the Heck reaction, e.g., phosphine [10,11,12], carbene [13], amine [14] and thiolate [15]. The use of immobilized [16] and non-immobilized [17] ligand free palladium salts for the Mizoroki–Heck reaction with chloro- and bromoarenes is also discussed in the literature. Recently, Gibson et al. [18] as well as Jones et al. [20] showed that palladium complexes with chiral ligands are well suited as catalysts for the asymmetric Heck reaction.
Heck coupling reactions often require high temperatures (normally 110–180 °C) to proceed, even with activated aryl bromides [20,21,22,23,24]. Only a few catalyst systems can catalyze Heck–Mizoroki reactions at a temperature below 100 °C [25,26]. The high thermal stability of transition metal complexes of N-heterocyclic carbenes (NHCs) makes these complexes particularly suitable for Heck coupling reactions [27,28,29,30,31,32]. The first application of Pd–NHCcomplexes for the Heck reaction of aryl bromides and activated aryl chlorides was reported by Herrmann et al. in 1995 [13]. Since then, a number of monodentate and bidentate NHC ligands have been shown to have good activity in Pd-catalyzed Heck reactions [33,34,35,36]. Due to the high stability of metal complexes of NHCs towards heat, oxygen and moisture [37], they have long been the subject of catalytic studies. In addition to the palladium catalyzed Mizoroki–Heck reaction, they have been used for the catalysis of other C–C coupling reactions [38], hydroformylations [39], polymerization reactions [40], olefin metathesis [41], and CH-activation [42].
The nature of the NHC ligand has a tremendous influence on the rate of catalyzed reactions. Whilst modifications to the five membered ring of the ligand aryl substituent have been described, relatively little attention has been paid to effect of the ring size. Due to their six-membered ring geometry, tetrahydropyrimidine-2-ylidenes are stronger donating ligands in comparison to their five-membered relatives [43]. The use of tetrahydropyrimidinium ligands in catalytic transformations is limited [44,45,46,47,48].
We have previously reported the use of an in situ formed imidazolidine, tetrahydropyrimidine, tetrahydrodiazepine, benzimidazole-2-ylidene-palladium(II) system which exhibits high activity in various coupling reactions of aryl bromides and aryl chlorides [49,50,51,52]. In order to find more efficient palladium catalysts we have prepared a series of new 1,3-dialkyl-3,4,5,6- tetrahydropyrimidinium 1a-f (Scheme 1), and we now report the use of the in situ generated catalytic system composed of Pd(OAc)2 as palladium source, 1a-f as carbene precursors and K2CO3 as a base for cross coupling of aryl bromides with phenylstyrene in DMF/water at 80 °C for 4 h.

2. Results and Discussion

2.1. Synthesis of tetrahydropyrimidinium salts

A series of symmetrical 1,3-dialkyl-3,4,5,6-tetrahydropyrimidinium salts (1 = LHX) were prepared according to known methods [28] as conventional NHC precursors. The symmetrical NHC precursors were prepared according to general reaction pathway depicted in Scheme 1. Treatment of 1,3‑propylenediamine with 2 equivalents of aromatic aldehyde in methanol at room temperature led to the formation of the corresponding diimines. Their reduction with sodium borohydride in methanol, followed by treatment with triethylorthoformate in the presence of ammonium chloride with continuous elimination of ethanol led to the formation of the expected tetrahydropyrimidinium chlorides in excellent yields.
Molecules 15 00649 g002 550
Scheme 1. Preparation of tetrahydropyrimidinium salts.
Scheme 1. Preparation of tetrahydropyrimidinium salts.
Molecules 15 00649 g002
The tetrahydropyrimidinium salts (Figure 1) were isolated as colourless solids in very good yields and fully characterized by 1H- and 13C-NMR, and IR spectroscopies, elemental analyses, and their melting points were determined (see Experimental section).
Molecules 15 00649 g001 550

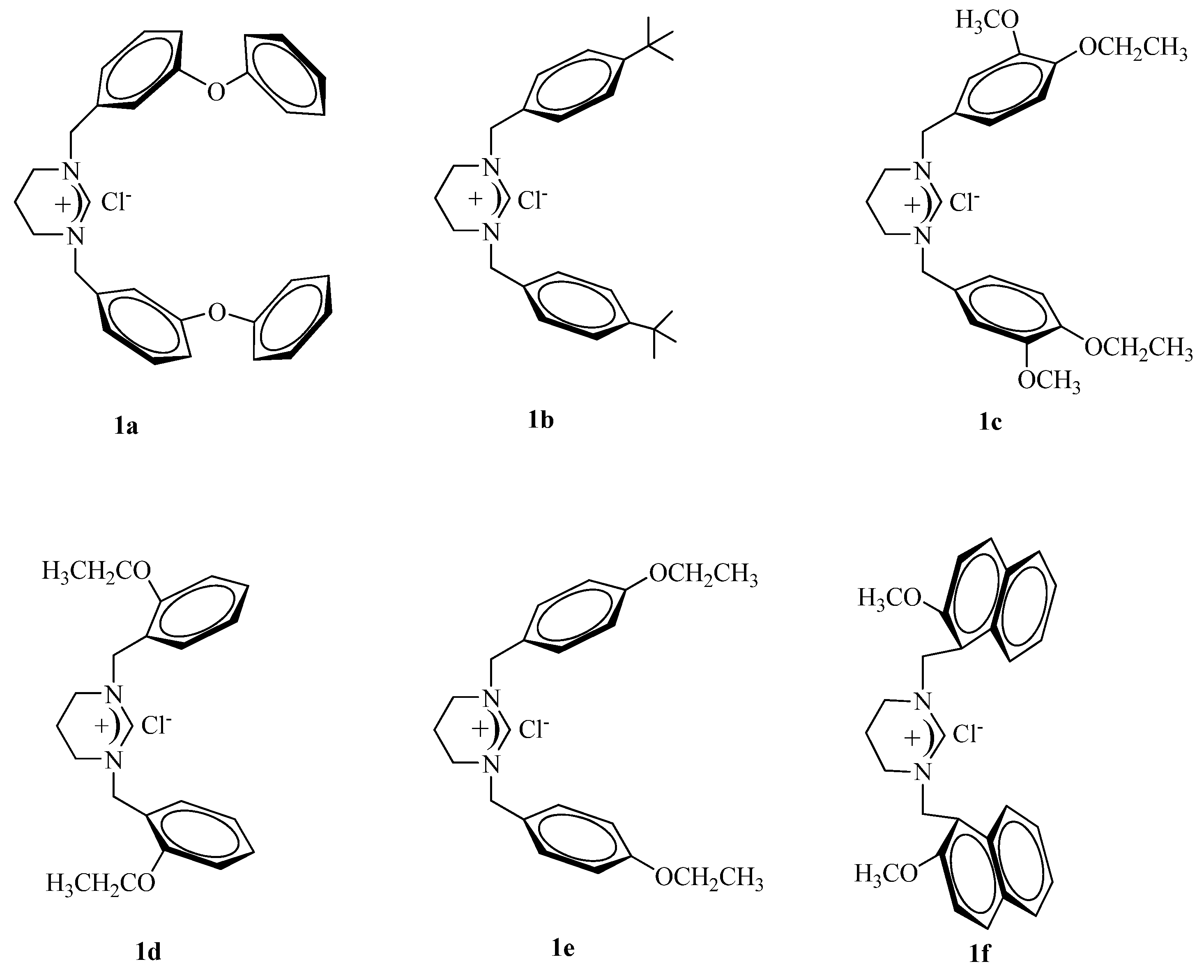

Figure 1. Tetrahydropyrimidinium salts.
Figure 1. Tetrahydropyrimidinium salts.
Molecules 15 00649 g001
The salts are air- and moisture stable both in the solid state and in solution. The NMR values are similar to those found for other tetrahydropyrimidinium salts [45]. Thus, the 1H-NMR spectra support the assigned structures; the resonances for the acidic C(2)-H in 1a-f were observed as sharp singlets at 10.28, 10.20, 10.08, 9.40, 10.45 and 8.80 ppm, respectively. The position of the ethoxy groups on the phenyl rings also has a strong influence on the acidity of the proton as a chemical shift of 9.40 ppm is observed in the case of the 2-substitution in 1d, whereas the 4-substitution pattern in 1e leads to a signal at 10.45 ppm. 13C-NMR chemical shifts were also consistent with the proposed structures; the imino carbons of the tetrahydropyrimidinium salts 1a-f appeared as a typical singlet in the 1H-decoupled mode at 158.2, 154.5, 154.1, 157.4, 159.4 and 155.8 ppm, respectively. The IR data for 1a-f clearly indicate the presence of the –C=N- group with ν(C=N) vibrations at 1,695, 1,701, 1,695, 1,688 and 1,678 cm-1, respectively.

2.2. The Heck C-C coupling reaction

The Heck reaction has been shown to be very useful for the preparation of disubstituted olefins in particular. The rate of the coupling is dependent on a variety of parameters such as temperature, solvent, base and catalyst loading. Generally, Heck reactions conducted with tertiary phosphine or NHC complexes required high temperatures (higher than 120 °C) and polar solvents [20,21,22,23,24]. For the choice of base, we surveyed Cs2CO3, K2CO3, t-BuOK, and K3PO4. To find optimum conditions a series of experiments was performed with 4-bromoacetophenone and styrene as model compounds. Finally, we found that use of 1% mol Pd(OAc)2, 2% mol 1, 2 equiv K2CO3 in DMF/H2O (1:1) at 80 °C led to the best conversion within 4 h. Since the salts 1a-f are thermally stable and inert toward air and moisture in the solid state, these properties allowed for catalytic experiments under aerobic conditions and the reactions were performed in air and without degassing the water and DMF prior to use.
Control experiment indicated that the coupling reaction did not occur in the absence of the salt 1. Under the determined reaction conditions, a wide range of aryl bromides bearing electron-donating or electron-withdrawing groups react with styrene affording the coupled products in optimum yields. As expected, the use of electron-deficient bromides was beneficial for the conversions. Under those conditions p-bromoacetophenone, p-bromobenzaldehyde, bromotoluene and p-bromoanisole react very cleanly and in goods yields with styrene (Table 1, entries 4, 10, 15 and 22). Enhancement in activity, although less significant, is further observed employing 4-bromo-benzaldehyde instead of 4-bromoacetophenone (Table 1, entries 1–6, 19–24). The substituent effect in the tetrahydropyrimidinium salts indicated that a ethoxy group of the aromatic ring on the N atoms increased the yield of product. The catalytic activity of the salts used falls in the order b ≈ d > c > a > e > f. Table 1 summarizes our results from the screening of new tetrahydropyrimidinium salts for the Heck coupling reaction. The procedure is simple and does not require an induction period. This catalytic system provides good conditions for the coupling of aryl bromides under air. It should be noted that in all cases only the trans products were selectively obtained as confirmed by 1H-NMR.
Table
Table 1. The Heck coupling reaction of aryl bromides with styrene. Molecules 15 00649 i001
Table 1. The Heck coupling reaction of aryl bromides with styrene. Molecules 15 00649 i001
EntryRLHXYielda, b, c,d (%)
1COCH31a90
2COCH31b99
3COCH31c94
4COCH31d99
5COCH31e93
6COCH31f86
7CH31a65
8CH31b82
9CH31c78
10CH31d95
11CH31e70
12CH31f82
13OCH31a70
14OCH31b96
15OCH31c98
16OCH31d99
17OCH31e98
18OCH31f74
19CHO1a97
20CHO1b98
21CHO1c97
22CHO1d99
23CHO1e96
24CHO1f86
25H1a62
26H1b60
27H1c66
28H1d85
29H1e78
30H1f82
a Reaction conditions: 1.0 mmol of R-C6H4Br-p, 1.5 mmol of styrene, 2 mmol K2CO3, 1 mmol % Pd(OAc)2, 2 mmol % 1a-f, H2O (3 mL)-DMF (3 mL); b Purity of compounds is checked by NMR and yields are based on aryl halide; c All reactions were monitored by TLC and GC; d Temperature 80 °C, 4 h.

3. Experimental Section

3.1. General

All reactions for the preparation of 1 were carried out under Ar in flame-dried glassware using standard Schlenk-type flasks. The solvents used were purified by distillation over the indicated drying agents and were transferred under Ar: Et2O (Na/K alloy), C2H5OH (Mg). Flash chromatography: Merck silica gel 60 (230-400 mesh). All reagents were purchased from Aldrich Chemical Co. Melting point were determined in glass capillaries under air with an Electrothermal-9200 melting point apparatus. FT-IR spectra were recorded as KBr pellets in the range 400-4,000 cm-1 on a ATI UNICAM 1000 spectrometer. 1H-NMR and 13C-NMR spectra were recorded in CDCl3 with tetramethylsilane as an internal reference using a Varian As 400 Merkur spectrometer operating at 400 MHz (1H), 100 MHz (13C). The NMR studies were carried out in high-quality 5 mm NMR tubes. Signals are quoted in parts per million as δ downfield from tetramethylsilane (δ 0.00) as an internal standard. Coupling constants (J values) are given in hertz. NMR multiplicities are abbreviated as follows: s = singlet, d = doublet, t = triplet, m = multiplet signal. All reactions were monitored on an Agilent 6890N GC system by GC-FID with a HP-5 column of 30 m length, 0.32 mm diameter and 0.25 μm film thickness. Column chromatography was performed using silica gel 60 (70-230 mesh). Solvent ratios are given as v/v. Elemental analyses were performed by Turkish Research Council Microlab (Ankara, Turkey).

3.2. General preparation of symmetrical 1,3-dialkyl-3,4,5,6-tetrahydropyrimidinium salts

The aromatic aldehyde (20 mmol) and 1,3-propylendiamine (10 mmol) were stirred overnight in methanol (25 mL). The diimine was collected as a white solid, filtered and recrystallized from an alcohol/ether mixture. The diimine (10 mmol) was subsequently reduced by NaBH4 (30 mmol) in CH3OH (30 mL). The solution was then treated with 1 N HCl, and the organic phase was extracted with CH2Cl2 (3 x 30 mL). After drying over MgSO4 and evaporation, the diamine was isolated as a solid and then treated in a large excess of triethyl orthoformate (50 mL) in the presence of NH4Cl (10 mmol) at 110 °C in a distillation apparatus until the removal of ethanol ceased. Upon cooling to RT a colourless solid precipitated, which was collected by filtration and dried under vacuum. The crude product was recrystallized from absolute ethanol to give colourless needles and the solid was washed with diethyl ether (2 × 10 mL) and dried under vacuum.
1,3-Bis-(3-phenoxybenzyl)-3,4,5,6-tetrahydropyrimidinium chloride (1a). Yield: 87%, m.p.: 125–126 °C; υ(CN) = 1,695 cm -1; 1H-NMR δ: 1.19 (quint, J = 4 Hz, 2H, NCH2CH2CH2N), 3.23 (t, J = 4 Hz, 4H, NCH2CH2CH2N), 4.89 (s, 4H, CH2C6H4OC6H5), 6.89-7.33 (m, 18 H, CH2C6H4OC6H5), 10.28 (s, 1H, NCHN); 13C{H}NMR δ: 19.2 (NCH2CH2CH2N), 42.2 (NCH2CH2CH2N), 58.4 (CH2C6H4OC6H5), 118.9, 119.4, 123.4, 124.0, 130.1, 131.0, 135.4, 155.2 and 156.7 (CH2C6H4OC6H5), 158.2 (NCHN); Anal. Calcd. for C30H29N2O2Cl: C,74.29; H, 6.03; N, 5.78%; found: C, 74.32; H, 6.08; N, 5.83%.
1,3-Bis-(4-t-butylbenzyl)-3,4,5,6-tetrahydropyrimidinium chloride (1b). Yield: 85%, m.p.: 315 °C; υ(CN) = 1,701 cm -1; 1H-NMR δ: 1.22 (s, 18H, CH2C6H4C(CH3)3-4), 1.90 (quint, J = 4 Hz, 2H, NCH2CH2CH2N), 3.16 (t, J = 4 Hz, 4H, NCH2CH2CH2N), 4.81 (s, 4H, CH2C6H4C(CH3)3-4), 7.28 (m, 8H, CH2C6H4C(CH3)3-4), 10.20 (s, 1H, NCHN); 13C{H}NMR δ: 19.2 (NCH2CH2CH2N), 31.5 (CH2C6H4C(CH3)3-4), 34.8 (CH2C6H4C(CH3)3-4), 42.1 (NCH2CH2CH2N), 58.4 (CH2C6H4C(CH3)3-4), 126.2, 128.7, 130.4 and 152.1 (CH2C6H4C(CH3)3-4), 154.5 (NCHN); Anal. Calcd. for C26H37N2Cl: C,75.61; H, 9.03; N, 6.78%; found: C, 75.66; H, 9.08; N, 6.83%.
1,3-Bis-(3-methoxy-4-ethoxybenzyl)-3,4,5,6-tetrahydropyrimidinium chloride (1c). Yield: 89%, m.p.: 177–178 °C; υ(CN) = 1,695 cm-1; 1H-NMR δ: 1.35 (t, J = 4.8 Hz, 6H,CH2C6H3OCH2CH3-4), 1.85 (quint, J = 5.6 Hz, 2H, NCH2CH2CH2N), 3.14 (t, J = 5.6 Hz, 4H, NCH2CH2CH2N), 3.81 (s, 6H, CH2C6H3OCH3-3), 3.98 (quart., J = 4.8 Hz, 4H, CH2C6H3OCH2CH3-4), 4.71 (s, 4H, CH2C6H3(OCH3-3)-(OCH2CH3-4)), 6.70-7.05 (m, 6H, CH2C6H3(OCH3-3)-(OCH2CH3-4)), 10.08 (s, 1H, NCHN); 13C{H}NMR δ: 14.9 (CH2C6H3OCH2CH3-4), 19.2 (NCH2CH2CH2N), 41.9 (NCH2CH2CH2N), 58.5 (CH2C6H3(OCH3-3)-(OCH2CH3-4)), 56.7 (CH2C6H3OCH2CH3-4), 64.5 (CH2C6H3OCH3-3), 121.6, 125.9, 149.0 and 150.0 (CH2C6H3(OCH3-3)-(OCH2CH3-4)), 154.1 (NCHN); Anal. Calcd. for C24H34N2O4Cl: C,64.20; H, 7.41; N, 6.24%; found: C, 64.24; H,7.44; N, 6.27%.
1,3-Bis-(2-ethoxybenzyl)-3,4,5,6-tetrahydropyrimidinium chloride (1d). Yield: 80 %, m.p.: 171–172 °C; υ(CN) = 1,677 cm-1; 1H-NMR δ: 1.32 (t, J = 8 Hz, 6H,CH2C6H4OCH2CH3-2), 1.94 (quint, J = 4 Hz, 2H, NCH2CH2CH2N), 3.27 (t, J = 4 Hz, 4H, NCH2CH2CH2N), 3.98 (quart., J = 8 Hz, 4H, CH2C6H4OCH2CH3-2), 4.79 (s, 4H, CH2C6H4OCH2CH3-2), 6.81-7.42 (m, 8H, CH2C6H4OCH2CH3-2), 9.40 (s, 1H, NCHN); 13C{H}NMR δ: 15.1 (CH2C6H4OCH2CH3-2), 19.4 (NCH2CH2CH2N), 42.7 (NCH2CH2CH2N), 54.3 (CH2C6H4OCH2CH3-2), 64.0 (CH2C6H4OCH2CH3-2), 121.2, 121.8, 130.8, 131.6 and 154.7 (CH2C6H4OCH2CH3-2), 157.4 (NCHN); Anal. Calcd. for C22H29N2O2Cl: C, 62.94; H, 7.52; N, 7.20%; found: C, 62.88; H, 7.54; N, 7.25%.
1,3-Bis-(4-ethoxybenzyl)-3,4,5,6-tetrahydropyrimidinium chloride (1e). Yield: 85%, m.p.: 199–200 °C; υ(CN) = 1,688 cm-1; 1H-NMR δ: 1.34 (t, J = 6.9 Hz, 6H,CH2C6H4OCH2CH3-4), 1.88 (quint, J = 6 Hz, 2H, NCH2CH2CH2N), 3.14 (t, J = 5.7 Hz, 4H, NCH2CH2CH2N), 3.36 (quart., J = 6.9 Hz, 4H, CH2C6H4OCH2CH3-4), 4.75 (s, 4H, CH2C6H4OCH2CH3-4), 6.77 and 7.31 (d, J = 6 Hz, 8H, CH2C6H4OCH2CH3-4), 10.45 (s, 1H, NCHN); 13C{H}NMR δ: 14.7 (CH2C6H4OCH2CH3-4), 18.9 (NCH2CH2CH2N), 41.6 (NCH2CH2CH2N), 57.8 (CH2C6H4OCH2CH3-4), 63.5 (CH2C6H4OCH2CH3-4), 114.9, 124.9 130.3 and 153.8 (CH2C6H4OCH2CH3-4), 159.4 (NCHN); Anal. Calcd. for C22H29N2O2Cl: C,62.94; H, 7.52; N, 7.20%; found: C, 62.89; H, 7.53; N, 7.23%.
1,3-Bis-(2-methoxynaphtomethyl)-3,4,5,6-tetrahydropyrimidinium chloride (1f). Yield: 85%, m.p.: 96–97 °C; υ(CN) = 1,678 cm-1. 1H-NMR δ: 1.88 (quint, J = 6 Hz, 2H, NCH2CH2CH2N), 3.24 (t, J = 5.7 Hz, 4H, NCH2CH2CH2N), 3.70 (s, 6H, CH2C10H6OCH3-2), 5.08 (s, 4H, CH2C10H6OCH3-2), 7.09-7.94 (m, 12H, CH2C10H6OCH3-2), 8.80 (s, 1H, NCHN); 13C{H}NMR δ: 18.0 (NCH2CH2CH2N), 42.3 (NCH2CH2CH2N), 48.8 (CH2C10H6OCH3-2), 55.8 (CH2C10H6OCH3-2), 111.4, 112.0, 121.5, 123.6, 127.7, 128.4, 128.5, 131.5, 132.2 and 151.5 (CH2C10H6OCH3-2), 155.8 (NCHN); Anal. Calcd. for C28H29N2O2Cl: C,72.95; H, 6.34; N, 6.08%; found: C, 72.99; H, 6.38; N, 6.11%.

3.3. General procedure for the Heck Coupling reaction

Pd(OAc)2 (1.0 mmol %), 1,3-dialkyl-3,4,5,6-tetrahydropyrimidinium salt 1 (2 mmol %), aryl bromide (1.0 mmol), styrene (1.5 mmol), K2CO3 (2 mmol) water (3 mL)-DMF (3 mL) were added to a small Schlenk tube and the mixture was heated at 80 °C for 4 h. At the conclusion of the reaction, the mixture was cooled, extracted with ethyl acetate/hexane (1:5), filtered through a pad of silicagel with copious washing, concentrated and purified by flash chromatography on silica gel. Purity of the compounds was checked by NMR and GC; yields are based on aryl bromide.

4. Conclusions

In summary, we have synthesized new 3,4,5,6‑tetrahydropyrimidinium salts as precursors of N-heterocyclic carbenes upon deprotonation. They have been associated with Pd(OAc)2 to generate catalytic species. Such Pd(OAc)2- tetrahydropyrimidinium salts system could successfully catalyze the Heck reactions available for an array of substrates including a wide range of aryl bromides bearing electron-donating or electron-withdrawing groups with high activity and stability in aerial atmosphere. Detailed investigations focusing on NHC (imidazolidine, tetrahydropyrimidine, benzimidazolidine) and catalytic activity in this and other coupling reactions are ongoing.

Acknowledgements

We grateful to Technological and Scientific Research Council of Turkey TUBİTAK-CNRS (France) [TBAG-U/181 (106T716)] and Inönü University Research Fund (BAP 2009/13) for financial support.
  • Sample Availability: Samples of the compounds are available from authors .

References and Notes

  1. Heck, R.F.; Nolley, J.P. Palladium-catalyzed vinylic hydrogen substitution reactions with aryl, benzyl, and styryl halides. J. Org. Chem. 1972, 37, 2320–2322. [Google Scholar] [CrossRef]
  2. Mizoroki, T.; Mori, K.; Ozaki, A. Arylation of olefin with aryl iodide catalyzed by palladium. Bull. Chem. Soc. Jpn. 1971, 44, 581–581. [Google Scholar] [CrossRef]
  3. Sakoda, K.; Mihara, J.; Ichikawa, J. Heck-type 5-endo-trig cyclization promoted by vinylic fluorines: Synthesis of 5-fluoro-3H-pyrroles. Chem. Commun. 2005, 4684–4686. [Google Scholar]
  4. Dounay, A.B.; Overman, L.E.; Wrobleski, A.D. Sequential catalytic asymmetric Heck−iminium ion cyclization: Enantioselective total synthesis of the Strychnos alkaloid minfiensine. J. Am. Chem. Soc. 2005, 127, 10186–10187. [Google Scholar]
  5. De Meijere, A.; Meyer, F.E. Fine feathers make fine birds: The Heck reaction in modern garb. Angew. Chem. Int. Ed. 1995, 33, 2379–2411. [Google Scholar] [CrossRef]
  6. Trzeciak, A.M.; Ziołkowski, J.J. Monomolecular, nanosized and heterogenized palladium catalysts for the Heck reaction. Coord. Chem. Rev. 2007, 251, 1281–1293. [Google Scholar] [CrossRef]
  7. Yin, L.; Liebscher, J. Carbon−carbon coupling reactions catalyzed by heterogeneous palladium catalysts. Chem. Rev. 2007, 107, 133–173. [Google Scholar]
  8. Bedford, R.B.; Cazin, C.S.J.; Holder, D. Structural and mechanistic studies of Pd-catalyzed C-C bond formation: The case of carbonylation and Heck reaction. Coord. Chem. Rev. 2004, 248, 2283–2321. [Google Scholar] [CrossRef]
  9. Littke, A.F.; Fu, G.C. Palladium-catalyzed coupling reactions of aryl chlorides. Angew. Chem. Int. Ed. 2002, 41, 4126–4211. [Google Scholar]
  10. Littke, A.F.; Fu, G.C. Heck reactions in the presence of P(t-Bu)3: Expanded scope and milder reaction conditions for the coupling of aryl chlorides. J. Org. Chem. 1999, 64, 10–11. [Google Scholar] [CrossRef]
  11. Shaughnessy, K.H.; Kim, P.; Hartwig, J.F. A Fluorescence-based assay for high-throughput screening of coupling reactions. Application to Heck chemistry. J. Am. Chem. Soc. 1999, 121, 2123–2132. [Google Scholar] [CrossRef]
  12. Ehrentraut, A.; Zapf, A.; Beller, M. A new efficient palladium catalyst for Heck reactions of deactivated aryl chlorides. Synlett 2000, 1589–1592. [Google Scholar]
  13. Herrmann, W.A.; Elison, M.; Fischer, J.; Köcher, C.; Artus, G.R.J. Metal complexes of N-heterocyclic carbenes - A new structural principle for catalysts in homogeneous catalysis. Angew. Chem. Int. Ed. 1995, 34, 2371–2374. [Google Scholar] [CrossRef]
  14. Bedford, R.B. Palladacyclic catalysts in C-C and C-heteroatom bond-forming reactions. Chem. Commun. 2003, 1787–1796. [Google Scholar] [CrossRef]
  15. Bergbreiter, D.E.; Osburn, P.L.; Liu, Y.S. Tridentate SCS palladium(II) complexes: New, highly stable, recyclable catalysts for the Heck reaction. J. Am. Chem. Soc. 1999, 121, 9531–9538. [Google Scholar] [CrossRef]
  16. Crudden, C.M.; Sateesh, M.; Lewis, R. Mercaptopropyl-modified mesoporous silica: A remarkable support for the preparation of a reusable, heterogeneous palladium catalyst for coupling reactions. J. Am. Chem. Soc. 2005, 127, 10045–10050. [Google Scholar] [CrossRef]
  17. De Vries, A.H.M.; Mulders, J.M.C.A.; Mommers, J.H.M.; Henderickx, H.J.W.; de Vries, J.G. Homeopathic ligand-free palladium as a catalyst in the Heck reaction. A comparison with a palladacycle. Org. Lett. 2003, 5, 3285–3288. [Google Scholar]
  18. Gibson, S.E.; Ibrahim, H.; Pasquier, C.; Swamy, V.M. Novel planar chiral diphosphines and their application in asymmetric hydrogenations and asymmetric Heck reactions. Tetrahedron-Asymmetry 2004, 15, 465–473. [Google Scholar] [CrossRef]
  19. Dodd, D.W.; Toews, H.E.; Carneiro, F.D.S.; Jennings, M.C.; Jones, N.D. Model intermolecular asymmetric Heck reactions catalyzed by chiral pyridyloxazoline palladium(II) complexes. Inorg. Chim. Acta 2006, 359, 2850–2858. [Google Scholar]
  20. Kantchev, E.A.B.; O’Brien, C.J.; Organ, M.G. Palladium complexes of N-heterocyclic carbenes as catalysts for cross-coupling reactions - A synthetic chemist's perspective. Angew. Chem. Int. Ed. 2007, 46, 2768–2813. [Google Scholar] [CrossRef]
  21. Brase, S.; de Meijere, A. Metal-Catalyzed Cross-Coupling Reactions; de Meijere, A., Diederich, F., Eds.; Wiley-VCH: Weinheim, Germany, 2004; pp. 217–315. [Google Scholar]
  22. Iwasawa, T.; Komano, T.; Tajima, M.; Tokunaga, A.; Obora, Y.; Fujihara, T.; Tsuji, Y. Phosphines having a 2,3,4,5-tetraphenylphenyl moiety: Effective ligands in palladium-catalyzed transformations of aryl chlorides. Organometallics 2006, 25, 4665–4669. [Google Scholar] [CrossRef]
  23. Ebran, J.P.; Hansen, A.L.; Thomas, M.; Gøgsig, T.M.; Skrydstrup, T. Studies on the Heck reaction with alkenyl phosphates: Can the 1,2-migration be controlled? Scope and Limitations. J. Am. Chem. Soc. 2007, 129, 6931–6942. [Google Scholar] [CrossRef]
  24. Feuerstein, M.; Doucet, H.; Santelli, M. Efficient Heck vinylation of aryl halides catalyzed by a new air-stable palladium−tetraphosphine complex. J. Org. Chem. 2001, 66, 5923–5925. [Google Scholar] [CrossRef]
  25. Yen, S.K.; Koh, L.L.; Hahn, F.E.; Huynh, H.V.; Hor, T.S.A. Convenient entry to mono- and dinuclear palladium(II) benzothiazolin-2-ylidene complexes and their activities toward Heck coupling. Organometallics 2006, 25, 5105–5112. [Google Scholar] [CrossRef]
  26. Selvakumar, K.; Zapf, A.; Spannenberg, A.; Beller, M. Synthesis of monocarbenepalladium(0) complexes and their catalytic behavior in cross-coupling reactions of aryldiazonium salts. Chem. Eur. J. 2002, 8, 3901–3906. [Google Scholar] [CrossRef]
  27. Herrmann, W.A. N-heterocyclic carbenes: A new concept in organometallic catalysis. Angew. Chem. Int. Ed. 2002, 41, 1290–1309. [Google Scholar] [CrossRef]
  28. Glorius, F. N-heterocyclic carbenes in transition metal catalysis. In Top. Organomet. Chem.; Glorius, F., Ed.; Springer-Verlag: Berlin Heidelberg, Germany, 2007; Volume 3, pp. 1–218. [Google Scholar]
  29. Scott, N.M.; Nolan, S.P. Cross-coupling reactions catalyzed by palladium N-heterocyclic carbene complexes. In N-Heterocyclic Carbenes in Synthesis; Nolan, S.P., Ed.; Wiley-VCH: Weinheim,Germany, 2006; pp. 55–70. [Google Scholar]
  30. Waltman, A.W.; Grubbs, R.H. A new class of chelating N-heterocyclic carbene ligands and their complexes with palladium. Organometallics 2004, 23, 3105–3109. [Google Scholar] [CrossRef]
  31. Schutz, J.; Herdtweck, E.; Herrmann, W.A. Synthesis and catalytic application of palladium pyrazolin-3-ylidene complexes. Organometallics 2004, 23, 6084–6086. [Google Scholar] [CrossRef]
  32. Kluser, E.; Neels, A.; Albrecht, M. Mild and rational synthesis of palladium complexes comprising C(4)-bound N-heterocyclic carbenes. Chem. Commun. 2006, 4495–4497. [Google Scholar]
  33. Karimi, B.; Enders, D. New N-heterocyclic carbene palladium complex/ionic liquid matrix immobilized on silica: Application as recoverable catalyst for the Heck reaction. Org. Lett. 2006, 8, 1237–1240. [Google Scholar] [CrossRef]
  34. Andrus, M.B.; Song, C.; Zhang, J. Palladium−imidazolium carbene catalyzed Mizoroki−Heck coupling with aryl diazonium ions. Org. Lett. 2002, 4, 2079–2082. [Google Scholar] [CrossRef]
  35. Yang, C.; Lee, H.M.; Nolan, S.P. Highly efficient Heck reactions of aryl bromides with n-butyl acrylate mediated by a palladium/phosphine−imidazolium salt system. Org. Lett. 2001, 3, 1511–1514. [Google Scholar] [CrossRef]
  36. McGuinness, D.S.; Cavell, K.J.; Skelton, B.W.; White, A.H. Zerovalent palladium and nickel complexes of heterocyclic carbenes: Oxidative addition of organic halides, carbon−carbon coupling processes, and the Heck reaction. Organometallics 1999, 18, 1596–1605. [Google Scholar] [CrossRef]
  37. Bourissou, D.; Guerret, O.; Gabbai, F.P.; Bertrand, G. Stable carbenes. Chem. Rev. 2000, 100, 39–92. [Google Scholar]
  38. Böhm, V.P.W.; Weskamp, T.; Gstoettmayr, C.W.K.; Herrmann, W.A. Nickel-catalyzed cross-coupling of aryl chlorides with aryl Grignard reagents. Angew. Chem. Int. Ed. Engl. 2000, 39, 1602–1604. [Google Scholar] [CrossRef]
  39. Herrmann, W.A.; Kohlpaintner, C.W. Water-soluble ligands, metal complexes and catalysts: Synergism of homogeneous and heterogeneous catalysis. Angew. Chem. Int. Ed. Engl. 1993, 32, 1524–1544. [Google Scholar] [CrossRef]
  40. Schwarz, J.; Herdtweck, E.; Herrmann, W.A.; Gardiner, M.G. Highly efficient monocationic palladacycles of chelating diphosphines in C2H4/CO copolymerization. Organometallics 2000, 19, 3154–3160. [Google Scholar] [CrossRef]
  41. Sanford, M.S.; Love, J.A.; Grubbs, R.H. Mechanism and activity of ruthenium olefin metathesis catalysts. J. Am. Chem. Soc. 2001, 123, 6543–6554. [Google Scholar] [CrossRef]
  42. Ahrens, S.; Zeller, A.; Taige, M.A.; Strassner, T. Extension of the alkane bridge in bis NHC−palladium−chloride complexes. Synthesis, structure, and catalytic activity. Organometallics 2006, 25, 5409–5415. [Google Scholar] [CrossRef]
  43. Herrmann, W.A:; Öfele, K.; Preysing, D.; Herdtweck, E. Metal complexes of acyclic diaminocarbenes: Links between N-heterocyclic carbene (NHC)- and Fischer-carbene complexes. J. Organomet. Chem. 2003, 684, 235–248. [Google Scholar]
  44. Mayr, M.; Wurst, K.; Ongania, K.H.; Buchmeiser, M.R. 1,3-Dialkyl- and 1,3-diaryl-3,4,5,6-tetrahydropyrimidin-2-ylidene rhodium(i) and palladium(II) complexes: Synthesis, structure and reactivity. Chem. Eur. J. 2004, 10, 1256–1266. [Google Scholar] [CrossRef]
  45. Özdemir, I.; Demir, S.; Çetinkaya, B. Use of tetrahydropyrimidinium salts for highly efficient palladium-catalyzed cross-coupling reactionsof aryl bromides and chlorides. Tetrahedron 2005, 61, 9791–9798. [Google Scholar] [CrossRef]
  46. Schneider, S.K.; Herrmann, W.A.; Herdtweck, E. Active catalysts for the Suzuki coupling: Palladium complexes of tetrahydropyrimid-2-ylidenes. J. Mol. Cat. A 2006, 245, 248–254. [Google Scholar] [CrossRef]
  47. Bortenschlager, M.; MAyr, M.; Nuyken, O.; Buchmeiser, M.R. Hydroformylation of 1-octene using rhodium-1,3-R2-3,4,5,6-tetrahydropyrimidin-2-ylidenes (R = 2-Pr, mesityl). J. Mol. Cat. 2005, 233, 67–71. [Google Scholar] [CrossRef]
  48. Imlinger, N.; Mayr, M.; Wang, D.; Wurst, K.; Buchmeiser, M.R. Arylation of carbonyl compounds catalyzed by rhodium and iridium 1,3-R2-tetrahydropyrimidin-2-ylidenes: Structure-reactivity correlations. Adv. Synth. Catal. 2004, 346, 1836–1843. [Google Scholar] [CrossRef]
  49. Gürbüz, N.; Özdemir, İ.; Demir, S.; Çetinkaya, B. Improved palladium-catalyzed coupling reaction of aryl halides using saturated N-heterocarbene ligands. J. Mol. Cat. A 2004, 209, 23–38. [Google Scholar] [CrossRef]
  50. Özdemir, İ.; Demir, S.; Çetinkaya, B. Novel tetrahydropyrimidinium/palladium system as a convenient catalyst: Suzuki coupling reactions of aryl chloride. ARKIVOC 2007, xiii, 71–78. [Google Scholar]
  51. Özdemir, İ.; Gürbüz, N.; Gök, Y.; Çetinkaya, E.; Çetinkaya, B. Palladium-catalyzed Suzuki-Miyaura reaction of aryl chlorides in aqueous media using tetrahydrodiazepinium salts as carbene ligands. Synlett 2005, 15, 2394–2396. [Google Scholar]
  52. Özdemir, İ.; Demir, S.; Çetinkaya, B. Palladium-catalyzed Heck reaction of aryl bromides in aqueous media using tris(N-heteocyclic carbene) ligands. Synlett 2007, 6, 889–892. [Google Scholar]
