Synthesis and Antimicrobial Activity of Some Novel 5-Alkyl-6-Substituted Uracils and Related Derivatives

by
Abdulghafoor A. Al-Turkistani
,
Omar A. Al-Deeb
,
Nasser R. El-Brollosy
and
Ali A. El-Emam
*
Department of Pharmaceutical Chemistry, College of Pharmacy, King Saud University, Riyadh 11451, Saudi Arabia
*
Author to whom correspondence should be addressed.
Molecules 2011, 16(6), 4764-4774; https://doi.org/10.3390/molecules16064764
Submission received: 13 May 2011 / Revised: 31 May 2011 / Accepted: 1 June 2011 / Published: 8 June 2011
(This article belongs to the Section Medicinal Chemistry)
Browse Figures
Versions Notes

Abstract

:
6-Chloro-5-ethyl-, n-propyl- and isopropyluracils 5a-c were efficiently prepared from the corresponding 5-alkybarbituric acids 3a-cvia treatment with phosphorus oxychloride and N,N-dimethylaniline to yield the corresponding 5-alkyl-2,4,6-trichloro-pyrimidines 4a-c, which were selectively hydrolyzed by heating in 10% aqueous sodium hydroxide for 30 minutes. The reaction of compounds 5a-c with 1-substituted piperazines yielded the corresponding 5-alkyl-6-(4-substituted-1-piperazinyl)uracils 6a-j. The target 8-alkyltetrazolo[1,5-f]pyrimidine-5,7(3H,6H)-diones 7a-c were prepared via the reaction of 5a-c with sodium azide. Compounds 6a-j and 7a-c were tested for in vitro activities against a panel of Gram-positive and Gram-negative bacteria and the yeast-like pathogenic fungus Candida albicans. Compound 6h displayed potent broad-spectrum antibacterial activity, while compound 6b showed moderate activity against the Gram-positive bacteria. All the tested compounds were practically inactive against Candida albicans.

1. Introduction

The development of new chemotherapeutic agents is becoming the major interest in many academic and industrial research laboratories all over the world with the aim to discover newer, more potent molecules, with higher specificity and reduced toxicity than the existing ones. In addition, the various types of resistant microorganisms that are being discovered nowadays are becoming a great challenge for scientists. Uracils occupy a distinct and unique place in medicine. The chemotherapeutic efficacy of uracil and pyrimidine derivatives is related to their ability to inhibit vital enzymes responsible for DNA biosynthesis such as dihydrofolate reductase (DHFR), thymidylate synthetase (TSase), thymidine phosphorylase (TPase) and reverse transcriptase (RTase). A large array of uracil non-nucleoside derivatives possess a variety chemotherapeutic properties. These properties include anticancer [1,2,3,4,5], antiviral [6,7,8,9,10,11,12,13,14] and antimicrobial activities [15,16,17,18,19]. Moreover, several bis(heteroaryl)piperazine derivatives (BHAP) were introduced as potent anti-HIV drugs [20,21]. In addition, fused pyrimidines were reported to exhibit important biological activities [22,23,24].
In continuation to our interest in the chemical and pharmacological properties of uracil derivatives [10,11,12,13,14,25,26,27,14,25], we report herein the synthesis of a new series of 6-(4-substituted-1-piperazinyl)-5-alkyluracils and 8-alkyltetrazolo[1,5-f]pyrimidine-5,7(3H,6H)-diones as potential antimicrobial agents.

2. Results and Discussion

2.1. Chemistry

The conversion of barbituric acid and its 5-substituted derivatives to the corresponding 6-chlorouracils has been reported by several authors. Kaul et al. [28] and Koroniak et al. [29] reported the preparation of 5-alkyl-6-chlorouracils via the one-pot reaction of the corresponding 5-alkyl-barbituric acid with phospophorus oxychloride and trace amounts of water. This one-pot reaction yields considerable amounts of 5-alkyl-2,4,6-trichloropyrimines as by-products. In the present investigation, 5-(ethyl, n-propyl or isopropyl)-barbituric acids 3a-c were prepared in good yields by the condensation of the appropriate diethyl alkylmalonate 1a-c with urea (2) in dry methanol, in the presence of sodium methoxide [29]. The 5-alkylbarbituric acids 3a-c were further reacted with POCl3 and N,N-dimethylaniline to yield the corresponding 5-alkyl-2,4,6-trichloropyrimidines 4a-c, which were selectively hydrolyzed by heating in aqueous sodium hydroxide for 30 minutes to yield the target derivatives 5a-c in good overall yields (Scheme 1).
Molecules 16 04764 g001 550

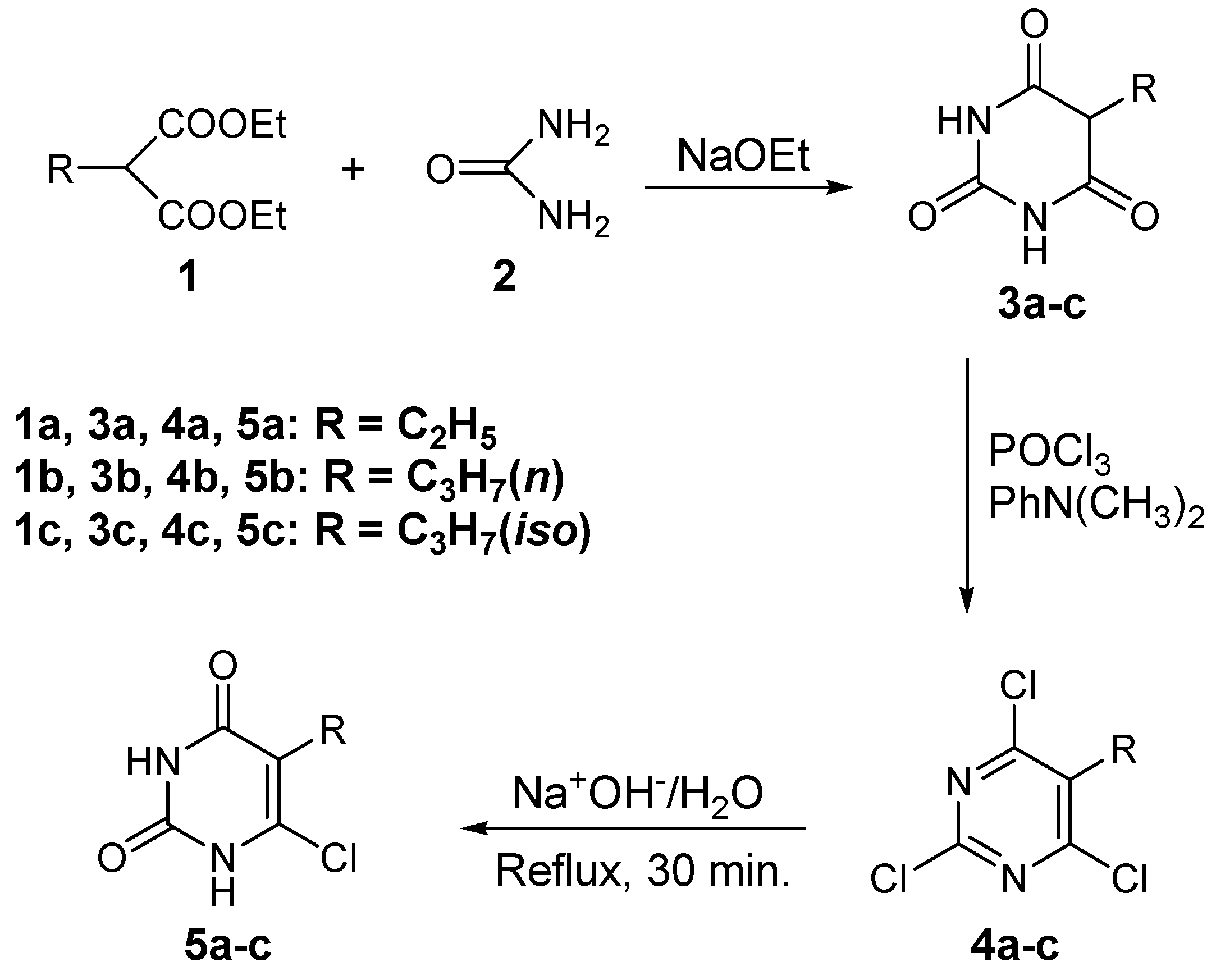

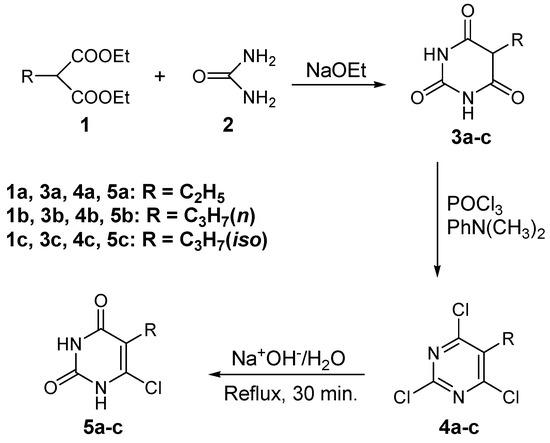

Scheme 1. Synthesis of compounds 5a-c.
Scheme 1. Synthesis of compounds 5a-c.
Molecules 16 04764 g001
The reaction of compounds 5a-c with some 1-substituted piperazines in ethanol in the presence of potassium carbonate yielded the target 5-alkyl-6-(4-substituted-1-piperazinyl)uracils 6a-j in 51-91% yields. Compounds 5a-c were reacted with aqueous sodium azide solution in acetic acid via heating for 4 hours to yield the target 8-alkyltetrazolo[1,5-f]pyrimidine-5,7(3H,6H)-diones 7a-c. The reaction is thought to proceed through nucleophilic substitution of the chlorine atom to yield the 6-azido derivatives, which subsequently cyclized to give compounds 7a-c (Scheme 2, Table 1). The structures of the newly synthesized compounds were confirmed on the basis of their elemental analysis and IR, 1H-NMR, 13C-NMR and mass spectral data.
Molecules 16 04764 g002 550

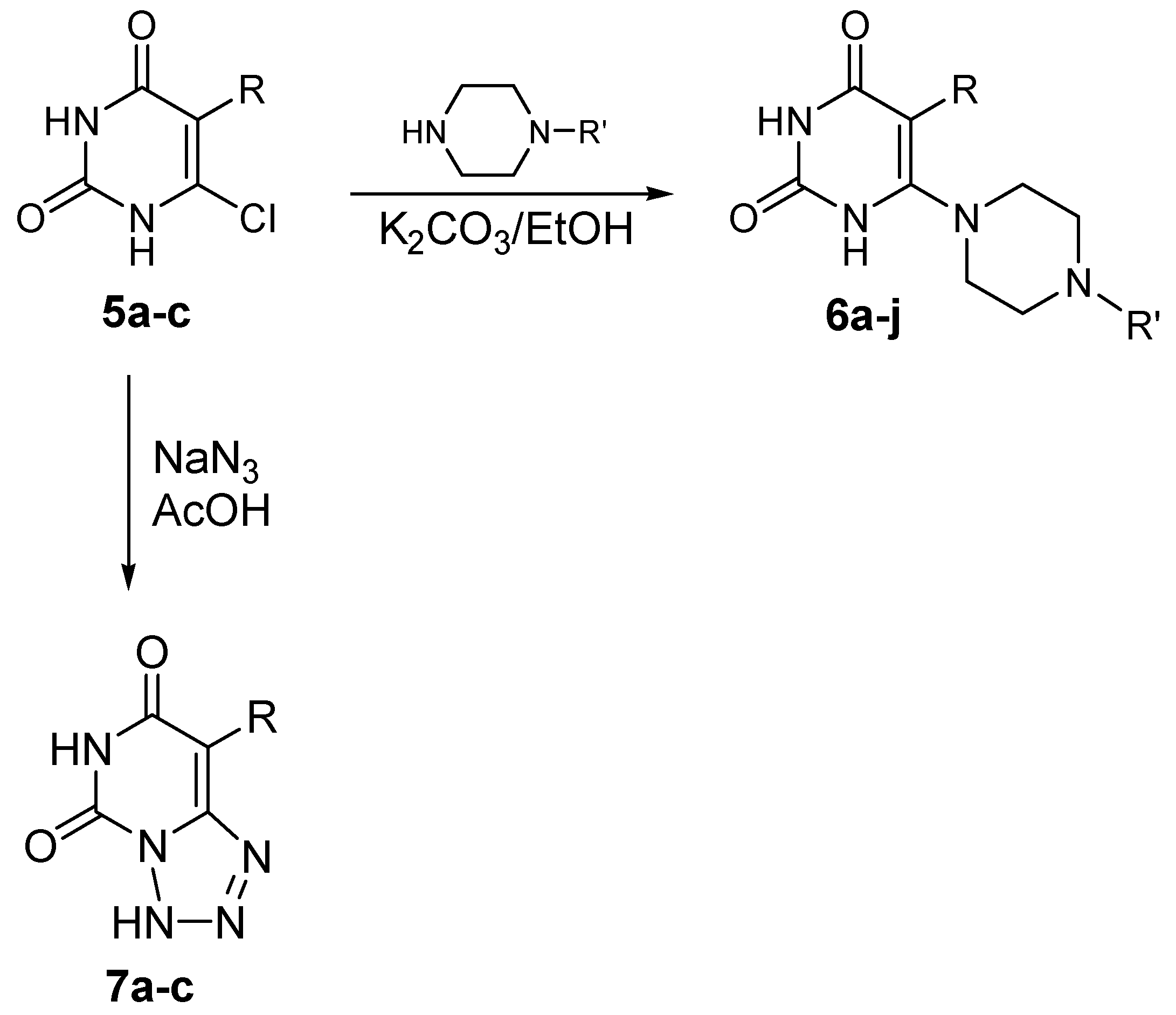

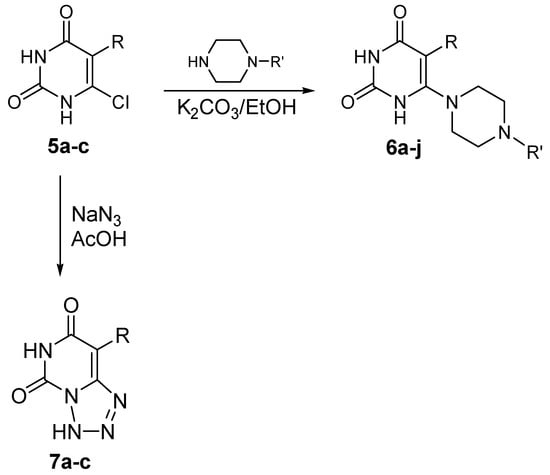

Scheme 2. Synthesis of compounds 6a-j and 7a-c.
Scheme 2. Synthesis of compounds 6a-j and 7a-c.
Molecules 16 04764 g002
Table
Table 1. Melting points, yield percentages, molecular formulae and molecular weights of newly synthesized compounds 6a-j and 7a-c.
Table 1. Melting points, yield percentages, molecular formulae and molecular weights of newly synthesized compounds 6a-j and 7a-c.
Comp. No.RR’Mp (°C)Yield (%)Molecular Formula (Mol. Wt.)
6aC2H5COOC2H5134-664C13H20N4O4 (296.32)
6bC2H5C6H5173-551C16H20N4O2 (300.36)
6cC2H52-CH3OC6H4166-865C17H22N4O3 (330.38)
6dC3H7(n)C2H5148-5062C13H22N4O2 (266.34)
6eC3H7(n)COOC2H5161-370C14H22N4O4 (310.35)
6fC3H7(n)C6H5176-888C17H22N4O2 (314.38)
6gC3H7(n)2-CH3OC6H4169-7185C18H24N4O3 (344.41)
6hC3H7(n)3-CF3C6H4174-676C18H21F3N4O2 (382.38)
6iC3H7(iso)C6H5192-490C17H22N4O2 (314.38)
6jC3H7(iso)2-CH3OC6H4188-9091C18H24N4O3 (344.41)
7aC2H5-215-7 (dec.)52C6H7N5O2 (181.06)
7bC3H7(n)-252-4 (dec.)59C7H9N5O2 (195.18)
7cC3H7(iso)-242-4 (dec.)55C7H9N5O2 (195.18)

2.2. Antimicrobial Testing

The newly synthesized compounds 6a-j and 7a-c were tested for their in vitro growth inhibitory activity against the standard strains of the Institute of Fermentation of Osaka (IFO) namely; Staphylococcus aureus IFO 3060, Bacillus subtilis IFO 3007, Micrococcus luteus IFO 3232 (Gram-positive bacteria), Escherichia coli IFO 3301, Pseudomonas aeuroginosa IFO 3448 (Gram-negative bacteria), and the yeast-like pathogenic fungus Candida albicans IFO 0583. The primary screening was carried out using the agar disc-diffusion method using Müller-Hinton agar medium [30]. The results of the preliminary antimicrobial testing of compounds 6a-j and 7a-c (200 μg/disc), the antibacterial antibiotic ampicillin trihydrate (100 μg/disc) and the antifungal drug clotrimazole (100 μg/disc) are shown in Table 2.
Table
Table 2. Antimicrobial activity of compounds 6a-j and 7a-c (200 μg/8 mm disc), the broad spectrum antibacterial antibiotics gentamicin (100 μg/8 mm disc), ampicillin (100 μg/8 mm disc) and the antifungal drug clotrimazole (100 μg/8 mm disc) against Staphylococcus aureus IFO 3060 (SA), Bacillus subtilis IFO 3007 (BS), Micrococcus luteus IFO 3232 (ML), Escherichia coli IFO 3301(EC), Pseudomonas aeuroginosa IFO 3448 (PA), and Candida albicans IFO 0583 (CA).
Table 2. Antimicrobial activity of compounds 6a-j and 7a-c (200 μg/8 mm disc), the broad spectrum antibacterial antibiotics gentamicin (100 μg/8 mm disc), ampicillin (100 μg/8 mm disc) and the antifungal drug clotrimazole (100 μg/8 mm disc) against Staphylococcus aureus IFO 3060 (SA), Bacillus subtilis IFO 3007 (BS), Micrococcus luteus IFO 3232 (ML), Escherichia coli IFO 3301(EC), Pseudomonas aeuroginosa IFO 3448 (PA), and Candida albicans IFO 0583 (CA).
Comp. No.Diameter of Growth Inhibition Zone (mm) *
SABSMLECPAC A
6a------
6b121415---
6c--13---
6d--15---
6e--11---
6f--11---
6g 13 -
6h22(4) **26(2) **28(1) **20(4) **16(16) **-
6i--12---
6j--14---
7a------
7b------
7c------
Gentamicin26(2) **25(2) **18(2) **20(0.5) **19(1) **NT
Ampicillin23(2) **21(0.5) **19(2) **17(2) **16(2) **NT
ClotrimazoleNTNTNTNTNT21
* (-): Inactive (inhibition zone < 10 mm). (NT): Not tested. ** The figures shown in parentheses represent the MIC values (μg/mL).
The results revealed that only compound 6h showed marked broad-spectrum inhibitory activity against the tested bacteria, while compound 6b displayed limited activity against the tested Gram-positive bacteria. In addition, all the tested compounds were inactive against the yeast-like pathogenic fungus Candida albicans. According to the results of the antimicrobial activity, it seems difficult to abstract definite structure-activity relationship. However, we can conclude that the Gram-positive bacteria Micrococcus luteus are generally sensitive to the 6-piperazino uracils derivatives 6a-j. In general, the antibacterial activity seemed to be dependent on the nature of 6-subtituents rather the basic skeleton of the molecules. Within the 6-piperazino series 6a-j, the highest activity was observed with the 3-trifluoromethylphenyl-1-piperazinyl derivative 6h which endows potent broad-spectrum antibacterial activity. In addition, it would be concluded that the synthesized compounds are not suitable candidate for antifungal activity. The minimal inhibitory concentration (MIC) for the active compound 6h against the same microorganism used in the primary screening was carried out using the microdilution susceptibility method in Müller-Hinton Broth and Sabouraud Liquid Medium [31]. The MIC of compound 6h, the antibacterial antibiotics ampicillin trihydrate and gentamicin which are shown in Table 2, were in accordance with the results obtained in the primary screening.

3. Experimental

3.1. General

Melting points (°C) were measured in open glass capillaries using a Branstead 9001 electrothermal melting point apparatus and are uncorrected. NMR spectra were obtained on a Bruker AC 500 Ultra Shield NMR spectrometer (Fällanden, Switzerland) operating at 500.13 MHz for 1H and 125.76 MHz for 13C; the chemical shifts are expressed in δ (ppm) downfield from tetramethylsilane (TMS) as internal standard; coupling constants (J) are expressed in Hz. Electrospray ionization mass spectra (ESI-MS) were recorded on an Agilent 6410 Triple Quad tandem mass spectrometer at 4.0 and 3.5 kV for positive and negative ions, respectively. Elemental analyses (C, H, N, S) were in full agreement with the proposed structures within ±0.4% of the theoretical values. Monitoring the reactions and checking the purity of the final products were carried out by thin layer chromatography (TLC) using silica gel precoated aluminum sheets (60 F254, Merck) and visualization with ultraviolet light (UV) at 365 and 254 nm. The bacterial strains and Candida albicans fungus were obtained from the Institute of Fermentation of Osaka (IFO), Osaka, Japan. The reference drugs ampicillin trihydrate (CAS 7177-48-2) and clotrimazole (CAS 23593-75-1) were obtained from Sigma-Aldrich Chemie GmbH (Taufkirchen, Germany).

3.2. 5-Alkylbarbituric Acids 3a-c [29]

Methanolic sodium methoxide solution was prepared by portionwise addition of sodium metal (10.35 gm, 0.45 gm-atom) to dry methanol (200 mL) with continuous stirring over a period of 30 minutes. The appropriate diethyl alkylmalonate 1a-c (0.3 mol) was then added dropwise at room temperature and the mixture was heated under reflux for 30 minutes and cooled to room temperature. Urea (2, 18 gm, 0.3 mole) was added at once and the reaction mixture was heated under reflux for 10 hours. The mixture was distilled in vacuo and the solid residue was dissolved in water (250 mL). The solution was then treated with concentrated hydrochloric acid to pH 2-3 and refrigerated overnight. The precipitated product was filtered, washed with cold water (100 mL) and dried at 80 °C. The products 3a-c which were pure enough (TLC CH3Cl:MeOH 8:2 v/v) were used in the second reaction without further purification. Compound 3a: M.p.: 201-2 °C, Yield: 82%. Compound 3b: M.p.: 210-1 °C, Yield: 95%. Compound 3c: M.p.: 216-8 °C, Yield: 76%.

3.3. 5-Alkyl-6-Chlorouracils 5a-c

The appropriate 5-alkybarbituric acid 3a-c (0.05 mol) was added portionwise to a mixture of phosphorus oxychloride (19.2 mL) and N,N-dimethylaniline (10.3 mL) over a period of 10 minutes with stirring. The mixture was then heated under reflux for one hour. On cooling, the mixture was poured onto crushed ice (200 gm), stirred for 30 minutes and extracted with diethyl ether (2 × 200 mL). The ethereal extract was dried over anhydrous sodium sulphate and evaporated under vacuum at room temperature to yield the crude 5-alkyl-2,4,6-trichloropyrimidines 4a-c as white waxy solids. 10% sodium hydroxide (20 mL) was then added to the crude product and the mixture was heated under reflux for 30 minutes. On cooling, the mixture was acidified with hydrochloric acid to pH 1-2 and the separated precipitate was filtered, washed with cold water and crystallized from ethanol.
6-Chloro-5-ethyluracil (5a): M.p.: 228-10 °C, Yield: 7.25 gm (83%). 1H-NMR (DMSO-d6): δ 0.95 (t, 3H, CH2CH3, J = 7.5 Hz), 2.86 (q, 2H, CH2CH3, J = 7.5 Hz), 11.32 (s, 1H, NH), 11.82 (s, 1H, NH). 13C-NMR: 17.06 (CH2CH3), 19.08 (CH2CH3), 111.86 (C-5), 141.08 (C-6), 150.10 (C=O), 163.20 (C=O). ESI-MS, m/z (Rel. Int.): 173.1 (M−, 100), 175.1 (M- + 2, 34).
6-Chloro-5-(n-propyl)uracil (5b): M.p.: 238-9 °C, Yield: 8.12 gm (86%). 1H-NMR (DMSO-d6): δ 0.85 (t, 3H, CH2CH3, J = 7.5 Hz), 1.37-1.44 (m, 2H, CH2CH3), 2.26 (t, 2H, CH2CH2, J = 7.5 Hz), 11.31 (s, 1H, NH), 11.83 (s, 1H, NH). 13C-NMR: 14.05 (CH2CH3), 21.45 (CH2CH3), 27.45 (CH2CH2CH3), 110.49 (C-5), 141.49 (C-6), 150.10 (C=O), 163.35 (C=O). ESI-MS, m/z (Rel. Int.): 187.1 (M−, 100), 189.1 (M− + 2, 31).
6-Chloro-5-(iso-propyl)uracil (5c): M.p.: 257-9 °C, Yield: 6.98 gm (74%). 1H-NMR (DMSO-d6): δ 1.14 (d, 6H, CH3, J = 7.2 Hz), 2.51-2.63 (m, 1H, CH), 11.22 (s, 1H, NH), 11.79 (s, 1H, NH). 13C-NMR: 20.02 (CH3), 26.52 (CH), 113.95 (C-5), 140.95 (C-6), 149.75 (C=O), 162.75 (C=O). ESI-MS, m/z (Rel. Int.): 187.1 (M−, 100), 189.1 (M− + 2, 35).

3.4. 5-Alkyl-6-(4-Substituted-1-Piperazinyl)uracils 6a-j

A mixture of the appropriate 6-chlorouracil 5a-c (0.002 mol), the appropriate 1-substituted piperazine (0.002 mol) and anhydrous potassium carbonate (0.28 gm, 0.002 mol), in ethanol (8 mL), was heated under reflux for 6 hours. After cooling the solvent was then distilled off in vacuo, and water (10 mL) was added to the residue. The separated precipitate was filtered, washed with cold water, dried and crystallized from ethanol.
6-(4-Ethoxycarbonyl-1-piperazinyl)-5-ethyluracil (6a): 1H-NMR (DMSO-d6): δ 0.93 (t, 3H, CH2CH3, J = 7.0 Hz), 1.17 (t, 3H, OCH2CH3, J = 7.0 Hz), 2.27 (q, 2H, CH2CH3, J = 7.0 Hz), 2.90 (s, 4H, piperazine-H), 3.45 (s, 4H, piperazine-H), 4.03 (q, 2H, OCH2CH3, J = 7.0 Hz), 8.05 (br. s, 2H, NH). 13C-NMR: 13.05 (CH2CH3), 14.46 (CH2CH3), 18.89 (OCH2CH3), 42.22, 43.63 (piperazine-C), 60.87 (OCH2CH3), 108.46 (C-5), 149.21, 153.41, 163.92 (C-2, C-6 & C-4), 154.49 (ester C=O). ESI-MS, m/z (Rel. Int.): 295.2 (M−, 100).
6-(4-Phenyl-1-piperazinyl)-5-ethyluracil (6b): 1H-NMR (DMSO-d6): δ 0.92 (t, 3H, CH3, J = 6.8 Hz), 2.28 (d, 2H, CH2, J = 6.8 Hz), 3.14 (s, 4H, piperazine-H), 3.26 (s, 4H, piperazine-H), 6.81-6.96 (m, 3H, Ar-H), 7.22 (d, 2H, Ar-H, J = 6.5 Hz), 8.66 (br. s, 2H, NH). 13C-NMR: 13.75 (CH3), 19.52 (CH2), 43.98, 47.27 (piperazine-C), 107.96 (C-5), 116.26, 119.96, 129.46, 151.06 (Ar-C), 152.77, 155.29, 164.87 (C-2, C-6 & C-4). ESI-MS, m/z (Rel. Int.): 299.2 (M−, 100).
6-[4-(2-Methoxyphenyl)-1-piperazinyl)]-5-ethyluracil (6c): 1H-NMR (DMSO-d6): δ 0.90 (t, 3H, CH2CH3, J = 7.0 Hz), 2.26 (q, 2H, CH2, J = 7.0 Hz), 3.42-3.46 (m, 8H, piperazine-H), 3.79 (OCH3), 9.82 (s, 2H, NH). 13C-NMR: 13.80 (CH3), 19.27 (CH2), 44.25, 46.51 (piperazine-C), 55.98 (OCH3), 104.33 (C-5), 156.77, 159.13, 165.53 (C-2, C-6 & C-4). ESI-MS, m/z (Rel. Int.): 331.2 (M+, 100).
6-(4-Ethyl-1-piperazinyl)-5-(n-propyl)uracil (6d): 1H-NMR (CDCl3): δ 0.74 (t, 3H, CH2CH2CH3, J = 7.0 Hz), 0.98 (t, 3H, CH2CH3, J = 7.0 Hz), 1.29-1.33 (m, 2H, CH2CH2CH3), 2.23 (t, 2H, CH2CH2CH3, J = 7.0 Hz), 2.35 (q, 2H, CH2CH3, J = 7.0 Hz), 2.73 (br. s, 4H, piperazine-H), 3.06 (br. s, 4H, piperazine-H), 8.09 (br. s, 2H, NH). 13C-NMR: 9.67 (CH2CH2CH3), 12.91 (CH2CH3), 21.23 (CH2CH2CH3), 27.30 (CH2CH2CH3), 42.71, 49.34 (piperazine-C), 51.65 (CH2CH3), 108.77 (C-5), 157.56, 159.21, 167.39 (C-2, C-6 & C-4). ESI-MS, m/z (Rel. Int.): 267.2 (M+, 100).
6-(4-Ethoxycarbonyl-1-piperazinyl)-5-(n-propyl)uracil (6e): 1H-NMR (DMSO-d6): δ 0.95 (t, 3H, CH2CH2CH3, J = 7.0 Hz), 1.32-1.34 (m, 2H, CH2CH2CH3), 1.72 (t, 3H, OCH2CH3, J = 7.0 Hz), 2.25 (q, 2H, CH2CH2CH3, J = 7.0 Hz), 2.92 (s, 4H, piperazine-H), 3.46 (s, 4H, piperazine-H), 4.03 (q, 2H, OCH2CH3, J = 7.0 Hz), 8.13 (br. s, 2H, NH). 13C-NMR: 13.64 (CH2CH2CH3), 14.45 (CH2CH2CH3), 21.33 (OCH2CH3), 27.40 (CH2CH2CH3), 42.05, 43.51 (piperazine-C), 60.89 (OCH2CH3), 107.27 (C-5), 148.79, 153.07, 163.99 (C-2, C-6 & C-4), 154.47 (ester C=O). ESI-MS, m/z (Rel. Int.): 309.2 (M−, 100).
6-(4-Phenyl-1-piperazinyl)-5-(n-propyl)uracil (6f): 1H-NMR (DMSO-d6): δ 0.84 (t, 3H, CH3, J = 7.0 Hz), 1.35-1.37 (m, 2H, CH2CH3), 2.23 (t, 2H, CH2CH2CH3, J = 7.0 Hz), 3.13 (s, 4H, piperazine-H), 3.25 (s, 4H, piperazine-H), 6.82-6.96 (m, 3H, Ar-H), 7.23 (d, 2H, Ar-H, J = 6.5 Hz), 8.28 (br. s, 2H, NH). 13C-NMR: 14.20 (CH3), 22.02 (CH2CH3), 28.12 (CH2CH2CH3), 44.04, 47.34 (piperazine-C), 106.55 (C-5), 116.25, 119.93, 129.49, 151.10 (Ar-C), 153.0, 155.08, 165.01 (C-2, C-6 & C-4). ESI-MS, m/z (Rel. Int.): 315.2 (M+, 100).
6-[4-(2-Methoxyphenyl)-1-piperazinyl)]-5-(n-propyl)uracil (6g): 1H-NMR (DMSO-d6): δ 0.84 (t, 3H, CH3, J = 7.0 Hz), 1.35-1.40 (m, 2H, CH2CH3), 2.23 (t, 2H, CH2CH2CH3, J = 7.0 Hz), 3.10 (s, 4H, piperazine-H), 3.15 (s, 4H, piperazine-H), 3.78 (s, 3H, OCH3), 6.89-7.0 (m, 4H, Ar-H), 8.35 (br. s, 2H, NH). 13C-NMR: 14.27 (CH3), 22.09 (CH2CH3), 28.17 (CH2CH2CH3), 44.47, 49.03 (piperazine-C), 55.81 (OCH3), 106.09 (C-5), 112.37, 118.61, 121.30, 123.46, 141.07, 152.39 (Ar-C), 153.10, 155.93, 165.05 (C-2, C-6 & C-4). ESI-MS, m/z (Rel. Int.): 345.2 (M+, 100).
6-[4-(3-Trifluoromethylphenyl)-1-piperazinyl)]-5-(n-propyl)uracil (6h): 1H-NMR (DMSO-d6): δ 0.84 (t, 3H, CH3, J = 7.0 Hz), 1.36-1.38 (m, 2H, CH2CH3), 2.24 (t, 2H, CH2CH2CH3, J = 7.0 Hz), 3.09 (s, 4H, piperazine-H), 3.32 (s, 4H, piperazine-H), 7.09-7.24 (m, 3H, Ar-H), 7.41-7.43 (m, 1H, Ar-H), 7.92 (br. s, 2H, NH). 13C-NMR: 14.14 (CH3), 21.90 (CH2CH3), 27.99 (CH2CH2CH3), 44.25, 47.19 (piperazine-C), 107.16 (C-5), 111.70, 115.50, 119.43, 123.74, 125.93, 130.47, 150.77 (Ar-C & CF3), 151.49, 154.14, 164.70 (C-2, C-6 & C-4). ESI-MS, m/z (Rel. Int.): 383.2 (M+, 100).
6-(4-Phenyl-1-piperazinyl)-5-isopropyluracil (6i): 1H-NMR (DMSO-d6): δ 1.16 (d, 6H, CH3, J = 6.5 Hz), 2.50 (d, 1H, CH, J = 6.5 Hz), 3.07 (s, 4H, piperazine-H), 3.21 (s, 4H, piperazine-H), 6.79-6.95 (m, 3H, Ar-H), 7.21-7.22 (m, 2H, Ar-H), 8.06 (br. s, 2H, NH). 13C-NMR: 20.58 (CH3), 27.75 (CH), 44.52, 47.92 (piperazine-C), 111.26 (C-5), 116.15, 119.76, 129.43, 149.63 (Ar-C), 151.33, 153.80, 164.05 (C-2, C-6 & C-4). ESI-MS, m/z (Rel. Int.): 315.2 (M+, 100).
6-[4-(2-Methoxyphenyl)-1-piperazinyl)]-5-isopropyluracil (6i): 1H-NMR (DMSO-d6): δ 1.17 (d, 6H, CH3, J = 7.0 Hz), 2.51-2.55 (m, 1H, CH), 2.92-3.09 (m, 8H, piperazine-H), 3.79 (s, 3H, OCH3), 6.99-7.42 (m, 4H, Ar-H), 8.11 (br. s. 2H, NH). 13C-NMR: 20.18 (CH3), 27.33 (CH), 44.12, 48.76 (piperazine-C), 55.32 (OCH3), 110.06 (C-5), 111.93, 118.11, 120.82, 122.90, 140.70, 150.79 (Ar-C), 151.93, 153.93, 163.82 (C-2, C-6 & C-4). ESI-MS, m/z (Rel. Int.): 345.2 (M+, 100).

3.5. 8-Alkyltetrazolo[1,5-F]pyrimidine-5,7(3H,6H)-dione 7a-c

A solution of sodium azide (0.7 gm, 0.011 mol) in water (3.0 mL) was added to a solution of the appropriate 5-alkyl-6-chlorouracil 6a-c (0.01 mol) in acetic acid (5 mL), and the mixture was heated under reflux for 6 hours. On cooling, water (10 mL) was added and the mixture was stirred for 30 minutes. The separated crude product was filtered, washed with cold water, dried and crystallized from ethanol.
8-Ethyltetrazolo[1,5-f]pyrimidine-5,7(3H,6H)-dione (7a): 1H-NMR (DMSO-d6): δ 0.95 (t, 3H, CH2CH3, J = 7.5 Hz), 2.29 (q, 2H, CH2CH3, J = 7.5 Hz), 11.32 (s, 1H, NH), 11.82 (s, 1H, NH). 13C-NMR: 18.06 (CH2CH3), 19.08 (CH2CH3), 111.86 (C-8), 141.08 (C-9), 150.10 (C-5), 163.20 (C-7). ESI-MS, m/z (Rel. Int.): 180.1 (M−, 100).
8-(n-Propyl)tetrazolo[1,5-f]pyrimidine-5,7(3H,6H)-dione (7b): 1H-NMR (DMSO-d6): δ 0.85 (t, 3H, CH2CH2CH3, J = 7.5 Hz), 1.37-1.44 (m, 2H, CH2CH2CH3), 2.26 (t, 2H, CH2CH2CH3, J = 7.5 Hz), 11.31 (s, 1H, NH), 11.83 (s, 1H, NH). 13C-NMR: 14.05 (CH2CH2CH3), 21.45 (CH2CH2CH3), 27.46 (CH2CH2CH3), 110.39 (C-8), 141.49 (C-9), 150.10 (C-5), 163.35 (C-7). ESI-MS, m/z (Rel. Int.): 195.1 (M−, 100).
8-Isopropyltetrazolo[1,5-f]pyrimidine-5,7(3H,6H)-dione (7c): 1H-NMR (DMSO-d6): δ 1.17 (d, 6H, CH3, J = 7.0 Hz), 2.99-3.03 (m, 1H, CH), 11.23 (s, 1H, NH), 11.75 (s, 1H, NH). 13C-NMR: 20.13 (CH3), 27.56 (CH), 114.33 (C-8), 140.59 (C-9), 150.0 (C-5), 162.72 (C-7). ESI-MS, m/z (Rel. Int.): 195.1 (M−, 100).

3.6. Determination of the Antimicrobial Activity by the Agar Disc-Diffusion Method [30]

Sterile filter paper discs (8 mm diameter) were moistened with the compound solution in dimethylsulphoxide of specific concentration (200 μg/disc), the antibacterial antibiotics gentamicin and ampicillin trihydrate (100 μg/disc) and the antifungal drug clotrimazole (100 μg/disc) were carefully placed on the agar culture plates that had been previously inoculated separately with the microorganisms. The plates were incubated at 37 °C, and the diameter of the growth inhibition zones were measured after 24 hours in case of bacteria and 48 h in case of Candida albicans.

3.7. Determination of Minimal Inhibitory Concentration (MIC) [31]

Compound 6h, gentamicin and ampicillin trihydrate were dissolved in dimethylsulphoxide at a concentration of 128 μg/mL. Twofold serial dilutions of the solution were then prepared (128, 64, 32, …, 0.5 μg/mL). The microorganism suspensions at 106 CFU/mL (colony forming unit/ml) concentrations were inoculated to the corresponding wells. The plates were incubated at 36 °C for 24 and 48 h for the bacteria and Candida albicans, respectively. The MIC values were determined as the lowest concentration that completely inhibited visible growth of the microorganism as detected by unaided eye.

4. Conclusions

In this study, the synthesis and antimicrobial testing of 5-alkyl-6-(4-substituted-1-piperazinyl)uracils 6a-j, and 8-alkyltetrazolo[1,5-f]pyrimidine-5,7(3H,6H)-diones 7a-c, is described. The compound 6-[4-(3-trifluoromethylphenyl)-1-piperazinyl)]-5-(n-propyl)uracil (6h) was proven to possess potent broad-spectrum antibacterial activity against certain strains of pathogenic bacteria, although the mechanism of the biological activity needs further investigation, which is in progress.

Supplementary Materials

Supplementary File 1

Acknowledgements

The financial support of the Deanship of Scientific Research and the Research Center of the College of Pharmacy, King Saud University is greatly appreciated. The authors are grateful to El-Sayed E. Habib, Department of Microbiology, Faculty of Pharmacy, University of Mansoura, Egypt, for performing the antimicrobial testing.

References

  1. Boisdron-Celle, M.; Remaud, G.; Traore, S.; Poirier, A.L.; Gamelin, L.; Morel, A.; Gamelin, E. 5-Fluorouracil-related severe toxicity: A comparison of different methods for the pretherapeutic detection of dihydropyrimidine dehydrogenase deficiency. Cancer Lett. 2007, 249, 271–282. [Google Scholar] [CrossRef]
  2. Spáčilová, L.; Dżubák, P.; Hajdúch, M.; Kŕupková, S.; Hradila, P.; Hlavác, J. Synthesis and cytotoxic activity of various 5-[alkoxy-(4-nitro-phenyl)-methyl]-uracils in their racemic form. Bioorg. Med. Chem. Lett. 2007, 17, 6647–6650. [Google Scholar] [CrossRef]
  3. Kundu, N.G.; Das, P.; Balzarini, J.; de Clercq, E. Palladium-catalyzed synthesis of [E]-6-(2-acylvinyl)uracils and [E]-6-(2-acylvinyl)-1-[(2-hydroxyethoxy)methyl] uracils − their antiviral and cytotoxic activities. Bioorg. Med. Chem. 1997, 5, 2011–2018. [Google Scholar] [CrossRef]
  4. Klein, R.S.; Lenzi, M.; Lim, T.H.; Hotchkiss, K.A.; Wilson, P.; Schwartz, E.L. Novel 6-substituted uracil analogs as inhibitors of the angiogenic actions of thymidine phosphorylase. Biochem. Pharmacol. 2001, 62, 1257–1263. [Google Scholar]
  5. Yano, S.; Kazuno, H.; Sato, T.; Suzuki, N.; Emura, T.; Wierzba, K.; Yamashita, J.; Tada, Y.; Yamada, Y.; Fukushima, M.; et al. Synthesis and evaluation of 6-methylene-bridged uracil derivatives. Part 2: Optimization of inhibitors of human thymidine phosphorylase and their selectivity with uridine phosphorylase. Bioorg. Med. Chem. 2004, 12, 3443–3450. [Google Scholar] [CrossRef]
  6. Hopkins, A.L.; Ren, J.; Esnouf, R.M.; Willcox, B.E.; Jones, E.Y.; Ross, C.; Miyasaka, T.; Walker, R.T.; Tanaka, H.; Stammers, D.K.; et al. The design and synthesis of N-1-alkylated-5-aminoaryalkylsubstituted-6-methyluracils as potential non-nucleoside HIV-1 RT inhibitors. J. Med. Chem. 1996, 39, 1589–1600. [Google Scholar]
  7. Lu, X.; Chen, Y.; Guo, Y.; Liu, Z.; Shi, Y.; Xu, Y.; Wang, X.; Zhang, Z.; Liu, J. The design and synthesis of N-1-alkylated-5-aminoaryalkylsubstituted-6-methyluracils as potential non-nucleoside HIV-1 RT inhibitors. Bioorg. Med. Chem. 2007, 15, 7399–7407. [Google Scholar]
  8. Kumar, R.; Sharma, N.; Nath, M.; Saffran, H.A.; Tyrrell, D.L.J. Synthesis and antiviral activity of novel acyclic nucleoside analogues of 5-(1-azido-2-haloethyl)uracils. J. Med. Chem. 2001, 44, 4225–4229. [Google Scholar] [CrossRef]
  9. Ding, Y.; Girardet, J.-L.; Smith, K.L.; Larson, G.; Prigaro, B.; Wu, J.Z.; Yao, N. Parallel synthesis of 5-cyano-6-aryl-2-thiouracil derivatives as inhibitors for hepatitis C viral NS5B RNA-dependent RNA polymerase. Bioorg. Chem. 2006, 34, 26–38. [Google Scholar] [CrossRef]
  10. El-Emam, A.A.; Massoud, M.A.; El-Bendary, E.R.; El-Sayed, M.A. Synthesis of certain 6-substituted uracils and related derivatives as potential antiviral agents. Bull. Kor. Chem. Soc. 2004, 25, 991–996. [Google Scholar] [CrossRef]
  11. El-Brollosy, N.R.; Jørgensen, P.T.; Dahan, B.; Boel, A.M.; Pedersen, E.B.; Nielsen, C. Synthesis of novel N-1 (allyloxymethyl) analogues of 6-benzyl-1-(ethoxymethyl)-5-isopropyluracil (MKC-442, Emivirine) with improved activity against HIV-1 and its mutants. J. Med. Chem. 2002, 45, 5721–5726. [Google Scholar] [CrossRef]
  12. El-Brollosy, N.R.; Al-Deeb, O.A.; El-Emam, A.A.; Pedersen, E.B.; La Colla, P.; Collu, G.; Sanna, G.; Roberta, L. Synthesis of novel uracil non-nucleoside derivatives as potential reverse transcriptase inhibitors of HIV-1. Arch. Pharm. Chem. Life Sci. 2009, 342, 663–670. [Google Scholar] [CrossRef]
  13. El-Brollosy, N.R.; Al-Omar, M.A.; Al-Deeb, O.A.; El-Emam, A.A.; Nielsen, C. Synthesis of novel uracil non-nucleosides analogues of 3,4-dihydro-2-alkylthio-6-benzyl-4-oxopyrimidines and 6-benzyl-1-ethoxymethyl-5-isopropyluracil. J. Chem. Res. 2007, 2007, 263–267. [Google Scholar]
  14. El-Emam, A.A.; Nasr, M.A.; Pedersen, E.B.; Nielsen, C. Synthesis of certain 6-(arylthio)uracils as potential antiviral agents. Phosphorus Sulfur Silicon 2001, 174, 25–35. [Google Scholar] [CrossRef]
  15. Locher, H.H.; Schlunegger, H.; Hartman, P.G.; Anghern, P.; Then, R.L. Antibacterial activities of epiroprim, a new dihydrofolate reductase inhibitor, alone and in combination with dapsone. Antimicrob. Agents Chemother. 1996, 40, 1376–1381. [Google Scholar]
  16. Hawser, S.; Lociuro, S.; Islam, K. Dihydrofolate reductase inhibitors as antibacterial agents. Biochem. Pharmacol. 2006, 71, 941–948. [Google Scholar]
  17. Deshmukh, M.B.; Salunkhe, S.M.; Patil, D.R.; Anbhule, P.V. A novel and efficient one step synthesis of 2-amino-5-cyano-6-hydroxy-4-aryl pyrimidines and their anti-bacterial activity. Eur. J. Med. Chem. 2009, 44, 2651–2654. [Google Scholar]
  18. Tassel, D.; Madoff, M.A. Treatment of Candida sepsis and Cryptococcus meningitis with 5-fluorocytosine. A new antifungal agent. J. Am. Med. Assoc. 1968, 206, 830–832. [Google Scholar] [CrossRef]
  19. Mai, A.; Rotili, D.; Massa, S.; Brosch, G.; Simonetti, G.; Passariello, C.; Palamara, A.T. Discovery of uracil-based histone deacetylase inhibitors able to reduce acquired antifungal resistance and trailing growth in Candida albicans. Bioorg. Med. Chem. Lett. 2007, 17, 1221–1225. [Google Scholar] [CrossRef]
  20. Romero, D.L.; Morge, R.A.; Biles, C.; Berrios-Pena, N.; May, P.D.; Palmer, J.R.; Johnson, P.D.; Smith, H.W.; Busso, M.; Tan, C.-K.; et al. Discovery, synthesis, and bioactivity of bis(heteroaryl)piperazines. 1. A Novel class of non-Nucleoside HIV-1 reverse transcriptase inhibitors. J. Med. Chem. 1994, 37, 999–1014. [Google Scholar] [CrossRef]
  21. Romero, D.L.; Olmsted, R.A.; Poel, T.J.; Morge, R.A.; Biles, C.; Keiser, B.J.; Kopta, L.A.; Friis, J.M.; Hosley, J.D.; Stefanski, K.J.; et al. Targeting delavirdine/atevirdine resistant HIV-1: Identification of (alkylamino)piperidine-containing bis(heteroaryl)piperazines as broad-spectrum HIV-1 reverse transcriptase inhibitors. J. Med. Chem. 1996, 39, 3769–3789. [Google Scholar] [CrossRef]
  22. Hussein, A.M.; Ahmed, O.M. Regioselective one-pot synthesis and anti-proliferative and apoptotic effects of some novel tetrazolo[1,5-a]pyrimidine derivatives. Bioorg. Med. Chem. 2010, 18, 2639–2644. [Google Scholar] [CrossRef]
  23. Chen, C.-N.; Chen, Q.; Liu, Y.-C.; Zhu, X.-L.; Niu, C.-W.; Xi, Z.; Yang, G.-F. Syntheses and herbicidal activity of new triazolopyrimidine-2-sulfonamides as acetohydroxyacid synthase inhibitor. Bioorg. Med. Chem. 2010, 18, 4897–4904. [Google Scholar] [CrossRef]
  24. Khobragade, C.N.; Bodade, R.G.; Konda, S.G.; Dawane, B.S.; Manwar, A.V. Synthesis and antimicrobial activity of novel pyrazolo[3,4-d]pyrimidin derivatives. Eur. J. Med. Chem. 2010, 45, 1635–1638. [Google Scholar] [CrossRef]
  25. Al-Omar, M.A.; Al-Obaid, A.M.; El-Brollosy, N.R.; El-Emam, A.A. Some observations on the base-catalyzed cyclocondensation of 2,6-dihalobenzaldehydes, ethyl cyanoacetate, and thiourea. Synth. Commun. 2010, 40, 1530–1538. [Google Scholar] [CrossRef]
  26. El-Emam, A.A.; Pedersen, E.B.; Jacobsen, J.P.; Nielsen, C. Glycosylation of 6-arylthiouracil with 3-azido-2,3-dideoxypentafuranoside derivatives. Bull. Soc. Chim. France 1993, 130, 817–821. [Google Scholar]
  27. Larsen, E.; Daniel, K.; Vaaben, G.B.; El-Emam, A.A.; Pedersen, E.B.; Nielsen, C. Synthesis of an AZT-HEPT hybrid and homologous AzddU derivatives. Acta Chem. Scand. 1996, 50, 417–421. [Google Scholar] [CrossRef]
  28. Kaul, R.; Kiefer, G.; Erhardt, S.; Hempel, B. 2-14C-1-(2′-deoxy-β-D-ribofuranosyl)-5-ethyluracil: Synthesis and biotransformation in rats. J. Pharm. Sci. 1980, 69, 531–534. [Google Scholar] [CrossRef]
  29. Koroniak, H.; Jankowski, A.; Kranowski, M. Facile large scale synthesis of 5-alkyluracils. Org. Prep. Proc. Int. 1993, 25, 563–586. [Google Scholar] [CrossRef]
  30. Murray, P.R.; Baron, E.J.; Pfaller, M.A.; Tenover, F.C.; Yolken, R.H. Manual of Clinical Microbiology; Wood, G.L., Washington, J.A., Eds.; American Society for Microbiology: Washington, DC, USA, 1995. [Google Scholar]
  31. National Committee for Clinical Laboratory Standards, Approved Standard Document M7A; NCCLS: Villanova, PA, USA, 1985.
