Article

Bioactivity of NANOZR Induced by Alkali Treatment

1
Department of Removable Prosthodontics and Occlusion, Osaka Dental University, 8-1 Kuzuhahanazonocho, Hirakata, Osaka 573-1121, Japan
2
Department of Periodotology, Osaka Dental University, 8-1 Kuzuhahanazonocho, Hirakata, Osaka 573-1121, Japan
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2017, 18(4), 780; https://doi.org/10.3390/ijms18040780
Submission received: 7 March 2017 / Revised: 28 March 2017 / Accepted: 2 April 2017 / Published: 6 April 2017
(This article belongs to the Special Issue Bioactive Nanoparticles)

Abstract

:
In recent years, zirconia has been a recognized implant material in clinical dentistry. In the present study, we investigated the performance of an alkali-modified ceria-stabilized tetragonal ZrO2 polycrystalline ceramic-based nanostructured zirconia/alumina composite (NANOZR) implant by assessing surface morphology and composition, wettability, bovine serum albumin adsorption rate, rat bone marrow (RBM) cell attachment, and capacity for inducing bone differentiation. NANOZR surfaces without and with alkali treatment served as the control and test groups, respectively. RBM cells were seeded in a microplate with the implant and cultured in osteogenic differentiation medium, and their differentiation was evaluated by measuring alkaline phosphatase (ALP) activity, osteocalcin (OCN) production, calcium deposition, and osteogenic gene expression. The alkali-treated NANOZR surface increased ALP activity, OCN production, calcium deposition, and osteogenesis-related gene expression in attached RBM cells. These data suggest that alkali treatment enhances the osteogenesis-inducing capacity of NANOZR implants and may therefore improve their biointegration into alveolar bone.

1. Introduction

Various materials and surface modification methods have been developed to improve implant osseointegration and reduce healing time in clinical dentistry [1,2,3,4]. Oral implants made of titanium and its alloys have been shown to function well for many years [5]. Surface characteristics of the implant material affect the rate and extent of osseointegration [6,7]; there is increasing evidence that surface-modified materials are highly effective for promoting cell adhesion, growth, and osteogenic differentiation [8].
In recent years, zirconia has been a recognized implant material for various reasons [9,10,11]. Firstly, zirconia is more compatible with esthetic requirements since the dark color of titanium can show through the pinkish hue of the cervical gingiva, especially in patients with a thin gingival biotype [12]. In addition, high titanium concentrations in tissue have been reported in the vicinity of titanium oral implants and in regional lymph nodes, suggesting that titanium is a sensitinogen in some individuals [13]. Moreover, products of titanium particle corrosion may provoke host reactions [14] and are thus a potential health hazard. These findings have prompted some patients to request metal-free dental reconstructions. Zirconia ceramics exhibit high strength and fracture toughness [15,16] and are suitable for transgingival implant components, although their behavior over the long term has not been investigated in detail.
Ceria-stabilized tetragonal zirconia polycrystals (Ce-TZP) and alumina polycrystals (Al2O3) have been combined to generate a ceria-stabilized tetragonal ZrO2 polycrystalline ceramic-based nanostructured zirconia/alumina composite (NANOZR), in which Al2O3 nanoparticles are dispersed among Ce-TZP granules [16,17,18]. This material is highly resistant to low-temperature degradation and is especially useful for load-bearing applications such as dental implants, exhibiting greater flexural strength and fracture toughness and more than twice the cyclic fatigue strength of 3 mol % yttria-stabilized tetragonal zirconia polycrystals (3Y-TZP) [19].
The detailed mechanism of osseointegration is still unclear. However, osseointegration properties of biomaterials can be assessed by examining the behavior of osteoblasts on the implant surface [20,21]. Various studies have compared adhesion and differentiation of rat bone marrow (RBM) cells on titanium and zirconia surfaces [20,21,22]. Each kind of method has its own advantages. In a recent study, Li showed that this layer induces apatite formation for osseointegration by alkali treatment. In some research, acid treatment led to the lamination of the oxide layer of titanium and zirconia surface as well as changing the surface roughness [23]. Furthermore, sand blast changed the surface roughness of materials of titanium and zirconia surface. Our team has a track record of alkali treatment to titanium and titanium alloy surface and we have reported the clinical utility of this treatment in a previous study [24]. In our study, we used the innovative condition to prepare the titanium metal surfaces in 10 M NaOH aqueous solution at 30 °C, which produces a roughened nanoscale surface. Alkali-modified titanium surface was shown to promote osteogenic differentiation in RBM cells [24,25,26]. Material surface properties and structures play important roles in protein adsorption, which can in turn influence cell behavior. We speculated that applying the above treatment to the NANOZR surface could improve the rate of osseointegration.
To test this hypothesis, the present study compared the performance of alkali-modified NANOZR surfaces by evaluating surface morphology and composition, wettability, bovine serum albumin (BSA) adsorption rate, RBM cell attachment, and capacity of inducing bone differentiation. The findings provide a basis for improving the success rate of zirconia and titanium dental implants.

2. Results

2.1. Sample Preparation

Scanning electron microscopy (SEM) observations revealed no structural changes on the NANOZR surface after immersion in NaOH solution (Figure 1); however, a roughened surface was observed by scanning probe microscopy (SPM) (Figure 2). The Ra of the alkali-treated NANOZR surface was 1.8 nm, which was higher than that of the untreated surface (Ra = 0.9 nm). In the X-ray photoelectron spectroscopy (XPS) analysis, the intensity of the O1s peaks was increased while that of the C1s peaks were decreased by NaOH treatment. The Na peak was not assigned. At narrow scan of O1s, two types of O atoms were mixed, and peaks of O atoms (OH type) were assigned by NaOH treatment (Figure 3). There was a significant difference between contact angles measured for the alkali-treated NANOZR and untreated NANOZR disks (Figure 4).

2.2. Protein Adsorption

We measured the amount of BSA adsorbed on the alkali-modified and untreated NANOZR surfaces after incubation for 1, 3, 6, and 24 h. The alkali-treated NANOZR surface showed greater BSA adsorption at each time point than the untreated surface (Figure 5).

2.3. Cell Adhesion and Morphology

The adhesion of RBM cells on the specimens was evaluated after 1, 3, 6, and 24 h of incubation. Alkali-treated NANOZR showed greater RBM cell adhesion at each time point than the untreated NANOZR surface (Figure 6).
Cell morphology was evaluated by Alexa Fluor 488-phalloidin and 4′,6-diamidino-2-phenylindole (DAPI) staining after 24 h of incubation. Compared to RBM cells attached to the untreated NANOZR surface, those on alkali-modified NANOZR showed greater F-actin expression and more filopodia and lamellipodia (Figure 7).

2.4. Quantitative Real-Time (qRT-)PCR Analysis of Osteogenesis-Related Gene Expression

The mRNA expression levels of osteogenesis-related genes including alkaline phosphatase (ALP), runt-related transcription factor (Runx2), bone morphogenetic protein (BMP), and osteopontin (OPN) in RBM cells grown on the different surfaces for 3, 7, 14, and 21 days were assessed by qRT-PCR. The levels of all genes were upregulated in cells grown on alkali-treated NANOZR surfaces as compared to those grown on untreated NANOZR (Figure 8).

2.5. ALP Activity

ALP activity was observed in RBM cells grown on the different substrates for 7 days, and was found to increase with time. There were significant differences in ALP activity between alkali-treated and untreated NANOZR surfaces at 7 and 14 days (Figure 9), with higher levels in the former than in the latter group (Figure 9).

2.6. Osteocalcin (OCN) Production

We measured OCN levels in the culture supernatant of RBM cells grown on the different substrates for 21 and 28 days. The supernatant of cells grown on the alkali-treated NANOZR surface showed higher levels of OCN at both time points than that of control cultures (Figure 10).

2.7. Mineralization

Calcium deposition in cells cultured on the different surfaces for 21 and 28 days was assessed as a measure of osteogenic differentiation. Mineralization was greater in cells grown on the alkali-treated NANOZR surface than in those on the untreated surface (Figure 11).

3. Discussion

The present study investigated whether RBM cells respond differently to NANOZR implants that have been subjected to surface modification by alkali treatment. We found that adhesion and osteogenic differentiation—including calcium deposition in the extracellular matrix—were increased in cells grown on the alkali-treated as compared to the untreated, polished NANOZR surface. These results suggest that similar to alkali-modified titanium, alkali treatment of NANOZR promotes RBM cell adhesion and osteogenic differentiation.
The potential for using zirconia as a dental implant material has been previously investigated because of its mechanical properties, chemical stability, and aesthetic advantages [27,28]. Zirconia implants have shown better osseointegration without causing inflammation, demonstrating biocompatibility [29,30,31]. The surface morphology and chemical composition of zirconia is also superior to that of pure titanium. Zirconia-based NANOZR [17,18] exhibits greater flexural strength and fracture toughness than conventional 3Y-TZP, making it a suitable material for use in dental implants. In a recent study, we presented the response of rat bone marrow cells to three groups—alkali treated NANOZR, untreated NANOZR, and alkali treated titanium surface—at the congress of the 30th Japan Association of Oral Rehabilitation in Japan [32]. There are no significant differences in osteogenic activity between alkali treated NANOZR and alkali treated titanium surface. Thus, we evaluated osteogenic activity between alkali treated NANOZR and untreated NANOZR in this study.
Surface properties and composition are major determinants of the cellular response to implants [33]. For instance, a roughened surface has been shown to improve early cell attachment to the implant surface [34]. Accordingly, we found that the Ra of the alkali-treated NANOZR surface was higher than that of the untreated specimen (1.8 vs. 0.9 nm). A study investigating the osteoblastic response to different zirconia surface topographies found that cell adhesion was higher on rough than on smooth surfaces [35,36]. Our results indicate that the surface topography of zirconia is an important factor for improving the initial attachment of osteoblasts. NANOZR has a characteristic topography consisting of several 10–100 nm ZrO2 particles trapped within the Al2O3 grains. Nano-sized grains have been shown to enhance protein adsorption, osteoblast adhesion, and osteogenic differentiation [37]. Nano-scale ZrO2 and Al2O3 grains also affect surface energy and consequently, cellular response. A change of surface wettability corresponds to a low contact angle, which promotes cell adhesion to a surface. Our XPS analysis revealed that the intensity of O1s peaks was increased while those of the Zr3d and C1s peaks were decreased by NaOH treatment, resulting in a smaller contact angle. In the narrow scan of O1s, two types of O atoms were mixed, and peaks of O atoms (OH type) were assigned by NaOH treatment. Li showed that the Zr–OH layer was similar to the Ti-OH layer, and this layer induced apatite formation for osseointegration. [23]. In general, zirconia surfaces—including the NANOZR surface—are covered with a zirconia oxide layer that can react with NaOH solution. We observed that the hydrated zirconium oxide layer formed an amorphous structure whose thickness increased with NaOH treatment time. Titanium gel layers charged with Na+ ion form a titanate hydrogel layer; in contrast, the zirconia in NANOZR forms a Na-free zirconia hydrogel layer. We found that the C1s and corresponding shoulder peak (ascribed to hydrocarbon contamination) were decreased along with the atomic percentage of carbon in alkali-treated NANOZR, indicating that brief exposure to alkaline agents can reduce surface carbon content. C and O derived from organic materials or metal oxides have been detected on the material surface by XPS analysis [38]; in our study, the decrease in C1s and increase in O1s peak intensity of the alkali-treated NANOZR surface was associated with increased RBM cell adhesion and osteogenic differentiation. Uchida et al. prepared zirconium metal at 95 °C for 24 h successfully. The modification method used here is useful and easily accomplished because the incubation required in NaOH is at room temperature, as this study demonstrates that low and high temperature methods increase RBM cell adhesion and osteogenic differentiation.
All implant surfaces are immediately covered with a layer of protein from biological fluids, creating an interface that modulates the cascade of cellular responses [39]. Albumin is the most abundant plasma protein and inhibits the adsorption of proteins that can stimulate inflammation and bacterial colonization. In this study, alkali-treated NANOZR showed higher BSA adsorption than the untreated specimen. The adsorption of proteins or ions may act as a bridge between the nanostructured surface and cells. The formation of actin filaments—which are involved in cell adhesion and bone differentiation—was increased on the alkali-treated as compared to the untreated NANOZR surface, as determined by phalloidin staining, which revealed that RBM cells attached by spreading across the roughened surface via actin-based filopodia and lamellipodia.
The alkali-treated NANOZR surface increased ALP activity, OCN production, calcium deposition, and osteogenesis-related gene expression in RBM cells. ALP activity is a biochemical marker of the osteoblast phenotype at early stages of differentiation as well as of bone formation and osteoblast activity. OCN is a non-collagenous, glutamate-rich, polypeptide bone matrix protein with a molecular weight of about 5800 kDa. Osteoblasts produce and incorporate OCN into the bone matrix; OCN is released into the circulation from the matrix during bone resorption and as such, is considered as a marker of bone turnover rather than of bone formation. We observed differences in the expression levels of osteoblast-specific markers between alkali-treated and untreated implant surfaces. Runx2 and BMP are key transcription factors mediating osteoblast differentiation; the observed upregulation in Runx2 and BMP as well as ALP and OPN levels in RBM cells grown on the alkali-treated surface reflects its greater capacity for inducing osteogenic differentiation.

4. Materials and Methods

4.1. Sample Preparation

NANOZR disks 15 mm in diameter and 1.5 mm thick (Panasonic Health Care, Tokyo, Japan) were used in this study. The NANOZR disk surface was first polished with a diamond wheel (#400) using a grinding machine (Surface Grinder PSG52DX; Okamoto Machine Tool Works, Annaka, Japan) followed by a diamond particle slurry paste (6–12, 2–6, and 0–1 μm) using a polishing machine (Compact Desktop Lapping System EJ-3801N; Engis Japan, Yokohama, Japan). The disks were immersed in 10 M aqueous NaOH at 30 °C for 24 h. The solution in each flask was replaced with distilled water (200 mL) until the solution reached a conductivity of 5 μS/cm. Samples were then dried at room temperature. One hundred fifty eight disks were divided into NANOZR and alkali-treated NANOZR groups.

4.2. Surface Characterization

The surface topography of samples was qualitatively evaluated by SEM (S-400; Shimadzu, Kyoto, Japan) and SPM (SPM-9600; Shimadzu). The composition of the coating was analyzed by XPS (Kratos Analytical Axis Ultra DLD electron spectrometer; Kratos Instruments, Manchester, UK) using a monochromatic Al Kα X-ray source. Argon-ion etching was performed for 2 min (evaporation rate 5 nm/min) on each sample to remove surface contaminants. Contact-angle measurements with ultrapure water were performed at room temperature using a video contact-angle measurement system (VSA 2500 XE; AST Products, Tokyo, Japan).

4.3. Protein Adsorption

BSA fraction V (Pierce Biotechnology, Rockford, IL, USA) was used as a model protein. Protein solution (300 μL, 1 mg/mL protein in saline) was pipetted onto each sample. After incubation for 1, 3, 6, or 24 h at 37 °C, non-adherent proteins were removed and mixed with bicinchoninic acid (Pierce Biotechnology) at 37 °C for 1 h. The removed and total amounts of inoculated BSA were quantified using a microplate reader at 562 nm. The rate of albumin adsorption was calculated as the percentage of BSA adsorbed to samples relative to the total amount of BSA in solution.

4.4. Cell Culture

Five RBM cells were isolated from the femurs of 8-week-old Sprague-Dawley rats. The study protocol was performed under the Guidelines for Animal Experimentation at Osaka Dental University (approval no. 16-08001). Rats were euthanized with 4% isoflurane, and hind limbs bones were aseptically excised. The proximal end of the femur and distal end of the tibia were clipped. A 21-gauge needle (Terumo, Tokyo, Japan) was inserted into the hole in the knee joint of each bone, and the marrow was flushed from the shaft with Eagle’s minimal essential medium (Wako Pure Chemical Industries, Osaka, Japan) supplemented with 10% fetal bovine serum (Invitrogen/Life Technologies, Carlsbad, CA, USA), penicillin (500 U/mL) (Cambrex Bio Science Walkersville, Walkersville, MD, USA), streptomycin (500 μg/mL) (Cambrex Bio Science Walkersville), and Fungizone (1.25 μg/mL) (Cambrex Bio Science Walkersville). The resultant marrow pellet was dispersed by trituration, and cell suspensions from all bones were combined in a centrifuge tube. RBM cells were cultured in 75-cm2 Falcon culture flasks (BD Biosciences, Franklin Lakes, NJ, USA) in culture medium. When cells reached confluence, they were removed from the flasks by trypsinization, washed twice with phosphate-buffered saline (PBS), resuspended in culture medium, and seeded at a density of 4 × 104/cm2 in 24-well Falcon tissue culture plates (BD Biosciences) containing test or control NANOZR disks, and cultured at 37 °C in a humidified atmosphere of 5% CO2/95% air.

4.5. Cell Adhesion

Cell adhesion was evaluated with the CellTiter-Blue Cell Viability Assay kit (Promega, Madison, WI, USA) according to the manufacturer’s protocol. Briefly, RBM cells were seeded on samples at a density of 4 × 104/cm2 and allowed to attach for 1, 3, 6, and 24 h. At predetermined time points, non-adherent cells were removed by rinsing with PBS. CellTiter-Blue Reagent (50 μL) and PBS (250 μL) were then added to each well. After incubation at 37 °C for 1 h, the solution was removed from the tissue culture plates and 100 μL was transferred to a new Falcon 96-well tissue culture plate (BD Biosciences). The optical densities at 560 and 590 nm of the remaining solution were measured. The difference between the two optical densities was defined as the proliferation value.

4.6. Cell Morphology

Three samples were washed with PBS, fixed by incubation with 4% paraformaldehyde solution for 20 min at room temperature, and permeabilized with 0.2% (v/v) Triton X-100 for 30 min at room temperature after 24 h. Cells were incubated with Blocking One reagent (Nacalai Tesque, Kyoto, Japan) for 30 min at room temperature and then stained with Alexa Fluor 488-phalloidin (Invitrogen/Life Technologies) and DAPI at 37 °C in the dark for 1 h. F-actin and cell nuclei were visualized by confocal laser scanning microscopy (LSM700; Carl Zeiss, Oberkochen, Germany).

4.7. qRT-PCR Analysis

Total RNA was extracted from cells and 1 μg was used to synthesize cDNA using a High-Capacity cDNA Archive kit (Applied Biosystems, Foster City, CA, USA) after 3, 7, 14, and 21 days. ALP, Runx2, BMP, and OPN mRNA expression was investigated by qRT-PCR on a StepOne Plus Real-Time RT-PCR system (Applied Biosystems). Taqman Fast Universal PCR Master Mix (10 μL), 1 μl of the primer probe set (20× Taqman Gene Expression Assays), sample cDNA (2 μL), and diethylpyrocarbonate-treated water (Nippongene, Toyama, Japan; 7 μL) were added to each well of a Fast 96-well Reaction Plate (0.1-mL well volume; Applied Biosystems). The plate was subjected to 40 reaction cycles of 95 °C for 1 s and 60 °C for 20 s. Target gene expression level was calculated with the 2−ΔΔCt method relative to the negative control group.

4.8. ALP Activity

RBM cells were washed with PBS and lysed with 200 μL of 0.2% Triton X-100 (Sigma-Aldrich, St. Louis, MO, USA). The lysate was transferred to a microcentrifuge tube containing a 5-mm hardened steel ball after 7 and 14 days of culture. Tubes were agitated on a shaker (Mixer Mill Type MM 301; Retsch GmbH, Haan, Germany) at 29 Hz for 20 s to homogenize the sample. ALP activity was measured using the Alkaline Phosphatase Luminometric enzyme-linked immunosorbent assay (ELISA) kit (Sigma-Aldrich) according to the manufacturer’s protocol. The reaction was terminated with 3 N NaOH to a final concentration of 0.5 N NaOH and p-nitrophenol production was determined by measuring absorbance at 405 nm on a 96-well microplate reader (SpectraMax M5; Molecular Devices, Sunnyvale, CA, USA). DNA content was measured with the PicoGreen dsDNA Assay kit (Invitrogen/Life Technologies) according to the manufacturer’s protocol. The amount of ALP was normalized to the amount of DNA in the cell lysate.

4.9. OCN ELISA Analysis

After 21 and 28 days of culture, sandwich ELISA was used to determine OCN levels directly in the cell culture supernatant with a commercial kit (Rat Osteocalcin ELISA kit; DS Pharma Biomedical Co., Osaka, Japan) according to the manufacturer’s instructions.

4.10. Mineralization

Mineralization was assessed using a Calcium E-test kit (Wako Pure Chemical Industries). At each point (21 or 28 days of culture), 1 mL Calcium E-test reagent and 2 mL buffer were added to the 50 μL of the collected medium. It was measured the absorbance of the reaction products at 610 nm by using a 96-well microplate reader (Falcon). The concentration of calcium ions was calculated according to the manufacturer’s instructions.

4.11. Statistical Analysis

All samples were prepared in triplicate. Data are presented as the mean ± standard deviation. In all analyses, statistical significance was determined with the paired two-tailed Student’s t-test. A p-value < 0.05 was considered statistically significant.

5. Conclusions

In conclusion, our study revealed that modifying a NANOZR implant surface by alkali treatment promoted RBM cell attachment and osteogenic differentiation. We consider that the change in surface roughness and surface wettability as well as the decrease in C1s and increase in O1s peak intensity of the alkali-treated NANOZR surface was associated with increased RBM cell adhesion and osteogenic differentiation in our study. Although further studies are needed to confirm these effects in vivo, our findings nonetheless indicate that the osseointegration of zirconium-based implants can be improved by surface nanotopographical modification.

Acknowledgments

The authors thank Tohru Sekino from Osaka University for preparing the nanosheets and for helpful suggestions. The authors also thank Satsuki Yamamoto from Osaka Dental University for helpful suggestions. We are also grateful to the members of the Department of Removable Prosthodontics and Occlusion and the Department of Periodontology for their advice and assistance. This work was supported by the grants from Japan Society for Promotion of Science (16K20524), a Research Promotion Grant of Osaka Dental University (17-08) and Oral Implant Research Grant of Osaka Dental University (16-02).

Author Contributions

Satoshi Komasa conceived and designed the experiments; Mariko Nishizaki performed the experiments; Mariko Nishizaki, Satoshi Komasa and Yoichiro Taguchi analyzed the data; Hiroshi Nishizaki and Joji Okazaki contributed reagents/materials/analysis tools; Mariko Nishizaki and Satoshi Komasa wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

3Y-TZPyttria-stabilized tetragonal zirconia polycrystals
Al2O3alumina polycrystals
ALPalkaline phosphatase
BMPbone morphogenetic protein
BSAbovine serum albumin
Ce-TZPceria-stabilized tetragonal zirconia polycrystals
DAPI4′,6-diamidino-2-phenylindole
NANOZRceria-stabilized tetragonal ZrO2 polycrystalline ceramic-based nanostructured zirconia/alumina composite
OCNosteocalcin
OPNosteopontin
PBSphosphate-buffered saline
RBMrat bone marrow
Runx2runt-related transcription factor 2
SEMscanning electron microscopy
SPMscanning probe microscopy
TiO2titania
TNStitanium nanosheets
XPSX-ray photoelectron spectroscopy

References

  1. Nanci, A.; Wuest, J.D.; Peru, L.; Brunet, P.; Sharma, V.; Zalzal, S.; McKee, M.D. Chemical modification of titanium surfaces for covalent attachment of biological molecules. J. Biomed. Mater. Res. A 1998, 40, 324–335. [Google Scholar] [CrossRef]
  2. Ogawa, T.; Nishimura, I. Different bone integration profiles of turned and acid-etched implants associated with modulated expression of extracellular matrix genes. Int. J. Oral Maxillofac. Implants 2003, 18, 200–210. [Google Scholar] [PubMed]
  3. Guo, J.; Padilla, R.J.; Ambrose, W.; de Kok, I.J.; Cooper, L.F. The effect of hydrofluoric acid treatment of TiO2 grit blasted titanium implants on adherent osteoblast gene expression in vitro and in vivo. Biomaterials 2007, 28, 5418–5425. [Google Scholar] [CrossRef] [PubMed]
  4. Rosa, M.B.; Albrektsson, T.; Francischone, C.E.; Schwartz Filho, H.O.; Wennerberg, A. The influence of surface treatment on the implant roughness pattern. J. Appl. Oral Sci. 2012, 20, 550–555. [Google Scholar] [CrossRef] [PubMed]
  5. Mendonca, G.; Mendonca, D.; Aragao, F.J.L.; Cooper, L.F. Advancing dental implant surface technology-From micron-to nanotopography. Biomaterials 2008, 29, 3822–3835. [Google Scholar] [CrossRef] [PubMed]
  6. Wadamoto, M.; Akagawa, Y.; Sato, Y.; Kubo, T. The three-dimensional bone interface of an osseointegrated implant. I: A morphometric evaluation in initial healing. J. Prosthet. Dent. 1996, 76, 170–175. [Google Scholar] [CrossRef]
  7. Meirelles, L.; Currie, F.; Jacobsson, M.; Albrektsson, T.; Wennerberg, A. The effect of chemical and nanotopographical modifications on the early stages of osseointegration. Int. J. Oral Maxillofac. Implants 2008, 23, 641–647. [Google Scholar] [PubMed]
  8. Vandrovcov, M.; Bakov, L. Adhesion, growth and differentiation of osteoblasts on surface-modified materials developed for bone implants. Physiol. Res. 2011, 60, 403–417. [Google Scholar]
  9. Piconi, C.; Maccauro, G. Zircnoia as a ceramic biomaterials. Biomaterials 1999, 20, 1–25. [Google Scholar] [CrossRef]
  10. Yildirim, M.; Edelhoff, D.; Henisch, O.; Spiekermann, H. Ceramic abutments—A new era in achieving optimal esthetics in implant dentistry. Int. J. Periodontics Restor. Dent. 2000, 20, 81–91. [Google Scholar]
  11. Chevalier, J. What future for zirconia as a biomaterial? Biomaterials 2006, 27, 535–543. [Google Scholar] [CrossRef] [PubMed]
  12. Jung, R.E.; Sailer, I.; Hammele, C.H.; Attin, T.; Schmidlin, P. In vitro color changes of soft tissue caused by restorative materials. Int. J. Periodontics Restor. Dent. 2007, 27, 251–257. [Google Scholar]
  13. Bianco, P.D.; Ducheyne, P.; Cuckler, J.M. Local accumulation of titanium released from a titanium implant in the absence of wear. J. Biomed. Mater. Res. 1996, 31, 227–234. [Google Scholar] [CrossRef]
  14. Weingart, D.; Steinemann, S.; Schilli, W.; Strub, J.R.; Hellerich, U.; Assenmacher, J.; Simpson, J. Titanium deposition in regional lymph nodes after insertion of titanium screw implants in maxillofacial region. Int. J. Oral Maxillofac. Surg. 1994, 23, 450–452. [Google Scholar] [CrossRef]
  15. Scott, H.G. Phase relationships in the zirconia-yttria system. J. Mater. Sci. 1975, 10, 1527–1535. [Google Scholar] [CrossRef]
  16. Tanaka, K.; Tamura, J.; Kawanabe, K.; Nawa, M.; Oka, M.; Uchida, M.; Kokubo, T.; Nakamura, T. Ce-TZP/Al2O3 nanocomposite as a bearing material in total joint replacement. J. Biomed. Mater. Res. 2002, 63, 262–270. [Google Scholar] [CrossRef] [PubMed]
  17. Nawa, M.; Nakamoto, S.; Sekino, T.; Niihara, K. Tough and strong Ce-TZP/alumina nanocomposites doped with titania. Ceram. Int. 1998, 24, 497–506. [Google Scholar] [CrossRef]
  18. Nawa, M.; Bamba, N.; Sekino, T.; Niihara, K. The effect of TiO2 addition on strengthening and toughening in intragranular type of 12Ce-TZP/Al2O3 nanocomposites. J. Eur. Ceram. Soc. 1998, 18, 209–219. [Google Scholar] [CrossRef]
  19. Guazzato, M.; Proos, K.; Quach, L.; Swain, M.V. Strength, reliability and mode of fracture of bilayered porcelain/zirconia (Y-TZP) dental ceramics. Biomaterials 2004, 25, 5045–5052. [Google Scholar] [CrossRef] [PubMed]
  20. Martin, J.Y.; Schwartz, Z.; Hummert, T.W.; Schraub, D.M.; Simpson, J.; Lankford, J., Jr.; Dean, D.D.; Cochran, D.L.; Boyan, B.D. Effect of titanium surface roughness on proliferation, differentiation, and protein synthesis of human osteoblast-like cells (MG63). J. Biomed. Mater. Res. 1995, 29, 389–401. [Google Scholar] [CrossRef] [PubMed]
  21. Ko, H.C.; Han, J.S.; Bächle, M.; Jang, J.H.; Shin, S.W.; Kim, D.J. Initial osteoblast-like cell response to pure titanium and zirconia/alumina ceramics. Dent. Mater. 2007, 23, 1349–1355. [Google Scholar] [CrossRef] [PubMed]
  22. Depprich, R; Ommerborn, M.; Zipprich, H.; Naujoks, C.; Handschel, J.; Wiesmann, H.P.; Kübler, N.R.; Meyer, U. Behavior of osteoblastic cells cultured on titanium and structured zirconia surfaces. Head Face Med. 2008, 4, 29. [Google Scholar]
  23. Li, P.; Ohtsuki, C.; Kokubo, T.; Nakanishi, K.; Soga, N.; de Groot, K. The role of hydrated silica, titania, and alumina in inducing apatite on implants. J. Biomed. Mater. Res. A 1992, 28, 7–15. [Google Scholar] [CrossRef] [PubMed]
  24. Komasa, S.; Taguchi, Y.; Nishida, H.; Tanaka, M.; Kawazoe, T. Bioactivity of nanostructure on titanium surface modified by chemical processing at room temperature. J. Periodontics Res. 2012, 56, 170–177. [Google Scholar] [CrossRef] [PubMed]
  25. Xing, H.; Komasa, S.; Taguchi, Y.; Sekino, T.; Okazaki, J. Osteogenic activity of titanium surfaces with nanonetwork structures. Int. J. Nanomed. 2014, 9, 1741–1755. [Google Scholar] [CrossRef] [PubMed]
  26. Fujino, T.; Taguchi, Y.; Komasa, S.; Sekino, T.; Tanaka, M. Cell differentiation on nanoscale features of a titanium surface: Effects of deposition time in NaOH solution. J. Hard Tissue Biol. 2014, 23, 63–70. [Google Scholar] [CrossRef]
  27. Hao, L.; Lawrence, J.; Chian, K.S. Effects of CO2 laser irradiation on the surface properties of magnesia-partially stabilised zirconia (MgO-PSZ) bioceramic and the subsequent improvements in human osteoblast cell adhesion. J. Biomater. Appl. 2004, 19, 81–105. [Google Scholar] [CrossRef] [PubMed]
  28. Bächle, M.; Butz, F.; Hübner, U.; Bakalinis, E.; Kohal, R.J. Behavior of CAL72 osteoblast-like cells cultured on zirconia ceramics with different surface topographies. Clin. Oral Implants Res. 2007, 18, 53–59. [Google Scholar] [CrossRef] [PubMed]
  29. Manicone, P.F.; Iommetti, P.R.; Raffaelli, L. An overview of zirconia ceramics: Basic properties and clinical applications. J. Dent. 2007, 35, 819–826. [Google Scholar] [CrossRef] [PubMed]
  30. Hisbergues, M.; Vendeville, S.; Vendeville, P. Zirconia: Established facts and perspectives for a biomaterial in dental implantology. J. Biomed. Mater. Res. B Appl. Biomater. 2009, 88, 519–529. [Google Scholar] [CrossRef] [PubMed]
  31. Quan, R.; Yang, D.; Wu, X.; Wang, H.; Miao, X.; Li, W. In vitro and in vivo biocompatibility of graded hydroxyapatite–zirconia composite bioceramic. J. Mater. Sci. Mater. Med. 2008, 19, 183–187. [Google Scholar] [CrossRef] [PubMed]
  32. Nishizaki, M.; Komasa, S.; Fujio, M.; Terada, C.; Kusumoto, T.; Nishizaki, H.; Tanaka, M.; Okazaki, J. Biocompatibility of surface modified implant materials. In Proceedings of the 30th Japan Association of Oral Rehabilitation, Kyoto, Japan, 20 November 2016. [Google Scholar]
  33. Sul, Y.-T. The significance of the surface properties of oxidized titanium to the bone response: Special emphasis on potential biochemical bonding of oxidized titanium implant. Biomaterials 2003, 24, 3893–3907. [Google Scholar] [CrossRef]
  34. Baier, R.E.; Meyer, A.E.; Natiella, J.R.; Natiella, R.R.; Carter, J.M. Surface properties determine bioadhesive outcomes: Methods and results. J. Biomed. Mater. Res. 1984, 18, 337–355. [Google Scholar] [CrossRef] [PubMed]
  35. Bächle, M.; Kohal, R.J. A systematic review of the influence of different titanium surfaces on proliferation, differentiation and protein synthesis of osteoblast-like MG63 cells. Clin. Oral Implants Res. 2004, 15, 683–692. [Google Scholar] [CrossRef] [PubMed]
  36. Setzer, B.; Bächle, M.; Metzger, M.C.; Kohal, R.J. The gene-expression and phenotypic response of hFOB 1.19 osteoblasts to surface-modified titanium and zirconia. Biomaterials 2009, 30, 979–990. [Google Scholar] [CrossRef] [PubMed]
  37. Webster, T.J.; Siegel, R.W.; Bizios, R. Osteoblast adhesion on nanophase ceramics. Biomaterials 1999, 20, 1221–1227. [Google Scholar] [CrossRef]
  38. Endo, K.; Araki, Y.; Ohno, H.; Matsuda, K. ESCA analysis of tarnish films on dental alloys removed from the oral cavities (Part 1) Ag-In alloys. J. Dent. Mater. 1988, 7, 184–191. [Google Scholar]
  39. Roach, P.; Farrar, D.; Perry, C.C. Interpretation of protein adsorption: Surface-induced conformational changes. J. Am. Chem. Soc. 2005, 127, 8168–8173. [Google Scholar] [CrossRef] [PubMed]

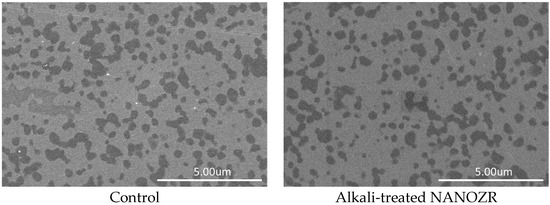

Figure 1. SEM micrographs of control and test groups.
Figure 1. SEM micrographs of control and test groups.
Ijms 18 00780 g001

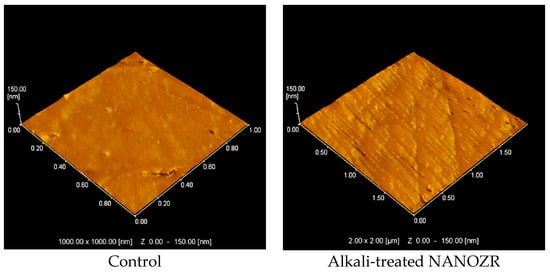

Figure 2. Scanning probe (SP) micrographs of control and test groups.
Figure 2. Scanning probe (SP) micrographs of control and test groups.
Ijms 18 00780 g002

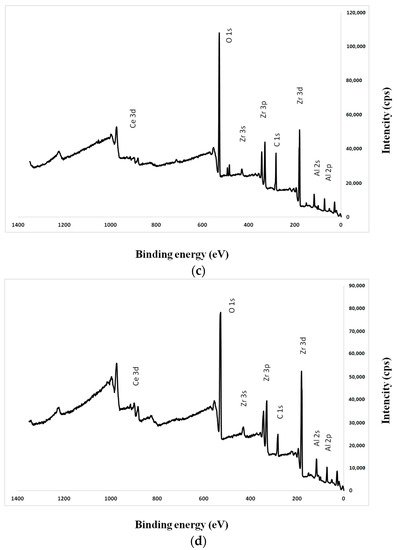

Figure 3. (a) C1s XPS spectrum of the NANOZR surface. (Red line: control, blue line: alkali-treated NANOZR); (b) Zr3d XPS spectrum of the NANOZR surface. (red line: control, blue line: alkali-treated NANOZR); (c) Wide scan of the XPS spectrum of the alkali-treated NANOZR surface; (d) Wide scan of the XPS spectrum of the untreated NANOZR surface.
Figure 3. (a) C1s XPS spectrum of the NANOZR surface. (Red line: control, blue line: alkali-treated NANOZR); (b) Zr3d XPS spectrum of the NANOZR surface. (red line: control, blue line: alkali-treated NANOZR); (c) Wide scan of the XPS spectrum of the alkali-treated NANOZR surface; (d) Wide scan of the XPS spectrum of the untreated NANOZR surface.
Ijms 18 00780 g003aIjms 18 00780 g003b

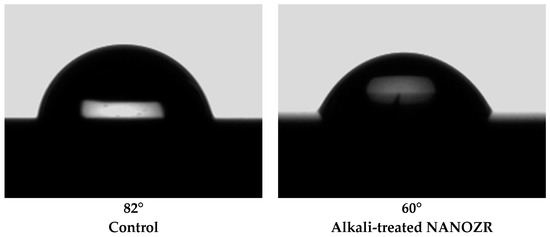

Figure 4. Contact angles in control and test groups.
Figure 4. Contact angles in control and test groups.
Ijms 18 00780 g004

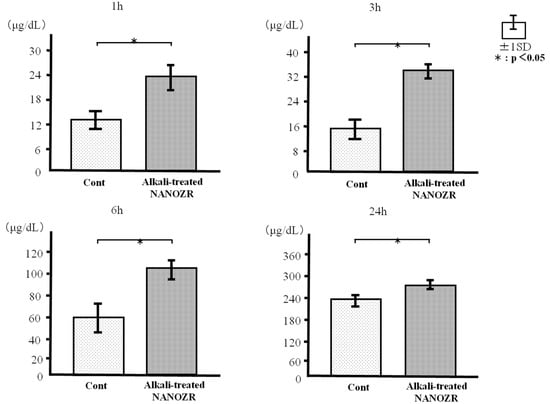

Figure 5. Protein adsorption in control and test groups.
Figure 5. Protein adsorption in control and test groups.
Ijms 18 00780 g005

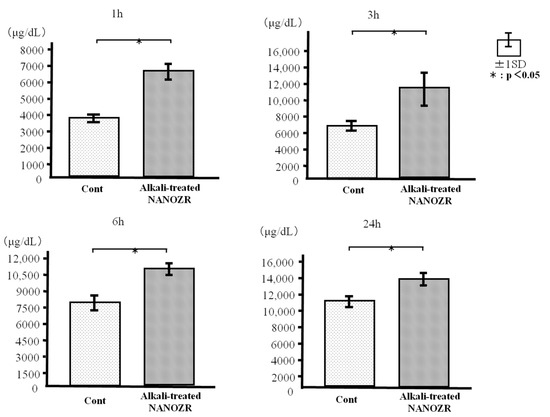

Figure 6. Cell adhesion in control and test groups.
Figure 6. Cell adhesion in control and test groups.
Ijms 18 00780 g006

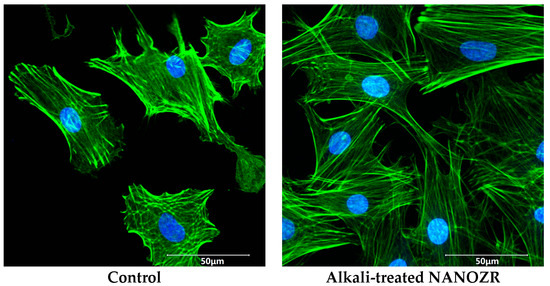

Figure 7. Morphology of rat bone marrow (RBM) cells in the control and test groups after culturing for 24 h. Actin filaments (green) were labeled with Alexa Fluor 488-phalloidin and nuclei (blue) were stained with 4′,6-diamidino-2-phenylindole (DAPI).
Figure 7. Morphology of rat bone marrow (RBM) cells in the control and test groups after culturing for 24 h. Actin filaments (green) were labeled with Alexa Fluor 488-phalloidin and nuclei (blue) were stained with 4′,6-diamidino-2-phenylindole (DAPI).
Ijms 18 00780 g007

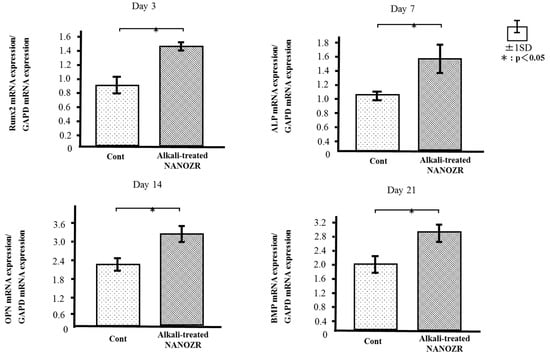

Figure 8. Quantitative real-time (qRT)-PCR analysis of osteogenesis-related gene expression in control and test groups.
Figure 8. Quantitative real-time (qRT)-PCR analysis of osteogenesis-related gene expression in control and test groups.
Ijms 18 00780 g008

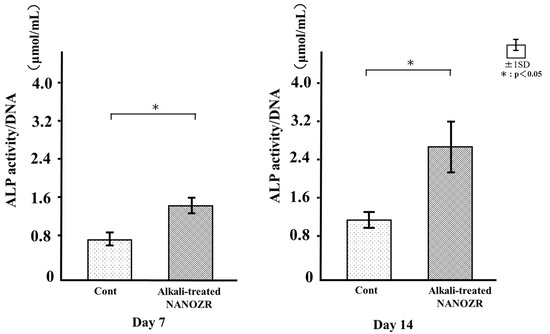

Figure 9. Alkaline phosphatase (ALP) activity in control and test groups.
Figure 9. Alkaline phosphatase (ALP) activity in control and test groups.
Ijms 18 00780 g009

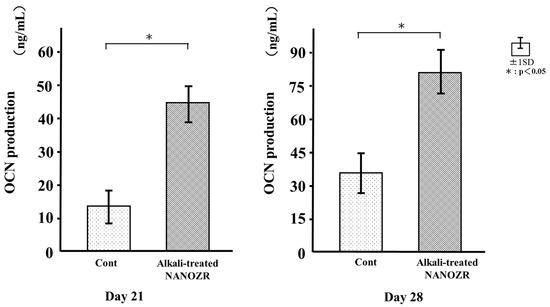

Figure 10. Osteocalcin (OCN) production in control and test groups.
Figure 10. Osteocalcin (OCN) production in control and test groups.
Ijms 18 00780 g010

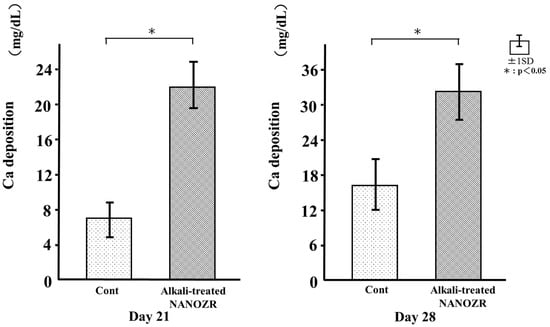

Figure 11. Calcium deposition in control and test groups.
Figure 11. Calcium deposition in control and test groups.
Ijms 18 00780 g011
