The Anti-Wrinkle Mechanism of Melatonin in UVB Treated HaCaT Keratinocytes and Hairless Mice via Inhibition of ROS and Sonic Hedgehog Mediated Inflammatory Proteins

by
Eun Kyung Park
†,
Hyo-Jung Lee
†,
Hyemin Lee
,
Ju-Ha Kim
,
Jisung Hwang
,
Ja Il Koo
and
Sung-Hoon Kim
*
College of Korean Medicine, Kyung Hee University, Seoul 02447, Korea
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2018, 19(7), 1995; https://doi.org/10.3390/ijms19071995
Submission received: 17 May 2018 / Revised: 5 July 2018 / Accepted: 6 July 2018 / Published: 8 July 2018
(This article belongs to the Special Issue Melatonin from an Antioxidant to a Classic Hormone or a Tissue Factor: Experimental and Clinical Aspects 2018)
Browse Figures
Versions Notes

Abstract

:
Though melatonin is known to improve ultraviolet B (UVB)-induced oxidative damage and inflammatory conditions via the blockade of the nuclear factor (NF)-κB, interleukin (IL)-6, there is no report on the anti-wrinkle effect of melatonin to date. Hence in the present study, the anti-wrinkle mechanism of melatonin was elucidated in UVB treated HaCaT keratinocytes and hairless mice. Herein melatonin protected against a radical initiator tert-Butyl hydroperoxide (t-BOOH) induced reactive oxygen species (ROS) production, matrix metalloprotease 1 (MMP-1), pro-collagen and cytotoxicity in HaCaT keratinocytes. Additionally, melatonin suppressed the expression of sonic hedgehog (SHH) and GLI1 for hedgehog signaling and p-NF-κB, cyclooxygenase (COX-2), phospho-extracellular signal-regulated kinase-1 (p-ERK) for inflammatory responses in UVB treated HaCaT keratinocytes. Furthermore, melatonin protected skin from wrinkle formation, transdermal water loss in hairless mice irradiated by UVB for 8 weeks. Notably, melatonin prevented against epidermal thickness and dermal collagen degradation in UVB irradiated hairless mice by Hematoxylin and Eosin and Masson’s trichrome staining. Taken together, these findings suggest that melatonin reduces wrinkle formation via inhibition of ROS/SHH and inflammatory proteins such as NF-κB/COX-2/ERK/MMP1.

1. Introduction

Facial wrinkles are known as one of the most prominent features for skin aging [1]. Skin aging is usually classified as either intrinsic (chronological) and extrinsic (photoaging) aging. Extrinsic aging shows photoaged skin with rough wrinkles mainly due to exposure to sunlight including ultraviolet B, while intrinsic aging is induced by aging genetic factors with a pale and smooth wrinkle formation [2]. It is well documented that the loss of skin elasticity and degradation of elastic fibers and collagen are usually shown in aged or wrinkled skin [3,4]. Previous evidence reveals that reactive oxygen species (ROS) in dermal fibroblast and epidermal keratinocyte produce matrix metalloproteinases (MMPs) to induce collagen degradation leading to skin aging, since MMPs degrade the extracellular matrix, including collagen fibers and thus contributes to wrinkle formation [5]. Marked loss of fibrillin-positive structures such as collagen type IV, VII and XVII in dermal and epidermal junctions contribute to wrinkles by weakening the bond between the dermis and epidermis [6,7]. In particular, UVB exposure upregulates the expression of MMP-1, -3 and -9 as well as sonic hedgehog (SHH) and GLI1 [8,9] in the human epidermis to induce wrinkle formation. Thus, recently many phytochemicals such as magnolo l [10], abietic acid [11], Galla Chinensis extract [12] and green tea polyphenols [13] were reported to block skin damage due to chronic UVB irradiation. Additionally, melatonin was reported to protect human keratinocytes from UVB-induced oxidative stress and DNA damage. Nevertheless, the anti-wrinkle mechanism of melatonin still remains unclear to date. Thus, in the present study, the anti-wrinkle molecular mechanism of melatonin was investigated in t-BOOH or UVB treated human keratinocytes and UVB irradiated SKH-1 hairless mice.

2. Results

2.1. Melatonin Protected Against t-BOOH Induced ROS Production and Cytotoxicity in HaCaT Keratinocytes

It is well known that tert-Butyl hydroperoxide (t-BOOH) has been used as a radical polymerization initiator to induce cell damage [14]. To find out the protective effect of melatonin (Figure 1a) in t-BOOH induced cytotoxicity in HaCaT keratinocytes, an MTT assay was conducted. As shown in Figure 1b,c, t-BOOH or UVB (30 mJ/cm2) exerted cytotoxicity better than melatonin in HaCaT keratinocytes. However, melatonin significantly suppressed the t-BOOH induced cytotoxicity (Figure 2a) and ROS production at the concentrations of 1 and 2 mM in HaCaT keratinocytes (Figure 2b).

2.2. Melatonin Attenuated the mRNA Expression of MMP-1, Pro-Collagen Degradation in t-BOOH or UVB Induced HaCaT Keratinocytes

There is accumulating evidence that the expression of MMPs was upregulated in t-BOOH induced HaCaT keratinocytes [11,15]. Additionally, UVB-induced photoaging is known to be mediated by increased expression of MMP-1 and collagen degradation [16,17]. To determine the effects of t-BOOH or UVB on MMP-1 expression, a qRT-PCR assay was performed. As shown in Figure 3a, melatonin reduced the mRNA expression of MMP-1 and increased the expression of pro-collagen in t-BOOH treated HaCaT keratinocytes. Additionally, melatonin suppressed the mRNA expression of MMP-1 and increased the expression of pro-collagen in UVB treated HaCaT keratinocytes (Figure 3b). Additionally, melatonin increased the expression of collagen XVII in UVB treated HaCaT keratinocytes (Figure 3c).

2.3. Melatonin Effectively Suppressed the UVB-Induced Hedgehog Signaling and MMP-1 Related Proteins in HaCaT Keratinocytes

To determine whether melatonin inhibits UVB-induced MMP-1(photoaging marker) related proteins, Western blotting was performed. After the exposure to UVB 30 mJ/cm2 for 10 min or 20 min, MMP-1 related proteins (p-ERK, pp-38, COX-2 and MMP-1) were significantly affected at UVB 30 mJ/cm2 for 10 min (Figure 4a). To determine the molecular mechanism of melatonin, we examined the effects of melatonin on the hedgehog signaling pathway, since hedgehog signaling (SHH/GLI1) plays a key role in inducing MMP-1 [18]. Consistently, melatonin reduced the expression of UVB-induced SHH and GLI1 at 1 and 2 mM (Figure 4b). Additionally, melatonin reduced the expression of p-NF-κB, p-ERK and COX-2 in the UVB-treated HaCaT keratinocytes, while the phosphorylation of NF-κB, ERK and COX-2 was increased by UVB irradiation (Figure 4b). Furthermore, melatonin suppressed the expression of MMP-1 in t-BOOH or UVB treated HaCaT keratinocytes (Figure 4c).

2.4. Melatonin Prevented Against Loss of Water on the Dorsal skin of SKH1 Hairless Mice Exposed to UVB

It is well known that UVB can induce skin damages such as melanogenesis, erythema and epidermal thickness in the epidermis, leading to wrinkle formation in the dermis [19]. As shown in Figure 5a, melatonin significantly reduced the loss of water on the dorsal skin of SKH-1 hairless mice 8 weeks after UVB treatments, while the loss of water was accentuated in the UVB alone treated control compared to untreated normal control.

2.5. Melatonin Suppressed the Degree of Wrinkles and Epidermal Thickness Induced by UVB Irradiation on the Dorsal skin of SKH1 Hairless Mice

The degrees of wrinkles were observed on the dorsal skin of UVB irradiated SKH-1 hairless mice by SILFLO casting method, while those were reduced in melatonin- treated SKH-1 hairless mice under UVB exposure are shown in Figure 5b. Consistently, melatonin treatment reduced epidermal thickness induced by UVB irradiation by H&E staining and Masson’s trichrome staining revealed that melatonin treatment maintained the blue color for collagen staining compared to the UVB- alone- treated control in the dermis of the skin of UVB irradiated SKH-1 hairless mice as shown in Figure 5c,d. Consistently, as shown in Figure 5e, melatonin significantly blocked the degradation of collagen IV in skin tissues of SKH-1 hairless mice exposed to UVB irradiation.

3. Discussion

Melatonin (N-acetyl-5-methoxytryptamine) is known to have multi-biological activities to regulate circadian rhythms [20] and to work as a hormone or neurotransmitter [21], and as an anti-inflammatory [22,23] and antioxidant [24] agent. Especially, melatonin suppressed the ROS production in rat lens [25] and IL-3 stimulated leukocytes [24] and also enhanced the survival of UVB treated keratinocytes by suppressing apoptosis [26].
Herein, the anti-wrinkle mechanism of melatonin was elucidated in t-BOOH or UVB treated HaCaT keratinocytes and UVB treated hairless mice.
Melatonin suppressed the ROS production and cytotoxicity in free radical initiator t-BOOH treated HaCaT keratinocytes, implying that melatonin protects HaCaT keratinocytes from t-BOOH induced cytotoxicity, since ROS play a pivotal role in skin damage by UVB-irradiation.
UVB-induced photoaging is initiated by the production of ROS [27,28], which activate several receptors for IL-1, keratinocyte growth factor and tumor necrosis factor (TNF)-α [29,30]. Activation of these receptors induces downstream signaling pathways of mitogen-activated protein kinases (MAPKs) such as p38, JNK and ERK, which lead to an increase of the nuclear transcription such as NF-κB and AP-1 [29,31,32]. Additionally, the activation of the transcription factor NF-κB induces the expression of inflammatory cytokines such as COX-2, IL-6 and MMPs [33,34]. Continuous UVB exposure induces expression of MMPs, which degrades collagen by collagen breakdown as well as by the inhibition of procollagen synthesis [35,36]. Interestingly, melatonin suppressed the expression of COX-2, p-ERK, p-NF-κB and MMP-1 and increased the expression of procollagen and collagen XVII in UVB induced HaCaT cells, indicating that melatonin inhibits inflammatory cytokines and photoaging markers, leading to an anti-wrinkle effect in the skin.
The accumulating evidence reveals that the Hedgehog (Hh) signaling pathway regulates normal growth but its abnormal activation can promote cancer progression and epidermal development [8,9,37,38]. Therefore, to identify the molecular mechanism associated with UVB-induced photoaging, the role of Hh signaling was evaluated in UVB treated HaCaT cells. Here, melatonin reduced the expression of UVB-induced SHH as a Hh ligand and GLI1 as a transcriptional effector of Hh pathway, demonstrating that melatonin exerts an anti-photoaging effect via the inhibited Hh signaling pathway.
It is well documented that UVB induces skin damages leading to wrinkle formation due to collagen degradation in the dermis [39,40]. Here, melatonin protected skin from wrinkle formation, transdermal water loss in UVB treated hairless mice comparable to positive control retinoic acid, indicating that melatonin works against wrinkle formation in the dermis possibly via inhibition of collagen degradation. Consistently, Masson’s trichrome staining revealed that melatonin treatment maintained the blue color staining for collagen and reduced the epidermal thickness compared to the UVB- alone-treated group in the dermis of the skin of UVB irradiated SKH-1 hairless mice, implying a protective effect of melatonin on wrinkle formation by collagen degradation.
Collectively, melatonin suppressed ROS production and the expression of MMP-1 in t-BOOH-induced HaCaT keratinocytes. Additionally, melatonin suppressed the expression of UVB-induced MMP-1 and MMP-1 related proteins (inflammatory proteins), increased procollagen in HaCaT keratinocytes and reduced the expression of hedgehog signaling proteins and protected against epidermal thickness, transdermal water loss, collagen degradation and wrinkle formation on the dorsal skin of UVB treated hairless mice. Overall, these findings demonstrate that melatonin protects against UVB induced oxidative skin damage including wrinkle formation via the inhibition of ROS, MMP-1 and the hedgehog signaling pathway.

4. Materials and Methods

4.1. Chemicals

Melatonin (N-acetyl-5-methoxytryptamine) (M5250) was purchased from Sigma (St. Louis, MO, USA).

4.2. Cell Culture

Human skin keratinocyte cell line HaCaT cells (CRL-2404) were bought from American Type Culture Collection (ATCC). The cells were grown in Dulbecco Modified Eagle Medium (DMEM) (Gibco, Grand Island, NY, USA) with 10% fetal bovine serum, antimycotic (amphotericin B 0.25 μg/mL) and antibiotics (penicillin, 100 U/mL; streptomycin, 100 μg/mL).

4.3. UVB Irradiation

HaCaT cells were treated with melatonin (0, 1 or 2 mM) for 24 h. After washing with phosphate-buffered saline (PBS), the cells were irradiated with 30 mJ/cm2 of UVB (312 nm) for 10 min using the CL-1000 Ultraviolet Crosslinker (Ultra-violet products Ltd, Cambridge, UK).

4.4. Cell Viability Assay

The cytotoxic effect of melatonin was assessed by using a 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay. In brief, HaCaT cells (1 × 104 cells/well) were seeded onto 96-well culture plates and treated to various concentrations of melatonin for 24 h. The cells were incubated with MTT (1 mg/mL) (Sigma Chemical, St. Louis, MO, USA) for 2 h and the formazan crystals were dissolved in DMSO. The Optical density (OD) was measured by using a microplate reader (Molecular Devices Co., CA, USA) at 570 nm wavelength. Cell viability was calculated as a percentage of viable cells in melatonin-treated group versus untreated control.

4.5. RT-qPCR Assay

RT-qPCR was performed with the LightCycler TM instrument (Roche Applied Sciences, Indianapolis, IN, USA) with the following primers, human MMP-1 forward: 5′-CATGACTTTCCTGGAATTGG-3′; reverse-5′-CCTGCAGTTGAACCAGCTAT-3′ (Bioneer, Daejeon, Korea), human pro-collagen forward: 5′-CAGGCAAACCTGGTGAACA-3′; reverse-5′-CTCGCCAGGGAAACCTCT-3′, human GAPDH-forward: 5′-GCACCGTCAAGGCTCTAGAAC-3′; reverse-5′-GGATCTCGCTCCTGGAAGAT-3′ (Bioneer, Daejeon, Korea).

4.6. Western Blotting

HaCaT Cells were pretreated with melatonin for 24 h, then with t-BOOH (0.6 mM) and exposed to UVB irradiation (30 mJ/cm2) were lysed in lysis solution (50 mM Tris–HCl, pH 7.4, 150 mM NaCl, 1 mM EDTA, 1 mM Na3VO4, 1% Triton X-100, 0.1% SDS, 1 mM NaF and 1× protease inhibitor cocktail) on ice and spun down at 14,000× g for 20 min at 4°C. The supernatants were collected and quantified for protein concentration by using an RC DC protein assay kit (Bio-Rad, Hercules, CA, USA), The proteins samples were separated on 4–12% NuPAGE Bis–Tris gels (Novex, Carlsbad, CA, USA) and transferred to a Hybond ECL transfer membrane for detection with antibodies for p-ERK, pp-38, COX-2, MMP-1, SHH and GLI1 (Cell Signaling Technology, Beverly, MA, USA), Collagen IV, Collagen XVII (Abcam, Cambridge, UK), Lamin B (Santa Cruz Biotechnologies, Santa Cruz, CA, USA) and β-actin (Sigma, St. Louis, MO, USA).

4.7. Nuclear Fraction for GLI1

HaCaT cells were pretreated with melatonin for 24 h and then exposed to UVB irradiation (30 mJ/cm2). Then nuclear fraction of the cells was prepared using NE-PER nuclear and cytoplasmic extraction reagents (Thermo, Rockford, IL, USA) based on the manufacturer’s protocol for Western blotting with the GLI1 antibody.

4.8. Measurement of Reactive Oxygen Species (ROS) Generation

The compound 2,7-Dichlorofluorescein diacetate (DCFH-DA) was used to measure the level of ROS production. HaCaT cells were pretreated with melatonin for 24 h, with t-BOOH (0.6 mM) for 6 h and then exposed to 5 μM DCFH-DA for 30 min at 37 °C. Fluorescence intensity was measured by FACSCalibur (Becton Dickinson, Franklin Lakes, NJ, USA).

4.9. Animals and Treatments

Fifty female SKH-1 mice (6-week-old) were purchased from Samtako Biokorea (Samtako Biokorea, Osan, Kyunggido, Korea) and housed at IK Science cage under consistent condition (temperature: 22 ± 1 °C, humidity: 55 ± 3%, 12 h light/ dark cycles). All experiments were performed in accordance with the guidelines established by Kyung Hee University. Mice were acclimated for one week and randomly divided into five groups (n = 10) during the experimental period: the normal group (N), control group (only UVB treated group; three times a week by UV-1000 group (Dongseo Science, Dangjin, Korea), positive control retinoic acid (Sigma Aldrich, USA) group (2 mg/kg) (B), melatonin 0.5 mg/kg group (MEL 0.5) and the melatonin 1 mg/kg group (MEL 1). Melatonin was orally administered to the mice of each group daily for 8 weeks, while saline was administered to the normal and control groups and retinoic acid was i.p injected in the positive control group three times a week for 8 weeks.
UVB irradiation schedule is as follows (Figure 6):
(1)
0 week: 60 mJ/cm2 for 200 s, three times a week (1 minimal erythema dose; M.E.D)
(2)
1 week: 120 mJ/cm2 for 400 s, three times a week (2 M.E.D)
(3)
2~3 weeks: 180 mJ/cm2 for 600 s 1 week: 120 mJ/cm2 for 400 s, three times a week (3 M.E.D)
(4)
4~5 weeks: 240 mJ/cm2 for 800 s, three times a week (4 M.E.D)

4.10. Observation of Skin Wrinkle Formation

The condition of skin wrinkle formation on the dorsal skin of hairless mice exposed to UVB irradiation was observed at 4 weeks and 8 weeks, the replicas were cast on the dorsal skin surface of the mice using SILFLO (Flexico developments LTD. Tokyo, Japan) and then photographed with a camera (Nikon D90, Tokyo, Japan).

4.11. Measurement of Skin Moisture

Mice were kept in the room in conditions of 21.5 ± 2 °C and relative humidity of 40 ± 5% for 30 min. Skin moisture was measured in melatonin-treated mice using Corneometer CM 820 (Courage-Khazake, Koln, Germany).

4.12. Histological Analysis

The dorsal skin was obtained from the melatonin or retinoic acid treated group and control group mice by biopsy, fixed in 4% paraformaldehyde, dehydrated in ethanol and then embedded in paraffin. Approximately 10 μm-thick sections were deparaffinized and stained with hematoxylin-eosin (H&E) and Masson’s trichrome staining. Stained slides were then photographed using a light microscope (ZEISS ObserverAD2, Gottingen, Germany).

4.13. Statistical Analysis

For statistical analysis of the data, the Sigmaplot version 12 software (Systat Software Inc., San Jose, CA, USA) was used. All data were expressed as means ± standard deviation (SD). A students t-test was used for the comparison of the two groups. The statistically significant differences were set at p values of <0.05 between the control and melatonin/retinoic acid treated groups.

Author Contributions

E.K.P. and H.-J.L. designed and performed several experiments. H.L., J.-H.K., J.H. and J.I.K. supported experiments. S.-H.K. supervised these experiments and wrote the manuscript.

Funding

This work is supported by the National Research Foundation of Korea (NRF) Grant funded by the Korea Government (MEST) (No. 2017R1A2A1A17069297).

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

UVBUltraviolet B
t-BOOHtert-Butyl hydroperoxide
ROSReactive Oxygen Species
MMP-1Matrix metalloprotease 1
mRNAmessenger RNA
PCRPolymerase Chain Reaction
SHHSonic hedgehog
p-ERKPhospho-Extracellular Signal-regulated Kinase-1
p-P38Phospho -P38 mitogen-activated protein kinases
COX-2Cyclooxygenase-2
i.pintraperitoneal
NF-κBNuclear factor kappa-light-chain-enhancer of activated B cells

References

  1. Hwang, K.A.; Yi, B.R.; Choi, K.C. Molecular mechanisms and in vivo mouse models of skin aging associated with dermal matrix alterations. Lab. Anim. Res. 2011, 27, 1–8. [Google Scholar] [CrossRef] [PubMed]
  2. Fisher, G.J.; Kang, S.; Varani, J.; Bata-Csorgo, Z.; Wan, Y.; Datta, S.; Voorhees, J.J. Mechanisms of photoaging and chronological skin aging. Arch. Dermatol. 2002, 138, 1462–1470. [Google Scholar] [CrossRef] [PubMed]
  3. Imokawa, G. Mechanism of UVB-induced wrinkling of the skin: Paracrine cytokine linkage between keratinocytes and fibroblasts leading to the stimulation of elastase. J. Investig. Dermatol. Symp. Proc. 2009, 14, 36–43. [Google Scholar] [CrossRef] [PubMed]
  4. Imokawa, G.; Ishida, K. Biological mechanisms underlying the ultraviolet radiation-induced formation of skin wrinkling and sagging I: Reduced skin elasticity, highly associated with enhanced dermal elastase activity, triggers wrinkling and sagging. Int. J. Mol. Sci. 2015, 16, 7753–7775. [Google Scholar] [CrossRef] [PubMed]
  5. Bossi, O.; Gartsbein, M.; Leitges, M.; Kuroki, T.; Grossman, S.; Tennenbaum, T. UV irradiation increases ROS production via PKCdelta signaling in primary murine fibroblasts. J. Cell. Biochem. 2008, 105, 194–207. [Google Scholar] [CrossRef] [PubMed]
  6. Avila Rodriguez, M.I.; Rodriguez Barroso, L.G.; Sanchez, M.L. Collagen: A review on its sources and potential cosmetic applications. J. Cosmet. Dermatol. 2018, 17, 20–26. [Google Scholar] [CrossRef] [PubMed]
  7. Contet-Audonneau, J.L.; Jeanmaire, C.; Pauly, G. A histological study of human wrinkle structures: Comparison between sun-exposed areas of the face, with or without wrinkles and sun-protected areas. Br. J. Dermatol. 1999, 140, 1038–1047. [Google Scholar] [CrossRef] [PubMed]
  8. Athar, M.; Tang, X.; Lee, J.L.; Kopelovich, L.; Kim, A.L. Hedgehog signalling in skin development and cancer. Exp. Dermatol. 2006, 15, 667–677. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Li, C.; Chi, S.; Xie, J. Hedgehog signaling in skin cancers. Cell. Signal. 2011, 23, 1235–1243. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Im, A.R.; Song, J.H.; Lee, M.Y.; Chae, S. Magnolol reduces UVB-induced photodamage by regulating matrix metalloproteinase activity. Environ. Toxicol. Pharmacol. 2015, 39, 417–423. [Google Scholar] [CrossRef] [PubMed]
  11. Jeon, Y.; Jung, Y.; Youm, J.K.; Kang, K.S.; Kim, Y.K.; Kim, S.N. Abietic acid inhibits UVB-induced MMP-1 expression in human dermal fibroblast cells through PPARalpha/gamma dual activation. Exp. Dermatol. 2015, 24, 140–145. [Google Scholar] [CrossRef] [PubMed]
  12. Sun, Z.W.; Hwang, E.; Lee, H.J.; Lee, T.Y.; Song, H.G.; Park, S.Y.; Shin, H.S.; Lee, D.G.; Yi, T.H. Effects of Galla chinensis extracts on UVB-irradiated MMP-1 production in hairless mice. J. Nat. Med. 2015, 69, 22–34. [Google Scholar] [CrossRef] [PubMed]
  13. Roh, E.; Kim, J.E.; Kwon, J.Y.; Park, J.S.; Bode, A.M.; Dong, Z.; Lee, K.W. Molecular Mechanisms of Green Tea Polyphenols with Protective Effects against Skin Photoaging. Crit. Rev. Food Sci. Nutr. 2015, 57, 1631–1637. [Google Scholar] [CrossRef] [PubMed]
  14. Cesquini, M.; Torsoni, M.A.; Stoppa, G.R.; Ogo, S.H. t-BOOH-induced oxidative damage in sickle red blood cells and the role of flavonoids. Biomed. Pharmacother. 2003, 57, 124–129. [Google Scholar] [CrossRef]
  15. Wang, X.; Bi, Z.; Chu, W.; Wan, Y. IL-1 receptor antagonist attenuates MAP kinase/AP-1 activation and MMP1 expression in UVA-irradiated human fibroblasts induced by culture medium from UVB-irradiated human skin keratinocytes. Int. J. Mol. Med. 2005, 16, 1117–1124. [Google Scholar] [CrossRef] [PubMed]
  16. Jiang, J.; Hu, C. Evodiamine: A novel anti-cancer alkaloid from Evodia rutaecarpa. Molecules 2009, 14, 1852–1859. [Google Scholar] [CrossRef] [PubMed]
  17. Adachi, H.; Murakami, Y.; Tanaka, H.; Nakata, S. Increase of stratifin triggered by ultraviolet irradiation is possibly related to premature aging of human skin. Exp. Dermatol. 2014, 23, 32–36. [Google Scholar] [CrossRef] [PubMed]
  18. Aggarwal, P.; Gera, J.; Ghosh, S.; Mandal, L.; Mandal, S. Noncanonical Decapentaplegic Signaling Activates Matrix Metalloproteinase 1 To Restrict Hedgehog Activity and Limit Ectopic Eye Differentiation in Drosophila. Genetics 2017, 207, 197–213. [Google Scholar] [CrossRef] [PubMed]
  19. Oh, C.T.; Lee, D.; Koo, K.; Lee, J.; Yoon, H.S.; Choi, Y.M.; Kwon, T.R.; Kim, B.J. Superoxide dismutase 1 inhibits alpha-melanocyte stimulating hormone and ultraviolet B-induced melanogenesis in murine skin. Ann. Dermatol. 2014, 26, 681–687. [Google Scholar] [CrossRef] [PubMed]
  20. Kim, J.H.; Duffy, J.F. Circadian Rhythm Sleep-Wake Disorders in Older Adults. Sleep Med. Clin. 2018, 13, 39–50. [Google Scholar] [CrossRef] [PubMed]
  21. Leeboonngam, T.; Pramong, R.; Sae-Ung, K.; Govitrapong, P.; Phansuwan-Pujito, P. Neuroprotective effects of melatonin on amphetamine-induced dopaminergic fiber degeneration in the hippocampus of postnatal rats. J. Pineal Res. 2018, 64. [Google Scholar] [CrossRef] [PubMed]
  22. Chen, Y.; Zhao, Q.; Sun, Y.; Jin, Y.; Zhang, J.; Wu, J. Melatonin induces anti-inflammatory effects via endoplasmic reticulum stress in RAW264.7 macrophages. Mol. Med. Rep. 2018, 17, 6122–6129. [Google Scholar] [CrossRef] [PubMed]
  23. Nabavi, S.M.; Nabavi, S.F.; Sureda, A.; Xiao, J.; Dehpour, A.R.; Shirooie, S.; Silva, A.S.; Baldi, A.; Khan, H.; Daglia, M. Anti-inflammatory effects of Melatonin: A mechanistic review. Crit. Rev. Food Sci. Nutr. 2018, 1–62. [Google Scholar] [CrossRef] [PubMed]
  24. Fischer, T.W.; Scholz, G.; Knoll, B.; Hipler, U.C.; Elsner, P. Melatonin reduces UV-induced reactive oxygen species in a dose-dependent manner in IL-3-stimulated leukocytes. J. Pineal Res. 2001, 31, 39–45. [Google Scholar] [CrossRef] [PubMed]
  25. Bardak, Y.; Ozerturk, Y.; Ozguner, F.; Durmus, M.; Delibas, N. Effect of melatonin against oxidative stress in ultraviolet-B exposed rat lens. Curr. Eye Res. 2000, 20, 225–230. [Google Scholar] [CrossRef]
  26. Fischer, T.W.; Zbytek, B.; Sayre, R.M.; Apostolov, E.O.; Basnakian, A.G.; Sweatman, T.W.; Wortsman, J.; Elsner, P.; Slominski, A. Melatonin increases survival of HaCaT keratinocytes by suppressing UV-induced apoptosis. J. Pineal Res. 2006, 40, 18–26. [Google Scholar] [CrossRef] [PubMed]
  27. Baek, B.; Lee, S.H.; Kim, K.; Lim, H.W.; Lim, C.J. Ellagic acid plays a protective role against UV-B-induced oxidative stress by up-regulating antioxidant components in human dermal fibroblasts. Korean J. Physiol. Pharmacol. 2016, 20, 269–277. [Google Scholar] [CrossRef] [PubMed]
  28. Liebel, F.; Kaur, S.; Ruvolo, E.; Kollias, N.; Southall, M.D. Irradiation of skin with visible light induces reactive oxygen species and matrix-degrading enzymes. J. Investig. Dermatol. 2012, 132, 1901–1907. [Google Scholar] [CrossRef] [PubMed]
  29. Subedi, L.; Lee, T.H.; Wahedi, H.M.; Baek, S.H.; Kim, S.Y. Resveratrol-Enriched Rice Attenuates UVB-ROS-Induced Skin Aging via Downregulation of Inflammatory Cascades. Oxidative Med. Cell Longev. 2017, 2017, 8379539. [Google Scholar] [CrossRef] [PubMed]
  30. Dlugosz, A.A.; Cheng, C.; Denning, M.F.; Dempsey, P.J.; Coffey, R.J.J.; Yuspa, S.H. Keratinocyte growth factor receptor ligands induce transforming growth factor alpha expression and activate the epidermal growth factor receptor signaling pathway in cultured epidermal keratinocytes. Cell Growth Differ. 1994, 5, 1283–1292. [Google Scholar] [PubMed]
  31. Lewis, D.A.; Spandau, D.F. UVB-induced activation of NF-kappaB is regulated by the IGF-1R and dependent on p38 MAPK. J. Invest. Dermatol. 2008, 128, 1022–1029. [Google Scholar] [CrossRef] [PubMed]
  32. Khan, N.; Syed, D.N.; Pal, H.C.; Mukhtar, H.; Afaq, F. Pomegranate fruit extract inhibits UVB-induced inflammation and proliferation by modulating NF-kappaB and MAPK signaling pathways in mouse skin. Photochem. Photobiol. 2012, 88, 1126–1134. [Google Scholar] [CrossRef] [PubMed]
  33. Lee, Y.R.; Noh, E.M.; Jeong, E.Y.; Yun, S.K.; Jeong, Y.J.; Kim, J.H.; Kwon, K.B.; Kim, B.S.; Lee, S.H.; Park, C.S.; et al. Cordycepin inhibits UVB-induced matrix metalloproteinase expression by suppressing the NF-kappaB pathway in human dermal fibroblasts. Exp. Mol. Med. 2009, 41, 548–554. [Google Scholar] [CrossRef] [PubMed]
  34. Karthikeyan, R.; Kanimozhi, G.; Prasad, N.R.; Agilan, B.; Ganesan, M.; Mohana, S.; Srithar, G. 7-Hydroxycoumarin prevents UVB-induced activation of NF-kappaB and subsequent overexpression of matrix metalloproteinases and inflammatory markers in human dermal fibroblast cells. J. Photochem. Photobiol. B 2016, 161, 170–176. [Google Scholar] [CrossRef] [PubMed]
  35. Jung, H.Y.; Shin, J.C.; Park, S.M.; Kim, N.R.; Kwak, W.; Choi, B.H. Pinus densiflora extract protects human skin fibroblasts against UVB-induced photoaging by inhibiting the expression of MMPs and increasing type I procollagen expression. Toxicol. Rep. 2014, 1, 658–666. [Google Scholar] [CrossRef] [PubMed]
  36. Jung, H.; Lee, E.H.; Lee, T.H.; Cho, M.H. The Methoxyflavonoid Isosakuranetin Suppresses UV-B-Induced Matrix Metalloproteinase-1 Expression and Collagen Degradation Relevant for Skin Photoaging. Int. J. Mol. Sci. 2016, 17, 1449. [Google Scholar] [CrossRef] [PubMed]
  37. Rimkus, T.K.; Carpenter, R.L.; Qasem, S.; Chan, M.; Lo, H.W. Targeting the Sonic Hedgehog Signaling Pathway: Review of Smoothened and GLI Inhibitors. Cancers 2016, 8, 22. [Google Scholar] [CrossRef] [PubMed]
  38. Abe, Y.; Tanaka, N. Roles of the Hedgehog Signaling Pathway in Epidermal and Hair Follicle Development, Homeostasis and Cancer. J. Dev. Biol. 2017, 5, 12. [Google Scholar] [CrossRef] [PubMed]
  39. Yaar, M.; Gilchrest, B.A. Photoageing: Mechanism, prevention and therapy. Br. J. Dermatol. 2007, 157, 874–887. [Google Scholar] [CrossRef] [PubMed]
  40. Kim, H.S.; Song, J.H.; Youn, U.J.; Hyun, J.W.; Jeong, W.S.; Lee, M.Y.; Choi, H.J.; Lee, H.K.; Chae, S. Inhibition of UVB-induced wrinkle formation and MMP-9 expression by mangiferin isolated from Anemarrhena asphodeloides. Eur. J. Pharmacol. 2012, 689, 38–44. [Google Scholar] [CrossRef] [PubMed]
Ijms 19 01995 g001 550

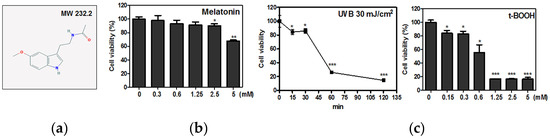

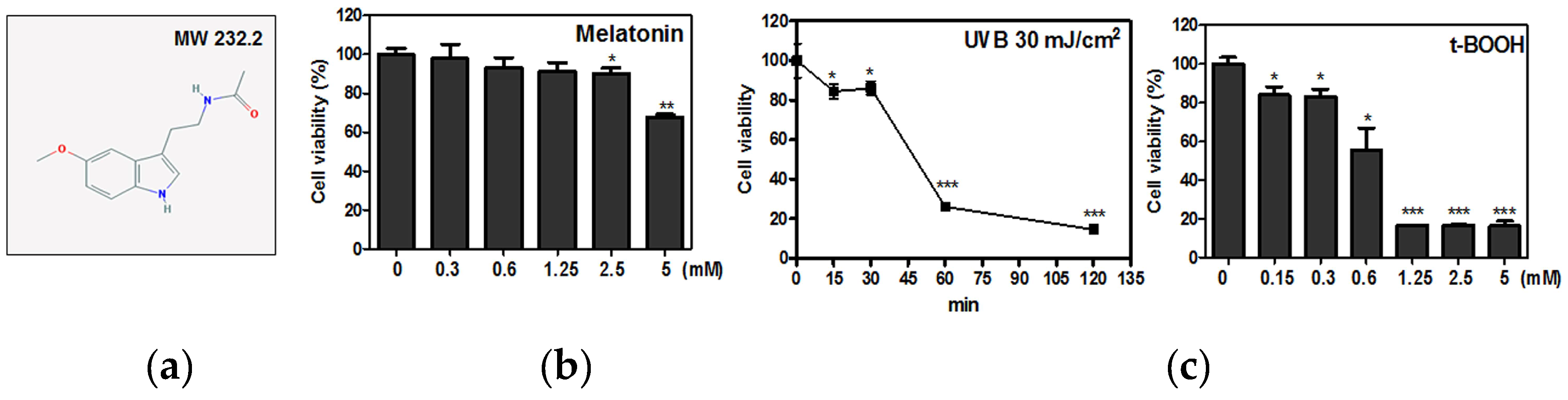

Figure 1. The effect of Melatonin, t-BOOH and UVB on the cytotoxicity in HaCaT cells. (a) Chemical structure of melatonin. Molecular weight = 232.2 (b,c) HaCaT cells were seeded onto 96-well microplates at a density of 1 × 104 cells/well and treated with various concentrations of Melatonin (0, 0.3, 0.6, 1.25, 2.5 or 5 mM) or t-BOOH (0, 0.15, 0.3, 0.6, 1.25, 2.5 or 5 mM) for 24 h. HaCaT cells were exposed to UVB (30 mJ/cm2) for 15 min, 30 min, 60 min or 120 min. Data represent means ± SD. * p < 0.05, ** p < 0.01 and *** p < 0.001 versus untreated control.
Figure 1. The effect of Melatonin, t-BOOH and UVB on the cytotoxicity in HaCaT cells. (a) Chemical structure of melatonin. Molecular weight = 232.2 (b,c) HaCaT cells were seeded onto 96-well microplates at a density of 1 × 104 cells/well and treated with various concentrations of Melatonin (0, 0.3, 0.6, 1.25, 2.5 or 5 mM) or t-BOOH (0, 0.15, 0.3, 0.6, 1.25, 2.5 or 5 mM) for 24 h. HaCaT cells were exposed to UVB (30 mJ/cm2) for 15 min, 30 min, 60 min or 120 min. Data represent means ± SD. * p < 0.05, ** p < 0.01 and *** p < 0.001 versus untreated control.
Ijms 19 01995 g001
Ijms 19 01995 g002 550

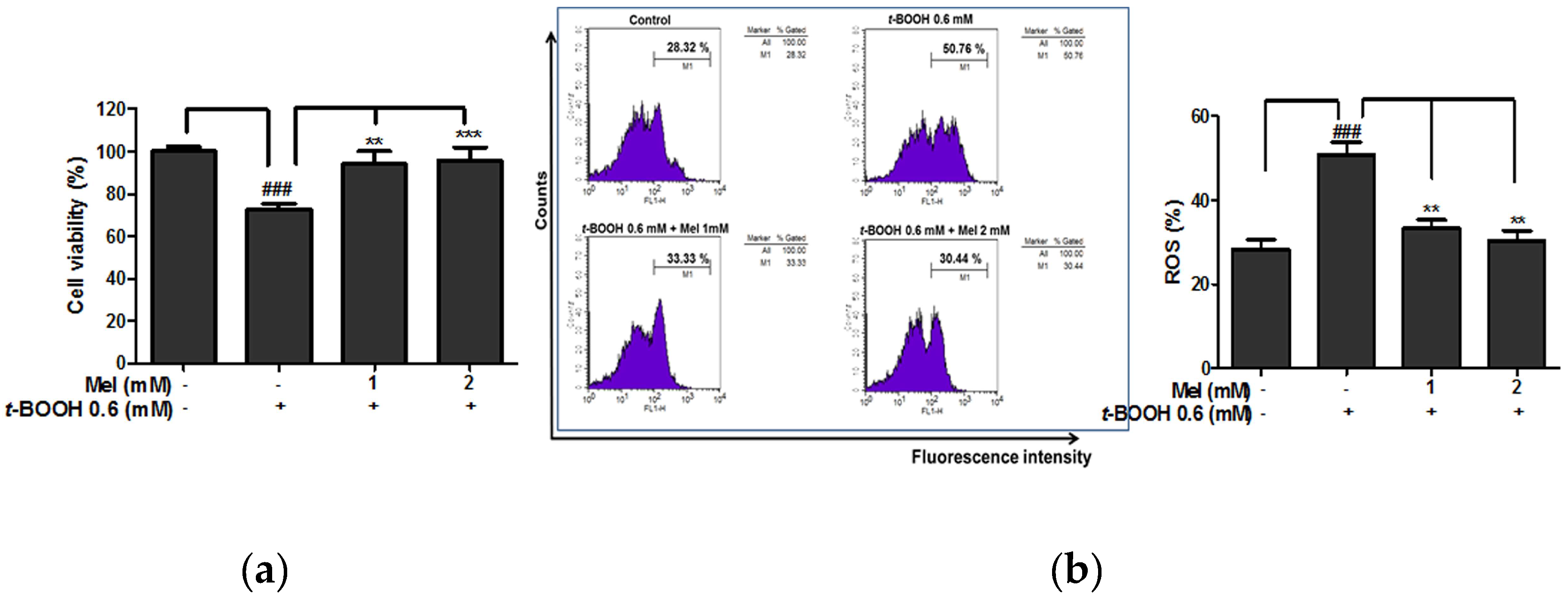

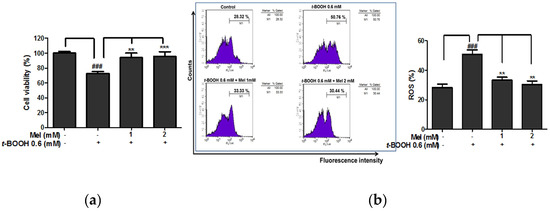

Figure 2. Melatonin suppressed t-BOOH induced cytotoxicity and ROS production in HaCaT keratinocytes. (a) Cells were pretreated with melatonin for 24 h and then with t-BOOH (0.6 mM) for 6 h. (b) ROS generation (%) was measured using ROS-sensitive fluorometric probe 2,7-dichlorofluorescein diacetate (DCFDA) by flow cytometric analysis. Data represent means ± SD. *** p < 0.001 and ** p < 0.01 versus t-BOOH control, ### p < 0.001 versus normal control.
Figure 2. Melatonin suppressed t-BOOH induced cytotoxicity and ROS production in HaCaT keratinocytes. (a) Cells were pretreated with melatonin for 24 h and then with t-BOOH (0.6 mM) for 6 h. (b) ROS generation (%) was measured using ROS-sensitive fluorometric probe 2,7-dichlorofluorescein diacetate (DCFDA) by flow cytometric analysis. Data represent means ± SD. *** p < 0.001 and ** p < 0.01 versus t-BOOH control, ### p < 0.001 versus normal control.
Ijms 19 01995 g002
Ijms 19 01995 g003 550

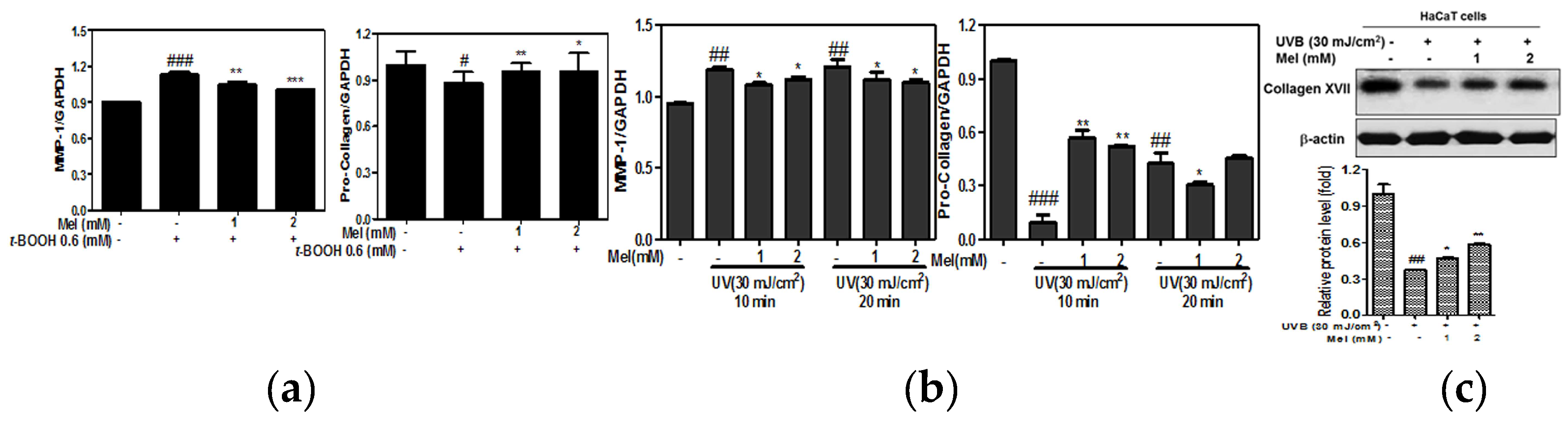

Figure 3. The melatonin attenuated the mRNA expression of MMP-1 and pro-collagen in t-BOOH or UVB induced HaCaT keratinocytes. (a) Cells were pretreated with melatonin for 24 h and then with t-BOOH (0.6 mM) for 6 h. mRNA expressions of MMP-1 and pro-collagen were analyzed by Real-Time PCR. Data represent means ± SD. *** p < 0.001, ** p < 0.01 and * p < 0.05 versus t-BOOH control, ### p < 0.001 versus normal control. (b) Cells were pretreated with melatonin for 24 h and then irradiated by UVB (30 mJ/cm2) for 10 min or 20 min. mRNA expressions of MMP-1 and pro-collagen were analyzed by Real-Time PCR. Data represent means ± SD. ** p < 0.01 and * p < 0.05 versus UVB control, ### p < 0.001 and ## p < 0.01versus normal control. (c) HaCaT cells were exposed to UVB (30 mJ/cm2) for 10 min and subjected to Western blotting for collagen XVII and β-actin. Graphs represent quantitative data of protein expression adjusted by β-actin. Data represent means ± SD. ** p < 0.01 and * p < 0.05 versus UVB control, ## p < 0.01 versus normal control.
Figure 3. The melatonin attenuated the mRNA expression of MMP-1 and pro-collagen in t-BOOH or UVB induced HaCaT keratinocytes. (a) Cells were pretreated with melatonin for 24 h and then with t-BOOH (0.6 mM) for 6 h. mRNA expressions of MMP-1 and pro-collagen were analyzed by Real-Time PCR. Data represent means ± SD. *** p < 0.001, ** p < 0.01 and * p < 0.05 versus t-BOOH control, ### p < 0.001 versus normal control. (b) Cells were pretreated with melatonin for 24 h and then irradiated by UVB (30 mJ/cm2) for 10 min or 20 min. mRNA expressions of MMP-1 and pro-collagen were analyzed by Real-Time PCR. Data represent means ± SD. ** p < 0.01 and * p < 0.05 versus UVB control, ### p < 0.001 and ## p < 0.01versus normal control. (c) HaCaT cells were exposed to UVB (30 mJ/cm2) for 10 min and subjected to Western blotting for collagen XVII and β-actin. Graphs represent quantitative data of protein expression adjusted by β-actin. Data represent means ± SD. ** p < 0.01 and * p < 0.05 versus UVB control, ## p < 0.01 versus normal control.
Ijms 19 01995 g003
Ijms 19 01995 g004 550

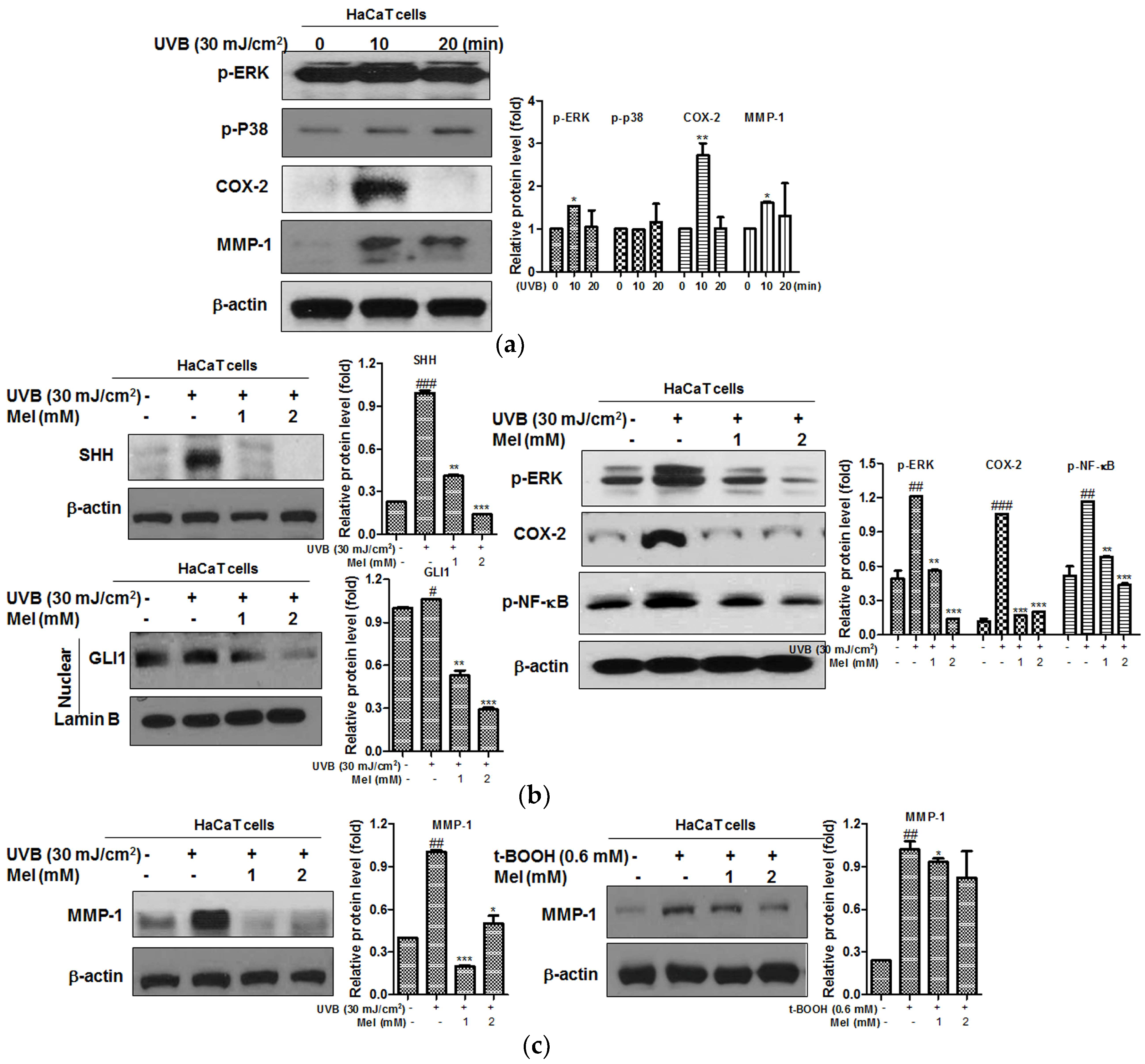

Figure 4. The melatonin attenuated the expression of SHH, GLI1 and MMP-1 related proteins in t-BOOH or UVB treated HaCaT keratinocytes. (a) HaCaT cells were exposed to UVB (30 mJ/cm2) for 10 min or 20 min and subjected to Western blotting for p-ERK, PP38, COX-2, MMP-1 and β-actin. (b), (c) Cells were pretreated with melatonin for 24 h, irradiated with UVB (30 mJ/cm2) for 10 min and then subjected to Western blotting for SHH, GLI1 (nuclear fraction), p-ERK, COX-2, p-NF-κB, MMP-1, β-actin and Lamin B. Cells were pretreated with melatonin for 24 h and then with t-BOOH (0.6 mM) for 6 h. Graphs represent quantitative analysis of protein expression adjusted by β-actin. Data represent means ± SD. *** p < 0.001, ** p < 0.01 and * p < 0.05 versus UVB control, ### p < 0.001, ## p < 0.01 and # p < 0.05 versus normal control.
Figure 4. The melatonin attenuated the expression of SHH, GLI1 and MMP-1 related proteins in t-BOOH or UVB treated HaCaT keratinocytes. (a) HaCaT cells were exposed to UVB (30 mJ/cm2) for 10 min or 20 min and subjected to Western blotting for p-ERK, PP38, COX-2, MMP-1 and β-actin. (b), (c) Cells were pretreated with melatonin for 24 h, irradiated with UVB (30 mJ/cm2) for 10 min and then subjected to Western blotting for SHH, GLI1 (nuclear fraction), p-ERK, COX-2, p-NF-κB, MMP-1, β-actin and Lamin B. Cells were pretreated with melatonin for 24 h and then with t-BOOH (0.6 mM) for 6 h. Graphs represent quantitative analysis of protein expression adjusted by β-actin. Data represent means ± SD. *** p < 0.001, ** p < 0.01 and * p < 0.05 versus UVB control, ### p < 0.001, ## p < 0.01 and # p < 0.05 versus normal control.
Ijms 19 01995 g004
Ijms 19 01995 g005 550

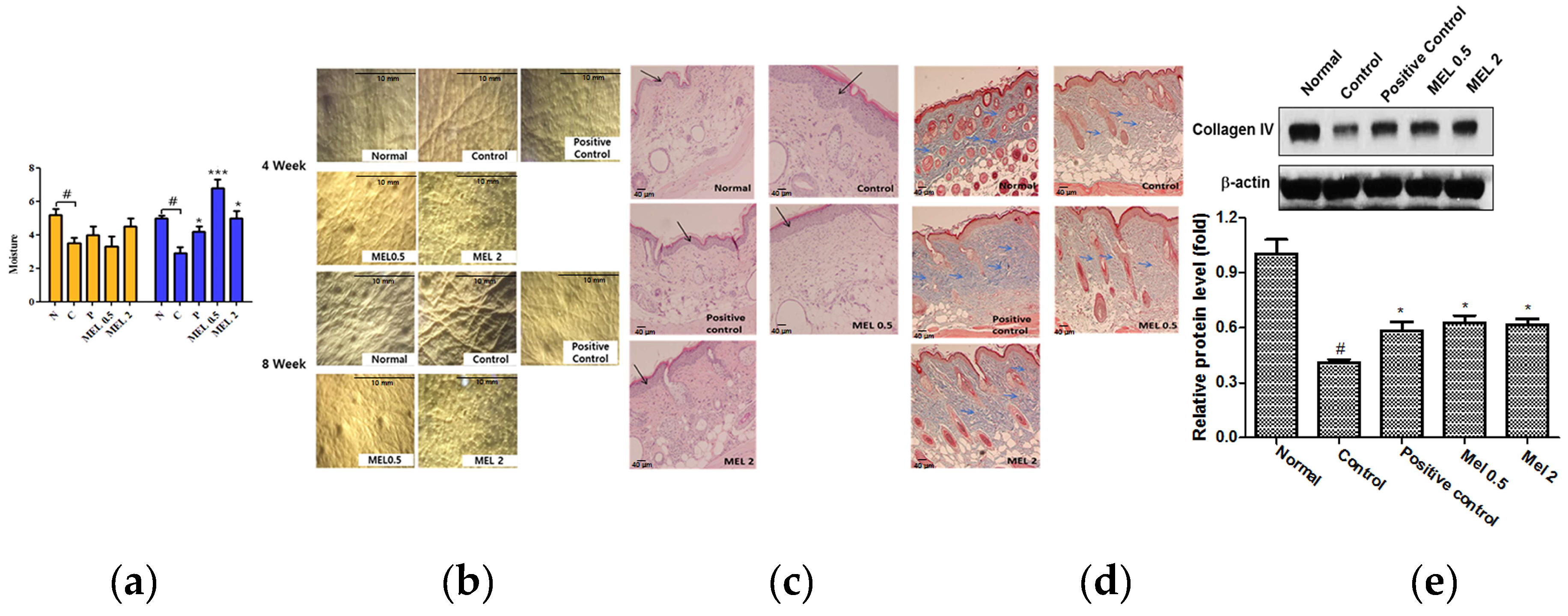

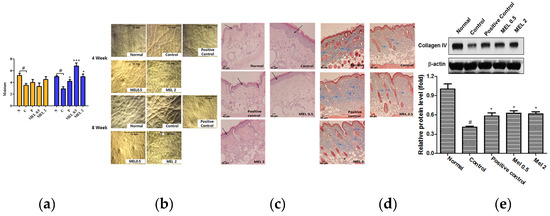

Figure 5. The melatonin significantly suppresses wrinkles and collagen fibers in the dorsal skin of SKH 1 hairless mice. N, Normal; C, Control + UVB irradiation; P, Positive control: Retinoic acid 2 mg/kg + UVB; MEL 0.5, Melatonin 0.5 mg/kg + UVB; MEL 2, Melatonin 2 mg/kg + UVB. (a) Effect of melatonin on water loss in the dorsal skin of SKH 1 hairless mice. Data represent means ± SD. *** p < 0.001 and * p < 0.05 versus UVB Control, # p < 0.05 versus Normal control. (b) Effect of melatonin on wrinkles in the dorsal skin of SKH 1 hairless mice. Melatonin reduced the degree of wrinkles induced by UVB irradiation on the dorsal skin of SKH1 hairless mice. Images of skin replicas were casted on the dorsal skin surface of mice using SILFLO. Scale bars = 10 mm (c) Hairless mouse skin was stained with hematoxylin and eosin (×100). Epidermis thickness was measured under light microscopy. Black arrow (epidermis). Scale bars = 40 μm (d) Collagen fiber formation was evaluated using Masson's trichrome staining. Collagen fiber bundles are shown in blue area (Blue arrow) (×100) Scale bars = 40 μm. (e) Effect of melatonin on collagen IV expression in UVB-exposed mice skin tissues. Skin tissues were homogenized on ice and the extracts were subjected to Western blotting. Graphs represent the quantitative analysis of protein expression adjusted by β-actin. Data represent means ± SD. * p < 0.05 versus UVB control, # p < 0.05 versus normal control.
Figure 5. The melatonin significantly suppresses wrinkles and collagen fibers in the dorsal skin of SKH 1 hairless mice. N, Normal; C, Control + UVB irradiation; P, Positive control: Retinoic acid 2 mg/kg + UVB; MEL 0.5, Melatonin 0.5 mg/kg + UVB; MEL 2, Melatonin 2 mg/kg + UVB. (a) Effect of melatonin on water loss in the dorsal skin of SKH 1 hairless mice. Data represent means ± SD. *** p < 0.001 and * p < 0.05 versus UVB Control, # p < 0.05 versus Normal control. (b) Effect of melatonin on wrinkles in the dorsal skin of SKH 1 hairless mice. Melatonin reduced the degree of wrinkles induced by UVB irradiation on the dorsal skin of SKH1 hairless mice. Images of skin replicas were casted on the dorsal skin surface of mice using SILFLO. Scale bars = 10 mm (c) Hairless mouse skin was stained with hematoxylin and eosin (×100). Epidermis thickness was measured under light microscopy. Black arrow (epidermis). Scale bars = 40 μm (d) Collagen fiber formation was evaluated using Masson's trichrome staining. Collagen fiber bundles are shown in blue area (Blue arrow) (×100) Scale bars = 40 μm. (e) Effect of melatonin on collagen IV expression in UVB-exposed mice skin tissues. Skin tissues were homogenized on ice and the extracts were subjected to Western blotting. Graphs represent the quantitative analysis of protein expression adjusted by β-actin. Data represent means ± SD. * p < 0.05 versus UVB control, # p < 0.05 versus normal control.
Ijms 19 01995 g005
Ijms 19 01995 g006 550

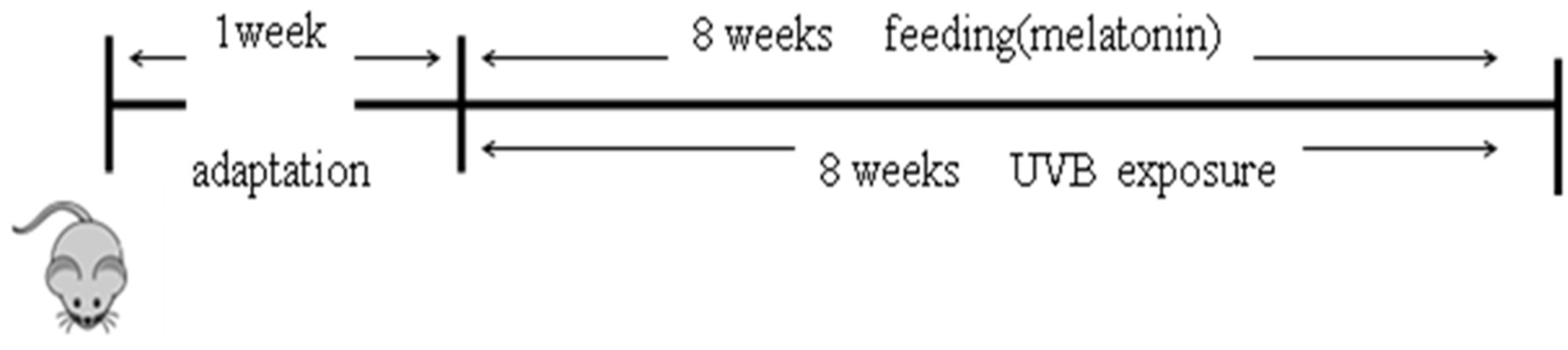

Figure 6. UVB irradiation schedule for SKH-1 hairless mice.
Figure 6. UVB irradiation schedule for SKH-1 hairless mice.
Ijms 19 01995 g006
