Formation of ZrC–SiC Composites from the Molecular Scale through the Synthesis of Multielement Polymers

Abstract

In the field of non-oxide ceramic composites, and by using the polymer-derived ceramic route, understanding the relationship between the thermal behaviour of the preceramic polymers and their structure, leading to the mechanisms involved, is crucial. To investigate the role of Zr on the fabrication of ZrC–SiC composites, linear or hyperbranched polycarbosilanes and polyzirconocarbosilanes were synthesised through either “click-chemistry” or hydrosilylation reactions. Then, the thermal behaviours of these polymeric structures were considered, notably to understand the impact of Zr on the thermal path going to the composites. The inorganic materials were characterised by thermogravimetry-mass spectrometry (TG-MS), X-ray diffraction (XRD), and scanning electron microscopy (SEM). To link the macromolecular structure to the organisation involved during the ceramisation process, eight temperature domains were highlighted on the TG analyses, and a four-step mechanism was proposed for the polymers synthesised by a hydrosilylation reaction, as they displayed better ceramic yields. Globally, the introduction of Zr in the polymer had several effects on the temperature fragmentation mechanisms of the organometallic polymeric structures: (i) instead of stepwise mass losses, continuous fragment release prevailed; (ii) the stability of preceramic polymers was impacted, with relatively good ceramic yields; (iii) it modulated the chemical composition of the generated composites as it led, inter alia, to the consumption of free carbon.

1. Introduction

Advanced technologies in the nuclear and aeronautic fields require high-performance materials [1,2]. In this field, non-oxide ceramics are considered as materials of choice thanks to their good thermomechanical properties and high melting points, up to 3000 °C in the case of Ultra-High-Temperature Ceramics (UHTCs) [3,4]. In particular, ZrC is a promising material due to the combination of a high melting point (3400 °C) with interesting hardness, fracture toughness, and strength [5]. Nevertheless, ZrC resistance to oxidation must be improved when considering applications at high temperatures in oxidising environments. To solve this drawback, SiC and Si-based composites were selected. Indeed, SiC can form a protective layer of silica in specific passive oxidation conditions [6]. In parallel, the polymer-derived ceramics (PDCs) route is a promising way to fabricate homogenous materials by designing polymer networks at the molecular level, for example, using tailored polycarbosilanes (PCS) to generate SiC ceramics [7,8,9,10]. Regarding the literature, three main ways can be highlighted to incorporate a metallic element, such as group 4 metals, into polymeric structures (Figure 1) [11]. First, a simple blending of polymers with metals can lead to non-oxide precursors of ceramic composites. By changing the scale of action in terms of chemical reactivity, it is also possible to modify polymers by functionalising them with suitable key molecules and then introducing new elements into the macromolecular structure. Thanks to this strategy, polymers with pendant groups containing transition metals can be synthesised. Finally, direct polymerisation starting with molecular precursors is possible. With these three different routes in mind, it is worth mentioning that the level of uniformity of the distribution of metal ions in the polymer will condition the homogeneity of the generated ceramics/composites in terms of composition, microstructure, and phase distribution.

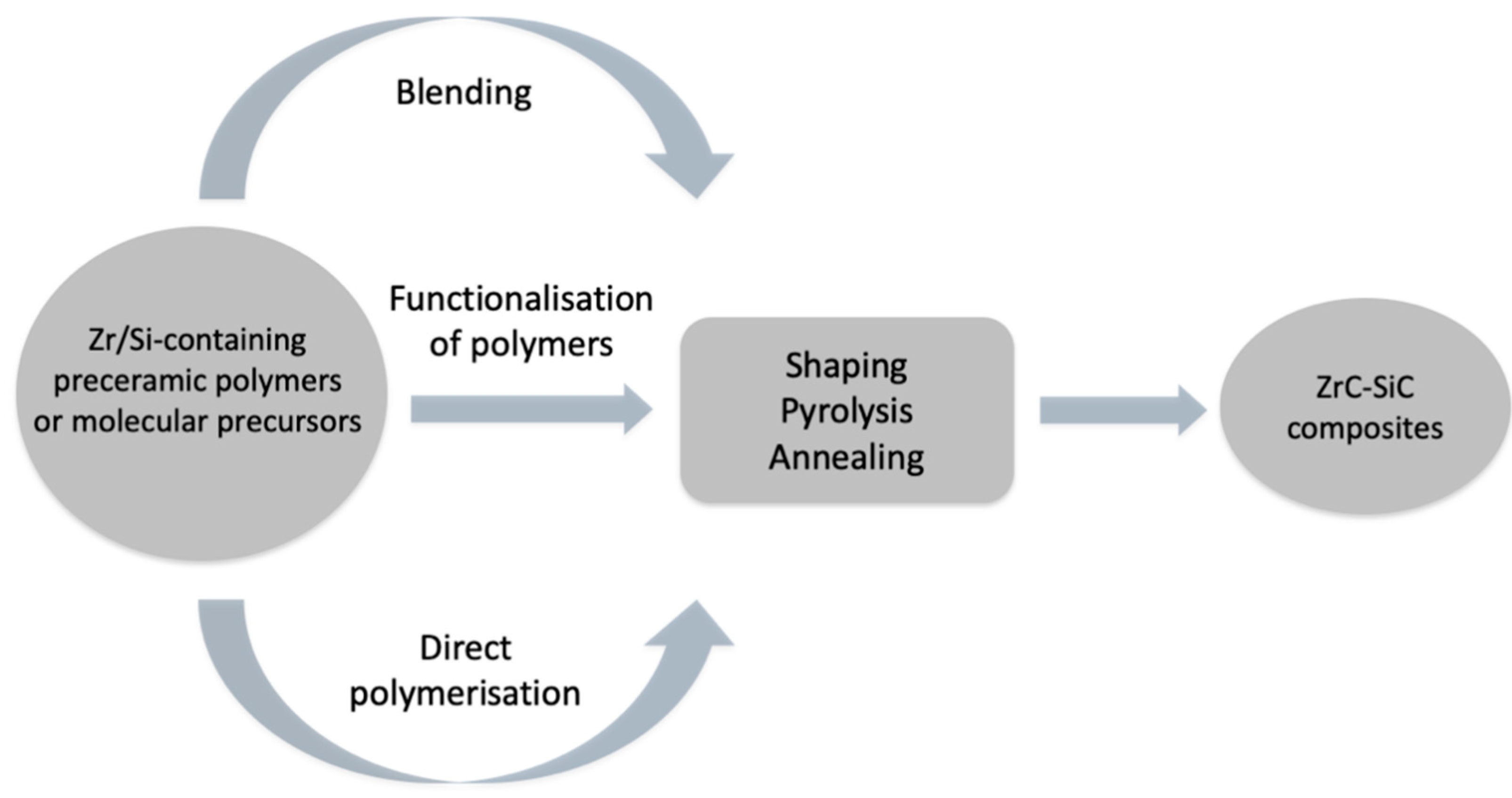

Via this process, polymers are transformed into ceramics through a suitable pyrolysis step that needs to be understood and, if possible, mastered. That is why the thermal behaviour needs to be studied to see the impact of the polymer structure regarding its thermal ability, the ceramic yield, and the involved pyrolytic mechanisms [12,13,14]. This methodology is useful for identifying the best structure for a polymer to lead to defined non-oxide ceramics in the best conditions.

In this context, this study describes the impact of PCS structures on their thermal behaviour for different macromolecular structures, including zirconium-containing PCS. They were synthesised at the molecular level by using either a click-chemistry reaction, copper (I)-catalysed alkyne-azide 1,3-dipolar cycloaddition (CuAAC), [15,16,17], or a hydrosilylation polymerisation reaction [18,19]. The thermal behaviour of each polymer is investigated by trying to link the macromolecular structure to the mechanisms involved during the ceramisation process. Particularly, the structure and the composition of the starting polymers and those of the final ceramics are discussed.

2. Materials and Methods

2.1. Materials

All reactions were conducted under air atmosphere. All the solvents and chemicals were commercially available and were used as received. 1,4-diethynylbenzene (96%), Karstedt’s catalyst (platinum(0)-1,3-divinyl-1,1,3,3-tetramethyldisiloxane complex solution), anhydrous dichloromethane (≥99.8%), bis (chlorométhyl)dimethylsilane (97%), sodium azide (99%), N,N-dimethylformamide (99.8%), propargyl bromide (80 wt.% in toluene), copper bromide (98%), N,N-diisopropylethylamine (99%), 1,4-diethynylbenzene (96%), and absolute ethanol (≥99.8%) were purchased from Sigma-Aldrich (St. Quentin Fallavier, France). Diphenylsilane (97%), Bis (cyclopentadienyl) zirconium (IV) dihydride (ZrCp₂H₂), toluene, cyclohexane (+99%), magnesium sulfate (99.5%), ammonia (35% in water), diethylic ether (99%), and petroleum ether were obtained from Alfa-Aesar. Chloroform d₁ (99.8%) and dimethylsulfoxide d₆ (99.8%) were purchased from EurisoTop (Saint Aubin, France).

2.2. Characterisations

The characterisations by IR spectroscopy of solid samples were performed using Fourier Transform IR equipment (Spectrum One FT-IR, Perkin-Elmer, Villebon-sur-Yvette, France). These analyses were carried out in transmittance mode using KBr pellets (4000–400 cm⁻¹). ¹H and ¹³C NMR spectra were recorded at 500.15 MHz and 125.76 MHz, respectively, using a Bruker Avance III HD 500 MHz NMR spectrometer (B₀ = 11.4 T, Palaiseau, France). Chemical shifts (δ) are expressed in parts per million with tetramethylsilane as an internal standard (δ = 0 ppm). Data are reported as follows: chemical shift, multiplicity (s, singlet; d, doublet; t, triplet; m, multiplet), coupling constants (Hz), and assignment. For solid-state NMR, on the one hand, ¹³C CPMAS NMR spectra were recorded on a Bruker Avance 700 MHz spectrometer at B₀ = 16.4 T, ν₀(¹³C) = 175.95 MHz using a CP-MAS Bruker probe with a 2.5 mm ZrO₂ rotor spinning at 20 kHz. On the other hand, ²⁹Si CPMAS NMR spectra were recorded on a Bruker Avance 700 MHz spectrometer at B₀ = 16.4 T, ν₀(²⁹Si) = 139.04 MHz using a CP-MAS Bruker probe with a 4 mm ZrO₂ rotor spinning at 5 kHz. Chemical shifts were referenced to tetramethylsilane (δ = 0 ppm). The thermal behaviour of the precursors was followed by means of differential scanning calorimetry and thermal gravimetric analysis (DSC-TG, Jupiter, STA 449 F3, Dardilly, France) in an argon atmosphere at a heating rate of 5 °C·min⁻¹ (argon flow: 20 mL·min⁻¹) coupled with mass spectrometry (Omnistar, Balzers Instrument, Annecy, France). Phase identification was carried out on powders using a Siemens D5000 X-ray diffractometer (Saint-Denis, France) with a θ–2θ configuration and Cu Kα radiation.

2.3. Synthesis

For the following syntheses, the different polymer structures are summed up in Figure 2.

2.3.1. Polycycloaddition (CuAAC)

Linear polycarbosilane (l-cPCS, as linear-clicked PCS)

Experiments were carried out following a process described by Wang and coworkers [20]. The polymer was prepared by the reaction of bis(azidomethyl)dimethylsilane [21,22] (763 mg; 4.3 mmol) with 1,4-diethynylbenzene (540 mg; 4 mmol), 0.1 equiv of copper bromide (0.4 mmol), and 0.6 equiv of DIPEA (2.6 mmol) in DMF (5 mL). This mixture was then stirred during 24 h at 60 °C. After a treatment using water (100 mL), the light brown precipitate was filtered with a Büchner funnel, and several washes were carried out with ammonia to remove the copper. The solvent was then removed by evaporation under reduced pressure to obtain the linear polymer, a brown powder, named l-cPCS (1.42 g, 84%). ¹H NMR (500 MHz, DMSO-d₆, δ): 8.71–8.34 (m, CH_triazole), 7.90–7.83 (m, CH_Ar), 4.13-3.92 (m, Si-CH₂), 3.81 (s, N-CH₂), 0.27-(-)0.06 (m, Si-CH₃); ¹³C NMR (125 MHz, DMSO-d₆, δ): 162.3, 133, 125.6–125.3 (CH_Ar), 122.4 (CH_triazole), 36.4 (Si-CH₂), 35.8 (N-CH₂), -4.7 (Si-CH₃); IR (KBr), σ_max (cm⁻¹): 3148, 2960, 1641, 1432, 1253.

Hyperbranched polycarbosilane (hb-cPCS, as hyperbranched-clicked PCS)

The polymer was prepared by the reaction of bis (azidomethyl) dimethylsilane [21,22] (763 mg; 4.3 mmol) with di- and tripropargylamine [23] (500 mg; 8.6 mmol), 0.1 equiv of copper bromide (0.4 mmol), and 0.6 equiv of DIPEA (2.6 mmol) in DMF (5 mL). This mixture was then stirred for a duration of 24 h at room temperature. Purification was performed via liquid-liquid extraction using water (10 mL) and diethyl ether (20 mL). The organic phase was cleaned using water (10 mL) and was then dried with MgSO₄; the product was then filtered. Afterwards, the solvent was removed by evaporation under reduced pressure to obtain the hyperbranched polymer hb-cPCS (1.522 g, 92%). ¹H NMR (500 MHz, DMSO-d₆, δ): 8.30–7.58 (m, CH_triazole), 4.61–3.82 (m, Si-CH₂), 3.70 (br s, N-CH₂), 0.25–0.04 (m, Si-CH₃); IR (KBr), σ_max (cm⁻¹): 3146, 2958, 2848, 1656, 1260.

Zr-modified hyperbranched polycarbosilane (hb-cPZCS, as hyperbranched-clicked Zr-containing PCS)

A one-pot synthesis was carried out to incorporate the Zr element into the hyperbranched polymer hb-cPCS [22]. hb-cPCS was selected due to its better mass and ceramic yields. The process for this was based on the previous one. First, bis(cyclopentadienyl)zirconium(IV)dichloride (1.105 g; 3.8 mmol) was dissolved in THF (2.5 mL) with 0.1 equiv of copper bromide (0.8 mmol) and 0.6 equiv of DIPEA (4.5 mmol). Bis(azidomethyl)dimethylsilane (3.8 mmol) was added to the mixture. Immediately following this, di- and tripropargylamine were added carefully, drop by drop. The involved reaction was very exothermic and a brown gas was released. This mixture was then stirred for a duration of 24 h at room temperature. After a treatment using water (100 mL), the black precipitate was filtered with a Büchner funnel. The solvent was then removed by evaporation under reduced pressure to obtain the multielement polymer (1.34 g, 66%). ¹H NMR (500 MHz, DMSO-d₆, δ): 8.71 (m, CH_triazole), 6.57–6.46 (m, CH_Ar), 4.45–3.81 (m, Si-CH₂), 3.65–3.52 (m, N-CH₂), 0.17-(-)0.07 (s, Si-CH₃); IR (KBr), σ_max (cm⁻¹): 2953, 2825, 1621, 1439, 1400, 1254, 465.

2.3.2. Hydrosilylation

Linear polycarbosilane obtained by hydrosilylation (l-hPCS, as linear-hydrosilylated PCS)

The linear polycarbosilane (PCS), precursor of SiC, was synthesised in our laboratory using diphenylsilane, 1,4-diethynylbenzene, toluene, and Karstedt’s catalyst as starting reagents. First, 1.05 g 1.4-diethynylbenzene (8.323 mmol) was added into 10 mL of toluene. Then, a solution of 0.038 mL of Karstedt’s catalyst (0.1 equiv 0.0832 mmol) was prepared in 5 mL of toluene and dropped into the mixture. Finally, 1.6 mL of diphenylsilane (1 equiv; 8.323 mmol) was added, and 5 mL of toluene was introduced to obtain a complete volume of solvent of 20 mL. The reaction mixture was first stirred at 25 °C, and the temperature was increased every 10 minutes to 40 °C, then 55 °C, and held at the final temperature of 75 °C for 24 h under magnetic stirring. After the polymerisation reaction, an excess of absolute ethanol (84.98 mL) was added to precipitate the mixture and to create an azeotrope, which facilitates the evaporation of the solvent. Removal of the solvent on a rotary evaporator, at 70 °C and under vacuum, gave an orange powder. The polymer was soluble in common organic solvents. It was obtained in a 93% yield. ¹H NMR (500 MHz, CDCl₃, δ): 7.68–7.44 (tdd, J = 6.5 Hz, HC_ortho), 7.5–7.26 (m, HC_meta/para), 7.37 (s, CH_aromatic), 7.04–6.9 (d, J = 19.3 Hz, Si-CH) and 6.88–6.75 (d, J = 19.3 Hz, = CH); ¹³C NMR (125 MHz, CDCl₃, δ): 148.4 (Si-CH = C), 135.9 (CH_ortho), 129.7 (CH_aromatic), 127.3 (CH_meta/para), 123.6 (=CH).

Polyzirconocarbosilane obtained by hydrosilylation (l-hPZCS, as linear-hydrosilylated Zr-containing PCS)

As proposed by Schwartz in 1976 [24], the incorporation of zirconium into the polymer network was expected from the use of a reagent with Zr–H functions. Due to the low solubility of bis(cyclopentadienyl)zirconium(IV) dihydride (ZrCp₂H₂), this compound was first dissolved in toluene at 110 °C for 24 h. The linear multielement polymer (PZCS) was then synthesised by adding diphenylsilane (1 equiv) to the ZrCp₂H₂ solution. Separately, 1,4-diethynylbenzene (2 equiv) was dissolved in toluene in the presence of Karstedt’s catalyst (0.01 mol. equiv). The reaction mixture was first stirred at 25 °C and heated under the same conditions as previously described. Then, an excess of absolute ethanol (85 mL) was added to precipitate the mixture. Removal of the solvent with a rotary evaporator, at 70 °C and under vacuum, gave a dark brown powder. The polymer, obtained in an 87% yield, was not soluble in common organic solvents.

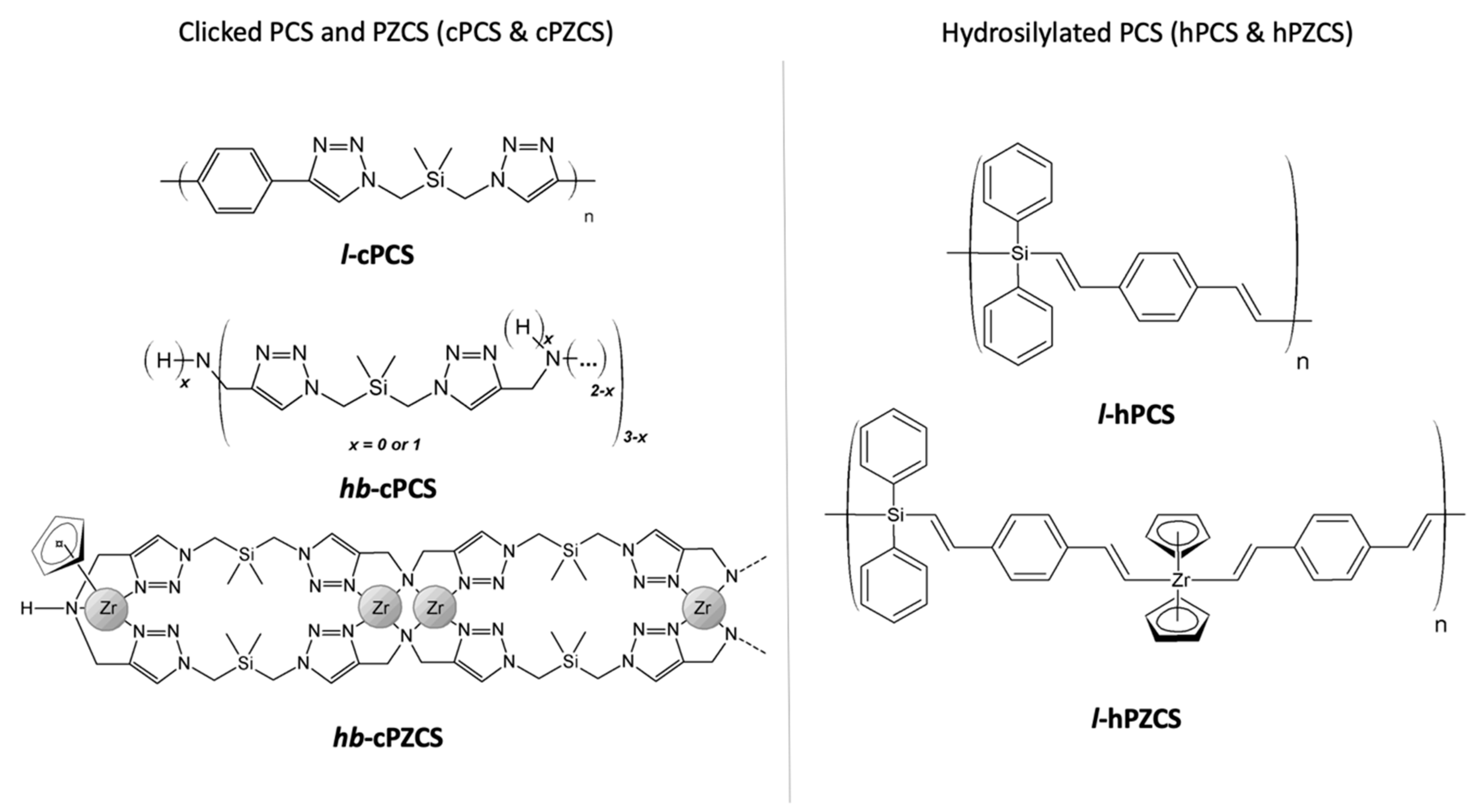

Figure 2. Different preceramic precursors synthesised by polycycloaddition (left) or polyhydrosilylation/polyhydrozirconation (right). To simplify the hypothetical hb-cPZCS formula, no charges or oxidation states are indicated.

Figure 2. Different preceramic precursors synthesised by polycycloaddition (left) or polyhydrosilylation/polyhydrozirconation (right). To simplify the hypothetical hb-cPZCS formula, no charges or oxidation states are indicated.

2.4. Pyrolysis

Polymer pyrolysis was carried out in a horizontal tubular furnace under flowing argon atmosphere. Temperatures of 1400 °C and 1600 °C were selected with a heating rate of 10 °C·min⁻¹, and a plateau was set at the treatment temperature for 1 h. After being cooled at 20 °C·min⁻¹ to the ambient temperature, the powders were collected.

3. Results and Discussion

3.1. Characterisation of the Polymeric Precursors

To obtain original precursors for SiC and ZrC–SiC ceramics, two reactions were considered: the CuAAC and hydrosilylation reactions (Figure 2 and Table 1). Indeed, they display advantages such as high reaction rates at relatively low temperatures, solvent tolerance, and good regioselectivity, and they lead to easy-to-purify products with excellent yields. Via these two reactions, three polycarbosilanes, named l-cPCS, hb-cPCS, and l-hPCS, and two Zr-containing polycarbosilanes, hb-cPZCS and l-hPZCS, were synthesised.

3.1.1. Polycarbosilanes (l-cPCS, hb-cPCS, and l-hPCS)

Polycycloaddition by means of a CuAAC reaction was carried out to reach a linear polymer (l-cPCS) and a hyperbranched polycarbosilane, i.e., hb-PCS. To obtain these structures, bis (azidomethyl) dimethylsilane was added either to 1,4-diethynylbenzene or to a mixture of di- and tripropargylamine [22]. The idea to compare l-cPCS with hb-PCS was motivated by the fact that hyperbranched polymers are generally characterised by leading to inorganic materials with better ceramic yields than in the case of linear polymers [12,25]. l-cPCS and hb-PCS were obtained in good yields of 84% and 92%, respectively, and they both displayed low solubility in common organic solvents (Table 1). Another polycarbosilane was also considered, l-hPCS, through a hydrosilylation reaction exclusively based on C, H, and Si elements. As the kinetics for hydrosilylation of alkynes are favoured over those for alkenes, it was decided to use commercially available diphenylsilane and 1,4-diethynylbenzene in the presence of Karstedt’s catalyst. l-hPCS was synthesised in a 93% yield as an orange powder soluble in toluene, which is a great advantage towards different processing routes leading to non-oxide ceramics (e.g., dip-coating, spray pyrolysis, etc.), with suspensions that can lead to core–shell structures, for example [26]. These three polymers were characterised by ¹H, ¹³C liquid-state NMR spectroscopy, confirming their structures (cf. experimental part). ²⁹Si solid-state NMR was also carried out and revealed SiC₄ environments (Si(CH₃)₂(CH₂)₂ in Figures S1–S3, or Si(C_sp2)₄ in Figure S4). Looking at the different polycarbosilane structures to lay the foundation for the thermal behaviour explanations, l-cPCS and l-hPCS display phenyl groups in the backbone of the polymers or as pendant groups, while hb-cPCS has a hyperbranched structure with triazole functional groups in its backbone, like l-cPCS. In addition, conjugated systems are more present in l-cPCS and l-hPCS, as triazole and phenyl are directly linked to other systems (i.e., alkenes or phenyl groups).

3.1.2. Zr-Containing Polycarbosilanes (hb-cPZCS, l-hPZCS)

According to the monomers used, and depending on the reactions involved, it is possible to incorporate Zr into the polycarbosilane structures either by using the reactivity of nitrogen elements (hb-cPZCS) with a zirconium complex (ZrCp₂Cl₂) or by employing a combined hydrosilylation/hydrozirconation reaction (l-hPZCS) using ZrCp₂H₂. hb-cPZCS was obtained as a black solid with a satisfying yield of 66%, and it showed low solubility in common organic solvents [22]. In parallel, l-hPZCS, a brown powder, was synthesised in a better yield of 87%. It was insoluble in common organic solvents. Thus, a solid-state NMR study was carried out to elucidate the structure of the polyzirconocarbosilane. Regarding the ¹³C NMR spectrum in Figure 3a, the presence of a peak for the chemical shift of 116 ppm was attributed to the carbon atoms of the cyclopentadienyl groups bonded to Zr. Thanks to this result, it was assumed that Zr was incorporated into the polymer structure. In addition, signals at 148 ppm, 136 ppm, and 128 ppm were observed, as in the case of l-hPCS. The complementary ²⁹Si NMR analysis in Figure 3b indicates that the Si environments remained the same as those for l-hPCS (signal at −18 ppm for SiC₄). Thanks to this investigation, a structure was suggested for l-hPZCS, resulting in statistical copolymerisation of ZrCp₂H₂ and diphenylsilane with 1,4-diethynylbenzene (Figure 2).

Table 1. Characteristics of the different synthesised polymers and their respective yields.

Polymer	Reaction	Aspect	Solubility in Toluene *	Polymer Yield (%)
l-cPCS	Click-chemistry (CuAAC)	Brown solid	-	84
hb-cPCS	Click-chemistry (CuAAC)	Orange gel	-	92
hb-cPZCS	Click-chemistry (CuAAC)	Black solid	-	66
l-hPCS	Hydrosilylation	Orange solid	++	93
l-hPZCS	Hydrosilylation & Hydrozirconation	Brown solid	--	87

* (-) low solubility, (--) insoluble, (++) very soluble.

Table 1. Characteristics of the different synthesised polymers and their respective yields.

Polymer	Reaction	Aspect	Solubility in Toluene *	Polymer Yield (%)
l-cPCS	Click-chemistry (CuAAC)	Brown solid	-	84
hb-cPCS	Click-chemistry (CuAAC)	Orange gel	-	92
hb-cPZCS	Click-chemistry (CuAAC)	Black solid	-	66
l-hPCS	Hydrosilylation	Orange solid	++	93
l-hPZCS	Hydrosilylation & Hydrozirconation	Brown solid	--	87

* (-) low solubility, (--) insoluble, (++) very soluble.

Following the synthesis of the different polymers with satisfying yields, displaying linear or hyperbranched structures and incorporating zirconium or not, it was decided to investigate their thermal behaviour in order to determine the impact of the composition/structure on the ceramic yield and on the nature of the compounds released during thermal treatment.

3.2. Thermal Behaviour of the Preceramic Polymers

3.2.1. Polycarbosilanes

PCS Obtained through CuAAC: l-cPCS and hb-cPCS

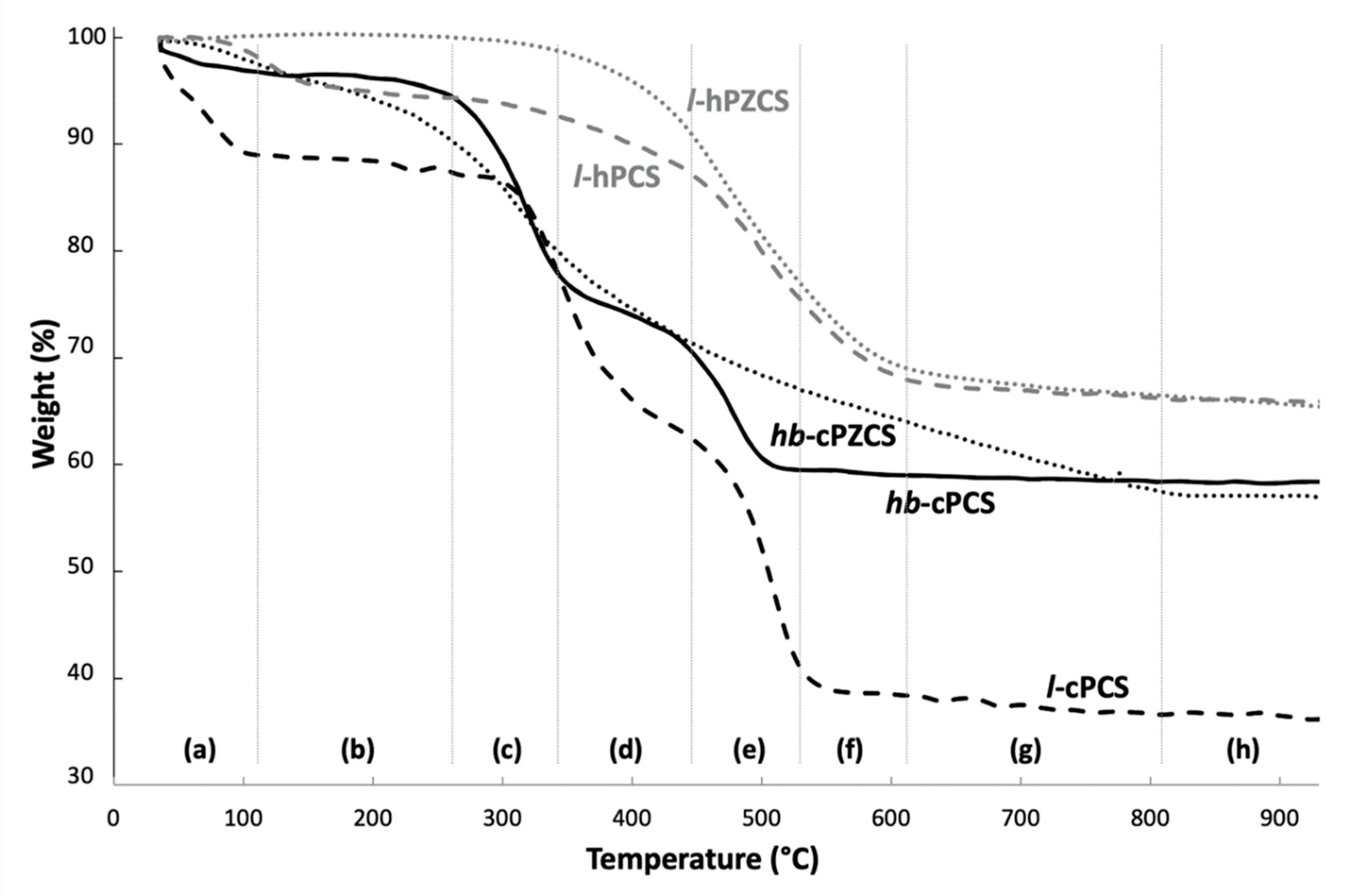

Figure 4 presents the thermogravimetric analysis curves of the two polycarbosilanes l-cPCS and hb-cPCS (see patterns in Figure 2). The two samples have quite similar behaviours. From eight temperature domains, five main steps are highlighted on the thermograms of these polymers ((a), (b), (c), (d) + (e), (f) + (g) + (h)). The total mass loss is higher for l-cPCS. Zone (a), for temperatures below 100 °C, reveals for l-cPCS a weight loss of 11%, which can be explained by the evaporation of water physisorbed or trapped in the polymer. This mass loss is less important (about 3%) for the hb-cPCS sample. This release of water reflects the difficulties encountered in completely purifying the precursors. Zone (b) corresponds to a temperature range of between 100 and 300 °C, for which the samples are thermally stable. Beyond 300 °C, zones (c) + (d) appear. Over this temperature range, the mass change observed for each sample is in the order of 25%. This can be attributed to evaporation of the oligomers and to the onset of degradation of the polymers. For each of the polymers, it is conceivable that C–N and Si–C bonds broke first (Table S1). In fact, above 300 °C, Si–CH₃ bonds are broken and CH₃ groups, volatilised, can fragment and recombine in the form of methane [14,26,27,28]. It should be noted that in the case of the polymer hb-cPCS, the mass loss started 55 °C before that observed for l-cPCS. This temperature shift can be linked to the structure of the macromolecular network, which influences the thermal stability of the polymers. In the case of l-cPCS, the unit presented in Figure 2 is highly conjugated. The presence of the aromatic ring can thus delay the decomposition of the polymer. In this temperature range, it is possible to envisage that the polymers are fragmented into two segments, one rich in C and N, and the other composed of Si and C. These two fragments then undergo modifications linked to the increase in temperature. Indeed, an additional weight loss is noted in range (e) between 440 and 555 °C. It is in the order of 30% for the sample l-cPCS and about 16% for hb-cPCS. These mass losses can be attributed to the dissociation of the triazole bonds (for l-cPCS and hb-cPCS) and of the aromatic ring (for l-cPCS). At this stage of pyrolysis, it is likely that an amorphous carbon phase will begin to form. Finally, during zones (f) + (g) + (h), the samples do not lose mass, showing thermal stability above 555 °C. The polymer-to-ceramic conversion can take place without mass loss [7,29]. The ceramic yield of the linear polymer l-cPCS is 36%, while the precursor hb-cPCS, of hyperbranched structure, has a ceramic yield of 58%. This result is consistent with the data in the literature, since hyperbranched precursors are generally associated with better ceramic yields than linear polymers [25]. The DSC curves of the two polymers have similar shapes (Figures S5 and S6). A major exothermic event coincides with the main mass change recorded in TGA and the simultaneous creation of chemical bonds. This exothermic signal is observed at roughly 511 °C for l-cPCS and at 489 °C for hb-cPCS. This phenomenon marks the organic–inorganic transition. Due to its highly crosslinked polymer network, the polymer hb-cPCS tends to organise itself at a lower temperature than the polymer l-cPCS [30]. This step would result in the formation of amorphous SiC, while at a higher temperature, SiC is able to crystallise. A hyperbranched architecture therefore makes it possible to increase the ceramic yield of the polymer (+22%).

After pyrolysis at 1400 °C of the polymers l-cPCS and hb-cPCS, the predominant phases present are β-SiC and graphitic carbon. The presence of Cu_xSi_1−x-type impurities is also noted, which testifies to the difficulties in purifying the precursor during the syntheses. From the elementary analyses carried out on the pyrolysed products, the free carbon content is 12.3 wt.% for the pyrolysis residue of l-cPCS and 18.4 wt.% for that of hb-cPCS.

In addition, the pyrolysis residues of l-cPCS and hb-cPCS are contaminated with nitrogen (between 1.7 and 2.7 wt.%). This is explained by the implementation of click-chemistry reactions. While nitrogen is a sought-after element for generating triazole bonds, which offer excellent chemical stability to polymers and facilitate synthesis conditions, a minor amount remains in the final powders. However, the absence of nitrided phases in pyrolyzed materials is explained by the absence of Si–N bonds in the polymer motif and supports the hypothesis that triazole bonds mainly decompose into non-reacting N_2(g) during the ceramisation step. Due to the difficulties in controlling the chemical composition of the precursors resulting from the synthesis by click-chemistry (l-cPCS and hb-cPCS), the synthetic route by hydrosilylation was undertaken and led to the development of a preceramic polymer with a linear architecture, l-hPCS.

Two Linear Preceramic Precursors: l-cPCS and l-hPCS

The thermal behaviours of the two linear polymers l-cPCS and l-hPCS (Figure 4) were compared (Figure 2). The thermograms of these two compounds show clearly different patterns. In the case of l-hPCS, the weight loss reflecting the decomposition of the precursor takes place in a single step between 360 and 640 °C, whereas for l-cPCS, this mass change occurs at a lower temperature, between 300 and 550 °C, with two successive mass losses. This difference can be explained by the initial structure of the polymers. Indeed, the presence of C–N bonds in the backbone of l-cPCS, identified as the weakest bonds (Table S1), increases the kinetics of the polymer decomposition. For l-hPCS, the DTA signal indicates an exothermic phenomenon at around 780 °C (Figure S7), which can be attributed to the start of the polymer-to-ceramic transformation, while this phenomenon occurs at a lower temperature (i.e., 511 °C) for l-cPCS. It should also be noted that the ceramic yield of l-hPCS is 62%, much higher than that of l-cPCS (36%). The chemical composition of ceramics resulting from the pyrolysis of l-cPCS and l-hPCS consists mainly of the β-SiC phase and residual carbon [22,30].

3.2.2. Zr-Containing Polycarbosilanes (PZCS)

PCS and PZCS Obtained through Click-Chemistry: hb-cPCS and hb-cPZCS

The study of hb-cPZCS involved observing the thermal behaviour of the ZrCp₂Cl₂ monomer, which was the carrier reagent for the Zr element. The thermogram of this compound indicates that ZrCp₂Cl₂ volatilises from 235 °C (Figure S8). Above 385 °C, the remaining residue (6%) is zirconia, resulting from an oxidation reaction between the monomer and alumina in the crucible. In the same test carried out in a pyrolysis chamber with a glassy carbon crucible, the monomer decomposed in its entirety. In addition, polymers hb-cPCS and hb-cPZCS are the closest in terms of their structures (Figure 2), as the only difference is the use of ZrCp₂Cl₂ for hb-cPZCS. For the latter, the mass loss is continuous, and DSC analysis can distinguish a major exothermic phenomenon at 407 °C (Figure S9). However, the thermal behaviour of hb-cPZCS is different from that of hb-cPCS, as mass losses for hb-cPCS are stepwise, while mass loss for hb-cPZCS is continuous. Therefore, the complexation of Zr ions by nitrogen ligands seems to influence the temperature fragmentation mechanisms of organometallic polymeric structures.

Focusing on the different stages of the TG analyses for these two clicked polycarbosilanes, the first part deals with the evaporation of the solvent residues (water and THF, zone (a)). Then, the signal on the DSC curve between 235 and 335 °C can be associated with the volatilisation of oligomers and ZrCp₂Cl₂ residues, the decomposition of which is observed in this temperature range, as revealed by the TG curve (Figures S8 and S9). Polymer decomposition also started in this temperature range. Overall, the onset of weight loss occurs at a lower temperature for hb-cPZCS than what is observed for the decomposition of hb-cPCS. Indeed, the latter presents thermal stability in zone (b), unlike hb-cPZCS. This different behaviour may be linked to the presence of Zr in the precursor backbone that can weaken C–N bonds. For the two polymers, volatilisation of the cross groups of the polymer takes place at the same time, by the breaking of Si–C bonds (Table S1). It is also possible that Zr–N bonds are weakened under the effect of temperature. The organic–inorganic transition also seems to have shifted towards the lowest temperatures for hb-cPZCS. Indeed, the exothermic peak detected by DSC analysis, which may correspond to the transformation of the polymer into an amorphous material, is located around 407 °C for hb-cPZCS, versus 489 °C for hb-cPCS. The polymer network created by complexation therefore seems to facilitate the ceramisation step. Above 800 °C (zone (h)), hb-cPZCS is thermally stable and the ceramic yield reaches a value of 54%, slightly less than that for hb-cPCS (58%). Referring to the DSC analysis curves, it can be concluded that the more hyperbranched the architecture of the precursor, the more rapid the transition to an amorphous material. It is therefore possible to modulate the composition and thermal behaviour of the precursors depending on the monomers selected.

PCS and PZCS Obtained through Hydrosilylation: l-hPCS and l-hPZCS

The TG curve of l-hPCS indicates four different stages, starting with zone (a), that concern the release of residual toluene detected by MS analysis. This phenomenon matched with the boiling point of this solvent (Figure 4 and Figure S10). In zone (b), no significant mass loss was observed. However, crosslinking certainly occurred with temperature. Then, from zones (c) to (f), the release of phenyl groups from diphenylsilane was detected by MS, involving a second mass loss (Figure 4, Figures S10 and S11). Finally, zones (g) and (h) did not reveal any mass loss, indicating the thermal stability of the product. In addition, the first derivative of the DTA curve showed a broad exothermic peak centred at roughly 800 °C, probably due to the conversion of the material from an organic PCS to an amorphous SiC and its structuring (Figure S11). Another endothermic peak at 1390 °C could reveal a reaction between the Al₂O₃ crucible and SiC. According to the TG curve, the ceramic yield of the linear polymer was about 62%.

Through a study performed under the same conditions as for l-hPZCS, it was possible to determine the influence of zirconium on the thermal behaviour of these preceramic precursors. The thermal behaviour recorded for the monomer ZrCp₂H₂ (Figure S12) was characterised by a continuous mass loss from 100 °C to 1200 °C leading to the formation of a carbon-rich and Zr-containing residue. This thermal behaviour is clearly distinguishable from that of the multielement polymer l-hPZCS (Figure 4), characterised by a plateau (i.e., stable mass) from room temperature to 320 °C and for temperatures above 650 °C, strongly suggesting the incorporation of the Zr element in the polymeric structure to ensure the thermal stability of the pyrolyzed product above 650 °C. In addition, since ZrCp₂H₂ constituted one-third of the monomers used in the polymerisation process, the ceramic yield of l-hPZCS should have been affected by the presence of this complex. Indeed, when used alone, ZrCp₂H₂ lost 70% of its mass, with mass loss even above 900 °C, which was not the case for l-hPZCS (cf. plateau in zone (h)).

A closer inspection of the TG profile of l-hPZCS showed three main steps. Firstly, the material was stable at the lowest temperatures, unlike PCS (zones (a) to (b), Figure 4). Then, residual solvent evaporation was detected by mass spectrometry analysis performed during the pyrolysis (Figure S10). It showed a low-intensity signal, in good agreement with the very low mass loss detected by TGA. Then, main mass loss started in zone (d) due to volatilisation of the aromatic cycles, as revealed by the detection of the ionised fragments due to phenyl groups. At higher temperatures, from zone (d) to (g), fragments composed of the atoms C and H were detected (e.g., CH₄, Figure S10). Meanwhile, organic-to-inorganic transformation occurred. Indeed, the DTA analysis revealed an exothermic signal centred at 770 °C. At higher temperatures, a second exothermic signal centred at 1070 °C could indicate the crystallisation of a first phase of the composite ceramic. The last exothermic signal of low amplitude at 1325 °C could be related to the crystallisation of the second phase of the composite (Figure S11). Other endothermic signals were related to solid–solid interaction between the material and the crucible (Al₂O₃), consisting of local small oxidation phenomena since no mass variations were observed.

Ceramisation Mechanisms

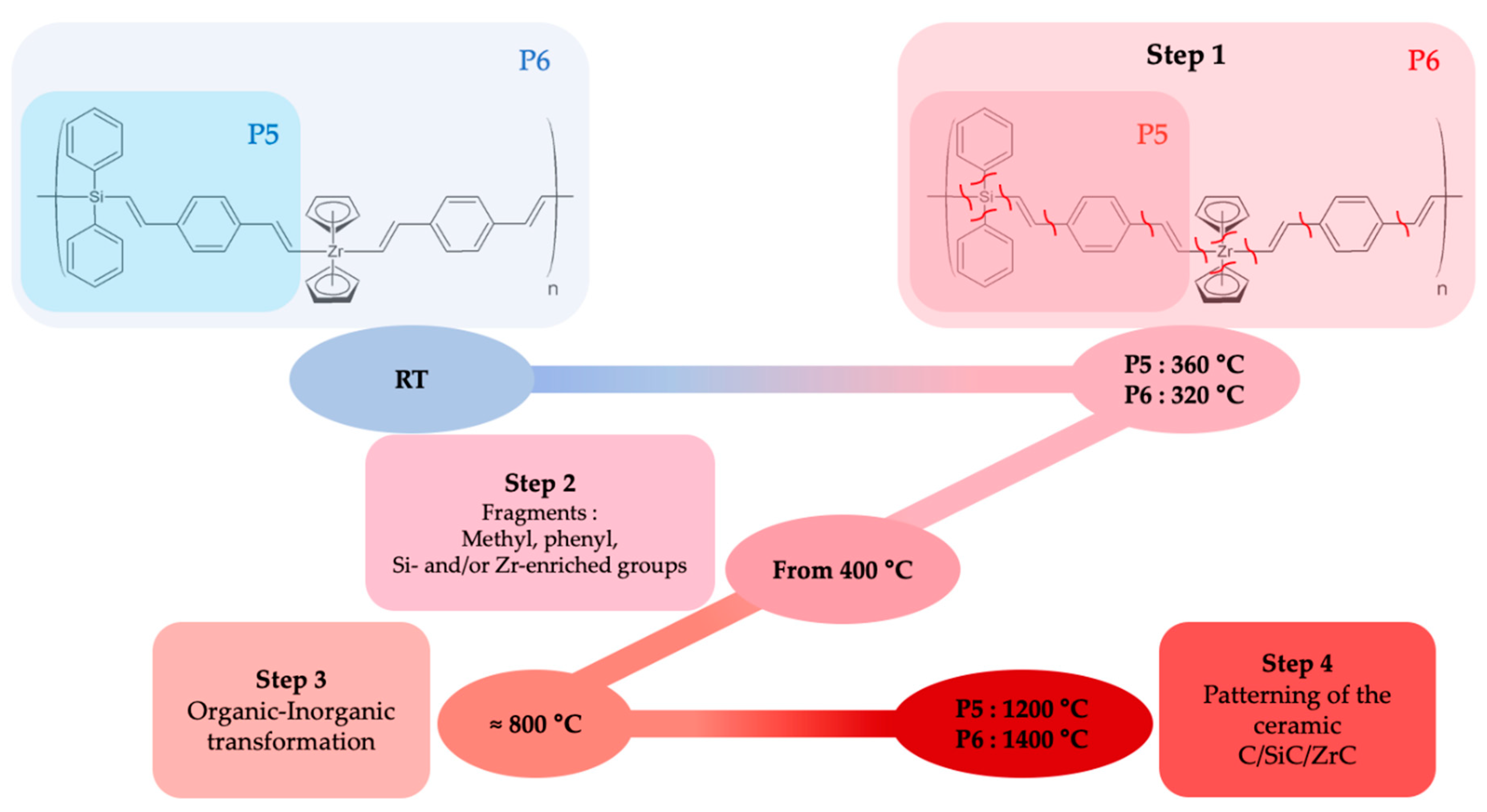

As l-hPCS and l-hPZCS displayed better ceramic yields, and because they only had Si, C, and H elements in their structures, they were selected to further study the mechanisms of ceramisation involved during the thermal treatment. The thermal behaviour of these two precursors could be described, first, by an analysis coupling the data collected from thermogravimetric analysis and differential thermal analysis, and by the detection of volatilised compounds during the rise in temperature by mass spectrometry. According to the previous thermogravimetric description, and to support our reasoning, a reaction mechanism in temperature was proposed (Figure 5). This mechanism can be described in four different steps: (1) breaking of the weakest bonds, just above 300 °C (start of the loss in mass, zones (a) to (c), Figure 4); (2) volatilisation or recombination of the fragments (domains (d) + (e) + (f) in Figure 4, and from mass spectrometry analyses, Figure S13); (3) molecular recombination leading to an organic-to-inorganic transformation (zone (g), Figure 4); and (4) the atomic arrangement and the patterning of the ceramics, without any mass variations (zone (h), Figure 4).

3.3. Ceramics Issued from l-hPCS and l-hPZCS

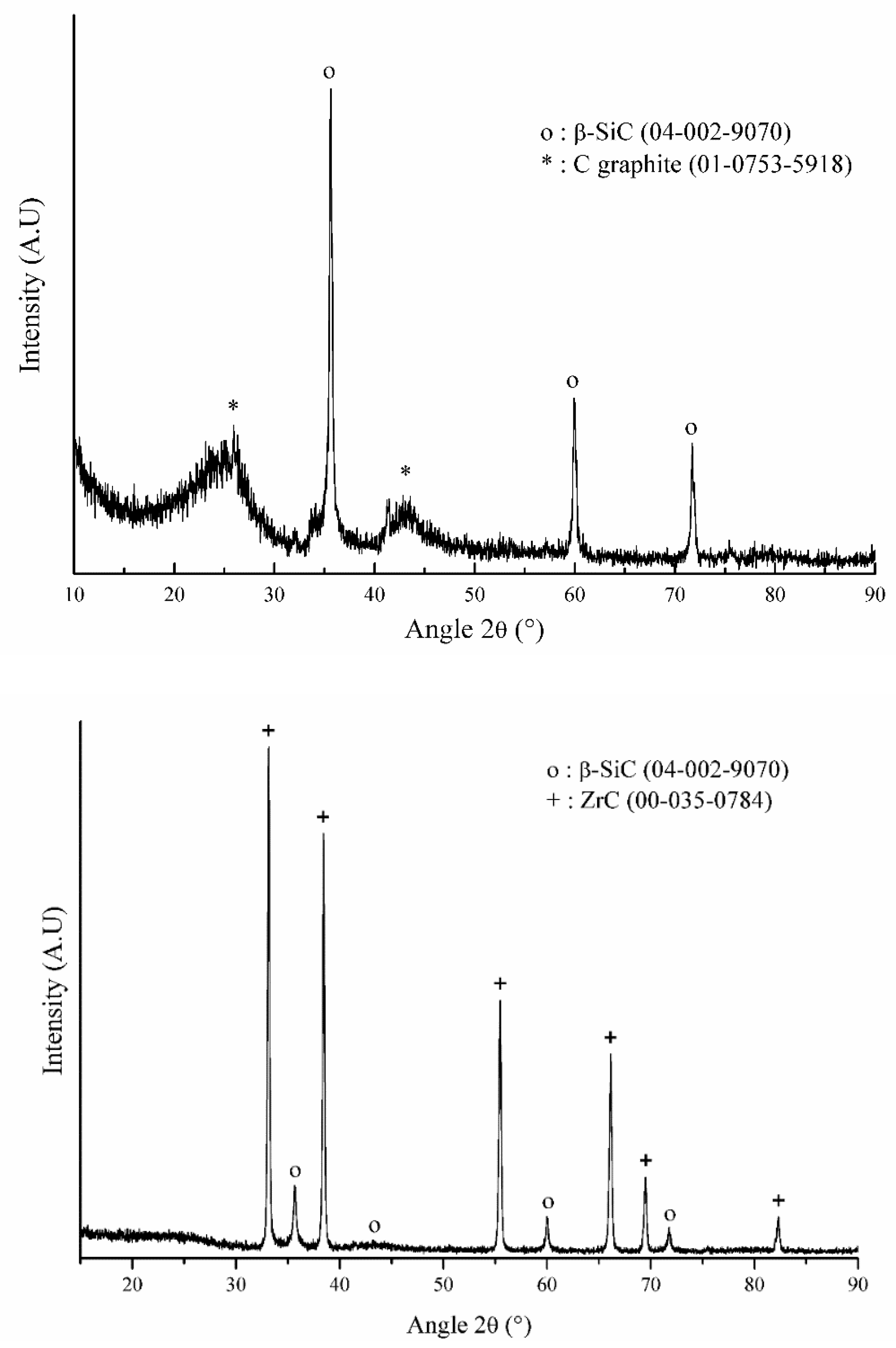

To complete our understanding of the conversion mechanism of l-hPCS into ceramics, the precursors were pyrolysed in Ar atmosphere at 1400 °C. The obtained powders were re-annealed at 1600 °C to improve the crystallisation of the derived ceramics. The corresponding XRD patterns are shown in Figure 6. As we previously reported [30], l-hPCS led to the formation of β-SiC nanograins, as expected, dispersed in an excess of carbon graphite matrix. If we now focus the discussion on the effect of zirconium, the XRD pattern of l-hPZCS-derived ceramics showed that the final material was a ZrC/SiC composite. Semi-quantitative analysis done via the Rietveld method allowed us to estimate the composition of the crystallised phase at about 61 wt.% of ZrC and 39 wt.% of SiC. The free carbon amount was notably reduced, as no graphite was detected from the XRD pattern. Therefore, the presence of zirconium in the preceramic polymer seemed to consume free carbon to lead to ZrC at high temperatures.

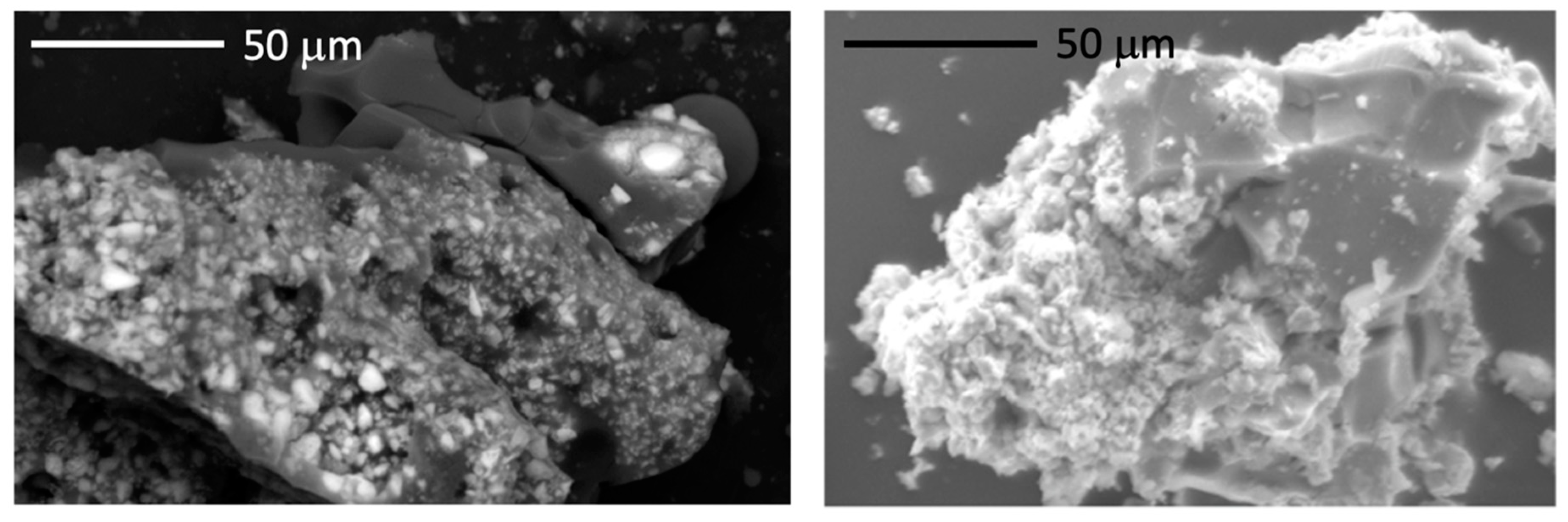

Concerning the distribution of the two phases, SEM images of the milled powder showed that the material was quite different (Figure 7, left). Indeed, thanks to the chemical contrast, the brightest parts of the materials were Zr-enriched phases, while the darkest were the Si-containing phases. By comparing this microstructure to a ZrC/SiC composite obtained using a commercial polycarbomethylsilane (PCMS) mixed with ZrC powders (Figure 7, right), the benefit of inserting the transition metal in the polymer through organometallic chemistry is obvious. Indeed, instead of having ZrC particles covering SiC (Figure 7, right), they seem to be embedded in a SiC matrix when using the PDC route. In addition, better ceramic yields were obtained using multielement polymers as compared to PCMS (only 26% when no crosslinking steps were carried out under oxygen).

3.4. Overview of the Thermal Behaviour of the Different Preceramic Polymers

The previous results have shown the possibility of synthesising composites in Si/C and Si/Zr/C systems from different organometallic precursors. The study of their thermal behaviour highlighted the relationships that link the composition and architecture of the polymers to the final ceramic materials obtained after pyrolysis.

Table 2. Some characteristics of the preceramic polymers regarding their thermal behaviour and ceramisation.

Polymer	Synthetic Process	Ceramic Yield (wt.%)	Organic-to-Inorganic Transition Range of Temperature (°C)	Ceramic Composition
l-cPCS	Click-chemistry (CuAAC)	36	511	SiC + Cgraphite
hb-cPCS	Click-chemistry (CuAAC)	58	489	SiC + Cgraphite
hb-cPZCS	Click-chemistry (CuAAC)	54	407	SiC + ZrC
l-hPCS	Hydrosilylation	62	780	SiC + Camorphous
l-hPZCS	Hydrosilylation and Hydrozirconation	62	770	SiC + ZrC

summarises the main results obtained (ceramic yield, organic-to-inorganic transition temperature, chemical composition of the pyrolysed material, etc.) depending on the starting polymer.

On the one hand, the study of the polymers resulting from click-chemistry revealed that the ceramic yields for the hyperbranched polymers hb-cPCS and hb-cPZCS—54% and 58%, respectively—were much higher than that for polycarbosilane l-cPCS, with a linear architecture (22%). On the other hand, the hydrosilylation reaction allowed us to develop two precursors l-hPCS and l-hPZCS, which had the highest ceramic yields, around 62%. It can also be noted that the polymers resulting from click-chemistry (CuAAC), which exhibited poor solubility due to significant polymer branching, are characterised by an organic-to-inorganic transition temperature lower than those for l-hPCS and l-hPZCS. In addition, the incorporation of zirconium influenced the thermal behaviour of polymers hb-cPZCS and l-hPZCS, which exhibited continuous mass loss instead of the stepwise mass losses from the Zr-free polymers. Finally, zirconium’s benefits are twofold: it causes changes in the stability of polymers, with good ceramic yields, and it also has an impact on the chemical composition of the generated composites, as it allows for the consumption of free carbon.

4. Conclusions

To clarify the effect of zirconium on the formation of ZrC–SiC composites from preceramic polymers, linear and hyperbranched Zr-containing polycarbosilanes were synthesised through either CuAAC or hydrosilylation reactions. The thermal behaviours of the metal-containing polymers were investigated in comparison with those of the corresponding Zr-free polycarbosilanes. Ceramic yields in the range of 36–62% were obtained, with better results for the Zr-containing hyperbranched structures. The impact of the macromolecular structure on the ceramisation process was also considered. Introducing Zr into the structure changed the thermal behaviour from a step-by-step degradation trend for Zr-free PCSs towards continuous fragment release of species up to 900 °C. A four-step mechanism was also proposed for the hydrosilylated polymers to explain the evolution of mass changes during the thermal treatment. This approach showed two main advantages for the presence of Zr in the polymer structure: the stability of the preceramic polymers and their thermal behaviour were impacted, with relatively good ceramic yields, and it led to the consumption of free carbon.
