Total Weight and Axle Loads of Truck Units in the Transport of Timber Depending on the Timber Cargo

by
Grzegorz Trzciński
1,
Tadeusz Moskalik
1,* and
Rafał Wojtan
2
1
Department of Forest Utilization, Faculty of Forestry, Warsaw University of Life Sciences—SGGW, Nowoursynowska 159, 02-776 Warsaw, Poland
2
Division of Dendrology and Forest Production, Faculty of Forestry, Warsaw University of Life Sciences SGGW, Nowoursynowska 159, 02-776 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Forests 2018, 9(4), 164; https://doi.org/10.3390/f9040164
Submission received: 31 January 2018 / Revised: 19 March 2018 / Accepted: 22 March 2018 / Published: 23 March 2018
(This article belongs to the Special Issue Forest Operations, Engineering and Management)
Browse Figures
Versions Notes

Abstract

:
When transporting timber, the high variability of species, assortments and moisture content of the wood raw material does not allow the weight of the transported timber to be precisely determined. This often contributes to the excessive weight loading of the entire truck unit. The aim of the research is to present the variability of the total weight of truck units with wood cargoes (GVW—gross vehicle weight) depending on the weight of the empty unit and the transported timber load, as well as to analyze the changes in GVW, unit loads of wood and load on individual truck unit axles depending on the season. This study analyzes the total weight of truck units for 376 transports of Scots pine timber at different times of the year. The total weight of the truck units depends on the weight of an empty unit and the weight of the load. GVW was determined by using a weighbridge to weigh the vehicles and then the empty unit after unloading. The weight of the load was obtained as the difference between GVW and the tare. It was found that GVW differed significantly depending on the truck unit used, ranging from 43.60–58.80 Mg, often exceeding permissible limits for public roads. The individual axle loads for various truck units were also analyzed. The obtained results indicate that these loads are more equally distributed in the case of five-axle trucks compared to six-axle ones.

1. Introduction

Transport plays a vital role in the proper functioning of every economic system. The success of a company specializing in timber haulage depends not only on the transportation system, but also on the cooperation of all entities associated with its supply chain [1,2,3].
The share of costs relating to the transport of wood raw material in relation to the total costs of forestry activities is significant [4,5]. Its estimated amount is approximately 17%, and this is definitely a higher share compared to other sectors of the economy. The highest costs of transport operations are for hauling timber, accounting for 40–60% [6]. In order to increase their efficiency, companies operating in the timber haulage market try to reduce transport costs, as this is perceived as an important factor for increasing competitiveness. One of the methods of improving the efficiency of timber transport is to reduce the variability of loads and maximize the loads, in accordance with applicable public transport regulations, carried by truck units [5,7,8]. Research conducted in the USA indicates that by maintaining a uniform timber load weight, suppliers are able to achieve savings of 4–14% [9].
An important element in this respect are the legally-established limits of the permissible total weight of vehicles. In 1996, the Member States of the European Union adopted Directive 96/53/EC specifying permissible vehicle weights of 40 Mg and 44 Mg and weights on a single-axle of 100 kN and double axel of 160 kN [10]. In individual countries, institutions responsible for public transport and public roads have the power to limit the total weight of a truck unit (gross vehicle weight) with the simultaneous possibility of limiting permissible axle weights or increasing them in relation to those specified in EU regulations, as well as indicating the roads to be used by such vehicles [5,11,12,13,14,15,16]. In Poland, the permissible vehicle weight of a truck and trailer of over four axles has been set at 40 Mg or 44 Mg for a six-axle vehicle; a truck with a 40-ft intermodal container with a maximal single axle load of 80 kN and double axel load of 160 kN and for national roads at 100 and 115 kN [17]. In Finland, 7-, 8- and 9-axle truck units are allowed, with a maximal weight of 64, 68 and 76 tonnes, respectively, and 4.4 m in height [18]. The increase of the permissible weight of truck units in Finland contributed to the reduction of CO2 and NOx emissions and has resulted in economic benefits [19]. Analyses performed by Palander and Kärhä [20] on transporting timber at the increased permissible loads in Finland indicate the possibility of reducing the required number of vehicles and transport work conducted in tonne-kilometers. Estonian experiences show that increasing the weight limit from the current 44–60 Mg would reduce the share of transport costs in roundwood prices from 17.7–14.2% [8]. Vehicles traveling with a full load and with an increased weight can result in economic and environmental benefits in the long term [21,22].
In reality, however, when transporting timber, the high variability of the transported assortments made of different species and the variable moisture content of wood do not allow a precise determination to be made of the weight of the transported raw wood material [23,24,25,26]. These differences very often influence the excessive weight of the truck unit [27,28,29,30]. McDonnell et al. [31] specify that 58–80% of the vehicles exceeded the permissible truck unit weight, and Devlin [32] shows that the gross vehicle weight (GVW) was exceeded by 60% of the vehicles, of which 20% exceeded the permissible load capacity specified by the vehicle manufacturer. Research conducted in the USA also showed significant overloading of vehicles with wood; as much as 88% of the vehicles had a gross vehicle weight of more than 44 Mg [9].
The volume of the timber harvest in Polish forests has been systematically growing in recent years. In 2015, 40,247 million m3 were harvested [33]. The units of the State Forests National Forest Holding plan to harvest over 42 million m3 of timber in 2018. This wood raw material is delivered to several thousand recipients. This presents a major transport challenge, both in terms of logging operations and its transport. In most cases, approximately 90% of the transport is conducted by vehicles using high-tonnage five- or six-axle truck units [25].
The transportation of wood raw material is one of the key operations in forest management, representing a large share of total costs, and has significant potential for optimization [34,35,36]. A good diagnosis of the configuration of timber truck units, their own weight and their potential timber cargoes, given the large variation in cargo weight, can contribute to improving the efficiency of forest transport [5,9].
Determining the actual weights of transported timber loads and attempting to link them to GVW and individual axle loads will allow the overloading of vehicles and exceeded individual axle weights to be avoided by providing appropriate information to transport companies. The aim of the research is to present the variability of the total weight of truck units (GVW) with wood cargoes depending on the weight of the empty unit and the transported timber load, as well as to analyze the changes in GVW, unit loads of wood and load on individual truck unit axles depending on the season.

2. Materials and Methods

In order to conduct the research and perform the relevant analyses, deliveries were studied to one of the largest wood buyers in Poland, a sawmill supplied with large-sized timber, both long logs and shortwood. The transport was conducted by external companies commissioned by the sawmill. Data for 2016 were collected in four periods: January, at the end of March/beginning of April, July–August and October–November.
The gross weight of the truck unit (GVW) expressed in Mg is understood as the actual weight of the vehicle and trailer or truck unit and semi-trailer with all the equipment, the driver and timber load. GVW was determined based on weighing the entire truck unit on a weighbridge at the sawmill at the moment the wood raw material was delivered, and then after unloading, the empty unit was re-weighed. The actual weight of each load was obtained from the difference of GVW and the tare.
The volume of the load of transported timber, expressed as solid cubic volume (m3 under bark), was determined on the basis of transport vouchers, on which the payments are based of the delivered timber from the supplier to the recipient. Large-sized logs were measured individually by each piece. It should also be noted that when selling timber in Poland and later when it is transported, the given volumes and conversion factors do not apply to the bark. The share of bark is significant and can range up to a dozen or so percent for pine logs [26], influencing the weight of the transported cargo. Therefore, the analysis refers to the weight of the entire load (wood, bark, water) or the weight of 1 m3 of the load.
The load on the individual axles of high tonnage truck units was measured using Model DINI ARGEO WWSD portable truck scales with a 3590M309 weighing terminal with 0.01 Mg graduation. The scale system used is fully compliant with Polish regulations and allows vehicles in transit to be weighed. The loads on the individual wheel axles were measured successively for the whole unit: the vehicle and the trailer. During the measurement, the scales were placed on a flat maneuvering area of hardened concrete paving blocks, with no depressions. It was assumed that such a method of measuring the weight on a particular axle is close to the actual conditions of a forest road, whose longitudinal profile is never level, which in turn is the cause of increased wheel loads on the road surface. For this reason, the analyzed GVW was also determined based on weighing the vehicle on a weighbridge, and not on the sum of the load on individual axles. The weigh station was selected in such a way so as to maintain a level road scale, so that the measured axles were kept level.
The method of weighing vehicles used by the Polish Road Transport Inspectorate, which oversees compliance with permissible axle loads, assumes that measurements are taken with platform scales embedded in the surface, or by placing pads under unweighted axles, while maintaining a maximum allowed slope of 2%. The analysis was based on the results of measurements, taking into account a 5% allowable measurement error in accordance with the recommendations of the Polish Road Transport Inspectorate.
The obtained results were statistically analyzed with the STATISTICA 12 package. In all analyzed periods, the distribution of the variables for all parameters differed from the normal distribution. Therefore, the significance of the differences was mainly determined using the Kruskal–Wallis and Dunn tests.

3. Results

3.1. Characteristics of the Parameters of Truck Units and Transported Timber

The study analyzed 376 transports of pine timber (mainly shortwood, 3.7–5.0 m long) at different times of the year. The parameters characterizing the truck units are presented in Table 1. Timber was transported using truck units consisting of a truck and trailer (181 observations), truck and semi-trailer (166), truck and lightweight platform semi-trailer (17), as well as truck and dolly (12) (Figure 1 and Figure 2).
It was found that the total weight of the truck units (GVW) differed significantly depending on type, ranging from 43.60 (platforms) to 58.80 Mg (trailers). The lowest average value for a given truck unit, amounting to 45.98 Mg, was noted for deliveries made by a tractor with a platform trailer, while the highest was for a truck with a dolly (51.44 Mg). The arithmetic mean for all truck units was 50.56 Mg. The largest variation for empty weight (tare), ranging from 13.8–23.7 Mg, was observed for the truck and semi-trailer, which are also the heaviest means of transport, with an average weight of 20.5 Mg. The average values of 29.07–30.29 m3 for transported timber volume were similar regardless of the analyzed truck unit.
Due to the small number of measurements obtained for the units with a dolly (12) and platform trailer (17), all statistical analyses were only performed for the units with a trailer and semi-trailer.
The Mann–Whitney test was conducted to examine the significance of the selected features depending on the type of unit (semi-trailer or trailer). The results obtained are summarized in Table 2. The statistical analysis only showed a significant difference between the types of truck units for the weight of 1 m3 of load (Table 2).
The Kruskal–Wallis test was performed for trailers and semi-trailers (due to the heterogeneity of variances) for the significance of GVW, tare, m3 load volume, weight of 1 m3 of load and load weight between individual measurement periods (a significance level of 0.05 was adopted for the analyses). The results are summarized in Table 3. In addition, the test of multiple comparisons of mean ranks was performed. The statistical analysis (Table 3) confirmed the differences between the values of the studied measures for specific types of truck units depending on when the measurement was taken.
The range of the results obtained for the studied measures depending on type of truck unit and time of measurement is presented in Figure 3, Figure 4, Figure 5 and Figure 6. In the case of units with a semi-trailer, statistically-significant differences were found for GVW (Figure 3a), tare (June measurement results differ from those of November, and this is the only significant difference), load weights (Figure 4a) and weights of 1 m3 of load (Figure 5a).
Differences in the values of load volume between individual measurement periods turned out to be not statistically significant (Figure 6a). For units with a trailer, statistically-significant differences were found for all variables (Figure 3b, Figure 4b, Figure 5b and Figure 6b), although in most cases, these differences related to November results. In the case of the m3 load volume, significant differences in comparison to other measurement dates were found only for data from September.
As shown in Figure 5, the differences are not very large, but they are statistically significant for the weight per cubic meter of transported round wood depending on the transport system used. However, in particular seasons of the year, not all differences have the same tendency. These differences could be explained by random factors, which may be related to various tree growth conditions influencing wood density or water content.

3.2. Total Weight of Truck Units as a Function of the Tare and Volume of Transported Timber

When loading timber on a forest road, the driver is not sure how much wood to load so as to not overload the vehicle. Assuming that drivers know the mass of an empty unit (they are informed of this by the recipients after weighing) and knowing that the results of the measurement of the mass of 1 m3 of cargo are not statistically significant (Table 2), an attempt was made to develop a two-factor regression model for the GVW (Mg) values as a function of the tare of the truck unit Mg and load volume of the timber (m3). The presented linear model was developed using the least squares (OLS) method. The significance of the calculated coefficients was assessed using Student’s t-test.
For the semi-trailers, it took the form of:
GVW = 1.04672 ∗ Tare + 0.996916 ∗ m 3
The constant term was not taken into account because its value turned out to be not statistically significant. For the developed model, the standard error of the estimation was 1.59297, and the coefficient of determination R2 was 0.9990. The assessment of the model parameters is presented in Table 4.
In the case of a unit with a trailer, the regression model describing the GVW values depending on vehicle weight (tare) and load volume m3 took the form of:
GVW = 1.25897 ∗ Tare + 0.860483 ∗ m 3
The offset also was not statistically significant in this case. The standard error of the estimation of the developed equation was 1.59736, and the coefficient of determination R2 was 0.9990. The assessment of the model parameters is presented in the Table 5.

3.3. Distribution of the Axle Loads of the Truck Units

The analysis of axle loads was performed for 92 five-axle and 155 six-axle truck units consisting of a tuck and semi-trailer, as well as 46 five-axle and 135 six-axle units of a truck and trailer. The basic statistics characterizing the absolute load values of individual axles of the units are presented in Table 6. The smallest axle load for all units was on the first axle, spanning average values of 74–80 kN, with a range of results from 42–102 kN. The highest average loads were at the level of 106–113 kN, located on the second and third axles in the five-axle units, with a maximum single axle load of 170 kN occurring on the fifth axle.
The analysis performed with the Friedman test showed the existence of statistically-significant differences in the level of the vehicles’ axle loads. This analysis was performed for groups of different types of units and different numbers of axles.
It should be noted that for both five- and six-axle truck units, the lowest load is on the first axle. In the case of five-axle units, the load on the remaining axles is fairly even. However, six-axle units have the highest load on the second axle (Figure 7), which then decreases in the direction of the last axle that is similarly loaded as the first axle. Despite the uneven axle load of the six-axle units, their maximum loads are less than in the case of the five-axle units.

4. Discussion

Transport plays an extremely important role in every area of the economy, including the forestry industry. The efficiency of transport depends on a number of factors, including, among others, the load capacity of the vehicle, driving time and fuel consumption [29,37]. When transporting timber, the high variability of species, timber assortment and moisture content of the wood influence the determination of the weight of the transported timber and GVW [15,27,29]. In the studies carried out for the same species of Scots pine, as well as the large-sized assortments, statistically-significant differences were found for the tested parameters in different periods of the year, as evidenced by the study results of Owusu-Ababio and Schmitt [30]. Research conducted by Tomczak et al. [26] indicates a large variation in the density of pine wood. On a longitudinal section of the trunk, the highest density was found for wood at breast height (0.816 Mg/m3), whereas the lowest was from the section closest to the apex (0.707 Mg/m3). This differentiation obviously affects the variability of the weight of the transported timber. Calculated per 1 m3, the weight of the wood raw material was estimated at 0.979 Mg. The ratio of the actual density (0.979 Mg/m3) to the density provided in the tables (0.740 Mg/m3) amounted to 1.3:1 [26]. The actual weight of the wood raw material was therefore about 30% higher than the weight that can be estimated on the basis of the wood density tables developed for the needs of road transport. The results of the tests of the mass of 1 m3 of cargo in the range of from 0.828–1.179 Mg/m3 (Table 1) also indicate the need to verify the adopted table values. An erroneously-chosen indicator often contributes to overloading.
In the development of GVW regression equations, linear functions have been adopted, giving the possibility of their quick and easy application in the forest during timber loading. At the loading site, the driver obtains information about solid wood volume from the forester, who must be present during loading and issues a special receipt for each transport. In the case of large-sized wood, all loaded pieces are specified with their numbers and solid volumes in the receipt. For pulp wood, only one number and the general solid volume for every single stack are provided on the receipt. By applying the developed model, a driver can very quickly calculate GVW and determine in a simple way if the truck is overloaded or not. It seems to be a better solution than taking a tabulated value (0.740 Mg), which showed differences in real GVW. Of course, it is advisable to develop such dependencies for other species and assortments and verify the adopted tabulated conversion factors.
For the estimation of the gross vehicle weight model, the solid volume was applied. All obtained results refer to the large-sized logs measured individually by each piece. In the case of pulp wood, measured in stacked cubic volume (over bark), conversion factors must be applied to obtain the results in solid cubic volume (m3 under bark). According to Polish regulations for pine wood, the conversion factors are 0.65 (for a length of wood of 1.0 or 1.2 m), 0.62 (for a length of 2.0; 2.4 m) and 0.6 (for a length of 5.0–7.0 m). In all cases, the load of 1 m3 volume contains the wood itself, water and bark.
As was found in the research conducted, the total vehicle weights obtained from actual measurements differed significantly, ranging from 43.60–58.80 Mg, with an average value of 50.56 Mg (Table 1). The exceeded permissible truck unit weight (40 Mg in Poland) coincides with the results presented in the literature [9,28,30,31,32,37]. The actual GVW results obtained were compared to the calculated total vehicle masses, in which the mass of the load was determined based on the volume of transported timber (m3) and the conversion value of 0.740 Mg/m3 from the table in effect, which in this case provided GVW results of about 17% lower than the actual ones [38].
In recent years, a reduction in the weight of empty truck units allowing the loads of transported timber to be increased and the difference between a unit with a trailer (tare 17.9–22.0 Mg) and a truck with a semi-trailer (13.8–23.1 Mg) have been observed. The obtained results confirm the possibility of improving the efficiency of wood transport indicated by Sosa et al. [5] and Šušnjar et al. [39], in particular through the use of lightweight platform semi-trailers.
The increased total weights of truck units (GVW) are usually the reason that legal limits have been exceeded: 80 kN for single axles and 115 kN for tandem axles. In a larger percentage of truck units, we have seen that the permissible total weight is exceeded rather than the axle limits, which coincides with the results presented by Owus-Ababio and Schmitt [30] and Baumgras [40], or they were not exceeded at all [39]. In the timber truck units, we observed an increased load on the rear axles (Axles 2 and 3) of the vehicle or tractor, which is caused by the mounted loading device or the uneven distribution of the load and results from the demands on the driving axle of the vehicle. Transporting different lengths of wood, both shortwood and long logs, does not always allow the load to be spread evenly across all axles, which is confirmed by the results obtained for Axles 5 and 6 of the six-axle units.

5. Conclusions

The conducted research allowed statistically-significant differences to be confirmed between the total weights of truck units and load weights in particular seasons of the year. The average total weight for all units was 50.56 Mg, ranging from 43.60–58.8 Mg. Lower values were observed with the use of platform trailers; higher ones for trucks with trailers.
The high variability of load volume and mass of 1 m3 of load in relationship to the accepted normative conversion value (0.740 Mg/m3) results in greater actual GVW. In the majority of cases, these GVW values are over allowable limits.
In the analyzed period, the average weight of delivered timber loads, determined on the basis of weighing, was 29.76 Mg, oscillating in the range of 23.96–36.79 Mg. The relatively lightest loads, both in the case of trailers and semi-trailers, were transported in the early spring months, while the heaviest were in the autumn season. The decisive factor was the date when the wood was harvested and transported. During the dormant period of tree growth, the water content in wood tissue decreases, thus contributing to a reduction in the weight of the transported cargo.
In Poland, five- and six-axle units are most often used to transport wood. The load on individual axles of five-axle units is more or less even. However, for six-axle units, the highest load falls on the second axle, gradually decreasing on successive axles. From the point of view of achieving smaller maximum axle loads, timber should be transported with six axle units.
Vehicles are used for 90% of the transport of wood in Poland. As research has shown, in many cases, vehicles are excessively overloaded in relation to the road traffic regulations in force. In order to improve transport efficiency, it would be advisable in the future to increase the permissible load limits, using units with an increased number of axles, based on the example of the Scandinavian countries.

Author Contributions

G.T and T.M. conceived, designed, performed the experiments, and wrote the paper; R.W. analyzed the data.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Devlin, G.; Lyons, J.; Russel, F.; Joyce, M.; Forest Industry Transport Group. Managing Timber Transport Good Practice Guide. Solutions for a Growing Irish Forest Harvest. 2014. Available online: https://www.teagasc.ie/media/website/crops/forestry/advice/Managing-Timber-Transport---Good-Practice-Guide-Volume-1-2014-1.pdf (accessed on 25 November 2017).
  2. Timber Transport Forum. Road Haulage of Round Timber Code of Practice Timber Transport Forum. Road Haulage of Round Timber Code of Practice. 2012. Available online: http://www.coford.ie/media/coford/content/links/transport/Road%20Haulage%20of%20Round%20Timber%20Code%20of%20Practice.pdf (accessed on 5 July 2017).
  3. Sieniawski, W. Waloryzacja dostaw drewna do wybranych segmentów przemysłu drzewnego. Valorization of Wood Supply to Selected Segments of Timber Industry. Ph.D. Thesis, WULS-SGGW, Warsaw, Poland, June 2012. [Google Scholar]
  4. Devlin, G.; McDonnell, K.; Ward, S. Timber haulage routing in Ireland: An analysis using GIS and GPS. J. Transp. Geogr. 2008, 16, 63–72. [Google Scholar] [CrossRef]
  5. Sosa, A.; Klvac, R.; Coates, E.; Kent, T.; Devlin, G. Improving Log Loading Efficiency for Improved Sustainable Transport within the Irish Forest and Biomass Sectors. Sustainability 2015, 7, 3017–3030. [Google Scholar] [CrossRef]
  6. Shaffer, R.M.; Stuart, W.B. A Checklist for Efficient Log Trucking. Virginia Cooperative Extension. 1998. USA. Available online: https://vtechworks.lib.vt.edu/bitstream/handle/10919/54904/420-094.pdf?sequence=1 (accessed on 10 December 2017).
  7. Beardsell, M.G. Decreasing the Cost of Hauling Timber through Increased Payload. Ph.D. Thesis, Virginia Polytechnic Institute and State University, Blacksburg, VA, USA, 1986. Available online: https://vtechworks.lib.vt.edu/handle/10919/53617 (accessed on 9 September 2017).
  8. Lukason, O.; Ukrainski, K.; Varblane, U. Economic benefit of maximum truck weight regulation change for Estonian forest sektor. Veokite täismassi regulatsiooni muutmise majanduslikud mõjud eesti metsatööstuse sektorile. Est. Discuss. Econ. Policy 2011, 19. [Google Scholar] [CrossRef]
  9. Hamsley, A.K.; Greene, W.D.; Siry, J.P.; Mendell, B.C. Improving Timber Trucking Performance by Reducing Variability of Log Truck Weights. South. J. Appl. For. 2007, 31, 12–16. [Google Scholar]
  10. Directive (EU) 2015/719 of the European Parliament and of the Council of 29 April 2015 Amending Council Directive 96/53/EC Laying Down for Certain Road Vehicles Circulating within the Community the Maximum Authorised Dimensions in National and International Traffic and the Maximum Authorised Weights in International Traffic (Text with EEA Relevance). Available online: https://publications.europa.eu/en/publication-detail/-/publication/22b313fc-f3bc-11e4-a3bf-01aa75ed71a1/language-en (accessed on 26 January 2017).
  11. Chapter H-3.01 Reg 8. The Vehicle Weight and Dimension Regulations. 2010. Available online: http://www.qp.gov.sk.ca/documents/English/Regulations/Regulations/H3-01R8.pdf (accessed on 5 January 2017).
  12. FSVA Richtlinien für die Standardisierung des Oberbaues von Verkehrsflächen/RStO 01; FGSV. 499. Forschungsges; für Strassen-und Verkehrswesen: Köln, Cologne, 2001; Volume 499, Available online: https://www.tib.eu/de/suchen/id/TIBKAT%3A334845300/Richtlinien-f%C3%BCr-die-Standardisierung-des-Oberbaues/ (accessed on 8 January 2018).
  13. Pischeda, D. Technical Guide on Harvesting and Conservation of Storm Damaged Timber. 2004. Available online: http://videntjenesten.ku.dk/filer/Technical-Guide-on-harvesting-and-conservation-of-storm-damaged-timber.pdf (accessed on 6 January 2017).
  14. Wilson, S. Permissible Maximum Weights of Lorries in Europe. Available online: https://www.itf-oecd.org/permissible-maximum-weights-lorries-europe (accessed on 26 January 2018).
  15. Trzciński, G. Analiza Parametrów Technicznych Dróg Leśnych w Aspekcie Wywozu Drewna Samochodami Wysokotonażowymi. Analysis of Technical Parameters of Forest Roads in Terms on Timber Haulage by High-Tonnage Vehicles; Warsaw University of Life Sciences-SGGW: Warsaw, Poland, 2011; ISBN 978-83-7583-291-1. [Google Scholar]
  16. Trzciński, G.; Tymendorf, Ł. Dostawy drewna po wprowadzeniu normatywnych przeliczników gęstości drewna do określenia masy ładunku. Sylwan 2017, 161, 451–459. [Google Scholar]
  17. Regulation Regulation of the Minister of Infrastructure of 31 December 2002 on the Technical Conditions of Vehicles and Their Necessary Equipment.Rozporządzenie. Rozporządzenie Ministra Infrastruktury z Dnia 31 grudnia 2002 r. w Sprawie Warunków Technicznych Pojazdów Oraz Zakresu ich Niezbędnego Wyposażenia. Available online: http://prawo.sejm.gov.pl/isap.nsf/download.xsp/WDU20030320262/O/D20030262.pdf (accessed on 12 January 2018).
  18. Oy, E.P. FINLEX®—Ajantasainen lainsäädäntö: Asetus ajoneuvojen käytöstä tiellä 1257/1992. Available online: https://www.finlex.fi/fi/laki/ajantasa/1992/19921257 (accessed on 26 January 2018).
  19. Liimatainen, H.; Nykänen, L. Impacts of Increasing Maximum Truck Weight—Case Finland; Transport Research Centre Verne, Tampere University of Technology: Tampere, Finland, 2017; Available online: http://www.tut.fi/verne/aineisto/LiimatainenNyk%C3%A4nen.pdf (accessed on 10 January 2018).
  20. Palander, T.; Kärhä, K. Potential Traffic Levels after Increasing the Maximum Vehicle Weight in Environmentally Efficient Transportation System: The Case of Finland. J. Sustain. Dev. Energy Water Environ. Syst. 2017, 5, 417–429. [Google Scholar] [CrossRef]
  21. McKinnon, A.C. The economic and environmental benefits of increasing maximum truck weight: The British experience. Transp. Res. Part Transp. Environ. 2005, 10, 77–95. [Google Scholar] [CrossRef]
  22. Knight, I.; Newton, W.; McKinnon, A.; Palmer, A.; Barlow, T.; McCrae, I.; Dodd, M.; Couper, G.; Davies, H.; Daly, A.; et al. Longer and/or Longer and Heavier Goods Vehicles (LHVs)—A Study of the Likely Effects if Permitted in the UK: Final Report. 2008. Available online: https://www.nomegatrucks.eu/deu/service/download/trl-study.pdf (accessed on 8 December 2017).
  23. Letelier, O.B.; Cortada, W.B. Optimization of Load Distribution on Forest Trucks. Available online: http://www.fao.org/docrep/X0622E/x0622e0z.htm (accessed on 26 January 2018).
  24. Shmulsky, R.; Jones, P.D. Forest Products and Wood Science, 6th ed.; Wiley-Blackwell: Chichester, UK; Ames, IA, USA, 2011; ISBN 978-0-8138-2074-3. [Google Scholar]
  25. Trzciński, G.; Sieniawski, W.; Moskalik, T. Effects of Timber Loads on Gross Vehicle Weight. Folia For. Pol. Ser. For. 2014, 55, 159–167. [Google Scholar] [CrossRef]
  26. Tomczak, A.; Jakubowski, M.; Jelonek, T.; Wąsik, R.; Grzywiński, W. Mass and density of pine pulpwood harvested in selected stands from the Forest Experimental Station in Murowana Goślina. Acta Sci. Pol. Ser. Silvarum Colendarum Ratio Ind. Lignaria 2016, 15, 105–112. [Google Scholar] [CrossRef]
  27. Brown, M. The impact of tare weight on transportation efficiency in Australian forest operations. Harvesting and Operations Program, Research Bulletin 3. 2008. Available online: https://fgr.nz/documents/download/4740 (accessed on 8 December 2017).
  28. Sieniawski, W.; Trzciński, G. Analysis of large-size and medium-size wood supply. In Raport 12/2010; Norwegian Forest and Landscape Institute: Honne, Norway, 2010; pp. 56–57. [Google Scholar]
  29. Ghaffariyan, M.R.; Acuna, M.; Brown, M. Analysing the effect of five operational factors on forest residue supply chain costs: A case study in Western Australia. Biomass Bioenergy 2013, 59, 486–493. [Google Scholar] [CrossRef]
  30. Owusu-Ababio, S.; Schmitt, R. Analysis of Data on Heavier Truck Weights. Transp. Res. Rec. J. Transp. Res. Board 2015. [Google Scholar] [CrossRef]
  31. McDonell, K.M.; Devlin, G.J.; Lyons, J.; Russell, F.; Mortimer, D. Assessment of GPS tracking devices and associated software suitable for real time monitoring of timber haulage trucks 2008. In Annual Report; COFORD: Ireland, UK; Available online: http://www.coford.ie/media/coford/content/publications/projectreports/annualreports/2008-AR-E.pdf (accessed on 18 February 2017).
  32. Devlin, G.J. Applications and development of real-time GPS tracking systems and on-board load sensor technology for wood transport in Ireland. COFORD, Ireland. 2008. Available online: http://www.coford.ie/media/coford/content/eventspresentations/events2008/GPSusagefor%20TimberTrucks.pdf (accessed on 7 April 2017).
  33. GUS Forestry 2016. Available online: https://stat.gov.pl/en/topics/agriculture-forestry/forestry/forestry-2016,1,7.html (accessed on 26 January 2018).
  34. Russell, F. Transportation networks in forest harvesting: Early development of the theory. In Proceedings of the conference New Roles of Plantation Forestry Requiring An Appropriate Tending and Harvesting Operations, University of Washington, Seattle, WA, USA, 29 September–5 October 2002; Available online: http://faculty.washington.edu/greulich/Documents/IUFRO2002Paper.pdf (accessed on 7 April 2017).
  35. Devlin, G.J.; McDonnel, K. Assessing Real Time GPS Asset Tracking for Timber Haulage. Open Transp. J. 2009, 3. [Google Scholar] [CrossRef]
  36. McDonald, T.P.; Haridass, K.; Valenzuela, J. Mileage savings from optimization of coordinated trucking. In Proceedings of the 33rd Annual Meeting of the Council on Forest Engineering, Southern Research Station, Auburn, AL, USA, 6–9 June 2010; pp. 1–11. Available online: https://www.srs.fs.fed.us/pubs/ja/2010/ja_2010_mcdonald_002.pdf (accessed on 7 January 2017).
  37. Šušnjar, M.; Horvat, D.; Zorić, M.; Pandur, Z. Axle Load Determination of Truck with Trailer and Truck with Semitrailer for Wood Transportation. Croat. J. For. Eng. 2011, 32, 379–388. [Google Scholar]
  38. Trzciński, G.; Moskalik, T.; Wojtan, R.; Tymendorf, Ł. Variability of loads and gross vehicle weight in timber transportatio. Sylwan 2017, 161, 1026–1034. [Google Scholar]
  39. Šušnjar, M.; Horvat, D.; Zorić, M.; Pandur, Z.; Vusić, D.; Tomašić, Ž. Comparison of real axle loads and wheel pressure of truck units for wood transportation with legal restrictions. In Proceedings of the FORMEC Conference, Pushing the Boundaries with Research and Innovation in Forest Engineering, Graz, Austria, 9–13 October 2011; Available online: https://www.formec.org/images/proceedings/2011/formec2011_paper_susnjar_etal.pdf (accessed on 8 January 2017).
  40. Baumgras, J.E. Better Load-Weight Distribution is Needed for Tandem-Axle Logging Trucks. Research Paper, U.S. Forest Service. 1976. Available online: https://www.fs.fed.us/ne/newtown_square/publications/research_papers/pdfs/scanned/OCR/ne_rp342.pdf (accessed on 6 February 2017).
Forests 09 00164 g001 550

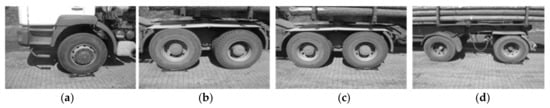

Figure 1. Stages of weighing the wheel axles of a truck unit hauling timber: (a) front axle, (b) second axle of the truck, (c) third axle of the truck, (d) rear axle.
Figure 1. Stages of weighing the wheel axles of a truck unit hauling timber: (a) front axle, (b) second axle of the truck, (c) third axle of the truck, (d) rear axle.
Forests 09 00164 g001
Forests 09 00164 g002 550

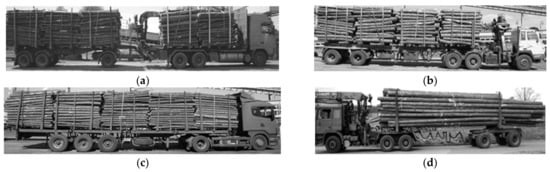

Figure 2. Examples of truck units: (a) truck and trailer, (b) truck and semi-trailer, (c) truck and lightweight platform semi-trailer and (d) truck and dolly.
Figure 2. Examples of truck units: (a) truck and trailer, (b) truck and semi-trailer, (c) truck and lightweight platform semi-trailer and (d) truck and dolly.
Forests 09 00164 g002
Forests 09 00164 g003 550

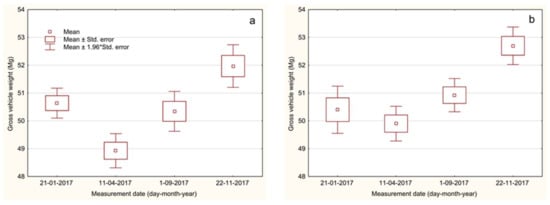

Figure 3. Comparison of average GVW values by measurement date for a unit with a semi-trailer (a) and a trailer (b).
Figure 3. Comparison of average GVW values by measurement date for a unit with a semi-trailer (a) and a trailer (b).
Forests 09 00164 g003
Forests 09 00164 g004 550

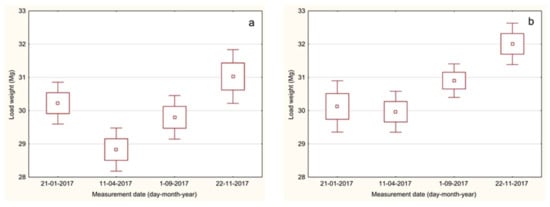

Figure 4. Comparison of average load weight values by measurement date for a unit with a semi-trailer (a) and a trailer (b).
Figure 4. Comparison of average load weight values by measurement date for a unit with a semi-trailer (a) and a trailer (b).
Forests 09 00164 g004
Forests 09 00164 g005 550

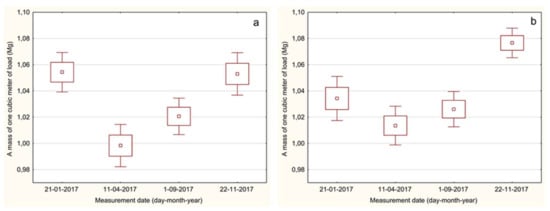

Figure 5. Comparison of average weight of 1 m3 of load values by measurement date for a unit with a semi-trailer (a) and a trailer (b).
Figure 5. Comparison of average weight of 1 m3 of load values by measurement date for a unit with a semi-trailer (a) and a trailer (b).
Forests 09 00164 g005
Forests 09 00164 g006 550

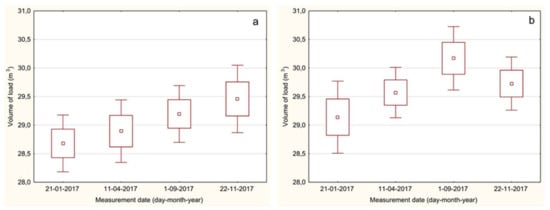

Figure 6. Comparison of average load volume values by measurement date for a unit with a semi-trailer (a) and a trailer (b).
Figure 6. Comparison of average load volume values by measurement date for a unit with a semi-trailer (a) and a trailer (b).
Forests 09 00164 g006
Forests 09 00164 g007 550

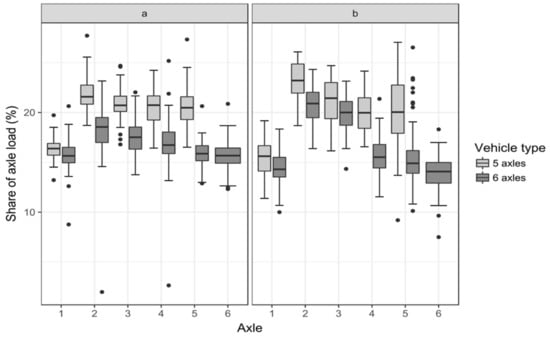

Figure 7. Distribution of the axle loads of the truck units with a semi-trailer (a) and a trailer (b).
Figure 7. Distribution of the axle loads of the truck units with a semi-trailer (a) and a trailer (b).
Forests 09 00164 g007
Table
Table 1. Selected measurements by type of truck unit.
Table 1. Selected measurements by type of truck unit.
Truck UnitMeasureMeanSDMinMaxQ1MedianQ3
Semi-trailer Gross vehicle weight (Mg) 50.4362.47345.00056.75048.85050.22551.750
Trailer51.0382.53145.20058.80049.25050.75052.450
Platform45.9882.22343.60051.65044.50045.85046.500
Dolly51.4381.81049.40054.40050.10050.60053.250
Semi-trailer Tare (Mg)20.5001.11213.80023.70019.80020.50020.950
Trailer20.2240.87917.90022.00019.70020.30020.900
Platform14.9410.31114.22015.25014.80015.00015.200
Dolly20.0710.70618.20020.65019.92520.30020.550
Semi-trailer Volume of timber load (m3)29.0741.76923.96035.04028.10028.71030.140
Trailer29.7071.83625.67036.79028.21029.61030.860
Platform30.2921.79527.57034.50029.15030.04030.420
Dolly29.9820.71028.94030.94029.34030.00030.620
Semi-trailer Weight of 1 m3 of load (Mg)1.0300.0550.8691.1590.9951.0281.071
Trailer1.0380.0530.8281.1790.9981.0421.077
Platform1.0250.0340.9571.0751.0051.0351.045
Dolly1.0460.0440.9841.1361.0161.0381.073
Notes: SD, standard deviation; Q1, first quartile; Q3, third quartile.
Table
Table 2. Results of the analysis of significant differences between selected measures by type of truck unit.
Table 2. Results of the analysis of significant differences between selected measures by type of truck unit.
MeasureGross Vehicle Weight (Mg)Tare (Mg)Volume of Timber Load (m3)Weight of 1 m3 of Load (Mg)Load Weight (Mg)
p0.02630.01830.00290.15860.0011
Table
Table 3. Results of the analysis of significant differences between selected measures by type of truck unit.
Table 3. Results of the analysis of significant differences between selected measures by type of truck unit.
Type of Truck UnitGVW (Mg)Tare (Mg)Volume of Timber Load (m3)Weight of 1 m3 of Load (Mg)Load Weight (Mg)
Semi-trailer0.00000.02180.13160.00000.0002
Trailer0.00000.00020.03120.00000.0000
Table
Table 4. Assessment of the model parameters for semi-trailers.
Table 4. Assessment of the model parameters for semi-trailers.
ParameterParameter ValueStandard Errort-Statisticp-Value
Tare1.046720.066278415.79270.0000
Load volume m30.9969160.046761321.31930.0000
Table
Table 5. Assessment of the model parameters for trailers.
Table 5. Assessment of the model parameters for trailers.
ParameterParameter ValueStandard Errort-Statisticp-Value
Tare1.258970.082172715.32110.0000
Load volume m30.8604830.055938615.38260.0000
Table
Table 6. Assessment of the model parameters for trailers.
Table 6. Assessment of the model parameters for trailers.
Axle Load Values (kN)
UnitAxleMeanSDMinMax
five-axle semi-trailer180.774.5868.4098.20
2111.0211.6486.60143.40
3106.5411.9177.43134.90
4107.6019.8975.90157.70
5104.0220.6813.50170.00
six-axle semi-trailer180.556.0142.56102.03
293.1014.3266.40138.70
389.2811.8463.65137.75
491.2619.6170.71159.10
584.9513.2153.30126.70
684.9314.6951.70141.90
five-axle trailer174.816.8160.3390.25
2113.0710.1890.25135.19
3102.0614.4274.39127.59
497.9315.0473.34141.08
598.6318.2639.90140.03
six-axle trailer174.456.8057.9591.20
2106.949.9983.60129.20
3102.419.3882.65125.88
480.858.7462.70104.69
580.0617.9050.35168.06
672.189.5136.77101.65

Share and Cite

MDPI and ACS Style

Trzciński, G.; Moskalik, T.; Wojtan, R. Total Weight and Axle Loads of Truck Units in the Transport of Timber Depending on the Timber Cargo. Forests 2018, 9, 164. https://doi.org/10.3390/f9040164

AMA Style

Trzciński G, Moskalik T, Wojtan R. Total Weight and Axle Loads of Truck Units in the Transport of Timber Depending on the Timber Cargo. Forests. 2018; 9(4):164. https://doi.org/10.3390/f9040164

Chicago/Turabian Style

Trzciński, Grzegorz, Tadeusz Moskalik, and Rafał Wojtan. 2018. "Total Weight and Axle Loads of Truck Units in the Transport of Timber Depending on the Timber Cargo" Forests 9, no. 4: 164. https://doi.org/10.3390/f9040164

APA Style

Trzciński, G., Moskalik, T., & Wojtan, R. (2018). Total Weight and Axle Loads of Truck Units in the Transport of Timber Depending on the Timber Cargo. Forests, 9(4), 164. https://doi.org/10.3390/f9040164

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
