Article

Effect of Ru Species on N2O Decomposition over Ru/Al2O3 Catalysts

by
Chao Sui
1,
Fulong Yuan
1,
Zhiping Zhang
1,
Chi Zhang
1,
Xiaoyu Niu
1,2,* and
Yujun Zhu
1,*
1
Key Laboratory of Functional Inorganic Material Chemistry (Heilongjiang University), Ministry of Education, School of Chemistry and Materials, Heilongjiang University, Harbin 150080, China
2
College of Environmental and Chemical Engineering, Heilongjiang University of Science and Technology, Harbin 150022, China
*
Authors to whom correspondence should be addressed.
Catalysts 2016, 6(11), 173; https://doi.org/10.3390/catal6110173
Submission received: 30 August 2016 / Revised: 16 October 2016 / Accepted: 1 November 2016 / Published: 5 November 2016
(This article belongs to the Special Issue Ruthenium Catalysts)
Browse Figures
Versions Notes

Abstract

:
Ru is considered as an effective active species for N2O decomposition; however, there is disagreement about which ruthenium species is key for catalytic activity. In order to understand the role of Ru species in N2O decomposition, Ru/Al2O3 (Ru/Al2O3-H2, Ru/Al2O3-NaBH4, Ru/Al2O3-air) catalysts with different ratios of metallic Ru were prepared and evaluated for their catalytic activities. Various characterizations, especially in situ diffuse reflectance infrared Fourier transform spectroscopy (DRIFTS), were applied to investigate the relationship between activity and different Ru species. The results indicate that the N2O conversion displayed a linear relationship with the amount of metallic Ru. The DRIFTS results of adsorption for N2O show that metallic Ru was the active site. The catalytic processes are put forward based on metallic Ru species. The deactivation with increasing times used is due to the decrease in the amount of metallic Ru and agglomerates of Ru particles on the surface of catalysts.

1. Introduction

In recent years, N2O has become one of the major pollutants for the destruction of ozone in the stratosphere and a mighty greenhouse gas because of its long life time (110–150 years) in the atmosphere and its 310-times higher greenhouse potential than CO2 [1,2,3,4,5]. Now, N2O atmospheric concentration is growing at a rate of about 0.5–1.0 ppbv (parts per billion by volume) per year as a consequence of anthropogenic activities, including the combustion of fossil fuels and biomass and the production of adipic and nitric acid in chemical plants [6]. Therefore, N2O abatement is realized by control of N2O emissions with end-of-pipe technologies from combustion and chemical processes. The catalytic decomposition of N2O into N2 and O2 is a very efficient and economical way to reduce its negative environmental impact [7].
In recent years, many of the catalysts have been studied for the N2O decomposition reaction, including noble metal (Au, Ru, Rh, Pd, Pt, Ir) and non-noble metal (Fe, Cu, Co, Ni) on a variety of supports, such as perovskites, metal oxides (Al2O3, SiO2, CaO, TiO2, CeO2, Fe2O3), hydrotalcites, zeolites (ZSM-5, BEA, USY, ferrierite) and mesoporous materials (MCM-41, SBA-15) [8,9,10,11,12,13,14,15,16,17,18,19,20,21,22]. Li et al. [23] investigated the M/ZSM-5 catalysts and found that the catalytic activity for N2O decomposition followed the order: Ru, Rh > Pd > Cu > Fe > Pt > Ni > Mn. Meanwhile, Ru was considered as having one of the best activities among these metals.
Ru is an effective catalyst for N–O bond dissociation, so that it promotes N2O decomposition [24,25,26,27]. Benco’s [14] report confirmed the activation of the N2O molecule by calculation using DFT over Ru. It was found that the activation energy of Ru was much lower than that of Co and Fe. Kawi et al. [28] investigated Ru on the MCM-41, showing far high activity for N2O decomposition, and N2O conversion reached 100% at 400 °C. The catalytic activity of Ru metal was influenced by size, support, interaction and O2. Komvokis et al. [13] reported that Ru formed with sizes from 1–3 nm with high dispersion (70%), which showed much higher catalytic activity and stability for N2O decomposition. In the case of Rh catalysts [29], Rh/MgO, Rh/SiO2 with Rh sizes of 2.1–2.4 nm were more active than Rh/CeO2, Rh/Al2O3 and Rh/TiO2 with small particles of 1.0–1.4 nm for the N2O decomposition. For different supports [30], the strength of interaction between Ru and support was concluded to be MgO > TiO2 > Al2O3 = SiO2. However, catalytic activity was as follows: Ru/TiO2 > Ru/Al2O3 > Ru/SiO2 > Ru/MgO. Besides, the reducibility of the Ru metal particle was found to be a crucial factor. Komvokis reported that the catalytic activity of N2O decomposition was much higher by H2-pretreated catalyst (metallic Ru) because of the cyclic oxidation-reduction pathway of metallic Ru [31]. It was well known that desorption of O2 represents the rate-determining step in N2O decomposition. The presence of O2 has an inhibitory effect on the N2O decomposition and decreases reaction rates over supported noble metal catalysts [32]. Zhang et al. [30] reported that the sensitivity of noble metal to O2 in feed gas was dependent on the reducibility of support material. It was concluded to be Ru/SiO2 > Ru/Al2O3 > Ru/TiO2 > Ru/CeO2.
In fact, the catalytic performance and deactivation of supported Ru catalysts is still a complex issue for N2O decomposition. In the present study, a series of Ru/Al2O3 catalysts as model catalysts is prepared by using different pretreatment methods, and their catalytic activity and stability in the decomposition of N2O were investigated. Furthermore, the change of Ru species and the deactivation factor were suggested by combining various characterizations, including XPS, TEM, in situ diffuse reflectance infrared Fourier transform spectroscopy (DRIFTS), Temperature- programmed desorption of N2O (N2O-TPD), etc. Meanwhile, we put forward the reaction process of N2O decomposition over Ru on the surface of Ru/Al2O3 catalysts.

2. Results

2.1. Characterization of Prepared Samples

The Ru/Al2O3, the five-times used Ru/Al2O3 (after using Ru/Al2O3 five-times) and Al2O3 samples were studied by XRD in Figure 1. All of the reflections of the Ru/Al2O3 and five-times used Ru/Al2O3 catalysts present in the diffractogram match well with the cubic spinel structure of γ-Al2O3 (JCPDS PDF No. 10-0425) [33]. It was observed that neither metallic Ru nor RuOx species could be identified in the patterns of Ru/Al2O3 and five-times used Ru/Al2O3 catalysts, which indicated that ruthenium was represented by the mean of the high dispersion in these samples.
TEM analysis was carried out over fresh (a–c) and five-times used (d–f) Ru/Al2O3-NaBH4 catalysts shown in Figure 2. It can be seen that the Ru particle was not observed in fresh Ru/Al2O3-NaBH4 samples, which should be due to the much smaller particle size of Ru (less than 1 nm). However, the five-times used Ru/Al2O3-NaBH4 catalyst was found to have agglomerates of Ru particles. The particles had an average size of about 5–20 nm, while particles with a size up to 40 nm could also be found. The HRTEM image shows that the distance of two adjacent planes of the selected particle is about 0.203 nm, which is corresponding to the (101) lattice plane of the metal Ru.
In order to confirm the actual content of Ru, the chemical analysis (ICP-AES) was tested. It showed that the Ru content was 0.50 ± 0.02 wt % for the Ru/Al2O3 and used Ru/Al2O3 catalysts, which was close to the theoretical content (0.50 wt %) in Table 1. The BET surface area of Ru/Al2O3, used Ru/Al2O3 and Al2O3 are summarized in Table 1. The surface areas of Ru/Al2O3 and used Ru/Al2O3 catalysts were almost close to 196–201 m2/g, which were slightly lower than those of Al2O3 catalyst (204 m2/g).
To better understand the chemical state of Ru on the catalysts surface, the Ru/Al2O3 catalysts were investigated by the XPS technique. Figure 3 presents the XPS and the peak fitting results of Ru3d for the fresh and used Ru/Al2O3-H2, Ru/Al2O3-NaBH4 and Ru/Al2O3-air catalysts. The peaks at 280.2 and 285.0 eV were attributed to the 3d5/2 of metallic Ru and Ru4+ species, respectively, and corresponding to the 3d3/2 binding energies at 284.4 (metallic Ru) and 289.1 eV (Ru4+) [34,35]. The relative amounts of metallic Ru and Ru4+ species were calculated from the areas of the fitted Gaussian–Lorentzian components of Ru3d shown in Table 1. It was noteworthy that the number of metallic Ru species was different on the surface of theses catalysts. The amount of the metallic Ru was about 60%, 51% and 29% for the Ru/Al2O3-H2, Ru/Al2O3-NaBH4 and Ru/Al2O3-air, respectively. To determine the change of Ru chemical state and surface composition, XPS studies were also carried out over the used Ru/Al2O3 catalysts. The amount of the metallic Ru was about 38% and 26% for one-time used Ru/Al2O3-H2 and five-times used Ru/Al2O3-H2, respectively, which indicated that the number of metallic Ru species on the surface of used Ru/Al2O3-H2 catalyst was less than that of the fresh catalyst (Table 1); moreover, it gradually decreased with the increase in times used. Similarly, the amount of metallic Ru species also decreased with the repeated times used for Ru/Al2O3-NaBH4 (51%, 47% and 15% for fresh, one-time used time and five-times used times) and Ru/Al2O3-air catalysts (29%, 21% and 8% for fresh, one-time used time and five-times used times). The above results reveal that the Ru/Al2O3 catalysts present different Ru species (metallic Ru and Ru4+), and the valence state of the Ru species increased with use time.

2.2. Catalytic Activity Studies

Figure 4 shows the dependence of N2O conversion on the reaction temperature from 250 °C–450 °C in direct N2O decomposition over the Ru/Al2O3 and Al2O3 catalysts. As shown in Figure 4, there was no activity for N2O decomposition over Al2O3 in the tested temperature range. N2O conversion was below 40% at 350 °C over the Ru/Al2O3-air; meanwhile, Ru/Al2O3-NaBH4 and Ru/Al2O3-H2 catalysts exhibited above 48% and nearly 62% conversion of N2O at 350 °C, respectively. In Figure 4, it was obvious that the catalytic activity was different below 400 °C among the Ru/Al2O3 catalysts, and the order of N2O conversion was followed as: Ru/Al2O3-H2 > Ru/Al2O3-NaBH4 > Ru/Al2O3-air > Al2O3. However, it can be clearly seen that the difference in the catalytic activities was smaller and smaller with the increase in reaction temperature above 375 °C among the Ru/Al2O3-H2, Ru/Al2O3-NaBH4 and Ru/Al2O3-air catalysts, and the N2O conversions were nearly 95% over these catalysts at 425 °C. In the literature [13,27,30,31,36,37,38,39,40], the catalytic activity of catalysts was different for N2O decomposition, as shown in Table S1. Ru/r-TiO2 exhibited better activity than our prepared catalysts; however, the Ru content in Ru/r-TiO2 was far higher than 0.5%. The temperature of 50% conversion to N2O for Ru/Al2O3 was lower than that for other Ru-based catalysts. Compared with other catalysts (Rh, Pt, Pd, Ir), the catalytic activity of Ru/Al2O3 was higher at almost the same gas hourly space velocity (GHSV).
To confirm the repeated practicability of the catalyst, each of the Ru/Al2O3-H2, Ru/Al2O3-NaBH4 and Ru/Al2O3-air catalysts was tested continually repeating five-times from 250 °C–475 °C. Figure 5 shows the N2O conversion for each of fresh and used Ru/Al2O3 catalysts. In Figure 5a, the Ru/Al2O3-H2 catalyst exhibited instable activity that decreased with increasing used times. Obviously, the phenomenon was found that the N2O conversion decreased from 250 °C–400 °C and dropped from 86% down to 66% at 375 °C after using 5 times. In Figure 5b,c, the Ru/Al2O3-NaBH4 and Ru/Al2O3-air catalysts also show deactivation with the repeated use, and the N2O conversion dropped from 81% down to 41% and 69% down to 45% at 375 °C after using five times, respectively. It was concluded that the catalytic activities of the Ru/Al2O3 catalysts were different and decreased with the increase in the evaluated times.
It is possible that there are some certain relationships between the N2O conversion and the amount of surface metallic Ru. As shown in Figure 6, N2O conversion increased with the amount of metallic Ru, which demonstrates that metallic Ru plays a key role in the conversion of N2O. Furthermore, it can be clearly seen that there was no obvious difference in the N2O conversion with the increase in the amount of metallic Ru at high temperature (above 425 °C), which was due to a high reaction rate. On the whole, the metallic Ru is the active site in the catalytic decomposition of N2O.
The effect of time-on-stream on activity was also tested over the catalyst. Figure 7 shows the N2O conversion versus time-on-stream curves for Ru/Al2O3-NaBH4 catalyst. It can be seen that N2O conversion was 100% and did not decrease for 700 min at 450 °C. After decreasing the reaction temperature to 20 °C and then increasing to 450 °C, the N2O conversion did not change and was also 100%. It was noticed that the N2O conversion was about 80% and slightly increased for 700 min at 375 °C. However, the deactivation phenomenon was found that the N2O conversion dropped to 65% when the temperature was reduced to 20 °C and then increased to 375 °C. Then, the N2O conversion slightly increased with the increase in reaction time. Nonetheless, it was less than that of before 700 min. The Ru/Al2O3 catalyst could maintain stable activity during the evaluated time. However, the catalytic activities of used Ru/Al2O3 catalysts decreased with the increase in the times used. This is consistent with Figure 5.
Effects of gas hourly space velocity (GHSV) on the catalytic activity examined for the Ru/Al2O3 catalysts are displayed in Figure 8. It is clear that the temperature slightly shifted to a higher value for the same N2O conversion with increasing GHSV from 11,000–44,000 h−1. The difference of temperature at a 50% conversion of N2O is about 25 °C for GHSV 11,000 and 44,000 h−1, which indicates that Ru/Al2O3 catalysts can be operated at a relative high GHSV.

2.3. DRIFTS Studies

The N2O adsorption on the Ru/Al2O3 catalysts had been studied by in situ DRIFTS in order to recognize the adsorbed species. Figure 9 shows the DRIFTS recorded with the support Al2O3 and Ru/Al2O3 under N2O atmospheres. Generally, the N–N stretching frequency of adsorbed N2O on metal oxides was reported within a wide range of frequencies between 2400 and 2150 cm−1, and typical bands of the nitrites, nitrates and nitro species were located below 1700 cm−1 [41,42,43,44,45]. In Figure 9a, two quite intense absorption bands were observed at 2237 and 2212 cm−1, which could be assigned to the N–N stretching of adsorbed N2O [46]. The spectra of N2O adsorption over Al2O3 support under N2O flow showed some bands at 1300–1700 cm−1 that was assigned to monodentate nitrites, monodentate nitrates and nitro species, implying that the N2O can adsorbed on the surface of the support Al2O3 [45]. Figure 9b shows the DRIFTS of adsorbed N2O over Ru/Al2O3-NaBH4. Four intense peaks at 1871, 1650, 1533 and 1410 cm−1 were observed along with characteristic peaks of gas-phase N2O at 2237 and 2212 cm−1. The bands at 1650, 1533 and 1410 cm−1 can be assigned to nitrate and nitrite species, monodentate nitrate species and nitro species, respectively [41,42,43,44,45,46,47,48]. The band at 1871 cm−1 can be attributed to the Ru–ON species [49]. Figure 9c,d show the DRIFTS of adsorbed N2O over Ru/Al2O3-H2 and Ru/Al2O3-air. The gas-phase N2O, nitrate and nitrite species were also observed over Ru/Al2O3-H2 and Ru/Al2O3-air catalysts. Simultaneously, the peak assigned to Ru–ON was detected at 1871 cm−1 over Ru/Al2O3-H2; however, the corresponding peak was not found over Ru/Al2O3-air. This result should be due to the amount of metallic Ru on the surface of Ru/Al2O3-air catalyst being much less than that of Ru/Al2O3-H2 and Ru/Al2O3-NaBH4. The XPS results in Table 1 show that the amount of metallic Ru species is 60%, 51% and 29% for Ru/Al2O3-H2, Ru/Al2O3-NaBH4 and Ru/Al2O3-air, respectively. A much lower amount of metallic Ru leading to the formation of Ru–ON species was on the surface of Ru/Al2O3-air. Therefore, the amount of Ru–ON species was so small that the peak did not form in Figure 9d.
In order to understand the reaction process, DRIFTS studies have been carried out under flowing N2O from 50 °C–375 °C over the Ru/Al2O3 catalysts displayed in Figure 10. In Figure 10a, the peak at 1650 cm−1 gradually disappeared from 50 °C–200 °C, which indicates the nitrate or nitrite species can easily decompose at a low temperature over the Ru/Al2O3-NaBH4 catalyst. At the same time, the Ru–ON peak was clearly visible in the range of experimental temperatures. It was noted that the peak intensity of Ru–ON species increased by degrees from 50 °C–200 °C, which may be attributed to the amount of N2O adsorption increasing on the surface of the catalyst and the formation of more Ru–ON species with increasing temperature. However, it became weak in the range of 250–375 °C, which should be related to the transformation or decomposition of Ru–ON species above 250 °C. It was found that N2O decomposition occurred from 250 °C in Figure 4. Meanwhile, the intensity of the peak at 1533 cm−1 started increasing above 100 °C, which was due to the formation of the monodentate nitrates species on the surface of Ru/Al2O3-NaBH4, and it was difficult to be decomposed and desorbed (Figure 10a). Figure 10b,c shows the DRIFTS of N2O during temperature ramping on Ru/Al2O3-H2 and Ru/Al2O3-air. The change of nitrate or nitrite specie (1650 cm−1) species and monodentate nitrates (1533 cm−1) with increasing temperature was similar to that of Ru/Al2O3-NaBH4. However, it was noteworthy that the peak assigned to the Ru–ON species at 1871 cm−1 almost disappeared above 250 °C for Ru/Al2O3-H2, which is different with the Ru/Al2O3-NaBH4. Combined with the XPS results, it is found that the amount of metallic Ru species decreases quickly to 38% from 60% after the first use for Ru/Al2O3-H2, while it only reduced 4% (from 51% down to 47%) for Ru/Al2O3-NaBH4 in this process. It is obvious to find the existence of more metallic Ru species on the surface of one-time used Ru/Al2O3-NaBH4 compared with one-time used Ru/Al2O3-H2, which is the advantage of the formation of Ru–ON species. Therefore, these results also confirm that the Ru–ON species is formed on the surface of the metallic Ru species of the Ru/Al2O3 catalysts.
The oxygen species is considered as an intermediate derived from the adsorption and decomposition of N2O on the surface of the catalyst. Here, NO was used as a probe molecule to detect the formation of the oxygen species on the surface of the Ru/Al2O3-NaBH4 catalyst, which was pretreated by N2O for 1 h at 300 °C. In Figure 11, NO was fed inside the cell; four intense peaks at 1628, 1523, 1411 and 1353 cm−1 were observed, which were related to nitrate and nitrite species. The peaks at 1411 and 1353 cm−1 were assigned to adsorbed monodentate nitrite [50]. Interestingly, two intense absorption bands at 1523 and 1628 cm−1 related to adsorbed NO2 were observed [46,51]. This means that the O interacted with NO to become NO2. In order to confirm that O was derived from N2O or Al2O3, the DRIFTS of NO adsorption on Ru/Al2O3-NaBH4 and Al2O3 catalysts, which were not pretreated by N2O, are displayed in Figure S1 (Supporting Information). It can be seen that two intense absorption bands at 1523 and 1628 cm−1 were not observed for the b and c lines. Thus, it suggested that the Ru/Al2O3-NaBH4 catalyst was pretreated by N2O, resulting in the production of the new species α-O, which can interact with NO becoming NO2 adsorbed on the surface of the catalyst. On the whole, this illustrates that the adsorbed N2O species can be dissociated to the O atom adsorbed on the Ru species to form the α-O species, which was not desorbed.
The N2O-TPD-MS was studied for Ru/Al2O3-NaBH4, displayed in Figure 12. The additional MS signals, such as O2, N2 and N2O, were also tracked for monitoring. It can be seen that a large amount of N2O molecule gradually desorbed from 140 °C, and the peaks were observed at 164 °C, 370 °C and 425 °C. In addition, the peak of the N2 molecule was observed at 227 °C accompanying the desorption of N2O. Moreover, a small amount of O2 was also observed at 300 °C. This suggested that the decomposition of partial N2O occurred along with the desorption of N2O.
To further understand the reaction of N2O decomposition, a simulation experiment was conducted on the conditions of the dynamics by temperature programming and mass spectrometry monitoring online. The temperature programmed surface reaction with N2O (N2O-TPSR) was studied for the Ru/Al2O3-NaBH4 catalyst. Figure 13 shows N2, O2 and N2O signals in the MS. It can be seen that N2O molecule gradually decomposed from 325 °C. The N2 and O2 peak was observed along with N2O molecule decomposition. Additionally, the intensity of N2 was higher than about 2 times that of O2, and it is similar to the intensity of N2O. Therefore, it confirms that the N2 and O2 were produced in N2O decomposition.

3. Discussion

As shown in Figure 4, there were different catalytic activities among the Ru/Al2O3-H2, Ru/Al2O3-NaBH4 and Ru/Al2O3-air catalysts. In Figure 5 and Figure 7, Ru/Al2O3 catalysts showed instable catalytic activity that decreased with the increase in times used, but the N2O conversion was not affected at high temperatures. In Figure 2 (TEM), the Ru particle in the fresh Ru/Al2O3-NaBH4 samples was not observed. This suggests that the particle size of Ru was small. However, the five-times used Ru/Al2O3-NaBH4 catalyst showed agglomerates of Ru particles. The particles had an average size of about 5–20 nm, while particles with a size up to 40 nm could also be found. It was well known that the catalyst activity of metal is strongly dependent on the size. Therefore, the agglomeration of Ru particles was one of the deactivation reasons for the used Ru/Al2O3 catalysts. XPS results (Figure 3) confirmed the existence of the metallic Ru and Ru4+ species on the surface of the catalysts. The ratio of metallic Ru to Ru4+ was the difference on the surface of fresh and used catalysts and decreased with times used. From the relationship between the N2O conversion and the amount of metallic Ru species (Figure 6), we think the metallic Ru plays a key role in conversion to N2O. In addition, the effect of temperature is related to oxygen desorption, which also governs the deN2O rate [52]. All catalysts display similar behavior, which may be due to the oxygen desorbed from RuO2 promptly and Ru4+ going back to metallic Ru at high temperature. In order to verify the above idea, O2-TPD-MS was studied for used Ru/Al2O3-NaBH4, displayed in Figure 14. It can be seen that a large amount of O2 molecule desorbed was observed between 100 °C and 250 °C, which was assigned to the desorption of adsorbed oxygen on Al2O3. However, desorption of the O2 molecule in the range from 250 °C–450 °C was not found for used Ru/Al2O3-NaBH4 catalyst. Therefore, oxygen desorbed from RuO2 and Ru4+ transformed to metallic Ru was not taking place on the surface of the catalyst at high temperatures. In order to further understand the change of the Ru chemical state on the surface of Ru/Al2O3-NaBH4 at high temperatures, the used Ru/Al2O3-NaBH4 catalyst cooled under the atmosphere of He and was investigated by the XPS technique. Figure 15 presents the XPS and the peak fitting results of Ru3d for used Ru/Al2O3-NaBH4 catalyst under He gas cooling. The peaks at 280.2 and 285.0 eV were attributed to the 3d5/2 of metallic Ru and Ru4+ species, respectively, and corresponding to the 3d3/2 binding energies at 284.4 (metallic Ru) and 289.1 eV (Ru4+) [34,35]. The relative amounts of metallic Ru and Ru4+ species were calculated from the areas of the fitted Gaussian–Lorentzian components of Ru3d shown in Table 1. It was noteworthy that the amount of the metallic Ru was about 40% for used Ru/Al2O3-NaBH4 under the He gas cooling, which was lower than that of fresh Ru/Al2O3-NaBH4 (51%). The results reveal that the used Ru/Al2O3-NaBH4 catalyst under the He gas cooling presents different Ru species (metallic Ru and Ru4+), and the valence state of the Ru species increased after use. In addition, RuO2 transforming to metallic Ru due to desorption of oxygen did not occur on the surface of the catalyst.
Thus, the N2O conversion of Ru/Al2O3 catalysts did not decrease at high temperature, which was mainly due to the high reaction rate, which was not the transformation of different species. Combining the above various characterization results, it is suggested that the metallic Ru is the active site. Following that, the reaction processes were brought out for Ru combined characterizations of DRIFTS, N2O-TPD, TPRS, NO-TPD and XPS over Ru/Al2O3-NaBH4.
In the DRIFTS of N2O adsorption over Ru/Al2O3 (Figure 9), the species including chemisorbed N2O and oxidized nitrogen species, like nitrites or nitrates, were observed. The oxidized nitrogen species were not reaction intermediates of N2O decomposition, but they are just starters [44]. Ru was an active site; the nitrites, nitrates and nitro compounds were observed along with peaks characteristic for adsorbed N2O (Figure 9b). The N2O molecule adsorbed on the active center Ru through its O side to form the A-O2N (Equation (1)). As reported in the literature [50,53], the HOMO of N2O is a π-orbital associated with the O–N antibond and N–N bond, whereas the LUMO of N2O is a π*-orbital with the antibonding character for both the O–N bond and N–N bond. A charge transfer occurs from HOMO of N2O to Ru in the adsorption of N2O. Meanwhile, the charge shift can also occur from the 4d of Ru to the LUMO of N2O by the strong interaction with the feedback π bond, for which the charge transfers from the Ru to the middle N of N2O [53]. Therefore, the first N2O molecule adsorbs on the surface of the Ru catalyst to form A-ON2 species, as demonstrated by the in situ DRIFTS experiments (Equation (1)).
Furthermore, the O–N bond of A-ON2 species becomes greatly unstable and is easy to fracture and form A-O species and N2 due to the strong interaction between Ru active sites and N2O (Equation (1)). From DRIFTS in Figure 11, it is proven that N2O adsorbed on Ru/Al2O3-NaBH4 can result in adsorbed oxygen species (A-O) on the surface of catalyst that is derived from the decomposition of A-ON2 species (Equation (2)). Then, two active mono-oxygen species (A-O) diffuse on the surface of the catalyst and recombine into the gas-phase oxygen according to the Langmuir–Hinshelwood mechanism, and the whole catalytic cycle is closed (Equation (3)) [54,55]. On the other hand, A-O species also may react with another N2O molecule by the Eley–Rideal mechanism. A-O, being a charge acceptor, interacts with the HOMO of another N2O molecule as a charge donor to form O-A-ON2 species on the surface of catalysts (Equation (4)) [56]. Meanwhile, the charges can also be transferred from the active site to the middle N of N2O, resulting in facilitating the bond fracture of O–N2, producing N2 and bi-atomic oxygen species (O-A-O) (Equation (5)). The O-A-O species as the charge donors’ intermediates can reorganize into another bi-atomic one (A-O2), and then, O2 can be desorbed from the A-O2 by restoring of the active species (Equation (6)) [7,57,58,59,60,61].
In the DRIFTS of N2O adsorption over Ru/Al2O3 (Figure 9), the band appearing at 1871 cm−1 was assigned to Ru–ON. This means the bond fracture of N–N producing Ru–ON and N after the N2O molecule adsorbs on the surface of the Ru catalyst to form A-ON2 species (Equation (7)). In the literature [62,63], the A–ON species was also captured by DRIFTS and DFT calculation; the reaction routes of N2O decomposition are concluded as Equation (7). Then, two N diffuse on the surface of catalyst and recombine into the gas-phase N2. In Figure 10a,b, the peak intensity of Ru–ON species became weak in the range of 250–375 °C. This suggests that the Ru–ON species was transformed or decomposed. Thus, the charges were transferred from the active site to the N of A-ON, resulting in facilitating the bond fracture of O–N producing A-O and N (Equation (8)). Then, two active mono-oxygen species (A-O) diffuse on the surface of the catalyst and recombine into the gas-phase oxygen according to the Langmuir–Hinshelwood mechanism, and the whole catalytic cycle is closed (Equation (9)) [55,56].
Moreover, XPS results indicate that the ratio of metallic Ru on the surface of catalyst decreases, and the Ru4+ amount presents the opposite change with increasing times used (Table 1). This is attributed to that part of the O species cannot desorb from the surface of catalysts, leading to the oxidation of metallic Ru to the high valence state of Ru species (Ru4+). Thus, Equations (3), (6) and (9), which do not occur completely, will result in the increase in the oxidation state of Ru species.
The process can be described over Ru as follows:
N2O (g) + A ←→ A-ON2
A-ON2 → A-O + N2
2A-O → 2A + O2
A-O + N2O → O-A-ON2
O-A-ON2 → O-A-O + N2
O-A-O → A + O2
A-ON2 → A-ON + N
A-ON → A-O + N
2A-O → 2A + O2
In summary, a linear relationship is displayed between the N2O conversion and amount of metallic Ru. The decrease in the amount of metallic Ru on the surface of catalysts leads to the deactivation with increasing times used. From the characterization results, the deactivation reason can be attributed to the formation of Ru4+ species that is derived from the oxidation of the metallic Ru by oxygen species obtained in N2O adsorption and decomposition. Additionally, agglomeration of Ru particles was another reason for deactivation.

4. Experimental Section

4.1. Materials

Ruthenium chloride (RuCl3·xH2O, 99.9%) was purchased from the Trace Elements Institute of Tongji University, Shanghai, China. Aluminum oxide (Al2O3) was purchased from Sinopharm Chemical Reagent Co., Ltd., Shanghai, China. Sodium borohydride was purchased from Aoran Fine Chemical Industry, Tianjin, China. Nitric oxide (NO, 99.9%), nitrous oxide (N2O, 99.9%) and hydrogen (H2, 99.999%) gases were purchased from Guangming Gas Chemical Industry Research Institute, Dalian, China. Helium (He, 99.999%) was purchased from Haipu Beifen Gas Industry Co., Ltd., Beijing, China. All chemicals were used as received without any further purification.

4.2. Catalyst Preparation

Ru/Al2O3-NaBH4 was prepared as follows: Firstly, 10 mL RuCl3·solution (5.00 mmol/L), 80 mL deionized water and 1.000 g commercial γ-Al2O3 were mixed under stirring at room temperature. Then, NaBH4 (0.032 g) dissolved in 10 mL deionized water was dropwise added into the above mixture. The obtained mixture was stirred for 4 h at room temperature and then was filtered. The precipitate was washed with deionized water (about 1000 mL) till there was no chloride ion tested by AgNO3 and dried at 110 °C overnight to obtain sample Ru/Al2O3-NaBH4. Ru/Al2O3-H2 and Ru/Al2O3-air were prepared according to the above process, except no addition of NaBH4. The dry precipitate was calcined in air at 500 °C for 3 h to obtain sample Ru/Al2O3-air, while in pure H2 at 300 °C for 1 h to get sample Ru/Al2O3-H2.

4.3. Catalyst Characterization

The BET surface area of the samples was measured from the N2 adsorption and desorption isotherms at −196 °C using a Micromeritics Tristar II 3020 analyzer. Ru content (wt %) was determined by inductive-coupled plasma-atomic emission spectroscopy (ICP-AES) (Optima 7000 DV, Perkin Elmer) (Perkin Elmer Limited, Waltham Mass, Waltham, MA, USA). The sample preparation for ICP-AES analysis was that certain samples were dissolved into the mixture of HF-HNO3, which was made into a mixture concentration of 20–40 mg/L solution. X-ray diffraction (XRD) was performed by using a Bruker D8 Advance X-ray diffractometer with Cu Kα (λ = 1.5418 Å) radiation (40 kV, 40 mA). The diffraction patterns were scanned in the 2θ range of 10-80° with steps of 0.02°. Transmission electron microscopy (TEM) measurements were taken on a JEM-2100 electron microscope (JEOL, Tokyo, Japan) operating at 200 kV. XPS was made on an AXIS ULTRA DLD X spectrometer (Kratos Analytical Limited, Kyoto, Japan) using Al Kα radiation as the excitation source. The analysis range was 300 × 700 nm. In addition to a survey spectrum, detailed scans of the Ru (3d) and C (1s) regions were acquired for each sample. N2O-TPD-MS or TPSR was carried out by using the AutoChem TP5080 chemisorption analyzer (Xianquan, Tianjin, China) and mass spectra (QIC-20) online analysis (HIDEN, Warrington, UK). The signals with m/z equal to 28 (N2), 32 (O2) and 44 (N2O) were monitored during the N2O-TPD measurements. In the typical experiment, catalyst (0.100 g) was placed in a quartz reactor and preconditioned in flowing He (25 mL/min) for 1 h at 300 °C, followed by cooling to room temperature. Then, the sample was heated to 600 °C at a rate of 10 °C/min in N2O to record the TPD spectra with MS, completing N2O-TPSR. Another the sample was saturated with 0.5% N2O at a flow rate of 25 mL/min for 1 h at atmospheric pressure. After, the sample was swept with He at a rate of 30 mL/min for 1 h in order to remove the residual N2O. Finally, the sample was heated at a rate of 10 °C/min from 20 °C–850 °C under a He flow of 30 mL/min. In situ DRIFTS were recorded with a Nicolet 6700 spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) with an in situ diffuse reflectance cell (Harrick) and high sensitivity Mercury Cadmium Telluride (MCT) detector, which was cooled by liquid N2. The DRIFTS cell was fitted with ZnSe windows and a heating cartridge that allowed samples to be heated to below 450 °C. The catalyst was heated to 300 °C under N2 flow of 40 mL/min for 60 min to remove adsorbed impurities and then cooled to 50 °C. The background spectrum was collected under a N2 atmosphere and was subtracted from the sample spectra. The spectra were collected at 50 °C in the presence of a gas N2O or NO (pretreated by N2O) flow of 20 mL/min. The DRIFTS cell (flowing N2O) was heated to different temperatures, and the spectra were collected after getting 10 min of steady state. The DRIFTS were recorded by accumulating 32 scans with a resolution of 4 cm−1. The total flow rate of the feeding gas was kept at 40 mL/min. The IR spectra are presented as obtained without smoothing.

4.4. Catalytic Activity Test

Direct decomposition of N2O was performed with a fixed-bed quartz-glass reactor with a 6 mm-diameter quartz glass tube. Gaseous mixtures of 0.5% N2O with He were fed to the catalyst bed. In each experiment, 0.100 g of catalyst (40–60 mesh) without dilution were set in the reactor by using quartz wool. The feed flow rate was equal to 25 mL/min. At each examined temperature, the reaction was carried out for 60 min before measurements. The catalytic activity was tested in a temperature range of 250–450 °C. After the temperature went down to room temperature, repetitive experiments were also tested in a temperature range of from 250 °C–450 °C according to the above process. The concentration measurements of reaction products and remaining N2O at the reactor outlet were performed by gas chromatography (Beifen Analytical Limited, Beijing, China) equipped with a 5A molecular sieve and Porapak Q columns. The activity of N2O decomposition was evaluated by the following equations:
X N 2 O = ( X N 2 O in − X N 2 O out ) X N 2 O in × 100 %
where X N 2 O is the conversion to N2O; X N 2 O in is the concentration of N2O measured before the reaction; X N 2 O out is the concentration of N2O measured after the reaction.

5. Conclusions

In this study, the Ru/Al2O3 (Ru/Al2O3-H2, Ru/Al2O3-NaBH4, Ru/Al2O3-air) catalysts with different amounts of metallic Ru have been prepared by changing the preparation process. The order of N2O conversion was followed as: Ru/Al2O3-H2 > Ru/Al2O3-NaBH4 > Ru/Al2O3-air. The catalytic activities of the Ru/Al2O3 catalysts decrease with the increase in times used. The N2O conversion displays a linear relationship with the amount of metallic Ru. Combining various characterizations, we think that the metallic Ru is the active site in N2O decomposition. In situ DRIFTS studies confirm the reaction process of N2O decomposition in the metallic Ru site. In the adsorption and decomposition of N2O, oxygen species are not desorbed from metallic Ru, leading to the formation of the high valence state of Ru species (Ru4+), resulting in deactivation. Therefore, one of the deactivation reasons is attributed to the decrease in the amount of metallic Ru on the surface of the Ru/Al2O3 catalysts with increasing times used. It was also found that the size of Ru particles increased for used catalyst. Thus, agglomeration of Ru particles was another reason for the deactivation.

Supplementary Materials

The following are available online at www.mdpi.com/2073-4344/6/11/173/s1, Figure S1: DRIFTS of NO adsorption on: (a) Ru/Al2O3-NaBH4 pretreated by 0.5% N2O for 1 h at 300 °C; (b) Ru/Al2O3-NaBH4; (c) Al2O3 at 300 °C, Table S1: Conversion of N2O over different catalysts.

Acknowledgments

This work is supported by the Natural Sciences Fund of Heilongjiang Province (B2015009) and the Postdoctoral Science-research Developmental Foundation of Heilongjiang Province of China (LBH-Q12022). The project was sponsored by SRF for ROCS, Ministry of Human Resources and Social Security (2013-277), Innovative Research Project of Key Laboratory of Functional Inorganic Material Chemistry (Heilongjiang University), Ministry of Education (2015).

Author Contributions

Y.Z. proposed, planned and designed the experiments. C.S. performed the experimental works. C.S., F.Y., Z.Z., C.Z. and X.N. contributed to the data analysis. C.S. and Y.Z. wrote the manuscript. Y.Z. supervised the project. All authors discussed the results and approved on the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rodhe, H. A comparion of the contribution of various gases to the greenhouse effect. Science 1990, 248, 1217–1219. [Google Scholar] [CrossRef] [PubMed]
  2. Parks, J.E. Less costly catalysts for controlling engine emissions. Science 2010, 327, 1584–1585. [Google Scholar] [CrossRef] [PubMed]
  3. Kramlich, J.; Linak, W.P. Nitrous oxide behavior in the atmosphere, and in combustion and industrial systems. Prog. Energy Combust. Sci. 1994, 20, 149–202. [Google Scholar] [CrossRef]
  4. Wang, J.; Ji, Y.; He, Z.; Crocker, M.; Dearth, M.; McCabe, R.W. A non–NH3 pathway for NOx conversion in coupled LNT-SCR systems. Appl. Catal. B 2012, 111, 562–570. [Google Scholar] [CrossRef]
  5. Perez-Ramirez, J.; Kapteijn, F.; Schoffel, K.; Moulijn, J.A. Formation and control of N2O in nitric acid production: Where do we stand today? Appl. Catal. B 2003, 44, 117–151. [Google Scholar] [CrossRef]
  6. Perez-Ramirez, J. Prospects of N2O emission regulations in the European fertilizer industry. Appl. Catal. B 2007, 70, 31–35. [Google Scholar] [CrossRef]
  7. Kondratenko, E.V.; Kondratenko, V.A.; Santiago, M.; Pérez-Ramírez, J. Mechanistic origin of the different activity of Rh-ZSM-5 and Fe-ZSM-5 in N2O decomposition. J. Catal. 2008, 256, 248–258. [Google Scholar] [CrossRef]
  8. Wang, J.; Xia, H.; Ju, X.; Feng, Z.; Fan, F.; Li, C. Influence of extra-framework Al on the structure of the active iron sites in Fe/ZSM-35. J. Catal. 2013, 300, 251–259. [Google Scholar] [CrossRef]
  9. Konsolakis, M.; Drosou, C.; Yentekakis, I.V. Support mediated promotional effects of rare earth oxides (CeO2 and La2O3) on N2O decomposition and N2O reduction by CO or C3H6 over Pt/Al2O3 structured catalysts. Appl. Catal. B 2012, 123–124, 405–413. [Google Scholar] [CrossRef]
  10. Pietrogiacomi, D.; Campa, M.C.; Carbone, L.; Tuti, S.; Occhiuzzi, M. N2O decomposition on CoOx, CuOx, FeOx or MnOx supported on ZrO2: The effect of zirconia doping with sulfates or K+ on catalytic activity. Appl. Catal. B 2016, 187, 218–227. [Google Scholar] [CrossRef]
  11. Yu, H.; Tursun, M.; Wang, X.; Wu, X. Pb0.04Co catalyst for N2O decomposition in presence of impurity gases. Appl. Catal. B 2016, 185, 110–118. [Google Scholar] [CrossRef]
  12. Zabilskiy, M.; Djinović, P.; Tchernychova, E.; Tkachenko, O.P.; Kustov, L.M.; Pintar, A. Nanoshaped CuO/CeO2 materials: Effect of the exposed ceria surfaces on catalytic activity in N2O decomposition reaction. ACS Catal. 2015, 5, 5357–5365. [Google Scholar] [CrossRef]
  13. Komvokis, V.G.; Marti, M.; Delimitis, A.; Vasalos, I.A.; Triantafyllidis, K.S. Catalytic decomposition of N2O over highly active supported Ru nanoparticles (≤3 nm) prepared by chemical reduction with ethylene glycol. Appl. Catal. B 2011, 103, 62–71. [Google Scholar] [CrossRef]
  14. Benco, L. Compensation effect. A DFT study of the activation of N2O over M-CHA (M = Fe2+, Co2+, RuO2+, RuO+). J. Catal. 2013, 298, 122–129. [Google Scholar] [CrossRef]
  15. Liu, N.; Zhang, R.; Li, Y.; Chen, B. Local Electric Field Effect of TMI (Fe, Co, Cu)-BEA on N2O Direct Dissociation. J. Phys. Chem. C 2014, 118, 10944–10956. [Google Scholar] [CrossRef]
  16. Kaczmarczyk, J.; Zasada, F.; Janas, J.; Indyka, P.; Piskorz, W.; Kotarba, A.; Sojka, Z. Thermodynamic Stability, Redox Properties, and Reactivity of Mn3O4, Fe3O4, and Co3O4 Model Catalysts for N2O Decomposition: Resolving the Origins of Steady Turnover. ACS Catal. 2016, 6, 1235–1246. [Google Scholar] [CrossRef]
  17. Kim, B.; Li, Z.; Kay, B.D.; Dohnalek, Z.; Kim, Y.K. Unexpected Nondissociative Binding of N2O on Oxygen Vacancies on a Rutile TiO2 (110)-1 × 1. J. Phys. Chem. C 2012, 116, 1145–1150. [Google Scholar] [CrossRef]
  18. Pachatouridou, E.; Papista, E.; Delimitis, A.; Vasiliades, M.A.; Efstathiou, A.M.; Amiridis, M.D.; Alexeev, O.S.; Bloom, D.; Marnellos, G.E.; Konsolakis, M.; et al. N2O decomposition over ceria-promoted Ir/Al2O3 catalysts: The role of ceria. Appl. Catal. B 2016, 187, 259–268. [Google Scholar] [CrossRef]
  19. Amrousse, R.; Tsutsumi, A. Novel Rh-substituted hexaaluminate catalysts for N2O decomposition. Catal. Sci. Technol. 2016, 6, 438–441. [Google Scholar] [CrossRef]
  20. Jisa, K.; Novakova, J.; Schwarze, M.; Vondrova, A.; Sklenak, S.; Sobalik, Z. Role of the Fe-zeolite structure and iron state in the N2O decomposition: Comparison of Fe-FER, Fe-BEA, and Fe-MFI catalysts. J. Catal. 2009, 262, 27–34. [Google Scholar] [CrossRef]
  21. Zhang, C.; Zhang, Z.; Sui, C.; Yuan, F.; Niu, X.; Zhu, Y. Catalytic Decomposition of N2O over Co-Ti Oxide Catalysts: Interaction between Co and Ti Oxide. ChemCatChem 2016, 8, 2155–2164. [Google Scholar] [CrossRef]
  22. Konsolakis, M. Recent Advances on Nitrous Oxide (N2O) Decomposition over Non-Noble-Metal Oxide Catalysts: Catalytic Performance, Mechanistic Considerations, and Surface Chemistry Aspects. ACS Catal. 2015, 5, 6397–6421. [Google Scholar] [CrossRef]
  23. Li, Y.; Armor, J.N. Catalytic decomposition of nitrous oxide on metal exchanged zeolites. Appl. Catal. B 1992, 1, L21–L29. [Google Scholar] [CrossRef]
  24. Chang, Y.; McCarty, J.G.; Wachsman, E.D. Effect of ruthenium-loading on the catalytic activity of Ru-NaZSM-5 zeolites for nitrous oxide decomposition. Appl. Catal. B 1995, 6, 21–23. [Google Scholar] [CrossRef]
  25. Pinna, F.; Scarpa, M.; Strukul, G.; Guglielminotti, E.; Boccuzzi, F.; Manzoli, M. Ru/ZrO2 Catalysts: II. N2O Adsorption and Decomposition. J. Catal. 2000, 192, 158–162. [Google Scholar] [CrossRef]
  26. Marnellos, G.E.; Efthimiadis, E.A.; Vasalos, I.A. Effect of SO2 and H2O on the N2O decomposition in the presence of O2 over Ru/Al2O3. Appl. Catal. B 2003, 46, 523–539. [Google Scholar] [CrossRef]
  27. Lin, Q.; Huang, Y.; Wang, Y.; Lin, L.; Liu, X.Y.; Lv, F.; Wang, A.; Li, W.C.; Zhang, T. RuO2/rutile-TiO2: A superior catalyst for N2O decomposition. J. Mater. Chem. A 2014, 2, 5178–5181. [Google Scholar] [CrossRef]
  28. Kawi, S.; Liu, S.Y.; Shen, S.C. Catalytic decomposition and reduction of N2O on Ru/MCM-41 catalyst. Catal. Today 2001, 68, 237–244. [Google Scholar] [CrossRef]
  29. Beyer, H.; Emmerich, J.; Chatziapostolou, K.; Koehler, K. Decomposition of nitrous oxide by rhodium catalysts: Effect of rhodium particle size and metal oxide support. Appl. Catal. A 2011, 391, 411–416. [Google Scholar] [CrossRef]
  30. Zheng, J.; Meyer, S.; Köhler, K. Abatement of nitrous oxide by ruthenium catalysts: Influence of the support. Appl. Catal. A 2015, 505, 44–51. [Google Scholar] [CrossRef]
  31. Komvokis, V.G.; Marnellos, G.E.; Vasalos, I.A.; Triantafyllidis, K.S. Effect of pretreatment and regeneration conditions of Ru/γ-Al2O3 catalysts for N2O decomposition and/or reduction in O2-rich atmospheres and in the presence of NOX, SO2 and H2O. Appl. Catal. B 2009, 89, 627–634. [Google Scholar] [CrossRef]
  32. Boissel, V.; Tahir, S.; Koh, C.A. Catalytic decomposition of N2O over monolithic supported noble metal-transition metal oxides. Appl. Catal. B 2006, 64, 234–242. [Google Scholar] [CrossRef]
  33. Chen, X.; Delgado, J.J.; Gatica, J.M.; Zerrad, S.; Cies, J.M.; Bernal, S. Preferential oxidation of CO in the presence of excess of hydrogen on Ru/Al2O3 catalyst: Promoting effect of ceria-terbia mixed oxide. J. Catal. 2013, 299, 272–283. [Google Scholar] [CrossRef]
  34. Elmasides, C.; Kondarides, D.I.; Grunert, W.; Verykios, X.E. XPS and FTIR study of Ru/Al2O3 and Ru/TiO2 catalysts: Reduction characteristics and interaction with a methane-oxygen mixture. J. Phys. Chem. B 1999, 103, 5227–5239. [Google Scholar] [CrossRef]
  35. Sayan, S.; Suzer, S.; Uner, D.O. XPS and in-situ IR investigation of RuSiO2 catalyst. J. Mol. Strut. 1997, 410–411, 111–114. [Google Scholar] [CrossRef]
  36. Lin, J.; Li, L.; Pan, X.; Wang, X.; Cong, Y.; Zhang, T.; Zhu, S. Catalytic decomposition of propellant N2O over Ir/Al2O3 catalyst. AIChE J. 2016. [Google Scholar] [CrossRef]
  37. Pirngruber, G.D.; Frunz, L.; Pieterse, J.A.Z. The synergy between Fe and Ru in N2O decomposition over FeRu-FER catalysts: A mechanistic explanation. J. Catal. 2006, 243, 340–349. [Google Scholar] [CrossRef]
  38. Carl, P.J.; Larsen, S.C. Characterization of ruthenium-exchanged zeolites (beta, Y, and ZSM-5) by EPR spectroscopy. J. Catal. 2000, 196, 352–361. [Google Scholar] [CrossRef]
  39. Esclapez, S.P.; Illán-Gómez, M.J.; Lecea, C.S.; Bueno-López, A. On the importance of the catalyst redox properties in the N2O decomposition over alumina and ceria supported Rh, Pd and Pt. Appl. Catal. B 2010, 96, 370–378. [Google Scholar] [CrossRef]
  40. Hussain, M.; Fino, D.; Russo, N. N2O decomposition by mesoporous silica supported Rh catalysts. J. Hazard. Mater. 2012, 211–212, 255–265. [Google Scholar] [CrossRef] [PubMed]
  41. Hadjiivanov, K.I. Identification of neutral and charged NxOy surface species by IR spectroscopy. Catal. Rev. Sci. Eng. 2000, 42, 71–144. [Google Scholar] [CrossRef]
  42. Oktar, N.; Mitome, J.; Holmgreen, E.M.; Ozkan, U.S. Catalytic reduction of N2O and NO2 with methane over sol–gel palladium-based catalysts. J. Mol. Catal. A 2006, 259, 171–182. [Google Scholar] [CrossRef]
  43. Wang, Y.; Lei, Z.; Chen, B.; Guo, Q.; Liu, N. Adsorption of NO and N2O on Fe-BEA and H-BEA zeolites. Appl. Surf. Sci. 2010, 256, 4042–4047. [Google Scholar] [CrossRef]
  44. Haq, S.; Hodgson, A. N2O adsorption and reaction at Pd (110). Surf. Sci. 2000, 463, 1–10. [Google Scholar] [CrossRef]
  45. Parres-Esclapez, S.; Such-Basanez, I.; Illan-Gomez, M.J.; Lecea, C.S.; Bueno-Lopez, A. Study by isotopic gases and in situ spectroscopies (DRIFTS, XPS and Raman) of the N2O decomposition mechanism on Rh/CeO2 and Rh/γ-Al2O3 catalysts. J. Catal. 2010, 276, 390–401. [Google Scholar] [CrossRef]
  46. Kondarides, D.I.; Chafik, T.; Verykios, X.E. Catalytic Reduction of NO by CO over Rhodium Catalysts: 2. Effect of Oxygen on the Nature, Population, and Reactivity of Surface Species Formed under Reaction Conditions. J. Catal. 2000, 191, 147–164. [Google Scholar] [CrossRef]
  47. Matsouka, V.; Konsolakis, M.; Lambert, R.M.; Yentekakis, I.V. In situ DRIFTS study of the effect of structure (CeO2–La2O3) and surface (Na) modifiers on the catalytic and surface behaviour of Pt/γ-Al2O3 catalyst under simulated exhaust conditions. Appl. Catal. B 2008, 84, 715–722. [Google Scholar] [CrossRef]
  48. Karakas, G.; Mitome-Watson, J.; Ozkan, U.S. In situ DRIFTS characterization of wet-impregnated and sol–gel Pd/TiO2 for NO reduction with CH4. Catal. Commun. 2002, 3, 199–206. [Google Scholar] [CrossRef]
  49. Baidya, T.; Bera, P.; Mukri, B.D.; Parida, S.K.; Kroher, O.; Elsener, M.; Hegde, M.S. DRIFTS studies on CO and NO adsorption and NO + CO reaction over Pd2+-substituted CeO2 and Ce0.75Sn0.25O2 catalysts. J. Catal. 2013, 303, 117–129. [Google Scholar] [CrossRef]
  50. Delabie, A.; Vinckier, C.; Flock, M.; Pierloot, K. Evaluating the activation barriers for transition metal N2O reactions. J. Phys. Chem. A 2001, 105, 5479–5485. [Google Scholar] [CrossRef]
  51. Miller, D.D.; Chuang, S.S.C. The effect of O2 on the NO-CO reaction over Ag-Pd/Al2O3: An in situ infrared study. Catal. Commun. 2009, 10, 1313–1318. [Google Scholar] [CrossRef]
  52. Kapteijn, F. Rodriguez-Mirasol, J. Moulijn, J.A. Heterogeneous catalytic decomposition of nitrous oxide. Appl. Catal. B 1996, 9, 25–64. [Google Scholar] [CrossRef]
  53. Liu, N.; Chen, B.; Li, Y.; Zhang, R.; Liang, X.; Li, Y.; Lei, Z. Charge Transfer Analysis on the Direct Decomposition of Nitrous Oxide over Fe-BEA Zeolite: An Experimental and Density Functional Study. J. Phys. Chem. C 2011, 115, 12883–12890. [Google Scholar] [CrossRef]
  54. Pérez-Ramírez, J.; Kapteijn, F.; Mul, G.; Moulijn, J.A. NO-assisted N2O decomposition over Fe-based catalysts: Effects of gas-phase composition and catalyst constitution. J. Catal. 2002, 208, 211–223. [Google Scholar] [CrossRef]
  55. Kapteijn, F.; Marban, G.; Rodriguez-Mirasol, J.; Moulijn, J.A. Kinetic analysis of the decomposition of nitrous oxide over ZSM-5 catalysts. J. Catal. 1997, 167, 256–265. [Google Scholar] [CrossRef]
  56. Lavrov, V.V.; Blagojevic, V.; Koyanagi, G.K.; Orlova, G.; Bohme, D.K. Gas-phase oxidation and nitration of first-, second-, and third-row atomic cations in reactions with nitrous oxide: Periodicities in reactivity. J. Phys. Chem. A 2004, 108, 5610–5624. [Google Scholar] [CrossRef]
  57. Fu, C.M.; Korchak, V.N.; Hall, W.K. Decomposition of nitrous oxide on FeY zeolite. J. Catal. 1981, 68, 166–171. [Google Scholar] [CrossRef]
  58. Wood, B.R.; Reimer, J.A.; Bell, A.T.; Janicke, M.T.; Ott, K.C. Nitrous oxide decomposition and surface oxygen formation on Fe-ZSM-5. J. Catal. 2004, 224, 148–155. [Google Scholar] [CrossRef]
  59. Heyden, A.; Keil, F.J.; Peters, B.; Bell, A.T. Comprehensive DFT study of nitrous oxide decomposition over Fe-ZSM-5. J. Phys. Chem. B 2005, 109, 1857–1873. [Google Scholar] [CrossRef] [PubMed]
  60. Kondratenko, E.V.; Pérez-Ramírez, J. Mechanis and kinetics of direct N2O decomposition over Fe-MFI zeolites with different iron speciation from temporal analysis of products. J. Phys. Chem. B 2006, 110, 22586–22595. [Google Scholar] [CrossRef] [PubMed]
  61. Ryder, J.A.; Chakraborty, A.K.; Bell, A.T. Density functional theory study of benzene oxidation over Fe-ZSM-5. J. Catal. 2003, 220, 84–91. [Google Scholar] [CrossRef]
  62. Chen, B.; Liu, N.; Liu, X.; Zhang, R.; Li, Y.; Li, Y.; Sun, X. Study on the direct decomposition of nitrous oxide over Fe-beta zeolites: From experiment to theory. Catal. Today 2011, 175, 245–255. [Google Scholar] [CrossRef]
  63. Zhang, X.; Shen, Q.; He, C.; Ma, C.; Cheng, J.; Li, L.; Hao, Z. Investigation of Selective Catalytic Reduction of N2O by NH3 over an Fe-Mordenite Catalyst: Reaction Mechanism and O2 Effect. ACS Catal. 2012, 2, 512–520. [Google Scholar] [CrossRef]
Catalysts 06 00173 g001 550
Figure 1. XRD patterns of: (a) Al2O3; (b) Ru/Al2O3-H2; (c) Ru/Al2O3-NaBH4; (d) Ru/Al2O3-air; (e) five-times used Ru/Al2O3-H2; (f) five-times used Ru/Al2O3-NaBH4; (g) five-times used Ru/Al2O3-air catalysts.
Figure 1. XRD patterns of: (a) Al2O3; (b) Ru/Al2O3-H2; (c) Ru/Al2O3-NaBH4; (d) Ru/Al2O3-air; (e) five-times used Ru/Al2O3-H2; (f) five-times used Ru/Al2O3-NaBH4; (g) five-times used Ru/Al2O3-air catalysts.
Catalysts 06 00173 g001
Catalysts 06 00173 g002 550
Figure 2. TEM profiles of fresh Ru/Al2O3 (a–c) and five-times used Ru/Al2O3 (d–f).
Figure 2. TEM profiles of fresh Ru/Al2O3 (a–c) and five-times used Ru/Al2O3 (d–f).
Catalysts 06 00173 g002
Catalysts 06 00173 g003 550
Figure 3. XPS of Ru3d for fresh and used (a) Ru/Al2O3-H2; (b) Ru/Al2O3-NaBH4; (c) Ru/Al2O3-air catalysts (black line: original data line; red line: fitting curve; pink line: the characteristic peak of C; blue line: the characteristic peak of metallic Ru; green line: the characteristic peak of Ru4+).
Figure 3. XPS of Ru3d for fresh and used (a) Ru/Al2O3-H2; (b) Ru/Al2O3-NaBH4; (c) Ru/Al2O3-air catalysts (black line: original data line; red line: fitting curve; pink line: the characteristic peak of C; blue line: the characteristic peak of metallic Ru; green line: the characteristic peak of Ru4+).
Catalysts 06 00173 g003
Catalysts 06 00173 g004 550
Figure 4. N2O conversion as a function of reaction temperature over fresh Ru/Al2O3 catalysts (reaction condition: [N2O] = 5000 ppm and gas hourly space velocity (GHSV) = 11,000 h−1).
Figure 4. N2O conversion as a function of reaction temperature over fresh Ru/Al2O3 catalysts (reaction condition: [N2O] = 5000 ppm and gas hourly space velocity (GHSV) = 11,000 h−1).
Catalysts 06 00173 g004
Catalysts 06 00173 g005 550
Figure 5. N2O conversion as a function of reaction temperature over: (a) Ru/Al2O3-H2; (b) Ru/Al2O3-NaBH4; (c) Ru/Al2O3-air catalysts (reaction condition: [N2O] = 5000 ppm and gas hourly space velocity (GHSV) = 11,000 h−1).
Figure 5. N2O conversion as a function of reaction temperature over: (a) Ru/Al2O3-H2; (b) Ru/Al2O3-NaBH4; (c) Ru/Al2O3-air catalysts (reaction condition: [N2O] = 5000 ppm and gas hourly space velocity (GHSV) = 11,000 h−1).
Catalysts 06 00173 g005
Catalysts 06 00173 g006 550

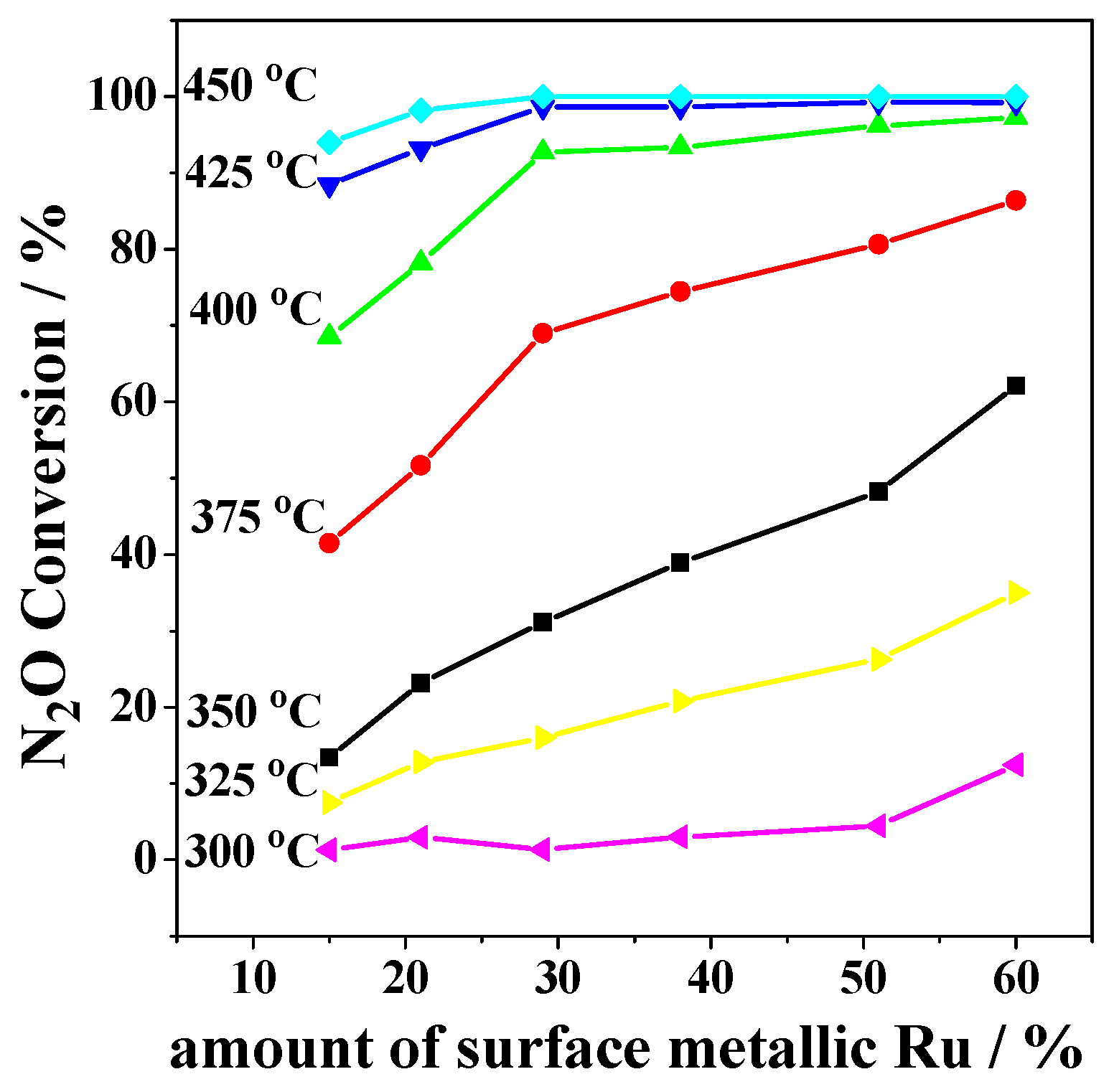

Figure 6. Relationship between N2O conversion and the amount of surface metallic Ru.
Figure 6. Relationship between N2O conversion and the amount of surface metallic Ru.
Catalysts 06 00173 g006
Catalysts 06 00173 g007 550
Figure 7. N2O conversion versus time-on-stream over Ru/Al2O3-NaBH4 catalyst (reaction condition: [N2O] = 5000 ppm and gas hourly space velocity (GHSV) = 11,000 h−1).
Figure 7. N2O conversion versus time-on-stream over Ru/Al2O3-NaBH4 catalyst (reaction condition: [N2O] = 5000 ppm and gas hourly space velocity (GHSV) = 11,000 h−1).
Catalysts 06 00173 g007
Catalysts 06 00173 g008 550
Figure 8. Effect of GHSV on the activity over (a) Ru/Al2O3-H2, (b) Ru/Al2O3-NaBH4 and (c) Ru/Al2O3-air catalysts (reaction conditions: 5000 ppm N2O).
Figure 8. Effect of GHSV on the activity over (a) Ru/Al2O3-H2, (b) Ru/Al2O3-NaBH4 and (c) Ru/Al2O3-air catalysts (reaction conditions: 5000 ppm N2O).
Catalysts 06 00173 g008
Catalysts 06 00173 g009 550
Figure 9. DRIFTS of N2O adsorption on: (a) Al2O3; (b) Ru/Al2O3-NaBH4; (c) Ru/Al2O3-H2; (d) Ru/Al2O3-air at 50 °C. Condition: [N2O] = 5000 ppm.
Figure 9. DRIFTS of N2O adsorption on: (a) Al2O3; (b) Ru/Al2O3-NaBH4; (c) Ru/Al2O3-H2; (d) Ru/Al2O3-air at 50 °C. Condition: [N2O] = 5000 ppm.
Catalysts 06 00173 g009
Catalysts 06 00173 g010 550
Figure 10. DRIFTS of 0.5% N2O during temperature ramping on: (a) Ru/Al2O3-NaBH4; (b) Ru/Al2O3-H2; (c) Ru/Al2O3-air. Condition: [N2O] = 5000 ppm.
Figure 10. DRIFTS of 0.5% N2O during temperature ramping on: (a) Ru/Al2O3-NaBH4; (b) Ru/Al2O3-H2; (c) Ru/Al2O3-air. Condition: [N2O] = 5000 ppm.
Catalysts 06 00173 g010
Catalysts 06 00173 g011 550

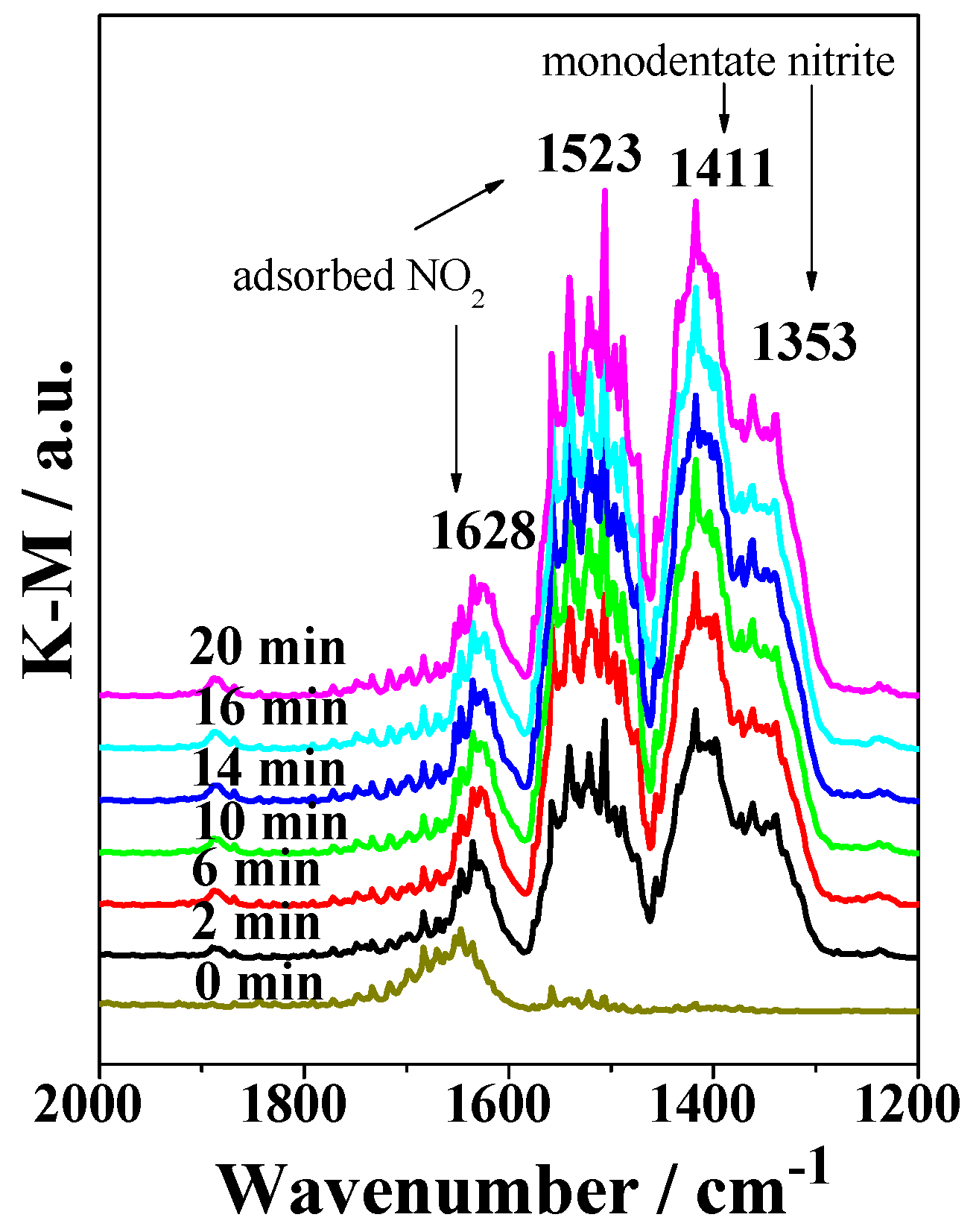

Figure 11. DRIFTS of Ru/Al2O3-NaBH4 pretreated by 0.5% N2O for 1 h at 300 °C, with exposure to NO (0.5% in He, 20 mL/min) at 300 °C. Condition: [N2O] = 5000 ppm, [NO] = 5000 ppm.
Figure 11. DRIFTS of Ru/Al2O3-NaBH4 pretreated by 0.5% N2O for 1 h at 300 °C, with exposure to NO (0.5% in He, 20 mL/min) at 300 °C. Condition: [N2O] = 5000 ppm, [NO] = 5000 ppm.
Catalysts 06 00173 g011
Catalysts 06 00173 g012 550
Figure 12. N2O-TPD-MS profiles of Ru/Al2O3-NaBH4. Detection signals: 28 (N2), 32 (O2) and 44 (N2O).
Figure 12. N2O-TPD-MS profiles of Ru/Al2O3-NaBH4. Detection signals: 28 (N2), 32 (O2) and 44 (N2O).
Catalysts 06 00173 g012
Catalysts 06 00173 g013 550
Figure 13. N2O-TPSR profiles of Ru/Al2O3-NaBH4. Detection signals: 28 (N2), 32 (O2) and 44 (N2O).
Figure 13. N2O-TPSR profiles of Ru/Al2O3-NaBH4. Detection signals: 28 (N2), 32 (O2) and 44 (N2O).
Catalysts 06 00173 g013
Catalysts 06 00173 g014 550
Figure 14. O2-TPD-MS profiles of used Ru/Al2O3-NaBH4. Detection signals: 32 (O2).
Figure 14. O2-TPD-MS profiles of used Ru/Al2O3-NaBH4. Detection signals: 32 (O2).
Catalysts 06 00173 g014
Catalysts 06 00173 g015 550
Figure 15. XPS of Ru3d for used Ru/Al2O3-NaBH4 catalyst under the He gas cooling (black line: original data line; red line: fitting curve; pink line: the characteristic peak of C; blue line: the characteristic peak of metallic Ru; green line: the characteristic peak of Ru4+).
Figure 15. XPS of Ru3d for used Ru/Al2O3-NaBH4 catalyst under the He gas cooling (black line: original data line; red line: fitting curve; pink line: the characteristic peak of C; blue line: the characteristic peak of metallic Ru; green line: the characteristic peak of Ru4+).
Catalysts 06 00173 g015
Table
Table 1. Physicochemical properties of the catalysts.
Table 1. Physicochemical properties of the catalysts.
CatalystsSurface Area (m2/g)Metallic Ru (eV) aRu4+ (eV) aMetallic Ru/Ru4+ (%) b
3d5/23d3/23d5/23d3/2
Al2O3204-----
Ru/Al2O3-H2199279.8284.0285.0289.060/40
1-time used Ru/Al2O3-H2196280.4284.5285.6288.538/62
5-times used Ru/Al2O3-H2196280.4284.3285.0288.026/74
Ru/Al2O3-NaBH4201280.0284.1285.0289.151/49
1-time used Ru/Al2O3-NaBH4199278.8283.0284.0288.047/53
5-times used Ru/Al2O3-NaBH4199280.0284.0285.0288.715/85
Ru/Al2O3-air200280.0284.0285.0289.029/71
1-time used Ru/Al2O3-air196280.0283.5285.3289.321/80
5-times used Ru/Al2O3-air196280.5284.6285.2288.68/92
used Ru/Al2O3-NaBH4 (cool under He)-280.0283.7285.8288.040/60
a Peaks were attributed to the 3d5/2 and 3d3/2 of metallic Ru and Ru4+ species; b the relative amounts of metallic Ru and Ru4+ species were calculated from the areas of the fitted Gaussian–Lorentzian components of Ru3d.

Share and Cite

MDPI and ACS Style

Sui, C.; Yuan, F.; Zhang, Z.; Zhang, C.; Niu, X.; Zhu, Y. Effect of Ru Species on N2O Decomposition over Ru/Al2O3 Catalysts. Catalysts 2016, 6, 173. https://doi.org/10.3390/catal6110173

AMA Style

Sui C, Yuan F, Zhang Z, Zhang C, Niu X, Zhu Y. Effect of Ru Species on N2O Decomposition over Ru/Al2O3 Catalysts. Catalysts. 2016; 6(11):173. https://doi.org/10.3390/catal6110173

Chicago/Turabian Style

Sui, Chao, Fulong Yuan, Zhiping Zhang, Chi Zhang, Xiaoyu Niu, and Yujun Zhu. 2016. "Effect of Ru Species on N2O Decomposition over Ru/Al2O3 Catalysts" Catalysts 6, no. 11: 173. https://doi.org/10.3390/catal6110173

APA Style

Sui, C., Yuan, F., Zhang, Z., Zhang, C., Niu, X., & Zhu, Y. (2016). Effect of Ru Species on N2O Decomposition over Ru/Al2O3 Catalysts. Catalysts, 6(11), 173. https://doi.org/10.3390/catal6110173

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
