Chiral Dirhodium(II) Carboxylates: New Insights into the Effect of Ligand Stereo-Purity on Catalyst Structure and Enantioselectivity

Abstract

The current report contributes to the understanding of the stereoselectivity of chiral dirhodium(II) carboxylate catalysts carrying N-protected tert-leucine ligands. Investigating the possible effect of ligand stereo-purity on catalyst structure and enantioselectivity was carried out. This was justified through a new X-ray crystal structure for Rh₂(S,S,S,R-PTTL)₄ diastereomer.

1. Introduction

Chiral dirhodium(II) complexes are currently renowned as catalysts that can effectively drive a broad spectrum of reactions with superior levels of chemo-, regio- and stereo-selectivity [1,2,3,4,5,6,7,8,9,10,11,12,13,14]. Their remarkable selectivity has reached a stage where they can function as a powerful tool in building up value added molecules with complex structures [7,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34].

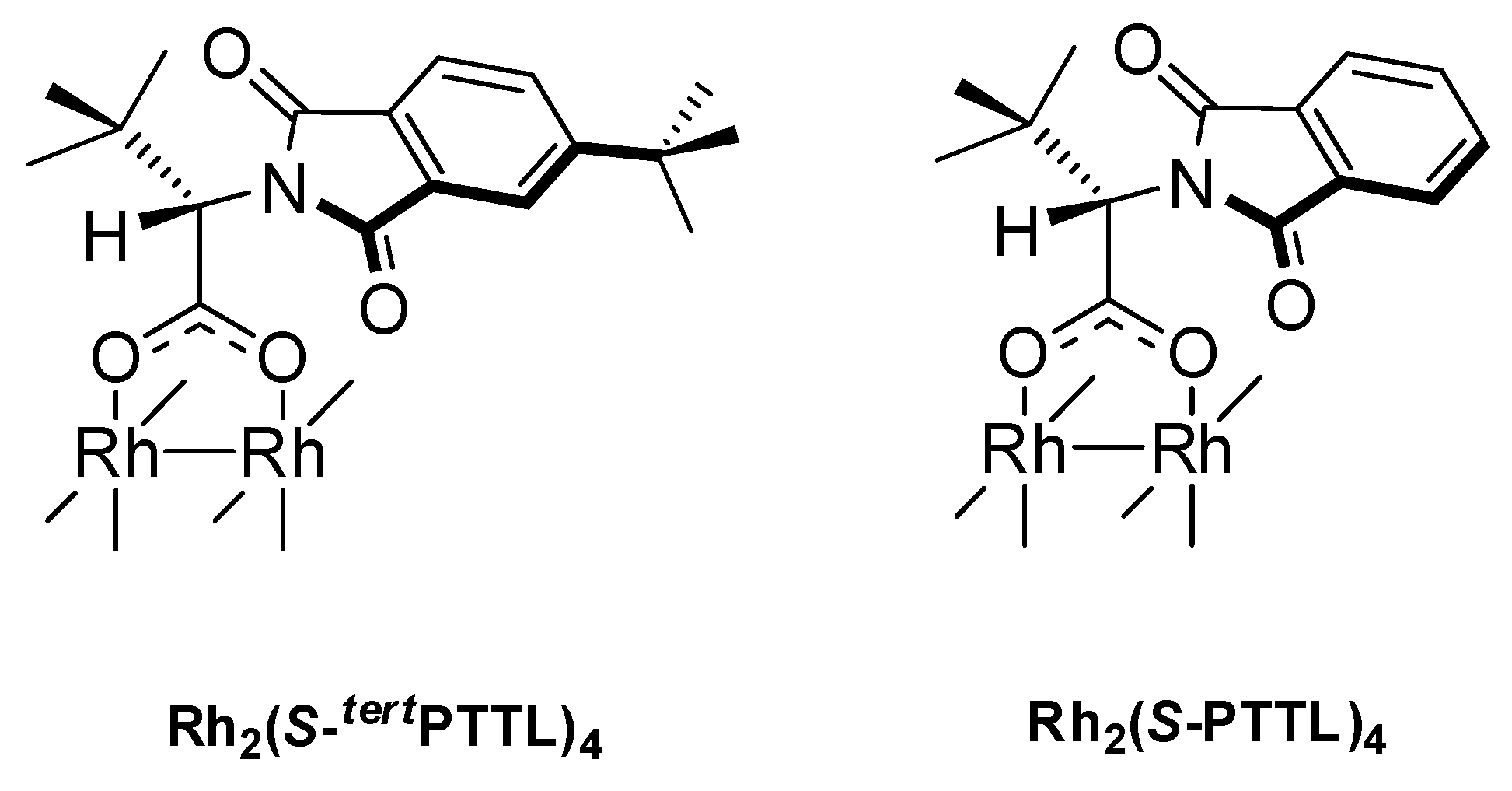

Out of the large dirhodium(II) catalyst family and by following different approaches for catalyst design, several highly enantioselective dirhodium(II) carboxylate catalysts have been reported to date [13,35,36,37,38,39,40,41,42,43,44]. Our research group, for example, has recently reported a novel approach for the design of dirhodium(II) tetracarboxylate complexes derived from S-amino acid ligands [35,36,45]. This approach is founded on tailoring the steric influences of the overall catalyst structure through reducing the local symmetry of the ligand’s N-heterocyclic tether. The application of this new approach led to the uncovering of Rh₂(S-^tertPTTL)₄ (Figure 1) as a new member to the dirhodium(II) family with outstanding selectivity in asymmetric cyclopropanation reactions [35]. However, despite the number of successful approaches used for catalyst design, limited evidence is still available on how the four chiral carboxylate ligands within the dirhodium(II) carboxylate framework tailor the product chirality at the catalyst active center [46].

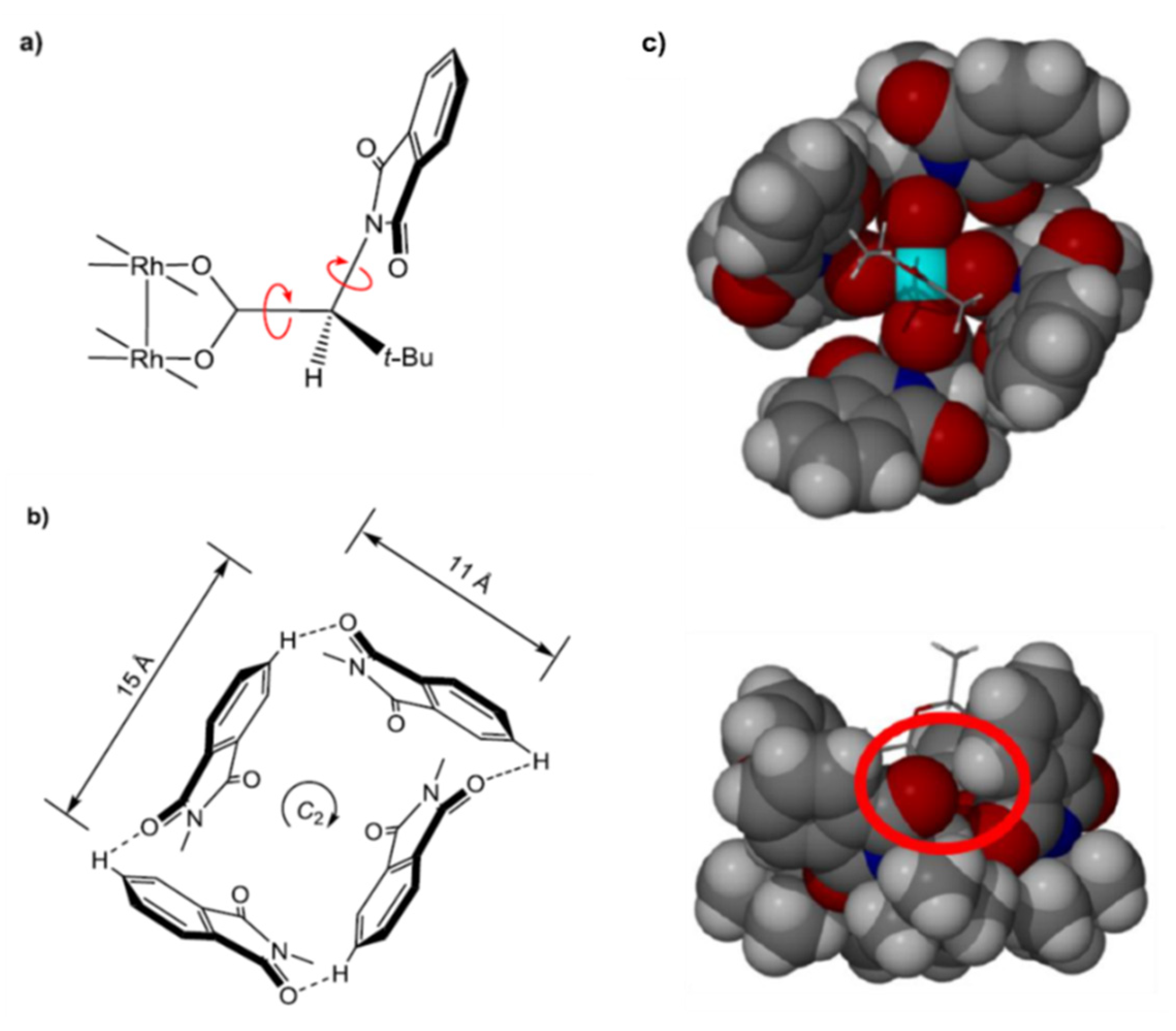

At the heart of all enantioselectivities observed with chiral dirhodium(II) carboxylate complexes is, of course, the individual chirality of ligands. In the case of published X-ray crystal structures of various solvated adducts of Rh₂(S-PTTL)₄ [47,48], Rh₂(S-^tertPTTL)₄ [35], Rh₂(S-NTTL)₄ [49], Rh₂(S-PTAD)₄ [35] and others [35,50,51], the incorporation of a ligand stereogenic center begets a “chiral cavity“ or a “chiral pocket”. Figure 2 [47,48] depicts the two most important features that are responsible for the establishment of the chiral binding pocket in Rh₂(S-PTTL)₄ and related complexes; C–C bond torsion (bond connecting carboxylate carbon to α-carbon) that is positioned so as to guide the C–N single bond leading to a clockwise twist of the chiral cavity walls (Figure 2a), and C–N bond torsion (bond connecting α-carbon to nitrogen) so as to permit docking of neighboring N-phthaloyl units (featuring alternating O^...H–C closest contacts, Figure 2c). The overall visual result is that the eight oxygen atoms of the ligands’ N-phthaloyl units are placed at alternate high and low positions around the periphery of the carbene binding pocket (Figure 2b) [35]. Based on these observed features, the use of optically pure ligands in the process of catalyst preparation is essential for the construction of the symmetric chiral cavity and for achieving extremely reliable enantioselective catalysis [52]. This is because, the inclusion of a ligand with an opposite absolute configuration will result in the interruption of the symmetry of the chiral pocket.

As a consequence, Hashimoto et al. explored the racemization free N-phthaloylation of tert-leucine [53]. They reported that minimal racemization can be achieved in refluxing toluene in the presence of triethylamine (TEA). Charette also reported that N-protection of different L-amino acids can be done in refluxing DMF to achieve the desired enantiomerically pure N-protected-L-amino acid ligands [41]. Likewise, N-1,8- [41,54] and N-2,3-naphthaloylation [55] of L-amino acids were also reported to take place under the same reaction conditions. In both latter cases, the prepared ligands were used in the preparation of the corresponding dirhodium(II) catalysts for enantioselective applications. Another report claimed that racemization free N-protection of amino acids was possible in refluxing acetic acid [56]. These later reports did not, however, support their claims by any quantitative information about the degree of racemization that accompanied the N-protection process under the reported reaction conditions and minimal/no racemization was assumed to take place.

Now the questions are, what is the effect if ligand enantio-impurity is present on the chiral cavity features explained earlier? and to what extent this impurity might affect the functionality of that cavity? To the best of our knowledge, there are no published reports to indicate the issues/benefits that might accompany the use of enantiomerically impure chiral ligand in the process of chiral dirhodium(II) catalyst preparation. Therefore, the trigger of the current research was to point out any aspects that can correlate the enantio-purity of the chiral carboxylate ligand used to the structure of the corresponding catalyst and to highlight any implications that this might have on catalyst enantioselectivity. We were inspired by the work done by Fox [40] and Charette [41], independently, as they both explored the interruption of the chiral cavity symmetry by substituting one of the four carboxylate ligands with an achiral ligand. Screening results revealed that interrupting the cavity framework has, indeed, a beneficial impact on the asymmetric induction of these complexes.

2. Results and Discussion

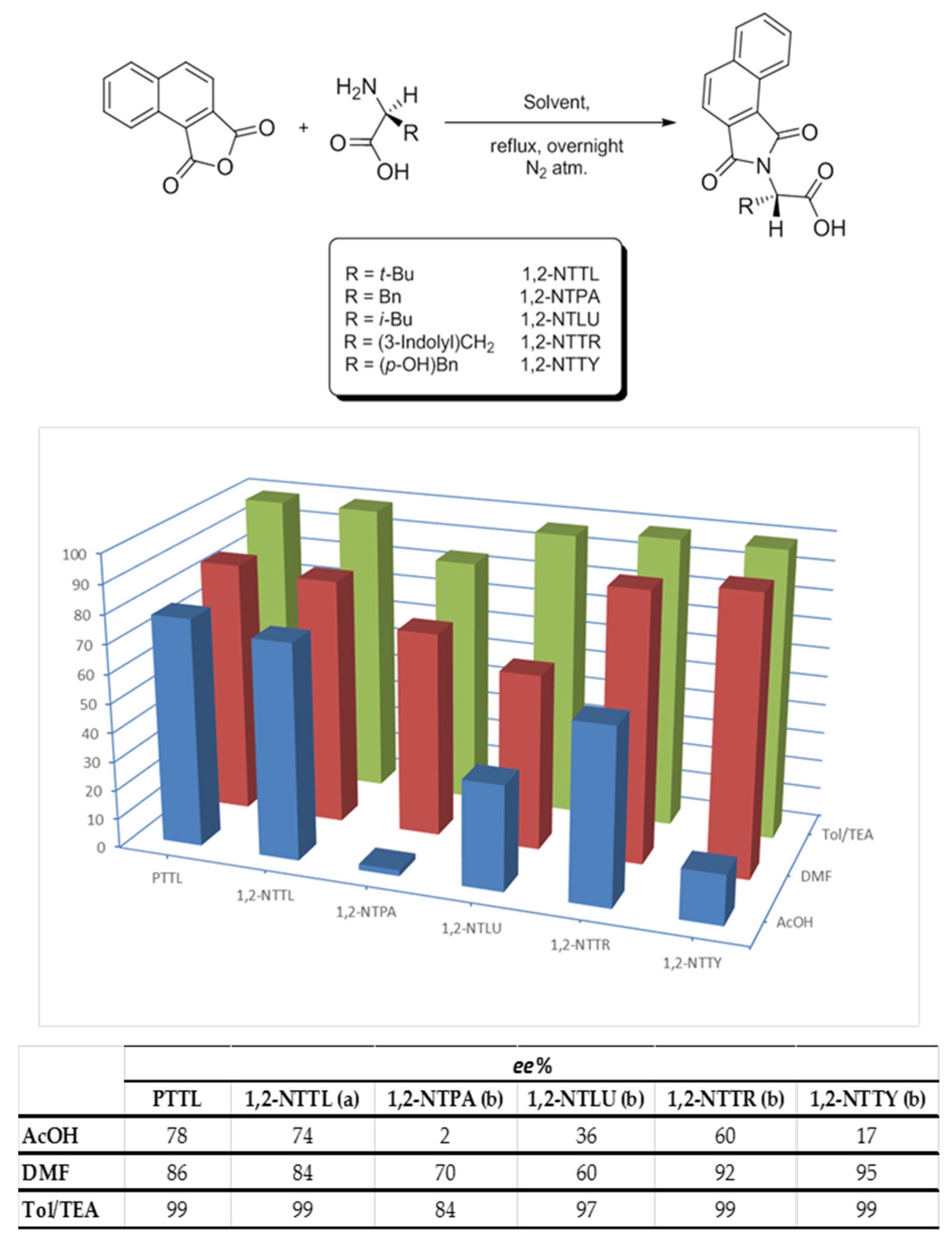

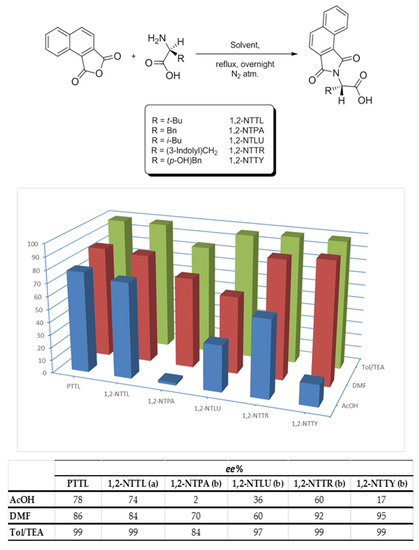

The current work started when PTTL ligand was synthesised three times using three different reaction solvents namely acetic acid, DMF and toluene/TEA, under refluxing conditions leading to chiral ligands with different degrees of enantiopurity (ee values of the obtained PTTL ligands from acetic acid, DMF and toluene/TEA solvents were found to be 78%, 86% and >99% ee, respectively). These prepared ligands were further used for the synthesis of three dirhodium(II) complexes, Rh₂(PTTL_78%ee)₄, Rh₂(PTTL_86%ee)₄ and Rh₂(PTTL_99%ee)₄, respectively at which, the obtained complexes were expected to vary in their degree of stereo-purity.

When Rh₂(PTTL_78%ee)₄ was crystallized from methanol/water in an open flask, two types of X-ray quality crystals were observed and isolated. The first were green prismatic crystals and, they were found to have the composition of [Rh₂(S-PTTL)₄.(H₂O)][Rh₂(S-PTTL)₄.2(H₂O)].5H₂O by X-ray crystal structure determination (Figure 3a,b). Although the complex molecules are still retaining the chiral crown cavity of approximate C₄ symmetry similar to the regular cavity structure of [Rh₂(S-PTTL)₄.(EtOAc)] [47,48], the inherent weakness of the cavity walls is apparent in the obtained aquated Rh₂(S-PTTL)₄ structure(s) (Figure 3a,b). This is owing to the obvious absence of strong interactions between adjacent N-phthaloyl units.

In fact, there are several structural features of major significance that comes to light through the detailed analysis of this newly determined X-ray structure of Rh₂(PTTL)₄ which can be correlated to the performance of this class of dirhodium(II) complexes in asymmetric catalysis. From the current structure and in light of the recent advances in the field, it is evident that the previously reported flattened rectangular shape structure of the crown cavity [47,48] is subject to substantial variations which appear to be influenced by the identity of the axial bound ligand and, at least in the solid state, by the intermolecular interactions including crystal packing forces. Whilst of irregular shape, the crown cavity of the current structure(s) (Figure 3a,b) can be described as being quite square shaped of ca. 13–14 Å width if compared to the rectangular shaped cavity reported for [Rh₂(S-PTTL)₄.(EtOAc)] (12.8 x 14.1 Å) [47,48].

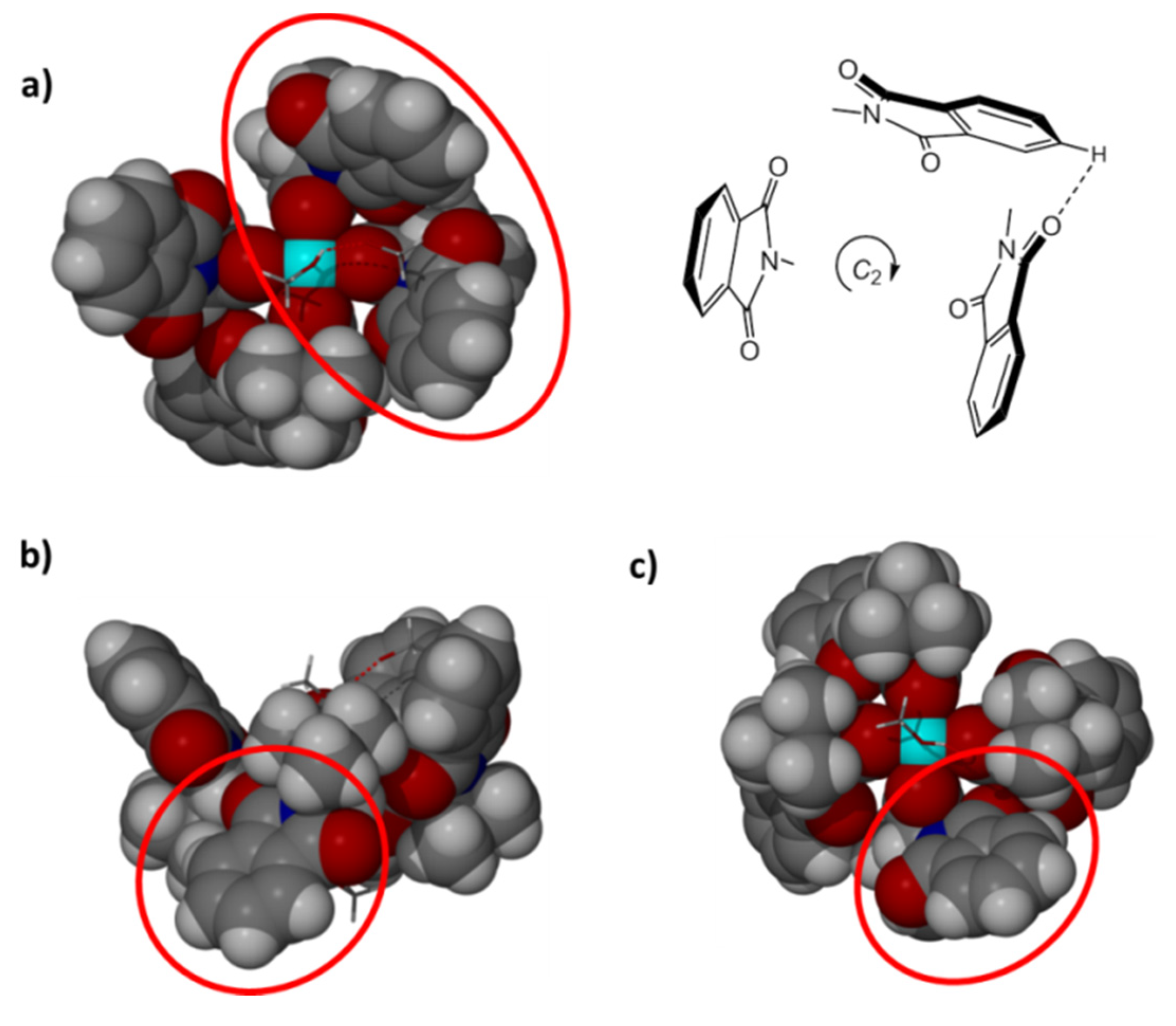

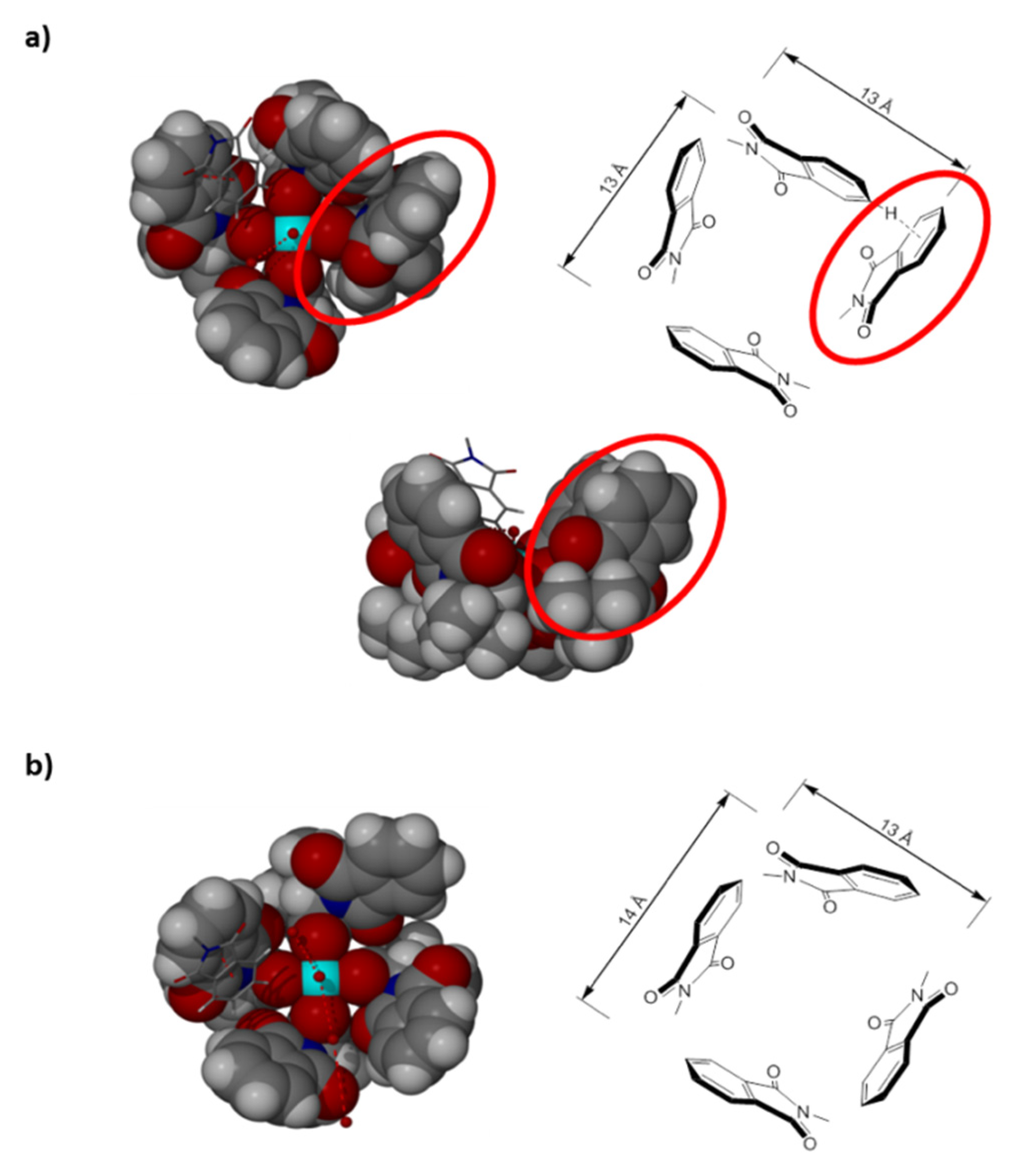

Beyond the overall shape of the irregular crown cavities described above, the mono aquated complex, [Rh₂(S-PTTL)₄.(H₂O)], features a partial “reversal” of its chiral nature (Figure 3a). Whilst all four ligands maintain their S-stereogenic carbon centres, the C–N bond from this carbon centre in one ligand is close to being aligned with the axial coordination site of the Rh centre (circled in Figure 3a). This is in contrast with the clockwise twist reported for [Rh₂(S-PTTL)₄.(EtOAc)] [47,48] and other related complexes [35,49,50,51]. As a result, the daisy-chain type docking of the N-phthaloyl units around the cavity seen in [Rh₂(S-PTTL)₄.(EtOAc)], which gives the cavity its main chiral feature (Figure 2c), is not only disrupted but is, in fact, partially reversed. This was most apparent in the formation of an edge (C–H)-face π-stacking of the involved N-phthaloyl unit with an adjacent ligand and a partial loss in regularity of the alternating locations of the oxygen atoms around the cavity compared to Rh₂(S-PTTL)₄.(EtOAc) structure (Figure 3a).

On the other hand, when Rh₂(PTTL_78%ee)₄ was crystallized from anhydrous methanol under argon atmosphere, we were able to isolate crystals of a methanol solvated adduct and determine the X-ray crystal structure. The observed structure was different to the one crystallized from methanol/water. This showed the complex to be the di-solvated species [Rh₂(S-PTTL)₄.(MeOH)₂].(MeOH)_3/2. This complex exhibited a distorted crown cavity where one of the N-heterocycles features a reverse twist akin to the mono-aquated adduct [Rh₂(S-PTTL)₄.(H₂O)] described above. In the solid state, there are two crystallographically independent molecules each having this structure, despite having different endo-cavity arrangements of hydrogen bonded MeOH molecules in addition to the axially coordinated solvent.

The ability of Rh₂(S-PTTL)₄ to have axial ligands bonded to the Rh centre shrouded by the crown cavity, as well as the more sterically encumbered Rh centre was, indeed, evident through the obtained di-aquated structure (Figure 3b). This fact was also previously observed through many other complexes from the same family [35,49,50,51] including Rh₂(S-PTAD)₄ which carry the bulkiest adamantyl groups at the ligands’ α-positions [35]. This observation can be also applied to carbene ligands during asymmetric catalysis which contradicts with the major assumption of Fox mechanistic study for Rh₂(S-PTTL)₄ in asymmetric cyclopropanations [47,48]. Fox assumed that only the Rh centre within the chiral crown cavity is accessible by the incoming substrate while the other is shielded by the four tert-butyl substituents of the PTTL ligands. This prior held assumption may not be valid and should be revised.

In addition to the aquated form of Rh₂(S-PTTL)₄ described above, we succeeded to identify another plate shaped green crystalline form from our methanol/water crystallized sample of Rh₂(PTTL_78%ee)₄. These crystals were shown to be comprised of the catalyst diastereomeric form, [Rh₂(S,S,S,R-PTTL)₄(MeOH)₂.].MeOH.H₂O (Figure 4) by X-ray structure determination.

In addition to identifying at least one of the forms in which the R-amino acid impurity manifests itself, an analysis of the structural details is also instructive here as it allows speculation as to the possible enantioselectivity that this impurity would achieve under catalytic conditions. This analysis is of major importance if the level of impurity is significant. The S,S,S,R- form features Rh bound methanol molecules at each axial coordination site and an α,α,α,β-conformation of the ligands, whereby the three N- phthaloyl units of the S-amino acid derived ligands form a partial crown cavity and the unique R-amino acid derived ligand faces the other axial binding site. Two of the N-phthaloyl groups forming the partial crown cavity exhibit conformations very similar to those in [Rh₂(S-PTTL)₄(EtOAc)] [47,48] and the predominant ligand types found in the aquated species described above (circled in Figure 4a). The third N-phthaloyl unit lacks the clockwise twist noted previously. This overall motif affords a partial cavity chirality (shown schematically in Figure 4a) of the same nature to the enantiomerically pure S,S,S,S- diastereomer of the complex (shown schematically in Figure 2). Based on previous results from Fox [40] and Charette [41] related to the functionality of the α,α,α,β-conformation, it can be hypothesized that the obtained S,S,S,R- form may still achieve a good degree of enantioselectivity and, importantly, towards the same product as obtained with the dominant S,S,S,S- form. Whilst we cannot disprove the presence of further diastereomeric forms existing in the same sample of Rh₂(PTTL_78%ee)₄ at this stage, we have highlighted the potential advantage of the enantiomeric ligand purity assimilating as a minor component within the S,S,S,R- diastereomeric form rather than segregating as the R,R,R,R- enantiomer which will strictly afford the opposite enantioselectivity to the S,S,S,S- form.

At this stage and based on the obtained X-ray crystal structures, we decided to establish if the S,S,S,R- diastereomeric form of the catalyst is still functional and can lead in high enantioselectivity. we made use of the powerful method of asymmetric amplification by nonlinear effects. If the catalyst system contains a non-enantiopure chiral ligand with an enantiomeric excess ee_ligand, an enantiomerically enriched product with an enantiomeric excess of ee_prod can be obtained. The calculation of the enantiomeric excess of the product (ee_max) for an enantiopure ligand can easily be calculated if one assumes that the enantiomers of the ligand (in the catalyst) act independently. The proportionality between ee_ligand and ee_prod in the below equation allows the ee_max value to be calculated (ee values between 0 and 1). In other words, the expected enantiomeric excess of the reaction product should be proportional to the ee value of the chiral ligand in the catalyst (Linearity). However, in the case of multi-ligated catalysts (which is the case of chiral dirhodium(II) tetracarboxylate catalysts), the above equation generally is no longer obeyed. This is because diastereomeric species are produced which are impossible to generate from the enantiopure ligands. In fact, some deviation from linearity may be observed (non-Linear effect) [52].

$$e{e}_{Prod}(\%)=e{e}_{max}·e{e}_{ligand}·100$$

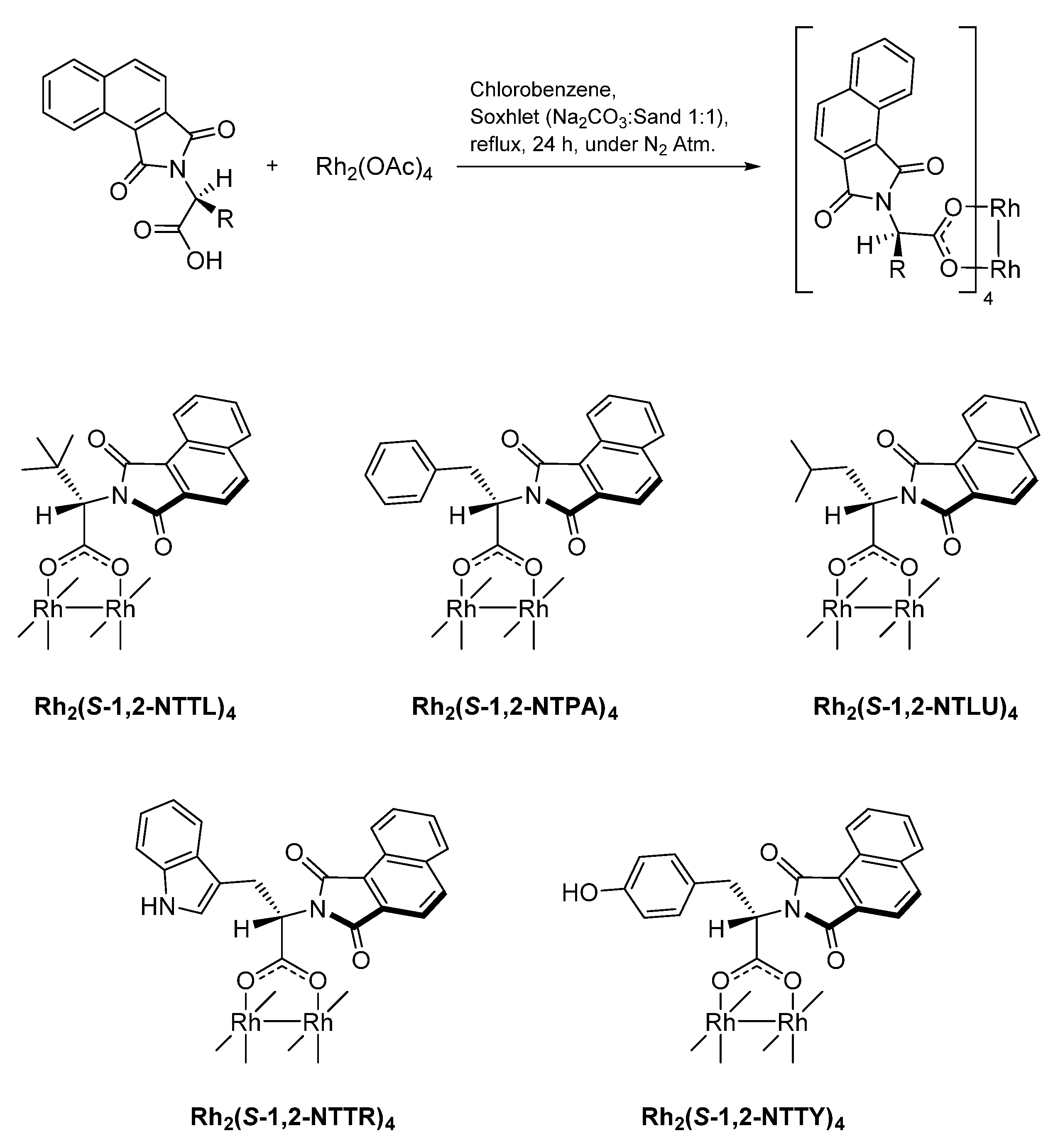

In addition to the three prepared versions of Rh₂(PTTL)₄, five more dirhodium(II) complexes were prepared of which each complex was prepared three times using ligands obtained from acetic acid, DMF and toluene/TEA as reaction solvents (Scheme 1 and Scheme 2). Scheme 1 illustrates the extent of racemization in the prepared N-protected amino acid ligands by just changing the reaction solvent. It was obvious from HPLC trace that different degrees of racemization were introduced by changing the reaction conditions. It was clear that accessing ligands with minimal racemization can be readily accomplished by using toluene/TEA as a reaction solvent. This result is in agreement with the previous report by Hashimoto et al. for the preparation of the PTTL ligand [53]. By the application of this reaction conditions, the racemization degree in the prepared N-protected amino acids is restricted and kept to minimal. An exception to this was the case of N-1,2-naphthaloyl phenylalanine (1,2-NTPA), at which around 15% racemization took place (Scheme 1).

At this point, all the prepared catalysts were subjected to catalysis and to facilitate the investigation, we employed our previously developed user-friendly one-pot cyclopropanation reaction of styrene in the presence of Meldrum’s acid. In this reaction, a phenyliodonium ylide is generated and used in situ [54,57]. All reactions were done at room temperature in DCM as reaction solvent.

In general, the cyclopropane product was generated in moderate isolated yields for all catalysts (45–60% yield) except for Rh₂(S-1,2-NTTR)₄ and Rh₂(S-1,2-NTTY)₄ (18% and 14%, respectively) and the obtained values were reproducible for all catalyst versions. The low yield observed with Rh₂(S-1,2-NTTR)₄ was returned to the poor solubility of the catalyst in reaction solvent. On the other hand, the low yield with Rh₂(S-1,2-NTTY)₄ was returned to the possible formation of a catalyst polymeric structure in solution at which some of the p-OH groups of the –CH₂C₆H₄–OH substituents of one complex molecule might act as the axial ligands on each Rh centre of adjacent complex molecules to block both catalyst’s active sites and inhibits the catalyst from being functional [58]. In both cases, low conversion to product was observed.

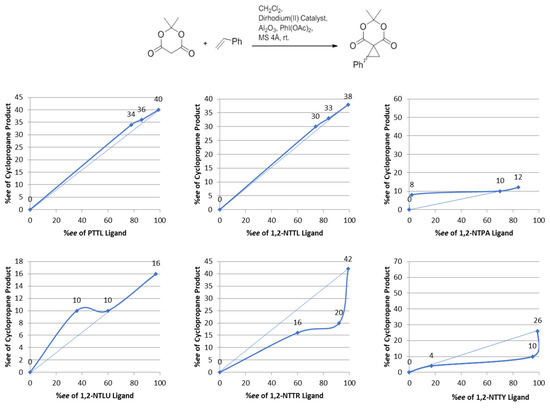

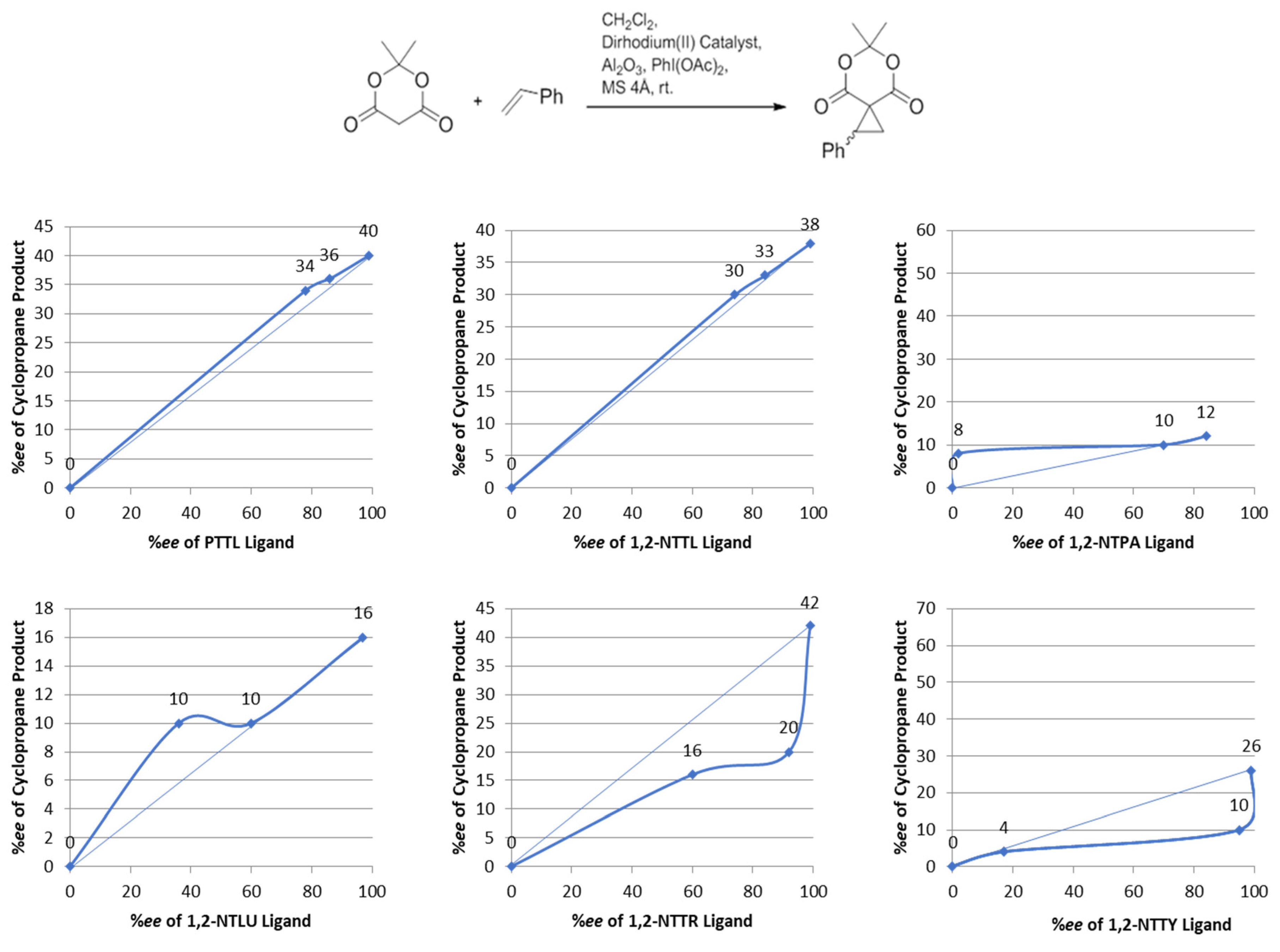

In terms of catalyst enantioselectivity, results are illustrated in Figure 5. As expected, the obtained results for this study, graphically depicted in Figure 5, clearly revealed a modest but real, positive nonlinear effect for Rh₂(PTTL)₄, Rh₂(1,2-NTTL)₄, Rh₂(1,2-NTPA)₄ and Rh₂(1,2-NTLU)₄ catalysts. The results suggested that diastereomeric species with a partial crown structure similar to the S,S,S,R- diastereomer observed for Rh₂(PTTL)₄ might be still functional and can lead to enantioselectivity levels similar to the full crown structures.

On the other side, Rh₂(1,2-NTTR)₄ and Rh₂(1,2-NTTY)₄ showed negative deviation from linearity. In these particular cases, other solution species may have arisen and resulted in different influences on enantioselectivity levels. These other influences are untestable at this stage and beyond the scope of this report.

3. Materials and Methods

3.1. Chemicals

All starting materials and reagents were purchased from Sigma-Aldrich, Acros Organics and Tokyo Chemical Industry Co., Ltd. (TCI, Tokyo, Japan) and used without any further purification. All solvents were of HPLC grade and dried and distilled immediately prior to use. All reactions were performed using oven dried glassware and flame dried under vacuum prior to use. TLC was performed using Sigma-Aldrich pre-coated silica gel 60 F254 aluminium support (20 × 20 cm, layer thickness 0.2 mm) and spots were visualized by either using UV light (254 nm). Preparative TLC purifications were performed using Sigma-Aldrich pre-coated silica gel 60 F254 glass support (20 × 20 cm, 0.25 mm layer thickness). Column chromatography was carried out on silica gel 60 (130-270 mesh ASTM, Sigma-Aldrich, St. Louis, MO, USA) using the specified eluent compositions. Rh₂(OAc)₄ was purchased from Strem Chemicals (Newburyport, MA, USA).

3.2. Instruments

Melting points were measured on Stuart-SMP10 melting point apparatus and are uncorrected. Optical rotations were measured using Perkin–Elmer 341 polarimeter at the sodium D line (589 nm) and reported as [α]_D²⁵ in g/100 mL concentration (c) and in solvents indicated. IR spectroscopic measurements were carried out on PerkinElmer TravelIR FT-IR spectrometer and reported in units of cm⁻¹. NMR spectra were recorded on Varian 400-MR and Varian Inova-500 spectrometers at room temperature. Mass Spectrometric analysis was recorded on Finnigen mat LCQ MS/MS ESI spectrometer and AB MDS Sciex 4800 MALDI-TOF-TOF mass analyser.

3.3. HPLC Analysis

The HPLC analysis was carried out at 25 °C using a Prominence Shimadzu System that consists of LC-20AD solvent delivery unit, SPD-M20A photodiode-array detector, SIL-20A_HT auto sampler and CTO-20A column oven. For data processing, LabSolutions data managing software, version 5.54 SP2 was utilized. Chiralpak^® IB (0.46 mm × 250 mm), Chiralpak^® IG (0.46 mm × 250 mm) and Chiralpak^® ID (0.46 mm × 250 mm) were obtained from Daicel Chiral Technologies. HPLC-grade n-hexane, ethyl acetate and 2-propanol were obtained from Scharlau Chemie S.A. (Sentmenat, Barcelona, Spain).

3.4. X-ray Crystallography for Dirhodium(II) Complexes

X-ray quality crystals of the dirhodium(II) complexes were obtained by dissolving the pure complex in the relevant solvent (for [Rh₂(S-PTTL)₄(H₂O)][Rh₂(S-PTTL)₄(H₂O)₂].5H₂O green prismatic crystals from MeOH/water, [Rh₂(S,S,S,R-PTTL)₄(MeOH)₂].MeOH.H₂O green plate shaped crystals from MeOH/water and for [Rh₂(S-PTTL)₄(MeOH)₂].(MeOH)_3/2 green prismatic crystals from anhydrous MeOH). The resulting solutions were subjected to sonication and Pasteur pipette filtration followed by slow evaporation of the solvent to yield crystals. Data were collected at −173 °C on crystals mounted on a Hampton Scientific cryoloop at the MX1 or MX2 beamlines, Australian Synchrotron, Victoria [59]. The structures were solved by direct methods with SHELXS-97, refined using full-matrix least-squares routines against F² with SHELXL-97 [60], and visualised using X-SEED [61]. All non-hydrogen atoms were anisotropically refined, while, all hydrogen atoms were positioned in calculated locations and refined using a riding model with fixed C–H distances of 0.95 Å (sp²CH), 0.99 Å (CH₂), 0.98 Å (CH₃). The thermal parameters of all hydrogen atoms were estimated as U_iso(H) = 1.2U_eq(C) except for CH₃ where U_iso(H) = 1.5U_eq(C).

CCDC-1834045-1834047 contain the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via https://www.ccdc.cam.ac.uk/structures/.

3.5. General Procedure for Ligand Preparation

A mixture of 1,2-naphthalic anhydride (1.1 equiv.) and the L-amino acid (1 equiv.) in either anhydrous acetic acid, DMF or toluene/TEA (0.1 equiv.) was heated to reflux under nitrogen atmosphere overnight. After that time, the reaction was worked up according to one of the below procedures to afford the corresponding reaction product.

3.6. Reaction Workup Procedures

(a)

When using acetic acid as solvent

The reaction solvent was evaporated in vacuo and the residue was directly purified on silica gel column chromatography using ethyl acetate: n-hexane as an eluent to afford the desired product.

(b)

When using DMF as solvent

The reaction mixture was diluted in water and extracted with ethyl acetate twice. The organic layer was washed with water three times, dried over anhydrous Na₂SO₄, filtered and concentrated in vacuo. The residue was then purified on silica gel column chromatography using ethyl acetate: n-hexane as an eluent to afford the desired product.

(c)

When using Toluene/TEA as solvent

The mixture was diluted with ethyl acetate, washed twice with 0.1 M hydrochloric acid solution, dried over anhydrous Na₂SO₄, filtered and concentrated in vacuo. The residue was then purified on silica gel column chromatography using ethyl acetate: n-hexane as an eluent to afford the desired product.

3.7. N-(Phthaloyl)-Tert-Leucine (PTTL)

Phthalic anhydride (0.5 g, 3.38 mmol), L-tert-Leucine (0.402 g, 3.07 mmol); white solid (0.746 g, 93%); mp 154 °C. Spectroscopic data were consistent with the previously published literature [53]. Conditions for chiral HPLC trace: Chiralpak^® ID column, 10% 2-propanol in n-hexane (v/v%) with 0.1% TFA, 0.25 mL/min, 254 nm, τ₁ = 16.0 min, τ₂ = 17.0 min.

3.8. N-(1,2-Naphthaloyl)-Tert-Leucine (1,2-NTTL)

1,2-Naphthalic anhydride (0.650 g, 3.28 mmol), L-tert-Leucine (0.391 g, 2.98 mmol); yellow oil (0.825 g, 89%). Spectroscopic data were consistent with the previously published literature [36]. Conditions for chiral HPLC trace: Chiralpak^® IB column, 10% 2-propanol in n-hexane (v/v%) with 0.1% TFA, 0.25 mL/min, 254 nm, τ₁ = 22.5 min, τ₂ = 24.5 min.

3.9. N-(1,2-Naphthaloyl)-Phenylalanine (1,2-NTPA)

1,2-Naphthalic anhydride (0.5 g, 2.52 mmol), L-Phenylalanine (0.35 g, 2.10 mmol); pale yellow solid (0.65 g, 89%); mp 182 °C. Spectroscopic data were consistent with the previously published literature [36]. Conditions for chiral HPLC trace: Chiralpak^® ID column, 10% 2-propanol in n-hexane (v/v%) with 0.1% TFA, 0.5 mL/min, 254 nm, τ₁ = 40.0 min, τ₂ = 44.0 min.

3.10. N-(1,2-Naphthaloyl)-Leucine (1,2-NTLU)

1,2-Naphthalic anhydride (0.5 g, 2.52 mmol), L-Leucine (0.3 g, 2.29 mmol); pale yellow solid (0.64 g, 90%); mp 138–139 °C. Spectroscopic data were consistent with the previously published literature [36]. Conditions for chiral HPLC trace: Chiralpak^® ID column, 10% 2-propanol in n-hexane (v/v%) with 0.1% TFA; 0.25 mL/min, 254 nm, τ₁ = 56.0 min, τ₂ = 61.0 min.

3.11. N-(1,2-Naphthaloyl)-Tryptophan (1,2-NTTR)

1,2-Naphthalic anhydride (0.5 g, 2.52 mmol), L-Tryptophan (0.47 g, 2.29 mmol); yellow solid (0.83 g, 85%); mp 238–239 °C. Spectroscopic data were consistent with the previously published literature [36]. Conditions for chiral HPLC trace: Chiralpak^® ID column, 10% 2-propanol in n-hexane (v/v%) with 0.1% TFA; 0.25 mL/min, 254 nm, τ₁ = 110.0 min, τ₂ = 131.0 min.

3.12. N-(1,2-Naphthaloyl)-Tyrosine (1,2-NTTY)

1,2-Naphthalic anhydride (0.5 g, 2.52 mmol), L-Tyrosine (0.42 g, 2.29 mmol); yellow solid (0.74 g, 90%); mp 248–249 °C. Spectroscopic data were consistent with the previously published literature [36]. Conditions for chiral HPLC trace: Chiralpak^® ID column, 10% 2-propanol in n-hexane (v/v%) with 0.1% TFA, 0.5 mL/min, 254 nm, τ₁ = 52.5 min, τ₂ = 51.0 min.

3.13. General Procedure for Ligand Exchange

A mixture of the prepared carboxylic acid ligand (6 equiv.) and dirhodium(II) tetraacetate (Rh₂(OAc)₄, 1 equiv.) in dry chlorobenzene was refluxed for 24 h under nitrogen atmosphere using a Soxhlet extractor fitted with a thimble containing dry mixture of Na₂CO₃ and sand (1:1) for trapping the eliminated acetic acid molecules. After that time, the solvent was evaporated in vacuo and the residue was re-dissolved in DCM, washed with saturated NaHCO₃ solution, dried over anhydrous Na₂SO₄, filtered and concentrated in vacuo. The green residue was then purified by means of silica gel column chromatography using ethyl acetate: n-hexane as mobile phase. Spectroscopic data of all prepared complexes were consistent with the previously published literature [36,53].

3.14. General Procedure for Cyclopropanation

2,2-Dimethyl-1,3-dioxane-4,6-dione (1 equiv.) was dissolved in dry dichloromethane and stirred with (diacetoxy)iodobenzene (1.4 equiv.), aluminium oxide (2.3 equiv.), 4Å molecular sieves and dirhodium(II) catalyst (0.01 equiv.) under nitrogen atmosphere for 5 min. After that time, Styrene (10 equiv.) was added and the mixture was stirred for 2 h. The reaction was then terminated by filtration through Celite^® and concentrated in vacuo. The obtained residue was then purified by means of preparative TLC. Spectroscopic data were consistent with the previously published literature [54,57]. Enantiomeric excess of the cyclopropane product was determined by chiral HPLC analysis. Conditions for chiral HPLC trace: Chiralpak^® IG column, 10% ethyl acetate in n-hexane (v/v%); 1 mL/min, 254 nm, τ₁ = 25 min, τ₂ = 33 min. Product yields are illustrated in

Table 1. Yields for the obtained cyclopropane product.

Entry	Catalyst Used	Product Yield (%) 1
1	Rh2(S-PTTL)4	45
2	Rh2(S-1,2-NTTL)4	60
3	Rh2(S-1,2-NTPA)4	47
4	Rh2(S-1,2-NTLU)4	54
5	Rh2(S-1,2-NTTR)4	18
6	Rh2(S-1,2-NTTY)4	14

¹ Yields for product obtained from enantiopure complexes.

.

4. Conclusions

The current report contributes to the structural understanding of the reactivity and selectivity of dirhodium(II) carboxylate complexes derived from N-protected amino acid ligands. This contribution was through investigating the effect of ligand stereo-purity on the catalyst enantioselectivity. In conclusion, the use of partially resolved chiral ligand can produce some perturbations generated by the formation of diastereomeric complexes and such perturbations cannot be deducted from the sole behaviour of the catalyst prepared from the enantio-impure ligand. This was confirmed by the observation of Rh₂(S,S,S,R-PTTL)₄ diastereomer structure. The complex showed that it adapts an α,α,α,β- structure in solid state with the three S-ligands pointing to one side while the R-ligand is alone on the other. By having a partial chiral cavity, the observed complex was anticipated to perform catalysis in a similar way to its diastereomer Rh₂(S-PTTL)₄. The obtained catalysis results did show deviation from linearity and did reflect the anticipated effect caused by the presence of this type of diastereomer on the enantioselectivity of some dirhodium(II) carboxylate catalysts. In this regard, further research is currently being carried out in our group aiming for a more systematic study and endeavouring to get further insights into this interesting topic. Results will be reported in due course.

This report has also heightened awareness of subtle conformational variations that these complexes can adapt during the various phases of their catalytic cycles. This awareness evolved through the discovery of new Rh₂(S-PTTL)₄ structures including its mono- and di-aquated adducts, as well as its di-methanol adduct.

Generally, by drawing attention to the added complexity of these important structural issues, we can acknowledge that dirhodium(II) carboxylate catalysts are highly fluxional structures and more than one catalyst conformation might be present in solution at the same time. The energetics of these different conformers can change throughout the catalytic process and different conformers may have different energy barriers in productive processes involved in the catalytic cycle. Hence, the different conformers of the catalyst will contribute to the overall catalytic process to different extents proportional to their relative abundance in solution.
