Detoxification of Cylindrospermopsin by Pyrite in Water

Abstract

Cylindrospermopsin (CYN) is a cyanobacterial toxin released from eutrophic water. It persistently remains in the environment because its degradation under solar light is extremely low. In this study, pyrite, an abundant mineral, was investigated as a catalyst for decomposing and detoxifying CYN in water. A detailed examination of intermediates provided insights into the degradation pathway. Electron spin resonance spectra revealed that H₂O₂ and hydroxyl radicals (^•OH) were generated at the pyrite surface while promoting the recycling of Fe(III) into Fe(II) during the degradation process. This degradation system could be uniquely efficient in the presence of relatively high levels of natural organic matter because the structure of the uracil ring is decomposed to detoxify CYN. This work confirms a new approach to selectively and effectively detoxifying CYN in water using an inexpensive, environmentally friendly, and bio-compatible mineral.

1. Introduction

In recent years, cylindrospermopsin (CYN), detected in eutrophic water bodies of many countries across the world, has attracted increasing attention [1]. CYN is a guanidine alkaloid which contains three-ring guanidine and hydroxymethyl uracil (Figure 1). It is highly stable when exposed to different pH and temperature conditions, and thus it accumulates easily in organisms and is highly toxic [2]. The toxic mechanism of CYN is to participate in various enzyme reactions by competing with the binding sites of uridine diphosphate (UDP) because the uracil group in the CYN structure is similar to the guanosine structure in uridine diphosphate [3]. At the extremely low concentration of 10⁻⁷ μg/L, CYN has a potential carcinogenic risk [4]. In eutrophic water, the degradation efficiency of CYN under natural conditions is low and mainly depends on the irradiation of UV-A. CYN belongs to refractory and refractory biological toxins [5]. Therefore, once CYN is produced in a water body, it will exist stably and pose a great threat to the water ecological environment and human health.

Hydroxyl radical (^•OH) is an active species with high oxidation potential (E₀ = 2.76 V); thus, its oxidation activity is strong, and its effect on the transformation of harmful substances in the natural environment is important [6]. Song et al. reported the detoxification of CYN in water by ^•OH produced by gamma ray irradiation for the first time. The degradation and detoxification mechanism of CYN is due to the reaction of ^•OH with the toxic group of uracil in CYN, which can be converted into carboxyl via addition and oxidation reactions [7]. Although this method exhibits a certain detoxification effect, it is costly. Hence, an economical and effective treatment method to generate ^•OH is urgently needed. McNeill reported that the reductive organic matter in surface water could react with O₂ to produce ^•OH [8]. Furthermore, Yuan et al. found that the production amount of ^•OH in the oxidation process of underground sediments is positively correlated with that of solid-phase Fe(II), which they proved to be the leading factor in the formation of ^•OH [9]. This discovery reveals that solid sediments in the underground environment make up a large ^•OH reservoir that has been generally neglected.

Pyrite is abundant in underground sediments and is widely distributed in the underground strata of rivers. Although pyrite is formed in an anoxic environment, it remains stable in an aerobic environment [10]. Pyrite has an important effect on the migration, transformation, and degradation of toxic and harmful substances. Fe(II) in pyrite exists in the form of a bound state, which can enhance the reductive activity and accelerate the oxidation rate of Fe(II) to produce ^•OH. These studies show that pyrite can produce reactive oxygen species (ROS) to degrade CYN in a short time, similar to other advanced oxidation processes (AOPs). However, one of the biggest drawbacks of most AOPs is the lack of selectivity. At present, almost all AOPs regarding CYN degradation dissolve CYN in pure water without considering the coexistence of natural organic matter (NOM). Thus, a great amount of ^•OH is preferable to react with a high concentration of NOM than a trace quantity of CYN. Therefore, AOPs are still difficult to use in real scenarios. This poses a challenge, because CYN generally occurs at low concentrations (<10 ppm), while the concentration of NOM is commonly in the range from 10 to 100 ppm [11]. Because of the inefficiency of CYN degradation by these processes, environmentally friendly methods for CYN removal in the presence of NOM are important.

In the work reported here, pyrite was used as a visible light catalyst to degrade CYN in water at neutral pH using dissolved oxygen as the initial oxidant. The cleavage of the stable uracil ring structure facilitated oxidative decomposition. The ^•OH formation was monitored using electron spin resonance (ESR), and the unique degradation products of CYN were identified by liquid chromatography–mass spectroscopy (LC/MS). The pyrite catalytic system reported in this paper introduces a promising new approach to effectively and selectively detoxifying CYN in water treatments with high levels of NOM.

2. Results and Discussion

2.1. Degradation of CYN

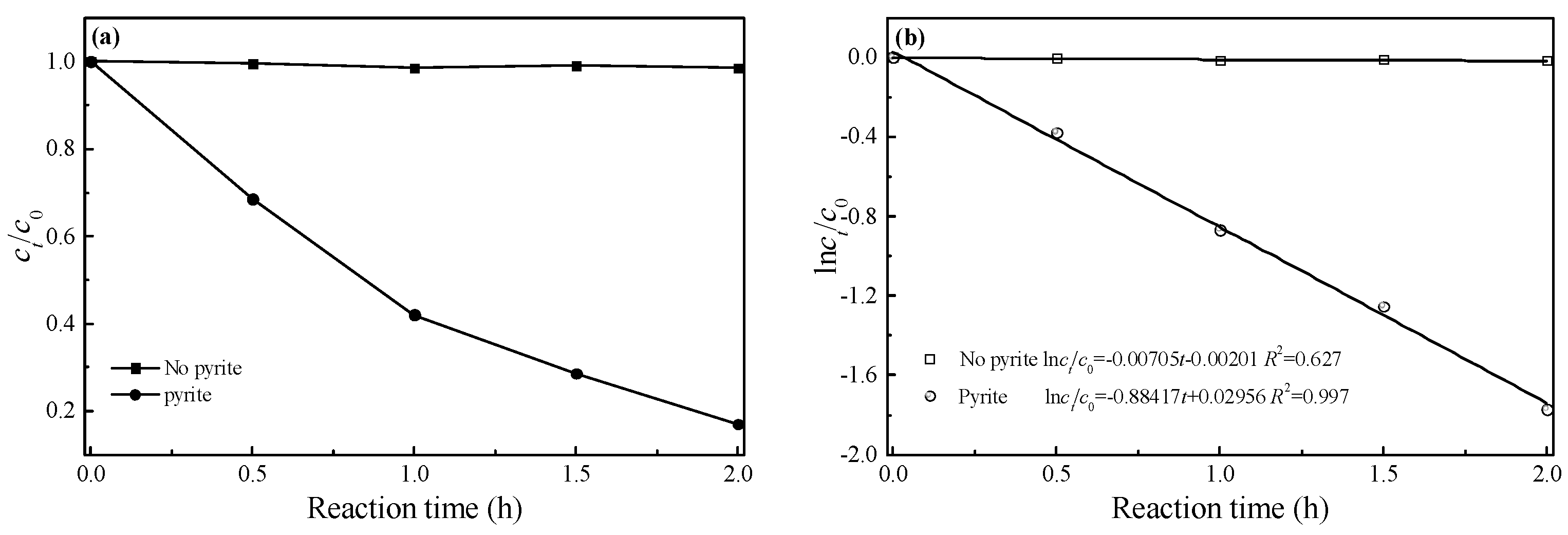

The degradation kinetics of CYN in aqueous solution with pyrite and the comparative experiment without pyrite are displayed in Figure 2a. Plotting ln (c_t/c₀) against reaction time (t) presented a straight line (Figure 2b). Thus, the degradation kinetics of CYN by pyrite were treated as a pseudo-first order.

$$\ln \frac{c_t}{c_0}=kt$$

(1)

$$t_{\frac{1}{2}}=\frac{\ln 2}{k}$$

(2)

where c₀ and c_t are the concentrations of CYN at time zero and time t, respectively.

In the reaction, the concentration of CYN at a given reaction time can be calculated using Equation (1). When the log of CYN concentration is plotted as a function of time, the rate constant (k) is given by the slope, and the CYN half-life can be calculated using Equation (2). For the degradation system in the presence and absence of pyrite, the rate constants were 0.8842 and 0.0071 h⁻¹, and the half-lives were 0.78 and 98 h, respectively. Consequently, the presence of pyrite reduced the half-life of CYN in water by 99%, similar to the degradation systems of microcystin-LR (MC-LR) by kaolinite and siderite [12].

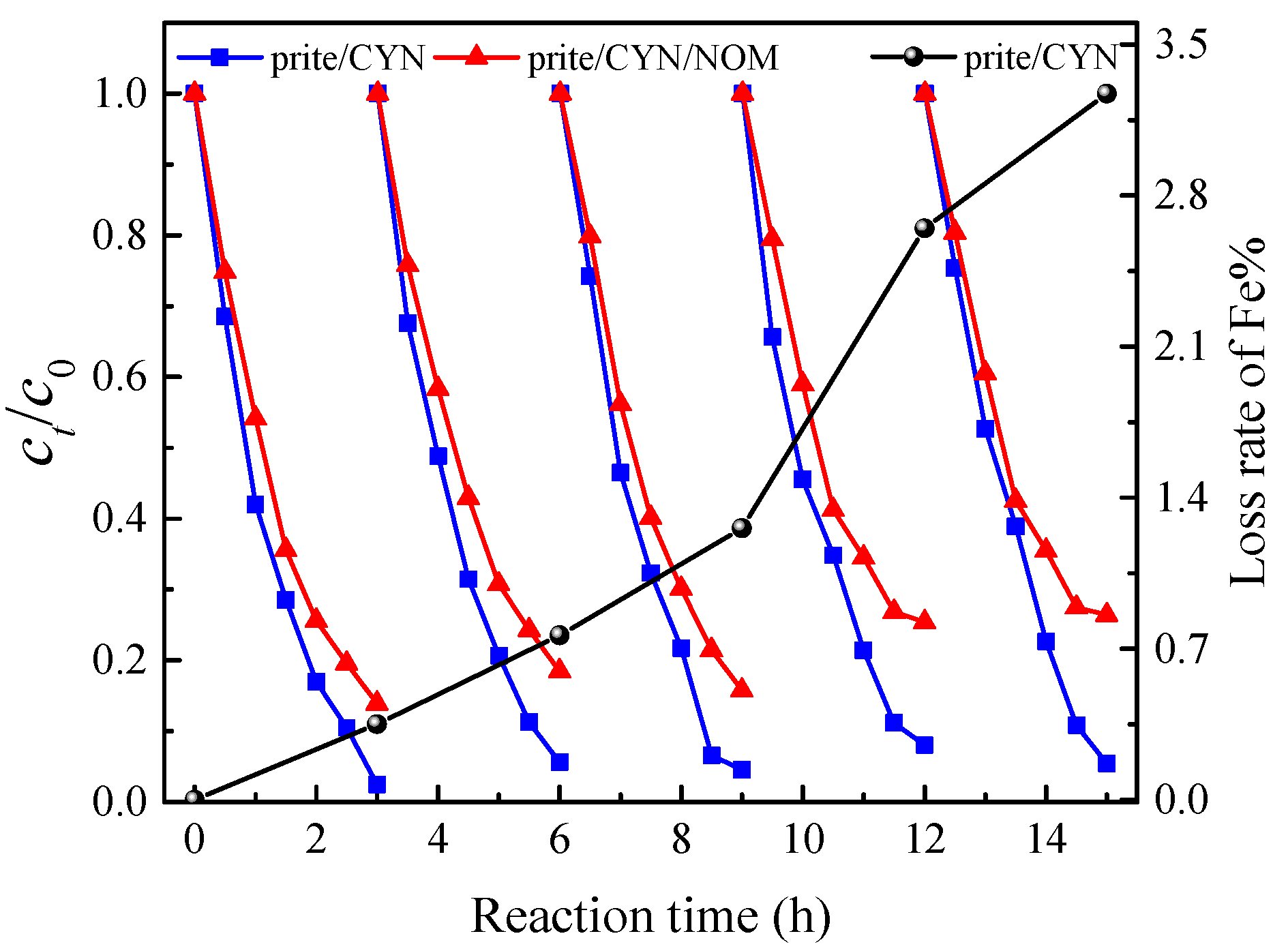

The recycling of pyrite was examined for the degradation of CYN over five consecutive cycles. After each cycle experiment, the solution residue was filtered. Pyrite powder was rinsed and dried, and used again for the degradation of CYN with identical experimental conditions. Pyrite displayed a high degradation activity after five cycles of recovery and reuse (Figure 3). Humic acid (HA), a common and often dominant component of NOM in natural waters, was added to the CYN solution to compare the effectivity of pyrite toward CYN degradation in the presence of NOM. The results indicated that pyrite successfully degrades CYN in water even if the concentration of HA exceeds that of CYN by a factor of 10. In addition, the concentration of Fe in degradation solution was determined at the end of each degradation cycle. The results showed that the loss of Fe was only 0.35% at the first cycle and reached 3.27% after five continuous cycles (Figure 3). From other research, the maximum content of Fe in solution during the degradation of trichloroethylene by pyrite was found to be 0.082 mM (pH = 3), which only accounted for 0.46% of Fe in pyrite [13]; Fe detected in the solution after 6 h reaction was only 0.05 mM (pH = 7) when pyrite was used to degrade chloroaniline [14]. It is obvious that the Fe leaching is inevitable, but the amount is low.

2.2. Formation of Active Species

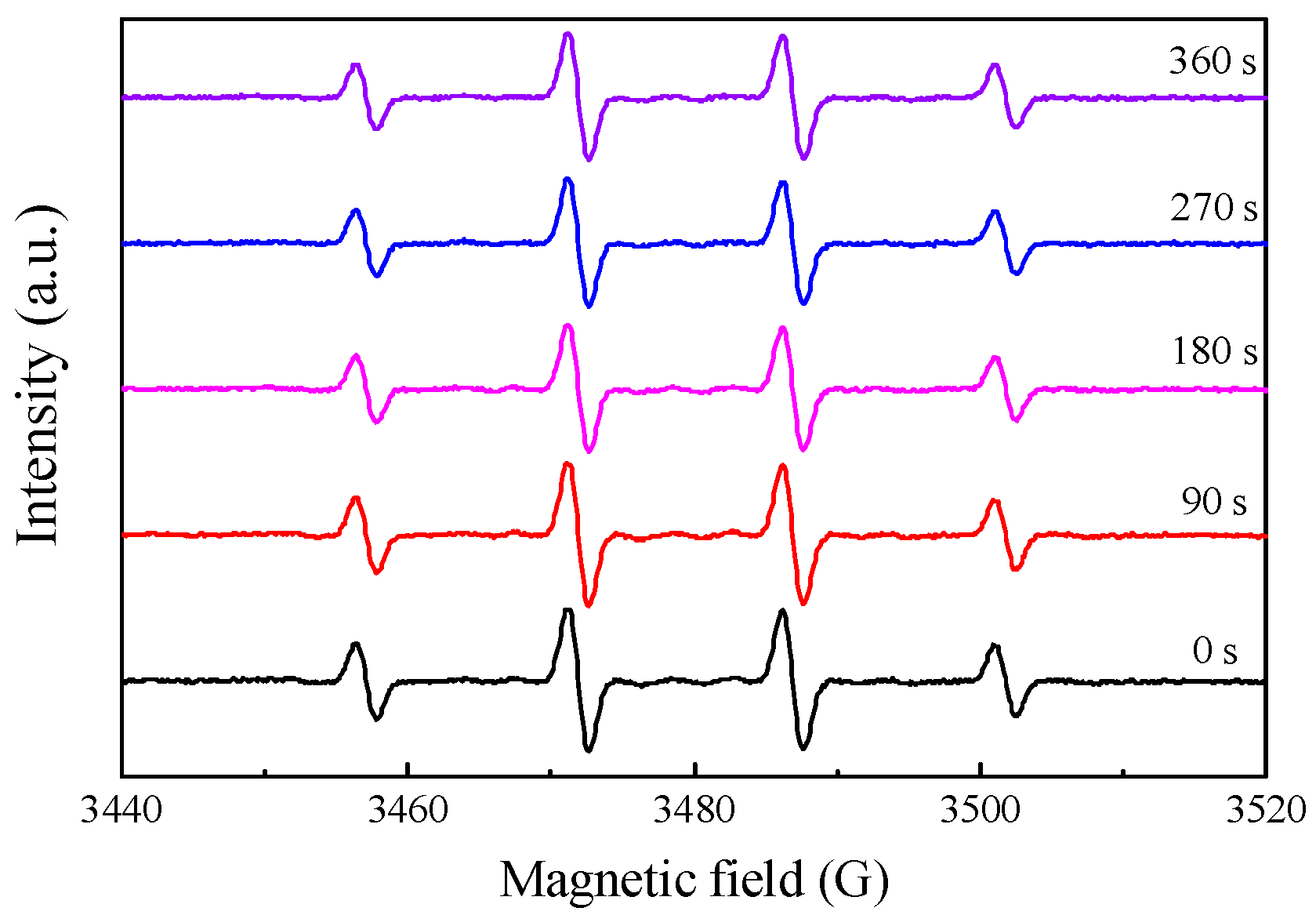

To clarify the important role of pyrite in the degradation of CYN, ESR with spin-trapping 5, 5-dimethyl-1-pyrroline N-oxide (DMPO) was used to observe the production of ^•OH free radicals during the degradation process. The formation of radicals during degradation was qualitatively proved by ESR using the non-saturated anti-magnetic material DMPO as the spin trapping agent to detect and identify short-lived free radicals (Figure 4). The DMPO-^•OH adduct is a signal with an intensity ratio of 1:2:2:1, and its presence is a clear indication of ^•OH formation.

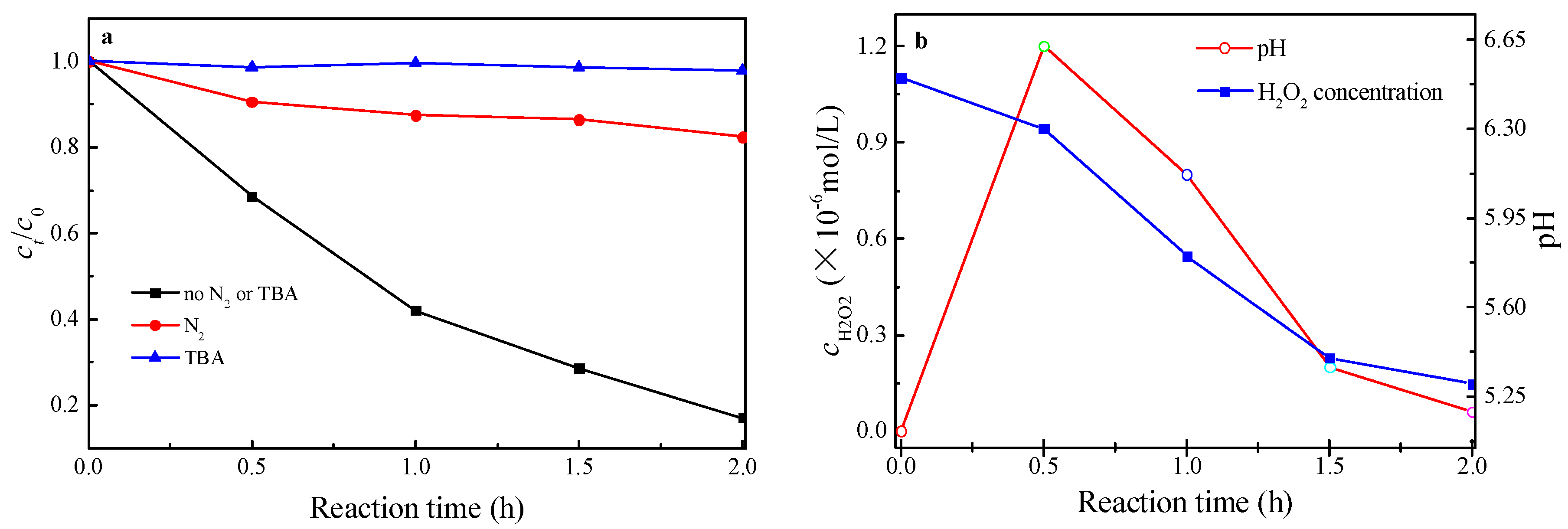

Degradation obviously occurs under open conditions, and thus dissolved O₂ in water may play a crucial role [10,15,16]. In this study, CYN degradation under N₂ (to remove completely dissolved O₂) was implemented to further verify the role of O₂. The result showed (Figure 5a) that only 17.6% of CYN was degraded; hence, O₂ reduction was the main mechanism for the formation of ^•OH at the pyrite surface. Moreover, quenching experiments using tert-butyl alcohol (TBA) as an ^•OH scavenger indicated that no degradation occurred (Figure 5a). Thus, the reactivity coupled with iron delivery provides bright prospects in the degradation of CYN and other toxic substances in wastewater.

At the pyrite surface, iron defect sites, which easily adsorb O₂ and water to form a surface complex, are found. The complex transfers an electron to generate O₂^•− (Equation (3)) and continues to transfer another electron to generate H₂O_{2 ads} (Equation (4)). Then, a Haber–Weiss reaction occurs to generate ^•OH.

$$\mathrm{Fe}(\mathrm{II})+{\mathrm{O}}_{2\mathrm{ads}}\to \mathrm{Fe}(\mathrm{III})+{\mathrm{O}}_2^{•-}$$

(3)

$$\mathrm{Fe}(\mathrm{II})+{2\mathrm{O}}_2^{•-}+{2\mathrm{H}}^{+}\to \mathrm{Fe}(\mathrm{III})+{\mathrm{H}}_2{\mathrm{O}}_{2\mathrm{ads}}$$

(4)

During this whole process, H₂O_{2 ads}, which plays an important role in CYN degradation, is detected (Figure 5b). A portion of H₂O_{2 ads} is reduced by the pyrite to H₂O, and the other portion is desorbed into the solution. For the dissolved H₂O₂, only a fraction is consumed by the oxidizing pyrite while the remaining fraction reacts with Fe(II) through the Fenton mechanism to generate ^•OH (Equation (5)).

$$\mathrm{Fe}\left(\mathrm{II}\right)+{\mathrm{H}}_2{\mathrm{O}}_{2\mathrm{ads}}\to \mathrm{Fe}\left(\mathrm{II}\right)+{\mathrm{HO}}^{-}+{}^{•}\mathrm{O}\mathrm{H}$$

(5)

At this moment, Fe(II) begins to catalyze the decomposition of H₂O₂ into ^•OH. Simultaneously, the amount of Fe(II) required for the Fenton reaction to occur is supplied to the solution by the oxidative dissolution of pyrite in the presence of O₂ aq (Equation (6)).

$${2\mathrm{FeS}}_2+{7\mathrm{O}}_{2\mathrm{aq}}+{2\mathrm{H}}_2\mathrm{O}\to 2\mathrm{Fe}\left(\mathrm{II}\right)+{4\mathrm{SO}}_4^{2-}+{4\mathrm{H}}^{+}$$

(6)

The regeneration of Fe(II) may occur according to an additional mechanism (Equation (7)).

$${\mathrm{FeS}}_2+{8\mathrm{H}}_2\mathrm{O}+14\mathrm{Fe}\left(\mathrm{III}\right)\to 15\mathrm{Fe}\left(\mathrm{II}\right)+{2\mathrm{SO}}_4^{2-}+{16\mathrm{H}}^{+}$$

(7)

Equations (6) and (7) release protons to promote acidification and deliver Fe (II) into the degradation solution. In the performed experiments, the release and use of protons causes fluctuation in pH, and the pH usually attained a final value of 5–6.5 (Figure 5b) with a highly efficient Fenton chain reaction.

2.3. Proposed Degradation Pathway

The structures for the degradation products of CYN were proposed on the basis of the analysis of the total ion chromatograms (TICs), which are summarized in

Table 1. Intensity of LC/MS peak area (count × 10⁵) for intermediates produced during CYN degradation by pyrite ^a.

Reaction Time (h)	CYN (m/z 415.6)	Product 1 (m/z 431.4)	Product 2 (m/z 447.3)	Product 3 (m/z 413.4)	Product 4 (m/z 319.3)
0	5.28	0	0	0	0
1.5	3.73	0.17	0.64	0.19	0.18
2	2.26	0.24	1.76	0.26	0.31
2.5	1.06	0.16	1.59	0.41	0.45
3	0.25	0.12	0.29	0.13	0.28

^a Solution volume = 5 mL; CYN concentration = 2 mg/L; pyrite dose = 0.5 g/L; no pH adjustment. The retention time of CYN and product 1, 2, 3 and 4 are 9.1, 7.6, 7.1, 10.9 and 5.6 min, respectively.

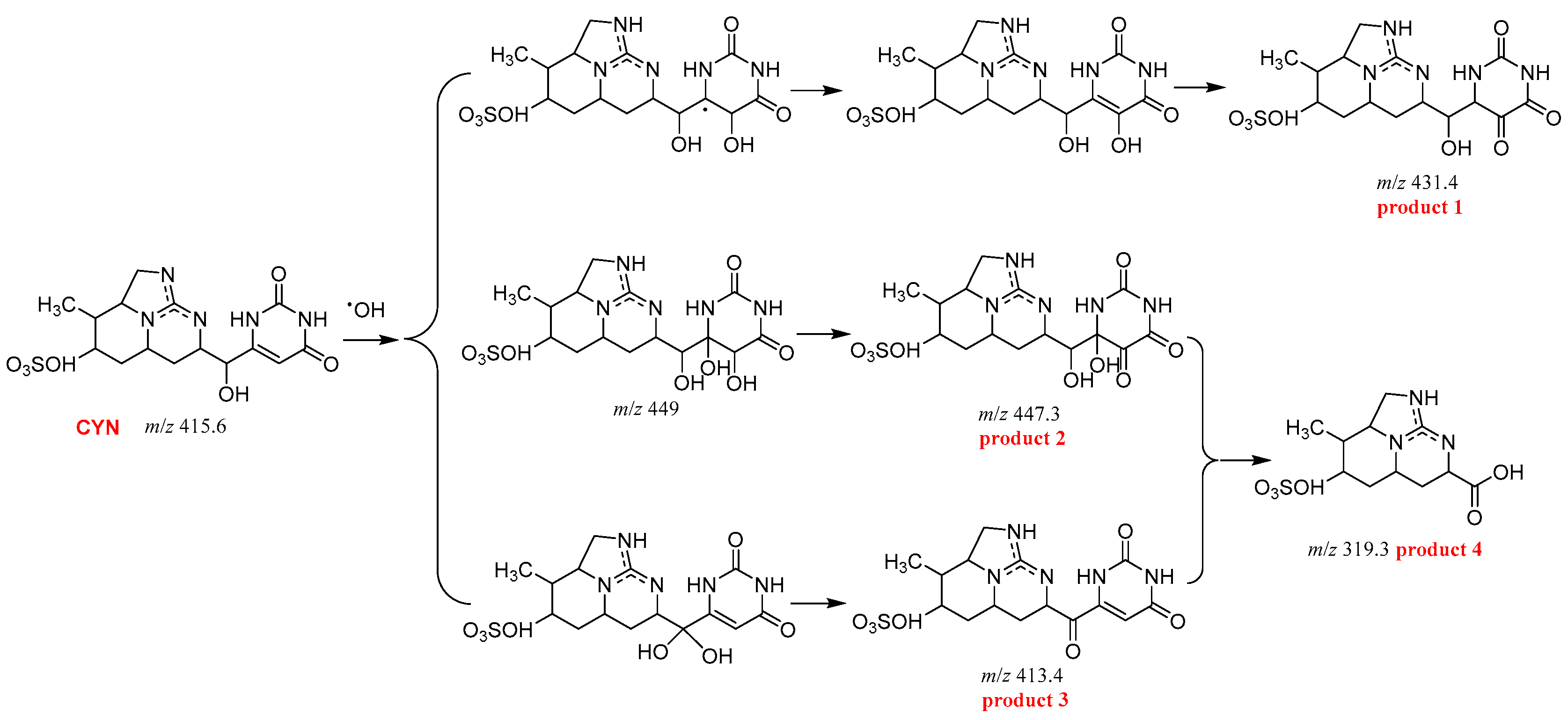

. The LC/MS analysis of the decomposition fragments revealed at least four intermediates, each producing strong peaks in the TIC. Most intermediates were initially abundant and gradually decreased with the extending reaction time. In the structure of CYN, the double bond of the electron-rich unsaturated uracil ring was easily added by ^•OH to yield products such as m/z 413 and m/z 447. Product m/z 447 was observed as a secondary dihydroxylation product. The hydrogen abstraction reaction of the hydroxyl group occurred to generate m/z 413. Moreover, product m/z 319 resulted from the breakage of the uracil ring. The detoxification pathway was proposed by combining the results of ESR and LC/MS (Figure 6). The detoxification of CYN occurred through the breakage of uracil moiety by the ^•OH generated in the system [17].

2.4. Effects of Degradation Products on Toxicity

The deep mineralization of pollutants to carbon dioxide, water, and other inorganic salts is the best detoxification method. However, completely realizing mineralization for organic pollutants with complex structures, such as CYN, is difficult. In this system with pyrite, the total organic carbon (TOC) removal rate was only 47% after 2 h of visible light irradiation (Figure S1). Thus, the removal of toxic groups is effective for the detoxification of CYN. An acute toxicity study was performed on mice to measure the detoxification extent of CYN by pyrite. Group 1 was the control, and group 2 received original CYN (2 mg/L) with a dose of 10 mL/kg. Groups 3, 4, and 5 were given 10, 20, and 30 mL/kg of degradation solution after 5 h, respectively. All mice in group 2 died within 12 h, and necropsies were performed to observe their livers and weight. All mice in the four other groups survived for 14 days but were killed for examination. The results (Figure 7) revealed that the livers of mice in group 2 were severely swollen and discolored, and the liver index increased (p < 0.05). However, the livers of the mice in the three other experimental groups were normal, and the liver indexes of groups 3 (p < 0.01), 4 (p < 0.05), and 5 (p < 0.05) were similar to that of the control group. These results clearly show that degradation by pyrite remarkably reduces the acute toxicity of CYN.

3. Materials and Methods

3.1. Reagents

CYN standard (25 μg solid, purity ≥95% by HPLC) was purchased from Express Technology Co., Ltd. and stored at −25 °C. CYN stock solution was prepared by adding water to dissolve the CYN standard and then stored at 4 °C. DMPO (≥98.0% GC) for ESR-spectroscopy and technical-grade HA (ign. residue 20%) were obtained from Sigma–Aldrich Co. (St. Louis, MO, USA) Chromatographic grade methanol and acetonitrile were obtained from Merck Co. (Kenilworth, NJ, USA) All reagents were used without further purification. Deionized and doubly distilled water were used throughout this study. Other chemicals were of analytical reagent grade.

Pyrite (FeS₂) samples were provided by the Central–South Research Institute of Metallurgical Geology (Hubei, China). Pyrite was washed to remove natural contaminants, and ground and sieved (100 mesh) to obtain crystal particles (≤150 μm). The molecular formula of FeS₂ was Fe_1.024S_1.975Ca_0.001 from an electron probe micro-analyzer (EPMA)(JXA-8230, JEOL, Akishima, Japan). The crystalline phases of pyrite were characterized by Ultima IV X-ray diffractometry (Rigaku, Japan) with Cu K_α radiation (λ = 1.54178 Å) and a scan rate of 2.4°/min from 20° to 80°. The results (Figure S2) revealed the typical pyrite structure of the isometric system with unit cell parameters a = b = c = 5.418 Å (z = 4). The Fe atom occupied the corner top and center of the cube cell. At the same time, the S atom consisted of the dumbbell-shaped sulfur [S₂]²⁻, and the center was located at the center of the crystal cell and body center. The valence state of the metal elements provided them with good catalytic activity. The characteristic peaks of the primary components were designated with asterisks (*), and they compared well with the reference material (JCPDS 42-1340). The specific surface area was 1.12 m²/g, which was determined by using a BELSORP-mini II BET instrument (MicrotracBEL, Osaka, Japan). pH_PZC was 6.4, which was detected by using a Zetasizer Nano Zeta potentiometer (Malvern, UK).

3.2. Photocatalytic Process

Degradation reactions were carried out in 10 mL brown reaction vessels. Exactly 5 mL of 2.0 mg/L CYN and 2.5 mg of pyrite powder (optimum dosage under experimental conditions shown in Figure S3) were placed in the reaction vessel. The solution pH was not adjusted, and the pH of the suspensions was measured to 6.5 ± 0.2. The light source was a 500 W halogen lamp (Institute of Electric Light Source, Beijing, China) positioned in an XPA series photochemical reaction instrument. A cut-off filter (diameter of 3 cm) was placed outside the Pyrex jacket to eliminate any radiation at a wavelength below 420 nm and to ensure illumination by visible light only. The distance between the reaction vessel and the light source was 10 cm. Prior to degradation, the suspensions were magnetically stirred in the dark for 2 h to ensure that adsorption/desorption equilibrium was established. At specific time intervals, 300 μL aliquots of the reaction mixture were collected, centrifuged, and then filtered through a Millipore filter (pore size of 0.22 μm) to remove the solid particles prior to the analysis using the methods described below. The selective degradation of pyrite toward CYN in the presence of NOM was tested using HA, which is a complex mixture of different acids that contain carboxyl and phenolic groups and is the major NOM in many natural waters [11,18,19]; thus, it is usually used as a model NOM.

3.3. Analytical Methods

CYN was determined using HPLC (Agilent 1200, Santa Clara, CA, USA) with a UV detector and a C18 reverse-phase column (5 μm; 4.6 mm i.d. × 250 mm, Kromasil). Gradient elution for the determination of CYN began from 2% methanol and 98% water, followed by a linear increase of methanol to reach 20% at 10 min. The injection volume was 20 μL. The flow rate was 0.40 mL/min, and the detection wavelength was 262 nm. Under these conditions, the elution time for CYN was approximately 6.6 min (Figure S4).

Hydroxyl radical levels were tested by EPR 300E spectrometer (Bruker, Germany) equipped with a Quanta-Ray Nd:YAG laser (355 and 532 nm) for the measurement of the ESR signals of ^•OH spin-trapped 5, 5-dimethyl-1-pyrroline N-oxide (DMPO). Measurement conditions were as follows: center field, 3486.7 G; sweep width, 100 G; microwave frequency, 9.82 GHz; and power, 5.05 mW. The same quartz capillary tube was used for all ESR measurements to minimize experimental errors. The concentration variations of H₂O₂ during the photodegradation were determined by the N, N-diethyl-p-phenylenediamine method [20].

Reaction intermediates were monitored using a liquid chromatography tandem mass spectrometry (LC/MS) instrument (Agilent 1200 LC/6420 ion trap MS, Santa Clara, CA, USA) with an electrospray ionization interface by full scanning from m/z 50 to 600 in the positive ion mode.

The acute toxicity testing of CYN degradation products was evaluated by the maximum tolerance method. Kunming mice (KM) (16–20 g, 50 males and 50 females) were used in the study. All mice were randomly and equally assigned to five groups (one control group and four experimental groups) and housed in an animal holding room, which was kept at 20–25 °C and 40–60% relative humidity with a regime of a 12 h light/dark cycle. These mice were fasted for 12 h before the experiment but had no restriction of drinking water. Within 24 h, treated (5 h) CYN solutions were administered by i.g. injection at doses of 10, 20, and 30 mL/kg body weight. Distilled water with equal volume was injected into the mice in the control group. All mice were released from fasting after being injected. After 48 h, the animals were observed closely. The body weight, appearance, and diet of these mice were recorded daily throughout the 14-day test period. After 15 days of administration, the mice were anesthetized with 1% pentobarbital sodium to weigh their bodies and livers to calculate liver index (liver weight/body weight, %).

4. Conclusions

Pyrite was employed to decompose CYN, whose half-life was reduced by 99%. During the degradation of CYN, pyrite was reusable and Fe leaching was scare after five continuous cycles. It was remarkable that the degradation of CYN by pyrite was not affected by NOM, even if the concentration of HA exceeded that of CYN by a factor of 10. The degradation is attributed to the oxidation of ^•OH generated from oxygen reduction to remove the uracil moiety, which is the toxic unit of CYN. Even though the TOC removal rate of CYN was only 47% after 2 h of visible light irradiation, the degradation products were non-toxic. In summary, pyrite has promising application prospects in predominantly detoxifying CYN in the presence of NOM because pyrite targets the uracil ring. This study indicates that pyrite is an efficient means for the remediation of natural water polluted by CYN and gives new insights into the reactivity of pyrite toward environmental contaminants.
